Part8: The control of scatteredradiation

2. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
the control of scattered radiation
The significance of scatter

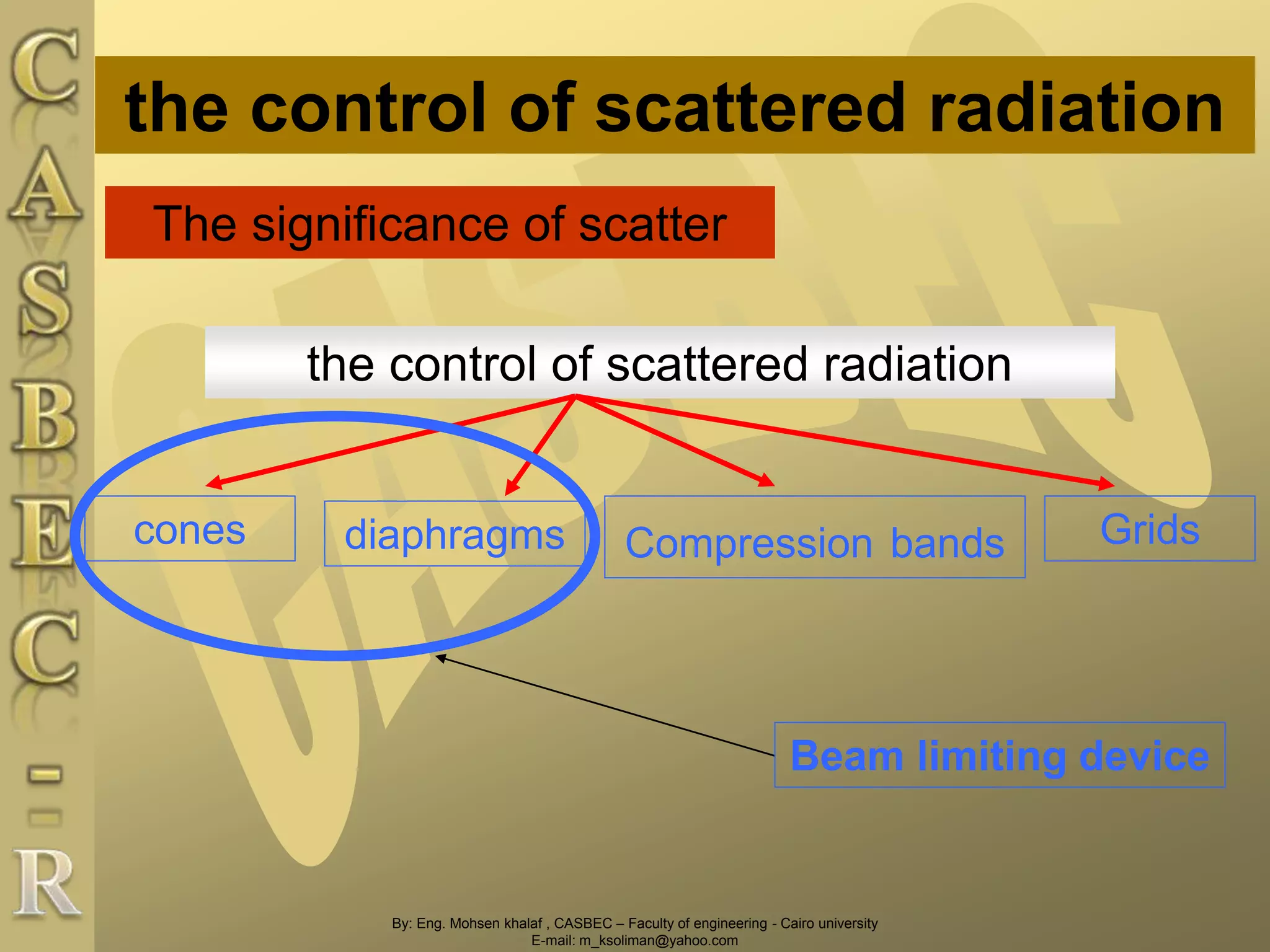

diaphragms Compression bands Grids

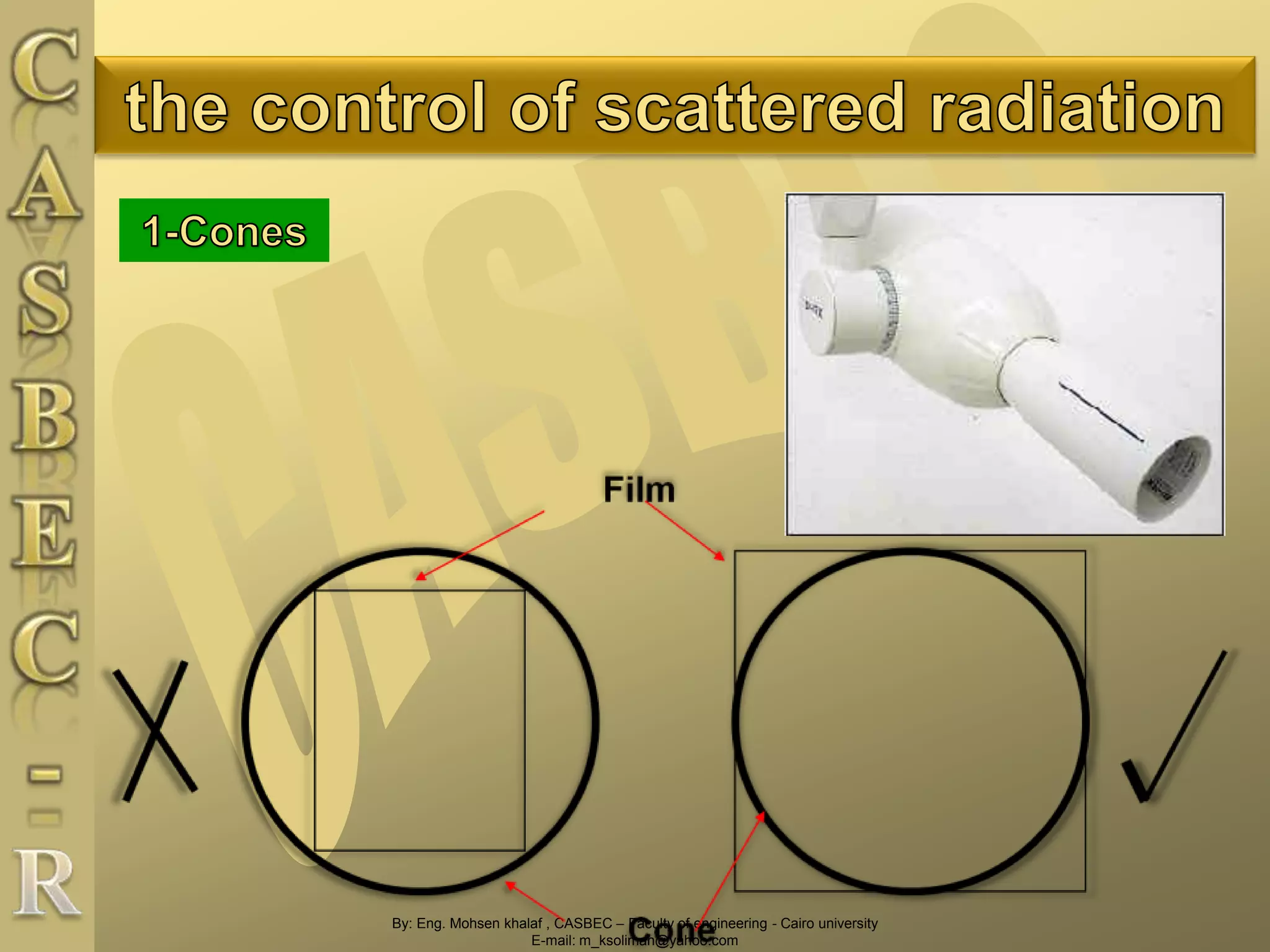

cones
the control of scattered radiation
Beam limiting device

3. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

4. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
4

5. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
5

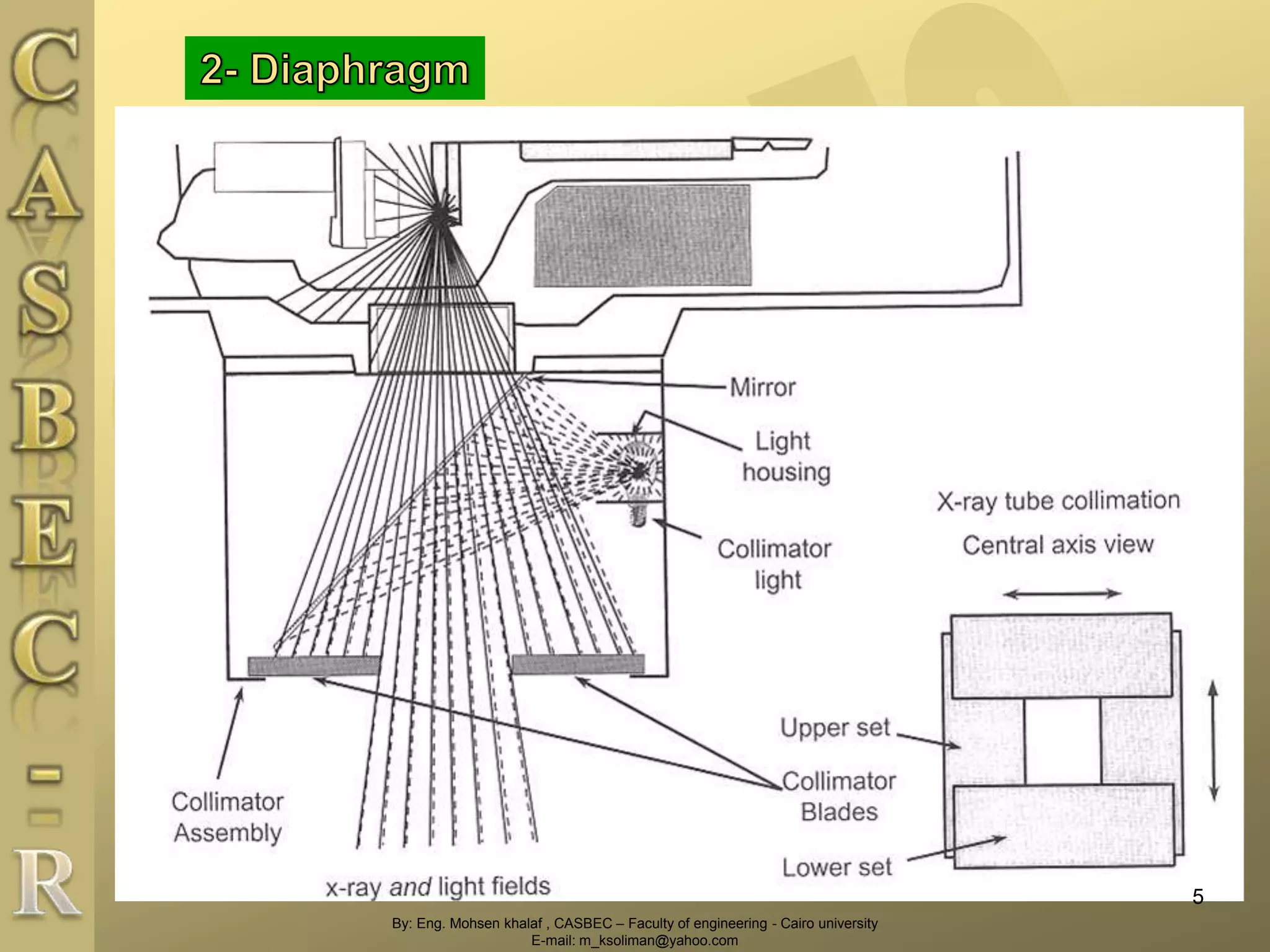

6. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
6

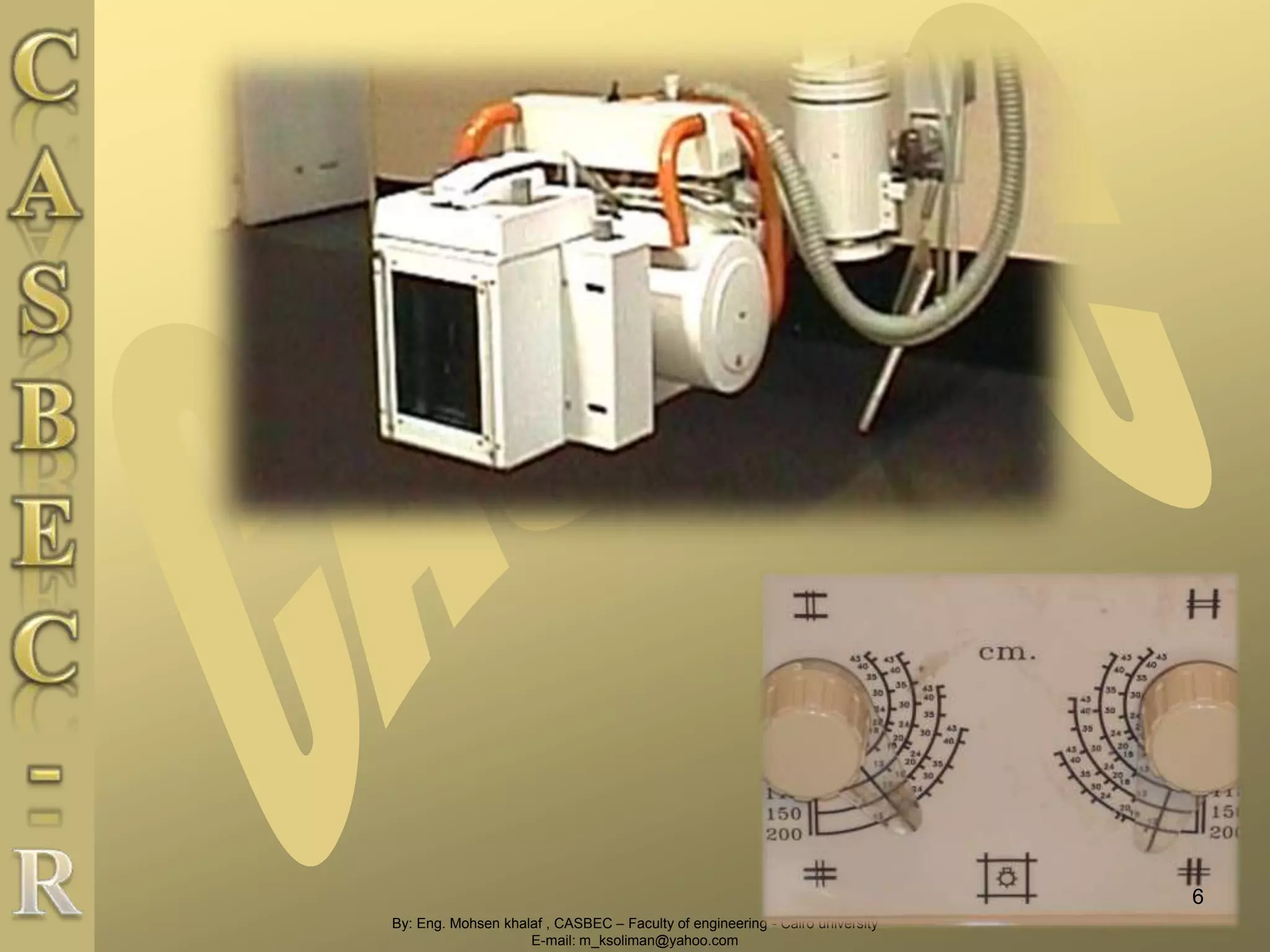

7. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
7

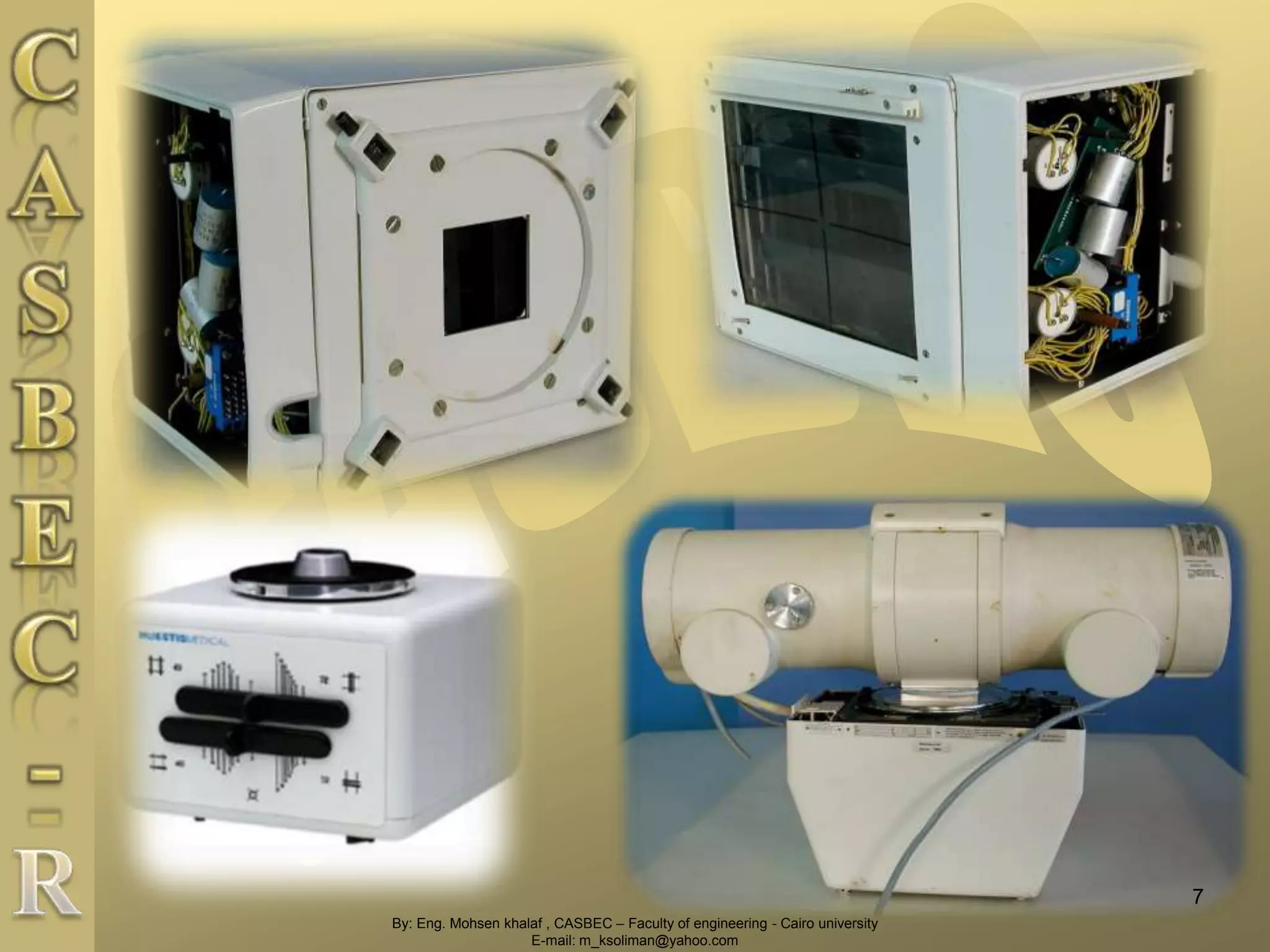

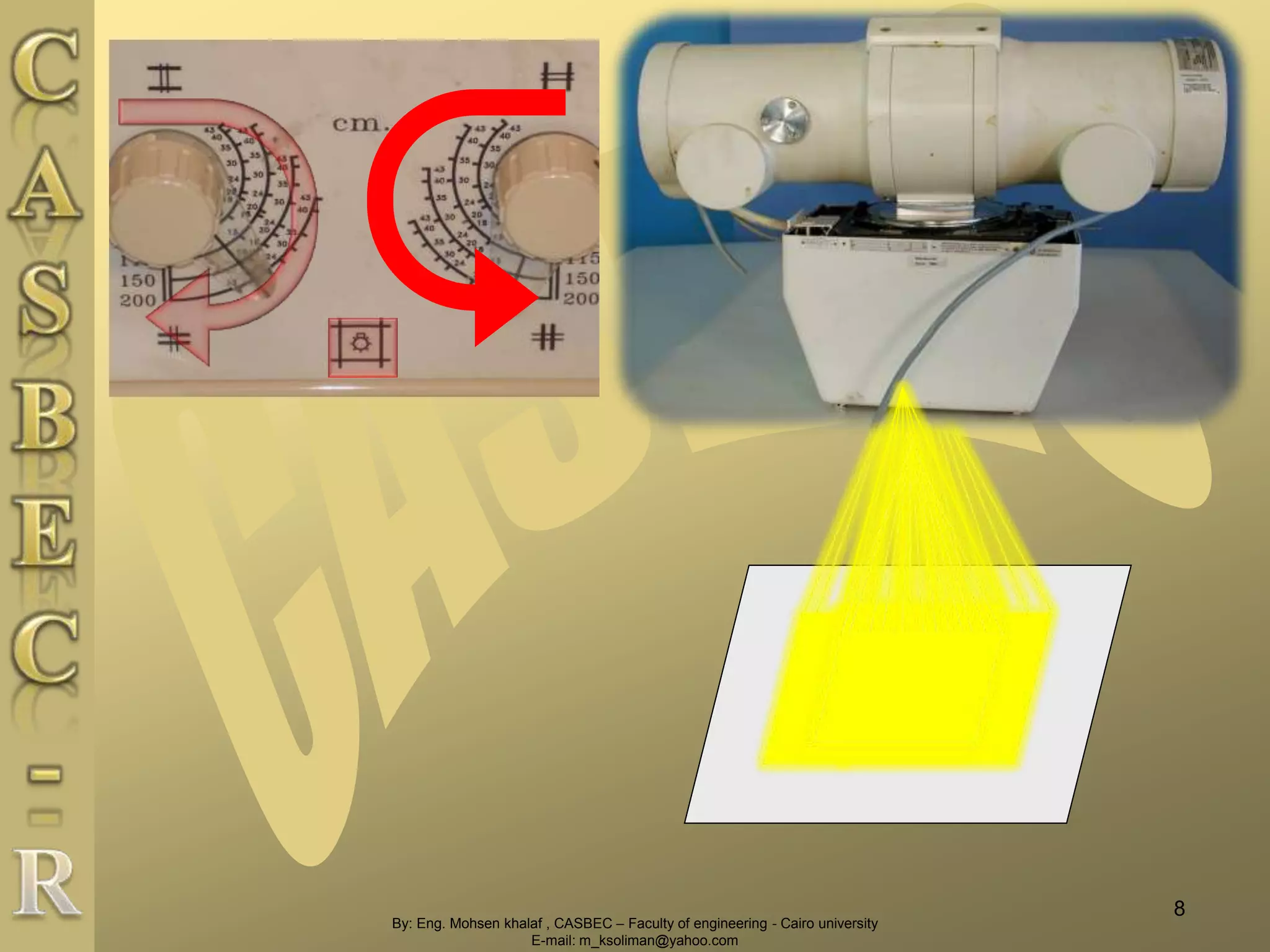

8. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
8

9. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
9

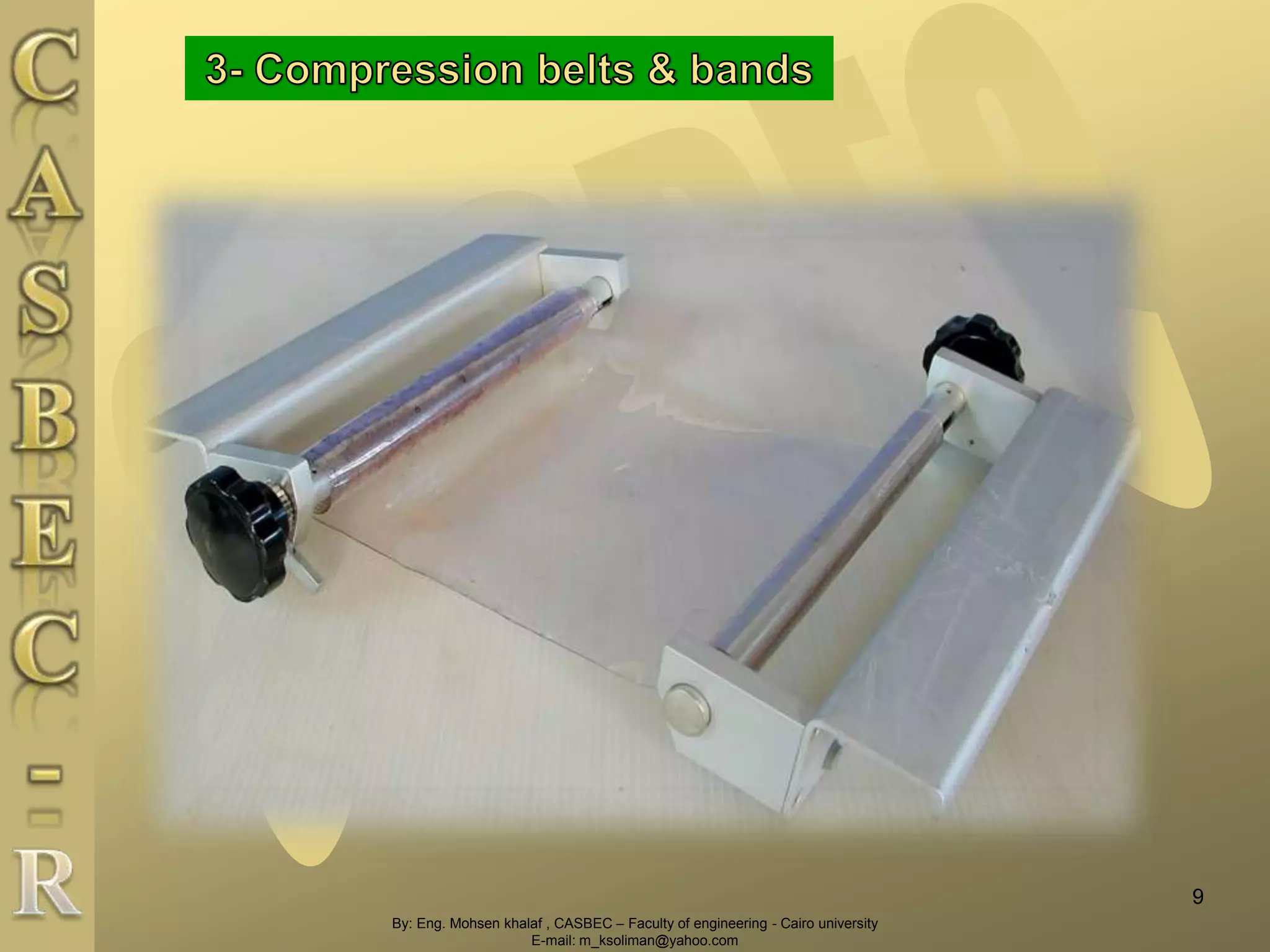

10. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

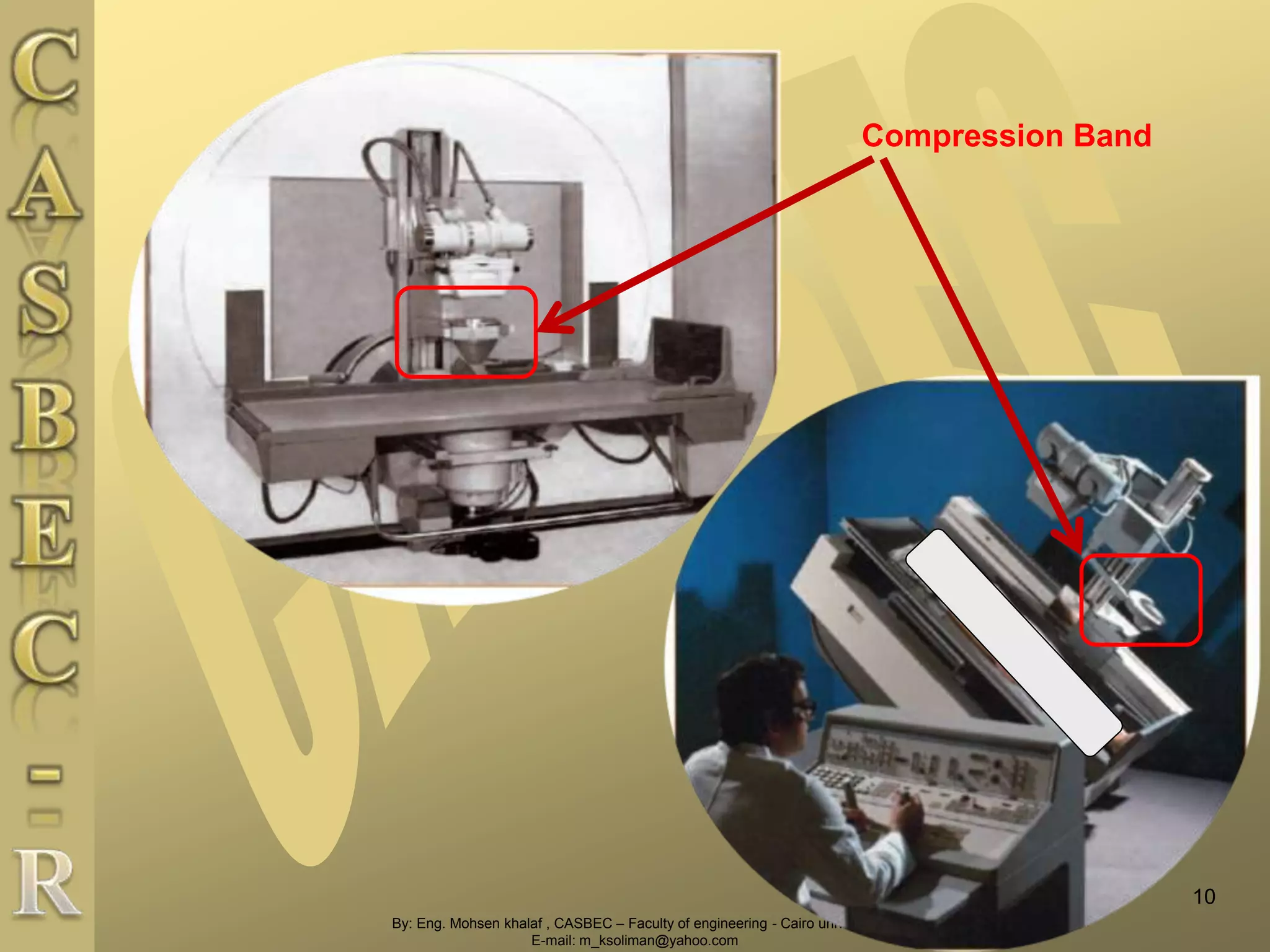

Compression Band
10

11. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

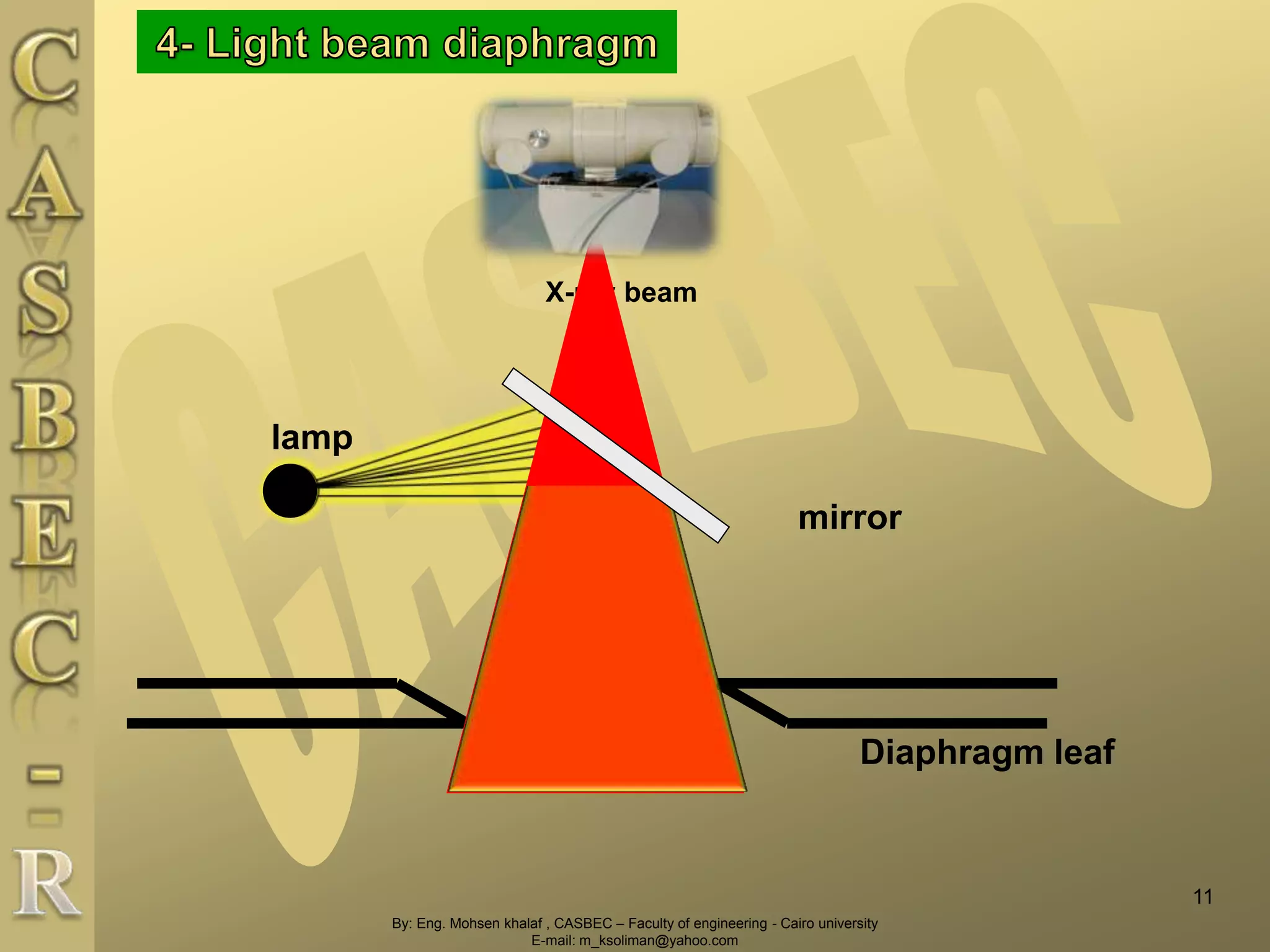

X-ray beam
lamp
Diaphragm leaf
mirror
11

12. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
12

13. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

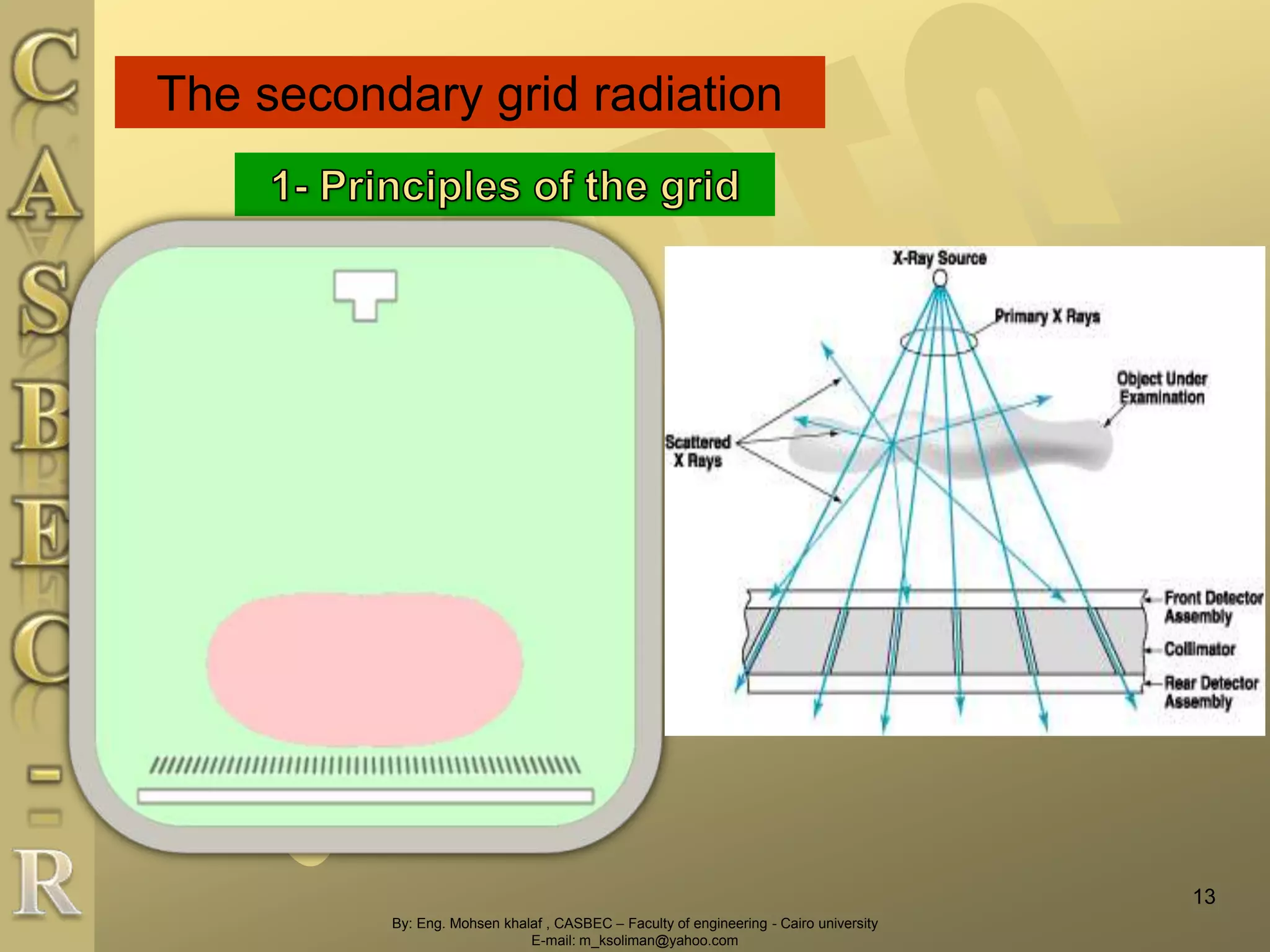

The secondary grid radiation
13

14. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
14

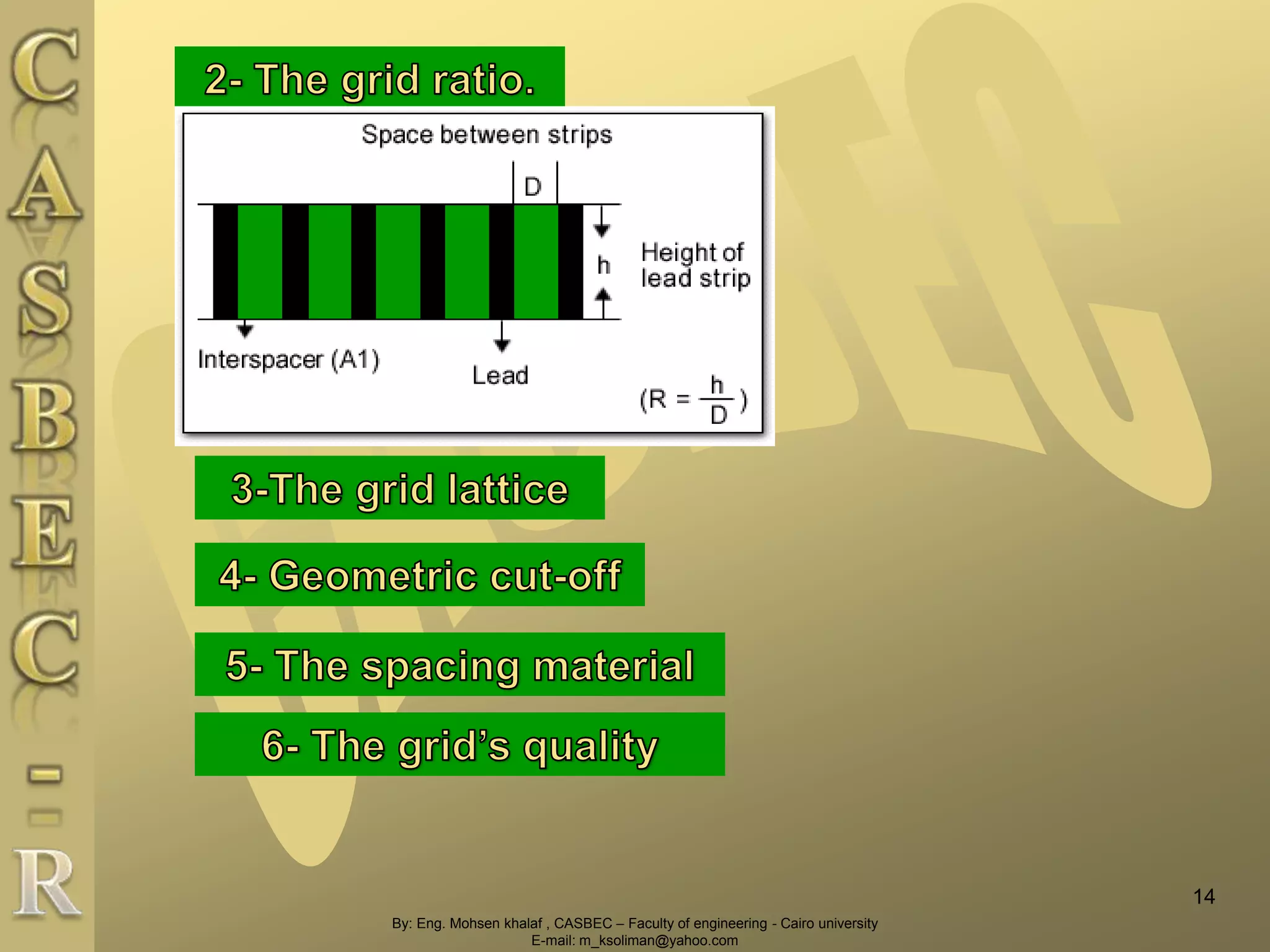

15. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

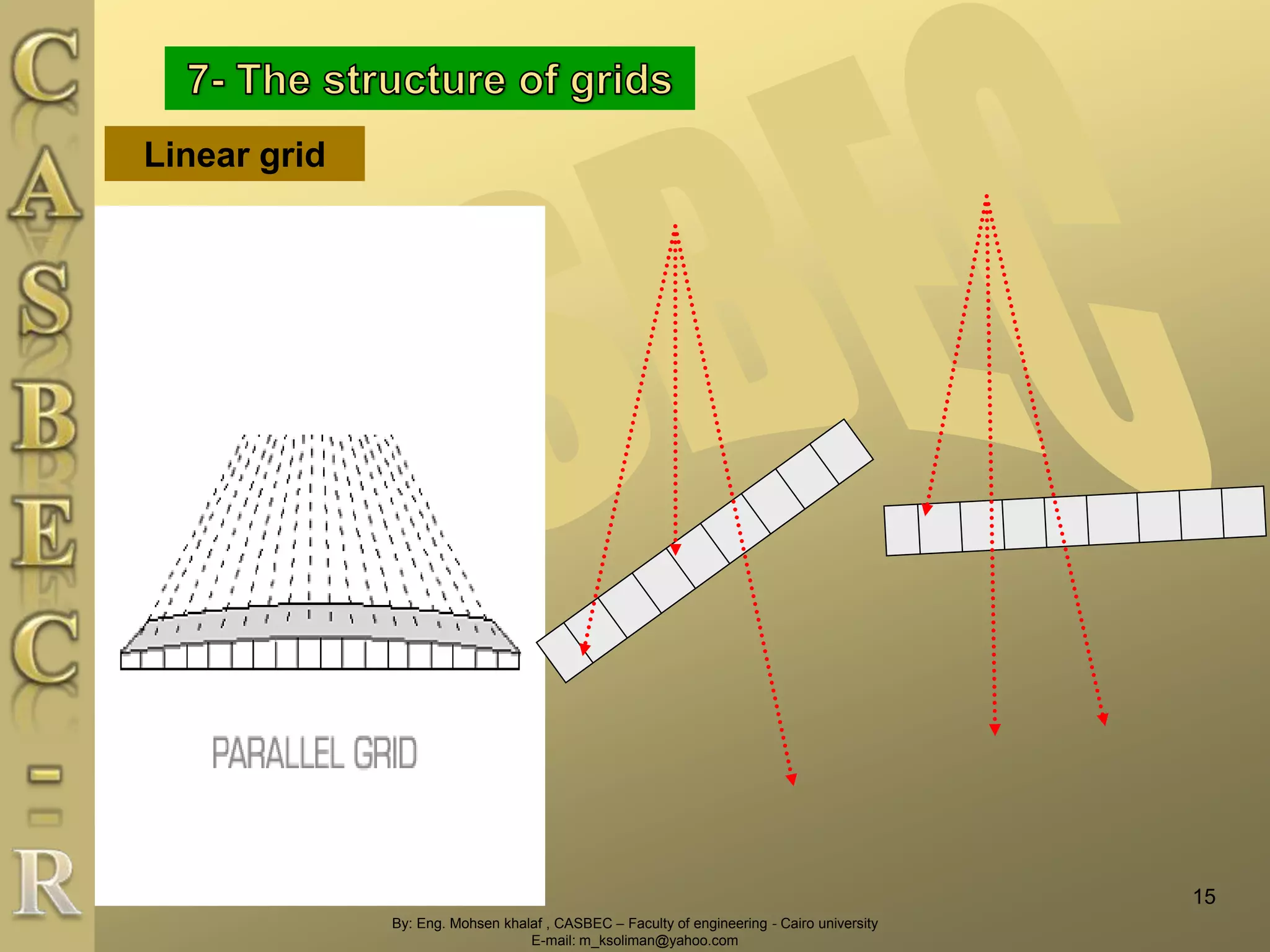

Linear grid
15

16. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

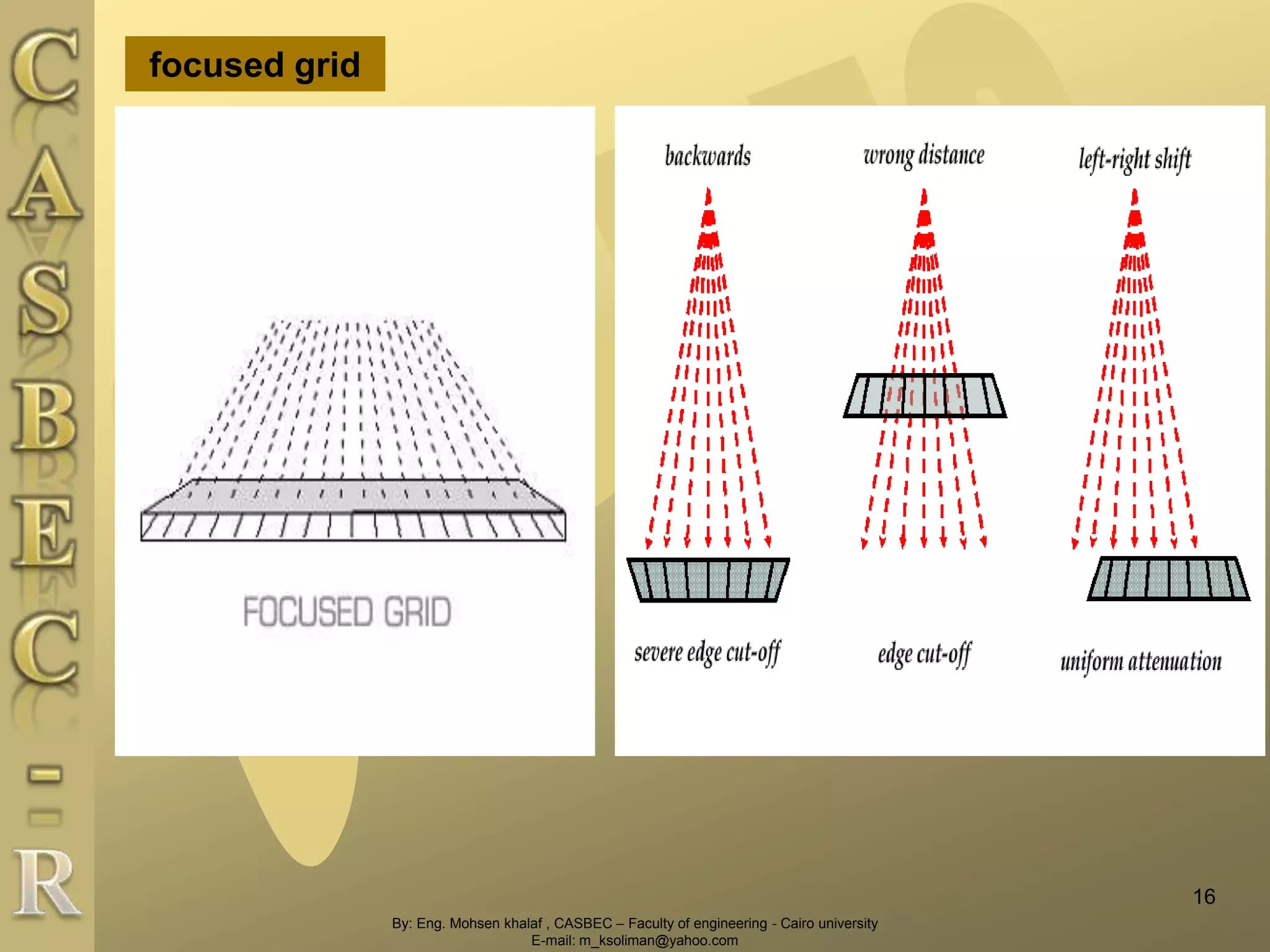

focused grid
16

17. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

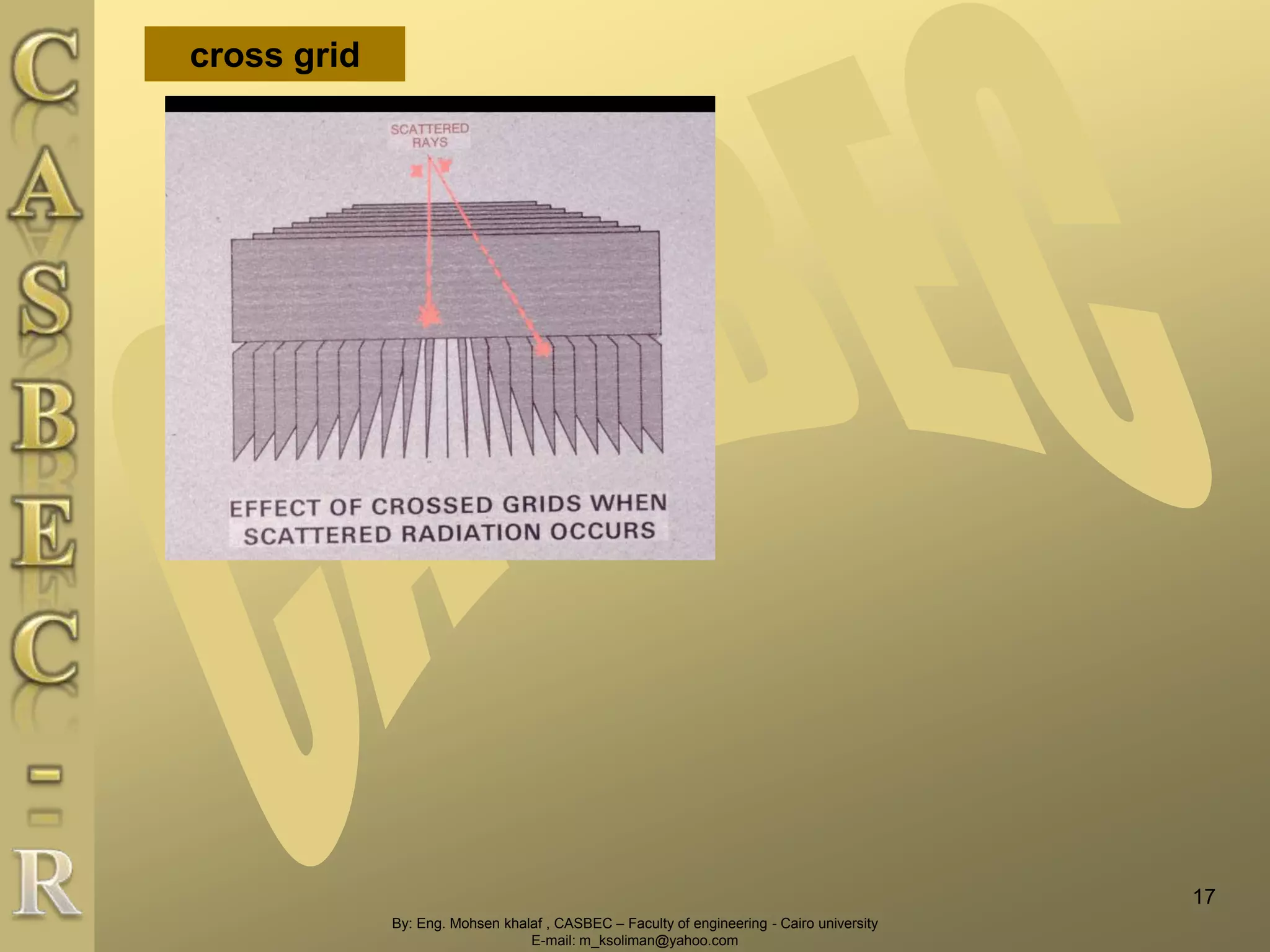

cross grid
17

18. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
8- Grid movement
Feature common to all types of bucky
assemblies (moving grid mechanisms)
18

19. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

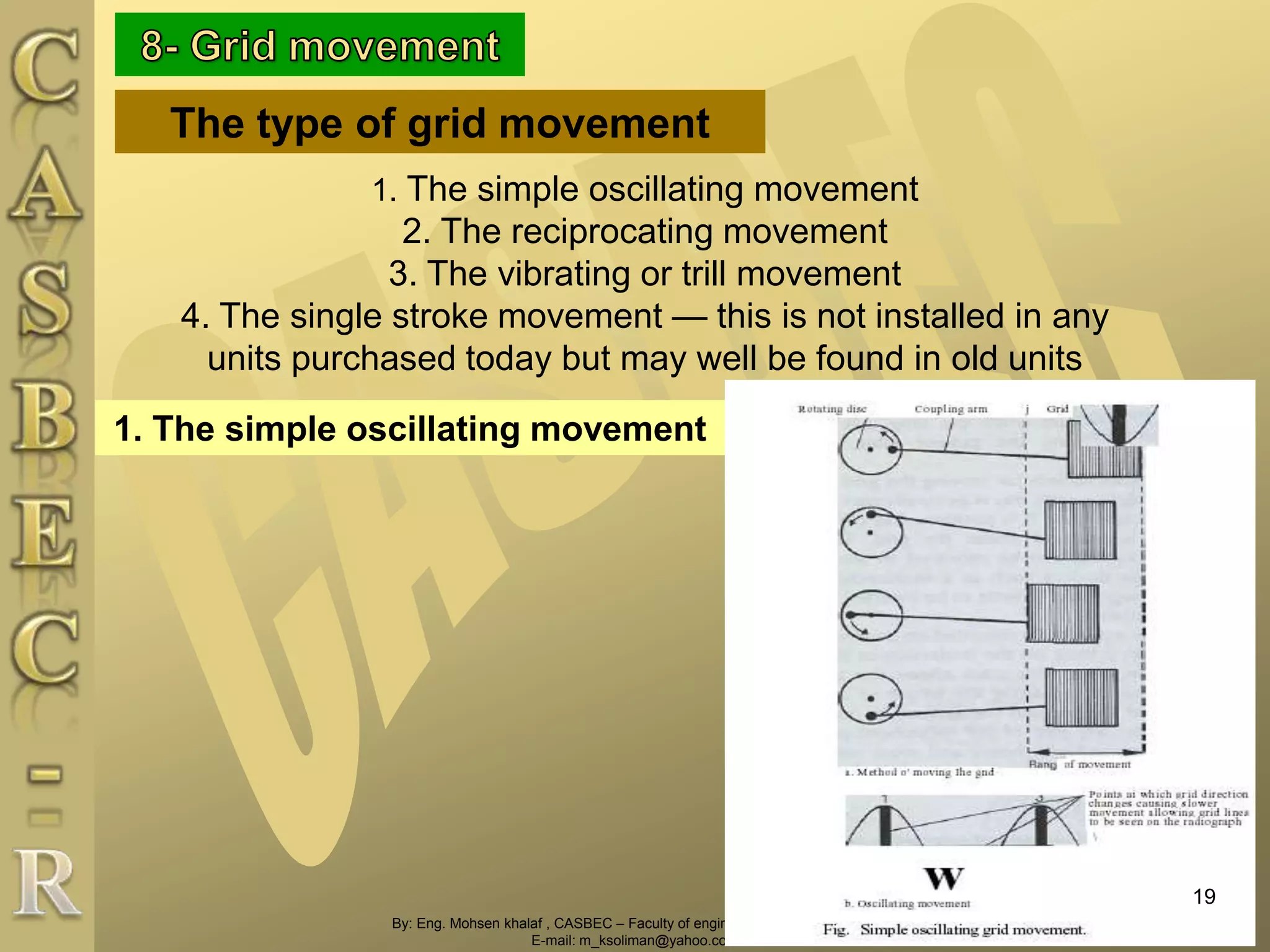

The type of grid movement
1. The simple oscillating movement
2. The reciprocating movement
3. The vibrating or trill movement
4. The single stroke movement — this is not installed in any
units purchased today but may well be found in old units
1. The simple oscillating movement
19

20. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

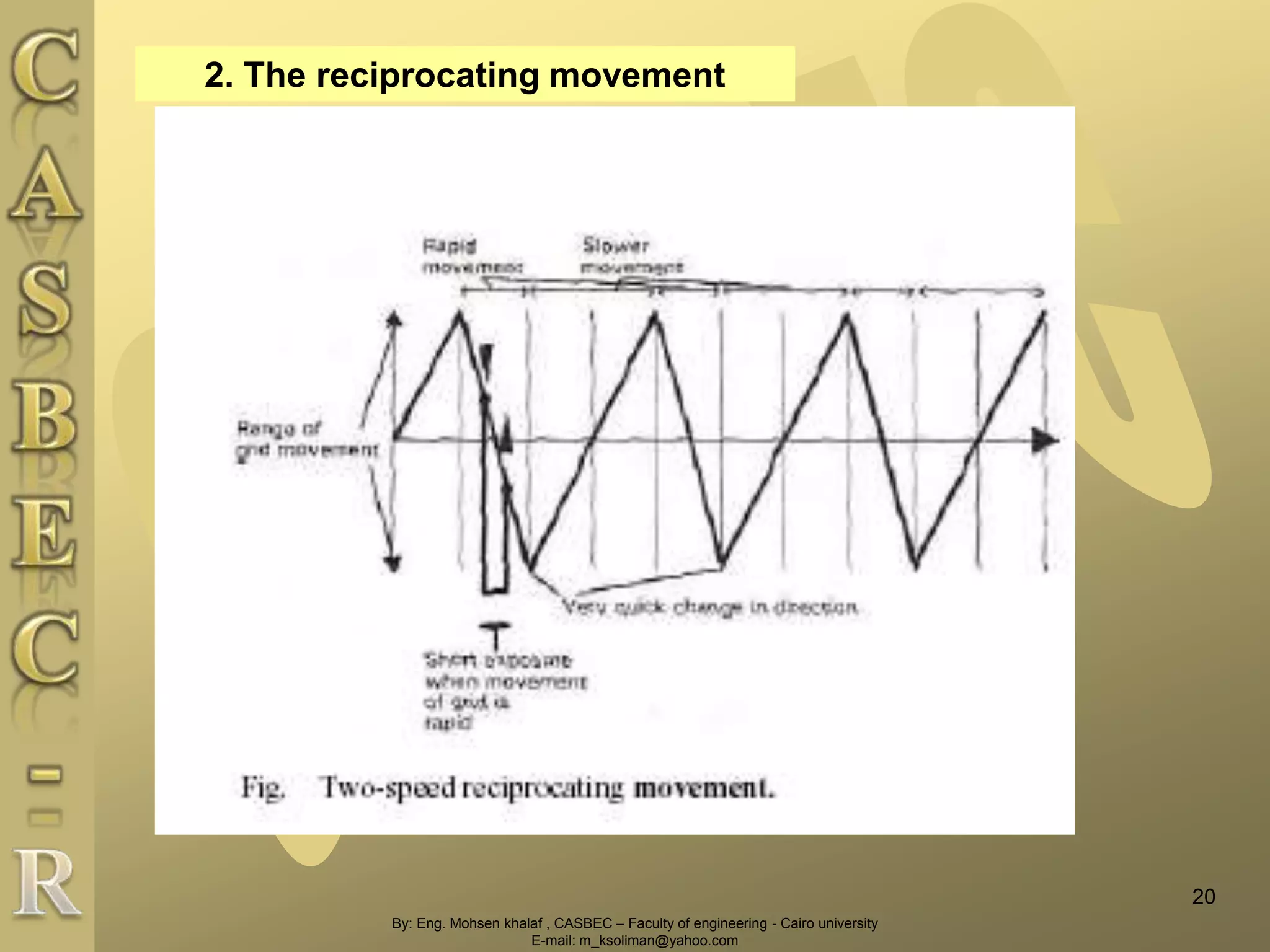

2. The reciprocating movement
20

21. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

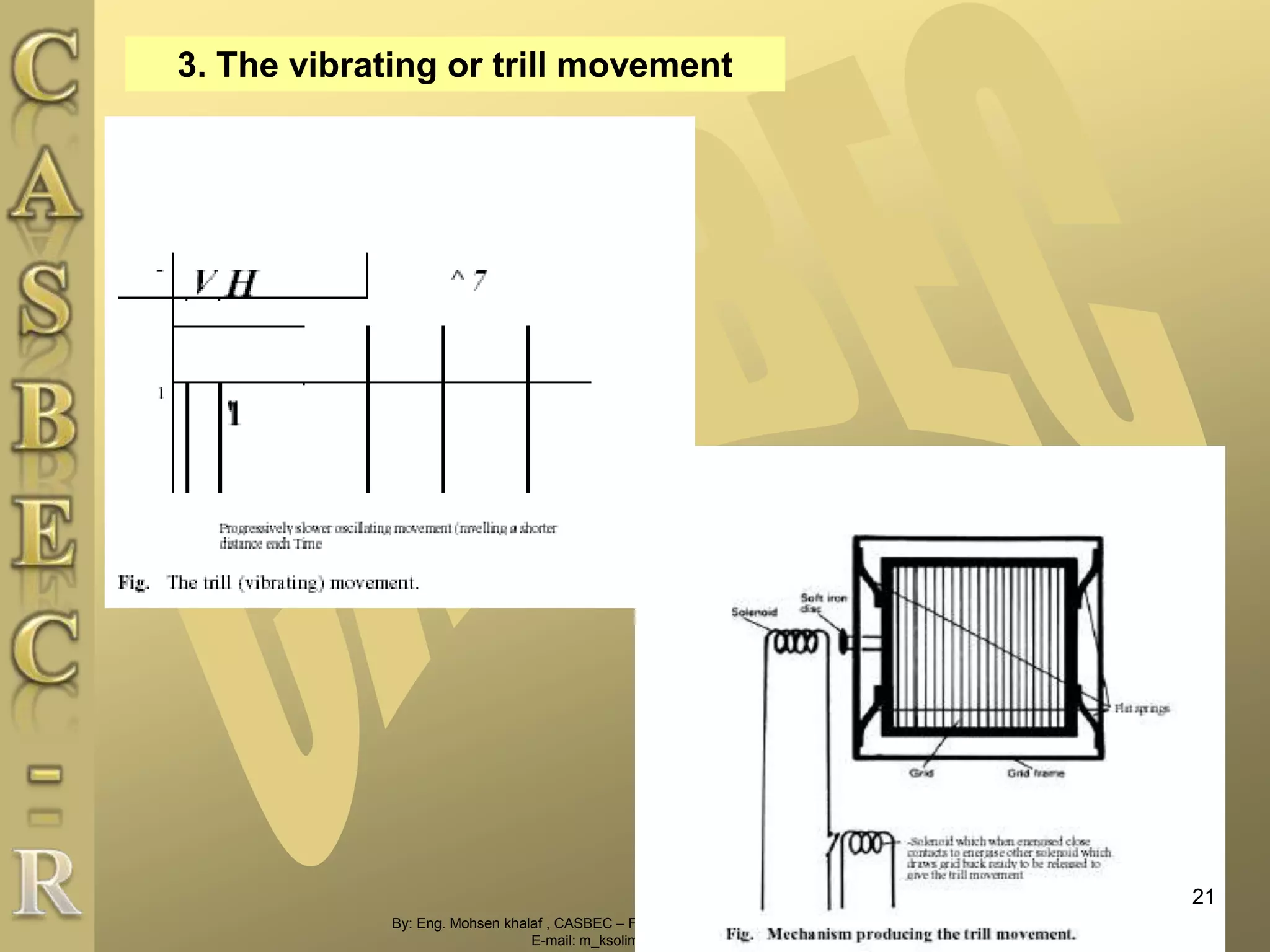

3. The vibrating or trill movement
21

22. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com

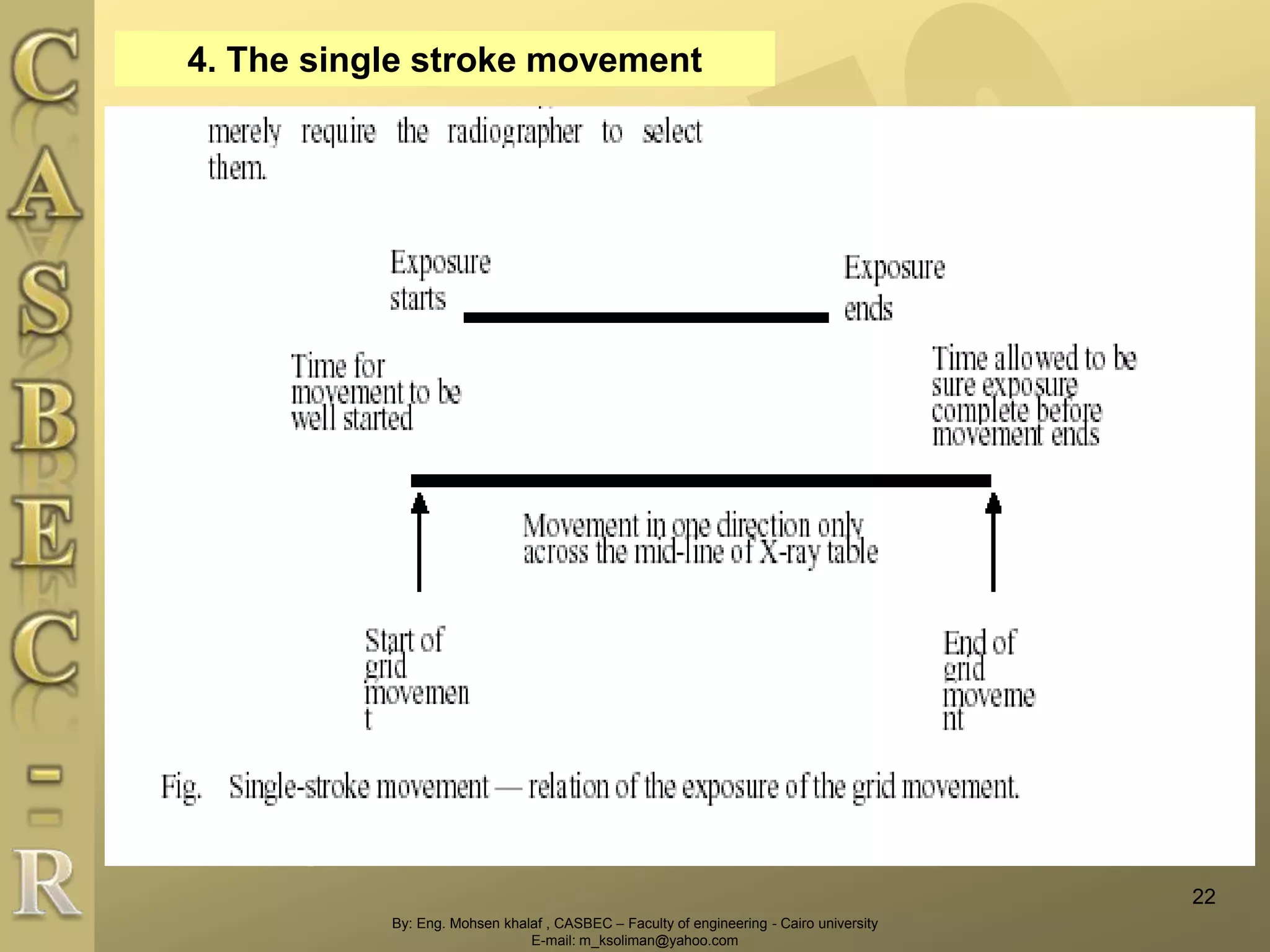

4. The single stroke movement
22

23. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
The stroboscopic effect
23

24. By: Eng. Mohsen khalaf , CASBEC – Faculty of engineering - Cairo university
E-mail: m_ksoliman@yahoo.com
Grid selection
