Virtual memory allows main memory to act as a cache for secondary storage, using paging to map virtual addresses to physical addresses. This provides efficient and safe memory sharing between programs by allowing them to access memory beyond the limits of RAM. It also eliminates the need for programs to have adjacent memory spaces. Virtual memory improves performance through the use of a translation lookaside buffer (TLB) cache to speed up virtual to physical address translations.

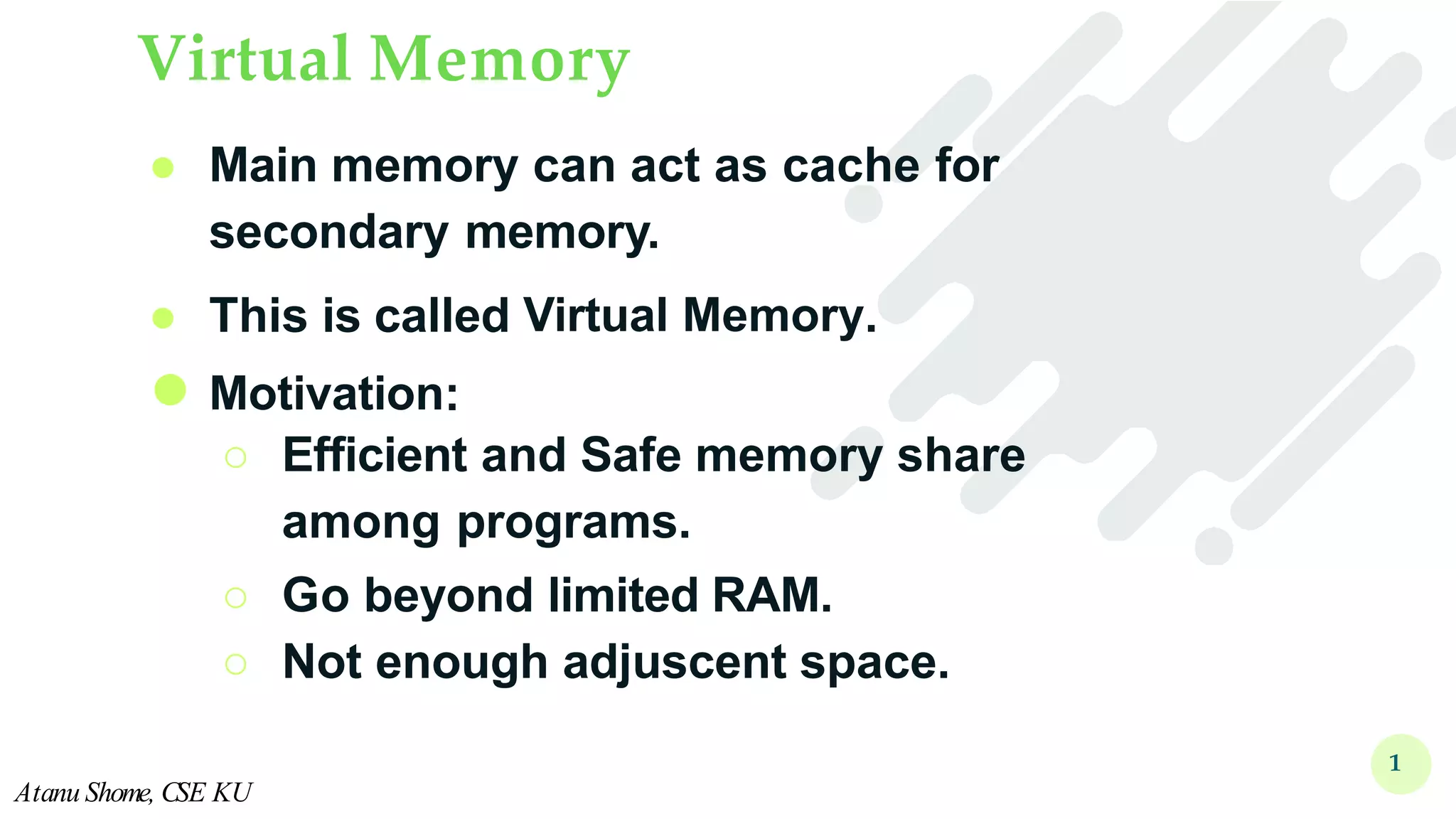

1. Virtual Memory
1
Atanu Shome, CSE KU
● Main memory can act as cache for
secondary memory.
● This is called Virtual Memory.
● Motivation:
○ Efficient and Safe memory share
among programs.
○ Go beyond limited RAM.
○ Not enough adjuscent space.

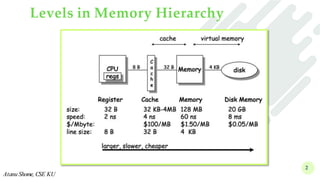

2. Levels in Memory Hierarchy
2
Atanu Shome, CSE KU

3. A System with Virtual Memory
3
Atanu Shome, CSE KU

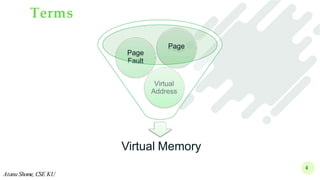

4. Terms
Virtual Memory
Page
Page
Fault
Virtual
Address
4
Atanu Shome, CSE KU

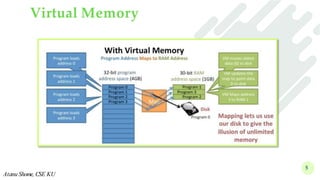

5. Virtual Memory
5
Atanu Shome, CSE KU

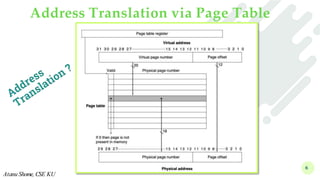

6. Address Translation via Page Table
6
Atanu Shome, CSE KU

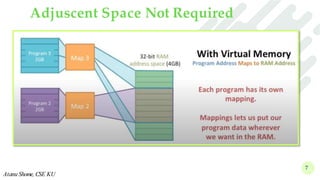

7. Adjuscent Space Not Required
7
Atanu Shome, CSE KU

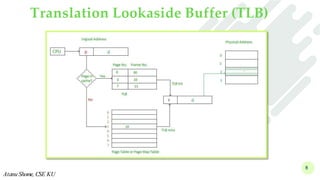

8. Translation Lookaside Buffer (TLB)
8
Atanu Shome, CSE KU

9. Translation Lookaside Buffer (TLB)
9
Atanu Shome, CSE KU
