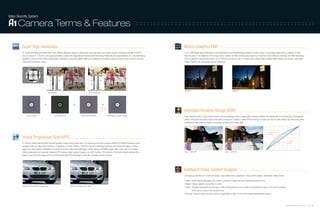

![Video Security System
Camera Terms & Features :::::::::::::::::::::::::::::::::::::::::::::::::::
Super High-Resolution Motion Adaptive DNR
A1 camera technology eliminates false colour artifacts (Moire) by utilising a special optical low pass filter and is able to resolve a horizontal resolution of 600 TV The A1 DNR (Digital Noise Reduction) function eliminates noise thus generating a distinct and clear image. A1 technology utilises both an adaptive 2D filter
lines, by means of 12 Bit A/D serial signal processing coupled with image element enhancement technology. Additionally, the implementation of a 3 line processing reducing noise in the brightness of the image and an adaptive 3D Filter reducing noise caused by movement. These filters are combined with DNIe technology
algorithm to prevent noise under low illumination applications, directional adaptive filtering and adjustment of aperture gain by luminance level combine to provide which is applied to Samsung Electronics’ CCTV monitors. The result is that A1 camera series support Motion Adaptive DNR function that removes noise (Fixed
a more vivid and clearer image. Pattern, Random, etc.) and greatly reduces motion blur.
DNR OFF DNR ON
conventional A1 Hi-Resolution
Advanced
Digital Filter eXtended Dynamic Range (XDR)
Source Image CCD Raw Data False colour Artifacts Samsung A1 Camera image Under strongly backlit or high contrast scenes, cameras generally produce images which reproduce detail in the brighter area of the scene.(fig1) Consequently,
detail is often lost in the darker areas of the scene. Samsung A1 cameras provide XDR technology to increase the level of visible detail in the dark areas, whilst
maintaining image clarity and detail in the brighter portions of the image. (fig2)
Correction
in Dark
Virtual Progressive Scan(VPS)
Correction
A1 camera models featuring WDR functions generate images using Double Scan CCD technology and these cameras provide VPS (Virtual Progressive Scan) in Bright
operation which can utilise either Interlace or Progressive scanning methods. This VPS is unique to Samsung Electronics and ensures the edges of moving
objects are clearly defined. Applications for Samsung cameras utilising this technology include highway and ANPR projects. When used with LCD monitors
offering progressive scan operation, Samsung VPS produces visibly superior images to non-VPS cameras. The problems of the blurred edges resulting from Fig 1 – XDR OFF Fig 2 – XDR ON
delays in even/odd field image scanning, are eliminated when VPS technology is used with a network product (encoder).
Intelligent Video Content Analysis
The Samsung Electronics A1 series of cameras, also provide built-in capability for video content analysis. Operational modes include:
• Fixed : Senses objects that appear and remain in a scene for longer than a pre-determined period of time.
• Moved : Detects objects removed from a scene
Interlace Transmission (Delayed edge) VPS Transmission (Clear edge) • Fence : Provides virtual electronic area [Area mode] and directional line [Line mode] and generates an alarm in the event of a breach
of the area or a cross of the directional line.
• Tracking : Tracks an object through a scene and generates an alarm in the event of abnormal directional changes.
Samsung Video Security System | 14 . 15](https://image.slidesharecdn.com/09-10vsscameras-111018153647-phpapp02/85/09-10-vss-cameras-7-320.jpg)

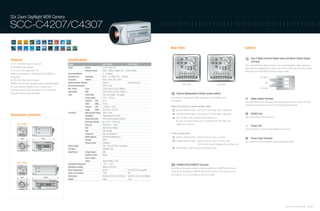

![32x Zoom DayNight WDR Camera
SCC-C4207/C4307 ::::::::::::::::::::::::::::::::::::::::::::::::
Rear Parts Exterior
Day & Night External Signal Input and Alarm Signal Output
Features Specifications Terminal
• 1/4" 410K/470K Pixels Ex-View CCD Model SCC-C4207 SCC-C4307 This is the terminal that allows connection to an external brightness sensor (optional) to
• DIS (Digital Image Stabilizer) Image Device 1/4" Ex-View CCD trigger switching between black & white or color mode. It also sends out an alarm signal
• 32x zoom Lens (digital zoom:10x) Effective Pixels NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V) when linked to the MOTION DET function or black & white.
• Min. scene illumination : 0.002(color)/0.0002(B/W) Lux Scanning Method 2 : 1 Interlace
• Day/Night Scanning Line Horizontal NTSC : 15.750Hz / PAL : 15.625Hz Day & Night IN
• 128x WDR (Wide Dynamic Range) Frequency Vertical NTSC : 60Hz / PAL : 50Hz 1
• Motion detection (with adjustable zones and sensitivity levels) Synchronization Method Internal Internal/Line lock GND
SCC-C4207 SCC-C4307
Horizontal Resolution 480 TV Lines 2
• Privacy protection that allows up to 8 privacy zones
Min. Scene Color 0.002 (Sens-up 160x,15IRE)Lux Alarm Output
• Remote control through RS485(using SSC-1000/5000)
Illumination B/W 0.0002 (Sens-up 160x,15IRE)Lux
• Excellent signal-to-noise ratio(50dB) Camera Manipulation Switch (setup switch)
Lens Zoom Ratio 320x (32x Optical, 10x Digital)
Focal Length 3.55 ~ 113mm The functions of these parts will differ, depending on the operation mode Video Output Terminal
Aperture Tele F4.17 of the camera.
This is the terminal that is connected to the video input terminal of a monitor. The video
Ratio Wide F1.69
images from the camera are sent to the monitor through this terminal.
Viewing Tele 1.78˚(H) x 1.34˚(V) • When the camera is in general operation mode :
Angle Wide 56.41˚(H) x 43.01˚(V) Up/Down Direction Switch : Zoom Tele or Zoom Wide switch, respectively.
Functions Wide Dynamic Range Off/On (128x)
Left/Right Direction Switch : Near Focus or Far Focus switch, respectively. RS485 Port
Dimensions (unit:mm) Day/Night Color/BW/Auto/EXT (ICR)
[SET UP] Switch: This is used to enter the setup menu : This is the RS485 remote control port.
Motion Detection Off/On (Area/Sensitivity Setting)
Electronic Shutter Off, 1/100 ~10,000 sec The user can enter the setup menu by pushing the [SET UP] switch, and
SCC-C4207 Sens Up Off/Auto (2x ~ 160x) holding it for 3 seconds.
Power LED
BLC Off/On (Area Setting)
The LED will be on if power is being supplied to the camera.
AGC Off/Low/High
Camera ID Max. 20 Characters • From the setup menu :
White Balance ATW/ATW2/AWC/Manual Up/Down Direction Switch : Used to move the cursor up or down.
Power Input Terminal
IR Filter Off/On
Left/Right Direction Switch : Used to move the cursor to the left or right. This is the terminal that is connected to the power adaptor cable.
Privacy Zones 8 (Mosaic)
Other functions may be designated by the setup menu.
Signal Output VBS 1.0Vp-p(75 Ohm, Composite)
S/N Ratio 50dB(AGC Off) [ENTER] Switch : Used to select the highlighted option.
Input/Output Image Output BNC
Remote Control RS485
Alarm Output 1
Power Terminal Block (2-pin)
SCC-C4307 Operating Temperature -10˚C ~ +50˚C
ZOOM/FOCUS REMOTE Terminal
Operating Humidity Maximum 90% RH
This is the terminal used to connect an external controller for ZOOM/FOCUS and menu
Power Requirment DC12V AC24V/DC12V compatible
control and for executing the HOME RETURN and AF functions. It can be set to one of
Power Consumption 5.5W 6W
four modes (A, B, C or D) according to the input condition.
Dimensions 60.5(W) x 59.5(H) x 126.7(D)mm 60.5(W) x 59.5(H) x 160.9(D)mm
Weight 390g 515g
Samsung Video Security System | 34 . 35](https://image.slidesharecdn.com/09-10vsscameras-111018153647-phpapp02/85/09-10-vss-cameras-17-320.jpg)
Uploaded byGpsLazio
09 10 vss cameras
This document provides information on various camera models including specifications such as imaging device, total pixels, horizontal resolution, minimum scene illumination, signal to noise ratio, lens, power requirements, day/night functionality, wide dynamic range capabilities, and privacy zones. Key details covered include camera types such as bullet cameras, dome cameras, and network cameras. Performance specifications like resolution, pixels, illumination, and signal to noise are listed for each model. Features such as day/night functionality, wide dynamic range, and privacy zones vary between models. Power requirements and lens details are also provided. The document serves as a comparison chart for the technical capabilities of the company's extensive line of camera products.
![Xc 245[1] (1)](https://cdn.slidesharecdn.com/ss_thumbnails/xc-24511-120923163558-phpapp01-thumbnail.jpg?width=640&height=640&fit=bounds)
09 10 vss cameras

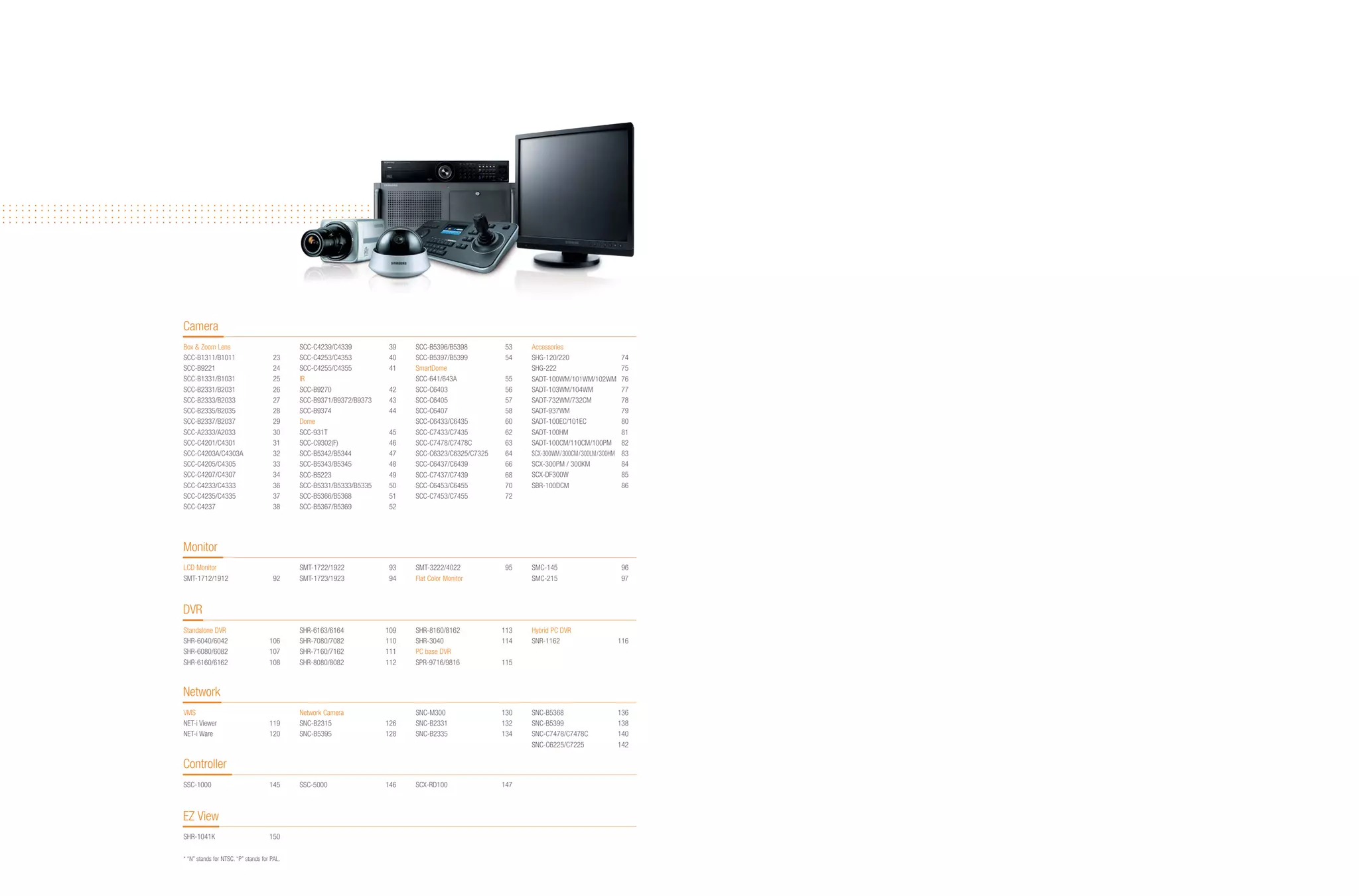

- 1. ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: ::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: Camera Box & Zoom Lens SCC-C4239/C4339 39 SCC-B5396/B5398 53 Accessories SCC-B1311/B1011 23 SCC-C4253/C4353 40 SCC-B5397/B5399 54 SHG-120/220 74 SCC-B9221 24 SCC-C4255/C4355 41 SmartDome SHG-222 75 SCC-B1331/B1031 25 IR SCC-641/643A 55 SADT-100WM/101WM/102WM 76 SCC-B2331/B2031 26 SCC-B9270 42 SCC-C6403 56 SADT-103WM/104WM 77 SCC-B2333/B2033 27 SCC-B9371/B9372/B9373 43 SCC-C6405 57 SADT-732WM/732CM 78 SCC-B2335/B2035 28 SCC-B9374 44 SCC-C6407 58 SADT-937WM 79 SCC-B2337/B2037 29 Dome SCC-C6433/C6435 60 SADT-100EC/101EC 80 SCC-A2333/A2033 30 SCC-931T 45 SCC-C7433/C7435 62 SADT-100HM 81 SCC-C4201/C4301 31 SCC-C9302(F) 46 SCC-C7478/C7478C 63 SADT-100CM/110CM/100PM 82 SCC-C4203A/C4303A 32 SCC-B5342/B5344 47 SCC-C6323/C6325/C7325 64 SCX-300WM/300CM/300LM/300HM 83 SCC-C4205/C4305 33 SCC-B5343/B5345 48 SCC-C6437/C6439 66 SCX-300PM / 300KM 84 SCC-C4207/C4307 34 SCC-B5223 49 SCC-C7437/C7439 68 SCX-DF300W 85 SCC-C4233/C4333 36 SCC-B5331/B5333/B5335 50 SCC-C6453/C6455 70 SBR-100DCM 86 SCC-C4235/C4335 37 SCC-B5366/B5368 51 SCC-C7453/C7455 72 SCC-C4237 38 SCC-B5367/B5369 52 Monitor LCD Monitor SMT-1722/1922 93 SMT-3222/4022 95 SMC-145 96 SMT-1712/1912 92 SMT-1723/1923 94 Flat Color Monitor SMC-215 97 DVR Standalone DVR SHR-6163/6164 109 SHR-8160/8162 113 Hybrid PC DVR SHR-6040/6042 106 SHR-7080/7082 110 SHR-3040 114 SNR-1162 116 SHR-6080/6082 107 SHR-7160/7162 111 PC base DVR SHR-6160/6162 108 SHR-8080/8082 112 SPR-9716/9816 115 Network VMS Network Camera SNC-M300 130 SNC-B5368 136 NET-i Viewer 119 SNC-B2315 126 SNC-B2331 132 SNC-B5399 138 NET-i Ware 120 SNC-B5395 128 SNC-B2335 134 SNC-C7478/C7478C 140 SNC-C6225/C7225 142 Controller SSC-1000 145 SSC-5000 146 SCX-RD100 147 EZ View SHR-1041K 150 * “N” stands for NTSC. “P” stands for PAL.

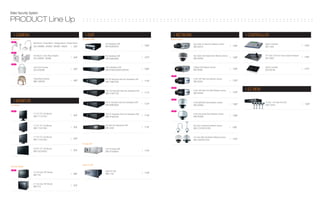

- 2. Video Security System PRODUCTLine Up :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: : CAMERA : CAMERA Box & Zoom Lens Box & Zoom Lens Dome SmartDome NEW NEW High Resolution Color Camera 34x Optical Zoom Lens Camera Super High-Resolution Day/Night Dome Camera 34x Optical Zoom High Speed Dome Camera SCC-B1311/B1011 | 23P | 38P SCC-B5331/B5333/B5335 | 50P | 66P SCC-C4237 SCC-C6437/C6439 NEW NEW Bullet Type Camera 34x Optical Zoom Lens Camera Super High-Resolution Day/Night Dome Camera 34x Optical Zoom High Speed Dome Camera SCC-B9221 | 24P | 39P SCC-B5366/B5368 | 51P SCC-C7437/C7439 | 68P SCC-C4239/C4339 NEW NEW Super High-Resolution Camera 43x Optical Zoom Lens Camera Super High-Resolution Day/Night WDR Dome Camera 43x Optical Zoom High Speed Dome Camera SCC-B1331/B1031 | 25P SCC-C4253/C4353 | 40P SCC-B5367/B5369 | 52P | 70P SCC-C6453/C6455 NEW NEW Super High-Resolution Day/Night Camera 43x Optical Zoom Lens Camera Super High-Resolution Day/Night Anti-Vandal Dome Camera 43x Optical Zoom High Speed Dome Camera SCC-B2331/B2031 | 26P SCC-C4255/C4355 | 41P SCC-B5396/B5398 | 53P SCC-C7453/C7455 | 72P Super High-Resolution Day/Night Camera Super High-Resolution WDR Anti-Vandal Dome Camera SCC-B2333/B2033 | 27P SCC-B5397/B5399 | 54P IR Accessories Super High-Resolution Day/Night WDR Camera Bullet type IR LED Day/Night Camera Indoor / Outdoor Housing | 28P SCC-B9270 | 42P SHG-120/220 | 74P SCC-B2335/B2035 SmartDome Super High-Resolution Day/Night Camera Bullet type IR LED Day/Night Camera 22x Zoom SmartDome Camera Outdoor Housing | 29P | 43P | 55P | 75P SCC-B2337/B2037 SCC-B9371/B9372/B9373 SCC-641/643A SHG-222 Super High-Resolution Day/Night Camera Anti-Vandal Dome IR LED Day/Night Camera 32x Zoom Day/Night SmartDome Camera Wall Mount Adaptor | 30P SCC-B9374 | 44P | 56P | 76P SCC-A2333/A2033 SCC-C6403 SADT-100WM/101WM/102WM 22x Zoom Lens Camera 22x Power Zoom Day/Night WDR SmartDome Camera Wall Mount Adaptor SCC-C4201/C4301 | 31P SCC-C6405 | 57P SADT-103WM/104WM | 77P Dome 22x Zoom Day/Night Camera Anti Vandal Dome Camera 32x Zoom Day/Night WDR SmartDome Camera Wall Mount / Celling Mount Adaptor SCC-C4203A/C4303A | 32P | 45P SCC-C6407 | 58P SADT-732WM/732CM | 78P SCC-931T 22x Zoom Day/Night WDR Camera Anti Vandal 3-Axis Day/Night, WDR Dome Camera High Resolution SmartDome Camera Wall Mount Adaptor | 33P SCC-C9302(F) | 46P | 60P SADT-937WM | 79P SCC-C4205/C4305 SCC-C6433/C6435 32x Zoom Day/Night WDR Camera Day/Night Vari-Focal Dome Camera High Resolution SmartDome Camera Ceiling Mount Adaptor | 34P SCC-B5342/B5344 | 47P SCC-C7433/C7435 | 62P SADT-100EC/101EC | 80P SCC-C4207/C4307 High Resolution 32x Zoom Camera Day/Night Vari-Focal Dome Camera 36x Zoom SmartDome Camera Hanging Mount Adaptor SCC-C4233/C4333 | 36P | 48P SCC-C7478/C7478C | 63P SADT-100HM | 81P SCC-B5343/B5345 High Resolution WDR 32x Zoom Camera Super High-Resolution Mini Dome Camera 10x Zoom Mini SmartDome Camera Ceiling Mount / Corner Mount / Pole Mount Adaptor SCC-C4235/C4335 | 37P | 49P SCC-C6323/C6325/C7325 | 64P SADT-100CM/110CM/100PM | 82P SCC-B5223
- 3. Video Security System PRODUCTLine Up :::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::::: : CAMERA : DVR : NETWORK : CONTROLLER Accessories Standalone DVR Network Camera NEW Wall Mount / Ceiling Mount / Hanging Mount / Parapet Mount 4Ch Standalone DVR Dual Codec D1 Real-time Network Camera System Controller SCX-300WM / 300CM / 300HM / 300LM | 83P SHR-6040/6042 | 106P SNC-B2315 | 126P SSC-1000 | 145P NEW Pole Mount / Coner Mount Adaptor 8Ch Standalone DVR Dual Codec Anti-Vandal Dome Network Camera TFT Color LCD Touch Screen System Keyboard SCX-300PM / 300KM | 84P | 107P | 128P SSC-5000 | 146P SHR-6080/6082 SNC-B5395 NEW Dome Flush Housing 16Ch Standalone DVR 3 Mega-Pixel Network Camera System Controller SCX-DF300W | 85P SHR-6160/6162/6163/6164 | 108P SNC-M300 | 130P SCX-RD100 | 147P NEW Ceiling-Mount Bracket 8Ch CIF Resolution Real-time Standalone DVR H.264 4CIF Real-Time Network Camera SBR-100DCM | 86P SHR-7080/7082 | 110P SNC-B2331 | 132P 16Ch CIF Resolution Real-time Standalone DVR NEW H.264 4CIF Real-Time WDR Network Camera : EZ VIEW SHR-7160/7162 | 111P SNC-B2335 | 134P : MONITOR 8Ch D1 Resolution Real-time Standalone DVR NEW H.264 WDR Mini Dome Network Camera EZ View : 4Ch Real-time DVR SHR-8080/8082 | 112P | 136P SHR-1041K | 150P LCD Monitor SNC-B5368 NEW NEW 17"/19" TFT-LCD Monitor 16Ch D1 Resolution Real-time Standalone DVR H.264 Anti-vandal Dome Network Camera SMT-1712/1912 | 92P | 113P SNC-B5399 | 138P SHR-8160/8162 17"/19" TFT-LCD Monitor 4Ch Real-time Standalone DVR 36x Zoom SmartDome Network Camera SMT-1722/1922 | 93P SHR-3040 | 114P SNC-C7478/C7478C | 140P 17"/19" TFT-LCD Monitor 10x Zoom Mini SmartDome Network Camera SMT-1723/1923 | 94P SNC-C6225/C7225 | 142P PC base DVR 32"/40" TFT-LCD Monitor 16Ch PC Based DVR SMT-3222/4022 | 95P SPR-9716/9816 | 115P Hybrid PC DVR Flat Color Monitor NEW Hybrid PC DVR 14" Flat Color CRT Monitor | 116P SMT-145 | 96P SNR-1162 21" Flat Color CRT Monitor SMT-215 | 97P

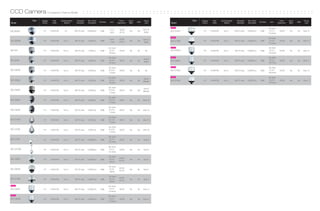

- 4. CCD Camera ComparisonChart by Model :::::::::::::::::::::: Spec Imaging Total Synchronization Horizontal Min. Scene Power Day & Privacy Model Device Pixels Method Resolution Illumination S/N Ratio Lens Requirment Night WDR Zone AC24V SCC-B1311 1/3" 410K/470K Int./L.L 540 TV Lines 0.4Lux 50dB DC/Video No No No DC12V SCC-B1011 1/3" 470K Int./L.L 540 TV Lines 0.4Lux 50dB DC/Video AC220V No No No SCC-B9221 1/3" 410K Int. 480 TV Lines 0.3Lux 48dB f=4.9mm DC12V No No No CAMERA SCC-B1331 1/3" 410K/470K Int./L.L 600 TV Lines 0.12Lux 52dB DC/Video AC24V DC12V No No Zone-12 AC220V Zone-12 SCC-B1031 1/3" 470K Int./L.L 600 TV Lines 0.12Lux 52dB DC/Video ~240V No No (Mosaic) AC24V Zone-12 SCC-B2331 1/3" 410K/470K Int./L.L 600 TV Lines 0.0002Lux 52dB DC/Video Yes No (Mosaic) DC12V AC220V Zone-12 SCC-B2031 1/3" 470K Int./L.L 600 TV Lines 0.0002Lux 52dB DC/Video Yes No (Mosaic) ~240V AC24V Zone-12 SCC-B2333 1/3" 410K/470K Int./L.L 600 TV Lines 0.00002Lux 52dB DC/Video Yes No (Mosaic) DC12V AC220V Zone-12 SCC-B2033 1/3" 470K Int./L.L 600 TV Lines 0.00002Lux 52dB DC/Video Yes No (Mosaic) ~240V AC24V Zone-12 SCC-B2335 1/3" 410K/470K Int./L.L 600 TV Lines 0.00002Lux 52dB DC/Video DC12V Yes Yes (Mosaic) Box & Zoom Lens SCC-B1311/B1011 SCC-B2335/B2035 SCC-C4205/C4305 SCC-C4239/C4339 AC220V Zone-12 SCC-B2035 1/3" 470K Int./L.L 600 TV Lines 0.00002Lux 52dB DC/Video Yes Yes (Mosaic) SCC-B9221 SCC-B2337/B2037 SCC-C4207/C4307 SCC-C4253/C4353 ~240V SCC-B1331/B1031 SCC-A2333/A2033 SCC-C4233/C4333 SCC-C4255/C4355 SCC-B2331/B2031 SCC-C4201/C4301 SCC-C4235/C4335 SCC-B2333/B2033 SCC-C4203A/C4303A SCC-C4237 AC24V Zone-12 SCC-B2337 1/3" 410K/470K Int./L.L 600 TV Lines 0.00002Lux 50dB DC/Video Yes No (Mosaic) DC12V IR AC220V Zone-12 SCC-B9270 SCC-B9371/B9372/B9373 SCC-B9374 SCC-B2037 1/3" 470K Int./L.L 600 TV Lines 0.00002Lux 50dB DC/Video Yes No (Mosaic) ~240V Dome AC24V Zone-12 SCC-A2333 1/2" 410K/470K Int./L.L 600 TV Lines 0.0000006Lux 50dB DC/Video Yes No (Mosaic) DC12V SCC-931T SCC-B5344/B5345 SCC-B5366/B5367 SCC-B5396/B5397 SCC-C9302(F) SCC-B5223 SCC-B5368/B5369 SCC-B5398/B5399 SCC-B5342/B5343 SCC-B5331/B5333/B5335 Zone-12 AC220V SCC-A2033 1/2" 410K Int./L.L 600 TV Lines 0.0000006Lux 50dB DC/Video Yes No (Mosaic) ~240V SmartDome 22x Zoom SCC-641/643A SCC-C6407 SCC-C7478/C7478C SCC-C7437/C7439 SCC-C4201 1/4" 410K/470K Int. 480 TV Lines 0.0005Lux 52dB (f=3.6~ DC12V No No No SCC-C6403 SCC-C6433/C6435 SCC-C6323/C6325/C7325 SCC-C6453/C6455 79.2mm) SCC-C6405 SCC-C7433/C7435 SCC-C6437/C6439 SCC-C7453/C7455 22x Zoom AC24V SCC-C4301 1/4" 410K/470K Int./L.L 480 TV Lines 0.005Lux 52dB (f=3.6~ No No No Accessories DC12V 79.2mm) SHG-120/220 SADT-732WM/732CM SADT-100CM/110CM/100PM SCX-300PM / 300KM 22x Zoom SHG-222 SADT-937WM SBR-100DCM SCX-DF300W (f=3.6~ SCC-C4203A 1/4" 410K/470K Int. 480 TV Lines 0.0005Lux 50dB DC12V Yes No No SADT-100WM/101WM/102WM SADT-100EC/101EC SCX-300WM / 300CM / 300LM / 300HM 79.2mm) SADT-103WM/104WM SADT-100HM

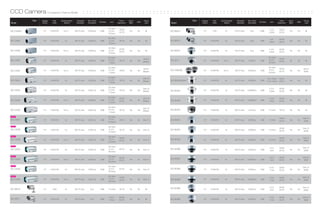

- 5. CCD Camera ComparisonChart by Model : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : Spec Imaging Total Synchronization Horizontal Min. Scene Power Day & Privacy Spec Imaging Total Synchronization Horizontal Min. Scene Power Day & Privacy Model Device Pixels Method Resolution Illumination S/N Ratio Lens Requirment Night WDR Zone Model Device Pixels Method Resolution Illumination S/N Ratio Lens Requirment Night WDR Zone 22x Zoom AC24V f=3.8~ AC24V SCC-C4303A 1/4" 410K/470K Int./L.L 480 TV Lines 0.0005Lux 50dB (f=3.6~ DC12V Yes No No SCC-B9372 1/3" 470K Int. 540 TV Lines 0Lux 48dB 9.5mm DC12V Yes No No 79.2mm) 22x Zoom f=6~ AC24V SCC-C4205 1/4" 410K/470K Int. 480 TV Lines 0.0002Lux 50dB (f=3.6~ DC12V Yes Yes No SCC-B9373 1/3" 410K/470K Int. 540 TV Lines 0Lux 48dB 50mm DC12V Yes No No 79.2mm) 22x Zoom AC24V f=3.8~ AC24V SCC-C4305 1/4" 410K/470K Int./L.L 480 TV Lines 0.0002Lux 50dB (f=3.6~ DC12V Yes Yes No SCC-B9374 1/3" 410K/470K Int. 540 TV Lines 0Lux 48dB Yes No No 9.5mm DC12V 79.2mm) 32x Zoom 12x Zoom Zone-8 AC24V SCC-C4207 1/4" 410K/470K Int. 480 TV Lines 0.0002Lux 50dB (f=3.55~ DC12V Yes Yes SCC-931T 1/4" 410K/470K Int./L.L 480 TV Lines 0.005Lux 52dB (f=3.6~ No No No (Mosaic) DC12V 113mm) 43.2mm) 32x Zoom 12x Zoom Zone-8 AC24V Zone-8 SCC-C4307 1/4" 410K/470K Int./L.L 480 TV Lines 0.0002Lux 50dB (f=3.55~ AC24V Yes Yes SCC-C9302(F) 1/4" 410K/470K Int./L.L 480 TV Lines 0.0002Lux 52dB (f=3.6~ Yes Yes (Mosaic) DC12V (Solid) 113mm) 43.2mm) 32x Zoom Zone-16 f=2.5~6mm/ AC24V SCC-C4233 1/4" 410K/470K Int. 540 TV Lines 0.0002Lux 50dB (f=3.55~ DC12V Yes No SCC-B5342/B5344 1/3" 410K/470K Int. 540 TV Lines 0.0009Lux 50dB Yes No No (Mosaic) f=2.9~10mm DC12V 113mm) 32x Zoom Zone-16 f=2.5~ AC24V SCC-C4235 1/4" 410K/470K Int. 540 TV Lines 0.0001Lux 50dB (f=3.55~ DC12V Yes Yes SCC-B5343 1/3" 410K/470K Int. 540 TV Lines 0.00009Lux 50dB Yes No No (Mosaic) 6.0mm DC12V 113mm) 32x Zoom AC24V Zone-16 f=2.9~ AC24V SCC-C4333 1/4" 410K/470K Int./L.L 540 TV Lines 0.0002Lux 50dB (f=3.55~ Yes No SCC-B5345 1/3" 410K/470K Int. 540 TV Lines 0.00009Lux 50dB Yes No No DC12V (Mosaic) 10mm DC12V 113mm) 32x Zoom Zone-16 SCC-C4335 1/4" 410K/470K Int./L.L 540 TV Lines 0.0001Lux 50dB (f=3.55~ DC12V Yes Yes (Mosaic) SCC-B5223 1/3" 410K/470K Int. 600 TV Lines 0.075Lux 52dB f=3.0mm DC12V No No No 113mm) NEW 34x Zoom AC24V Zone-12 SCC-C4237 1/4" 410K/470K Int. 600 TV Lines 0.0001Lux 52dB (f=3.4~ DC12V Yes No Zone-12 SCC-B5331 1/3" 410K/470K Int. 600 TV Lines 0.0006Lux 52dB f=3.8mm Yes No DC12V (Solid) 115.6mm) NEW 34x Zoom AC24V Zone-12 SCC-C4239 1/4" 410K/470K Int. 600 TV Lines 0.0001Lux 52dB (f=3.4~ DC12V Yes Yes Zone-12 SCC-B5333 1/3" 410K/470K Int. 600 TV Lines 0.0006Lux 52dB f=3.0mm Yes No DC12V (Solid) 115.6mm) NEW 34x Zoom AC24V AC24V Zone-12 SCC-C4339 1/4" 410K/470K Int./L.L 600 TV Lines 0.0001Lux 52dB (f=3.4~ Yes Yes Zone-12 SCC-B5335 1/3" 410K/470K Int. 600 TV Lines 0.0006Lux 52dB f=8.0mm Yes No DC12V DC12V (Solid) 115.6mm) NEW 43x Zoom f=2.5~ AC24V Zone-12 SCC-C4253 1/4" 410K/470K Int. 600 TV Lines 0.0001Lux 52dB (f=3.2~ DC12V Yes No Zone-12 SCC-B5366 1/3" 410K/470K Int. 600 TV Lines 0.0002Lux 52dB Yes No 6mm DC12V (Solid) 138.5mm) NEW 43x Zoom Zone-12 AC24V f=2.5~ AC24V SCC-C4353 1/4" 410K/470K Int./L.L 600 TV Lines 0.0001Lux 52dB (f=3.2~ Yes No Zone-12 SCC-B5367 1/3" 410K/470K Int. 600 TV Lines 0.00002Lux 52dB Yes Yes (Solid) DC12V 6mm DC12V 138.5mm) NEW 43x Zoom f=2.8~ AC24V Zone-12 SCC-C4255 1/4" 410K/470K Int. 600 TV Lines 0.0001Lux 52dB (f=3.2~ DC12V Yes Yes Zone-12 SCC-B5368 1/3" 410K/470K Int. 600 TV Lines 0.0002Lux 52dB Yes No (Solid) 11mm DC12V 138.5mm) NEW 43x Zoom AC24V f=2.8~ AC24V Zone-12 SCC-C4355 1/4" 410K/470K Int./L.L 600 TV Lines 0.0001Lux 52dB (f=3.2~ Yes Yes Zone-12 SCC-B5369 1/3" 410K/470K Int. 600 TV Lines 0.00002Lux 52dB Yes Yes DC12V 11mm DC12V (Solid) 138.5mm) SCC-B5396 f=2.5~ AC24V Zone-12 SCC-B9270 1/3" 320K Int. 350 TV Lines 0Lux 48dB f=4.3mm DC12V Yes No No 1/3" 410K/470K Int. 600 TV Lines 0.0002Lux 52dB 6mm DC12V Yes No (Solid) f=3.8~ AC24V f=2.8~ AC24V Zone-12 SCC-B9371 1/3" 410K/470K Int. 540 TV Lines 0Lux 48dB 9.5mm DC12V Yes No No SCC-B5398 1/3" 410K/470K Int. 600 TV Lines 0.0002Lux 52dB 11mm DC12V Yes No (Solid)
- 6. CCD Camera ComparisonChart by Model : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : : Spec Imaging Total Synchronization Horizontal Min. Scene Power Day & Privacy Spec Imaging Total Synchronization Horizontal Min. Scene Power Day & Privacy Model Device Pixels Method Resolution Illumination S/N Ratio Lens Requirment Night WDR Zone Model Device Pixels Method Resolution Illumination S/N Ratio Lens Requirment Night WDR Zone NEW 34x Zoom f=2.5~ AC24V Zone-12 SCC-B5397 1/3" 410K/470K Int. 600 TV Lines 0.00002Lux 52dB Yes Yes SCC-C7437 1/4" 410K/470K Int./L.L 600 TV Lines 0.00007Lux 52dB (f=3.4~ AC24V Yes No Zone-12 6mm DC12V (Solid) 115.6mm) NEW 34x Zoom f=2.8~ AC24V Zone-12 SCC-B5399 1/4" 410K/470K Int./L.L 480 TV Lines 0.0002Lux 50dB 11mm DC12V Yes Yes SCC-C7439 1/4" 410K/470K Int./L.L 600 TV Lines 0.00007Lux 52dB (f=3.4~ AC24V Yes Yes Zone-12 (Solid) 115.6mm) 22x Zoom NEW 43x Zoom SCC-641 1/4" 410K/470K Int./L.L 480 TV Lines 0.005Lux 52dB (f=3.6~ AC24V No No No SCC-C6453 1/4" 410K/470K Int./L.L 600 TV Lines 0.00007Lux 52dB (f=3.2~ AC24V Yes No Zone-12 79.2mm) 138.5mm) 22x Zoom NEW 43x Zoom Zone-8 SCC-643A 1/4" 410K/470K Int./L.L 480 TV Lines 0.0005Lux 52dB (f=3.6~ AC24V Yes No SCC-C6455 1/4" 410K/470K Int./L.L 600 TV Lines 0.00007Lux 52dB (f=3.2~ AC24V Yes Yes Zone-12 (Solid) 79.2mm) 138.5mm) 32x Zoom NEW 43x Zoom SCC-C6403 1/4" 410K/470K Int./L.L 480 TV Lines 0.0005Lux 50dB (f=3.55~ AC24V Yes No No SCC-C7453 1/4" 410K/470K Int./L.L 600 TV Lines 0.00007Lux 52dB (f=3.2~ AC24V Yes No Zone-12 113mm) 138.5mm) 22x Zoom NEW 43x Zoom Zone-8 SCC-C6405 1/4" 410K/470K Int./L.L 480 TV Lines 0.0002Lux 50dB (f=3.6~ AC24V Yes Yes SCC-C7455 1/4" 410K/470K Int./L.L 600 TV Lines 0.00007Lux 52dB (f=3.2~ AC24V Yes Yes Zone-12 (Mosaic) 79.2mm) 138.5mm) 32x Zoom Zone-8 SCC-C6407 1/4" 410K/470K Int./L.L 480 TV Lines 0.0002Lux 50dB (f=3.55~ AC24V Yes Yes (Mosaic) 113mm) 32x Zoom SCC-C6433 1/4" 410K/470K Int./L.L 540 TV Lines 0.0002Lux 50dB (f=3.55~ AC24V Yes No Zone-16 113mm) 32x Zoom SCC-C6435 1/4" 410K/470K Int./L.L 540 TV Lines 0.0001Lux 50dB (f=3.55~ AC24V Yes Yes Zone-16 113mm) 32x Zoom SCC-C7433 1/4" 410K/470K Int./L.L 540 TV Lines 0.0002Lux 50dB (f=3.55~ AC24V Yes No Zone-16 113mm) 32x Zoom SCC-C7435 1/4" 410K/470K Int./L.L 540 TV Lines 0.0001Lux 50dB (f=3.55~ AC24V Yes Yes Zone-16 113mm) 36x Zoom SCC-C7478 1/4" 410K/470K Int./L.L 540 TV Lines 0.00066Lux 50dB (f=3.4~ AC24V Yes Yes Zone-8 122.4mm) 36x Zoom SCC-C7478C 1/4" 410K/470K Int./L.L 540 TV Lines 0.00066Lux 50dB (f=3.4~ AC24V Yes Yes Zone-8 122.4mm) 10x Zoom SCC-C6323 AC24V 1/4" 410K/470K Int./L.L 520 TV Lines 0.00047Lux 50dB (f=3.8~ Yes No Zone-4 DC12V 38mm) 10x Zoom AC24V SCC-C6325 1/4" 410K/470K Int./L.L 520 TV Lines 0.00047Lux 50dB (f=3.8~ Yes No Zone-4 DC12V 38mm) 10x Zoom SCC-C7325 AC24V 1/4" 410K/470K Int./L.L 520 TV Lines 0.00047Lux 50dB (f=3.8~ Yes No Zone-4 DC12V 38mm) NEW 34x Zoom SCC-C6437 1/4" 410K/470K Int./L.L 600 TV Lines 0.00007Lux 52dB (f=3.4~ AC24V Yes No Zone-12 115.6mm) NEW 34x Zoom SCC-C6439 1/4" 410K/470K Int./L.L 600 TV Lines 0.00007Lux 52dB (f=3.4~ AC24V Yes Yes Zone-12 115.6mm)
- 7. Video Security System Camera Terms & Features ::::::::::::::::::::::::::::::::::::::::::::::::::: Super High-Resolution Motion Adaptive DNR A1 camera technology eliminates false colour artifacts (Moire) by utilising a special optical low pass filter and is able to resolve a horizontal resolution of 600 TV The A1 DNR (Digital Noise Reduction) function eliminates noise thus generating a distinct and clear image. A1 technology utilises both an adaptive 2D filter lines, by means of 12 Bit A/D serial signal processing coupled with image element enhancement technology. Additionally, the implementation of a 3 line processing reducing noise in the brightness of the image and an adaptive 3D Filter reducing noise caused by movement. These filters are combined with DNIe technology algorithm to prevent noise under low illumination applications, directional adaptive filtering and adjustment of aperture gain by luminance level combine to provide which is applied to Samsung Electronics’ CCTV monitors. The result is that A1 camera series support Motion Adaptive DNR function that removes noise (Fixed a more vivid and clearer image. Pattern, Random, etc.) and greatly reduces motion blur. DNR OFF DNR ON conventional A1 Hi-Resolution Advanced Digital Filter eXtended Dynamic Range (XDR) Source Image CCD Raw Data False colour Artifacts Samsung A1 Camera image Under strongly backlit or high contrast scenes, cameras generally produce images which reproduce detail in the brighter area of the scene.(fig1) Consequently, detail is often lost in the darker areas of the scene. Samsung A1 cameras provide XDR technology to increase the level of visible detail in the dark areas, whilst maintaining image clarity and detail in the brighter portions of the image. (fig2) Correction in Dark Virtual Progressive Scan(VPS) Correction A1 camera models featuring WDR functions generate images using Double Scan CCD technology and these cameras provide VPS (Virtual Progressive Scan) in Bright operation which can utilise either Interlace or Progressive scanning methods. This VPS is unique to Samsung Electronics and ensures the edges of moving objects are clearly defined. Applications for Samsung cameras utilising this technology include highway and ANPR projects. When used with LCD monitors offering progressive scan operation, Samsung VPS produces visibly superior images to non-VPS cameras. The problems of the blurred edges resulting from Fig 1 – XDR OFF Fig 2 – XDR ON delays in even/odd field image scanning, are eliminated when VPS technology is used with a network product (encoder). Intelligent Video Content Analysis The Samsung Electronics A1 series of cameras, also provide built-in capability for video content analysis. Operational modes include: • Fixed : Senses objects that appear and remain in a scene for longer than a pre-determined period of time. • Moved : Detects objects removed from a scene Interlace Transmission (Delayed edge) VPS Transmission (Clear edge) • Fence : Provides virtual electronic area [Area mode] and directional line [Line mode] and generates an alarm in the event of a breach of the area or a cross of the directional line. • Tracking : Tracks an object through a scene and generates an alarm in the event of abnormal directional changes. Samsung Video Security System | 14 . 15
- 8. Video Security System CameraTerms & Features :::::::::::::::::::::::::::::::::::::::::::::::::::::: Camera Control Via Coaxial cable 360˚ Endless, Lighting&Smooth Speed Vector Driving (Pan/Tilt moving simultaneously) The Samsung Electronics A1 series cameras offer CCVC (Camera Control Via Coaxial cable) via the video coaxial cable. This function provides access to the camera settings menu without connecting the any other control lines to the camera. This technology allows for camera set up (with the exception of lens focus) The camera supports 360˚ endless Pan and 180˚ Tilt functions at a very high speed (max 360˚/sec). Due to the micro-stepping technology, one step angle is to be performed remotely, thus simplifying the installation process and offering remote adjustment in real time. divided by 256. This allows high accuracy as well as ultra low noise levels (under 60dB). Micro-stepping technology also enables ultra low speeds down to 0.05˚/sec for high zooming operations. Using vector drive technology, Pan/Tilt motion is done simultaneously. Video Signal Video Signal 360 ˚ Endless Pan Control Signal A1 Cameras 180 ˚ Tilting Controller(SCX-RD100) Full Auto Focus Function DIS (Digital Image Stabilization) Cameras that adopted full auto focus function provide clear images every time. This feature reduce the blurring effect that occurs when either the camera or the subject is in motion during image capture, providing a sharp images Conventional Auto Focus ON DIS OFF DIS ON Auto white balance ELC (Electronic Level Control) Through the perfect Auto/Manual white balance function, these cameras ensure accurate representation of colors under any environment without producing a Cameras with ELC function can use the manual iris lens economically by automatically operate the shutter speed. By adopting ELC, output level of cameras can picture that is either more red or blue. be stable under any luminance level. This mechanism is designed to accommodate any C/CS lens mount adapter. Auto Iris ELC Appropriate amount of the lights Light CCD Adjusting the lights Conventional Auto white balance ON Samsung Video Security System | 16 . 17

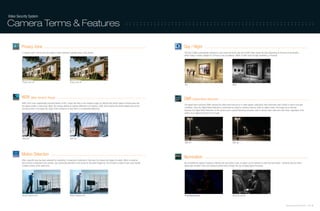

- 9. Video Security System CameraTerms & Features :::::::::::::::::::::::::::::::::::::::::::::::::::::: Privacy Zone Day / Night A "privacy zone" can be set if you desire to block viewing of specific areas in the picture. The Day & Night automatically switches to color mode during the day and to B/W mode during the night depending on the level of illumination which makes it ideally suitable for 24 hours-a-day surveillance. When in B/W mode the light sensitivity is enhanced. Privacy zone OFF Privacy zone ON Day Night WDR (Wide Dynamic Range) DNR (Digital Noise Reduction) WDR, much more sophisticatly improved Version of BLC, shows two files in one complex image, by utilizing high shutter speed in bright areas and The digital noise reduction (DNR) removes the video noise that occurs in video signals, particularly when Automatic Gain Control is used in low light low speed shutter in dark areas. When the camera detects an obvious difference in luminance, rather than showing the whole viewing area at one conditions. Since the Digital Noise Reduction is performed by using the cameras memory, when an object moves, the image can be blurred. luminance level, it increases the range of the luminance so that there is no noticeable difference. However, the Digital Noise Reduction of the camera uses a special Samsung computer code to remove video noise and color noise, regardless of the motion of an object providing a clear image. WDR OFF WDR ON DNR OFF DNR ON Motion Detection Illumination After a specific area has been selected for monitoring, if movement is detected in that area, the camera will trigger the alarm. When an external alarm device is attached to the camera, user should pay attention to the screen for the alarm triggering. This function is useful if user must monitor By controlling the speed of exposure entering into each picture area, an object can be detected in even low illumination. Samsung Camera utilize multiple screens at the same time. highly light sensitive CCDs and maximize performance through the use of Digital Signal Processor. Motion Detection OFF Motion Detection ON Conventional Camera Samsung Camera Samsung Video Security System | 18 . 19

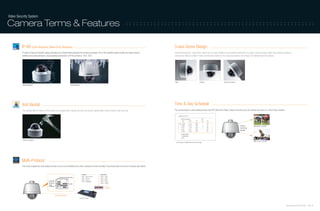

- 10. Video Security System CameraTerms & Features :::::::::::::::::::::::::::::::::::::::::::::::::::::: IP-66 (Cold Resistant, Water/Dust Resistant) 3-axis Dome Design IP refers to Ingress Protection ratings specifying the environmental protection the enclosure provides. The IP-66 compliant rating provides the highest level of Samsung Electronics' 3-axis dome camera can be easily installed in the restricted environment of a wall or inclined surface, while most existing surveillance weather and vandal resistance. Usual operating temperature of IP-66 camera is -45˚C~50˚C. cameras are difficult to install in these circumstances, thanks to the turning lens able to move freely 355˚ left/right and 90˚ up/down. Wall Ceiling Inclined Surface Water Resistant Cold Resistant Anti Vandal Time & Day Schedule The cameras with the feature of Anti Vandal, are equipped with a special structure that protects against willful external shocks, water and dust. The camera feature a clock setting function with RTC (Real Time Clock). Using this function, you can monitor each area on a Time & Day schedule. SCHEDULE SETUP MASTER ENABLE ON DAY TIME ACT NO ON 1 MON 01:20 HOM ON 2 WED 07:35 PRS 12 ON Camera SUN 09:00~12:00 AM 3 THU 11:40 SCN 3 ON monitoring 4 SAT 15:17 PTN 1 ON direction 5 WKD 23:00 HOM ON 6 UNDEFINED 7 UNDEFINED BACK Shock-resistant MON 12:00~15:00 PM (auto play set depends on time and day) Multi-Protocol This camera adopts the multi protocol function and can be controlled by the other company’s remote controller. The protocol type is set by the hardware (dip switch). Protocol Buad Rate 0X00 : Auto Protocol 0X00 : 2400 0X01 : Pelco-D 0X01 : 4800 0X02 : Pelco-P 0X02 : 9600 0X03 : SAMSUNG 0X03 : 19200 0X04 : 38400 RS-485 Terminate RS-485 / RS-422 Remote Controller Samsung Video Security System | 20 . 21

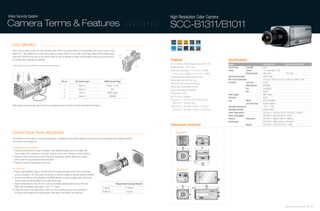

- 11. Video Security System High Resolution Color Camera Camera Terms & Features SCC-B1311/B1011 :::::::::::::::::::::::::::::::::::::::::::::::::::::: Lens Selection When using an auto iris lens, The lens selection switch next to the camera should be set according to the type of auto iris lens. Rb Select ‘DC’ if the installed lens is a DC-control type, and select ‘VIDEO’ if it is a video-control type. Adjust the illumination level Pin3 with the DC-IRIS VR at the back of the camera when DC-type is selected, or adjust the Illumination level by using the level VR Pin1 on the lens when video-type is selected. Pin4 Features Specifications • 1/3" SONY 410K/470K pixels Super-HAD IT CCD Model SCC-B1311N SCC-B1011P/B1311P * When using an AI lens, turn off the ELC switch at the back of the camera. Pin2 • High resolution : 540 TV lines Camera Type Color/BW Color • Min. scene illumination : 0.4 Lux (F1.2, 50IRE), Image Device 1/3" Super-HAD IT CCD 0.24 Lux (F1.2, 30IRE), 0.12 Lux (F1.2, 15IRE) Effective Pixels 768 x 494 752 x 582 • Internal/line lock (phase control) function Horizontal Resolution 540 TV Lines • Auto level control (DC type only) Min. Scene Illumination 0.4 Lux (F1.2, 50 IRE), 0.24 Lux (F1.2, 30 IRE), 0.12 Lux(F1.2, 15 IRE) Pin no. DC Control Type VIDEO Control Type Functions Line Lock On/Off • Electronic level control (manual lens) 1 Damp (-) Power (+12V) White Balance ATW/AWC • Back light compensation (On/Off) 2 Damp (+) N/A ELC On/Off(ALC) • Auto white balance (ATW/AWC) BLC On/Off 3 Drive (-) VIDEO Signal • Flickerless function Video Output VBS 1.0Vp-p 4 Drive (+) GROUND • C/CS mount compatible S/N Ratio 50 dB • SCC-B1311 : DC12V & AC24V 60Hz (50Hz) Lens Mount C/CS Compatible SCC-B1011 : AC220V (50Hz) Lens Drive Type ALC(DC only)/ELC When using a manual iris lens, Open the lens iris completely and turn on the ELC function at the back of the camera. • SCC-B1311 : 60.5(W) x 59.5(H) x 77(D) mm Operating Temperature -10˚C ~ + 50˚C SCC-B1011 : 60.5(W) x 59.5(H) x 125.2(D) mm Operating Humidity Less than 90% Power Requirement SCC-B1311 : AC24V & DC12V / SCC-B1011 : AC220V Power Consumption SCC-B1311 : 3W / SCC-B1011 : 3.5W Physical Dimensions SCC-B1311 : 68(W) x 55(H) x 77.6(D)mm Specification SCC-B1011 : 68(W) x 55(H) x 136.3(D)mm Dimensions (unit:mm) Weight SCC-B1311 : 216g / SCC-B1011 : 446g Camera Back Focus Adjustment SCC-B1311 The back focus of the camera is set when the product is shipped from the factory. However, the back focus can be adjusted in the following manner DC if the focus is not properly set. LENS SCC-B1311 For Standard Lens (non-Zoom) 68 72.6 65 1. The lens should be able to clearly recognize high-definition images such as an object with cross stripes from a distance of 10 meters when the focus ring of the lens is set to infinity(∞). 55 2. Adjust the focus by turning the control ring of the flange back until the object can be seen SCC-B1311 clearly under the circumstances described above. 7.6 3. Fasten the screw of flange back control ring. 63.5 77.6 For Zoom Lens SCC-B1011P 1. Place a high-definition image 3-5m apart from the camera and then turn the focus of the lens as far as possible in the TELE (zoom in) direction so that the image can be seen vividly as possible. 2. Turn the lens zoom as far as possible in the WIDE direction, turning the flange back control ring of the camera so that the object can be seen most vividly. 3. Adjust so that the focus from the TELE side can be vividly matched with the focus from the Flange Back Focusing Distance 68 136.3 WIDE side by repeating above steps 1 and 2 2~3 times. 65 7.6 120 C Mount 17.526mm 4. Fasten the screw of the flange back control ring. The control can be set more accurately if CS Mount 12.5mm the focus can be adjusted by attaching dark color paper or ND filter to the front lens. 55 Samsung Video Security System | 22 . 23

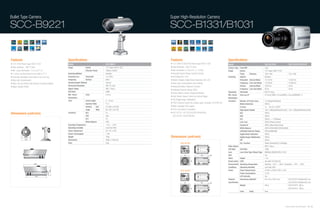

- 12. Bullet Type Camera Super High-Resolution Camera SCC-B9221 SCC-B1331/B1031 Features Specifications Features Specifications • 1/3" 410K Pixels Super HAD IT CCD Model SCC-B9221 • 1/3" SONY 410K/470K Pixels Super-HAD IT CCD Model SCC-B1331N SCC-B1031P/B1331P • High resolution : 480 TV lines Image Device 1/3” Super-HAD IT CCD • High Resolution : 600 TV Lines Camera Type Color/BW Color • Min. scene illumination : 0.3 Lux (F1.2) Effective Pixels 768(H) x 494(V) • Min. illumination 0.12Lux (F1.2, 15 IRE) Image Device 1/3" Super-HAD IT CCD • 4~9mm vari-focal fixed iris lens built-in F1.5 Scanning Method Interlace • Internal/Linelock (Phase Control) Function Pixels Effective 768 x 494 752 x 582 • Externally adjustable focal length & focus by ring Scanning Line Horizontal 15.734Hz • ALC(Video/DC) / ELC Scanning System Interlace • Back light compensation Frequency Vertical 60Hz • Motion Adaptive Digital Noise Reduction (3D+2D) Horizontal Internal Mode 15,734 Hz 15,625 Hz • Back, top and bottom side bracket mounting available Synchronization Method Internal • Back Light Compensation (Area Setting) Frequency Line-lock Mode 15,750 Hz 15,625 Hz Horizontal Resolution 480 TV Lines • Advanced Motion Detection Function Vertical Internal Mode 59.94 Hz 50 Hz • Water resistant (IP66) Signal Output VBS 1.0Vp-p Frequency Line-lock Mode 60 Hz 50 Hz • eXtended Dynamic Range (XDR) S/N Ratio 48dB Resolution Horizontal 600 TV Lines • Privacy Mask Function (Polygonal Mosaic) Min. Scene Color 0.3Lux Min. Scene Sens-up off 0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE)@F1.2 • High Shutter Speed Control by External Trigger Illumination Illumination Lens Focal Length 4 ~ 9 mm • DIS (Digital Image Stabilization) Functions Number of Privacy Zone 12 (Polygonal Method) Aperture Ratio F1.5 • CCVC (Camera Control Via Coaxial cable, Controller: SCX-RD100) Motion Detection Off/On Viewing Tele 31.5˚(H) x 23.6˚(V) • Multi-Language OSD support D-Zoom 1x ~ 16x (0.1x STEP) Angle Wide 68.1˚(H) x 50.5˚(V) • C/CS Lens Mount Compatible High Speed Shutter 1/60~1/10Ksec(OSD/External Control) 1/50~1/10Ksec(OSD/External Control) Functions BLC On • SCC-B1331: DC12V & AC24V 60Hz(50Hz) Dimensions (unit:mm) BLC Off/On AGC Auto SCC-B1031: AC220V(50Hz) AGC Off/On ELC On ELC Off/On ( ~ 1/200Ksec) White Balance ATW Line Lock Off/On (Phase Control) Operating Temperature -10˚C ~ +50˚C Camera ID Off/On (Max.54ea/2Lines) Operating Humidity Less than 90% White Balance ATW1/ATW2/AWC/3200K/5600K Power Requirment DC 12V ±10% eXtended Dynamic Range Off/Low/Mid/High Power Consumption 1.7W Digital Noise Reduction Off/On Weight 705g Dimensions (unit:mm) Digital Image Stabilization Off/On Dimensions 44(ø) x 116(L)mm PIP Off/On Color Gray SCC-B1331 Etc. Function Detail, Reverse(H/V), Posi/Nega Video Output VBS 1.0Vp-p S/N Ratio S/N Ratio 52dB Lens Lens Drive Type / Mount Type MANUAL/AI(VIDEO/DC) / CS/C 100 OSD Yes Alarm Output 1 ea Remote Control CCVC Yes (with SCX-RD100) Environmental Operating Temperature Absolute : -20˚C ~ +60˚C / Sustained : -10˚C ~ +50˚C Conditions Operating Humidity Less than 90% SCC-B1031 Power Power Requirement 24 VAC ±10%/12 VDC ±10% Power Consumption 2.3 W LED Indicator Yes Physical Dimensions (WxHxD) 64 x 58 x 109.2 mm SCC-B1331P:64x58x109.2 mm 120 Specification SCC-B1031P:64x58x129.2 mm Weight 305 g SCC-B1331P : 305 g SCC-B1031P : 395 g Color Body Siver Samsung Video Security System | 24 . 25

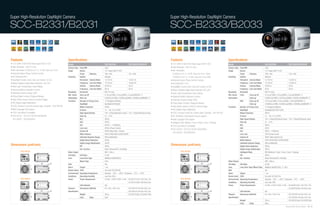

- 13. Super High-Resolution DayNightCamera Super High-Resolution DayNight Camera SCC-B2331/B2031 SCC-B2333/B2033 Features Specifications Features Specifications • 1/3" SONY 410K/470K Pixels Super-HAD IT CCD Model SCC-B2331N SCC-B2031P/B2331P • 1/3" SONY 410K/470K Pixels Super-HAD IT CCD Model SCC-B2333N SCC-B2033P/B2333P • High Resolution : 600 TV Lines Camera Type Color/BW Color • High Resolution : 600 TV Lines Camera Type Color/BW Color • Min. illumination 0.0002Lux (F1.2, 15 IRE, Sens-Up 512x) Image Device 1/3" Super-HAD IT CCD • Min. illumination Image Device 1/3" Super-HAD IT CCD • Internal/Linelock (Phase Control) Function Pixels Effective 768 x 494 752 x 582 0.0002Lux (F1.2, 15 IRE, Sens-Up 512x, Color) Pixels Effective 768 x 494 752 x 582 • ALC(Video/DC)/ELC Scanning System Interlace 0.00002Lux (F1.2, 15 IRE, Sens-Up 512x, B/W) Scanning System Interlace • Day/Night Function (Soft), Sens-Up Function (512x) Horizontal Internal Mode 15,734 Hz 15,625 Hz • Internal/Linelock (Phase Control) Function Horizontal Internal Mode 15,734 Hz 15,625 Hz • Motion Adaptive Digital Noise Reduction (3D+2D) Frequency Line-lock Mode 15,750 Hz 15,625 Hz • ALC(Video/DC) / ELC Frequency Line-lock Mode 15,750 Hz 15,625 Hz • Back Light Compensation (Area Setting) Vertical Internal Mode 59.94 Hz 50 Hz • Day/Night Function (ICR), Sens-Up Function (512x) Vertical Internal Mode 59.94 Hz 50 Hz • Advanced Motion Detection Function Frequency Line-lock Mode 60 Hz 50 Hz Frequency Line-lock Mode 60 Hz 50 Hz • Motion Adaptive Digital Noise Reduction (3D+2D) Resolution Horizontal 600 TV Lines Resolution Horizontal 600 TV Lines • eXtended Dynamic Range (XDR) • Back Light Compensation (Area Setting) Min. Scene Sens-up off 0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE)@F1.2 Min. Scene Color Sens-up off 0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE)@F1.2 • Privacy Mask Function (Polygonal Mosaic) • Advanced Motion Detection Function Illumination Sens-up 0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE)@F1.2 Illumination Sens-up 0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE)@F1.2 • High Shutter Speed Control by External Trigger • eXtended Dynamic Range (XDR) Functions Number of Privacy Zone 12 (Polygonal Method) B/W Sens-up off 0.012Lux(15IRE), 0.02Lux(30IRE), 0.04Lux(50IRE)@F1.2 • DIS (Digital Image Stabilization) Day/Night Day/Night/AUTO(Soft) • Privacy Mask Function (Polygonal Mosaic) Sens-up 0.00002Lux(15IRE), 0.00005Lux(30IRE), 0.00008Lux(50IRE)@F1.2 • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Motion Detection Off/On • High Shutter Speed Control by External Trigger Functions Number of Privacy Zone 12 (Polygonal Method) • Multi-Language OSD support D-Zoom 1x ~ 16x (0.1x STEP) • DIS (Digital Image Stabilization) Day/Night Day/Night/AUTO/EXT (ICR) • C/CS Lens Mount Compatible High Speed Shutter 1/60~1/10Ksec(OSD/External Control) 1/50~1/10Ksec(OSD/External Control) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Motion Detection Off/On • SCC-B2331 : DC12V & AC24V 60Hz(50Hz) Sens Up 2x ~ 512x • RS-485(Half) Control (Multi-Protocol support) D-Zoom 1x ~ 16x (0.1x STEP) SCC-B2031 : AC220V(50Hz) BLC Off/On • Multi-Language OSD support High Speed Shutter 1/60~1/10Ksec(OSD/External Control) 1/50~1/10Ksec(OSD/External Control) AGC Off/On • Intelligent Video (Moved / Fixed / Fence / Area / Tracking) Sens Up 2x ~ 512x ELC Off/On ( ~1/200Ksec) • C/CS Lens Mount Compatible BLC Off/On Line Lock Off/On (Phase Control) AGC Off/On • SCC-B2333 : DC12V & AC24V 60Hz(50Hz) Camera ID Off/On (Max.54ea / 2Lines) ELC Off/On ( ~1/200Ksec) SCC-B2033 : AC220V(50Hz) White Balance ATW1/ATW2/AWC/3200K/5600K Line Lock Off/On (Phase Control) eXtended Dynamic Range Off/Low/Mid/High Camera ID Off/On (Max.54ea/2Line) Digital Noise Reduction Off/On White Balance ATW1/ATW2/AWC/3200K/5600K Digital Image Stabilization Off/On eXtended Dynamic Range Off/Low/Mid/High Dimensions (unit:mm) PIP Off/On Dimensions (unit:mm) Digital Noise Reduction Off/On Etc. Function Detail, Reverse(H/V), Posi/Nega Digital Image Stabilization Off/On SCC-B2331 Video Output VBS 1.0Vp-p SCC-B2333 Intelligent Video Off/On(Moved / Fixed / Fence / Area / Tracking) S/N Ratio S/N Ratio 52 dB PIP Off/On Lens Lens Drive Type MANUAL/AI(VIDEO/DC) Etc. Function Detail, Reverse(H/V), Posi/Neg Mount Type CS/C Video Output VBS 1.0Vp-p 100 100 OSD Yes S/N Ratio S/N Ratio 52 dB Alarm Output 1 ea Lens Lens Drive Type / Mount Type MANUAL/AI(VIDEO/DC) / CS/C Remote Control CCVC Yes (with SCX-RD100) OSD Yes Environmental Operating Temperature Absolute : -20˚C ~ +60˚C / Sustained : -10˚C ~ +50˚C Alarm Output 1 ea Conditions Operating Humidity Less than 90% Remote Control CCVC Yes (with SCX-RD100) SCC-B2031 Power Power Requirement 24 VAC ±10%/12 VDC ±10% SCC-B2331P:24 VAC ±10%/12 VDC ±10% SCC-B2033 Environmental Operating Temperature Absolute : -20˚C ~ +60˚C / Sustained : -10˚C ~ +50˚C SCC-B2031P:AC220V~240V (50Hz±0.3Hz) Conditions Operating Humidity Less than 90% LED Indicator Yes Power Power Requirement 24 VAC ±10%/12 VDC ±10% SCC-B2333P:24 VAC ±10%/12 VDC ±10% Physical Dimensions (WxHxD) 64 x 58 x 109.2 mm SCC-B2331P:64x58x109.2 mm SCC-B2033P:AC220V~240V (50Hz±0.3Hz) 120 120 Specification SCC-B2031P:64x58x129.2 mm LED Indicator Yes Weight 305 g SCC-B2331P:305g / SCC-B2031P:395g Physical Dimensions (WxHxD) 64 x 58 x 109.2 mm SCC-B2333P:64x58x109.2 mm Color Body Siver Specification SCC-B2033P:64x58x129.2 mm Weight 305 g SCC-B2333P:305g / SCC-B2033P:395g Color Body Siver Samsung Video Security System | 26 . 27

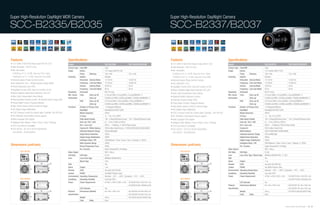

- 14. Super High-Resolution DayNightWDR Camera Super High-Resolution DayNight Camera SCC-B2335/B2035 SCC-B2337/B2037 Features Specifications Features Specifications • 1/3" SONY 410K/470K Pixels Super-HAD PS CCD Model SCC-B2335N SCC-B2035P/B2335P • 1/3" SONY 410K/470K Pixels Ex-View HAD IT CCD Model SCC-B2337N SCC-B2037P/B2337P • High Resolution : 600 TV Lines Camera Type Color/BW Color • High Resolution : 600 TV Lines Camera Type Color/BW Color • Min. illumination Image Device 1/3" Super-HAD PS CCD • Min. illumination Image Device 1/3" ExView-HAD IT CCD 0.0002Lux (F1.2, 15 IRE, Sens-Up 512x, Color) Pixels Effective 768 x 494 752 x 582 0.0002Lux (F1.2, 15 IRE, Sens-Up 512x, Color) Pixels Effective 768 x 494 752 x 582 0.00002Lux (F1.2, 15 IRE, Sens-Up 512x, B/W) Scanning System Interlace 0.00002Lux (F1.2, 15 IRE, Sens-Up 512x, B/W) Scanning System Interlace • Internal/Linelock (Phase Control) Function Horizontal Internal Mode 15,734 Hz 15,625 Hz • Internal/Linelock (Phase Control) Function Horizontal Internal Mode 15,734 Hz 15,625 Hz • ALC(Video/DC) / ELC • Wide Dynamic Range (WDR) Frequency Line-lock Mode 15,750 Hz 15,625 Hz • ALC (Video/DC) / ELC Frequency Line-lock Mode 15,750 Hz 15,625 Hz • Virtual Progressive Scan (VPS) Vertical Internal Mode 59.94 Hz 50 Hz • Day/Night Function (ICR), Sens-Up Function (512x) Vertical Internal Mode 59.94 Hz 50 Hz • Day/Night Function (ICR), Sens-Up Function (512x) Frequency Line-lock Mode 60 Hz 50 Hz Frequency Line-lock Mode 60 Hz 50 Hz • Motion Adaptive Digital Noise Reduction (3D+2D) Resolution Horizontal 600 TV Lines Resolution Horizontal 600 TV Lines • Motion Adaptive Digital Noise Reduction (3D+2D) • Back Light Compensation (Area Setting) Min. Scene Color Sens-up off 0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE)@F1.2 Min. Scene Color Sens-up off 0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE)@F1.2 • Back Light Compensation (Area Setting) • Advanced Motion Detection Function Illumination Sens-up 0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE)@F1.2 Illumination Sens-up 0.0002Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE)@F1.2 • Advanced Motion Detection Function • eXtended Dynamic Range (XDR) • eXtended Dynamic Range (XDR) B/W Sens-up off 0.012Lux(15IRE), 0.02Lux(30IRE), 0.04Lux(50IRE)@F1.2 B/W Sens-up off 0.012Lux(15IRE), 0.02Lux(30IRE), 0.04Lux(50IRE)@F1.2 • Privacy Mask Function (Polygonal Mosaic) Sens-up 0.00002Lux(15IRE), 0.00005Lux(30IRE), 0.00008Lux(50IRE)@F1.2 • Privacy Mask Function (Polygonal Mosaic) Sens-up 0.00002Lux(15IRE), 0.00005Lux(30IRE), 0.00008Lux(50IRE)@F1.2 • High Shutter Speed Control by External Trigger Functions Number of Privacy Zone 12 (Polygonal Method) • High Shutter Speed Control by External Trigger Functions Number of Privacy Zone 12 (Polygonal Method) • DIS (Digital Image Stabilization) Day/Night Day/Night/AUTO/EXT (ICR) • DIS (Digital Image Stabilization) Day/Night Day/Night/AUTO/EXT (ICR) • CCVC (Camera Control Via Coaxial cable, Controller: SCX-RD100) Motion Detection Off/On • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Motion Detection Off/On • RS-485(Half) Control (Multi-Protocol support) D-Zoom 1x ~ 16x (0.1x STEP) • RS-485(Half) Control (Multi-Protocol support) D-Zoom 1x ~ 16x (0.1x STEP) • Multi-Language OSD support High Speed Shutter 1/60~1/10Ksec(OSD/External Control) 1/50~1/10Ksec(OSD/External Control) • Multi-Language OSD support High Speed Shutter 1/60~1/10Ksec(OSD/External Control) 1/50~1/10Ksec(OSD/External Control) • Intelligent Video (Moved / Fixed / Fence / Area / Tracking) Sens Up / BLC / AGC 2x ~ 512x / Off/On / Off/On • Intelligent Video (Moved / Fixed / Fence / Area / Tracking) Sens Up / BLC / AGC 2x ~ 512x / Off/On / Off/On • C/CS Lens Mount Compatible ELC / Line Lock Off/On ( ~ 1/200Ksec) / Off/On (Phase Control) • C/CS Lens Mount Compatible ELC / Line Lock Off/On ( ~ 1/200Ksec) / Off/On (Phase Control) • SCC-B2335 : DC12V & AC24V 60Hz(50Hz) Camera ID / White Balance Off/On (Max.54ea/2Lines) / ATW1/ATW2/AWC/3200K/5600K Camera ID Off/On (Max.54ea/2Line) • SCC-B2337 : DC12V & AC24V 60Hz(50Hz) eXtended Dynamic Range Off/Low/Mid/High White Balance ATW1/ATW2/AWC/3200K/5600K SCC-B2035 : AC220V(50Hz) SCC-B2037 : AC220V(50Hz) Digital Noise Reduction Off/On eXtended Dynamic Range Off/Low/Mid/High Digital Image Stabilization Off/On Digital Noise Reduction Off/On Intelligent Video / PIP Off/On(Moved / Fixed / Fence / Area / Tracking) / Off/On Digital Image Stabilization Off/On Wide Dynamic Range Off/On Intelligent Video / PIP Off/On(Moved / Fixed / Fence / Area / Tracking) / Off/On Dimensions (unit:mm) Virtual Progressive Scan Off/On Dimensions (unit:mm) Etc. Function Detail, Reverse(H/V), Posi/Neg Etc. Function Detail, Reverse(H/V), Posi/Nega Video Output VBS 1.0Vp-p SCC-B2335 Video Output VBS 1.0Vp-p SCC-B2337 S/N Ratio S/N Ratio 50 dB S/N Ratio S/N Ratio 52 dB Lens Lens Drive Type / Mount Type MANUAL/AI(VIDEO/DC) / CS/C Lens Lens Drive Type MANUAL/AI(VIDEO/DC) OSD Yes Mount Type CS/C Alarm Output 1 ea 100 100 OSD Yes Remote CCVC Yes (with SCX-RD100) Alarm Output 1 ea Control RS485 Yes (Multi Protocol, 8ea) Remote CCVC Yes (with SCX-RD100) Environmental Operating Temperature Absolute : -20˚C ~ +60˚C / Sustained : -10˚C ~ +50˚C Control RS485 Yes (Multi Protocol, 8ea) Conditions Operating Humidity Less than 90% Environmental Operating Temperature Absolute : -20˚C ~ +60˚C / Sustained : -10˚C ~ +50˚C Power Power Requirement 24 VAC ±10%/12 VDC ±10% SCC-B2337P:24 VAC ±10%/12 VDC ±10% SCC-B2035 Conditions Operating Humidity Less than 90% SCC-B2037 SCC-B2037P:AC220V~240V(50Hz±0.3Hz) Power Power Requirement 24 VAC ±10%/12 VDC ±10% SCC-B2335P:24 VAC ±10%/12 VDC ±10% LED Indicator Yes SCC-B2035P:AC220V~240V(50Hz±0.3Hz) Physical Dimensions (WxHxD) 64 x 58 x 109.2 mm SCC-B2337P:64 x 58 x 109.2 mm LED Indicator Yes Specification SCC-B2037P:64 x 58 x 129.2 mm 120 120 Physical Dimensions (WxHxD) 64 x 58 x 109.2 mm SCC-B2335P:64x58x109.2 mm Weight 305 g SCC-B2337P:305g/SCC-B2037P:395g Specification SCC-B2035P:64x58x129.2 mm Color Body Siver Weight 305 g SCC-B2335P:305g/SCC-B2035P:395g Color Body Siver Samsung Video Security System | 28 . 29

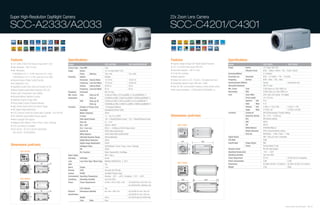

- 15. Super High-Resolution DayNightCamera 22x Zoom Lens Camera SCC-A2333/A2033 SCC-C4201/C4301 Features Specifications Features Specifications • 1/2" SONY 410K/470K Pixels Ex-View HAD IT CCD Model SCC-A2333N SCC-A2033P/A2333P • Superior images through DSP (Digital Signal Processor) Model SCC-C4201 SCC-C4301 • High Resolution : 600 TV Lines Camera Type Color/BW Color • 1/4" 410/470K Pixels Super HAD CCD Image Device 1/4" Super HAD CCD • Min. illumination Image Device 1/2" Ex-View HAD IT CCD • Horizontal resolution : 480 TV Lines Effective Pixels NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V) 0.000006Lux (F1.2, 15 IRE, Sens-Up 512x, Color) Pixels Effective 768 x 494 752 x 582 • 10-bit A/D converter Scanning Method 2:1 Interlace 0.0000006Lux (F1.2, 15 IRE, Sens-Up 512x, B/W) Scanning System Interlace • Motion detection Scanning Line Horizontal NTSC : 15.750KHz / PAL : 15.625Hz • Internal/Linelock (Phase Control) Function Horizontal Internal Mode 15,734 Hz 15,625 Hz • Optical 22x zoom (f=3.6~79.2mm), 10x digital zoom lens Frequency Vertical NTSC : 60Hz / PAL : 50Hz • ALC(Video/DC) / ELC Frequency Line-lock Mode 15,750 Hz 15,625 Hz • Outstanding signal-to-noise (S/N) ratio : 52dB Synchronization Method Internal Internal/Line lock Vertical Internal Mode 59.94 Hz 50 Hz • Both RS-485 communication interface & wired remote control Horizontal Resolution 480 TV Lines • Day/Night Function (ICR), Sens-Up Function (512x) Frequency Line-lock Mode 60 Hz 50 Hz Min. Scene Color 0.005 (Sens up 128x,15IRE) Lux • Motion Adaptive Digital Noise Reduction (3D+2D) • Min. scene illumination : 0.005(color)/0.0005(B/W) Lux Resolution Horizontal 600 TV Lines Illumination B/W 0.0005 (Sens up 128x,15IRE) Lux • Back Light Compensation (Area Setting) Min. Scene Color Sens-up off 0.036Lux(15IRE), 0.072Lux(30IRE), 0.12Lux(50IRE)@F1.2 Lens Zoom Ratio 220x Zoom (22x optical, 10x digital) • Advanced Motion Detection Function Focal Length 3.6~79.2mm Illumination Sens-up 0.000006Lux(15IRE), 0.000012Lux(30IRE), 0.00002Lux(50IRE)@F1.2 • eXtended Dynamic Range (XDR) B/W Sens-up off 0.0036Lux(15IRE), 0.0072Lux(30IRE), 0.012Lux(50IRE)@F1.2 Aperture Tele F3.8 • Privacy Mask Function (Polygonal Mosaic) Sens-up 0.0000006Lux(15IRE), 0.0000012Lux(30IRE), 0.000002Lux(50IRE)@F1.2 Ratio Wide F1.6 • High Shutter Speed Control by External Trigger Functions Number of Privacy Zone 12 (Polygonal Method) Viewing Tele 2.3˚(H) x 1.7˚(V) x 9˚(V) 2.3˚(H) x 1.7˚(V) • DIS (Digital Image Stabilization) Day/Night Day/Night/AUTO/EXT (ICR) Angle Wide 47.9˚(H) x 36˚ 47.9˚(H) x 36.9˚(V) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Motion Detection Off/On Functions Camera ID Off/On(20Characters, Position Setting) • RS-485(Half) Control (Multi-Protocol support) D-Zoom 1x ~ 16x (0.1x STEP) Dimensions (unit:mm) Electronic Shutter Off, 1/100 ~ 10,000 sec • Multi-Language OSD support High Speed Shutter 1/60 ~1/10Ksec(OSD/External Control) 1/50 ~1/10Ksec(OSD/External Control) BLC Off/On(Area setting) • Intelligent Video (Moved / Fixed / Fence / Area / Tracking) Sens Up 2x ~ 512x AGC Off/On BLC / AGC Off/On / Off/On SCC-C4201 PIP Off/On • C/CS Lens Mount Compatible ELC / Line Lock Off/On ( ~ 1/200Ksec) / Off/On (Phase Control) White Balance ATW/AWC/Manual • SCC-A2333 : DC12V & AC24V 60Hz(50Hz) Camera ID Off/On (Max.54ea/2Lines) Motion Detection Off/On (Area/Sensitivity setting) SCC-A2033 : AC220V(50Hz) White Balance ATW1/ATW2/AWC/3200K/5600K Sens Up Off/Auto(2x ~ 128x) / Fix(2x ~ 128x) eXtended Dynamic Range Off/Low/Mid/High Signal Output VBS 1.0Vp-p(75 ohm, composite) Digital Noise Reduction Off/On S/N Ratio 52dB Digital Image Stabilization Off/On Input/Output Image Output BNC Dimensions (unit:mm) Intelligent Video Off/On(Moved / Fixed / Fence / Area / Tracking) Power Terminal Block (2-pin) PIP Off/On Remote Control RS-485 (Half Duplex) SCC-A2333 Etc. Function Detail, Reverse(H/V), Posi/Nega Operating Temperature -10˚C ~ +50˚C Video Output VBS 1.0Vp-p Operating Humidity Less than 90% S/N Ratio S/N Ratio 50 dB Power Requirment DC12V AC24V/DC12V Compatible Lens Lens Drive Type / Mount Type MANUAL/AI(VIDEO/DC) / CS/C Power Consumption 5.0W 5.5W 100 SCC-C4301 Dimensions 60.5(W) x 59.5(H) x 119.5(D)mm 60.5(W) x 59.5(H) x 161.5(D)mm OSD Yes Alarm Output 1 ea Weight 375g 500g Remote CCVC Yes (with SCX-RD100) Control RS485 Yes (Multi Protocol, 8ea) Environmental Operating Temperature Absolute : -20˚C ~ +60˚C / Sustained : -10˚C ~ +50˚C SCC-A2033 Conditions Operating Humidity Less than 90% Power Power Requirement 24 VAC ±10%/12 VDC ±10% SCC-A2333P:24 VAC ±10%/12 VDC ±10% SCC-A2033P:AC220V~240V(50Hz±0.3Hz) LED Indicator Yes 120 Physical Dimensions (WxHxD) 64 x 58 x 109.2 mm SCC-A2333P:64 x 58 x 109.2 mm Specification SCC-A2033P:64 x 58 x 129.2 mm Weight 305 g SCC-A2333P:305g/SCC-A2033P:395g Color Body Siver Samsung Video Security System | 30 . 31

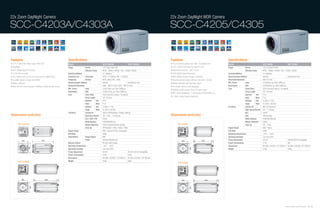

- 16. 22x Zoom DayNightCamera 22x Zoom DayNight WDR Camera SCC-C4203A/C4303A SCC-C4205/C4305 Features Specifications Features Specifications • 1/4" 410K/470K Pixels Super HAD CCD Model SCC-C4203A SCC-C4303A • 22x motorized optical zoom with 10x digital zoom Model SCC-C4205 SCC-C4305 • Day/Night Image Device 1/4" Super HAD CCD • 1/4” 410K/470K Pixels Ex-View PS CCD Image Device 1/4" Ex-View PS CCD • DSP (Digital Signal Processor) Effective Pixels NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V) • Horizontal resolution : 480 TV lines Effective Pixels NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V) • 10-bit A/D converter Scanning Method 2:1 Interlace • DSP (Digital Signal Processor) Scanning Method 2:1 Interlace • 22x optical zoom(f=3.6-79.2mm)and10x digital Zoom Scanning Line Horizontal NTSC :15.750KHz / PAL : 15.625Hz • WDR (Wide Dynamic Range), Day/Night Synchronization Method Internal Internal/Line lock • Excellent signal-to-noise ratio(50dB) Frequency Vertical NTSC :60Hz / PAL : 50Hz • External synchronization with line lock (SCC-C4305) Horizontal Resolution 480 TV Lines • Motion detection Synchronization Method Internal Internal/Line lock • Motion detection with alarming output Min. Scene Color 0.002(Sens-up 160x,15IRE)Lux • Both RS-485 communication interface & wired remote control Horizontal Resolution Color : 480 TV Lines / B/W : 350 TV Lines • On-screen menus (multi-language) Illumination B/W 0.0002(Sens-up 160x,15IRE)Lux Min. Scene Color 0.005 (Sens-up 128x,15IRE)Lux Lens Zoom Ratio 220x Zoom(22x optical, 10x digital) • Remote-control (zoom, focus, Iris open-close) Illumination B/W 0.0005 (Sens-up 128x,15IRE)Lux Focal Length 3.6~79.2mm • Min. scene illumination : 0.002(color)/0.0002(B/W) Lux Lens Zoom Ratio 220x Zoom(22x optical, 10x digital) Aperture Tele F3.8 • 1 Alarm output (motion detection) Focal Length 3.6~79.2mm Ratio Wide F1.6 Aperture Tele F3.8 Viewing Tele 2.3˚(H) x 1.7˚(V) Ratio Wide F1.6 Angle Wide 47.9'(H) x 36.9˚(V) Viewing Tele 2.3˚(H) x 1.7˚(V) Functions Camera ID Max 20 Character Angle Wide 47.9˚(H) x 36.9˚(V) High Speed Shutter Off ~ 1/10Ksec Functions Camera ID Off/On (20Characters, Position Setting) BLC Off/On Dimensions (unit:mm) Electronic Shutter Off, 1/100 ~ 10,000 sec Dimensions (unit:mm) AGC Off/Low/High BLC / AGC / PIP Off/On White Balance ATW/AWC/Manual White Balance ATW/AWC/Manual Motion Detection Off/On SCC-C4203A Motion Detection Off/On (Area/Sensitivity Setting) SCC-C4205 Sens Up Off ~ 160x Sens Up OFF/Auto(2x~128x) / Fix(2x~128x) Signal Output VBS 1.0Vp-p Signal Output VBS 1.0Vp-p(75 ohm, Composite) S/N Ratio 50dB S/N Ratio 50dB Operating Temperature -10˚C ~ +50˚C Input/Output Image Output BNC Operating Humidity Less than 90% Power Terminal Block(2-pin) Power Requirment DC12V AC24V/DC12V Compatible Remote Control RS-485 (Half Duplex) Power Consumption 5.7W 6W Operating Temperature -10˚C ~ +50˚C Dimensions 60.5(W) x 59.5(H) x 127.5(D)mm 60.5(W) x 59.5(H) x 161.5(D)mm Operating Humidity Less than 90% Weight 375g 500g Power Requirment DC12V AC24V / DC12V Compatible Power Consumption 5.0W 5.5W Dimensions 60.5(W) x 59.5(H) x 119.5(D)mm 60.5(W) x 59.5(H) x 161.5(D)mm SCC-C4303A Weight 375g 550g SCC-C4305 Samsung Video Security System | 32 . 33
- 17. 32x Zoom DayNightWDR Camera SCC-C4207/C4307 :::::::::::::::::::::::::::::::::::::::::::::::: Rear Parts Exterior Day & Night External Signal Input and Alarm Signal Output Features Specifications Terminal • 1/4" 410K/470K Pixels Ex-View CCD Model SCC-C4207 SCC-C4307 This is the terminal that allows connection to an external brightness sensor (optional) to • DIS (Digital Image Stabilizer) Image Device 1/4" Ex-View CCD trigger switching between black & white or color mode. It also sends out an alarm signal • 32x zoom Lens (digital zoom:10x) Effective Pixels NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V) when linked to the MOTION DET function or black & white. • Min. scene illumination : 0.002(color)/0.0002(B/W) Lux Scanning Method 2 : 1 Interlace • Day/Night Scanning Line Horizontal NTSC : 15.750Hz / PAL : 15.625Hz Day & Night IN • 128x WDR (Wide Dynamic Range) Frequency Vertical NTSC : 60Hz / PAL : 50Hz 1 • Motion detection (with adjustable zones and sensitivity levels) Synchronization Method Internal Internal/Line lock GND SCC-C4207 SCC-C4307 Horizontal Resolution 480 TV Lines 2 • Privacy protection that allows up to 8 privacy zones Min. Scene Color 0.002 (Sens-up 160x,15IRE)Lux Alarm Output • Remote control through RS485(using SSC-1000/5000) Illumination B/W 0.0002 (Sens-up 160x,15IRE)Lux • Excellent signal-to-noise ratio(50dB) Camera Manipulation Switch (setup switch) Lens Zoom Ratio 320x (32x Optical, 10x Digital) Focal Length 3.55 ~ 113mm The functions of these parts will differ, depending on the operation mode Video Output Terminal Aperture Tele F4.17 of the camera. This is the terminal that is connected to the video input terminal of a monitor. The video Ratio Wide F1.69 images from the camera are sent to the monitor through this terminal. Viewing Tele 1.78˚(H) x 1.34˚(V) • When the camera is in general operation mode : Angle Wide 56.41˚(H) x 43.01˚(V) Up/Down Direction Switch : Zoom Tele or Zoom Wide switch, respectively. Functions Wide Dynamic Range Off/On (128x) Left/Right Direction Switch : Near Focus or Far Focus switch, respectively. RS485 Port Dimensions (unit:mm) Day/Night Color/BW/Auto/EXT (ICR) [SET UP] Switch: This is used to enter the setup menu : This is the RS485 remote control port. Motion Detection Off/On (Area/Sensitivity Setting) Electronic Shutter Off, 1/100 ~10,000 sec The user can enter the setup menu by pushing the [SET UP] switch, and SCC-C4207 Sens Up Off/Auto (2x ~ 160x) holding it for 3 seconds. Power LED BLC Off/On (Area Setting) The LED will be on if power is being supplied to the camera. AGC Off/Low/High Camera ID Max. 20 Characters • From the setup menu : White Balance ATW/ATW2/AWC/Manual Up/Down Direction Switch : Used to move the cursor up or down. Power Input Terminal IR Filter Off/On Left/Right Direction Switch : Used to move the cursor to the left or right. This is the terminal that is connected to the power adaptor cable. Privacy Zones 8 (Mosaic) Other functions may be designated by the setup menu. Signal Output VBS 1.0Vp-p(75 Ohm, Composite) S/N Ratio 50dB(AGC Off) [ENTER] Switch : Used to select the highlighted option. Input/Output Image Output BNC Remote Control RS485 Alarm Output 1 Power Terminal Block (2-pin) SCC-C4307 Operating Temperature -10˚C ~ +50˚C ZOOM/FOCUS REMOTE Terminal Operating Humidity Maximum 90% RH This is the terminal used to connect an external controller for ZOOM/FOCUS and menu Power Requirment DC12V AC24V/DC12V compatible control and for executing the HOME RETURN and AF functions. It can be set to one of Power Consumption 5.5W 6W four modes (A, B, C or D) according to the input condition. Dimensions 60.5(W) x 59.5(H) x 126.7(D)mm 60.5(W) x 59.5(H) x 160.9(D)mm Weight 390g 515g Samsung Video Security System | 34 . 35

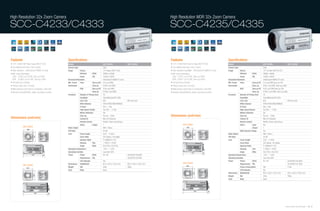

- 18. High Resolution 32xZoom Camera High Resolution WDR 32x Zoom Camera SCC-C4233/C4333 SCC-C4235/C4335 Features Specifications Features Specifications • 1/4" 410K/470K Pixels Super-HAD IT CCD Model SCC-C4233 SCC-C4333 • 1/4" 410K/470K Pixels Ex-View HAD PS CCD Model SCC-C4235 SCC-C4335 • 32x Optical zoom lens (16x D-zoom) Camera Type Color • 32x Optical zoom lens (16x D-zoom) Camera Type Color • High resolution : 540(Color)/570(BW) TV Lines Image Device 1/4" Super-HAD IT CCD • High resolution Day/Night : 540(Color)/570(BW) TV Lines Image Device 1/4" Ex-View HAD PS CCD • Min. scene illumination Effective NTSC 768(H) x 494(V) • Min. scene illumination Effective NTSC 768(H) x 494(V) Color : 0.002 Lux(15 IRE, Sens-up 256x) Pixels PAL 752(H) x 582(V) Color : 0.001 Lux(15 IRE, Sens-up 256x) Pixels PAL 752(H) x 582(V) B/W : 0.0002 Lux(15 IRE, Sens-up 256x) Horizontal Resolution 540(Color)/570(BW) TV Lines B/W : 0.0001 Lux(15 IRE, Sens-up 256x) Horizontal Resolution 540(Color)/570(BW) TV Lines • Full auto focus function Min. Scene Color Sens-up Off 0.6 Lux(15IRE) • Full auto focus function Min. Scene Color Sens-up Off 0.3 Lux(15IRE,Sens-up Off) • Privacy mask zone (16 area) Illumination Sens-up 0.002 Lux(15IRE) • Privacy mask zone (16 area) Illumination Sens-up 0.001 Lux(15IRE, Sens-up x256) • Multi-protocol (more than 8 companies), multi-OSD B/W Sens-up Off 0.06 Lux(15IRE) • Multi-protocol (more than 8 companies), multi-OSD B/W Sens-up Off 0.03 Lux(15IRE,Sens-up Off) • Remote control(RS485), power zoom/focus control Sens-up 0.0002 Lux(15IRE) • Remote control(RS485), power zoom/focus control Sens-up 0.0001 Lux(15IRE, Sens-up x256) Functions Number of Privacy Zone 16 Functions Number of Privacy Zone 16 Day/Night Color/BW/Auto/EXT (ICR) Day/Night Color/BW/Auto/EXT (ICR) Line Lock N/A INT/Line Lock Line Lock N/A INT/Line Lock White Balance ATW1/ATW2/AWC/MANUAL White Balance ATW1/ATW2/AWC/MANUAL D-Zoom Yes ( ~ 16x) D-Zoom Yes (~16x) High Speed Shutter Yes (OFF ~ 1/10K) High Speed Shutter Yes (OFF ~ 1/10K) Motion Detection Yes Motion Detection Yes Sens Up Yes (2x ~ 256x) Dimensions (unit:mm) Sens Up Yes (2x ~ 256x) Dimensions (unit:mm) Camera ID Max 20 Character Camera ID Max 20 Character Remote Control RS485, Power Zoom/Focus Remote Control RS485, Power Zoom/Focus Alarm Output 1 SCC-C4235 Alarm Input Yes SCC-C4233 Video Output VBS 1.0Vp-p Output 1 S/N Ratio 50 dB Wide Dynamic Range Yes RS-415 1 2 3 4 5 6 7 SET UP RS-415 1 2 3 4 5 6 7 SET UP Lens Focal Length 3.55 ~ 113mm DATA+ DATA- 1. ALARM OUT PWR Video Output VBS 1.0Vp-p 2. GND 3. 5V OUT Zoom Ratio 32x Optical, 16x Digital S/N Ratio 50 dB PWR 4. DAY/NIGHT IN 5. ZOOM DATA+ DATA- 6. COM 1. ALARM OUT GND +12V 7. FOCUS 2. GND VIDEO OUT 3. 5V OUT 4. DAY/NIGHT IN 5. ZOOM 6. COM Aperture Ratio F1.69(W)/F4.17(T) Lens Focal Length 3.55 ~ 113mm GND +12V 7. FOCUS VIDEO OUT Viewing Tele 1.78˚(H) x 1.34˚(V) Zoom Ratio 32x Optical, 16x Digital Angle Wide 56.41˚(H) x 43.01˚(V) Aperture Ratio F1.69(W)/F4.17(T) 512x 512x Operating Temperature -10˚C ~ + 50˚C Genuine Product of Samsung Electronics Viewing Tele 1.78˚(H) x 1.34˚(V) Genuine Product of Samsung Electronics Operating Humidity Less than 90% 115.2 10 Angle Wide 56.41˚(H) x 43.01˚(V) 115.2 10 Power Power NTSC DC 12V AC24V/DC12V,60Hz Operating Temperature -10˚C ~ + 50˚C Requirement PAL AC24V/DC12V,50Hz Operating Humidity Less than 90% LED Indicator Yes Power Power NTSC DC 12V AC24V/DC12V, 60Hz Dimensions Net(WxHxD) 60.5 x 59.5 x 125.2 mm 60.5 x 59.5 x 159.2 mm SCC-C4335 Requirement PAL AC24V/DC12V, 50Hz SCC-C4333 Weight Net 444g 595g Power Consumption 5W 5.5W Color Body Silver RS-485 1 2 3 4 5 6 7 SET UP LED Indicator Yes RS-485 1 2 3 4 5 6 7 SET UP DATA+ DATA- 1. ALARM OUT 2. GND 3. 5V OUT PWR Dimensions Net(WxHxD) 60.5 x 59.5 x 125.2 mm 60.5 x 59.5 x 159.2 mm PWR 4. DAY/NIGHT IN 5. ZOOM Weight Net 444g 595g DATA+ DATA- 6. COM 1. ALARM OUT AC 24V/DC 12V 7. FOCUS 2. GND VIDEO OUT 3. 5V OUT 4. DAY/NIGHT IN 5. ZOOM 6. COM AC 24V/DC 12V 7. FOCUS VIDEO OUT Color Body Silver 512x 512x Genuine Product of Samsung Electronics DIGITAL COLOR CAMERA SCC-C4335 Genuine Product of Samsung Electronics DIGITAL COLOR CAMERA SCC-C4335 149.2 10 149.2 10 Samsung Video Security System | 36 . 37

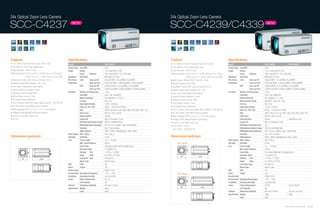

- 19. 34x Optical ZoomLens Camera 34x Optical Zoom Lens Camera SCC-C4237 NEW SCC-C4239/C4339 NEW Features Specifications Features Specifications • 1/4" SONY 410K/470K Pixels Super HAD IT CCD Model SCC-C4237 • 1/4" SONY 410K/470K Pixels Ex-View HAD PS CCD Model SCC-C4239 SCC-C4339 • 34x Optical & 16x(0.1step) Digital Zoom Camera Type Color/BW Color • 34x Optical & 16x(0.1step) Digital Zoom Camera Type Color/BW Color • High Resolution : 600 TV Lines Image Device 1/4" Super HAD IT CCD • High Resolution : 600 TV Lines Image Device 1/4" Ex-View HAD PS CCD • Min. illumination 0.001 Lux (F1.2, 15 IRE, Sens-up 512x, Color) Pixels Effective 768 x 494 (NTSC) / 752 x 582 (PAL) • Min. illumination 0.001 Lux (F1.2, 15 IRE, Sens-up 512x, Color) Pixels Effective 768 x 494 (NTSC) / 752 x 582 (PAL) 0.0001 Lux (F1.2, 15 IRE, Sens-up 512x, B/W) Resolution Horizontal 600 (Color) TV Lines 0.0001 Lux (F1.2, 15 IRE, Sens-up 512x, B/W) Resolution Horizontal 600 (Color) TV Lines • Day Night Function (ICR), Sens-up Function (512x) Min. Scene Color Sens-up Off 0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE) • Wide Dynamic Range (NTSC 128x, PAL 160x) Min. Scene Color Sens-up Off 0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE) • Adaptive Digital Noise Reduction (3D + 2D) Illumination Sens up 512x 0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE) • Virtual Progressive Scan (VPS) Illumination Sens up 512x 0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE) • Back Light Compensation (Area Setting) B/W Sens-up Off 0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE) • Day Night Function (ICR), Sens-up Function (512x) B/W Sens-up Off 0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE) • Advanced Motion Detection Function Sens up 512x 0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE) Sens up 512x 0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE) • Adaptive Digital Noise Reduction (3D + 2D) Functions Number of Privacy Zone 12 ea Functions Number of Privacy Zone 12 ea • eXtended Dynamic Range (XDR) • Back Light Compensation (Area Setting) Day/Night Auto / Day / Night(ICR) Day/Night Auto / Day / Night(ICR) • Privacy Mask Function (12ea) • Advanced Motion Detection Function Motion Detection Yes, Sensitivity 1~7 Level Motion Detection Yes, Sensitivity 1~7 Level • DIS (Digital Image Stabilization) • eXtended Dynamic Range (XDR) D-Zoom Yes(~16x) Wide Dynamic Range Yes(NTSC : 128x, PAL : 160x) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) High Speed Shutter 1/100~1/10K sec • Privacy Mask Function (12ea) D-Zoom Yes(~16x) • RS-485 (Halfl) Control (Multi-Protocol support) Sens Up / PIP / BLC Yes(2x ~ 512x) / Yes / Off/On • DIS (Digital Image Stabilization) High Speed Shutter 1/100~1/10K sec • Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support AGC Off/On (Very Low / Low / Mid / High / Very High / User / Fix) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Sens Up / PIP / BLC Yes(2x ~ 512x) / Yes / Off/On • Intelligent Video (Moved/Fixed/Fence/Tracking) Auto Focus Manual / Auto / one AF • RS-485 (Halfl) Control (Multi-Protocol support) AGC Off/On (Very Low / Low / Mid / High / Very High / User / Fix) • Preset 512 ea, Alarm Output 1ea Syncronization Internal • Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support Auto Focus Manual / Auto / one AF • DC12V Camera ID Max 54 Character, 2 Line • Intelligent Video (Moved/Fixed/Fence/Tracking) Syncronization Internal Internal/Line Lock XDR(eXtended Dynamic Range) Off/On (Low/Middle/High) • Preset 512 ea, Alarm Output 1ea Camera ID Max 54 Character, 2 Line DNR(Digital Noise Reduction) Off / On (Low / Middle / High / User(3D/2D)) • SCC-C4239 : DC12V VPS(Virtual Progressive Scan) Yes Schedule Day / Time Schedule XDR(eXtended Dynamic Range) Off/On (Low/Middle/High) SCC-C4339 : AC24V/DC12V White Balance ATW1 / ATW2 / AWC(Manual) / 3200 / 5600 DNR(Digital Noise Reduction) Off / On (Low / Middle / High / User(3D/2D)) Video Output VBS 1.0Vp-p VBS 1.0Vp-p Schedule Day / Time Schedule Dimensions (unit:mm) S/N Ratio S/N Ratio 52 dB Dimensions (unit:mm) White Balance ATW1 / ATW2 / AWC(Manual) / 3200 / 5600 Lens Focal Length 3.4 ~ 115.6mm Video Output VBS 1.0Vp-p VBS 1.0Vp-p Min. Object Distance 100cm SCC-C4239 S/N Ratio S/N Ratio 52 dB Zoom Ratio 34x Optical (688x with 16x Digital zoom) Lens Focal Length 3.4 ~ 115.6mm Aperature Ratio F1.65(W)/F3.7(T) Min. Object Distance 100cm 59 Viewing Tele 1.47˚(H) x 1.10˚(V)0 Zoom Ratio 34x Optical (688x with 16x Digital zoom) 59 Angle Wide 61.22˚(H) x 47.16˚(V) Aperature Ratio F1.65(W)/F3.7(T) 59 113.9 59 113.9 Lens Drive Type DC Auto Iris Viewing Tele 1.47˚(H) x 1.10˚(V)0 Mount Type Board-in type Angle Wide 61.22˚(H) x 47.16˚(V) OSD OSD Yes Lens Drive Type DC Auto Iris Alarm Output 1ea Mount Type Board-in type Remote Control RS485, CCVC OSD OSD Yes Environmental Operating Temperature -10˚C ~ +50˚C SCC-C4339 Alarm Output 1ea Conditions Operating Humidity Less than 90% Remote Control RS485, CCVC Power Power Requirement DC12V Environmental Operating Temperature -10˚C ~ +50˚C 59 LED Indicator Yes Conditions Operating Humidity Less than 90% Physical Dimensions (WxHxD) 59x 59x113.9mm Power Power Requirement DC12V DC12V, AC24V 59 144.2 Specification Weight 383g LED Indicator Yes Color Silver Physical Dimensions (WxHxD) 59x 59x113.9mm 59x 59x144.2mm Specification Weight 383g 508g Color Silver Samsung Video Security System | 38 . 39

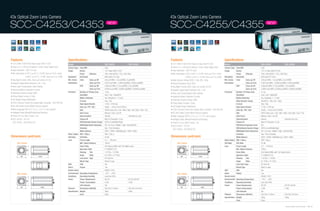

- 20. 43x Optical ZoomLens Camera 43x Optical Zoom Lens Camera SCC-C4253/C4353 NEW SCC-C4255/C4355 NEW Features Specifications Features Specifications • 1/4" SONY 410K/470K Pixels Super HAD IT CCD Model SCC-C4253 SCC-C4353 • 1/4" SONY 410K/470K Pixels Ex-View HAD PS CCD Model SCC-C4255 SCC-C4355 • 43x(f=3.2~138.5mm) Optical & 16x(0.1step) Digital Zoom Camera Type Color/BW Color • 43x(f=3.2~138.5mm) Optical & 16x(0.1step) Digital Zoom Camera Type Color/BW Color • High Resolution : 600 TV Lines Image Device 1/4" Super HAD IT CCD • High Resolution : 600 TV Lines Image Device 1/4" Ex-View HAD PS CCD • Min. illumination 0.001 Lux (F1.2, 15 IRE, Sens-up 512x, Color) Pixels Effective 768 x 494 (NTSC) / 752 x 582 (PAL) • Min. illumination 0.001 Lux(F1.2,15 IRE, Sens-up 512x, Color) Pixels Effective 768 x 494 (NTSC) / 752 x 582 (PAL) 0.0001 Lux (F1.2, 15 IRE, Sens-up 512x, B/W) Resolution Horizontal 600 (Color) TV Lines 0.0001 Lux(F1.2,15 IRE, Sens-up 512x, B/W) Resolution Horizontal 600 (Color) TV Lines • Day Night Function (ICR), Sens-up Function (512x) Min. Scene Color Sens-up Off 0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE) • Wide Dynamic Range (NTSC 128x, PAL 160x) Min. Scene Color Sens-up Off 0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE) • Adaptive Digital Noise Reduction (3D + 2D) Illumination Sens up 512x 0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE) • Virtual Progressive Scan (VPS) Illumination Sens up 512x 0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE) • Back Light Compensation (Area Setting) B/W Sens-up Off 0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE) • Day Night Function (ICR), Sens-up Function (512x) B/W Sens-up Off 0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE) • Advanced Motion Detection Function Sens up 512x 0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE) Sens up 512x 0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE) • Adaptive Digital Noise Reduction (3D + 2D) Functions Number of Privacy Zone 12 ea Functions Number of Privacy Zone 12 ea • eXtended Dynamic Range (XDR) • Back Light Compensation (Area Setting) Day/Night Auto / Day / Night(ICR) Day/Night Auto / Day / Night(ICR) • Privacy Mask Function (12ea) • Advanced Motion Detection Function Motion Detection Yes, Sensitivity 1~7 Level Motion Detection Yes, Sensitivity 1~7 Level • DIS (Digital Image Stabilization) • eXtended Dynamic Range (XDR) D-Zoom Yes(~16x) Wide Dynamic Range Yes(NTSC : 128x, PAL : 160x) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) High Speed Shutter 1/100~1/10K sec • Privacy Mask Function (12ea) D-Zoom Yes(~16x) • RS-485 (Halfl) Control (Multi-Protocol support) Sens Up / PIP / BLC Yes(2x ~ 512x) / Yes / Off/On • DIS (Digital Image Stabilization) High Speed Shutter 1/100~1/10K sec • Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support AGC Off/On (Very Low / Low / Mid / High / Very High / User / Fix) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Sens Up / PIP / BLC Yes(2x ~ 512x) / Yes / Off/On • Intelligent Video (Moved/Fixed/Fence/Tracking) Auto Focus Manual / Auto / one AF • RS-485 (Halfl) Control (Multi-Protocol support) AGC Off/On (Very Low / Low / Mid / High / Very High / User / Fix) • Preset 512 ea, Alarm Output 1 ea Syncronization Internal Internal/Line Lock • Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support Auto Focus Manual / Auto / one AF • SCC-C4253 : DC12V Camera ID Max 54 Character, 2 Line • Intelligent Video (Moved/Fixed/Fence/Tracking) Syncronization Internal Internal/Line Lock SCC-C4353 : AC24V/DC12V XDR(eXtended Dynamic Range) Off/On (Low/Middle/High) • Preset 512 ea, Alarm Output 1 ea Camera ID Max 54 Character, 2 Line DNR(Digital Noise Reduction) Off / On (Low / Middle / High / User(3D/2D)) • SCC-C4255 : DC12V VPS(Virtual Progressive Scan) Yes Schedule Day / Time Schedule XDR(eXtended Dynamic Range) Off/On (Low/Middle/High) SCC-C4355 : AC24V/DC12V White Balance ATW1 / ATW2 / AWC(Manual) / 3200 / 5600 DNR(Digital Noise Reduction) Off / On (Low / Middle / High / User(3D/2D)) Video Output VBS 1.0Vp-p VBS 1.0Vp-p Schedule Day / Time Schedule Dimensions (unit:mm) S/N Ratio S/N Ratio 52 dB Dimensions (unit:mm) White Balance ATW1 / ATW2 / AWC(Manual) / 3200 / 5600 Lens Focal Length 3.2 ~ 138.5mm Video Output VBS 1.0Vp-p VBS 1.0Vp-p SCC-C4253 Min. Object Distance 100cm SCC-C4255 S/N Ratio S/N Ratio 52 dB Zoom Ratio 43x Optical (688x with 16x Digital zoom) Lens Focal Length 3.2 ~ 138.5mm Aperature Ratio F1.65(W)/F3.7(T) Min. Object Distance 100cm 59 59 Viewing Tele 1.47˚(H) x 1.10˚(V)0 Zoom Ratio 43x Optical (688x with 16x Digital zoom) Angle Wide 61.22˚(H) x 47.16˚(V) Aperature Ratio F1.65(W)/F3.7(T) 59 113.9 59 113.9 Lens Drive Type DC Auto Iris Viewing Tele 1.47˚(H) x 1.10˚(V)0 Mount Type Board-in type Angle Wide 61.22˚(H) x 47.16˚(V) OSD OSD Yes Lens Drive Type DC Auto Iris Alarm Output 1ea Mount Type Board-in type Remote Control RS485, CCVC OSD OSD Yes SCC-C4353 Environmental Operating Temperature -10˚C ~ +50˚C SCC-C4355 Alarm Output 1ea Conditions Operating Humidity Less than 90% Remote Control RS485, CCVC Power Power Requirement DC12V DC12V, AC24V Environmental Operating Temperature -10˚C ~ +50˚C 59 59 Power Consumption 4.2W 5.6W Conditions Operating Humidity Less than 90% LED Indicator Yes Power Power Requirement DC12V DC12V, AC24V 59 144.2 59 144.2 Physical Dimensions (WxHxD) 59x 59x113.9mm 59x 59x144.2mm Power Consumption 4.2W 5.6W Specification Weight 383g 508g LED Indicator Yes Color Silver Physical Dimensions (WxHxD) 59x 59x113.9mm 59x 59x144.2mm Specification Weight 383g 508g Color Silver Samsung Video Security System | 40 . 41

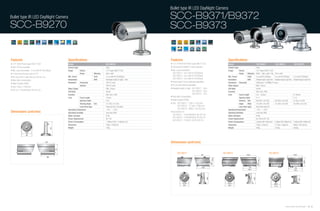

- 21. Bullet type IRLED DayNight Camera Bullet type IR LED DayNight Camera SCC-B9371/B9372 SCC-B9270 SCC-B9373 Features Specifications Features Specifications • 1/3" 320K Pixels Super-HAD IT CCD Model SCC-B9270 • 1/3" 410K/470K Pixels Super-HAD IT CCD Model SCC-B9371 SCC-B9372 SCC-B9373 • 350 TV lines resolution Camera Type Color • 540(Color)/570(BW) TV lines resolution Camera Type Color • Min. scene illumination : 0 Lux with IR-LED(48pcs) Image Device 1/3" Super-HAD IT CCD • Min. scene illumination: Image Device 1/3" Super-HAD IT CCD • 4.3mm fixed iris lens built-in F2.0 Pixels Effective 500 x 582 SCC-B9371 : 0Lux with IR-LED(36pcs) Pixels Effective NTSC : 768 x 494 / PAL : 752 x 582 Min. Scene Color O Lux with IR-LED(48pcs) SCC-B9372 : 0Lux with IR-LED(42pcs) Min. Scene Color O Lux with IR-LED(36pcs) O Lux with IR-LED(42pcs) O Lux with IR-LED(42pcs) • No focus shift in night time (at LED turn on) Illumination B/W Viewable length at night : 40m SCC-B9373 : 0Lux with IR-LED(42pcs) Illumination B/W Viewable length at night:35m Viewable length at night:45m Viewable length at night:70m • Back light compensation Resolution Horizontal 350 TV Lines • Focal length & focus externally adjustable Resolution Horizontal 540(Color) / 570(BW) TV Lines • Water resistant (IP66) Vertical 350 TV Lines • DC iris level external adjustable Video Output VBS 1.0Vp-p • Size: 70(ø) x 104(L)mm Video Output VBS 1.0Vp-p • Viewable length at night : SCC-B9371 : 35m S/N Ratio 48 dB • DC12V, 110mA/450mA (IR LED On) SCC-B9372 : 45m S/N Ratio 48 dB Function AGC, BLC, ATW Function AGC, BLC, ATW SCC-B9373 : 70m Lens Focal Length 3.8 ~ 9.5mm 6~50mm Lens Focal Length 4.3mm • Back light compensation Aperture Ratio F1.2 F1.6 Aperture Ratio F2.0 • Water resistant (IP66) Viewing Tele 30.0˚(H) x 22.4˚(V) 30.0˚(H) x 22.4˚(V) 5.7˚(H) x 4.3˚(V) Viewing Angle Tele 73.7˚(H) x 47.3˚(V) • Size : SCC-B9371 : 73(ø) x 122(L)mm Angle Wide 74.2˚(H) x 54.0˚(V) 74.2˚(H) x 54.0˚(V) 43.9˚(H) x 33.2˚(V) Lens Drive Type Fixed Iris (ELC Function) SCC-B9372 : 77.5(ø) x 129(L)mm Lens Drive Type Vari-Focal Auto Iris Operating Temperature -10˚C ~ + 50˚C SCC-B9373 : 98(ø) x 162.5(L))mm Operating Temperature -10˚C ~ + 50˚C Dimensions (unit:mm) Operating Humidity Less than 90% • AC24V/DC12V : Operating Humidity Less than 90% Water resistant IP 66 SCC-B9371 : 210mA/600mA (IR LED On) Water Resistant IP 66 SCC-B9372 : 210mA/650mA (IR LED On) Power Requirement DC 12V Power Requirement AC 24V & DC 12V SCC-B9373 : 210mA/1.2A (IR LED On) Power Consumption 1.3W(Led Off) / 5.4W(Led On) Power Consumption 2.5W(Led Off)/7.2W(Led On) 2.5W(Led Off)/7.8W(Led On) 2.5W(Led Off)/14.4W(Led On) Dimension 70(ø) x 104(L)mm Dimension 73(ø) x 122(L)mm 77.5(ø) x 129(L)mm 98(ø) x 162.5(L)mm Weight 750g Weight 910g 1010g 2335g 110 70 82 125 Dimensions (unit:mm) 77 SCC-B9371 SCC-B9372 SCC-B9373 140 104 Samsung Video Security System | 42 . 43
- 22. Anti-Vandal Dome IRLED DayNight Camera Anti Vandal Dome Camera SCC-B9374 SCC-931T Features Specifications Features Specifications • 1/3" 410K/470K Pixels Super-HAD IT CCD Model SCC-B9374 • Water resistant and dust resistant (IP66) Model SCC-931T SCC-931TP • 540(Color)/570(BW) TV lines resolution Camera Type Color • 1/4" 410K/470K Pixels Super HAD CCD Image Device 1/4" Super HAD CCD • Min. scene illumination : 0 Lux with IR-LED(18pcs) Image Device 1/3" Super-HAD IT CCD • 12x optical zoom lens (10x digital zoom) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) • Vari-focal(3.8~9.5mm) auto iris lens built-in F1.2 Pixels Effective NTSC : 768 x 494 / PAL : 752 x 582 • Min. scene illumination : 0.005 Lux Scanning Method 2:1 Interlace • Color & B/W changing time selectable Min. Scene Color O Lux with IR-LED(18pcs) • RS-485 remote control Horizontal Resolution 480 TV Lines • IR LED Day/Night vision camera Illumination B/W Viewable Length at Night : 20m • AC24V / DC12V Synchronization Method Internal/Line lock • Real 3-axis gimbals bracket (2-Pan , 2-Tilt) Resolution Horizontal 540(Color) / 570(BW) TV Lines • Applicable Wall mount adaptor : SADT-101WM Min. Scene Illumination 0.005(Sens up 128x,15IRE)Lux Video Output VBS 1.0Vp-p Lens Zoom Ratio 12x Optical, 10x Digital • Viewable length at night(20m) S/N Ratio 48 dB Focal Length 3.6 ~ 43.2mm • Back light compensation Function AGC, BLC, ATW Viewing Tele 4.7˚(H) x 3.6˚(V) • Vandal resistant, water resistant (IP66) Lens Focal Length 3.8 ~ 9.5mm Angle Wide 52.8˚(H) x 40.3˚(V) • Service monitor (second video) built-in Aperture Ratio F1.2 Functions Shutter Speed Off ~ 1/10,000 sec • Size : 145(ø) x 100(L)mm Viewing Tele 30.0˚(H) x 22.4˚(V) Sens Up Max 128x (Auto/FIX/Off) • AC24V/DC12V, 210mA/420mA (IR LED On) Angle Wide 74.2˚(H) x 54.0˚(V) Dimensions (unit:mm) Motion Detection On/Off • Applicable Wall mount adaptor : SADT-937WM Lens Drive Type Vari-focal Auto Iris Focus AF/OneAF/Manual Operating Temperature -10˚C ~ + 50˚C White Balance ATW / AWC / Manual Operating Humidity Less than 90% Signal Output VBS 1.0Vp-p, 75ohm, BNC Water resistant IP 66 S/N Ratio 52dB Power Requirement AC 24V & DC 12V Remote Control RS-485(Half Duplex) Power Consumption 2.5W(Led Off) / 5W(Led On) Power Requirment AC24V / DC12V Compatible Dimension 145(ø) x 100(L)mm Weight 1,000g Dimensions (unit:mm) Weight 990g Dimensions 132(ø) x 95.3(D)mm Applicable Wall Mount Adaptor Installation Guide (Wall Surface) SADT-101WM SCC-931T + SADT-101WM Wall Mount Adaptor Gasket Body Anti Vandal Dome Camera (SCC-931T) Screw-Machine Samsung Video Security System | 44 . 45

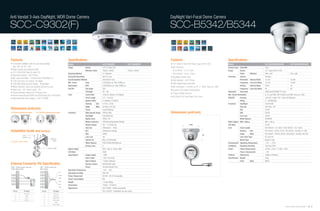

- 23. Anti Vandal 3-AxisDayNight, WDR Dome Camera DayNight Vari-Focal Dome Camera SCC-C9302(F) SCC-B5342/B5344 Features Specifications Features Specifications • Convenient installation, with its 3-axis turning design Model SCC-C9302(F) SCC-C9302(F)P • 1/3" SONY 410K/470K Pixels Super-HAD IT CCD Model SCC-B5342N/B5344N SCC-B5342P/B5344P (pan: 355˚, tilt: 20˚~ 90˚) Image Device 1/4" Ex-View CCD • Vari-Focal lens Camera Type Color/BW Color • Water resistant and dustproof (IP66) Effective Pixels 768(H) x 494(V) 752(H) x 582(V) SCC-B5342 : f=2.5~6mm Image Device 1/3" Super-HAD IT CCD • 1/4" 410K/470K Pixels Ex-View CCD Scanning Method 2:1 Interlace SCC-B5344 : f=2.9~10mm Pixels Effective 768 x 494 752 x 582 • Horizontal resolution : 480 TV lines Horizontal Resolution 480 TV Lines • Day/Night function (ICR) Scanning System Interlace • Min. scene illumination : 0.002(color)/0.0002(B/W) Lux Synchronization Method Internal/Line lock • High resolution : 540 TV lines Horizontal Internal Mode 15,734 15,625 • 120x zoom lens (12x optical, 10x digital) Min. Scene Color 0.002(Sens-up 160x,15IRE)Lux • DNR (Digital Noise Reduction) Frequency Line-lock Mode 15,750 15,625 • 128x WDR (Wide Dynamic Range) • Day/Night Illumination B/W 0.0002(Sens-up 160x,15IRE)Lux Vertical Internal Mode 59.94 50 • Motion Detection (zones and sensitivity level set by user) • Min. illumination : 0.0009 Lux (F1.2, 15IRE, Sens up 128x) Pan/Tilt Pan Angle 355˚ Frequency Line-lock Mode 60 50 • Alarm input : 1Ch / Alarm output : 1Ch • Dynamic CCD Defect Compensation • Privacy protection allows up to 8 privacy zones Tilt Angle 20˚~ 90˚ Resolution Horizontal 540(Color)/570(BW) TV Lines • 3-Way Gimbals Structure • Remote control through RS485 and RS422(using SSC-1000/5000) Lens Zoom Ratio 120x(12x Optical, 10x Digital) Min. Scene Illumination 0.12 Lux(15IRE, Off) 0.0009 Lux(15IRE, Sens-up 128x) Focal Length 3.6 ~ 43.2mm • AC24V/DC12V Dual Power (Line Lock) PAN/TILT Panning Left 255˚ / Right 100˚ / Total 355˚(Manual) • Applicable Wall mount adaptor : SADT-102WM Apeture Ratio F1.8(Wide), F2.6(Tele) Tilting 0 ~ 90˚(Manual) Viewing Tele 4.7˚(H) x 3.6˚(V) Functions Day/Night On/Off (ICR) Angle Wide 52.8˚(H) x 40.3˚(V) Sens Up On(128x) / Off Dimensions (unit:mm) Focus One/AF/Manual BLC On/Off SCC-C9302(for attaching to the ceiling) SCC-C9302F(for embedding into the ceiling) Functions Wide Dynamic Range Off/On(128x) Dimensions (unit:mm) AGC On/Off Day/Night Color/BW/Auto Line Lock On/Off Digital Zoom Off/On, PIP White Balance ATW/AWC Motion Detection Off/On(Area/Sensitivity Setting) Video Output VBS 1.0Vp-p VBS 1.0Vp-p Shutter Speed Off ~ 1/10,000 sec S/N Ratio 50 dB Sens Up Off/Auto(2x ~ 160x) Lens Focal Length SCC-B5342 : 2.5~6mm / SCC-B5344 : 2.9~10mm Installation Guide (Wall Surface) BLC Off/On(Area Setting) Viewing Tele SCC-B5342 : 46˚(H) x 34˚(V) / SCC-B5344 : 28.8˚(H) x 21.6˚(V) AGC Off/On Angle Wide SCC-B5342 : 108˚(H) x 80˚(V) / SCC-B5344 : 94.6˚(H) x 68.4˚(V) Screw (BH M4 X L22) Line Lock Yes Lens Drive Type DC Auto Iris Wall Mount Adaptor Camera ID Max. 20 Characters Mount Type Board-in type SCC-C9302 + SADT-102WM White Balance ATW1/ATW2/AWC/Manual Environmental Operating Temperature -10˚C ~ +50˚C Privacy Zone 8 Conditions Operating Humidity Less than 90% Gasket-102WM Signal Output VBS 1.0Vp-p, 74ohm, BNC Power Power Requirement 24 VAC ±10% / 12 VDC ±10% S/N Ratio 52dB Power Consumption 1.7W Input/Output Image Output 1 BNC Physical Dimensions 128(ø) x 91(H)mm Alarm Input 1 (No, 5mA Sink) Specification Weight 293g Alarm Output 1 (Open Collector) Color Body White External Connector Pin Specification Remote Control RS485(Half Duplx) CN52 : Camera power input and CN51 : RS485 control and Power Terminal Bolck(2-Pin) image signal output alarm output Operating Temperature -10˚C ~ 50˚C 1 Red Operating Humidity 90% RH 1 2 Orange Power Requirment AC24V / DC12V Compatible 2 3 Gray Yellow Power Consumption 6W 3 4 Green Weight 1,100g (880g) 4 5 Black Dimensions 150(ø) x 121(D)mm 6 Brown Appearance SCC-C9302 : Ceiling-mountable Pin no. Pin Spec Pin no. Pin Spec SCC-C9302F : Embedded into the ceiling 1 VBS_OUT 1 485_B(-) 2 GND 2 485_A(+) 3 AC24- 3 GND(COM) 4 AC24+ 4 Alram Input 5 GND 6 Alram Output Samsung Video Security System | 46 . 47

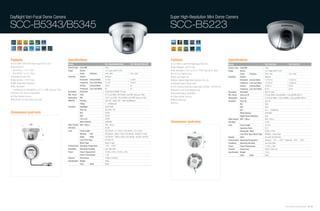

- 24. DayNight Vari-Focal DomeCamera Super High-Resolution Mini Dome Camera High Resolution Color Camera SCC-B5343/B5345 SCC-B5223 SCC-B1311/B1011P Features Specifications Features Specifications • 1/3" SONY 410K/470K Pixels Super-HAD IT CCD Model SCC-B5343N/B5345N SCC-B5343P/B5345P • 1/3" SONY 410K/470K Pixels Super-HAD CCD Model SCC-B5223N SCC-B5223P • Vari-Focal lens Camera Type Color/BW Color • High Resolution : 600 TV Lines Camera Type Color/BW Color SCC-B5343 : f=2.5~6mm Image Device 1/3" Super-HAD IT CCD • Min. illumination 0.075 Lux (F2.0, 15 IRE, Sens-Up 4x, Color) Image Device 1/3" Super-HAD IT CCD SCC-B5345 : f=2.9~10mm Pixels Effective 768 x 494 752 x 582 • f=3.0 mm, Fixed Iris Lens Pixels Effective 768 x 494 752 x 582 • Day/Night function (ICR) Scanning System Interlace • Sens-Up Function (4x) Scanning System Interlace • High resolution : 540 TV lines Horizontal Internal Mode 15,734 15,625 • Motion Adaptive Digital Noise Reduction (3D+2D) Horizontal Internal Mode 15,734 Hz 15,625 Hz • DNR (Digital Noise Reduction) Frequency Line-lock Mode 15,750 15,625 • eXtended Dynamic Range (XDR) Frequency Line-lock Mode 15,750 Hz 15,625 Hz • Min. illumination : Vertical Internal Mode 59.94 50 Vertical Internal Mode 59.94 Hz 50 Hz • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Frequency Line-lock Mode 60 50 Frequency Line-lock Mode 60 Hz 50 Hz 0.0009(Color)/0.00009(BW) Lux (F1.2, 15IRE, Sens-up 128x) • Electronic Level Control (Manual Lens) Resolution Horizontal 540(Color)/570(BW) TV Lines Resolution Horizontal 600 TV Lines • Dynamic CCD Defect Compensation • Auto White Balance (ATW/AWC) Min. Scene Color 0.12 Lux(15IRE, Off) 0.0009 Lux(15IRE, Sens-up 128x) Min. Scene Sens-up off 0.3Lux(15IRE), 0.6Lux(30IRE), 1.0Lux(50IRE) @F2.0 • 3-Way Gimbals Structure • 3-Way Gimbals Structure Illumination BW 0.012 Lux(15IRE, Off) 0.00009 Lux(15IRE, Sens-up 128x) Illumination Sens-up 0.075Lux(15IRE), 0.15Lux(30IRE), 0.25Lux(50IRE) @F2.0 • AC24V/DC12V Dual Power (Line Lock) PAN/TILT Panning Left 255˚ / Right 100˚ / Total 355˚(Manual) • Mini Compact Size Functions Sens Up Auto 4x Tilting 0 ~ 90˚(Manual) • DC12V BLC Auto Functions Day/Night On/Off (ICR) AGC Auto Sens Up On(128x) / Off ELC On ( ~ 1/200Ksec) Dimensions (unit:mm) BLC On/Off White Balance ATW/AWC AGC On/Off Digital Noise Reduction Auto Line Lock On/Off Video Output VBS 1.0Vp-p VBS 1.0Vp-p White Balance ATW/AWC Dimensions (unit:mm) S/N Ratio 52 dB Video Output VBS 1.0Vp-p VBS 1.0Vp-p Lens Focal Length 3.0 mm S/N Ratio 50 dB Aperature Ratio F2.0 Lens Focal Length SCC-B5343 : 2.5~6mm / SCC-B5345 : 2.9~10mm Viewing Angle Wide 92˚(H) x 72˚(V) Viewing Tele SCC-B5343 : 46˚(H) x 34˚(V) / SCC-B5345 : 28.8˚(H) x 21.6˚(V) Lens Drive Type / Mount Type MANUAL / Board Type Angle Wide SCC-B5343 : 108˚(H) x 80˚(V) / SCC-B5345 : 94.6˚(H) x 68.4˚(V) Remote CCVC Yes (with SCX-RD100) Lens Drive Type DC Auto Iris Environmental Operating Temperature Absolute : -10˚C ~ +50˚C / Sustained : -20˚C ~ +60˚C Mount Type Board-in type Conditions Operating Humidity Less than 90% Environmental Operating Temperature -10˚C ~ +50˚C Power Power Requirement 12 VDC ±10% Conditions Operating Humidity Less than 90% Physical Dimensions 85(ø) x 54(H) mm Power Power Requirement 24 VAC ±10% / 12 VDC ±10% Specification Weight 120 g Power Consumption 1.7W Color Body Silver Physical Dimensions 128(ø) x 91(H)mm Specification Weight 293g Color Body White Samsung Video Security System | 48 . 49

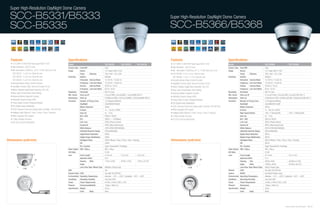

- 25. Super High-Resolution DayNightDome Camera SCC-B5331/B5333 Super High-Resolution DayNight High Resolution Color Camera Dome Camera SCC-B5335 SCC-B5366/B5368 SCC-B1311/B1011P Features Specifications Features Specifications • 1/3" SONY 410K/470K Pixels Super-HAD IT CCD Model SCC-B5331 SCC-B5333 SCC-B5335 • 1/3" SONY 410K/470K Pixels Super-HAD IT CCD Model SCC-B5366 SCC-B5368 • High Resolution : 600 TV Lines Camera Type Color/BW Color • High Resolution : 600 TV Lines Camera Type Color/BW Color • Min. illumination 0.0006Lux (F2.0, 15 IRE, Sens-Up 512x) Image Device 1/3" Super-HAD IT CCD • Min . illumination 0.00023Lux (F1.2, 15 IRE, Sens-Up 512x) Image Device 1/3" Super-HAD IT CCD SCC-B5331 : f=3.8 mm, Fixed Iris Lens Pixels Effective 768 x 494 / 752 x 582 • SCC-B5366 : f=2.5~6 mm, Auto Iris Lens Pixels Effective 768 x 494 / 752 x 582 SCC-B5333 : f=3.0 mm, Fixed Iris Lens Scanning System Interlace SCC-B5368 : f=2.8~11 mm, Auto Iris Lens Scanning System Interlace SCC-B5335 : f=8.0 mm, Fixed Iris Lens Horizontal Internal Mode 15,734 Hz / 15,625 Hz • Internal/Linelock (Phase Control) Function Horizontal Internal Mode 15,734 Hz / 15,625 Hz • Internal/Linelock (Phase Control) Function Frequency Line-lock Mode 15,750 Hz / 15,625 Hz • Day/Night Function (Soft), Sens-Up Function (512x) Frequency Line-lock Mode 15,750 Hz / 15,625 Hz • Day/Night Function (Soft), Sens-Up Function (512x) Vertical Internal Mode 59.94 Hz / 50 Hz • Motion Adaptive Digital Noise Reduction (3D+2D) Vertical Internal Mode 59.94 Hz / 50 Hz • Motion Adaptive Digital Noise Reduction (3D+2D) Frequency Line-lock Mode 60 Hz / 50 Hz Frequency Line-lock Mode 60 Hz / 50 Hz • Back Light Compensation (Area Setting) Resolution Horizontal 600 TV Lines Resolution Horizontal 600 TV Lines • Back Light Compensation (Area Setting) • Advanced Motion Detection Function Min. Scene Sens-up off 0.3Lux(15IRE), 0.6Lux(30IRE), 1.0Lux(50IRE) @F2.0 Min. Scene Sens-up off 0.12Lux(15 IRE), 0.2Lux(30 IRE), 0.4Lux(50 IRE) @F1.2 • Advanced Motion Detection Function • eXtended Dynamic Range (XDR) Illumination Sens-up 0.0006Lux(15IRE), 0.0012Lux(30IRE), 0.002Lux(50IRE) @F2.0 Illumination Sens-up 0.00023Lux(15 IRE), 0.0005Lux(30 IRE), 0.0008Lux(50 IRE) @F1.2 • eXtended Dynamic Range (XDR) • Privacy Mask Function (Polygonal Mosaic) Functions Number of Privacy Zone 12 (Polygonal Method) Functions Number of Privacy Zone 12 (Polygonal Method) • Privacy Mask Function (Polygonal Mosaic) Day/Night Color/BW/AUTO(Soft) • DIS (Digital Image Stabilization) Day/Night Color/BW/AUTO (Soft) • DIS (Digital Image Stabilization) Motion Detection Off/On • CCVC (Camera Control Via Coaxial cable, Controller: SCX-RD100) Motion Detection Off/On • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) D-Zoom 1x ~ 16x (0.1x STEP) • Multi-Language OSD support D-Zoom 1x ~16x (0.1x STEP) • Intelligent Video (Moved / Fixed / Fence / Area / Tracking) Sens Up 2x ~ 512x • Intelligent Video (Moved / Fixed / Fence / Area / Tracking) High Speed Shutter 1/60~1/10Ksec(OSD) 1/50~1/10Ksec(OSD) • Multi-Language OSD support BLC / AGC Off/On / Off/On • 3-Way Gimbals Structure Sens Up 2x ~ 512x • 3-Way Gimbals Structure ELC Off/On ( ~ 1/200Ksec) • DC12V & AC24V 60Hz(50Hz) BLC / AGC Off/On / Off/On • DC12V & AC24V 60Hz(50Hz) Line Lock Off/On (Phase Control) Line Lock Off/On (Phase Control) Camera ID Off/On (Max.54ea/2Lines) Camera ID Off/On (Max.54ea/2Lines) White Balance ATW1/ATW2/AWC/MANUAL White Balance ATW1/ATW2/AWC/MANUAL eXtended Dynamic Range Off/Low/Mid/High eXtended Dynamic Range Off/Low/Mid/High Digital Noise Reduction Off/On Digital Noise Reduction Off/On Digital Image Stabilization Off/On Digital Image Stabilization Off/On Dimensions (unit:mm) Intelligent Video Off/On (Moved / Fixed / Fence / Area / Tracking) Dimensions (unit:mm) Intelligent Video Off/On (Moved / Fixed / Fence / Area / Tracking) PIP Off/On PIP Off/On Etc. Function Detail, Reverse(H/V), Posi/Nega Etc. Function Detail, Reverse(H/V), Posi/Nega Video Output VBS 1.0Vp-p VBS 1.0Vp-p Video Output VBS 1.0Vp-p VBS 1.0Vp-p S/N Ratio 52 dB S/N Ratio 52 dB Lens Focal Length f=3.8 mm f=3.0 mm f=8.0 mm Lens Focal Length 2.5~6mm 2.8~11mm Aperature Ratio F2.0 Aperature Ratio F1.2 Viewing Wide 71˚(H) x 53˚(V) 92˚(H) x 72˚(V) 72˚(H) x 25.3˚(V) Viewing Tele 46˚(H) x 34˚(V) 28.8˚(H) x 21.6˚(V) Angle Angle Wide 108˚(H) x 80˚(V) 94.6˚(H) x 68.4˚(V) Lens Drive Type / Mount Type MANUAL / Board Type Lens Drive Type / Mount Type AI(DC) / Board Type OSD Yes Remote CCVC Yes (with SCX-RD100) Remote Control CCVC Yes (with SCX-RD100) Control RS485 Yes (Multi Protocol, 8ea) Environmental Operating Temperature Absolute : -10˚C ~ +50˚C / Sustained : -20˚C ~ +60˚C Environmental Operating Temperature Absolute : -10˚C ~ +50˚C / Sustained : -20˚C ~ +60˚C Conditions Operating Humidity Less than 90% Conditions Operating Humidity Less than 90% Power Power Requirement 24 VAC ±10%/12 VDC ±10% Power Power Requirement 24 VAC ±10%/12 VDC ±10% Physical Dimensions(WxHxD) 102(ø) x 78(H) mm Physical Dimensions 128(ø) x 78(H) mm Specification Weight 220 g Specification Weight 330 g Color Body Silver Color Body White Samsung Video Security System | 50 . 51

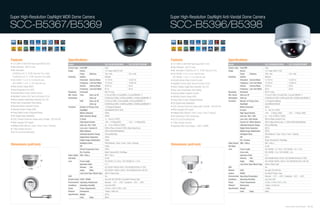

- 26. Super High-Resolution DayNightWDR Dome Camera Super High-Resolution DayNight Anti-Vandal Dome Camera SCC-B5367/B5369 SCC-B5396/B5398 Features Specifications Features Specifications • 1/3" SONY 410K/470K Pixels Super-HAD PS CCD Model SCC-B5367N/B5369N SCC-B5367P/B5369P • 1/3" SONY 410K/470K Pixels Super-HAD IT CCD Model SCC-B5396N/B5398N SCC-B5396P/B5398P • High Resolution : 600 TV Lines Camera Type Color/BW Color • High Resolution : 600 TV Lines Camera Type Color/BW Color • Min. illumination Image Device 1/3" Super-HAD PS CCD • Min. illumination 0.00023Lux (F1.2, 15 IRE, Sens-Up 512x) Image Device 1/3" Super-HAD IT CCD 0.00023Lux (F1.2, 15 IRE, Sens-Up 512x, Color) Pixels Effective 768 x 494 752 x 582 • SCC-B5396 : f=2.5~6 mm, Auto Iris Lens Pixels Effective 768 x 494 752 x 582 0.000023Lux (F1.2, 15 IRE, Sens-Up 512x, B/W)) Scanning System Interlace SCC-B5398 : f=2.8~11 mm, Auto Iris Lens Scanning System Interlace • SCC-B5367 : f=2.5~6 mm, Auto Iris Lens Horizontal Internal Mode 15,734 Hz 15,625 Hz • Internal/Linelock (Phase Control) Function Horizontal Internal Mode 15,734 Hz 15,625 Hz SCC-B5369 : f=2.8~11 mm, Auto Iris Lens Frequency Line-lock Mode 15,750 Hz 15,625 Hz • Day/Night Function (Soft), Sens-Up Function (512x) Frequency Line-lock Mode 15,750 Hz 15,625 Hz • Wide Dynamic Range (WDR) Vertical Internal Mode 59.94 Hz 50 Hz • Motion Adaptive Digital Noise Reduction (3D+2D) Vertical Internal Mode 59.94 Hz 50 Hz • Virtual Progressive Scan (VPS) Frequency Line-lock Mode 60 Hz 50 Hz Frequency Line-lock Mode 60 Hz 50 Hz • Back Light Compensation (Area Setting) Resolution Horizontal 600 TV Lines Resolution Horizontal 600 TV Lines • Internal/Linelock (Phase Control) Function • Advanced Motion Detection Function Min. Scene Color Sens-up off 0.12Lux(15IRE), 0.2Lux(30IRE), 0.4Lux(50IRE)@F1.2 Min. Scene Sens-up off 0.12Lux(15 IRE), 0.2Lux(30 IRE), 0.4Lux(50 IRE)@F1.2 • Day/Night Function (ICR), Sens-Up Function (512x) • eXtended Dynamic Range (XDR) Illumination Sens-up 0.00023Lux(15IRE), 0.0005Lux(30IRE), 0.0008Lux(50IRE)@F1.2 Illumination Sens-up 0.00023Lux(15 IRE), 0.0005Lux(30 IRE), 0.0008Lux(50 IRE)@F1.2 • Motion Adaptive Digital Noise Reduction (3D+2D) • Privacy Mask Function (Polygonal Mosaic) B/W Sens-up off 0.012Lux(15IRE), 0.02Lux(30IRE), 0.04Lux(50IRE)@F1.2 Functions Number of Privacy Zone 12 (Polygonal Method) • Back Light Compensation (Area Setting) Sens-up 0.000023Lux(15IRE), 0.00005Lux(30IRE), 0.00008Lux(50IRE)@F1.2 • DIS (Digital Image Stabilization) Day/Night Color/BW/AUTO(Soft) • Advanced Motion Detection Function Functions Number of Privacy Zone 12 (Polygonal Method) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Motion Detection Off/On • eXtended Dynamic Range (XDR) Day/Night Color/BW/AUTO/EXT (ICR) • Multi-Language OSD support D-Zoom 1x ~16x (0.1x STEP) • Privacy Mask Function (Polygonal Mosaic) Motion Detection Off/On • Intelligent Video (Moved / Fixed / Fence / Area / Tracking) High Speed Shutter 1/60 ~ 1/10Ksec (OSD) 1/50 ~ 1/10Ksec (OSD) • DIS (Digital Image Stabilization) Wide Dynamic Range Off/On • Anti Vandal type, IP-66, Surface type Sens Up / BLC / AGC 2x ~ 512x / Off/On / Off/On • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) D-Zoom 1x ~16x (0.1x STEP) • DC12V & AC24V 60Hz(50Hz) Line Lock / Anti Vandal Off/On (Phase Control) / Yes • Multi-Language OSD support High Speed Shutter 1/60 ~1/10Ksec(OSD) 1/50 ~ 1/10Ksec(OSD) • 3-Way Gimbals Structure Camera ID / White Balance Off/On (Max.54ea/2Lines) / ATW1/ATW2/AWC/MANUAL • Intelligent Video (Moved / Fixed / Fence / Area / Tracking) Sens Up / BLC / AGC 2x ~ 512x / Off/On / Off/On • Applicable Wall mount adaptor : SADT-102WM eXtended Dynamic Range Off/Low/Mid/High • 3-Way Gimbals Structure Line Lock / Camera ID Off/On (Phase Control) / Off/On (Max.54ea/2Line) Digital Noise Reduction Off/On White Balance ATW1/ATW2/AWC/MANUAL Digital Image Stabilization Off/On • DC12V & AC24V 60Hz(50Hz) eXtended Dynamic Range Off/Low/Mid/High Intelligent Video Off/On(Moved / Fixed / Fence / Area / Tracking) Digital Noise Reduction Off/On PIP Off/On Digital Image Stabilization Off/On Etc. Function Detail, Reverse(H/V), Posi/Nega Intelligent Video Off/On(Moved / Fixed / Fence / Area / Tracking) Video Output VBS 1.0Vp-p VBS 1.0Vp-p Dimensions (unit:mm) PIP Off/On Dimensions (unit:mm) S/N Ratio 52 dB Virtual Progressive Scan Off/On Lens Focal Length SCC-B5396 : 2.5~6mm / SCC-B5398 : 2.8~11mm Etc. Function Detail, Reverse(H/V), Posi/Nega Zoom ratio SCC-B5396 : 2.4x / SCC-B5398 : 3.4x Video Output VBS 1.0Vp-p VBS 1.0Vp-p Aperature Ratio F1.2 S/N Ratio 52 dB Viewing Tele SCC-B5396:46˚(H) x 34˚(V) / SCC-B5398:28.8˚(H) x 21.6˚(V) Lens Focal Length SCC-B5367:2.5~6mm / SCC-B5369:2.8~11mm Angle Wide SCC-B5396:108˚(H) x 80˚(V) / SCC-B5398:94.6˚(H) x 68.4˚(V) Aperature Ratio F1.2 Lens Drive Type / Mount Type AI(DC) / Board Type Viewing Tele SCC-B5367:46˚(H) x 34˚(V) / SCC-B5369:28.8˚(H) x 21.6˚(V) OSD Yes Angle Wide SCC-B5367:108˚(H) x 80˚(V) / SCC-B5369:94.6˚(H) x 68.4˚(V) Remote CCVC Yes (with SCX-RD100) Lens Drive Type / Mount Type AI(DC) / Board Type Control RS485 Yes (Multi Protocol, 8ea) OSD Yes Environmental Operating Temperature Absolute : -10˚C ~ +50˚C / Sustained : -20˚C ~ +60˚C Remote Control CCVC / RS485 Yes (with SCX-RD100) / Yes (Multi Protocol, 8ea) Conditions Operating Humidity Less than 90% Environmental Operating Temperature Absolute : -10˚C ~ +50˚C / Sustained : -20˚C ~ +60˚C Power Power Requirement 24 VAC ±10%/12 VDC ±10% Conditions Operating Humidity Less than 90% Physical Dimensions 150(ø) x 121(H) mm Power Power Requirement 24 VAC ±10%/12 VDC ±10% Specification Weight 1,000g Physical Dimensions 128(ø) x 78(H) mm Color Body White Specification Weight 330 g Color Body White Samsung Video Security System | 52 . 53

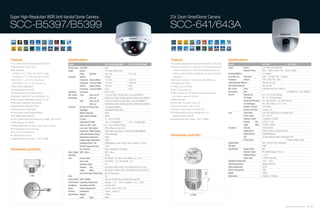

- 27. Super High-Resolution WDRAnti-Vandal Dome Camera 22x Zoom SmartDome Camera SCC-B5397/B5399 SCC-641/643A Features Specifications Features Specifications • 1/3" SONY 410K/470K Pixels Super-HAD PS CCD Model SCC-B5397N/B5399N SCC-B5397P/B5399P • Accurately captures distant object with the maximum 220x zoom. Model SCC-641 SCC-643A • High Resolution : 600 TV Lines Camera Type Color/BW Color • Possible to connect up to a maximum of 256 cameras using the Image Device 1/4" Pixles Super HAD CCD • Min. illumination Image Device 1/3" Super-HAD PS CCD exclusive controller (SSC-1000) made by Samsung, which can Effective Pixels NTSC : 768(H) x 494(V) / PAL : 752(H) x 582(V) 0.0002Lux (F1.2, 15 IRE, Sens-Up 512x, Color) Pixels Effective 768 x 494 752 x 582 control a range of functions including pan, tilt, zoom, preset and Scanning Method 2:1 Interlace 0.00002Lux (F1.2, 15 IRE, Sens-Up 512x, B/W) Scanning System Interlace manual focus Scanning Line Horizontal NTSC : 15.750Hz / PAL : 15.625Hz • SCC-B5397 : f=2.5~6 mm, Auto Iris Lens Horizontal Internal Mode 15,734 Hz 15,625 Hz • Min. scene illumination : 0.005(color)/0.0005(B/W) Lux Frequency Vertical NTSC : 60Hz / PAL : 50Hz SCC-B5399 : f=2.8~11 mm, Auto Iris Lens Frequency Line-lock Mode 15,750 Hz 15,625 Hz • Day/Night (SCC-643A) Synchronization Method Internal/ Line Lock • Wide Dynamic Range (WDR) Vertical Internal Mode 59.94 Hz 50 Hz • Privacy zone (SCC-643A) Horizontal Resolution 480 TV Lines Frequency Line-lock Mode 60 Hz 50 Hz Min. Scene Color 0.005(Sens-up 128x, 15IRE)Lux • Virtual Progressive Scan (VPS) • Up to 128 preset points Resolution Horizontal 600 TV Lines Illumination B/W - 0.0005(Sens-up 128x,15IRE)Lux • Internal/Linelock (Phase Control) Function • 360˚ horizontal and 180˚ vertical turning while searching, Min. Scene Color Sens-up off 0.12Lux(15 IRE), 0.2Lux(30 IRE), 0.4Lux(50 IRE)@F1.2 Pan/Tilt Manual Pan Pan : 0.8˚~90˚/sec (64step) • Day/Night Function (ICR), Sens-Up Function (512x) at a maximum speed of 240˚/sec Illumination Sens-up 0.00023Lux(15 IRE), 0.0005Lux(30 IRE), 0.0008Lux(50 IRE)@F1.2 Tilt Speed Tilt : 0.8˚~45˚/sec (64step) • Motion Adaptive Digital Noise Reduction (3D+2D) • Motion detection Preset Pan/Tilt Speed Pan : Max 240˚/sec / Tilt : Max 150˚/sec B/W Sens-up off 0.012Lux(15 IRE), 0.02Lux(30 IRE), 0.04Lux(50 IRE)@F1.2 • Back Light Compensation (Area Setting) Sens-up 0.000023Lux(15 IRE), 0.00005Lux(30 IRE), 0.00008Lux(50 IRE)@F1.2 • Alarm Input: 4Ch, Alarm Output: 3Ch Pan/Tilt Range Pan : 360˚ Endless / Tilt : 0˚~ 90˚ • Advanced Motion Detection Function Functions Number of Privacy Zone 12 (Polygonal Method) • Horizontal resolution : 480 TV Lines Number of Preset 128 Presets • eXtended Dynamic Range (XDR) Day/Night Color/BW/AUTO/EXT (ICR) • Remote control through RS-485/RS-422 Number of Pattern 3 (30sec x 3) • Privacy Mask Function (Polygonal Mosaic) Motion Detection Off/On • Pan/tilt/zoom/focus can be controlled from a PC Lens Zoom Ratio 220x (22x Optical Zoom, 10x Digital Zoom) • DIS (Digital Image Stabilization) Wide Dynamic Range Off/On (separate software required) Focal Length 3.6~79.2mm • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) D-Zoom 1x ~16x (0.1x STEP) • Applicable Wall mount adaptor : SADT-100WM Aperature Ratio F1.6(Wide), F3.8(Tele) • Multi-Language OSD support High Speed Shutter 1/60 ~1/10Ksec(OSD) 1/50 ~ 1/10Ksec(OSD) Viewing Tele 2.3˚(H) x 1.7˚(V) • Intelligent Video (Moved / Fixed / Fence / Area / Tracking) Sens Up / BLC / AGC 2x ~ 512x / Off/On / Off/On Angle Wide 47.9˚(H) x 36.9˚(V) Line Lock / Anti Vandal Off/On (Phase Control) / Yes Functions Sens Up 128x (Auto/Fix) • Anti Vandal type, IP-66, Surface type Camera ID / White Balance Off/On (Max.54ea/2Lines) / ATW1/ATW2/AWC/MANUAL Digital Effect H-Mirror, Picture in Picture (D Zoom) • DC12V & AC24V 60Hz(50Hz) eXtended Dynamic Range Off/Low/Mid/High White Balance ATW/AWC/Manual • 3-Way Gimbals Structure Digital Noise Reduction Off/On Dimensions (unit:mm) BLC On (Zone Setting, Position Designation)/ Off • Applicable Wall mount adaptor : SADT-102WM Privacy Zone - Possible to Set 8 Zones Digital Image Stabilization Off/On Intelligent Video / PIP Off/On(Moved / Fixed / Fence / Area / Tracking) / Off/On Signal Output VBS 1.0Vp-p(75 ohm, Composite) Virtual Progressive Scan Off/On S/N Ratio 52dB Dimensions (unit:mm) Etc. Function Detail, Reverse(H/V), Posi/Nega Input/Output Image Output BNC Video Output VBS 1.0Vp-p VBS 1.0Vp-p Remote Control RS-485(Half Duplex) / RS-422 S/N Ratio 52 dB Address Range 1~128 Lens Focal Length SCC-B5397 : 2.5~6mm / SCC-B5399 : 2.8~11mm Alarm Input 4 NO/NC(5mA Sink) Zoom ratio SCC-B5397 : 2.4x / SCC-B5399 : 3.4x Operating Temperature -10˚C ~ +50˚C Aperature Ratio F1.2 Operating Humidity Maximum 90% RH Viewing Tele SCC-B5397:46˚(H) x 34˚(V) / SCC-B5399:28.8˚(H) x 21.6˚(V) Power Requirment AC24V Angle Wide SCC-B5397:108˚(H) x 80˚(V) / SCC-B5399:94.6˚(H) x 68.4˚(V) Power Consumption 18W Lens Drive Type / Mount Type AI(DC) / Board Type Weight 2,000g OSD Yes Dimensions 159.5(ø) x 177(D)mm Remote Control CCVC / RS485 Yes (with SCX-RD100) / Yes (Multi Protocol, 8ea) Environmental Operating Temperature Absolute : -10˚C ~ +50˚C / Sustained : -20˚C ~ +60˚C Conditions Operating Humidity Less than 90% Power Power Requirement 24 VAC ±10%/12 VDC ±10% Physical Dimensions 150(ø) x 121(H) mm Specification Weight 1,000g Color Body White Samsung Video Security System | 54 . 55

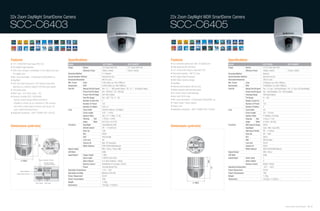

- 28. 32x Zoom DayNightSmartDome Camera 22x Zoom DayNight WDR SmartDome Camera SCC-C6403 SCC-C6405 Features Specifications Features Specifications • 1/4" 410K/470K Pixels Super-HAD CCD Model SCC-C6403 SCC-C6403P • 22x motorized optical zoom with 10x digital zoom Model SCC-C6405 SCC-C6405P • DIS (Digital Image Stabilizer) Image Device 1/4" Super-HAD CCD 1/4" Super-HAD CCD • High-speed pan/tilt (400º/sec) Image Device 1/4" Ex-View HAD CCD • 320x zoom, through a combination of 32x optical zoom and Effective Pixels 768(H) x 494(V) 752(H) x 582(V) • 1/4” 410K/470K Pixels Ex-View HAD CCD Effective Pixels 768(H) x 494(V) 752(H) x 582(V) 10x digital zoom Scanning Method 2:1 Interlace • Horizontal resolution : 480 TV Lines Scanning Method Interlace • Min. scene illumination : 0.005(color)/0.0005(B/W) Lux Synchronization Method Internal/Line lock • DSP (Digital Signal Processor) Synchronization Method Internal/Line lock • Day/Night Horizontal Resolution 480 TV Lines • WDR (Wide Dynamic Range) Horizontal Resolution 480 TV Lines • 350˚ horizontal turning and 0~90˚ vertical turning while Min. Scene Color 0.005 (Sens-up 128x,15IRE)Lux • Day/Night Min. Scene Color 0.002(Sens-up 160x,15IRE)Lux Illumination B/W 0.0005 (Sens-up 128x,15IRE)Lux • External eynchronization with line lock Illumination B/W 0.0002(Sens-up 160x,15IRE)Lux searching, at a maximum speed of 400˚/sec (pan speed) Pan/Tilt Manual Pan/Tilt Speed Pan : 0.1˚ ~ 180˚/sec(64 Steps) / Tilt : 0.1˚ ~ 90˚/sec(64 Steps) Pan/Tilt Manual Pan/Tilt Speed Pan : 0.1˚/sec~180˚/sec(64step) / Tilt : 0.1˚/sec~90˚/sec(64step) • 128 preset points • Motion detection with alarming output Preset Pan/Tilt Speed Pan : 400˚/sec / Tilt : 200˚/sec Preset Pan/Tilt Speed Pan : 400˚/sec(Max) / Tilt : 200˚/sec(Max) • Alarm input : 4Ch, Alarm output : 3Ch • On-screen menus (multi-language) Preset Pan/Tilt Rage 350˚ Non-Endless Panning Range 360˚/sec(Endless) • Exclusive controller (SSC-1000/5000) • Innor rotor BLDC motor Pan/Tilt Range Pan : 350˚ / Tilt : 0˚~ 90˚ Tilt Range 0˚~ 180˚ - Remote control through RS485 and RS422 Number of Auto Pan 4 • Min. scene illumination : 0.002(color)/0.0002(B/W) Lux Number of Auto Pan 4 - Possible to connect up to a maximum of 256 cameras, Number of Preset 128 • 4 alarm inputs, 3 alarm outputs Number of Preset 128 and control a wide range of functions such as pan, tilt, Number of Pattern 2min x 3 • Privacy zone Number of Pattern 3 zoom, preset and manual focus Lens Zoom Ratio 320x(32x Optical, 10x Digital) • Applicable Accessories : SADT-100WM, SHG-120/220 Lens Zoom Ratio 22x • Applicable Accessories : SADT-100WM, SHG-120/220 Focal Length 3.55 ~ 113mm Focal Length 3.6 ~ 79.2mm Apeture Ratio Tele : F4.17, Wide : F1.69 Apeture Ratio F1.6(Wide), F3.8(Tele) Viewing Tele 1.78˚(H) x 1.34˚(V) Viewing Tele 2.3˚(H) x 1.7˚(V) Angle Wide 56.41˚(H) x 43.01˚(V) Angle Wide 47.9˚(H) x 36.9˚(V) Functions Day/Night Color/BW/Auto (ICR) Functions Wide Dynamic Range Off/On Dimensions (unit:mm) Shutter Speed Off ~ 1/10,000 sec Dimensions (unit:mm) Day/Night Color / BW / Auto (ICR) Sens Up 128x High Speed Shutter Off ~ 1/10Ksec BLC Off/On Sens Up Off ~ 160x AGC Off/Low/High BLC Off/On Line Lock Yes AGC Off/Low/High Camera ID Max. 20 Characters Line lock On/Off White Balance ATW1/ATW2/AWC/Manual Camera ID Off/On Signal Output VBS 1.0Vp-p, 74ohm, BNC White Balance ATW1/ATW2/AWC/Manual S/N Ratio 50dB Signal Output VBS 1.0Vp-p Input/Output Image Output 1 BNC S/N Ratio 50dB Alarm Input 4 NO/NC (5mA Sink) Input/Output Alarm Input 4 Power Connection Terminal Alarm Output 3 (2 Open Collector, 1 Relay) Alarm Output 3 Remote Controller Connection Terminal Remote Control RS485(Half & Full Duplx) / RS422 Remote Control RS485 / RS422 Power Terminal Block(3-Pin) Operating Temperature -10˚C ~ +50˚C Operating Temperature -10˚C ~ 50˚C Power Requirment AC24V Power Indication Image Output Terminal Operating Humidity Maximum 90% RH Power Consumption 18W Power Requirment AC24V Weight 1,700g Power Consumption 18W Dimensions 159.5(ø) x 177(D)mm Alarm Output Alarm Input Weight 1,700g Dimensions 159.5(ø) x 177(D)mm Samsung Video Security System | 56 . 57

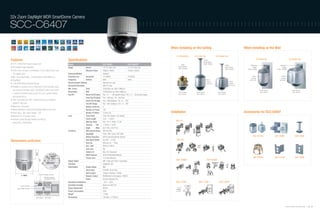

- 29. 32x Zoom DayNightWDR SmartDome Camera SCC-C6407 :::::::::::::::::::::::::::::::::::::::::::::::::::: When Installing on the Ceiling When Installing on the Wall For Embedding For Indoor Use For Outdoor Use For Indoor Use For Outdoor Use Features Specifications Ceiling Mount Adaptor • 1/4" 410K/470K Pixels Ex-View CCD Model SCC-C6407 SCC-C6407P Ceiling (SADT-100CM) Ceiling Wall Mount Wall Mount • DIS (Digital Image Stabilizer) Mount Bracket Mount Adaptor Adaptor Adaptor Image Device 1/4" Ex-View CCD 1/4" Ex-View CCD (SBR-100DCM) (SADT-100CM) (SADT-100WM) (SADT-100WM) • 320x zoom, through a combination of 32x optical Zoom and Effective Pixels 768(H) x 494(V) 752(H) x 582(V) 10x digital zoom Scanning Method Interlace Scanning Line Horizontal 15.750KHz 15.625Hz Indoor Outdoor • Min. scene illumination : 0.002(color)/0.0002(B/W) Lux Housing Housing • Day/Night Frequency Vertical 60Hz 50Hz Indoor (SHG-120) (SHG-220) Housing Outdoor • 128x WDR (Wide Dynamic Range) Synchronization Method Internal/Line Lock (SHG-120) Housing Horizontal Resolution 480 TV Lines (SHG-220) • Possible to connect up to a maximum of 256 cameras using Min. Scene Color 0.002(Sens-up 160x,15IRE)Lux the exclusive controller (SSC-1000/5000), which can control Dome Camera Dome Camera Illumination B/W 0.0002(Sens-up 160x,15IRE)Lux Dome Camera Dome Camera Dome Camera (SCC-C6407) (SCC-C6407) a variety of functions such as pan, tilt, zoom, preset, pattern (SCC-C6407) (SCC-C6407) (SCC-C6407) Pan/Tilt Manual Pan/Tilt Speed Pan : 0.1 ~ 180˚/sec(64 steps) / Tilt : 0.1 ~ 90˚/sec(64 steps) and manual focus Preset Pan/Tilt Speed Pan : 400˚/sec / Tilt : 200˚/sec • 360° horizontal and 180° vertical turning, at a maximum Preset Pan/Tilt Rage Pan : 360˚(endless) / Tilt : 0˚~ -183˚ speed of 400°/sec Pan/Tilt Range Pan : 360˚ (endless) / Tilt : 0˚~ 180˚ • Maximum 128 preset Number of Auto Pan 4 • Motion detection (zones and sensitivity levels set by user) Number of Preset 128 • Alarm Input : 8ch, Alarm Output : 3ch Number of Pattern 3 (2min x3) Installation Accessories for SCC-C6407 • Maximum of 12 privacy zones Lens Zoom Ratio 320x (32x Optical, 10x Digital) • Remote control through RS485 and RS422 Focal Length 3.55 ~ 113mm SHG-120 (using SSC-1000/5000) Aperture Ratio Tele : F4.17, Wide : F1.69 Viewing Tele 1.78˚(H) x 1.34˚(V) Angle Wide 56.41˚(H) x 43.01˚(V) Functions Wide Dynamic Range Off/On(128x) Day/Night Color / BW / Auto / EXT (ICR) Motion Detection Off/On (Area/Sensitivity Setting) SHG-120/220 SADT-100WM SADT-100CM High Speed Shutter Yes (Off ~ 1/10K) SHG-220 Dimensions (unit:mm) Sens Up Off/Auto (2x ~ 160x) BLC / AGC Off/On / Off/On Line Lock Yes Camera ID Max. 20 Characters White Balance ATW1/ATW2/AWC/Manual Privacy Zone 12 Zones (Mosaic) SBR-100DCM SADT-110CM SADT-100PM SADT-100WM SBR-100DCM Signal Output VBS 1.0Vp-p(75 Ohm, Composite) S/N Ratio 50dB(AGC Off) Input/Output Image Output BNC Alarm Input 8 NO/NC (5mA Sink) Alarm Output 3 (Open Collector 1 Relay) Power Connection Terminal Remote Control RS485(Half & Full Duplex) / RS422 Remote Controller Connection Terminal Power Terminal Block(3-Pin) Operating Temperature -10˚C~ +50˚C SADT-100CM SADT-110CM SADT-100PM Power Indication Operating Humidity Maximum 90% RH Image Output Terminal Power Requirment AC24V Power Consumption 22W Weight 1,700g Alarm Output Alarm Input Dimensions 159.5(ø) x 177(D)mm Samsung Video Security System | 58 . 59
- 30. High Resolution SmartDomeCamera SCC-C6433/C6435 ::::::::::::::::::::::::::::::::::::::::::::::::::: Installation Guide Ceiling Installation Pole Installation For Indoor use For Outdoor use Features Specifications For Embedding • 1/4" 410K/470K Pixels CCD For Indoor use For Outdoor use Model SCC-C6433 SCC-C6435 (Indoor use only) SADT-100PM • 32x optical zoom lens (16x D-zoom) Camera Type Color SADT-104WM SADT-103WM • High resolution : 540(Color) / 570(BW) TV Lines Image Device 1/4" Super HAD CCD 1/4" Ex-View HAD CCD SCC-C6433 • Day/Night Effective NTSC 768(H) x 494(V) 768(H) x 494(V) SCC-C6435 • Min. scene illumination : Pixels PAL 752(H) x 582(V) 752(H) x 582(V) SHG-222 SCC-C6433 : 0.002 Lux (15 IRE, Sens-up 256x, Color) Horizontal Resolution 540(Color) / 570(BW) TV Lines SADT-101EC : 0.0002 Lux (15 IRE, Sens-up 256x, B/W) Min. Scene Color 0.6 Lux(15IRE,Sens-up Off) 0.3 Lux(15IRE,Sens-up Off) SADT-100CM SCC-C6433 Illumination 0.002 Lux(15IRE, Sens-up 256x) 0.001 Lux(15IRE, Sens-up 256x) SCC-C6433 SCC-C6435 : 0.001 Lux (15 IRE, Sens-up 256x, Color) SCC-C6435 SCC-C6435 : 0.0001 Lux (15 IRE, Sens-up 256x, B/W) B/W 0.06 Lux(15IRE,Sens-up Off) 0.03 Lux(15IRE,Sens-up Off) • 128x(NTSC)/160x(PAL) WDR function (SCC-C6435 only) 0.0002 Lux(15IRE, Sens-up 256x) 0.0001 Lux(15IRE, Sens-up 256x) SADT-100HM • Full auto focus function PAN/TILT Speed Manual Pan 0.1~180˚/sec Pole (1.5" NPT) Installation Preset Pan 400˚/sec • Privacy mask zone (16 area) SHG-222 Manual Tilt 0.1~90˚/sec SCC-C6433 • Pan (max 400˚/sec), Tilt (200˚/sec) SCC-C6435 Preset Tilt 200˚/sec • 360˚ endless pan (Slip-ring), 0~180˚ tilt Range Panning 0~360˚ (Endless) SHG-222 • RTC function for schedule setting Tilting 0~180˚ SCC-C6433 • Multi-protocol (more than 8 companies), multi-OSD Number of Auto PAN 4 SCC-C6435 SCC-C6433 SCC-C6435 Number of Preset 128 Number of Pattern 3 Lens Focal Length 3.55 ~ 113mm Zoom Ratio 32x Optical, 16x Digital Wall Installation Corner Installation Aperture Ratio F1.69(W)/F4.17(T) Viewing Tele 1.78˚(H) x 1.34˚(V) For Indoor use For Outdoor use For Indoor use For Outdoor use Angle Wide 56.41˚(H) x 43.01˚(V) Functions Number of Privacy Zone 16 Dimensions (unit:mm) Day/Night Color/BW/Auto (ICR) SADT-110CM Line Lock INT/Line Lock SADT-104WM SADT-103WM SADT-104WM White Balance ATW1/ATW2/AWC/MANUAL SADT-103WM SCC-C6433 D-Zoom Yes (~16x) SCC-C6435 SCC-C6433 High Speed Shutter Yes (OFF ~ 1/10K) SCC-C6435 Motion Detection Yes SHG-222 SHG-222 Sens Up Yes (2x ~ 256x) Camera ID Max 20 Character Remote Control RS485(Half & Full Duplex) / RS422 SCC-C6433 SCC-C6433 SCC-C6435 Alarm Input 8 SCC-C6435 Output 3(Open Collector 1 relay) Wide Dynamic Range N/A Yes Video Output VBS 1.0Vp-p 157.7 S/N Ratio 50 dB Operating Temperature -10˚C ~ + 50˚C 233.5 Operating Humidity Less than 90% Power Requirement NTSC : AC24 V, 60Hz / PAL : AC24 V, 50Hz Power Consumption 19W 20W LED Indicator Yes Dimensions 177(ø) X 233.5(H)mm 177 Weight 2,400g Color Silver Samsung Video Security System | 60 . 61

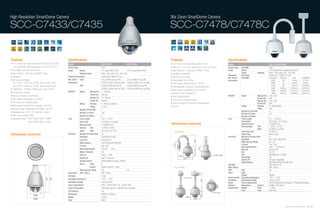

- 31. High Resolution SmartDomeCamera 36x Resolution Color Camera HighZoom SmartDomeCamera SCC-C7433/C7435 SCC-C7478/C7478C SCC-B1311/B1011P Features Specifications Features Specifications • 1/4" 410K/470K Pixels Ex-View HAD PS CCD (SCC-C7435) Model SCC-C7433 SCC-C7435 • 1/4" 410K/470K Pixels ExView-HAD PS CCD Model SCC-C7478/C7478C 1/4" 410K/470K Pixels Super HAD IT CCD (SCC-C7433) Camera Type Color • 36x(f=3.4~122.4 mm) Optical Zoom Lens(12x D-Zoom) Camera Type Color/BW Color • 32x optical zoom lens (16x D-zoom) Image Device 1/4" Super-HAD IT CCD 1/4" Ex-View HAD PS CCD • High-Resolution : 540(Color)/570(BW) TV Lines Image Device 1/4" ExView-HAD Progressive Scan CCD • High resolution : 540(Color)/570(BW) TV lines Effective Pixels NTSC : 768 x 494 / PAL : 752 x 582 Pixels Effective NTSC : 768 x 494 / PAL : 752 x 582 • Day/Night function(ICR) Resolution Horizontal 540(Color) / 570(BW) TV Lines • Day/Night Horizontal Resolution 540(Color)/570(BW) TV Lines • Full Auto Focus function Min. Scene Color/BW Illumination Sens-up Color B/W(S/W) • Min. scene illumination : Min. Scene Color 0.6Lux(15IRE,Sens-up Off) 0.3Lux(15IRE,Sens-up Off) • Privacy Mask Zone (8 Area) Illumination 50IRE Off 1.40Lux 0.15Lux SCC-C7435 : 0.001 Lux (15 IRE, Sens-up 256x, Color) Illumination 0.002Lux(15IRE, Sens-up 256x) 0.001Lux(15IRE, Sens-up 256x) • 360˚ Endless PAN (Slip-ring), 0~180˚ Tilt 30IRE Off 0.84Lux 0.09Lux SCC-C7433 : 0.002 Lux (15 IRE, Sens-up 256x, Color) B/W 0.06Lux(15IRE,Sens-up Off) 0.03Lux(15IRE,Sens-up Off) 15IRE Off 0.42Lux 0.0450Lux • PAN Speed(Max 360˚/sec), Tilt Speed(360˚/sec) 0.0002Lux(15IRE, Sens-up 256x) 0.0001Lux(15IRE, Sens-up 256x) 50IRE 64times 0.0219Lux 0.0023Lux • 128x(NTSC) / 160x(PAL) WDR function (SCC-C7435) • Multi-Protocol support(Pelco-P/D, Samsung) 30IRE 64times 0.0131Lux 0.0014Lux • Full auto focus function PAN/TILT Speed Manual Pan 0 ~180˚/sec • Remote Control : RS485/422 15IRE 64times 0.0066Lux 0.0007Lux Preset Pan 400˚/sec • Pan (max 400˚/sec), tilt (200˚/sec) • Alarm In(8ea)/Out(4ea) PAN/TILT Speed Manual Pan 0.05˚~360˚ Manual Tilt 0.1~90˚/sec Preset Pan 360˚ • 360˚ endless pan(slip-ring), 0~180˚ tilt • Time & Day Scheduling function Preset Tilt 200/sec Manual Tilt 0.05˚~360˚ • RTC function for schedule setting • Vector Driving(Pan/Tilt opreration simultaneously) Preset Tilt 360˚ Range Panning 0~360˚/sec (Endless) • Multi-protocol (more than 8 companies), multi-OSD Tilting 0~180˚ • AC24V Range Panning 0˚~360˚(Endless) • Remote control : RS485(half & full duplex) / RS-422 Tilting 180˚ Number of Auto PAN 4 Number of Auto PAN 8 • Operating temp : -45˚C~50˚C (with fan / heater) Number of Preset 128 Number of Preset 127 • Water / dust resistant (IP66) Number of Pattern 3 Number of Pattern 4 • Applicable bracket : SADT-100CM, SADT-103WM Lens Focal Length 3.55 ~ 113mm Lens Focal Length 3.4 ~ 122.4mm SADT-100PM, SADT-110CM Zoom ratio 32x Optical, 16x Digital Zoom Ratio 36x Optical, 12x D-Zoom Aperture Ratio F1.69(W)/F4.2(T) Dimensions (unit:mm) Aperature Ratio F1.6(W)/F4.5(T) Viewing Angle Tele 1.70˚(H) x 1.27˚(V) Viewing Tele 1.78˚(H) x 1.34˚(V) Wide 57.80˚(H) x 43.35˚(V) Angle Wide 56.41˚(H) x 43.01˚(V) Lens Drive Type DC Auto Iris SCC-C7478 Dimensions (unit:mm) Functions Number of Privacy Zone 16 Mount Type Board-in type Day/Night Color/BW/Auto (ICR) Functions Number of Privacy Zone 8 Line Lock INT/Line Lock Day/Night Auto / Day / Night (ICR) Wide Dynamic Range On / Off White Balance ATW1/ATW2/AWC/MANUAL D-Zoom Yes(~12x) D-Zoom Yes(~16x) High Speed Shutter 1/60 ~ 1/10,000 sec High Speed Shutter Yes (OFF ~ 1/10K) Sens Up Yes(2x~64x) Motion Detection Yes BLC On / Off Sens Up Yes(2x ~ 256x) AGC Auto/Manual(-3~28dB) Camera ID Max 20 Character Anti Vandal Yes Camera ID Dip switch adjustable Remote Control RS485(Half&Full Duplex) / RS422 White Balance Auto/Manual(Red, Blue Gain Adj.) Alarm Input 8 S/N Ratio More than 50 dB Output 3(Open Collector 1 relay) SCC-C7478C Video Output VBS 1.0Vp-p Wide Dynamic Range N/A Yes OSD OSD Yes Video Output VBS 1.0Vp-p VBS 1.0Vp-p Alarm Input 8 S/N Ratio 50 dB Output 4(Relay) Environmental Operating Temperature -45˚C ~ +50˚C 411 422 Operating Temperature -45˚C ~ + 50˚C Conditions Operating Humidity Less than 90% Operating Humidity Less than 90% Power Power Requirement AC24V, 24W(without Fan/Heater) / 57W(with Fan/Heater) Power Requirement NTSC : AC24V, 60Hz / PAL : AC24V, 50Hz Physical Dimensions Camera 259(Ø) x 265.7(H)mm Power Consumption 24W (Only Camera) / 55W (With Fan & Heater) Specification Weight Total 11,000g LED Indicator Yes Color Body Light Gray Dimensions 258(Ø) x 422(H)mm 168 Weight 5,950g 258 Color Silver Samsung Video Security System | 62 . 63

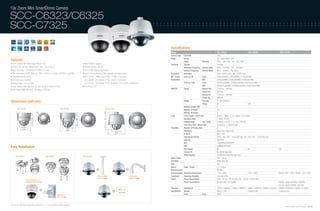

- 32. 10x Zoom MiniSmartDome Camera SCC-C6323/C6325 SCC-C7325 ::::::::::::::::::::::::::::::::::::::::::::::::: Specifications Model SCC-C6323 SCC-C6325 SCC-C7325 Camera Type Color/BW Color Image Device 1/4" Super-HAD IT CCD Features Pixels Effective NTSC : 768 x 494, PAL : 752 x 582 • 1/4" 410K/470K Pixels Super-HAD IT CCD • Multi-Protocol support Scanning System Interlace • 10x(f=3.8~38 mm) Optical Zoom Lens (10x D-Zoom) • Remote Control : RS485 Horizontal Frequency Internal Mode NTSC : 15,734Hz, PAL : 15,625Hz • High-Resolution : 520(Color)/570(BW) TV Lines • Time & Day Scheduling function Vertical Frequency Internal Mode NTSC : 59.94Hz, PAL: 50Hz • Min. illumination(15IRE, Sens-up 128x) : 0.0014 Lux(Color), 0.00014 Lux(B/W) • Vector Driving (Panning/Tilting operation simultaneously) Resolution Horizontal Color : 520TV Lines / BW : 570TV Lines • Day/Night function (ICR) • SCC-C6323 : Plastic case, Indoor, 142(Ø) x126(H)mm Min. Scene Sens-up Off Color 0.60Lux(50IRE), 0.36Lux(30IRE), 0.18Lux(15IRE) • Full Auto Focus function SCC-C6325 : Anti-Vandal, IP-66, 165(Ø) x162(H)mm Illumination B/W 0.06Lux(50IRE), 0.036Lux(30IRE), 0.018Lux(15IRE) • Privacy Mask Zone (4 Area) SCC-C7325 : Anti-Vandal, IP-66, Sunshield, F/H, 200(Ø) x 206(H)mm Sens-up 128x Color 0.0047Lux(50IRE), 0.0028Lux(30IRE), 0.0014Lux(15IRE) • 360˚ Endless PAN (Slip-ring), 0~180˚ Tilt (SCC-C6323:0~90˚) • AC24V/DC12V B/W 0.00047Lux(50IRE), 0.00028Lux(30IRE), 0.00014Lux(15IRE) PAN/TILT Speed Manual Pan 0.05˚/sec ~ 360˚/sec • PAN Speed (Max 360˚/sec), Tilt Speed (360˚/sec) Preset Pan 360˚/sec Manual Tilt 0.05˚/sec ~ 360˚/sec Preset Tilt 360˚/sec Range Panning 0˚~360˚ (Endless) Dimensions (unit:mm) Tilting 90˚ 180˚ Number of Auto PAN 8 SCC-C6323 SCC-C6325 SCC-C7325 Number of Preset 127 14 2 Number of Pattern 4 40 Lens Focal Length / Zoom ratio 3.8mm ~ 38mm / 10x Optical, 10x D-Zoom 44.5 Aperature Ratio F1.8(W) / F2.8(T) Viewing Angle Tele / Wide 5.58˚(H) x 4.27˚(V) / 51.2˚(H) x 39.3˚(V) 50.35 Lens Drive Type / Mount Type DC Auto Iris / Board-in type 100.5 Functions Number of Privacy Zone 4 139 Day/Night Auto / Day / Night (ICR) D-Zoom Yes (~10x) High Speed Shutter NTSC : Yes (1/60~ 1/120,000 sec), PAL : Yes (1/50 ~ 1/120,000 sec) Sens Up OFF/AUTO BLC LOW/MIDDLE/HIGH/OFF AGC NORMAL/HIGH/OFF Easy Installation Anti Vandal No Yes Yes Camera ID dip switch adjustable White Balance Auto/Manual (Red,Blue Gain Adj.) SCC-C6323 SCC-C6325 SCC-C7325 Video Output VBS 1.0Vp-p S/N Ratio 50dB (AGC off) OSD Yes Alarm Input / Output 2 / 1 (relay) + + Remote Control RS 485 Environmental Operating Temperature -10˚C~+50˚C -10˚C~+50˚C AC24V:-40˚C~+50˚C / DC12V:-15˚C~+50˚C Pendant Mount Wall Mount Conditions Operating Humidity Less than 90% (SADT-732CM) (SADT-732WM) Power Power Requirement NTSC : DC12V / AC24V 60Hz, PAL : DC12V / AC24V 50Hz Surface Installation or using Wall Mount Adaptor Power Consumption AC24V(10W) / DC12V(8W) AC24V : Heater Off(10W) / On(21W) DC12V : Heater Off(8W) / On(12W) Physical Dimensions 142(Ø) x 126(H)mm / 142(Ø) x 4.9(H)inch 165(Ø) x 162(H)mm / 165(Ø) x 6.3(H)inch 200(Ø) x 206(H)mm / 200(Ø) x 8.1(H)inch + + NPT-1.5" Specification Weight 600g (1.3 lb) 1,850g (4.0lb) 2,400g (5.2lb) (standard) Wall Mount : Color Body White SADT-937WM * SCC-C6325 IP66 Rating Indoor/Outdoor Application, SCC-C7325 IP66 Rating Outdoor Application Samsung Video Security System | 64 . 65
- 33. 34x Optical ZoomHigh Speed Dome Camera SCC-C6437/C6439 NEW Specifications Model SCC-C6437 SCC-C6439 Camera Type Color/BW Color Image Device 1/4" Super-HAD IT CCD 1/4" ExView-HAD PS CCD Features Pixels Effective 768 x 494 (NTSC) / 752 x 582 (PAL) • 1/4" SONY 410K/470K Pixels Super-HAD IT CCD (SCC-C6437) • Adaptive Digital Noise Reduction (3D + 2D) Resolution Horizontal 600 TV Lines 1/4" SONY 410K/470K Pixels Ex-View HAD PS CCD (SCC-C6439) • Back Light Compensation (Area Setting) Min. Scene Color Sens-up Off 0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE) 0.3Lux(15IRE), 0.7Lux(30IRE), 1.2Lux(50IRE) • 34x Optical & 16x(0.1step) Digital Zoom • Advanced Motion Detection Function Illumination Sens up 512x 0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE) 0.0007Lux(15IRE), 0.001Lux(30IRE), 0.002Lux(50IRE) • High Resolution : 600 TV Lines • eXtended Dynamic Range (XDR) B/W Sens-up Off 0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE) 0.03Lux(15IRE), 0.07Lux(30IRE), 0.12Lux(50IRE) • Min. illumination 0.0007 Lux (F1.2, 15 IRE, Sens-up 512x, Color) • Privacy Mask Function (12ea) Sens up 512x 0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE) 0.00007Lux(15IRE), 0.0001Lux(30IRE), 0.0002Lux(50IRE) 0.00007 Lux (F1.2, 15 IRE, Sens-up 512x, B/W) • DIS (Digital Image Stabilization) • Time & Day Scheduling Pan/Tilt Speed Manual Pan 0.01˚/sec ~ 180˚/sec • 0~360º Endless Pan, -6~186º Tilting (D-Flip) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Preset Pan 600˚/sec • Pan/Tilt Speed Min. 0.01º/sec, Max. 600º/sec • RS-485 (Half/Full)/RS-422 Control (Multi-Protocol support) Manual Tilt 0.01˚/sec ~ 180˚/sec Preset Tilt 600˚/sec • Preset 512 ea, Auto Pan 4 ea, Pattern 3 ea • Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support Range Panning / Tilting 0˚~360˚(Endless) / -6˚~186˚ • Wide Dynamic Range (NTSC 128x, PAL 160x) : SCC-C6439 Only • Intelligent Video (Moved/Fixed/Fence/Tracking) Number of Auto PAN 4 ea • Virtual Progressive Scan (VPS) : SCC-C6439 Only • Alarm Input 8 ea, Output 4 ea Number of Preset 512 ea • Day Night Function (ICR), Sens-up Function (512x) • Operating Temp. : -10 ~ 50˚C Number of Pattern 3 ea Functions Number of Privacy Zone 12 ea Day/Night / Motion Detection Auto / Day / Night(ICR) / Yes, Sensitivity 1~7 Level Wide Dynamic Range - Yes (NTSC:128x, PAL:160x) Dimensions (unit:mm) D-Zoom / High Speed Shutter Yes(~16x) / 1/100~1/10K sec Sens Up / BLC Yes(2x ~ 512x) / Off/On 178 AGC Off/On (Very Low / Low / Mid / High / Very High / User / Fix) Auto Focus Manual / Auto (pan, tilt, zoom linked) / one AF Syncronization Internal / Line lock 140 Camera ID Max 54 Character, 2 Line 219 VPS(Virtual Progressive Scan) - Yes XDR(eXtended Dynamic Range) Off/On(Low/Middle/High) DNR(Digital Noise Reduction) Off/On(Low/Middle/High/User(3D/2D)) Schedule Day / Time Schedule 171 White Balance ATW1 / ATW2 / AWC(Manual) / 3200 / 5600 Video Output VBS 1.0Vp-p VBS 1.0Vp-p S/N Ratio 52 dB Lens Focal Length / Min. Object Distance 3.4 ~ 115.6mm / 100cm Zoom Ratio / Aperature Ratio 34x Optical (688x with 16x Digital zoom) / F1.65(W)/F3.7(T) Viewing Angle Tele 1.47˚(H) x 1.10˚(V)0 Wide 61.22˚(H) x 47.16˚(V) Lens Drive Type / Mount Type DC Auto Iris / Board-in type OSD Yes Alarm Input / Output 8 ea / 3 ea (2 Open Collector, 1 relay) Remote Control RS485(Half/Full Duplex)/RS422, CCVC Environmental Operating Temperature -10˚C ~ +50˚C Conditions Operating Humidity Less than 90% Power Power Requirement 24 VAC Power Consumption 11W LED Indicator Yes Physical Dimensions 178(Ø) x 219(H)mm Specification Weight 2.0kg Color Light Gray Samsung Video Security System | 66 . 67
- 34. 34x Optical ZoomHigh Speed Dome Camera SCC-C7437/C7439 NEW Specifications Model SCC-C7437 SCC-C7439 Camera Type Color/BW Color Image Device 1/4" Super-HAD IT CCD 1/4" ExView-HAD PS CCD Features Pixels Effective 768 x 494 (NTSC) / 752 x 582 (PAL) • 1/4" SONY 410K/470K Pixels Super-HAD IT CCD (SCC-C7437) • Adaptive Digital Noise Reduction (3D + 2D) Resolution Horizontal 600 TV Lines 1/4" SONY 410K/470K Pixels Ex-View HAD PS CCD (SCC-C7439) • Back Light Compensation (Area Setting) Min. Scene Color Sens-up Off 0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE) 0.3Lux(15IRE), 0.7Lux(30IRE), 1.2Lux(50IRE) • 34x Optical & 16x(0.1step) Digital Zoom • Advanced Motion Detection Function Illumination Sens up 512x 0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE) 0.0007Lux(15IRE), 0.001Lux(30IRE), 0.002Lux(50IRE) • High Resolution : 600 TV Lines • eXtended Dynamic Range (XDR) B/W Sens-up Off 0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE) 0.03Lux(15IRE), 0.07Lux(30IRE), 0.12Lux(50IRE) • Min. illumination 0.0007 Lux (F1.2, 15 IRE, Sens-up 512x, Color) • Privacy Mask Function (12ea) Sens up 512x 0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE) 0.00007Lux(15IRE), 0.0001Lux(30IRE), 0.0002Lux(50IRE) 0.00007 Lux (F1.2, 15 IRE, Sens-up 512x, B/W) • DIS (Digital Image Stabilization) • Time & Day Scheduling Pan/Tilt Speed Manual Pan 0.01˚/sec ~ 180˚/sec • 0~360º Endless Pan, -6~186º Tilting (D-Flip) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Preset Pan 600˚/sec • Pan/Tilt Speed Min. 0.01º/sec, Max. 600º/sec • RS-485 (Half/Full)/RS-422 Control (Multi-Protocol support) Manual Tilt 0.01˚/sec ~ 180˚/sec • Preset 512 ea, Auto Pan 4 ea, Pattern 3 ea • Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support Preset Tilt 600˚/sec • Wide Dynamic Range (NTSC 128x, PAL 160x) : SCC-C7439 Only • Intelligent Video (Moved/Fixed/Fence/Tracking) Range Panning / Tilting 0˚~360˚(Endless) / -6˚~186˚ • Virtual Progressive Scan (VPS) : SCC-C7439 Only • Alarm Input 8 ea, Output 4 ea Number of Auto PAN 4 ea • Day Night Function (ICR), Sens-up Function (512x) • Operating Temp. : -50 ~ 50˚C Number of Preset 512 ea Number of Pattern 3 ea Functions Number of Privacy Zone 12 ea Day/Night / Motion Detection Auto / Day / Night(ICR) / Yes, Sensitivity 1~7 Level Wide Dynamic Range - Yes (NTSC:128x, PAL:160x) Dimensions (unit:mm) D-Zoom / High Speed Shutter Yes(~16x) / 1/100~1/10K sec Sens Up / BLC Yes(2x ~ 512x) / Off/On AGC Off/On (Very Low / Low / Mid / High / Very High / User / Fix) Auto Focus Manual / Auto (pan, tilt, zoom linked) / one AF Syncronization Internal / Line lock 256 Camera ID Max 54 Character, 2 Line 240 VPS(Virtual Progressive Scan) - Yes XDR(eXtended Dynamic Range) Off/On(Low/Middle/High) DNR(Digital Noise Reduction) Off/On(Low/Middle/High/User(3D/2D)) Schedule Day / Time Schedule 228 White Balance ATW1 / ATW2 / AWC(Manual) / 3200 / 5600 Video Output VBS 1.0Vp-p VBS 1.0Vp-p S/N Ratio 52 dB Lens Focal Length / Min. Object Distance 3.4 ~ 115.6mm / 100cm Easy Installation Zoom Ratio / Aperature Ratio 34x Optical (688x with 16x Digital zoom) / F1.65(W)/F3.7(T) Viewing Angle Tele 1.47˚(H) x 1.10˚(V)0 Wide 61.22˚(H) x 47.16˚(V) Lens Drive Type / Mount Type DC Auto Iris / Board-in type OSD Yes Alarm Input / Output 8 ea / 3 ea (2 Open Collector, 1 relay) Remote Control RS485(Half/Full Duplex) / RS422, CCVC Environmental Operating Temperature -50˚C ~ +50˚C Conditions Operating Humidity Less than 90% Power Power Requirement 24 VAC Power Consumption 16W / 47W(with fan/Heater) LED Indicator Yes Physical Dimensions 228(Ø) x 256(H)mm Specification Weight 3.0kg Color Light Gray Samsung Video Security System | 68 . 69

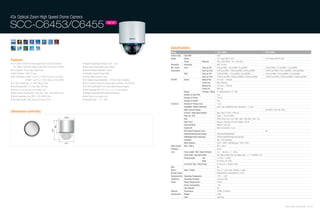

- 35. 43x Optical ZoomHigh Speed Dome Camera SCC-C6453/C6455 NEW Specifications Model SCC-C6453 SCC-C6455 Camera Type Color/BW Color Image Device 1/4" Super-HAD IT CCD 1/4" ExView-HAD PS CCD Features Pixels Effective 768 x 494 (NTSC) / 752 x 582 (PAL) • 1/4" SONY 410K/470K Pixels Super-HAD IT CCD (SCC-C6453) • Adaptive Digital Noise Reduction (3D + 2D) Resolution Horizontal 600 TV Lines 1/4" SONY 410K/470K Pixels Ex-View HAD PS CCD (SCC-C6455) • Back Light Compensation (Area Setting) Min. Scene Color Sens-up Off 0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE) 0.3Lux(15IRE), 0.7Lux(30IRE), 1.2Lux(50IRE) • 43x Optical & 16x(0.1step) Digital Zoom • Advanced Motion Detection Function Illumination Sens up 512x 0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE) 0.0007Lux(15IRE), 0.001Lux(30IRE), 0.002Lux(50IRE) • High Resolution : 600 TV Lines • eXtended Dynamic Range (XDR) B/W Sens-up Off 0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE) 0.03Lux(15IRE), 0.07Lux(30IRE), 0.12Lux(50IRE) • Min. illumination 0.0007 Lux (F1.2, 15 IRE, Sens-up 512x, Color) • Privacy Mask Function (12ea) Sens up 512x 0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE) 0.00007Lux(15IRE), 0.0001Lux(30IRE), 0.0002Lux(50IRE) 0.00007 Lux (F1.2, 15 IRE, Sens-up 512x, B/W) • DIS (Digital Image Stabilization) • Time & Day Scheduling Pan/Tilt Speed Manual Pan 0.01˚/sec ~ 180˚/sec • 0~360º Endless Pan, -6~186º Tilting (D-Flip) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Preset Pan Max. 600o/sec • Pan/Tilt Speed Min. 0.01º/sec, Max. 600º/sec • RS-485 (Half/Full)/RS-422 Control (Multi-Protocol support) Manual Tilt 0.01˚/sec ~ 180˚/sec Preset Tilt 600˚/sec • Preset 512 ea, Auto Pan 4 ea, Pattern 3 ea • Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support Range Panning / Tilting 0˚~360˚(Endless) / -6˚~186˚ • Wide Dynamic Range (NTSC 128x, PAL 160x) : SCC-C6455 Only • Intelligent Video (Moved/Fixed/Fence/Tracking) Number of Auto PAN 4 ea • Virtual Progressive Scan (VPS) : SCC-C6455 Only • Alarm Input 8 ea, Output 4 ea Number of Preset 512 ea • Day Night Function (ICR), Sens-up Function (512x) • Operating Temp. : -10 ~ 50˚C Number of Pattern 3 ea Functions Number of Privacy Zone 12 ea Day/Night / Motion Detection Auto / Day / Night(ICR) / Yes, Sensitivity 1~7 Level Wide Dynamic Range - Yes (NTSC:128x, PAL:180x) Dimensions (unit:mm) D-Zoom / High Speed Shutter Yes(~16x) / 1/100~1/10K sec Sens Up / BLC Yes(2x ~ 512x) / Off/On 178 AGC Off/On (Very Low / Low / Mid / High / Very High / User / Fix) Auto Focus Manual / Auto (pan, tilt, zoom linked) / one AF Syncronization Internal / Line lock 140 Camera ID Max 54 Character, 2 Line 219 VPS(Virtual Progressive Scan) - Yes XDR(eXtended Dynamic Range) Off/On(Low/Middle/High) DNR(Digital Noise Reduction) Off/On(Low/Middle/High/User(3D/2D)) Schedule Day / Time Schedule 171 White Balance ATW1 / ATW2 / AWC(Manual) / 3200 / 5600 Video Output VBS 1.0Vp-p VBS 1.0Vp-p S/N Ratio 52 dB Lens Focal Length / Min. Object Distance 3.2 ~ 138.5mm / 100cm Zoom Ratio / Aperature Ratio 43x Optical (688x with 16x Digital zoom) / F1.65(W)/F3.7(T) Viewing Angle Tele 1.47˚(H) x 1.10˚(V)0 Wide 61.22˚(H) x 47.16˚(V) Lens Drive Type / Mount Type DC Auto Iris / Board-in type OSD Yes Alarm Input / Output 8 ea / 3 ea (2 Open Collector, 1 relay) Remote Control RS485(Half/Full Duplex)/RS422, CCVC Environmental Operating Temperature -10˚C ~ +50˚C Conditions Operating Humidity Less than 90% Power Power Requirement 24 VAC Power Consumption 11W LED Indicator Yes Physical Dimensions 178(Ø) x 219(H)mm Specification Weight 2.0kg Color Light Gray Samsung Video Security System | 70 . 71

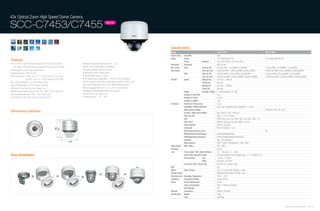

- 36. 43x Optical ZoomHigh Speed Dome Camera SCC-C7453/C7455 NEW Specifications Model SCC-C7453 SCC-C7455 Camera Type Color/BW Color Image Device 1/4" Super-HAD IT CCD 1/4" ExView-HAD PS CCD Features Pixels Effective 768 x 494 (NTSC) / 752 x 582 (PAL) • 1/4" SONY 410K/470K Pixels Super-HAD IT CCD (SCC-C7453) • Adaptive Digital Noise Reduction (3D + 2D) Resolution Horizontal 600 TV Lines 1/4" SONY 410K/470K Pixels Ex-View HAD PS CCD (SCC-C7455) • Back Light Compensation (Area Setting) Min. Scene Color Sens-up Off 0.6Lux(15IRE), 1.2Lux(30IRE), 2Lux(50IRE) 0.3Lux(15IRE), 0.7Lux(30IRE), 1.2Lux(50IRE) • 43x Optical & 16x(0.1step) Digital Zoom • Advanced Motion Detection Function Illumination Sens up 512x 0.001Lux(15IRE) , 0.002Lux(30IRE), 0.004Lux(50IRE) 0.0007Lux(15IRE), 0.001Lux(30IRE), 0.002Lux(50IRE) • High Resolution : 600 TV Lines • eXtended Dynamic Range (XDR) B/W Sens-up Off 0.06Lux(15IRE), 0.12Lux(30IRE), 0.2Lux(50IRE) 0.03Lux(15IRE), 0.07Lux(30IRE), 0.12Lux(50IRE) • Min. illumination 0.0007 Lux (F1.2, 15 IRE, Sens-up 512x, Color) • Privacy Mask Function (12ea) Sens up 512x 0.0001Lux(15IRE), 0.0002Lux(30IRE), 0.0004Lux(50IRE) 0.00007Lux(15IRE), 0.0001Lux(30IRE), 0.0002Lux(50IRE) 0.00007 Lux (F1.2, 15 IRE, Sens-up 512x, B/W) • DIS (Digital Image Stabilization) • Time & Day Scheduling Pan/Tilt Speed Manual Pan 0.01˚/sec ~ 180˚/sec • 0~360º Endless Pan, -6~186º Tilting (D-Flip) • CCVC (Camera Control Via Coaxial cable, Controller : SCX-RD100) Preset Pan 600˚/sec • Pan/Tilt Speed Min. 0.01º/sec, Max. 600º/sec • RS-485 (Half/Full)/RS-422 Control (Multi-Protocol support) Manual Tilt 0.01˚/sec ~ 180˚/sec • Preset 512 ea, Auto Pan 4 ea, Pattern 3 ea • Multi-Language OSD (E, F, G, S, I, J, R, P, C, etc) support Preset Tilt 600˚/sec • Wide Dynamic Range (NTSC 128x, PAL 160x) : SCC-C7455 Only • Intelligent Video (Moved/Fixed/Fence/Tracking) Range Panning / Tilting 0˚~360˚(Endless) / -6˚~186˚ • Virtual Progressive Scan (VPS) : SCC-C7455 Only • Alarm Input 8 ea, Output 4 ea Number of Auto PAN 4 ea • Day Night Function (ICR), Sens-up Function (512x) • Operating Temp. : -50 ~ 50˚C Number of Preset 512 ea Number of Pattern 3 ea Functions Number of Privacy Zone 12 ea Day/Night / Motion Detection Auto / Day / Night(ICR) / Yes, Sensitivity 1~7 Level Wide Dynamic Range - Yes (NTSC:128x, PAL:180x) Dimensions (unit:mm) D-Zoom / High Speed Shutter Yes(~16x) / 1/100~1/10K sec Sens Up / BLC Yes(2x ~ 512x) / Off/On AGC Off/On (Very Low / Low / Mid / High / Very High / User / Fix) Auto Focus Manual / Auto (pan, tilt, zoom linked) / one AF Syncronization Internal / Line lock 256 Camera ID Max 54 Character, 2 Line 240 VPS(Virtual Progressive Scan) - Yes XDR(eXtended Dynamic Range) Off/On(Low/Middle/High) DNR(Digital Noise Reduction) Off/On(Low/Middle/High/User(3D/2D)) Schedule Day / Time Schedule 228 White Balance ATW1 / ATW2 / AWC(Manual) / 3200 / 5600 Video Output VBS 1.0Vp-p VBS 1.0Vp-p S/N Ratio 52 dB Lens Focal Length / Min. Object Distance 3.2 ~ 138.5mm / 100cm Easy Installation Zoom Ratio / Aperature Ratio 43x Optical (688x with 16x Digital zoom) / F1.65(W)/F3.7(T) Viewing Angle Tele 1.47˚(H) x 1.10˚(V)0 Wide 61.22˚(H) x 47.16˚(V) Lens Drive Type / Mount Type DC Auto Iris / Board-in type OSD Yes Alarm Input / Output 8 ea / 3 ea (2 Open Collector, 1 relay) Remote Control RS485(Half/Full Duplex) / RS422, CCVC Environmental Operating Temperature -50˚C ~ +50˚C Conditions Operating Humidity Less than 90% Power Power Requirement 24 VAC Power Consumption 16W / 47W(with fan/Heater) LED Indicator Yes Physical Dimensions 228(Ø) x 256(H)mm Specification Weight 3.0kg Color Light Gray Samsung Video Security System | 72 . 73

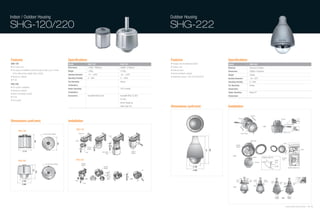

- 37. Indoor / OutdoorHousing Outdoor Housing SHG-120/220 SHG-222 Features Specifications Features Specifications SHG-120 Model SHG-120 SHG-220 • Hanging mount adaptor(included) Model SHG-222 • For indoor use Dimensions 174(Ø) x 188(H)mm 266(Ø) x 273(H)mm • Outdoor use Materials Aluminum & Plastic • The place of installation should be able to bear up to 4 times Weight 1,200g 3,700g • Solid structure Dimensions 258(Ø) x 422(H)mm of the total product weight (about 32Kg). Operating Temperature -10 ~ +50ºC -40 ~ +50ºC • Aluminum/plastic material Weight 3,800g • Aluminum material • Applicable camera : SCC-C6433/C6435 Operating Humidity 0 ~ 90% 0 ~ 100% Operating Temperature -40~+50˚C • IP 66 Fan Operating - Always Operating Humidity 0~100% SHG-220 Temperature Fan Operating Always • For outdoor installation Heater Operating - 10ºC or below Temperature • Aluminum material Temperature Heater Operating Below 4˚C • Built-in fan/heater function Accessories Screw(BH M3xL8) 2EA Screw(BH M3xL12) 3EA Temperature • IP 66 Pin 3EA • Anti-vandal Silicon Grease 5g Teflon Tape 1EA Dimensions (unit:mm) Installation Camera Screw Camera Dimensions (unit:mm) Installation Screw Taptite SHG-120 SHG-120 Bracket Lock Cover Top Cover Dome 1/2” NPT PiPE THREAD Lever Boss 188 Guide Hole 185 Arrow Camera Camera Adaptor Adaptor 411 422 Arrow 174 Lever Case Body Camera Boss Adaptor Guide CAMERA ADAPTOR Bracket SHG-220 SHG-220 GUIDE Lock Camera CAMERA HOLE Camera 1/2” NPT PiPE THREAD Adaptor Camera 168 GUIDE Adaptor SCREW FIXING HOLE 172 Pin 258 273 Camera Cover home Boss Cover Cover Cover Holder 168 Front rear home Housing Cover Guide Front Cover Cover Lever rear Front Cover 266 rear Guide Samsung Video Security System | 74 . 75

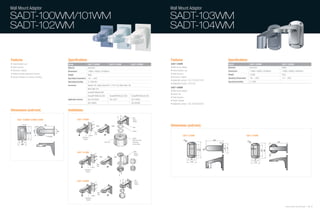

- 38. Wall Mount Adaptor Wall Mount Adaptor SADT-100WM/101WM SADT-103WM SADT-102WM SADT-104WM Features Specifications Features Specifications • Indoor/outdoor use Model SADT-100WM SADT-101WM SADT-102WM SADT-103WM Model SADT-103WM SADT-104WM • Solid structure Material Aluminum • Wall mount adaptor Materials Aluminum Plastic • Aluminum material Dimensions 118(Ø) x 183(H) x 241(W)mm • Indoor/outdoor use Dimensions 114(W) x 200(D) x 223(H)mm 114(W) x 200(D) x 242(H)mm • Gasket provides waterproof function Weight 800g • Solid structure Weight 1,250g 241g • Screws included, for camera mounting • Aluminum material Operating Temperature -40 ~ +50˚C -10 ~ +50˚C Operating Temperature -40 ~ +50˚C • Applicable camera : SCC-C7433/C7435 Operating Humidity 0~100% RH Operating Humidity 0~100% - • Applicable housing : SHG-222 Accessory Gasket 1EA, Cable Grand (PG-11, PG-13.5), Back Plate 1EA SADT-104WM Back Plate 1EA • Wall mount adaptor Screw(FH M3xL6) 6EA • Indoor use Screw(PH M4xL22) 2EA Screw(PM M4xL22) 2EA Screw(PM M4xL22) 4EA • Solid structure Applicable Camera SCC-641/643A SCC-931T SCC-C9302 • Plastic material SCC-C640X SCC-B539X • Applicable camera : SCC-C6433/C6435 Dimensions (unit:mm) Installation Wall SADT-100WM/101WM/102WM SADT-100WM Mount Adaptor Boss Dimensions (unit:mm) Gasket Back Plate Gasket SADT-103WM SADT-104WM Wall Mount Gasket Adaptor Attachment After SHG-220 Separating Dummy Plate Wall SADT-101WM Mount Adaptor Back Plate Gasket Wall Mount Adaptor Wall SADT-102WM Mount Adaptor Back Plate Gasket Wall Mount Adaptor Samsung Video Security System | 76 . 77

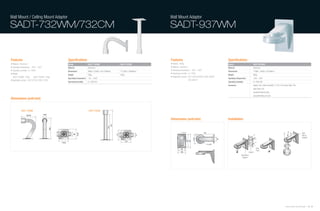

- 39. Wall Mount /Celling Mount Adaptor Wall Mount Adaptor SADT-732WM/732CM SADT-937WM Features Specifications Features Specifications • Material : Aluminum Model SADT-732WM SADT-732CM • Weight : 800g Model SADT-937WM • Operating temperature : -40˚C ~ 50˚C Material Aluminum • Material : Aluminum Material Aluminum • Operating humidity : 0~100% Dimensions 38(Ø) x 233(H) x 163.75(W)mm 112.6(H) x 330(W)mm • Operating temperature : -40˚C ~ 60˚C Dimensions 118(Ø) x 183(H) x 241(W)mm • Weight • Operating humidity : 0~100% Weight 500g 550g Weight 800g SADT-732WM : 500g SADT-732CM : 550g • Applicable camera : SCC-C6323/C6325, SNC-C6225 Operating Temperature -40 ~ +50˚C Operating Temperature -40˚C ~ 60˚C • Applicable camera : SCC-C7325, SNC-C7225 SCC-B9374 Operating Humidity 0~100% RH Operating Humidity 0~100% RH Accessory Gasket 1EA, Cable Grand(PG-11, PG-13.5), Back Plate 1EA Back Plate 1EA Screw(FH M3xL6) 6EA Screw(PM M4xL22) 2EA Dimensions (unit:mm) SADT-732WM SADT-732CM 163.75 38 Dimensions (unit:mm) Installation 233 Wall 112.6 46 Mount Adaptor 112.6 Back Plate Gasket Wall Mount Adaptor Samsung Video Security System | 78 . 79

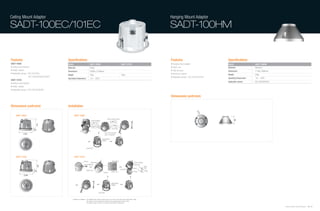

- 40. Ceiling Mount Adaptor Hanging Mount Adaptor SADT-100EC/101EC SADT-100HM Features Specifications Features Specifications SADT-100EC Model SADT-100EC SADT-101EC • Hanging mount adaptor Model SADT-100HM • Ceiling mount bracket Materials Plastic • Indoor use Materials Aluminum • Plastic material Dimensions 235(Ø) x 210(H)mm • Solid structure Dimensions 117(Ø) x 68(H)mm • Applicable camera : SCC-641/643, • Aluminum material Weight 259g Weight 765g 792g SCC-C6403/C6405/C6407 • Applicable camera : SCC-C6433/C6435 Operating Temperature -10 ~ +50ºC Operating Temperature -10 ~ +50ºC SADT-101EC Applicable camera SCC-C6433/C6435 • Ceiling mount bracket • Plastic material • Applicable camera : SCC-C6433/C6435 Dimensions (unit:mm) Dimensions (unit:mm) Installation 117 SADT-100EC SADT-100EC Hole for fixing a screw 68 Camera Adaptor 210 Lever Rock 32 Turn to the clockwise 235 about 15 degrees Ceiling Mount Adaptor Cover Body SADT-101EC SADT-101EC Camera Guide Boss Guide Boss Camera Adaptor Screw (M2xL8) Guide Hall 210 Guide Guide Hall Connector Braket Lock 32 Braket Lock Camera Guide Camera 235 Ceiling Mount Adaptor Cover Body * Conditions for Installation : The installation place should be able to bear up to 4 times of the total product weight (about 16Kg). This product is to be used when the thickness of the ceiling board is less than 40mm. This product requires a minimum of 180mm space above the ceiling board. Samsung Video Security System | 80 . 81

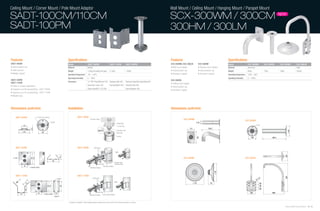

- 41. Ceiling Mount /Corner Mount / Pole Mount Adaptor Wall Mount / Ceiling Mount / Hanging Mount / Parapet Mount SADT-100CM/110CM SCX-300WM / 300CM NEW SADT-100PM 300HM / 300LM Features Specifications Features Specifications SADT-100CM Model SADT-100CM SADT-110CM SADT-100PM SCX-300WM, SCX-300LM SCX-300HM Model SCX-300WM SCX-300CM SCX-300HM SCX-300LM • Indoor/outdoor use Material Metallic • Wall mount adaptor • Hanging mount adaptor Material Aluminum Steel • Solid structure Weight 1,200g (including the pipe) 2,100g 1,400g • Indoor/outdoor use • Indoor/outdoor use Weight 850g 700g 500g 3500g • Metallic material Operating Temperature -40 ~ +50˚C • Aluminium material • Aluminium material Operating Temperature -50˚C ~ 60˚C Operating Humidity 0 ~ 100% Operating Humidity 0 ~ 100% SADT-100PM SCX-300CM Accessory 1.5" NPT Pipe(300mm) 1EA Stainless Bolt 4EA Stainless Steel Mounting Strap 2EA SADT-110CM • Ceilling mount adaptor • Indoor or outdoor applications Decoration Cover 1EA Spring Washer 4EA Stainless Bolt 4EA • Indoor/outdoor use • Supports up to 88 pounds(40kg) : SADT-100PM Cable Grand(PG-13.5) 2EA Spring Washer 4EA • Aluminium material • Supports up to 97 pounds(44kg) : SADT-110CM • Metallic body Dimensions (unit:mm) Installation Dimensions (unit:mm) SADT-100CM 1/2” NPT PiPE THREAD SADT-100CM Concreate Ceiling SCX-300WM SCX-300CM Ceiling Board 52 1.5” NPT Pipe 112 276.5 130 Decoration Cover Teflon Tape Housing 183 100 305.5 SADT-100PM SADT-100PM Cable grand 297 SCX-300HM SCX-300LM Stainless Steel Back Plate Mounting Strap Pole Mount Adaptor Wall Mount Adaptor 178 SADT-110CM SADT-110CM 897 Cable grand 11 8- 178 53 80 90 80 Back Plate 250 668 Wall Mount Adaptor Corner Mount Adaptor * Conditions for Installation : When installing outdoors, stainless steel must be used for the connecting materials (i.e. screws). Samsung Video Security System | 82 . 83

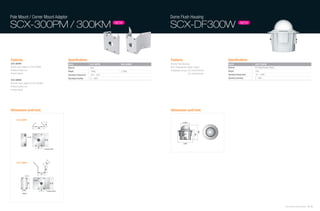

- 42. Pole Mount /Corner Mount Adaptor Dome Flush Housing SCX-300PM / 300KM NEW SCX-DF300W NEW Features Specifications Features Specifications SCX-300PM Model SCX-300PM SCX-300KM • Indoor Flush Mounting Model SADT-100HM • Pole mount adaptor for SCX-300WM Material Steel • PC (Polycarbonate, Plastic) material Material PC (Polycarbonate, Plastic) • Indoor/outdoor use Weight 1,400g 2,200g • Applicable Camera: SCC-C6437/C6439, Weight 702g • Steel material SCC-C6453/C6455 Operating Temperature -10 ~ +50ºC Operating Temperature -50˚C ~ 60˚C Operating Humidity 0 ~ 100% Operating Humidity 0 ~ 90% SCX-300KM • Corner mount adaptor for SCX-300WM • Indoor/outdoor use • Steel material Dimensions (unit:mm) Dimensions (unit:mm) SCX-300PM 152.2 248 168 257 SCX-300KM Samsung Video Security System | 84 . 85

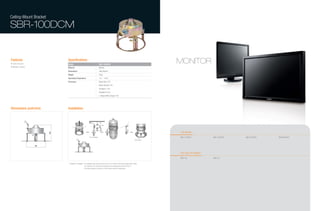

- 43. Ceiling-Mount Bracket SBR-100DCM Features • Solidstructure Specifications Model SBR-100DCM MONITOR • Metallic material Material Metallic Dimensions 196x160mm Weight 700g Operating Temperature -10 ~ +50˚C Accessory Safety Wire 1EA Safety Bracket 1EA Template A 1EA Template B 1EA L-Shaped BNC Adaptor 1EA Dimensions (unit:mm) Installation Nut Nut LCD Monitor 160 Turn Clockwise SMT-1712/1912 SMT-1722/1922 SMT-1723/1923 SMT-3222/4022 Cover Body 196 Flat Color CRT Monitor SMC-145 SMC-215 * Conditions for Installation : The installation place should be able to bear up to 4 times the total product weight (about 16Kg). This product is to be used when the thickness of the ceiling board is less than 40mm. This product requires a minimum of 180mm space above the ceiling board.
