06_OOVP.pptx object oriented and visual programming
- 1.

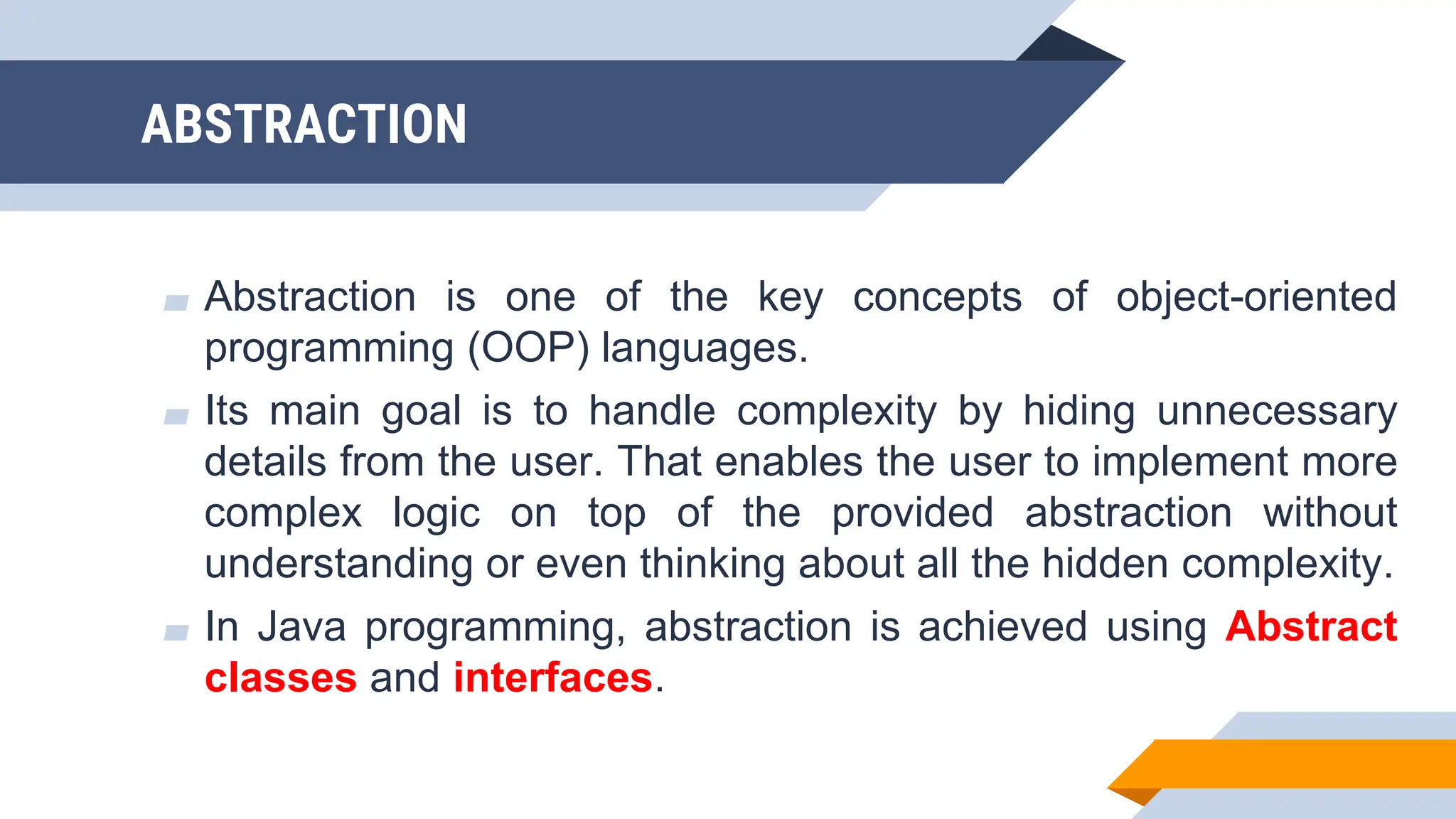

- 2. ABSTRACTION ▰ Abstraction isone of the key concepts of object-oriented programming (OOP) languages. ▰ Its main goal is to handle complexity by hiding unnecessary details from the user. That enables the user to implement more complex logic on top of the provided abstraction without understanding or even thinking about all the hidden complexity. ▰ In Java programming, abstraction is achieved using Abstract classes and interfaces.
- 3. WHAT IS ABSTRACTIONS? ▰Abstraction refers to the act of representing essential features without including the background details or explanations. ▰ Abstraction lets you focus on what the object does instead of how it does it. ▰ Therefore, it is an art to simplify things from outsiders. ▰ The abstraction in Java can be achieved by: ▻ Abstract Class : partial or total abstraction ▻ Interface : total abstraction ▰ Since classes use the concept of data abstraction, they are known as Abstract Data Types (ADT).
- 4. WHY ABSTRACTIONS? ▰ easierto think about - hide what doesn't matter ▰ protection - prevent access to things you shouldn't see ▰ plug compatibility ▻ replacement of pieces, often without recompilation, definitely without rewriting libraries ▻ division of labor in software projects
- 5. Abstraction vs Encapsulation ▰Abstraction = Implementation Hiding. hiding the details and implementation of the code from outside world. ▰ Encapsulation = Information Hiding. hiding the hiding the data and controlling the visibility of the code.
- 6. Abstract Classes ▰ Aclass declared as abstract is known as abstract class. ▰ An abstract class must be declared with an abstract keyword. ▰ It cannot be instantiated. ▰ It needs to be extended to be used. ▰ It must contain at least 1 abstract method declaration. ▰ It may contain constructors, non-abstract, static and/or final methods as well. Otherwise, fully abstraction concept will be achieved.

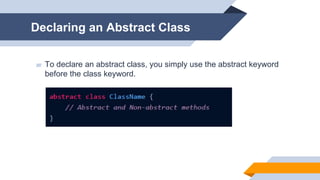

- 7. Declaring an AbstractClass ▰ To declare an abstract class, you simply use the abstract keyword before the class keyword.
- 8. Declaring an AbstractClass ▰ To declare an abstract class, you simply use the abstract keyword before the class keyword. Here’s a basic example: In this code snippet, we’ve declared an abstract class Vehicle with an abstract method run(). This method doesn’t have a body – it’s just a declaration. That’s because the implementation of this method is provided by the class that extends this abstract class
- 9. Syntax of AbstractMethod ▰ The syntax for the abstract method is similar to any user-defined method in Java except you have to add abstract keyword at the start of the declaration. ▰ For example
- 10. Abstract Class inJava To make an abstract class, you must declare a class with an abstract keyword.
- 11. An abstract classmay have a mixed set of abstract and regular(non-abstract) methods. Abstract Class in Java

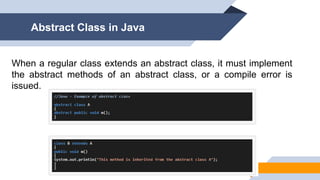

- 12. When a regularclass extends an abstract class, it must implement the abstract methods of an abstract class, or a compile error is issued. Abstract Class in Java

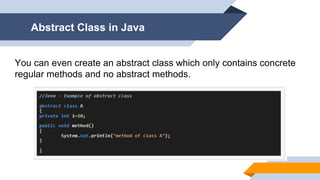

- 13. You can evencreate an abstract class which only contains concrete regular methods and no abstract methods. Abstract Class in Java
- 14. You must declarea class with the abstract keyword, even when there is only a single abstract method in it. Abstract Class in Java

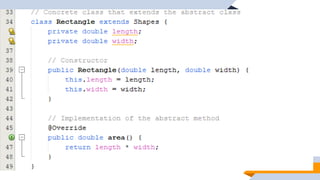

- 15. Abstract Class inJava Example This example creates an abstract class called "Shapes"

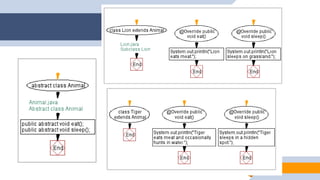

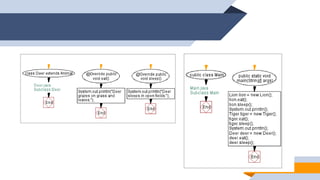

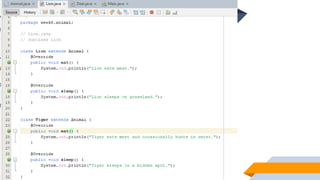

- 19. This example createsan abstract class Animal with abstract methods eat() and sleep(). Create subclasses Lion, Tiger, and Deer that extend the Animal class and implement the eat() and sleep() methods differently based on their specific behavior. Abstract Class in Java Example

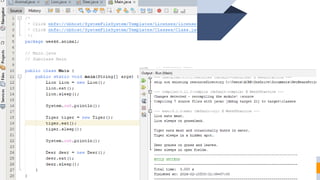

- 20. ▰ In thisprogram, the Animal class is an abstract class that defines the abstract methods eat() and sleep(). ▰ The Lion, Tiger, and Deer classes extend the Animal class and provide their own implementations for the eat() and sleep() methods based on their specific behavior. ▰ The Main class demonstrates the usage of these classes by creating objects of each subclass and invoking the eat() and sleep() methods accordingly.
- 27. INTERFACE ▰ An interfaceis a 100% abstract class which is declared with the interface keyword. Methods of an interface are implicitly abstract, hence when declaring an interface, you must not provide an implementation of any of its methods and its methods should end with a semicolon ;
- 28. ▰ Interface methodsare implicitly declared with the public access modifier and abstract keyword, which means that even if you don't explicitly type public and abstract with interface methods, they are still always public and abstract, by default. INTERFACE
- 29. ▰ A classcan implement an interface by providing the internal logic of all methods of an interface, conforming to each of their method signatures. To implement an interface, a class must use the implements keyword. INTERFACE
- 30. ▰ You cannotinstantiate or create an object of an interface, because it is a 100% abstract and skeletal. Hence, instantiating an interface gives a compile error. INTERFACE

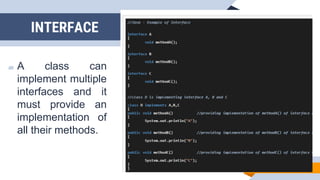

- 31. ▰ A classcan implement multiple interfaces and it must provide an implementation of all their methods. INTERFACE

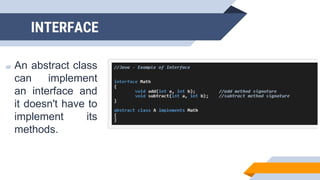

- 32. ▰ An abstractclass can implement an interface and it doesn't have to implement its methods. INTERFACE
- 33.

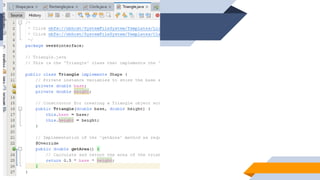

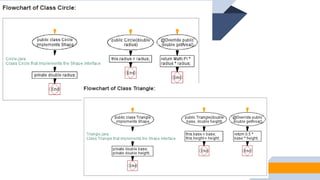

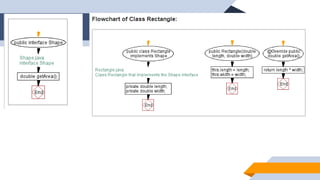

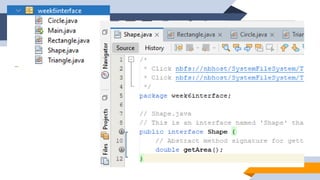

- 34. This example createan interface Shape with the getArea() method. Create three classes Rectangle, Circle, and Triangle that implement the Shape interface. Implement the getArea() method for each of the three classes. Interface in Java Example

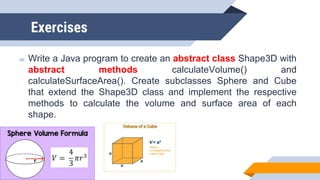

- 43. Exercises ▰ Write aJava program to create an abstract class Shape3D with abstract methods calculateVolume() and calculateSurfaceArea(). Create subclasses Sphere and Cube that extend the Shape3D class and implement the respective methods to calculate the volume and surface area of each shape.
