Shadow Maps
Wolfgang Engel
Confetti Special Effects Inc., Carlsbad
Paris Master Class

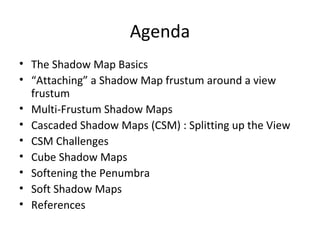

Agenda
• The Shadow Map Basics
• “Attaching” a Shadow Map frustum around a view
frustum
• Multi-Frustum Shadow Maps
• Cascaded Shadow Maps (CSM) : Splitting up the View
• CSM Challenges
• Cube Shadow Maps
• Softening the Penumbra
• Soft Shadow Maps

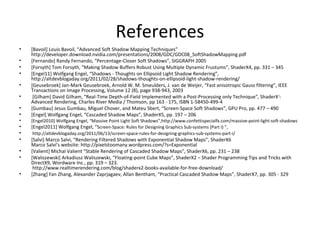

• References

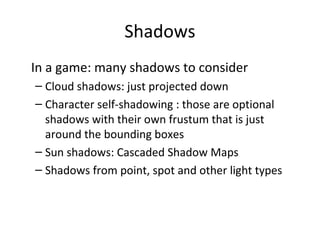

Shadows
• In a game: many shadows to consider
– Cloud shadows: just projected down
– Character self-shadowing : those are optional
shadows with their own frustum that is just
around the bounding boxes
– Sun shadows: Cascaded Shadow Maps
– Shadows from point, spot and other light types

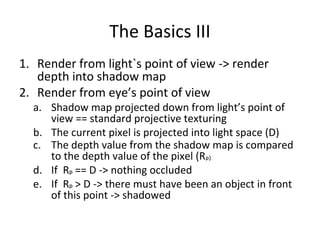

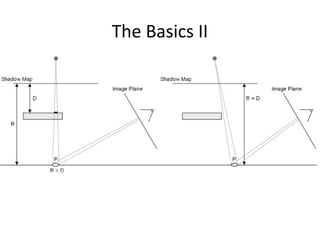

The Basics III
1. Render from light`s point of view -> render
depth into shadow map
2. Render from eye’s point of view
a. Shadow map projected down from light’s point of
view == standard projective texturing
b. The current pixel is projected into light space (D)
c. The depth value from the shadow map is compared
to the depth value of the pixel (Rpp))
d. If Rpp == D -> nothing occluded
e. If Rpp > D -> there must have been an object in front
of this point -> shadowed

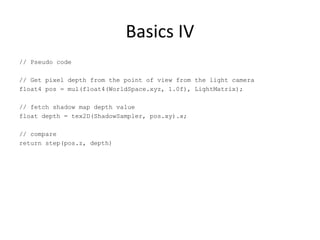

Basics IV
// Pseudo code
// Get pixel depth from the point of view from the light camera
float4 pos = mul(float4(WorldSpace.xyz, 1.0f), LightMatrix);
// fetch shadow map depth value
float depth = tex2D(ShadowSampler, pos.xy).x;
// compare
return step(pos.z, depth)

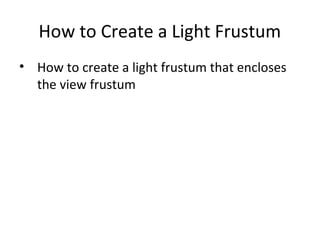

How to Create a Light Frustum
• How to create a light frustum that encloses
the view frustum

1. Create a Unit Cube in Post-Projective Space// bound frustum points in post-projective space
vec3 points[8] =
{
vec3(-1.0f,-1.0f,-1.0f), vec3(1.0f,-1.0f,-1.0f), vec3(-1.0f,1.0f,-1.0f), vec3(1.0f,1.0f,-1.0f),
vec3(-1.0f,-1.0f, 1.0f), vec3(1.0f,-1.0f, 1.0f), vec3(-1.0f,1.0f, 1.0f), vec3(1.0f,1.0f, 1.0f),
};
-1.0, 1.0, 0.0
1.0, -1.0, 1.0

2. Transform it into view space with inverse
projection matrix
-> end up with the eight points of the whole
view frustum// world space bound frustum points | transform from post-projective space to camera view space == world
space
for(int i = 0; i < 8; i++)
{
vec4 point = iprojection * vec4(points[i]);
points[i] = vec3(point) / point.w;
}

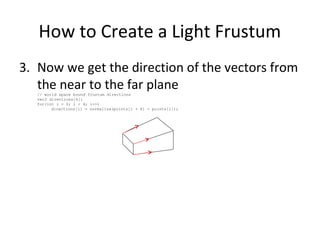

3. Now we get the direction of the vectors from
the near to the far plane// world space bound frustum directions
vec3 directions[4];
for(int i = 0; i < 4; i++)
directions[i] = normalize(points[i + 4] - points[i]);

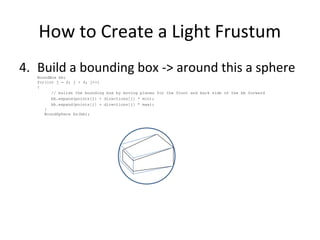

4. Build a bounding box -> around this a sphereBoundBox bb;
for(int j = 0; j < 4; j++)
{
// builds the bounding box by moving planes for the front and back side of the bb forward
bb.expand(points[j] + directions[j] * min);
bb.expand(points[j] + directions[j] * max);
}
BoundSphere bs(bb);

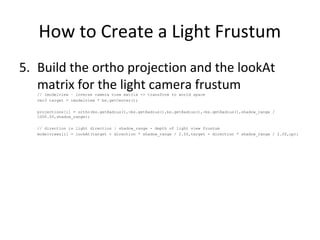

5. Build the ortho projection and the lookAt
matrix for the light camera frustum// imodelview – inverse camera view matrix -> transform to world space
vec3 target = imodelview * bs.getCenter();
projections[i] = ortho(bs.getRadius(),-bs.getRadius(),bs.getRadius(),-bs.getRadius(),shadow_range /
1000.0f,shadow_range);
// direction is light direction | shadow_range - depth of light view frustum
modelviews[i] = lookAt(target + direction * shadow_range / 2.0f,target - direction * shadow_range / 2.0f,up);

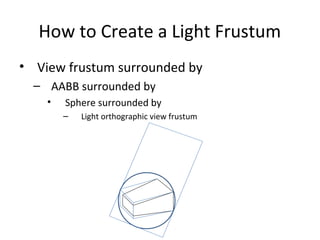

• View frustum surrounded by
– AABB surrounded by
• Sphere surrounded by
– Light orthographic view frustum

Multi-Frustum Shadow Maps
• Using several light frustums in a scene
– Per Object [Forsyth] -> self-shadowing on
characters
– Slicing up the view frustum == Cascaded Shadow
maps [Engel]

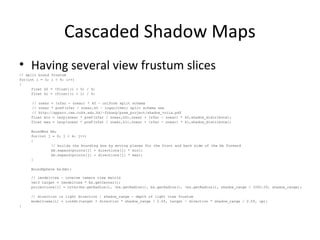

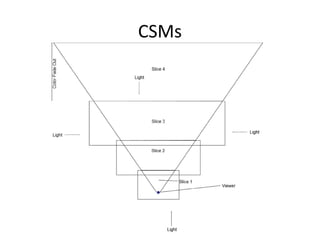

Cascaded Shadow Maps
• Having several view frustum slices
// split bound frustum
for(int i = 0; i < 4; i++)
{
float k0 = (float)(i + 0) / 4;
float k1 = (float)(i + 1) / 4;
// znear + (zfar - znear) * k0 – uniform split schema
// znear * powf(zfar / znear,k0 – logarithmic split schema see
// http://appsrv.cse.cuhk.edu.hk/~fzhang/pssm_project/shadow_vrcia.pdf
float min = lerp(znear * powf(zfar / znear,k0),znear + (zfar - znear) * k0,shadow_distribute);
float max = lerp(znear * powf(zfar / znear,k1),znear + (zfar - znear) * k1,shadow_distribute);
BoundBox bb;
for(int j = 0; j < 4; j++)
{
// builds the bounding box by moving planes for the front and back side of the bb forward
bb.expand(points[j] + directions[j] * min);
bb.expand(points[j] + directions[j] * max);
}
BoundSphere bs(bb);
// imodelview – inverse camera view matrix
vec3 target = imodelview * bs.getCenter();
projections[i] = ortho(bs.getRadius(), -bs.getRadius(), bs.getRadius(), -bs.getRadius(), shadow_range / 1000.0f, shadow_range);
// direction is light direction | shadow_range - depth of light view frustum
modelviews[i] = lookAt(target + direction * shadow_range / 2.0f, target - direction * shadow_range / 2.0f, up);
}

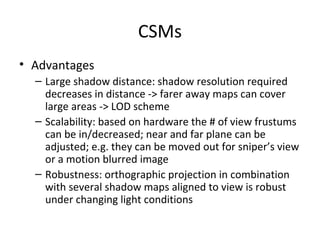

CSMs
• Advantages
– Large shadow distance: shadow resolution required
decreases in distance -> farer away maps can cover
large areas -> LOD scheme
– Scalability: based on hardware the # of view frustums
can be in/decreased; near and far plane can be
adjusted; e.g. they can be moved out for sniper’s view
or a motion blurred image
– Robustness: orthographic projection in combination
with several shadow maps aligned to view is robust
under changing light conditions

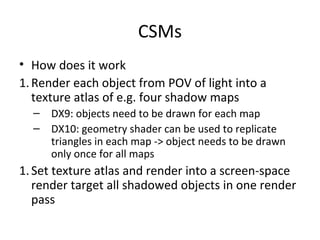

CSMs
• How does it work
1.Render each object from POV of light into a
texture atlas of e.g. four shadow maps
– DX9: objects need to be drawn for each map
– DX10: geometry shader can be used to replicate
triangles in each map -> object needs to be drawn
only once for all maps
1.Set texture atlas and render into a screen-space
render target all shadowed objects in one render
pass

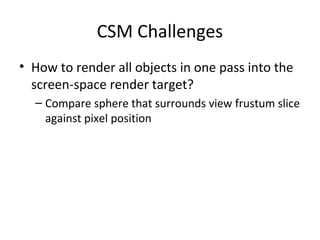

CSM Challenges
• How to render all objects in one pass into the
screen-space render target?
– Compare sphere that surrounds view frustum slice
against pixel position

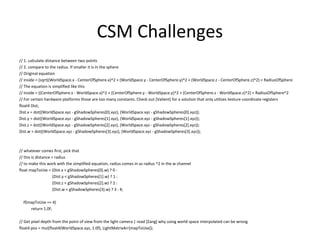

CSM Challenges
// 1. calculate distance between two points
// 2. compare to the radius. If smaller it is in the sphere
// Original equation
// inside = (sqrt((WorldSpace.x - CenterOfSphere.x)^2 + (WorldSpace.y - CenterOfSphere.y)^2 + (WorldSpace.z - CenterOfSphere.z)^2) < RadiusOfSphere
// The equation is simplified like this
// inside = ((CenterOfSphere.x - WorldSpace.x)^2 + (CenterOfSphere.y - WorldSpace.y)^2 + (CenterOfSphere.z - WorldSpace.z)^2) < RadiusOfSphere^2
// For certain hardware platforms those are too many constants. Check out [Valient] for a solution that only utilizes texture coordinate registers
float4 Dist;
Dist.x = dot((WorldSpace.xyz - gShadowSpheres[0].xyz), (WorldSpace.xyz - gShadowSpheres[0].xyz));
Dist.y = dot((WorldSpace.xyz - gShadowSpheres[1].xyz), (WorldSpace.xyz - gShadowSpheres[1].xyz));
Dist.z = dot((WorldSpace.xyz - gShadowSpheres[2].xyz), (WorldSpace.xyz - gShadowSpheres[2].xyz));
Dist.w = dot((WorldSpace.xyz - gShadowSpheres[3].xyz), (WorldSpace.xyz - gShadowSpheres[3].xyz));
// whatever comes first, pick that
// this is distance < radius
// to make this work with the simplified equation, radius comes in as radius ^2 in the w channel
float mapToUse = (Dist.x < gShadowSpheres[0].w) ? 0 :
(Dist.y < gShadowSpheres[1].w) ? 1 :
(Dist.z < gShadowSpheres[2].w) ? 2 :
(Dist.w < gShadowSpheres[3].w) ? 3 : 4;
if(mapToUse == 4)
return 1.0f;
// Get pixel depth from the point of view from the light camera | read [Zang] why using world space interpolated can be wrong
float4 pos = mul(float4(WorldSpace.xyz, 1.0f), LightMatrixArr[mapToUse]);

CSM Challenges

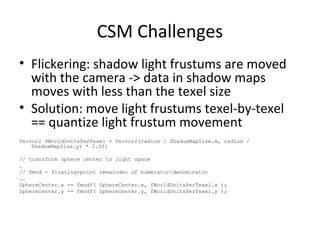

• Flickering: shadow light frustums are moved
with the camera -> data in shadow maps
moves with less than the texel size
• Solution: move light frustums texel-by-texel
== quantize light frustum movement
Vector2 fWorldUnitsPerTexel = Vector2(radius / ShadowMapSize.x, radius /
ShadowMapSize.y) * 2.0f;
// transform sphere center to light space
…
// fmod - floating-point remainder of numerator/denominator
..
SphereCenter.x -= fmodf( SphereCenter.x, fWorldUnitsPerTexel.x );
SphereCenter.y -= fmodf( SphereCenter.y, fWorldUnitsPerTexel.y );

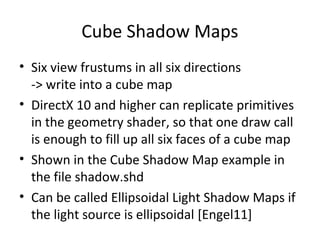

Cube Shadow Maps
• Six view frustums in all six directions
-> write into a cube map
• DirectX 10 and higher can replicate primitives
in the geometry shader, so that one draw call
is enough to fill up all six faces of a cube map
• Shown in the Cube Shadow Map example in
the file shadow.shd

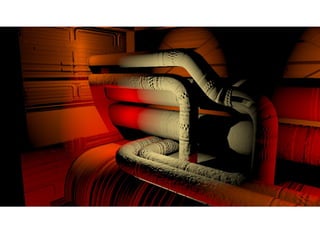

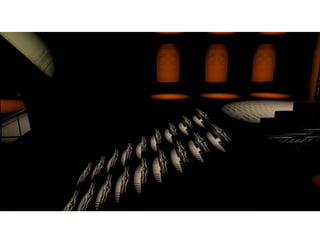

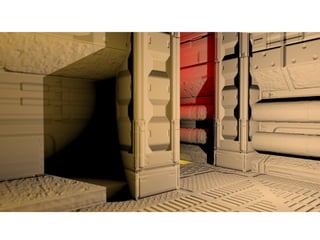

• Can be called Ellipsoidal Light Shadow Maps if
the light source is ellipsoidal [Engel11]

Cube Shadow Maps
• Simplified shader
void GS_CubeMap( triangle VS_OUTPUT_CUBEMAP In[3], inout TriangleStream<GS_OUTPUT_CUBEMAP> CubeMapStream )
{
for( int f = 0; f < 6; ++f )
{
// Compute screen coordinates
GS_OUTPUT_CUBEMAP Out;
Out.RTIndex = f;
for( int v = 0; v < 3; v++ )
{
Out.Pos = mul( In[v].Pos, g_mViewCM[f] );
Out.Pos = mul( Out.Pos, mProj );
Out.Tex = In[v].Tex;
CubeMapStream.Append( Out );
}
CubeMapStream.RestartStrip();
}
}

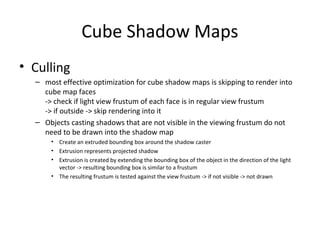

Cube Shadow Maps
• Culling
– most effective optimization for cube shadow maps is skipping to render into
cube map faces
-> check if light view frustum of each face is in regular view frustum
-> if outside -> skip rendering into it
– Objects casting shadows that are not visible in the viewing frustum do not
need to be drawn into the shadow map
• Create an extruded bounding box around the shadow caster
• Extrusion represents projected shadow
• Extrusion is created by extending the bounding box of the object in the direction of the light
vector -> resulting bounding box is similar to a frustum
• The resulting frustum is tested against the view frustum -> if not visible -> not drawn

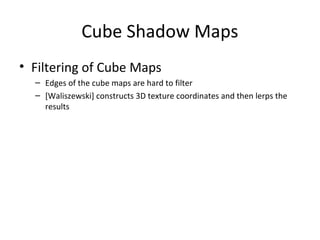

Cube Shadow Maps
• Filtering of Cube Maps
– Edges of the cube maps are hard to filter
– [Waliszewski] constructs 3D texture coordinates and then lerps the
results

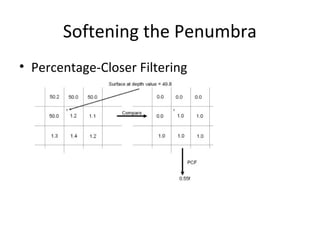

Softening the Penumbra
• Percentage-Closer Filtering

// perspective projection
projCoords= oTex1.xy / oTex1.w;
// sample nearest 2x2 quad
shadowMapVals.r= tex2D(ShadowSampler, projCoords);
shadowMapVals.g= tex2D(ShadowSampler, projCoords+ texelOffsets[1].xy * g_vFullTexelOffset.xy);
shadowMapVals.b= tex2D(ShadowSampler, projCoords+ texelOffsets[2].xy * g_vFullTexelOffset.xy);
shadowMapVals.a= tex2D(ShadowSampler, projCoords+ texelOffsets[3].xy * g_vFullTexelOffset.xy);
// evaluate shadowmaptest on quad of shadow map texels
inLight= ( dist < shadowMapVals);
// percent in light
percentInLight= dot(inLight, float4(0.25, 0.25, 0.25, 0.25) );

– Drawbacks
• need many samples to fight aliasing
• only scales linearly with sample count

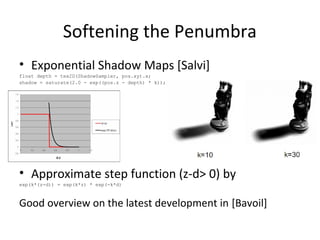

• Exponential Shadow Maps [Salvi]
float depth = tex2D(ShadowSampler, pos.xy).x;
shadow = saturate(2.0 - exp((pos.z - depth) * k));
• Approximate step function (z-d> 0) by
exp(k*(z-d)) = exp(k*z) * exp(-k*d)
Good overview on the latest development in [Bavoil]

Soft Shadows Agenda
• Basics of Soft Shadows

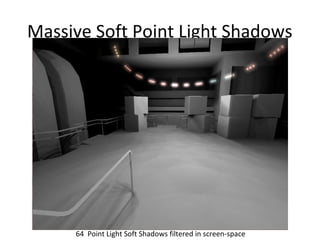

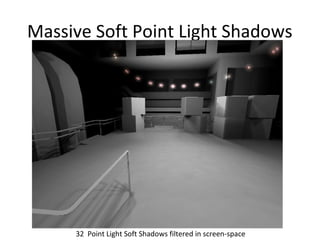

• Point Light Soft Shadow Rendering
Architecture

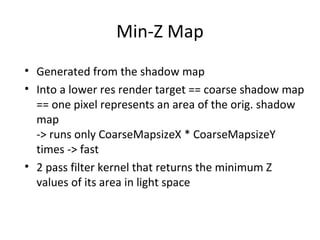

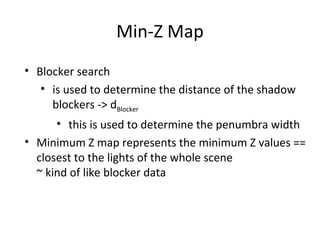

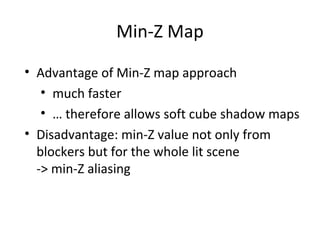

• Min-Z Map
• Collect Shadow Data in Screen-Space
• Screen-Space Anisotropic Filtering
• See [Engel2010] [Engel2011]

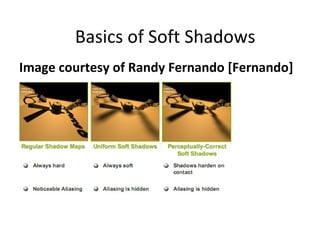

Image courtesy of Randy Fernando [Fernando]

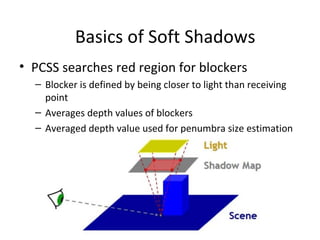

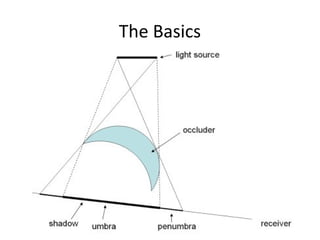

Basics of Soft Shadows

• Terminology

• PCSS searches red region for blockers
– Blocker is defined by being closer to light than receiving
point
– Averages depth values of blockers
– Averaged depth value used for penumbra size estimation

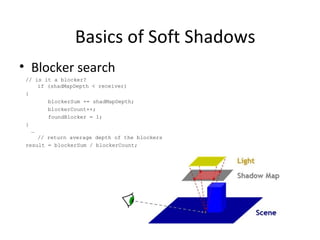

• Blocker search
// is it a blocker?
if (shadMapDepth < receiver)
{
blockerSum += shadMapDepth;
blockerCount++;
foundBlocker = 1;
}
…
// return average depth of the blockers
result = blockerSum / blockerCount;

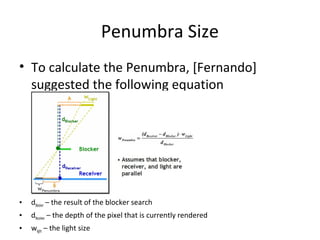

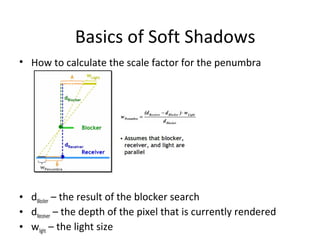

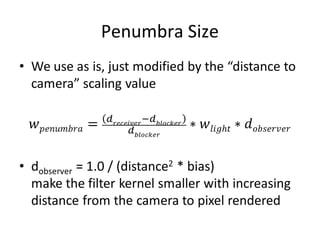

• How to calculate the scale factor for the penumbra
• dBlocker – the result of the blocker search
• dReceiver – the depth of the pixel that is currently rendered
• wlight – the light size

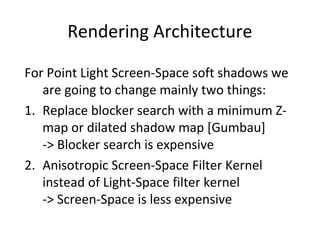

Rendering Architecture
For Point Light Screen-Space soft shadows we
are going to change mainly two things:
1. Replace blocker search with a minimum Z-
map or dilated shadow map [Gumbau]
-> Blocker search is expensive

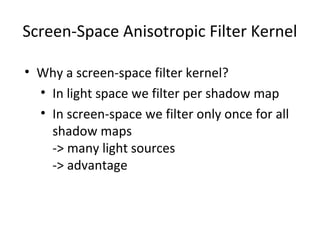

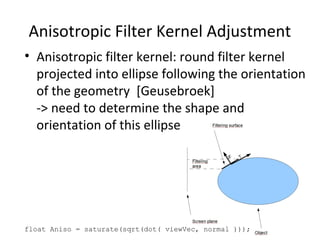

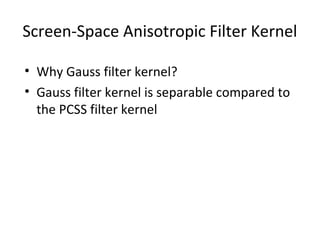

2. Anisotropic Screen-Space Filter Kernel
instead of Light-Space filter kernel
-> Screen-Space is less expensive

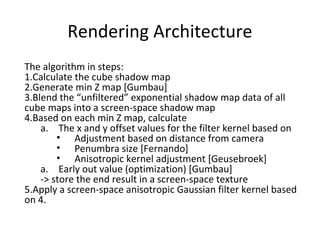

The algorithm in steps:
1.Calculate the cube shadow map
2.Generate min Z map [Gumbau]
3.Blend the “unfiltered” exponential shadow map data of all
cube maps into a screen-space shadow map

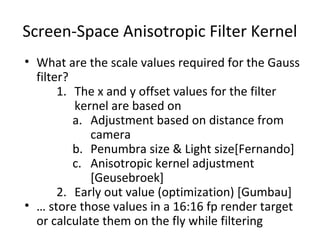

4.Based on each min Z map, calculate
a. The x and y offset values for the filter kernel based on

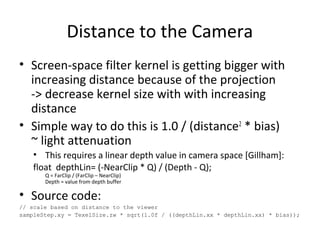

• Adjustment based on distance from camera
• Penumbra size [Fernando]
• Anisotropic kernel adjustment [Geusebroek]
a. Early out value (optimization) [Gumbau]
-> store the end result in a screen-space texture
5.Apply a screen-space anisotropic Gaussian filter kernel based
on 4.
Rendering Architecture

Min-Z Map
• Blocker search
• is used to determine the distance of the shadow
blockers -> dBlocker
• this is used to determine the penumbra width
• Minimum Z map represents the minimum Z values ==
closest to the lights of the whole scene
~ kind of like blocker data

Min-Z Map
• Generated from the shadow map
• Into a lower res render target == coarse shadow map
== one pixel represents an area of the orig. shadow
map
-> runs only CoarseMapsizeX * CoarseMapsizeY
times -> fast
• 2 pass filter kernel that returns the minimum Z
values of its area in light space

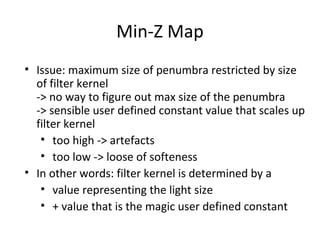

Min-Z Map
• Issue: maximum size of penumbra restricted by size
of filter kernel
-> no way to figure out max size of the penumbra
-> sensible user defined constant value that scales up
filter kernel
• too high -> artefacts
• too low -> loose of softeness
• In other words: filter kernel is determined by a
• value representing the light size
• + value that is the magic user defined constant

Min-Z Map
• Advantage of Min-Z map approach
• much faster
• … therefore allows soft cube shadow maps
• Disadvantage: min-Z value not only from
blockers but for the whole lit scene
-> min-Z aliasing

• All the Exponential Shadow Map data is just
blended via BLEND_ADD into a screen-space
texture
• This texture can be called shadow collector or
shadow mask
Collect Shadow Data in Screen-Space

Screen-Space Anisotropic Filter Kernel
• Why a screen-space filter kernel?
• In light space we filter per shadow map
• In screen-space we filter only once for all
shadow maps
-> many light sources
-> advantage

• Why Gauss filter kernel?
• Gauss filter kernel is separable compared to
the PCSS filter kernel

• What we need to do:
• Determine the values that scale the filter
kernel
• Write those values for all shadow maps into
a screen-space render target
• … the Gauss filter will read those values
later from there

• What are the scale values required for the Gauss
filter?
1. The x and y offset values for the filter
kernel are based on
a. Adjustment based on distance from
camera
b. Penumbra size & Light size[Fernando]
c. Anisotropic kernel adjustment
[Geusebroek]
2. Early out value (optimization) [Gumbau]
• … store those values in a 16:16 fp render target
or calculate them on the fly while filtering

Distance to the Camera
• Screen-space filter kernel is getting bigger with
increasing distance because of the projection
-> decrease kernel size with with increasing
distance
• Simple way to do this is 1.0 / (distance2
* bias)
~ light attenuation
• This requires a linear depth value in camera space [Gillham]:
float depthLin= (-NearClip * Q) / (Depth - Q);
Q = FarClip / (FarClip – NearClip)
Depth = value from depth buffer
• Source code:
// scale based on distance to the viewer
sampleStep.xy = TexelSize.zw * sqrt(1.0f / ((depthLin.xx * depthLin.xx) * bias));

Penumbra Size
• To calculate the Penumbra, [Fernando]
suggested the following equation
• dBlocker – the result of the blocker search
• dReceiver – the depth of the pixel that is currently rendered
• wlight – the light size

Anisotropic Filter Kernel Adjustment
• Anisotropic filter kernel: round filter kernel
projected into ellipse following the orientation
of the geometry [Geusebroek]
-> need to determine the shape and
orientation of this ellipse
float Aniso = saturate(sqrt(dot( viewVec, normal )));

• Screen-space challenges
• Filter kernel can smear values into the penumbra around
corners of geometry
• Compare Z value of pixel with Z value of shadow map tap
bool isValidSample = bool( abs(sampleDepth - d) < errDepth );
if (isValidSample && isShadow)
{
// the sample is considered valid
sumWeightsOK += weights[i+1]; // accumulate valid weights
Shadow += sampleL0.x * weights[i+1]; // accumulate weighted shadow value
}

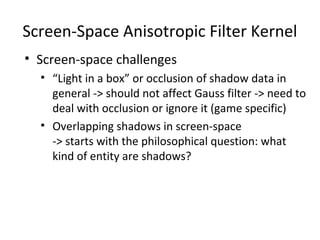

• Screen-space challenges
• “Light in a box” or occlusion of shadow data in
general -> should not affect Gauss filter -> need to
deal with occlusion or ignore it (game specific)
• Overlapping shadows in screen-space
-> starts with the philosophical question: what
kind of entity are shadows?

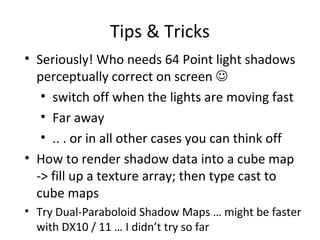

Tips & Tricks
• Seriously! Who needs 64 Point light shadows
perceptually correct on screen 
• switch off when the lights are moving fast
• Far away
• .. . or in all other cases you can think off
• How to render shadow data into a cube map
-> fill up a texture array; then type cast to
cube maps
• Try Dual-Paraboloid Shadow Maps … might be faster
with DX10 / 11 … I didn’t try so far

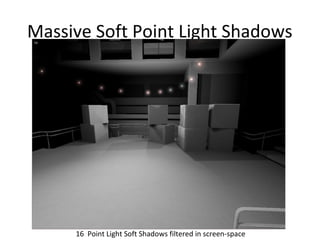

Massive Soft Point Light Shadows
16 Point Light Soft Shadows filtered in screen-space

References
• [Bavoil] Louis Bavoil, “Advanced Soft Shadow Mapping Techniques”
http://developer.download.nvidia.com/presentations/2008/GDC/GDC08_SoftShadowMapping.pdf
• [Fernando] Randy Fernando, “Percentage-Closer Soft Shadows”, SIGGRAPH 2005
• [Forsyth] Tom Forsyth, “Making Shadow Buffers Robust Using Multiple Dynamic Frustums”, ShaderX4, pp. 331 – 345
• [Engel11] Wolfgang Engel, “Shadows - Thoughts on Ellipsoid Light Shadow Rendering”,
http://altdevblogaday.org/2011/02/28/shadows-thoughts-on-ellipsoid-light-shadow-rendering/
• [Geusebroek] Jan-Mark Geusebroek, Arnold W. M. Smeulders, J. van de Weijer, “Fast anisotropic Gauss filtering”, IEEE
Transactions on Image Processing, Volume 12 (8), page 938-943, 2003
• [Gilham] David Gilham, "Real-Time Depth-of-Field Implemented with a Post-Processing only Technique", ShaderX5
:
Advanced Rendering, Charles River Media / Thomson, pp 163 - 175, ISBN 1-58450-499-4
• [Gumbau] Jesus Gumbau, Miguel Chover, and Mateu Sbert, “Screen-Space Soft Shadows”, GPU Pro, pp. 477 – 490
• [Engel] Wolfgang Engel, “Cascaded Shadow Maps”, ShaderX5, pp. 197 – 206
• [Engel2010] Wolfgang Engel, “Massive Point Light Soft Shadows”,http://www.confettispecialfx.com/massive-point-light-soft-shadows
• [Engel2011] Wolfgang Engel, “Screen-Space: Rules for Designing Graphics Sub-systems (Part I) ”,
• http://altdevblogaday.org/2011/06/13/screen-space-rules-for-designing-graphics-sub-systems-part-i/
• [Salvi] Marco Salvi, “Rendering Filtered Shadows with Exponential Shadow Maps”, ShaderX6
Marco Salvi’s website: http://pixelstoomany.wordpress.com/?s=Exponential
• [Valient] Michal Valient “Stable Rendering of Cascaded Shadow Maps”, ShaderX6, pp. 231 – 238
• [Waliszewski] Arkadiusz Waliszewski, “Floating-point Cube Maps”, ShaderX2 – Shader Programming Tips and Tricks with
DirectX9, Wordware Inc., pp. 319 – 323.
http://www.realtimerendering.com/blog/shaderx2-books-available-for-free-download/
• [Zhang] Fan Zhang, Alexander Zaprjagaev, Allan Bentham, “Practical Cascaded Shadow Maps”, ShaderX7, pp. 305 - 329

Paris Master Class 2011 - 04 Shadow Maps

More Related Content

What's hot

Similar to Paris Master Class 2011 - 04 Shadow Maps

More from Wolfgang Engel

Recently uploaded

Paris Master Class 2011 - 04 Shadow Maps

Editor's Notes
