1. Aggregate Gradation-Part 1
Dr. Mutasem Alzoubaidi, Ph.D., P.E.

2. Gradation
• Definition:
– The distribution of particle sizes expressed as a percent of total
weight.
• Determined by sieve analysis

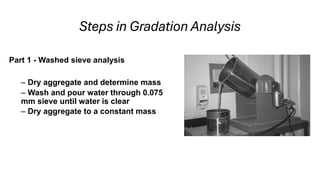

3. Steps in Gradation Analysis
Part 1 - Washed sieve analysis
– Dry aggregate and determine mass
– Wash and pour water through 0.075
mm sieve until water is clear
– Dry aggregate to a constant mass

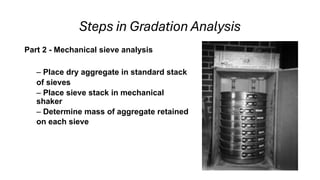

4. Steps in Gradation Analysis
Part 2 - Mechanical sieve analysis
– Place dry aggregate in standard stack
of sieves
– Place sieve stack in mechanical
shaker
– Determine mass of aggregate retained
on each sieve

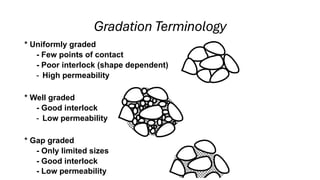

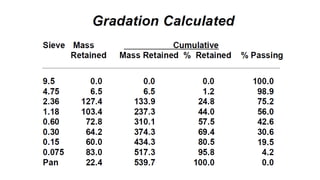

8. Gradation Terminology
* Uniformly graded
- Few points of contact
- Poor interlock (shape dependent)
- High permeability
* Well graded
- Good interlock
- Low permeability
* Gap graded
- Only limited sizes
- Good interlock
- Low permeability

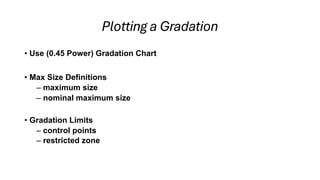

9. Plotting a Gradation

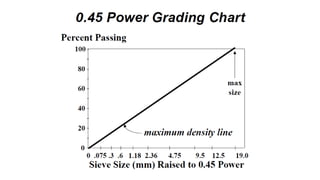

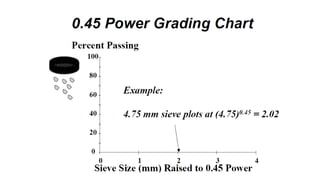

• Use (0.45 Power) Gradation Chart
• Max Size Definitions
– maximum size
– nominal maximum size
• Gradation Limits
– control points
– restricted zone
