Paging Library provides an efficient way to load and display large datasets from a remote data source or database. It uses pagination to only load small chunks of data at a time into memory. The key components are PagedList, DataSource and DataSource.Factory. DataSource loads pages of data and can be invalidated to trigger reloading. DataSource.Factory creates DataSources. LivePagedListBuilder connects a DataSource.Factory to a PagedList, which can be observed to update the UI. This allows efficiently loading and listening for changes to large datasets.

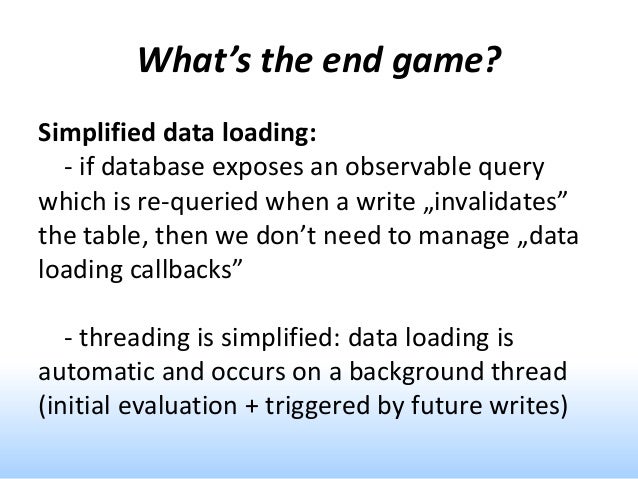

3. What’s the end game?
Simplified data loading:
- if database exposes an observable query
which is re-queried when a write „invalidates”
the table, then we don’t need to manage „data
loading callbacks”
- threading is simplified: data loading is
automatic and occurs on a background thread
(initial evaluation + triggered by future writes)

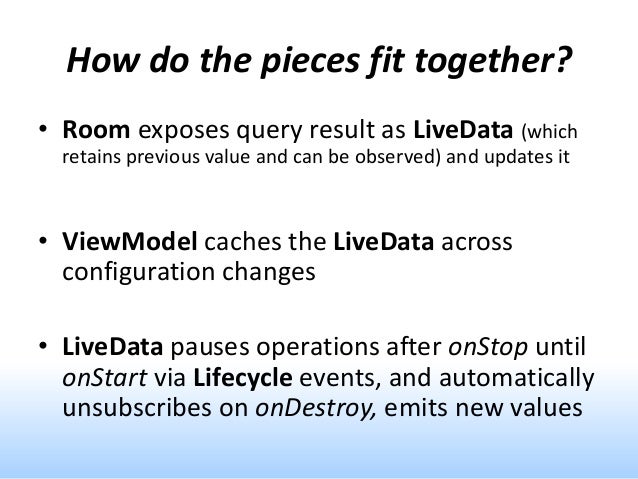

4. How do the pieces fit together?
• Room exposes query result as LiveData (which
retains previous value and can be observed) and updates it
• ViewModel caches the LiveData across
configuration changes
• LiveData pauses operations after onStop until
onStart via Lifecycle events, and automatically
unsubscribes on onDestroy, emits new values

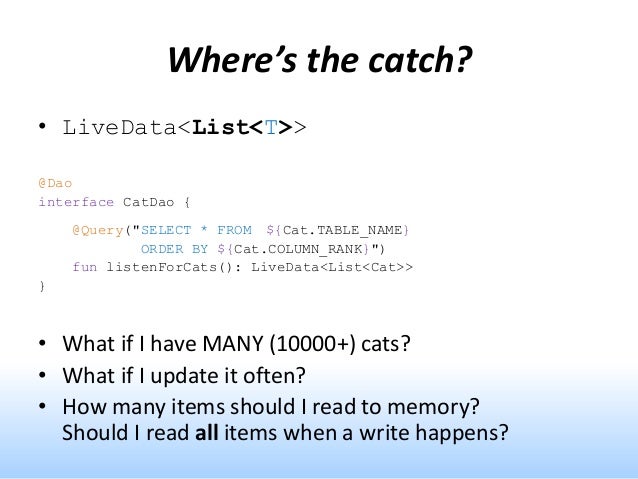

5. Where’s the catch?
• LiveData<List<T>>
@Dao
interface CatDao {
@Query("SELECT * FROM ${Cat.TABLE_NAME}
ORDER BY ${Cat.COLUMN_RANK}")
fun listenForCats(): LiveData<List<Cat>>
}
• What if I have MANY (10000+) cats?
• What if I update it often?
• How many items should I read to memory?
Should I read all items when a write happens?

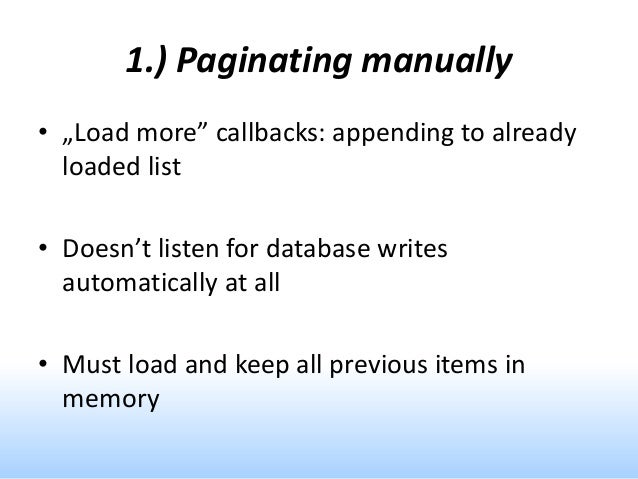

7. 1.) Paginating manually
• „Load more” callbacks: appending to already
loaded list
• Doesn’t listen for database writes
automatically at all
• Must load and keep all previous items in
memory

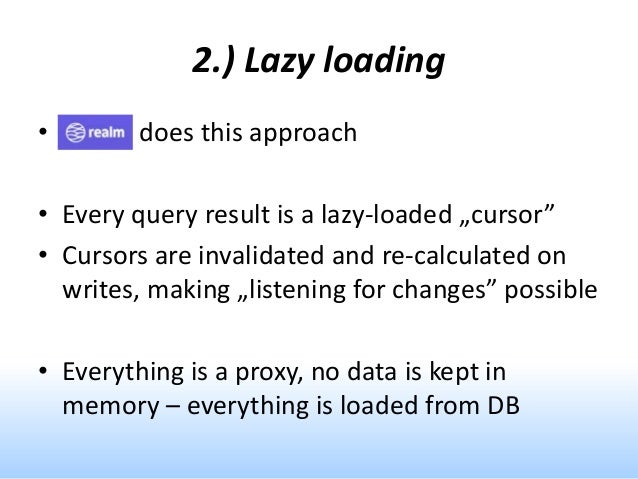

8. 2.) Lazy loading
• does this approach
• Every query result is a lazy-loaded „cursor”
• Cursors are invalidated and re-calculated on
writes, making „listening for changes” possible
• Everything is a proxy, no data is kept in
memory – everything is loaded from DB

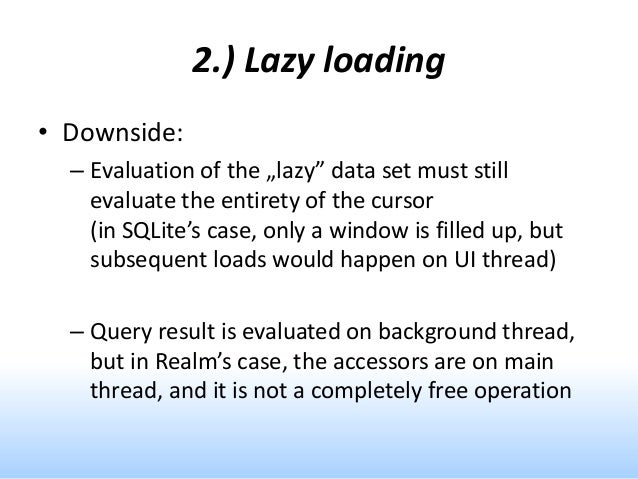

10. 2.) Lazy loading
• Downside:
– Evaluation of the „lazy” data set must still
evaluate the entirety of the cursor
(in SQLite’s case, only a window is filled up, but
subsequent loads would happen on UI thread)
– Query result is evaluated on background thread,
but in Realm’s case, the accessors are on main
thread, and it is not a completely free operation

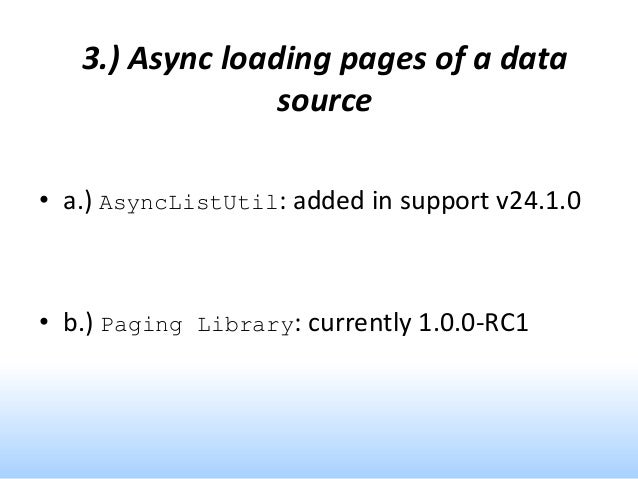

13. 3.) Async loading pages of a data
source
• a.) AsyncListUtil: added in support v24.1.0
• b.) Paging Library: currently 1.0.0-RC1
14. 3.b) PagedList + DataSource
• Idea:
– only load small pages to memory that we actually need
– reading the pages (and elements) should occur on
background thread
• Paging Library gives us:
– PagedList: exposes data
– DataSource: fills paged list
– DataSource.Factory: creates a data source
– PagedListAdapter: consumes paged list
– LivePagedListBuilder: creates new datasource
after invalidation

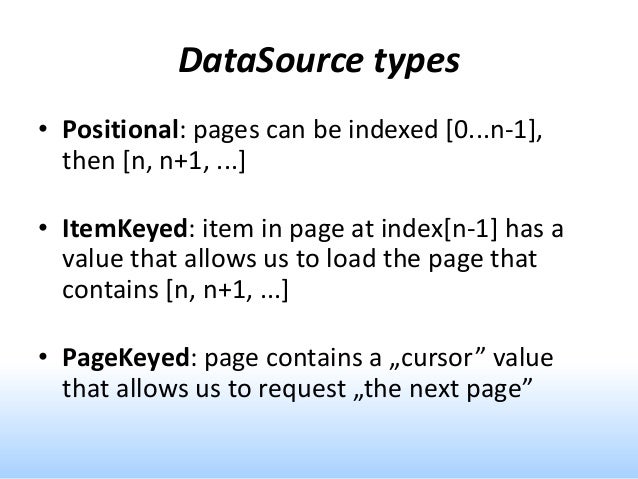

15. DataSource types
• Positional: pages can be indexed [0...n-1],
then [n, n+1, ...]
• ItemKeyed: item in page at index[n-1] has a
value that allows us to load the page that
contains [n, n+1, ...]
• PageKeyed: page contains a „cursor” value
that allows us to request „the next page”

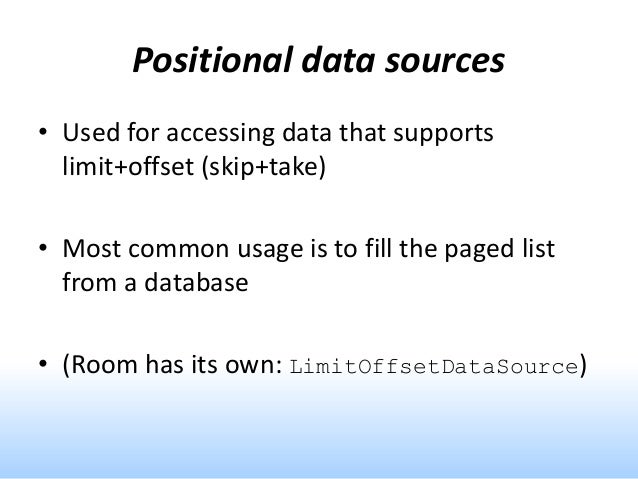

16. Positional data sources
• Used for accessing data that supports
limit+offset (skip+take)
• Most common usage is to fill the paged list
from a database
• (Room has its own: LimitOffsetDataSource)
17. Can we still listen for changes?
• DataSource can be invalidated
• With a DataSource.Factory, the
DataSource can be re-created when it is
invalidated
• (Invalidation happens when a write has
changed the data set in such a way that a re-
evaluation is required)

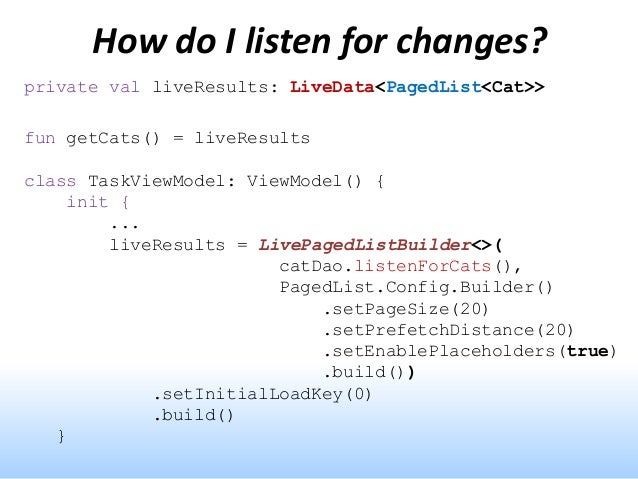

18. How do I listen for changes?
private val liveResults: LiveData<PagedList<Cat>>
fun getCats() = liveResults
class TaskViewModel: ViewModel() {
init {
...
liveResults = LivePagedListBuilder<>(
catDao.listenForCats(),
PagedList.Config.Builder()
.setPageSize(20)
.setPrefetchDistance(20)
.setEnablePlaceholders(true)
.build())
.setInitialLoadKey(0)
.build()
}

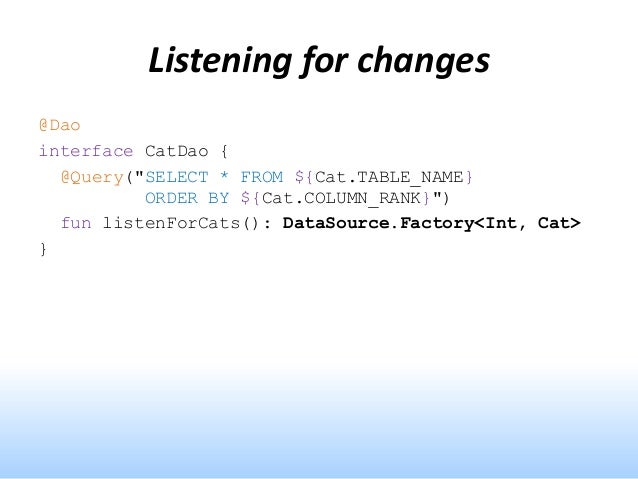

19. Listening for changes
@Dao
interface CatDao {
@Query("SELECT * FROM ${Cat.TABLE_NAME}
ORDER BY ${Cat.COLUMN_RANK}")
fun listenForCats(): DataSource.Factory<Int, Cat>
}

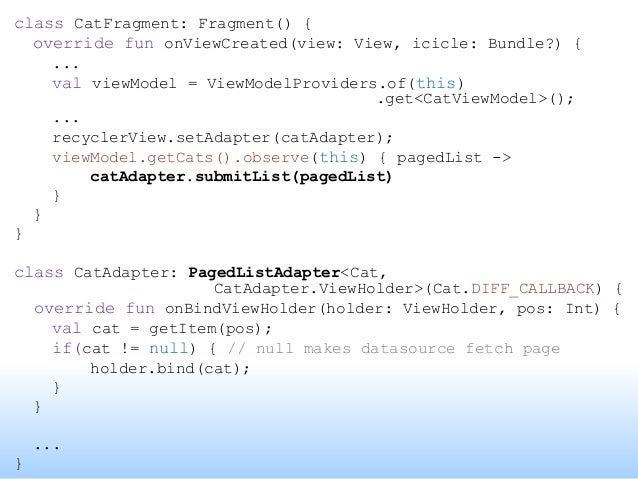

20. class CatFragment: Fragment() {
override fun onViewCreated(view: View, icicle: Bundle?) {
...
val viewModel = ViewModelProviders.of(this)
.get<CatViewModel>();
...
recyclerView.setAdapter(catAdapter);
viewModel.getCats().observe(this) { pagedList ->
catAdapter.submitList(pagedList)
}
}
}
class CatAdapter: PagedListAdapter<Cat,
CatAdapter.ViewHolder>(Cat.DIFF_CALLBACK) {
override fun onBindViewHolder(holder: ViewHolder, pos: Int) {
val cat = getItem(pos);
if(cat != null) { // null makes datasource fetch page
holder.bind(cat);
}
}
...
}

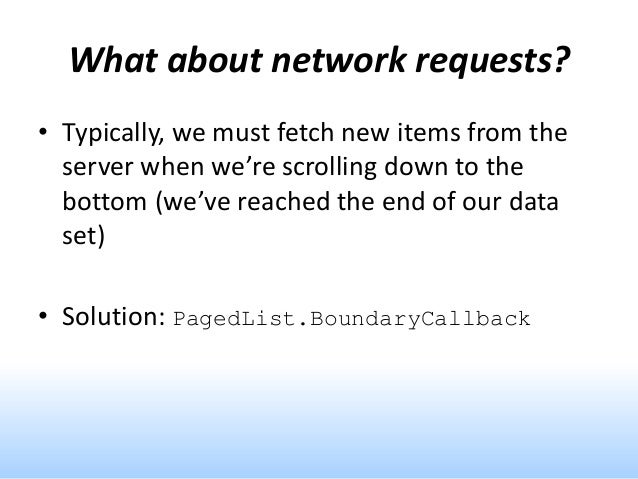

21. What about network requests?
• Typically, we must fetch new items from the
server when we’re scrolling down to the
bottom (we’ve reached the end of our data
set)
• Solution: PagedList.BoundaryCallback

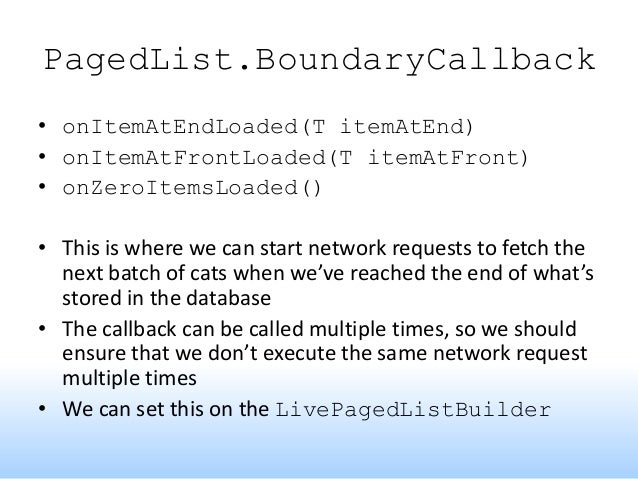

22. PagedList.BoundaryCallback
• onItemAtEndLoaded(T itemAtEnd)
• onItemAtFrontLoaded(T itemAtFront)
• onZeroItemsLoaded()
• This is where we can start network requests to fetch the
next batch of cats when we’ve reached the end of what’s
stored in the database
• The callback can be called multiple times, so we should
ensure that we don’t execute the same network request
multiple times
• We can set this on the LivePagedListBuilder

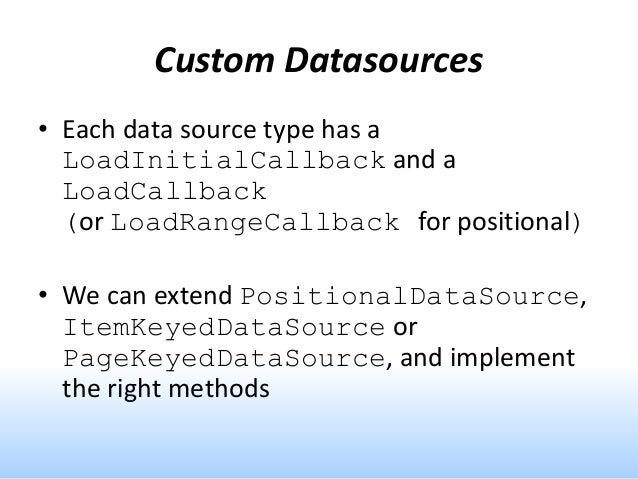

23. Custom Datasources
• Each data source type has a
LoadInitialCallback and a
LoadCallback
(or LoadRangeCallback for positional)
• We can extend PositionalDataSource,
ItemKeyedDataSource or
PageKeyedDataSource, and implement
the right methods
24. ItemKeyed / PagedKeyed Datasources
• It is possible to fetch pages from network, and
keep them in memory (without storing them
in the database)
• The keyed data sources make this use-case
easier

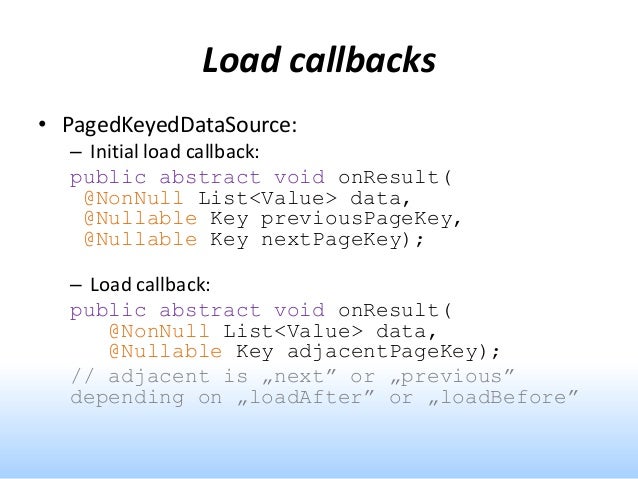

25. Load callbacks
• PagedKeyedDataSource:
– Initial load callback:
public abstract void onResult(
@NonNull List<Value> data,
@Nullable Key previousPageKey,
@Nullable Key nextPageKey);
– Load callback:
public abstract void onResult(
@NonNull List<Value> data,
@Nullable Key adjacentPageKey);
// adjacent is „next” or „previous”
depending on „loadAfter” or „loadBefore”

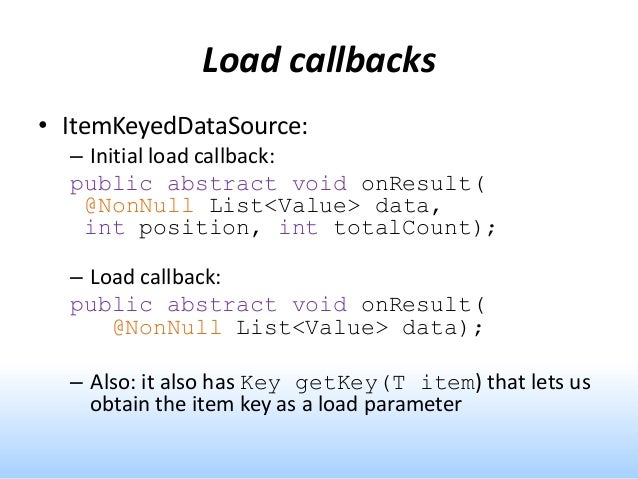

26. Load callbacks
• ItemKeyedDataSource:
– Initial load callback:
public abstract void onResult(
@NonNull List<Value> data,
int position, int totalCount);
– Load callback:
public abstract void onResult(
@NonNull List<Value> data);
– Also: it also has Key getKey(T item) that lets us
obtain the item key as a load parameter

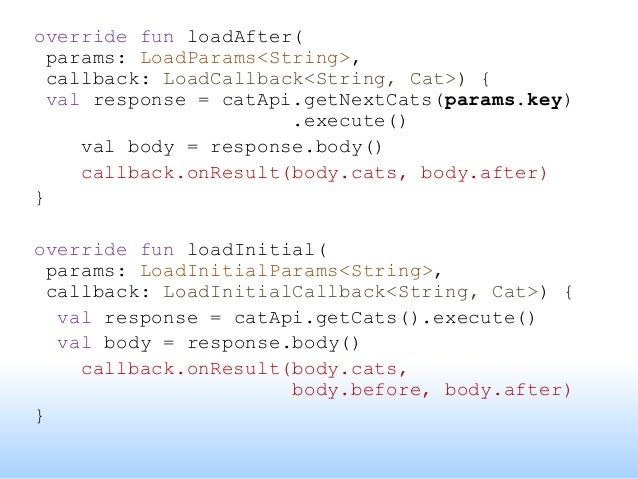

27. override fun loadAfter(
params: LoadParams<String>,
callback: LoadCallback<String, Cat>) {
val response = catApi.getNextCats(params.key)
.execute()
val body = response.body()
callback.onResult(body.cats, body.after)
}
override fun loadInitial(
params: LoadInitialParams<String>,
callback: LoadInitialCallback<String, Cat>) {
val response = catApi.getCats().execute()
val body = response.body()
callback.onResult(body.cats,
body.before, body.after)
}

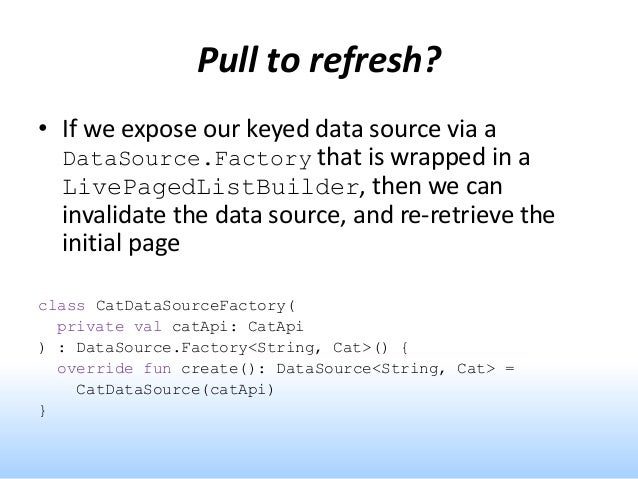

28. Pull to refresh?
• If we expose our keyed data source via a
DataSource.Factory that is wrapped in a
LivePagedListBuilder, then we can
invalidate the data source, and re-retrieve the
initial page
class CatDataSourceFactory(
private val catApi: CatApi
) : DataSource.Factory<String, Cat>() {
override fun create(): DataSource<String, Cat> =
CatDataSource(catApi)
}

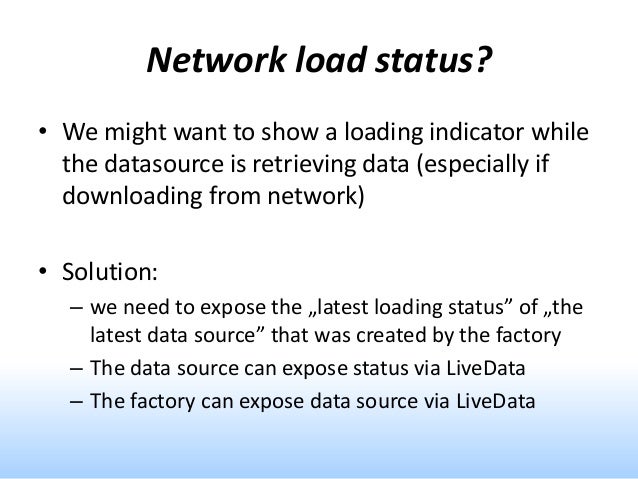

29. Network load status?
• We might want to show a loading indicator while
the datasource is retrieving data (especially if
downloading from network)
• Solution:
– we need to expose the „latest loading status” of „the
latest data source” that was created by the factory
– The data source can expose status via LiveData
– The factory can expose data source via LiveData

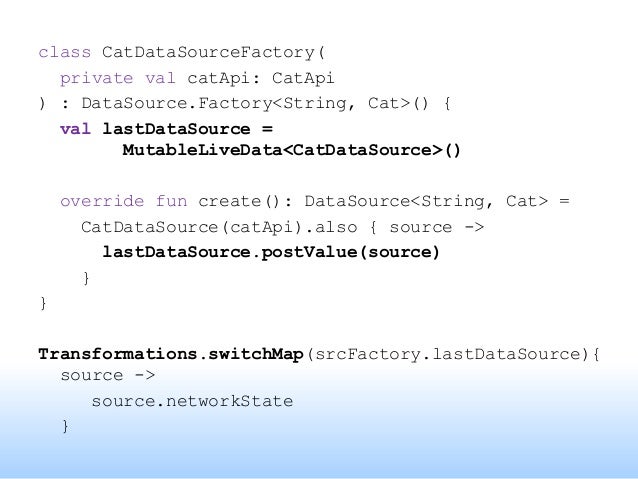

30. class CatDataSourceFactory(
private val catApi: CatApi
) : DataSource.Factory<String, Cat>() {
val lastDataSource =
MutableLiveData<CatDataSource>()
override fun create(): DataSource<String, Cat> =
CatDataSource(catApi).also { source ->
lastDataSource.postValue(source)
}
}
Transformations.switchMap(srcFactory.lastDataSource){
source ->
source.networkState
}

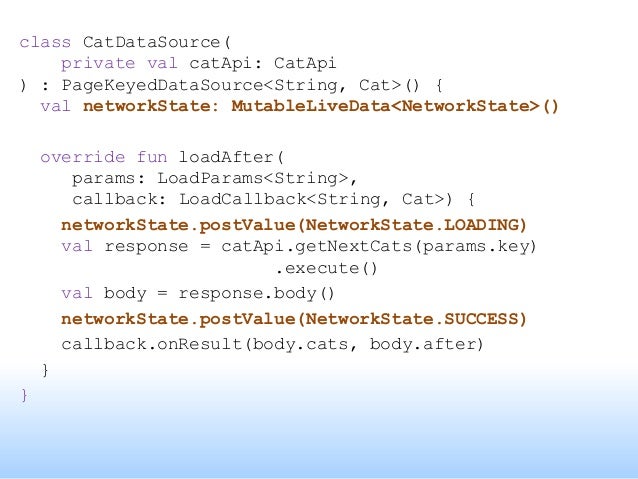

31. class CatDataSource(
private val catApi: CatApi
) : PageKeyedDataSource<String, Cat>() {
val networkState: MutableLiveData<NetworkState>()
override fun loadAfter(
params: LoadParams<String>,
callback: LoadCallback<String, Cat>) {
networkState.postValue(NetworkState.LOADING)
val response = catApi.getNextCats(params.key)
.execute()
val body = response.body()
networkState.postValue(NetworkState.SUCCESS)
callback.onResult(body.cats, body.after)
}
}

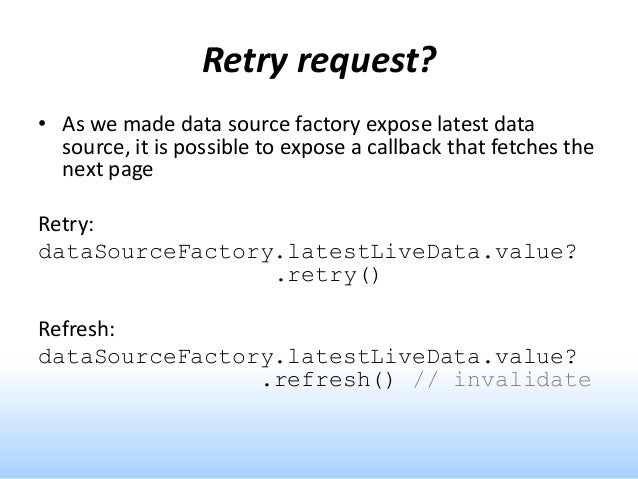

32. Retry request?
• As we made data source factory expose latest data
source, it is possible to expose a callback that fetches the
next page
Retry:
dataSourceFactory.latestLiveData.value?
.retry()
Refresh:
dataSourceFactory.latestLiveData.value?
.refresh() // invalidate

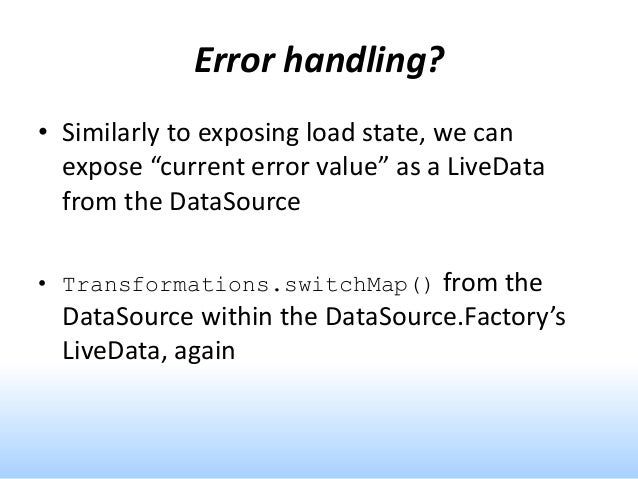

33. Error handling?
• Similarly to exposing load state, we can
expose “current error value” as a LiveData
from the DataSource
• Transformations.switchMap() from the
DataSource within the DataSource.Factory’s
LiveData, again

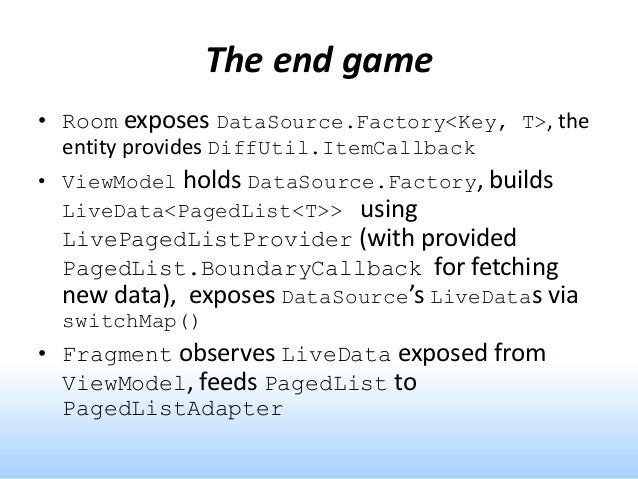

35. The end game
• Room exposes DataSource.Factory<Key, T>, the
entity provides DiffUtil.ItemCallback
• ViewModel holds DataSource.Factory, builds
LiveData<PagedList<T>> using
LivePagedListProvider (with provided
PagedList.BoundaryCallback for fetching
new data), exposes DataSource’s LiveDatas via
switchMap()
• Fragment observes LiveData exposed from
ViewModel, feeds PagedList to
PagedListAdapter

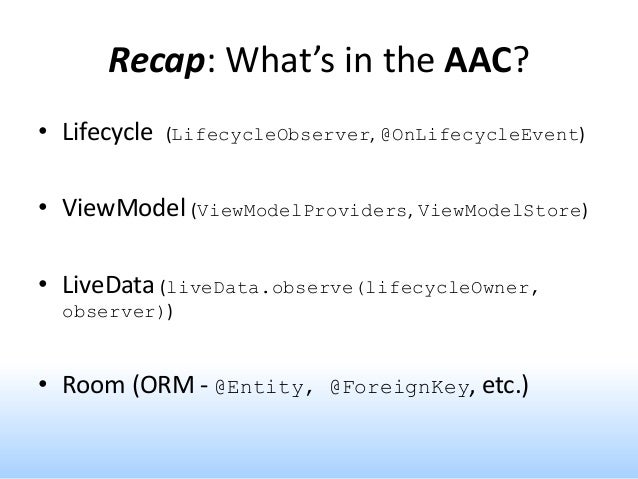

FragmentActivity and support Fragments implement LifecycleOwner, which allows them to expose a lifecycle that can be observed: LifecycleObserver and @OnLifecycleEvent(Lifecycle.Event.ON_RESUME)
ViewModel relies on the ViewModelStore (Map<String, ViewModel>) which is kept alive using non-configuration instance ~ note ViewModelStoreOwner interface
LiveData allows observing events (while retaining the last value, and emitting last value on re-subscription) – allowing automatic unsubscription and the ability to receive updates on future changes.
Room is an ORM that lets you observe the database directly as LiveData... And more!
For LiveData behavior, see LifecycleBoundObserver
PagedListAdapter uses an AsyncPagedListDiffer to calculate the difference between the loaded pages.
I wanted to show off a positional data source that wraps RealmResults, but it just didn’t fit into the slides.
As in, it would not have been informative, imo.
You can check it out here, though: https://github.com/Zhuinden/room-live-paged-list-provider-experiment/blob/e76f3d2c5e1be402ff0fe2dc46e62f9e2a102080/app-realm/src/main/java/com/zhuinden/realmlivepagedlistproviderexperiment/util/RealmTiledDataSource.java
LivePagedListBuilder creates a ComputableLiveData which executes the re-query when the underlying data source is invalidated.
PagedListAdapter handles showing items from the paged list using the AsyncPagedListDiffer.
public static DiffCallback<User> DIFF_CALLBACK = new DiffCallback<User>() {
@Override
public boolean areItemsTheSame(@NonNull User oldItem, @NonNull User newItem) {
return oldItem.userId == newItem.userId;
}
@Override
public boolean areContentsTheSame(@NonNull User oldItem, @NonNull User newItem) {
return oldItem.equals(newItem);
}
};
In the official sample, this is what PagingRequestHelper is for: ensuring that a network request is called only once at a time.
We might want to specify our own FetchExecutor for the LivePagedListBuilder.
