Code Driven – Building A UDP Protocol For Cloud
Gaming
@ParsecTeam
Parsec.tv
PC GAMING IS EXPENSIVE, COMPLICATED, & RESTRICTIVE
PC gaming requires upfront investments, hardware knowledge to get start...
PARSEC GIVES YOUACCESS TO GAMING MACHINES
Bring your gaming machine wherever you go with Parsec or access a gaming PC in t...
DELIVERING THE LOWEST LATENCY POSSIBLE
Capturing
Encoding
NetworkingDecoding
Rendering
Capturing
• Low latency desktop cap...
MAKING THE KESSLE RUN IN LESS THAN 12 PARSECS
@ParsecTeam
TCP CAN’T HANDLE THE HEAT IN THE KITCHEN
TCP works very well when you have an amazing connection, but most people don’t ha...
• TCP: Stream oriented
(abstracts IP packets), acks,
congestion, windows, state
all over the place
• UDP: Stateless, thin
...
WHY WE’RE ROLLING WITH OUR OWN PROTOCOL
Benefits of TCP we need or want
-Reliability & reordering <-- yes
-Stream semantic...
HOW WE BUILT BUD
-C -- everything you need, nothing you don't
-Wireshark -- the best program ever written
-Clumsy (windows...
HOW WE BUILT BUD
-Sequence number
-Type
-Payload
Tools
Packet headers (at minimum)
Read/write windows
ACK
Keepalive
Retran...
HOW WE BUILT BUD
-Base pointer, head pointer (sequence numbers)
-Read data from base, add data to head
-Write data to head...
0 1 2 3 4 5 6
0 1 2 3 4 5 6
SENT UNACKED
EMPTY / ACKED
7 8
7 8
BASE
FULL
HEAD
BASE HEAD
READ/WRITE DETAILS
@ParsecTeam
HOW WE BUILT BUD
-Let the sender know we got the data
-Receiver sends read packet sn, head pointer
-Sender can calculate R...
HOW WE BUILT BUD
-Need to send something if both sender and receiver are sleeping
-Receiver can send their head pointer
To...
HOW WE BUILT BUD
-Fast retransmit based on out of order acks
-Most packets, if out of order, are only flipped
-Slow retran...
0 1 2 3 4 5 6
0 1 2 3 4 5 6
OK
SENT UNACKED
EMPTY / ACKED
Send fast RT
7 8
7 8
RETRANSMIT DETAILS
@ParsecTeam
HOW WE BUILT BUD
-Goal of the threading model is NOT to squeeze everything out of the CPU
-Always start with dumb "global"...
THE END RESULT
BUD is resilient even when you’re being chased by TIE fighters through the Asteroid Belt.
@ParsecTeam
Thank you!
Sign Up Here
Follow us @ParsecTeam
Upcoming SlideShare
Loading in …5
×

5

Share

Download to read offline

Building a UDP Protocol For Cloud Gaming

Download to read offline

In this presentation, we discuss how Parsec went about the process of building our own UDP protocol for cloud gaming. The goal for our protocol was to have the reliability of TCP while picking up many the benefits of UDP. This gave us high reliability with low latency video streaming at 1080p, 60fps, with no buffer. We hope this presentation can help other engineers build their own UDP protocols to solve their requirements.

Related Books

Free with a 30 day trial from Scribd

See all

Related Audiobooks

Free with a 30 day trial from Scribd

See all

Building a UDP Protocol For Cloud Gaming

  1. 1. Code Driven – Building A UDP Protocol For Cloud Gaming @ParsecTeam Parsec.tv
  2. 2. PC GAMING IS EXPENSIVE, COMPLICATED, & RESTRICTIVE PC gaming requires upfront investments, hardware knowledge to get started, and ties the gamer to a desktop PC. This restricts the market for PC gaming and forces difficult decisions about investing in hardware when we all just want to play our favorite games. @ParsecTeam
  3. 3. PARSEC GIVES YOUACCESS TO GAMING MACHINES Bring your gaming machine wherever you go with Parsec or access a gaming PC in the cloud. @ParsecTeam

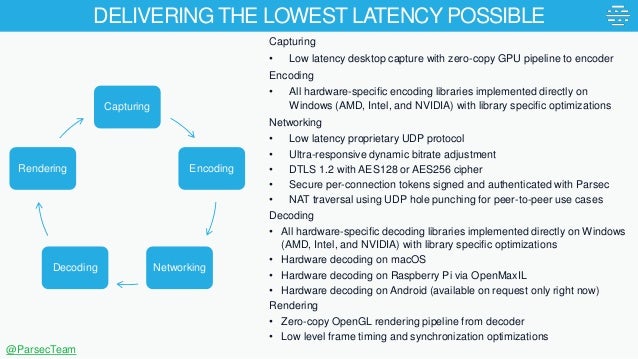

  4. 4. DELIVERING THE LOWEST LATENCY POSSIBLE Capturing Encoding NetworkingDecoding Rendering Capturing • Low latency desktop capture with zero-copy GPU pipeline to encoder Encoding • All hardware-specific encoding libraries implemented directly on Windows (AMD, Intel, and NVIDIA) with library specific optimizations Networking • Low latency proprietary UDP protocol • Ultra-responsive dynamic bitrate adjustment • DTLS 1.2 with AES128 or AES256 cipher • Secure per-connection tokens signed and authenticated with Parsec • NAT traversal using UDP hole punching for peer-to-peer use cases Decoding • All hardware-specific decoding libraries implemented directly on Windows (AMD, Intel, and NVIDIA) with library specific optimizations • Hardware decoding on macOS • Hardware decoding on Raspberry Pi via OpenMaxIL • Hardware decoding on Android (available on request only right now) Rendering • Zero-copy OpenGL rendering pipeline from decoder • Low level frame timing and synchronization optimizations @ParsecTeam
  5. 5. MAKING THE KESSLE RUN IN LESS THAN 12 PARSECS @ParsecTeam

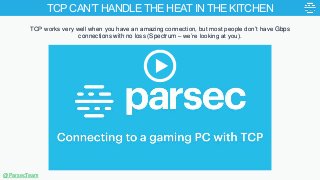

  6. 6. TCP CAN’T HANDLE THE HEAT IN THE KITCHEN TCP works very well when you have an amazing connection, but most people don’t have Gbps connections with no loss (Spectrum – we’re looking at you). @ParsecTeam

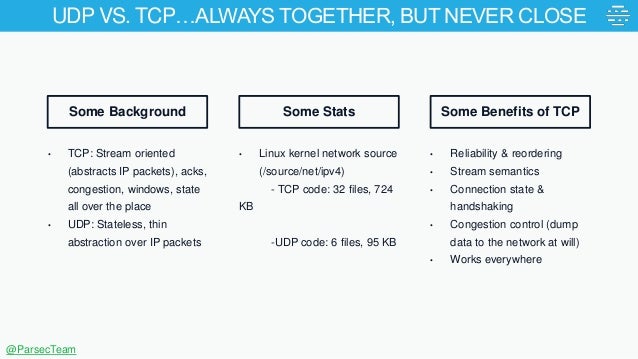

  7. 7. • TCP: Stream oriented (abstracts IP packets), acks, congestion, windows, state all over the place • UDP: Stateless, thin abstraction over IP packets Some Background • Reliability & reordering • Stream semantics • Connection state & handshaking • Congestion control (dump data to the network at will) • Works everywhere Some Benefits of TCP • Linux kernel network source (/source/net/ipv4) - TCP code: 32 files, 724 KB -UDP code: 6 files, 95 KB Some Stats UDP VS. TCP…ALWAYS TOGETHER, BUT NEVER CLOSE @ParsecTeam

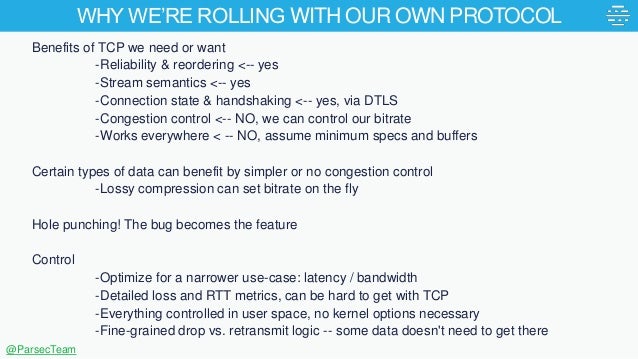

  8. 8. WHY WE’RE ROLLING WITH OUR OWN PROTOCOL Benefits of TCP we need or want -Reliability & reordering <-- yes -Stream semantics <-- yes -Connection state & handshaking <-- yes, via DTLS -Congestion control <-- NO, we can control our bitrate -Works everywhere < -- NO, assume minimum specs and buffers Certain types of data can benefit by simpler or no congestion control -Lossy compression can set bitrate on the fly Hole punching! The bug becomes the feature Control -Optimize for a narrower use-case: latency / bandwidth -Detailed loss and RTT metrics, can be hard to get with TCP -Everything controlled in user space, no kernel options necessary -Fine-grained drop vs. retransmit logic -- some data doesn't need to get there @ParsecTeam

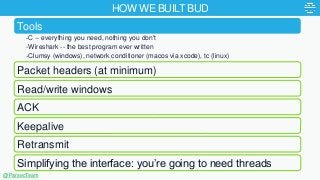

  9. 9. HOW WE BUILT BUD -C -- everything you need, nothing you don't -Wireshark -- the best program ever written -Clumsy (windows), network conditioner (macos via xcode), tc (linux) Tools Packet headers (at minimum) Read/write windows ACK Keepalive Retransmit Simplifying the interface: you’re going to need threads @ParsecTeam

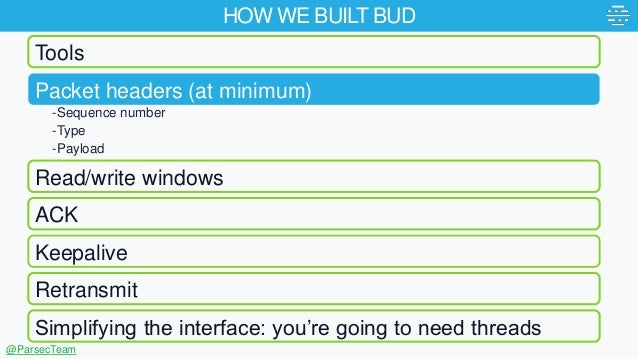

  10. 10. HOW WE BUILT BUD -Sequence number -Type -Payload Tools Packet headers (at minimum) Read/write windows ACK Keepalive Retransmit Simplifying the interface: you’re going to need threads @ParsecTeam

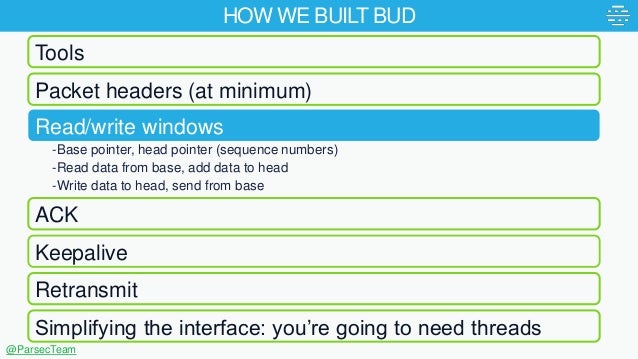

  11. 11. HOW WE BUILT BUD -Base pointer, head pointer (sequence numbers) -Read data from base, add data to head -Write data to head, send from base Tools Packet headers (at minimum) Read/write windows ACK Keepalive Retransmit Simplifying the interface: you’re going to need threads @ParsecTeam

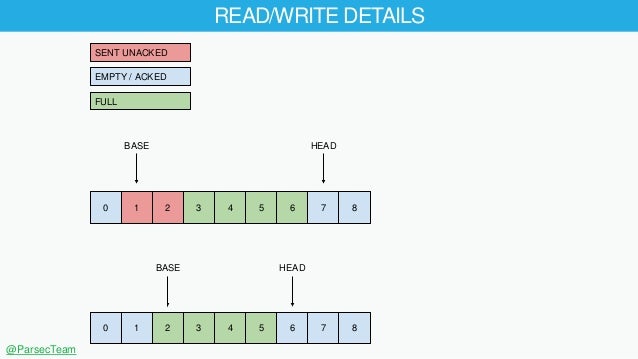

  12. 12. 0 1 2 3 4 5 6 0 1 2 3 4 5 6 SENT UNACKED EMPTY / ACKED 7 8 7 8 BASE FULL HEAD BASE HEAD READ/WRITE DETAILS @ParsecTeam

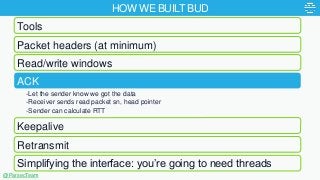

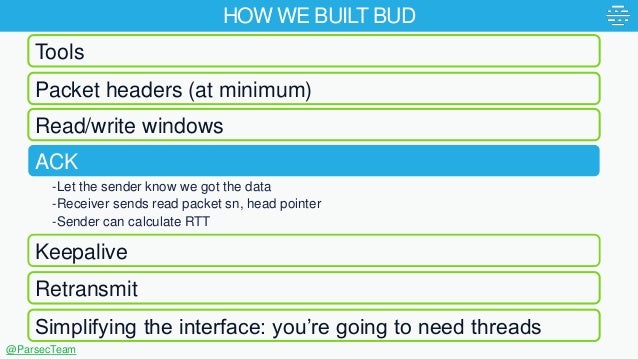

  13. 13. HOW WE BUILT BUD -Let the sender know we got the data -Receiver sends read packet sn, head pointer -Sender can calculate RTT Tools Packet headers (at minimum) Read/write windows ACK Keepalive Retransmit Simplifying the interface: you’re going to need threads @ParsecTeam

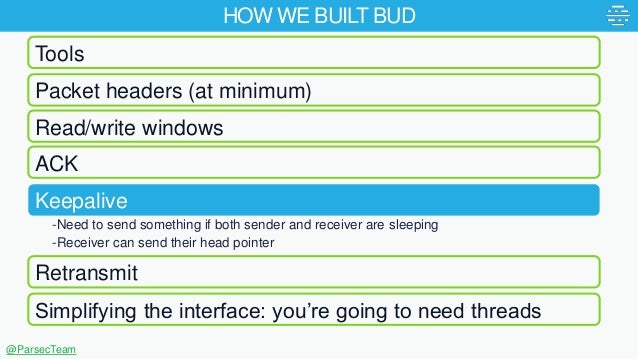

  14. 14. HOW WE BUILT BUD -Need to send something if both sender and receiver are sleeping -Receiver can send their head pointer Tools Packet headers (at minimum) Read/write windows ACK Keepalive Retransmit Simplifying the interface: you’re going to need threads @ParsecTeam
  15. 15. HOW WE BUILT BUD -Fast retransmit based on out of order acks -Most packets, if out of order, are only flipped -Slow retransmit for failsafe (sent after certain multiple of the RTT) Tools Packet headers (at minimum) Read/write windows ACK Keepalive Retransmit Simplifying the interface: you’re going to need threads @ParsecTeam

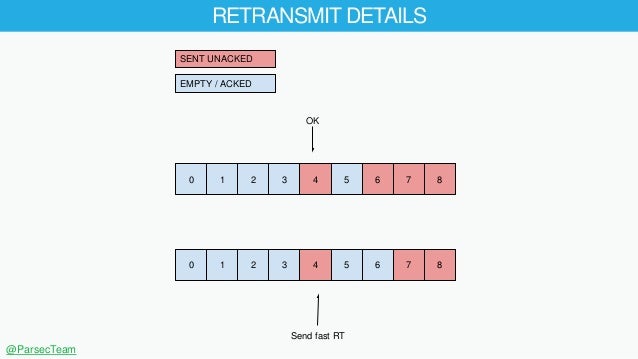

  16. 16. 0 1 2 3 4 5 6 0 1 2 3 4 5 6 OK SENT UNACKED EMPTY / ACKED Send fast RT 7 8 7 8 RETRANSMIT DETAILS @ParsecTeam

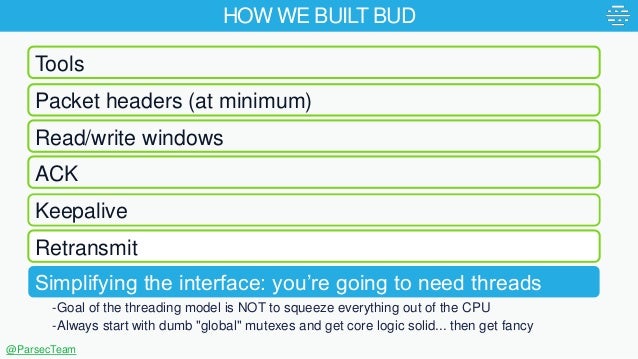

  17. 17. HOW WE BUILT BUD -Goal of the threading model is NOT to squeeze everything out of the CPU -Always start with dumb "global" mutexes and get core logic solid... then get fancy Tools Packet headers (at minimum) Read/write windows ACK Keepalive Retransmit Simplifying the interface: you’re going to need threads @ParsecTeam
  18. 18. THE END RESULT BUD is resilient even when you’re being chased by TIE fighters through the Asteroid Belt. @ParsecTeam
  19. 19. Thank you! Sign Up Here Follow us @ParsecTeam
