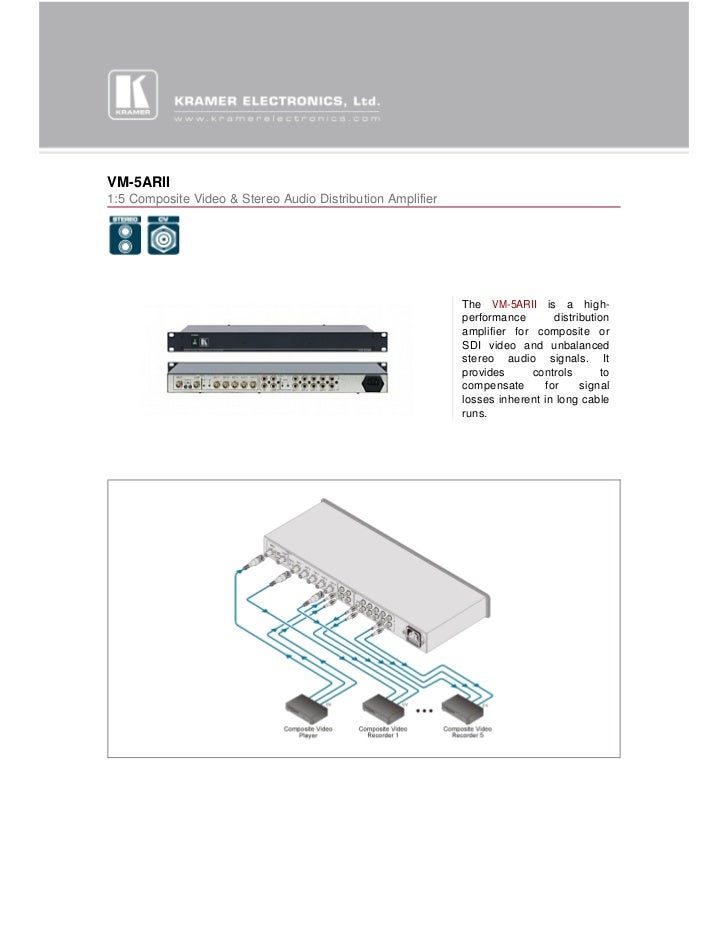

1. VM-5ARII
1:5 Composite Video & Stereo Audio Distribution Amplifier
The VM-5ARII is a high-
performance distribution
amplifier for composite or
SDI video and unbalanced
stereo audio signals. It
provides controls to
compensate for signal
losses inherent in long cable
runs.

2. VM-5ARII
FEATURES TECHNICAL SPECIFICATIONS
High Bandwidth - 360MHz (-3dB). INPUTS: 1 video, composite or single
Audio Level Control. component, looping, 1Vpp/75Ω
Level (Gain) and EQ (Peaking) Controls. on BNC connectors with
termination switch; 1
Video AC/DC Coupling Selection. unbalanced stereo audio
Looping Input. looping, +4dBu/50kΩ on RCA
Selectable Input Signal Termination. connectors.
Standard 19” Rack Mount Size - 1U. OUTPUTS: 5 video, composite or single
component, 1Vpp/75Ω on BNC
connectors; 5 unbalanced
stereo audio, +4dBu/150Ω,
27Vpp max. on RCA
connectors.
MAX. OUTPUT Video: 2.2Vpp; Audio: 27Vpp.
LEVEL:
VIDEO 360MHz.
BANDWIDTH (-
3dB):
AUDIO 60kHz.
BANDWIDTH (-
3dB):
DIFF. GAIN: 0.03%.
DIFF. PHASE: 0.06Deg.
K-FACTOR: 0.05%.
VIDEO S/N 76dB.
RATIO:
AUDIO S/N 85dB.
RATIO:
AUDIO THD: 0.021% (1V, 1kHz.).
CONTROL: Video gain: -1 to +1.8dB; Audio
gain: -40 to +6dB; EQ.: 0 to
+2.5dB.
COUPLING: DC/AC selectable (video), AC
(audio.)
POWER 230V AC, 50/60Hz, (115V USA)
SOURCE: 21VA.
DIMENSIONS: 19" x 7" x 1U W, D, H, rack
mountable.
WEIGHT: 1.94kg (4.3lbs) approx.
ACCESSORIES: Power cord, rack "ears".
