ϕArmin   Haller | δTudor Groza | ξFlorian RosenbergInteracting with Linked Data viaSemantically Annotated WidgetsJoint Int...
A little motivation for the work…… why interacting with the Linked data Web?
Linked data WebBuilding a Web of Data …… four principlesPublishing, interlinking data in RDFvia de-referenceable URIs
Publishing RDFTwo (standardised) serializationformats to publish RDF (graphs)1. RDF/XML2. RDFa
RDF/XMLWidely used to publish linked dataAll benefits of XML, but …… syntax difficult for humans to read and write… additi...
RDFaRelatively new format, but used byalready 5% of web sitesInterwoven within the HTML DOM …… existing content within the...
RDFa exampleSimple page about a book<html><head> <title>The Art of Computer Programming, Volume 1:   Fundamental Algorithm...
RDFa exampleSimple page about a book<html><head prefix="dc: http://purl.org/dc/terms/“      base="http://example.org/book/...
Embedded triples@prefix dc:   <http://purl.org/dc/terms/> .@prefix :     <http://example.org/book/> .:TAoCP dc:title "Art ...
RDFa – provider vs. user contentRDFa only usable for provider createdcontentIdeally, all user input data should bepart of ...
Example user created content in Web forms          e.g. Buy a TV online (e.g. Amazon, Ebay)First Name:         JaneLast Na...
Example user created content in Web forms          e.g. Buy a TV online (e.g. Amazon, Ebay)First Name:         JaneLast Na...
Example user created content in Web forms          e.g. Buy a TV online (e.g. Amazon, Ebay)First Name:         JaneLast Na...
No annotation for user created contentForm input elements can be annotatedwith RDFa …… but, RDFa annotations for input dat...
No annotation for user created content (cont’d)Provider content vs. User created content Category:        Female        LC...
No annotation for user created content (cont’d)e.g. “Jane” can not be defined asfoaf:firstName             First Name:    ...
Publishing and Reusing usercreated content on the Linked          Data Web!
Model and System for semantic Web applications   – RDF-based model for forms (RaUL)    http://purl.org/NET/raul#   – RESTf...
ActiveRaUL system architecture                 Controller:                 Web service that maps HTTP terms to            ...
Usage Scenario1.   Form Modeling:     Model widgets (forms)     in RDF based on the     RaUL ontology2.   Form Deployment:...
Form Modeling• RDFa User Interface Language  (RaUL) Ontology for widget  (form) control elements• Data binding mechanism t...
RaUL Form ModelWidget (form) meta model
RaUL Form Model   – Triples defining the form structure Category:      LCD Television              raul:textbox Product Na...
RaUL Form Model   – Triples defining the form input data Category:      LCD Television              gr:category Product Na...
Form Deployment•   RESTful service for managing    Web widgets (forms)•   Maps HTTP verbs to SPARQL    queries on RaUL mod...
Form Deployment •   RESTful service for managing     Web widgets (forms) •   Maps HTTP verbs to SPARQL     queries on RaUL...
Form Usage1. Web user retrieves Web forms   (and content) using ActiveRaUL   (via browser)2. ActiveRaUL returns web form i...
HTML+RDFa view rendering<html><head> <base href="#addProduct"/> <meta property="raul:title" content="Add Product"/> <title...
Form Usage    Data Reuse    • Link to existing, local data or data in the      Linked Data Web           –   Client-side J...
Form Usage    Data Reuse    • Link to existing, local data or data in the      Linked Data Web           –   Client JS API...
Form Usage    Data Reuse    • Link to existing, local data or data in the      Linked Data Web         –     Client JS API...
EvaluationQuantitative evaluation to analyse possibleperformance issues of our approachPerformance of the ActiveRaUL frame...
Evaluation - Overhead          • Comparison of request sizes for HTTP GET            requests and HTTP PUT/POST requests a...
Evaluation - Overhead          • Comparison of request sizes for HTTP GET and            HTTP PUT/POST requests and respon...
Evaluation – Overhead – Discussion• Content overhead a result of using  RDFa for the annotation of the  semantic forms/wid...
Evaluation – Performance of view generationMeasured time required togenerate an increasing number(1, 10 and 100) of widget...
ConclusionActiveRaUL combines Web engineering withprinciples of Linked Open Data/Semantic Web    • RDFa annotated Web form...
Upcoming SlideShare
Loading in...5
×

Interacting with Linked Data via semantically annotated widgets

591

Published on

The continuous growth of the Linked Data Web brings us closer to the original vision of the Web as an interconnected network of machine-readable resources. There is, however, an essential aspect in principle still missing from this vision, i.e., the ability for the Web user to interact directly with the Linked Data in a read/write manner. In this presentation we introduce a lifecycle and associated mechanism to enable a domain-agnostic read/write interaction with Linked Data in the context of a single data provider. Our solution uses an ontology to build a binding front-end for a given RDF model, in addition to RDFa to maintain the semantics of the resulting form/widget components. On the processing side, a RESTful Web service is provided to seamlessly manage semantic widgets and their associated data, and hence enable the read/write data interaction mechanism. The evaluation shows that the generation process presents no performance issues, while the content overhead required for the actual form-data binding is kept to a minimum.

Published in: Technology, Education
0 Comments
0 Likes
Statistics
Notes
  • Be the first to comment

  • Be the first to like this

No Downloads
Views
Total Views
591
On Slideshare
0
From Embeds
0
Number of Embeds
1
Actions
Shares
0
Downloads
5
Comments
0
Likes
0
Embeds 0
No embeds

No notes for slide

Interacting with Linked Data via semantically annotated widgets

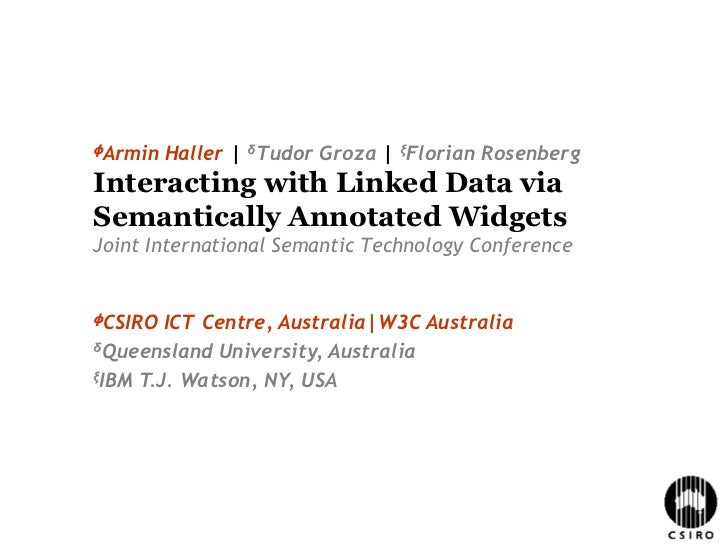

  1. 1. ϕArmin Haller | δTudor Groza | ξFlorian RosenbergInteracting with Linked Data viaSemantically Annotated WidgetsJoint International Semantic Technology ConferenceϕCSIRO ICT Centre, Australia|W3C AustraliaδQueensland University, AustraliaξIBM T.J. Watson, NY, USA
