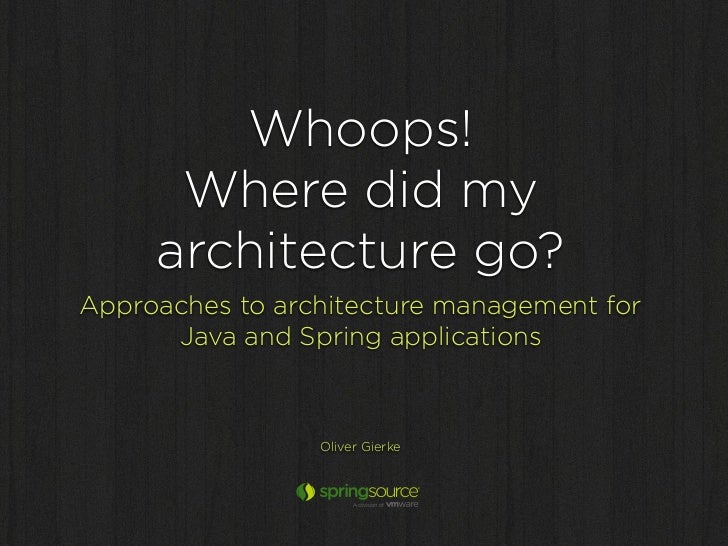

Whoops!      Where did my     architecture go?Approaches to architecture management for      Java and Spring applications ...
Oliver GierkeSpringSource EngineerSpring Dataogierke@vmware.comolivergierkewww.olivergierke.de
Background  5 years of consulting  Lots of code reviewsEoin Woods‘ talk on InfoQ
Roadmap      Architecture 101A plain Java based approach           Hera
The 3 C ofArchitecture   Constraints   Complexity    Change    © Uwe Friedrichsen
The 2 Cs ofArchitecture   Complexity    Change
Architecture 101
Know yourdependencies
Granularity    Modules     Layers  Vertical slices  Subsystems
Granularity  Java ARchive    Package     Class
Of layersand slices…
Slice A   Slice B   Slice CLayer 1Layer 2Layer 3
Layers     Well understood  Known to developersLess important to business
SlicesHardly understoodNew to developersKey for business req
Slice A   Slice B   Slice CLayer 1Layer 2Layer 3
"   How to implement    an architecture    inside a codebase?
Architecture    VS. Codebase
"   How to implement    an architecture    inside a codebase?
"   How to enforce    an architecture    inside a codebase?
Code analysis    JDepend     Sonar
Demo
SonargraphFormerly known as SonarJ
Demo
A plain Javabased approach
"   How far can we get    with plain Java    means only?
Slice A   Slice B   Slice CLayer 1Layer 2Layer 3
Packages
….${layer}.${slice}        VS.….${slice}.${layer}
…domain.core …service.core…repository.core
…core.domain …core.service…core.repository
Layers first      Leaks slice internalsLower layers visible to everyone
"   Start with less    packages and the    least visibility    possible…
Slice A   Slice B   Slice CLayer 1Layer 2Layer 3
Slice A   Slice B   Slice CLayer 1Layer 2Layer 3
Slices first   Start with package per sliceExpose interfaces and domain types  Keep implementations private
Slices firstEncapsulates business moduleInternals understood anyway
Subsystems
Background Risk mgmt. at German public bankQuite a few other SpringSource clients
Systemsgrow big!
Rememberthe 2 Cs?
Complexity & Change
"   How to localize    change?
"   Separate frequent    from infrequent    change!
Granularity     Class    Package  Java ARchive
HostSPI       SPI        SPI Plugin          Plugin
Context         No OSGi       Spring based  Build-time compositionDon‘t touch the host system
AppPlugin          Plugin         Host
"   How to make the    host aware of the    plugins?
"   How to dynamically    collect Spring beans    of a given type?
classpath*:META-INF/spring/plugin-context.xml
HostSPI       SPI        SPI Plugin          Plugin
classpath*:META-INF/    spring/plugin-context.xmlSPI              SPI            SPI META-INF/              META-INF/sprin...
@Componentpublic class MyComponentImpl implements TransferService {    private List<MyPlugin> plugins;    @Autowired    pu...
Demo
XML?Back in the days
(XML?)       Back in the daysProbably not a big deal anymore
Easy access?
@Componentpublic class MyComponentImpl implements TransferService {    private List<MyPlugin> plugins;    @Autowired    pu...
@Componentpublic class MyComponentImpl implements TransferService {    // Constructor omitted    public Result myMethod(So...
Hera
"   The smallest plugin    system ever!
Plugins     Selection criterion      Callback methodLet the implementation decide
Registry Equipped with pluginsCommon access patterns
public interface Plugin<T> {    public boolean supports(T delimiter );}public interface PluginRegistry<S extends Plugin<T>...
@Componentpublic class MyComponentImpl implements TransferService {    private PluginRegistry<MyPlugin, String> plugins;  ...
@Componentpublic class MyComponentImpl implements TransferService {  private final MyPlugin defaultPlugin = new     MyDefau...
OrderAwarePluginRegistryRespects @Order/Ordered    OAPR.reverse()
Bells‘n‘whistles     FactoryBean   Spring namespace      Lazy-eval
Herahttp://hera.synyx.org    Apache 2.0Soon to be on GitHub
Spring   Integration2
<bean class="….FirstSamplePlugin" /><bean class="….SecondSamplePlugin" /><int:channel id="input" /><int:channel id="output...
Demo
Take-aways Know your dependencies   On every granularity Start as strict as possibleGet lenient where necessary
Thanks & credits     Eoin Woods - Talk @ InfoQUwe Friedrichsen - Slides @ Slideshare
ResourcesSpring Data JPA @ GitHub      Sonargraph         Hera
