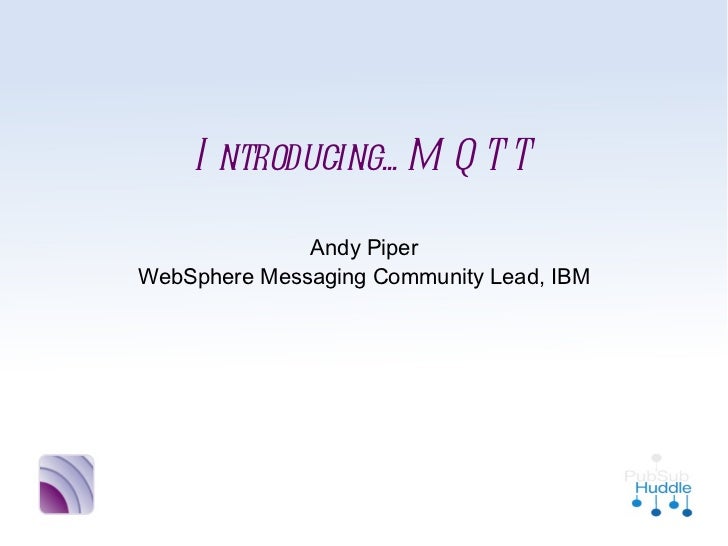

  • 1. Introducing... MQTT Andy PiperWebSphere Messaging Community Lead, IBM

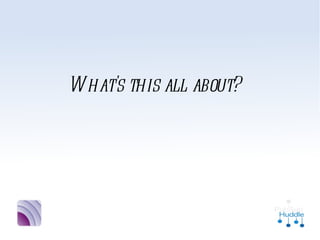

  • 2. Whats this all about?
  • 3. The Internet of ThingsMany smart devicesinstrument ourworld today Interconnecting these smart devices creates a Central Nervous System
  • 4. MQTT =MQ Telemetry Transport

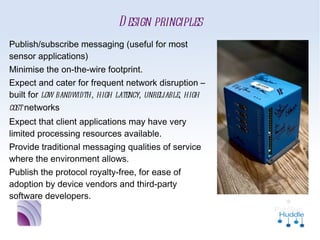

  • 5. Design principles■ Publish/subscribe messaging (useful for most sensor applications)■ Minimise the on-the-wire footprint.■ Expect and cater for frequent network disruption – built for low bandwidth, high latency, unreliable, high cost networks■ Expect that client applications may have very limited processing resources available.■ Provide traditional messaging qualities of service where the environment allows.■ Publish the protocol royalty-free, for ease of adoption by device vendors and third- party software developers.
  • 6. Key facts■ Low complexity and footprint■ Simple publish/subscribe messaging semantics  Asynchronous (“push”) delivery of messages to applications  Simple verbs: connect, publish, (un)subscribe, disconnect Minimised on-the-wire format  Plain byte array message payload  No application message headers  Protocol compressed into bit-wise headers and variable length fields  Smallest possible packet size is 2 bytes■ In-built constructs to support loss of contact between client and server  “Last will and testament” to publish a message if the client goes offline  Stateful “roll-forward” semantics and “durable” subscriptions
  • 7. What aboutthat HTTP thing?

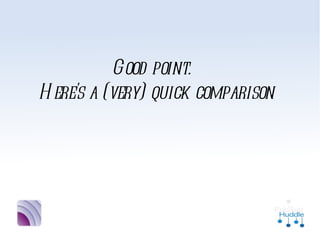

  • 8. Good point.Heres a (very) quick comparison

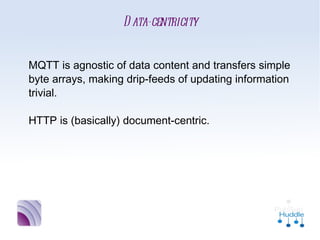

  • 9. Data-centricityMQTT is agnostic of data content and transferssimple byte arrays, making drip-feeds ofupdating information trivial.HTTP is (basically) document-centric.

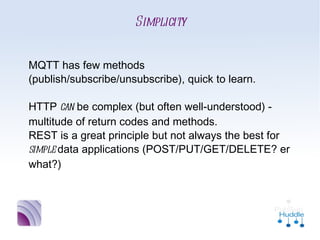

  • 10. SimplicityMQTT has few methods(publish/subscribe/unsubscribe), quick to learn.HTTP can be complex (but often well-understood)- multitude of return codes and methods. REST is a great principle but not always the bestfor simple data applications(POST/PUT/GET/DELETE? er what?)

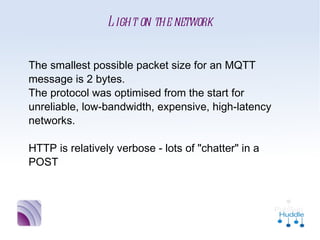

  • 11. Light on the networkThe smallest possible packet size for an MQTTmessage is 2 bytes. The protocol was optimised from the start forunreliable, low-bandwidth, expensive, high-latency networks.HTTP is relatively verbose - lots of "chatter" in aPOST

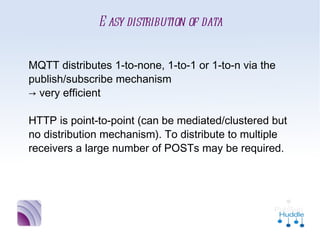

  • 12. Easy distribution of dataMQTT distributes 1-to-none, 1-to-1 or 1-to-nvia the publish/subscribe mechanism→ very efficientHTTP is point-to-point (can bemediated/clustered but no distributionmechanism). To distribute to multiple receivers alarge number of POSTs may be required.

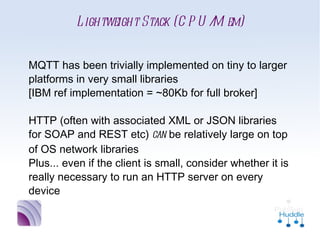

  • 13. Lightweight Stack (CPU/Mem)MQTT has been trivially implemented on tiny tolarger platforms in very small libraries[IBM ref implementation = ~80Kb for full broker]HTTP (often with associated XML or JSONlibraries for SOAP and REST etc) can be relativelylarge on top of OS network librariesPlus... even if the client is small, considerwhether it is really necessary to run an HTTPserver on every device

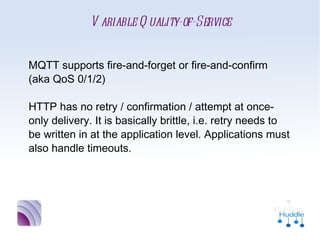

  • 14. Variable Quality-of-ServiceMQTT supports fire-and-forget or fire-and-confirm (aka QoS 0/1/2)HTTP has no retry / confirmation / attempt atonce-only delivery. It is basically brittle, i.e. retryneeds to be written in at the application level.Applications must also handle timeouts.

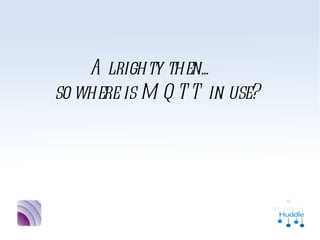

  • 15. Alrighty then...so where is MQTT in use?

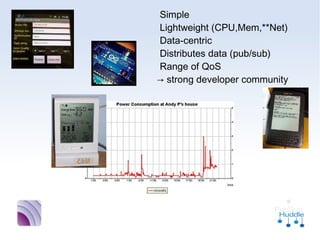

  • 16. • Simple• Lightweight (CPU,Mem,**Net)• Data-centric• Distributes data (pub/sub)• Range of QoS → strong developer community
  • 17. “strong developer community” huh...
  • 18. Ok, to be fair, I haveno knowledge of theirphysical strength, butthey are all awesome...

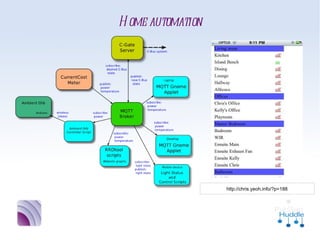

  • 19. Home automation http://chris.yeoh.info/?p=188

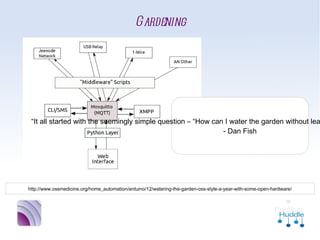

  • 20. Gardening “It all started with the seemingly simple question – “How can I water the garden without leaving my laptop/phone/sofa using tech?”” - Dan Fishhttp://www.ossmedicine.org/home_automation/arduino/12/watering-the-garden-oss-style-a-year-with-some-open-hardware/

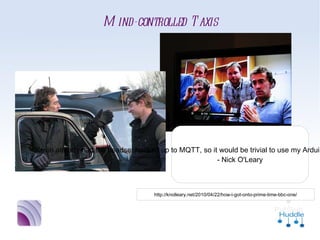

  • 21. Mind-controlled Taxis b “Kevin already had the headset hooked up to MQTT, so it would be trivial to use my Arduino MQTT library to get them all talking.” - Nick OLeary http://knolleary.net/2010/04/22/how-i-got-onto-prime-time-bbc-one/

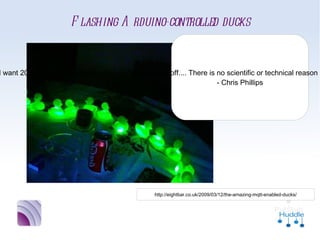

  • 22. Flashing Arduino-controlled ducks “Now, you may wonder why I would want 20 rubber ducks to flash when my phone goes off.... There is no scientific or technical reason in itself. I just had a Mini Cooper’s worth of rubber ducks sitting around, unemployed.” - Chris Phillips http://eightbar.co.uk/2009/03/12/the-amazing-mqtt-enabled-ducks/

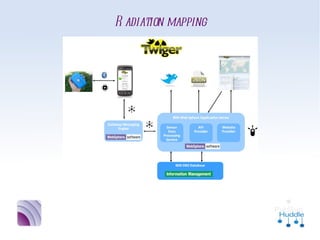

  • 23. Radiation mapping

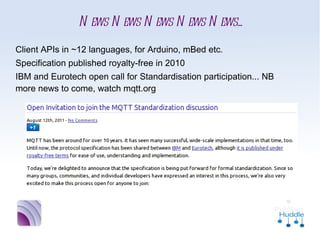

  • 24. News News News News News...■ Client APIs in ~12 languages, for Arduino, mBed etc.■ Specification published royalty-free in 2010■ IBM and Eurotech open call for Standardisation participation... NB more news to come, watch mqtt.org

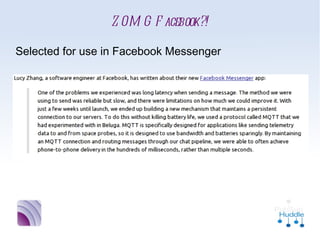

  • 25. ZOMG Facebook?!■ Selected for use in Facebook Messenger
  • 26. This sounds moderatelyinteresting (and fun) Lemme at it!

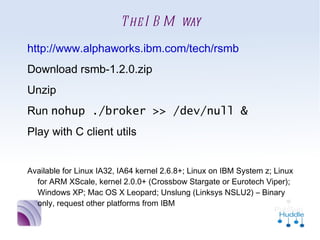

  • 27. The IBM way• http://www.alphaworks.ibm.com/tech/rsmb• Download rsmb-1.2.0.zip• Unzip• Run nohup ./broker >> /dev/null &• Play with C client utils• Available for Linux IA32, IA64 kernel 2.6.8+; Linux on IBM System z; Linux for ARM XScale, kernel 2.0.0+ (Crossbow Stargate or Eurotech Viper); Windows XP; Mac OS X Leopard; Unslung (Linksys NSLU2) – Binary only, request other platforms from IBM

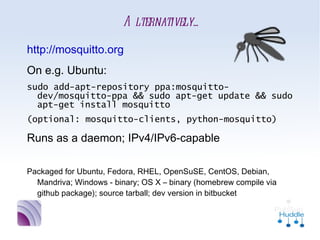

  • 28. Alternatively...• http://mosquitto.org• On e.g. Ubuntu: sudo add-apt-repository ppa:mosquitto- dev/mosquitto-ppa && sudo apt-get update && sudo apt-get install mosquitto (optional: mosquitto-clients, python-mosquitto)• Runs as a daemon; IPv4/IPv6-capable• Packaged for Ubuntu, Fedora, RHEL, OpenSuSE, CentOS, Debian, Mandriva; Windows - binary; OS X – binary (homebrew compile via github package); source tarball; dev version in bitbucket
  • 29. Show us the code!public void sendAMessage() throws MqttException { MqttProperties mqttProps = new MqttProperties(); Create a connection using the mqttProps.setCleanStart( true ); connection factory, this time MqttClient client = MqttClientFactory. INSTANCE. for a clean starting client createMqttClient("testClient", “tcp://localhost:1883”, mqttProps); Register the class as a listener and client.registerCallback(this); connect to the broker client.connect(); client.publish(“abc/123”, new MqttPayload((“Hello World!”).getBytes(),0), (byte) 2, false); client.disconnect(); Publish a message to the} given topic and disconnectpublic void publishArrived (String topicName, MqttPayload payload, byte qos, boolean retained, int msgId) { System.out.println(“Got it!”); On receipt of a} publication, simply print out a message on the console to say we received it

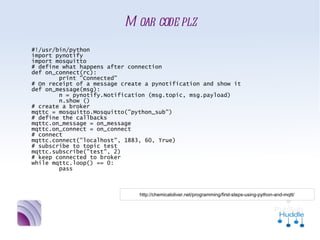

  • 30. Moar code plz#!/usr/bin/pythonimport pynotifyimport mosquitto# define what happens after connectiondef on_connect(rc): print "Connected"# On receipt of a message create a pynotification and show itdef on_message(msg): n = pynotify.Notification (msg.topic, msg.payload) n.show ()# create a brokermqttc = mosquitto.Mosquitto("python_sub")# define the callbacksmqttc.on_message = on_messagemqttc.on_connect = on_connect# connectmqttc.connect("localhost", 1883, 60, True)# subscribe to topic testmqttc.subscribe("test", 2)# keep connected to brokerwhile mqttc.loop() == 0: pass http://chemicaloliver.net/programming/first-steps-using-python-and-mqtt/

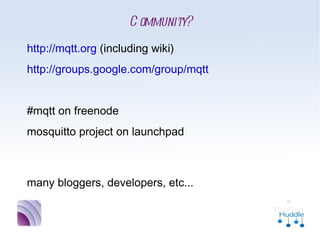

  • 31. Community?• http://mqtt.org (including wiki)• http://groups.google.com/group/mqtt•• #mqtt on freenode• mosquitto project on launchpad• many bloggers, developers, etc...

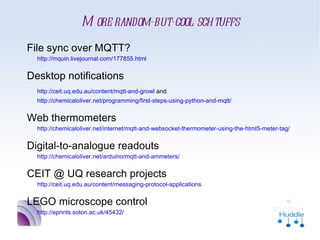

  • 32. More random-but-cool schtuffs• File sync over MQTT? http://mquin.livejournal.com/177855.html• Desktop notifications http://ceit.uq.edu.au/content/mqtt-and-growl and http://chemicaloliver.net/programming/first-steps-using-python-and-mqtt/• Web thermometers http://chemicaloliver.net/internet/mqtt-and-websocket-thermometer-using-the-html5-me• Digital-to-analogue readouts http://chemicaloliver.net/arduino/mqtt-and-ammeters/• CEIT @ UQ research projects http://ceit.uq.edu.au/content/messaging-protocol-applications• LEGO microscope control http://eprints.soton.ac.uk/45432/
  • 33. KTHXBAI! Andy Piper @andypiperhttp://andypiper.co.uk

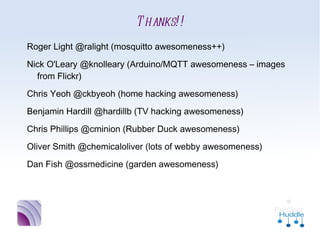

  • 34. Thanks!!• Roger Light @ralight (mosquitto awesomeness++)• Nick OLeary @knolleary (Arduino/MQTT awesomeness – images from Flickr)• Chris Yeoh @ckbyeoh (home hacking awesomeness)• Benjamin Hardill @hardillb (TV hacking awesomeness)• Chris Phillips @cminion (Rubber Duck awesomeness)• Oliver Smith @chemicaloliver (lots of webby awesomeness)• Dan Fish @ossmedicine (garden awesomeness)
