1. ZBX PRODUCTS DETAILS
www.sz-zbx.net

2. High Speed FPT1
Automatic Bare Board Tester2
Dedicated Bare Board Tester3
Accessories4

3. Flying probe tester

4. Flying Probe Tester

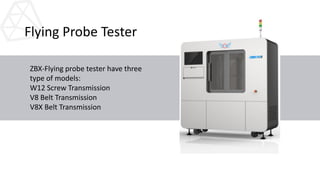

ZBX-Flying probe tester have three
type of models:
W12 Screw Transmission

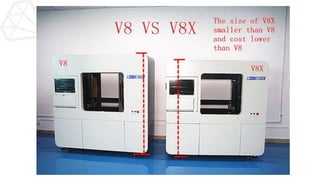

V8 Belt Transmission
V8X Belt Transmission

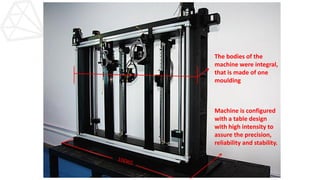

5. The bodies of the
machine were integral,
that is made of one
moulding
Machine is configured
with a table design
with high intensity to
assure the precision,
reliability and stability.

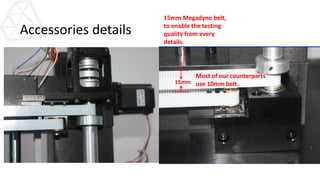

6. Accessories details
15mm Megadyne belt,
to enable the testing
quality from every
details.
15mm
Most of our counterparts
use 10mm belt.

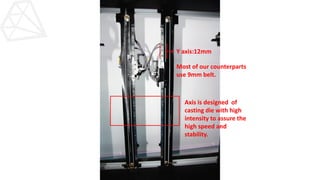

7. Y axis:12mm
Most of our counterparts
use 9mm belt.
Axis is designed of
casting die with high
intensity to assure the
high speed and
stability.

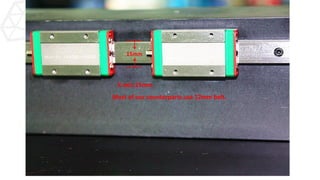

8. X axis:15mm
15mm
Most of our counterparts use 12mm belt.

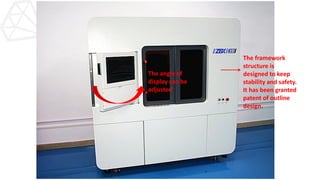

9. The angle of
display can be
adjusted
The framework
structure is
designed to keep
stability and safety.
It has been granted
patent of outline
design.

11. Marble working
table
More sturdier
W12

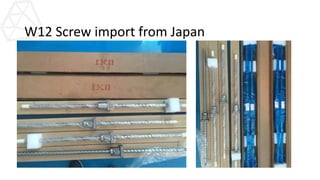

12. W12 Screw import from Japan

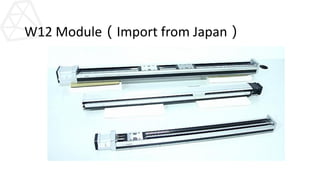

13. W12 Module（Import from Japan）

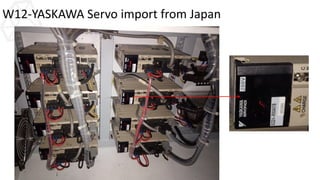

14. W12-YASKAWA Servo import from Japan

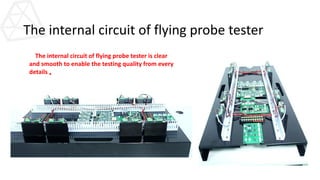

15. The internal circuit of flying probe tester
The internal circuit of flying probe tester is clear
and smooth to enable the testing quality from every
details 。

16. Automotic BBT

17. Automatic bare board tester

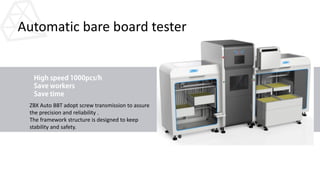

ZBX Auto BBT adopt screw transmission to assure
the precision and reliability .
The framework structure is designed to keep
stability and safety.

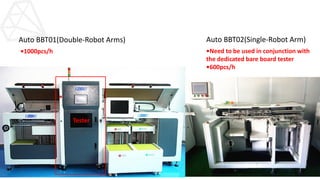

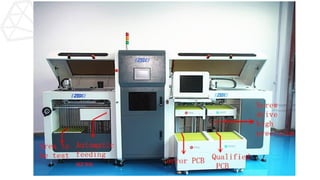

19. Tester
Auto BBT01(Double-Robot Arms) Auto BBT02(Single-Robot Arm)
•Need to be used in conjunction with
the dedicated bare board tester
•600pcs/h
•1000pcs/h

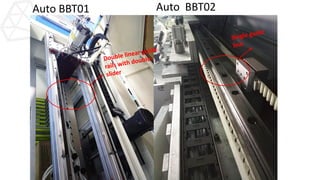

20. Auto BBT01 Auto BBT02

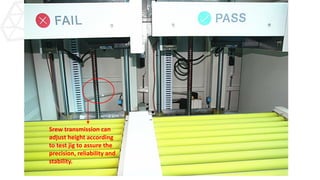

21. Srew transmission can
adjust height according
to test jig to assure the
precision, reliability and
stability.

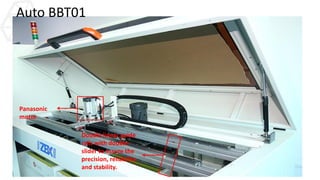

22. Auto BBT01
Panasonic
motor
Double linear guide
rails with double-
slider to assure the
precision, reliability
and stability.

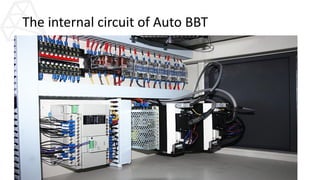

23. The internal circuit of Auto BBT

24. Dedicated BBT

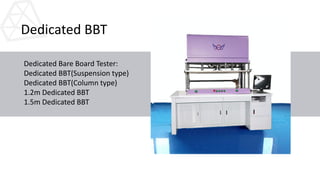

25. Dedicated BBT
Dedicated Bare Board Tester:

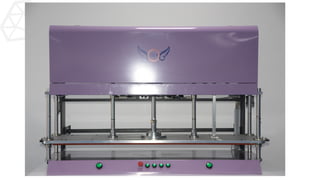

Dedicated BBT(Suspension type)
Dedicated BBT(Column type)
1.2m Dedicated BBT
1.5m Dedicated BBT

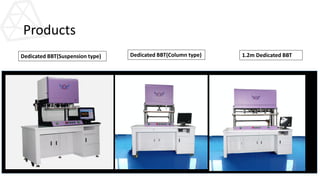

26. Products
Dedicated BBT(Suspension type) Dedicated BBT(Column type) 1.2m Dedicated BBT

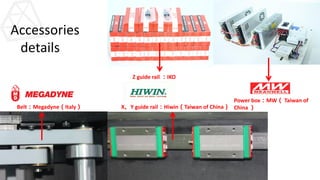

29. Belt：Megadyne（Italy） X、Y guide rail：Hiwin（Taiwan of China）
Power box：MW（ Taiwan of
China ）
Z guide rail ：IKO
Accessories
details

30. www.sz-zbx.net
Shenzhen Zhong Bo Xin Technology Co.,Ltd
