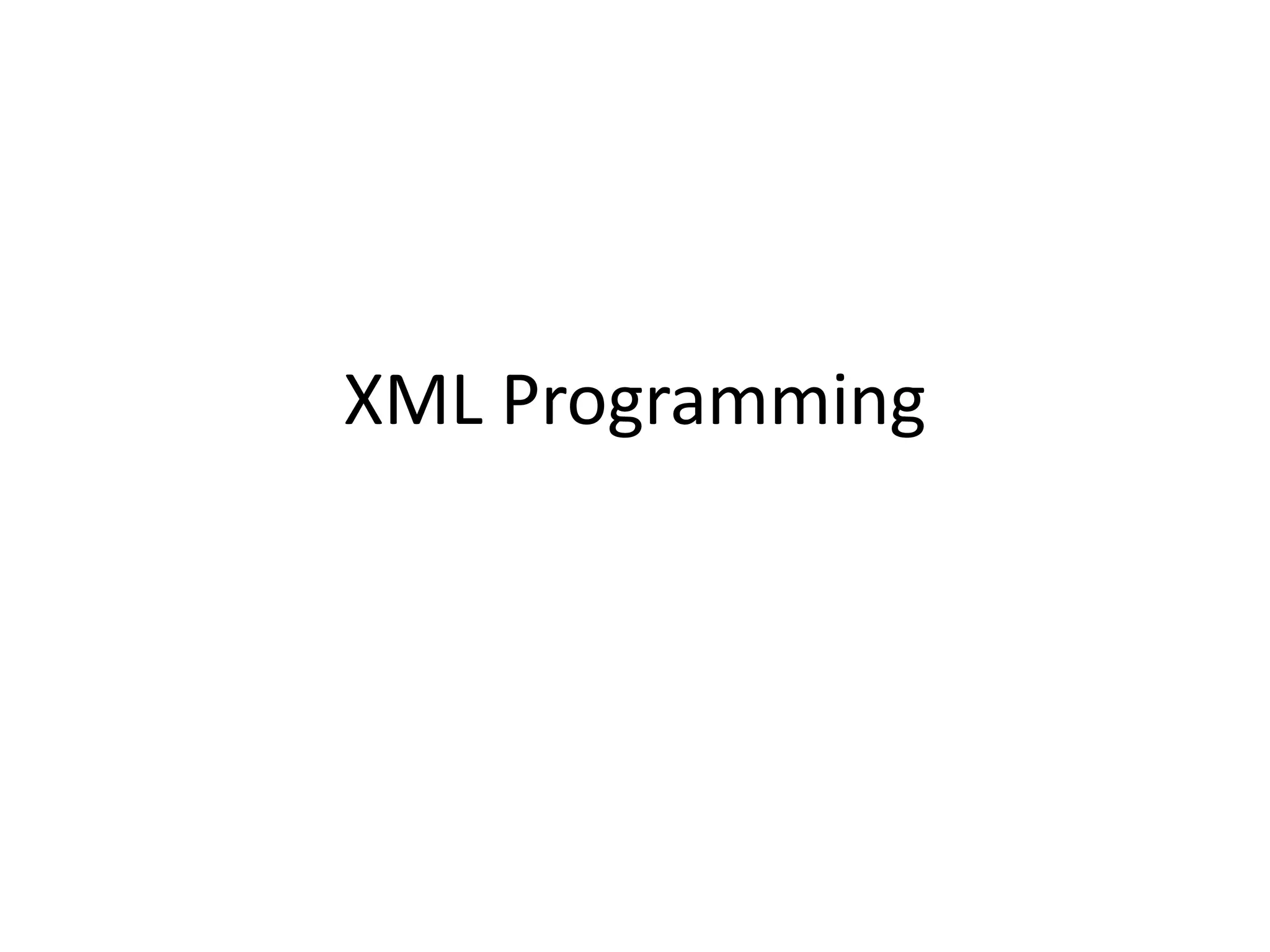

This document provides an overview of XML programming and XML documents. It discusses the physical and logical views of an XML document, document structure including the root element, and how XML documents are commonly stored as text files. It also summarizes how an XML parser reads and validates an XML document by checking its syntax and structure. The document then covers various XML components in more detail, such as elements, attributes, character encoding, entities, processing instructions, well-formedness, validation via DTDs, and document modeling.

1. XML Programming

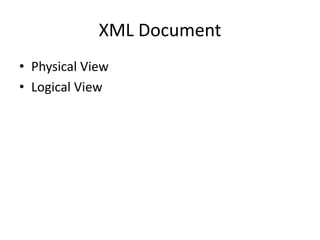

2. XML Document
• Physical View
• Logical View

3. XML Document: Physical View
• Either Markup or Character Data
• To store contents in one or more les
• Collectively they represent an XML document

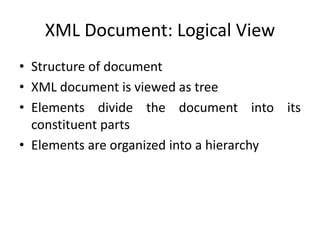

4. XML Document: Logical View
• Structure of document
• XML document is viewed as tree
• Elements divide the document into its
constituent parts
• Elements are organized into a hierarchy

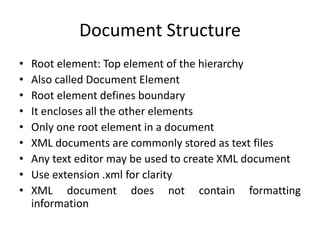

5. Document Structure
• Root element: Top element of the hierarchy
• Also called Document Element
• Root element defines boundary
• It encloses all the other elements
• Only one root element in a document
• XML documents are commonly stored as text files
• Any text editor may be used to create XML document
• Use extension .xml for clarity
• XML document does not contain formatting
information

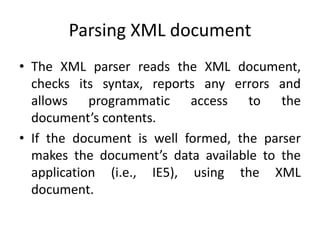

6. Parsing XML document
• The XML parser reads the XML document,
checks its syntax, reports any errors and
allows programmatic access to the
document’s contents.
• If the document is well formed, the parser
makes the document’s data available to the
application (i.e., IE5), using the XML
document.

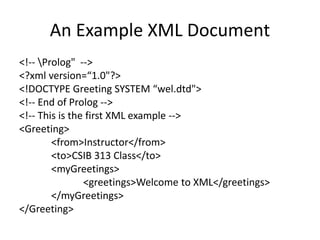

7. An Example XML Document
<!-- Prolog" -->
<?xml version=“1.0"?>
<!DOCTYPE Greeting SYSTEM “wel.dtd">
<!-- End of Prolog -->
<!-- This is the first XML example -->
<Greeting>
<from>Instructor</from>
<to>CSIB 313 Class</to>
<myGreetings>
<greetings>Welcome to XML</greetings>
</myGreetings>
</Greeting>

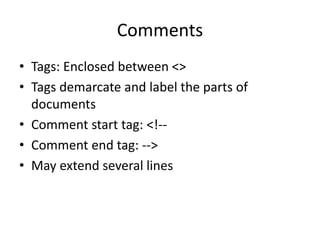

8. Comments
• Tags: Enclosed between <>
• Tags demarcate and label the parts of
documents
• Comment start tag: <!--
• Comment end tag: -->
• May extend several lines

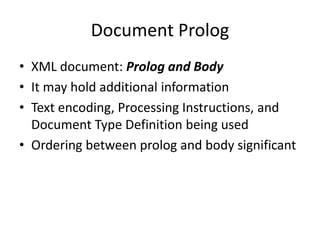

9. Document Prolog
• XML document: Prolog and Body
• It may hold additional information
• Text encoding, Processing Instructions, and
Document Type Definition being used
• Ordering between prolog and body significant

10. XML declaration
• Syntax: <?xml name1 = “value1" name2 =
“value2" ...
• Three properties can be set
– version, encoding, and standalone
• <?xml version=“1.0" encoding=“US-ASCII“
standalone=“yes“ ?>
• Note: single and double quotes enclosing
values

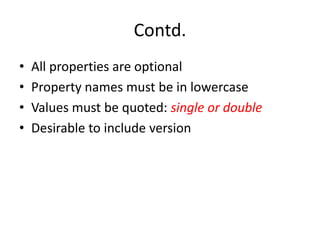

11. Contd.
• All properties are optional
• Property names must be in lowercase
• Values must be quoted: single or double
• Desirable to include version

12. XML Character Set
• A character set consists of the characters that
may be represented in a document.
• ASCII: 7 bit coding
• ISO: 8 bit coding
• ISO-8859-1,-2,-3,..
• XML document may contain: carriage return,
line feed, and Unicode characters

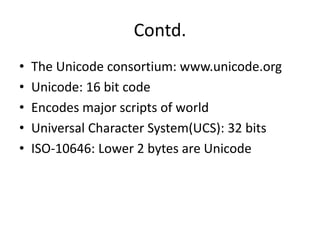

13. Contd.
• The Unicode consortium: www.unicode.org
• Unicode: 16 bit code
• Encodes major scripts of world
• Universal Character System(UCS): 32 bits
• ISO-10646: Lower 2 bytes are Unicode

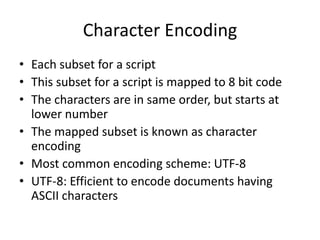

14. Character Encoding
• Each subset for a script
• This subset for a script is mapped to 8 bit code
• The characters are in same order, but starts at
lower number
• The mapped subset is known as character
encoding
• Most common encoding scheme: UTF-8
• UTF-8: Efficient to encode documents having
ASCII characters

15. Contd..
• UTF-8 is default XML character encoding
• Some common character encodings:
– US-ASCII, ISO-8859-1, ISO-8859-n
– ISO-8859-1-Windows-3.1-Latin-1
– UTF-7, UTF-8, UTF-16
– ISO-10646-UCS-2, ISO-10646-UCS-4
– UCS-2 is same as Unicode

16. Elements
• Elements are building blocks
• Elements are organized in an hierarchy
• Hierarchy defines the logical structure
• Elements acts as containers and labels
• Types of the elements are differentiated by tags
• Start-tag, End-tag, Empty-tag
• Empty-element tag: <name/>
• Start-tag must have a matching end tag
• XML IS CASE SENSITIVE
• <message> ....</Message> : Wrong

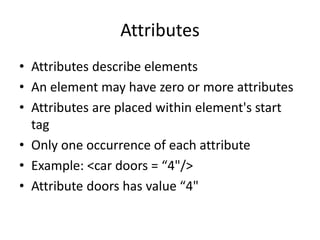

17. Attributes
• Attributes describe elements
• An element may have zero or more attributes
• Attributes are placed within element's start
tag
• Only one occurrence of each attribute
• Example: <car doors = “4"/>
• Attribute doors has value “4"

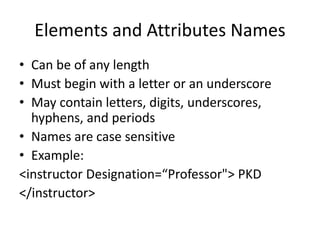

18. Elements and Attributes Names
• Can be of any length
• Must begin with a letter or an underscore
• May contain letters, digits, underscores,
hyphens, and periods
• Names are case sensitive
• Example:
<instructor Designation=“Professor"> PKD
</instructor>

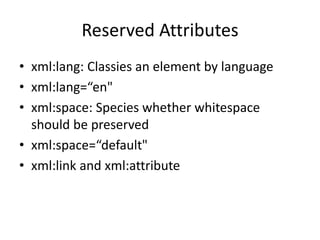

19. Reserved Attributes
• xml:lang: Classies an element by language
• xml:lang=“en"
• xml:space: Species whether whitespace
should be preserved
• xml:space=“default"
• xml:link and xml:attribute

20. White Space Characters
• Spaces, tabs, line feeds and carriage return
• An XML parser is required to pass all
characters in a document
• Application need to decide the significance
• Insignificant white spaces may be collapsed
into single white space character or removed
• This process is called normalization

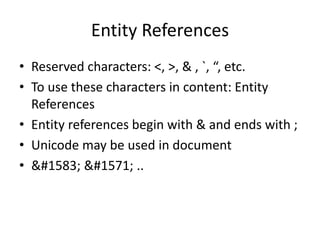

21. Entity References
• Reserved characters: <, >, & , `, “, etc.
• To use these characters in content: Entity
References
• Entity references begin with & and ends with ;
• Unicode may be used in document
• &#1583; &#1571; ..

22. Built-in Entities
• XML provides built-in entities
• &amp;, &lt;, &gt;, &apos;, and &quote;
• Example:<message>&lt;&gt;&quote;</messag
e>

23. CDATA Section
• CDATA sections are helpful for XML authors
• may contain text, reserved characters (e.g., <) and
whitespace characters
• It is set off by <![CDATA[ and ]]>
• Everything between <![CDATA[ and the ]]> is treated as raw
data
• Character data in a CDATA section is not processed by the
• XML parser
• In CDATA < is not start tag
• An acronym for “character data"
• An example:
<para> Then you may say <![CDATA[ if(&x < &y) ]]> and
be done with it.</para>

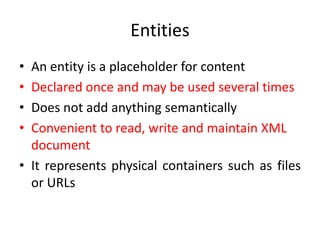

24. Entities
• An entity is a placeholder for content
• Declared once and may be used several times
• Does not add anything semantically
• Convenient to read, write and maintain XML
document
• It represents physical containers such as files
or URLs

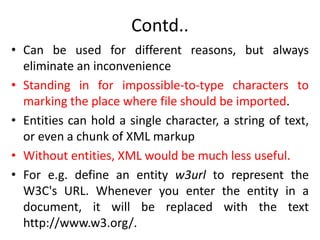

25. Contd..
• Can be used for different reasons, but always
eliminate an inconvenience
• Standing in for impossible-to-type characters to
marking the place where file should be imported.
• Entities can hold a single character, a string of text,
or even a chunk of XML markup
• Without entities, XML would be much less useful.
• For e.g. define an entity w3url to represent the
W3C's URL. Whenever you enter the entity in a
document, it will be replaced with the text
http://www.w3.org/.

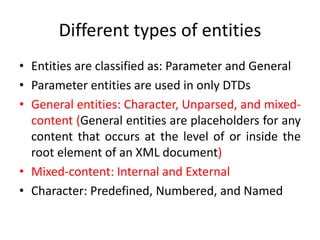

26. Different types of entities
• Entities are classified as: Parameter and General
• Parameter entities are used in only DTDs
• General entities: Character, Unparsed, and mixed-
content (General entities are placeholders for any
content that occurs at the level of or inside the
root element of an XML document)
• Mixed-content: Internal and External
• Character: Predefined, Numbered, and Named

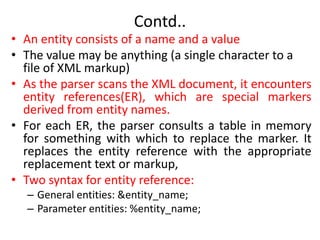

27. Contd..
• An entity consists of a name and a value
• The value may be anything (a single character to a
file of XML markup)
• As the parser scans the XML document, it encounters
entity references(ER), which are special markers
derived from entity names.
• For each ER, the parser consults a table in memory
for something with which to replace the marker. It
replaces the entity reference with the appropriate
replacement text or markup,
• Two syntax for entity reference:
– General entities: &entity_name;
– Parameter entities: %entity_name;

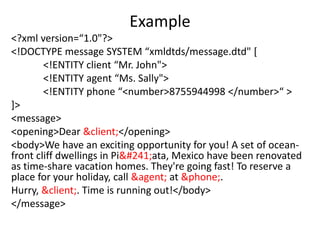

28. Example
<?xml version=“1.0"?>
<!DOCTYPE message SYSTEM “xmldtds/message.dtd" [
<!ENTITY client “Mr. John">
<!ENTITY agent “Ms. Sally">
<!ENTITY phone “<number>8755944998 </number>“ >
]>
<message>
<opening>Dear &client;</opening>
<body>We have an exciting opportunity for you! A set of ocean-
front cliff dwellings in Pi&#241;ata, Mexico have been renovated
as time-share vacation homes. They're going fast! To reserve a
place for your holiday, call &agent; at &phone;.
Hurry, &client;. Time is running out!</body>
</message>

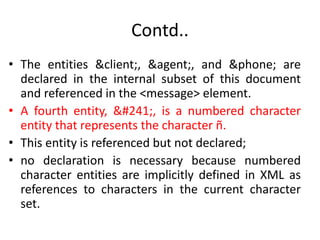

29. Contd..
• The entities &client;, &agent;, and &phone; are
declared in the internal subset of this document
and referenced in the <message> element.
• A fourth entity, &#241;, is a numbered character
entity that represents the character ñ.
• This entity is referenced but not declared;
• no declaration is necessary because numbered
character entities are implicitly defined in XML as
references to characters in the current character
set.

30. • All entities (besides predefined ones) must be
declared before they are used in a document
• Two acceptable places to declare them are
– in the internal subset, which is ideal for local
entities, and
– in an external DTD, which is more suitable for
entities shared between documents.

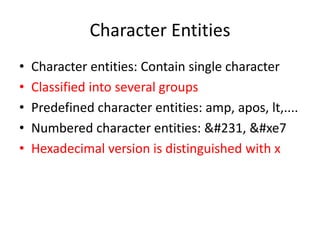

31. Character Entities
• Character entities: Contain single character
• Classified into several groups
• Predefined character entities: amp, apos, lt,....
• Numbered character entities: &#231, &#xe7
• Hexadecimal version is distinguished with x

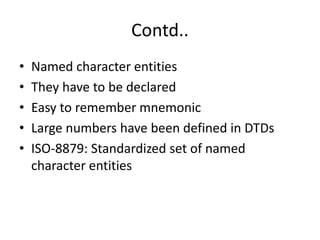

32. Contd..
• Named character entities
• They have to be declared
• Easy to remember mnemonic
• Large numbers have been defined in DTDs
• ISO-8879: Standardized set of named
character entities

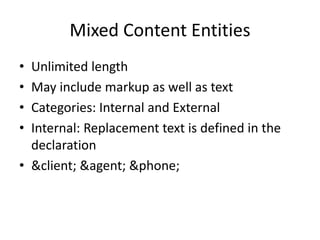

33. Mixed Content Entities
• Unlimited length
• May include markup as well as text
• Categories: Internal and External
• Internal: Replacement text is defined in the
declaration
• &client; &agent; &phone;

34. Contd..
• Predefined character entities must not be
used in markup if they are used in entity
definition
• Exceptions: quote and apos
• Entities can contain entity reference if it has
been declared
• Recursive declaration not permitted

35. • External: Replacement text in another file
• Useful for sharing the contents
• Breaks a document into multiple physical
parts
• A linking mechanism

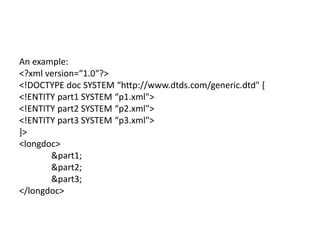

36. An example:
<?xml version=“1.0"?>
<!DOCTYPE doc SYSTEM “http://www.dtds.com/generic.dtd" [
<!ENTITY part1 SYSTEM “p1.xml">
<!ENTITY part2 SYSTEM “p2.xml">
<!ENTITY part3 SYSTEM “p3.xml">
]>
<longdoc>
&part1;
&part2;
&part3;
</longdoc>

37. • Replacement text is inserted at the time of parsing
• &part1;, &part2;, and &part3; are external entities
• Keyword SYSTEM is used.
• File names are under single or double quotes.
• System identifier: To identify resource location.
• Quoted string may be URL
• Alternative is to use keyword PUBLIC
• XML processor will locate the resource
• Public identifier may be accompanied with a system
identifier

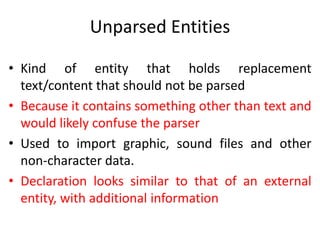

38. Unparsed Entities
• Kind of entity that holds replacement
text/content that should not be parsed
• Because it contains something other than text and
would likely confuse the parser
• Used to import graphic, sound files and other
non-character data.
• Declaration looks similar to that of an external
entity, with additional information

39. Example
An Example:
<!DOCTYPE doc [
<!ENTITY mypic SYSTEM “photos/erick.gif“
NDATA GIF>
]>
< doc >
&mypic;
</doc>

40. Contd..
• Keyword NDATA used after system identifier
• NDATA: Notation for data
• tells the parser that the entity's content is in a
special format, or notation, other than the
usual parsed mixed content.
• It is followed by notation identifier that
specifies the data format.

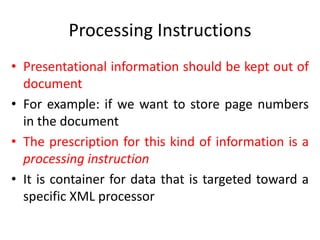

41. Processing Instructions
• Presentational information should be kept out of
document
• For example: if we want to store page numbers
in the document
• The prescription for this kind of information is a
processing instruction
• It is container for data that is targeted toward a
specific XML processor

42. Contd..
• PI contain two pieces of information: a target
keyword and target data
• The parser passes processing instructions up to the
next level of processing.
• If the processing instruction handler recognizes the
target keyword, it may choose to use the data;
otherwise, the data is discarded.
• A PI starts with a two-character delimiter
– consisting of an open angle bracket and a question mark
(<?),
– followed by a target and an optional string of characters
that is the data portion of the PI
– a closing delimiter, consisting of a question mark and
closing angle bracket (?>).

43. Contd..
• The target is a keyword that an XML processor uses
to determine whether the data is meant for it or not
• More than one program can use a PI, and a single
program can accept multiple PIs.
• The PI can contain any data except the combination
?>
• Examples:
– <? flubber pg = 9 recto ?>
– <? things ?>
– <title> The Introduction to the XML <? lb ?> portability <?
lb ?> and integratin</title>, where <? lb ?> forces line
break

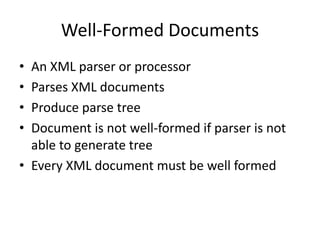

44. Well-Formed Documents
• An XML parser or processor
• Parses XML documents
• Produce parse tree
• Document is not well-formed if parser is not
able to generate tree
• Every XML document must be well formed

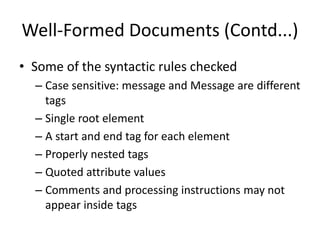

45. Well-Formed Documents (Contd...)
• Some of the syntactic rules checked
– Case sensitive: message and Message are different
tags
– Single root element
– A start and end tag for each element
– Properly nested tags
– Quoted attribute values
– Comments and processing instructions may not
appear inside tags

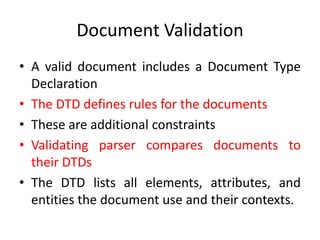

46. Document Validation
• A valid document includes a Document Type
Declaration
• The DTD defines rules for the documents
• These are additional constraints
• Validating parser compares documents to
their DTDs
• The DTD lists all elements, attributes, and
entities the document use and their contexts.

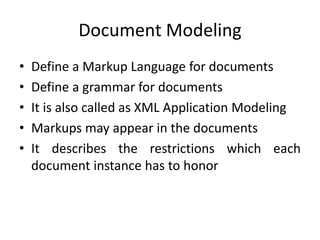

47. Document Modeling
• Define a Markup Language for documents
• Define a grammar for documents
• It is also called as XML Application Modeling
• Markups may appear in the documents
• It describes the restrictions which each
document instance has to honor

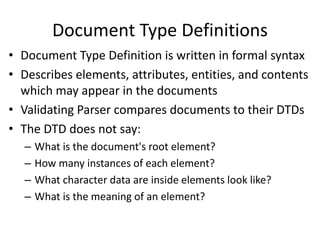

48. Document Type Definitions
• Document Type Definition is written in formal syntax
• Describes elements, attributes, entities, and contents
which may appear in the documents
• Validating Parser compares documents to their DTDs
• The DTD does not say:
– What is the document's root element?
– How many instances of each element?
– What character data are inside elements look like?
– What is the meaning of an element?

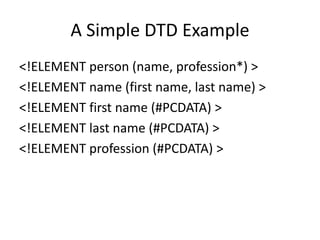

49. A Simple DTD Example
<!ELEMENT person (name, profession*) >
<!ELEMENT name (first name, last name) >
<!ELEMENT first name (#PCDATA) >
<!ELEMENT last name (#PCDATA) >
<!ELEMENT profession (#PCDATA) >

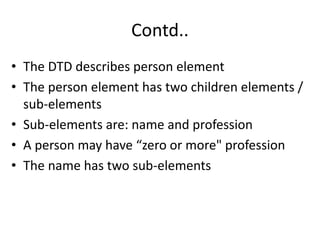

50. Contd..
• The DTD describes person element
• The person element has two children elements /
sub-elements
• Sub-elements are: name and profession
• A person may have “zero or more" profession
• The name has two sub-elements

51. Document Type Declaration
• A valid document includes a reference to its
DTD
• The DTD declaration is included in prolog
• <!DOCTYPE person SYSTEM
“http://www.upes.ac.in/xml/dtds/person.dtd"
>
• The DTD is generally stored in separate file
• Optionally, it may have extension .dtd

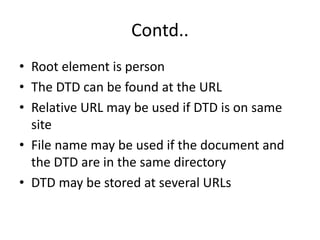

52. Contd..
• Root element is person
• The DTD can be found at the URL
• Relative URL may be used if DTD is on same
site
• File name may be used if the document and
the DTD are in the same directory
• DTD may be stored at several URLs
