Webpack slides

The new rock star of build tools
Webpack
Andrii Vandakurov

Hi, I’m Andrii Vandakurov
Senior Frontend developer at
We create cool things
Andrii Vandakurov

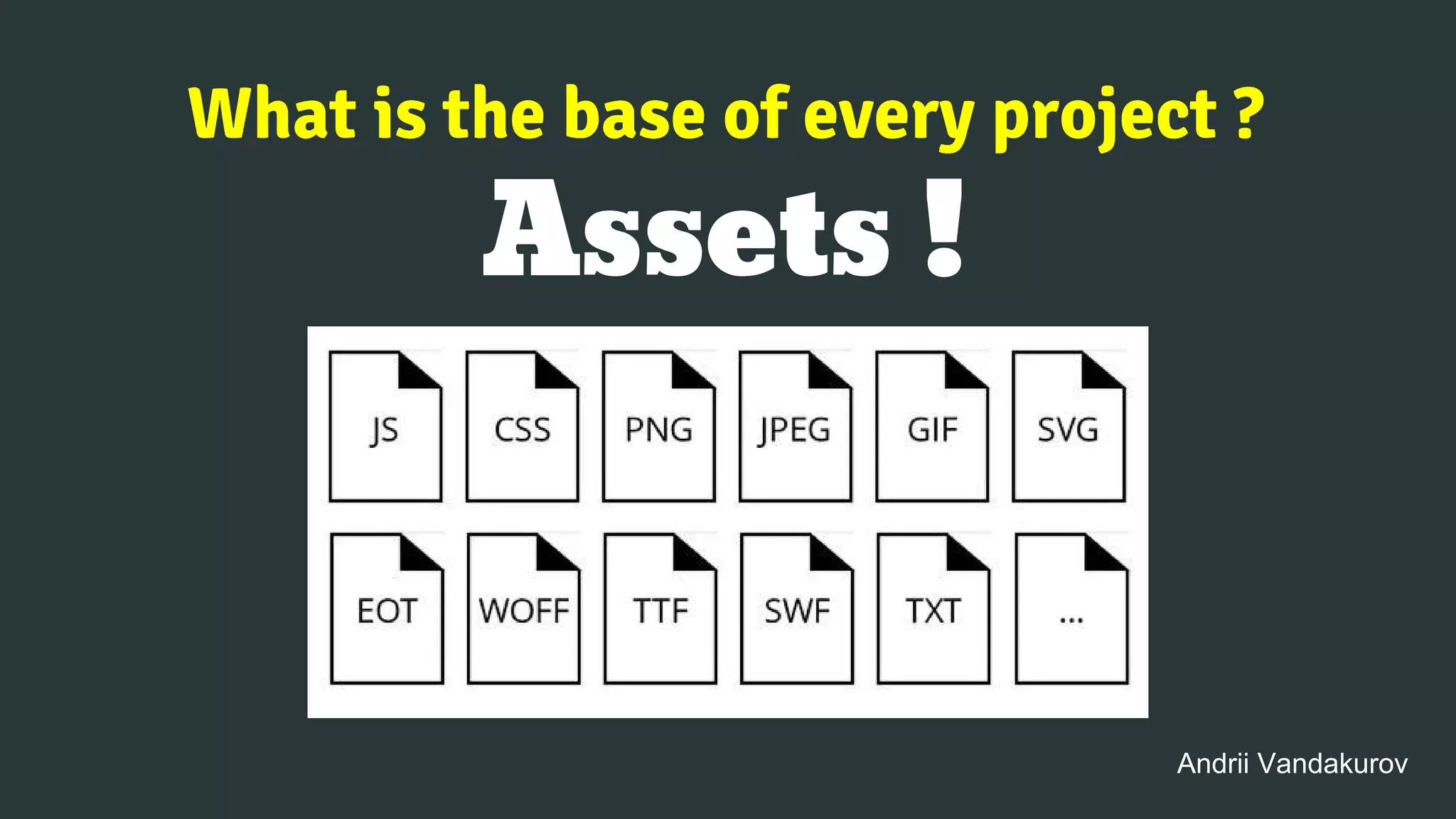

What is the base of every project ?
Assets !
Andrii Vandakurov

Of course
you can
manage this
by yourself
Andrii Vandakurov

But why ? There are lot of tools
that can help you !
Andrii Vandakurov

Diving into webpack
Andrii Vandakurov

Webpack suits well for
really big projects
because of it’s flexibility ( support for AMD, CommonJs, UMD modules ) Andrii Vandakurov

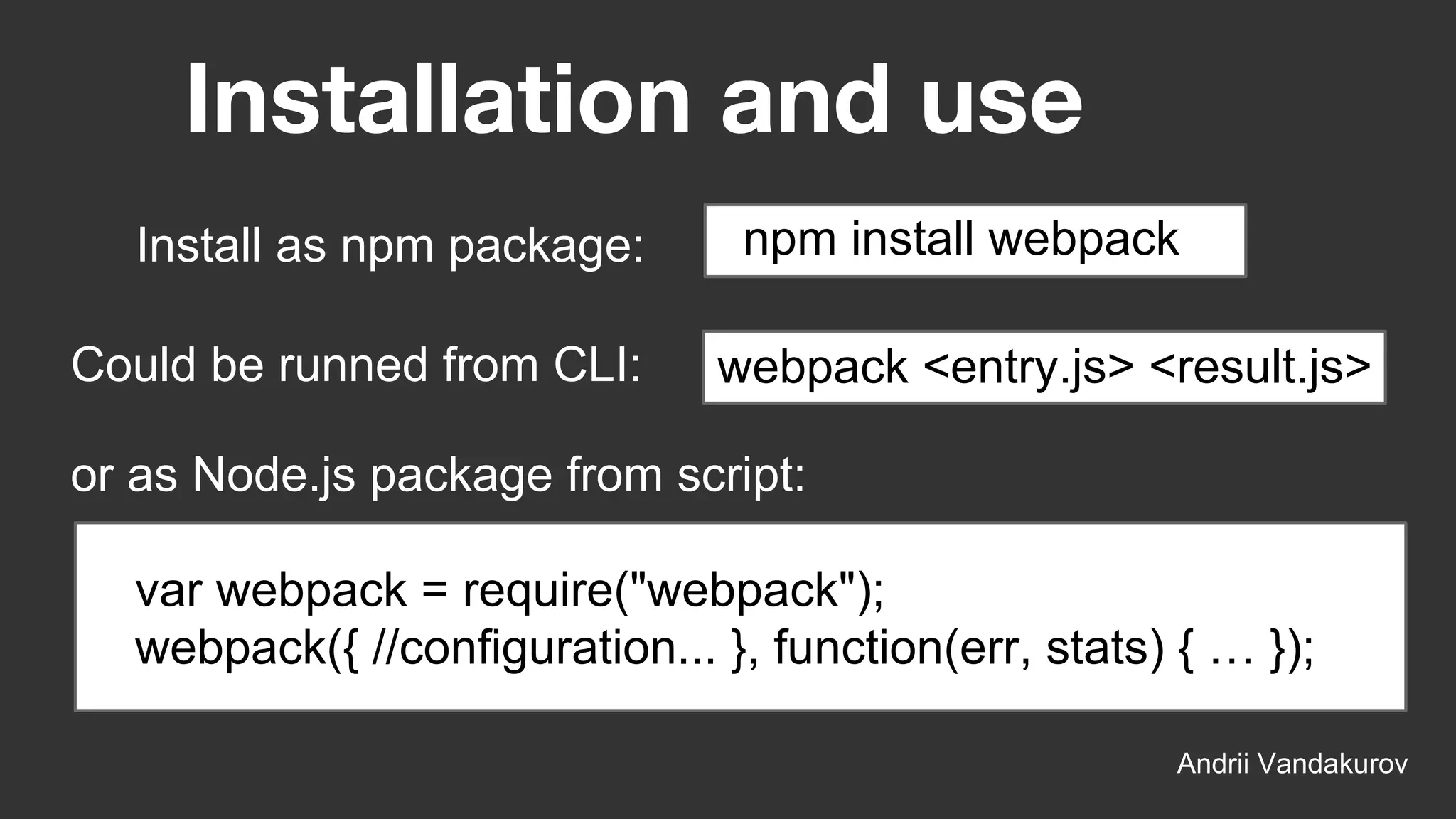

Installation and use
Andrii Vandakurov
npm install webpack
Could be runned from CLI:
Install as npm package:
webpack <entry.js> <result.js>
or as Node.js package from script:
var webpack = require("webpack");
webpack({ //configuration... }, function(err, stats) { … });

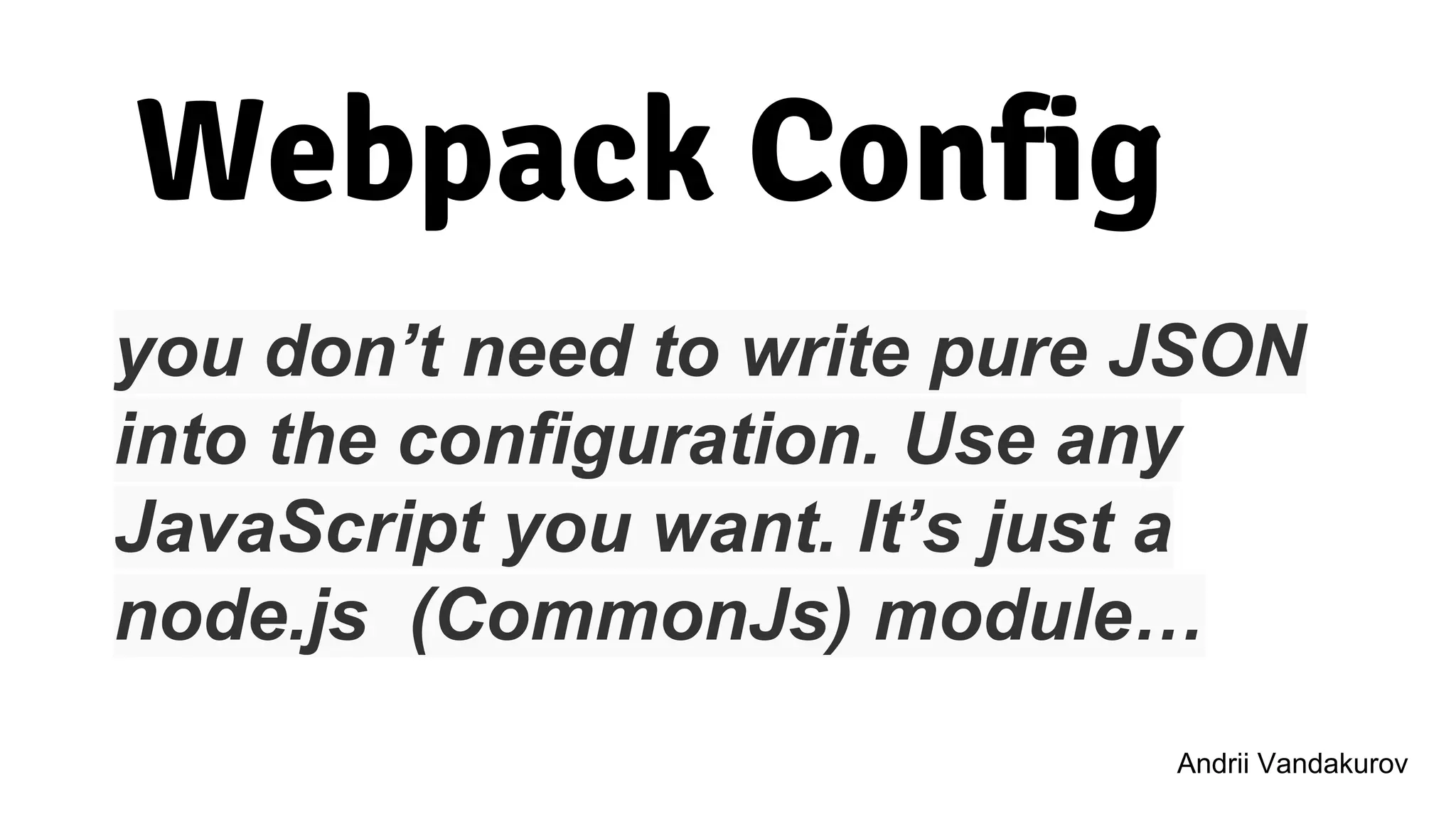

Webpack Config
you don’t need to write pure JSON
into the configuration. Use any
JavaScript you want. It’s just a
node.js (CommonJs) module…
Andrii VandakurovAndrii Vandakurov

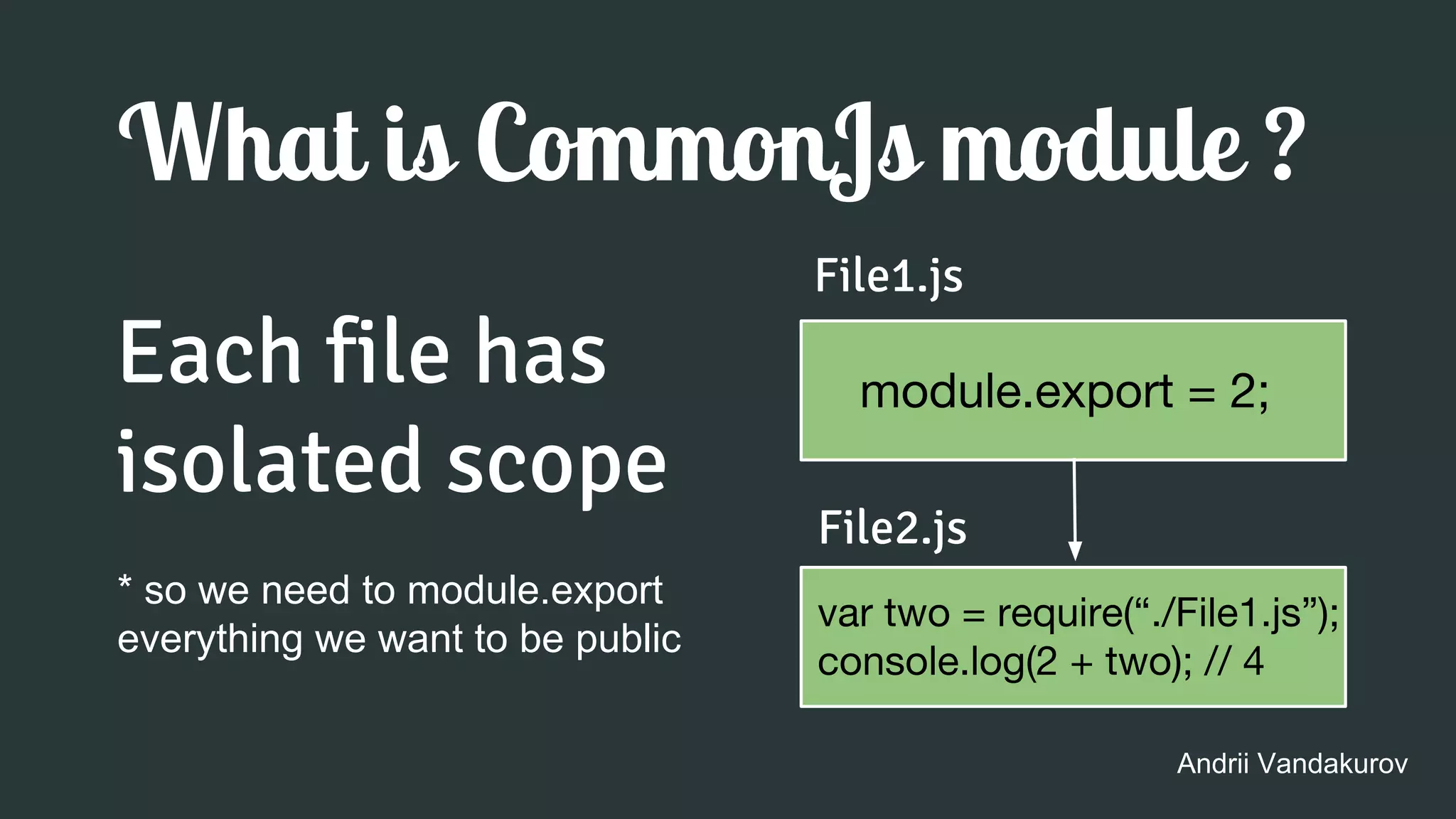

What is CommonJs module ?
Each file has
isolated scope
Andrii Vandakurov
* so we need to module.export
everything we want to be public
module.export = 2;
File1.js
var two = require(“./File1.js”);
console.log(2 + two); // 4
File2.js

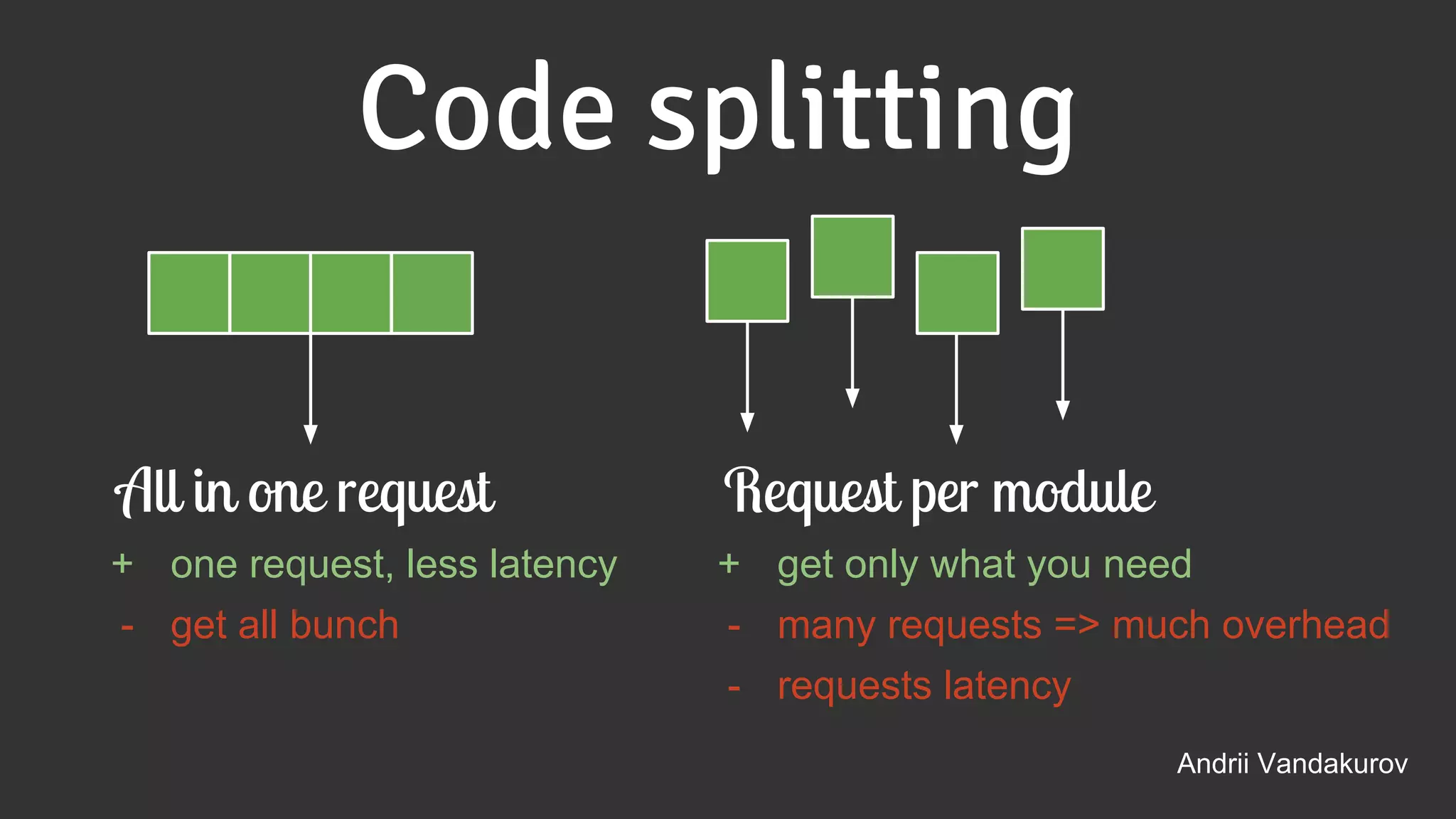

Code splitting
Andrii Vandakurov
All in one request
+ one request, less latency
- get all bunch
Request per module
+ get only what you need
- many requests => much overhead
- requests latency

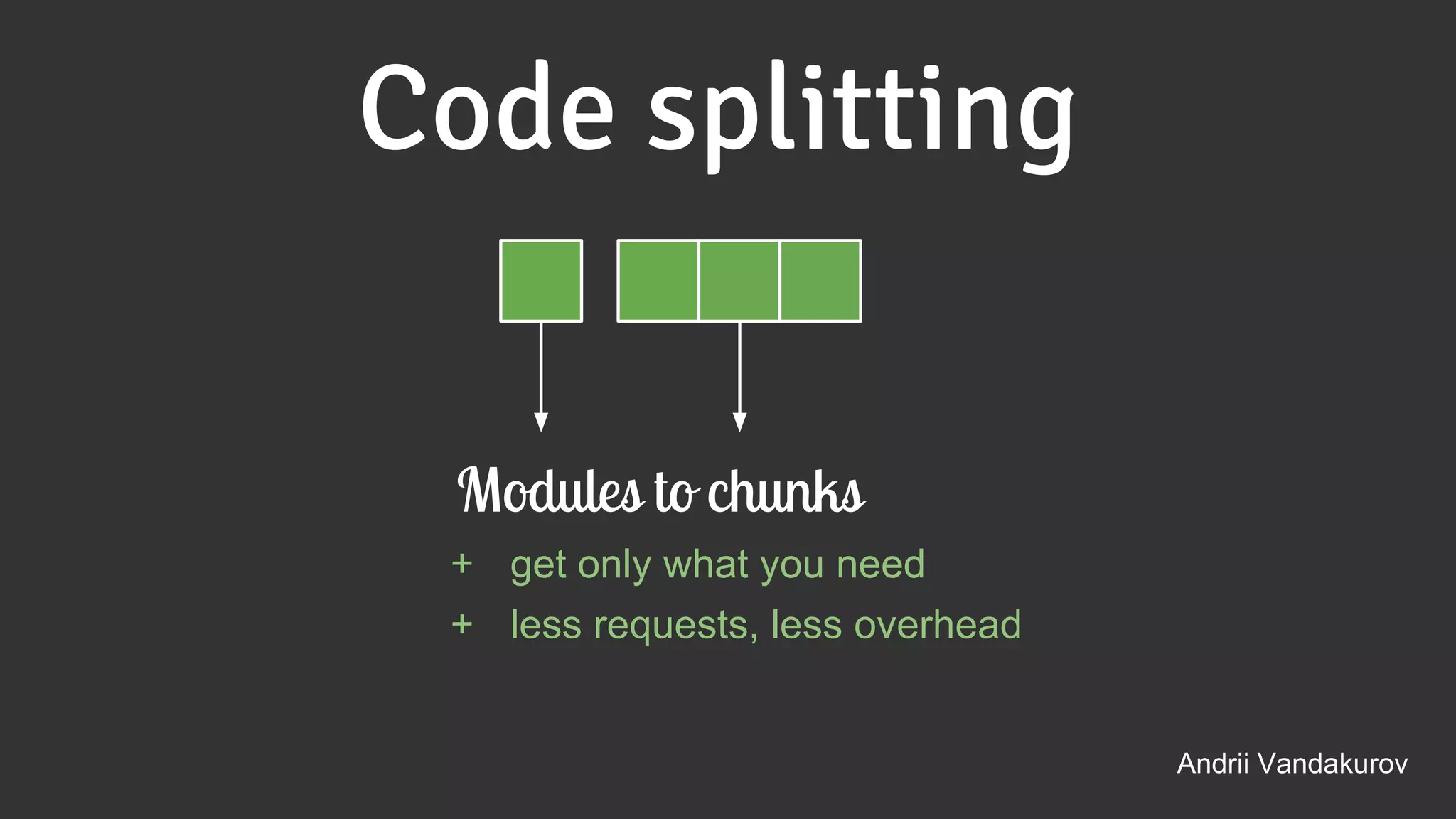

Code splitting
Andrii Vandakurov
Modules to chunks
+ get only what you need
+ less requests, less overhead

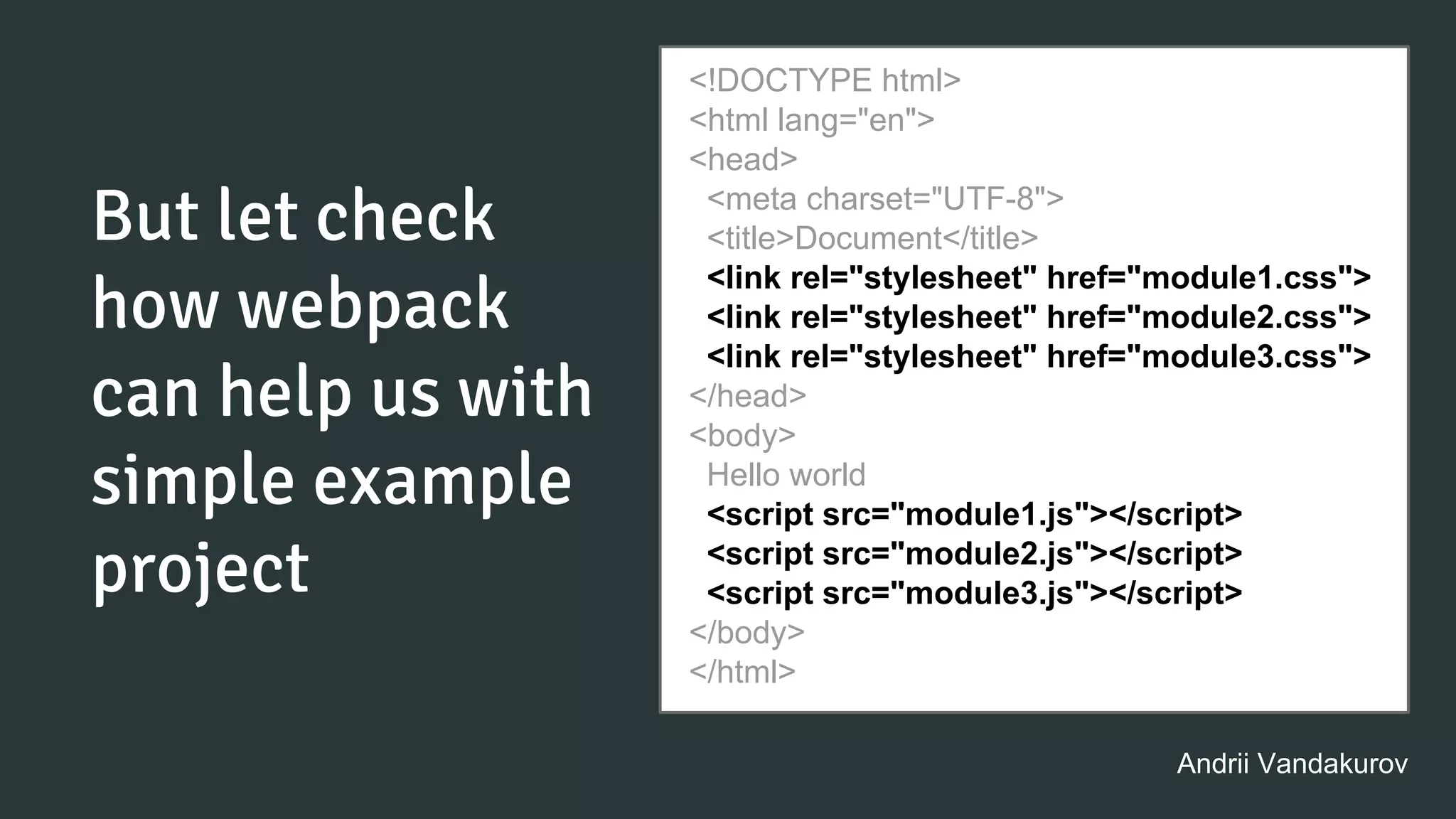

But let check
how webpack
can help us with
simple example
project
<!DOCTYPE html>
<html lang="en">
<head>
<meta charset="UTF-8">
<title>Document</title>
<link rel="stylesheet" href="module1.css">
</head>
<body>
Hello world
<script src="module1.js"></script>
</body>
</html>
Andrii Vandakurov

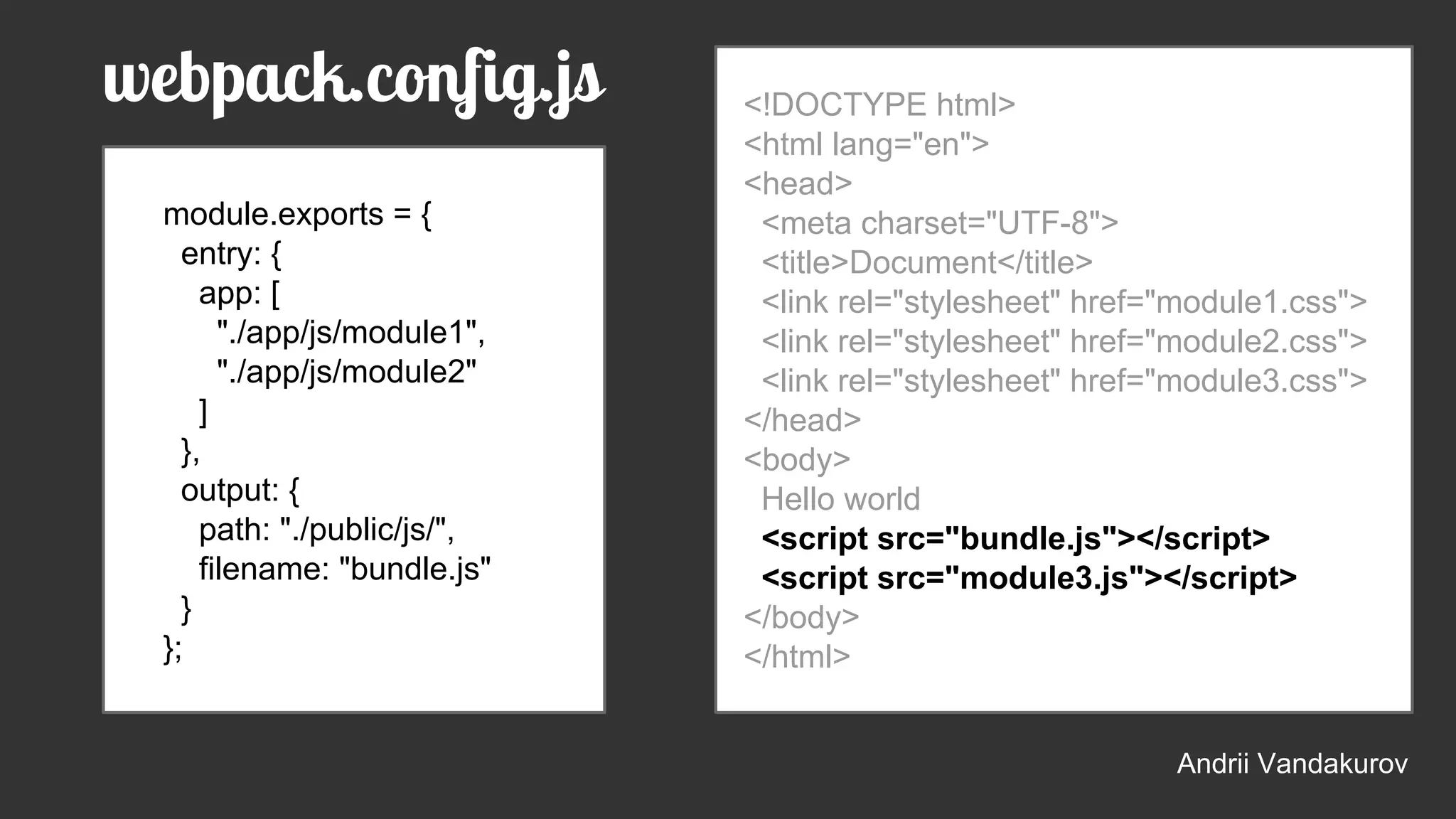

module.exports = {
entry: {
app: [
"./app/js/module1",
"./app/js/module2"
]
},
output: {
path: "./public/js/",
filename: "bundle.js"
}
};
<!DOCTYPE html>
<html lang="en">
<head>
</head>
<body>
Hello world
<script src="bundle.js"></script>
</body>
</html>
Andrii Vandakurov
webpack.config.js

What about
other files??
.css .png .jsx .woff .svg .
json .styl .eot .html .scss .
jpeg .jade ...

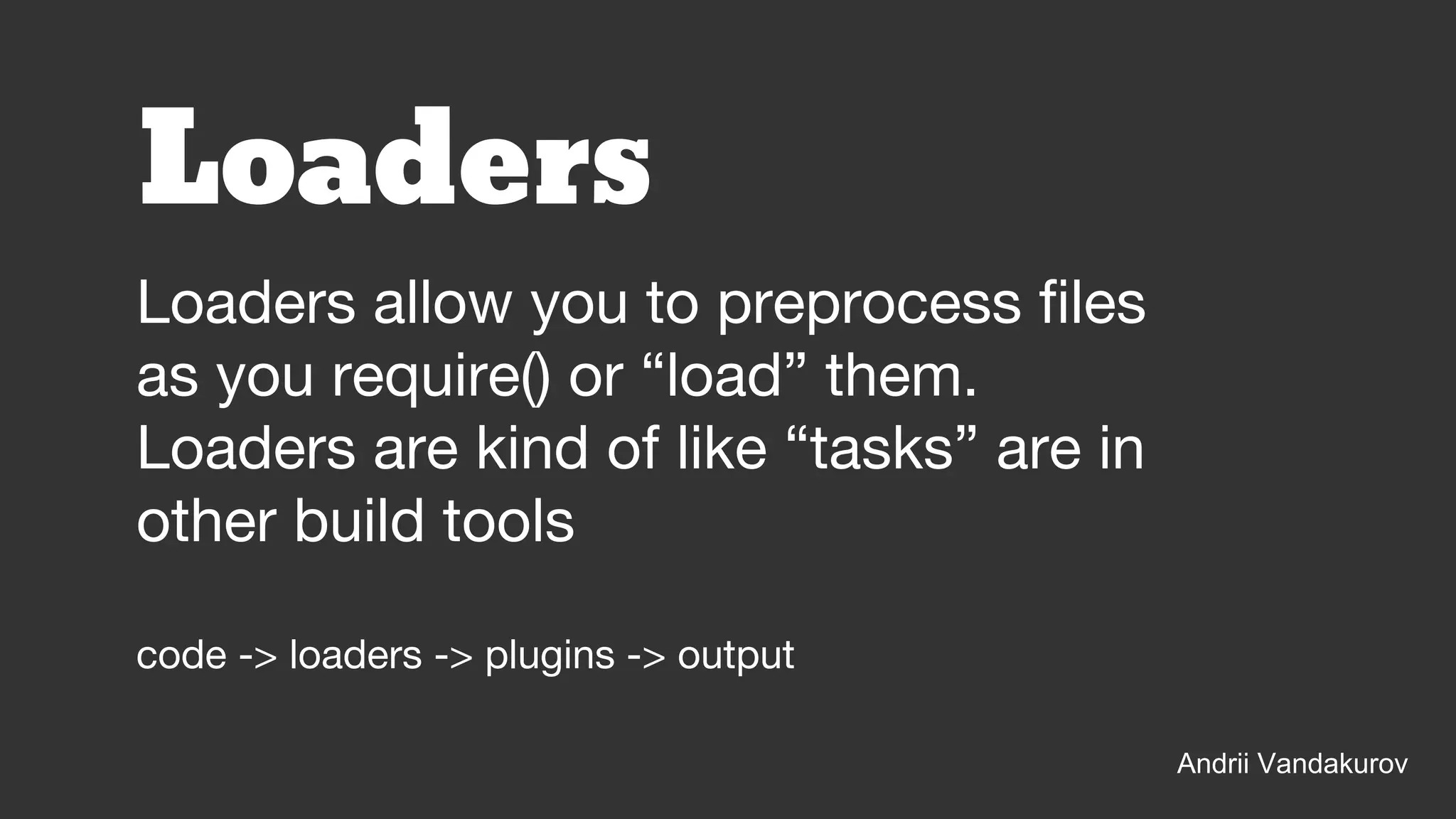

Loaders
Loaders allow you to preprocess files
as you require() or “load” them.
Loaders are kind of like “tasks” are in
other build tools
code -> loaders -> plugins -> output
Andrii Vandakurov

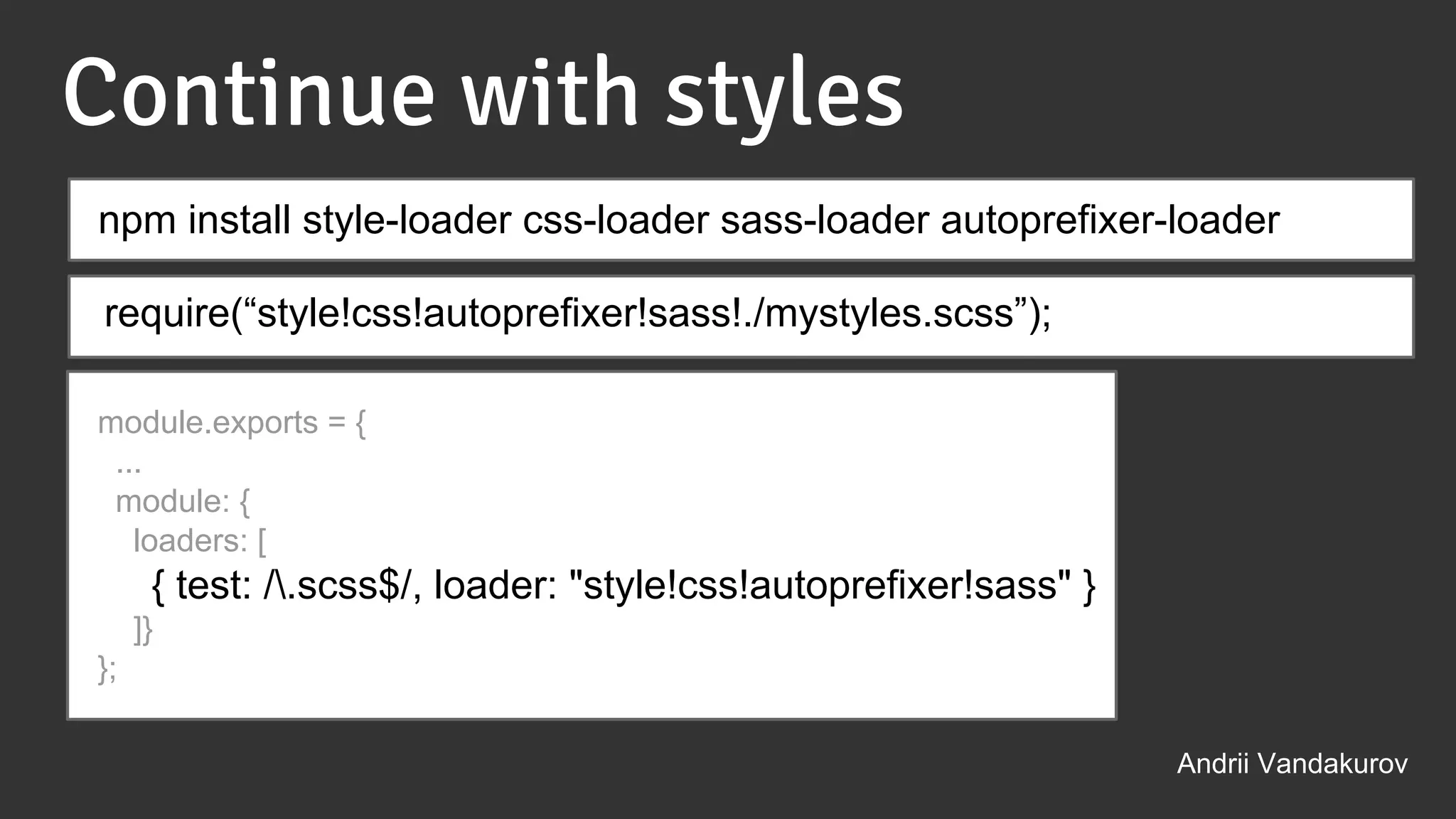

Continue with styles
module.exports = {
...
module: {
loaders: [
{ test: /.scss$/, loader: "style!css!autoprefixer!sass" }
]}
};
npm install style-loader css-loader sass-loader autoprefixer-loader
Andrii Vandakurov
require(“style!css!autoprefixer!sass!./mystyles.scss”);

Andrii Vandakurov

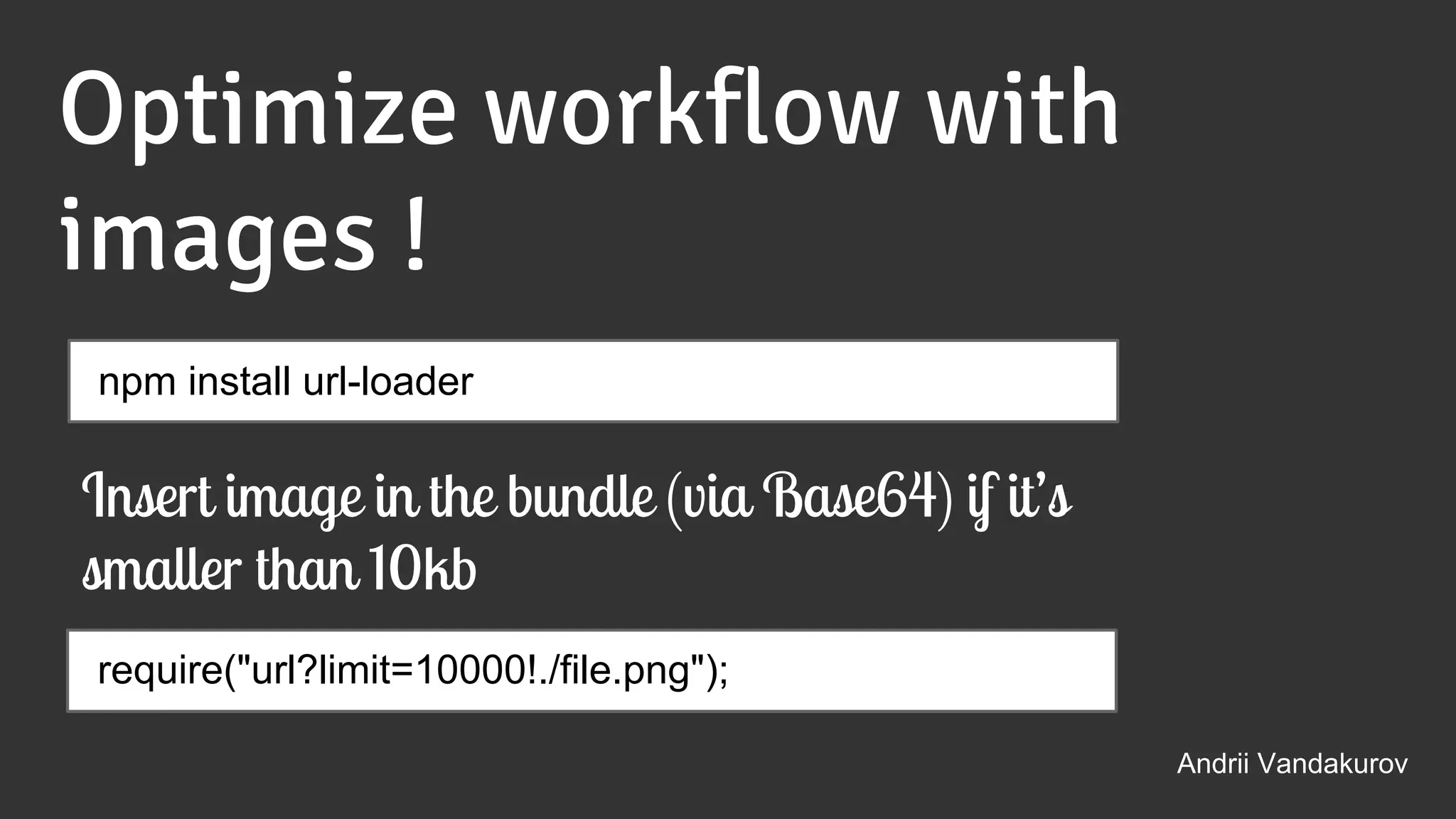

Optimize workflow with
images !
npm install url-loader
require("url?limit=10000!./file.png");
Insert image in the bundle (via Base64) if it’s
smaller than 10kb

<!DOCTYPE html>
<html lang="en">
<head>
</head>
<body>
Hello world
<script src="bundle.js"></script>
</body>
</html>

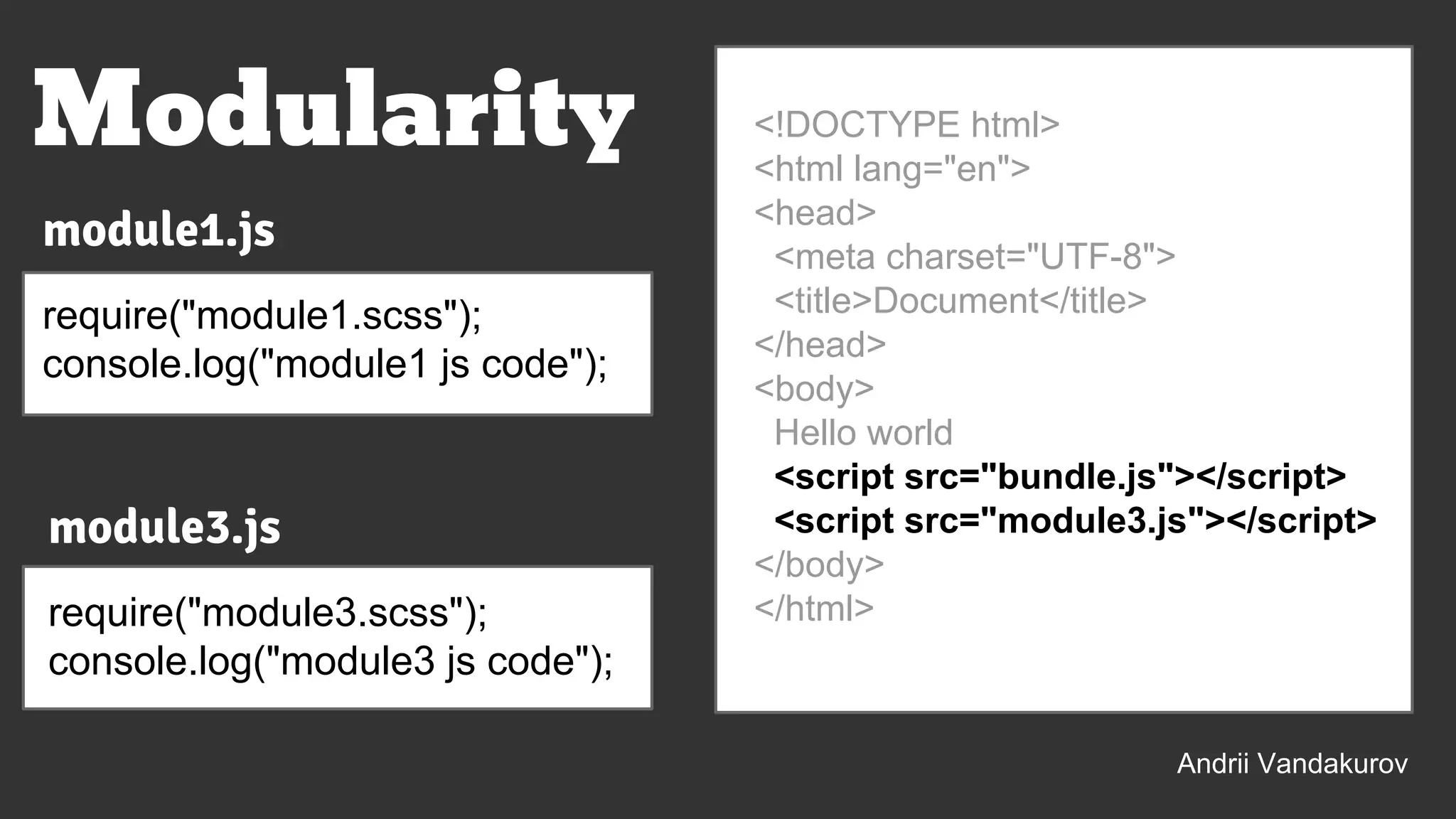

Modularity
module1.js
require("module1.scss");
console.log("module1 js code");
module3.js
require("module3.scss");
console.log("module3 js code");
Andrii Vandakurov

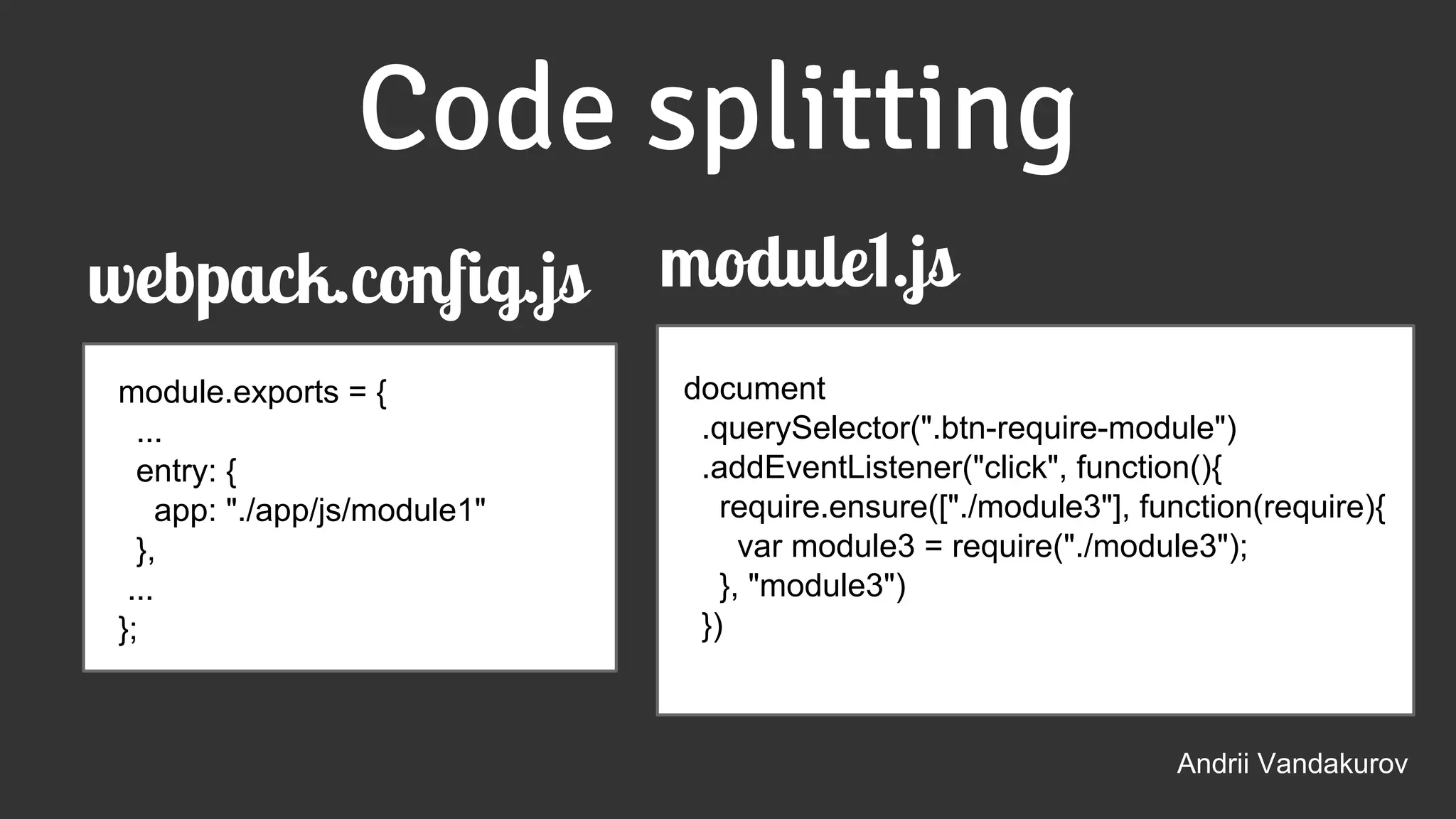

module.exports = {
...
entry: {
app: "./app/js/module1"
},
...
};
document
.querySelector(".btn-require-module")
.addEventListener("click", function(){
require.ensure(["./module3"], function(require){
var module3 = require("./module3");
}, "module3")
})
Andrii Vandakurov
Code splitting
webpack.config.js module1.js

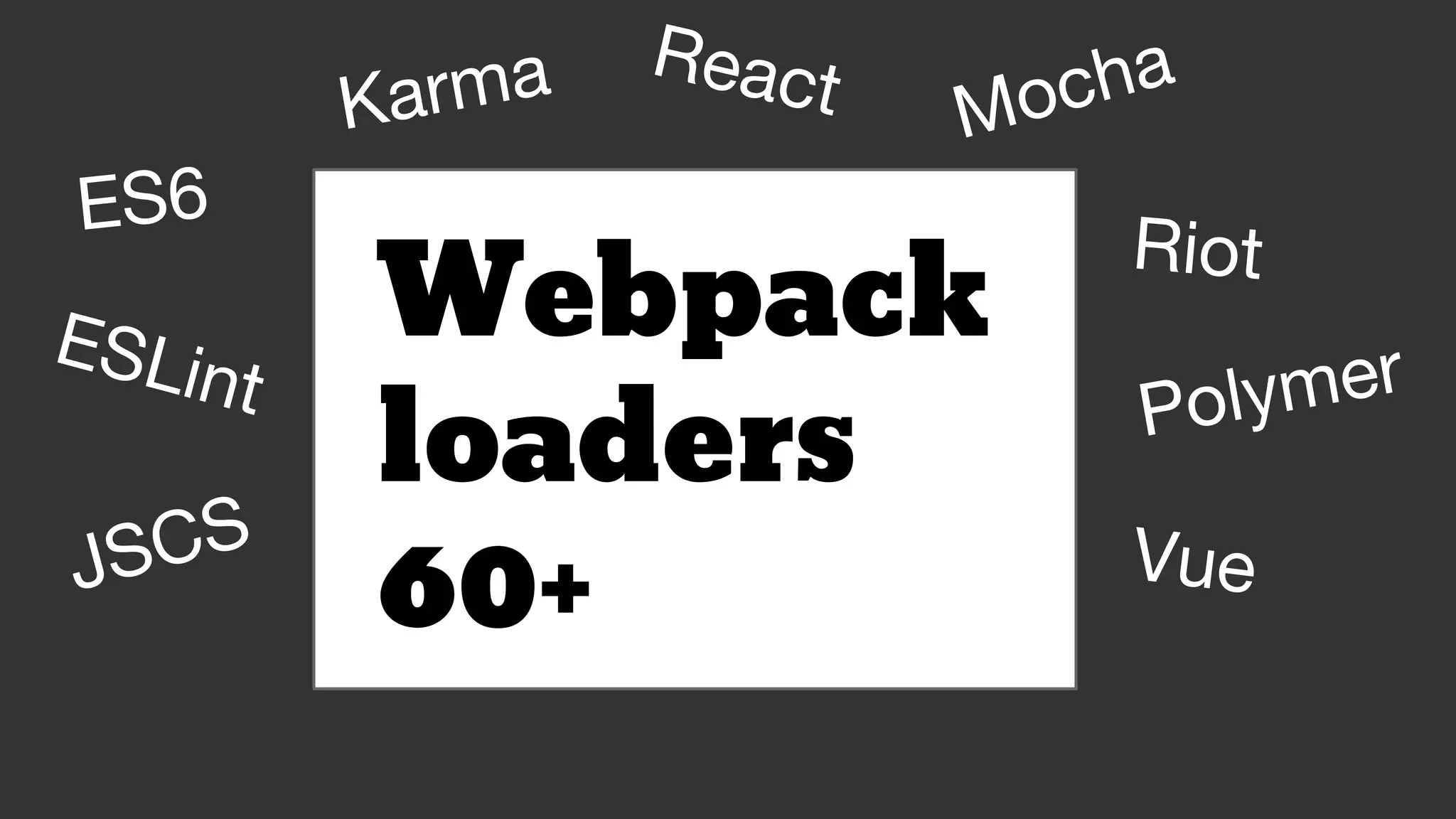

Webpack
loaders
60+
ES6
ESLint
JSCS
Mocha
Karma React
Riot
Polymer
Vue

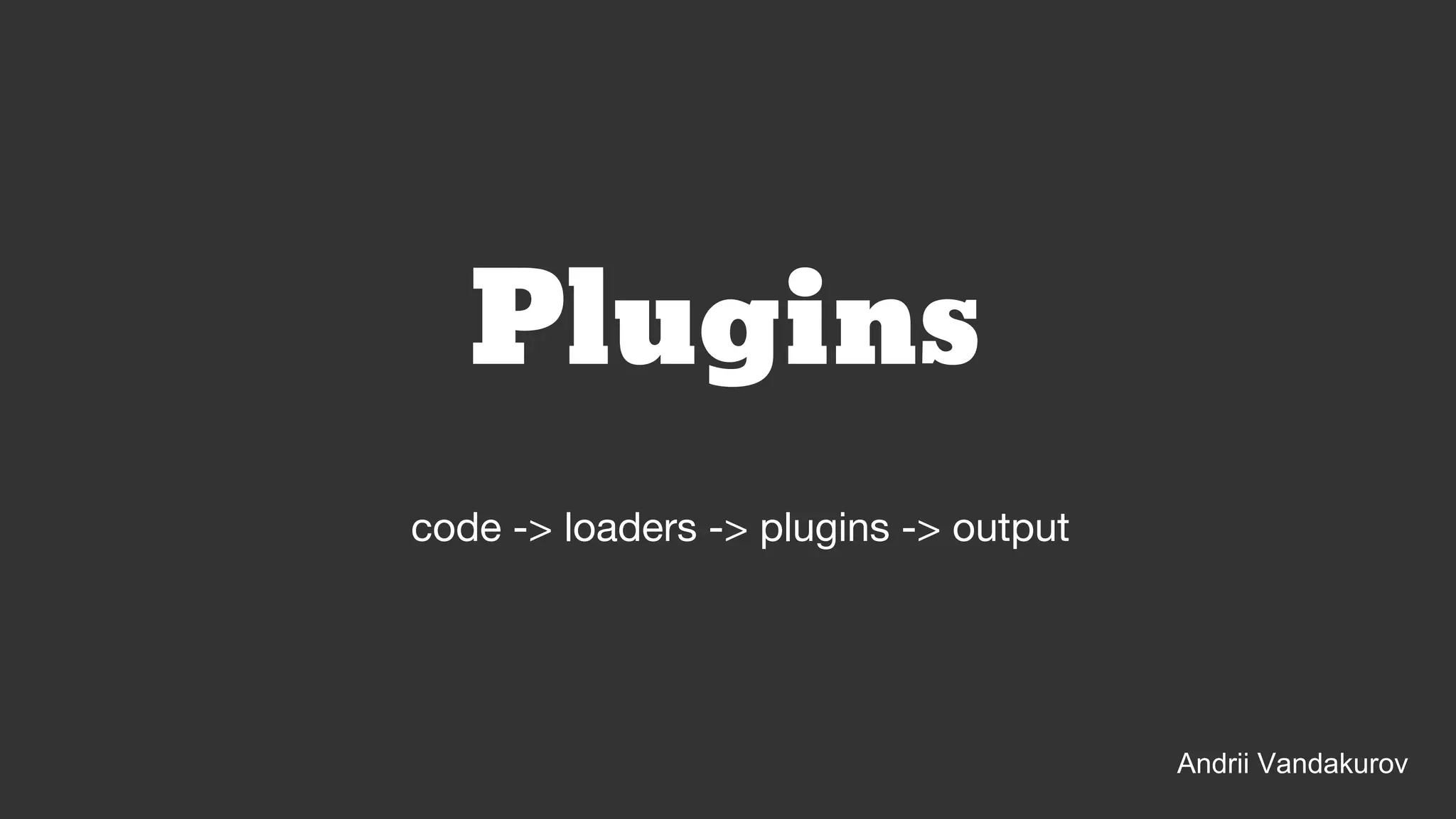

Plugins
Andrii Vandakurov
code -> loaders -> plugins -> output

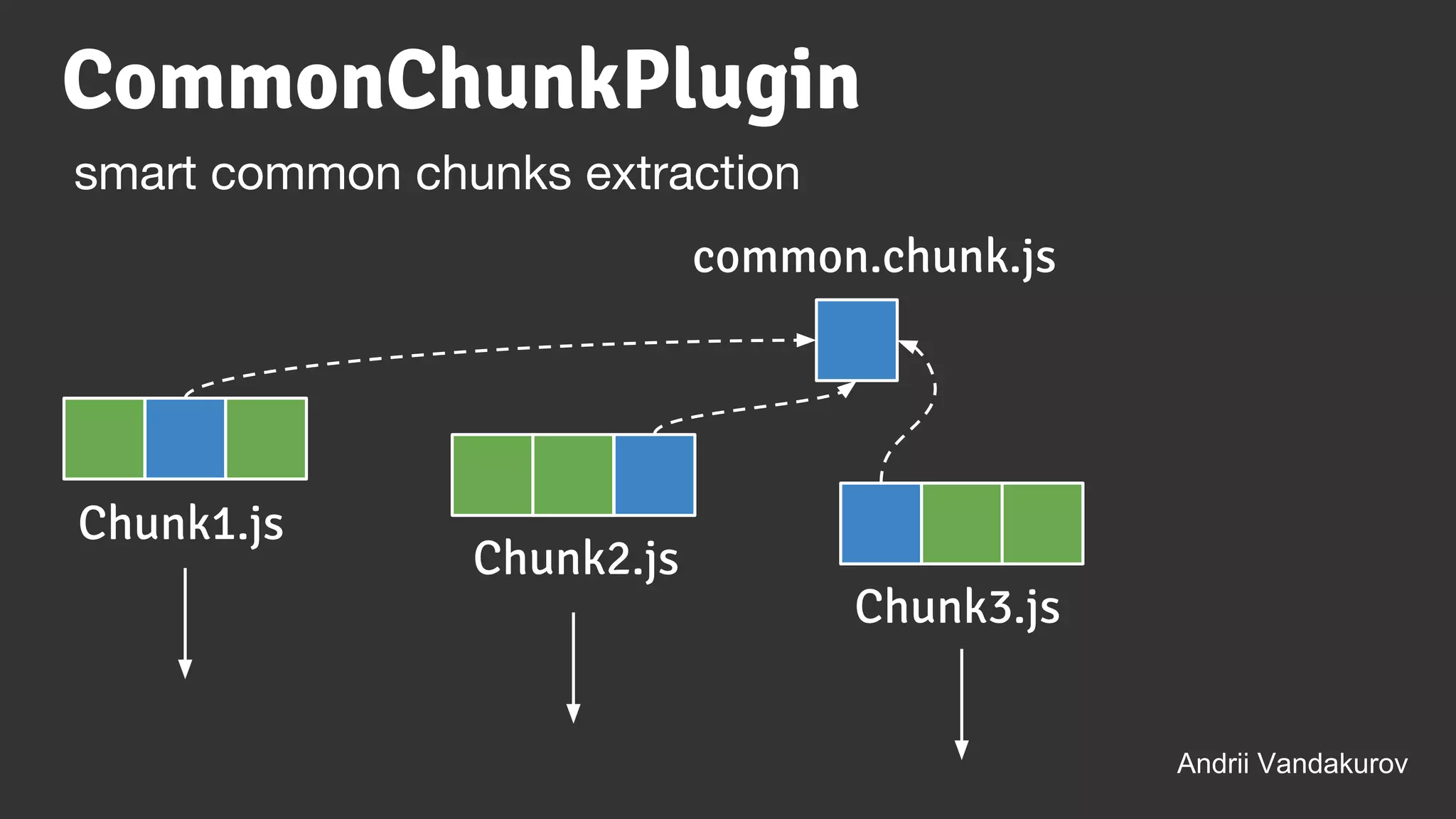

CommonChunkPlugin
Andrii Vandakurov
smart common chunks extraction
Chunk1.js
Chunk2.js
Chunk3.js
common.chunk.js

module.exports = {
...
plugins: [
new webpack.optimize.CommonsChunkPlugin("commons", "commons.js")
]
};
require(“./module4”)
console.log(“This is module 1”);
Andrii Vandakurov
module1.js
require(“./module4”)
console.log(“This is module 3”);
module3.js
CommonChunkPlugin

module.exports = {
…
plugins: [
new webpack.DefinePlugin({
ENV: JSON.stringify("dev")
})
]
};
Somewhere in your code:
if(ENV === "dev"){
console.log("Its dev");
}else{
console.log("Its NOT dev");
}
Andrii Vandakurov
DefinePlugin
injects free variables into your code without using global scope
webpack.config.js

module.exports = {
…
plugins: [
new webpack.ProvidePlugin({
"React": "react"
})
]
};
Somewhere in your code:
module.export = React.createClass({
...
})
Andrii Vandakurov
ProvidePlugin
Prevent from ‘require’ module in each file

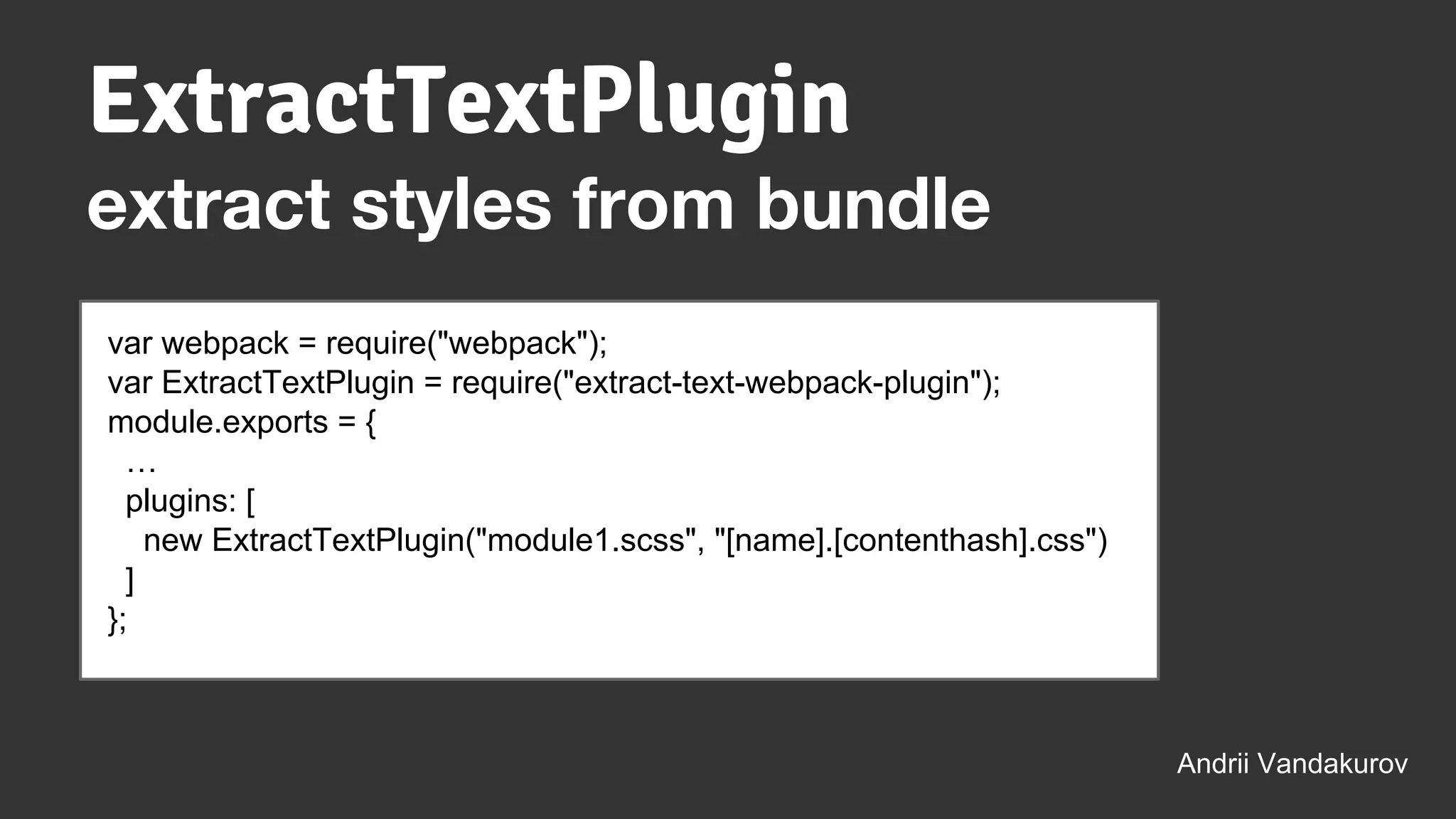

ExtractTextPlugin
var ExtractTextPlugin = require("extract-text-webpack-plugin");
module.exports = {
…
plugins: [
new ExtractTextPlugin("module1.scss", "[name].[contenthash].css")
]
};
Andrii Vandakurov
extract styles from bundle

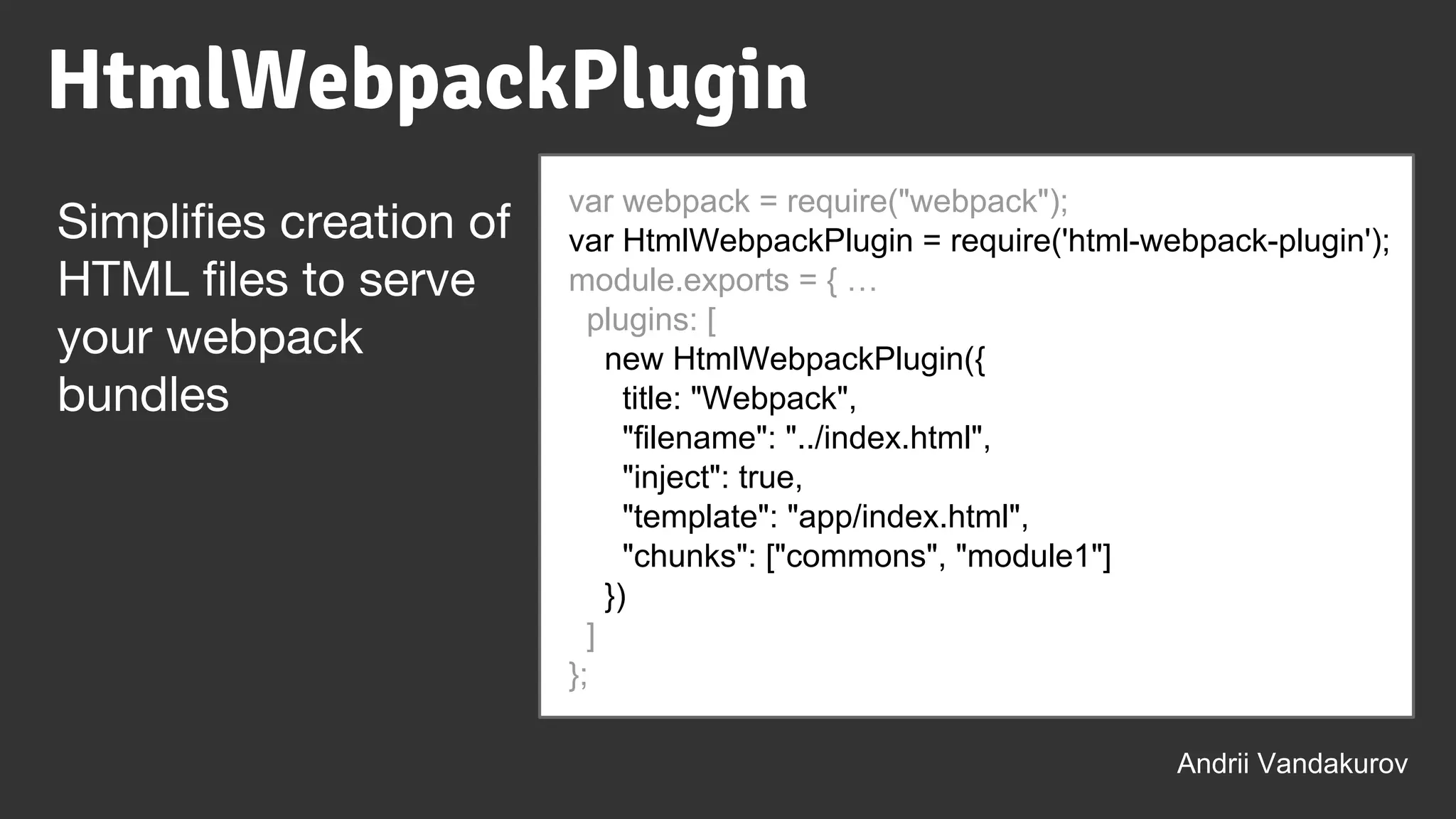

var HtmlWebpackPlugin = require('html-webpack-plugin');
module.exports = { …
plugins: [
new HtmlWebpackPlugin({
title: "Webpack",
"filename": "../index.html",
"inject": true,
"template": "app/index.html",
"chunks": ["commons", "module1"]
})
]
};
Andrii Vandakurov
Simplifies creation of
HTML files to serve
your webpack
bundles
HtmlWebpackPlugin

DevServer
Andrii Vandakurov
Express.js (NodeJs) server which has a little
runtime which is connected to the server via
Socket.IO. The server emits information about
the compilation state to the client, which reacts
to those events.

Andrii Vandakurov

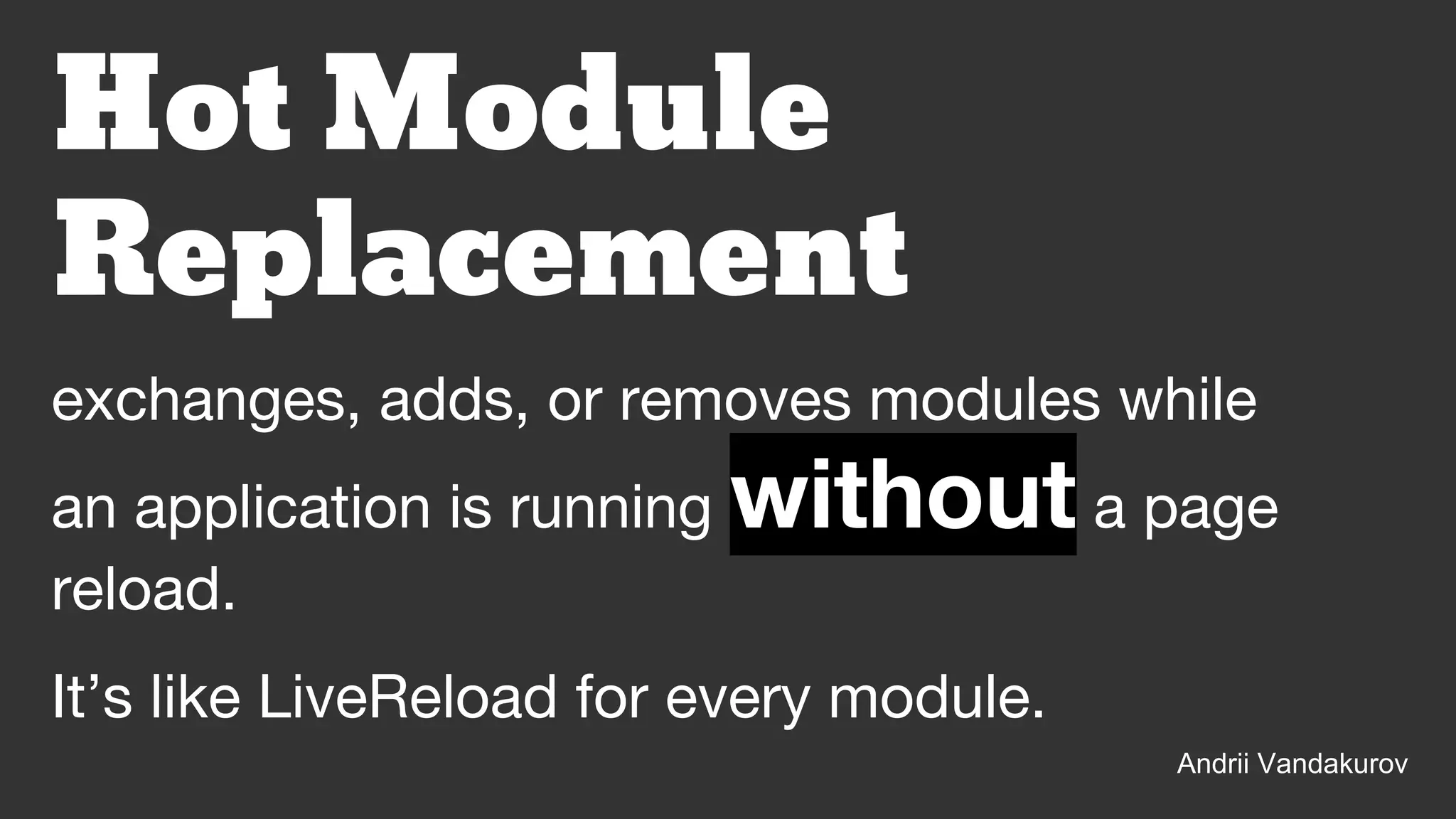

exchanges, adds, or removes modules while
an application is running without a page
reload.
Hot Module
Replacement
It’s like LiveReload for every module.

Dependencies
visualization
1. webpack --json > stats.json
2. go to http://goo.gl/b0kzNZ
3. Check your dependencies graph

Links
Andrii Vandakurov
1. Webpack official site
2. Examples
Inspired by
● Алексадр Ткаленко slides
● Alexandrine Boissière slides
Andrii Vandakurov
