GENERAL PRODUCT CATALOGUE 2023 PERFORMANCE INNOVATION VALUE RE-ENGINEERED

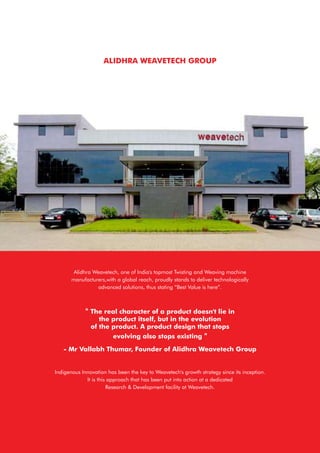

Alidhra Weavetech, one of India's topmost Twisting and Weaving machine manufacturers,with a global reach, proudly stands to deliver technologically advanced solutions, thus stating “Best Value is here”. " The real character of a product doesn't lie in the product itself, but in the evolution of the product. A product design that stops evolving also stops existing " - Mr Vallabh Thumar, Founder of Alidhra Weavetech Group Indigenous Innovation has been the key to Weavetech's growth strategy since its inception. It is this approach that has been put into action at a dedicated Research & Development facility at Weavetech. ALIDHRA WEAVETECH GROUP

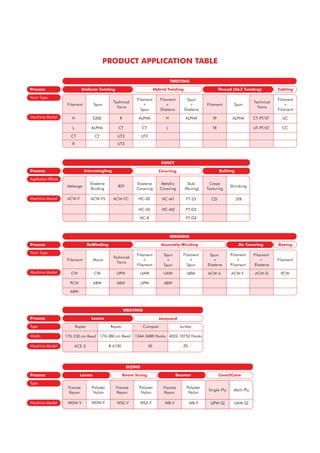

PRODUCT APPLICATION TABLE Process Yarn Type Machine Model Cabling Filament Spun Technical Yarns Technical Yarns Filament + Spun Filament + Elastene Spun + Elastene Filament Spun Filament + Filament TP TR CT-PT/ST UT-PT/ST UC CC S200 ALPHA ALPHA ALPHA ALPHA CT UT2 H L H L CT CT R R CT UT2 UT3 Uniform Twisting Hybrid Twisting Thread (S&Z Twisting) TWISTING Spun + Elastene Filament + Elastene CW PCW CW ABW ABW ABW ACW-S ACW-F ACW-D PCW UPW ABW UAW UAW UPW ABW Process Yarn Type Machine Model Dyeing Filament Mono Filament Technical Yarns Filament Filament + Filament Filament + Filament Spun + Spun Spun + ReWinding Assembly Winding Air Covering WINDING Elastene Binding Elastene Covering Metallic Covering Slub (Roving) Crepe Texturing Shrinking ACW-F ACW-FS ACW-FC HC-02 HC-M1 FT-S3 CD STR HC-03 HC-M2 FT-D2 HC-R FT-D3 Process Application Effects Machine Model Melange BSY Intermingling Covering Bulking FANCY 170-230 cm Reed 170-380 cm Reed 1344-2688 Hooks 4032-10752 Hooks ACE-3 R-6100 SX ZX Compact Jumbo Process Type Machine Model Width Rapier Rapier Looms Jacquard WEAVING Viscose Rayon Viscose Rayon Viscose Rayon Polyster Nylon Polyster Nylon Polyster Nylon Single-Ply Multi-Ply WDW-V WDW-F WSZ-V WSZ-F WB-V WB-F UPW-SZ UAW-SZ Process Type Machine Model Looms Beamer Beam Sizing Cone2Cone SIZING

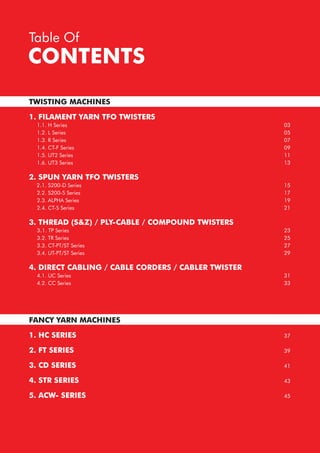

CONTENTS Table Of TWISTING MACHINES 1. FILAMENT YARN TFO TWISTERS 1.1. H Series 1.2. L Series 1.3. R Series 1.4. CT-F Series 1.5. UT2 Series 1.6. UT3 Series 2. SPUN YARN TFO TWISTERS 2.1. S200-D Series 2.2. S200-S Series 2.3. ALPHA Series 2.4. CT-S Series 3. THREAD (S&Z) / PLY-CABLE / COMPOUND TWISTERS 3.1. TP Series 3.2. TR Series 3.3. CT-PT/ST Series 3.4. UT-PT/ST Series 4. DIRECT CABLING / CABLE CORDERS / CABLER TWISTER 4.1. UC Series 4.2. CC Series FANCY YARN MACHINES 1. HC SERIES 2. FT SERIES 3. CD SERIES 4. STR SERIES 5. ACW- SERIES 03 05 07 09 11 13 15 17 19 21 23 25 27 29 31 33 37 39 41 43 45

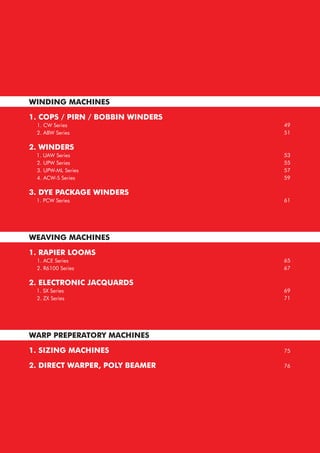

WINDING MACHINES 1. COPS / PIRN / BOBBIN WINDERS 1. CW Series 2. ABW Series 2. WINDERS 1. UAW Series 2. UPW Series 3. UPW-ML Series 4. ACW-S Series 3. DYE PACKAGE WINDERS 1. PCW Series WEAVING MACHINES 1. RAPIER LOOMS 1. ACE Series 2. R6100 Series 2. ELECTRONIC JACQUARDS 1. SX Series 2. ZX Series WARP PREPERATORY MACHINES 1. SIZING MACHINES 2. DIRECT WARPER, POLY BEAMER 49 51 53 55 57 59 61 65 67 69 71 75 76
DESIGNED WITH ENERGY EFFICIENT SOLUTIONS

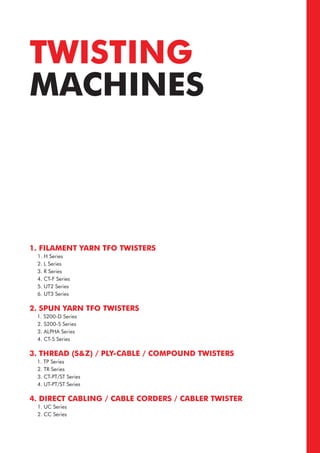

TWISTING MACHINES 1. FILAMENT YARN TFO TWISTERS 1. H Series 2. L Series 3. R Series 4. CT-F Series 5. UT2 Series 6. UT3 Series 2. SPUN YARN TFO TWISTERS 1. S200-D Series 2. S200-S Series 3. ALPHA Series 4. CT-S Series 3. THREAD (S&Z) / PLY-CABLE / COMPOUND TWISTERS 1. TP Series 2. TR Series 3. CT-PT/ST Series 4. UT-PT/ST Series 4. DIRECT CABLING / CABLE CORDERS / CABLER TWISTER 1. UC Series 2. CC Series

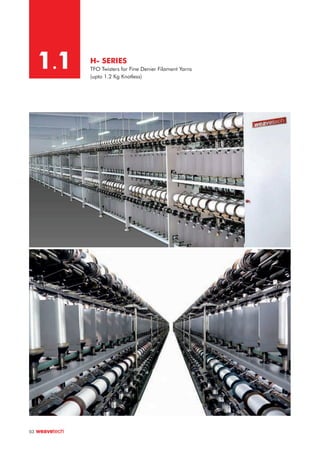

H- SERIES TFO Twisters for Fine Denier Filament Yarns (upto 1.2 Kg Knotless) 1.1 03
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Imparting High TPM on fine denier Filament yarns. Up to 45 mtrs/min (Mech) Up to 16000 RPM (Mech) Filaments: Polyester, Nylon, Viscose Rayon, Bemberg, BSY etc Up to 1.2 Kg Flanged Bobbins / Parellale Tube (100-170mm) 20 ... 150 denier 300 ... 3300 TPM 60mm, 70mm, 80mm, 90mm Central BiConical Tapering, Edge Breaking & Anti-Patterning H10-Eco, H10, H9, H8, H7 MARKET SEGMENT Low GSM light-weight garment & liner fabrics, mainly used in womens' wear. NOTES: 04 Scan for more details

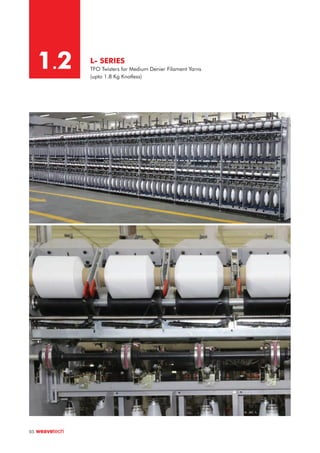

L- SERIES TFO Twisters for Medium Denier Filament Yarns (upto 1.8 Kg Knotless) 1.2 05

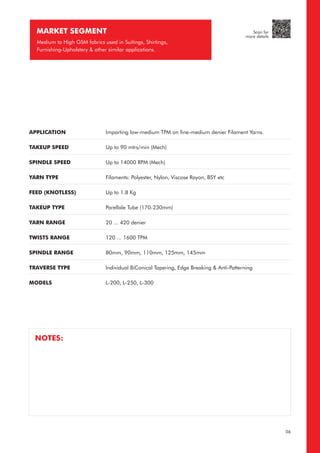

MARKET SEGMENT Medium to High GSM fabrics used in Suitings, Shirtings, Furnishing-Upholstery & other similar applications. APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Imparting low-medium TPM on fine-medium denier Filament Yarns. Up to 90 mtrs/min (Mech) Up to 14000 RPM (Mech) Filaments: Polyester, Nylon, Viscose Rayon, BSY etc Up to 1.8 Kg Parellale Tube (170-230mm) 20 ... 420 denier 120 ... 1600 TPM 80mm, 90mm, 110mm, 125mm, 145mm Individual BiConical Tapering, Edge Breaking & Anti-Patterning L-200, L-250, L-300 06 NOTES: Scan for more details

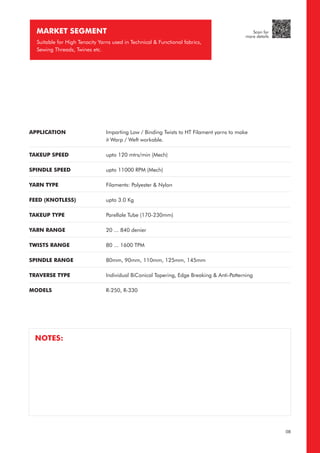

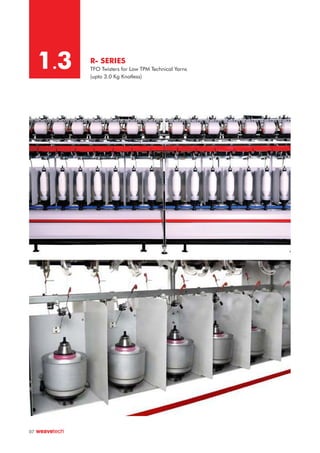

R- SERIES TFO Twisters for Low TPM Technical Yarns (upto 3.0 Kg Knotless) 1.3 07
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Imparting Low / Binding Twists to HT Filament yarns to make it Warp / Weft workable. upto 120 mtrs/min (Mech) upto 11000 RPM (Mech) Filaments: Polyester & Nylon upto 3.0 Kg Parellale Tube (170-230mm) 20 ... 840 denier 80 ... 1600 TPM 80mm, 90mm, 110mm, 125mm, 145mm Individual BiConical Tapering, Edge Breaking & Anti-Patterning R-250, R-330 MARKET SEGMENT Suitable for High Tenacity Yarns used in Technical & Functional fabrics, Sewing Threads, Twines etc. NOTES: 08 Scan for more details

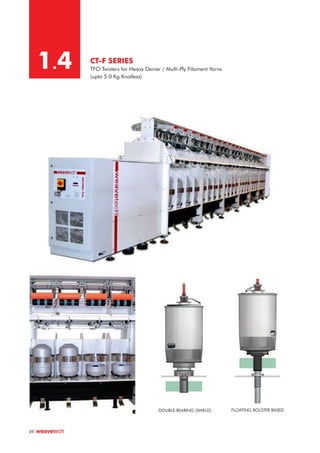

DOUBLE BEARING (SHIELD) FLOATING BOLSTER BASED CT-F SERIES TFO Twisters for Heavy Denier / Multi-Ply Filament Yarns (upto 5.0 Kg Knotless) 1.4 09
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Imparting Low / Binding Twists to Heavy Deniers to ensure workability of multi-ply yarns. Up to 120 mtrs/min (Mech) Up to 7000 RPM (Mech) (Belt Drive) Filaments / Multi-Ply Yarns Up to 5.0 Kg Parellale Tube (290mm) 300 ... 6000 denier 50 ... 400 TPM 190mm , 230mm , 150mm Parallel Cheese, Edge Breaking & Anti-Patterning CT-380, CT-380-PT, CT-380-ST MARKET SEGMENT - Multi-Ply Heavy Deniers used in Technical & Functional Applications like Twines, Carpets, Rugs - Applications that benefit from large knotless packages NOTES: 10 Scan for more details

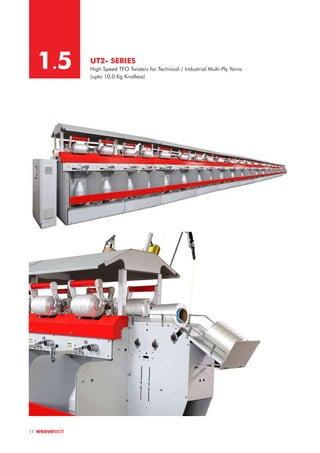

UT2- SERIES High Speed TFO Twisters for Technical / Industrial Multi-Ply Yarns (upto 10.0 Kg Knotless) 1.5 11

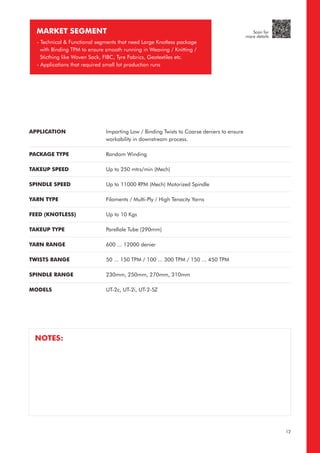

APPLICATION PACKAGE TYPE TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE MODELS Imparting Low / Binding Twists to Coarse deniers to ensure workability in downstream process. Random Winding Up to 250 mtrs/min (Mech) Up to 11000 RPM (Mech) Motorized Spindle Filaments / Multi-Ply / High Tenacity Yarns Up to 10 Kgs Parellale Tube (290mm) 600 ... 12000 denier 50 ... 150 TPM / 100 ... 300 TPM / 150 ... 450 TPM 230mm, 250mm, 270mm, 310mm UT-2c, UT-2i, UT-2-SZ MARKET SEGMENT - Technical & Functional segments that need Large Knotless package with Binding TPM to ensure smooth running in Weaving / Knitting / Sticthing like Woven Sack, FIBC, Tyre Fabrics, Geotextiles etc. - Applications that required small lot production runs NOTES: 12 Scan for more details

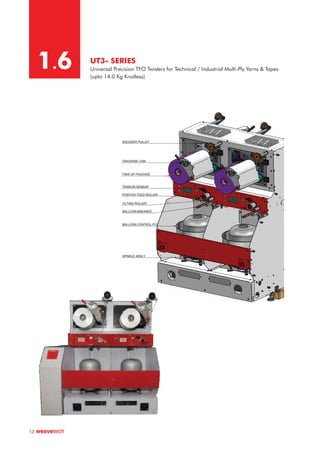

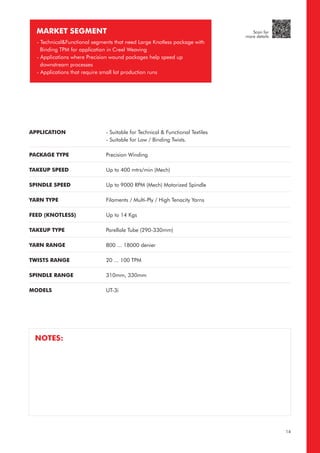

UT3- SERIES Universal Precision TFO Twisters for Technical / Industrial Multi-Ply Yarns & Tapes (upto 14.0 Kg Knotless) 1.6 13 ENCODER PULLEY TRAVERSE CAM TAKE-UP PACKAGE BALLOON BREAKER BALLOON CONTROL POT SPINDLE ASSLY POSITIVE FEED ROLLER TILTING ROLLER TENSION SENSOR
APPLICATION PACKAGE TYPE TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE MODELS - Suitable for Technical & Functional Textiles - Suitable for Low / Binding Twists. Precision Winding Up to 400 mtrs/min (Mech) Up to 9000 RPM (Mech) Motorized Spindle Filaments / Multi-Ply / High Tenacity Yarns Up to 14 Kgs Parellale Tube (290-330mm) 800 ... 18000 denier 20 ... 100 TPM 310mm, 330mm UT-3i MARKET SEGMENT - Technical&Functional segments that need Large Knotless package with Binding TPM for application in Creel Weaving - Applications where Precision wound packages help speed up downstream processes - Applications that require small lot production runs NOTES: 14 Scan for more details

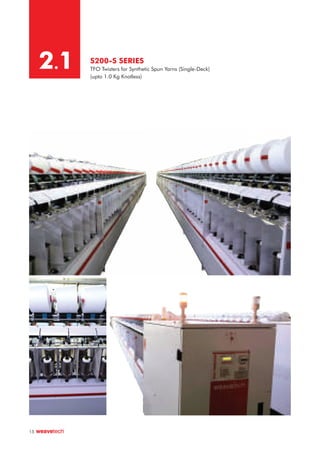

S200-S SERIES TFO Twisters for Synthetic Spun Yarns (Single-Deck) (upto 1.0 Kg Knotless) 2.1 15
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Imparting Twists on fine to medium count Spun yarns. Up to 50 mtrs/min (Mech) Up to 11000 RPM (Mech) Spun Yarns (Synthetic & Blends) Up to 1.0 Kg Central Shaft Mounted Cradles w/ Taper Tubes 5 ... 50 Ne (Resultant) 160 ... 1600 TPM / 4 ... 40 TPi 110mm, 125mm, 135mm Parellale Cheese, Edge Breaking & Anti-Patterning S200-S (Single-Deck) MARKET SEGMENT Job Workers & independent Twisters looking for a low-cost machine with basic features without compromise in quality, mainly for Synthetic Yarns NOTES: 16 Scan for more details

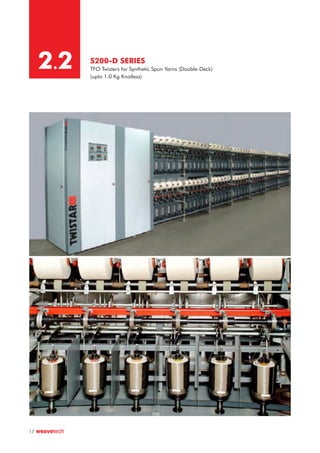

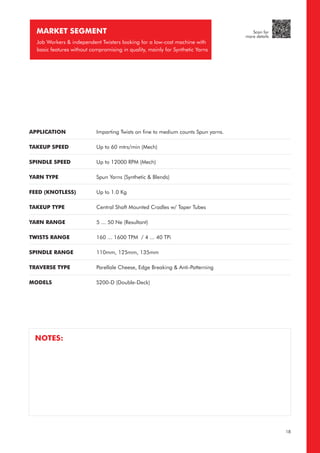

S200-D SERIES TFO Twisters for Synthetic Spun Yarns (Double-Deck) (upto 1.0 Kg Knotless) 2.2 17
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Imparting Twists on fine to medium counts Spun yarns. Up to 60 mtrs/min (Mech) Up to 12000 RPM (Mech) Spun Yarns (Synthetic & Blends) Up to 1.0 Kg Central Shaft Mounted Cradles w/ Taper Tubes 5 ... 50 Ne (Resultant) 160 ... 1600 TPM / 4 ... 40 TPi 110mm, 125mm, 135mm Parellale Cheese, Edge Breaking & Anti-Patterning S200-D (Double-Deck) MARKET SEGMENT Job Workers & independent Twisters looking for a low-cost machine with basic features without compromising in quality, mainly for Synthetic Yarns NOTES: 18 Scan for more details

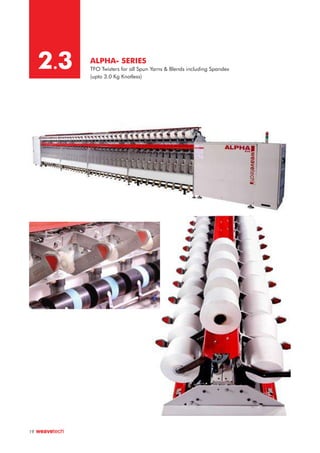

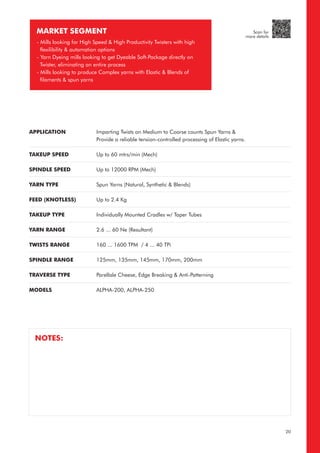

ALPHA- SERIES TFO Twisters for all Spun Yarns & Blends including Spandex (upto 3.0 Kg Knotless) 2.3 19
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Imparting Twists on Medium to Coarse counts Spun Yarns & Provide a reliable tension-controlled processing of Elastic yarns. Up to 60 mtrs/min (Mech) Up to 12000 RPM (Mech) Spun Yarns (Natural, Synthetic & Blends) Up to 2.4 Kg Individually Mounted Cradles w/ Taper Tubes 2.6 ... 60 Ne (Resultant) 160 ... 1600 TPM / 4 ... 40 TPi 125mm, 135mm, 145mm, 170mm, 200mm Parellale Cheese, Edge Breaking & Anti-Patterning ALPHA-200, ALPHA-250 MARKET SEGMENT - Mills looking for High Speed & High Productivity Twisters with high flexilibility & automation options - Yarn Dyeing mills looking to get Dyeable Soft-Package directly on Twister, eliminating an entire process - Mills looking to produce Complex yarns with Elastic & Blends of filaments & spun yarns NOTES: 20 Scan for more details
CT-S SERIES TFO Twisters for Coarse Counts / Multi-Ply Spun Yarns (upto 5.0 Kg Knotless) 2.4 21 DOUBLE BEARING (SHIELD) FLOATING BOLSTER BASED
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Imparting Low / Binding Twists to Coarse Counts to ensure workability of multi-ply yarns. Up to 120 mtrs/min (Mech) Up to 7000 RPM (Mech) (Belt Drive) Spun Multi-Ply Yarns Up to 5.0 Kg Parellale Tube (290mm) (10-inch Traverse) 10 ... 0.5 Ne (resultant) 1.2 ... 10 TPi 190mm , 230mm , 150mm Parellale Cheese, Edge Breaking & Anti-Patterning CT-380-SP MARKET SEGMENT - Multi-Ply Coarse Counts used in Technical & Functional Applications like Twines, Mops, Carpets, Rugs - Applications that benefit from Large knotless packages NOTES: 22 Scan for more details

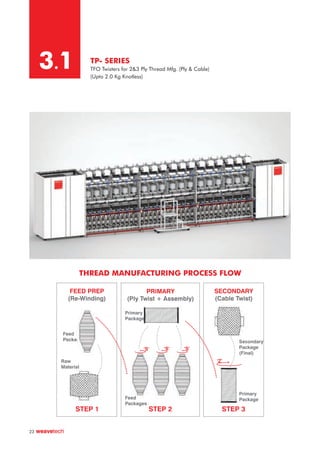

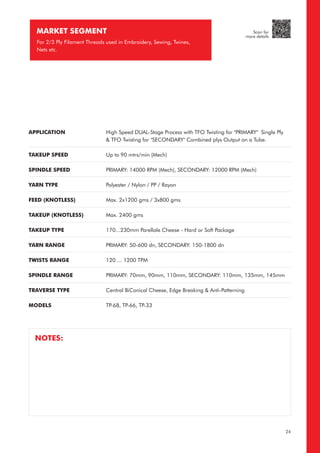

TP- SERIES TFO Twisters for 2&3 Ply Thread Mfg. (Ply & Cable) (Upto 2.0 Kg Knotless) THREAD MANUFACTURING PROCESS FLOW 3.1 23
MARKET SEGMENT For 2/3 Ply Filament Threads used in Embroidery, Sewing, Twines, Nets etc. APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS High Speed DUAL-Stage Process with TFO Twisting for "PRIMARY" Single Ply & TFO Twisting for "SECONDARY" Combined plys Output on a Tube. Up to 90 mtrs/min (Mech) PRIMARY: 14000 RPM (Mech), SECONDARY: 12000 RPM (Mech) Polyester / Nylon / PP / Rayon Max. 2x1200 gms / 3x800 gms Max. 2400 gms 170...230mm Parellale Cheese - Hard or Soft Package PRIMARY: 50-600 dn, SECONDARY: 150-1800 dn 120 ... 1200 TPM PRIMARY: 70mm, 90mm, 110mm, SECONDARY: 110mm, 135mm, 145mm Central BiConical Cheese, Edge Breaking & Anti-Patterning TP-68, TP-66, TP-33 NOTES: 24 Scan for more details

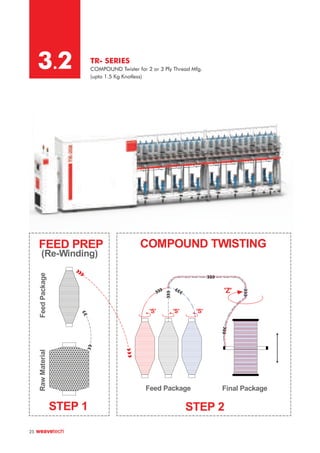

FEED PREP (Re-Winding) Feed Package Raw Material STEP 1 COMPOUND TWISTING STEP 2 'S' 'S' 'S' 'Z' Feed Package Final Package TR- SERIES COMPOUND Twister for 2 or 3 Ply Thread Mfg. (upto 1.5 Kg Knotless) 3.2 25
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Low Speed SINGLE-Stage Process with TFO Twisting for "PRIMARY" Single Ply & OFO Ring Twisting for "SECONDARY" Combined ply, output on a Bobbin. Up to 30 mtrs/min (Mech) TFO Primary: 6000 RPM (Mech) RING Secondary: 9000 RPM (Mech) Polyester / Nylon / Rayon / HT Yarns Max. 2x1000 gms / 3x1000 gms Max. 1000 gms / Max. 1500 gms Flanged Bobbin (L: 200-300mm) 30 ... 300 denier (resultant) 600-2400 TPM 60mm, 70mm, 90mm, 110mm Pirn Winding Type, Parellale Winding TR-250-2P , TR-250-3P MARKET SEGMENT - For 2/3 Ply Filament Threads used in Embroidery & Sewing Yarns that require low-tension processing or better bulk NOTES: 26 Scan for more details

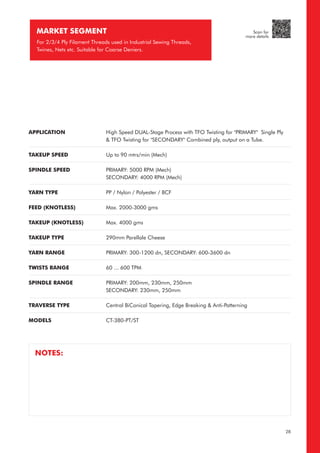

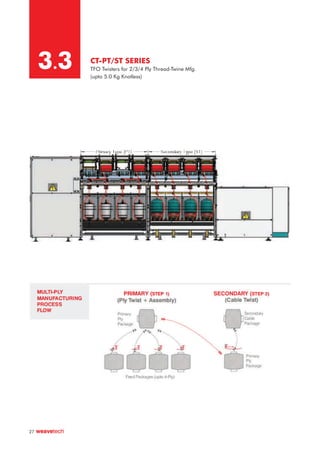

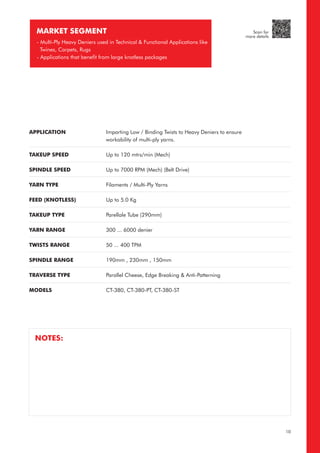

CT-PT/ST SERIES TFO Twisters for 2/3/4 Ply Thread-Twine Mfg. (upto 5.0 Kg Knotless) 3.3 27
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS High Speed DUAL-Stage Process with TFO Twisting for "PRIMARY" Single Ply & TFO Twisting for "SECONDARY" Combined ply, output on a Tube. Up to 90 mtrs/min (Mech) PRIMARY: 5000 RPM (Mech) SECONDARY: 4000 RPM (Mech) PP / Nylon / Polyester / BCF Max. 2000-3000 gms Max. 4000 gms 290mm Parellale Cheese PRIMARY: 300-1200 dn, SECONDARY: 600-3600 dn 60 ... 600 TPM PRIMARY: 200mm, 230mm, 250mm SECONDARY: 230mm, 250mm Central BiConical Tapering, Edge Breaking & Anti-Patterning CT-380-PT/ST MARKET SEGMENT For 2/3/4 Ply Filament Threads used in Industrial Sewing Threads, Twines, Nets etc. Suitable for Coarse Deniers. 28 NOTES: Scan for more details
UT2-PT/ST SERIES TFO Twisters for 2/3/4 Ply Thread-Twine Mfg. (upto 10.0 Kg Knotless) 3.4 29
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Large Package, High Speed DUAL-Stage Process with TFO Twisting for "PRIMARY" Single Ply & TFO Twisting for "SECONDARY" Combined ply, output on a Tube. Up to 150 mtrs/min (Mech) PRIMARY: 10000 RPM (Mech) SECONDARY: 9000 RPM (Mech) High Tenacity type: PP / Nylon / Polyester Max. 10000 gms Max. 8000 gms 290mm Parellale Cheese PRIMARY: 800-4000 dn, SECONDARY: 1600-16000 dn 60 ... 600 TPM PRIMARY: 250mm, 300mm SECONDARY: 300mm, 330mm Central BiConical Tapering, Edge Breaking & Anti-Patterning UT2-PT/ST MARKET SEGMENT For 2/3/4 Ply Filament Threads used in Industrial Sewing Threads, Twines, Nets etc. Suitable for Coarse Deniers. NOTES: 30 Scan for more details

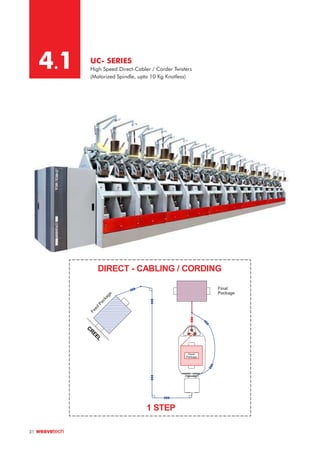

UC- SERIES High Speed Direct-Cabler / Corder Twisters (Motorized Spindle, upto 10 Kg Knotless) 4.1 1 STEP Feed Package C R E E L DIRECT - CABLING / CORDING F e e d P a c k a g e Final Package 31
APPLICATION TAKEUP SPEED SPINDLE YARN TYPE FEED (KNOTLESS) TAKEUP (KNOTLESS) TAKEUP TYPE PLY SENSOR TENSION CONTROL YARN RANGE TWISTS RANGE SPINDLE RANGE MODELS For 2/3 Ply Balanced Filament Threads upto 100 mtrs/min in Cabling & 200 mtrs/min in Twisting Motorized Spindle with Individual Start/Stop (9000 RPM Mech) Polyester / Nylon / PP / Rayon / HT Yarns / BCF Max. 10 Kgs or Dia. 280mm Max. 10 Kgs or Dia. 280mm Auto Cradle Lifting with Collection on Conveyor Tension Sensor with Auto Stop Positions UniTensioner / Hysteresis Break / Cord-Regulator 2/600 ... 2/4500 ... 3/3000 denier 80 ... 800 TPM 200mm, 230mm, 270mm, 300mm, 330mm UC-570, UC-670 MARKET SEGMENT - Tyre Cord, Twines, Cables, Carpet Yarns, FIBC, Industrial Sewing Threads, Geotextiles - Yarns & Fabrics that require better binding for coatings NOTES: 32 Scan for more details

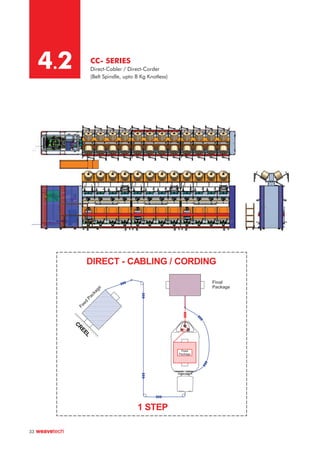

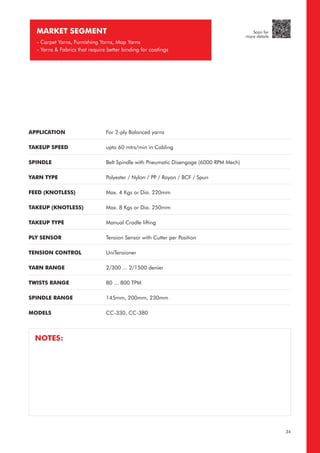

CC- SERIES Direct-Cabler / Direct-Corder (Belt Spindle, upto 8 Kg Knotless) 4.2 33 1 STEP Feed Package C R E E L DIRECT - CABLING / CORDING F e e d P a c k a g e Final Package
APPLICATION TAKEUP SPEED SPINDLE YARN TYPE FEED (KNOTLESS) TAKEUP (KNOTLESS) TAKEUP TYPE PLY SENSOR TENSION CONTROL YARN RANGE TWISTS RANGE SPINDLE RANGE MODELS For 2-ply Balanced yarns upto 60 mtrs/min in Cabling Belt Spindle with Pneumatic Disengage (6000 RPM Mech) Polyester / Nylon / PP / Rayon / BCF / Spun Max. 4 Kgs or Dia. 220mm Max. 8 Kgs or Dia. 250mm Manual Cradle lifting Tension Sensor with Cutter per Position UniTensioner 2/300 ... 2/1500 denier 80 ... 800 TPM 145mm, 200mm, 230mm CC-330, CC-380 MARKET SEGMENT - Carpet Yarns, Furnishing Yarns, Mop Yarns - Yarns & Fabrics that require better binding for coatings NOTES: 34 Scan for more details
INNOVATION INTERLACED WITH DEVELOPMENT

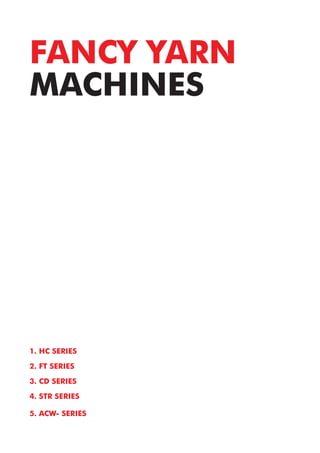

1. HC SERIES 2. FT SERIES 3. CD SERIES 4. STR SERIES 5. ACW- SERIES FANCY YARN MACHINES

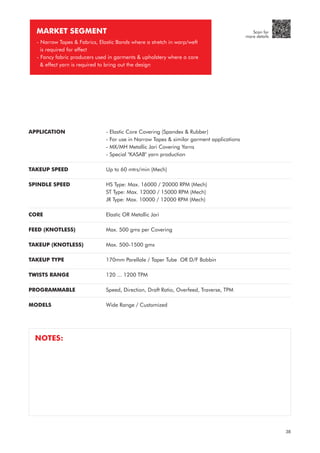

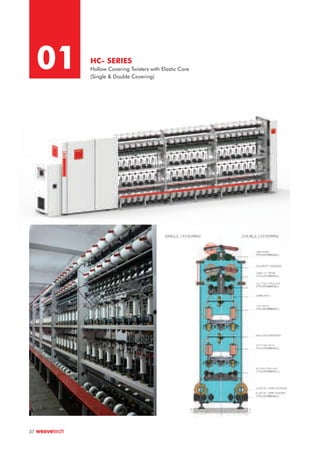

01 HC- SERIES Hollow Covering Twisters with Elastic Core (Single & Double Covering) 37
APPLICATION TAKEUP SPEED SPINDLE SPEED CORE FEED (KNOTLESS) TAKEUP (KNOTLESS) TAKEUP TYPE TWISTS RANGE PROGRAMMABLE MODELS - Elastic Core Covering (Spandex & Rubber) - For use in Narrow Tapes & similar garment applications - MX/MH Metallic Jari Covering Yarns - Special "KASAB" yarn production Up to 60 mtrs/min (Mech) HS Type: Max. 16000 / 20000 RPM (Mech) ST Type: Max. 12000 / 15000 RPM (Mech) JR Type: Max. 10000 / 12000 RPM (Mech) Elastic OR Metallic Jari Max. 500 gms per Covering Max. 500-1500 gms 170mm Parellale / Taper Tube OR D/F Bobbin 120 ... 1200 TPM Speed, Direction, Draft Ratio, Overfeed, Traverse, TPM Wide Range / Customized MARKET SEGMENT - Narrow Tapes & Fabrics, Elastic Bands where a stretch in warp/weft is required for effect - Fancy fabric producers used in garments & upholstery where a core & effect yarn is required to bring out the design NOTES: 38 Scan for more details

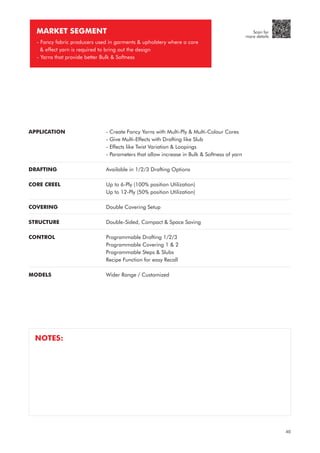

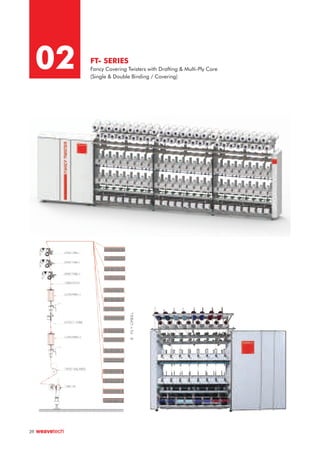

02 FT- SERIES Fancy Covering Twisters with Drafting & Multi-Ply Core (Single & Double Binding / Covering) 39
APPLICATION DRAFTING CORE CREEL COVERING STRUCTURE CONTROL MODELS - Create Fancy Yarns with Multi-Ply & Multi-Colour Cores - Give Multi-Effects with Drafting like Slub - Effects like Twist Variation & Loopings - Parameters that allow increase in Bulk & Softness of yarn Available in 1/2/3 Drafting Options Up to 6-Ply (100% position Utilization) Up to 12-Ply (50% position Utilization) Double Covering Setup Double-Sided, Compact & Space Saving Programmable Drafting 1/2/3 Programmable Covering 1 & 2 Programmable Steps & Slubs Recipe Function for easy Recall Wider Range / Customized MARKET SEGMENT - Fancy fabric producers used in garments & upholstery where a core & effect yarn is required to bring out the design - Yarns that provide better Bulk & Softness NOTES: 40 Scan for more details

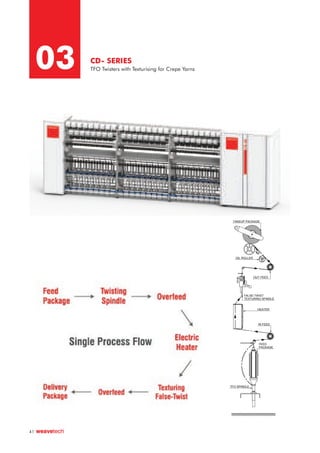

03 CD- SERIES TFO Twisters with Texturising for Crepe Yarns TFO SPINDLE HEATER FALSE-TWIST TEXTURING SPINDLE OUT FEED OIL ROLLER TAKEUP PACKAGE FEED PACKAGE IN FEED 41

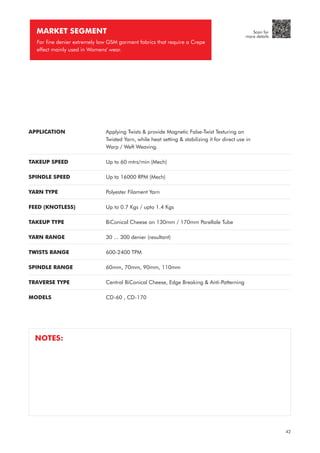

APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Applying Twists & provide Magnetic False-Twist Texturing on Twisted Yarn, while heat setting & stabilizing it for direct use in Warp / Weft Weaving. Up to 60 mtrs/min (Mech) Up to 16000 RPM (Mech) Polyester Filament Yarn Up to 0.7 Kgs / upto 1.4 Kgs BiConical Cheese on 130mm / 170mm Parellale Tube 30 ... 300 denier (resultant) 600-2400 TPM 60mm, 70mm, 90mm, 110mm Central BiConical Cheese, Edge Breaking & Anti-Patterning CD-60 , CD-170 MARKET SEGMENT For fine denier extremely low GSM garment fabrics that require a Crepe effect mainly used in Womens' wear. NOTES: 42 Scan for more details

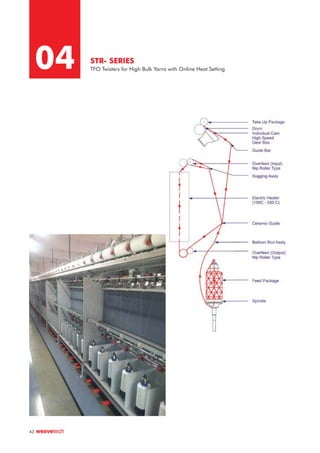

04 STR- SERIES TFO Twisters for High Bulk Yarns with Online Heat Setting 43
APPLICATION TAKEUP SPEED SPINDLE SPEED YARN TYPE FEED (KNOTLESS) TAKEUP TYPE YARN RANGE TWISTS RANGE SPINDLE RANGE TRAVERSE TYPE MODELS Provides Binding Twists before Shrinkage of base yarns through heat setting & stabilitzing, thus creating a soft, volumous yarn that has a stretch effect & zero snarling. Up to 120 mtrs/min (Mech) Up to 9000 RPM (Mech) Filament Yarns with High Shrinkage % Up to 2.4 Kgs 170 / 230mm, Soft Package on Perforated Tubes or Dye-Springs 60 ... 600 denier (resultant) 40 ... 400 TPM 150mm, 200mm, 250mm Parellale Cheese, Edge Breaking & Anti-Patterning STR-250 , STR-330 MARKET SEGMENT - High Skrinkage yarns for Label Weaving / Knitting segments - Heat-Set & Stabilized yarns for High-Tenacity Sewing threads - Applications where continuous Heat-Setting of Twisted yarns can add value to downstream processes NOTES: 44 Scan for more details

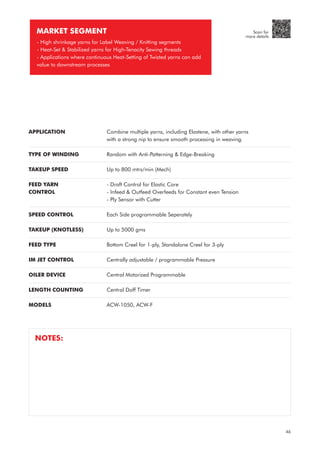

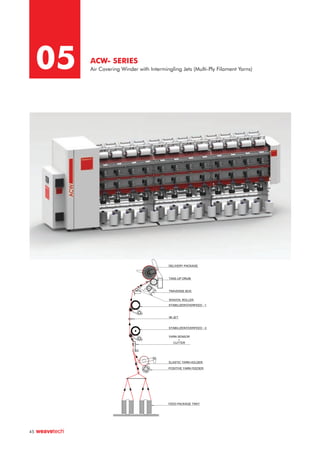

05 ACW- SERIES Air Covering Winder with Intermingling Jets (Multi-Ply Filament Yarns) 45 FEED PACKAGE TRAY ELASTIC YARN HOLDER YARN SENSOR + CUTTER IM JET TRAVERSE BOX TAKE-UP DRUM DELIVERY PACKAGE POSITIVE YARN FEEDER STABILIZER/OVERFEED - 2 WAX/OIL ROLLER STABILIZER/OVERFEED - 1
APPLICATION TYPE OF WINDING TAKEUP SPEED FEED YARN CONTROL SPEED CONTROL TAKEUP (KNOTLESS) FEED TYPE IM JET CONTROL OILER DEVICE LENGTH COUNTING MODELS Combine multiple yarns, including Elastene, with other yarns with a strong nip to ensure smooth processing in weaving. Random with Anti-Patterning & Edge-Breaking Up to 800 mtrs/min (Mech) - Draft Control for Elastic Core - Infeed & Outfeed Overfeeds for Constant even Tension - Ply Sensor with Cutter Each Side programmable Seperately Up to 5000 gms Bottom Creel for 1-ply, Standalone Creel for 3-ply Centrally adjustable / programmable Pressure Central Motorized Programmable Central Doff Timer ACW-1050, ACW-F MARKET SEGMENT - High shrinkage yarns for Label Weaving / Knitting segments - Heat-Set & Stabilized yarns for High-Tenacity Sewing threads - Applications where continuous Heat-Setting of Twisted yarns can add value to downstream processes NOTES: 46 Scan for more details
CUSTOMIZATION COINED TO OFFER BEST VALUE
1. COPS / PIRN / BOBBIN WINDERS 1. CW Series 2. ABW Series 2. CHEESE WINDERS 1. UAW Series 2. UPW Series 3. UPW-ML Series 3. DYE PACKAGE WINDERS 1. PCW Series WINDING MACHINES

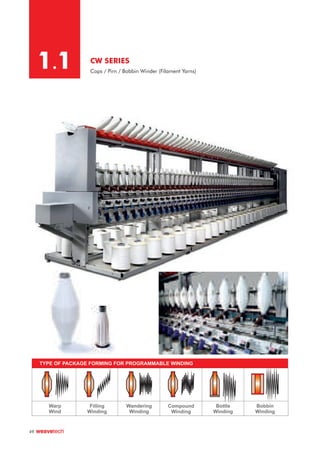

CW SERIES Cops / Pirn / Bobbin Winder (Filament Yarns) 1.1 49
MARKET SEGMENT Fine to Medium Denier Filament Yarns which require low-tension Twisting on TFO Twisters for application in Weaving & Knitting. APPLICATION TYPE OF WINDING TAKEUP SPEED TRAVERSE CONTROL SPEED CONTROL TAKEUP (KNOTLESS) FEED TYPE YARN TENSIONER OILER DEVICE LENGTH COUNTING MODELS Wind Yarn on Cops/Pirn for low-tension unwinding PRECISION: Parellale BiConical, Bottle, Bobbin Shape Up to 700 mtrs/min (Mech) - Electronic Servo w/ Programmable Traverse - Adjustable 200-300mm & 300-400mm - BiConical, Bottle, Bobbin Shapes Programmable Constant MPM with Closed Loop Feedback upto 3000 gms (Depending on Size of Spools & Yarn) Bottom Creel for 1-ply, Standalone Creel for 3-ply Std: Crocodile Type, Option: Motorized Overfeed w/ OLT Central Motorized Programmable Std: Central , Option: Individual Position w/ Cutter CW-165, CW-205, CW-MP NOTES: 50 Scan for more details

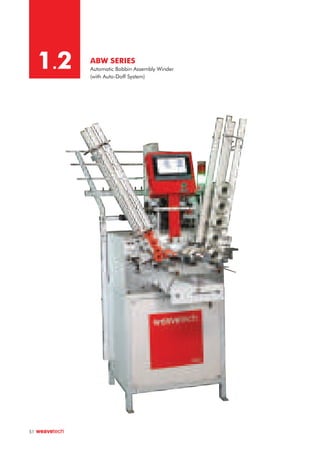

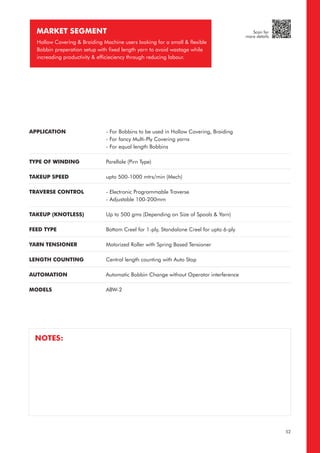

ABW SERIES Automatic Bobbin Assembly Winder (with Auto-Doff System) 1.2 51
MARKET SEGMENT Hollow Covering & Braiding Machine users looking for a small & flexible Bobbin preperation setup with fixed length yarn to avoid wastage while increading productivity & efficieciency through reducing labour. APPLICATION TYPE OF WINDING TAKEUP SPEED TRAVERSE CONTROL TAKEUP (KNOTLESS) FEED TYPE YARN TENSIONER LENGTH COUNTING AUTOMATION MODELS - For Bobbins to be used in Hollow Covering, Braiding - For fancy Multi-Ply Covering yarns - For equal length Bobbins Parellale (Pirn Type) upto 500-1000 mtrs/min (Mech) - Electronic Programmable Traverse - Adjustable 100-200mm Up to 500 gms (Depending on Size of Spools & Yarn) Bottom Creel for 1-ply, Standalone Creel for upto 6-ply Motorized Roller with Spring Based Tensioner Central length counting with Auto Stop Automatic Bobbin Change without Operator interference ABW-2 NOTES: 52 Scan for more details

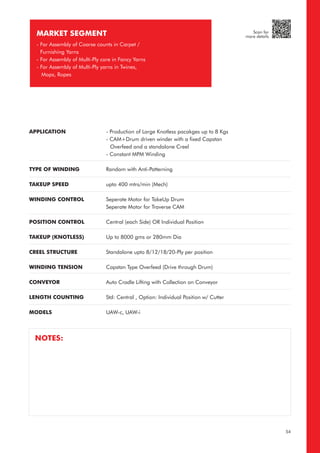

UAW- SERIES Universal Assembly Winder (up to 8 Kgs Knotless) 2.1 53
APPLICATION TYPE OF WINDING TAKEUP SPEED WINDING CONTROL POSITION CONTROL TAKEUP (KNOTLESS) CREEL STRUCTURE WINDING TENSION CONVEYOR LENGTH COUNTING MODELS - Production of Large Knotless pacakges up to 8 Kgs - CAM+Drum driven winder with a fixed Capstan Overfeed and a standalone Creel - Constant MPM Winding Random with Anti-Patterning upto 400 mtrs/min (Mech) Seperate Motor for TakeUp Drum Seperate Motor for Traverse CAM Central (each Side) OR Individual Position Up to 8000 gms or 280mm Dia Standalone upto 8/12/18/20-Ply per position Capstan Type Overfeed (Drive through Drum) Auto Cradle Lifting with Collection on Conveyor Std: Central , Option: Individual Position w/ Cutter UAW-c, UAW-i MARKET SEGMENT - For Assembly of Coarse counts in Carpet / Furnishing Yarns - For Assembly of Multi-Ply core in Fancy Yarns - For Assembly of Multi-Ply yarns in Twines, Mops, Ropes NOTES: 54 Scan for more details

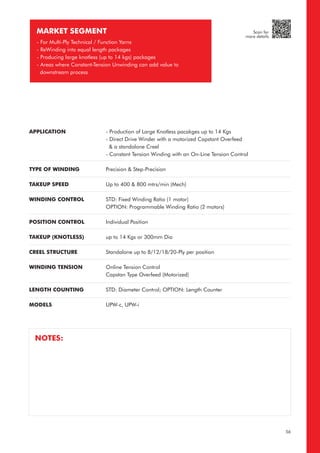

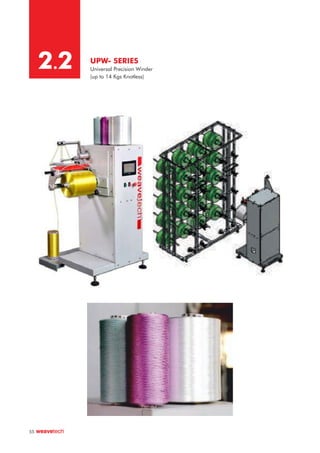

UPW- SERIES Universal Precision Winder (up to 14 Kgs Knotless) 2.2 55
MARKET SEGMENT - For Multi-Ply Technical / Function Yarns - ReWinding into equal length packages - Producing large knotless (up to 14 kgs) packages - Areas where Constant-Tension Unwinding can add value to downstream process APPLICATION TYPE OF WINDING TAKEUP SPEED WINDING CONTROL POSITION CONTROL TAKEUP (KNOTLESS) CREEL STRUCTURE WINDING TENSION LENGTH COUNTING MODELS - Production of Large Knotless pacakges up to 14 Kgs - Direct Drive Winder with a motorized Capstant Overfeed & a standalone Creel - Constant Tension Winding with an On-Line Tension Control Precision & Step-Precision Up to 400 & 800 mtrs/min (Mech) STD: Fixed Winding Ratio (1 motor) OPTION: Programmable Winding Ratio (2 motors) Individual Position up to 14 Kgs or 300mm Dia Standalone up to 8/12/18/20-Ply per position Online Tension Control Capstan Type Overfeed (Motorized) STD: Diameter Control; OPTION: Length Counter UPW-c, UPW-i NOTES: 56 Scan for more details

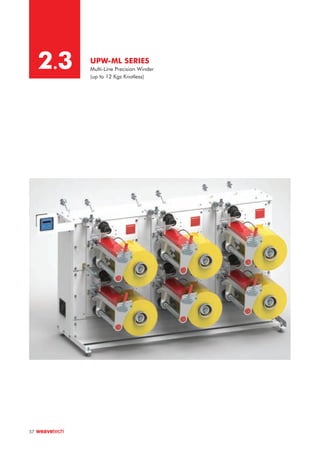

UPW-ML SERIES Multi-Line Precision Winder (up to 12 Kgs Knotless) 2.3 57

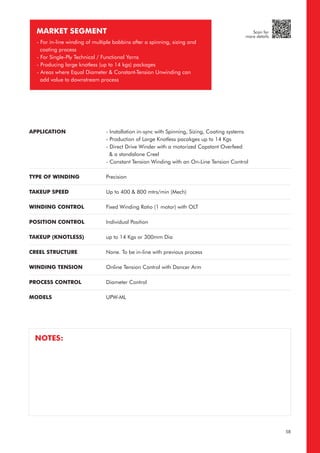

MARKET SEGMENT - For in-line winding of multiple bobbins after a spinning, sizing and coating process - For Single-Ply Technical / Functional Yarns - Producing large knotless (up to 14 kgs) packages - Areas where Equal Diameter & Constant-Tension Unwinding can add value to downstream process APPLICATION TYPE OF WINDING TAKEUP SPEED WINDING CONTROL POSITION CONTROL TAKEUP (KNOTLESS) CREEL STRUCTURE WINDING TENSION PROCESS CONTROL MODELS - Installation in-sync with Spinning, Sizing, Coating systems - Production of Large Knotless pacakges up to 14 Kgs - Direct Drive Winder with a motorized Capstant Overfeed & a standalone Creel - Constant Tension Winding with an On-Line Tension Control Precision Up to 400 & 800 mtrs/min (Mech) Fixed Winding Ratio (1 motor) with OLT Individual Position up to 14 Kgs or 300mm Dia None. To be in-line with previous process Online Tension Control with Dancer Arm Diameter Control UPW-ML NOTES: 58 Scan for more details

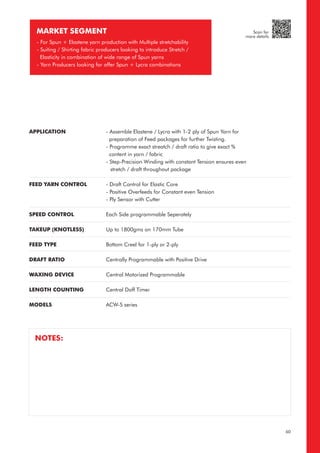

ACW-S SERIES Assembly Cheese Winder / Doubler (Elastene, Lycra, Spadex with Spun Yarn) 2.4 59 FEED PACKAGE TRAY POSITIVE YARN FEEDER ELASTIC YARN HOLDER YARN SENSOR + CUTTER STABILIZER/OVERFEED WAX/OIL ROLLER TRAVERSE BOX TAKE-UP DRUM DELIVERY PACKAGE
MARKET SEGMENT - For Spun + Elastene yarn production with Multiple stretchability - Suiting / Shirting fabric producers looking to introduce Stretch / Elasticity in combination of wide range of Spun yarns - Yarn Producers looking for offer Spun + Lycra combinations APPLICATION FEED YARN CONTROL SPEED CONTROL TAKEUP (KNOTLESS) FEED TYPE DRAFT RATIO WAXING DEVICE LENGTH COUNTING MODELS - Assemble Elastene / Lycra with 1-2 ply of Spun Yarn for preparation of Feed packages for further Twisting. - Programme exact streatch / draft ratio to give exact % content in yarn / fabric - Step-Precision Winding with constant Tension ensures even stretch / draft throughout package - Draft Control for Elastic Core - Positive Overfeeds for Constant even Tension - Ply Sensor with Cutter Each Side programmable Seperately Up to 1800gms on 170mm Tube Bottom Creel for 1-ply or 2-ply Centrally Programmable with Positive Drive Central Motorized Programmable Central Doff Timer ACW-S series NOTES: 60 Scan for more details

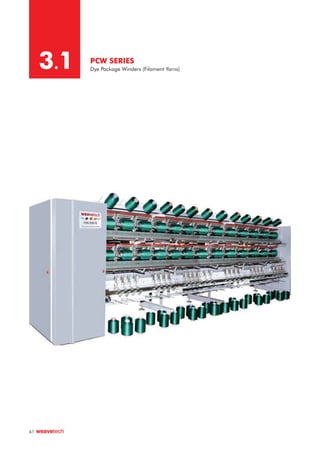

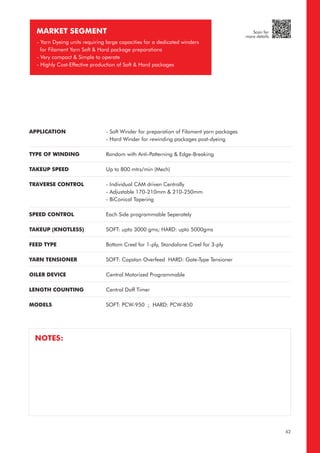

PCW SERIES Dye Package Winders (Filament Yarns) 3.1 61
MARKET SEGMENT - Yarn Dyeing units requiring large capacities for a dedicated winders for Filament Yarn Soft & Hard package preparations - Very compact & Simple to operate - Highly Cost-Effective production of Soft & Hard packages APPLICATION TYPE OF WINDING TAKEUP SPEED TRAVERSE CONTROL SPEED CONTROL TAKEUP (KNOTLESS) FEED TYPE YARN TENSIONER OILER DEVICE LENGTH COUNTING MODELS - Soft Winder for preparation of Filament yarn packages - Hard Winder for rewinding packages post-dyeing Random with Anti-Patterning & Edge-Breaking Up to 800 mtrs/min (Mech) - Individual CAM driven Centrally - Adjustable 170-210mm & 210-250mm - BiConical Tapering Each Side programmable Seperately SOFT: upto 3000 gms; HARD: upto 5000gms Bottom Creel for 1-ply, Standalone Creel for 3-ply SOFT: Capstan Overfeed HARD: Gate-Type Tensioner Central Motorized Programmable Central Doff Timer SOFT: PCW-950 ; HARD: PCW-850 NOTES: 62 Scan for more details
EXCELLENCE INTERWEAVED WITH EFFICIENCY

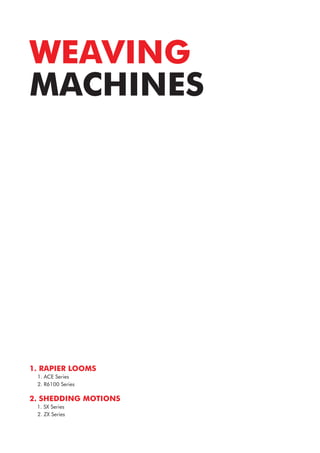

1. RAPIER LOOMS 1. ACE Series 2. R6100 Series 2. SHEDDING MOTIONS 1. SX Series 2. ZX Series WEAVING MACHINES

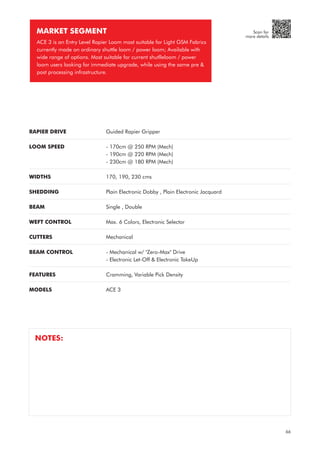

ACE 3- SERIES Flexible Rapier (Crank) with Plain, Dobby or Jaquard 1.1 65
RAPIER DRIVE LOOM SPEED WIDTHS SHEDDING BEAM WEFT CONTROL CUTTERS BEAM CONTROL FEATURES MODELS Guided Rapier Gripper - 170cm @ 250 RPM (Mech) - 190cm @ 220 RPM (Mech) - 230cm @ 180 RPM (Mech) 170, 190, 230 cms Plain Electronic Dobby , Plain Electronic Jacquard Single , Double Max. 6 Colors, Electronic Selector Mechanical - Mechanical w/ "Zero-Max" Drive - Electronic Let-Off & Electronic TakeUp Cramming, Variable Pick Density ACE 3 MARKET SEGMENT ACE 3 is an Entry Level Rapier Loom most suitable for Light GSM Fabrics currently made on ordinary shuttle loom / power loom; Available with wide range of options. Most suitable for current shutlleloom / power loom users looking for immediate upgrade, while using the same pre & post processing infrastructure. NOTES: 66 Scan for more details

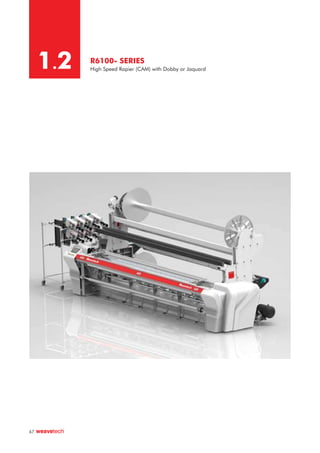

R6100- SERIES High Speed Rapier (CAM) with Dobby or Jaquard 1.2 67

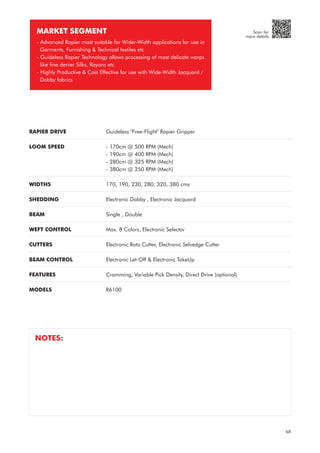

RAPIER DRIVE LOOM SPEED WIDTHS SHEDDING BEAM WEFT CONTROL CUTTERS BEAM CONTROL FEATURES MODELS Guideless "Free-Flight" Rapier Gripper - 170cm @ 500 RPM (Mech) - 190cm @ 400 RPM (Mech) - 280cm @ 325 RPM (Mech) - 380cm @ 250 RPM (Mech) 170, 190, 230, 280, 320, 380 cms Electronic Dobby , Electronic Jacquard Single , Double Max. 8 Colors, Electronic Selector Electronic Roto Cutter, Electronic Selvedge Cutter Electronic Let-Off & Electronic TakeUp Cramming, Variable Pick Density, Direct Drive (optional) R6100 MARKET SEGMENT - Advanced Rapier most suitable for Wider-Width applications for use in Garments, Furnishing & Technical textiles etc - Guideless Rapier Technology allows processing of most delicate warps like fine denier Silks, Rayons etc - Highly Productive & Cost Effective for use with Wide-Width Jacquard / Dobby fabrics NOTES: 68 Scan for more details

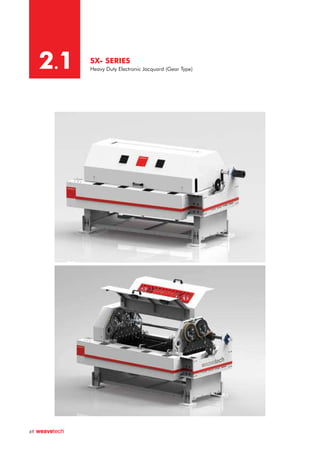

SX- SERIES Heavy Duty Electronic Jacquard (Gear Type) 2.1 69

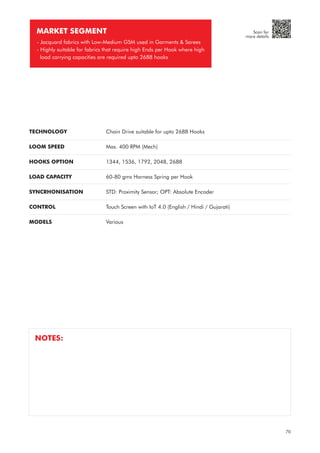

TECHNOLOGY LOOM SPEED HOOKS OPTION LOAD CAPACITY SYNCRHONISATION CONTROL MODELS Chain Drive suitable for upto 2688 Hooks Max. 400 RPM (Mech) 1344, 1536, 1792, 2048, 2688 60-80 gms Harness Spring per Hook STD: Proximity Sensor; OPT: Absolute Encoder Touch Screen with IoT 4.0 (English / Hindi / Gujarati) Various MARKET SEGMENT - Jacquard fabrics with Low-Medium GSM used in Garments & Sarees - Highly suitable for fabrics that require high Ends per Hook where high load carrying capacities are required upto 2688 hooks NOTES: 70 Scan for more details

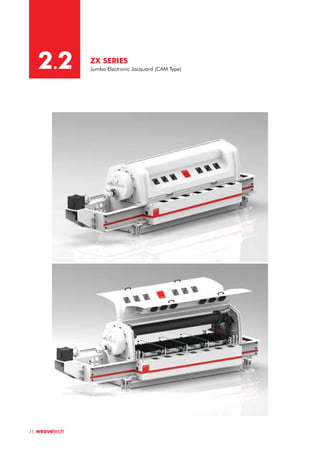

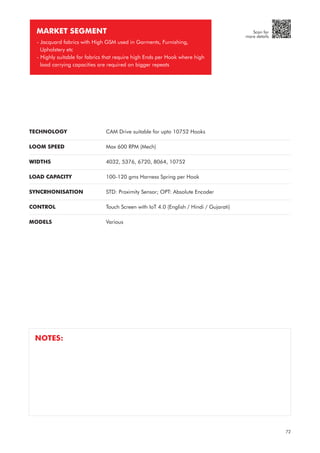

ZX SERIES Jumbo Electronic Jacquard (CAM Type) 2.2 71
TECHNOLOGY LOOM SPEED WIDTHS LOAD CAPACITY SYNCRHONISATION CONTROL MODELS CAM Drive suitable for upto 10752 Hooks Max 600 RPM (Mech) 4032, 5376, 6720, 8064, 10752 100-120 gms Harness Spring per Hook STD: Proximity Sensor; OPT: Absolute Encoder Touch Screen with IoT 4.0 (English / Hindi / Gujarati) Various MARKET SEGMENT - Jacquard fabrics with High GSM used in Garments, Furnishing, Upholstery etc - Highly suitable for fabrics that require high Ends per Hook where high load carrying capacities are required on bigger repeats NOTES: 72 Scan for more details
STRENGTH INTERLACED WITH PRECISION

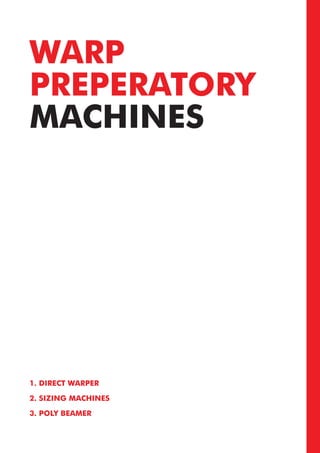

1. DIRECT WARPER 2. SIZING MACHINES 3. POLY BEAMER WARP PREPERATORY MACHINES

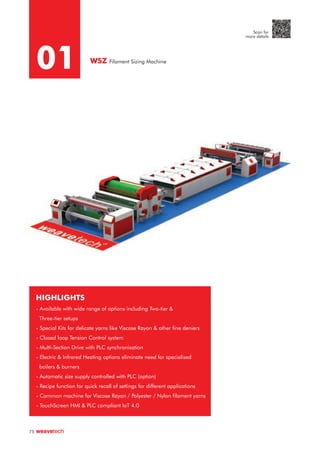

01 WSZ Filament Sizing Machine HIGHLIGHTS - Available with wide range of options including Two-tier & Three-tier setups - Special Kits for delicate yarns like Viscose Rayon & other fine deniers - Closed loop Tension Control system - Multi-Section Drive with PLC synchronisation - Electric & Infrared Heating options eliminate need for specialised boilers & burners - Automatic size supply controlled with PLC (option) - Recipe function for quick recall of settings for different applications - Common machine for Viscose Rayon / Polyester / Nylon filament yarns - TouchScreen HMI & PLC compliant IoT 4.0 75 Scan for more details

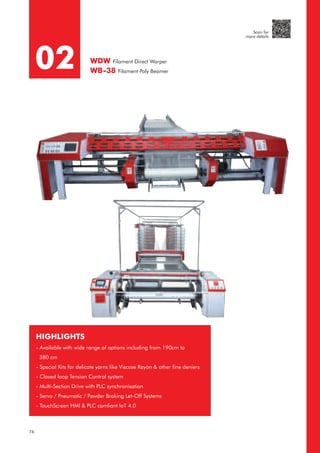

HIGHLIGHTS - Available with wide range of options including from 190cm to 380 cm - Special Kits for delicate yarns like Viscose Rayon & other fine deniers - Closed loop Tension Control system - Multi-Section Drive with PLC synchronisation - Servo / Pneumatic / Powder Braking Let-Off Systems - TouchScreen HMI & PLC comliant IoT 4.0 02 WDW Filament Direct Warper WB-38 Filament Poly Beamer 76 Scan for more details

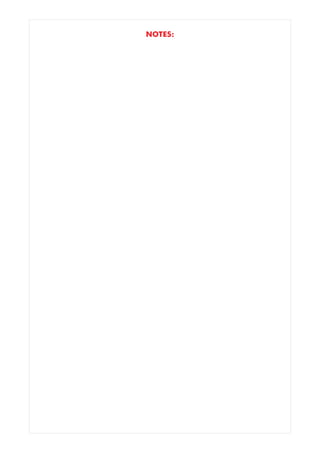

NOTES:
NOTES:
Plot No. 195, Rd 3-F New Estate, Udyognagar Udhna, Surat, Gujarat - 394210. INDIA Scan the QR code below for more information or for queries info@weavetech.com +91- 261 - 2800808 www.weavetech.com | |
