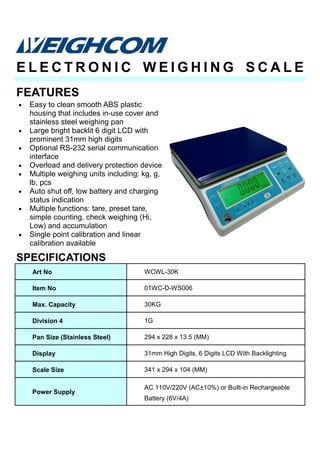

This document provides specifications for an electronic weighing scale that has a maximum capacity of 30kg and division of 1g. It features a large backlit LCD display, stainless steel weighing pan, protective cover, and multiple weighing units and functions like tare and check weighing. The scale can operate using AC power or a built-in rechargeable battery and has overloading, delivery, and low battery protections.

1. FEATURES
E L E C T R O N I C W E I G H I N G S C A L E
SPECIFICATIONS
• Easy to clean smooth ABS plastic
housing that includes in-use cover and
stainless steel weighing pan
• Large bright backlit 6 digit LCD with
prominent 31mm high digits
• Optional RS-232 serial communication
interface
• Overload and delivery protection device
• Multiple weighing units including: kg, g,
lb, pcs
• Auto shut off, low battery and charging
status indication
• Multiple functions: tare, preset tare,
simple counting, check weighing (Hi,
Low) and accumulation
• Single point calibration and linear
calibration available
Art No WCWL-30K
Item No 01WC-D-WS006
Max. Capacity 30KG
Division 4 1G
Pan Size (Stainless Steel) 294 x 228 x 13.5 (MM)
Display 31mm High Digits, 6 Digits LCD With Backlighting
Scale Size 341 x 294 x 104 (MM)
Power Supply
AC 110V/220V (AC±10%) or Built-in Rechargeable
Battery (6V/4A)
