The document discusses improving view controller code by making states explicit. It provides an example of a recording button where the state of recording is initially coupled to the button's selected state. The document then shows how defining recording, playing, etc. as explicit states and adding methods to transition between them can improve clarity and maintainability by decoupling these states. It suggests implementing states as enums and blocks rather than methods to avoid duplication and allow animating transitions.

1. View Controllers and State
A Journey

2. My Main Point
Many times, view controllers have
implicit states and, if these states
are recognized and made explicit,
code may become clearer and easier
to maintain.

3. The record button

4. First Try
• The record button needs to turn red while
the app is recording.
• The recorder needs to start recording
from the microphone.

5. First Try
[recordButton setImage:@”black.png”
forState:UIControlStateNormal];
[recordButton setImage:@"red.png"
forState:UIControlStateSelected];
- (IBAction)recordButtonPressed:(id)sender {
! UIButton *recordButton = (UIButton *)sender;
! if (recordButton.selected) {
! ! recordButton.selected = NO;
! ! [recorder stop];
! } else {
! ! recordButton.selected = YES;
! ! [recorder record];
! }
}

6. What about this?
[recordButton setImage:@”black.png”
forState:UIControlStateNormal];
[recordButton setImage:@"red.png"
forState:UIControlStateSelected];
- (IBAction)recordButtonPressed:(id)sender {
! UIButton *recordButton = (UIButton *)sender;
! if (recorder.isRecording) {
! ! recordButton.selected = NO;
! ! [recorder stop];
! } else {
! ! recordButton.selected = YES;
! ! [recorder record];
! }
}

7. Problems?
• There are two independently maintained
variables.
• Normally, they are coupled together, but
what if something happens so that they are
not (eg. when I handle enter background,
interruptions, etc. might I stop the recorder
without changing the button)?

8. Add a Play Button?

9. Add a Play Button?
- (IBAction)playButtonPressed:(id)sender {
! UIButton *playButton = (UIButton *)sender;
! if (playButton.selected) {
! ! NSAssert(!recorder.isRecording, @”!!!”);
! ! [player pause];
! ! playButton.selected = NO;
! } else {
! ! [recorder stop];
! ! recordButton.selected = NO;
! ! [player play];
! ! playButton.selected = YES;
! }
}

10. My Main Point
Many times, view controllers have
implicit states and, if these states
are recognized and made explicit,
code may become shorter, clearer
and easier to maintain.

11. State?
There is a formal mathematic
definition of states, “state
machines”, “finite state automata”
that one normally studies in
computer science.

12. State?
I am inspired by these ideas. But
my priority is reducing the amount
of code and the complexity of code,
not in creating an implemtation of a
formal state machine.

13. State?
For this purpose, “states” are
discrete temporal conditions that
something (in this case, a view
controller) might be “in” which use
“transitions” to move back and
forth between each other.

14. State?
States are intended to be mutually
exclusive (this view controller
cannot be in a record and play state
at the same time). This is
restrictive but that is actually a
strength.

15. Implementing States
Implementing states involves
recognizing (naming) it and
figuring out how to transition into
it (and out of it?) correctly.

16. before after
recording playing
recording recording

17. Using enums
typedef enum {
! BeforeRecordingState,
! RecordingState,
! AfterRecordingState,
! PlayingState
} State;
@interface RecordingController {
! State _state;
}

18. Dispatching
-(void)transitionToState:(State)state {
! switch(state) {
! ! case BeforeRecordingState:
! ! ! [self exitBeforeRecordingState:_state];
! ! ! break;
! ! case RecordingState:
! ! ! [self exitRecordingState:_state];
! ! ! break;
...
! ! default:
! ! ! NSAssert(YES, @"unknown state!")
! ! ! break;
! }
! _state = state;
! switch(state) {
! ! case BeforeRecordingState:
! ! ! [self enterBeforeRecordingState];
! ! ! break;
...
}
}

19. Methods
-(void)enterRecordingState {
! recordButton.selected = YES;
! [recorder record];
}
-(void)exitRecordingState:(State)nextState {
! NSAssert(nextState != AfterRecordingState, @”!!!"
! recordButton.selected = NO;
! [recorder stop]
}
-(IBAction)recordButtonPressed:(id)sender {
! if (_state == RecordingState) {
! ! [self transitionToState:AfterRecordingState];
! } else {
! ! [self transitionToState:RecordingState];! !
! }
}

20. In General
I have found this kind of design is
generally better for keeping the
complexity of view controllers
under control.

21. My Main Point
Many times, view controllers have
implicit states and, if these states
are recognized and made explicit,
code may become clearer and easier
to maintain.

22. But...

23. I hate this.
-(void)transitionToState:(State)state {
! switch(state) {
! ! case BeforeRecordingState:
! ! ! [self exitBeforeRecordingState:_state];
! ! ! break;
! ! case RecordingState:
! ! ! [self exitRecordingState:_state];
! ! ! break;
...
! ! default:
! ! ! NSAssert(YES, @"unknown state!")
! ! ! break;
! }
! _state = state;
! switch(state) {
! ! case BeforeRecordingState:
! ! ! [self enterBeforeRecordingState];
! ! ! break;
...
}
}

24. • The dispatch method must be unique for
each view controller because each view
controller has a unique collection of states.
• But they are identical in logic.
• This is, arguably, code duplication.

25. What if...
• ...the view controller ran the transitions
automatically?
• ...states were blocks, not methods?
• ...transitions between states were
animatable?

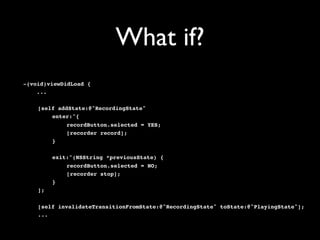

26. What if?
-(void)viewDidLoad {
...
! [self addState:@"RecordingState"
! ! enter:^{
! ! ! recordButton.selected = YES;
! ! ! [recorder record];
! ! }
! ! exit:^(NSString *previousState) {
! ! ! recordButton.selected = NO;
! ! ! [recorder stop];
! ! }
! ];
! [self invalidateTransitionFromState:@"RecordingState" toState:@"PlayingState"];
! ...

27. ChocolateBox
Coming Soon to GitHub
