This document provides ordering information for various flashback arrestors and related accessories for oxy-fuel cutting torches and regulators. It includes part numbers, models, and brief descriptions. Safety accessories include flashback arrestors for torch pairs, individual torches, and regulators. Flashback arrestors are available in standard and "Plus" models, and some have optional Kwik-Connect couplings. Replacement cartridges and kits are also listed to retrofit built-in flashback arrestors for certain torch models. Diagrams illustrate the components and functions of typical flashback arrestors.
More Related Content
Valvulas

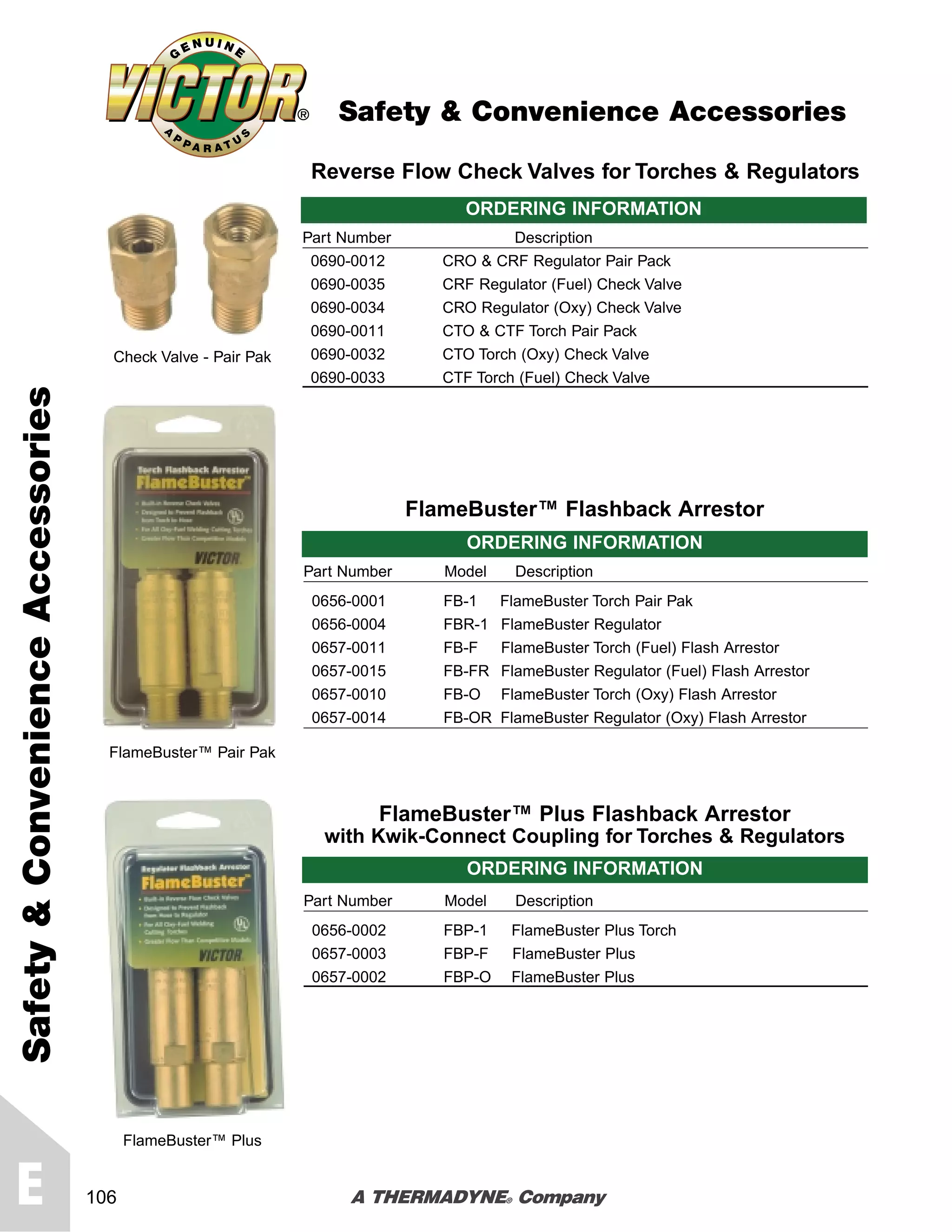

- 1. G E N UI N E A P P A R A T U S FlameBuster™ Flashback Arrestor 106E Safety&ConvenienceAccessories Safety & Convenience Accessories Part Number Description 0690-0012 CRO & CRF Regulator Pair Pack 0690-0035 CRF Regulator (Fuel) Check Valve 0690-0034 CRO Regulator (Oxy) Check Valve 0690-0011 CTO & CTF Torch Pair Pack 0690-0032 CTO Torch (Oxy) Check Valve 0690-0033 CTF Torch (Fuel) Check Valve ORDERING INFORMATION Part Number Model Description 0656-0001 FB-1 FlameBuster Torch Pair Pak 0656-0004 FBR-1 FlameBuster Regulator 0657-0011 FB-F FlameBuster Torch (Fuel) Flash Arrestor 0657-0015 FB-FR FlameBuster Regulator (Fuel) Flash Arrestor 0657-0010 FB-O FlameBuster Torch (Oxy) Flash Arrestor 0657-0014 FB-OR FlameBuster Regulator (Oxy) Flash Arrestor ORDERING INFORMATION FlameBuster™ Plus FlameBuster™ Pair Pak Check Valve - Pair Pak Reverse Flow Check Valves for Torches & Regulators Part Number Model Description 0656-0002 FBP-1 FlameBuster Plus Torch 0657-0003 FBP-F FlameBuster Plus 0657-0002 FBP-O FlameBuster Plus ORDERING INFORMATION FlameBuster™ Plus Flashback Arrestor with Kwik-Connect Coupling for Torches & Regulators
- 2. G E N UI N E A P P A R A T U S 107 E Safety&ConvenienceAccessories Safety & Convenience Accessories Part Number Model/Description 0656-0000 KC-1 Kwik ConnectTM Torch Plain Pak 0312-0090 KCO Oxygen ORDERING INFORMATION Kwik-Connect™ Torch/Hose Connections Part Number Model/Description 0656-0046 Includes oxygen and fuel cartridges, retainer plate and screws, hex key, and instructions Note: For use with ST 2600FC, ST 1000FC & ST 900FC Straight cutting torches. ORDERING INFORMATION Built-in Flash Arrestor Retro-Fit Kit The retro-fit kit allows replacement of built-in flash arrestors for cutting torches without the use of loctite or heat. Part Number Model/Description 0657-0036 VanGuardTM Torch Handle Replacement Cartridge (315FC, 100FC, J-100FC) (Both Gases) Note: Flashback arrestor replacement cartridges include an “O” Ring but does not include a replacement reverse flow check valve. Part No. 0690-0027 - 9/16” (pair) ORDERING INFORMATION VanGuardTM Flashback Arrestor Replacement Cartridge VanGuardTM Replacement Cartridge Kwik-ConnectTM Retainer Seat Seating cupThreads for connection to torch or regulator Stainless-steel sintered filter acts as a flame block Nut and swivel assembly Gas-tight O-ring seal Brass housing Check-valve assembly Guide Gas Flow Gas Flow Outlet Side Outlet Side Disk assembly seals tight against seat in event of reverse flow. Spring compresses under normal flow, moving disk assembly forward and allowing gas flow. The Check Valve Prevents the reverse flow of gases. The Flashback Arrestor Prevents the reverse flow of gases and flashback.
