Explanation of the new Recycle Bin Framework for Liferay 6.2

1. LIFERAY DEVELOPER CONFERENCE
Using the Recycle Bin in
your applications
Giving a second chance to your content
Julio Camarero @juliocamarero
Sergio González @sgonzalezortiz
#LRDevCon2013

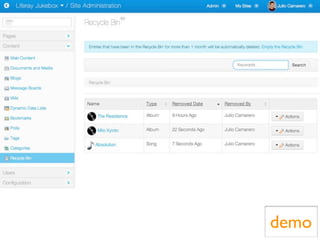

2. demo

3. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Adding Recycle
Bin to your app
30 min
millions of users
easy

4. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
* Entities (service builder)
* Assets (helps)
* Indexed Entities
(see later talk)
* Workflow (helps)
Prerequisites

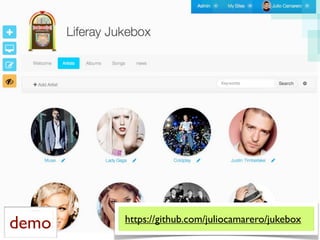

5. https://github.com/juliocamarero/jukebox
demo

6. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Moving entries to the
Recycle Bin
Step 1

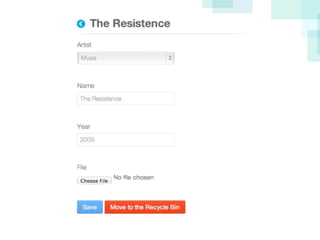

7. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

8. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

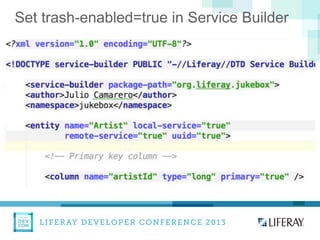

Set trash-enabled=true in Service Builder

9. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

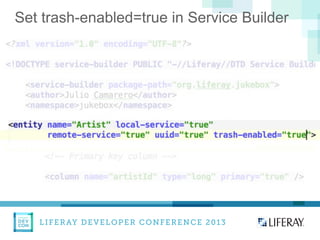

Set trash-enabled=true in Service Builder

10. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Set trash-enabled=true in Service Builder

11. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

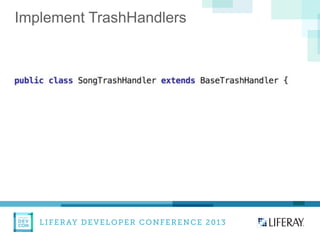

Implement TrashHandlers

12. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
and define it in liferay-portlet.xml

13. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

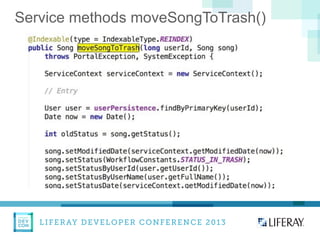

Service methods moveSongToTrash()

14. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

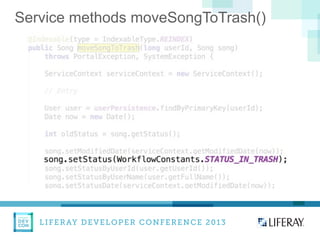

Service methods moveSongToTrash()

15. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

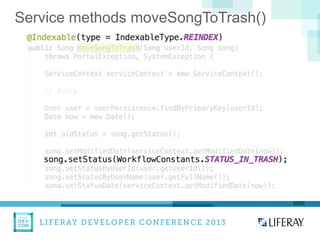

Service methods moveSongToTrash()

16. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

17. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

18. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

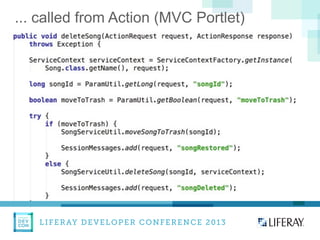

19. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
... called from Action (MVC Portlet)

20. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

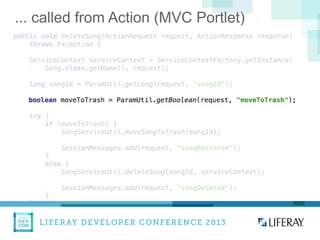

... called from Action (MVC Portlet)

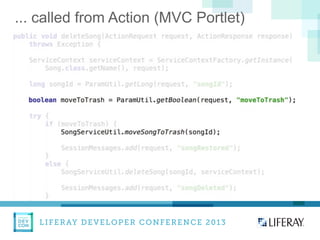

21. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
... called from Action (MVC Portlet)

22. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
... called from Action (MVC Portlet)

23. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

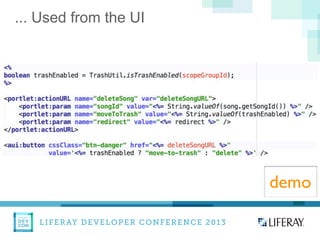

... Used from the UI
demo

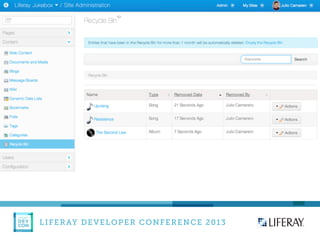

24. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

25. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
trashRenderer
Implement your own and define it in in liferay-portlet.xml
OR
Reuse AssetRenderer
demo

26. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Restoring entries
from the Recycle Bin
Step 2

28. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

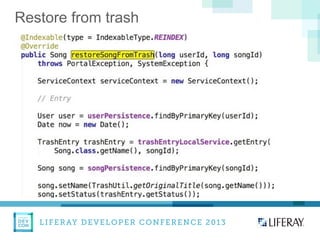

Restore from trash

29. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Restore from trash

30. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

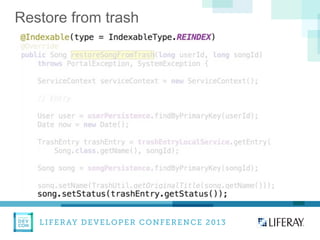

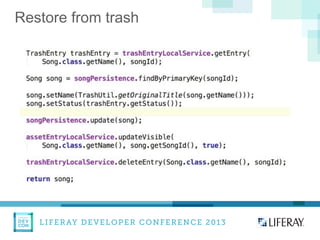

Restore from trash

31. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

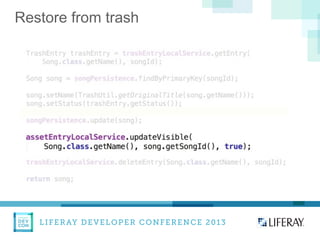

Restore from trash

32. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Restore from trash

33. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Restore from trash

34. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

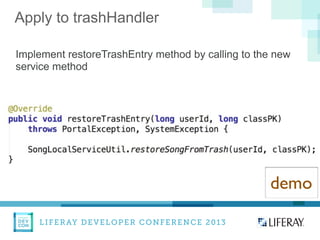

Apply to trashHandler
Implement restoreTrashEntry method by calling to the new
service method
demo

35. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Upss.... (undo)
Step 3

36. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

37. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

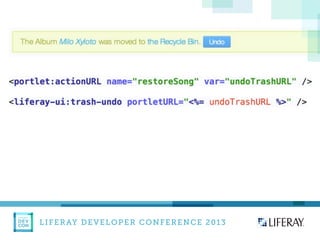

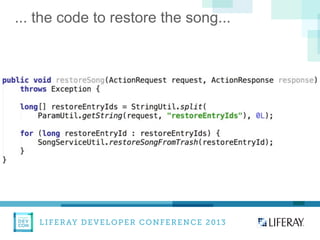

... the code to restore the song...

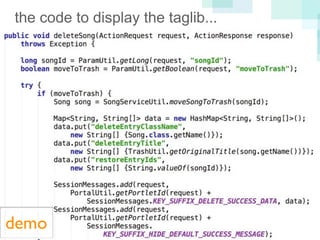

38. the code to display the taglib...
demo

39. the code to display the taglib...
demo

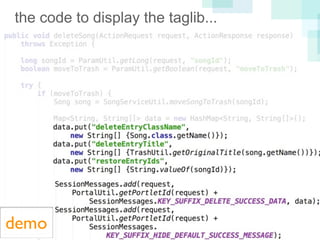

40. the code to display the taglib...
demo

41. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Moving/restoring
albums to the
Recycle Bin
Step 4

42. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

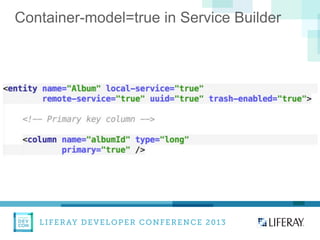

Container-model=true in Service Builder

43. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

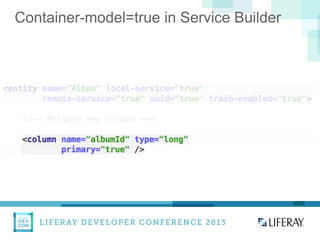

Container-model=true in Service Builder

44. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

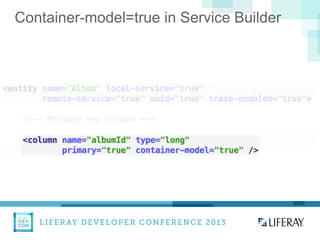

Container-model=true in Service Builder

45. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Special care with containers
Methods moveDependentsToTrash and
restoreDependentsFromTrash
1. Update status of the song
2. Add trashVersion entity (instead of trashEntry)
3. Update asset visibility
4. Reindex the new entity
demo

46. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Resolving conflicts
Step 5

47. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

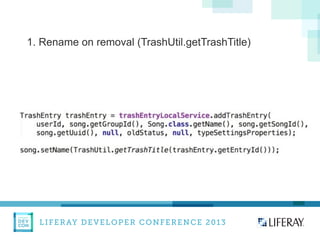

1. Rename on removal (TrashUtil.getTrashTitle)

48. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
1. Rename on removal (TrashUtil.getTrashTitle)

49. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

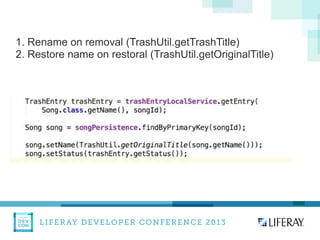

1. Rename on removal (TrashUtil.getTrashTitle)
2. Restore name on restoral (TrashUtil.getOriginalTitle)

50. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

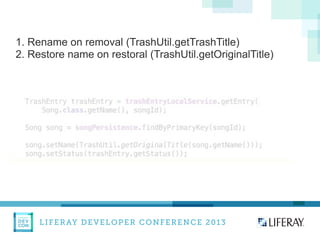

1. Rename on removal (TrashUtil.getTrashTitle)
2. Restore name on restoral (TrashUtil.getOriginalTitle)

51. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

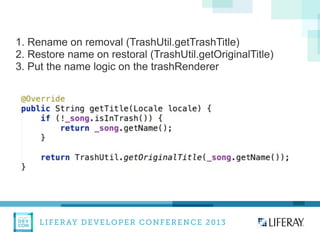

1. Rename on removal (TrashUtil.getTrashTitle)
2. Restore name on restoral (TrashUtil.getOriginalTitle)
3. Put the name logic on the trashRenderer

52. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY

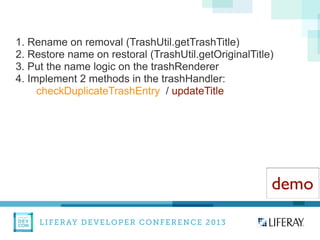

1. Rename on removal (TrashUtil.getTrashTitle)
2. Restore name on restoral (TrashUtil.getOriginalTitle)
3. Put the name logic on the trashRenderer
4. Implement 2 methods in the trashHandler:
checkDuplicateTrashEntry / updateTitle
demo

53. LIFERAY DEVELOPER CONFERENCE 2013DEV
CON
LIFERAY
Thank you!
@juliocamarero
@sergiogonzalez
julio.camarero@liferay.com
sergio.gonzalez@liferay.com
if you liked it, vote in the app :)
