The document discusses reverse engineering a Linux driver for an unknown USB video capture device. The key steps taken were: 1) Capturing traffic from the device when used in Windows to understand the frame format and endpoints. This revealed the device provides YUV video data over isochronous endpoints. 2) Developing a userspace program using libusb to replay the USB traffic and extract test image data to validate the frame format. 3) Creating a Linux kernel driver that interfaces with the USB and Video4Linux2 frameworks to provide the captured video as a video device to userspace programs through Videobuf2 buffers.

1. Reverse Engineering:
Writing a Linux driver for an
unknown device
Ľubomír Rintel <lkundrak@v3.sk>
OSSConf 2013, Žilina
BTC: 1A28Etzh7zsK2Bq36qvPKJi18s53M9B2FU

2. Our device
●
Unknown to Linux
●
No documentation
●
No Google hits for chip
●
Desperate users in
Ubuntu forums

4. The Plan
●
Make it work in Windows
●
Capture what happens
●
Find image data
●
Mimic the behavior in userspace
●
Transform into a kernel module

5. USB

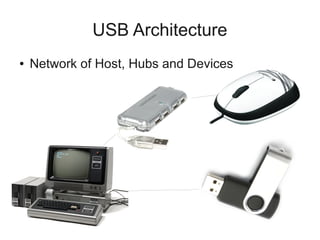

6. USB Architecture
●
Network of Host, Hubs and Devices

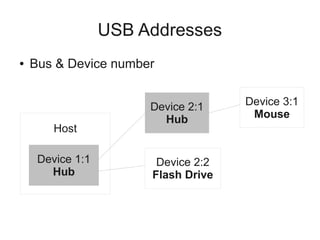

7. USB Addresses
●
Bus & Device number
Host
Device 1:1
Hub
Device 2:1
Hub
Device 2:2
Flash Drive
Device 3:1
Mouse

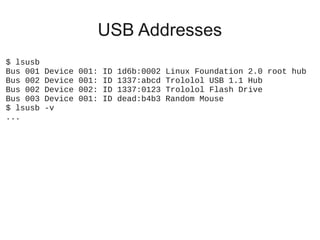

8. USB Addresses
$ lsusb
Bus 001
Bus 002
Bus 002
Bus 003
$ lsusb
...
Device
Device
Device
Device
-v
001:
001:
002:
001:
ID
ID
ID
ID
1d6b:0002
1337:abcd
1337:0123
dead:b4b3
Linux Foundation 2.0 root hub
Trololol USB 1.1 Hub
Trololol Flash Drive
Random Mouse

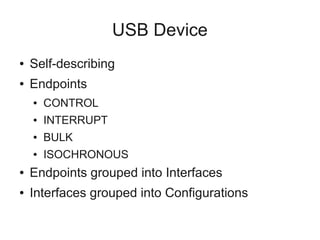

9. USB Device
●
Self-describing
●
Endpoints
●
CONTROL
●
INTERRUPT
●
BULK
●
ISOCHRONOUS
●
Endpoints grouped into Interfaces
●
Interfaces grouped into Configurations

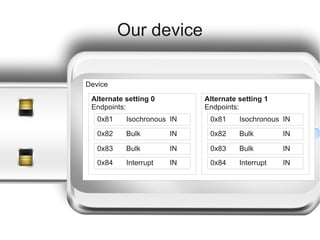

10. Our device
Device
Alternate setting 0
Endpoints:
Alternate setting 1
Endpoints:
0x81
Isochronous IN
0x81
Isochronous IN
0x82
Bulk
IN
0x82
Bulk
IN
0x83
Bulk
IN
0x83
Bulk
IN
0x84
Interrupt
IN
0x84
Interrupt
IN

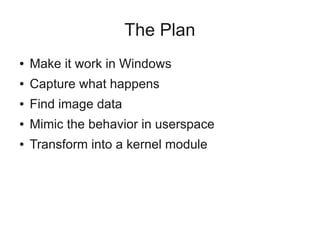

11. The Plan
●
Make it work in Windows
●
Capture what happens
●
Find image data
●
Mimic the behavior in userspace
●
Transform into a kernel module

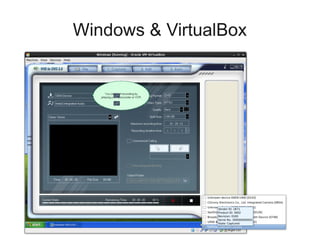

12. Windows & VirtualBox

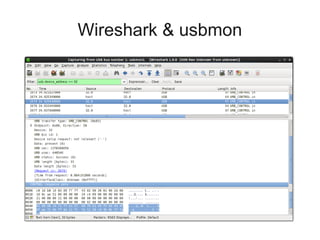

13. Wireshark & usbmon

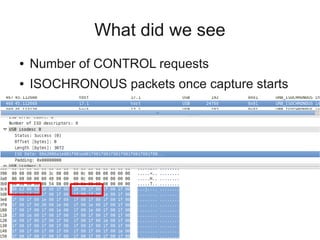

14. What did we see
●
Number of CONTROL requests
●
ISOCHRONOUS packets once capture starts

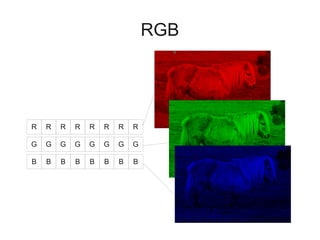

15. RGB
R
R
R
R
R
R
R
R
G
G
G
G
G
G
G
G
B
B
B
B
B
B
B
B

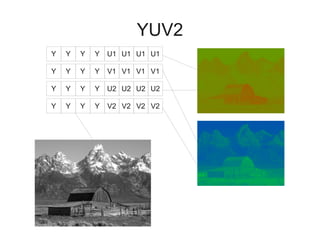

16. YUV2
Y
Y
Y
Y
U1 U1 U1 U1
Y
Y
Y
Y
V1 V1 V1 V1
Y
Y
Y
Y
U2 U2 U2 U2
Y
Y
Y
Y
V2 V2 V2 V2

17. LibUSB
●
We could replay the traffic
●
In userspace – no kernel hacking needed
●
C, Python & Perl bindings
●
Now we need to find start & end of the picture

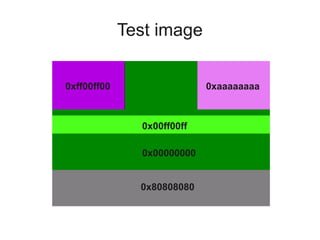

18. Test image
0xff00ff00
0xaaaaaaaa
0x00ff00ff
0x00000000
0x80808080

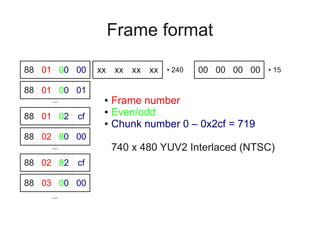

19. Frame format
88 01 00 00
88 01 00 01
...
88 01 02
cf
...
cf
88 03 00 00
...
00 00 00 00 • 15
Frame number
● Even/odd
● Chunk number 0 – 0x2cf = 719
●
88 02 80 00
88 02 82
xx xx xx xx • 240
740 x 480 YUV2 Interlaced (NTSC)

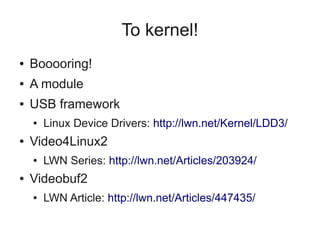

21. To kernel!
●
Booooring!
●
A module
●
USB framework
●
●
Video4Linux2
●
●
Linux Device Drivers: http://lwn.net/Kernel/LDD3/
LWN Series: http://lwn.net/Articles/203924/
Videobuf2
●
LWN Article: http://lwn.net/Articles/447435/

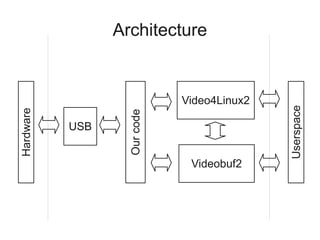

22. USB
Our code
Hardware
Video4Linux2
Videobuf2
Userspace
Architecture

23. Video4Linux2
●
Provide a device with known API
●
●
read(), write()
●
ioctl()
●
●
open(), close()
mmap()
Negotiate format with userspace

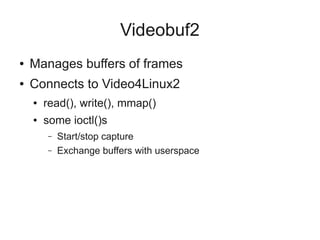

24. Videobuf2
●
Manages buffers of frames
●
Connects to Video4Linux2
●
read(), write(), mmap()
●
some ioctl()s
–
–
Start/stop capture
Exchange buffers with userspace

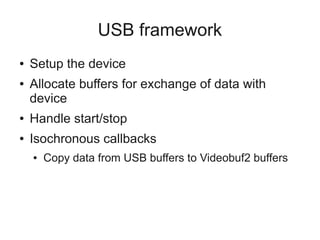

25. USB framework
●
●
Setup the device
Allocate buffers for exchange of data with
device
●
Handle start/stop
●
Isochronous callbacks
●
Copy data from USB buffers to Videobuf2 buffers

26. USB
Our code
Hardware
Video4Linux2
Videobuf2
Userspace
Architecture

27. All done!

28. Questions?
Found this useful? My Bitcoin address is:
1A28Etzh7zsK2Bq36qvPKJi18s53M9B2FU
