An Uninterruptible Power Supply (UPS) is a device that provides emergency power to equipment when the main power source fails, commonly used for computers and telecommunication systems. Types of UPS include standby, line interactive, standby-ferro, and double conversion on-line. Safety precautions include proper grounding, managing battery toxins, and adhering to specified temperature and humidity levels.

2. WHAT IS
UPS?

3.  An uninterruptible power supply or uninterruptible power source
(UPS) is an electrical apparatus that provides emergency power to a load
when the input power source or mains power fails.
 A UPS is typically used to protect hardware such as computers, data
centers, telecommunication equipment or other electrical equipment.

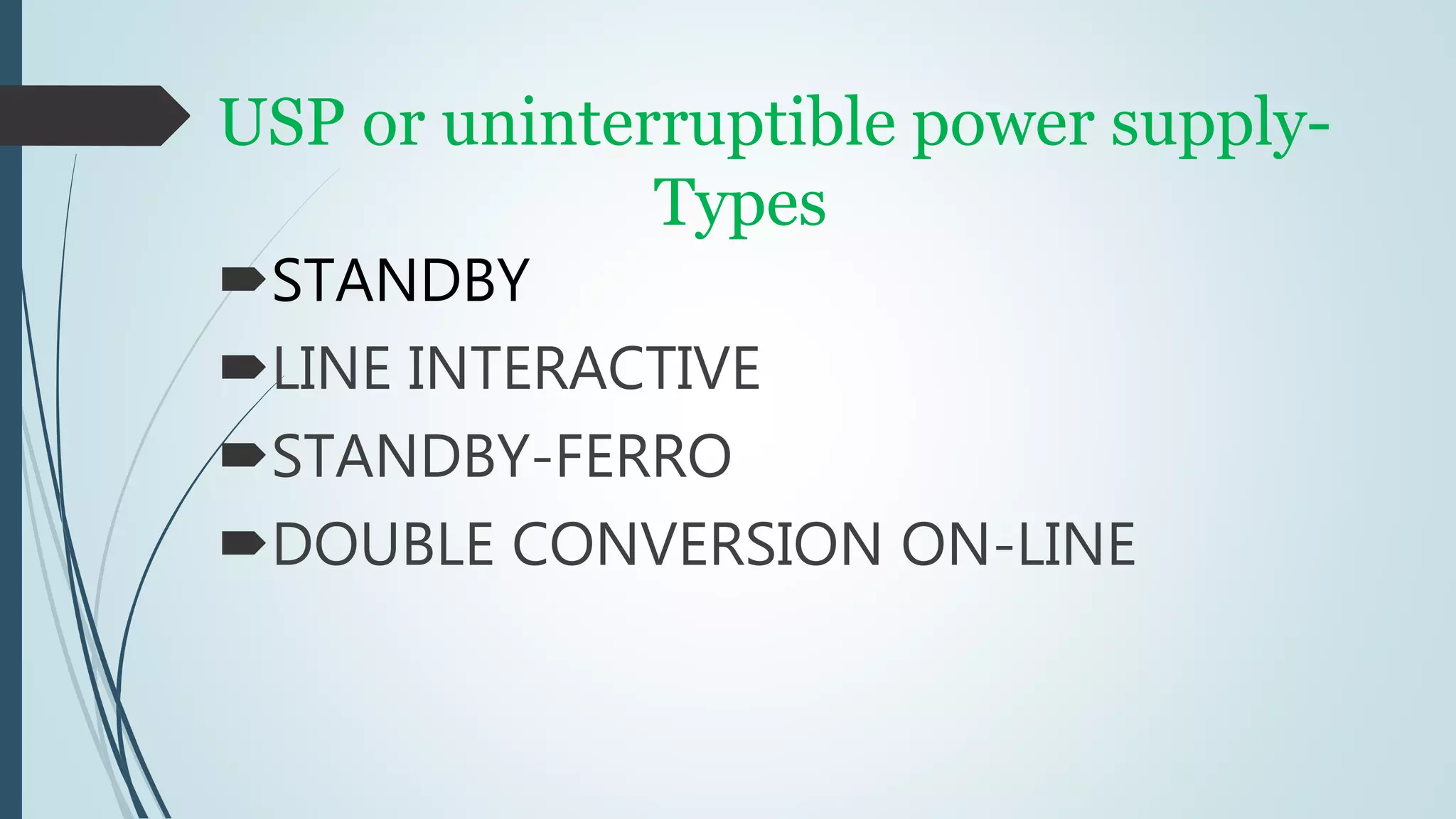

4. USP or uninterruptible power supply-
Types
STANDBY
LINE INTERACTIVE
STANDBY-FERRO
DOUBLE CONVERSION ON-LINE

6. LINE INTERACTIVE UPS
This is a special type of transformer that can add
or subtract powered coils of wire, thereby
increasing or decreasing the magnetic field and
the output voltage of the transformer.

7. STANDBY-FERRO UPS
This design depends on a special saturating
transformer that has three power connections.

8. DOUBLE CONVERSION ON-LINE
This is the most common type of UPS.
Double Conversion On-Line UPS systems
do exhibit a transfer time.

9. Safety percussions for ups
1.The UPS must be appropriately grounded.
2.The battery supplied with the UPS contains microscopic
quantity of toxic materials.
3.Under no circumstances operate the UPS if the ambient
temperature and relative humidity are higher than the
levels specified in the citations.

10. THANK YOU
FOR
LISTENING!
