This document describes the Unity ML1072X Series ANSI Grade 1 Mortise Lockset. It is designed for high frequency commercial applications and exceeds ANSI/BHMA standards. The lockset comes in various models and functions, including passage, privacy, classroom, and bathroom functions. It has a stainless steel latchbolt and deadbolt with over 1.8 million cycle durability. The lockset is CE, ANSI, and Certifire approved.

1. 14th Floor North Block, 77 Mu Xu Yuan Street, Nanjing 210007, P.R. CHINA TEL: +86.25.86932520 FAX: +86.25.86932510
Website: http://www.unityhardware.com, http://unityhardware.en.alibaba.com Email: sales@unityhardware.com
Version:
2020.02
1

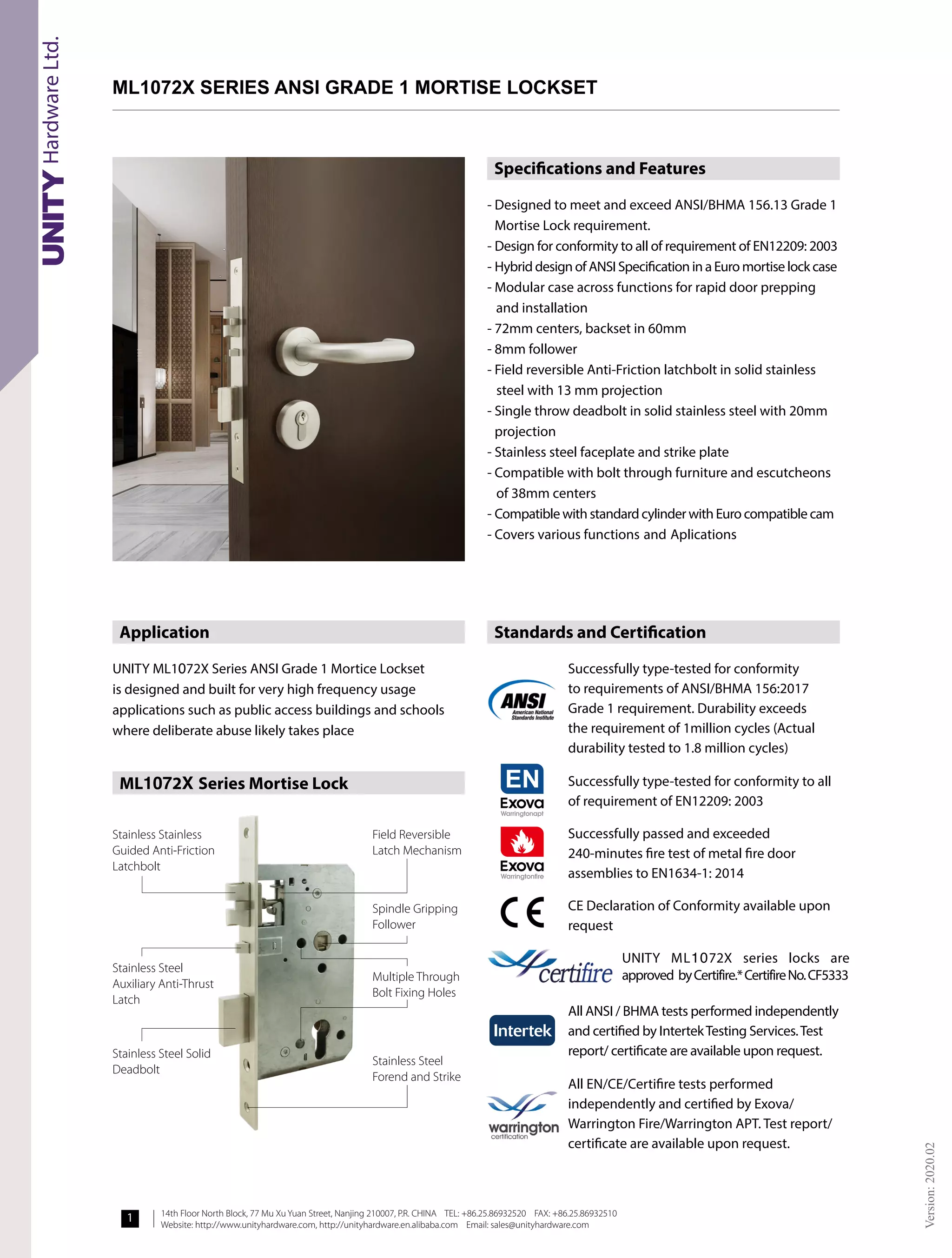

Application
is designed and built for very high frequency usage
applications such as public access buildings and schools
where deliberate abuse likely takes place
Specifications and Features
- Designed to meet and exceed ANSI/BHMA 156.13 Grade 1
Mortise Lock requirement.
- Design for conformity to all of requirement of EN12209: 2003
- Hybrid design of ANSI Specification in a Euro mortise lock case
- Modular case across functions for rapid door prepping
and installation
- 72mm centers, backset in 60mm
- 8mm follower
- Field reversible Anti-Friction latchbolt in solid stainless
steel with 13 mm projection
- Single throw deadbolt in solid stainless steel with 20mm
projection
- Stainless steel faceplate and strike plate
- Compatible with bolt through furniture and escutcheons
of 38mm centers
- Compatible with standard cylinder with Euro compatible cam
Standards and Certification
Successfully type-tested for conformity
to requirements of ANSI/BHMA 156:2017
Grade 1 requirement. Durability exceeds
the requirement of 1million cycles (Actual
durability tested to 1.8 million cycles)
Successfully type-tested for conformity to all
of requirement of EN12209: 2003
Successfully passed and exceeded
240-minutes fire test of metal fire door
assemblies to EN1634-1: 2014
CE Declaration of Conformity available upon
request
All ANSI / BHMA tests performed independently
and certified by IntertekTesting Services.Test
report/ certificate are available upon request.
All EN/CE/Certifire tests performed
independently and certified by Exova/
Warrington Fire/Warrington APT. Test report/
certificate are available upon request.
Stainless Stainless
Guided Anti-Friction
Latchbolt
Field Reversible
Latch Mechanism
Spindle Gripping
Follower
Multiple Through
Bolt Fixing Holes
Stainless Steel
Forend and Strike
Stainless Steel
Auxiliary Anti-Thrust
Latch
Stainless Steel Solid
Deadbolt
- Covers various functions and Aplications
ML1072X SERIES ANSI GRADE 1 MORTISE LOCKSET!
UNITY ML1072X Series ANSI Grade 1 Mortice Lockset
UNITY ML1072X series locks are
approved byCertifire.*CertifireNo.CF5333
ML1072X Series Mortise Lock

2. 14th Floor North Block, 77 Mu Xu Yuan Street, Nanjing 210007, P.R. CHINA TEL: +86.25.86932520 FAX: +86.25.86932510
Website: http://www.unityhardware.com, http://unityhardware.en.alibaba.com Email: sales@unityhardware.com
Version:
2020.02
2
Available Models
* Dimensions in mm
38.9
91
24
12.5
11
8
60
38
38
3
13
21.5
72
163
209.5
25
14 13
20
8
14
50
50
160
185
235
35
7
32
156
40
15
98
118
235
32
13
91
24
12.5
38
3
38
21.5
72
13
163
209.5
60
90
38
24

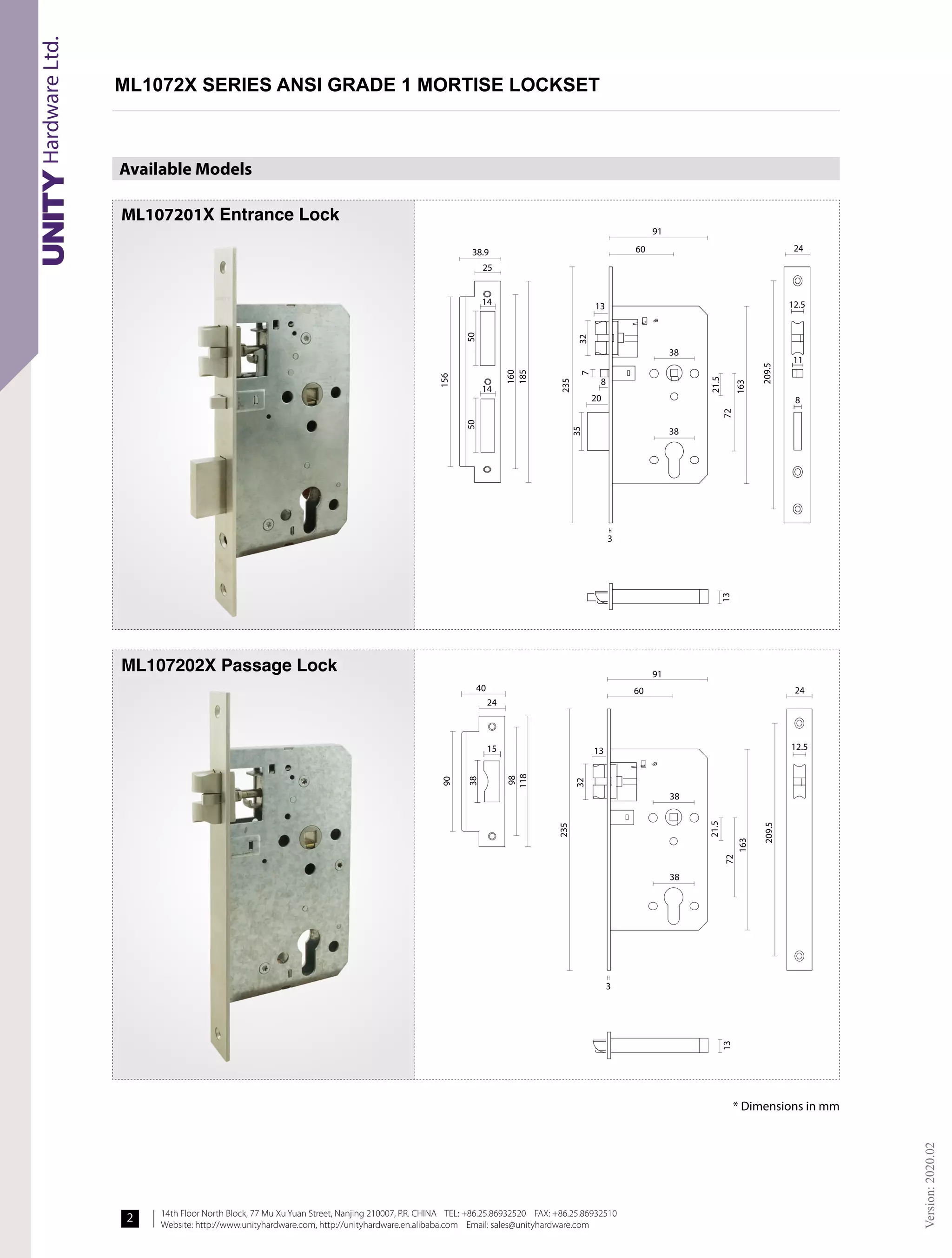

ML107201X Entrance Lock
ML107202X Passage Lock
ML1072X SERIES ANSI GRADE 1 MORTISE LOCKSET!

3. 14th Floor North Block, 77 Mu Xu Yuan Street, Nanjing 210007, P.R. CHINA TEL: +86.25.86932520 FAX: +86.25.86932510
Website: http://www.unityhardware.com, http://unityhardware.en.alibaba.com Email: sales@unityhardware.com
Version:
2020.02
3
Available Models
* Dimensions in mm
38.9
25
14
14
50
156
160
185
235
32
20
13
60
91
24
12.5
8
3
38
38
21.5
78
163
13
209.5
50
24
20
38
38
8
8
21.5
72
163
209.5
60
91
24
10
90
69
44
235
35
13

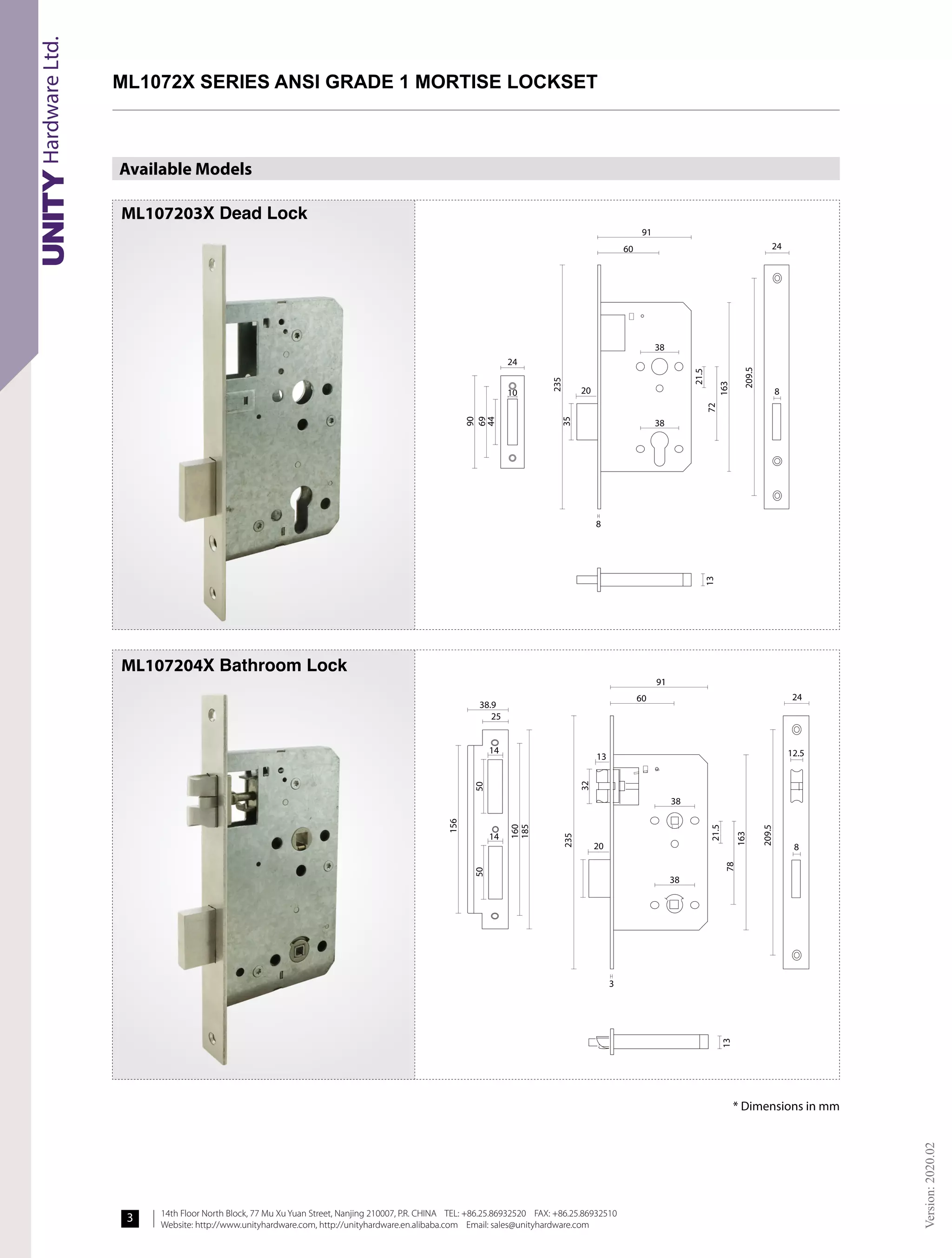

ML107203X Dead Lock
ML1072X SERIES ANSI GRADE 1 MORTISE LOCKSET!
ML107204X Bathroom Lock

4. 14th Floor North Block, 77 Mu Xu Yuan Street, Nanjing 210007, P.R. CHINA TEL: +86.25.86932520 FAX: +86.25.86932510
Website: http://www.unityhardware.com, http://unityhardware.en.alibaba.com Email: sales@unityhardware.com
Version:
2020.02
4
Available Models
* Dimensions in mm
40
24
15 13
60
38
38
3
91
24
12.5
11
8
90
38
98
118
235
32
7
21.5
72
13
163
209.5
38.9
25
14
14
50
50
160
185
235
21.5
72
163
13
209.5
7
35
32
13
24
12.5
11
8
60
38
38
3
8
20
156
ML1072X SERIES ANSI GRADE 1 MORTISE LOCKSET!
ML107205X Night Latch
ML107206X Escape Entrance Lock

5. 14th Floor North Block, 77 Mu Xu Yuan Street, Nanjing 210007, P.R. CHINA TEL: +86.25.86932520 FAX: +86.25.86932510
Website: http://www.unityhardware.com, http://unityhardware.en.alibaba.com Email: sales@unityhardware.com
Version:
2020.02
5
Available Models
40
91
24
12.5
11
60
38
38
8
38
24
15 13
8
90
98
118
235
72
163
13
209.5
7
32
* Dimensions in mm
ML1072X SERIES ANSI GRADE 1 MORTISE LOCKSET!

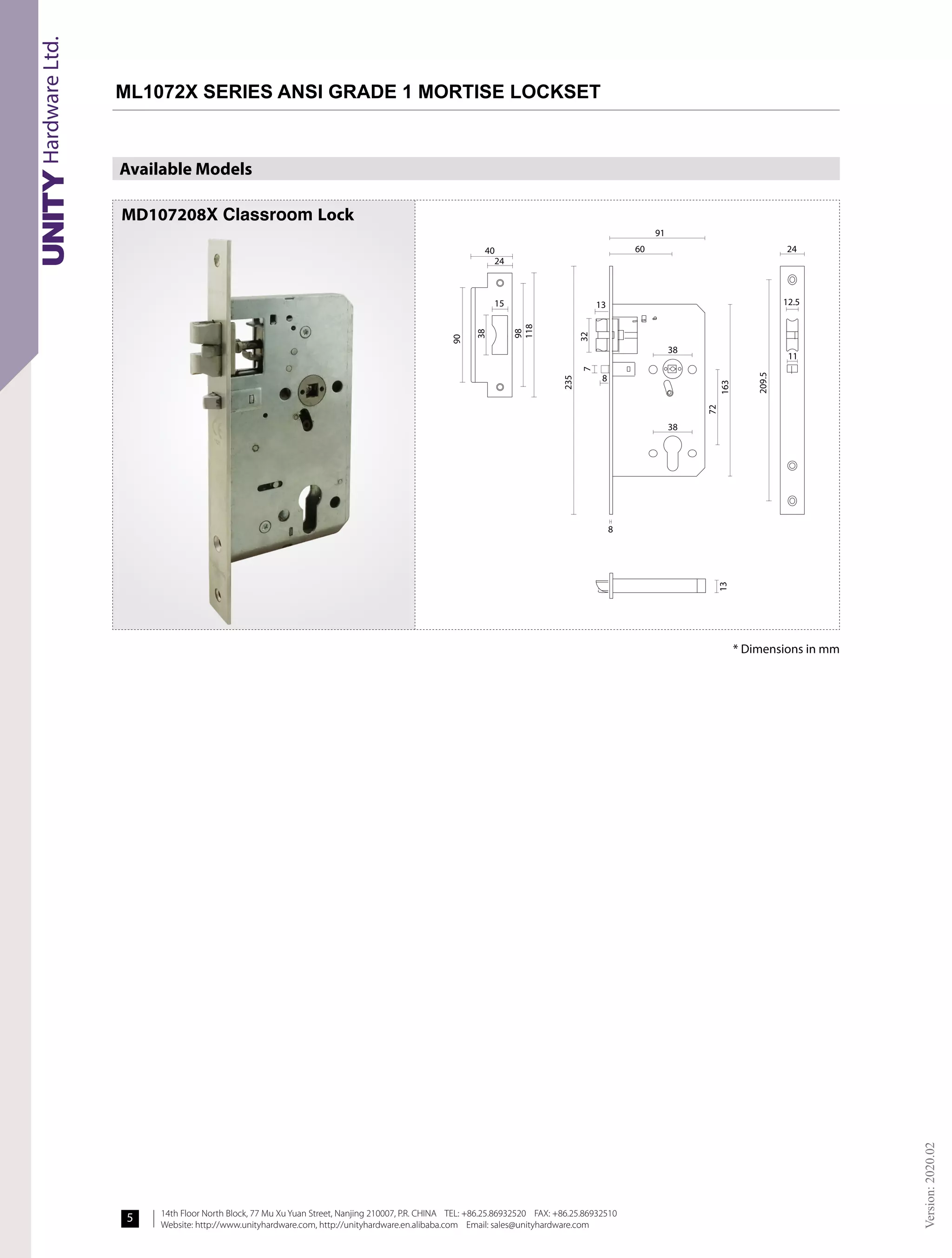

MD107208X Classroom Lock
