1. Unit Test
Đức Trần

2. Unit Test
Why Testing?
Beginning Unit Test
Asynchronous Testing
Performance Testing

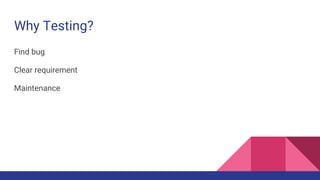

3. Why Testing?
Find bug
Clear requirement
Maintenance

4. How?
1. Code
2. Add Tests
3. Modify code for passing Tests
Vs
1. Write Tests
2. Write code that pass Tests (Test-Driven Development)

5. Beginning Unit Test

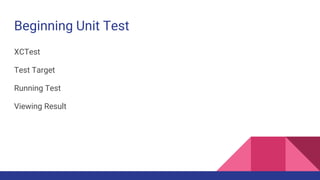

6. Beginning Unit Test
XCTest
Test Target
Running Test
Viewing Result

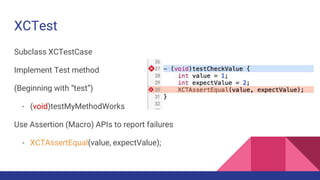

7. XCTest
Subclass XCTestCase
Implement Test method
(Beginning with “test”)
- (void)testMyMethodWorks
Use Assertion (Macro) APIs to report failures
- XCTAssertEqual(value, expectValue);

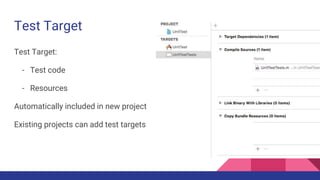

8. Test Target
Test Target:
- Test code
- Resources
Automatically included in new project
Existing projects can add test targets

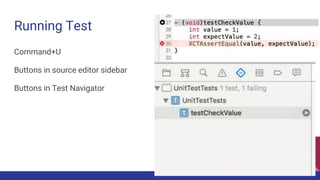

9. Running Test
Command+U
Buttons in source editor sidebar
Buttons in Test Navigator

10. Viewing Result
Test Navigator

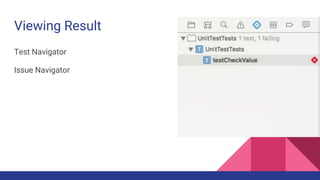

11. Viewing Result
Test Navigator
Issue Navigator

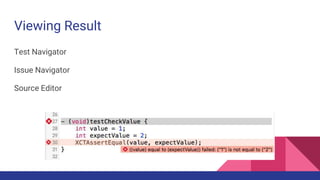

12. Viewing Result
Test Navigator
Issue Navigator
Source Editor

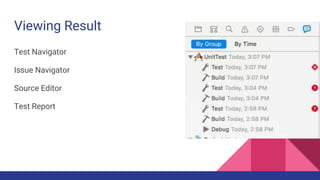

13. Viewing Result
Test Navigator
Issue Navigator
Source Editor
Test Report

14. Demo
Adding Test Case

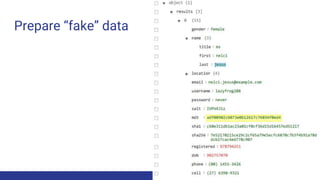

15. Prepare “fake” data

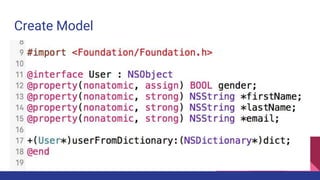

16. Create Model

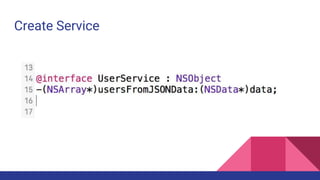

17. Create Service

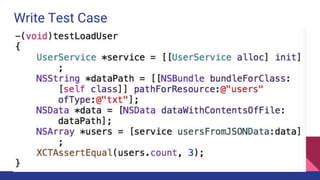

18. Write Test Case

19. Implement Method
Write code to implement methods.
Check if test cases are passed

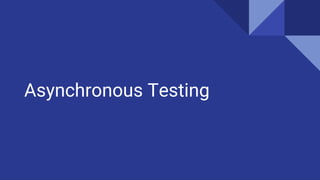

20. Asynchronous Testing

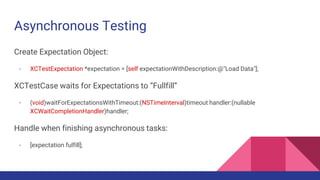

21. Asynchronous Testing
Create Expectation Object:
- XCTestExpectation *expectation = [self expectationWithDescription:@"Load Data"];
XCTestCase waits for Expectations to “Fullfill”
- (void)waitForExpectationsWithTimeout:(NSTimeInterval)timeout handler:(nullable
XCWaitCompletionHandler)handler;
Handle when finishing asynchronous tasks:
- [expectation fulfill];

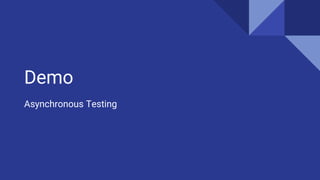

22. Demo
Asynchronous Testing

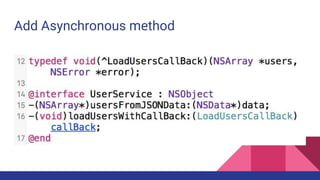

23. Add Asynchronous method

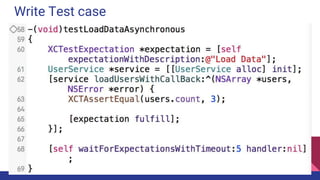

24. Write Test case

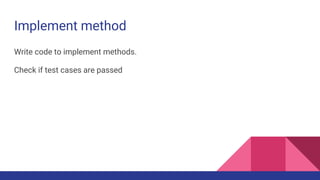

25. Implement method
Write code to implement methods.
Check if test cases are passed

26. Performance Testing

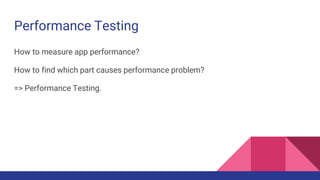

27. Performance Testing
How to measure app performance?
How to find which part causes performance problem?
=> Performance Testing.

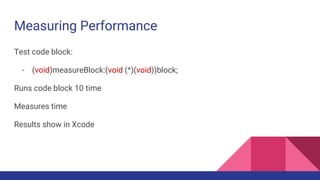

28. Measuring Performance
Test code block:
- (void)measureBlock:(void (^)(void))block;
Runs code block 10 time
Measures time
Results show in Xcode

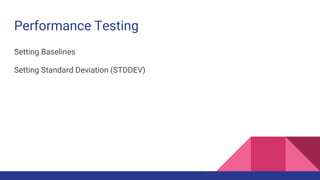

29. Performance Testing
Setting Baselines
Setting Standard Deviation (STDDEV)

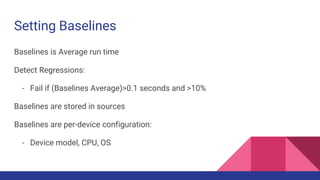

30. Setting Baselines
Baselines is Average run time
Detect Regressions:
- Fail if (Baselines Average)>0.1 seconds and >10%
Baselines are stored in sources
Baselines are per-device configuration:
- Device model, CPU, OS

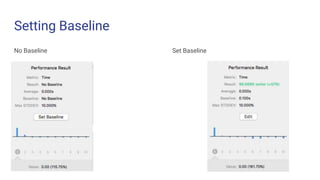

31. Setting Baseline
No Baseline Set Baseline

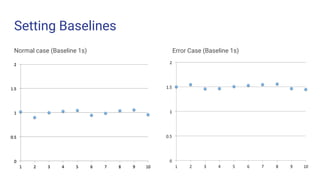

32. Setting Baselines
Normal case (Baseline 1s) Error Case (Baseline 1s)

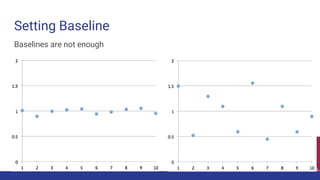

33. Setting Baseline
Baselines are not enough

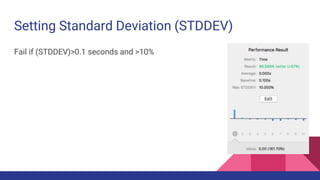

34. Setting Standard Deviation (STDDEV)
Fail if (STDDEV)>0.1 seconds and >10%

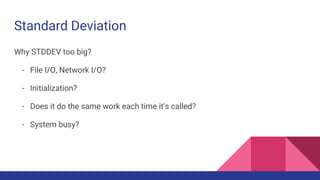

35. Standard Deviation
Why STDDEV too big?
- File I/O, Network I/O?
- Initialization?
- Does it do the same work each time it's called?
- System busy?

36. Profiling Test
Investigate functions’ performance

37. Demo
Performance Testing

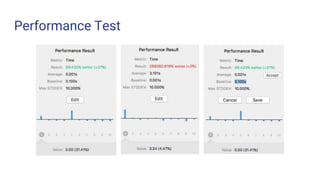

38. Performance Test

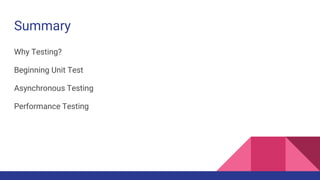

39. Summary
Why Testing?
Beginning Unit Test
Asynchronous Testing
Performance Testing

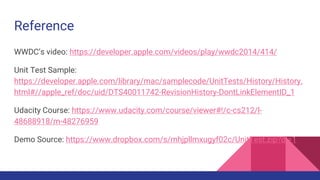

40. Reference
WWDC’s video: https://developer.apple.com/videos/play/wwdc2014/414/
Unit Test Sample:
https://developer.apple.com/library/mac/samplecode/UnitTests/History/History.
html#//apple_ref/doc/uid/DTS40011742-RevisionHistory-DontLinkElementID_1
Udacity Course: https://www.udacity.com/course/viewer#!/c-cs212/l-
48688918/m-48276959
Demo Source: https://www.dropbox.com/s/mhjpllmxugyf02c/UnitTest.zip?dl=1

41. QA?
1. How to implement UITest?
- Checkout apple’s Sample app:
https://developer.apple.com/library/mac/samplecode/UnitTests/History/Hist
ory.html#//apple_ref/doc/uid/DTS40011742-RevisionHistory-
DontLinkElementID_1
- Checkout this WWDC session:
https://developer.apple.com/videos/play/wwdc2015/406/

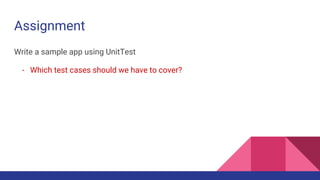

42. Assignment
Write a sample app using UnitTest
- Which test cases should we have to cover?

43. Thanks for watching!
