聞いてスッキリ！Lightningの理解ポイント

聞いてスッキリ！Lightningの理解ポイント
～ひと味足りない業務アプリに
「SuPICE」を効かせて欲しかったを実現～
2015年12月04日
株式会社テラスカイ製品開発部
吉田寛
Salesforce World Tour Tokyo 2015
Developer Theater Session

会社紹介:概要
Copyright © 2015 Terrasky Co., Ltd. All Rights Reserved. 2
社名：株式会社テラスカイ
所在地：〒103-0027
東京都中央区日本橋1-3-13
東京建物日本橋ビル7階
事業所：大阪、名古屋
設立：平成18（2006）年4月
資本金： 4億5403.5万円
代表者：代表取締役社長佐藤秀哉
情報管理： ISO 27001／IS 561777
URL ： http://www.terrasky.co.jp/

会社紹介:多くの専門技術者
Copyright © TerraSky Co., Ltd. All Rights Reserved. 3
2015年12月1日時点
AWS認定ソリューションアーキテクト
認定SalesCloud
コンサルタント
認定ServiceCloud
コンサルタント
認定上級
デベロッパー
認定上級
アドミニストレーター
Force.com MVP 認定テクニカルアーキテクト

みずほキャピタル様富士通ゼネラル様
損保ジャパン日本興亜システムズ様エフエーサービス様
昭和シェル石油様ダンアンドブラッドストリート様
小田急電鉄様デジタルハリウッド様
小田急バス様パソナグループ様
アリスタライフサイエンス様リンクイベントプロデュース様
日立アロカメディカル様富士通ラーニングメディア様
楽天様世界自然保護基金ジャパン様
KVH 様その他多数
会社紹介:卓越したクラウド導入実績
Salesforce導入実績
2,000案件超！
金融からコールセンター、
サービス業まで業種業態を問わず
豊富な導入実績
金融・流通
医療・ IT
製造・サービス
不動産・教育
非営利

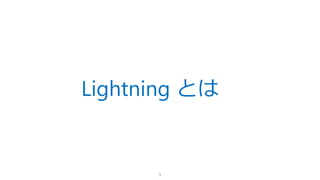

Lightning とは
（出所：Youtube Dreamforce Keynoteより画面を引用）

7

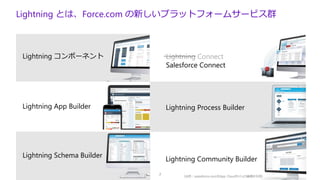

Lightning とは、Force.com の新しいプラットフォームサービス群
Lightning コンポーネント
Lightning App Builder
Lightning Schema Builder
Lightning Connect
Salesforce Connect
Lightning Process Builder
Lightning Community Builder
（出所：salesforce.com社App Cloudサイトより画像を引用）

8

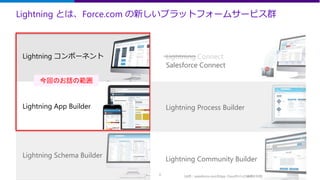

Lightning とは、Force.com の新しいプラットフォームサービス群
Lightning コンポーネント
Lightning App Builder
Lightning Schema Builder
Lightning Connect
Salesforce Connect
Lightning Process Builder
Lightning Community Builder
（出所：salesforce.com社App Cloudサイトより画像を引用）
今回のお話の範囲

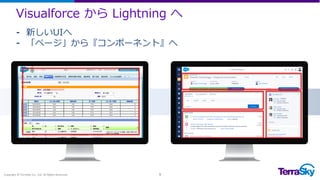

Visualforce から Lightning へ
⁃ 新しいUIへ
⁃ 「ページ」から『コンポーネント』へ

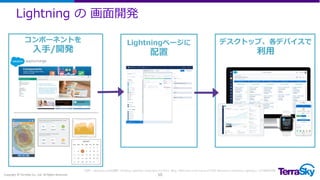

Lightningページに
配置
Lightning の画面開発
コンポーネントを
入手/開発
（出所：salesforce.com社資料「Building Lightning Components for ISVs」,Blog「Welcome to the Future of CRM. Welcome to Salesforce Lightning.」より図を引用）
デスクトップ、各デバイスで
利用

今までの利用者の作業範囲今までの開発者の作業範囲
これからの開発者の作業範囲これからの利用者の作業範囲
Lightning の画面開発
（出所：salesforce.com社資料「Building Lightning Components for ISVs」,Blog「Welcome to the Future of CRM. Welcome to Salesforce Lightning.」より図を引用）
⁃ 利用者の作業可能範囲が広がる
⁃ (イメージとして)開発者に求める作業期間が短くなる
より速い開発が必要

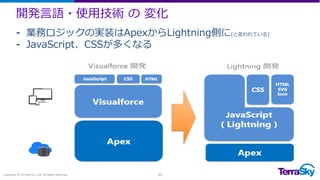

開発言語・使用技術の変化
⁃ 業務ロジックの実装はApexからLightning側に(と言われている)
⁃ JavaScript、CSSが多くなる

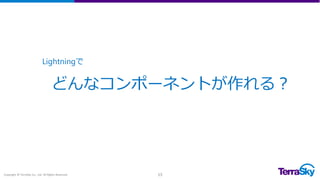

どんなコンポーネントが作れる？
Lightningで

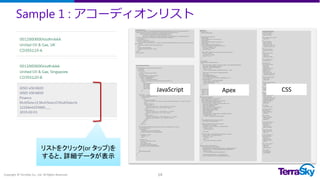

Sample 1 : アコーディオンリスト
【AccordionList.cmp】
<aura:component implements="force:appHostable,flexipage:availableForAllPageTypes" controller="AccountListController" >
<ltng:require styles="/resource/TS_AccordionList/TS_AccordionList/css/font-awesome.min.css"
scripts="/resource/TS_AccordionList/TS_AccordionList/js/jquery.min.js,
/resource/TS_AccordionList/TS_AccordionList/js/jquery-ui.min.js,
/resource/TS_AccordionList/TS_AccordionList/js/lodash.js" afterScriptsLoaded="{!c.afterScriptsLoaded}" />
<div class="sg-icon-art sg-icn--fnt center tc icon-utility-download" title="download" />

<div class="TS_component">
<h2 class="component_Title_header">
<div class="icon_Frame account_Color"><img src="/img/icon/t4v32/standard/account_120.png" class="icon " alt="Account"
title="Account" /
<span class="component_Title">Account Lists</span>
</h2>
<div class="component_Body">
<table id="AccordionListTable" ></table>
</div>
</div>
</aura:component>
【AccordionListController.js】
({
afterScriptsLoaded : function(component, event, helper) {
var expanded;
$(function () {
/* ここから */
var action = component.get("c.findAll");
var records;
action.setCallback(this, function(response){
var state = response.getState();
if (state === "SUCCESS") {
var res = response.getReturnValue();
records = Array.apply(null, new Array(res.length)).map(function (n, i) {
return {
Name: res[i].Name,
State:res[i].BillingState,
Phone: res[i].Phone,
Fax: res[i].Fax,
Address: res[i].BillingState + res[i].BillingCity + res[i].BillingStreet
};
});
}
var template = _.template('¥
<% records.forEach(function (r) { %>¥
<tr class="row">¥
<td>¥
<div class="form-control">¥
<span class="accName"><%= r.Name %></span><span class="accState"><%= r.State %></span>¥
</div>¥
<div class="content">¥
<div class="fields">¥
<span class="content_Icon"><i class="fa fa-phone"></i></span>¥
<span class="content_Value"><%= r.Phone %></span>¥
</div>¥
<span class="content_Icon"><i class="fa fa-fax"></i></span>¥
<span class="content_Value"><%= r.Fax %></span>¥
</div>¥
<span class="icon_Address"><i class="fa fa-building-o"></i></span>¥
<span class="content_Address"><%= r.Address %></span>¥
</div>¥
</div>¥
</td>¥
</tr>¥
<% }); %>¥
');
document.getElementById('AccordionListTable').innerHTML = template({records: records});
$('.row').click(function () {
if (expanded) {
$(expanded).find('.content').slideUp(300);
$(this).find('.accName').removeClass('textBold');
}
if (expanded === this) {
expanded = null;
return;
}
expanded = this;
var content = $(this).find('.content');
content.hide();
content.slideDown(300);
$('.accName').removeClass('textBold');
$(this).find('.accName').addClass('textBold');
});
});
$A.enqueueAction(action);
});
}
})
【AccordionListStyle.css】
/* Component Header */
.THIS .TS_component {
margin-left: 10px;
}
.THIS .component_Title_header{
margin: 5px;
}
.THIS .icon_Frame {
display: inline-block;
border-radius: 5px;
-webkit-border-radius: 5px;
-moz-border-radius: 5px;
}
.THIS .account_Color {
background: #7F8DE1;
}
.THIS .icon_Frame .icon {
width: 2rem;
height: 2rem;
vertical-align: middle;
}
.THIS .component_Title {
margin-left:10px;
}
/* AccordionList */
.THIS .component_Body{
width: 98%;
margin: auto;
border:solid 1px #ccc;
background: #fff;
padding: 10px;
border-radius: 5px;
}
.THIS #AccordionListTable {
margin:0 auto;
width: 100%;
}
.THIS #AccordionListTable td {
padding:10px;
border-top: solid 1px #ddd;
}
.THIS .form-control{
padding:5px;
color:#2A94D6;
}
.THIS .content {
display: none;
border: solid 1px #ccc;
border-radius: 5px;
background:#F0F1F2;
background:#fff;
padding:5px;
}
.THIS .fields {
margin-bottom: 5px;
}
/* AccordionList Label */
.THIS .accName{
width:60%;
}
.THIS .accState{
text-align:right;
width:40%;
}
/* AccordionList content */
.THIS .content_Icon{
width: 30px;
text-align: center;
}
.THIS .content_Value{
width: auto;
}
/* content Addess only */
.THIS .icon_Address{
width: 30px;
text-align: center;
float: left;
}
.THIS .content_Address{
display: block;
width: auto;
margin-left: 30px;
}
.THIS .textBold {
font-weight:bold;
color:#344A5F;
}
【SuPICE.cls】
interface Action {
Object run(Object data);
}
virtual public class ActionResult {
@AuraEnabled
public final Boolean error { get; private set; }
@AuraEnabled
public final String[] messages { get; private set; }
@AuraEnabled
public final Object value { get; private set; }
public ActionResult(String[] messages, Object value) {
this.error = messages != null;
this.messages = messages;
this.value = value;
}
public ActionResult(Boolean success, String[] messages, Object value) {
this.error = success;
this.messages = messages;
this.value = value;
}
}
@AuraEnabled
global static Object action(String data) {
try {
Map<String, Object> dataMap = (Map<String, Object>) JSON.deserializeUntyped(data);
String type = (String) dataMap.get('action');
Object action = ACTION_MAP.get(type);
if (action == null) {
throw new SuPICEException('Unsupported action type: ' + type);
}
Object result = ((Action) action).run(dataMap.get('data'));
return result;
} catch (SuPICEException e) {
// SuPICE処理内で予測される例外
return new ActionResult(new String[] {e.getMessage()}, null);
} catch (Exception e) {
// 予期しない例外。とりあえずStackTraceを返す
return new ActionResult(new String[] {
ERROR.getStackTrace(e)
}, null);
}
}
private static final Map<String, Action> ACTION_MAP = new Map<String, Action> {
'query' => new QueryAction(),
'describe' => new DescribeAction(),
'save' => new SaveAction(),
'delete' => new DeleteAction()
};
class QueryActionArguments {
public String objectName { get; private set; }
public String[] fields { get; private set; }
public ConditionOperator condition { get; private set; }
public QueryActionArguments(Object root) {
Map<String, Object> rootMap = (Map<String, Object>) root;
objectName = getObject(rootMap);
fields = getFields(rootMap);
Set<String> fieldSet = new Set<String>();
fieldSet.add('Id'); //Idは必ず取得する
fieldSet.addAll(getFields(rootMap));
fields = new String[0];
fields.addAll(fieldSet);
Map<String, Object> untypedCondition = getCondition(rootMap);
if (untypedCondition != null) {
condition = parseOperator(untypedCondition);
}
}
String getObject(Map<String, Object> untyped) {
return (String) untyped.get('object');
}
String[] getFields(Map<String, Object> untyped) {
String[] typed = new String[0];
List<Object> fields = (List<Object>) untyped.get('fields');
for (Object o : fields) {
typed.add((String) o);
}
return typed;
}
Map<String, Object> getCondition(Map<String, Object> untyped) {
Object condition = untyped.get('condition');
if (condition == null) {
return null;
} else {
return (Map<String, Object>) condition;
}
}
}
class DescribeAction implements Action {
public ActionResult run(Object untyped) {
String objectName = (String)((Map<String, Object>) untyped).get('object');
SObjectType soType = Schema.getGlobalDescribe().get(objectName);
if (soType == null) {
throw ERROR.getSObjectNotFound(objectName);
}
DescribeSObjectResult describe = soType.getDescribe();
return new ActionResult(null, new DescribeResult(describe));
}
}
リストをクリック(or タップ)を
すると、詳細データが表示
JavaScript CSSApex

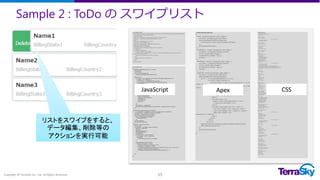

Sample 2 : ToDo のスワイプリスト
【AccordionList.cmp】
<aura:component controller="ToDoListController" implements="force:appHostable,flexipage:availableForAllPageTypes">
<aura:attribute name="toDos" type="Task[]" />
<ltng:require styles="
/resource/TS_ToDoList/Font-Awesome-master/css/font-awesome.min.css,
/resource/TS_ToDoList/Swiper-master/dist/css/swiper.min.css"
scripts="
/resource/TS_ToDoList/jquery-1.11.3.min.js,
/resource/TS_ToDoList/lodash.min.js,
/resource/TS_ToDoList/Swiper-master/dist/js/swiper.min.js,
/resource/TS_ToDoList/dateformat.js"
afterScriptsLoaded="{!c.afterScript}"/>
<aura:handler name="init" value="{!this}" action="{!c.doInit}"/>

<div class="TS_component">
<h2 class="component_Title_header">
<div class="icon_Frame todo_Color"><img src="/img/icon/t4v32/standard/task_120.png" class="icon"
alt="ToDo" title="ToDo" /></div>
<span class="component_Title">ToDo List</span>
</h2>
<div class="todo_List" id="todo_List">
</div>
</div>
</aura:component>
【ToDoListController.js】
({
doInit : function(component, event, helper) {
var action = component.get('c.getToDos');
action.setCallback(this,function(response){
component.set('v.toDos',response.getReturnValue());
});
},
showSpinner : function (component, event, helper) {
var spinner = component.find('todo_spinner');
var evt = spinner.get("e.toggle");
evt.setParams({ isVisible : true });
evt.fire();
},
hideSpinner : function (component, event, helper) {
var spinner = component.find('todo_spinner');
var evt = spinner.get("e.toggle");
evt.setParams({ isVisible : false });
evt.fire();
},
afterScript : function(component, event, helper) {
var action = component.get('c.getToDos');
var str = '<% records.forEach(function (r) { %>¥
<div class="swiper-container">¥
<div class="done"><i class="fa fa-check-square-o"></i><br
/>Done </div>¥
<div class="delete"><i class="fa fa-trash-o"></i><br />Del
</div>¥
<div class="swiper-wrapper <%= r.style %>">¥
<div class="mark_l">¥
<i class="fa fa-caret-left"></i>¥
<i class="fa fa-hand-pointer-o"></i>Done¥
</div>¥
<div class="mark_r">¥
Delete <i class="fa fa-hand-pointer-o"></i>¥
<i class="fa fa-caret-right"></i>¥
</div>¥
<div class="swiper-slide" id="<%= r.Id %>">¥
<div class="subject"><%= r.Name %></div>¥
<span class="details"><%= r.Status %></span>¥
<span class="details"><%=
r.ActivityDate %></span>¥
</div>¥
</div>¥
</div>¥
<% }); %>';
helper.setToDoList(component,str,response.getReturnValue(),event);
helper.doSwiper(component);
});
},
})
【ToDoListHelper.js】
({
setToDoList:function(component, str, record){
var expanded;
var self = this;
function toArray(fakeArray) {
return Array.prototype.slice.call(fakeArray);
}
$(function () {
var records = Array.apply(null, new Array(record.length)).map(function (n, i) {
/* 日付フォーマット M/d/yyyy */
var dateFormat = new DateFormat("M/d/yyyy");
var str = dateFormat.format(new Date(record[i].ActivityDate));
/** 期限を確認する **/
var today = new Date();
var date = new Date(record[i].ActivityDate);
var style = '';
if (today > date) {
style = 'expired';
}
return {
Name: record[i].Subject,
Status: record[i].Status,
IsClosed: record[i].IsClosed,
ActivityDate: str,
Id: record[i].Id,
style: style
};
});
var template = _.template(str);
document.getElementById('todo_List').innerHTML = template({records: records});
});
},
doSaveToDo: function(component, recordId){
// var upsertToDo = {'sobjectType':'Task','Id':recordId,'Status':'Completed'};
var upsertToDo = {'sobjectType':'Task','Id':recordId};
var action = component.get("c.saveToDo");
action.setParams({"tasks":upsertToDo});
action.setCallback(this,function(a){
console.log("FIN!!");
});
console.log("GO!!");
},
doSwiper: function(component){
var self = this;
var mySwiper = new Swiper('.swiper-container',{
pagination: '.pagination',
loop:false,
paginationClickable:true,
calculateHeight:true,
touchRatio:0.6,
onTransitionStart: function (swiper){
var recordId = swiper.wrapper[0].id;
if(recordId){
self.doSaveToDo(component, recordId);
}
},
onTransitionEnd: function(swiper){
if(swiper.touches.diff <= -170){
$(swiper.container[0]).css('display','none');
} else if (swiper.touches.diff >= 170){
/* $(swiper.wrapper[0]).css({'background':'#D3D3D3','border-color':'#c7c7c7'}); */
$(swiper.wrapper[0]).addClass('todoDone');
/* $(swiper.wrapper[0]).find('.subject').addClass('todoDone'); */
}
}
});
}
})
【ToDoListStyle.css】
/* Component Header */
.THIS .component_Title_header{
margin: 5px;
}
.THIS .icon_Frame {
border-radius: 5px;
}
.THIS .todo_Color {
background: #4BC076;
}
.THIS .icon_Frame .icon {
width: 2rem;
height: 2rem;
}
.THIS .component_Title {
margin-left:10px;
}
/* Records */
.THIS .swiper-wrapper {
height: 100%;
padding: 10px;
/* background: #8BC34A; */
background: #C8E6C9;
background: #8BC34A;
background: #fff;
border:1px solid #388E3C;
margin: 3px;
border-radius: 5px;
box-shadow:rgba(113, 135, 164, 0.65098) 4px 3px 6px -3px;
-webkit-box-shadow:rgba(113, 135, 164, 0.65098) 4px 3px 6px -3px;
-moz-box-shadow:rgba(113, 135, 164, 0.65098) 4px 3px 6px -3px;
width:auto;
}
.THIS .mark_l i{
margin-right: 2px;
}
.THIS .mark_l {
position: absolute;
top: 0;
left: 0;
margin-left: 5px;
margin-top: 5px;
color: #fff;
color: #616161;
}
.THIS .mark_r {
position: absolute;
top: 0;
right: 0;
margin-right: 5px;
margin-top: 5px;
color: #fff;
color: #616161;
}
.THIS .swiper-slide {
margin-top:20px;
width:100% !important;
border-left: solid 5px #388E3C;
padding-left: 5px;
}
.THIS .expired {
border:1px solid #D32F2F;
/* background: #eb4654; */
background: #FFCDD2;
background: #FF5252;
background: #eb4654;
background: #fff;
}
.THIS .expired .swiper-slide {
margin-top:20px;
width:100% !important;
border-left: solid 5px #D32F2F;
padding-left: 5px;
}
/* swipe時に表示される */
.THIS .done {
position: absolute;
top: 5px;
padding: 10px;
background: #4AB471;
color: #fff;
margin-top: 4px;
margin-left: 3px;
border-radius: 5px;
width:50%;
}
.THIS .delete {
position: absolute;
top: 5px;
right: 0;
padding: 10px;
text-align: right;
background: #D96383;
color: #fff;
margin-top: 4px;
margin-right: 3px;
border-radius: 5px;
width:48%
}
.THIS .subject {
font-size: 1.2em;
font-weight: bold;
margin-bottom: 5px;
}
.THIS .todoDone {
background: #D3D3D3;
border-color: #c7c7c7;
}
.THIS .todoDone .swiper-slide {
border-left: solid 5px #fff;
}
.THIS .details {
color: #fff;
width: 48%;
color: #616161;
}
JavaScript CSSApex
リストをスワイプをすると、
データ編集、削除等の
アクションを実行可能

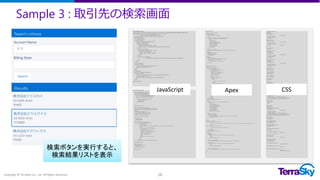

Sample 3 : 取引先の検索画面
【AccountSearch.cmp】
<aura:component controller="AccountSearchController" implements="force:appHostable,flexipage:availableForAllPageTypes">
<ltng:require scripts="/resource/TS_AccountSearch/jquery-1.11.3.min.js,
/resource/TS_AccountSearch/lodash.min.js" />
<aura:handler name="init" value="{!this}" action="{!c.doInit}" />
<div class="condition">

<div class="section">
<div class="sectionTitile">Search Box</div>
<div class="searchCondition">
<div class="searchItem">
<span class="searchItemLabel"></span>
<input type="text" id="selectInputItem" palaceholder="Account Name"/>
</div>
<div class="searchItem">
<span class="searchItemLabel"></span>
<select id="selectSearchItem">
<option value="">--None--</option>
</select>
</div>
<div class="searchButtonBox">
<input class="searchButton" type="button" value="Search" onclick="{!c.doSearch}"/>
</div>
</div>
</div>

<div class="sectionTitile">Search Results</div>
<div class="searchResult"></div>
</div>
</div>

<div class="detail" style="display:none">
<div id="TS_DetailSection" tabindex="0" class="sectionTitile">Detail</div>
<div class="detailList"></div>
<input type="button" value="Close" onclick="{!c.closeDetail}"/>
</div>
</div>
</aura:component>
【AccountSearchController.js】
({
doInit : function(component, event, helper){
var action = component.get('c.getOptions');
var sel = document.getElementById('selectSearchItem');
for(var i =0; i<response.getReturnValue().length; i++){
var val = response.getReturnValue()[i].BillingState;
if(val){
var op = document.createElement('option');
op.setAttribute('value',val);
op.innerHTML = val;
sel.appendChild(op);
}
}
});
},
doSearch : function(component, event, helper) {
var accName = document.getElementById('selectInputItem').value;
var accState = document.getElementById('selectSearchItem').value;
var action;
if(accName !="" && accState == ""){
action = component.get('c.getAccountName');
}else if (accName == "" && accState != ""){
action = component.get('c.getAccountState');
}else{
action = component.get('c.getAccounts');
}
action.setParams({
'accName':accName,
'accState':accState
});
<div class="wrap">¥
<div class="mapframe">¥
<img class="map" src="/resource/mapicon/mapicon/icon_1r_64.png" address="<%= r.Street %>" />¥
</div>¥
<div id="<%= r.Id %>" class="recordList">¥
<div class="Name"><%= r.Name %></div>¥
<div>BillingAddress <br/>¥
Country : <%= r.Country %><br/>¥
PostalCode : <%= r.PostalCode %><br/>¥
State : <%= r.State %><br/>¥
City : <%= r.City %><br/>¥
Street : <%= r.Street %>¥
</div>¥
<div>Phone : <%= r.Phone %></div>¥
</div>¥
</div>¥
<% }); %>';
helper.setResult(component,str,response.getReturnValue(),event);
});
},
closeDetail: function(){
// $('.detail').fadeOut('normal');
$('.detail').hide();
$('.condition').fadeIn('normal');
},
navigate : function() {
},
})
【AccountSearchHelper.js】
({
setResult: function(cmp,str,record,event) {
var self = this;
}
$(function () {
var address = encodeURIComponent(record[i].BillingStreet);
return {
Id: record[i].Id,
Name: record[i].Name,
Country: record[i].BillingCountry,
PostalCode: record[i].BillingPostalCode,
State: record[i].BillingState,
City: record[i].BillingCity,
Street: record[i].BillingStreet,
Phone: record[i].Phone,
Address: address
};
});
document.getElementsByClassName('searchResult')[0].innerHTML = template({records: records});
});
/* 詳細表示用 */
$('.recordList').click(function (ev) {
self.setDetailList(cmp,record,ev);
$('.detail').fadeIn('normal');
$('.condition').hide();
});
/* 地図表示用 */
$('.map').click(function (e) {
var address = encodeURIComponent($(e.target).attr('address'));
var urlEvent = $A.get("e.force:navigateToURL");
urlEvent.setParams({
"url": 'https://www.google.com/maps/place/' + address
});
urlEvent.fire();
});
},
setDetailList: function(cmp,record,ev){
var self = this;
var recordId = ev.currentTarget.id;
<div class="recordDetail">¥
<div class="Name"><%= r.Name %></div>¥
<div>BillingAddress <br/>¥
Country : <%= r.Country %><br/>¥
PostalCode : <%= r.PostalCode %><br/>¥
State : <%= r.State %><br/>¥
City : <%= r.City %><br/>¥
Street : <%= r.Street %>¥
</div>¥
<div>Phone : <%= r.Phone %></div>¥
<div class="conRelatedList">¥
<table>¥
<thead>¥
<tr>¥
<th>No.</th><th>Contact Name</th>¥
</tr>¥
</thead>¥
<tbody class="conRelatedListBody">¥
</tbody>¥
</table>¥
</div>¥
<div class="oppRelatedList">¥
<table>¥
<thead>¥
<tr>¥
<th>No.</th><th>Opportunity Name</th>¥
</tr>¥
</thead>¥
<tbody class="oppRelatedListBody">¥
</tbody
>¥
</table>¥
</div>¥
</div><br/>¥
<% }); %>'
}
$(function () {
return {
Id: record[i].Id,
Name: record[i].Name,
Country: record[i].BillingCountry,
PostalCode: record[i].BillingPostalCode,
State: record[i].BillingState,
City: record[i].BillingCity,
Street: record[i].BillingStreet,
Phone: record[i].Phone,
Contacts: record[i].Contacts,
Opportunities: record[i].Opportunities
};
});
for(var i=0; i<records.length; i++){
if(records[i].Id == recordId){
document.getElementsByClassName('detailList')[0].innerHTML = template({records: [records[i]]});
self.setRelatedList(records[i]);
}
}
});
},
setRelatedList: function(record){
var conStr = '<% records.forEach(function (r) { %>¥
<tr>¥
<td>No.<%= r.count %></td><td><%= r.cName %></td><td><i class="fa fa-phone"></i></td><td><i class="fa fa-envelope-o"></i></td>¥
</tr>¥
<% }); %>'
var oppStr = '<% records.forEach(function (r) { %>¥
<tr>¥
<td>No.<%= r.count %></td><td><%= r.oName %></td>¥
</tr>¥
<% }); %>'
}
$(function () {
var template;
if(record.Contacts){
var cRecords = Array.apply(null, new Array(record.Contacts.length)).map(function (n, i) {
return {
count: i+1,
cName: record.Contacts[i].Name
};
});
template = _.template(conStr);
document.getElementsByClassName('conRelatedListBody')[0].innerHTML = template({records: cRecords});
}
if(record.Opportunities){
var oRecords = Array.apply(null, new Array(record.Opportunities.length)).map(function (n, i) {
return {
count: i+1,
oName: record.Opportunities[i].Name
};
});
template = _.template(oppStr);
document.getElementsByClassName('oppRelatedListBody')[0].innerHTML = template({records: oRecords});
}
});
}
})
【AccountSearchStyle.css】
.THIS .section {
padding: 3px;
border: solid 1px #ccc;
border-radius: 5px;
margin: 5px;
}
.THIS .sectionTitile{
background: #717ECD;
border-radius: 5px;
padding: 5px;
color: #fff;
}
.THIS .searchCondition {
padding: 5px;
}
.THIS #selectInputItem{
height: 30px;
min-width: 10em;
border-radius: 5px;
margin-left: 5px;
}
.THIS #selectSearchItem{
height: 30px;
min-width: 10em;
border-radius: 5px;
margin-left: 5px;
}
.THIS .searchItem {
margin: 5px 10px;
}
.THIS .searchItemLabel{
text-align: left;
}
.THIS .searchButtonBox{
}
.THIS .searchButton{
height: 30px;
}
.THIS .Name {
font-size: 1.2em;
font-weight: bold;
margin-bottom: 5px;
}
.THIS .wrap {
position: relative;
}
.THIS .recordList {
padding: 10px;
background: #fff;
border:1px solid rgb(199, 199, 199);
border-radius: 5px;
margin-top:10px;
}
.THIS .mapframe {
position: absolute;
right: 0;
top: 0;
}
.THIS .recordDetail {
padding: 10px;
background: #fff;
border:1px solid rgb(199, 199, 199);
margin-top: 3px;
border-radius: 5px;
}
/* Contact Table */
.THIS .conRelatedList {
margin:10px 0;
}
.THIS .conRelatedList table {
border-collapse: separate;
border-spacing: 1px;
}
.THIS .conRelatedList table thead tr {
background: #56458c;
color: #fff;
}
.THIS .conRelatedList table thead tr th {
padding: 5px;
}
.THIS .conRelatedList table tbody tr td {
padding: 5px;
border-bottom: solid 1px #ddd;
}
/* Opportunity Table */
.THIS .oppRelatedList {
margin:10px 0;
}
.THIS .oppRelatedList table {
border-collapse: separate;
border-spacing: 1px;
}
.THIS .oppRelatedList table thead tr {
background: #F3AE4E;
}
.THIS .oppRelatedList table thead tr th {
padding: 5px;
}
.THIS .oppRelatedList table tbody tr td {
padding: 5px;
border-bottom: solid 1px #ddd;
}
JavaScript CSSApex
検索ボタンを実行すると、
検索結果リストを表示

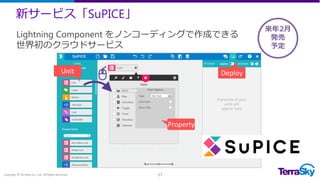

新サービス「SuPICE」
Lightning Component をノンコーディングで作成できる
世界初のクラウドサービス
Unit
Property
Deploy
来年2月
発売
予定

1. マウス操作で簡単に作成
「SuPICE」で何ができる？

2. プレビューでデザイン、動作を確認

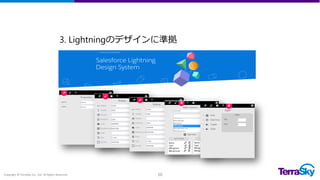

3. Lightningのデザインに準拠

3つのSampleコンポーネントもSuPICEで作れます
アコーディオンリストスワイプリスト検索画面

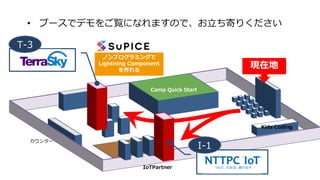

現在地
Camp Quick Start
I-1
T-3
Kids Coding
カウンター
IoTPartner
• ブースでデモをご覧になれますので、お立ち寄りください
ノンプログラミングで
Lightning Component
を作れる

聞いてスッキリ！Lightningの理解ポイント

More Related Content

What's hot

Viewers also liked

More from 寛 吉田

聞いてスッキリ！Lightningの理解ポイント

More from 寛吉田
