This document provides an overview of using the Backbone.js framework for client-side MVC applications. It discusses why Backbone is useful for structuring JavaScript applications, its core architecture including models, collections, views and routers. It also provides examples of how to convert jQuery code to use a Backbone-based approach and lists some real-world applications that use Backbone.

1. Client-side MVC with
Backbone.js
Jquery to Backbone.js

2. Agenda
• Why Backbone.js
• Architecture
• Jquery to Backbone.js
• Real World Examples
• Resources
• Extras
• Questions

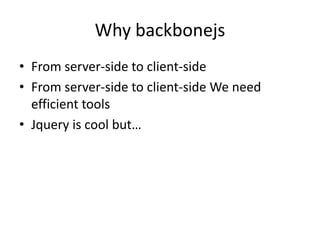

3. Why backbonejs
• From server-side to client-side
• From server-side to client-side We need
efficient tools
• Jquery is cool but…

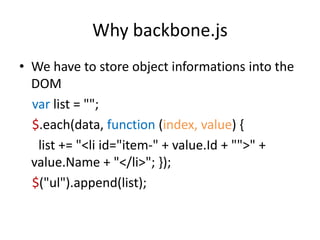

4. Why backbone.js
• We have to store object informations into the
DOM
var list = "";
$.each(data, function (index, value) {
list += "<li id="item-" + value.Id + "">" +
value.Name + "</li>"; });
$("ul").append(list);

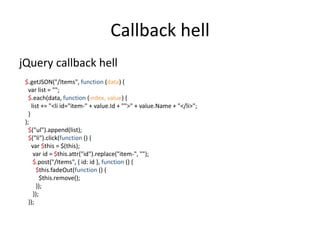

5. Callback hell
jQuery callback hell
$.getJSON("/Items", function (data) {
var list = "";
$.each(data, function (index, value) {
list += "<li id="item-" + value.Id + "">" + value.Name + "</li>";
}
);
$("ul").append(list);
$("li").click(function () {
var $this = $(this);
var id = $this.attr("id").replace("item-", "");
$.post("/Items", { id: id }, function () {
$this.fadeOut(function () {
$this.remove();
});
});
});

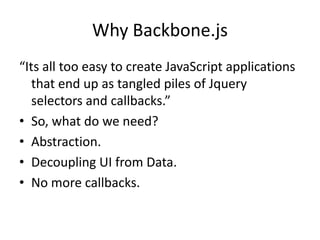

6. Why Backbone.js
“Its all too easy to create JavaScript applications
that end up as tangled piles of Jquery
selectors and callbacks.”
• So, what do we need?
• Abstraction.
• Decoupling UI from Data.
• No more callbacks.

7. Why Backbone.js
• A RESTful service based data layer.
• Events (to keep UI and data up-to-date).
• A template engine.
• A solid routing system.
• All the above things wrapped into a
lightweight JavaScript framework.

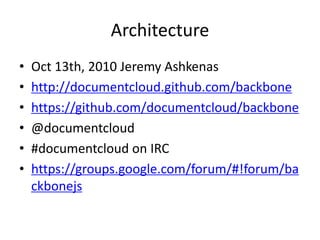

8. Architecture
• Oct 13th, 2010 Jeremy Ashkenas
• http://documentcloud.github.com/backbone
• https://github.com/documentcloud/backbone
• @documentcloud
• #documentcloud on IRC
• https://groups.google.com/forum/#!forum/ba
ckbonejs

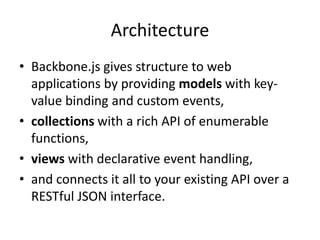

9. Architecture
• Backbone.js gives structure to web
applications by providing models with key-
value binding and custom events,
• collections with a rich API of enumerable
functions,
• views with declarative event handling,
• and connects it all to your existing API over a
RESTful JSON interface.

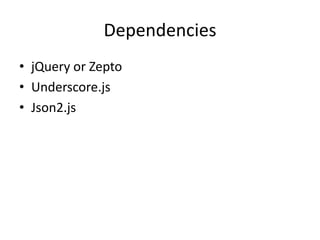

10. Dependencies
• jQuery or Zepto
• Underscore.js
• Json2.js

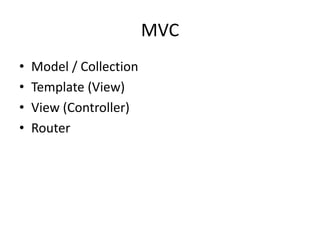

11. MVC
• Model / Collection
• Template (View)
• View (Controller)
• Router

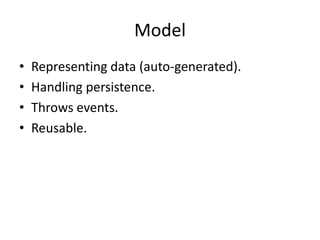

12. Model
• Representing data (auto-generated).
• Handling persistence.
• Throws events.
• Reusable.

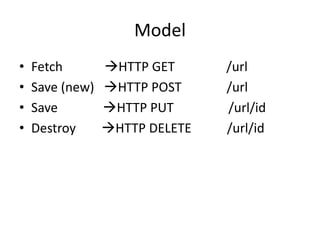

13. Model
• Fetch HTTP GET /url
• Save (new) HTTP POST /url
• Save HTTP PUT /url/id
• Destroy HTTP DELETE /url/id

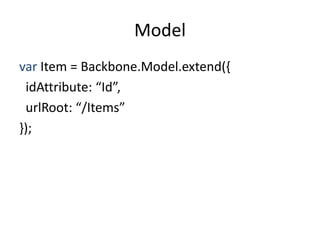

14. Model
var Item = Backbone.Model.extend({
idAttribute: “Id”,
urlRoot: “/Items”
});

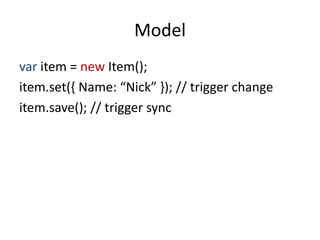

15. Model
var item = new Item();
item.set({ Name: “Nick” }); // trigger change
item.save(); // trigger sync

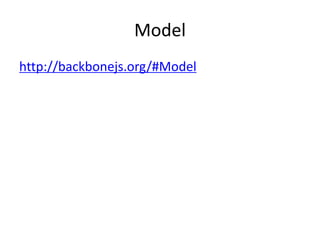

16. Model
http://backbonejs.org/#Model

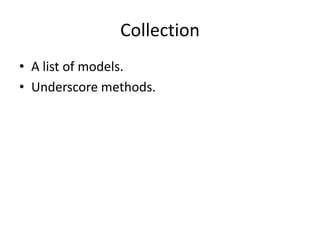

17. Collection
• A list of models.
• Underscore methods.

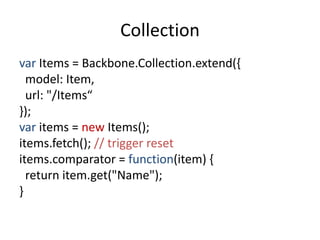

18. Collection
var Items = Backbone.Collection.extend({
model: Item,
url: "/Items“
});
var items = new Items();
items.fetch(); // trigger reset
items.comparator = function(item) {
return item.get("Name");
}

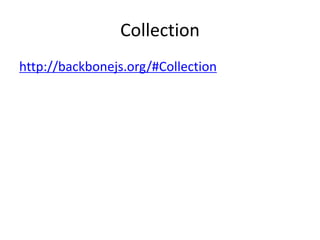

19. Collection
http://backbonejs.org/#Collection

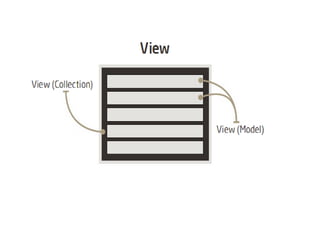

20. View
• Manipulates the DOM.
• Delegates DOM events.
• Has a Model / Collection.

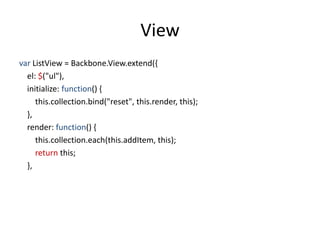

22. View
var ListView = Backbone.View.extend({
el: $("ul"),
initialize: function() {
this.collection.bind("reset", this.render, this);
},
render: function() {
this.collection.each(this.addItem, this);
return this;
},

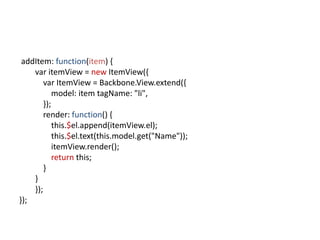

23. addItem: function(item) {
var itemView = new ItemView({
var ItemView = Backbone.View.extend({
model: item tagName: "li",
});
render: function() {
this.$el.append(itemView.el);
this.$el.text(this.model.get("Name"));
itemView.render();
return this;
}
}
});
});

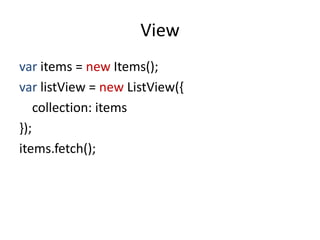

24. View
var items = new Items();
var listView = new ListView({
collection: items
});
items.fetch();

25. View
http://backbonejs.org/#View

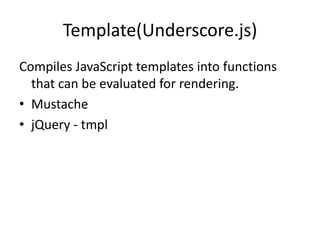

26. Template(Underscore.js)
Compiles JavaScript templates into functions
that can be evaluated for rendering.
• Mustache
• jQuery - tmpl

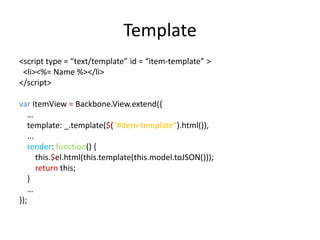

27. Template
<script type = “text/template” id = “item-template” >
<li><%= Name %></li>
</script>
var ItemView = Backbone.View.extend({
…
template: _.template($("#item-template").html()),
...
render: function() {
this.$el.html(this.template(this.model.toJSON()));
return this;
}
…
});

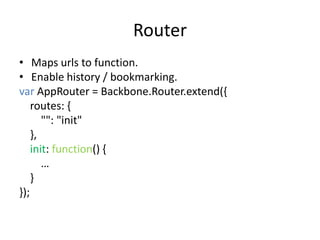

28. Router
• Maps urls to function.
• Enable history / bookmarking.
var AppRouter = Backbone.Router.extend({
routes: {
"": "init"
},
init: function() {
…
}
});

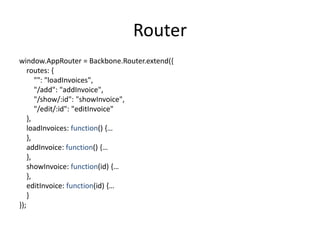

29. Router
window.AppRouter = Backbone.Router.extend({
routes: {
"": "loadInvoices",
"/add": "addInvoice",
"/show/:id": "showInvoice",
"/edit/:id": "editInvoice"
},
loadInvoices: function() {…
},
addInvoice: function() {…
},
showInvoice: function(id) {…
},
editInvoice: function(id) {…
}
});

30. Router
http://backbonejs.org/#Router

31. Architecture

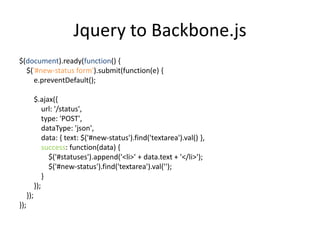

32. Jquery to Backbone.js
$(document).ready(function() {
$('#new-status form').submit(function(e) {
e.preventDefault();
$.ajax({
url: '/status',
type: 'POST',
dataType: 'json',
data: { text: $('#new-status').find('textarea').val() },
success: function(data) {
$('#statuses').append('<li>' + data.text + '</li>');
$('#new-status').find('textarea').val('');
}
});
});
});

33. Step to step from Jquery to
var Status = Backbone.Model.extend({
Backbone.js
url: '/status'
});
var Statuses = Backbone.Collection.extend({
model: Status
});
var NewStatusView = Backbone.View.extend({
events: {
'submit form': 'addStatus'
},
initialize: function() {
this.collection.on('add', this.clearInput, this);
},
addStatus: function(e) {
e.preventDefault();
this.collection.create({ text: this.$('textarea').val() });
},
clearInput: function() {
this.$('textarea').val('');
}
});

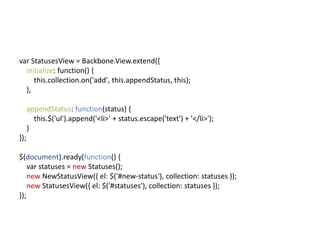

34. var StatusesView = Backbone.View.extend({
initialize: function() {
this.collection.on('add', this.appendStatus, this);
},
appendStatus: function(status) {
this.$('ul').append('<li>' + status.escape('text') + '</li>');
}
});
$(document).ready(function() {
var statuses = new Statuses();
new NewStatusView({ el: $('#new-status'), collection: statuses });
new StatusesView({ el: $('#statuses'), collection: statuses });
});

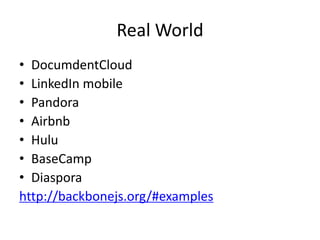

35. Real World
• DocumdentCloud
• LinkedIn mobile
• Pandora
• Airbnb
• Hulu
• BaseCamp
• Diaspora
http://backbonejs.org/#examples

36. Resource
• https://github.com/documentcloud/backbone
/wiki
• https://github.com/documentcloud/backbone
/wiki/Extensions%2C-Plugins%2C-Resources
• http://backbonetutorials.com/
• http://addyosmani.github.com/backbone-
fundamentals/

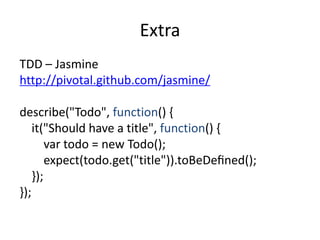

37. Extra
TDD – Jasmine
http://pivotal.github.com/jasmine/
describe("Todo", function() {
it("Should have a title", function() {
var todo = new Todo();
expect(todo.get("title")).toBeDefined();
});
});

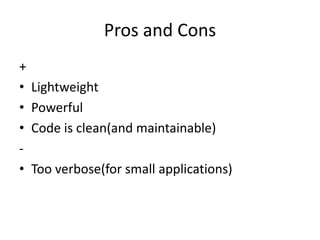

38. Pros and Cons
+
• Lightweight
• Powerful
• Code is clean(and maintainable)
-
• Too verbose(for small applications)

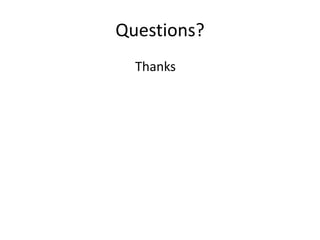

39. Questions?
Thanks
