PB04s-11



       KILSLIDSVENTIL                                    PN10-PN16
       I kolstål och syrafast stål                       DN40-DN600
       kort bygglängd



                                                                                Standard

                                                                                Design             EN 1984
                                                                                                   EN 12516
                                                                                Bygglängd          EN 558-1, 14
                                                                                Flänsar            EN 1092-1
                                                                                Märkning           EN 19
                                                                                Provtryckning      EN 12266-1
                                                                                CE-märkta          enl. PED97/23, Kategori 3




                                                                            UTFÖRANDE

                                                                            •   Kilslidsventil med kort bygglängd
                                                                            •   Hus och lock i stålgjutgods
                                                                            •   Bultat lock stigande, icke roterande spindel
                                                                            •   Spindelavtätning med packbox i grafit
                                                                            •   Utblåsningssäkrad planpackning
                                                                            •   Backtätande spindel
                                                                            •   Flänsad anslutning
                                                                            •   Tätningsytor Cr-stål eller stellit
                                                                            •   Självcentrerad gland



Tabell 1. Teknisk data
                                                                                ANVÄNDNINGSOMRÅDE
Dimension                DN50 to DN600
                                                                                Vatten, ånga och andra media som inte
Material                 Kolstål, rostfritt stål och syrafast stål
                                                                                skadar ingående material. Används
Tryckklass               PN10 till PN16                                         inom processindustrin,
Temperaturområde         Kolstål -10 till max 400grdC                           energianläggningar, marina
                                                                                applikationer, mm. Ventilerna är
                         Syrafast stål -20 till max 400grdC                     avsedda för avstängning
Anslutningsform          Flänsad
Säte                     13Cr, SS, Stellit




 Tabell 2 – Tryck/temperatur enl. EN 1092-1 (bar/grC)

                            RT
Body material     PN       (20oC)
                                      100       200       250        300    350           400


 Kolstål          10        10        9,3       7,8       7,1        6,4        6         5,8
 1.0619 enl.
 grupp 3E0        16        16        14,9      12,4      11,4       10,3   9,6           9,2


 Rostfritt stål   10        9,1       7,5        6,3       6,0       5,6    5,4           5,2
 CF8,
 Enl. grupp
 2C1              16       14,7       12,1      10,2       9,6       9,0    8,7           8,4


 Syrafast stål    10        9,1       7,8       6,6       6,1        5,8    5,6           5,4
 CF8M
 Enl. grupp
 2C2              16       14,7       12,5      10,6       9,8       9,3    9,0           8,7




                                                                                                                                1
PB04s-11



     KILSLIDSVENTIL                                     PN10-PN16
     I kolstål och syrafast stål                        DN40-DN600
     kort bygglängd

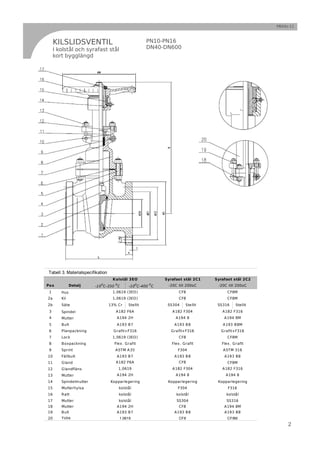

 Tabell 3. Materialspecifikation
                                    Kolstål 3EO              Syrafast stål 2C1   Syrafast stål 2C2
Po s          Detalj        o        o             o    o     -20C till 200oC     -20C till 200oC
                         -10 C-350 C          -10 C-400 C
 1      Hus                         1,0619 (3EO)                   CF8                 CF8M
2a      Kil                         1,0619 (3EO)                   CF8                 CF8M
2b      Säte                       13% Cr     Stellit         SS304    Stellit    SS316     Stellit
 3      Spindel                       A182 F6A                  A182 F304           A182 F316
 4      Mutter                        A194 2H                     A194 8             A194 8M
 5      Bult                          A193 B7                    A193 B 8           A 193 B8M
 6      Planpackning                 Grafit+F316               Grafit+F316         Grafit+F316
 7      Lock                        1,0619 (3EO)                   CF8                 CF8M
 8      Boxpackning                  Flex. Grafit               Flex. Grafit        Flex. G rafit
 9      Sprint                       ASTM A35                      F304             ASTM 316
10      Fällbult                      A193 B7                    A193 B 8            A193 B8
11      Gland                         A182 F6A                     CF8                 CF8M
12      Glandfläns                       1,0619                 A182 F304           A182 F316
13      Mutter                        A194 2H                     A194 8              A194 8
14      Spindelmutter              Kopparlegering             Kopparlegering      Kopparlegering
15      Mutterhylsa                      kolstål                   F304                F316
16      Ratt                             kolstål                  kolstål             kolstål
17      Mutter                           kolstål                  SS304               SS316
18      Mutter                        A194 2H                      CF8               A194 8M
19      Bult                          A193 B7                    A193 B 8            A193 B8
20      Yoke                             1.0619                    CF8                 CF8M
                                                                                                           2
PB04s-11



             KILSLIDSVENTIL                                         PN10-PN16
             I kolstål och syrafast stål                            DN40-DN600
             kort bygglängd


Tabell 4 – Dimensioner och vikt. Flänsad PN10
Bygglängd enl. EN558-1, Serie 14
Flänsar enl. EN1092-1, typ 11
     DN              PN            L           D            b          D2xΦd             W            Z       Vikt        H       Hmax
     mm              bar         mm            mm          mm             mm             mm           st       kg        mm         mm
  40-150          Se PN16
     200             10          230           340          24       295x22              350          8        91        700        930
     250             10          250           395          26       350x22              400          12       132       850        1140
     300             10          270           445          26       400x22              450          12       176       990        1330
     350             10          290           505          26       460x22              500          16       ?            ?        ?
     400             10          310           565          26       515x26              500          16       ?            ?        ?
     450             10          330           615          28       565x26              600          20       ?            ?        ?
     500             10          350           670          28       620x26              600          20       ?            ?        ?
     600             10          390           780          34       725x30              680          20       ?            ?        ?


Tabell 5 – Dimensioner och vikt. Flänsad PN16
Bygglängd enl. EN558-1, Serie 14
Flänsar enl. EN1092-1, typ 11
     DN              PN           L            D            b          D2xΦd             W           Z        Vikt       H        Hmax
     mm              bar         mm            mm          mm            mm              mm          st        kg       mm          mm
      40             16          140           150         18           110x18           180          4        14       260         312
      50             16          150           165         18           125x18           200          4        16       290         355
      65             16          170           185         18           145x18           200          8        21       320         410
      80             16          180           200         20           160x18           250          8        28       360         460
     100             16          190           220         20           180x18           280          8        33       440         560
     125             16          200           250         22           210x18           300          8        48       500         650
     150             16          220           285         22           240x22           360          8        63       560         735
     200             16          230           340         24           295x22           360         12       108       700         930
     250             16          250           405         26           355x26           400         12       202       850        1135
     300             16          270           460         28           410x26           450         12       323       990        1330
     350             16          290           520         30           470x26           500         16       385         ?          ?
     400             16          310           580         32           525x30           500         16       480         ?          ?
     450             16          330           640         40           585x33           600         20       580         ?          ?
     500             16          350           715         44           650x33           600         20       675         ?          ?
     600             16          390           840         54           770x36           680         20       895         ?          ?



 Tabell 6 – P roduktkoder

                           Material hus 1.0619 enl. grupp 3E0        Material hus CF8 enl. grupp 2C1          Material hus CF8M enl. grupp 2C2
PN         Anslutning
                             Säte 13Cr          Säte stellite          Säte 13Cr             Säte stellite      Säte 13Cr         Säte stellite

           Flänsad         G70K31F010W *-Z**   G70K35F 010W *-Z**    G70K71F 010W*-Z**    G70K75F010W *-Z**   G70K81F 010W*-Z**   G70K85F 010W*-Z**
 10
           Svetsändar      G70K31B010W *-Z**   G70K35B010W *-Z**     G70K71B010W*-Z**     G70K75B010W *-Z**   G70K81B010W*-Z**    G70K85B010W*-Z**

           Flänsad         G70K31F016W *-Z**   G70K35F 016W *-Z**    G70K71F 016W*-Z**    G70K75F016W *-Z**   G70K81F 016W*-Z**   G70K85F 016W*-Z**
 16
           Svetsändar      G70K31B016W *-Z**   G70K35B016W *-Z**     G70K71B016W*-Z**     G70K75B016W *-Z**   G70K81B016W*-Z**    G70K85B016W*-Z**
 *W= Wheel, F=ISO-topflange, T= ISO-topflange with hand wheel, G=gearbox, **z=dimension 100=DN100




                                                                                                                                                  3
