How To Use Selenium,
Successfully
by Dave Haeffner, @TourDeDave
http://www.wpclipart.com/geography/features/chasm.png.html
http://en.wikipedia.org/wiki/Optimal_solutions_for_Rubik's_Cube

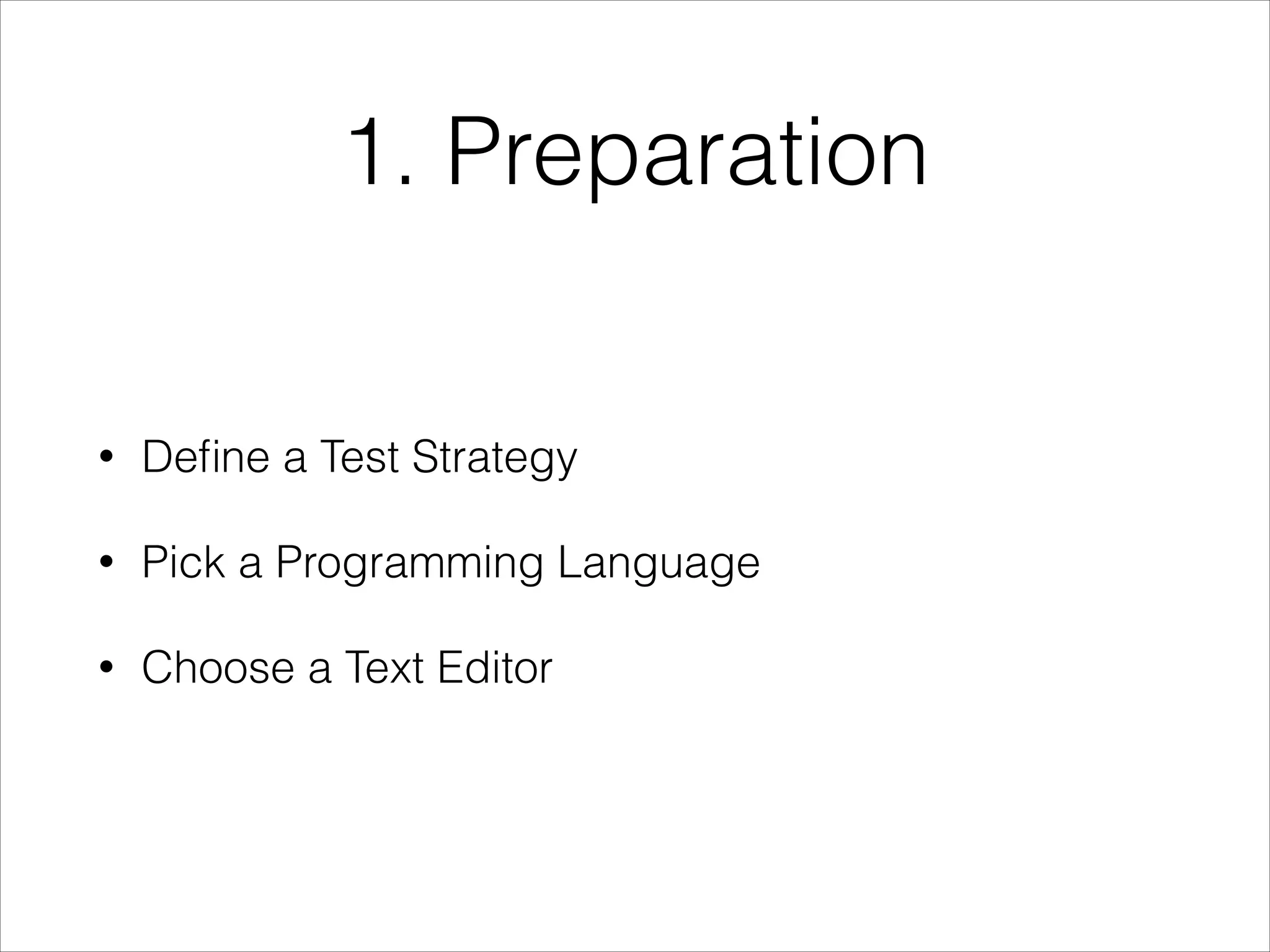

1. Preparation
• Define a Test Strategy
• Pick a Programming Language
• Choose a Text Editor

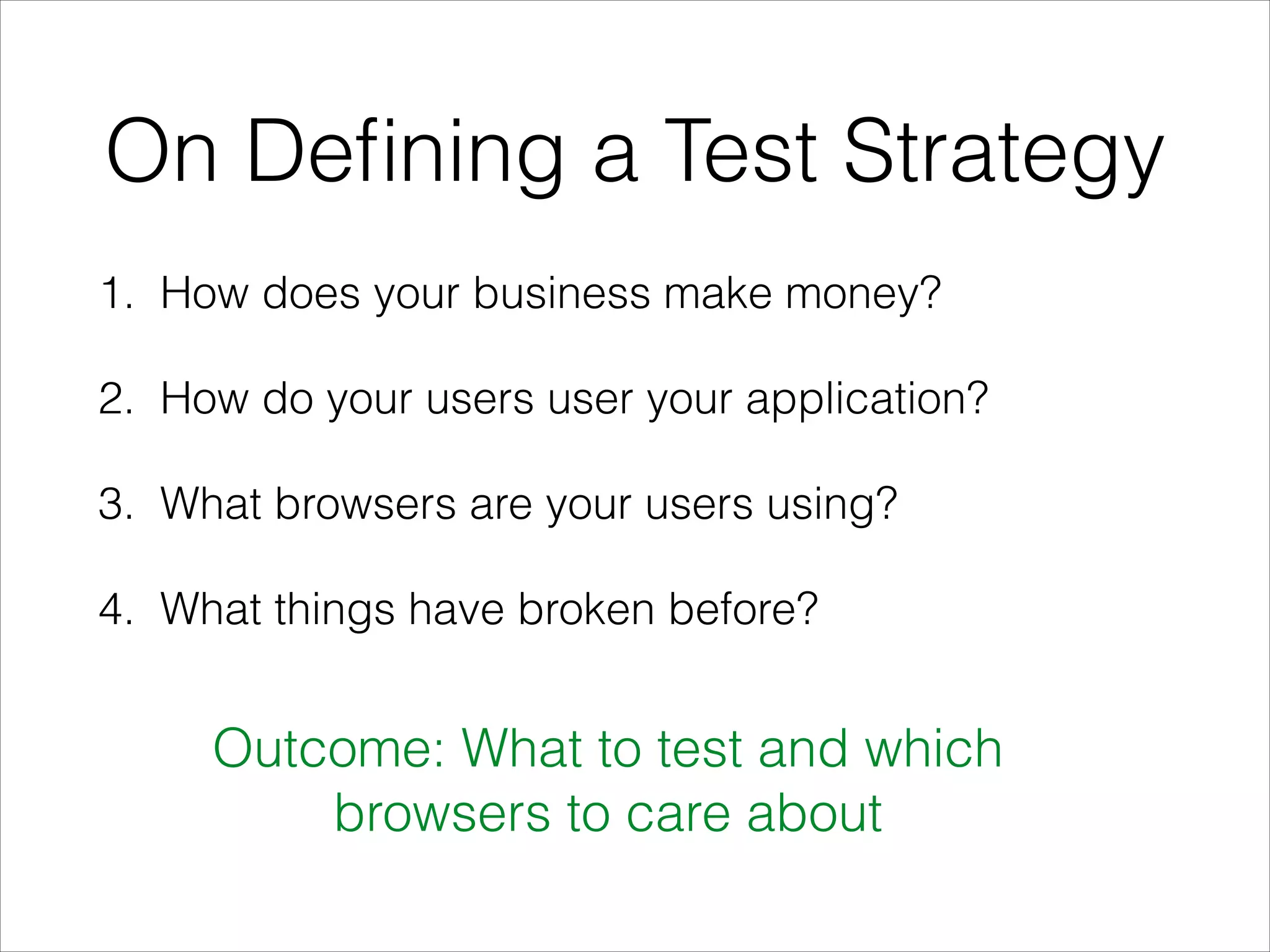

On Defining a Test Strategy
1. How does your business make money?
2. How do your users user your application?
3. What browsers are your users using?
4. What things have broken before?
Outcome: What to test and which
browsers to care about

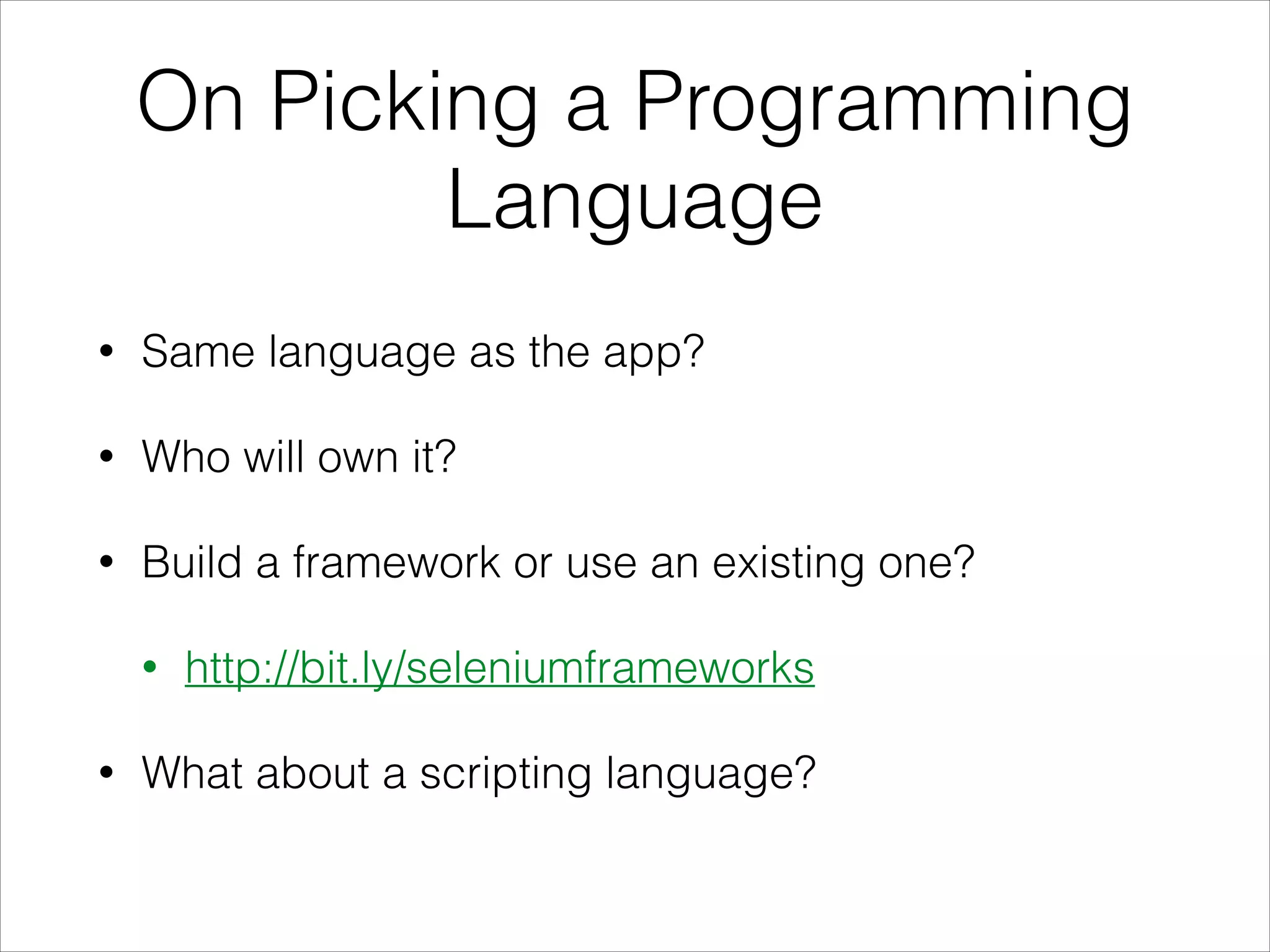

On Picking a Programming
Language
• Same language as the app?
• Who will own it?
• Build a framework or use an existing one?
• http://bit.ly/seleniumframeworks
• What about a scripting language?

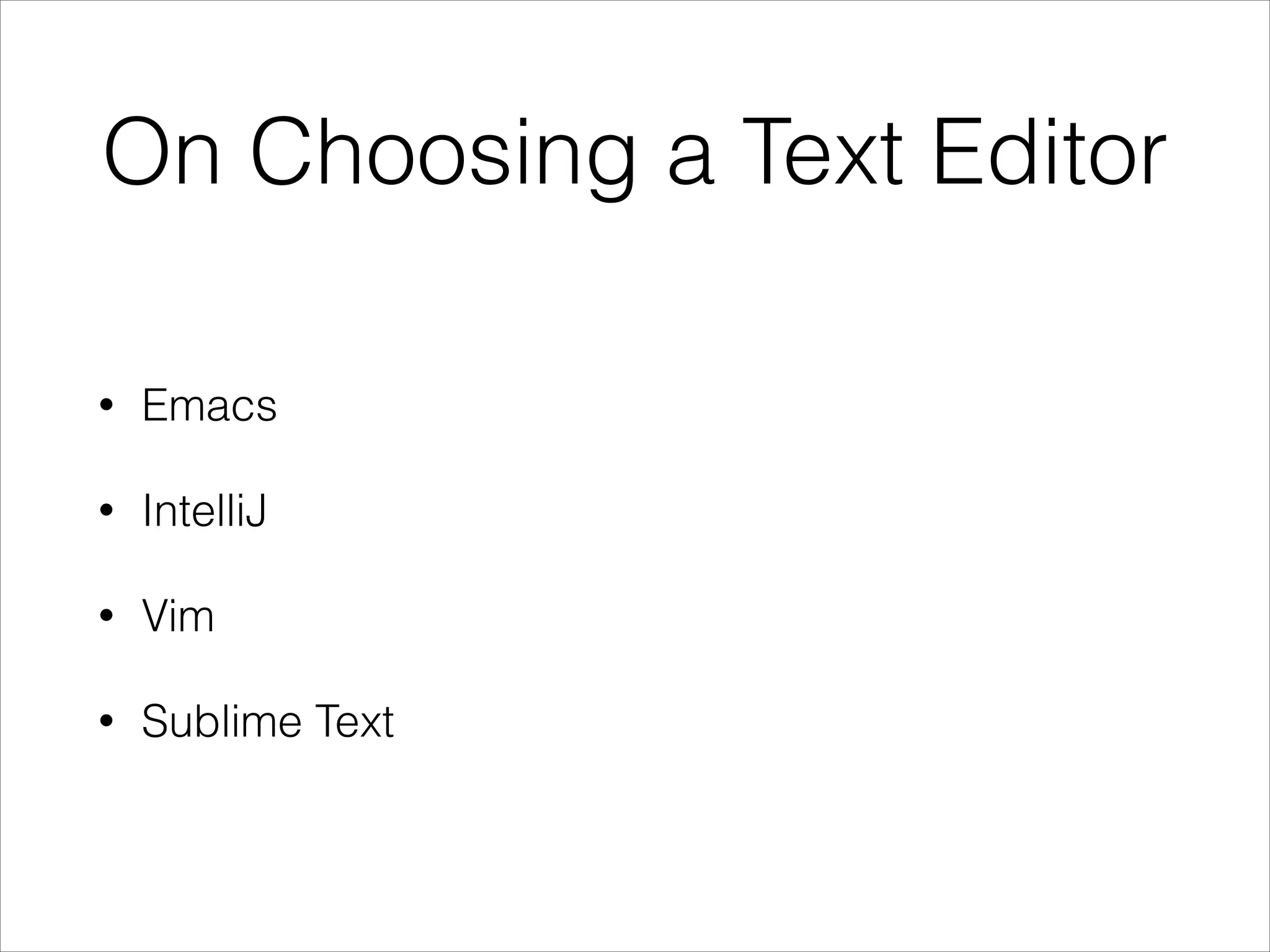

On Choosing a Text Editor
• Emacs
• IntelliJ
• Vim
• Sublime Text

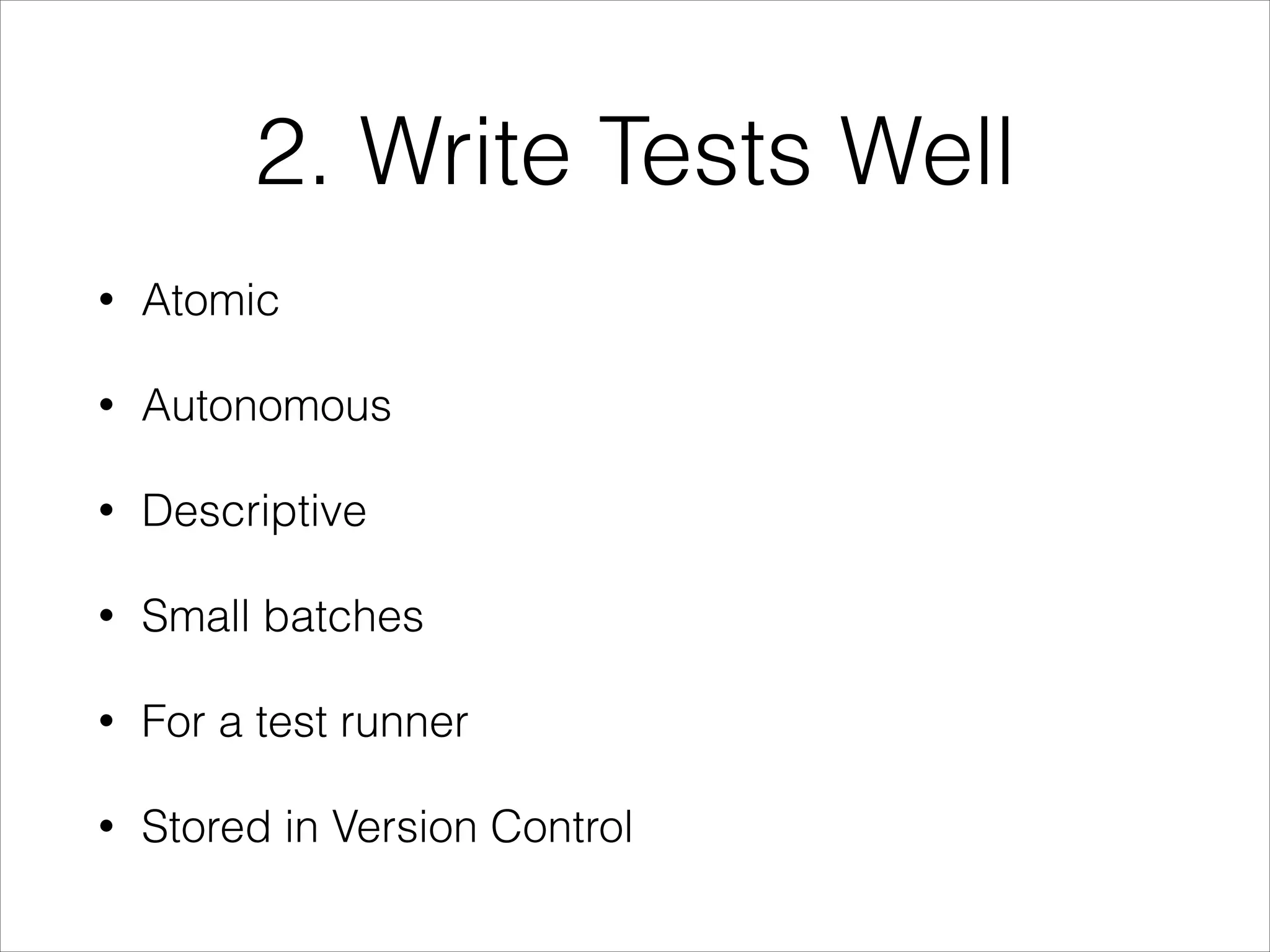

2. Write Tests Well
• Atomic
• Autonomous
• Descriptive
• Small batches
• For a test runner
• Stored in Version Control

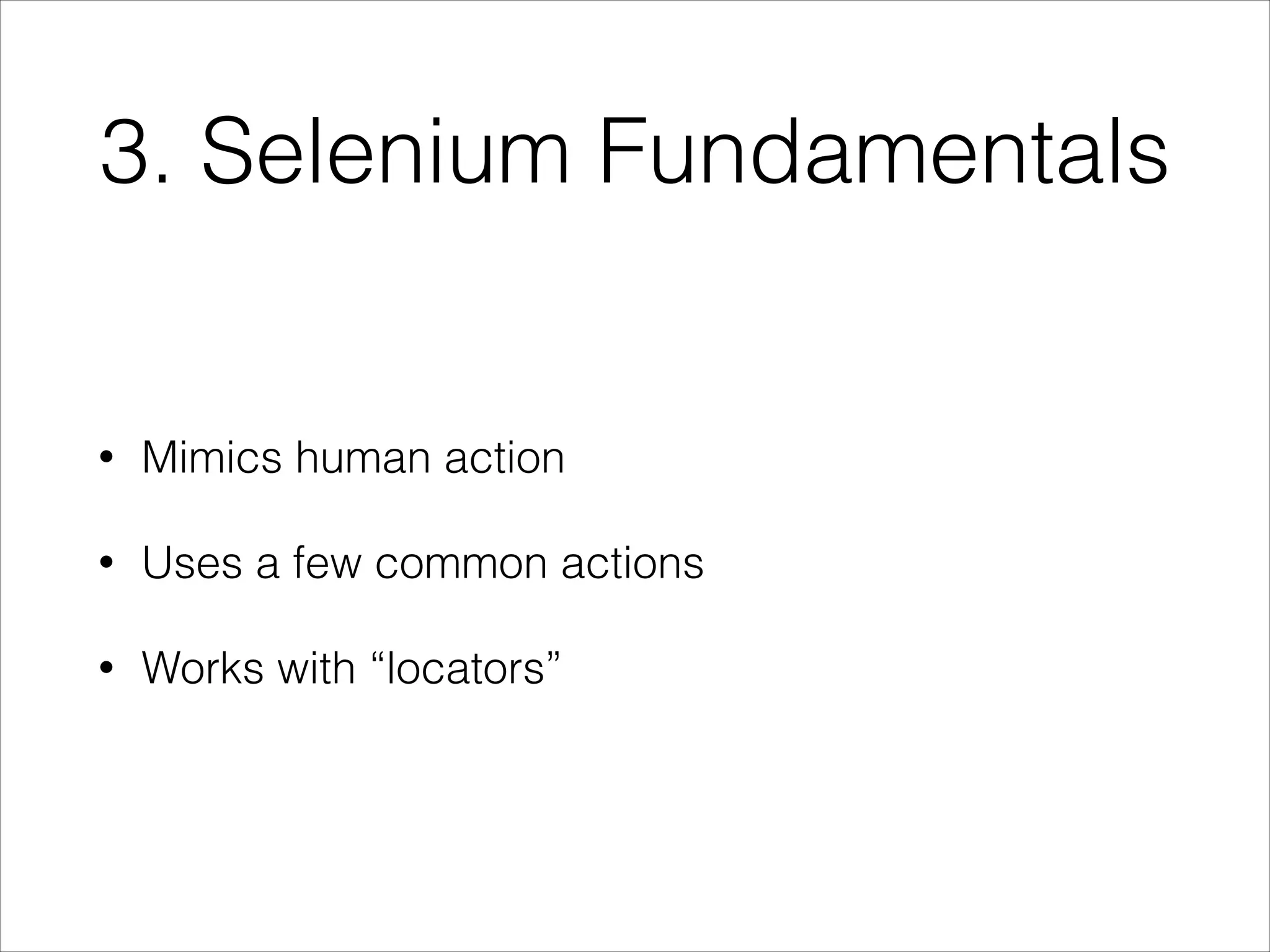

3. Selenium Fundamentals
• Mimics human action
• Uses a few common actions
• Works with “locators”

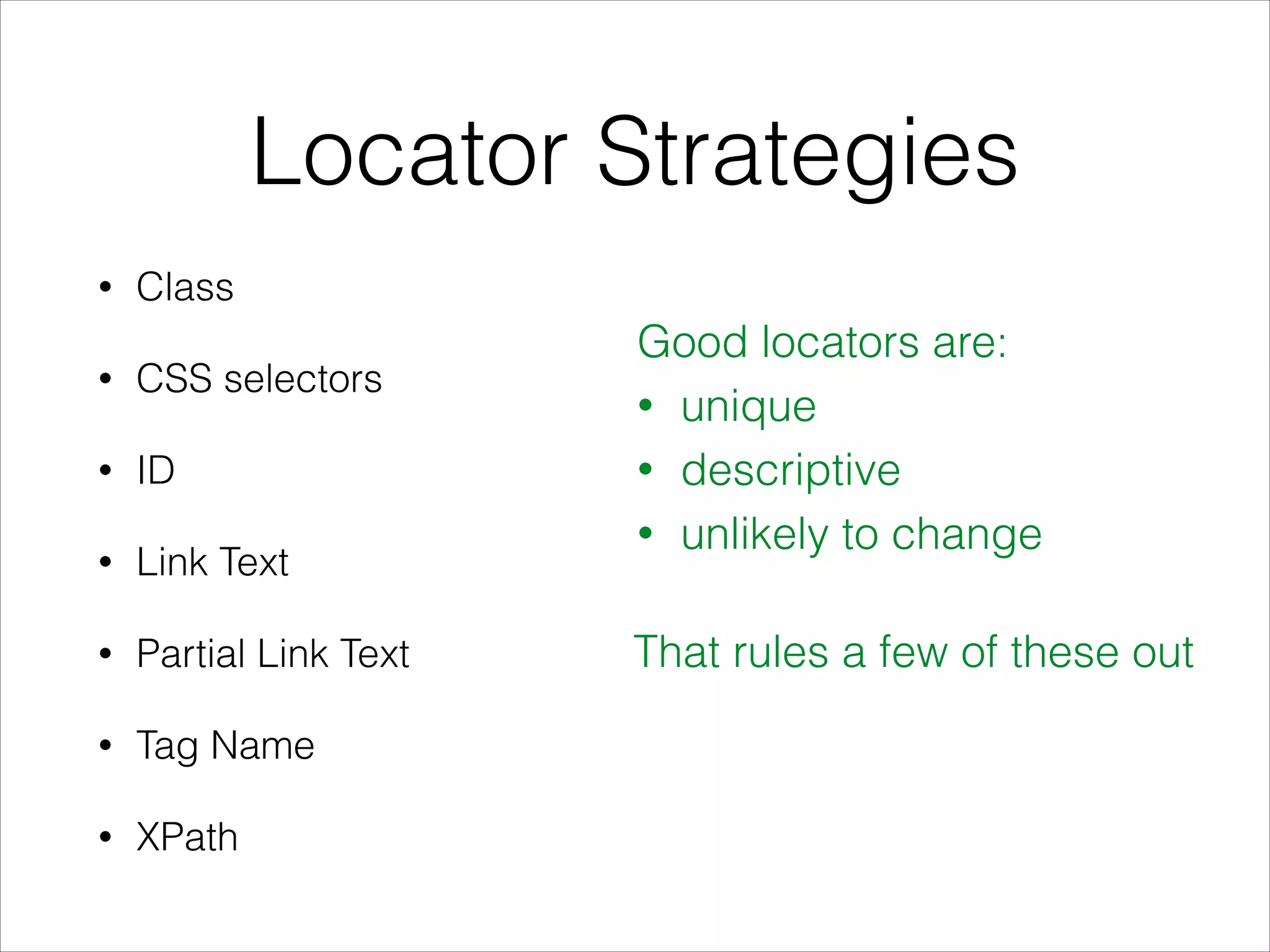

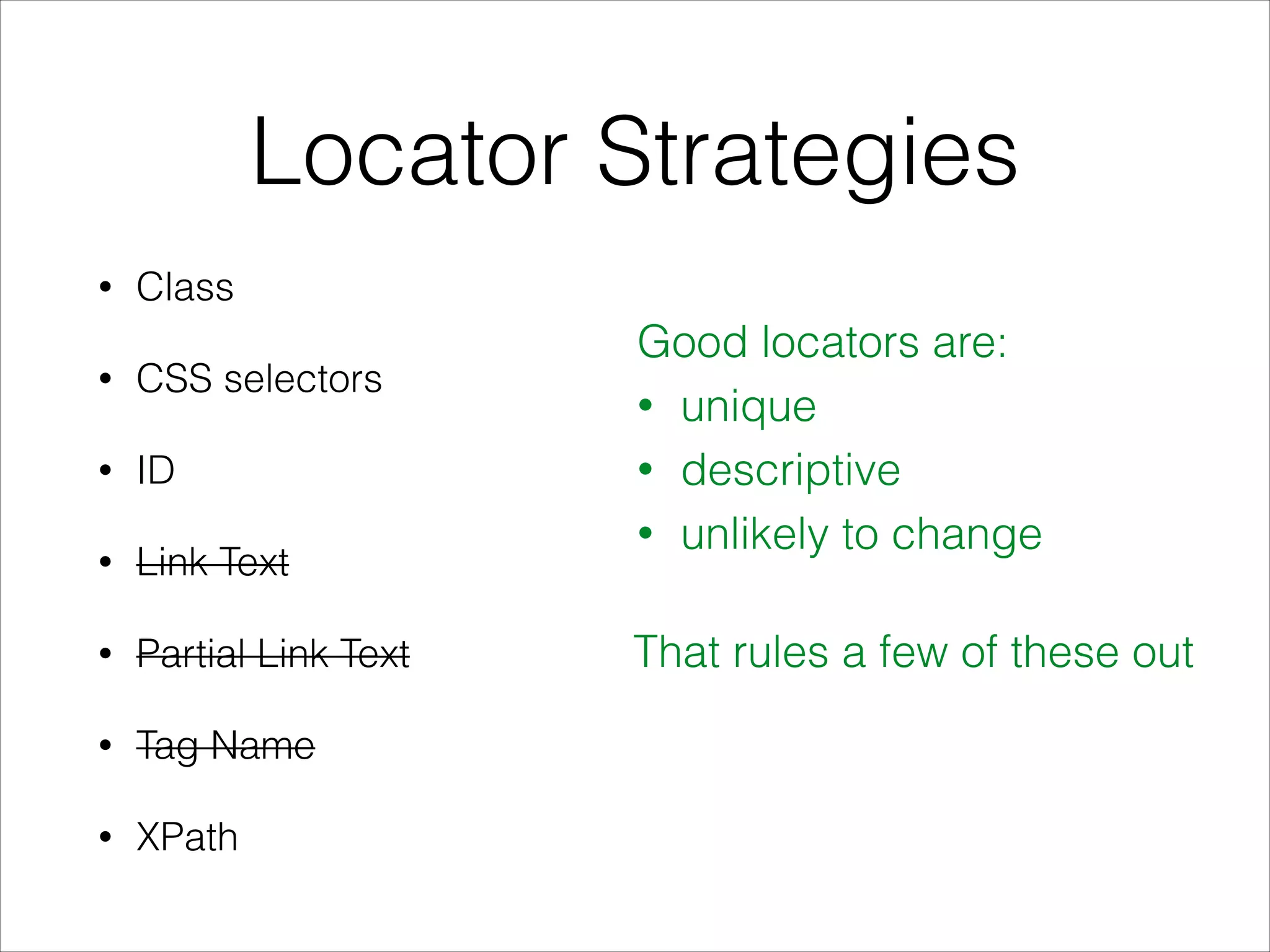

Locator Strategies
• Class
• CSS selectors
• ID
• Link Text
• Partial Link Text
• Tag Name
• XPath
Good locators are:
• unique
• descriptive
• unlikely to change
That rules a few of these out
Locator Strategies
• Class
• CSS selectors
• ID
• Link Text
• Partial Link Text
• Tag Name
• XPath
Good locators are:
• unique
• descriptive
• unlikely to change
That rules a few of these out

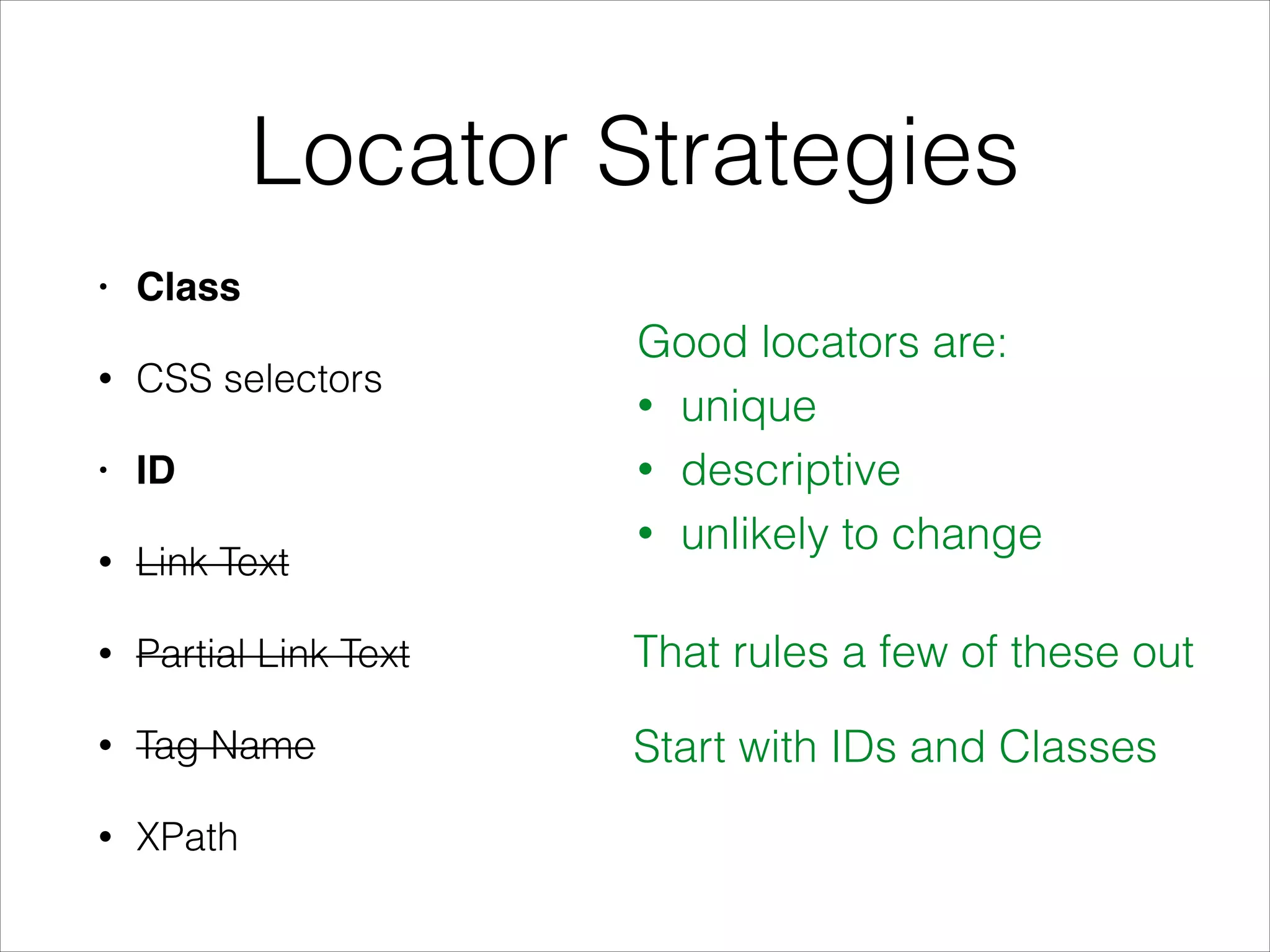

Locator Strategies
• Class!
• CSS selectors
• ID!
• Link Text
• Partial Link Text
• Tag Name
• XPath
Good locators are:
• unique
• descriptive
• unlikely to change
That rules a few of these out
Start with IDs and Classes

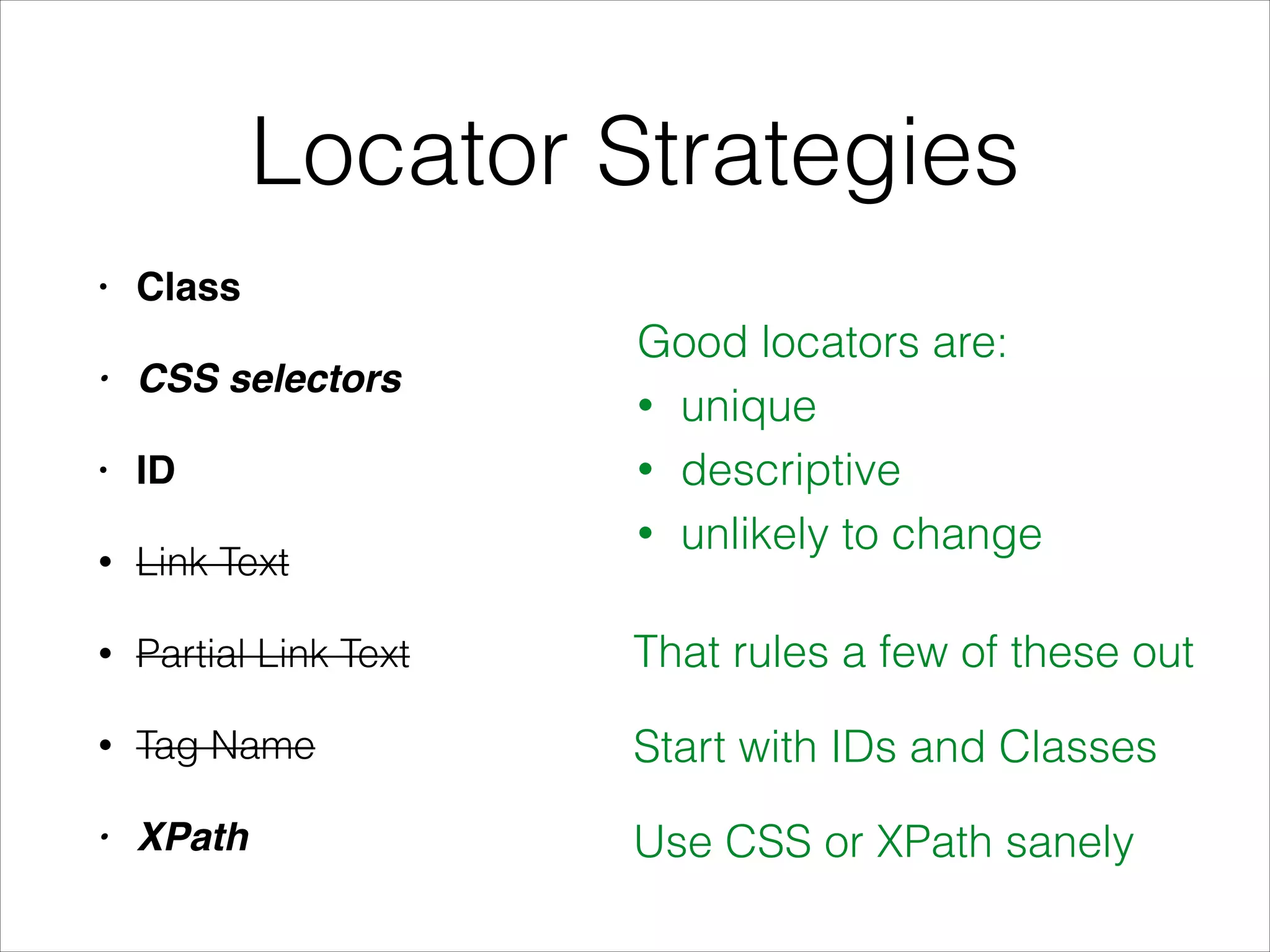

Locator Strategies
• Class!
• CSS selectors!
• ID!
• Link Text
• Partial Link Text
• Tag Name
• XPath
Good locators are:
• unique
• descriptive
• unlikely to change
That rules a few of these out
Start with IDs and Classes
Use CSS or XPath sanely

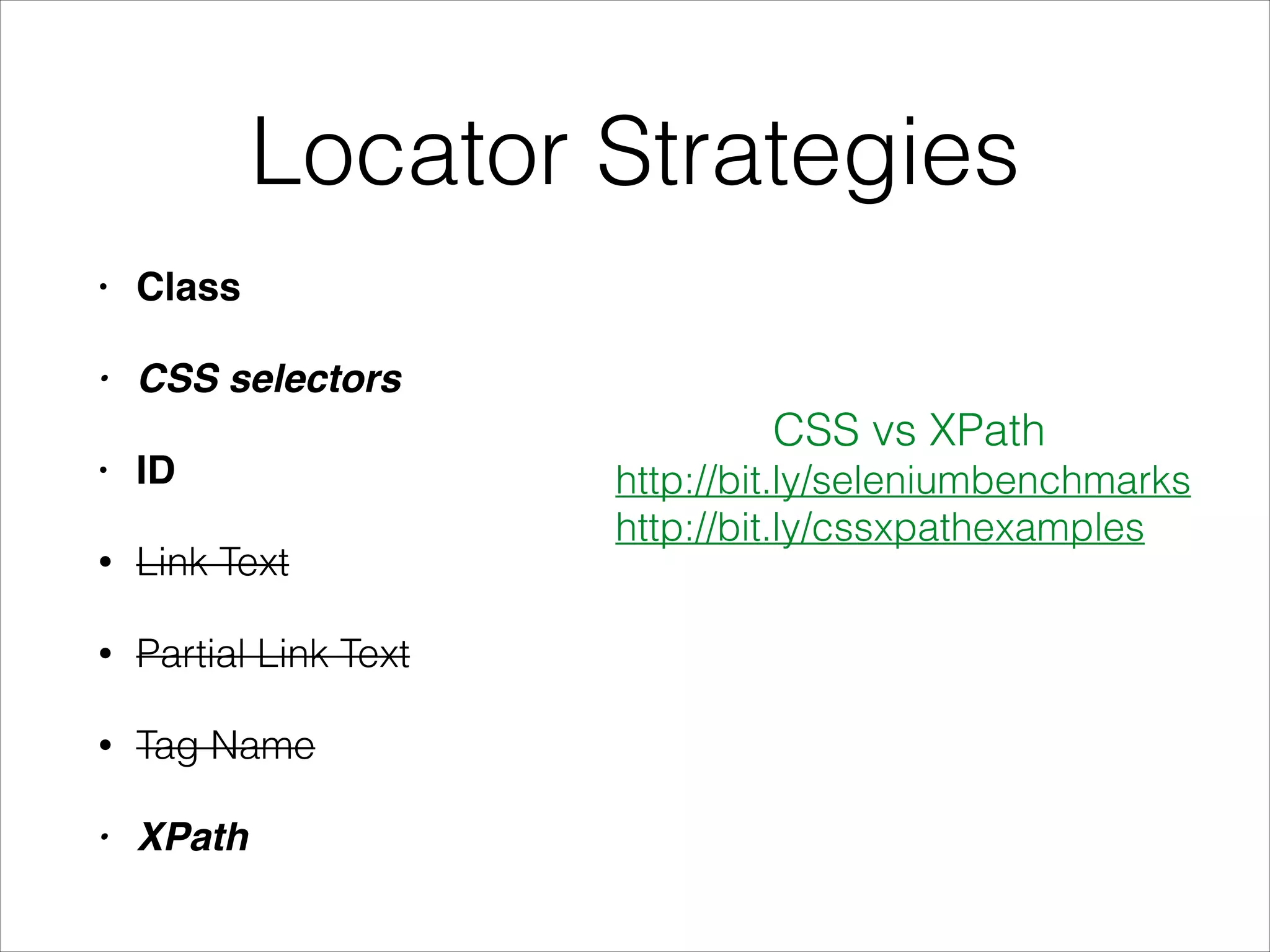

Locator Strategies
• Class!
• CSS selectors!
• ID!
• Link Text
• Partial Link Text
• Tag Name
• XPath
CSS vs XPath
http://bit.ly/seleniumbenchmarks
http://bit.ly/cssxpathexamples

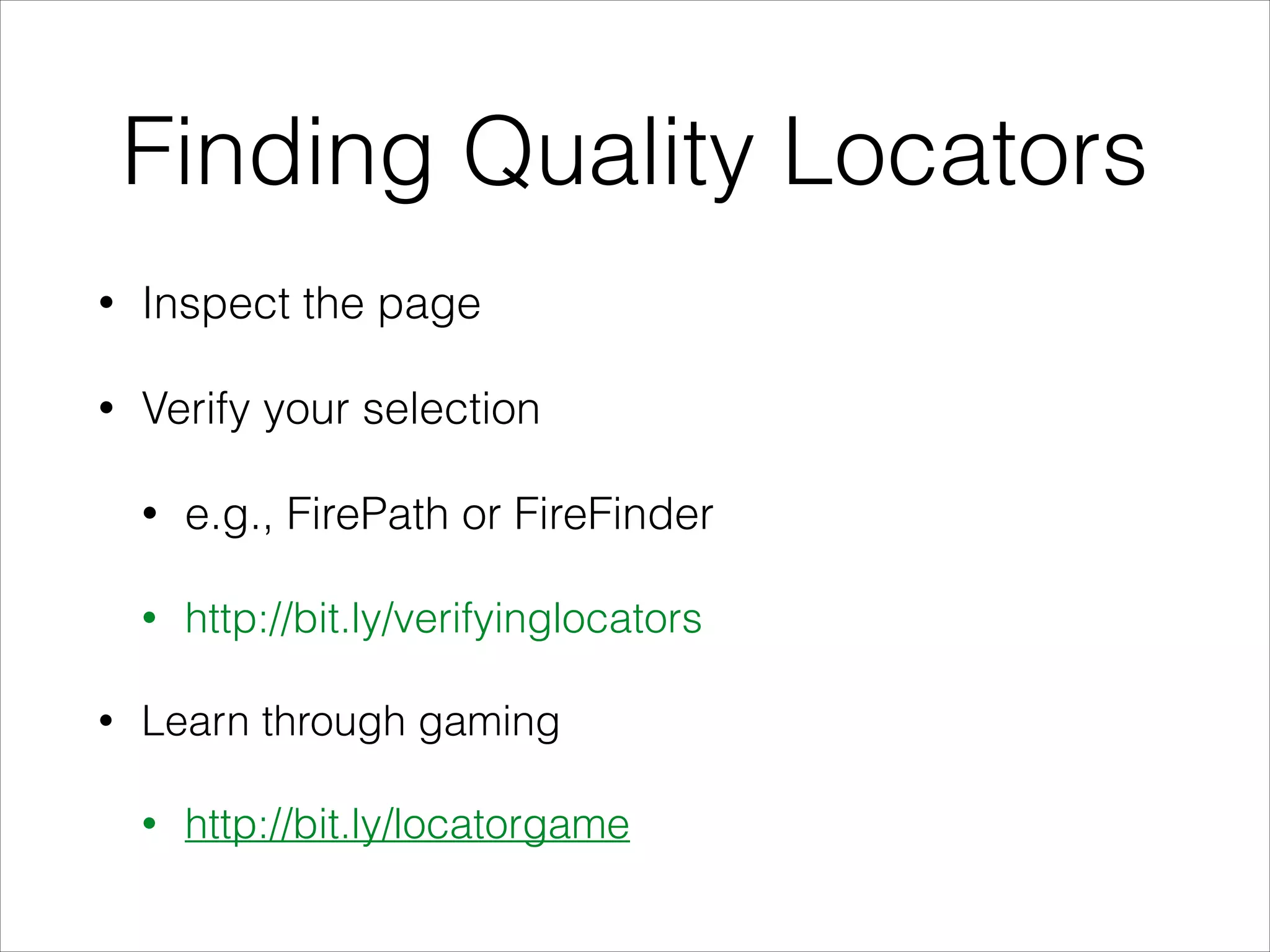

Finding Quality Locators
• Inspect the page
• Verify your selection
• e.g., FirePath or FireFinder
• http://bit.ly/verifyinglocators
• Learn through gaming
• http://bit.ly/locatorgame

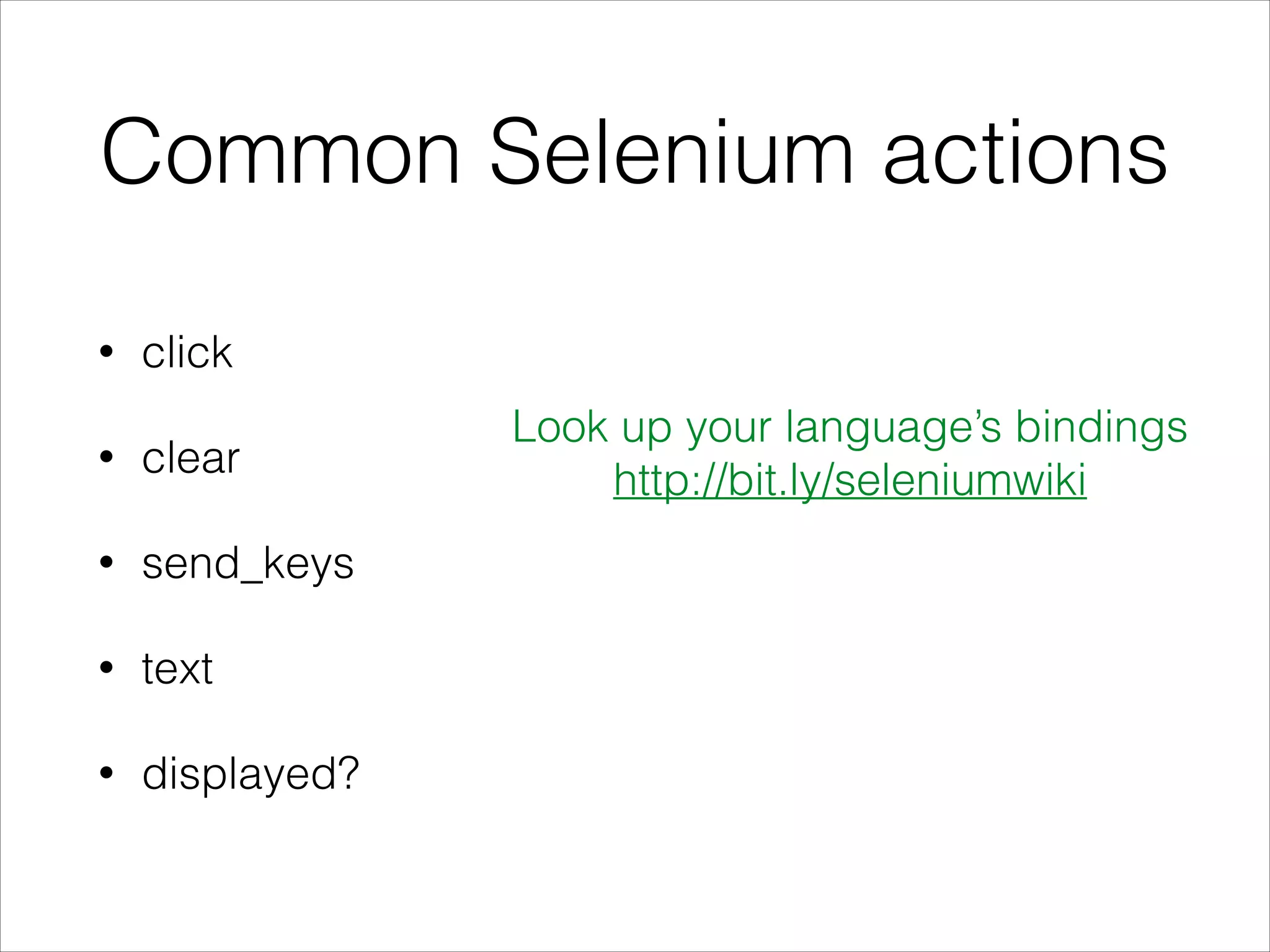

Common Selenium actions
• click
• clear
• send_keys
• text
• displayed?
Look up your language’s bindings
http://bit.ly/seleniumwiki

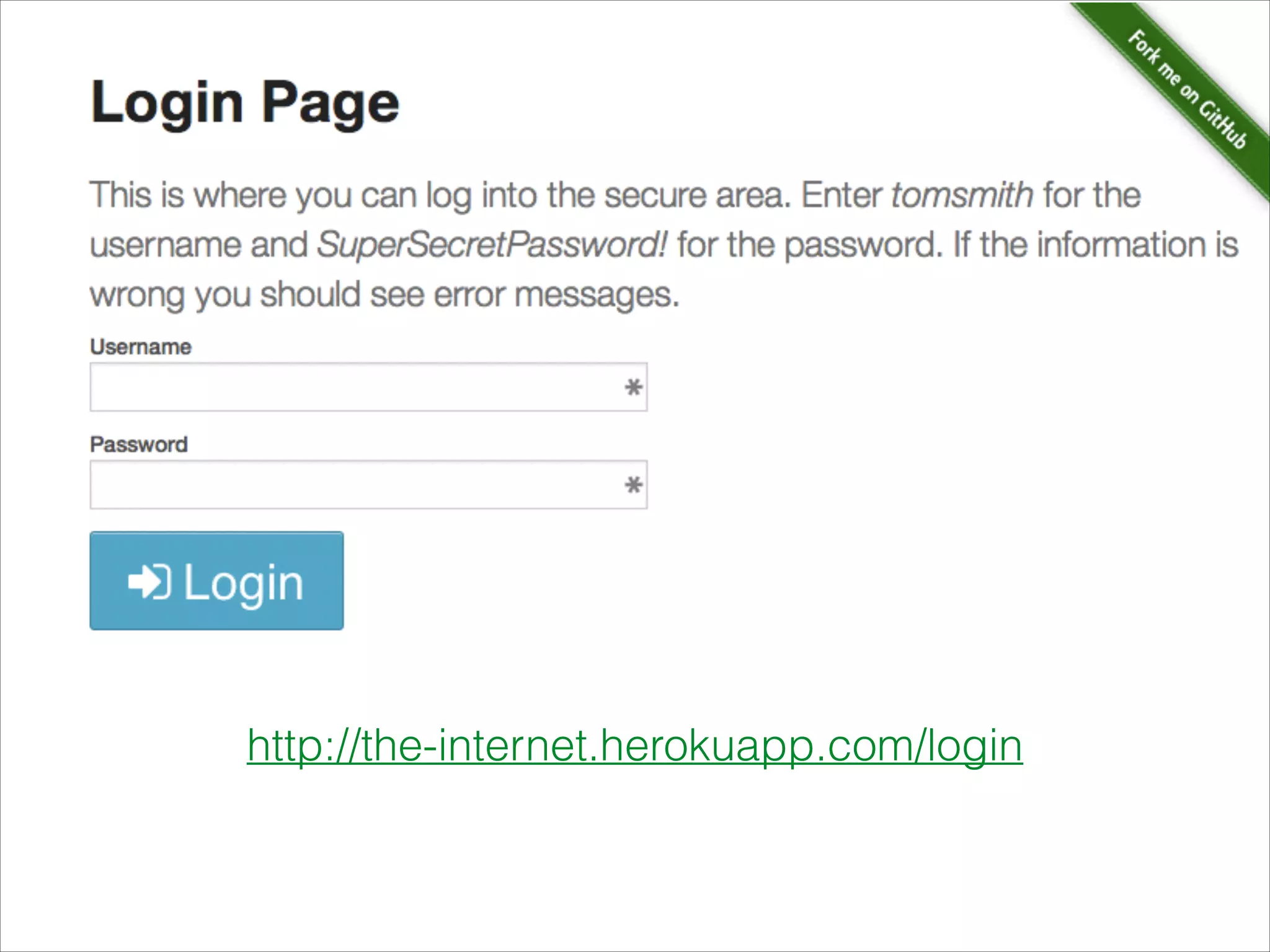

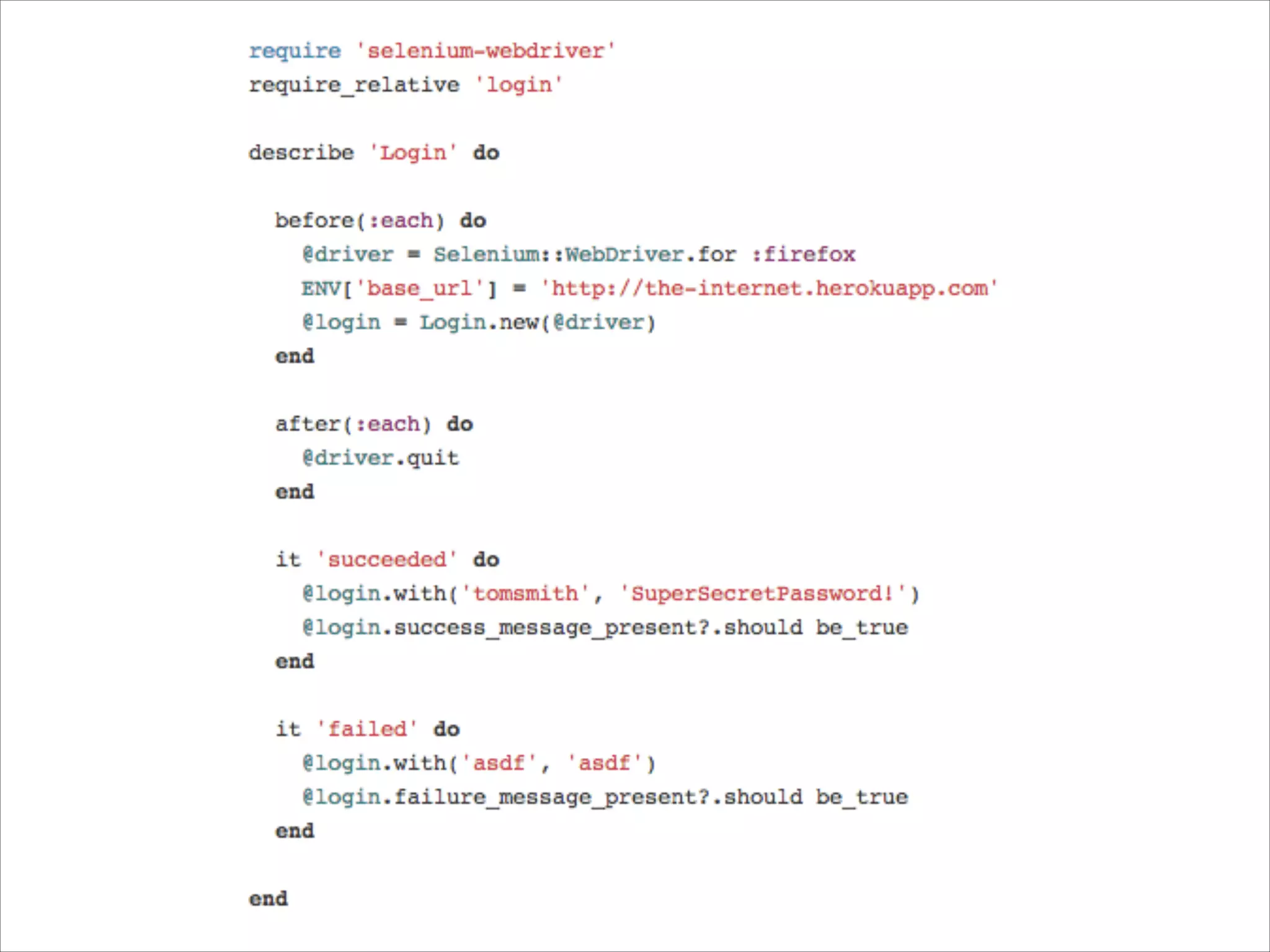

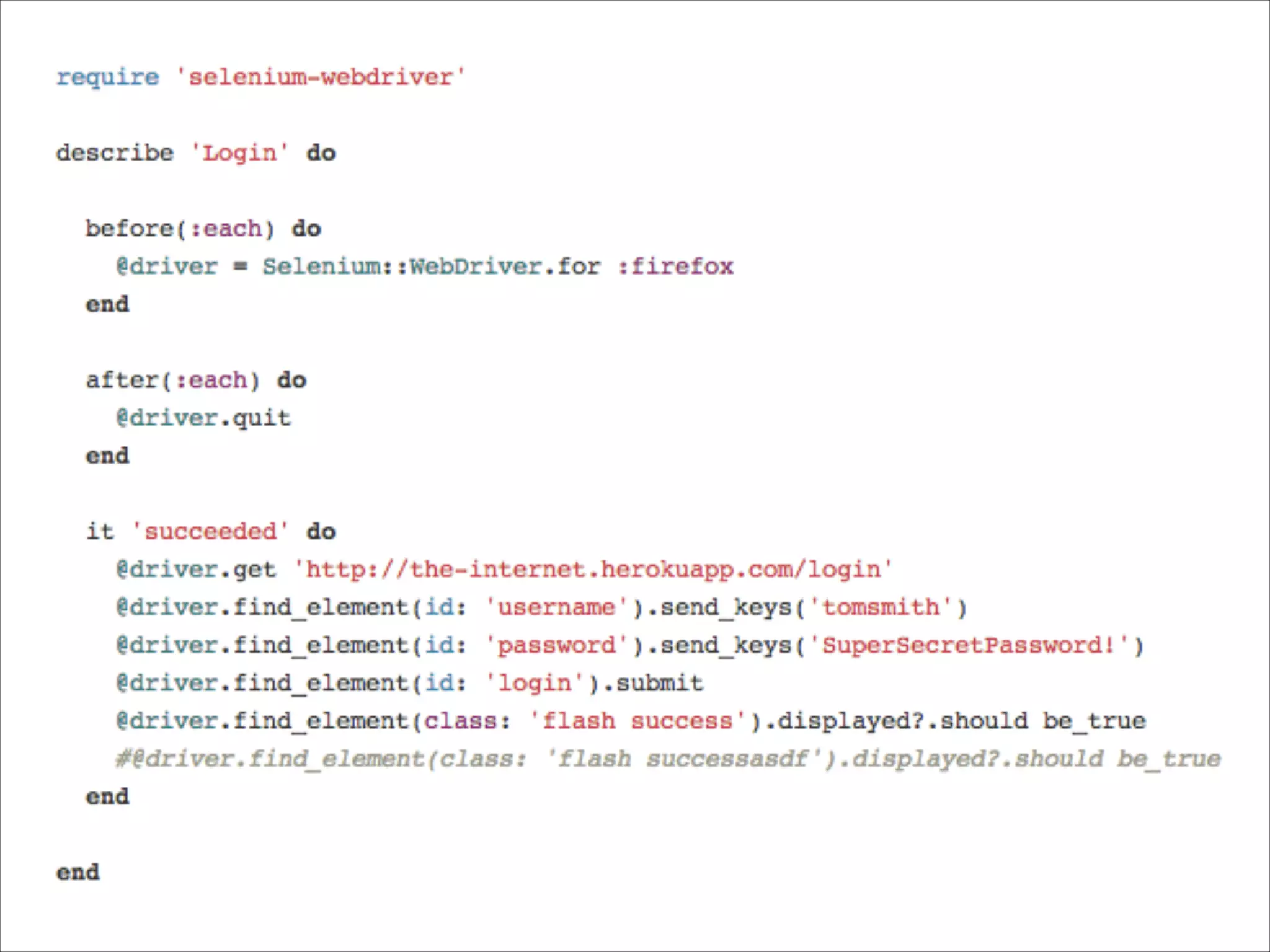

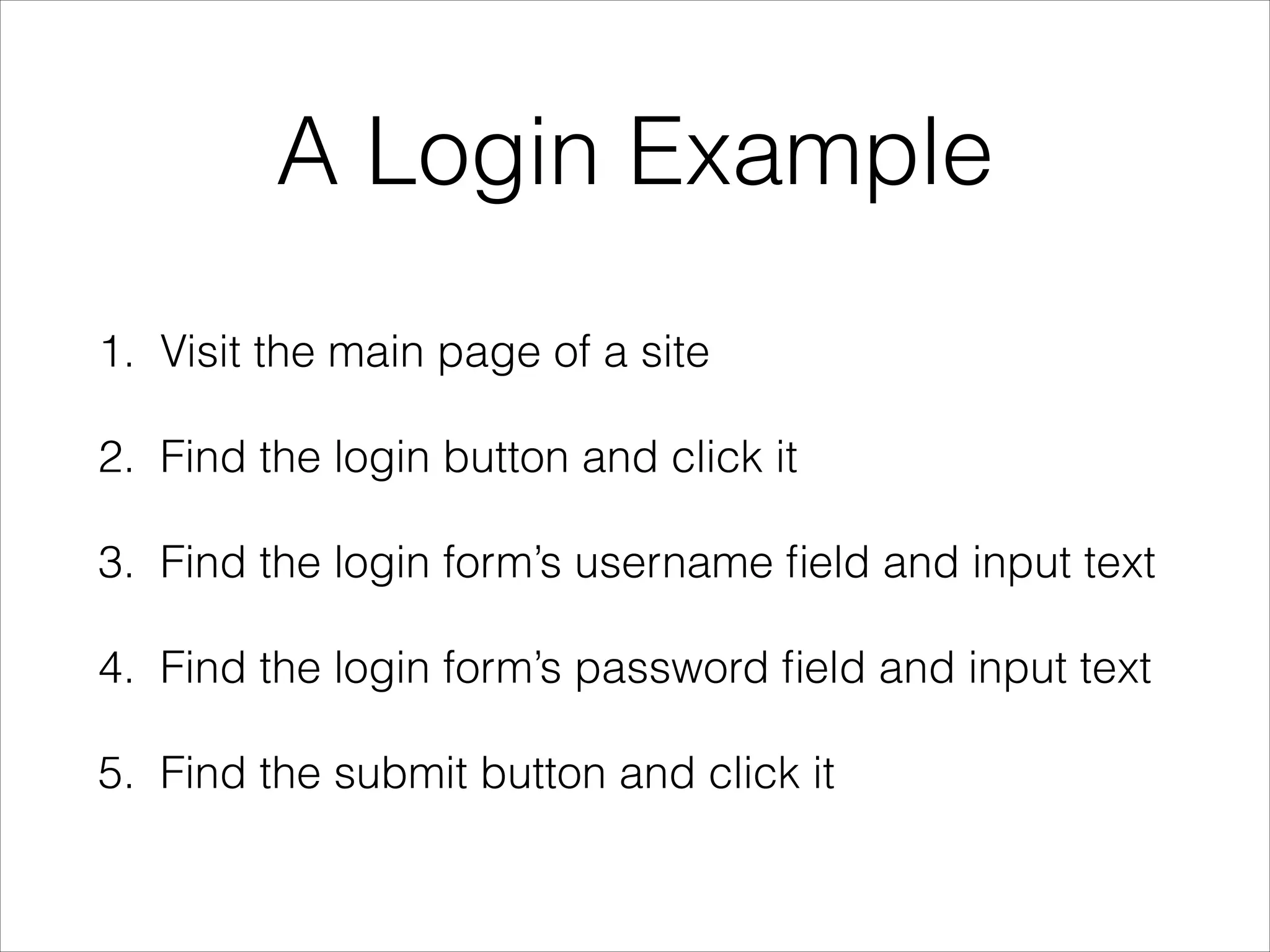

A Login Example
1. Visit the main page of a site
2. Find the login button and click it
3. Find the login form’s username field and input text
4. Find the login form’s password field and input text
5. Find the submit button and click it
http://the-internet.herokuapp.com/login

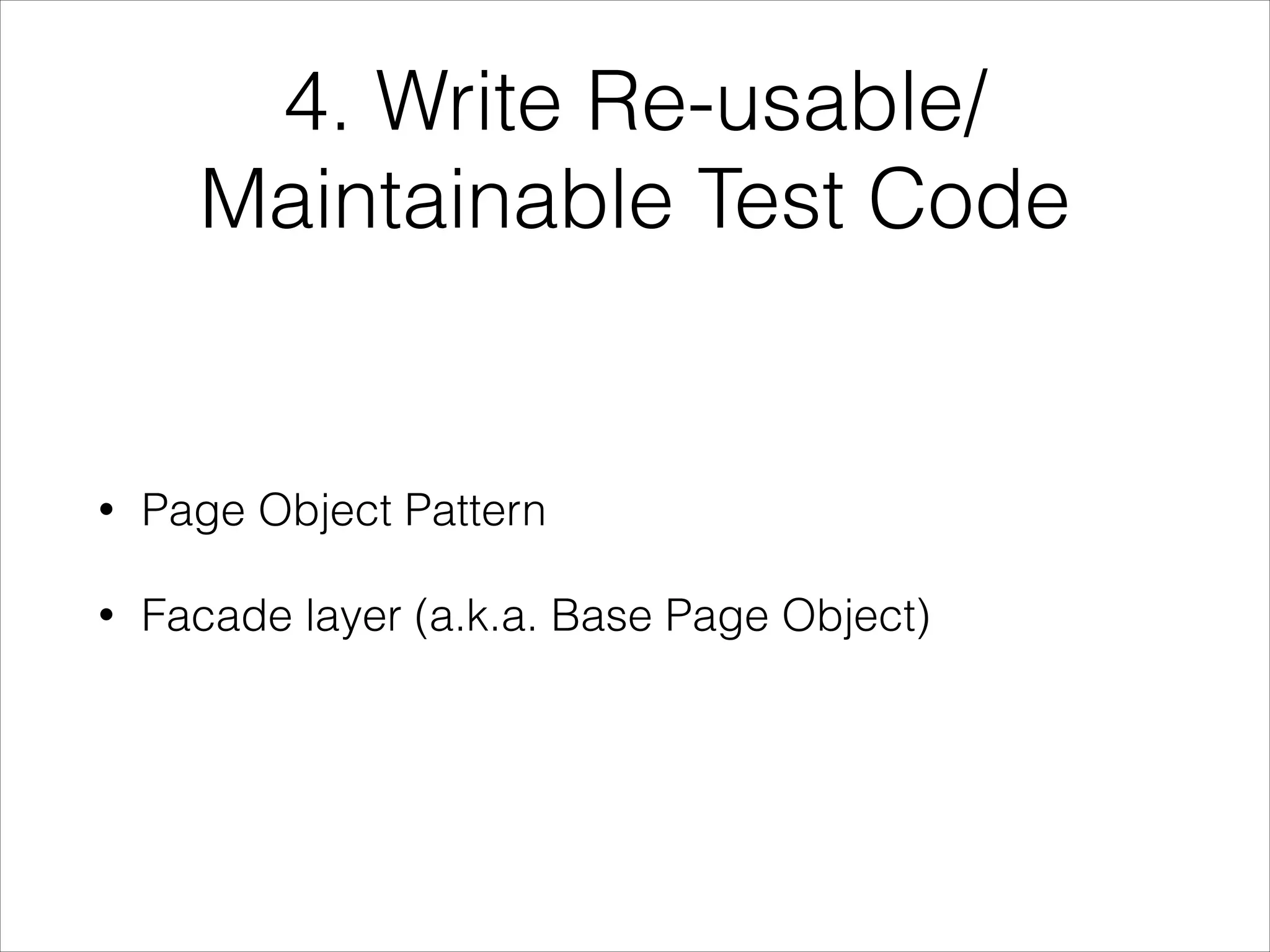

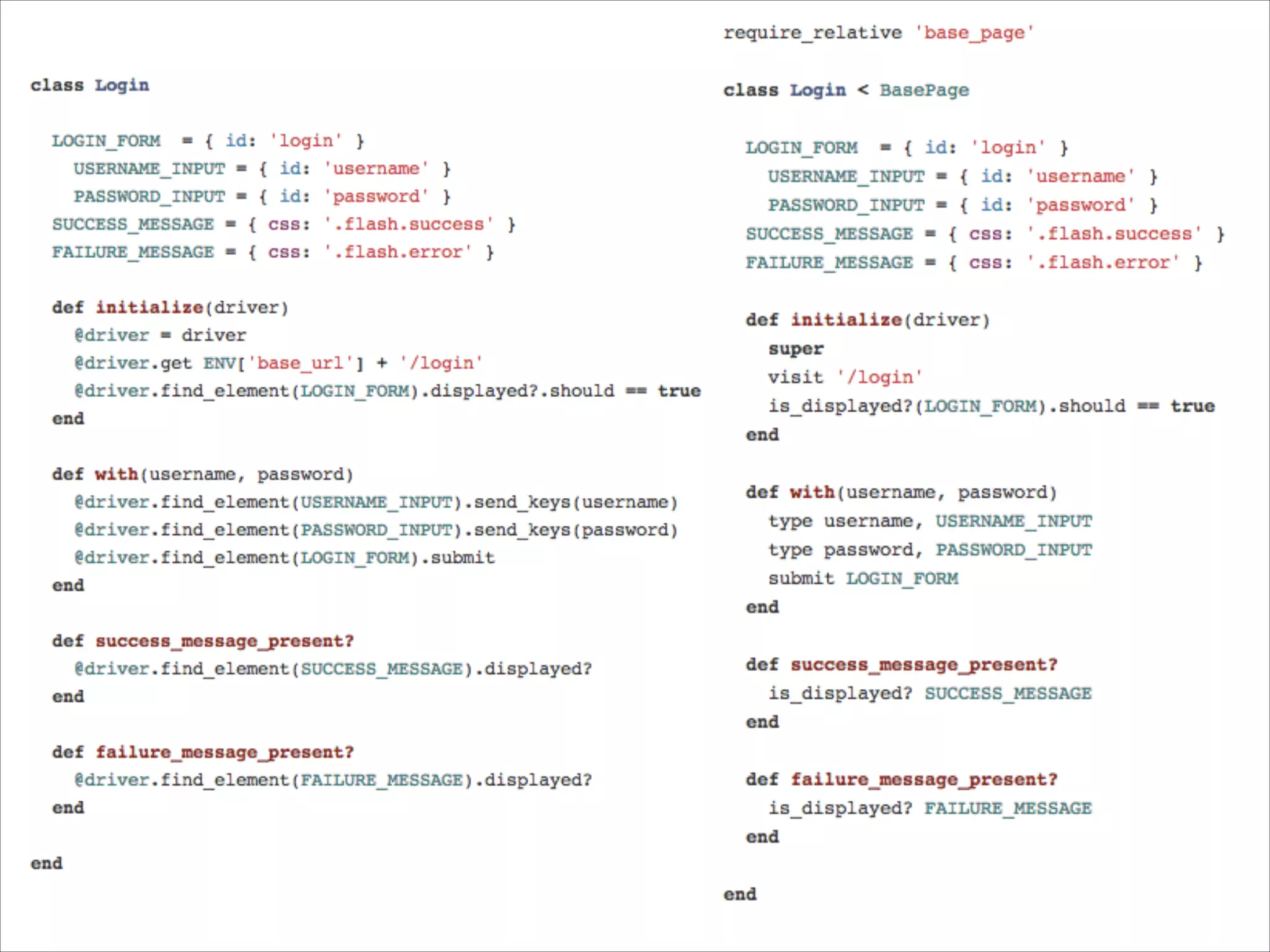

4. Write Re-usable/
Maintainable Test Code

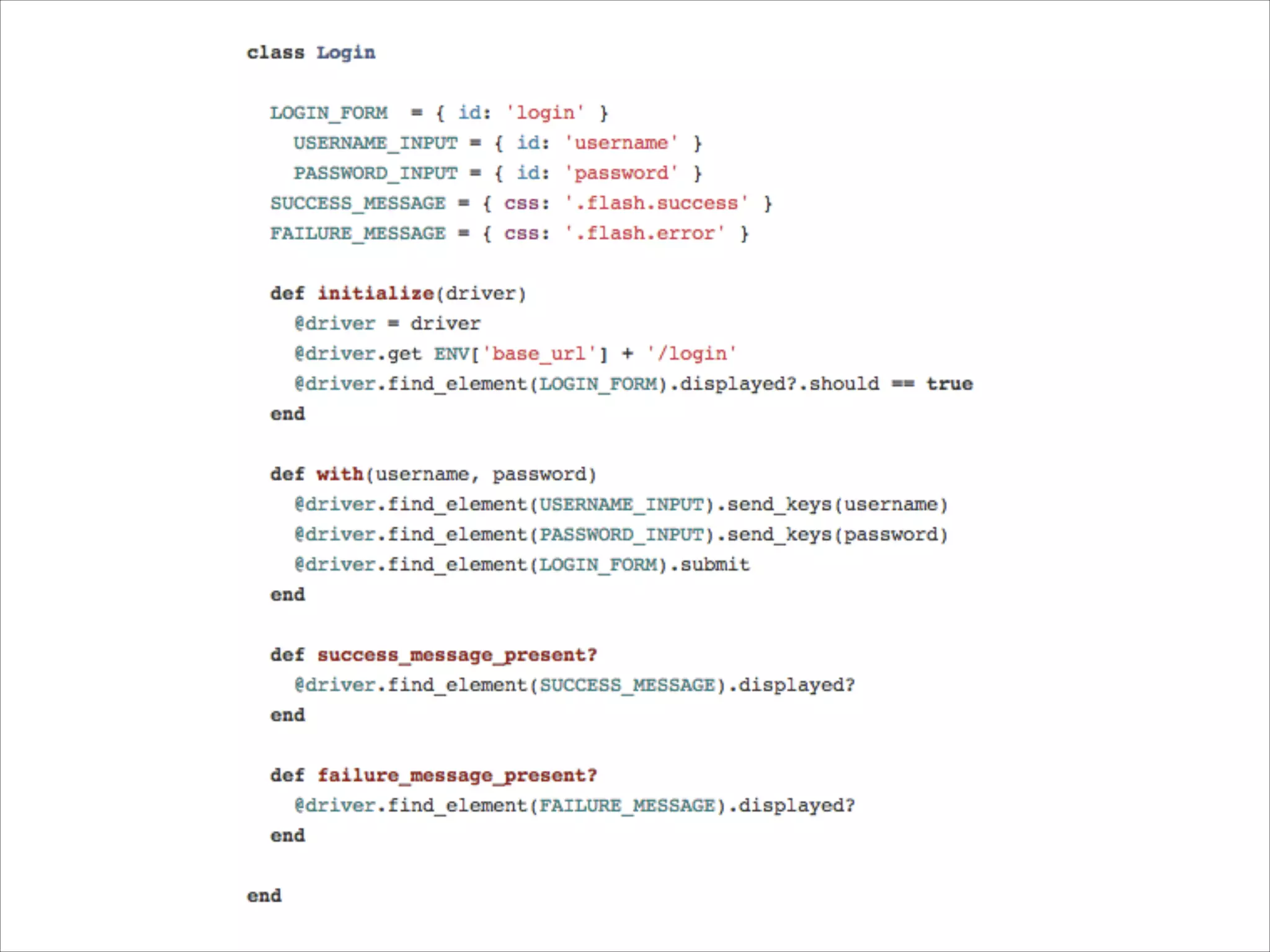

• Page Object Pattern

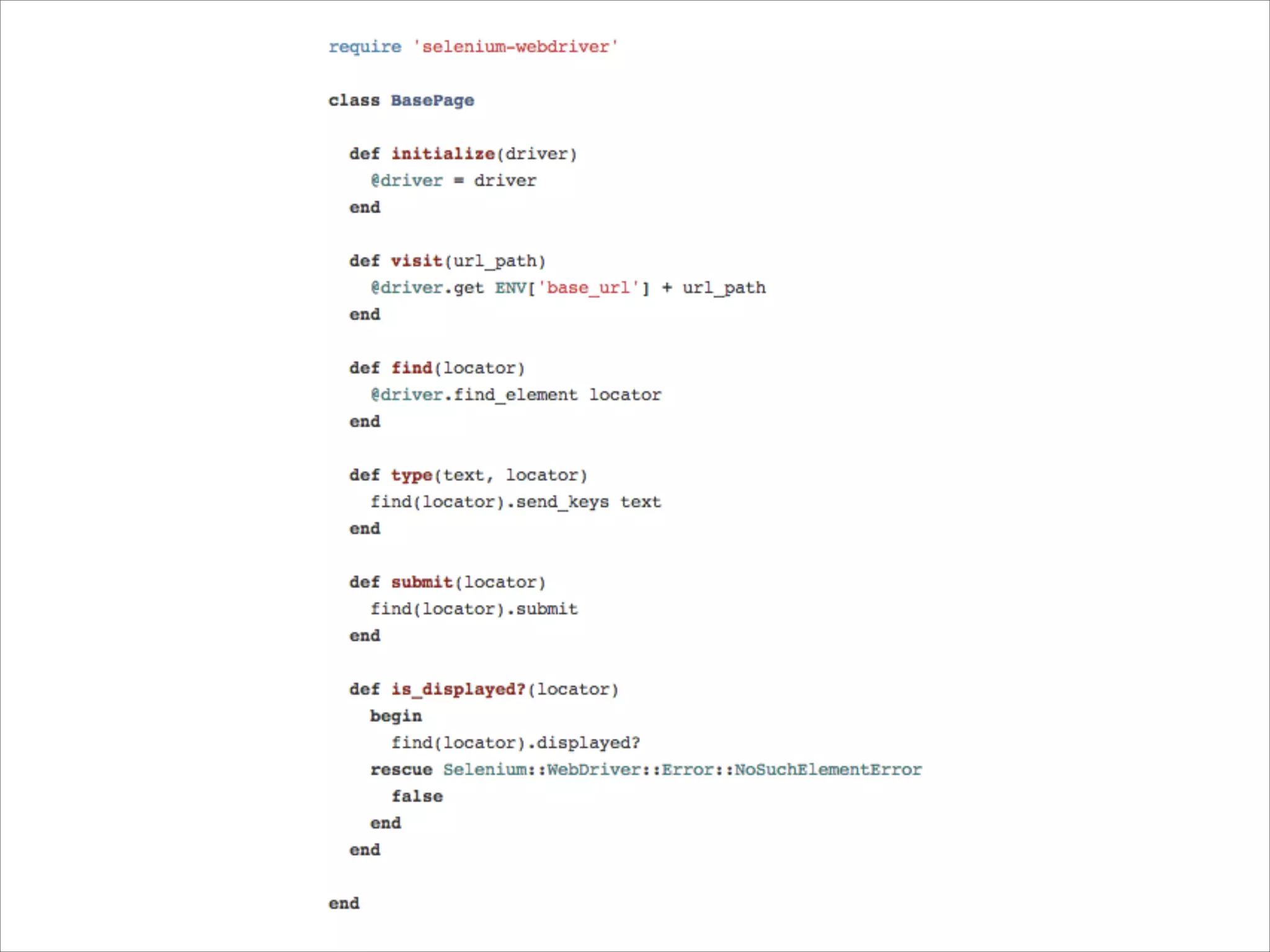

• Facade layer (a.k.a. Base Page Object)

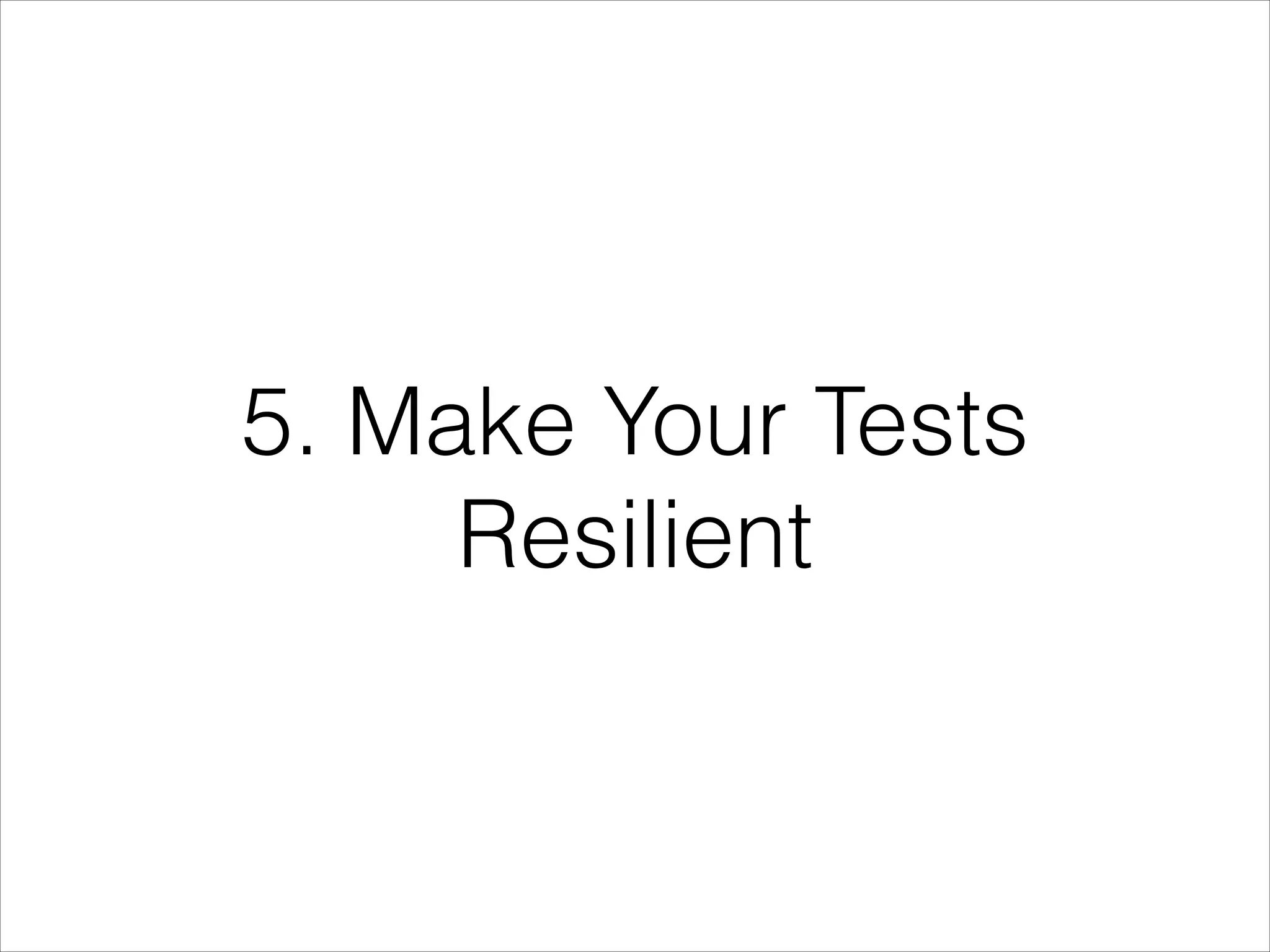

5. Make Your Tests
Resilient

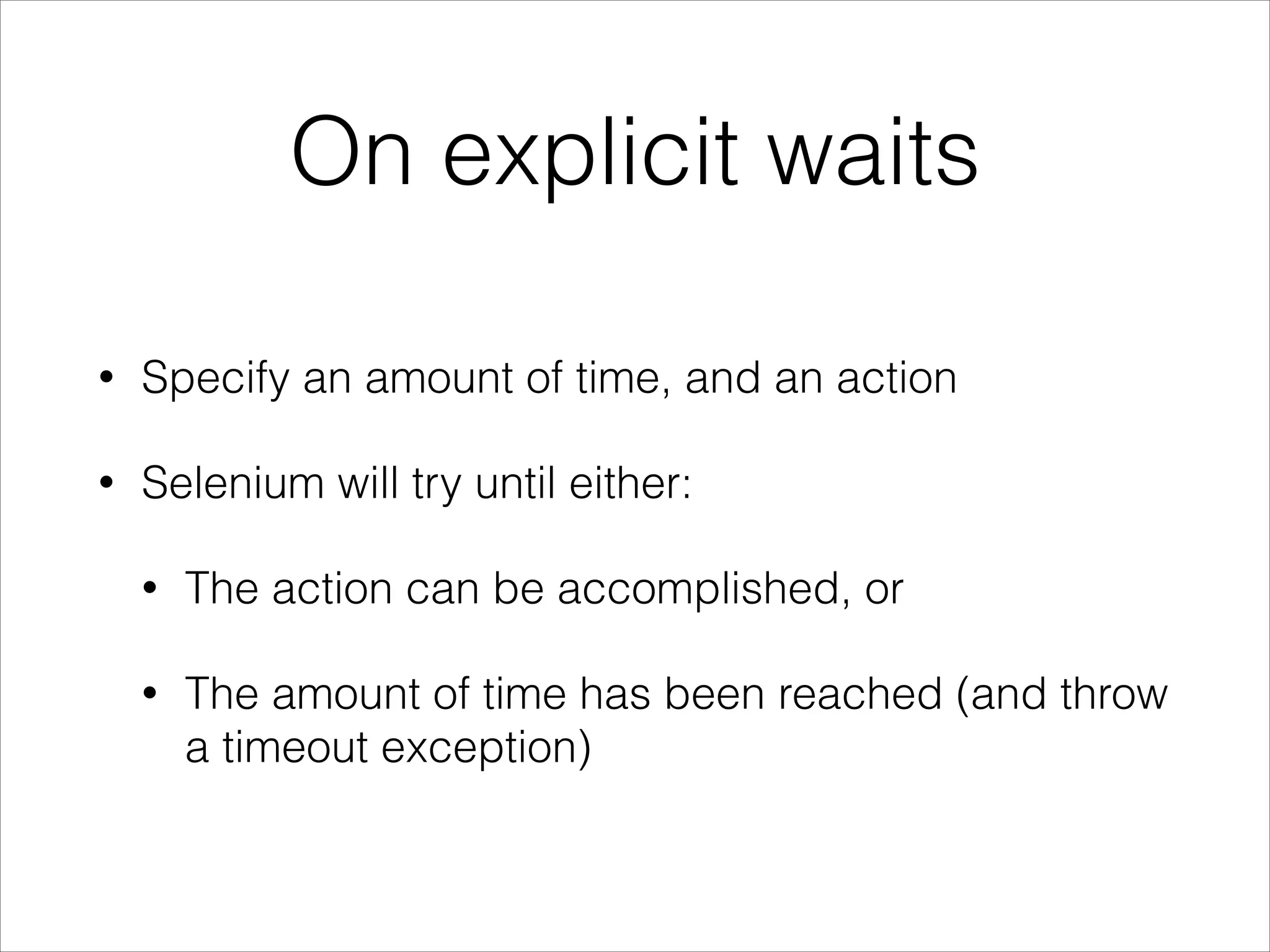

On explicit waits
• Specify an amount of time, and an action
• Selenium will try until either:
• The action can be accomplished, or
• The amount of time has been reached (and throw
a timeout exception)

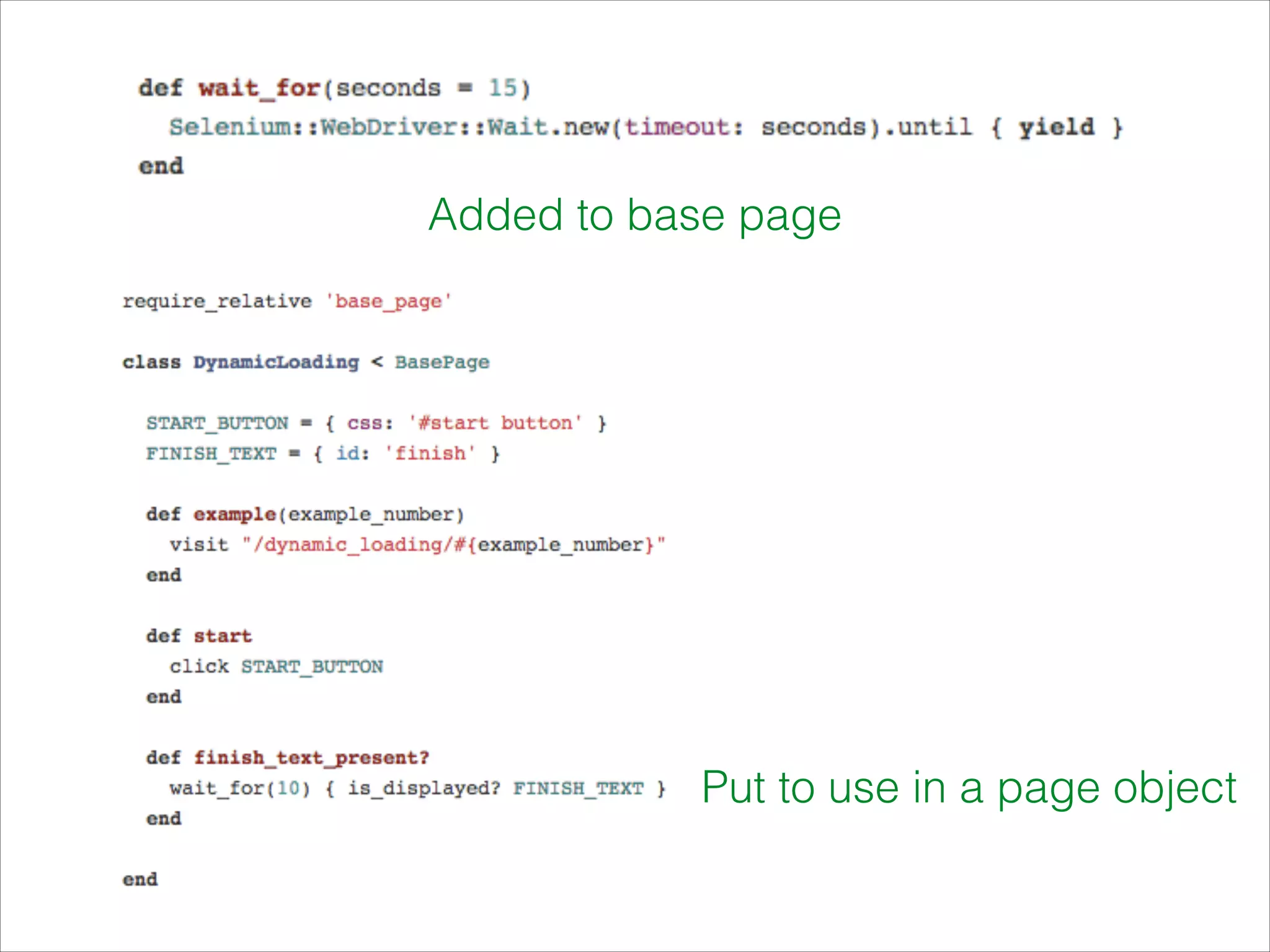

Added to base page
Put to use in a page object

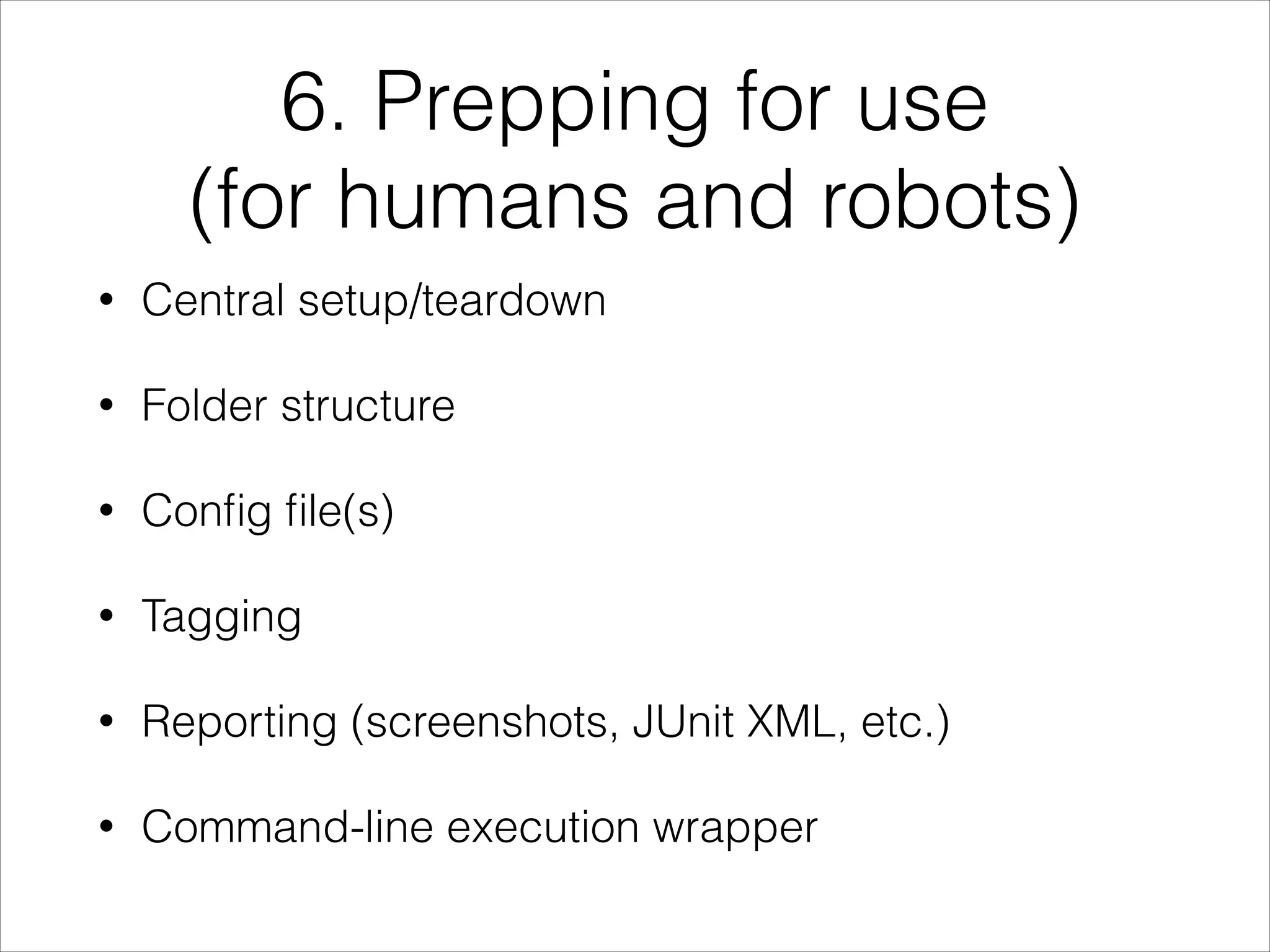

6. Prepping for use
(for humans and robots)
• Central setup/teardown
• Folder structure
• Config file(s)
• Tagging
• Reporting (screenshots, JUnit XML, etc.)
• Command-line execution wrapper

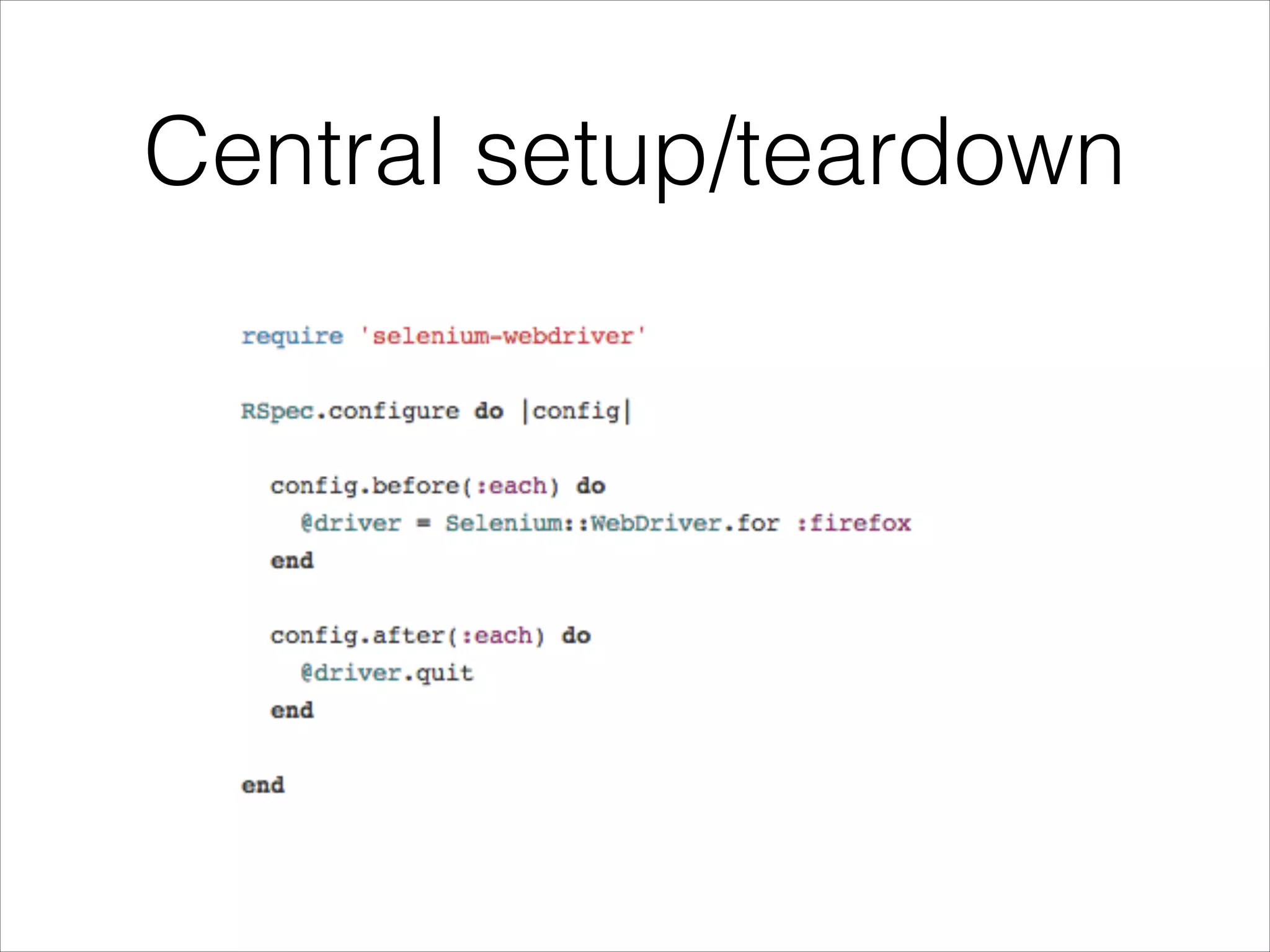

Central setup/teardown

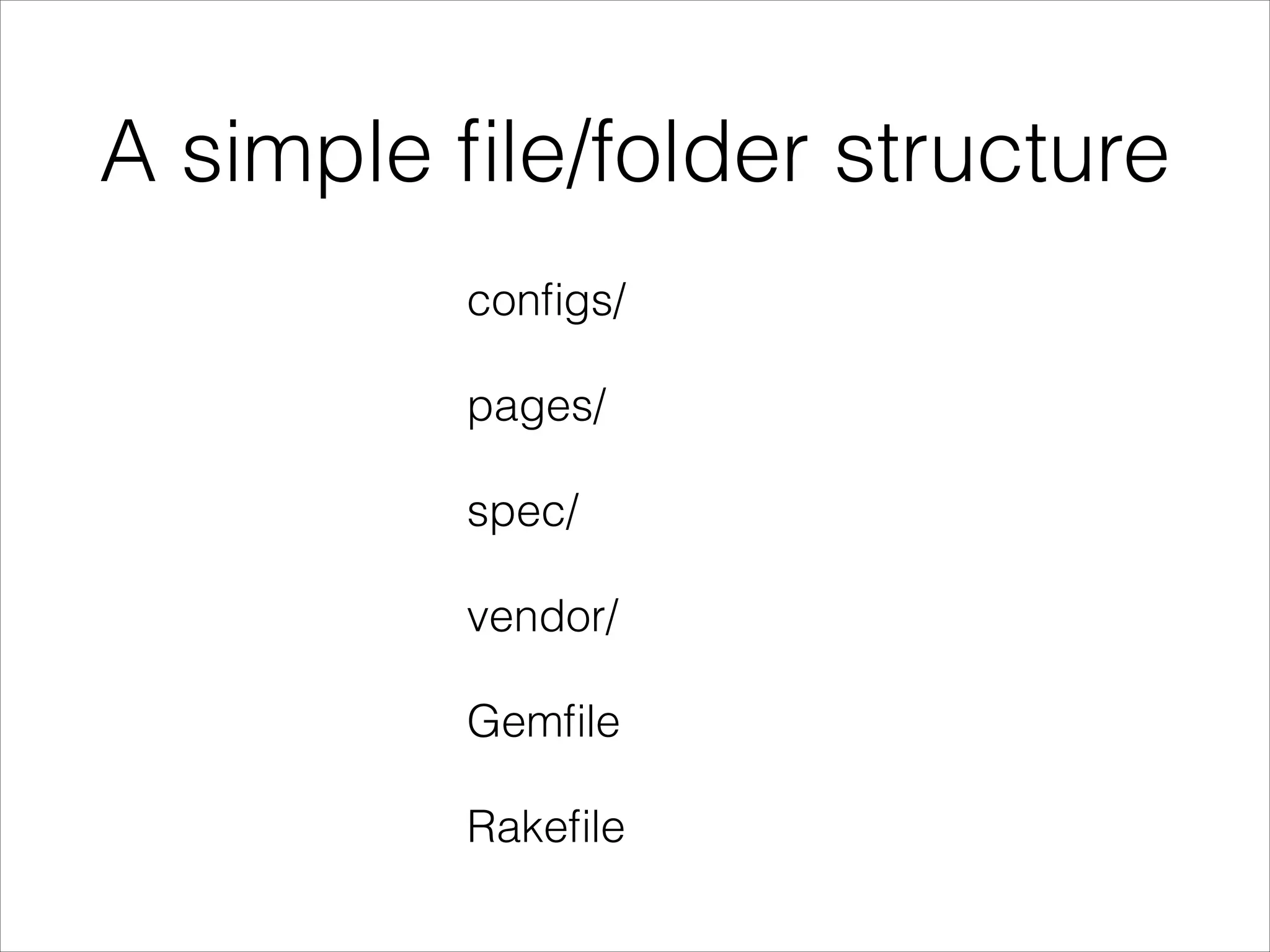

A simple file/folder structure
configs/
pages/
spec/
vendor/
Gemfile
Rakefile

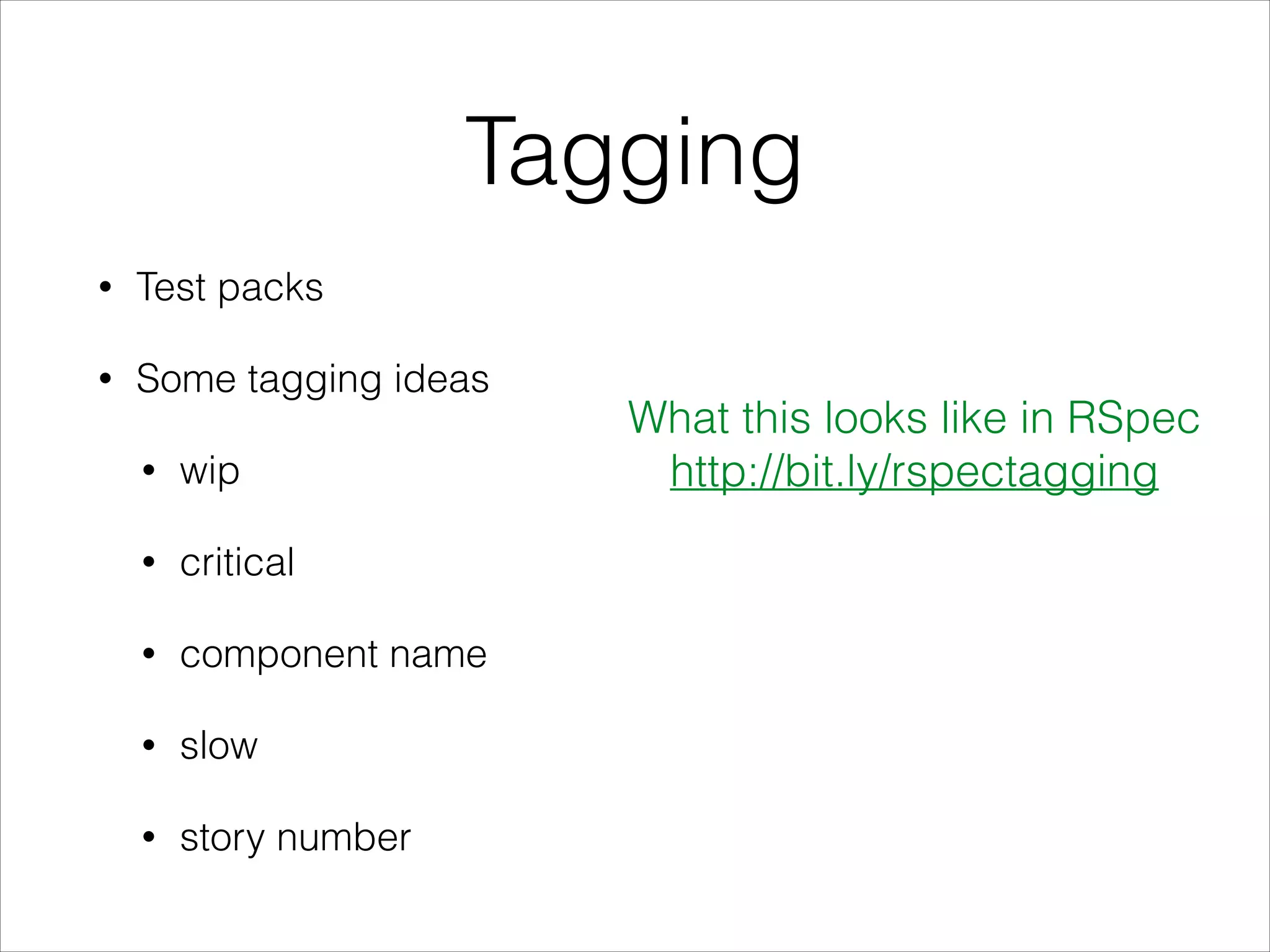

Tagging
• Test packs
• Some tagging ideas
• wip
• critical
• component name
• slow
• story number
What this looks like in RSpec
http://bit.ly/rspectagging

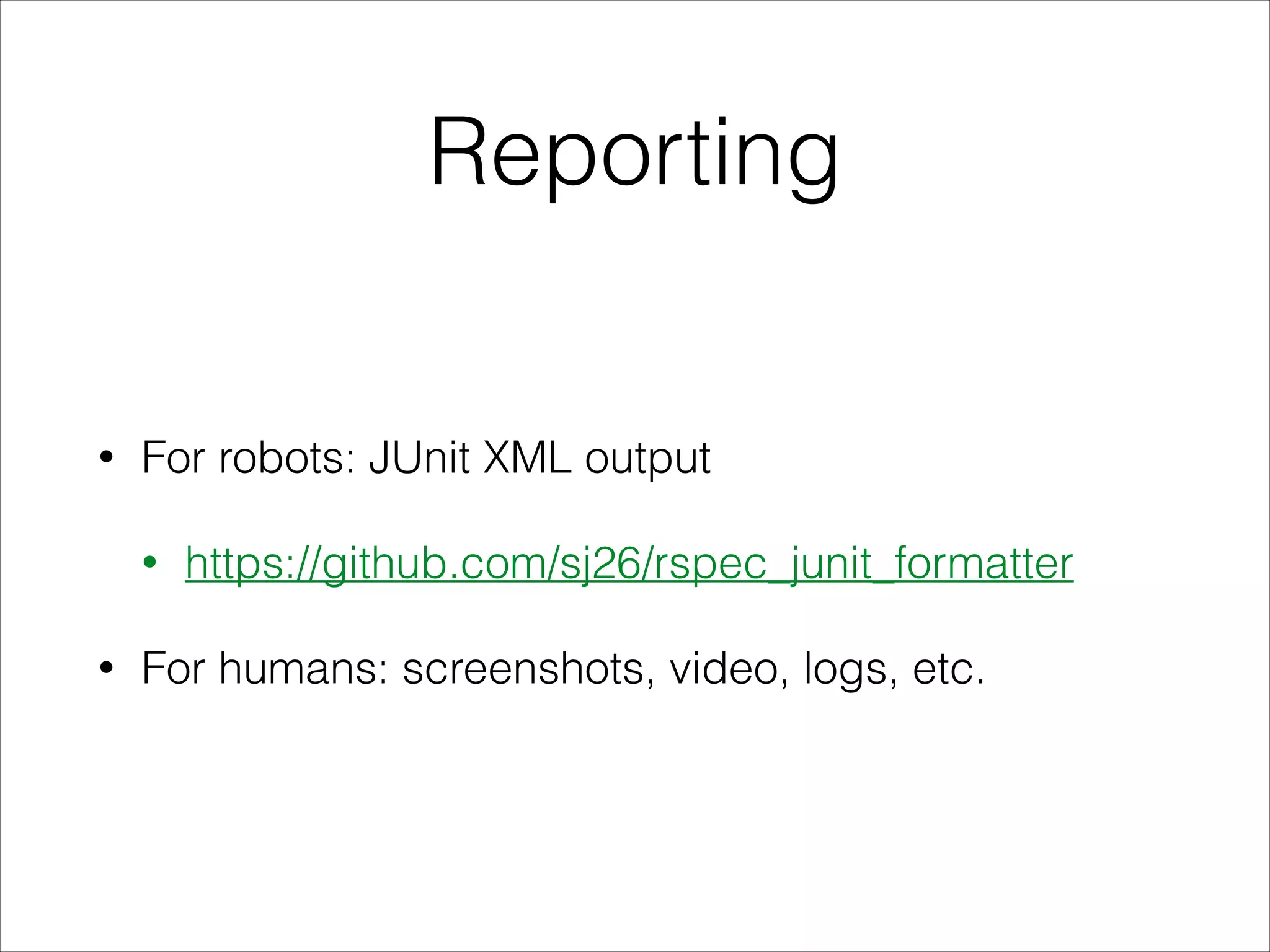

Reporting
• For robots: JUnit XML output
• https://github.com/sj26/rspec_junit_formatter
• For humans: screenshots, video, logs, etc.

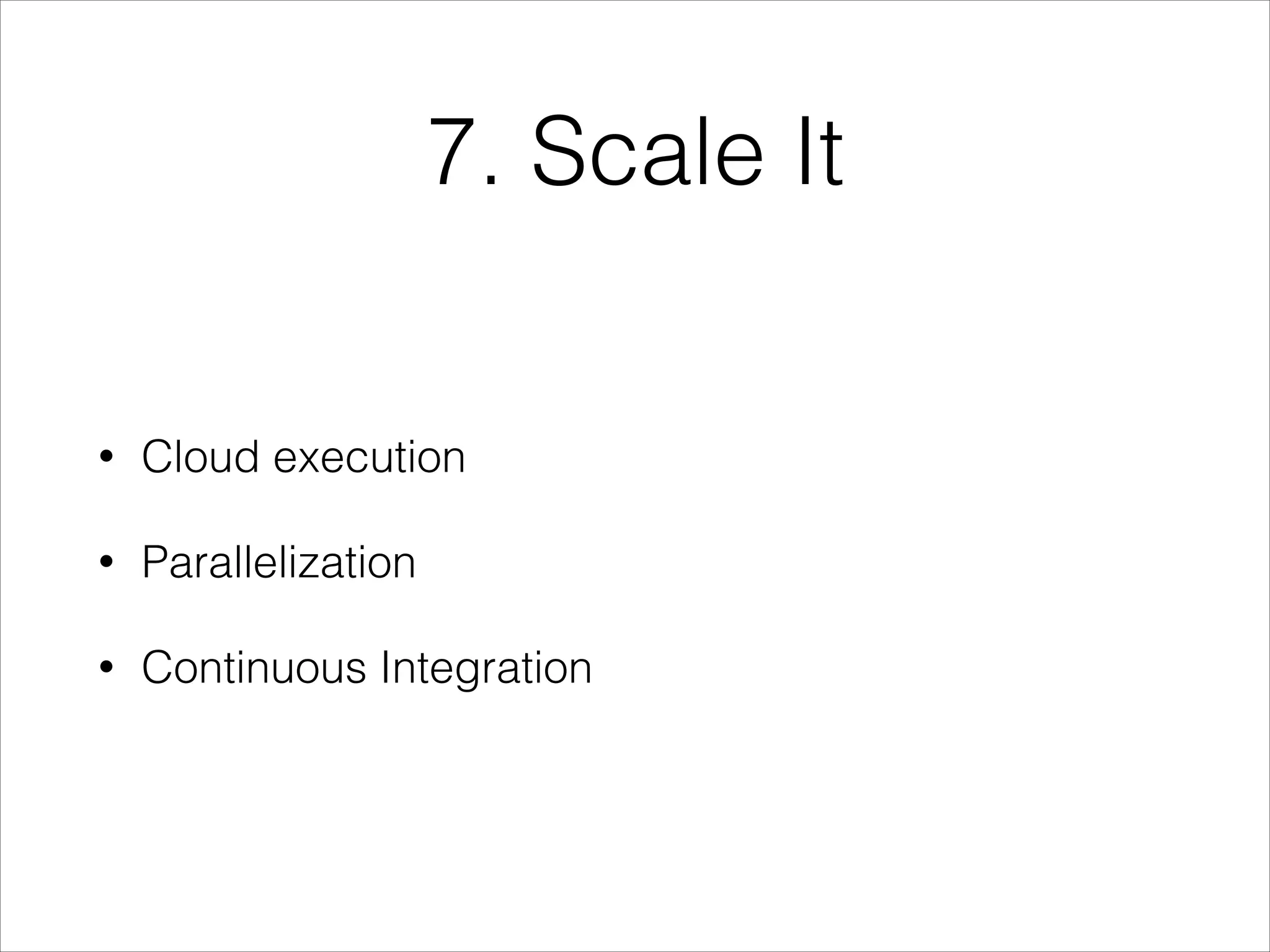

7. Scale It
• Cloud execution
• Parallelization
• Continuous Integration

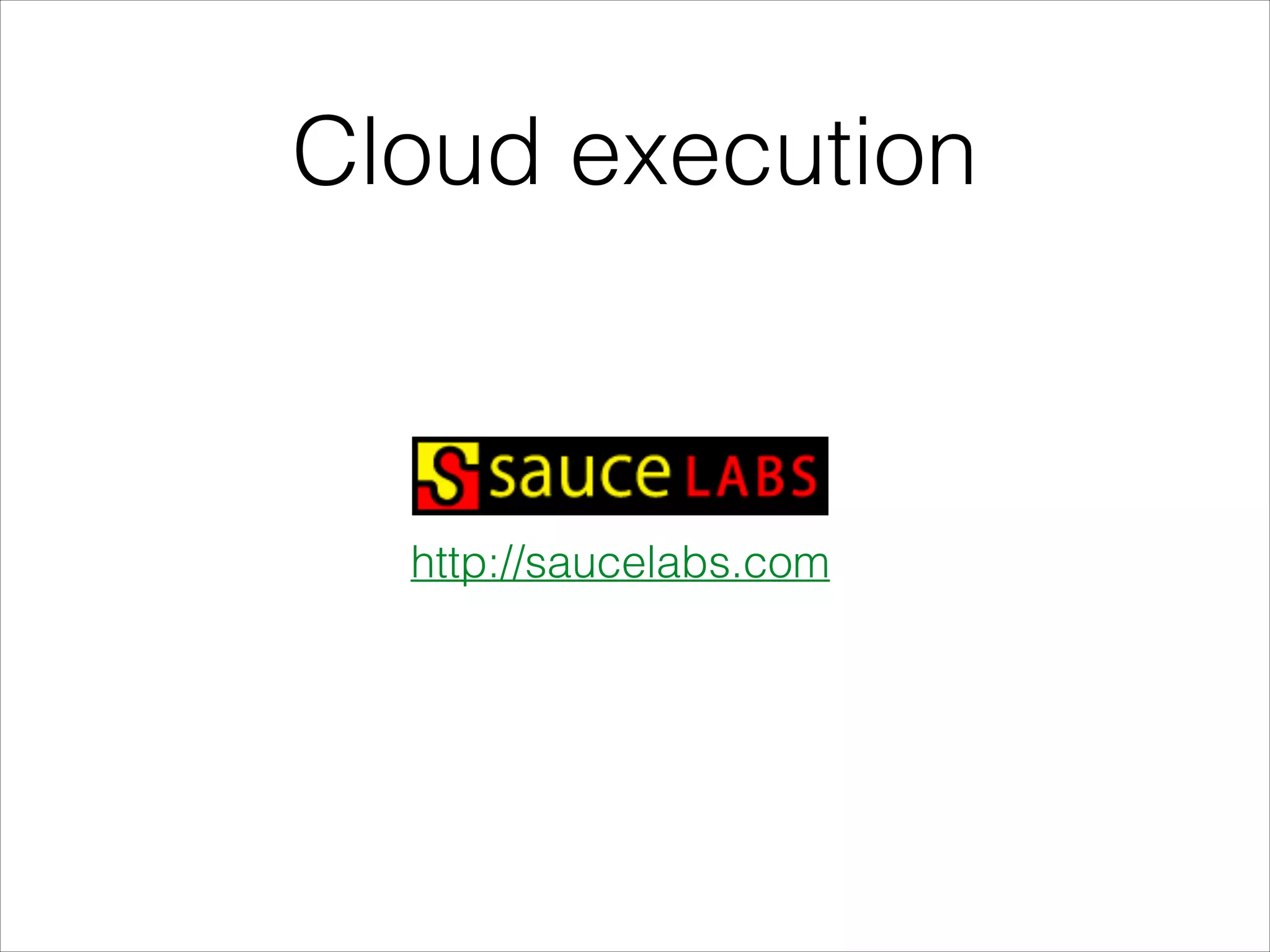

Cloud execution
http://saucelabs.com

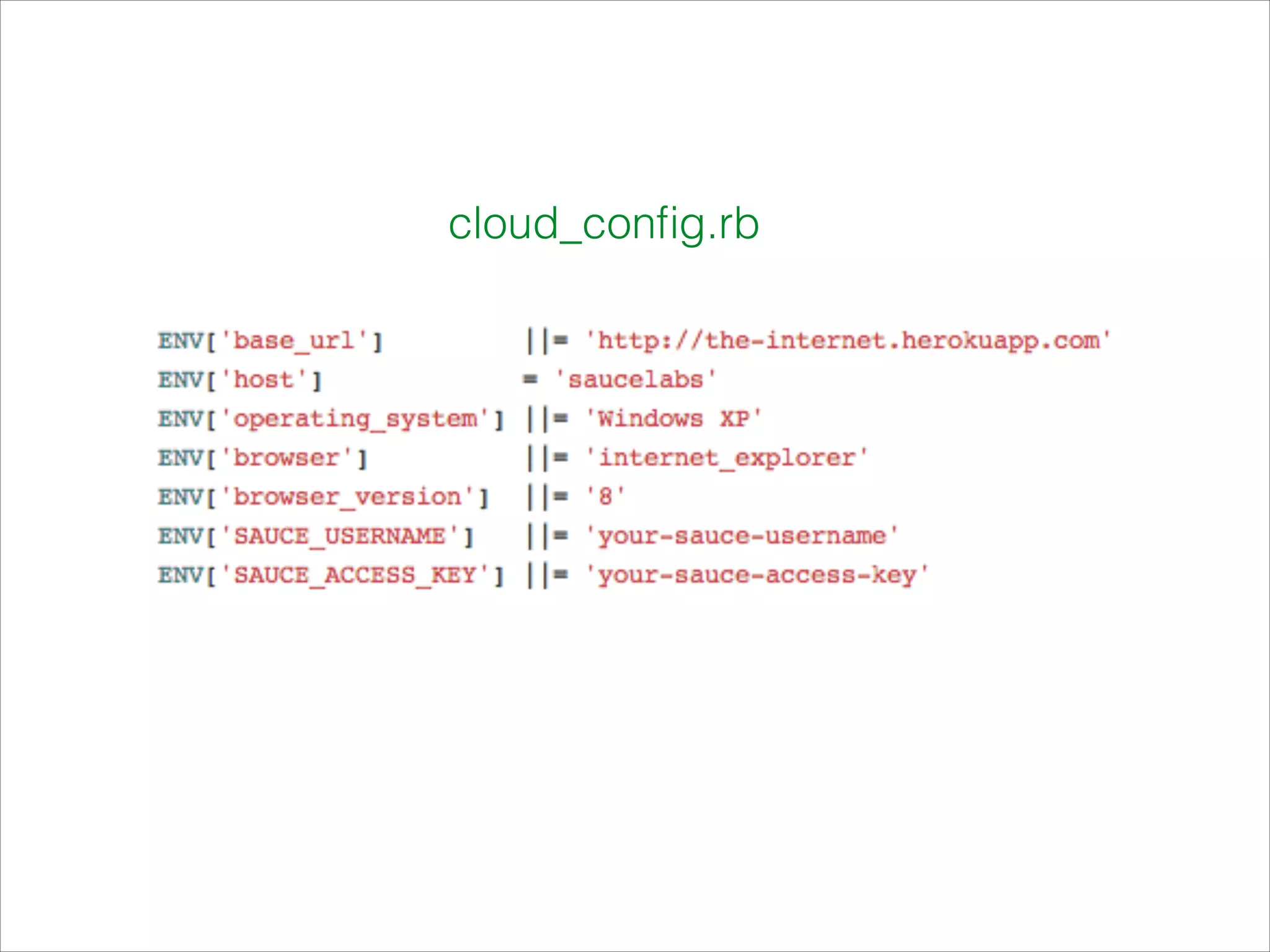

cloud_config.rb

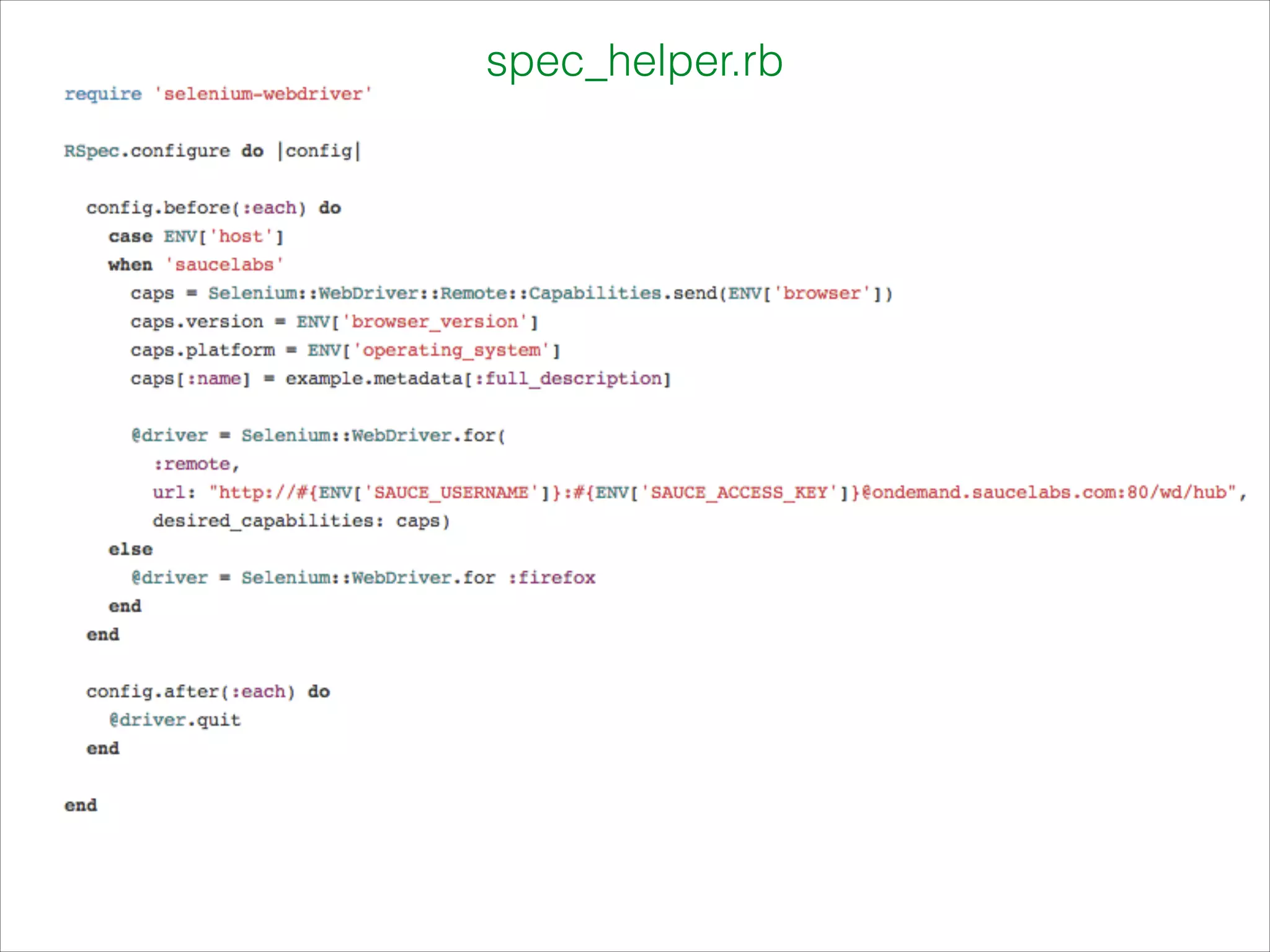

spec_helper.rb

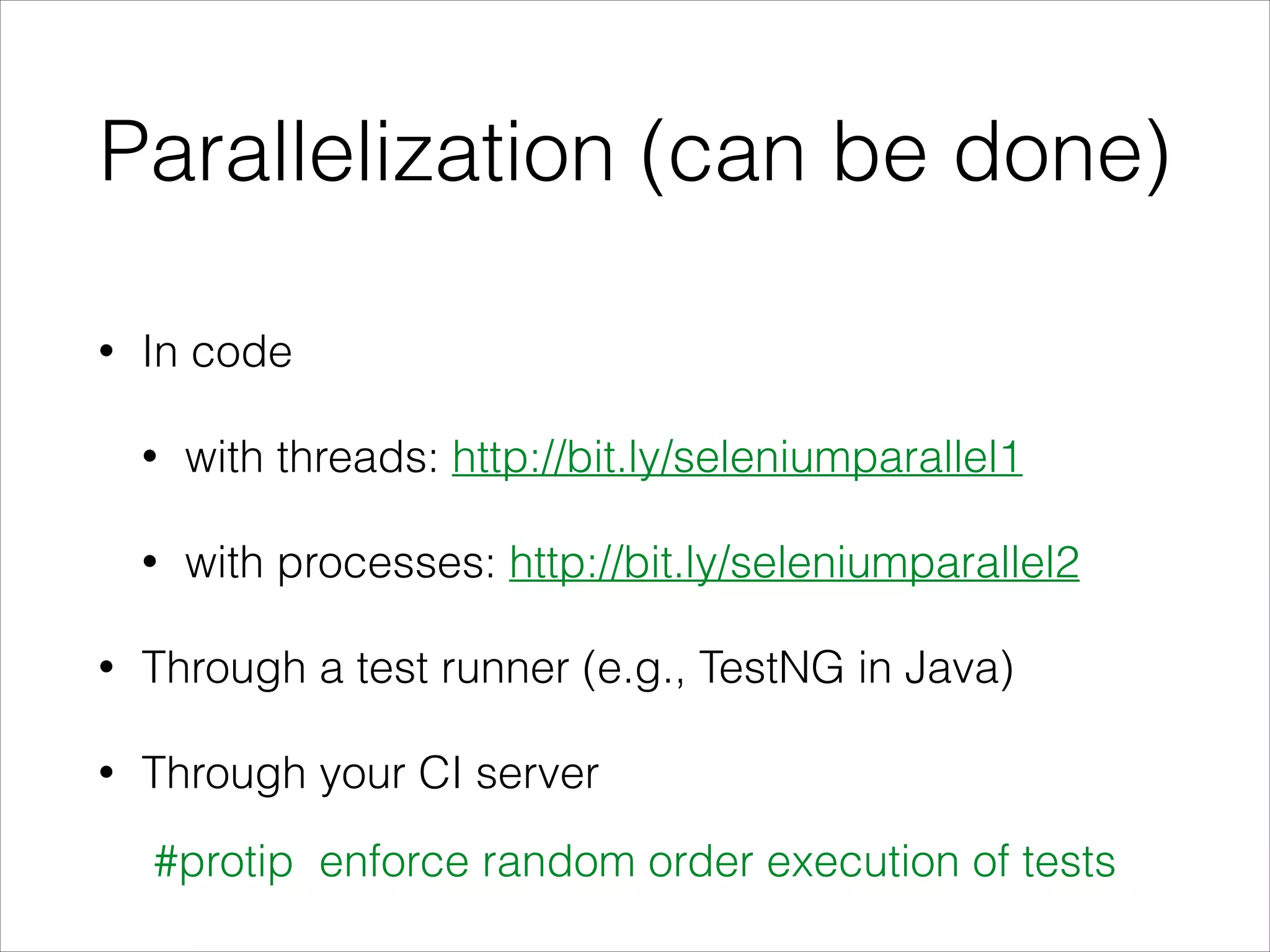

Parallelization (can be done)
• In code
• with threads: http://bit.ly/seleniumparallel1
• with processes: http://bit.ly/seleniumparallel2
• Through a test runner (e.g., TestNG in Java)
• Through your CI server
#protip enforce random order execution of tests

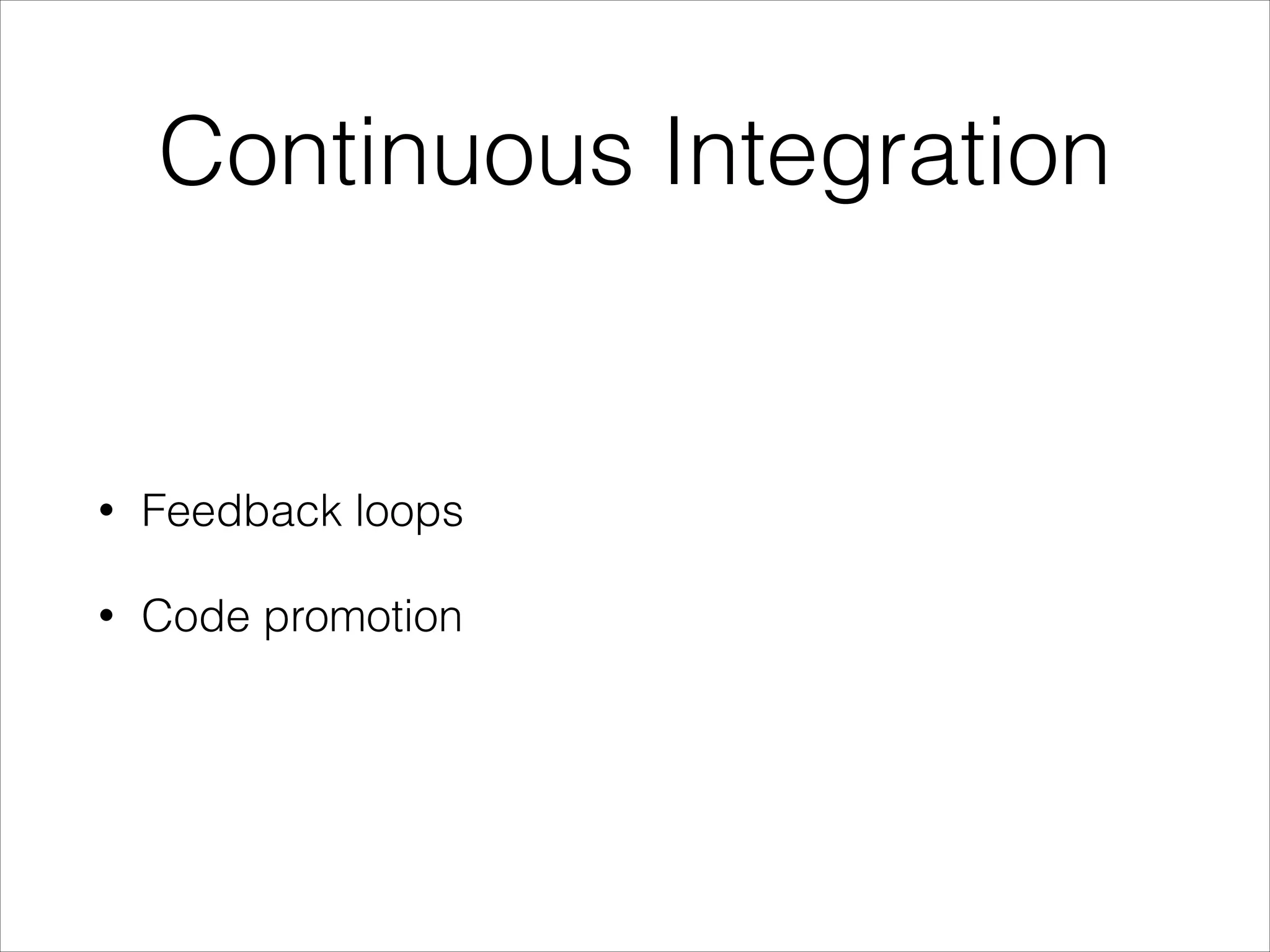

Continuous Integration
• Feedback loops
• Code promotion

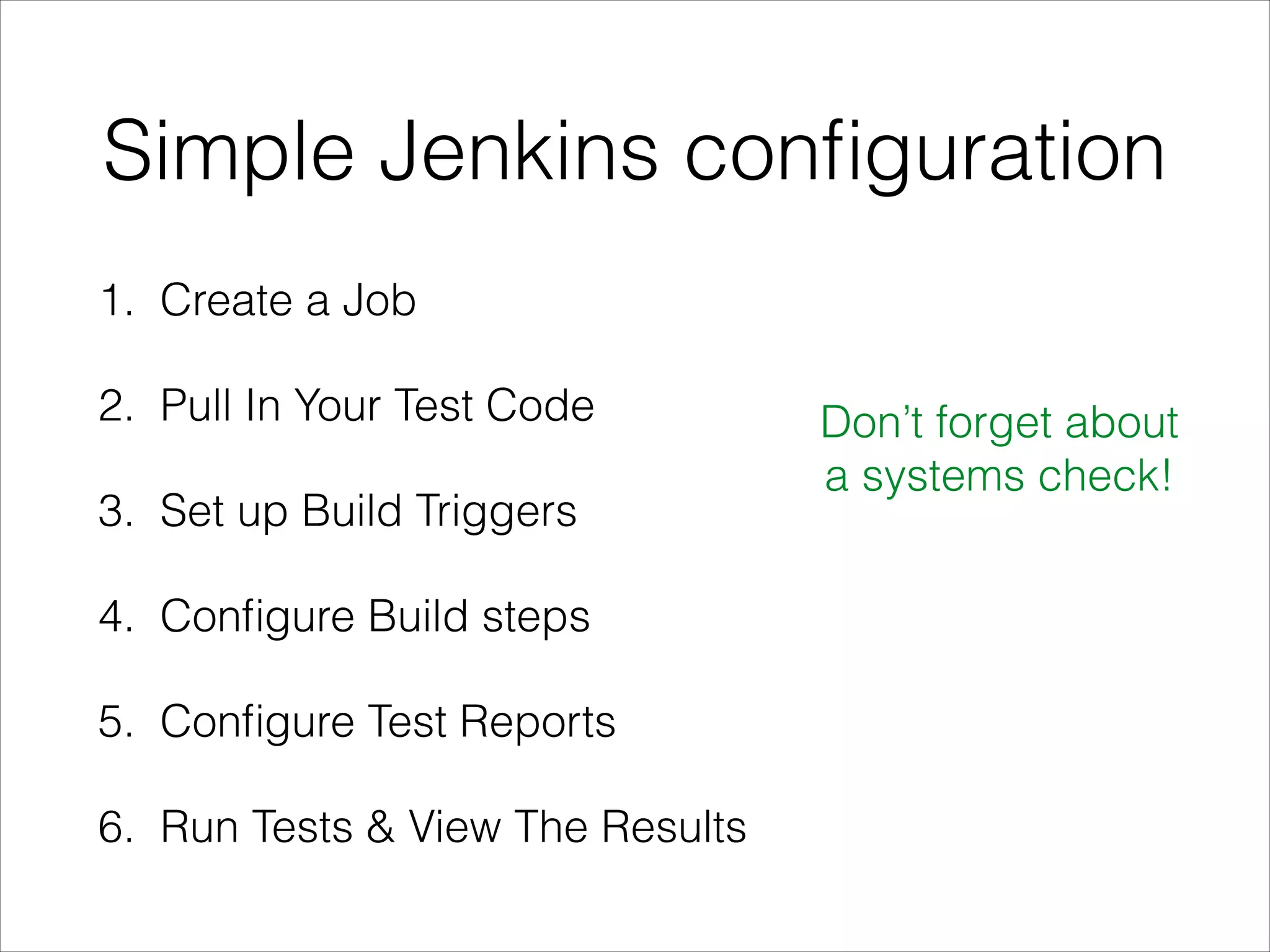

Simple Jenkins configuration
1. Create a Job
2. Pull In Your Test Code
3. Set up Build Triggers
4. Configure Build steps
5. Configure Test Reports
6. Run Tests & View The Results
Don’t forget about
a systems check!

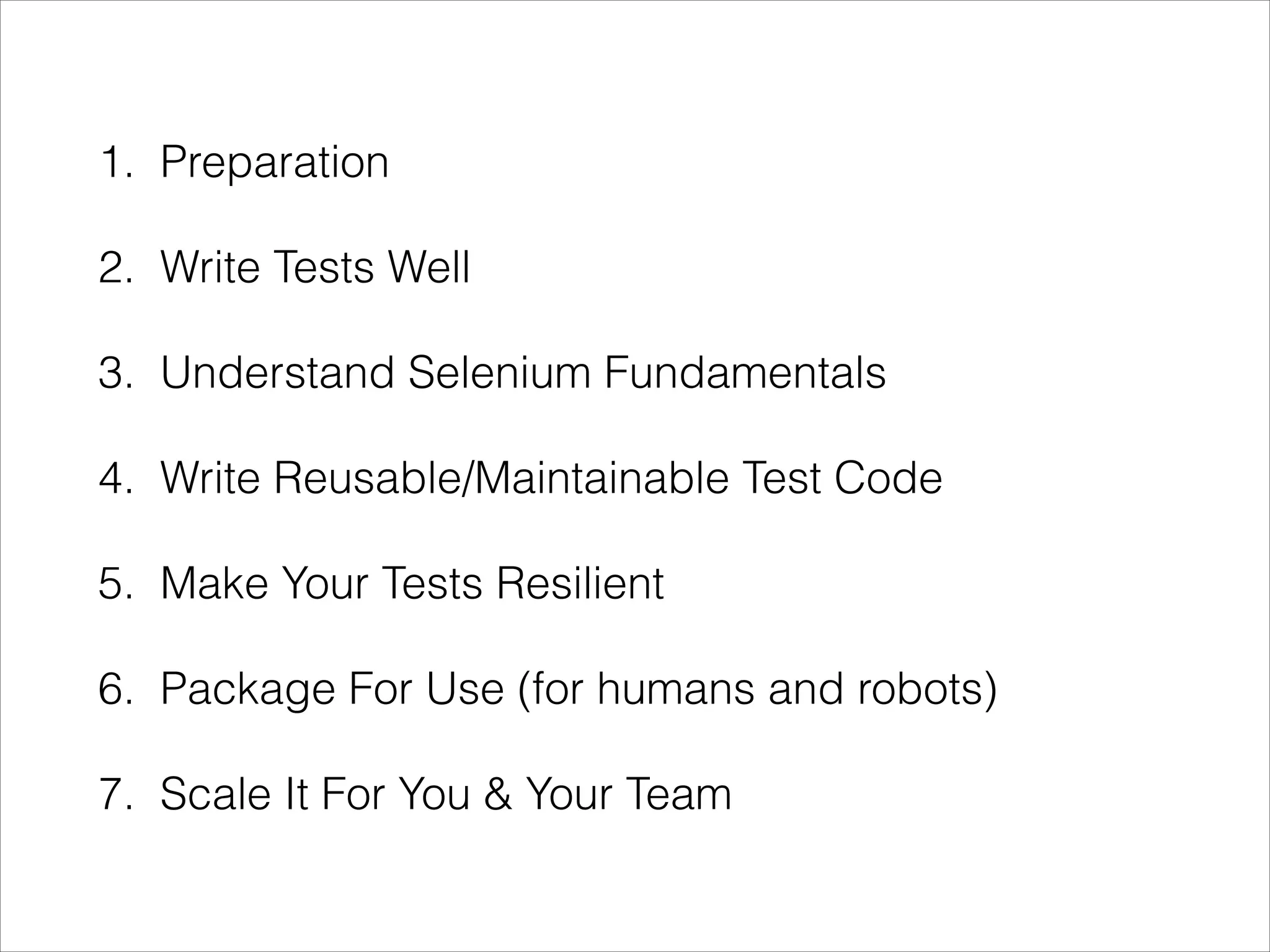

1. Preparation
2. Write Tests Well
3. Understand Selenium Fundamentals
4. Write Reusable/Maintainable Test Code
5. Make Your Tests Resilient
6. Package For Use (for humans and robots)
7. Scale It For You & Your Team
–Dave Haeffner, @TourDeDave
“You may think your puzzle is unique. But really, everyone is
trying to solve the same puzzle. Yours is just configured
differently — and it’s solvable”
http://seleniumguidebook.com
