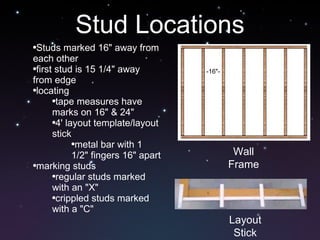

Stud Locations Studs marked 16" away from each other first stud is 15 1/4" away from edge locating tape measures have marks on 16" & 24" 4' layout template/layout stick metal bar with 1 1/2" fingers 16" apart marking studs regular studs marked with an "X" crippled studs marked with a "C" -16"- Wall Frame Layout Stick

Stud Locations

  • 1.
    Stud Locations Studsmarked 16" away from each other first stud is 15 1/4" away from edge locating tape measures have marks on 16" & 24" 4' layout template/layout stick metal bar with 1 1/2" fingers 16" apart marking studs regular studs marked with an "X" crippled studs marked with a "C" -16"- Wall Frame Layout Stick
