Storsimple overview.Microsoft.Walter.Pitrof
This document discusses Microsoft's StorSimple solution for storage management. StorSimple uses a hybrid cloud approach to store data, keeping frequently accessed data locally while archiving less used data to Microsoft Azure storage. This reduces on-premises storage costs by 60-80% while providing scalability, backup/disaster recovery capabilities, and the ability to access archived data from any internet connection. The document provides an example of a company using three StorSimple appliances across two locations to manage over 600 terabytes of engineering data and achieve significant cost savings over their previous on-premises storage solution.
More Related Content
Similar to Storsimple overview.Microsoft.Walter.Pitrof
Storsimple overview.Microsoft.Walter.Pitrof
- 1. Walter Pitrof Sr. TechnologySolution Professional Microsoft Switzerland Email: walterp@microsoft.com

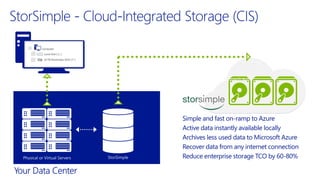

- 2. Simple and faston-ramp to Azure Active data instantly available locally Archives less used data to Microsoft Azure Recover data from any internet connection Reduce enterprise storage TCO by 60-80%
- 4. Cloud Computing isnot a location. It is a method of computing.
- 7.
- 9.
- 11.
- 12.

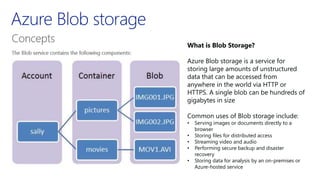

- 15. What is BlobStorage? Azure Blob storage is a service for storing large amounts of unstructured data that can be accessed from anywhere in the world via HTTP or HTTPS. A single blob can be hundreds of gigabytes in size Common uses of Blob storage include: • Serving images or documents directly to a browser • Storing files for distributed access • Streaming video and audio • Performing secure backup and disaster recovery • Storing data for analysis by an on-premises or Azure-hosted service

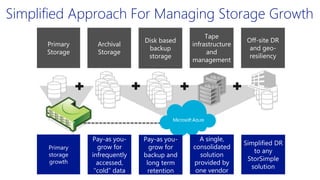

- 16. StorSimple Simplified Approach ForManaging Storage Growth Primary Storage Archival Storage Disk based backup storage Tape infrastructure and management Off-site DR and geo- resiliency Primary storage growth Pay-as you- grow for infrequently accessed, “cold” data Pay-as you- grow for backup and long term retention A single, consolidated solution provided by one vendor Simplified DR to any StorSimple solution

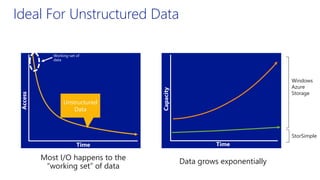

- 17. Capacity Time Windows Azure Storage StorSimple Ideal For UnstructuredData Data grows exponentiallyMost I/O happens to the “working set” of data Access Time Unstructured Data Working-set of data

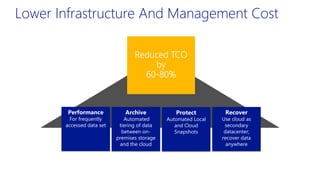

- 18. Lower Infrastructure AndManagement Cost Performance For frequently accessed data set Archive Automated tiering of data between on- premises storage and the cloud Protect Automated Local and Cloud Snapshots Recover Use cloud as secondary datacenter; recover data anywhere

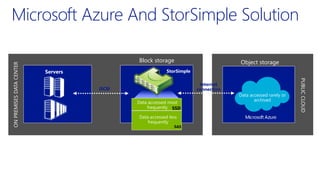

- 20. Microsoft Azure AndStorSimple SolutionONPREMISESDATACENTER Servers iSCSI StorSimple SSD SAS Block storage PUBLICCLOUD Object storage Internet connection Data accessed most frequently Data accessed less frequently Data accessed rarely or archived

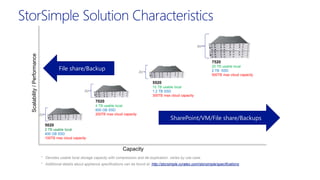

- 21. 21 Scalability/Performance Capacity 5520 10 TB usablelocal 1.2 TB SSD 300TB max cloud capacity 7520 20 TB usable local 2 TB SSD 500TB max cloud capacity * Denotes usable local storage capacity with compression and de-duplication, varies by use case. * Additional details about appliance specifications can be found at: http://storsimple.xyratex.com/storsimple/specifications 5020 2 TB usable local 400 GB SSD 100TB max cloud capacity 7020 4 TB usable local 600 GB SSD 200TB max cloud capacity2U 2U 2U 4U File share/Backup SharePoint/VM/File share/Backups

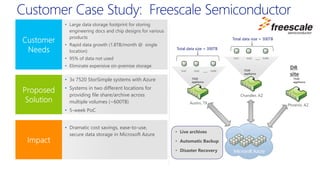

- 23. • Live archives •Automatic Backup • Disaster Recovery • Large data storage footprint for storing engineering docs and chip designs for various products • Rapid data growth (1.8TB/month @ single location) • 95% of data not used • Eliminate expensive on-premise storage • 3x 7520 StorSimple systems with Azure • Systems in two different locations for providing file share/archive across multiple volumes (~600TB) • 5-week PoC • Dramatic cost savings, ease-to-use, secure data storage in Microsoft Azure Total data size = 300TB Vol1 Vol2 VolN… Vol1 Vol2 VolN… Total data size = 300TB DR site Phoenix, AZ Austin, TX 7520 appliance 7520 appliance Chandler, AZ 7520 appliance
