SpillCon brochure

An ENCO Industries Company

SpillCon Solutions™ is a Leading Manufacturer and
Provider of Environmental Control Products

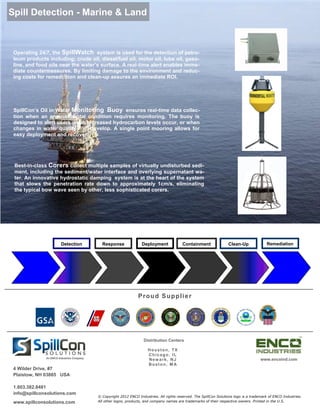

Storm Detection
Recovery
Products
Response
Deployment
Containment
Clean-Up
Remediation

www.spillconsolutions.com

A Global Provider of Environmental Control Solutions

CORPORATE BACKGROUNDER

ENCO Industries was founded in 1994 as Environmental Container, providing DOT/UN approved
waste packaging products exhibiting the HazPack™ brand to meet the EPA’s mandate for regu-
lated waste packaging.

Today, ENCO Industries is a rapidly growing, privately held company that has evolved into a global
provider of environmental control products and solutions that meet the needs of a wide range of
industries and markets including government (defense), oil and gas, manufacturing, and pharma-
ceutical.

In fact, INC. Magazine named ENCO Industries as one of the INC. 500 | 5000 with significant
revenue growth, positioning the company in the Top 10 Spot in New Hampshire.

The company’s synergistic products are sold through its various business units, providing hazard-
ous and non-hazardous waste packaging, industrial containers, spill control, and detection solu-
tions that contribute to the safety and security of our environment..

Environmental Industrial Spill Control Government

Packaging Containers & Prevention & Defense Supply

About Us
ENCO Industries was founded in 1994 as Environmental Container, providing DOT/UN ap-
proved waste packaging products brandishing the HazPack™ brand to meet the EPA’s man-
date for regulated waste packaging.

Today, ENCO Industries is a rapidly growing, privately held company that has evolved into a
global provider of environmental control products and solutions that meet the needs of a
wide range of industries and markets including government (defense), oil and gas, manufac-
turing, and pharmaceutical.

The company’s synergetic products are sold thru its various business units, providing haz-
ardous and nonhazardous waste packaging, industrial container, spill control, and detection
solutions that contribute to the safety and security of our environment.

A Leading Meltblown Sorbent Manufacturer
Oil Only Melt Blown Pads and Rolls come in a variety of weights and
sizes. They can also be bonded or perforated for any job, spill, or
day-to-day maintenance requirements.

Innovative Boom composition delivers exceptional performance utiliz-
ing UV resistant polyester netting and high tensile strength rope to
help eliminate boom roll.

Pillows and Socks are extremely effective for water or land applica-
tions. Non-absorbing water Pillows float on water and our Socks are
capable of rapid absorption while exhibiting superior strength.

55 Gallon Sorbent Drum covers are designed to catch drips and spills
that can occur when dispensing various types of hydrocarbon mate-
rial.

Hazmat Mats and Rolls are used to absorb very aggressive fluids such
as acids and caustic fluids in addition to non-aggressive fluids. They
are yellow in color to denote hazmat or caution.

Sorbent Rail Mats are custom designed and are used to effectively
manage drips and leaks in train maintenance areas.

Sorbent Pads
MB WHITE OIL ONLY PADS
ITEM # TYPE FORMAT SIZE UNIT/CASE QTY/PALLET
SPWOKH50 Pads Heavy King 30" X 40" (76 cm x 102 cm) 50 15
SPWOEH100 Pads Extra Heavy 15" X 18" (38 cm x 46 cm) 100 30
SPWOH100 Pads Heavy 15" X 18" (38 cm x 46 cm) 100 30
SPWOH100D Pads Heavy Dimpled 15" X 18" (38 cm x 46 cm) 100 30
SPWOM100 Pads Medium 15" X 18" (38 cm x 46 cm) 100 40
SPWOM100D Pads Medium Dimpled 15" X 18" (38 cm x 46 cm) 100 40
SPWOS100 Pads Single 15" X 18" (38 cm x 46 cm) 100 50
SPWOS200 Pads Single 15" X 18" (38 cm x 46 cm) 200 30

MB GRAY UNIVERSAL SORBENT PADS
SPGUKH50 Pads Heavy King 30" X 40" (76 cm x 102 cm) 50 15
SPGUH100D Pads Heavy Dimpled 15" X 18" (38 cm x 46 cm) 100 30
SPGUM100D Pads Medium Dimpled 15" X 18" (38 cm x 46 cm) 100 40
SPGUS200 Pads Single 15" X 18" (38 cm x 46 cm) 200 30

MB YELLOW HAZMAT SORBENT PADS
SPYHH100D Pads Heavy Dimpled 15" X 18" (38 cm x 46 cm) 100/Bale 30

Sorbent Rolls
MB WHITE OIL ONLY ROLLS
SRWOH36144 Rolls White Heavy 36" X 144' (91 cm x 43 m) 1 18
SRWOHD36144 Rolls Heavy Dimpled 36" X 144' (91 cm x 43 m) 1 18
SRWOHDS18144 Rolls Heavy Dimpled Split 18" X 144' (46 cm x 43 m) 2 18
SRWOM36144 Rolls Medium 36" X 144' (91 cm x 43 m) 1 18
SRWOMD36144 Rolls Medium Dimpled 36" X 144' (91 cm x 43 m) 1 18
SRWOMDS18144 Rolls Medium Dimpled Split 18" X 144' (46 cm x 43 m) 2 18

MB GRAY UNIVERSAL SORBENT ROLLS
SRGUH36144 Rolls Heavy Dimpled 36" X 144' (91 cm x 43 m) 1 18
SRGUHDS18144 Rolls Heavy Dimpled Split 18" X 144' (46 cm x 43 m) 2 18
SRGUMD36144 Rolls Medium Dimpled 36" X 144' (91 cm x 43 m) 1 18
SRGUMDS18144 Rolls Medium Dimpled Split 18" X 144' (46 cm x 43 m) 2 18

MB YELLOW HAZMAT SORBENT ROLLS
SRYHH36144 Rolls Heavy Dimpled 36" X 144' (91 cm x 43 m) 1/Bale 18

Oil Only
Sorbent Booms, Socks, Pillows, Sweeps, Drum Toppers

MB WHITE OIL ONLY SORBENT BOOMS
ITEM # TYPE SIZE UNIT/CASE QTY/PALLET
SB510WO Booms 5" X 10' (13 cm x 3 m) 4 24
SB810WO Booms 8" X 10' (20 cm x 6 m) 4 16

MB WHITE OIL ONLY SORBENT SOCKS
SS34WO40 Socks 3" X 4' (8 cm x 1 m) 40 18
SS396WO20 Socks 3" X 96" (8 cm x 2 m) 20 18
SS3120WO15 Socks 3" X 120" (8 cm x 3 m) 15 18

MB WHITE OIL ONLY SORBENT PIL-

SPIL1010WO Pillows 10" X 10" X 2" (25 cm x 25 cm x 5 cm) 40 18

MB WHITE OIL ONLY SORBENT BILGE

SBB518 Bilge Boom 5" x 18" (13 cm x 46 cm) 4 24
SBB818 Bilge Boom 8" X 18" (20 cm x 46 cm) 4 16

MB WHITE OIL ONLY SORBENT SWEEP
SSW18100 Sweep 18" X 100' (46 cm x 30 m) 1 40

MB WHITE OIL ONLY SORBENT DRUM

SD24WO Drum Toppers 24" (61 cm) Diameter 25/Box 80

Universal
MB GRAY UNIVERSAL SORBENT BOOMS
SB510GU Booms 5" X 10' (13 cm x 3 m) 4 24
SB810GU Booms 8" X 10' (20 cm x 6 m) 4 16

MB GRAY UNIVERSAL SORBENT SOCKS
SS34GU40 Socks 3" X 4' (8 cm x 1 m) 40 18
SS396GU20 Socks 3" X 96" (8 cm x 2 m) 20 18
SS3120GU15 Socks 3" X 120" (8 cm x 3 m) 15 18

MB GRAY UNIVERSAL SORBENT PILLOWS
SPIL918GU Pillows 9" X 18" X 2" (23 cm x 46 cm x 5 cm) 20 18
SPIL1818GU Pillows 18" X 18" X 2" (46 cm x 46 cm x 5 cm) 10 18

MB GRAY UNIVERSAL SORBENT DRUM TOPPERS
SD24GU Drum Toppers 24" (61 cm) Diameter 25 80

Hazmat
MB YELLOW HAZMAT SORBENT SOCKS
SS34YH40 Socks 3" X 4' (8 cm x 1 m) 40/Box 18
SS396YH20 Socks 3" X 96" (8 cm x 2 m) 20/Box 18
SS3120YH15 Socks 3" X 120" (8 cm x 3 m) 15/Box 18

MB YELLOW HAZMAT SORBENT PILLOWS
SPIL918YH Pillows 9" X 18" X 2" (23 cm x 46 cm x 5 cm) 20/Box 18
SPIL1818YH Pillows 18" X 18" X 2" (46 cm x 46 cm x 5 cm) 10/Box 18

Spill Kits Matching Requirements

SpillCon’ Oil Spill Carts include a variety of sorbents to handle oil spills and other petro-
leum-based fluids while repelling water—an all inclusive solution for quick response!

Wheeled containers move quickly to a spill site and fit easily through doorways and aisles.
Our Oil Spill Carts can also be moved with a forklift and are lockable to protect contents.

DRUMS • CARTS • TRAILERS

Loose Granular
Oil-Dri® Granular Clay absorbents are available in the traditional coarse
formula and the finer QuickSorb™ grind. Both are produced from the
same high-quality absorbent minerals and are effective on oils, coolants,
grease, water, and other liquid spills.

Solidifier Oil Solidifiers are composed of dry, high molecular weight
polymers that have a porous matrix and large oleophilic (strong affinity
for oil rather than water) surface area. Once in contact with oil, the oil so-
lidifies to form a physical bond with the oil.

Isolite for Soil Remediation
Isolite™ is a unique porous ceramic pellet used as a biocarrier for mi-
crobes. It serves to remediate contaminated soil/groundwater when in-
jected into man-made subsurface fractures.

Spill Kits

Marine Oil Spill Kits
Oil Spill Kits designed to respond to OPA 90 and IMO/MARPOL 73/78 regulations.

With these kits on board you are assured of fulfilling any safety and environmental regulation applicable globally.

There are several regulations circulating and in short they are:

Oil Pollution Act of 1990 (33 CFR Part 155) or OPA90 requires oil carrying vessels in U.S. waters to have oil spill clean
up equipment on board for on-deck spills.

 Vessels with an overall length of 400 feet or less are required to be able to contain and remove on-deck spills of at
least 7 barrels (294 gallons; 1,100 litres).

 Oil tankers and barges with an overall length of 400 feet or more have an increased requirement of being able to
clean up spills of 12 barrels (504 gallons; 1,900 litres).

 Vessels carrying oil as secondary cargo must have a spill kit on board to contain and remove on-deck spills of at least
1.5 barrels ( = 63 Gallons = 238 Liters).

According to several IMO resolutions "all ships should have the capability to contain and clean up minor deck and over
side spills".

Regulation 26 of Annex I of MARPOL 73/78 requires that oil tankers of 150 tons gross tonnage or more and all ships of
400 tons gross tonnage or more carry an approved Shipboard Oil Pollution Plan (SOPEP).

The International Convention on Oil Pollution Preparedness, Response and Co-operation, 1990, also requires such a
plan for certain ships. These plans all includes an Oil Spill Response Kits on board.

SpillCon Solutions offers the most comprehensive range of Oil Spill Response Kits available in the market. As the needs
can be very different we offer our kits in different features and sizes.

Background of SPCC Spill Response Kit
In July 2002, the U.S. Environmental Protection Agency amended the Oil Pollution Prevention regulation at Title 40 of the
Code of Federal Regulations, Part 112, (40 CFR 112).

Subparts A through C of the Oil Pollution Prevention regulation are often referred to as the “SPCC Rule” because they
describe the requirements for certain facilities to prepare, amend and implement Spill Prevention, Control and Counter-
measure (SPCC) Plans.

SPCC Plans are a cornerstone of EPA’s strategy to prevent oil spills from reaching our nation’s waters, and they ensure
that facilities put in place containment and other countermeasures that would prevent oil spills that could reach navigable
waters.

Under EPA’s Oil Pollution Prevention regulation, facilities must detail and implement spill prevention and control meas-
ures in their SPCC Plans.

Marine Oil Spill Kits

Description 12 Barrel 7 Barrel 1.5 Barrel
ART Number SCO-12 SCO-07 SCO-01
Content / Spill Kit
Plastic Cart, Lid, Casters 1 1 1
Oil Only Sorbent Pads, HW, 15" X 18" (38 cm x 46 cm) 200 200 0
Oil Only Sorbent Pads, MW, 15" X 18" (38 cm x 46 cm) 600 400 200
Oil Only Sorbent Socks, 3" X 4' (8 cm x 1 m) 40 20 4
Oil Only Sorbent Socks, 3" X 96" (8 cm x 2 m) 22 8 0
Oil Only Sorbent Booms, 5" X 10' (13 cm x 3 m) 8 4 2
Oil Only Sorbent Pillows, 18" X 18" X 2" (46 cm x 46 cm x 5 cm) 20 10 3
Oil Only Sorbent Roll, HW, 36" X 144' (91 cm x 43 m) 2 1 0
Oil Only Sorbent Sweep 18" X 100' (46 cm x 30 m) 1 1 0
Protective Gloves 2 2 2
Protective Goggles 2 2 2
Tyvek Suits 2 2 2
Heavy Duty Waste Bags 10 5 1
Big Bag (for waste) 1 1 1
Shovel (Non Sparking) 1 1 1
Plastic Bucket 1 1 1

Designed to meet the SPCC requirements of 326 Gallon Pick up (1234 Liters). Up to 2600 lbs pick up (1,182 kg).

Spill Response Kits

Qty Description 5 gallon Spill Kit Size
10 White Oil-Only HeavyWeight Pads 15” x 19"
2 White Oil-Only Sorbent Socks 3" x 4'
1 Disposal Bags 30”x 6” x 60”
1 Nitrile Gloves One Size
1 Safety Goggles One Size
1 White 5 Gallon UN Pail

25 White Oil-Only HeavyWeight Pads 15” x 19"
4 White Oil-Only Sorbent Pillows 18" x 18"
1 Emergency Response GuideBook One Size
1 Pair Nitrile Gloves One Size
1 Pair Safety Goggles One Size
1 Vinyl Spill Kit Label 3” x 5”
1 30 Gallon UN Poly Drum

100 White Oil-Only HeavyWeight Pads 15” x 19”
1 55 gallon UN Poly Drum

150 White Oil-Only HeavyWeight Pads 15” x 19”
1 Yellow 95 gallon OverPack

We manufacture our absorbents and build our Spill kits onsite, we can custom-design a kit just for you.

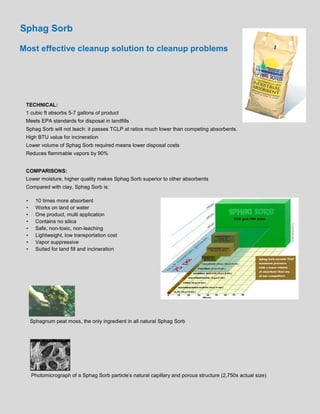

Sphag Sorb

Most effective cleanup solution to cleanup problems

TECHNICAL:
1 cubic ft absorbs 5-7 gallons of product
Meets EPA standards for disposal in landfills
Sphag Sorb will not leach: it passes TCLP at ratios much lower than competing absorbents.
High BTU value for incineration
Lower volume of Sphag Sorb required means lower disposal costs
Reduces flammable vapors by 90%

COMPARISONS:
Lower moisture, higher quality makes Sphag Sorb superior to other absorbents
Compared with clay, Sphag Sorb is:

 10 times more absorbent
 Works on land or water
 One product, multi application
 Contains no silica
 Safe, non-toxic, non-leaching
 Lightweight, low transportation cost
 Vapor suppressive
 Suited for land fill and incineration

Sphagnum peat moss, the only ingredient in all natural Sphag Sorb

Photomicrograph of a Sphag Sorb particle's natural capillary and porous structure (2,750x actual size)

ISOLITE
Porosity Control

Technologies for making porous products and controlling its
porosity bring in a great versatility of functions and high per-
formance to the ceramic fiber products.

This method is applied to the diatomaceous earth products
containing a large quantity of fossil shells with pores. Firebricks
or grains of the diatomaceous earth are fired at high tempera-
ture for water and oil absorbency, water retentivity, moisture
controllability, and thermal insulation efficiency. The porous
grains also work as a carrier for microbes and catalytic agents.

Remediation

Isolite™, a special porous ceramic pellet that is used as the preferred and very effective biocarrier
for microbes and serves as the proppant for the fractures. The Isolite™ is inoculated with microbes
and/or nutrients as it is pushed through the mixer by the hydraulic auger system with control of
both volume and pressure

MOP
Maximum Oil Pickup
MOP is an innovative, new oil absorbent made from a renewable resource that addresses all of the environ-
mental concerns relating to oil spills that are possible to be addressed in an absorbent. MOP is absolutely
the lowest cost, highest performance product available for remediation of oil spills both on land and on water.

MOP Maximum Oil Pickup is a unique oil absorbent made entirely from natural ingredients, 80% of which are
recycled raw materials.

MOP is 100% biodegradable and is perfectly safe to humans, wildlife, plants, and the environment.

Lowest in cost and environmentally safe, with its breakthrough oil pickup ratio on land or water of 30:1, with
its oil separation and energy recovery options, with its bioremediation, and with its traction restoring grit, MOP
is the ultimate oil absorbent of the future, and it is available now!

COMPARISON OF CHARACTERISTICS & COSTS
Description Absorbent Clay MOP
Silica Dust Yes No
Biodegradable No Yes
Abrasive to Machinery Yes No
Incinerable No Yes
Absorbs Water Yes No
Prevents Leaching No Yes
Organic No Yes
Dust Hazard Yes No

THE SIGNIFICANCE OF FIFTY BAGS OF MOP
Category 50 Bags of MOP 750 Forty Lbs Bags of
Absorbent Clay
Price of Shipment: $1,600.00 $2,625.00
Weight of Shipment: 1,000 lb. 30,000 lb.
Storage: 112.5 ft3 997.5 ft3
Lbs Oil Picked Up 30,000 30,000
Weight of Waste 31,000 lb. 60,000 lb.
55-Gallon Needed 71 190

Secondary Containment

Spill Pallet containment for IBCs and Drums
are economical and portable. A low profile
allows safe and convenient tank handling
and dispensing.

SpillCon’s Hard Top Hazardous Drum Con-
tainment Units have a 75 gallon capacity and
drain. A Polyethylene Loading Ramp is also
available.

Containment Berms stop spills at the source.
Collapsible wall model containment berm fea-
tures rugged PVC sidewall assemblies for

Snap-up support provides a sturdy side wall
for excellent spill containment. The interior
design boasts 100% usable space and meets
U.S. regulations for spill containment.

Flexible Containers

Pillow and Onion Tanks are heavy-duty
military/industrial type flexible fabric tanks.
Collapsible and portable, they meet U.S.
Federal Containment Regulations and are
designed to accommodate potable and
non-potable water. Custom sizes and valve
assemblies available.
Onion Tank

SNAP UP BERM
 Snap-up support provides a sturdy side wall for excellent spill containment

 100% usable interior space

 30 oz fabric is compatible for water, all hydrocarbons and most chemicals

 Meets EPA regulations for spill containment

 Grommets every 6’ in skirt allows Berm to be secured in place

 Simple cleaning and storage allows for repeated use

Width Lengt 8"/ Gal- 8"/Out Dims 12"/ Gal- 12"/Out
h lons lons Dims
10' 10' 493 11'-4" X 11'- 748 12' X 12'
4"
10' 20' 987 11'-4" X 21'- 1496 12' X 22'
4"
12' 36' 2132 13'-4" X 37'- 3231 14' X 38'
4"
14' 54' 3732 15'-4" X 55'- 8886 16' X 56'
4"

US Metric
Base Fabric Type Polyester

Base Fabric Weight (nominal) 8 oz/yd2 270 g/m2

Thickness 36 mils min 0.91 mm
Weight 30.0+_ 2 oz/yd2 1020+_ 70 g/m2
Tear Strength, Tongue D751B 120/120 lb min 534/534 N min
Breaking Yield Strength ASTM D 751, Grab Tensile, Procedure 625/600 lb min 2780/2670 N min
Low Temperature ASTM D 2136, Pass @ -40 F Pass @ -40 C

Dimensional Stability ASTM D 1204, 212 F- 1 hr 2.5% max each direction

Adhesion - Heat Sealed Seam ASTM D 751, Dielectric Weld 25 lb/2 in min 111 N/5 cm min
Bursting Strength ASTM D 751, Ball Tip 1000 lb min 4450 N

Hydrostatic Resistance ASTM D 751, Method A 800 psi min 540 N/sq cm min

Blocking Resistance ASTM D 751, 180 F/82 C # 2 Rating max

UV Resistance 8000 hrs
Puncture Resistance ASTM D 4833 220 lb min 1110 N min

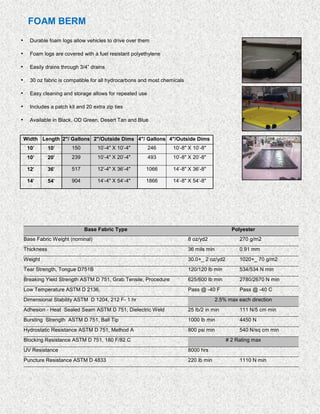

FOAM BERM
 Durable foam logs allow vehicles to drive over them

 Foam logs are covered with a fuel resistant polyethylene

 Easily drains through 3/4” drains

 30 oz fabric is compatible for all hydrocarbons and most chemicals

 Easy cleaning and storage allows for repeated use

 Includes a patch kit and 20 extra zip ties

 Available in Black, OD Green, Desert Tan and Blue

Width Length 2"/ Gallons 2"/Outside Dims 4"/ Gallons 4"/Outside Dims
10' 10' 150 10'-4" X 10'-4" 246 10'-8" X 10'-8"
10' 20' 239 10'-4" X 20'-4" 493 10'-8" X 20'-8"

12' 36' 517 12'-4" X 36'-4" 1066 14'-8" X 36'-8"

14' 54' 904 14'-4" X 54'-4" 1866 14'-8" X 54'-8"

Weight 30.0+_ 2 oz/yd2 1020+_ 70 g/m2

FLEXWALL BERM

 Takes only minutes to set-up; fast and easy deployment

 Innovative design allows driver to enter/exit without leaving the vehicle

 Heavy-duty 30 oz fabric is compatible for water, all hydrocarbons and most chemicals

 In the event of a spill, walls automatically rise


 Compact design takes very little space to store

 Easy cleaning and storage allows for repeated use

 All Flexwall Berms have patch kit included



Weight 30.0+_ 2 oz/yd2 1020+_ 70 g/m2

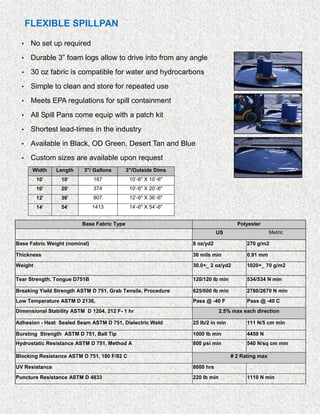

FLEXIBLE SPILLPAN

 No set up required

 Durable 3” foam logs allow to drive into from any angle

 30 oz fabric is compatible for water and hydrocarbons

 Simple to clean and store for repeated use


 All Spill Pans come equip with a patch kit

 Shortest lead-times in the industry


 Custom sizes are available upon request
Width Length 3"/ Gallons 3"/Outside Dims
10' 10' 187 10'-6" X 10'-6"
10' 20' 374 10'-6" X 20'-6"
12' 36' 807 12'-6" X 36'-6"
14' 54' 1413 14'-6" X 54'-6"

US Metric



Weight 30.0+_ 2 oz/yd2 1020+_ 70 g/m2







THROW ’N GO

 No assembly required

 Walls lay flat when not in use

 Fastest deployment in the industry for portable spill containment sys-
tems

 Can be driven on at any angle

 2' wall availability permits smaller footprint

 In the event of a spill, walls automatically rise to create a catch basin

 Optional built-in track mats help prevent damage to the berm

 Berm contains no working parts which would malfunction


 30 Oz fabric is appropriate for hydrocarbons, and most chemicals

 Easily emptied through 3/4" drains

 Available in Desert Tan; OD Green; and Black




Weight 30.0+_ 2 oz/yd2 1020+_ 70 g/m2


Capture Hazardous Spills from
Railroad Tanker Cars and Locomotives

TrackMats

Rail Road Track oil absorbent mats are ideal for use as railroad track mats when refueling locomotives or greasing
rails or as at station sites.

TrackMat widely used by transportation companies, utilities, refineries, steel mills, and in other environments in
which a high absorbency barrier is required.

RAIL MATS
PART # DESCRIPTION UNIT/CASE QTY/PALLET
SRM59100 Black Oil-Only Highly Absorbent Rail Mats, 59" x 100' 1 18
SRM19100 Black Oil-Only Highly Absorbent Rail Mats, 19" x 100' 2 18

NEEDLE PUNCH INDUSTRIAL RUGS
PART # DESCRIPTION UNIT/CASE QTY/PALLET
SIR36150 36" x 150' Poly Backed, Needle Punch Synthetic Fiber 1 20
SIR36300 36" X 300' Needle Punch, Light Weight Synthetic Fiber 1 20

Big Savings for Full Pallet Orders!

Capture Hazardous Spills from
Railroad Tanker Cars and Locomotives

TrackPans

TrackPans have been designed to provide spill containment at indus-
trial rail sidings, locomotive maintenance and fueling facilities. Available
in virtually any length, TrackPans may be used to collect small spills and
leaks or to capture and channel off significant spills caused by defective
equipment or a major overflow.

TRACK PANS
PART # DESCRIPTION UNIT/CASE
SCTP9566 53 1/2" X 53 1/2" X 6" Center TrackPan with Grates Each
SCTP9580 56" x 54" Cover for Center TrackPan Each
SCTP9576 53 1/2" x 27 1/2" x 6" Side TrackPan with Grates Each
SCTP9581 56" x 27 3/4" Cover for Side TrackPan Each

 Low Maintenance - Unlike carbon steel track pans, TrackPans will not
rust or corrode, Polyethylene resin is treated with a UV inhibitor, resists
degrading effects of the sun,

 Low Cost Installation - Lightweight TrackPans can be easily installed
without heavy lifting equipment, i.e., forklifts, cranes, backhoes, etc.
Minimal tools and labor required.

 Slip Resistant Surfaces - Pans, grates and covers have been designed
with safety in mind. All top surfaces resist slips when wet or oily.

 Long Work Life - Estimated to perform for 20-30 years; longer than fi-
berglass pans.

.
Meets SPCC and EPA Stormwater Management Regulations.

PILLOW TANKS
 Heavy duty military/industrial style fabric tanks

 Collapsible and Portable with custom sizes available

 Designed to accommodate potable and non-potable water & fuel

 Custom valve assemblies available

 Fast and easy deployment

 Standard color—Desert Tan , other colors available upon request

Part # Gallon Flat Fill Color

Capacity Dimensions Height
PT100-T 100 gal 5’x50” 11” Desert Tan
PT500-T 500 gal 8’x7’4” 20” Desert Tan

PT1000-T 1,000 gal 9’7”x9’7” 26” Desert Tan

PT3000-T 3,000 gal 13’9”x13’9 38” Desert Tan

PT5000-T 5,000 gal 16’8”x16’ 44” Desert Tan



DRIP PILLOW
 No set up required

 Use for small engine leaks

 A 6-pound weighted base keeps the berm in place

 Optional disposal absorbent pads make for easy clean up and repeated use

 Meets U.S. regulations for spill containment

 Available in Yellow, OD Green, Desert Tan, and Black

Part Number Length Width Weight

ENDP1919 22” 22” 6 lbs

ONION TANKS

Roll Top Onion Open Top Onion Tank Zipper Top Onion Tank

 Suitable for potable and non-potable water storage

 Stable on any slope up to 10%

 Ground cloth acts as a carrying bag

 Self-supporting

 Quick set-up and take down

 2” male and female cam-lock fittings

 Lid reduces contamination and evaporation

 Color and additional sizes available upon request

Capacity NSN# Capacity NSN# Capacity NSN#
1,000 gal — 1,000 gal 5430-01-526-2212 1,000 gal —
1,5000 gal — 1,500 gal — 1,500 gal 5430-01-527-0341
3,000 gal 5430-01-542-5905 3,000 gal — 3,000 gal 5430-01-540-5357
5,000 gal — 5,000 gal — 5,000 gal —

Response & Deployment

SpillCon’s Response & Deployment products are
cutting edge technology insuring Rapid contain-
ment of oil spills.

Safety Products

A comprehensive assemblage of safety products
complements SpillCon’s high-quality Spill Con-
trol and Containment products.

STORMWATER MANAGEMENT
The Drain Guard is installed in a catch basin and is held in place by the drain’s grate.

Stormwater runoff enters the Drain Guard and is directed toward the pouch by a skirt made of a
non-woven polypropylene, needle-punched, geotextile material. This fabric filters the pollutants
from the water stream as it passes over and flows through the material.

Additionally, each Drain Guard is equipped with numerous "Filter Strips" made of "X-TEX", a
unique filter material made of recycled synthetic fibers. X-TEX is extremely effective in capturing
and removing hydrocarbons and other pollutants from stormwater.

Oil & Sediment Model: 48" x 36" Oil & Sediment Plus Model: 48" x 36"

Dimension :
Dimension :
Part# 9219: 48"L x 36"W x 18"H (1-Pack)(1220 mm x
Part# 9217: 48"L x 36"W x 18"H (1-Pack)(1220 mm x 915 mm x 458 mm)
915 mm x 458 mm) Part# 9220: 48"L x 36"W x 18"H (10-Pack)
Part# 9218: 48"L x 36"W x 18"H (10-Pack)

Performance : Performance :
Oil: Up to .87 gallons (3.5 L) Oil: Up to 1.38 gallons (5 L)
Sediment: Up to 40 lbs. (18 kg) Sediment: Up to 40 lbs. (18 kg)

The total water flow rate through the insert in new condition is in excess of 500 gpm. The bypass rate is approxi-
mately 700 gpm.

Oil & Sediment Model: 60" x 60" Oil & Sediment Plus Model: 60" x 60"

Dimension :
Dimension :
Part# 9358: 60"L x 60"W x 18"H (1-Pack)(1524 mm x
Part# 9356: 60"L x 60"W x 18"H (1-Pack)(1524 mm x 1524 mm x 458 mm)
1524 mm x 458 mm)

Weight: 2 lbs. (1 kg) Weight: 3 lbs. (1.5 kg)

Performance : Performance :
Oil: Up to 1.55 gallons (5.9 L) Oil: Up to 2.06 gallons (7.8 L)
Sediment: Up to 40 lbs. (18 kg) Sediment: Up to 40 lbs. (18 kg)

The total water flow rate through the insert in new condition is in excess of 900 gpm. The bypass rate is approxi-
mately 700 gpm.

Helps comply with NPDES, 40 CFR 122.26 (1999) and TMDL requirements.

Dewatering Bag
Contain Sediment And Oil Pumped Out During Dewatering Operations.

 Detains both oil and sediment,

 Standard and custom sizes available.

DEWATERING BAG®
Dimension Capacity
6 cu ft (170 L)
3' x 4' (915 mm x 1,220 mm)
18 cu ft (510 L)
6' x 6' (1,829 mm x 1,829 mm)
150 cu ft (4,247 L)
10' x 15' (3,048 mm x 4,572 mm)
225 cu ft (6,371 L)
15' x 15' (4,572 mm x 4,572 mm)

Dewatering Bag Reusable
DEWATERING BAG®

Description Dimensions ft (mm) Weight lbs. (kg)

Bag with Locking Rods 3 x 5 (915 x 1,524) 19.0 (9.0)

Bag with Locking Rods 5 x 7 (1,524 x 2,134) 21.0 (9.5)

Locking Rods only --- 13.0 (6.0)

Replacement Bag 3 x 5 (915 x 1,524) 4.0 (2.0)

Replacement Bag 5 x 7 (1,524 x 2,134) 6.0 (3.0)

Pipe Sock
PIPE SOCK ®
Dimensions Oil absorption capacity
0.81 Gallons
60"L, fits 8" Dia. Pipe.(204 mm dia., 1,524 mm L)
1.22 Gallons
60"L, fits 12" Dia. Pipe305 mm dia., 1,524 mm L)
1.63 Gallons
60"L, fits 16" Dia. Pipe(407 mm dia., 1,524 mm
L)

ROC BARRIER™
WORLD’S FASTEST RESPONSE OIL CONTAINMENT SYSTEM

Using innovative technology, the ROC BarrierTM is deployed at speeds of up to 54.7 kilometers
(34 miles) per hour1, over five times faster than conventional oil containment booms.

The ROC BarrierTM is the only available oil containment system small enough to allow tank-
ers, ships and other watercraft, as well as marinas, harbors, ports, shipping lanes, beaches,
and other water entry points to store it on site so that it can be deployed quickly following an oil
spill. The canister, which holds the film laminate used to contain an oil spill, measures just 20
inches in length, by eight inches in width, and eight inches in depth.

Products
ROC Barrier 1000 System
ROC Barrier 2000 System
ROC Barrier XL1000 System
ROC Barrier Spill Cling Pad

SPILLWATCH
AUTOMATED NON-CONTACT OIL SPILL DETECTION
AND ALARM

 Real-time around-the-clock detection and control of oil spills for
 Petrochemical industry, pipelines
 Harbors
 Desalination, intake protection
 Aquaculture
 Fresh, brackish or saltwater environments
 Highly effective LED-based excitation
 Cost effective, low maintenance
 Non-contact measurement
 Flexible configuration of data output
 Multiple interfaces network connectivity
 Ruggedized design (IP66)

Overview
The detection of petroleum products, including crude oil, diesel/fuel oil, motor oil, lube oil, gasoline, food oils etc.
near the water surface is widely required in industrial and environmental applications.

Technique
The SpillWatch sensor is installed downward looking several meters above water level. The sensor technology is
based on fluorescence excitation and detection.

Action
In case of a spill, the SpillWatch provides an instant warning, enabling users to activate counter measures, e.g.
shutting off pumps or valves and notify personnel via a variety of interfaces and wireless options. SpillWatch sen-
sors can be used as stand-alone monitors or within a network of strategically mounted sensors interconnected by
the SpillMaster software.

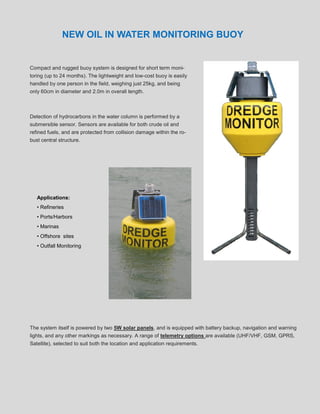

NEW OIL IN WATER MONITORING BUOY

Compact and rugged buoy system is designed for short term moni-
toring (up to 24 months). The lightweight and low-cost buoy is easily
handled by one person in the field, weighing just 25kg, and being
only 60cm in diameter and 2.0m in overall length.

Detection of hydrocarbons in the water column is performed by a
submersible sensor. Sensors are available for both crude oil and
refined fuels, and are protected from collision damage within the ro-
bust central structure.

Applications:
• Refineries
• Ports/Harbors
• Marinas
• Offshore sites
• Outfall Monitoring

The system itself is powered by two 5W solar panels, and is equipped with battery backup, navigation and warning
lights, and any other markings as necessary. A range of telemetry options are available (UHF/VHF, GSM, GPRS,
Satellite), selected to suit both the location and application requirements.

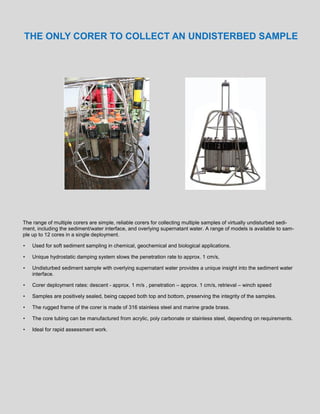

THE ONLY CORER TO COLLECT AN UNDISTERBED SAMPLE

The range of multiple corers are simple, reliable corers for collecting multiple samples of virtually undisturbed sedi-
ment, including the sediment/water interface, and overlying supernatant water. A range of models is available to sam-
ple up to 12 cores in a single deployment.

 Used for soft sediment sampling in chemical, geochemical and biological applications.

 Unique hydrostatic damping system slows the penetration rate to approx. 1 cm/s,

 Undisturbed sediment sample with overlying supernatant water provides a unique insight into the sediment water
interface.

 Corer deployment rates: descent - approx. 1 m/s , penetration – approx. 1 cm/s, retrieval – winch speed

 Samples are positively sealed, being capped both top and bottom, preserving the integrity of the samples.

 The rugged frame of the corer is made of 316 stainless steel and marine grade brass.

 The core tubing can be manufactured from acrylic, poly carbonate or stainless steel, depending on requirements.

 Ideal for rapid assessment work.

Spill Detection - Marine & Land

Operating 24/7, the SpillWatch system is used for the detection of petro-
leum products including; crude oil, diesel/fuel oil, motor oil, lube oil, gaso-
line, and food oils near the water’s surface. A real-time alert enables imme-
diate countermeasures. By limiting damage to the environment and reduc-
ing costs for remediation and clean-up assures an immediate ROI.

SpillCon’s Oil in Water Monitoring Buoy ensures real-time data collec-
tion when an environmental condition requires monitoring. The buoy is
designed to alert users when increased hydrocarbon levels occur, or when
changes in water quality develop. A single point mooring allows for
easy deployment and recover.

Best-in-class Corers collect multiple samples of virtually undisturbed sedi-
ment, including the sediment/water interface and overlying supernatant wa-
ter. An innovative hydrostatic damping system is at the heart of the system
that slows the penetration rate down to approximately 1cm/s, eliminating
the typical bow wave seen by other, less sophisticated corers.

Detection Response Deployment Containment Clean-Up Remediation

P r ou d S up pl i e r

Distribution Centers

Houston, TX
Chicago, IL
An ENCO Industries Company
Newark, NJ www.encoind.com
Boston, M A
4 Wilder Drive, #7
Plaistow, NH 03865 USA

1.603.382.8481
info@spillconsolutions.com
© Copyright 2012 ENCO Industries. All rights reserved. The SpillCon Solutions logo is a trademark of ENCO Industries.
www.spillconsolutions.com All other logos, products, and company names are trademarks of their respective owners. Printed in the U.S.

SpillCon brochure

More Related Content

Similar to SpillCon brochure

SpillCon brochure
