The document discusses the SharePoint Framework (SPFx) which is a new development model for building client-side SharePoint solutions using modern web technologies like HTML, CSS and JavaScript. It provides an overview of SPFx including its key features such as being framework agnostic and enabling responsive designs. The document compares SPFx to traditional SharePoint development and the add-in model, highlighting benefits like running solutions in no-script sites. It demonstrates the development tools, build process and deployment options for SPFx client-side web parts.

1. #SPSDXB 2017
Kirti Prajapati -MCTS
SPFx- A modern development model
for SharePoint

2. #SPSDXB 2017
About me
SharePoint Consultant, Ahmedabad (India)
 11+ years experience
 MCTS
 Training

3. #SPSDXB 2017

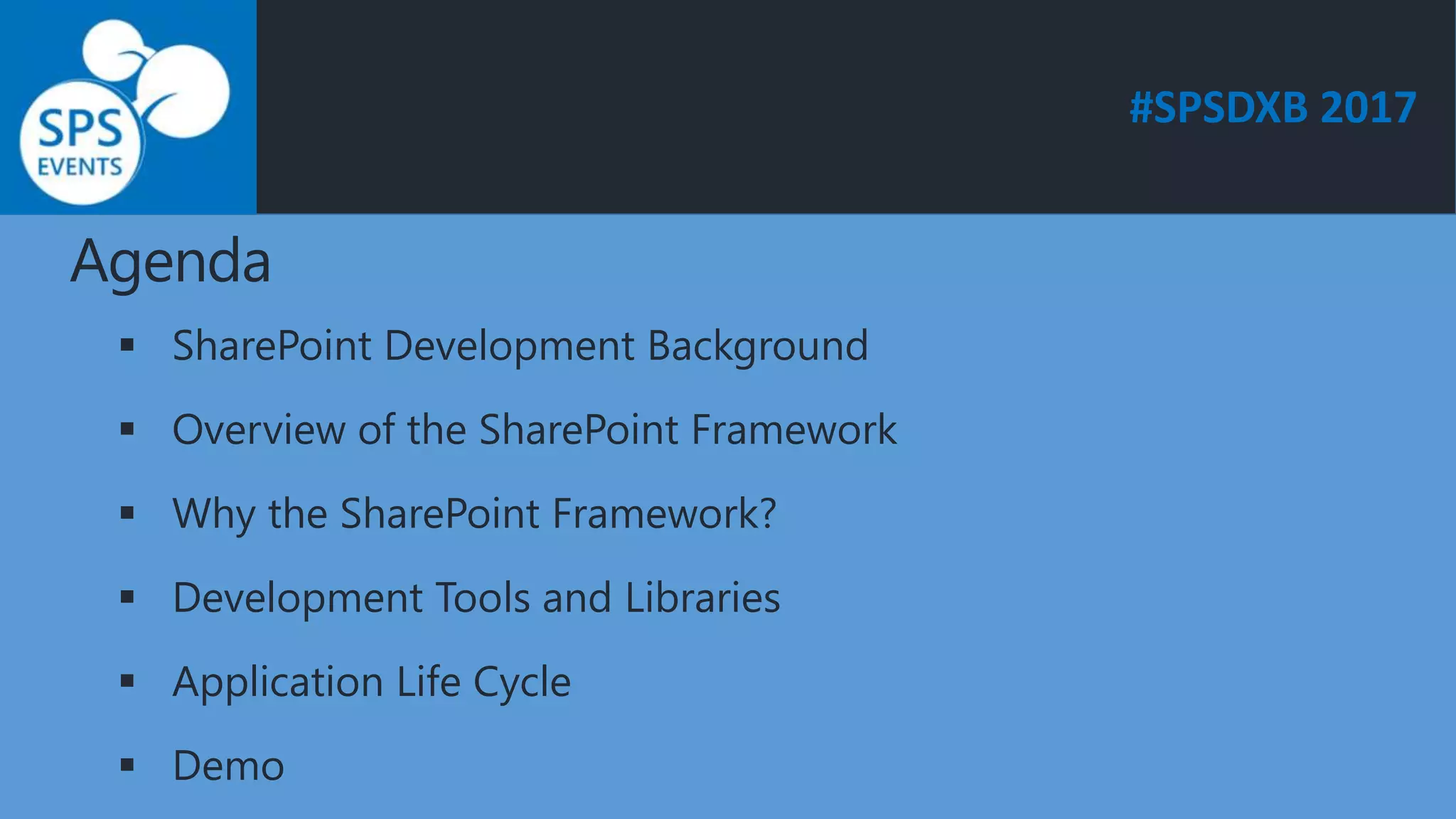

Agenda
 SharePoint Development Background
 Overview of the SharePoint Framework
 Why the SharePoint Framework?
 Development Tools and Libraries
 Application Life Cycle
 Demo

4. #SPSDXB 2017

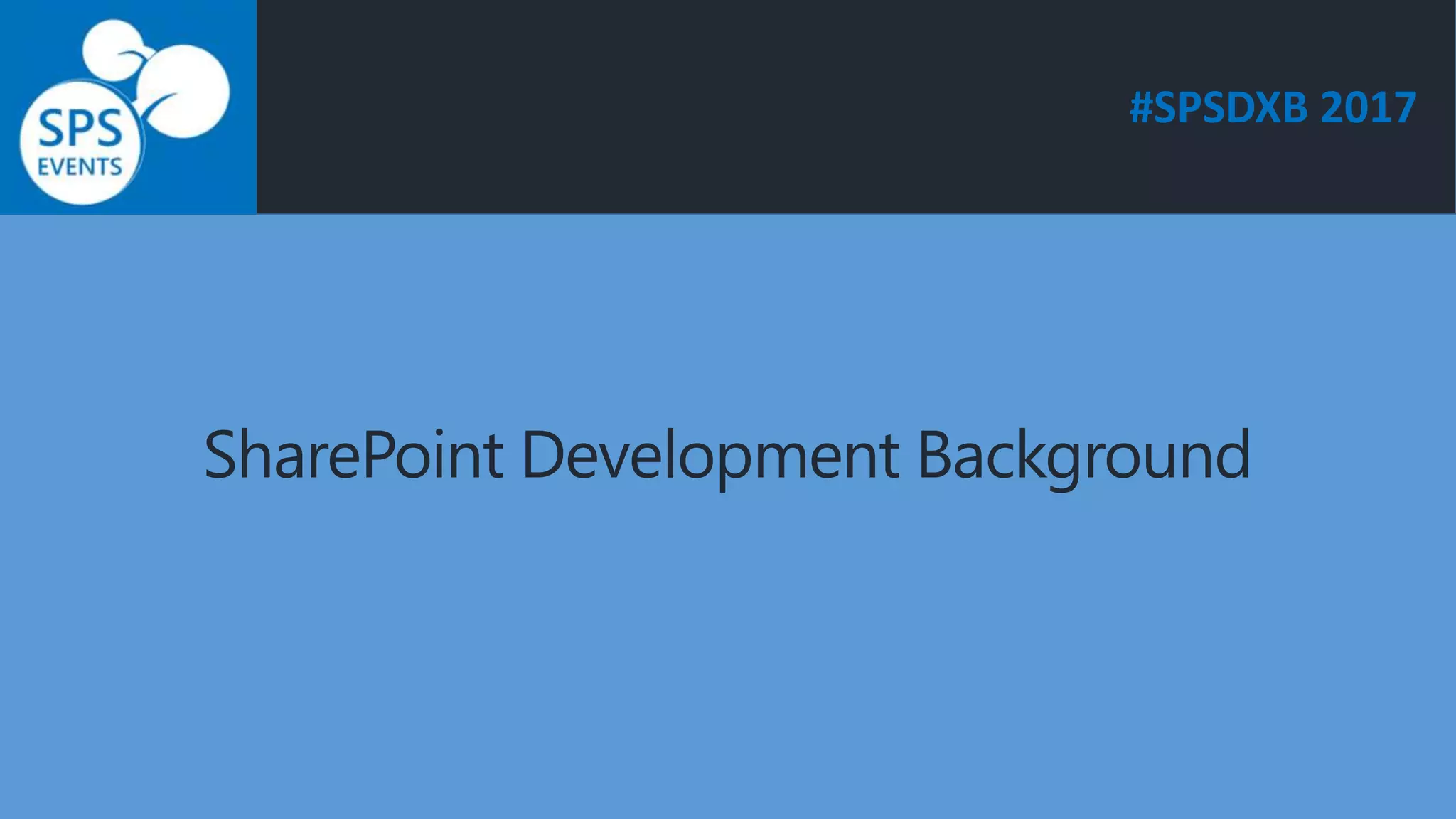

SharePoint Development Background

5. #SPSDXB 2017

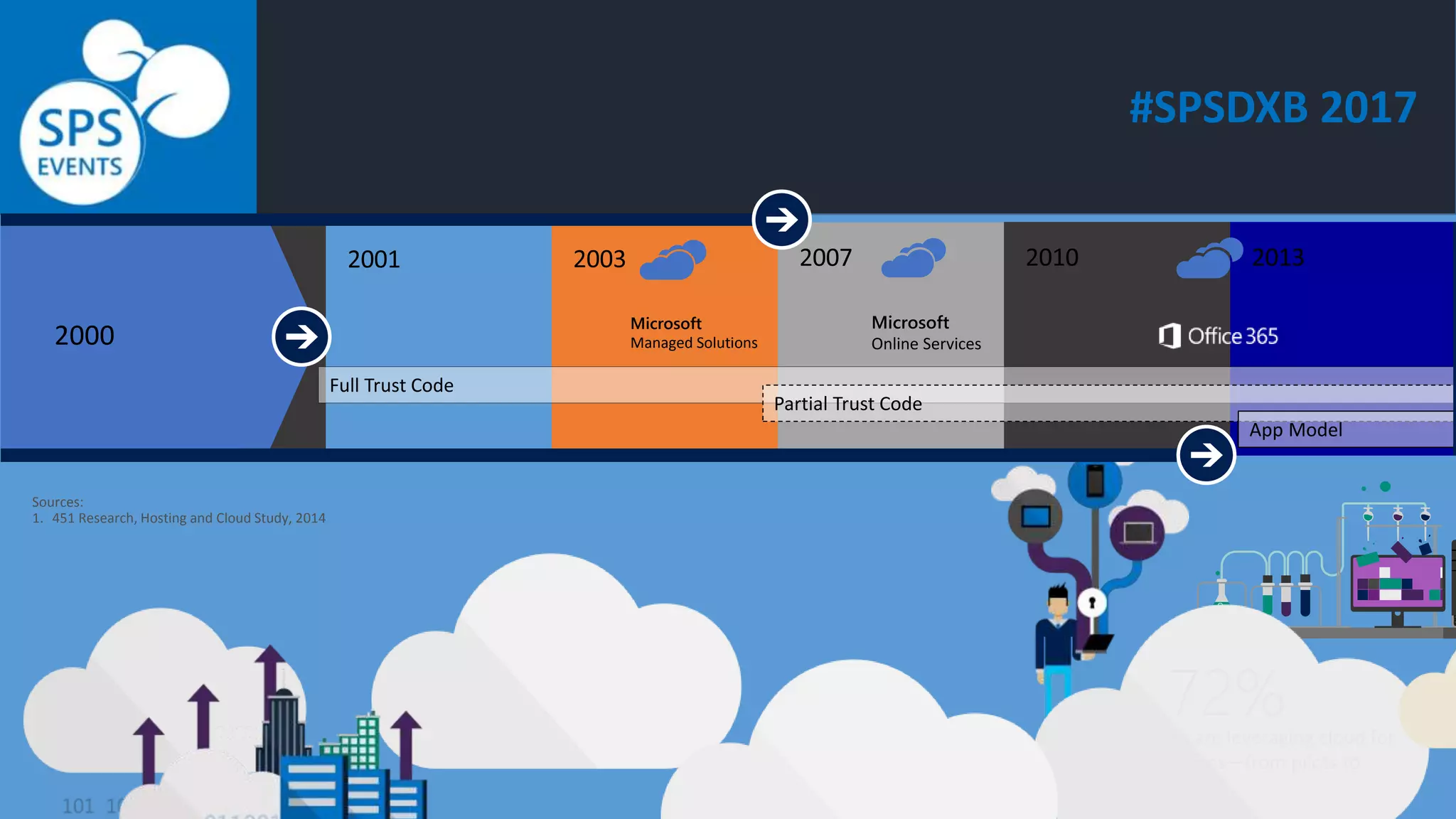

2000
Sources:
1. 451 Research, Hosting and Cloud Study, 2014
Full Trust Code
Partial Trust Code
Microsoft
Managed Solutions
Microsoft
Online Services
App Model

6. #SPSDXB 2017

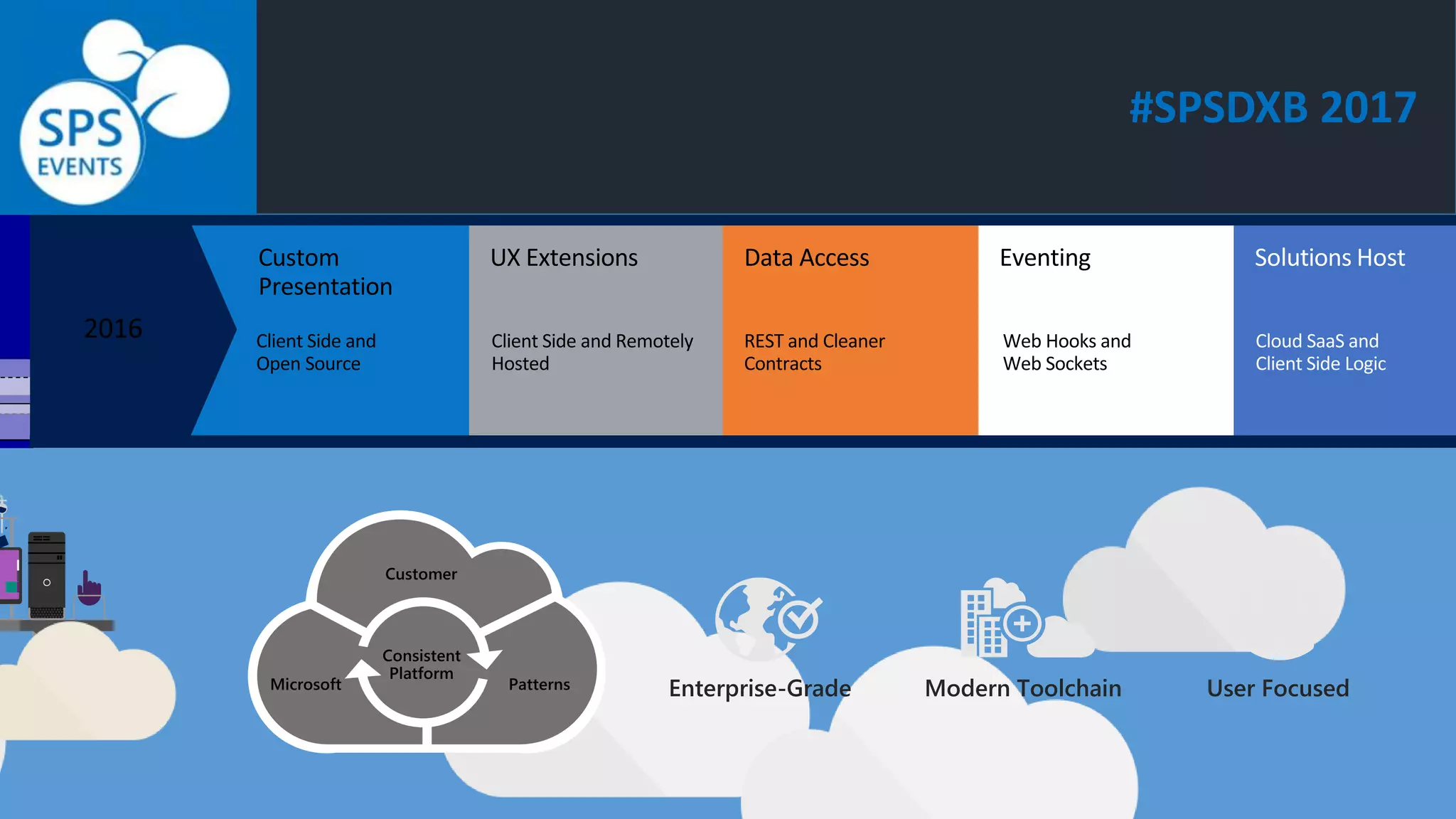

Enterprise-Grade Modern Toolchain User Focused

7. #SPSDXB 2017

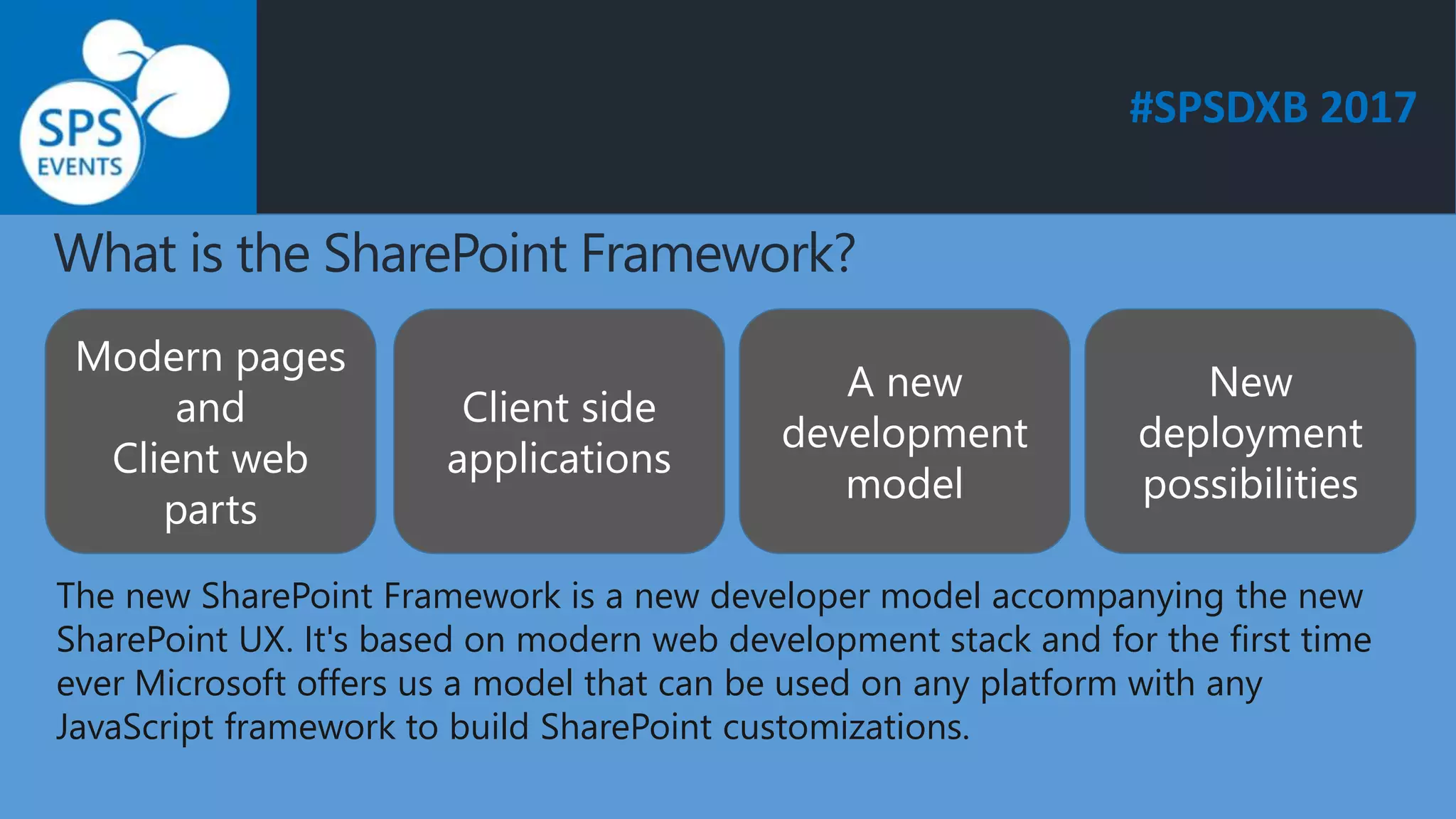

What is the SharePoint Framework?
Modern pages
and
Client web
parts
Client side
applications
A new
development
model
New
deployment
possibilities
The new SharePoint Framework is a new developer model accompanying the new
SharePoint UX. It's based on modern web development stack and for the first time
ever Microsoft offers us a model that can be used on any platform with any
JavaScript framework to build SharePoint customizations.

8. #SPSDXB 2017

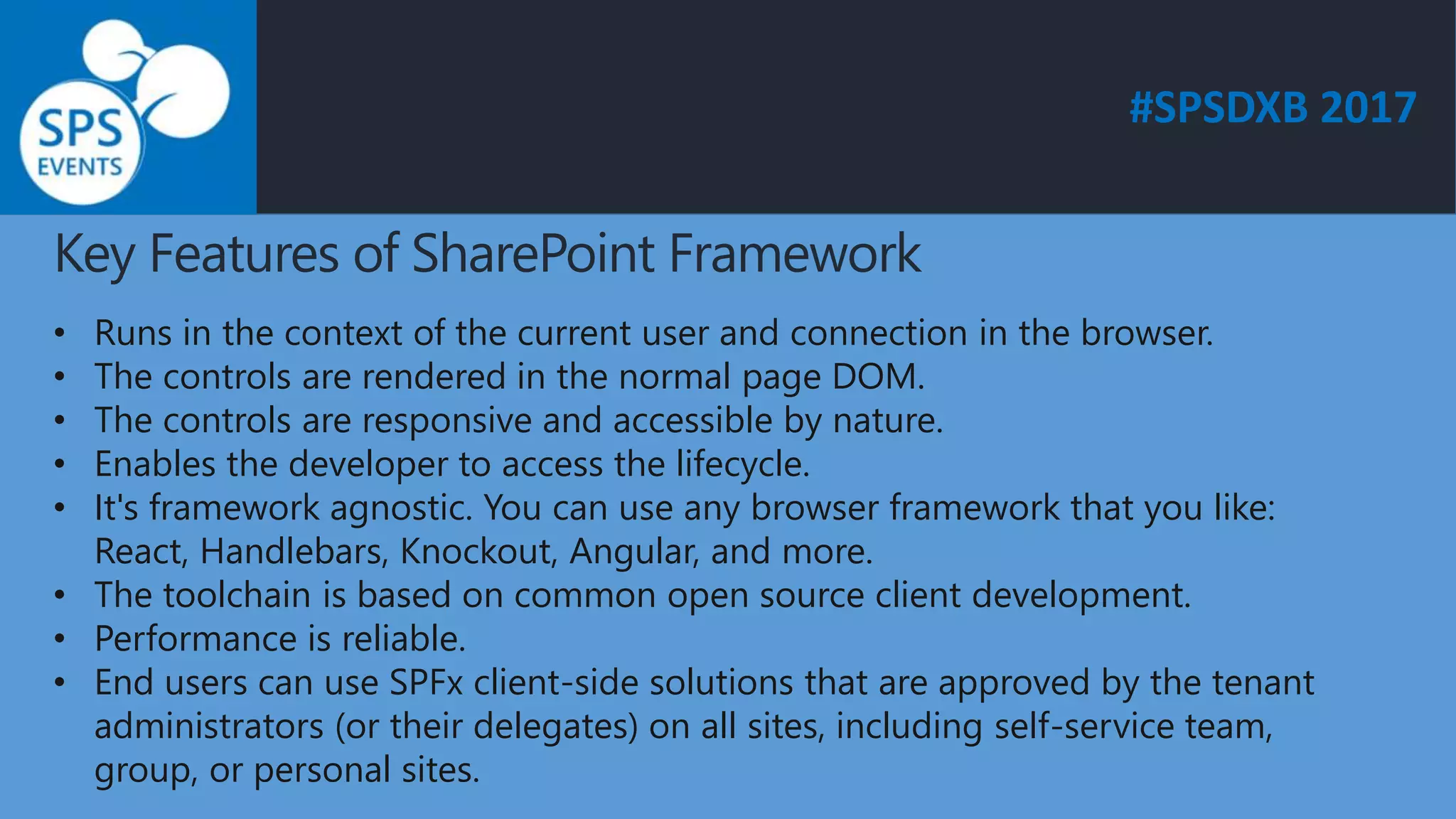

Key Features of SharePoint Framework
• Runs in the context of the current user and connection in the browser.
• The controls are rendered in the normal page DOM.
• The controls are responsive and accessible by nature.
• Enables the developer to access the lifecycle.
• It's framework agnostic. You can use any browser framework that you like:
React, Handlebars, Knockout, Angular, and more.
• The toolchain is based on common open source client development.
• Performance is reliable.
• End users can use SPFx client-side solutions that are approved by the tenant
administrators (or their delegates) on all sites, including self-service team,
group, or personal sites.

9. #SPSDXB 2017

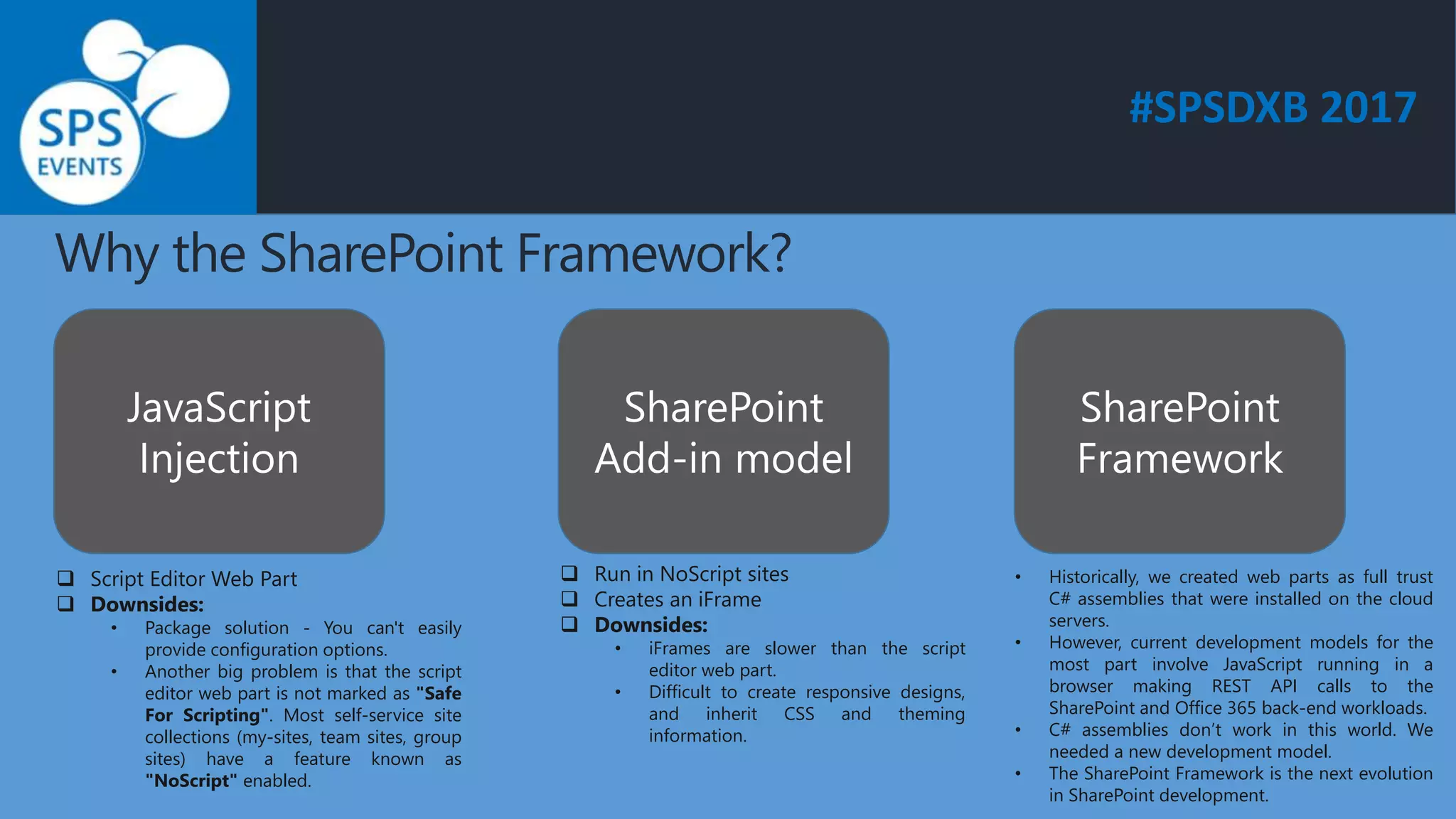

Why the SharePoint Framework?
JavaScript
Injection
SharePoint
Add-in model
SharePoint
Framework
 Script Editor Web Part
 Downsides:
• Package solution - You can't easily
provide configuration options.
• Another big problem is that the script
editor web part is not marked as "Safe
For Scripting". Most self-service site
collections (my-sites, team sites, group
sites) have a feature known as
"NoScript" enabled.
 Run in NoScript sites
 Creates an iFrame
 Downsides:
• iFrames are slower than the script
editor web part.
• Difficult to create responsive designs,
and inherit CSS and theming
information.
• Historically, we created web parts as full trust
C# assemblies that were installed on the cloud
servers.
• However, current development models for the
most part involve JavaScript running in a
browser making REST API calls to the
SharePoint and Office 365 back-end workloads.
• C# assemblies don’t work in this world. We
needed a new development model.
• The SharePoint Framework is the next evolution
in SharePoint development.

10. #SPSDXB 2017

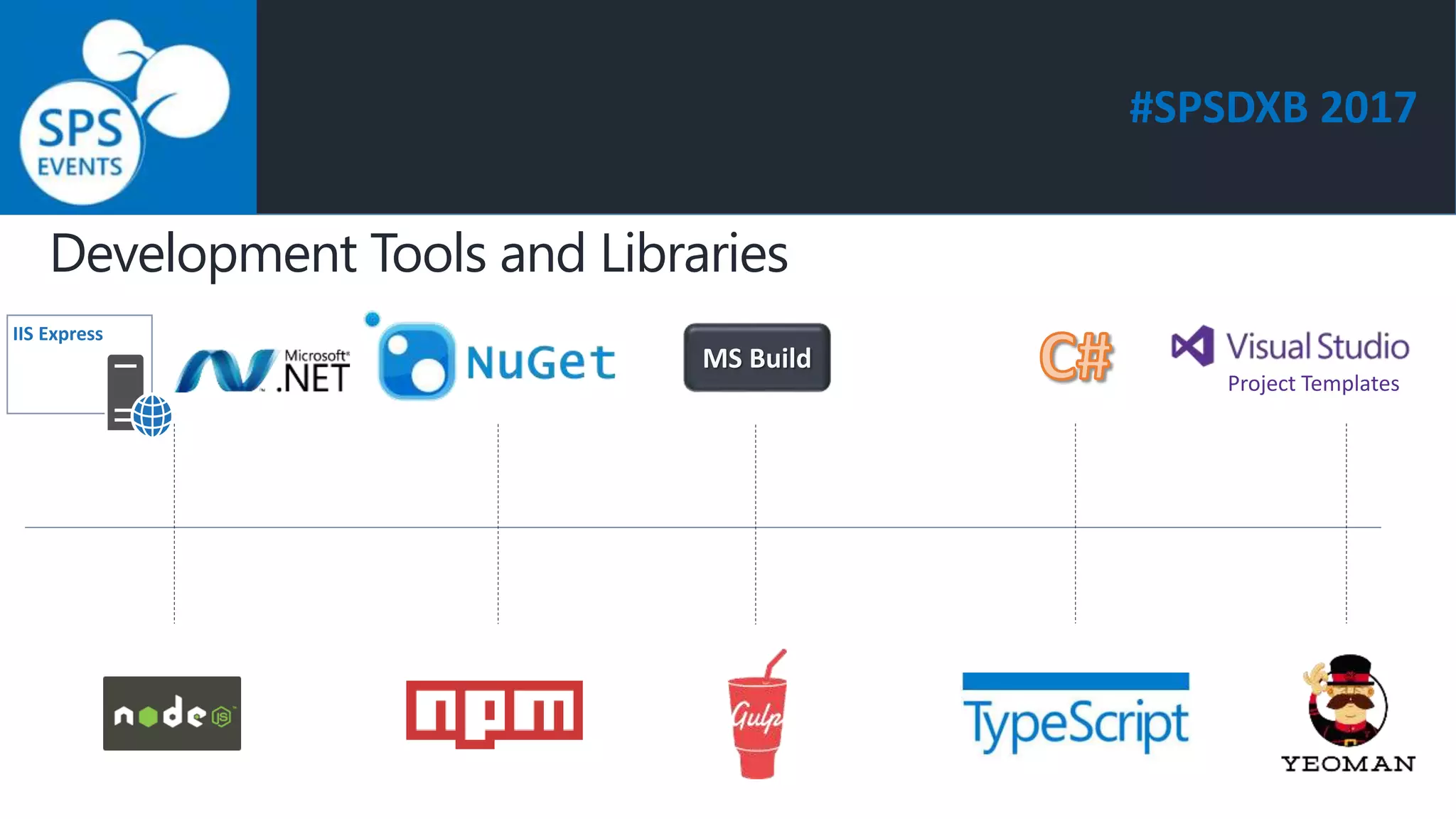

Development Tools and Libraries
Project Templates
IIS Express

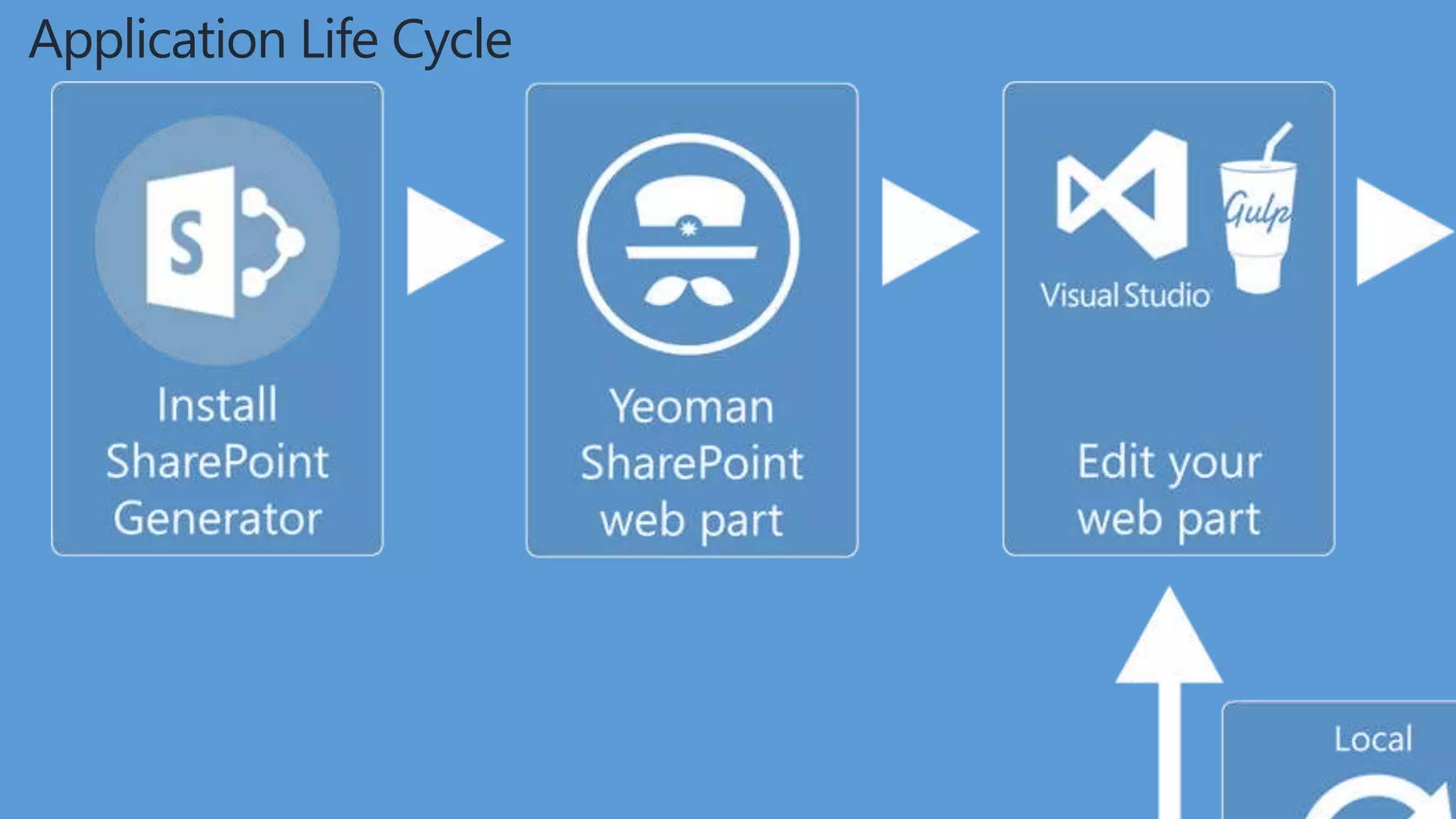

11. Application Life Cycle

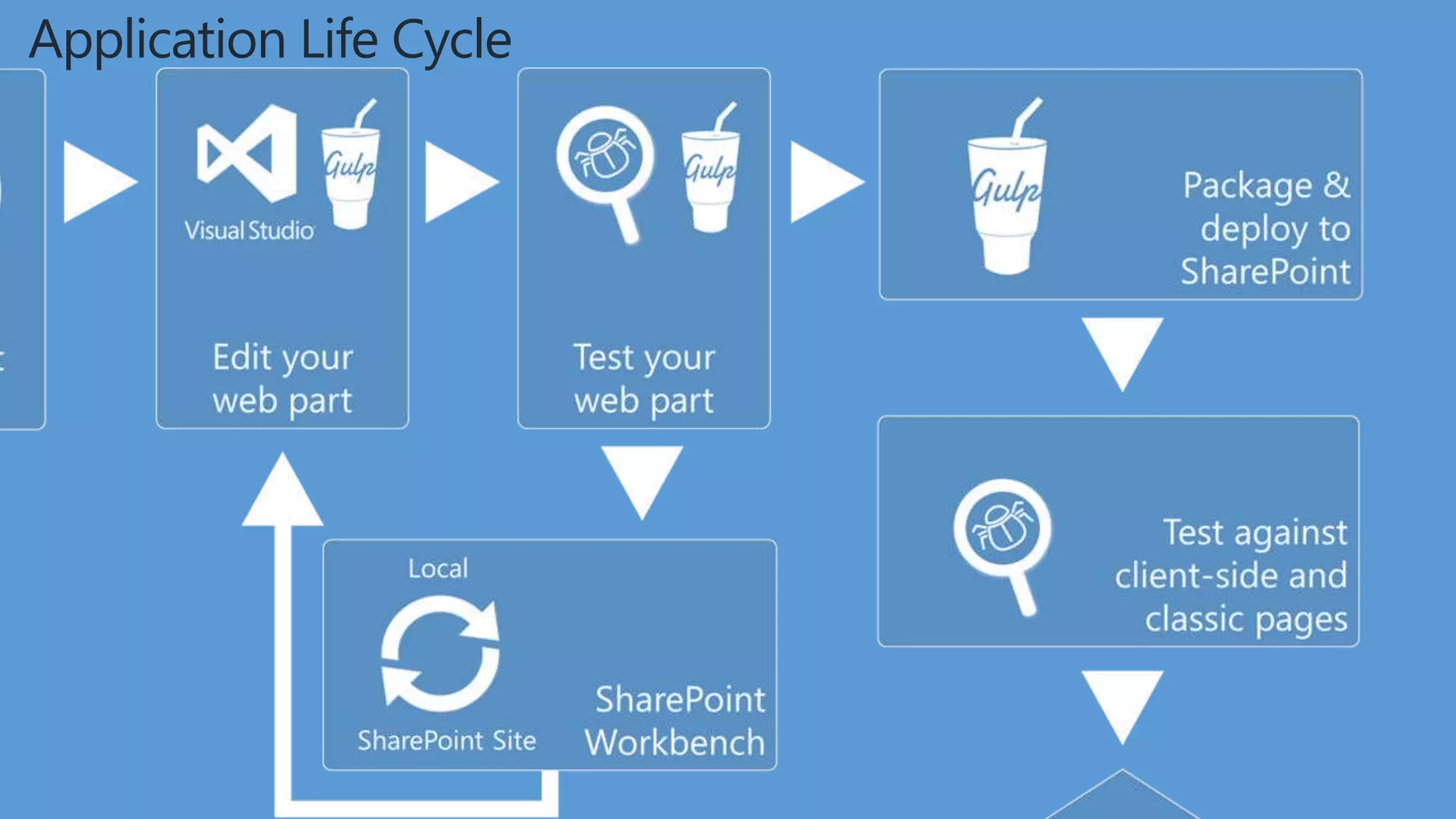

12. Application Life Cycle

15. #SPSDXB 2017

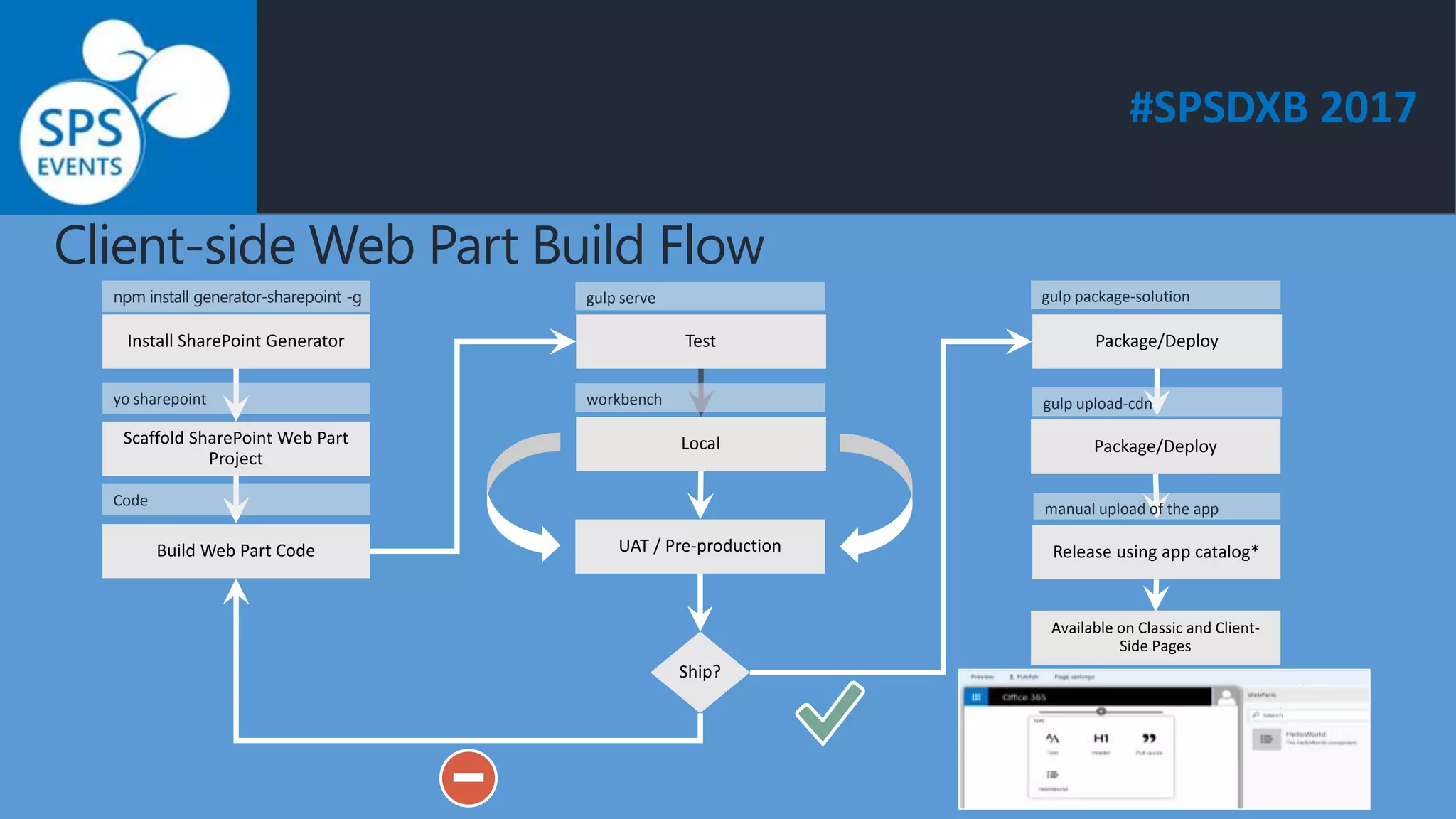

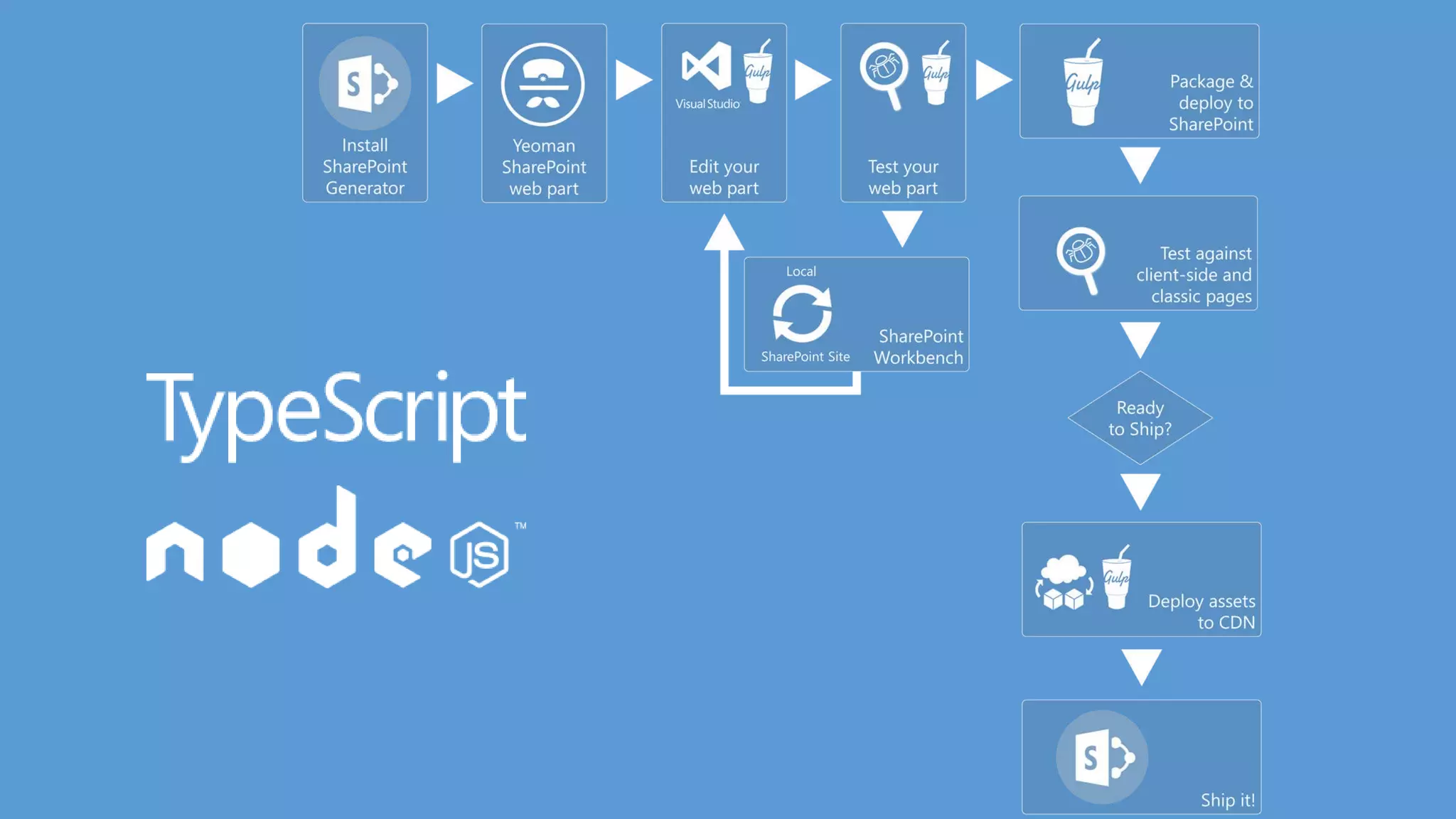

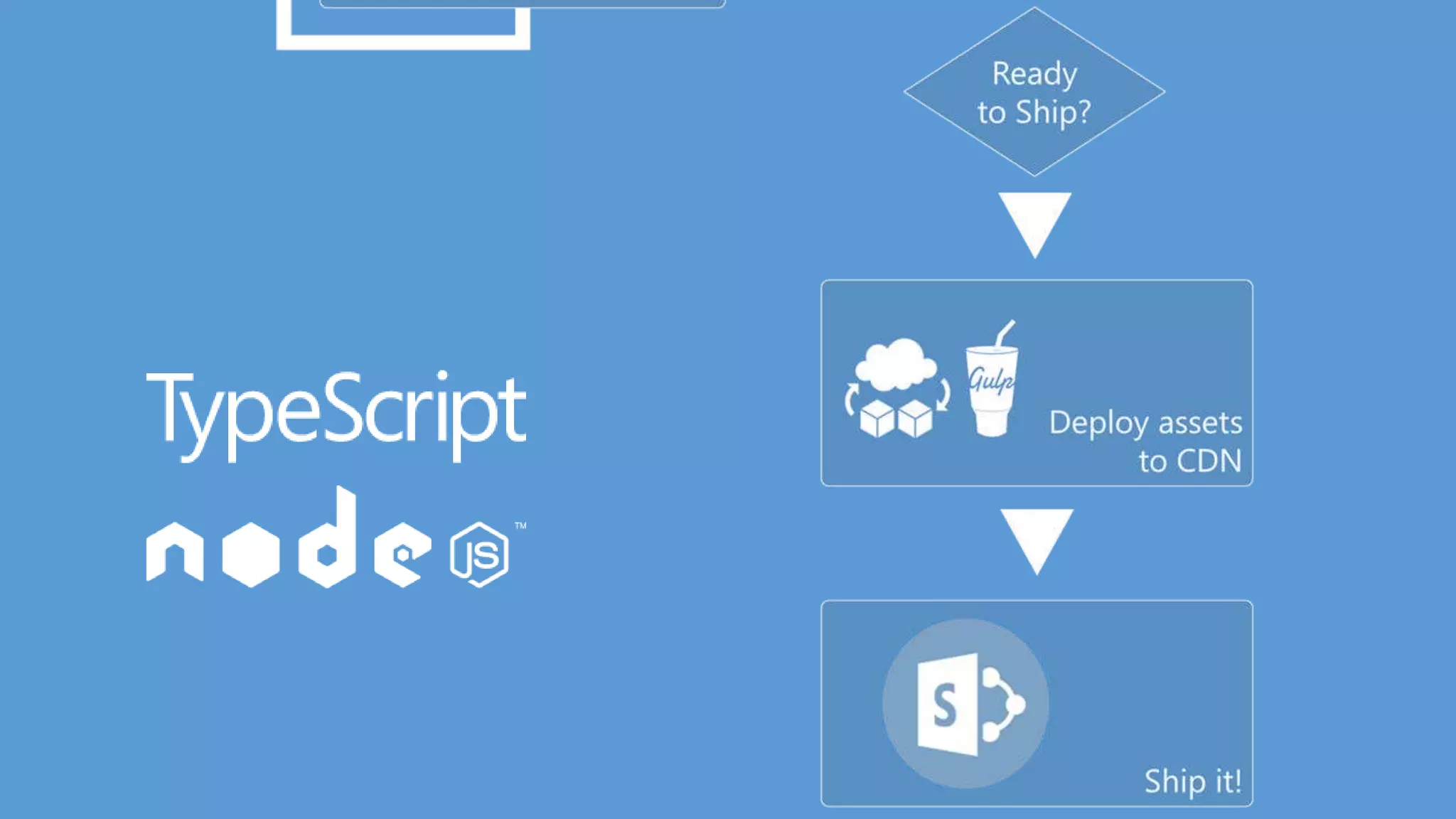

Client-side Web Part Build Flow
npm install generator-sharepoint -g
yo sharepoint
Code
gulp serve
workbench
gulp package-solution
gulp upload-cdn
manual upload of the app

16. #SPSDXB 2017
Set up Office 365 tenant
• Sign up for an Office 365 tenant
• Create app catalog site
• Create a new Developer Site collection
• SharePoint Workbench
https://dev.office.com/sharepoint/docs/spfx/set-up-your-developer-tenant

17. #SPSDXB 2017

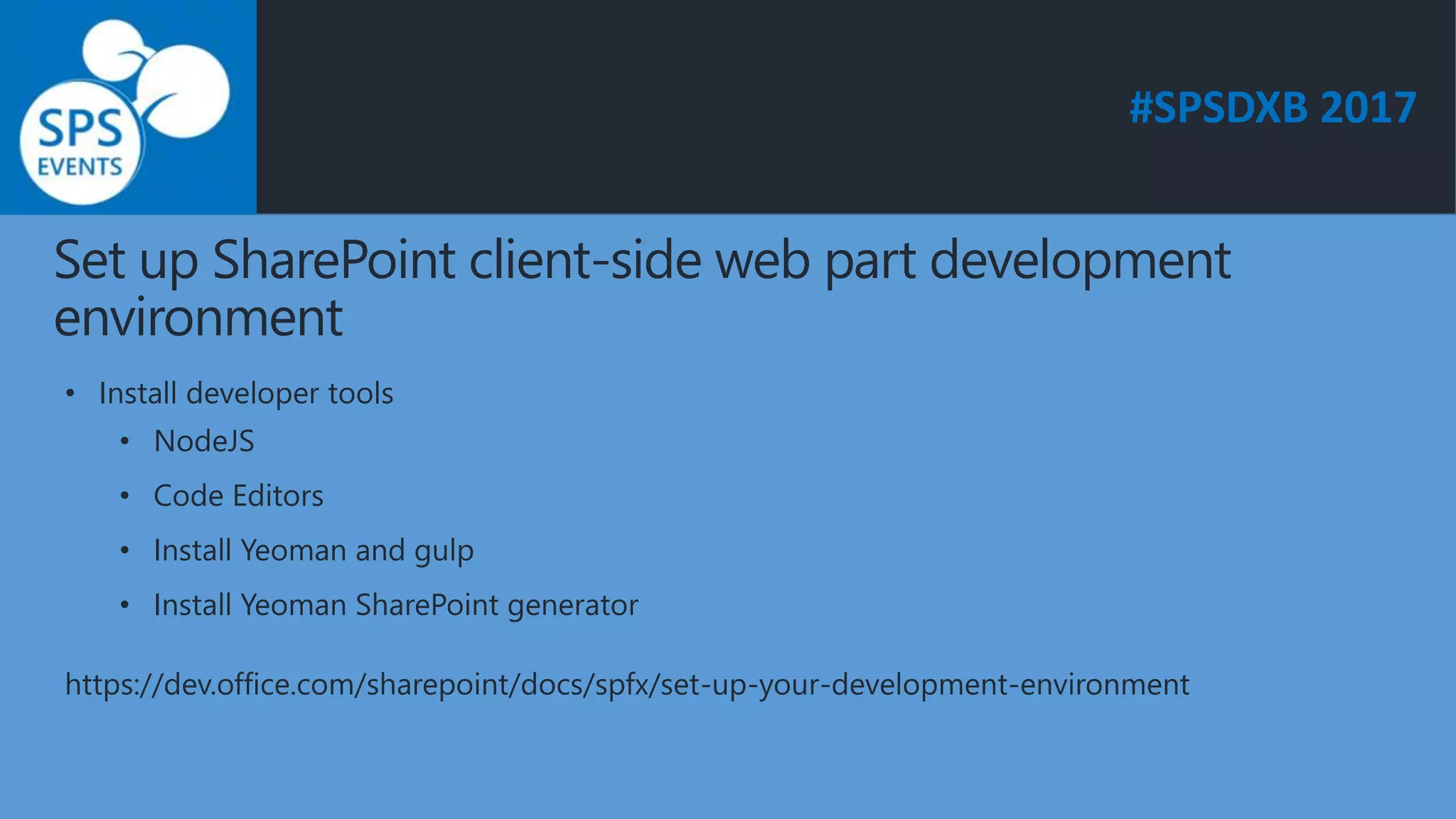

Set up SharePoint client-side web part development
environment
• Install developer tools
• NodeJS
• Code Editors
• Install Yeoman and gulp
• Install Yeoman SharePoint generator
https://dev.office.com/sharepoint/docs/spfx/set-up-your-development-environment

18. #SPSDXB 2017

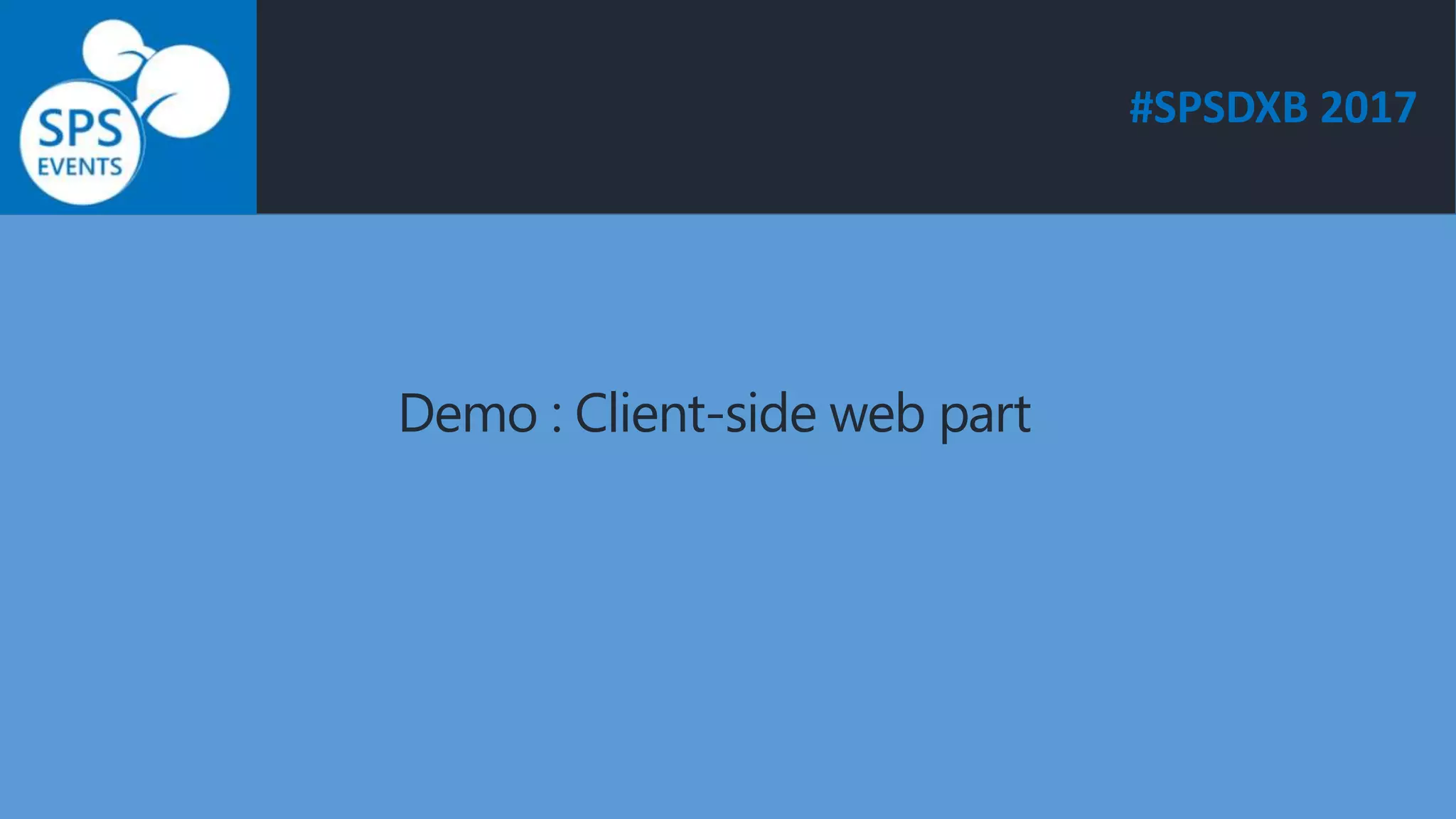

Demo : Client-side web part

19. #SPSDXB 2017
Getting Started with the SharePoint Framework
Read the preview announcement at http://dev.office.com/blogs
Check out the documentation and samples at http://GitHub.com/SharePoint
Sign-up for the Office Developer Program at http://dev.office.com

20. #SPSDXB 2017
Thank you! Get in touch.
https://mysharepointsolution.wordpress.com/
@kirtipprajapati
https://in.linkedin.com/in/kirtiprajapati
kirti.prajapati@gmail.com
