The Pwning Exchangeable Fan Structure
Sparkle GT640 OC Dragon Cyclone

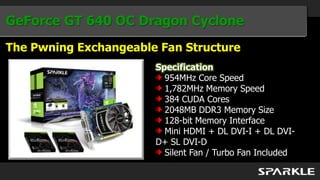

GeForce GT 640 OC Dragon Cyclone
The Pwning Exchangeable Fan Structure
                       Specification
                         954MHz Core Speed
                         1,782MHz Memory Speed
                         384 CUDA Cores
                         2048MB DDR3 Memory Size
                         128-bit Memory Interface
                         Mini HDMI + DL DVI-I + DL DVI-
                       D+ SL DVI-D
                         Silent Fan / Turbo Fan Included

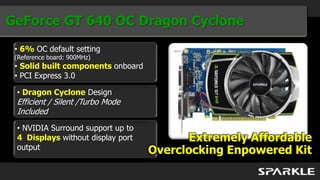

GeForce GT 640 OC Dragon Cyclone
 • 6% OC default setting
 (Reference board: 900MHz)
 • Solid built components onboard
 • PCI Express 3.0

 • Dragon Cyclone Design
 Efficient / Silent /Turbo Mode
 Included
 • NVIDIA Surround support up to
 4 Displays without display port          Extremely Affordable
 output                             Overclocking Enpowered Kit

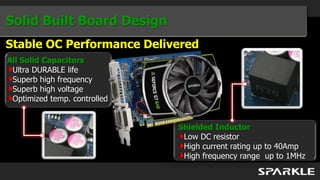

Solid Built Board Design
Stable OC Performance Delivered
All Solid Capacitors
 Ultra DURABLE life
 Superb high frequency
 Superb high voltage
 Optimized temp. controlled


                              Shielded Inductor
                               Low DC resistor
                               High current rating up to 40Amp
                               High frequency range up to 1MHz
Affordable Price, Reliable Performance

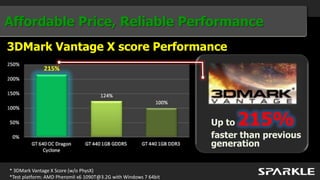

3DMark Vantage X score Performance




                                                                  Up to215%
                                                                  faster than previous
                                                                  generation

* 3DMark Vantage X Score (w/o PhysX)
*Test platform: AMD PheromII x6 1090T@3.2G with Windows 7 64bit

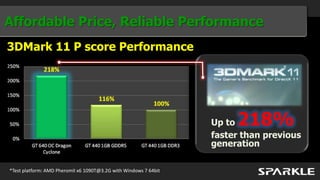

Affordable Price, Reliable Performance
3DMark 11 P score Performance




                                                                  Up to218%
                                                                  faster than previous
                                                                  generation

*Test platform: AMD PheromII x6 1090T@3.2G with Windows 7 64bit

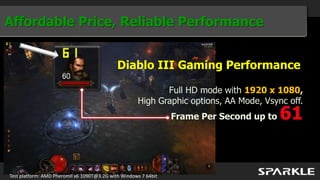

Affordable Price, Reliable Performance


                                             Diablo III Gaming Performance

                                                            Full HD mode with 1920 x 1080,
                                                     High Graphic options, AA Mode, Vsync off.
                                                                 Frame Per Second up to   61


Test platform: AMD PheromII x6 1090T@3.2G with Windows 7 64bit

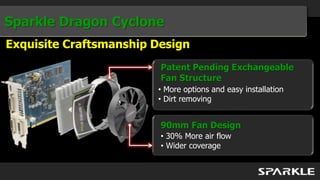

Sparkle Dragon Cyclone
Exquisite Craftsmanship Design
                         Patent Pending Exchangeable
                         Fan Structure
                        • More options and easy installation
                        • Dirt removing


                         90mm Fan Design
                         • 30% More air flow
                         • Wider coverage
Sparkle Dragon Cyclone

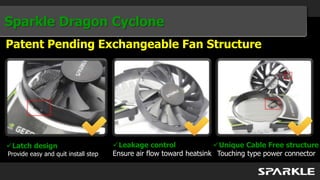

Patent Pending Exchangeable Fan Structure




Latch design                        Leakage control               Unique Cable Free structure
Provide easy and quit install step   Ensure air flow toward heatsink Touching type power connector

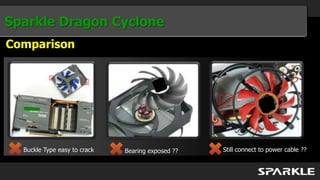

Sparkle Dragon Cyclone
Comparison




  Buckle Type easy to crack   Bearing exposed ??   Still connect to power cable ??
Sparkle Dragon Cyclone

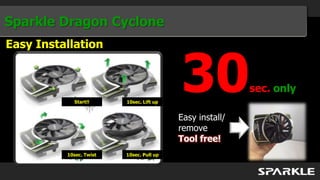

Easy Installation



            Start!!      10sec. Lift up
                                          30              sec. only

                                          Easy install/
                                          remove
                                          Tool free!
          10sec. Twist   10sec. Pull up
Sparkle Dragon Cyclone

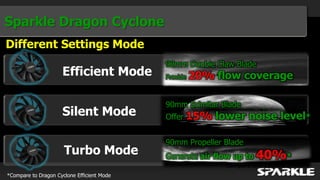

Different Settings Mode
                                            90mm Double Claw Blade
                     Efficient Mode         Provide   20% flow coverage

                                            90mm Scimitar Blade
                     Silent Mode            Offer   15% lower noise level*

                                            90mm Propeller Blade
                      Turbo Mode            Generate air flow up to 40%*
                                                            Compare to D Cyclone Efficient
*Compare to Dragon Cyclone Efficient Mode

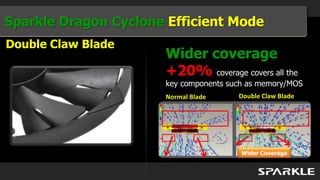

Sparkle Dragon Cyclone Efficient Mode
Double Claw Blade
                       Wider coverage
                       +20% coverage covers all the
                       key components such as memory/MOS
                      Normal Blade      Double Claw Blade




                                         Wider Coverage
Sparkle Dragon Cyclone Silent Mode
Scimitar Blade
                                        15%
                         Scimitar Blade provide
                         lower noisy level




   Scimitar Blade   Dragon Cyclone Efficient   Dragon Cyclone Silent

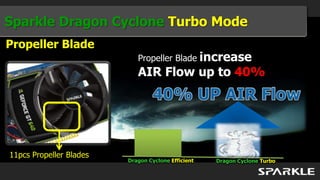

Sparkle Dragon Cyclone Turbo Mode
Propeller Blade
                            Propeller Blade increase
                            AIR Flow up to 40%




11pcs Propeller Blades
                         Dragon Cyclone Efficient   Dragon Cyclone Turbo

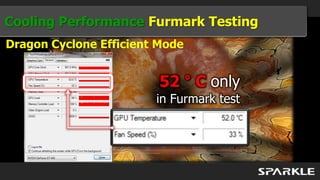

Cooling Performance Furmark Testing
Dragon Cyclone Efficient Mode


                         52 ° C only
                        in Furmark test

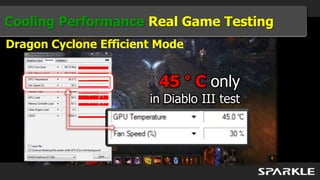

Cooling Performance Real Game Testing
Dragon Cyclone Efficient Mode


                         45 ° C only
                       in Diablo III test

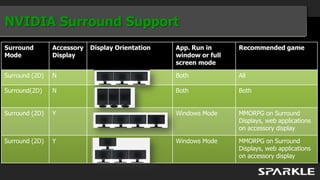

NVIDIA Surround Support
Surround        Accessory   Display Orientation   App. Run in      Recommended game
Mode            Display                           window or full
                                                  screen mode

Surround (2D)   N                                 Both             All

Surround(2D)    N                                 Both             Both


Surround (2D)   Y                                 Windows Mode     MMORPG on Surround
                                                                   Displays, web applications
                                                                   on accessory display

Surround (2D)   Y                                 Windows Mode     MMORPG on Surround
                                                                   Displays, web applications
                                                                   on accessory display

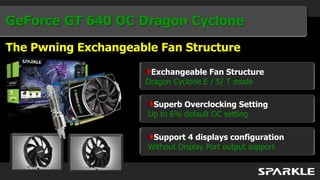

GeForce GT 640 OC Dragon Cyclone
The Pwning Exchangeable Fan Structure

                       Exchangeable Fan Structure
                      Dragon Cyclone E / S/ T mode

                       Superb Overclocking Setting
                      Up to 6% default OC setting

                       Support 4 displays configuration
                      Without Display Port output support

Sparkle gt640 oc dragon cyclone sales kit

  • 1.
    The Pwning ExchangeableFan Structure Sparkle GT640 OC Dragon Cyclone
  • 2.
    GeForce GT 640OC Dragon Cyclone The Pwning Exchangeable Fan Structure Specification 954MHz Core Speed 1,782MHz Memory Speed 384 CUDA Cores 2048MB DDR3 Memory Size 128-bit Memory Interface Mini HDMI + DL DVI-I + DL DVI- D+ SL DVI-D Silent Fan / Turbo Fan Included
  • 3.
    GeForce GT 640OC Dragon Cyclone • 6% OC default setting (Reference board: 900MHz) • Solid built components onboard • PCI Express 3.0 • Dragon Cyclone Design Efficient / Silent /Turbo Mode Included • NVIDIA Surround support up to 4 Displays without display port Extremely Affordable output Overclocking Enpowered Kit
  • 4.
    Solid Built BoardDesign Stable OC Performance Delivered All Solid Capacitors Ultra DURABLE life Superb high frequency Superb high voltage Optimized temp. controlled Shielded Inductor Low DC resistor High current rating up to 40Amp High frequency range up to 1MHz
  • 5.
    Affordable Price, ReliablePerformance 3DMark Vantage X score Performance Up to215% faster than previous generation * 3DMark Vantage X Score (w/o PhysX) *Test platform: AMD PheromII x6 1090T@3.2G with Windows 7 64bit
  • 6.
    Affordable Price, ReliablePerformance 3DMark 11 P score Performance Up to218% faster than previous generation *Test platform: AMD PheromII x6 1090T@3.2G with Windows 7 64bit
  • 7.
    Affordable Price, ReliablePerformance Diablo III Gaming Performance Full HD mode with 1920 x 1080, High Graphic options, AA Mode, Vsync off. Frame Per Second up to 61 Test platform: AMD PheromII x6 1090T@3.2G with Windows 7 64bit
  • 8.
    Sparkle Dragon Cyclone ExquisiteCraftsmanship Design Patent Pending Exchangeable Fan Structure • More options and easy installation • Dirt removing 90mm Fan Design • 30% More air flow • Wider coverage
  • 9.
    Sparkle Dragon Cyclone PatentPending Exchangeable Fan Structure Latch design Leakage control Unique Cable Free structure Provide easy and quit install step Ensure air flow toward heatsink Touching type power connector
  • 10.
    Sparkle Dragon Cyclone Comparison Buckle Type easy to crack Bearing exposed ?? Still connect to power cable ??
  • 11.
    Sparkle Dragon Cyclone EasyInstallation Start!! 10sec. Lift up 30 sec. only Easy install/ remove Tool free! 10sec. Twist 10sec. Pull up
  • 12.
    Sparkle Dragon Cyclone DifferentSettings Mode 90mm Double Claw Blade Efficient Mode Provide 20% flow coverage 90mm Scimitar Blade Silent Mode Offer 15% lower noise level* 90mm Propeller Blade Turbo Mode Generate air flow up to 40%* Compare to D Cyclone Efficient *Compare to Dragon Cyclone Efficient Mode
  • 13.
    Sparkle Dragon CycloneEfficient Mode Double Claw Blade Wider coverage +20% coverage covers all the key components such as memory/MOS Normal Blade Double Claw Blade Wider Coverage
  • 14.
    Sparkle Dragon CycloneSilent Mode Scimitar Blade 15% Scimitar Blade provide lower noisy level Scimitar Blade Dragon Cyclone Efficient Dragon Cyclone Silent
  • 15.
    Sparkle Dragon CycloneTurbo Mode Propeller Blade Propeller Blade increase AIR Flow up to 40% 11pcs Propeller Blades Dragon Cyclone Efficient Dragon Cyclone Turbo
  • 16.
    Cooling Performance FurmarkTesting Dragon Cyclone Efficient Mode 52 ° C only in Furmark test
  • 17.
    Cooling Performance RealGame Testing Dragon Cyclone Efficient Mode 45 ° C only in Diablo III test
  • 18.
    NVIDIA Surround Support Surround Accessory Display Orientation App. Run in Recommended game Mode Display window or full screen mode Surround (2D) N Both All Surround(2D) N Both Both Surround (2D) Y Windows Mode MMORPG on Surround Displays, web applications on accessory display Surround (2D) Y Windows Mode MMORPG on Surround Displays, web applications on accessory display
  • 19.
    GeForce GT 640OC Dragon Cyclone The Pwning Exchangeable Fan Structure Exchangeable Fan Structure Dragon Cyclone E / S/ T mode Superb Overclocking Setting Up to 6% default OC setting Support 4 displays configuration Without Display Port output support
