- 1. 1 Copyright Solace Confidential Solace Corporation TomoYamaguchi / Sales Director, Japan Tomo.Yamaguchi@Solace.com The proven enterprise-class data movement platform for the connected vehicle projects in the world Open Data Movement
- 2. 2 Copyright Solace Confidential Copyright: Air802 “A connected car is a car that is equipped with Internet access, and usually also with a wireless local area network. This allows the car to share internet access with other devices both inside as well as outside the vehicle.” (Wikipedia)

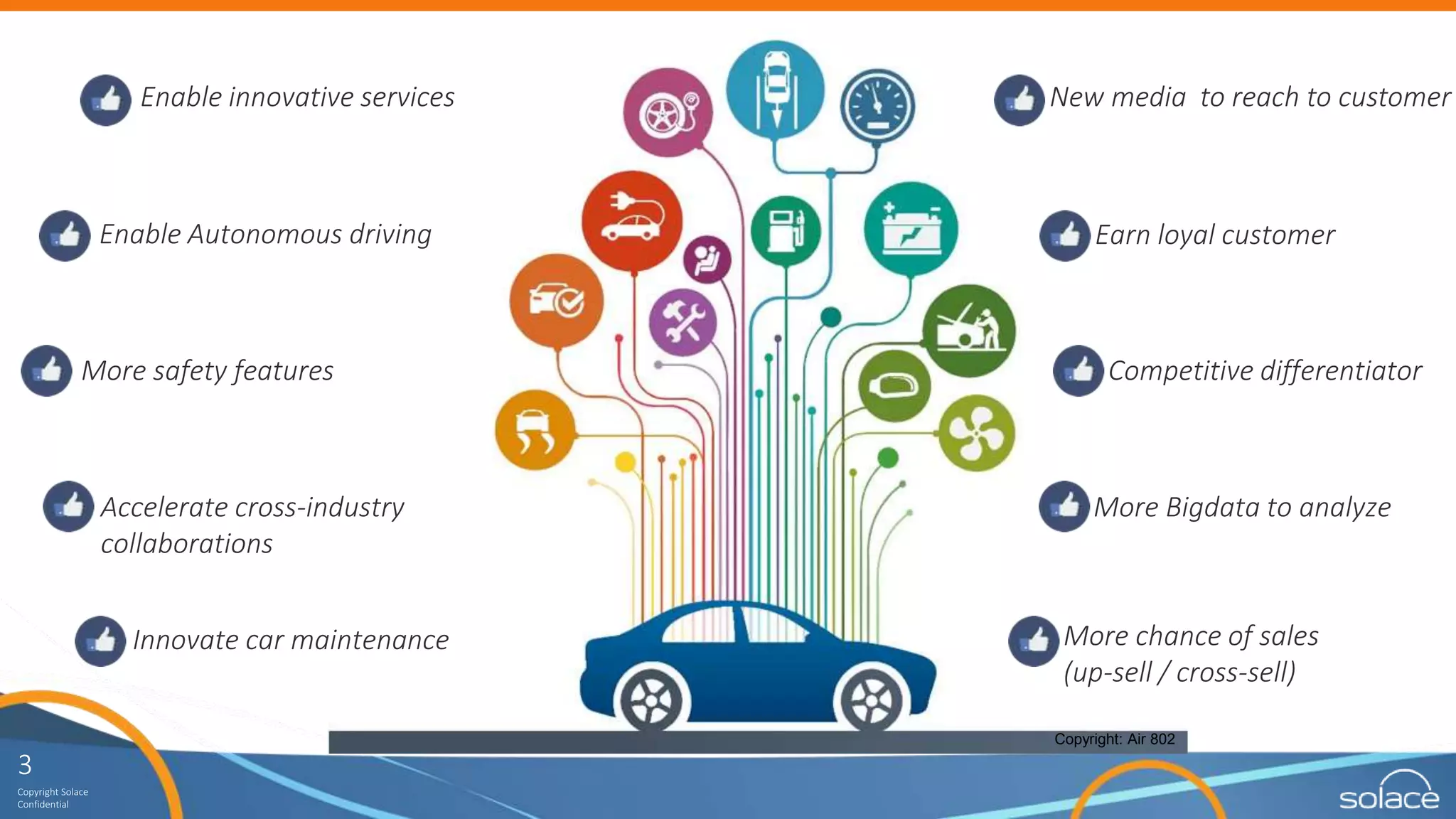

- 3. 3 Copyright Solace Confidential Copyright: Air802 Earn loyal customer Enable Autonomous driving More safety features Accelerate cross-industry collaborations Competitive differentiator More Bigdata to analyze More chance of sales (up-sell / cross-sell) New media to reach to customer Innovate car maintenance Enable innovative services

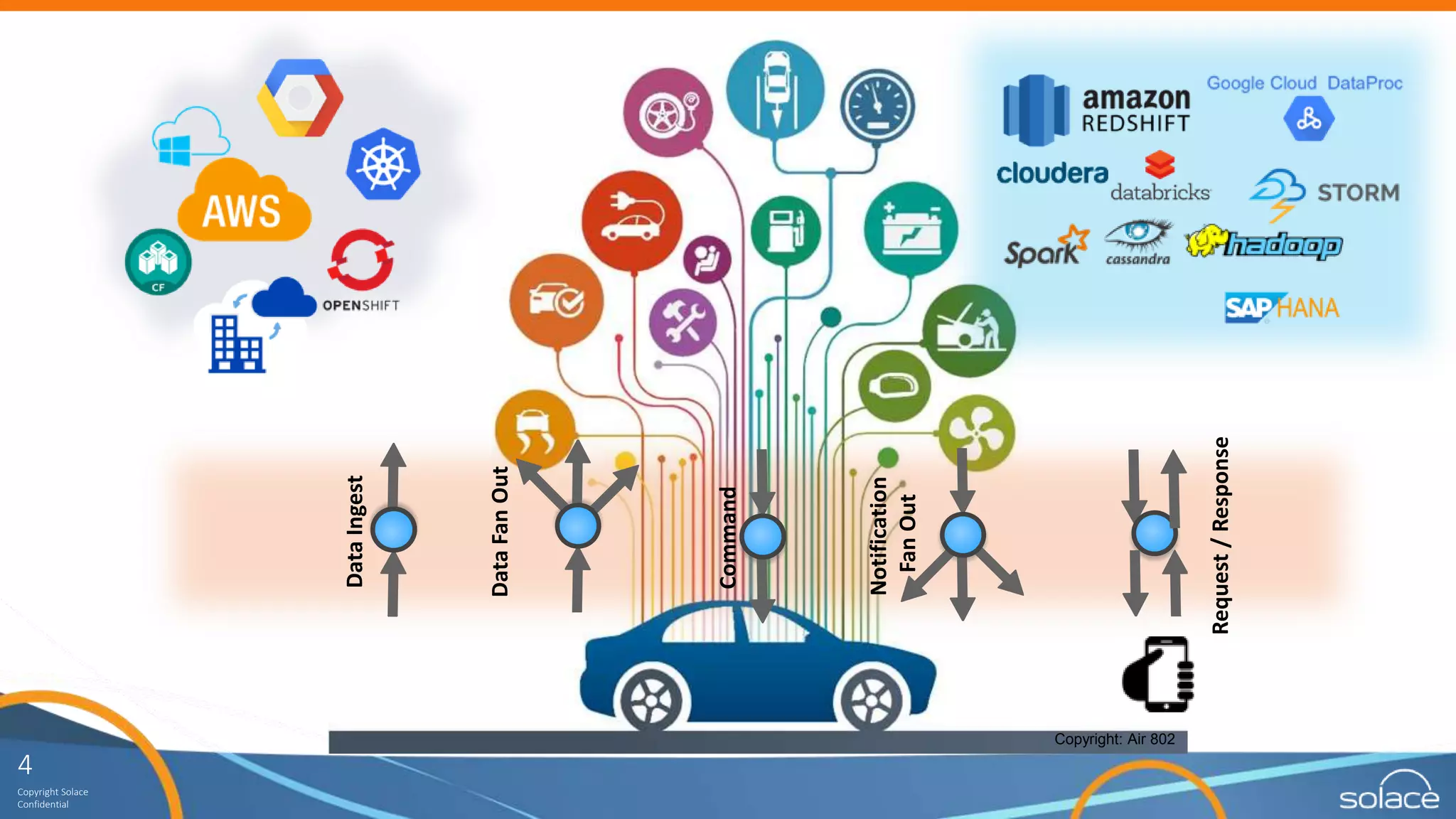

- 4. 4 Copyright Solace Confidential Copyright: Air802 DataIngest DataFanOut Command Notification FanOut Request/Response

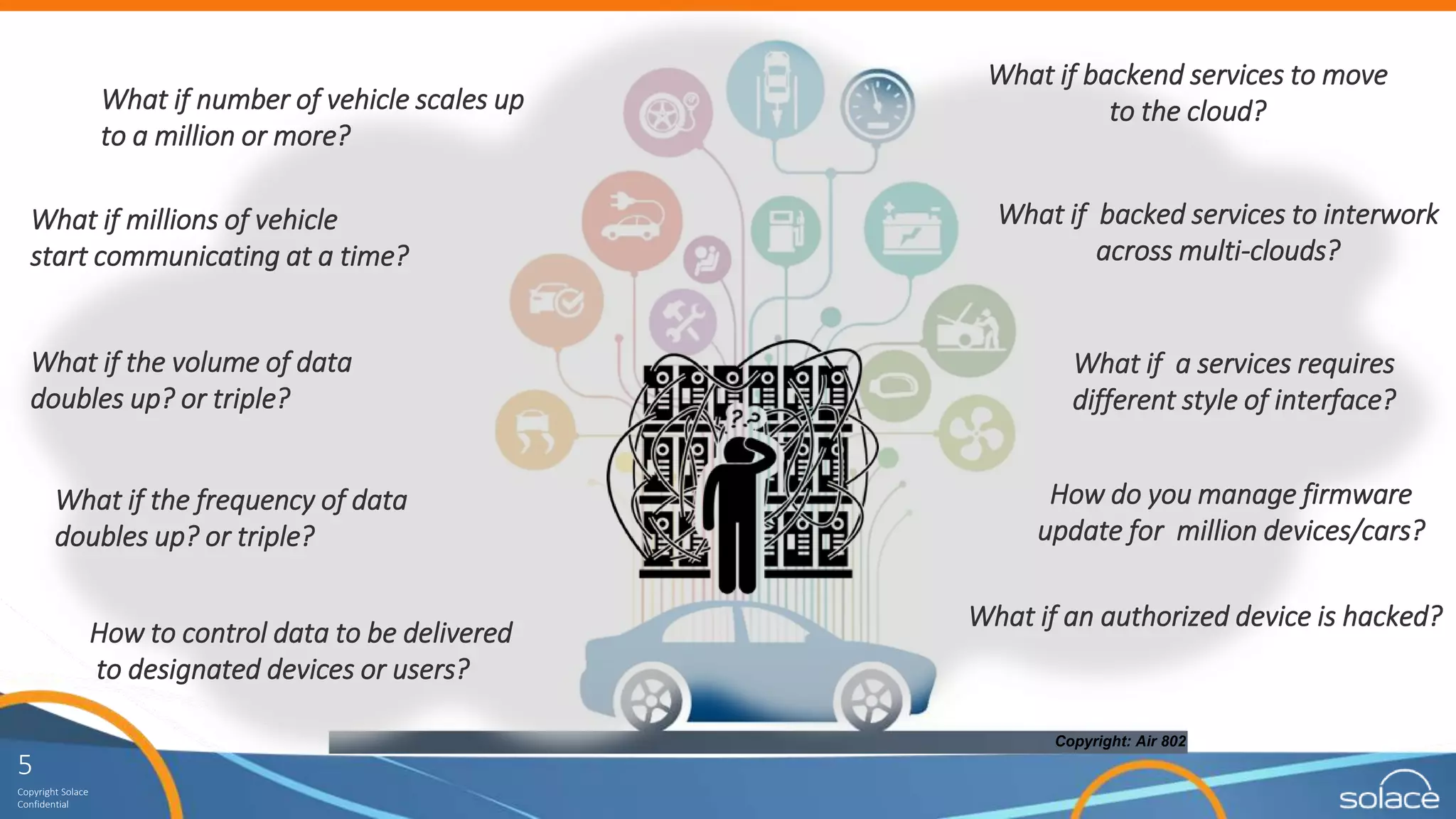

- 5. 5 Copyright Solace Confidential What ifnumber of vehicle scales up to a million or more? What if millions of vehicle start communicating at a time? How to control data to be delivered to designated devices or users? What if the volume of data doubles up? or triple? What if the frequency of data doubles up? or triple? Copyright: Air 802 What if a services requires different style of interface? What if an authorized device is hacked? What if backend services to move to the cloud? How do you manage firmware update for million devices/cars? What if backed services to interwork across multi-clouds?

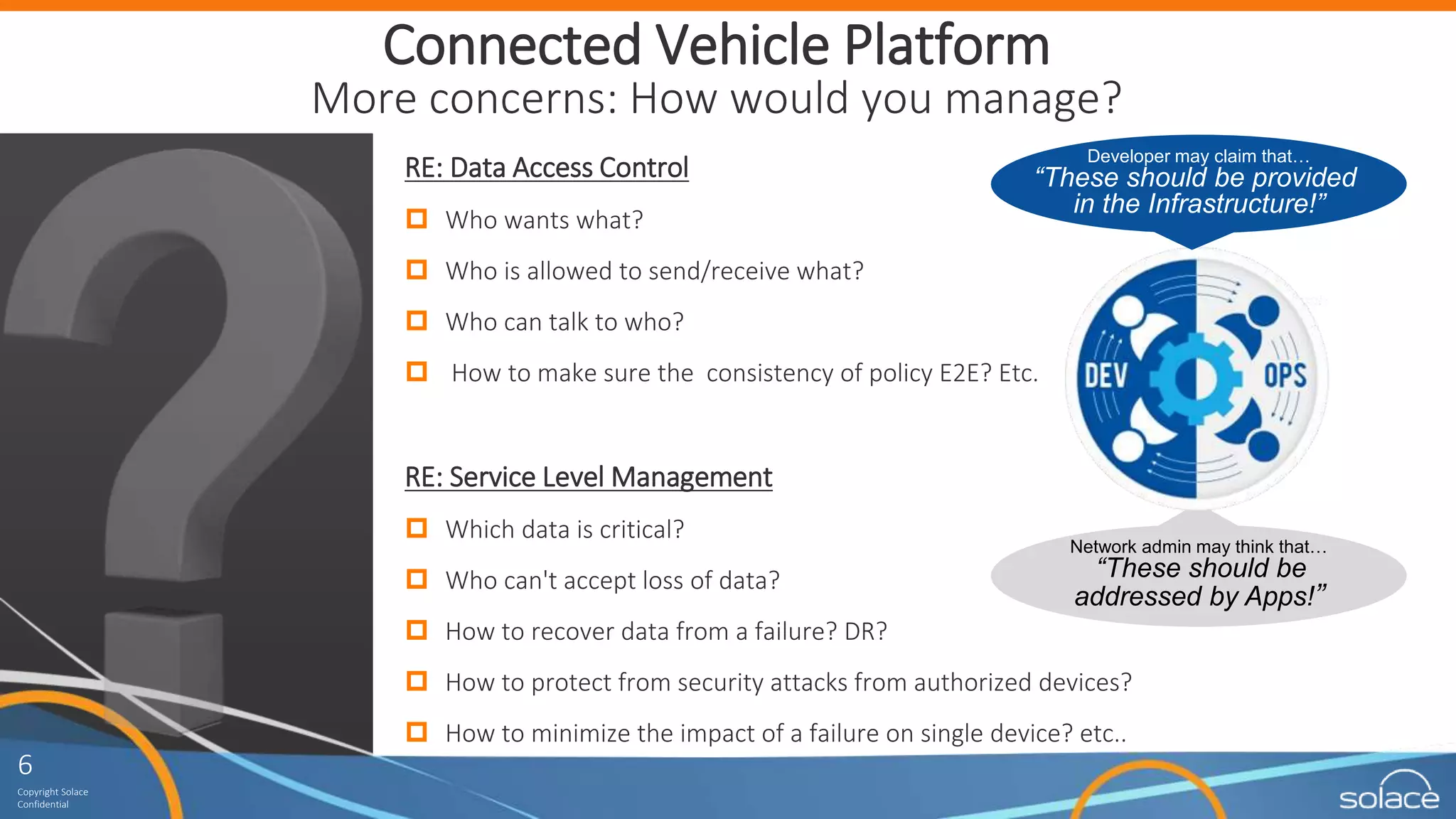

- 6. 6 Copyright Solace Confidential 6 Copyright Solace Confidential ConnectedVehicle Platform More concerns: How would you manage? RE: Data Access Control Who wants what? Who is allowed to send/receive what? Who can talk to who? How to make sure the consistency of policy E2E? Etc. RE: Service Level Management Which data is critical? Who can't accept loss of data? How to recover data from a failure? DR? How to protect from security attacks from authorized devices? How to minimize the impact of a failure on single device? etc.. Network admin may think that… “These should be addressed by Apps!” Developer may claim that… “These should be provided in the Infrastructure!”

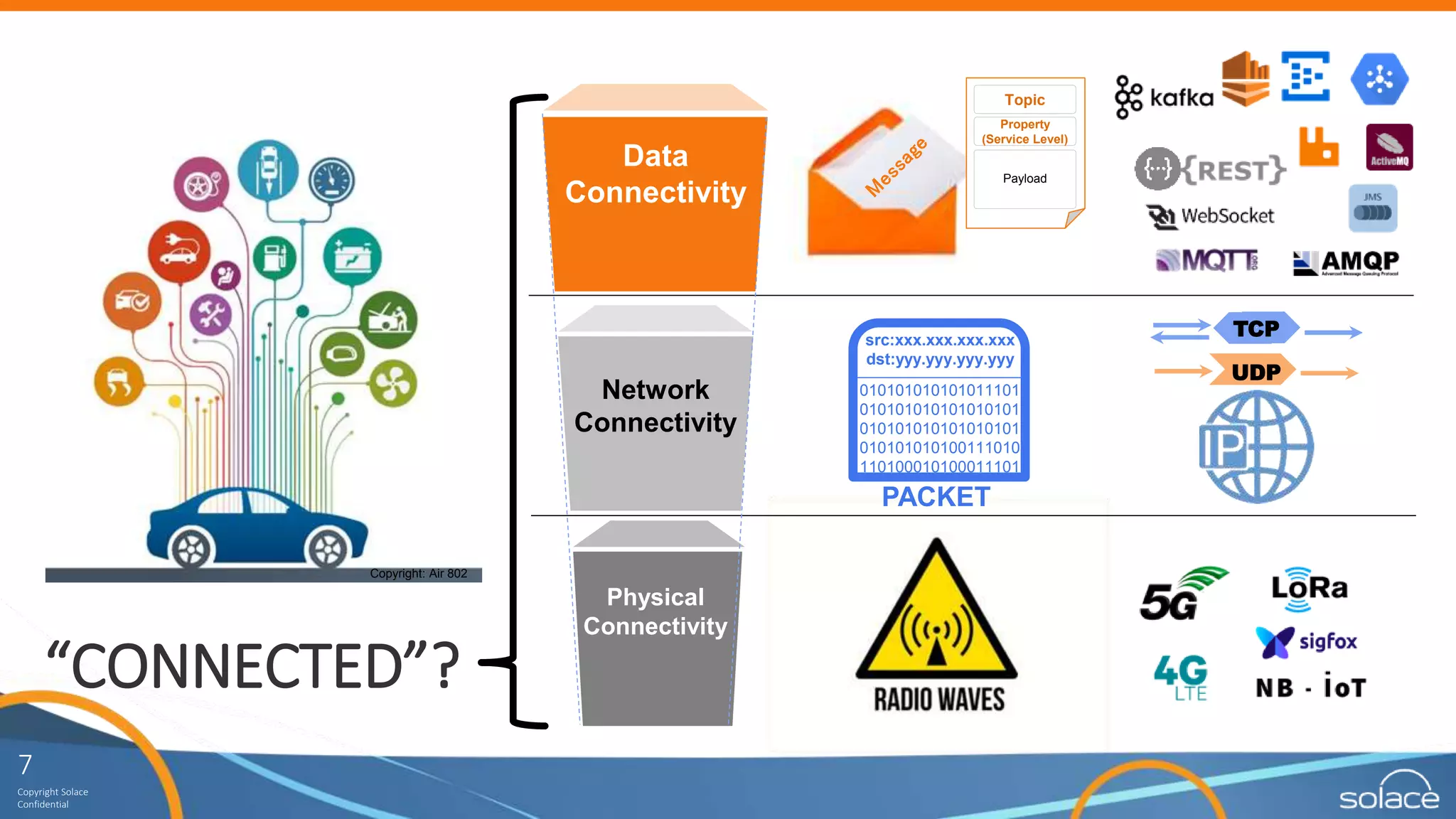

- 7. 7 Copyright Solace Confidential Copyright: Air802 Topic Payload Property (Service Level) “CONNECTED”? UDP TCP 010101010101011101 010101010101010101 010101010101010101 010101010100111010 110100010100011101 src:xxx.xxx.xxx.xxx dst:yyy.yyy.yyy.yyy Physical Connectivity Network Connectivity Data Connectivity PACKET

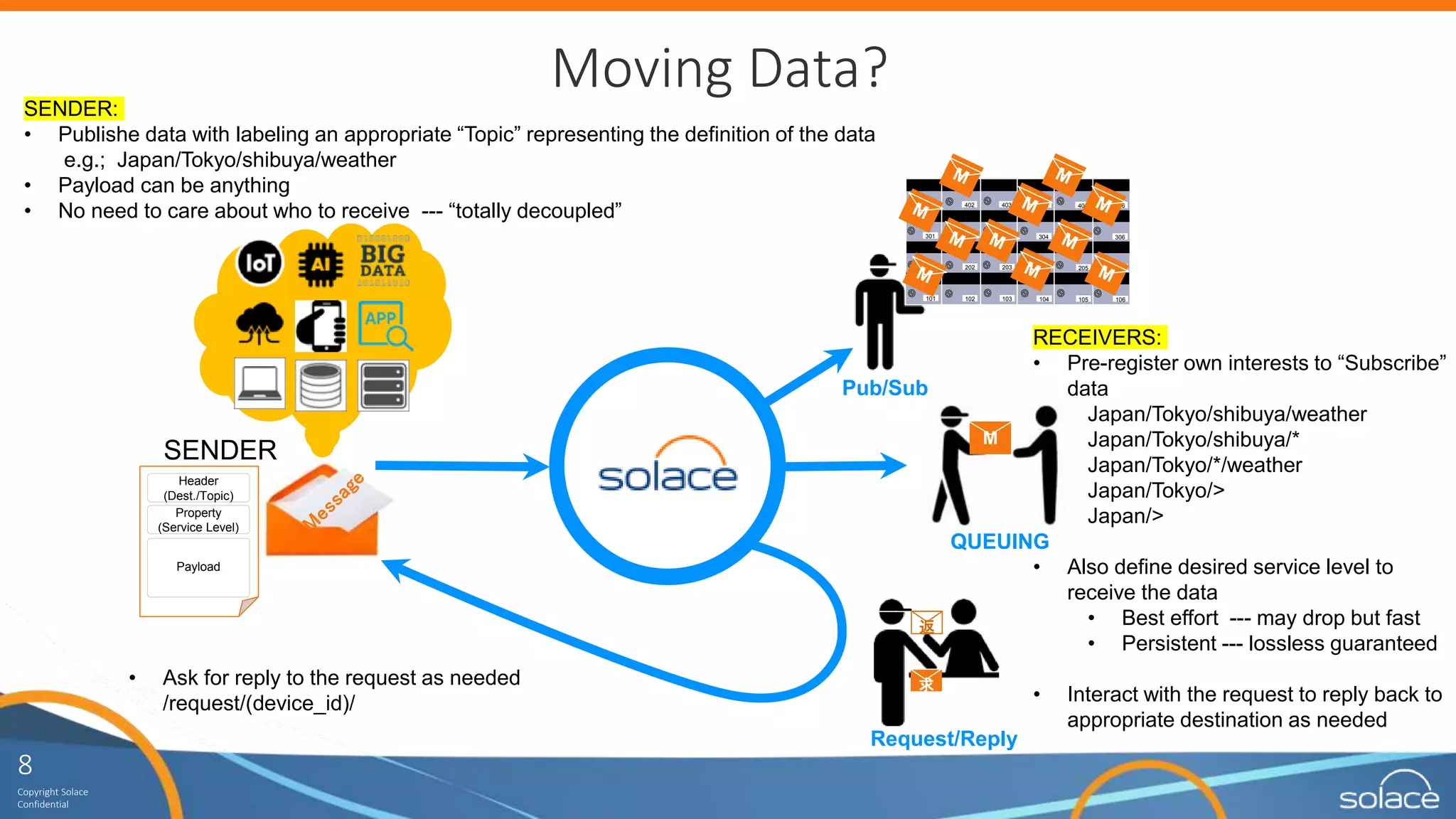

- 8. 8 Copyright Solace Confidential Moving Data? M SENDER Header (Dest./Topic) Payload Property (ServiceLevel) Pub/Sub QUEUING 101 102 103 104 105 106 201 202 203 204 205 206 301 302 303 304 305 306 401 402 403 404 405 406 Broker 返 求 Request/Reply SENDER: • Publishe data with labeling an appropriate “Topic” representing the definition of the data e.g.; Japan/Tokyo/shibuya/weather • Payload can be anything • No need to care about who to receive --- “totally decoupled” RECEIVERS: • Pre-register own interests to “Subscribe” data Japan/Tokyo/shibuya/weather Japan/Tokyo/shibuya/* Japan/Tokyo/*/weather Japan/Tokyo/> Japan/> • Also define desired service level to receive the data • Best effort --- may drop but fast • Persistent --- lossless guaranteed • Interact with the request to reply back to appropriate destination as needed • Ask for reply to the request as needed /request/(device_id)/

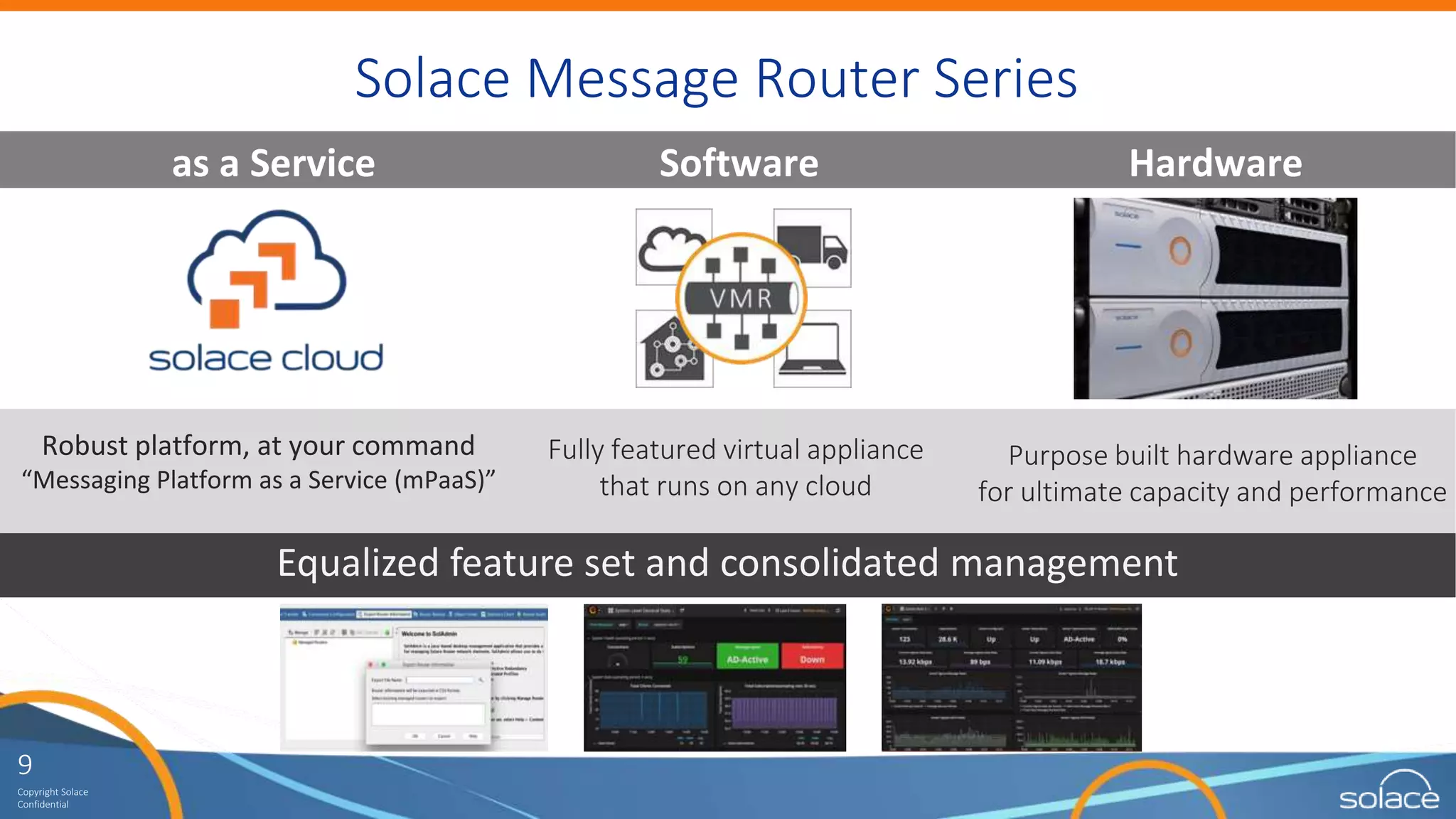

- 9. 9 Copyright Solace Confidential Solace MessageRouter Series Hardware Purpose built hardware appliance for ultimate capacity and performance Software Fully featured virtual appliance that runs on any cloud as a Service Robust platform, at your command “Messaging Platform as a Service (mPaaS)” Equalized feature set and consolidated management

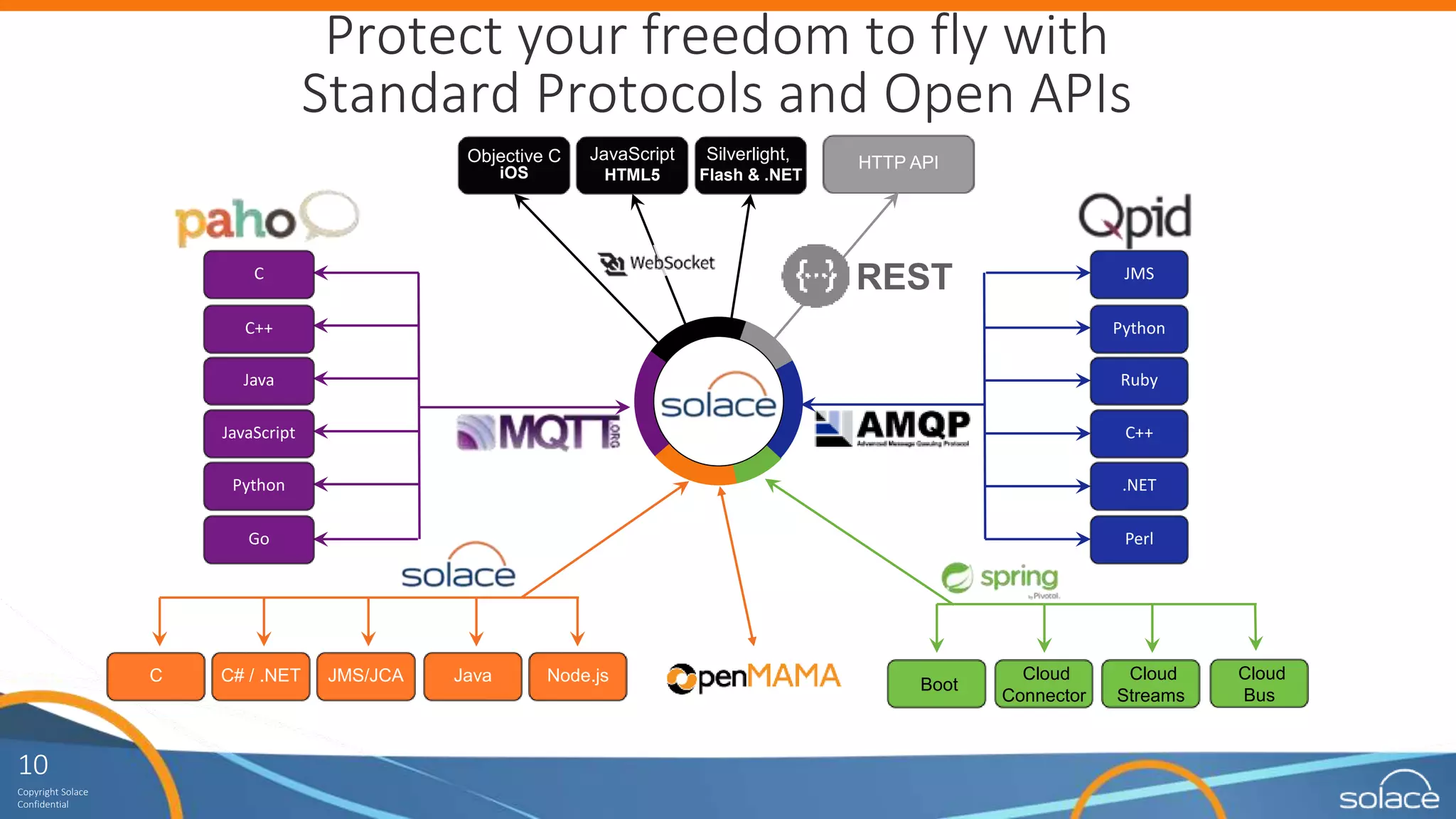

- 10. 10 Copyright Solace Confidential Protect yourfreedom to fly with Standard Protocols and Open APIs Objective C iOS JavaScript HTML5 Silverlight, Flash & .NET HTTP API JMS Python Ruby C++ .NET Perl JMS/JCA RESTC C++ Java JavaScript Python Go C Java Node.jsC# / .NET Boot Cloud Connector Cloud Streams Cloud Bus

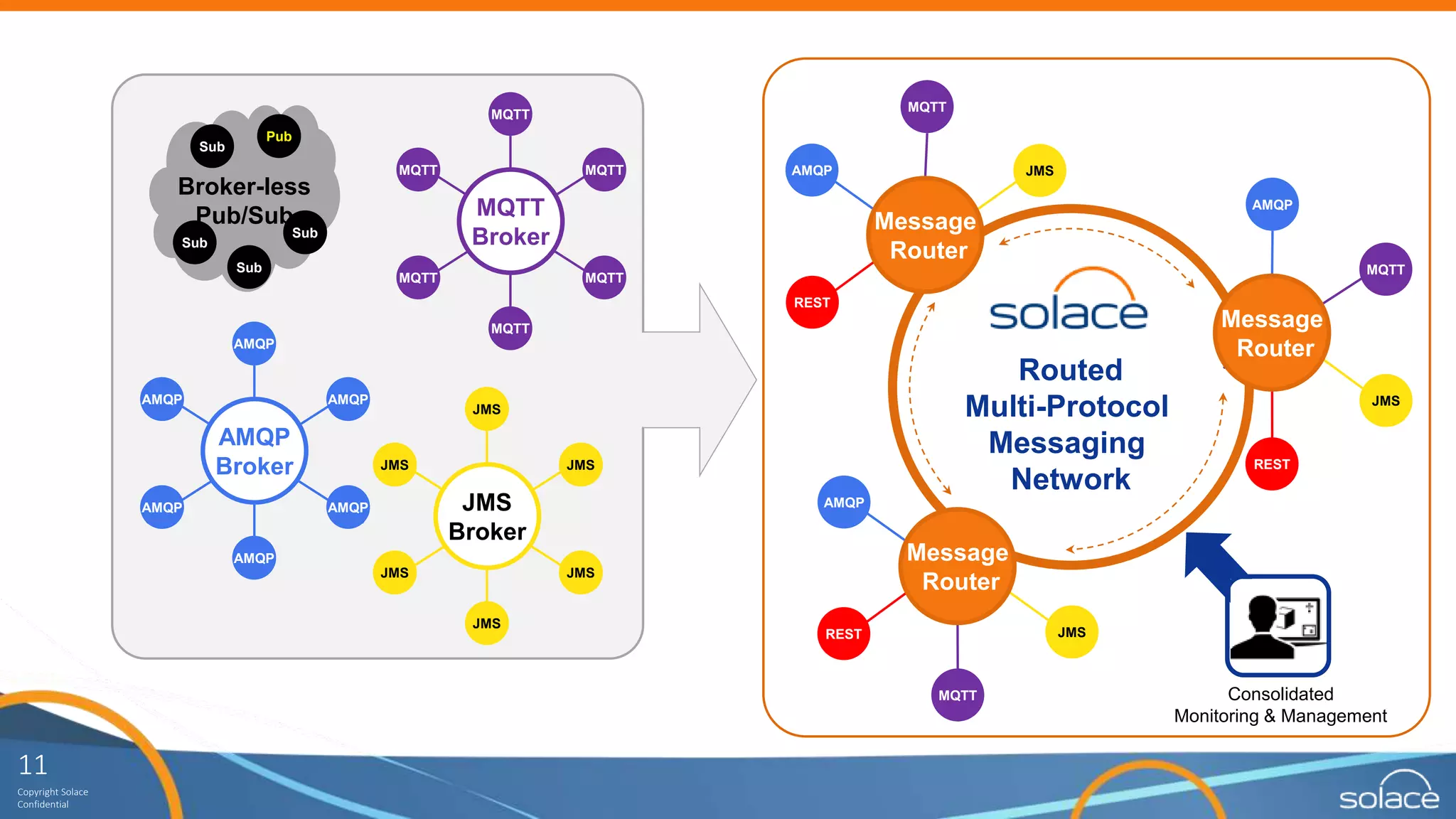

- 11. 11 Copyright Solace Confidential Routed Multi-Protocol Messaging Network MQTT MQTT MQTTMQTT MQTTMQTT MQTT Broker JMS JMS JMSJMS JMSJMS JMS Broker AMQP AMQP AMQPAMQP AMQPAMQP AMQP Broker Message Router AMQP MQTT REST JMS Message Router AMQP MQTT REST JMS Consolidated Monitoring& Management Broker-less Pub/Sub Sub Sub Sub Pub Sub AMQP REST Message Router MQTT JMS

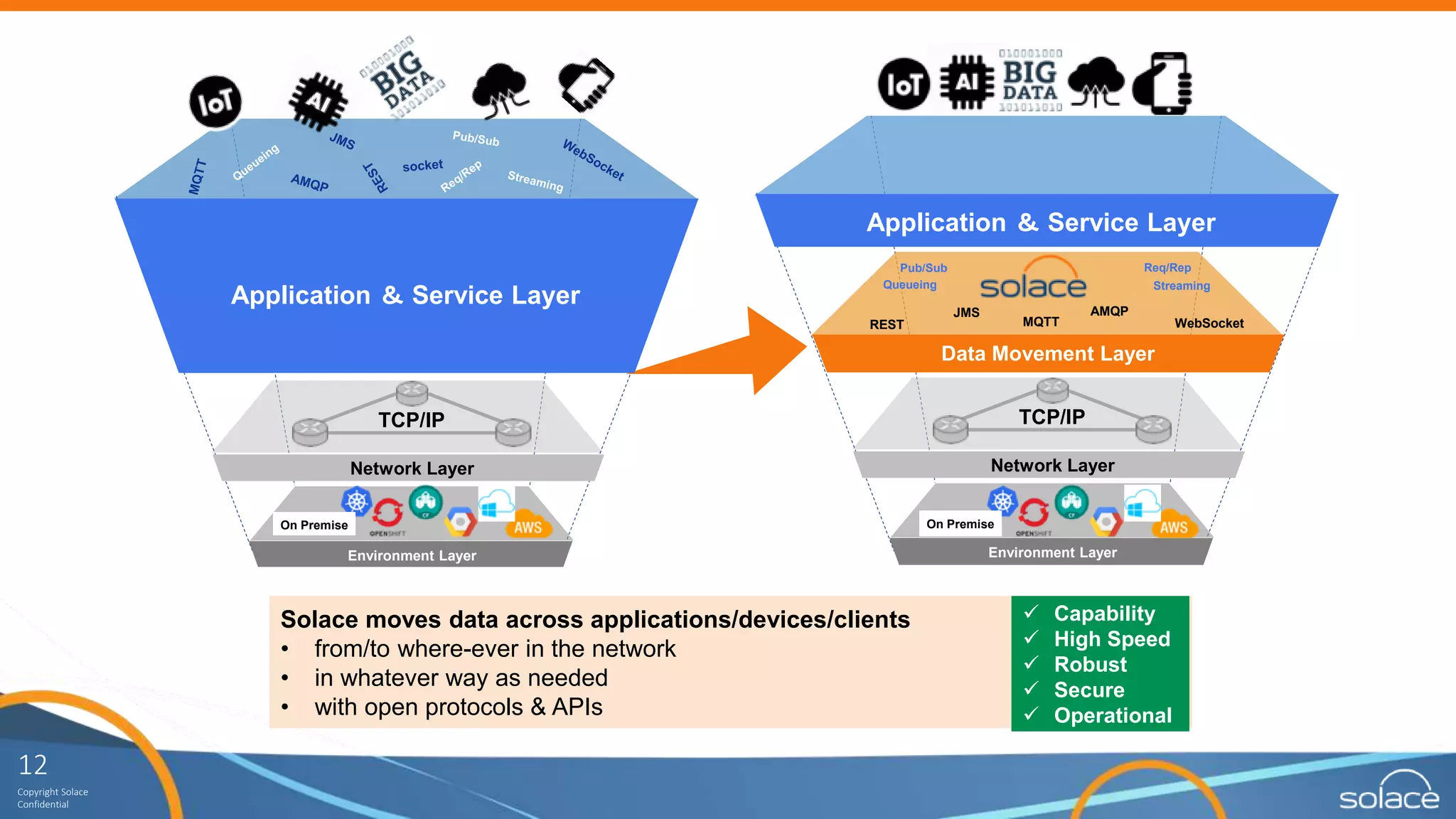

- 12. 12 Copyright Solace Confidential Solace movesdata across applications/devices/clients • from/to where-ever in the network • in whatever way as needed • with open protocols & APIs Capability High Speed Robust Secure Operational Application ＆ Service Layer Network Layer TCP/IP Environment Layer On Premise Data Movement Layer Network Layer TCP/IP JMS AMQP REST MQTT Pub/Sub WebSocket Req/Rep Queueing Streaming Environment Layer Application ＆ Service Layer On Premise

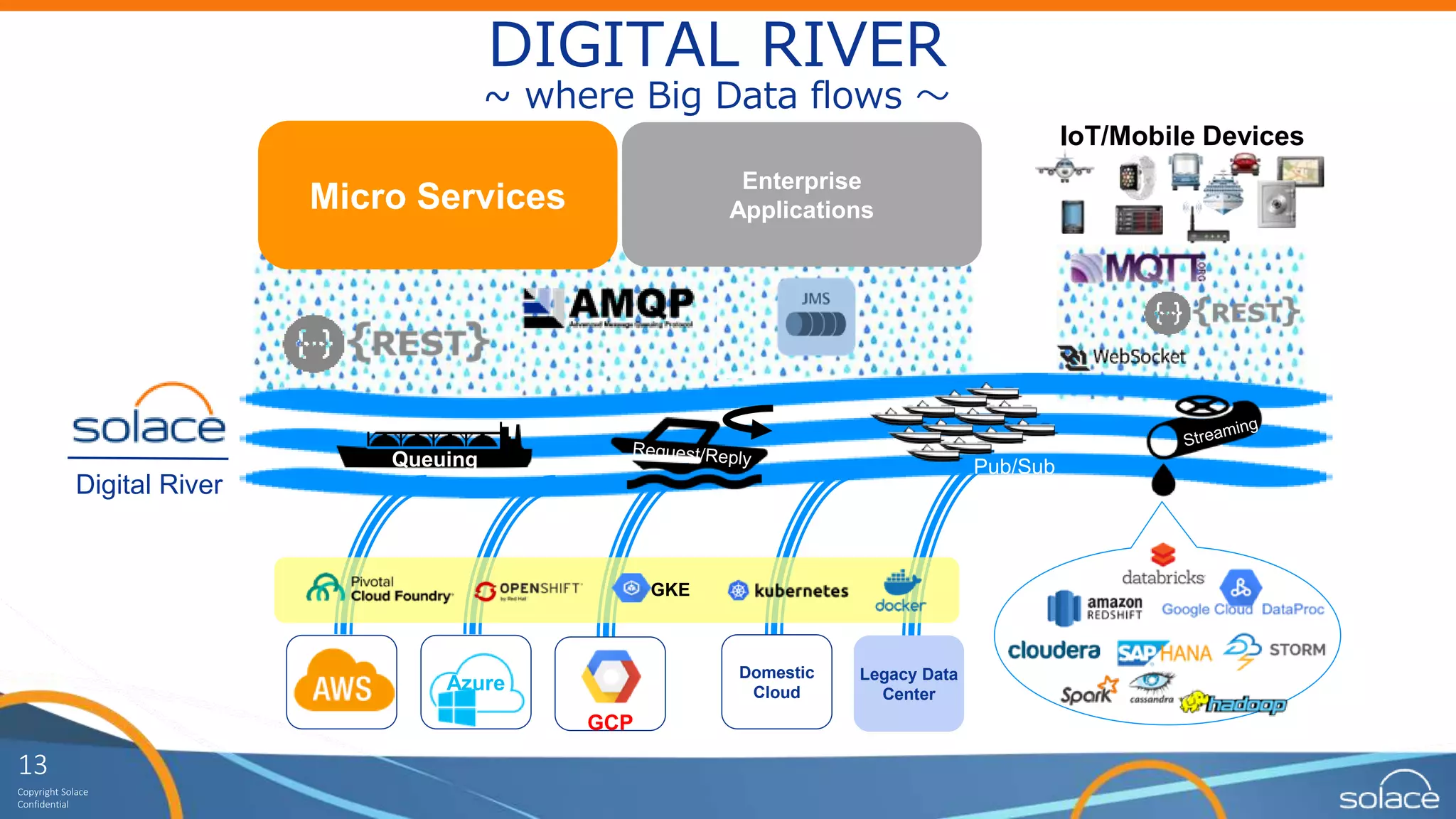

- 13. 13 Copyright Solace Confidential DIGITAL RIVER ~where Big Data flows 〜 Digital River Micro Services IoT/Mobile Devices Enterprise Applications Queuing Pub/Sub Domestic CloudAzure GCP Legacy Data Center GKE

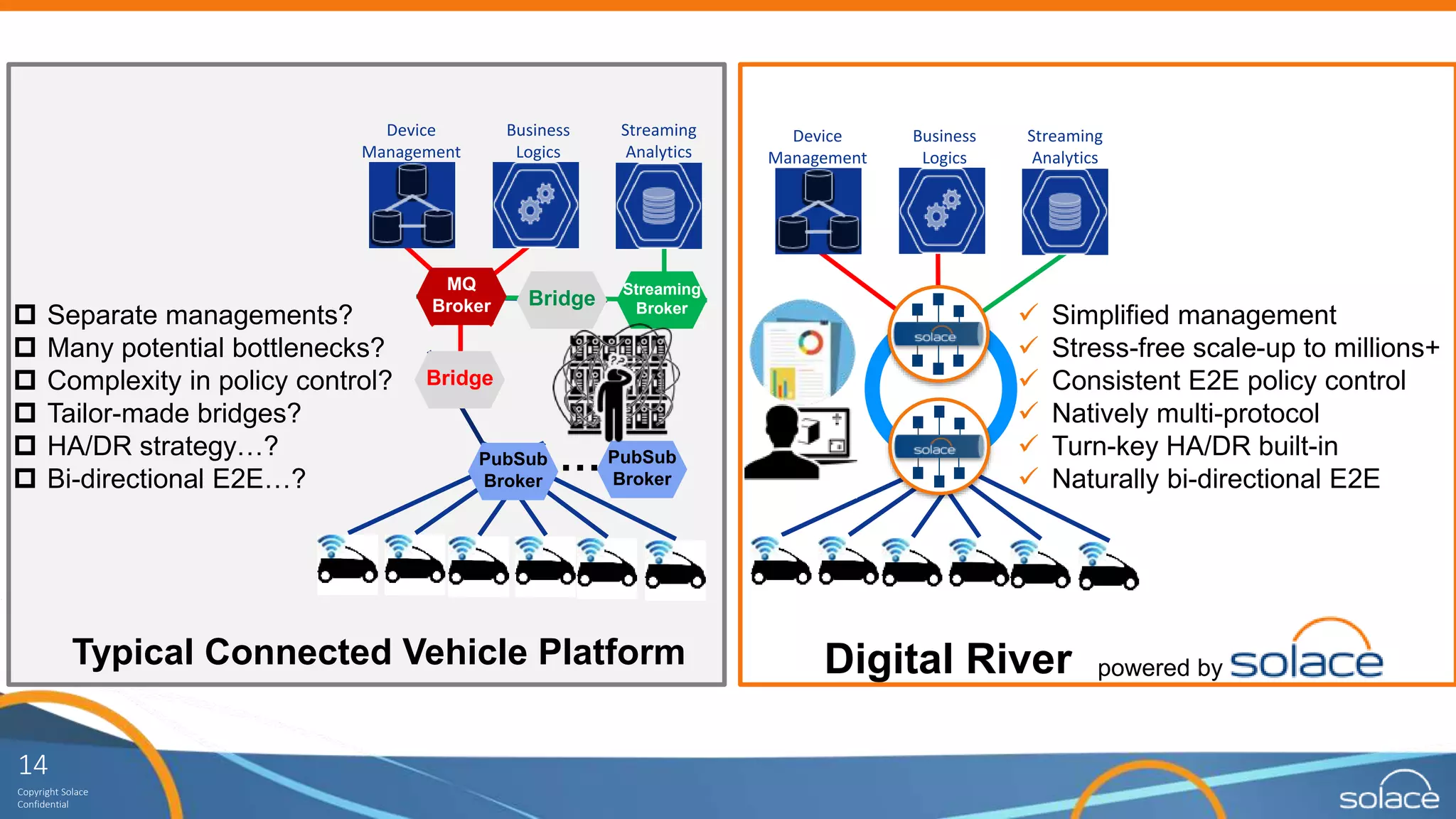

- 14. 14 Copyright Solace Confidential Digital River Simplified management Stress-free scale-up to millions+ Consistent E2E policy control Natively multi-protocol Turn-key HA/DR built-in Naturally bi-directional E2E Typical Connected Vehicle Platform PubSub Broker MQ Broker Streaming Broker Bridge Bridge PubSub Broker … Separate managements? Many potential bottlenecks? Complexity in policy control? Tailor-made bridges? HA/DR strategy…? Bi-directional E2E…? Business Logics Streaming Analytics Device Management Business Logics Streaming Analytics Device Management powered by

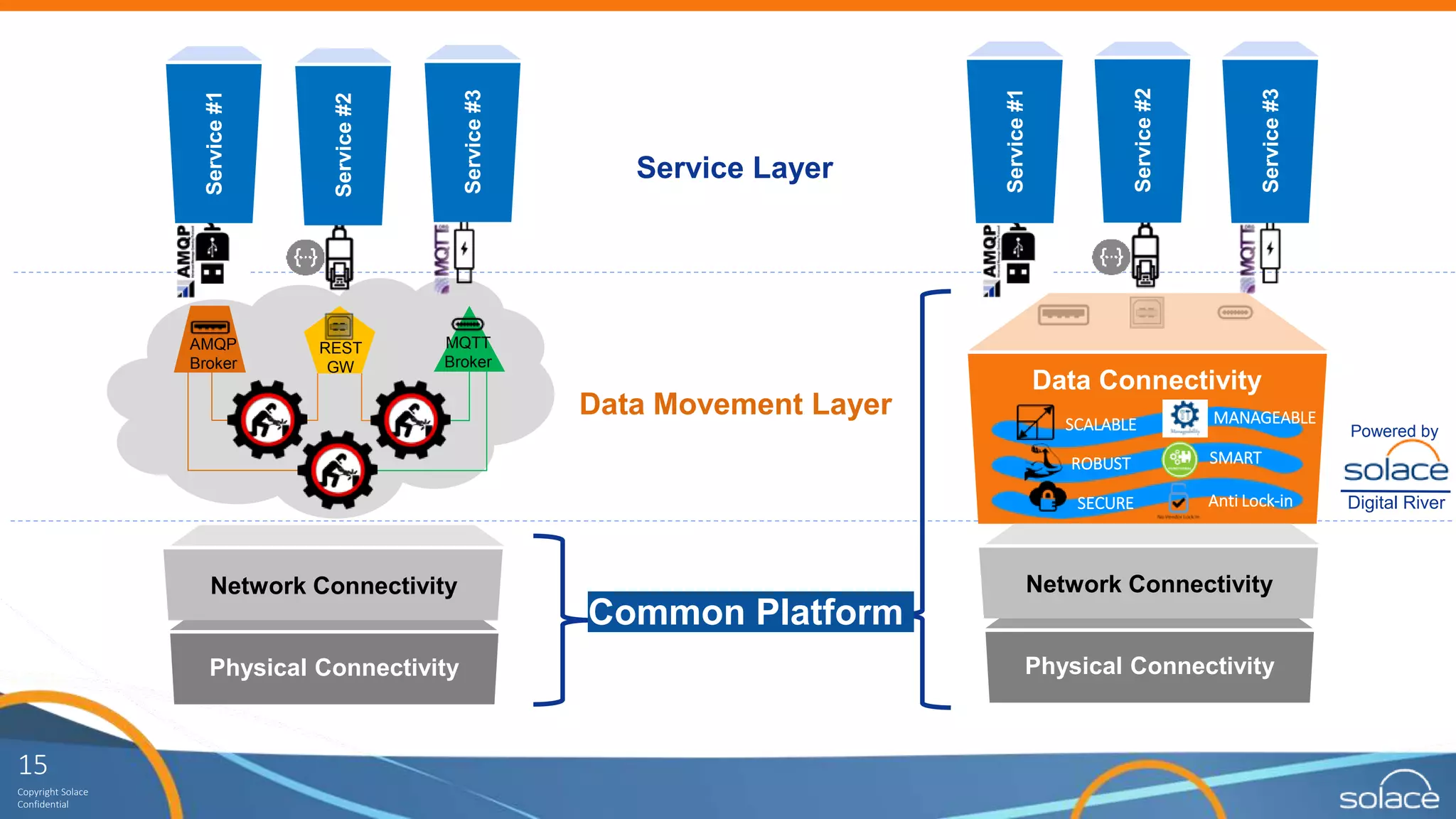

- 15. 15 Copyright Solace Confidential Service#2 Service#3 Service#1 Common Platform ServiceLayer Data Movement Layer Physical Connectivity Network Connectivity Data Connectivity SCALABLE ROBUST SECURE SMART MANAGEABLE Anti Lock-in Physical Connectivity Network Connectivity Service#1 Service#2 Service#3 AMQP Broker REST GW MQTT Broker Digital River Powered by

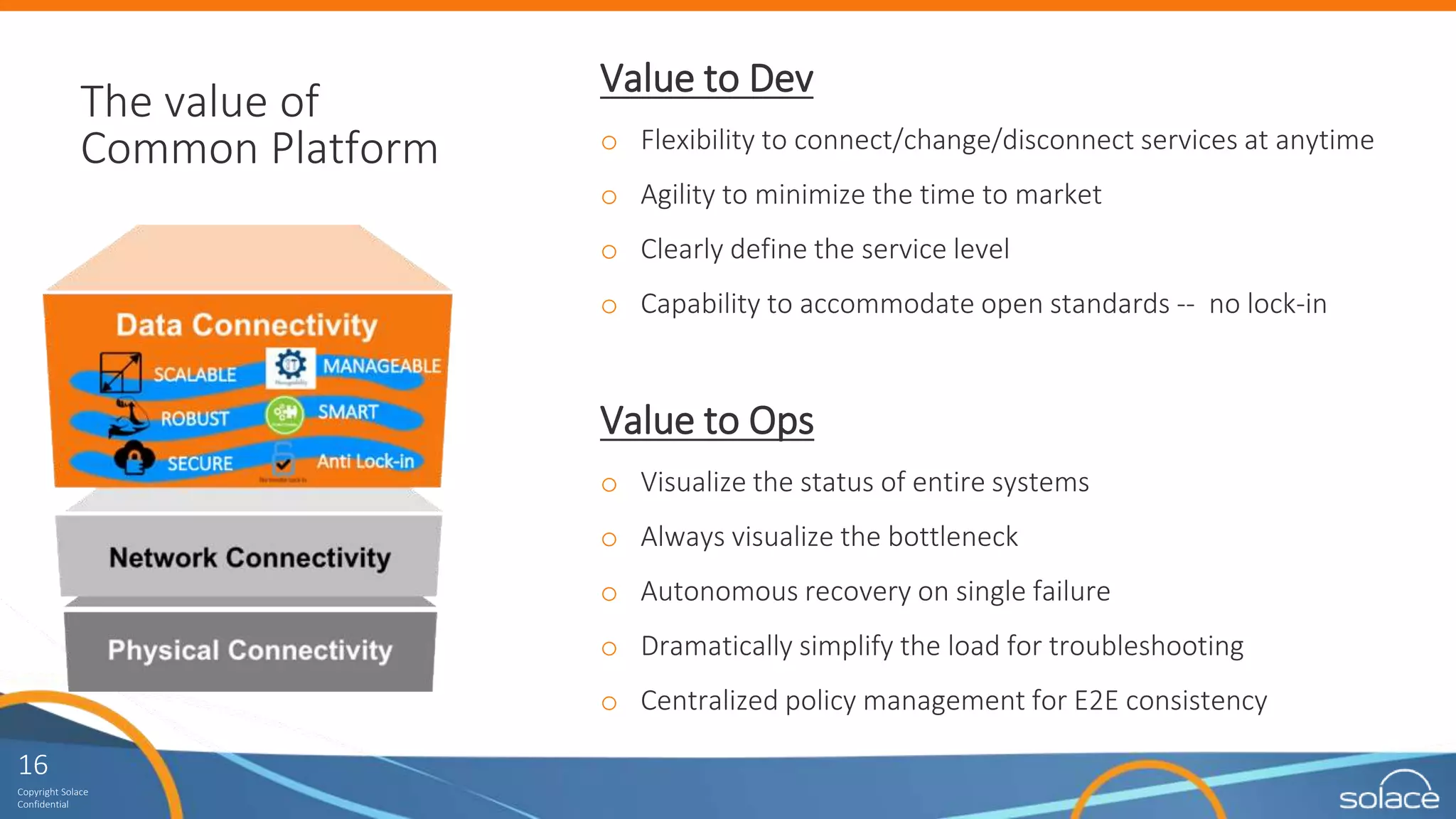

- 16. 16 Copyright Solace Confidential Value toDev o Flexibility to connect/change/disconnect services at anytime o Agility to minimize the time to market o Clearly define the service level o Capability to accommodate open standards -- no lock-in Value to Ops o Visualize the status of entire systems o Always visualize the bottleneck o Autonomous recovery on single failure o Dramatically simplify the load for troubleshooting o Centralized policy management for E2E consistency The value of Common Platform
- 17.
- 18. 18 Copyright Solace Confidential Who is? 18 Copyright Solace Confidential The world’s largest firm that specialized in innovating messaging technologies ‐ Over 300+ employees worldwide ‐ 50% in R&D ‐ 21 patents Founded in 2001 Stable capital Awards winning products 20+ offices for Global coverage HQ in Ottawa/ Canada
- 19. 19 Copyright Solace Confidential Solace Customers Telecom FinancialServices / FinTech Gaming/GamblingGovernment Transportation

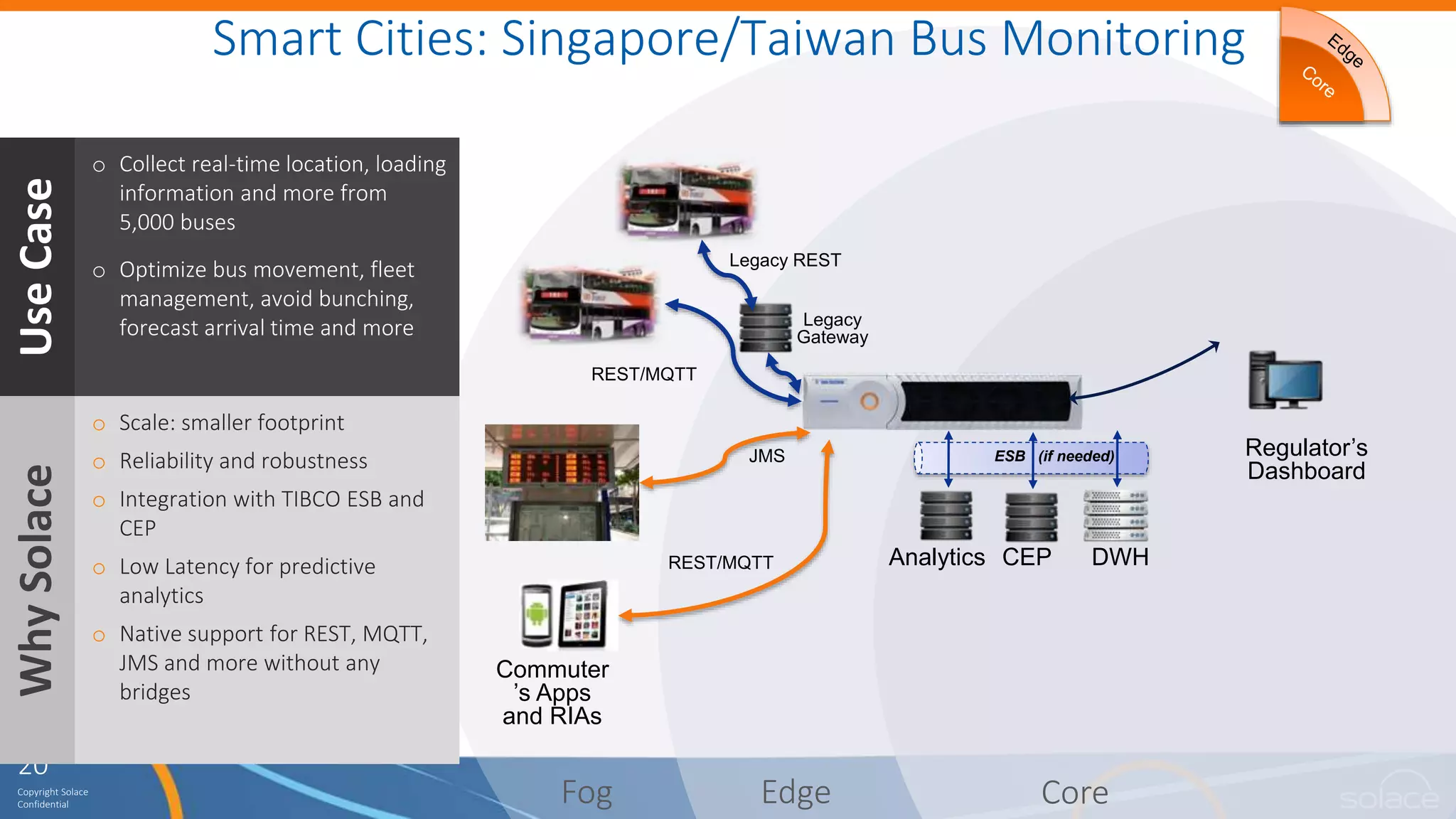

- 20. 20 Copyright Solace Confidential Smart Cities:Singapore/Taiwan Bus Monitoring REST/MQTT Regulator’s Dashboard Commuter ’s Apps and RIAs Analytics DWH ESB (if needed) CEP JMS Legacy REST Edge CoreFog Legacy Gateway REST/MQTT UseCase o Collect real-time location, loading information and more from 5,000 buses o Optimize bus movement, fleet management, avoid bunching, forecast arrival time and more WhySolace o Scale: smaller footprint o Reliability and robustness o Integration with TIBCO ESB and CEP o Low Latency for predictive analytics o Native support for REST, MQTT, JMS and more without any bridges

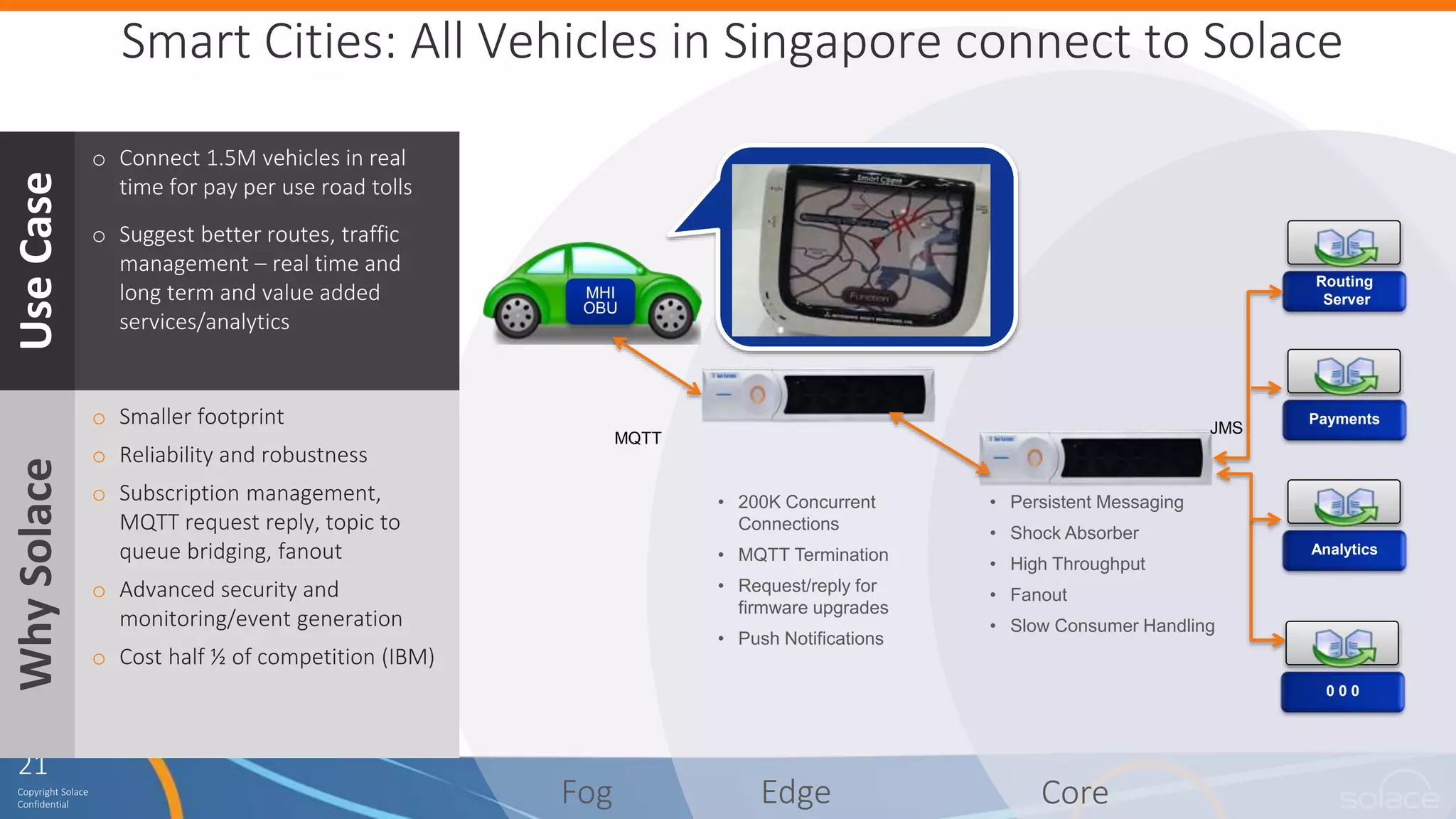

- 21. 21 Copyright Solace Confidential Smart Cities:All Vehicles in Singapore connect to Solace Routing Server Payments Analytics 0 0 0 • 200K Concurrent Connections • MQTT Termination • Request/reply for firmware upgrades • Push Notifications • Persistent Messaging • Shock Absorber • High Throughput • Fanout • Slow Consumer Handling MQTT JMS Edge CoreFog UseCase o Connect 1.5M vehicles in real time for pay per use road tolls o Suggest better routes, traffic management – real time and long term and value added services/analytics WhySolace o Smaller footprint o Reliability and robustness o Subscription management, MQTT request reply, topic to queue bridging, fanout o Advanced security and monitoring/event generation o Cost half ½ of competition (IBM) MHI OBU

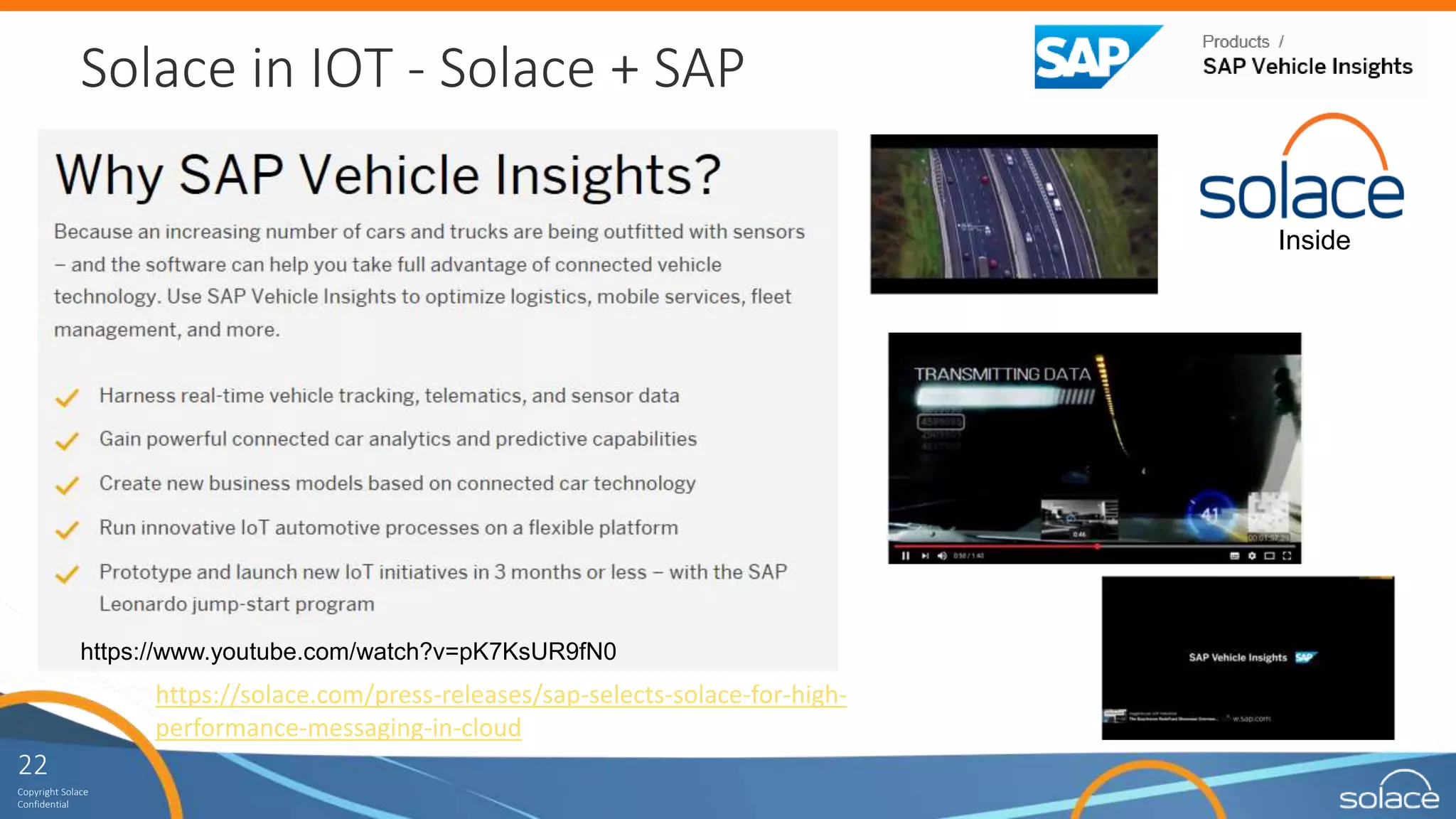

- 22. 22 Copyright Solace Confidential Solace inIOT - Solace + SAP https://solace.com/press-releases/sap-selects-solace-for-high- performance-messaging-in-cloud https://www.youtube.com/watch?v=pK7KsUR9fN0 Inside

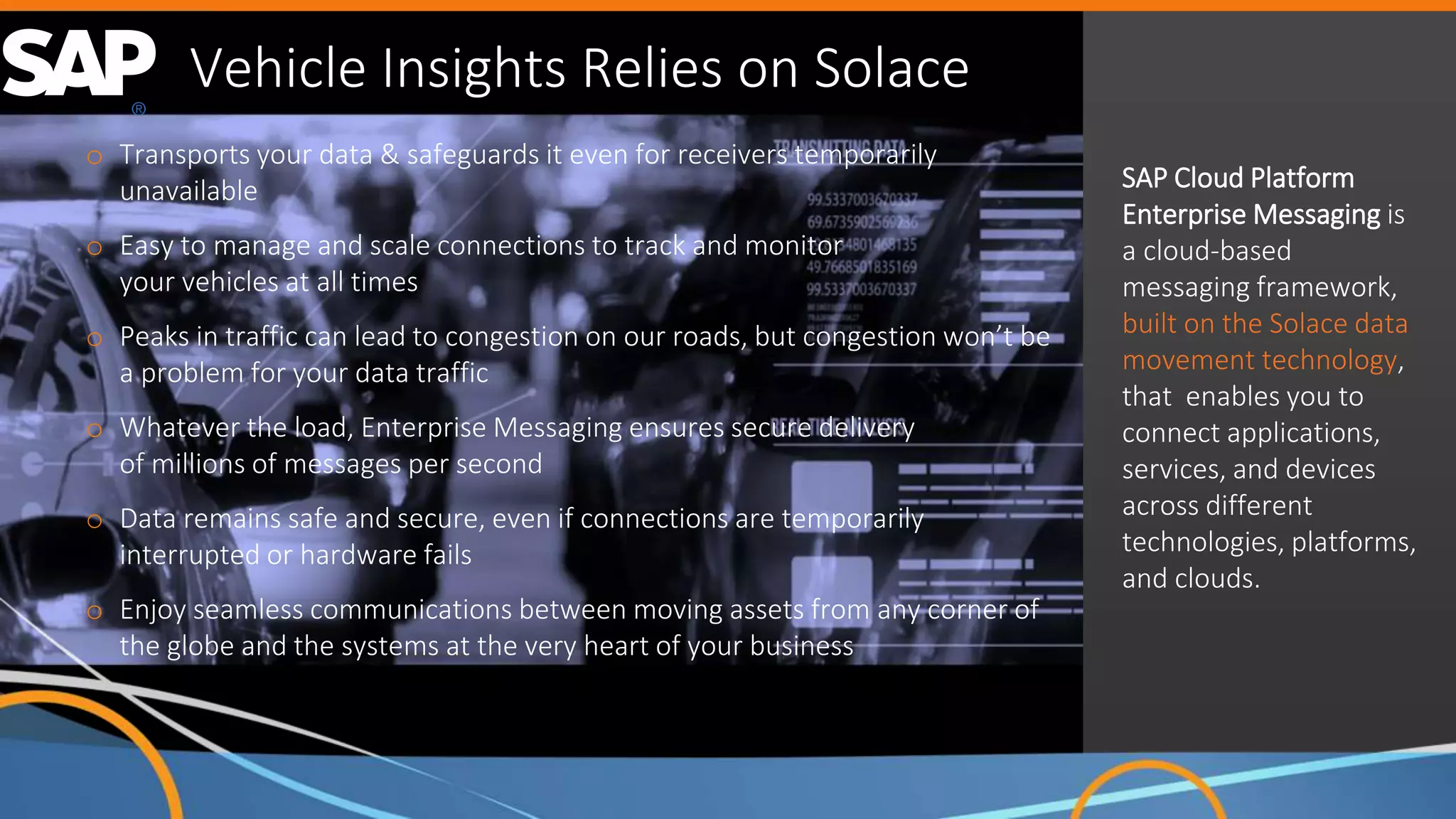

- 23. 23 Copyright Solace Confidential 23 Copyright Solace Confidential VehicleInsights Relies on Solace o Transports your data & safeguards it even for receivers temporarily unavailable o Easy to manage and scale connections to track and monitor your vehicles at all times o Peaks in traffic can lead to congestion on our roads, but congestion won’t be a problem for your data traffic o Whatever the load, Enterprise Messaging ensures secure delivery of millions of messages per second o Data remains safe and secure, even if connections are temporarily interrupted or hardware fails o Enjoy seamless communications between moving assets from any corner of the globe and the systems at the very heart of your business SAP Cloud Platform Enterprise Messaging is a cloud-based messaging framework, built on the Solace data movement technology, that enables you to connect applications, services, and devices across different technologies, platforms, and clouds.
- 24.

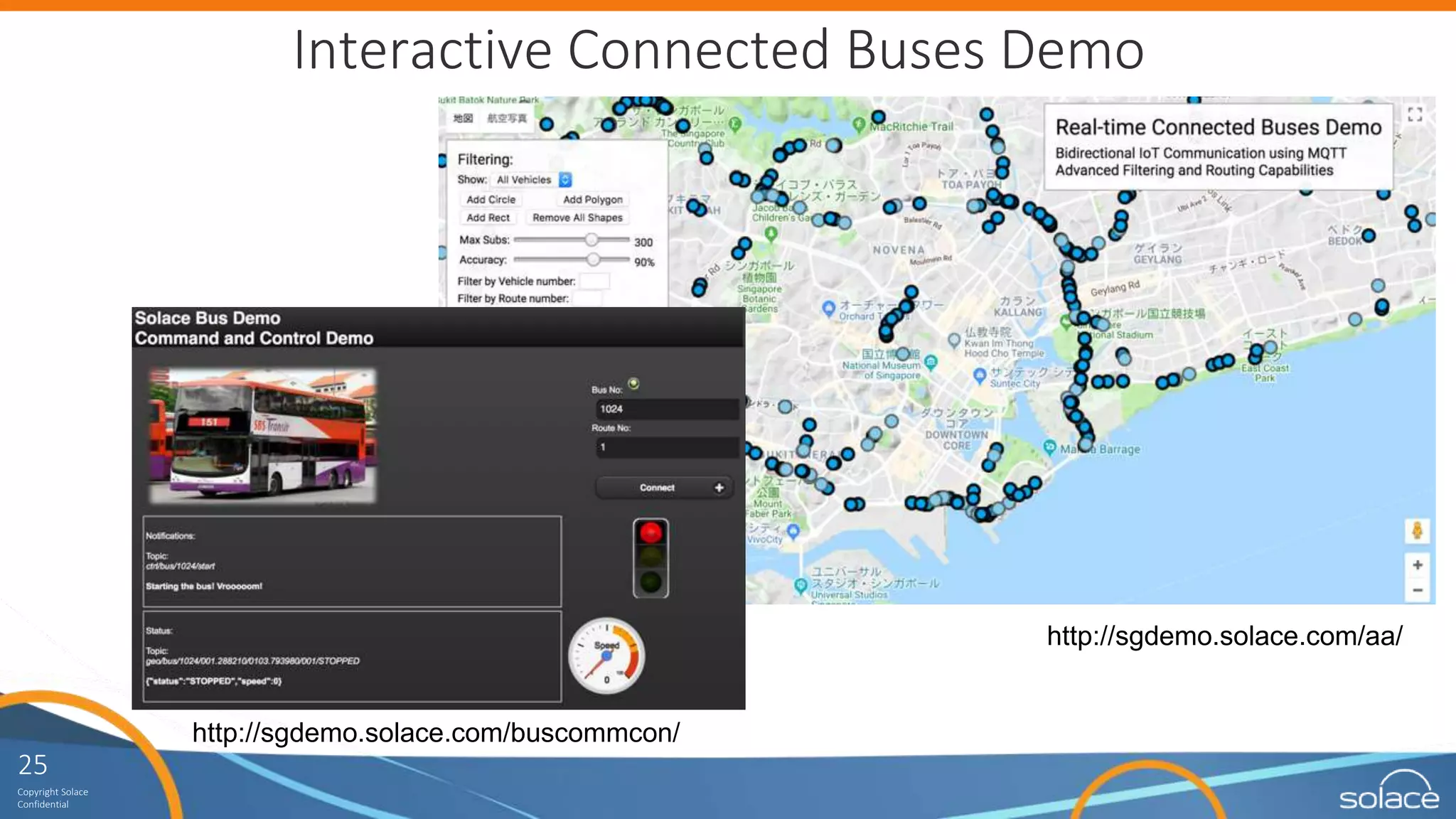

- 25. 25 Copyright Solace Confidential Interactive ConnectedBuses Demo http://sgdemo.solace.com/aa/ http://sgdemo.solace.com/buscommcon/

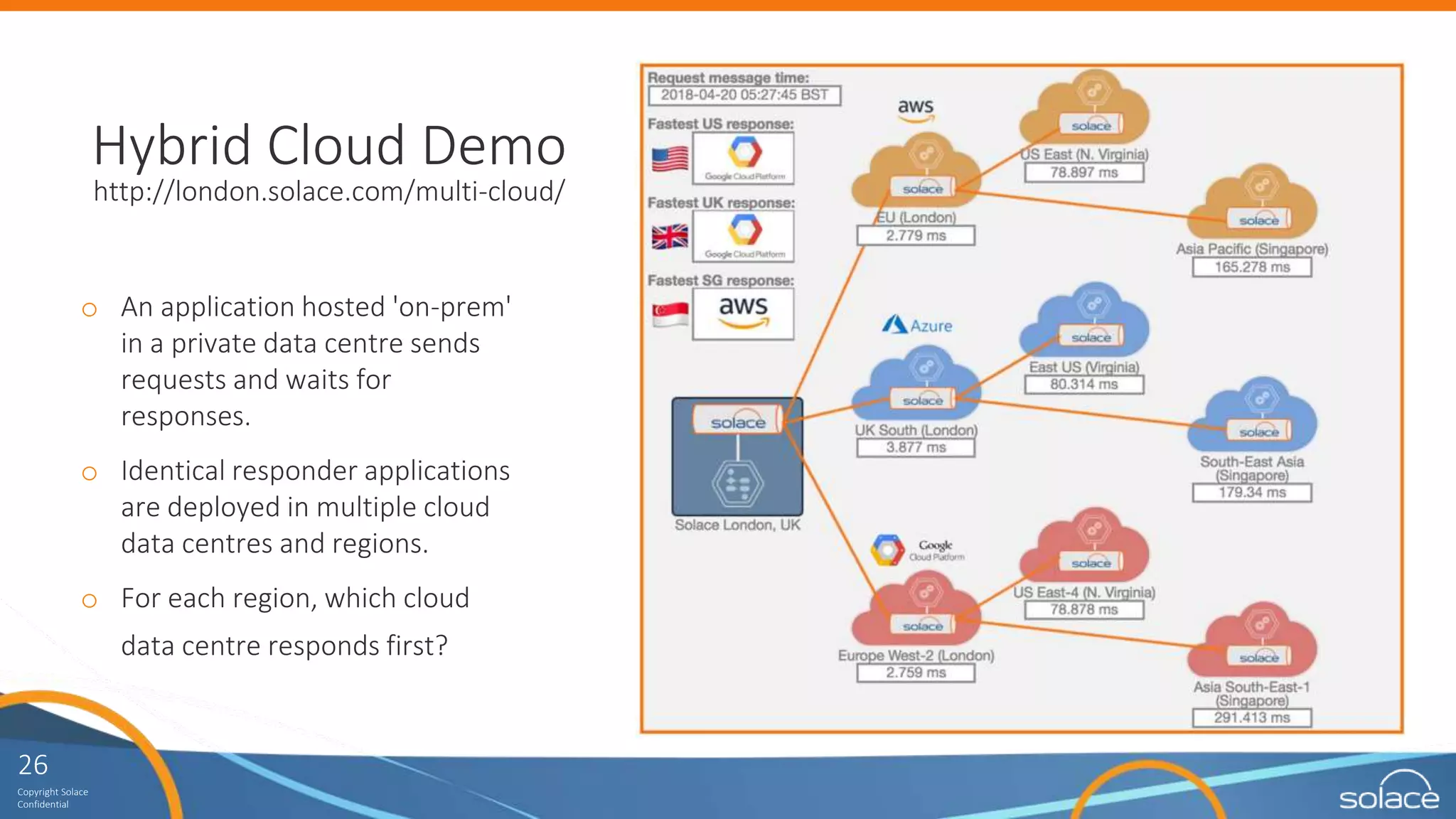

- 26. 26 Copyright Solace Confidential o Anapplication hosted 'on-prem' in a private data centre sends requests and waits for responses. o Identical responder applications are deployed in multiple cloud data centres and regions. o For each region, which cloud data centre responds first? Hybrid Cloud Demo http://london.solace.com/multi-cloud/
- 27.

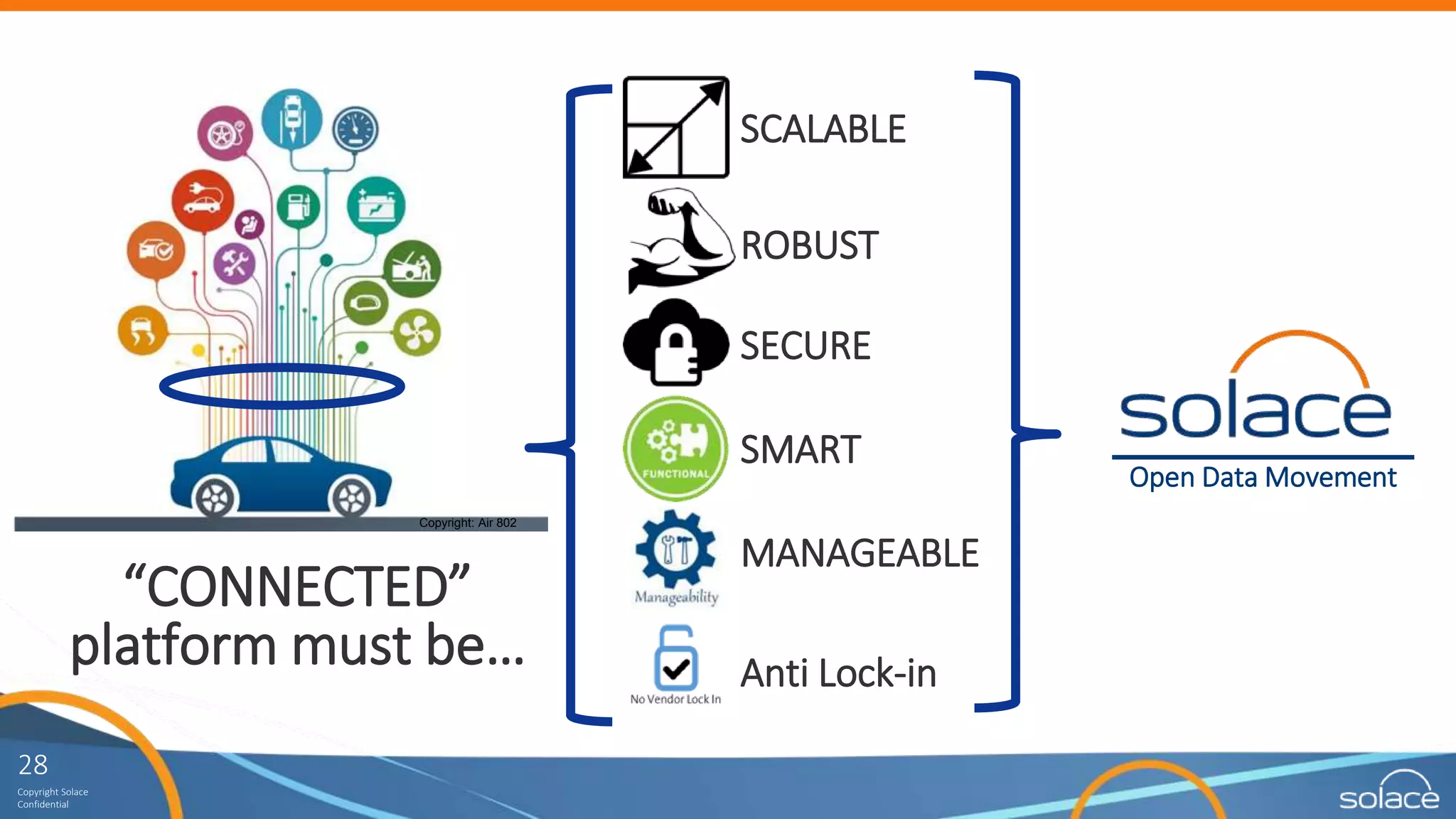

- 28. 28 Copyright Solace Confidential Copyright: Air802 “CONNECTED” platform must be… SCALABLE ROBUST SECURE SMART MANAGEABLE Anti Lock-in Open Data Movement
