1. SLINKY: Static Linking
Reloaded
Christian Collberg, John Hartman et. al.
CSC 630, Fall 2013, University of Arizona
Sumin Byeon

2. Linking
• Combining a program and its libraries into
a single executable
• Resolving symbolic names of variables and
functions into their resulting addresses

3. Static Linking
• Incorporating libraries at compile-time[^1]
• Pros
• Easy to understand, implement, and use
• Self-contained apps
• Cons
• Duplications - spatial inefficiency
[^1]: More precisely, at link-time

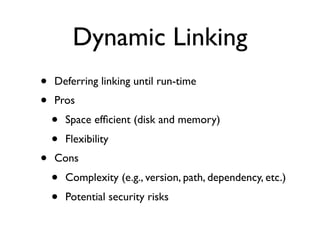

4. Dynamic Linking
• Deferring linking until run-time
• Pros
• Space efficient (disk and memory)
• Flexibility
• Cons
• Complexity (e.g., version, path, dependency, etc.)
• Potential security risks

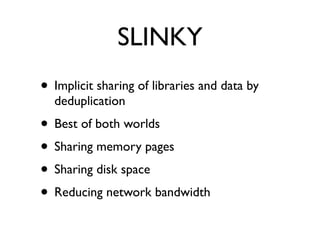

5. SLINKY
• Implicit sharing of libraries and data by
deduplication
• Best of both worlds
• Sharing memory pages
• Sharing disk space
• Reducing network bandwidth

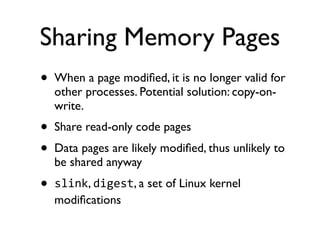

6. Sharing Memory Pages
• When a page modified, it is no longer valid for
other processes. Potential solution: copy-on-
write.
• Share read-only code pages
• Data pages are likely modified, thus unlikely to
be shared anyway
• slink, digest, a set of Linux kernel
modifications

7. Slink
• Position independent code required
• Converts a dynamically linked executable
into a statically linked executable
• Finds all necessary libraries, organizes them
in the process’s address space, and resolves
symbols

8. Digest
• Inserts the digests for each code page
• Linux page: 4 KB, digest: 20 bytes - less than
0.5% overhead

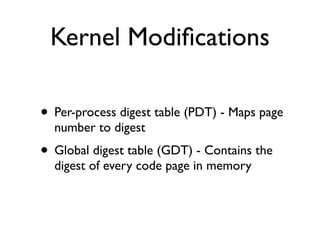

9. Kernel Modifications
• Per-process digest table (PDT) - Maps page
number to digest
• Global digest table (GDT) - Contains the
digest of every code page in memory

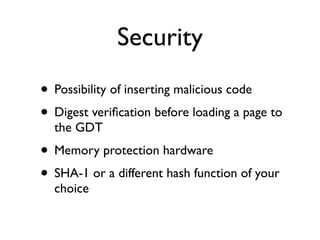

10. Security
• Possibility of inserting malicious code
• Digest verification before loading a page to
the GDT
• Memory protection hardware
• SHA-1 or a different hash function of your
choice

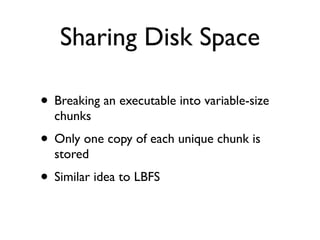

11. Sharing Disk Space
• Breaking an executable into variable-size
chunks
• Only one copy of each unique chunk is
stored
• Similar idea to LBFS

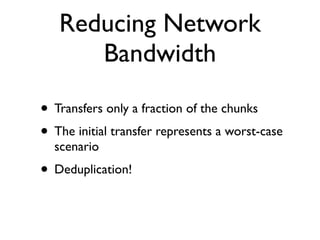

12. Reducing Network
Bandwidth
• Transfers only a fraction of the chunks
• The initial transfer represents a worst-case
scenario
• Deduplication!

13. Performance
• Measured:
• Elapsed time to build the Linux kernel
• Page fault handling in both an unmodified Linux kernel
and a modified kernel
• Number of page faults - SLINKY’s effect on the page fault
rate and the memory footprints
• Suffers fewer page faults than their dynamically linked
counterparts
• Page fault rate decreased after several other executables
have added pages to the GDT

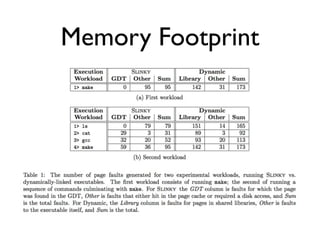

14. Memory Footprint

15. Storage Space

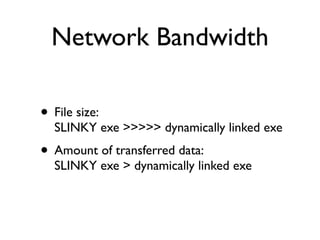

16. Network Bandwidth
• File size:
SLINKY exe >>>>> dynamically linked exe
• Amount of transferred data:
SLINKY exe > dynamically linked exe

17. Conclusion
• SLINKY overcomes disadvantages of static
linking by implicitly sharing data chunks
based on their digests
• Trivial performance degradation,
comparable memory footprint to dynamic
linking, and low overhead on storage
