* Based on kernel 5.11 (x86_64) – QEMU * 2-socket CPUs (4 cores/socket) * 16GB memory * Kernel parameter: nokaslr norandmaps * KASAN: disabled * Userspace: ASLR is disabled * Legacy BIOS Slab Allocator in Linux Kernel Adrian Huang | Aug, 2022

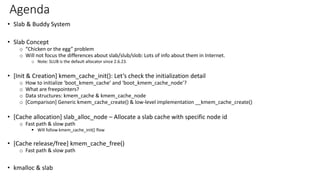

Agenda • Slab & Buddy System • Slab Concept o “Chicken or the egg” problem o Will not focus the differences about slab/slub/slob: Lots of info about them in Internet. o Note: SLUB is the default allocator since 2.6.23. • [Init & Creation] kmem_cache_init(): Let’s check the initialization detail o How to initialize ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’? o What are freepointers? o Data structures: kmem_cache & kmem_cache_node o [Comparison] Generic kmem_cache_create() & low-level implementation __kmem_cache_create() • [Cache allocation] slab_alloc_node – Allocate a slab cache with specific node id o Fast path & slow path  Will follow kmem_cache_init() flow • [Cache release/free] kmem_cache_free() o Fast path & slow path • kmalloc & slab

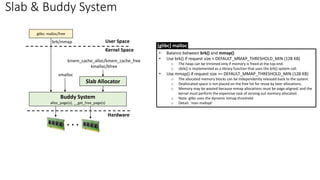

Slab & Buddy System Buddy System alloc_page(s), __get_free_page(s) Slab Allocator kmem_cache_alloc/kmem_cache_free kmalloc/kfree glibc: malloc/free brk/mmap . . . vmalloc User Space Kernel Space Hardware • Balance between brk() and mmap() • Use brk() if request size < DEFAULT_MMAP_THRESHOLD_MIN (128 KB) o The heap can be trimmed only if memory is freed at the top end. o sbrk() is implemented as a library function that uses the brk() system call. • Use mmap() if request size >= DEFAULT_MMAP_THRESHOLD_MIN (128 KB) o The allocated memory blocks can be independently released back to the system. o Deallocated space is not placed on the free list for reuse by later allocations. o Memory may be wasted because mmap allocations must be page-aligned; and the kernel must perform the expensive task of zeroing out memory allocated. o Note: glibc uses the dynamic mmap threshold o Detail: `man mallopt` [glibc] malloc
Slab Concept Slab Allocator Slab Cache (page order = 0) Slab Cache (page order = 1) Page #0 slab object slab object slab object slab object … Page #N slab object slab object slab object slab object slab object slab object slab object slab object 4 objects per page Page #1 slab object … Page #N 2 objects per page slab object slab object slab object slab object slab object . . . Memory (object) allocation * object = data structure slab_caches global list_head slab … slab slab … Page #0 slab object slab object 1. Allocating/freeing data structures is the common operations in Linux kernel 2. Slab is a generic data structure-caching layer

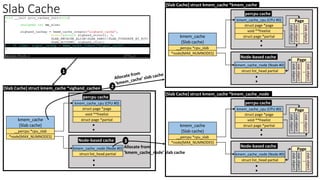

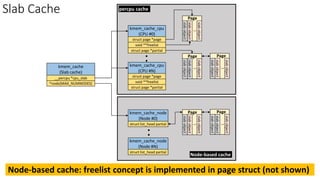

Slab Cache Node-based cache: freelist concept is implemented in page struct (not shown) slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache_node (Node #0) struct list_head partial kmem_cache_node (Node #N) struct list_head partial . . slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache
Slab Cache slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *sighand_cachep . . . . 1 2 3 Allocate from ‘kmem_cache_node’ slab cache

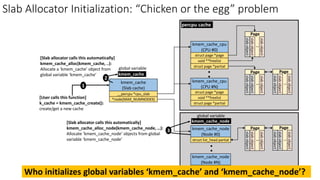

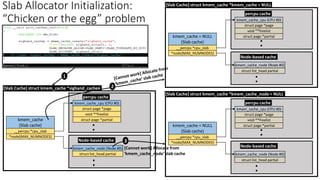

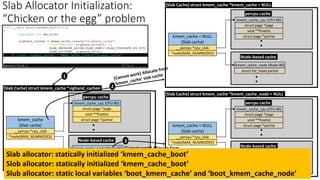

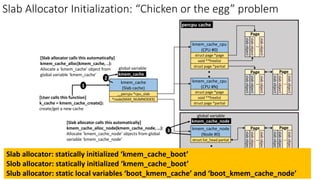

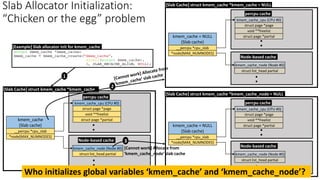

Slab Allocator Initialization: “Chicken or the egg” problem . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache = NULL . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node = NULL kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache . . . . 1 2 3 [Cannot work] Allocate from ‘kmem_cache_node’ slab cache [Slab Allocator Init] Just an example: Not in Linux kernel code
Slab Allocator Initialization: “Chicken or the egg” problem . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache = NULL . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node = NULL kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache . . . . 1 2 3 [Cannot work] Allocate from ‘kmem_cache_node’ slab cache [Example] Slab allocator init for kmem_cache Who initializes global variables ‘kmem_cache’ and ‘kmem_cache_node’?
Slab Allocator Initialization: “Chicken or the egg” problem . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache = NULL . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node = NULL kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *sighand_cachep . . . . 1 2 3 [Cannot work] Allocate from ‘kmem_cache_node’ slab cache Slab allocator: statically initialized ‘kmem_cache_boot’ Slob allocator: statically initialized ‘kmem_cache_boot’ Slub allocator: static local variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’

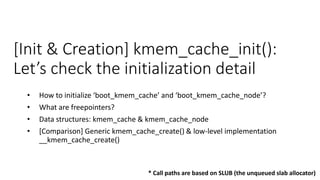

[Init & Creation] kmem_cache_init(): Let’s check the initialization detail • How to initialize ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’? • What are freepointers? • Data structures: kmem_cache & kmem_cache_node • [Comparison] Generic kmem_cache_create() & low-level implementation __kmem_cache_create() * Call paths are based on SLUB (the unqueued slab allocator)

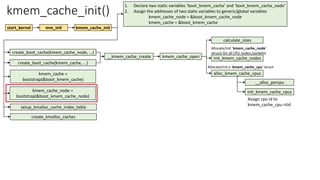

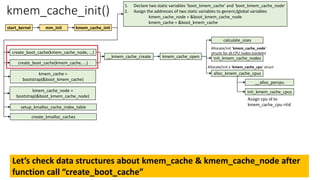

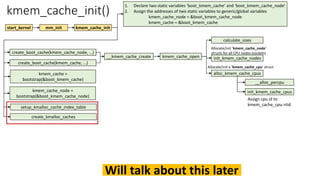

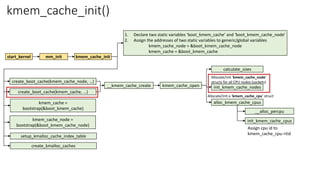

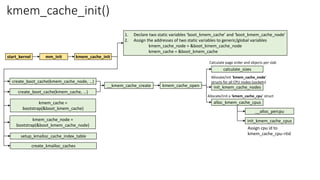

kmem_cache_init() start_kernel 1. Declare two static variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Calculate page order and objects per slab

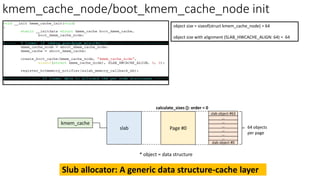

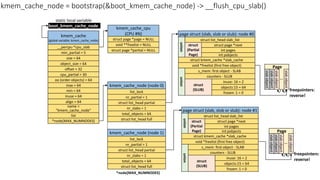

kmem_cache_node/boot_kmem_cache_node init kmem_cache slab Page #0 slab object #0 … … … … … … slab object #63 64 objects per page Slub allocator: A generic data structure-cache layer * object = data structure object size = sizeof(struct kmem_cache_node) = 64 object size with alignment (SLAB_HWCACHE_ALIGN: 64) = 64 calculate_sizes (): order = 0

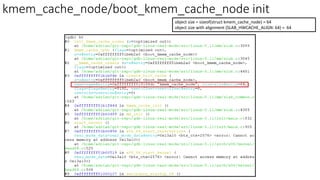

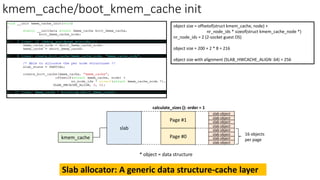

kmem_cache_node/boot_kmem_cache_node init object size = sizeof(struct kmem_cache_node) = 64 object size with alignment (SLAB_HWCACHE_ALIGN: 64) = 64
kmem_cache slab Page #0 slab object slab object slab object slab object Page #1 slab object slab object slab object slab object 16 objects per page Slab allocator: A generic data structure-cache layer * object = data structure object size = offsetof(struct kmem_cache, node) + nr_node_ids * sizeof(struct kmem_cache_node *) nr_node_ids = 2 (2-socket guest OS) object size = 200 + 2 * 8 = 216 object size with alignment (SLAB_HWCACHE_ALIGN: 64) = 256 calculate_sizes (): order = 1 kmem_cache/boot_kmem_cache init

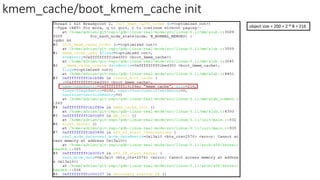

object size = 200 + 2 * 8 = 216 kmem_cache/boot_kmem_cache init
init_kmem_cache_nodes() n = kmem_cache_alloc_node() early_kmem_cache_node_alloc init_kmem_cache_nodes for_each_node_state() slab_state == DOWN init_kmem_cache_node kmem_cache->node[node] = n Y N __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Calculate page order and objects per slab create_boot_cache(kmem_cache_node, …) Special (one-shot) path: Fix ‘chicken or the egg’ problem Generic path

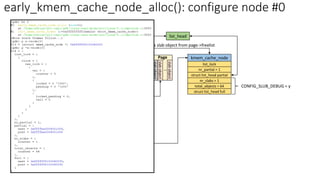

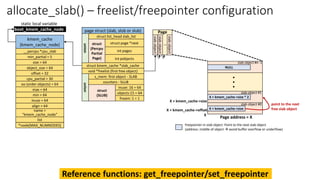

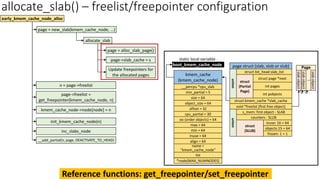

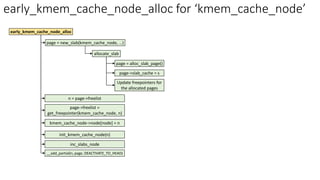

early_kmem_cache_node_alloc for ‘kmem_cache_node’ allocate_slab page = new_slab(kmem_cache_node, …) early_kmem_cache_node_alloc page = alloc_slab_page() page->slab_cache = s Update freepointers for the allocated pages n = page->freelist kmem_cache_node->node[node] = n page->freelist = get_freepointer(kmem_cache_node, n) init_kmem_cache_node(n) __add_partial(n, page, DEACTIVATE_TO_HEAD) inc_slabs_node

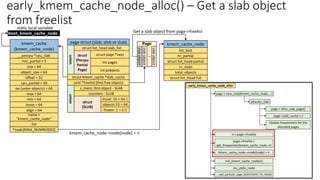

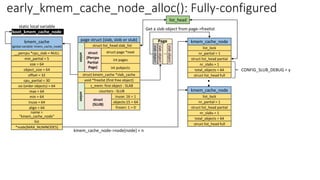

page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 allocate_slab() – freelist/freepointer configuration offset = 32 slab object slab object .. slab object Page boot_kmem_cache_node static local variable Reference functions: get_freepointer/set_freepointer allocate_slab page = new_slab(kmem_cache_node, …) early_kmem_cache_node_alloc page = alloc_slab_page() page->slab_cache = s Update freepointers for the allocated pages n = page->freelist kmem_cache_node->node[node] = n page->freelist = get_freepointer(kmem_cache_node, n) init_kmem_cache_node(n) __add_partial(n, page, DEACTIVATE_TO_HEAD) inc_slabs_node
page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 allocate_slab() – freelist/freepointer configuration offset = 32 slab object slab object .. slab object Page Page address = X X X + kmem_cache->size X + kmem_cache->size slab object #0 X + kmem_cache->size * 2 slab object #1 freepointer in slab object: Point to the next slab object (address: middle of object  avoid buffer overflow or underflow) NULL slab object #n -1 point to the next free slab object . . . X + kmem_cache->offset boot_kmem_cache_node static local variable Reference functions: get_freepointer/set_freepointer
page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 1 objects:15 = 64 frozen: 1 = 1 0 union struct (SLUB) union kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc() – Get a slab object from freelist slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial struct list_head partial nr_slabs total_objects list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n static local variable boot_kmem_cache_node struct (Percpu Partial Page)
page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc() – Get a slab object from freelist slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n static local variable boot_kmem_cache_node struct (Percpu Partial Page)
page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc() – Get a slab object from freelist slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 0 struct list_head partial nr_slabs = 0 1 total_objects = 0 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n static local variable boot_kmem_cache_node struct (Percpu Partial Page)
page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc() – Get a slab object from freelist slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 0 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n static local variable boot_kmem_cache_node list_head
page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc(): configure node #0 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head CONFIG_SLUB_DEBUG = y static local variable boot_kmem_cache_node Allocate slab page(s) for kmem_cache_node struct allocation: Fix “the chicken or egg problem”
page (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head CONFIG_SLUB_DEBUG = y early_kmem_cache_node_alloc(): configure node #0
page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab = NULL min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head CONFIG_SLUB_DEBUG = y static local variable boot_kmem_cache_node early_kmem_cache_node_alloc(): configure node #0
page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab = NULL min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head CONFIG_SLUB_DEBUG = y kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full . . static local variable boot_kmem_cache_node early_kmem_cache_node_alloc(): Fully-configured
page struct (slab, slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab = NULL min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full . . static local variable boot_kmem_cache_node early_kmem_cache_node_alloc(): Fully-configured

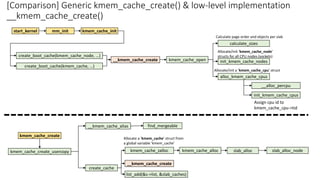

[Comparison] Generic kmem_cache_create() & low-level implementation __kmem_cache_create() start_kernel __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Calculate page order and objects per slab kmem_cache_create kmem_cache_create_usercopy __kmem_cache_alias create_cache find_mergeable kmem_cache_zalloc slab_alloc_node slab_alloc kmem_cache_alloc __kmem_cache_create list_add(&s->list, &slab_caches) Allocate a ‘kmem_cache’ struct from a global variable ‘kmem_cache’

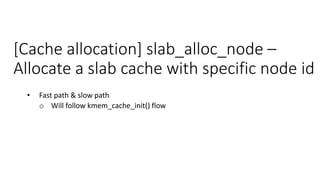

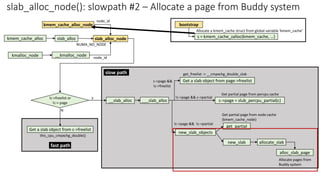

[Cache allocation] slab_alloc_node – Allocate a slab cache with specific node id • Fast path & slow path o Will follow kmem_cache_init() flow
kmem_cache_init() start_kernel 1. Declare two static variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct

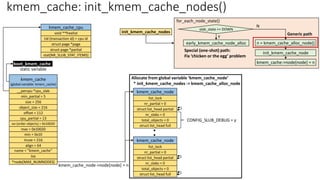

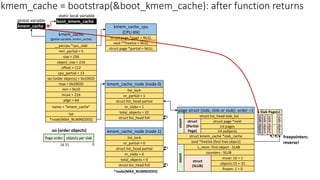

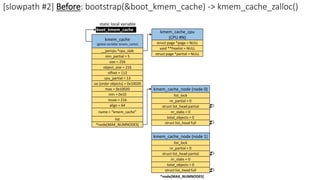

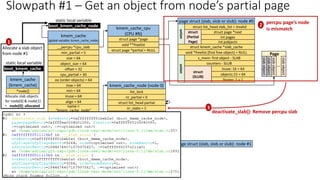

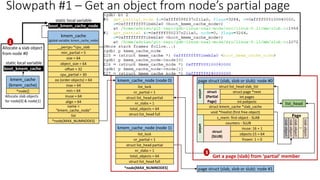

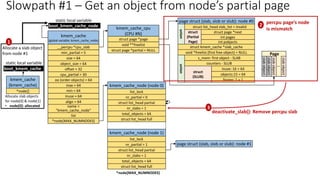

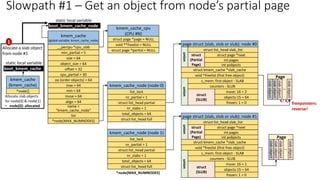

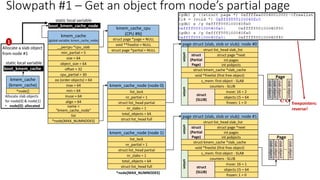

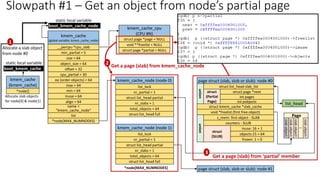

kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 kmem_cache: init_kmem_cache_nodes() offset = 112 kmem_cache_node nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node->node[node] = n CONFIG_SLUB_DEBUG = y kmem_cache_node nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full . . kmem_cache_cpu void **freelist tid (transaction id) = cpu id struct page *page struct page *partial stat[NR_SLUB_STAT_ITEMS] boot_kmem_cache static variable Allocate from global variable ‘kmem_cache_node’ * init_kmem_cache_nodes -> kmem_cache_alloc_node n = kmem_cache_alloc_node() early_kmem_cache_node_alloc init_kmem_cache_nodes for_each_node_state() slab_state == DOWN init_kmem_cache_node kmem_cache->node[node] = n Y N Special (one-shot) path: Fix ‘chicken or the egg’ problem Generic path

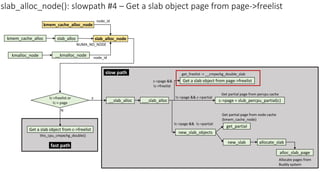

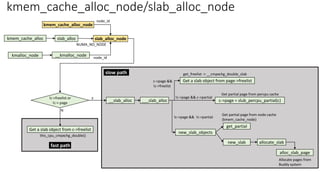

Get a slab object from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page kmem_cache_alloc_node/slab_alloc_node __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) Get a slab object from page->freelist c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double()

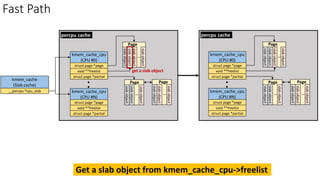

Fast Path Get a slab object from kmem_cache_cpu->freelist . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab percpu cache . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page percpu cache slab object slab object .. Page slab object slab object slab object slab object .. Page slab object slab object get a slab object
Get a slab object from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #1 – Get an object from node’s partial page __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() Get a slab object from page->freelist

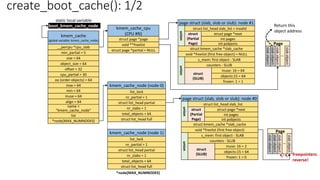

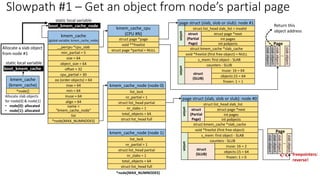

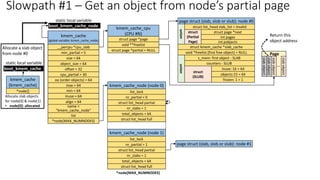

kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL Get a page (slab) from kmem_cache_node kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] 2 3 Get a page (slab) from ‘partial’ member 4 Move node’s partial page (slab) to percpu cache page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) list_head struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL Get a page (slab) from kmem_cache_node kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] 2 3 Get a page (slab) from ‘partial’ member 4 Move node’s partial page (slab) to percpu cache page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) list_head struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL Get a page (slab) from kmem_cache_node kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] 2 3 Get a page (slab) from ‘partial’ member 4 Move node’s partial page (slab) to percpu cache page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) list_head struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL Get a page (slab) from kmem_cache_node kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] 2 3 Get a page (slab) from ‘partial’ member 4 Move node’s partial page (slab) to percpu cache page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) list_head struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Return this object address page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object Allocate slab objects for node[0] & node[1] • node[0]: allocated Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated Return this object address page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object 1 2 percpu page’s node is mismatch 3 deactivate_slab(): Remove percpu slab Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object 1 2 percpu page’s node is mismatch 3 deactivate_slab(): Remove percpu slab Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object 1 page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list 1 page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object slab object slab object .. slab object Page slab object freepointers: reverse! Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object slab object slab object .. slab object Page slab object freepointers: reverse! 4 Move node’s partial page (slab) to percpu cache Slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated • node[1]: allocated page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! Return this object address Slowpath #1 – Get an object from node’s partial page
kmem_cache_init() start_kernel 1. Declare two static variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Let’s check data structures about kmem_cache & kmem_cache_node after function call “create_boot_cache”
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 create_boot_cache(): 1/2 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! Return this object address

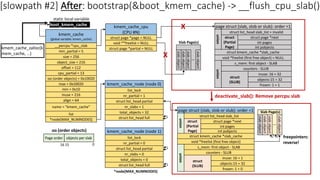

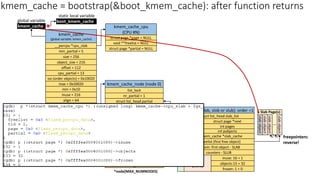

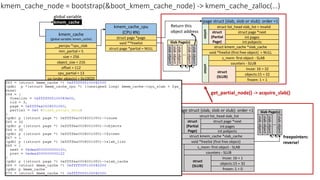

kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 create_boot_cache(): 2/2 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES]
kmem_cache_init() start_kernel 1. Declare two static variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct

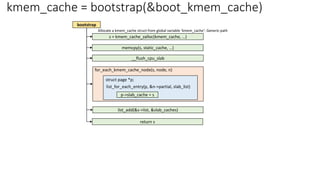

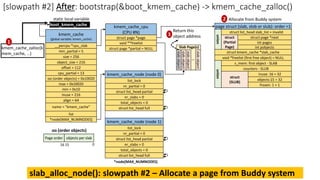

bootstrap s = kmem_cache_zalloc(kmem_cache, …) Allocate a kmem_cache struct from global variable ‘kmem_cache’: Generic path __flush_cpu_slab list_add(&s->list, &slab_caches) for_each_kmem_cache_node(s, node, n) kmem_cache = bootstrap(&boot_kmem_cache) memcpy(s, static_cache, …) return s list_for_each_entry(p, &n->partial, slab_list) struct page *p; p->slab_cache = s
Get a slab object from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #2 – Allocate a page from Buddy system __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() bootstrap s = kmem_cache_zalloc(kmem_cache, …) Allocate a kmem_cache struct from global variable ‘kmem_cache’ Get a slab object from page->freelist
kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] [slowpath #2] Before: bootstrap(&boot_kmem_cache) -> kmem_cache_zalloc()
kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object Return this object address Page order objects per slab 0 15 16 oo (order objects) kmem_cache_zalloc(k mem_cache, …) 1 2 Allocate from Buddy system 3 slab_alloc_node(): slowpath #2 – Allocate a page from Buddy system [slowpath #2] After: bootstrap(&boot_kmem_cache) -> kmem_cache_zalloc()
kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object Return this object address Page order objects per slab 0 15 16 oo (order objects) kmem_cache_zalloc(k mem_cache, …) 1 2 Allocate from Buddy system 3 [slowpath #2] After: bootstrap(&boot_kmem_cache) -> kmem_cache_zalloc()
kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object Page order objects per slab 0 15 16 oo (order objects) kmem_cache_zalloc(k mem_cache, …) X X page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! deactivate_slab(): Remove percpu slab [slowpath #2] After: bootstrap(&boot_kmem_cache) -> __flush_cpu_slab()
kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] Page order objects per slab 0 15 16 oo (order objects) page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! kmem_cache = bootstrap(&boot_kmem_cache): after function returns static local variable boot_kmem_cache kmem_cache global variable X
kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] Page order objects per slab 0 15 16 oo (order objects) page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! kmem_cache = bootstrap(&boot_kmem_cache): after function returns static local variable boot_kmem_cache kmem_cache global variable X
kmem_cache_init() start_kernel 1. Declare two static variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct
Get a slab object from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #1 – Get an object from node’s partial page __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() bootstrap s = kmem_cache_zalloc(kmem_cache, …) Allocate a kmem_cache struct from global variable ‘kmem_cache’ kmem_cache_node = bootstrap(&boot_kmem_cache_node) Get a slab object from page->freelist
kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] Page order objects per slab 0 15 16 oo (order objects) page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> kmem_cache_zalloc(…) kmem_cache global variable page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object slab object Return this object address get_partial_node() -> acquire_slab() kmem_cache_zalloc(k mem_cache, …) slab_alloc_node(): slowpath #1 – Get an object from node’s partial page
kmem_cache (global variable: kmem_cache) __percpu *cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] Page order objects per slab 0 15 16 oo (order objects) page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! kmem_cache global variable page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object slab object Return this object address get_partial_node() -> acquire_slab() kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> kmem_cache_zalloc(…)
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> __flush_cpu_slab() deactivate_slab(): Remove percpu slab Reference from page #49
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> __flush_cpu_slab() freepointers: reverse!
kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> __flush_cpu_slab() freepointers: reverse!

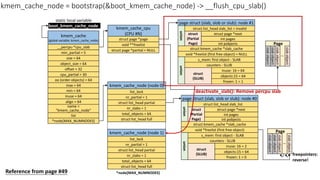

kmem_cache __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static struct kmem_cache *kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! After ‘kmem_cache_node = bootstrap(&boot_kmem_cache_node)’ freepointers: reverse!
kmem_cache_init() start_kernel 1. Declare two static variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Will talk about this later
Get a slab object from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #3 – Get a partial page from percpu cache __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() Get a slab object from page->freelist Let’s talk about another slow path

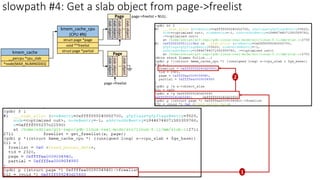

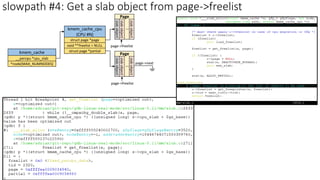

kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page = NULL or valid void **freelist = NULL or valid struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #3: Get a partial page from percpu cache slab object slab object .. slab object Page page->next Slowpath #3: Get a partial page from percpu cache slab object slab object .. slab object Page page->freelist page->freelist 1
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page Slowpath #1: Get a slab object from node’s partial (new_slab_objects->get_partial- >get_partial_node->put_cpu_partial) • [Just for a scenario] Acquire 3 pages because of the number of kmem_cache->cpu_partial 1 When to add a page to percpu partial page? – Case 1 (1/2) put_cpu_partial(): Put page(s) into a percpu partial page
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] When to add a page to percpu partial page? – Case 1 (2/2) slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page page->next slab object slab object .. slab object Page 1 slab object slab object .. slab object Page page->freelist page->freelist Slowpath #1: Get a slab object from node’s partial (new_slab_objects->get_partial- >get_partial_node->put_cpu_partial) • [Just for a scenario] Acquire 3 pages because of the number of kmem_cache->cpu_partial put_cpu_partial(): Put page(s) into a percpu partial page
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] When to add a page to percpu partial page? – Case 2: slab_free() slab object slab object .. slab object Page slab object slab object .. slab object Page page->next slab object slab object .. slab object Page slab object slab object .. slab object Page page->freelist page->freelist slab_free(): Move page(s) to percpu partial and node partial (if possible)
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] free this object slab object slab object .. slab object Page page->next put_cpu_partial(): Move this page to percpu partial 2 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page 1 Fully-allocated objects of pages When to add a page to percpu partial page? – Case 2: slab_free() slab_free(): Move page(s) to percpu partial and node partial (if possible) * Detail will be discussed in section “[Cache release/free] kmem_cache_free()”
Get a slab object from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #4 – Get a slab object page from page->freelist __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() Get a slab object from page->freelist
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist = NULL struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #4: Get a slab object from page->freelist slab object slab object .. slab object Page page->next slab object slab object .. slab object Page page->freelist page->freelist page descriptor address = virtual memory map = vmemmap_base: page #5 of Decompressed vmlinux: linux kernel initialization from page table configuration perspective
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist = NULL struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #4: Get a slab object from page->freelist slab object slab object .. slab object Page page->next slab object slab object .. slab object Page page->freelist page->freelist page = c->page = slub_percpu_partial(c) 1 slub_set_percpu_partial(c, page) 2
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist = NULL struct page *partial slowpath #4: Get a slab object from page->freelist slab object slab object .. slab object Page page->next slab object slab object .. slab object Page page->freelist page->freelist
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slowpath #4: Get a slab object from page->freelist slab object slab object .. slab object Page slab object slab object .. slab object Page page->freelist page->freelist = NULL slab object 1 2

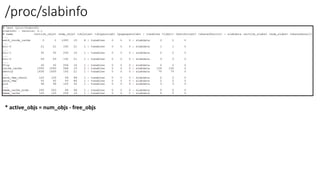

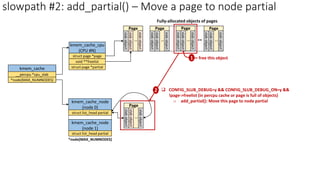

/proc/slabinfo * active_objs = num_objs - free_objs

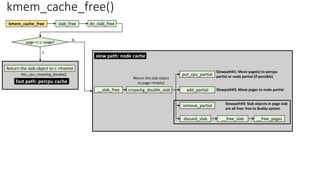

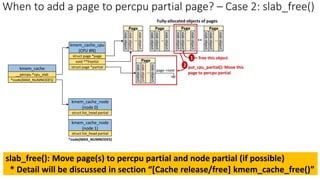

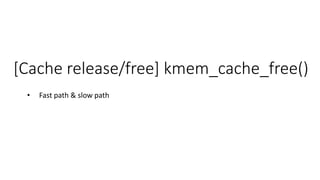

[Cache release/free] kmem_cache_free() • Fast path & slow path
Return the slab object to c->freelist kmem_cache_free page == c->page? kmem_cache_free() __slab_free cmpxchg_double_slab N fast path: percpu cache slow path: node cache this_cpu_cmpxchg_double() slab_free do_slab_free put_cpu_partial add_partial remove_partial discard_slab __free_slab __free_pages Return the slab object to page->freelist Slowpath#3: Slab objects in page slab are all free: free to Buddy system Y Slowpath#1: Move page(s) to percpu partial or node partial (if possible) Slowpath#2: Move pages to node partial

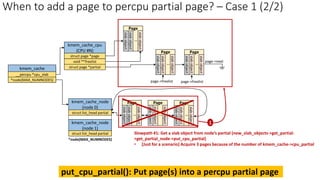

kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #1:put_cpu_partial() – Case 1: Move page(s) to percpu partial slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page Fully-allocated objects of pages free this object slab object slab object .. slab object Page page->next put_cpu_partial(): Move this page to percpu partial 1 2 __slab_free cmpxchg_double_slab slow path: node cache put_cpu_partial add_partial remove_partial discard_slab __free_slab __free_pages Return the slab object to page->freelist Slowpath#3: Slab objects in page slab are all free: free to Buddy system Slowpath#1: Move page(s) to percpu partial and node partial (if possible) Slowpath#2: Move pages to node partial
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #1:put_cpu_partial() – Case 2 (1/2) slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page page->next free this object if available objects > kmem_cache->cpu_partial && want_to_drain call unfreeze_partials() to move percpu partial pages to node partial 2 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page 1 Fully-allocated objects of pages
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #1:put_cpu_partial() – Case 2 (2/2) slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page free this object slab object slab object .. slab object Page page->next put_cpu_partial(): Move this page to percpu partial 2 3 if available objects > kmem_cache->cpu_partial && want_to_drain call unfreeze_partials() to move percpu partial pages to node partial slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page 1 Fully-allocated objects of pages

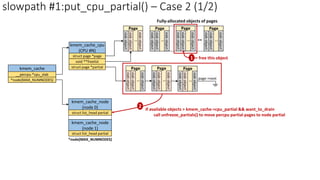

kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #2: add_partial() – Move a page to node partial free this object slab object slab object .. slab object Page  CONFIG_SLUB_DEBUG=y && CONFIG_SLUB_DEBUG_ON=y && !page->freelist (in percpu cache or page is full of objects) o add_partial(): Move this page to node partial 2 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page 1 Fully-allocated objects of pages
kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #3: remove_partial() and discard_slab() Fully-allocated objects of pages free this object  All objects in page(s) are available (free) && kmem_cache_node->nr_partial >= kmem_cache->min_partial o remove_partial() 1 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page 2 Buddy system free page(s): discard_slab -> free_slab -> __free_slab -> __free_pages 3 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page

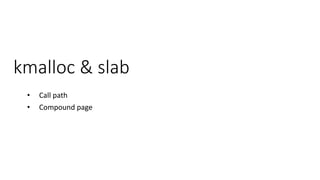

kmalloc & slab • Call path • Compound page

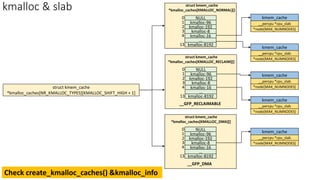

kmalloc & slab struct kmem_cache *kmalloc_caches[NR_KMALLOC_TYPES][KMALLOC_SHIFT_HIGH + 1] struct kmem_cache *kmalloc_caches[KMALLOC_NORMAL][] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] NULL kmalloc-96 0 1 2 3 4 13 kmalloc-192 kmalloc-8 kmalloc-16 … kmalloc-8192 struct kmem_cache *kmalloc_caches[KMALLOC_RECLAIM][] NULL kmalloc-96 0 1 2 3 4 13 kmalloc-192 kmalloc-8 kmalloc-16 … kmalloc-8192 __GFP_RECLAIMABLE struct kmem_cache *kmalloc_caches[KMALLOC_DMA][] NULL kmalloc-96 0 1 2 3 4 13 kmalloc-192 kmalloc-8 kmalloc-16 … kmalloc-8192 __GFP_DMA Check create_kmalloc_caches() &kmalloc_info

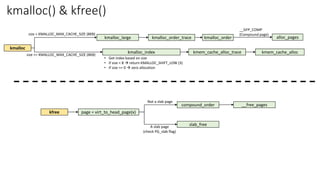

kmalloc() & kfree() kmalloc kmem_cache_alloc kmalloc_large kmalloc_order_trace kmalloc_order kmem_cache_alloc_trace size > KMALLOC_MAX_CACHE_SIZE (8KB) size <= KMALLOC_MAX_CACHE_SIZE (8KB) kfree page = virt_to_head_page(x) slab_free compound_order A slab page (check PG_slab flag) Not a slab page alloc_pages __GFP_COMP (Compound page) __free_pages kmalloc_index • Get index based on size • if size < 8  return KMALLOC_SHIFT_LOW (3) • if size == 0  zero allocation

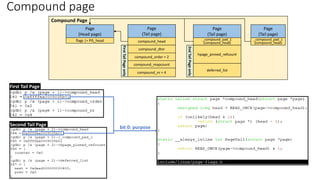

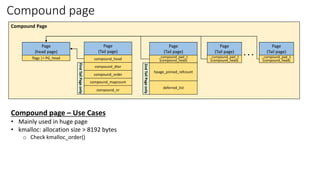

Compound page Page (head page) flags |= PG_head Page (Tail page) compound_head compound_dtor compound_order compound_mapcount compound_nr First Tail Page only Page (Tail page) _compound_pad_1 (compound_head) hpage_pinned_refcount deferred_list 2nd Tail Page only . . . Compound Page Page (Tail page) _compound_pad_1 (compound_head) Page (Tail page) _compound_pad_1 (compound_head) Compound page – Use Cases • Mainly used in huge page • kmalloc: allocation size > 8192 bytes o Check kmalloc_order()

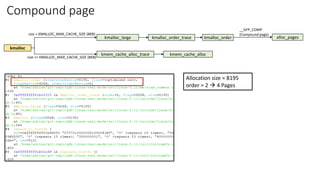

Compound page Allocation size = 8195 order = 2  4 Pages kmalloc kmem_cache_alloc kmalloc_large kmalloc_order_trace kmalloc_order kmem_cache_alloc_trace size > KMALLOC_MAX_CACHE_SIZE (8KB) size <= KMALLOC_MAX_CACHE_SIZE (8KB) alloc_pages __GFP_COMP (Compound page)
Compound page Page (Head page) flags |= PG_head Page (Tail page) compound_head compound_dtor compound_order = 2 compound_mapcount compound_nr = 4 First Tail Page only Page (Tail page) _compound_pad_1 (compound_head) hpage_pinned_refcount deferred_list 2nd Tail Page only Compound Page Page (Tail page) _compound_pad_1 (compound_head) Head Page First Tail Page Second Tail Page
Compound page Page (Head page) flags |= PG_head Page (Tail page) compound_head compound_dtor compound_order = 2 compound_mapcount compound_nr = 4 First Tail Page only Page (Tail page) _compound_pad_1 (compound_head) hpage_pinned_refcount deferred_list 2nd Tail Page only Compound Page Page (Tail page) _compound_pad_1 (compound_head) First Tail Page Second Tail Page bit 0: purpose
kmalloc kmem_cache_alloc kmalloc_large kmalloc_order_trace kmalloc_order kmem_cache_alloc_trace size > KMALLOC_MAX_CACHE_SIZE (8KB) size <= KMALLOC_MAX_CACHE_SIZE (8KB) alloc_pages __GFP_COMP (Compound page) kmalloc_index • Get index based on size • if size < 8  return KMALLOC_SHIFT_LOW (3) • if size == 0  zero allocation Q1: [SLUB] kmalloc: allocation size = 0, 1, 2, or 4  workable? struct kmem_cache *kmalloc_caches[NR_KMALLOC_TYPES][KMALLOC_SHIFT_HIGH + 1] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] struct kmem_cache *kmalloc_caches[KMALLOC_NORMAL][] NULL kmalloc-96 0 1 2 3 4 13 kmalloc-192 kmalloc-8 kmalloc-16 … kmalloc-8192 minimum kmalloc cache size = 8 bytes • if size < 8  return KMALLOC_SHIFT_LOW (3) • if size == 0  zero allocation

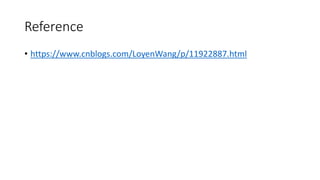

Reference • https://www.cnblogs.com/LoyenWang/p/11922887.html
Backup
Slab Cache Node-based cache: freelist concept is implemented in page struct (not shown) slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache_node (Node #0) struct list_head partial kmem_cache_node (Node #N) struct list_head partial . . slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache kmem_cache global variable kmem_cache_node global variable
slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache_node (Node #0) struct list_head partial kmem_cache_node (Node #N) struct list_head partial . . slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache kmem_cache global variable kmem_cache_node global variable [Slab allocator calls this automatically] kmem_cache_alloc(kmem_cache, ..): Allocate a ‘kmem_cache’ object from global variable ‘kmem_cache’ [Slab allocator calls this automatically] kmem_cache_alloc_node(kmem_cache_node, …): Allocate ‘kmem_cache_node’ objects from global variable ‘kmem_cache_node’ 1 [User calls this function] k_cache = kmem_cache_create(): create/get a new cache 2 3 Who initializes global variables ‘kmem_cache’ and ‘kmem_cache_node’? Slab Allocator Initialization: “Chicken or the egg” problem
Slab Allocator Initialization: “Chicken or the egg” problem slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache_node (Node #0) struct list_head partial kmem_cache_node (Node #N) struct list_head partial . . slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache kmem_cache global variable kmem_cache_node global variable [Slab allocator calls this automatically] kmem_cache_alloc(kmem_cache, ..): Allocate a ‘kmem_cache’ object from global variable ‘kmem_cache’ [Slab allocator calls this automatically] kmem_cache_alloc_node(kmem_cache_node, …): Allocate ‘kmem_cache_node’ objects from global variable ‘kmem_cache_node’ 1 [User calls this function] k_cache = kmem_cache_create(): create/get a new cache 2 3 Slab allocator: statically initialized ‘kmem_cache_boot’ Slob allocator: statically initialized ‘kmem_cache_boot’ Slub allocator: static local variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’
Slab Allocator Initialization: “Chicken or the egg” problem . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache = NULL . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node = NULL kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *sighand_cachep . . . . 1 2 3 [Cannot work] Allocate from ‘kmem_cache_node’ slab cache

More Related Content

PDF
Physical Memory Models.pdf
byAdrian Huang

PDF
spinlock.pdf
byAdrian Huang

PDF
qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...
byAdrian Huang

PDF
malloc & vmalloc in Linux
byAdrian Huang

PDF
Reverse Mapping (rmap) in Linux Kernel
byAdrian Huang

PDF
Decompressed vmlinux: linux kernel initialization from page table configurati...
byAdrian Huang

PDF
Anatomy of the loadable kernel module (lkm)
byAdrian Huang

PDF
Memory Compaction in Linux Kernel.pdf
byAdrian Huang

Physical Memory Models.pdf
byAdrian Huang

spinlock.pdf
byAdrian Huang

qemu + gdb: The efficient way to understand/debug Linux kernel code/data stru...
byAdrian Huang

malloc & vmalloc in Linux
byAdrian Huang

Reverse Mapping (rmap) in Linux Kernel
byAdrian Huang

Decompressed vmlinux: linux kernel initialization from page table configurati...
byAdrian Huang

Anatomy of the loadable kernel module (lkm)
byAdrian Huang

Memory Compaction in Linux Kernel.pdf
byAdrian Huang


What's hot

PDF
Page cache in Linux kernel
byAdrian Huang

PDF
Process Address Space: The way to create virtual address (page table) of user...
byAdrian Huang

PDF
Memory Management with Page Folios
byAdrian Huang

PDF
Linux Kernel - Virtual File System
byAdrian Huang

PPTX
Linux Memory Management
byNi Zo-Ma

PDF
Physical Memory Management.pdf
byAdrian Huang

PPTX
qemu + gdb + sample_code: Run sample code in QEMU OS and observe Linux Kernel...
byAdrian Huang

PDF
Memory Mapping Implementation (mmap) in Linux Kernel
byAdrian Huang

PDF
semaphore & mutex.pdf
byAdrian Huang

PDF
Vmlinux: anatomy of bzimage and how x86 64 processor is booted
byAdrian Huang

PDF
Arm device tree and linux device drivers
byHoucheng Lin

PDF
Kernel Recipes 2017 - Understanding the Linux kernel via ftrace - Steven Rostedt
byAnne Nicolas

PPTX
Linux Initialization Process (2)
byshimosawa

PPTX
Linux Kernel Booting Process (1) - For NLKB
byshimosawa

PDF
淺談探索 Linux 系統設計之道
byNational Cheng Kung University

PDF
BPF Internals (eBPF)
byBrendan Gregg

PDF
Linux 4.x Tracing: Performance Analysis with bcc/BPF
byBrendan Gregg

PDF
Meet cute-between-ebpf-and-tracing
byViller Hsiao

PDF
Kernel_Crash_Dump_Analysis
byBuland Singh

PPT
Linux kernel memory allocators
byHao-Ran Liu

Page cache in Linux kernel
byAdrian Huang

Process Address Space: The way to create virtual address (page table) of user...
byAdrian Huang

Memory Management with Page Folios
byAdrian Huang

Linux Kernel - Virtual File System
byAdrian Huang

Linux Memory Management
byNi Zo-Ma

Physical Memory Management.pdf
byAdrian Huang

qemu + gdb + sample_code: Run sample code in QEMU OS and observe Linux Kernel...
byAdrian Huang

Memory Mapping Implementation (mmap) in Linux Kernel
byAdrian Huang

semaphore & mutex.pdf
byAdrian Huang

Vmlinux: anatomy of bzimage and how x86 64 processor is booted
byAdrian Huang

Arm device tree and linux device drivers
byHoucheng Lin

Kernel Recipes 2017 - Understanding the Linux kernel via ftrace - Steven Rostedt
byAnne Nicolas

Linux Initialization Process (2)
byshimosawa

Linux Kernel Booting Process (1) - For NLKB
byshimosawa

淺談探索 Linux 系統設計之道
byNational Cheng Kung University

BPF Internals (eBPF)
byBrendan Gregg

Linux 4.x Tracing: Performance Analysis with bcc/BPF
byBrendan Gregg

Meet cute-between-ebpf-and-tracing
byViller Hsiao

Kernel_Crash_Dump_Analysis
byBuland Singh

Linux kernel memory allocators
byHao-Ran Liu


Similar to Slab Allocator in Linux Kernel

PPT
memory.ppt
byKalimuthuVelappan

PDF
Understanding SLAB in Linux Kernel
byHaifeng Li

PPT
Driver development – memory management
byVandana Salve

PDF
Yet another talk_about_basics_in_linux_memory(1)
byGomonovych Vasyl

PDF
Controlling Memory Footprint at All Layers: Linux Kernel, Applications, Libra...
bypeknap

PDF
2014 valat-phd-defense-slides
bySébastien Valat

PPTX
Allocating Kernel Memory.pptx
byinfomerlin

PPTX
Linux memory-management-kamal
byKamal Maiti

PPT
Updates
byIsa Ansharullah

PPT
Updates
byIsa Ansharullah

PDF
Down Memory Lane: Two Decades with the Slab Allocator
bybcantrill

PDF
Memory management in Linux kernel
byVadim Nikitin

PPT
kerch04.ppt
byKalimuthuVelappan

PPTX
Experience on porting HIGHMEM and KASAN to RISC-V at COSCUP 2020
byEric Lin

PPT
Memory
byMuhammed Mazhar Khan

PPT
Linux memory
byericrain911

PPTX
Memory Management in Linux-.ppt|FREE DOWNLOAD
byfaizanayub16

PPTX
Memory Management
bysangrampatil81

PDF
6-memapi.pdf6-memapi.pdf6-memapi.pdf6-memapi.pdf
byiamsadnotbad

PPT
Windows memory manager internals
bySisimon Soman

memory.ppt
byKalimuthuVelappan

Understanding SLAB in Linux Kernel
byHaifeng Li

Driver development – memory management
byVandana Salve

Yet another talk_about_basics_in_linux_memory(1)
byGomonovych Vasyl

Controlling Memory Footprint at All Layers: Linux Kernel, Applications, Libra...
bypeknap

2014 valat-phd-defense-slides
bySébastien Valat

Allocating Kernel Memory.pptx
byinfomerlin

Linux memory-management-kamal
byKamal Maiti

Updates
byIsa Ansharullah

Updates
byIsa Ansharullah

Down Memory Lane: Two Decades with the Slab Allocator
bybcantrill

Memory management in Linux kernel
byVadim Nikitin

kerch04.ppt
byKalimuthuVelappan

Experience on porting HIGHMEM and KASAN to RISC-V at COSCUP 2020
byEric Lin

Memory
byMuhammed Mazhar Khan

Linux memory
byericrain911

Memory Management in Linux-.ppt|FREE DOWNLOAD
byfaizanayub16

Memory Management
bysangrampatil81

6-memapi.pdf6-memapi.pdf6-memapi.pdf6-memapi.pdf
byiamsadnotbad

Windows memory manager internals
bySisimon Soman


Recently uploaded

PDF
contusion pulmonar y antibiotico en el atls
byMARIAPETRONILAMONTAO

PDF
09920-2 JE40CP MB 48.4GY02.021 Schematic Acer Aspire 4741.pdf
bydakjuel1

PDF
A Complete Guide to Progressive Web App and Their Development
byMaxtra Technologies

PDF
Postmates Clone App Delivery Service Business Solution.pdf
byV3CUBE TECHNOLABS

PDF
Salesforce Careers in 2026_ Trends, Certifications, and Must-Have Skills
byDele Amefo

PDF
Introduction to Microsoft 365 Security and Compliance.pdf
byjohnsonsouza5

PDF
IoT/OT Security: Penetration Testing for an Expanding Attack Surface.pdf
byCybernetic Global Intelligence

PDF
What-Every-Tech-Leader-Needs-to-Know-About-AI-in-2025.pdf
byrishabhxbohra

PDF
Gojek Clone Business Strategy: From Launch to Scale
byV3CUBE TECHNOLABS

PPTX
apidays Australia 2025 | Hey man, which one will deploy much faster, API or kid?
byapidays

PPTX
Anomalies in Relational Database Management systems.pptx
byamutham12

PDF
Edge AI vs Cloud AI: Why Frontend Developers Must Master On-Device Machine Le...
byWorkfall hire developers

PDF
Malware_Detection_A_Framework_for_Reverse_Engineered_Android_Applications_Thr...
byKiritiyadavGoskula

PDF
apidays Australia 2025 | APIs in Government: A blueprint to automating Busine...
byapidays

PPTX
apidays Australia 2025 | Advanced GraphQL Security with AI Driven Threat Dete...
byapidays

PDF
apidays Australia 2025 | Designing with workflows: Using Arazzo and OpenAPI f...
byapidays

PPTX
wAIred_RabobankWRProducts__22012026.pptx
bySimonedeGijt

PDF
Projectlify: Everything You Need to Get Things Done
byRafal Ksiazek

contusion pulmonar y antibiotico en el atls
byMARIAPETRONILAMONTAO

09920-2 JE40CP MB 48.4GY02.021 Schematic Acer Aspire 4741.pdf
bydakjuel1

A Complete Guide to Progressive Web App and Their Development
byMaxtra Technologies

Postmates Clone App Delivery Service Business Solution.pdf
byV3CUBE TECHNOLABS

Salesforce Careers in 2026_ Trends, Certifications, and Must-Have Skills
byDele Amefo

Introduction to Microsoft 365 Security and Compliance.pdf
byjohnsonsouza5

IoT/OT Security: Penetration Testing for an Expanding Attack Surface.pdf
byCybernetic Global Intelligence

What-Every-Tech-Leader-Needs-to-Know-About-AI-in-2025.pdf
byrishabhxbohra

Gojek Clone Business Strategy: From Launch to Scale
byV3CUBE TECHNOLABS

apidays Australia 2025 | Hey man, which one will deploy much faster, API or kid?
byapidays

Anomalies in Relational Database Management systems.pptx
byamutham12

Edge AI vs Cloud AI: Why Frontend Developers Must Master On-Device Machine Le...
byWorkfall hire developers

Malware_Detection_A_Framework_for_Reverse_Engineered_Android_Applications_Thr...
byKiritiyadavGoskula

apidays Australia 2025 | APIs in Government: A blueprint to automating Busine...
byapidays

apidays Australia 2025 | Advanced GraphQL Security with AI Driven Threat Dete...
byapidays

apidays Australia 2025 | Designing with workflows: Using Arazzo and OpenAPI f...
byapidays

wAIred_RabobankWRProducts__22012026.pptx
bySimonedeGijt

Projectlify: Everything You Need to Get Things Done
byRafal Ksiazek


Slab Allocator in Linux Kernel

  • 1.
    * Based onkernel 5.11 (x86_64) – QEMU * 2-socket CPUs (4 cores/socket) * 16GB memory * Kernel parameter: nokaslr norandmaps * KASAN: disabled * Userspace: ASLR is disabled * Legacy BIOS Slab Allocator in Linux Kernel Adrian Huang | Aug, 2022
  • 2.
    Agenda • Slab &Buddy System • Slab Concept o “Chicken or the egg” problem o Will not focus the differences about slab/slub/slob: Lots of info about them in Internet. o Note: SLUB is the default allocator since 2.6.23. • [Init & Creation] kmem_cache_init(): Let’s check the initialization detail o How to initialize ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’? o What are freepointers? o Data structures: kmem_cache & kmem_cache_node o [Comparison] Generic kmem_cache_create() & low-level implementation __kmem_cache_create() • [Cache allocation] slab_alloc_node – Allocate a slab cache with specific node id o Fast path & slow path  Will follow kmem_cache_init() flow • [Cache release/free] kmem_cache_free() o Fast path & slow path • kmalloc & slab
  • 3.
    Slab & BuddySystem Buddy System alloc_page(s), __get_free_page(s) Slab Allocator kmem_cache_alloc/kmem_cache_free kmalloc/kfree glibc: malloc/free brk/mmap . . . vmalloc User Space Kernel Space Hardware • Balance between brk() and mmap() • Use brk() if request size < DEFAULT_MMAP_THRESHOLD_MIN (128 KB) o The heap can be trimmed only if memory is freed at the top end. o sbrk() is implemented as a library function that uses the brk() system call. • Use mmap() if request size >= DEFAULT_MMAP_THRESHOLD_MIN (128 KB) o The allocated memory blocks can be independently released back to the system. o Deallocated space is not placed on the free list for reuse by later allocations. o Memory may be wasted because mmap allocations must be page-aligned; and the kernel must perform the expensive task of zeroing out memory allocated. o Note: glibc uses the dynamic mmap threshold o Detail: `man mallopt` [glibc] malloc
  • 4.
    Slab Concept Slab Allocator SlabCache (page order = 0) Slab Cache (page order = 1) Page #0 slab object slab object slab object slab object … Page #N slab object slab object slab object slab object slab object slab object slab object slab object 4 objects per page Page #1 slab object … Page #N 2 objects per page slab object slab object slab object slab object slab object . . . Memory (object) allocation * object = data structure slab_caches global list_head slab … slab slab … Page #0 slab object slab object 1. Allocating/freeing data structures is the common operations in Linux kernel 2. Slab is a generic data structure-caching layer
  • 5.
    Slab Cache Node-based cache:freelist concept is implemented in page struct (not shown) slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache_node (Node #0) struct list_head partial kmem_cache_node (Node #N) struct list_head partial . . slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache
  • 6.
    Slab Cache slab object slab object .. slab object Page . . kmem_cache_cpu (CPU#0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *sighand_cachep . . . . 1 2 3 Allocate from ‘kmem_cache_node’ slab cache
  • 7.
    Slab Allocator Initialization: “Chickenor the egg” problem . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache = NULL . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node = NULL kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache . . . . 1 2 3 [Cannot work] Allocate from ‘kmem_cache_node’ slab cache [Slab Allocator Init] Just an example: Not in Linux kernel code
  • 8.
    Slab Allocator Initialization: “Chickenor the egg” problem . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache = NULL . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node = NULL kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache . . . . 1 2 3 [Cannot work] Allocate from ‘kmem_cache_node’ slab cache [Example] Slab allocator init for kmem_cache Who initializes global variables ‘kmem_cache’ and ‘kmem_cache_node’?
  • 9.
    Slab Allocator Initialization: “Chickenor the egg” problem . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache = NULL . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node = NULL kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *sighand_cachep . . . . 1 2 3 [Cannot work] Allocate from ‘kmem_cache_node’ slab cache Slab allocator: statically initialized ‘kmem_cache_boot’ Slob allocator: statically initialized ‘kmem_cache_boot’ Slub allocator: static local variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’
  • 10.
    [Init & Creation]kmem_cache_init(): Let’s check the initialization detail • How to initialize ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’? • What are freepointers? • Data structures: kmem_cache & kmem_cache_node • [Comparison] Generic kmem_cache_create() & low-level implementation __kmem_cache_create() * Call paths are based on SLUB (the unqueued slab allocator)
  • 11.
    kmem_cache_init() start_kernel 1. Declare twostatic variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Calculate page order and objects per slab
  • 12.
    kmem_cache_node/boot_kmem_cache_node init kmem_cache slab Page#0 slab object #0 … … … … … … slab object #63 64 objects per page Slub allocator: A generic data structure-cache layer * object = data structure object size = sizeof(struct kmem_cache_node) = 64 object size with alignment (SLAB_HWCACHE_ALIGN: 64) = 64 calculate_sizes (): order = 0
  • 13.
    kmem_cache_node/boot_kmem_cache_node init object size= sizeof(struct kmem_cache_node) = 64 object size with alignment (SLAB_HWCACHE_ALIGN: 64) = 64
  • 14.
    kmem_cache slab Page #0 slab object slabobject slab object slab object Page #1 slab object slab object slab object slab object 16 objects per page Slab allocator: A generic data structure-cache layer * object = data structure object size = offsetof(struct kmem_cache, node) + nr_node_ids * sizeof(struct kmem_cache_node *) nr_node_ids = 2 (2-socket guest OS) object size = 200 + 2 * 8 = 216 object size with alignment (SLAB_HWCACHE_ALIGN: 64) = 256 calculate_sizes (): order = 1 kmem_cache/boot_kmem_cache init
  • 15.
    object size =200 + 2 * 8 = 216 kmem_cache/boot_kmem_cache init
  • 16.
    init_kmem_cache_nodes() n = kmem_cache_alloc_node() early_kmem_cache_node_alloc init_kmem_cache_nodes for_each_node_state() slab_state== DOWN init_kmem_cache_node kmem_cache->node[node] = n Y N __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Calculate page order and objects per slab create_boot_cache(kmem_cache_node, …) Special (one-shot) path: Fix ‘chicken or the egg’ problem Generic path
  • 17.

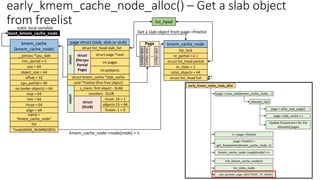

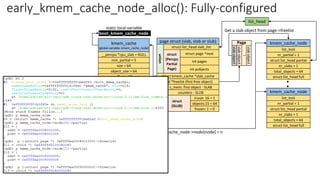

    early_kmem_cache_node_alloc for ‘kmem_cache_node’ allocate_slab page= new_slab(kmem_cache_node, …) early_kmem_cache_node_alloc page = alloc_slab_page() page->slab_cache = s Update freepointers for the allocated pages n = page->freelist kmem_cache_node->node[node] = n page->freelist = get_freepointer(kmem_cache_node, n) init_kmem_cache_node(n) __add_partial(n, page, DEACTIVATE_TO_HEAD) inc_slabs_node
  • 18.

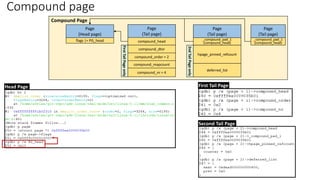

    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 allocate_slab() – freelist/freepointer configuration offset = 32 slab object slab object .. slab object Page boot_kmem_cache_node static local variable Reference functions: get_freepointer/set_freepointer allocate_slab page = new_slab(kmem_cache_node, …) early_kmem_cache_node_alloc page = alloc_slab_page() page->slab_cache = s Update freepointers for the allocated pages n = page->freelist kmem_cache_node->node[node] = n page->freelist = get_freepointer(kmem_cache_node, n) init_kmem_cache_node(n) __add_partial(n, page, DEACTIVATE_TO_HEAD) inc_slabs_node
  • 19.
    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 allocate_slab() – freelist/freepointer configuration offset = 32 slab object slab object .. slab object Page Page address = X X X + kmem_cache->size X + kmem_cache->size slab object #0 X + kmem_cache->size * 2 slab object #1 freepointer in slab object: Point to the next slab object (address: middle of object  avoid buffer overflow or underflow) NULL slab object #n -1 point to the next free slab object . . . X + kmem_cache->offset boot_kmem_cache_node static local variable Reference functions: get_freepointer/set_freepointer
  • 20.
    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 1 objects:15 = 64 frozen: 1 = 1 0 union struct (SLUB) union kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc() – Get a slab object from freelist slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial struct list_head partial nr_slabs total_objects list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n static local variable boot_kmem_cache_node struct (Percpu Partial Page)
  • 21.
    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc() – Get a slab object from freelist slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n static local variable boot_kmem_cache_node struct (Percpu Partial Page)
  • 22.
    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc() – Get a slab object from freelist slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 0 struct list_head partial nr_slabs = 0 1 total_objects = 0 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n static local variable boot_kmem_cache_node struct (Percpu Partial Page)
  • 23.
    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc() – Get a slab object from freelist slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 0 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n static local variable boot_kmem_cache_node list_head
  • 24.
    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 early_kmem_cache_node_alloc(): configure node #0 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head CONFIG_SLUB_DEBUG = y static local variable boot_kmem_cache_node Allocate slab page(s) for kmem_cache_node struct allocation: Fix “the chicken or egg problem”
  • 25.
    page (slab, slobor slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) kmem_cache (kmem_cache_node) __percpu *cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head CONFIG_SLUB_DEBUG = y early_kmem_cache_node_alloc(): configure node #0
  • 26.
    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab = NULL min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head CONFIG_SLUB_DEBUG = y static local variable boot_kmem_cache_node early_kmem_cache_node_alloc(): configure node #0
  • 27.
    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab = NULL min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head CONFIG_SLUB_DEBUG = y kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full . . static local variable boot_kmem_cache_node early_kmem_cache_node_alloc(): Fully-configured
  • 28.
    page struct (slab,slob or slub) struct list_head slab_list struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Percpu Partial Page) kmem_cache (global variable: kmem_cache_node) __percpu *cpu_slab = NULL min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 slab object slab object .. slab object Page offset = 32 kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full Get a slab object from page->freelist kmem_cache_node->node[node] = n list_head kmem_cache_node nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full . . static local variable boot_kmem_cache_node early_kmem_cache_node_alloc(): Fully-configured
  • 29.
    [Comparison] Generic kmem_cache_create()& low-level implementation __kmem_cache_create() start_kernel __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Calculate page order and objects per slab kmem_cache_create kmem_cache_create_usercopy __kmem_cache_alias create_cache find_mergeable kmem_cache_zalloc slab_alloc_node slab_alloc kmem_cache_alloc __kmem_cache_create list_add(&s->list, &slab_caches) Allocate a ‘kmem_cache’ struct from a global variable ‘kmem_cache’
  • 30.

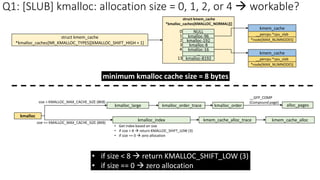

    [Cache allocation] slab_alloc_node– Allocate a slab cache with specific node id • Fast path & slow path o Will follow kmem_cache_init() flow
  • 31.
    kmem_cache_init() start_kernel 1. Declare twostatic variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct
  • 32.

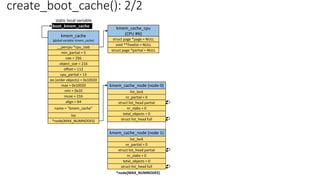

    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 kmem_cache: init_kmem_cache_nodes() offset = 112 kmem_cache_node nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node->node[node] = n CONFIG_SLUB_DEBUG = y kmem_cache_node nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full . . kmem_cache_cpu void **freelist tid (transaction id) = cpu id struct page *page struct page *partial stat[NR_SLUB_STAT_ITEMS] boot_kmem_cache static variable Allocate from global variable ‘kmem_cache_node’ * init_kmem_cache_nodes -> kmem_cache_alloc_node n = kmem_cache_alloc_node() early_kmem_cache_node_alloc init_kmem_cache_nodes for_each_node_state() slab_state == DOWN init_kmem_cache_node kmem_cache->node[node] = n Y N Special (one-shot) path: Fix ‘chicken or the egg’ problem Generic path
  • 33.

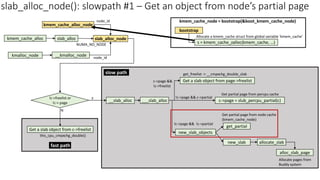

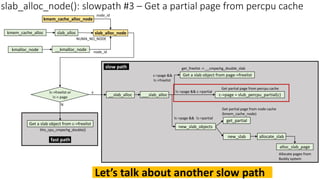

    Get a slabobject from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page kmem_cache_alloc_node/slab_alloc_node __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) Get a slab object from page->freelist c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double()
  • 34.
    Fast Path Get aslab object from kmem_cache_cpu->freelist . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab percpu cache . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page percpu cache slab object slab object .. Page slab object slab object slab object slab object .. Page slab object slab object get a slab object
  • 35.
    Get a slabobject from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #1 – Get an object from node’s partial page __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() Get a slab object from page->freelist
  • 36.

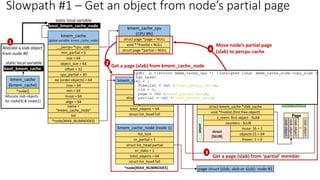

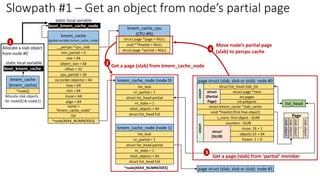

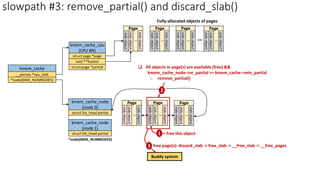

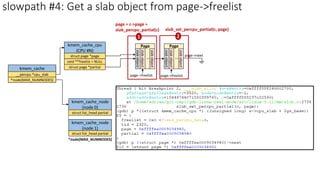

    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL Get a page (slab) from kmem_cache_node kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] 2 3 Get a page (slab) from ‘partial’ member 4 Move node’s partial page (slab) to percpu cache page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) list_head struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] Slowpath #1 – Get an object from node’s partial page
  • 37.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL Get a page (slab) from kmem_cache_node kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] 2 3 Get a page (slab) from ‘partial’ member 4 Move node’s partial page (slab) to percpu cache page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) list_head struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] Slowpath #1 – Get an object from node’s partial page
  • 38.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL Get a page (slab) from kmem_cache_node kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] 2 3 Get a page (slab) from ‘partial’ member 4 Move node’s partial page (slab) to percpu cache page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) list_head struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] Slowpath #1 – Get an object from node’s partial page
  • 39.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL Get a page (slab) from kmem_cache_node kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] 2 3 Get a page (slab) from ‘partial’ member 4 Move node’s partial page (slab) to percpu cache page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) list_head struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] Slowpath #1 – Get an object from node’s partial page
  • 40.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Return this object address page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object Allocate slab objects for node[0] & node[1] • node[0]: allocated Slowpath #1 – Get an object from node’s partial page
  • 41.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 Allocate a slab object from node #0 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated Return this object address page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object Slowpath #1 – Get an object from node’s partial page
  • 42.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object 1 2 percpu page’s node is mismatch 3 deactivate_slab(): Remove percpu slab Slowpath #1 – Get an object from node’s partial page
  • 43.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object 1 2 percpu page’s node is mismatch 3 deactivate_slab(): Remove percpu slab Slowpath #1 – Get an object from node’s partial page
  • 44.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object 1 page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! Slowpath #1 – Get an object from node’s partial page
  • 45.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list 1 page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object slab object slab object .. slab object Page slab object freepointers: reverse! Slowpath #1 – Get an object from node’s partial page
  • 46.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object slab object slab object .. slab object Page slab object freepointers: reverse! 4 Move node’s partial page (slab) to percpu cache Slowpath #1 – Get an object from node’s partial page
  • 47.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] Allocate a slab object from node #1 kmem_cache (kmem_cache) *node[] boot_kmem_cache static local variable Allocate slab objects for node[0] & node[1] • node[0]: allocated • node[1]: allocated page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! Return this object address Slowpath #1 – Get an object from node’s partial page
  • 48.
    kmem_cache_init() start_kernel 1. Declare twostatic variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Let’s check data structures about kmem_cache & kmem_cache_node after function call “create_boot_cache”
  • 49.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 create_boot_cache(): 1/2 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! Return this object address
  • 50.
    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 create_boot_cache(): 2/2 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES]
  • 51.
    kmem_cache_init() start_kernel 1. Declare twostatic variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct
  • 52.

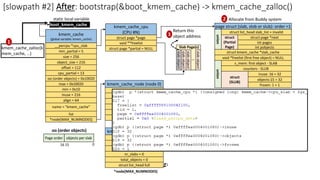

    bootstrap s = kmem_cache_zalloc(kmem_cache,…) Allocate a kmem_cache struct from global variable ‘kmem_cache’: Generic path __flush_cpu_slab list_add(&s->list, &slab_caches) for_each_kmem_cache_node(s, node, n) kmem_cache = bootstrap(&boot_kmem_cache) memcpy(s, static_cache, …) return s list_for_each_entry(p, &n->partial, slab_list) struct page *p; p->slab_cache = s
  • 53.
    Get a slabobject from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #2 – Allocate a page from Buddy system __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() bootstrap s = kmem_cache_zalloc(kmem_cache, …) Allocate a kmem_cache struct from global variable ‘kmem_cache’ Get a slab object from page->freelist
  • 54.
    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] [slowpath #2] Before: bootstrap(&boot_kmem_cache) -> kmem_cache_zalloc()
  • 55.
    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object Return this object address Page order objects per slab 0 15 16 oo (order objects) kmem_cache_zalloc(k mem_cache, …) 1 2 Allocate from Buddy system 3 slab_alloc_node(): slowpath #2 – Allocate a page from Buddy system [slowpath #2] After: bootstrap(&boot_kmem_cache) -> kmem_cache_zalloc()
  • 56.
    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object Return this object address Page order objects per slab 0 15 16 oo (order objects) kmem_cache_zalloc(k mem_cache, …) 1 2 Allocate from Buddy system 3 [slowpath #2] After: bootstrap(&boot_kmem_cache) -> kmem_cache_zalloc()
  • 57.
    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 static local variable boot_kmem_cache kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object Page order objects per slab 0 15 16 oo (order objects) kmem_cache_zalloc(k mem_cache, …) X X page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! deactivate_slab(): Remove percpu slab [slowpath #2] After: bootstrap(&boot_kmem_cache) -> __flush_cpu_slab()
  • 58.
    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] Page order objects per slab 0 15 16 oo (order objects) page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! kmem_cache = bootstrap(&boot_kmem_cache): after function returns static local variable boot_kmem_cache kmem_cache global variable X
  • 59.
    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] Page order objects per slab 0 15 16 oo (order objects) page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! kmem_cache = bootstrap(&boot_kmem_cache): after function returns static local variable boot_kmem_cache kmem_cache global variable X
  • 60.
    kmem_cache_init() start_kernel 1. Declare twostatic variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct
  • 61.
    Get a slabobject from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #1 – Get an object from node’s partial page __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() bootstrap s = kmem_cache_zalloc(kmem_cache, …) Allocate a kmem_cache struct from global variable ‘kmem_cache’ kmem_cache_node = bootstrap(&boot_kmem_cache_node) Get a slab object from page->freelist
  • 62.
    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] Page order objects per slab 0 15 16 oo (order objects) page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> kmem_cache_zalloc(…) kmem_cache global variable page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object slab object Return this object address get_partial_node() -> acquire_slab() kmem_cache_zalloc(k mem_cache, …) slab_alloc_node(): slowpath #1 – Get an object from node’s partial page
  • 63.
    kmem_cache (global variable: kmem_cache) __percpu*cpu_slab min_partial = 5 size = 256 object_size = 216 cpu_partial = 13 min = 0x10 inuse = 216 align = 64 name = “kmem_cache” list *node[MAX_NUMNODES] max = 0x10020 oo (order objects) = 0x10020 offset = 112 kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 0 struct list_head partial nr_slabs = 1 total_objects = 32 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 0 struct list_head partial nr_slabs = 0 total_objects = 0 list_lock struct list_head full *node[MAX_NUMNODES] Page order objects per slab 0 15 16 oo (order objects) page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 1 objects:15 = 32 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Slab Page(s) slab object freepointers: reverse! kmem_cache global variable page struct (slab, slob or slub): order =1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 32 objects:15 = 32 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Slab Page(s) slab object slab object Return this object address get_partial_node() -> acquire_slab() kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> kmem_cache_zalloc(…)
  • 64.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) = NULL s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 64 objects:15 = 64 frozen: 1 = 1 union struct (SLUB) union struct (Partial Page) struct list_head slab_list = invalid slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> __flush_cpu_slab() deactivate_slab(): Remove percpu slab Reference from page #49
  • 65.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> __flush_cpu_slab() freepointers: reverse!
  • 66.
    kmem_cache (global variable: kmem_cache_node) __percpu*cpu_slab min_partial = 5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static local variable boot_kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! kmem_cache_node = bootstrap(&boot_kmem_cache_node) -> __flush_cpu_slab() freepointers: reverse!
  • 67.

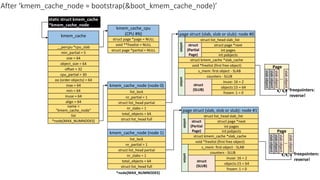

    kmem_cache __percpu *cpu_slab min_partial =5 size = 64 object_size = 64 cpu_partial = 30 min = 64 inuse = 64 align = 64 name = “kmem_cache_node” list *node[MAX_NUMNODES] max = 64 oo (order objects) = 64 offset = 32 static struct kmem_cache *kmem_cache_node kmem_cache_cpu (CPU #N) struct page *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full kmem_cache_node (node 1) nr_partial = 1 struct list_head partial nr_slabs = 1 total_objects = 64 list_lock struct list_head full *node[MAX_NUMNODES] page struct (slab, slob or slub): node #1 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object page struct (slab, slob or slub): node #0 struct page *next struct kmem_cache *slab_cache void *freelist (first free object) s_mem: first object - SLAB int pages int pobjects counters - SLUB inuse: 16 = 2 objects:15 = 64 frozen: 1 = 0 union struct (SLUB) union struct (Partial Page) struct list_head slab_list slab object slab object .. slab object Page slab object freepointers: reverse! After ‘kmem_cache_node = bootstrap(&boot_kmem_cache_node)’ freepointers: reverse!
  • 68.

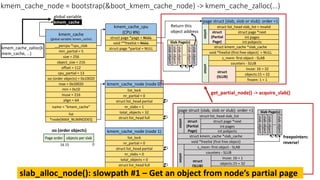

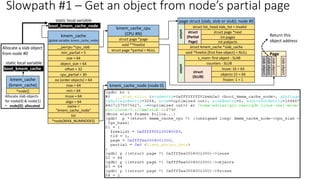

    kmem_cache_init() start_kernel 1. Declare twostatic variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’ 2. Assign the addresses of two static variables to generic/global variables kmem_cache_node = &boot_kmem_cache_node kmem_cache = &boot_kmem_cache __kmem_cache_create init_kmem_cache_nodes calculate_sizes kmem_cache_open alloc_kmem_cache_cpus mm_init kmem_cache_init create_boot_cache(kmem_cache_node, …) create_boot_cache(kmem_cache, …) kmem_cache = bootstrap(&boot_kmem_cache) kmem_cache_node = bootstrap(&boot_kmem_cache_node) setup_kmalloc_cache_index_table create_kmalloc_caches __alloc_percpu init_kmem_cache_cpus Assign cpu id to kmem_cache_cpu->tid Allocate/init ‘kmem_cache_node’ structs for all CPU nodes (sockets) Allocate/init a ‘kmem_cache_cpu’ struct Will talk about this later
  • 69.

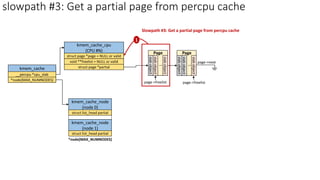

    Get a slabobject from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #3 – Get a partial page from percpu cache __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() Get a slab object from page->freelist Let’s talk about another slow path
  • 70.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page = NULL or valid void **freelist = NULL or valid struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #3: Get a partial page from percpu cache slab object slab object .. slab object Page page->next Slowpath #3: Get a partial page from percpu cache slab object slab object .. slab object Page page->freelist page->freelist 1
  • 71.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page = NULL void **freelist = NULL struct page *partial = NULL kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page Slowpath #1: Get a slab object from node’s partial (new_slab_objects->get_partial- >get_partial_node->put_cpu_partial) • [Just for a scenario] Acquire 3 pages because of the number of kmem_cache->cpu_partial 1 When to add a page to percpu partial page? – Case 1 (1/2) put_cpu_partial(): Put page(s) into a percpu partial page
  • 72.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] When to add a page to percpu partial page? – Case 1 (2/2) slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page page->next slab object slab object .. slab object Page 1 slab object slab object .. slab object Page page->freelist page->freelist Slowpath #1: Get a slab object from node’s partial (new_slab_objects->get_partial- >get_partial_node->put_cpu_partial) • [Just for a scenario] Acquire 3 pages because of the number of kmem_cache->cpu_partial put_cpu_partial(): Put page(s) into a percpu partial page
  • 73.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] When to add a page to percpu partial page? – Case 2: slab_free() slab object slab object .. slab object Page slab object slab object .. slab object Page page->next slab object slab object .. slab object Page slab object slab object .. slab object Page page->freelist page->freelist slab_free(): Move page(s) to percpu partial and node partial (if possible)
  • 74.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] free this object slab object slab object .. slab object Page page->next put_cpu_partial(): Move this page to percpu partial 2 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page 1 Fully-allocated objects of pages When to add a page to percpu partial page? – Case 2: slab_free() slab_free(): Move page(s) to percpu partial and node partial (if possible) * Detail will be discussed in section “[Cache release/free] kmem_cache_free()”
  • 75.

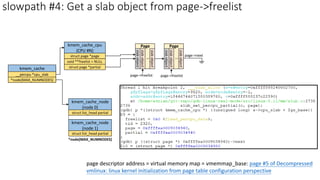

    Get a slabobject from c->freelist kmem_cache_alloc_node !c->freelist or !c-> page slab_alloc_node(): slowpath #4 – Get a slab object page from page->freelist __slab_alloc kmem_cache_alloc slab_alloc slab_alloc_node NUMA_NO_NODE __kmalloc_node kmalloc_node node_id node_id ___slab_alloc new_slab_objects c->page = slub_percpu_partial(c) c->page && !c->freelist !c->page && c->partial get_partial Get partial page from percpu cache new_slab allocate_slab alloc_slab_page Allocate pages from Buddy system !c->page && !c->partial Get partial page from node cache (kmem_cache_node) Y N fast path slow path get_freelist -> __cmpxchg_double_slab this_cpu_cmpxchg_double() Get a slab object from page->freelist
  • 76.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist = NULL struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #4: Get a slab object from page->freelist slab object slab object .. slab object Page page->next slab object slab object .. slab object Page page->freelist page->freelist page descriptor address = virtual memory map = vmemmap_base: page #5 of Decompressed vmlinux: linux kernel initialization from page table configuration perspective
  • 77.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist = NULL struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #4: Get a slab object from page->freelist slab object slab object .. slab object Page page->next slab object slab object .. slab object Page page->freelist page->freelist page = c->page = slub_percpu_partial(c) 1 slub_set_percpu_partial(c, page) 2
  • 78.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist = NULL struct page *partial slowpath #4: Get a slab object from page->freelist slab object slab object .. slab object Page page->next slab object slab object .. slab object Page page->freelist page->freelist
  • 79.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist struct page *partial slowpath #4: Get a slab object from page->freelist slab object slab object .. slab object Page slab object slab object .. slab object Page page->freelist page->freelist = NULL slab object 1 2
  • 80.
    /proc/slabinfo * active_objs =num_objs - free_objs
  • 81.
  • 82.

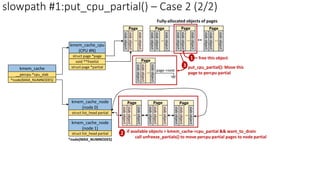

    Return the slabobject to c->freelist kmem_cache_free page == c->page? kmem_cache_free() __slab_free cmpxchg_double_slab N fast path: percpu cache slow path: node cache this_cpu_cmpxchg_double() slab_free do_slab_free put_cpu_partial add_partial remove_partial discard_slab __free_slab __free_pages Return the slab object to page->freelist Slowpath#3: Slab objects in page slab are all free: free to Buddy system Y Slowpath#1: Move page(s) to percpu partial or node partial (if possible) Slowpath#2: Move pages to node partial
  • 83.

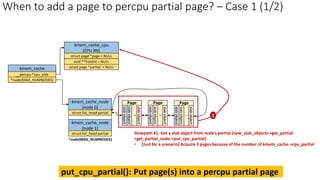

    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #1:put_cpu_partial() – Case 1: Move page(s) to percpu partial slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page Fully-allocated objects of pages free this object slab object slab object .. slab object Page page->next put_cpu_partial(): Move this page to percpu partial 1 2 __slab_free cmpxchg_double_slab slow path: node cache put_cpu_partial add_partial remove_partial discard_slab __free_slab __free_pages Return the slab object to page->freelist Slowpath#3: Slab objects in page slab are all free: free to Buddy system Slowpath#1: Move page(s) to percpu partial and node partial (if possible) Slowpath#2: Move pages to node partial
  • 84.

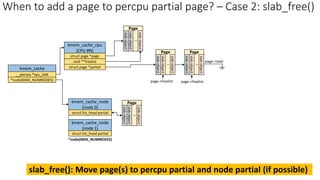

    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #1:put_cpu_partial() – Case 2 (1/2) slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page page->next free this object if available objects > kmem_cache->cpu_partial && want_to_drain call unfreeze_partials() to move percpu partial pages to node partial 2 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page 1 Fully-allocated objects of pages
  • 85.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #1:put_cpu_partial() – Case 2 (2/2) slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page free this object slab object slab object .. slab object Page page->next put_cpu_partial(): Move this page to percpu partial 2 3 if available objects > kmem_cache->cpu_partial && want_to_drain call unfreeze_partials() to move percpu partial pages to node partial slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page 1 Fully-allocated objects of pages
  • 86.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #2: add_partial() – Move a page to node partial free this object slab object slab object .. slab object Page  CONFIG_SLUB_DEBUG=y && CONFIG_SLUB_DEBUG_ON=y && !page->freelist (in percpu cache or page is full of objects) o add_partial(): Move this page to node partial 2 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page 1 Fully-allocated objects of pages
  • 87.
    kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache_cpu (CPU #N) structpage *page void **freelist struct page *partial kmem_cache_node (node 0) struct list_head partial kmem_cache_node (node 1) struct list_head partial *node[MAX_NUMNODES] slowpath #3: remove_partial() and discard_slab() Fully-allocated objects of pages free this object  All objects in page(s) are available (free) && kmem_cache_node->nr_partial >= kmem_cache->min_partial o remove_partial() 1 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page 2 Buddy system free page(s): discard_slab -> free_slab -> __free_slab -> __free_pages 3 slab object slab object .. slab object Page slab object slab object .. slab object Page slab object slab object .. slab object Page .. slab object slab object .. slab object Page
  • 88.
    kmalloc & slab •Call path • Compound page
  • 89.
    kmalloc & slab structkmem_cache *kmalloc_caches[NR_KMALLOC_TYPES][KMALLOC_SHIFT_HIGH + 1] struct kmem_cache *kmalloc_caches[KMALLOC_NORMAL][] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] NULL kmalloc-96 0 1 2 3 4 13 kmalloc-192 kmalloc-8 kmalloc-16 … kmalloc-8192 struct kmem_cache *kmalloc_caches[KMALLOC_RECLAIM][] NULL kmalloc-96 0 1 2 3 4 13 kmalloc-192 kmalloc-8 kmalloc-16 … kmalloc-8192 __GFP_RECLAIMABLE struct kmem_cache *kmalloc_caches[KMALLOC_DMA][] NULL kmalloc-96 0 1 2 3 4 13 kmalloc-192 kmalloc-8 kmalloc-16 … kmalloc-8192 __GFP_DMA Check create_kmalloc_caches() &kmalloc_info
  • 90.
    kmalloc() & kfree() kmalloc kmem_cache_alloc kmalloc_largekmalloc_order_trace kmalloc_order kmem_cache_alloc_trace size > KMALLOC_MAX_CACHE_SIZE (8KB) size <= KMALLOC_MAX_CACHE_SIZE (8KB) kfree page = virt_to_head_page(x) slab_free compound_order A slab page (check PG_slab flag) Not a slab page alloc_pages __GFP_COMP (Compound page) __free_pages kmalloc_index • Get index based on size • if size < 8  return KMALLOC_SHIFT_LOW (3) • if size == 0  zero allocation
  • 91.
    Compound page Page (head page) flags|= PG_head Page (Tail page) compound_head compound_dtor compound_order compound_mapcount compound_nr First Tail Page only Page (Tail page) _compound_pad_1 (compound_head) hpage_pinned_refcount deferred_list 2nd Tail Page only . . . Compound Page Page (Tail page) _compound_pad_1 (compound_head) Page (Tail page) _compound_pad_1 (compound_head) Compound page – Use Cases • Mainly used in huge page • kmalloc: allocation size > 8192 bytes o Check kmalloc_order()
  • 92.
    Compound page Allocation size= 8195 order = 2  4 Pages kmalloc kmem_cache_alloc kmalloc_large kmalloc_order_trace kmalloc_order kmem_cache_alloc_trace size > KMALLOC_MAX_CACHE_SIZE (8KB) size <= KMALLOC_MAX_CACHE_SIZE (8KB) alloc_pages __GFP_COMP (Compound page)
  • 93.
    Compound page Page (Head page) flags|= PG_head Page (Tail page) compound_head compound_dtor compound_order = 2 compound_mapcount compound_nr = 4 First Tail Page only Page (Tail page) _compound_pad_1 (compound_head) hpage_pinned_refcount deferred_list 2nd Tail Page only Compound Page Page (Tail page) _compound_pad_1 (compound_head) Head Page First Tail Page Second Tail Page
  • 94.
    Compound page Page (Head page) flags|= PG_head Page (Tail page) compound_head compound_dtor compound_order = 2 compound_mapcount compound_nr = 4 First Tail Page only Page (Tail page) _compound_pad_1 (compound_head) hpage_pinned_refcount deferred_list 2nd Tail Page only Compound Page Page (Tail page) _compound_pad_1 (compound_head) First Tail Page Second Tail Page bit 0: purpose
  • 95.
    kmalloc kmem_cache_alloc kmalloc_large kmalloc_order_trace kmalloc_order kmem_cache_alloc_trace size> KMALLOC_MAX_CACHE_SIZE (8KB) size <= KMALLOC_MAX_CACHE_SIZE (8KB) alloc_pages __GFP_COMP (Compound page) kmalloc_index • Get index based on size • if size < 8  return KMALLOC_SHIFT_LOW (3) • if size == 0  zero allocation Q1: [SLUB] kmalloc: allocation size = 0, 1, 2, or 4  workable? struct kmem_cache *kmalloc_caches[NR_KMALLOC_TYPES][KMALLOC_SHIFT_HIGH + 1] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] kmem_cache __percpu *cpu_slab *node[MAX_NUMNODES] struct kmem_cache *kmalloc_caches[KMALLOC_NORMAL][] NULL kmalloc-96 0 1 2 3 4 13 kmalloc-192 kmalloc-8 kmalloc-16 … kmalloc-8192 minimum kmalloc cache size = 8 bytes • if size < 8  return KMALLOC_SHIFT_LOW (3) • if size == 0  zero allocation
  • 96.
  • 97.
  • 98.
    Slab Cache Node-based cache:freelist concept is implemented in page struct (not shown) slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache_node (Node #0) struct list_head partial kmem_cache_node (Node #N) struct list_head partial . . slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache kmem_cache global variable kmem_cache_node global variable
  • 99.
    slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page*page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache_node (Node #0) struct list_head partial kmem_cache_node (Node #N) struct list_head partial . . slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache kmem_cache global variable kmem_cache_node global variable [Slab allocator calls this automatically] kmem_cache_alloc(kmem_cache, ..): Allocate a ‘kmem_cache’ object from global variable ‘kmem_cache’ [Slab allocator calls this automatically] kmem_cache_alloc_node(kmem_cache_node, …): Allocate ‘kmem_cache_node’ objects from global variable ‘kmem_cache_node’ 1 [User calls this function] k_cache = kmem_cache_create(): create/get a new cache 2 3 Who initializes global variables ‘kmem_cache’ and ‘kmem_cache_node’? Slab Allocator Initialization: “Chicken or the egg” problem
  • 100.
    Slab Allocator Initialization:“Chicken or the egg” problem slab object slab object .. slab object Page . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_cpu (CPU #N) struct page *page void **freelist struct page *partial slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache_node (Node #0) struct list_head partial kmem_cache_node (Node #N) struct list_head partial . . slab object slab object .. slab object Page slab object slab object .. slab object Page kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache kmem_cache global variable kmem_cache_node global variable [Slab allocator calls this automatically] kmem_cache_alloc(kmem_cache, ..): Allocate a ‘kmem_cache’ object from global variable ‘kmem_cache’ [Slab allocator calls this automatically] kmem_cache_alloc_node(kmem_cache_node, …): Allocate ‘kmem_cache_node’ objects from global variable ‘kmem_cache_node’ 1 [User calls this function] k_cache = kmem_cache_create(): create/get a new cache 2 3 Slab allocator: statically initialized ‘kmem_cache_boot’ Slob allocator: statically initialized ‘kmem_cache_boot’ Slub allocator: static local variables ‘boot_kmem_cache’ and ‘boot_kmem_cache_node’
  • 101.
    Slab Allocator Initialization: “Chickenor the egg” problem . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache = NULL . . kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial . . kmem_cache = NULL (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *kmem_cache_node = NULL kmem_cache_cpu (CPU #0) struct page *page void **freelist struct page *partial kmem_cache_node (Node #0) struct list_head partial kmem_cache (Slab cache) __percpu *cpu_slab *node[MAX_NUMNODES] percpu cache Node-based cache [Slab Cache] struct kmem_cache *sighand_cachep . . . . 1 2 3 [Cannot work] Allocate from ‘kmem_cache_node’ slab cache

Editor's Notes

  • #71 Wedson Almeida Filho
  • #72 Wedson Almeida Filho
  • #73 Wedson Almeida Filho
  • #74 Wedson Almeida Filho
  • #75 Wedson Almeida Filho
  • #77 Wedson Almeida Filho
  • #78 Wedson Almeida Filho
  • #79 Wedson Almeida Filho
  • #80 Wedson Almeida Filho
  • #84 Wedson Almeida Filho
  • #85 Wedson Almeida Filho
  • #86 Wedson Almeida Filho
  • #87 Wedson Almeida Filho
  • #88 Wedson Almeida Filho
  • #90 Wedson Almeida Filho
