For over 30 years, Shutterflex
has been the inspired choice
for quality shutters, louvres
and screens. Our beautiful
range of climate-control
products is precision-
engineered to withstand
even the harshest Australian
conditions, year after year.
Shutterflex is a family-
owned business, based in
Brisbane, Queensland. We
design, manufacture and
install our products using
high-performance Australian
materials. Our in-house design
and engineering experts will
happily customise solutions to
meet your specific requirements.
Shutterflex screens and
louvres are a cost-efficient
way to reduce your energy
bills. Our sustainable options
reduce the need for air-
conditioning in summer
and heating in winter, and
require minimal on-going
maintenance.
Registered
ISO 9001:2008
W shutterflex.com.au P 07 3277 5428
F 3276 8948 E sales@shutterflex.com.au
Showroom 37 Colebard Street West, Acacia Ridge, Qld 4110
Design Enviro Pty Ltd t/a Shutterflex reserves the right to change specification without prior notice. Images for illustration purposes only.
Bahama Series
Control your environment. Maximise your privacy.
Contemporary
style that offers so
much versatility.

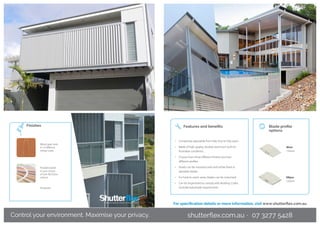

Shutterflex Bahama Series bring a
modern, sleek appeal to your home or
apartment. These screens are entirely
adjustable, allowing you to control
the light and breeze all year round.
Enjoy ultimate privacy with this stylish
and practical screen solution that’s
increasingly popular with designers
and architects.

Powdercoated
in your choice
of over 80 Dulux
colours
Finishes
Control your environment. Maximise your privacy.
Anodised
Wood grain look
in 14 different
timber looks
• Completely adjustable from fully shut to fully open
• Made of high-quality, durable aluminum built for
Australian conditions
• Choose from three different finishes and two
different profiles
• Panels can be manufactured with either fixed or
operable blades
• For hard-to-reach areas, blades can be motorised
• Can be engineered to comply with Building Codes
Australia balustrade requirements
Features and benefits Blade profile
options
Wave
120mm
Ellipse
150mm
For specification details or more information, visit www.shutterflex.com.au
shutterflex.com.au · 07 3277 5428

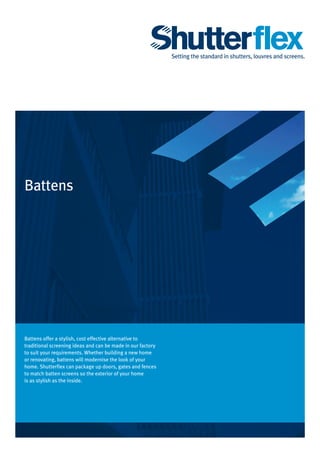

Battens
Battens offer a stylish, cost effective alternative to
traditional screening ideas and can be made in our factory
to suit your requirements. Whether building a new home
or renovating, battens will modernise the look of your
home. Shutterflex can package up doors, gates and fences
to match batten screens so the exterior of your home
is as stylish as the inside.
Setting the standard in shutters, louvres and screens.

phone: 07 3279 1162 | email: sales@shutterflex.com.au | website: www.shutterflex.com.au | fax: 07 3376 7853
Free, no obligation quotes are
available in your home, on site or
by sending your plans through by
email/fax. Our team are happy to
discuss your project requirements
at the design stage and advise of
products that suit the needs and
budget of the project.
Shutterflex is a proud, family
run Australian company; we use
aluminium and manufacture all our
products in our Brisbane factory
location. Our battens have been
installed throughout Australia in
high quality homes and resorts,
enhancing architectural and
landscape designs.
Battens
Shutterflex battens can be used as window sunscreens,
awnings over windows, fences, gates, pool enclosures,
gable features and privacy screens. Battens can be
positioned horizontally or vertically. There is a choice
of two standard screens: 65mm x 16mm battens
or 50mm x 25mm battens.
With our own manufacturing plant we can make the
battens to your specifications. Some of the options
available include:
varying the pitch between the battens•
varying the separation distance between the battens•
with a miniumum set at 10mm
with a frame or frameless.•
Powder coated aluminium requires little maintenance
and with the new wood grain finish you can get the look
of wood without cutting down any trees. If you want to
create an impact with your batten screens, there are over
eighty colours to choose from. Powder coating colours are
available for all the colourbond colour range so your battens
can compliment existing external features on your home.
Shutterflex can provide you with a quality installation by
qualified and experienced installers. The maximum span
between supports without a support bar is two metres.
Design Enviro Pty Ltd t/a Shutterflex
reserves the right to change
specification without prior notice.
Images for illustration purposes only.
QBSA Licence # 1059704

Registered
ISO 9001:2008
Quality
that’s beyond
compare
Proudly
Australian
Green your
home in style
Superior design. Ultimate quality.

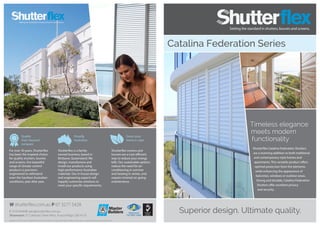

Catalina Federation Series
maintenance.
Timeless elegance
meets modern
functionality

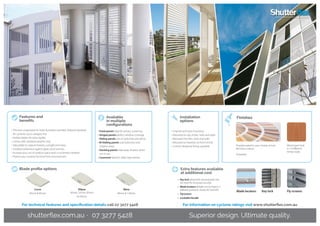

Shutterflex Catalina Federation Shutters
are a stunning addition to both traditional
and contemporary-style homes and
apartments. This versatile product offers
optimal protection from the elements
while enhancing the appearance of
balconies, windows or outdoor areas.
Strong and durable, Catalina Federation
Shutters offer excellent privacy
and security.

Curve
45mm & 85mm
Ellipse
45mm, 55mm, 85mm
&150mm
Wave
90mm & 120mm
Blade profile options
For technical features and specification details call 07 3277 5428 For information on cyclone ratings visit www.shutterflex.com.au

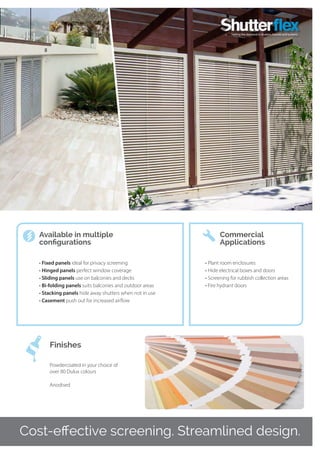

• Fixed panels ideal for privacy screening
• Hinged panels perfect window coverage
• Sliding panels use on balconies and decks
• Bi-folding panels suits balconies and
outdoor areas
• Stacking panels hide away shutters when
not in use
• Casement ideal for older-style homes
• Channel and track mounting
• Mounted on top of tiles, hobs and walls
• Recessed into tiles, hobs and walls
• Mounted on brackets on front of hob
• Custom-designed fixings available
Available
in multiple
configurations
Installation
options
Fly screensBlade locators Key lock
Extra features available
at additional cost
• Key lock (drop bolts secure panels into
the track for increased security)
• Blade locators (blades can be fixed in 3
different positions: closed, 45° and 90°)
• Flyscreens
• Lockable Handle
Superior design. Ultimate quality.shutterflex.com.au · 07 3277 5428
• Precision-engineered to meet Australian and New Zealand standards
for cyclones up to category five
• Hollow blades for extra rigidity
• Comes with standard weather strip
• Adjustable to capture breezes, sunlight and views
• Excellent protection against glare, wind and rain
• Increase your use of outdoor space even in inclement weather
• Protect your outdoor furniture from wind and rain
Features and
benefits
Powdercoated in your choice of over
80 Dulux colours
Anodised
Finishes
Wood grain look
in 14 different
timber looks

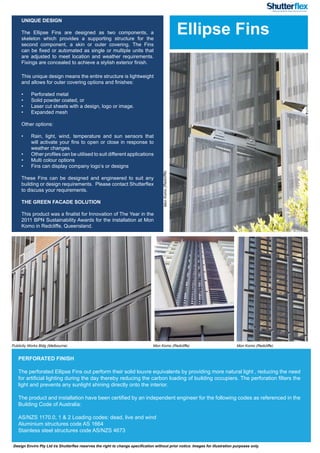

UNIQUE DESIGN

The Ellipse Fins are designed as two components, a
skeleton which provides a supporting structure for the
second component, a skin or outer covering. The Fins
can be fixed or automated as single or multiple units that
are adjusted to meet location and weather requirements.
Fixings are concealed to achieve a stylish exterior finish.
This unique design means the entire structure is lightweight
and allows for outer covering options and finishes:
• Perforated metal
• Solid powder coated, or
• Laser cut sheets with a design, logo or image.
• Expanded mesh
Other options:
• Rain, light, wind, temperature and sun sensors that
will activate your fins to open or close in response to
weather changes.
• Other profiles can be utilised to suit different applications
• Multi colour options
• Fins can display company logo’s or designs
These Fins can be designed and engineered to suit any
building or design requirements. Please contact Shutterflex
to discuss your requirements.
THE GREEN FACADE SOLUTION
This product was a finalist for Innovation of The Year in the
2011 BPN Sustainability Awards for the installation at Mon
Komo in Redcliffe, Queensland.
PERFORATED FINISH
The perforated Ellipse Fins out perform their solid louvre equivalents by providing more natural light , reducing the need
for artificial lighting during the day thereby reducing the carbon loading of building occupiers. The perforation filters the
light and prevents any sunlight shining directly onto the interior.
The product and installation have been certified by an independent engineer for the following codes as referenced in the
Building Code of Australia:
AS/NZS 1170.0, 1 & 2 Loading codes: dead, live and wind
Aluminium structures code AS 1664
Stainless steel structures code AS/NZS 4673
Ellipse Fins
Publicity Works Bldg (Melbourne) Mon Komo (Redcliffe) Mon Komo (Redcliffe)
MonKomo(Redcliffe)

phone: 07 3277 5428 / email: sales @ shutterflex.com.au / website: www.shutterflex.com.au / fax: 07 3276 8948
Ellipse Fins
Shutterflex Ellipse Fins are a superior designed product
suitable for commercial buildings. The customised fins
offer a unique, lightweight solution to sun control on
facades while allowing maximum entry of natural light.
The Ellipse Fins are a product in the Shutterflex facade
range that has functionality and impressive street
appeal. The Fins can be fixed in position or designed
to be electronically operable, allowing the blade angle
to be adjusted to suit the sun direction and full use of
natural light.
ABN 28 063 974 636 t/a
PublicityWorksBldg(Melbourne)

Quality
that’s beyond
compare
Proudly
Australian
Green your
home in style
Registered
ISO 9001:2008
Classically beautiful. Fully adjustable.
Add a touch of
charm to your
home.

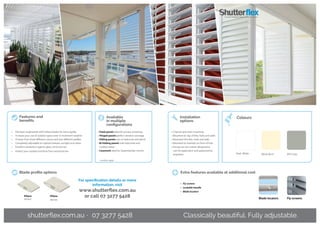

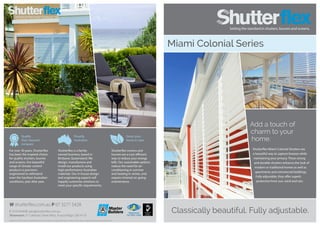

Shutterflex Miami Colonial Shutters are
a beautiful way to capture breezes while
maintaining your privacy. These strong
and durable shutters enhance the look of
modern or traditional homes as well as
apartments and commercial buildings.
Fully adjustable, they offer superb
protection from sun, wind and rain.
Miami Colonial Series
maintenance.

Ellipse
45mm
Ellipse
85mm
Available
in multiple
configurations
Installation
options
Fly screensBlade locators
Extra features available at additional cost
• Fly screens
• Lockable handle
• Blade locators
Classically beautiful. Fully adjustable.
Features and
benefits
APO GreyPearl White
Colours
White Birch
• Precision-engineered with hollow blades for extra rigidity
• Increase your use of outdoor space even in inclement weather
• Choose from three different colours and two different profiles
• Completely adjustable to capture breezes, sunlight and views
• Excellent protection against glare, wind and rain
• Protect your outdoor furniture from wind and rain
• Bi-folding panels suits balconies and
outdoor areas*
• Casement ideal for Queenslander homes
• Fixings can be custom designed to
suit the application and approved by
engineers
For specification details or more
information, visit
www.shutterflex.com.au
or call 07 3277 5428
*
conditions apply

phone: 07 3277 5428 / email: sales @ shutterflex.com.au / website: www.shutterflex.com.au / fax: 07 3276 8948

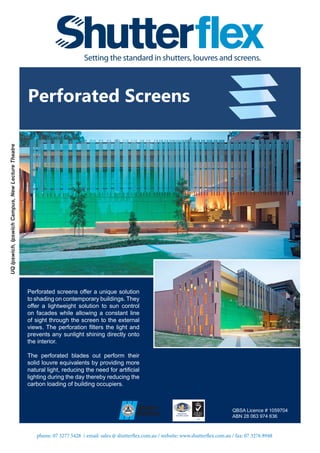

Perforated Screens
ABN 28 063 974 636
UQIpswich,IpswichCampus,NewLectureTheatre
Perforated screens offer a unique solution
to shading on contemporary buildings. They
offer a lightweight solution to sun control
on facades while allowing a constant line
of sight through the screen to the external
views. The perforation filters the light and
prevents any sunlight shining directly onto
the interior.
The perforated blades out perform their
solid louvre equivalents by providing more
natural light, reducing the need for artificial
lighting during the day thereby reducing the
carbon loading of building occupiers.

Perforated Screens
VerideanResort,Noosa
Here’s how to Specify
Product
Shutterflex Perforated Aluminium Screen. Supplier _______
Product Code_________. Contact us to discuss your
requirements and design preferences for perforation sizes, free
open areas, metal types and thicknesses, dimensions of borders.
Provide drawing of shape design and call for collaboration on
shape design.
Finish
• Powder coated finish in __________(insert powder
company name).
• _________ (insert colour and code).
OR
• Anodised finish in colour _________ (e.g. Matt natural).
• In _____________microns (insert number of microns e.g.
15-25 µ). Warranty required YES/NO_________
Installation and mounting
• Fixed _________________ (insert vertically or horizontally)
• Screens at a length of ________mm and width of ____mm
• Mounted at a pitch of__________ mm
• Border: Horizontal______mm and Vertical ______mm.
Installation and mounting designs will meet the following
requirements.:
Location or required wind loads: ___________
Terrain category: ____________________
For engineered solutions to fixing and mounting design methods
contact Shutterflex 07 3277 5428.
VeridianResort,Noosa
Benefits of perforated screens:
• reduces the view in from outside
• performs well in energy-transmission reduction.
The two projects illustrated on this brochure were multi ward winning designs
featuring perforated screens. Veridian Residences at Noosa has been a multi
award winning design, including the 2006 Royal Australian Institute of Architects
Regional Award and Building of the Year. The UQ Ipswich Auditorium has won
among others the AIA William Hodgen Award for Building of the year in 2012.

Quality
that’s beyond
compare
Proudly
Australian
Green your
home in style
Registered
ISO 9001:2008
maintenance.

Cost-effective, streamlined screening.
Portofino Series
Sophisticated
screening
with multiple
applications
The clever design of Shutterflex’s
Portafino Series gives you so many
options. These louvres screens can be
configured vertically or horizontally,
and installed as either panels or doors.
A stylish and light-weight screening
solution for homes or commercial
buildings, they offer cost-effective
security, privacy and protection
from the sun.

For specification details or more information, call www.shutterflex.com.au
• Highly durable sun shading for windows and awnings
• Ideal privacy screening for gates, gable infill and air
conditioning units
• Made of high-quality, low-maintenance aluminium
• Panels can be either fixed or moveable
• Panels can be manufactured with or without frames for
two different looks
• Choose from two different profiles
Single Skin
45mm
(with built-in stiffening webs to
minimise deflection and noise)
Ellipse
45mm
Ellipse
85mm
• Custom-designed fixings available
Standard pitch between the
blades gives zero overlap,
but we can customise the
spacing and the pitch to suit
your design requirements.
Installation
options
Features and
benefits

Cost-effective screening. Streamlined design.
• Bi-folding panels suits balconies and outdoor areas
• Stacking panels hide away shutters when not in use
• Casement push out for increased airflow
• Plant room enclosures
• Hide electrical boxes and doors
• Screening for rubbish collection areas
• Fire hydrant doors
Available in multiple
configurations
Commercial
Applications
Powdercoated in your choice of
over 80 Dulux colours
Anodised
Finishes

SF-70
With its sharp, clean angles, the Shutterflex SF-70 has
a stylish, contemporary look suited to modern designs.
SF-70 can be applied to a variety of applications including
vertical and horizontal sunscreens outside windows, awnings
over windows, doors and privacy screens. A practical and
cost effective sun shade solution that will contribute to Green
Star ratings on buildings, the SF-70 has been installed on a
number of commercial projects in the hospitality, education
and health sectors as well as contemporary homes.
Several schools throughout Queensland have SF-70 screens
installed on windows to cool the classrooms and increase
the energy efficiency.
The SF-70 is ideal for either horizontal or vertical blades
and is available in a framed or frameless style.
Setting the standard in shutters, louvres and screens.

phone: 07 3279 1162 | email: sales@shutterflex.com.au | website: www.shutterflex.com.au | fax: 07 3376 7853
Shutterflex is a proud, family
run Australian company; we
manufacture all our products
in our Brisbane factory location.
Our products have been installed
throughout Australia for projects
in education, hospitality, aged
care, retail, residential, resort
and mixed use developments.
The SF-70 can be packaged with
other products in our range such
as battens, balcony shutters
and grating to minimise costs
and reduce the number of
subcontractors for one project.
SF-70
The SF-70 is manufactured using a Shutterflex extruded
aluminum blade. The blade is 70mm along the angled leg.
The SF-70 is supplied standard with a blade pitch to give zero
blade overlap. Due to the flexibility of the SF-70 design the
blade pitch can be made to suit your specific requirements.
The blades are assembled using the Shutterflex rod and
tube system. This system gives a very sturdy assembly
making the SF-70 the preferred option for many architects.
The rod and tube pitch can also be made at 100mm,•
200mm or 300mm to suit your specific requirements.
The SF-70 weighs approximately 14Kg/sqm.•
Powder coated colour or anodised finish available to suit•
your needs.
Screens can be installed using a range of mounting methods
with fixings custom designed to suit the application and
approved by engineers. Our team are happy to discuss your
project requirements at the design stage and advise
of products that suit the needs and budget of the project.
Shutterflex can provide you with a quality installation
by qualified and experienced installation teams. Free, no
obligation quotes are available in on site or by sending your
plans through by email/fax. With many years of experience
in commercial projects, Shutterflex knows the importance
of meeting deadlines on project schedules.
Design Enviro Pty Ltd t/a Shutterflex
reserves the right to change
specification without prior notice.
Images for illustration purposes only.

Tobago
Superior strength. Sleek aesthetic
This new external aluminium
shading system from
Shutterflex is designed to
create a sleek aesthetic while
reducing solar heat gain.
Tobago’s continuous blades
bring a streamlined appeal
to both new and existing
buildings.
Its unique patented design
incorporates three-part fins
and an innovative engineered
locking plate - the AC-
300. This device is proven
to increase durability and
structural strength.
The system can be
configured to compliment
any sun shading design.
Pindara Private Hospital

P 07 3277 5428 F 3276 8948 E sales@shutterflex.com.au
Features
Sleek aesthetic
Low-profile concealed fixings
creating a clean, continuous
appearance.
Sizes and profiles
• Fin thickness 45mm
• Shape options:
o Box fin with square ends, the
Tobago SqE
o Elliptical shaped blade,
Tobago EE
o Bullet shaped blade, Tobago B
• Fin lengths range from 300mm
increasing in 150mm increments.
• Unique patented design
• Stronger that other sunblades
over long spans
• Clean, continuous appearance
• Exceptionally strong under high
wind conditions
• Improves energy performance
• Maximises natural light
• Increases internal comfort and
productivity of occupants
• Reduces solar heat gain
• Allows outward visibility
• Internal cleats ensure perfect
alignment
• Easily integrated into new or
existing facade
• Configure to compliment any
sun shading design
Installation
• Fixed or movable
• Stainless steel fixings
• Fins can be cantilevered past the
carrier
• Designed in accordance
with proprietary systems and
engineering requirements
• Horizontal, vertical or angled
positioning at various pitches
Certification
Designed to meet wind load
requirements of regional locations
and Australian Standards 1170.2
Colours and Finishes
Powder coated
Anodised
Woodgrain look
For more information
about Tobago contact
Shutterflex.
Benefits
Pindara Private Hospital
300mm Boxfin
300mm Ellipse
300mm Bullet
450mm Boxfin
450mm Bullet
Blade Profiles

Trinidad
Superior strength. Sleek aesthetic
This new external aluminium
shading system from
Shutterflex is designed to
create a sleek aesthetic while
reducing solar heat gain.
Trinidad’s continuous blades
bring a streamlined appeal
to both new and existing
buildings.
Its unique patented design
incorporates three-part fins
and an innovative engineered
locking plate - the AC-
300. This device is proven
to increase durability and
structural strength.
The system can be
configured to compliment
any sun shading design.

P 07 3277 5428 F 3276 8948 E sales@shutterflex.com.au
Features
Sleek aesthetic
Low-profile concealed fixings
creating a clean, continuous
appearance.
Sizes and profiles
• Fin thickness 75mm
• Shape options:
o Box fin with square ends, the
Trinidad SqE
o Elliptical shaped blade,
Trinidad EE
o Bullet shaped blade, Trinidad B
• Fin lengths range from 150mm-
500mm wide.
• Unique patented design
• Stronger that other sunblades
over long spans
• Clean, continuous appearance
• Exceptionally strong under high
wind conditions
• Improves energy performance
• Maximises natural light
• Increases internal comfort and
productivity of occupants
• Reduces solar heat gain
• Allows outward visibility
• Internal cleats ensure perfect
alignment
• Easily integrated into new or
existing facade
• Configure to compliment any
sun shading design
Installation
• Fixed or movable
• Stainless steel fixings
• Fins can be cantilevered past the
carrier
• Designed in accordance
with proprietary systems and
engineering requirements
• Horizontal, vertical or angled
positioning at various pitches
Certification
Designed to meet wind load
requirements of regional locations
and Australian Standards 1170.2
Colours and Finishes
Powder coated
Anodised
Woodgrain look
Control Options
Manual - adjust blades by hand
Electric motor
Sensors
For more information about Trinidad contact
Shutterflex
Benefits
400mm Boxfin
500mm Bullet
600mm Boxfin
600mm Bullet
700mm Bullet
Blade Profiles

phone: 07 3277 5428 / email: sales@shutterflex.com.au / website: www.shutterflex.com.au / fax: 07 3276 8948
Weatherproof Step-Z Louvre
ABN 28 063 974 636 t/a
BluCentralSquare,VarsityLakes
Shutterflex Weatherproof Louvres can be used where a weatherproof screen is required providing
maximum air flow in commercial and industrial applications. The blade pitch can be varied to control
air flow and natural light ingress. Our Weatherproof Louvres are available in continuous or framed
panels. You have the options of angle, channel or box frames depending on the application. These
screens are available with vermin proof mesh to rear of screens.
Powder coated or anodised finish is available to suit your needs.

130
90
51
39
Weatherproof
Step-Z Louvre blade Profiles
51
39
Weatherproof blade profiles
Here’s how to Specify
Product
Weatherproof blades will be Shutterflex aluminium
_______ (Standard Z blade, size 38 x 51mm or stepped Z
blade, size 90 x 130).
Finish
• Powder coated finish in __________(insert powder
company name).
• _________ (insert colour and code).
OR
• Anodised finish in colour _________ (e.g. Matt
natural).
• In _____________microns (insert number of microns)
Installation and mounting
• Fixed _________________ (insert vertically or
horizontally)
• Mounted at a pitch of__________ mm or _______%
free airflow.
Frame Options:
• __________ (angle, channel or box frame)
Installation and mounting designs will meet the following
requirements.:
Location or required wind loads: ___________
Terrain category: ____________________
For engineered solutions to fixing and mounting
design methods contact Shutterflex 07 3277 5428.
Custom designed around options and mounting
methods e.g. within a frame or two sides.
MidriseApartments
RobinaHealthPrecinct
RobinaHealthPrecinct
Redland Bay State School
Stepped Z Sandard Z

Shutterflex Proprietary Screen Systems

Recommended

Recommended

More Related Content

What's hot

What's hot (20)

Similar to Shutterflex Proprietary Screen Systems

Similar to Shutterflex Proprietary Screen Systems (20)

Shutterflex Proprietary Screen Systems
