1. Security
in CI/CD pipelines
Tips for DevSecOps
engineers
Stepan Ilyin
Wallarm, co-founder
@wallarm

2. Whoami
Stepan Ilyin
● Co-founder and Chief Product Officer of Wallarm
● Based in SF
● Working on several products for F500
and web scale companies to
○ protect cloud-native applications and APIs
○ automate security testing in CI/CD pipelines

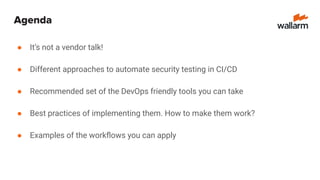

3. Agenda
● It’s not a vendor talk!
● Different approaches to automate security testing in CI/CD
● Recommended set of the DevOps friendly tools you can take
● Best practices of implementing them. How to make them work?
● Examples of the workflows you can apply

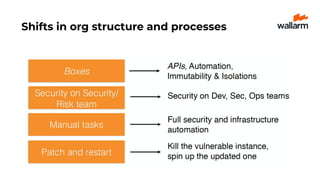

4. Shifts in org structure and processes

5. Trends and challenges
● Agile and DevOps
○ Short timelines and frequent changes
○ Automated pipeline
● Containers
● Cloud-hosted applications
● Open source
● APIs
● Application Security Testing
(AST) is too slow and requires
too many manual steps
● False positives
● Hard to achieve complete testing
coverage
● Limited remediation advice
● Hard to prioritize issues
Trends Challenges

6. Security testing tools zoo
● SAST (Static analysis)
● DAST (Dynamic analysis, Fuzzing)
● IAST (Interactive
● SCA
● ...
● Secret detection
● Licensing violation detection
● ..

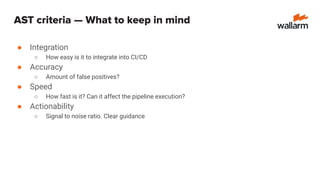

9. ● Integration
○ How easy is it to integrate into CI/CD
● Accuracy
○ Amount of false positives?
● Speed
○ How fast is it? Can it affect the pipeline execution?
● Actionability
○ Signal to noise ratio. Clear guidance
AST criteria — What to keep in mind

10. Static testing (aka SAST)
● Scan code to identify insecure patterns and potential vulnerabilities
● Challenges
○ False positives and a lot of noise; requires tuning
○ Hard to distinguish exploitable issues from non-exploitable issues
○ Doesn’t have any runtime context (connection with other services, DBs, etc.)
● Deployment
○ Developer machine (as left as possible)
■ IDE checks as spell-checker
○ As a part CI
■ Scan diffs
■ Run scans of full scan of the source-code

11. Static testing (aka SAST) — Pros and Cons
● Integration
○ Easy
● Accuracy
○ A lot of false positives
● Speed
○ Minutes to hours
● Actionability
○ Exact line of code. But hard to say which of the issues are real issues.

12. Commercial
● Checkmarx
● Microfocus
● Synopsys
● etc
OSS
● Ruby (Brakeman, Cane), Python (Bandit), ..
● https://github.com/mre/awesome-static-analysis
IDE
● Mostly from commercial vendors
Static testing (aka SAST) — Tools landscape

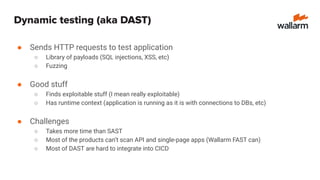

13. Dynamic testing (aka DAST)
● Sends HTTP requests to test application
○ Library of payloads (SQL injections, XSS, etc)
○ Fuzzing
● Good stuff
○ Finds exploitable stuff (I mean really exploitable)
○ Has runtime context (application is running as it is with connections to DBs, etc)
● Challenges
○ Takes more time than SAST
○ Most of the products can’t scan API and single-page apps (Wallarm FAST can)
○ Most of DAST are hard to integrate into CICD

14. Dynamic testing (aka DAST) —
Requirements for CICD
● Longest tool in the market
● Most of the tools are developed
○ For pentesters (support to be manually used)
○ For old fashioned apps (when it was easy to crawl website; not anymore with SPAs)
● Requirements
○ Does it support integration to CI?
○ Can it test APIs (and SPAs)
○ Speed

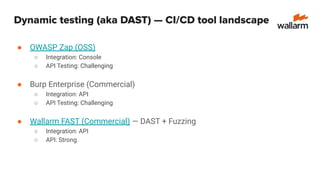

15. Dynamic testing (aka DAST) — CI/CD tool landscape
● OWASP Zap (OSS)
○ Integration: Console
○ API Testing: Challenging
● Burp Enterprise (Commercial)
○ Integration: API
○ API Testing: Challenging
● Wallarm FAST (Commercial) — DAST + Fuzzing
○ Integration: API
○ API: Strong

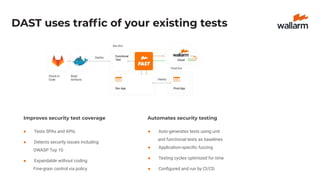

16. DAST uses traffic of your existing tests
Improves security test coverage
● Tests SPAs and APIs
● Detects security issues including
OWASP Top 10
● Expandable without coding
Fine-grain control via policy
Automates security testing
● Auto-generates tests using unit
and functional tests as baselines
● Application-specific fuzzing
● Testing cycles optimized for time
● Configured and run by CI/CD

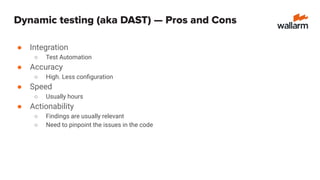

17. Dynamic testing (aka DAST) — Pros and Cons
● Integration
○ Test Automation
● Accuracy
○ High. Less configuration
● Speed
○ Usually hours
● Actionability
○ Findings are usually relevant
○ Need to pinpoint the issues in the code

18. Interactive Application Security Testing (IAST)
● Runtime code analysis using instrumentation
● Looks at the code as it’s executed
● Can be deployed for 1-10% of your traffic
● Challenges:
○ Coverage is limited to what is executed
(Test automation scripts needed to drive application behavior)
○ Requires integration into CICD
○ Bound by source programming language and runtime environment

19. Interactive Application Security Testing (IAST) —
Tools for CICD
● Most of the solutions are commercial
○ Synopsys Seeker
○ Contrast Security Assess

20. Interactive testing (aka IAST) — Pros and Cons
● Integration
○ Quick. But require support of the language / stack. Test automation
● Accuracy
○ High. Runtime context give benefits
● Speed
○ Quick
● Actionability
○ Findings are usually relevant

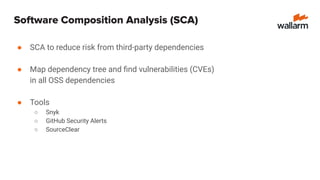

21. Software Composition Analysis (SCA)
● SCA to reduce risk from third-party dependencies
● Map dependency tree and find vulnerabilities (CVEs)
in all OSS dependencies
● Tools
○ Snyk
○ GitHub Security Alerts
○ SourceClear

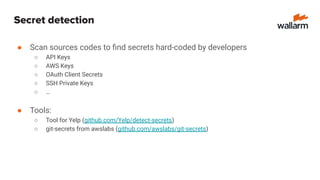

22. Secret detection
● Scan sources codes to find secrets hard-coded by developers
○ API Keys
○ AWS Keys
○ OAuth Client Secrets
○ SSH Private Keys
○ …
● Tools:
○ Tool for Yelp (github.com/Yelp/detect-secrets)
○ git-secrets from awslabs (github.com/awslabs/git-secrets)

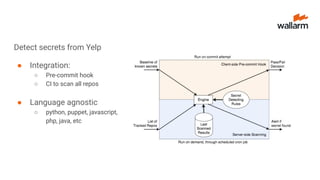

23. Detect secrets from Yelp
● Integration:
○ Pre-commit hook
○ CI to scan all repos
● Language agnostic
○ python, puppet, javascript,
php, java, etc

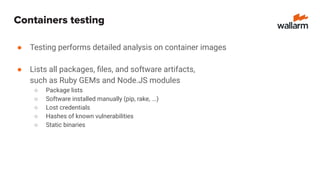

24. Containers testing
● Testing performs detailed analysis on container images
● Lists all packages, files, and software artifacts,
such as Ruby GEMs and Node.JS modules
○ Package lists
○ Software installed manually (pip, rake, ...)
○ Lost credentials
○ Hashes of known vulnerabilities
○ Static binaries

25. Containers testing
● Anchore Engine (https://github.com/anchore/anchore-engine)
○ Jenkins plugin
○ REST API
○ CLI
● Clair from CoreOS team (https://github.com/coreos/clair)
● Banyan Collector (https://github.com/banyanops/collector)
● Klar (https://github.com/optiopay/klar)
○ Clair && Docker registry
● Snyk
● Red Hat OpenScap

26. 26
Infrastructure as Code

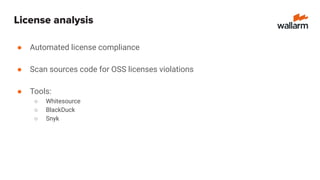

27. License analysis
● Automated license compliance
● Scan sources code for OSS licenses violations
● Tools:
○ Whitesource
○ BlackDuck
○ Snyk

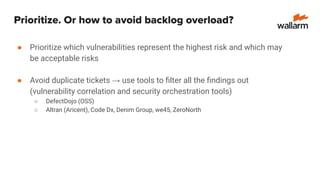

29. Prioritize. Or how to avoid backlog overload?
● Prioritize which vulnerabilities represent the highest risk and which may
be acceptable risks
● Avoid duplicate tickets → use tools to filter all the findings out
(vulnerability correlation and security orchestration tools)
○ DefectDojo (OSS)
○ Altran (Aricent), Code Dx, Denim Group, we45, ZeroNorth

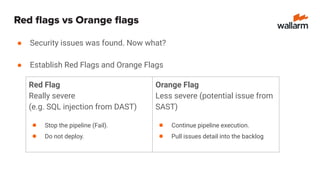

30. Red flags vs Orange flags
● Security issues was found. Now what?
● Establish Red Flags and Orange Flags
Red Flag
Really severe
(e.g. SQL injection from DAST)
● Stop the pipeline (Fail).
● Do not deploy.
Orange Flag
Less severe (potential issue from
SAST)
● Continue pipeline execution.
● Pull issues detail into the backlog

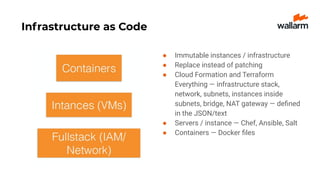

31. Infrastructure as Code
● Immutable instances / infrastructure
● Replace instead of patching
● Cloud Formation and Terraform
Everything — infrastructure stack,
network, subnets, instances inside
subnets, bridge, NAT gateway — defined
in the JSON/text
● Servers / instance — Chef, Ansible, Salt
● Containers — Docker files

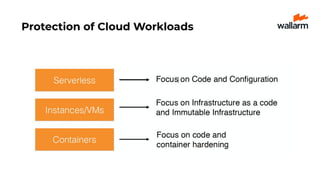

32. Protection of Cloud Workloads

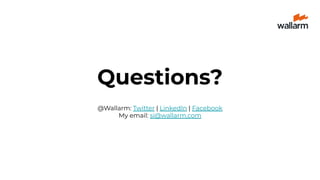

33. Questions?
@Wallarm: Twitter | LinkedIn | Facebook
My email: si@wallarm.com
