1. 5: Security Fundamentals

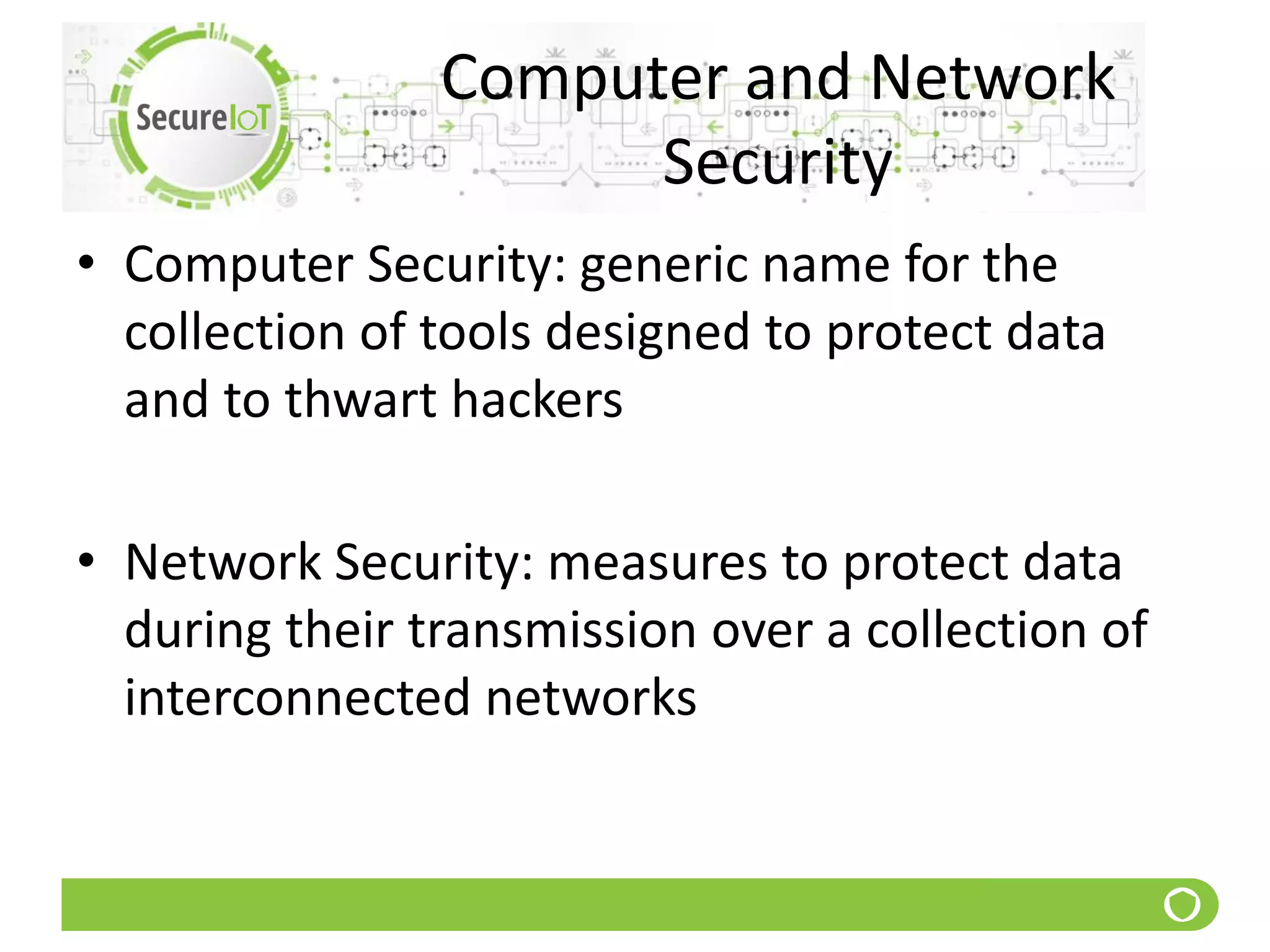

2. Computer and Network
Security
• Computer Security: generic name for the
collection of tools designed to protect data
and to thwart hackers
• Network Security: measures to protect data
during their transmission over a collection of
interconnected networks

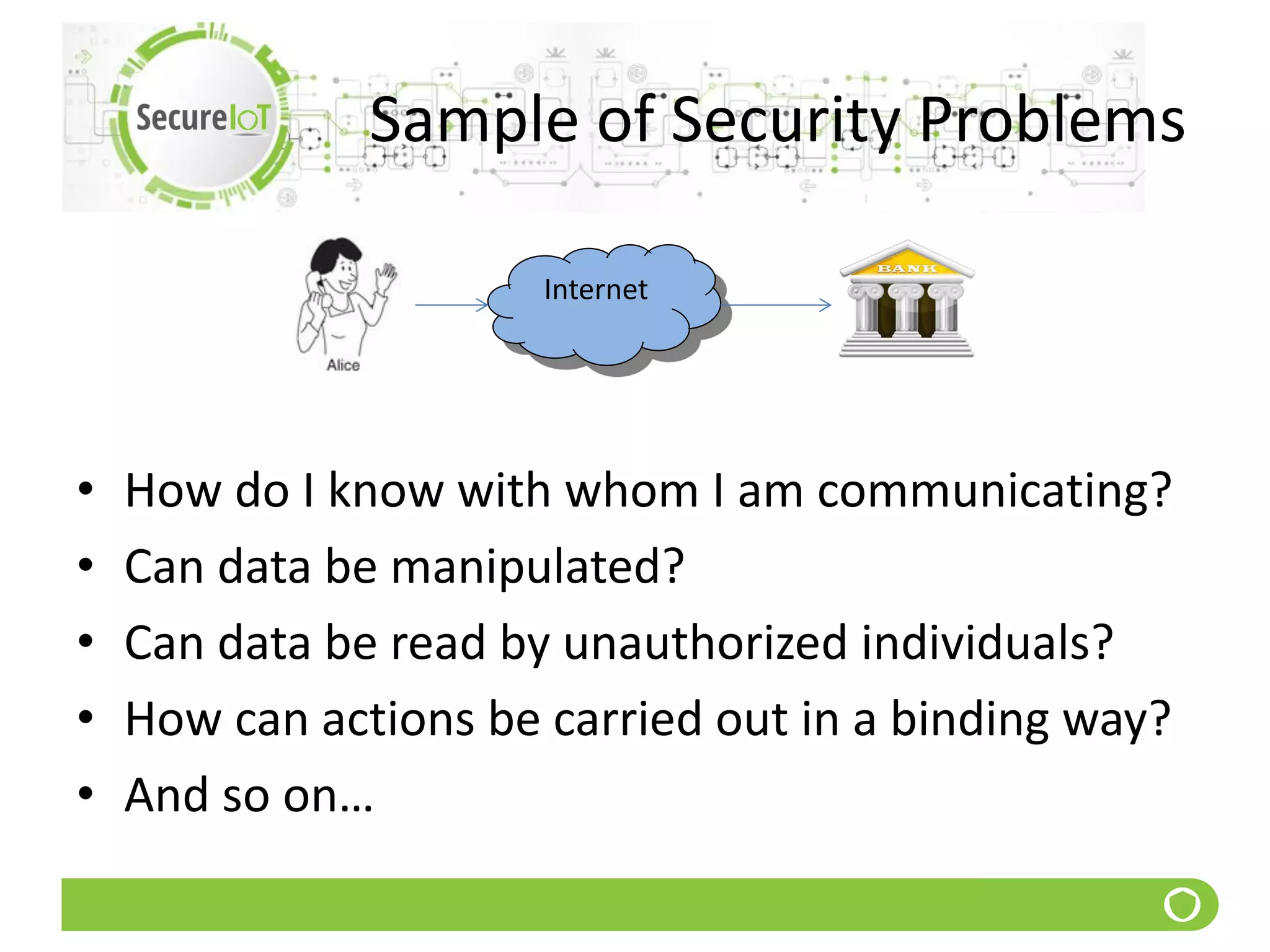

3. Sample of Security Problems
• How do I know with whom I am communicating?
• Can data be manipulated?
• Can data be read by unauthorized individuals?
• How can actions be carried out in a binding way?
• And so on…
Internet

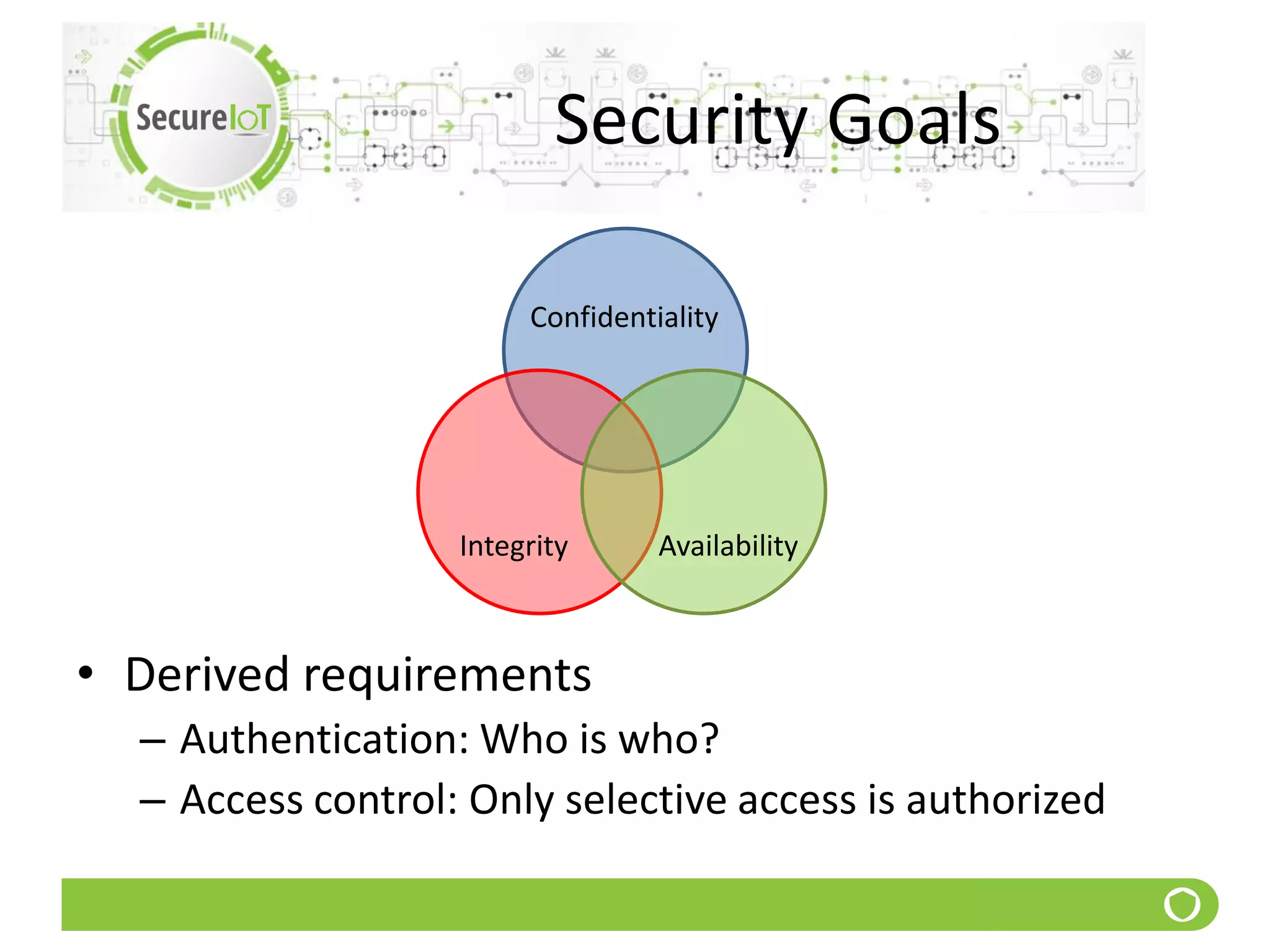

4. Security Goals
• Derived requirements
– Authentication: Who is who?
– Access control: Only selective access is authorized
Confidentiality
Integrity Availability

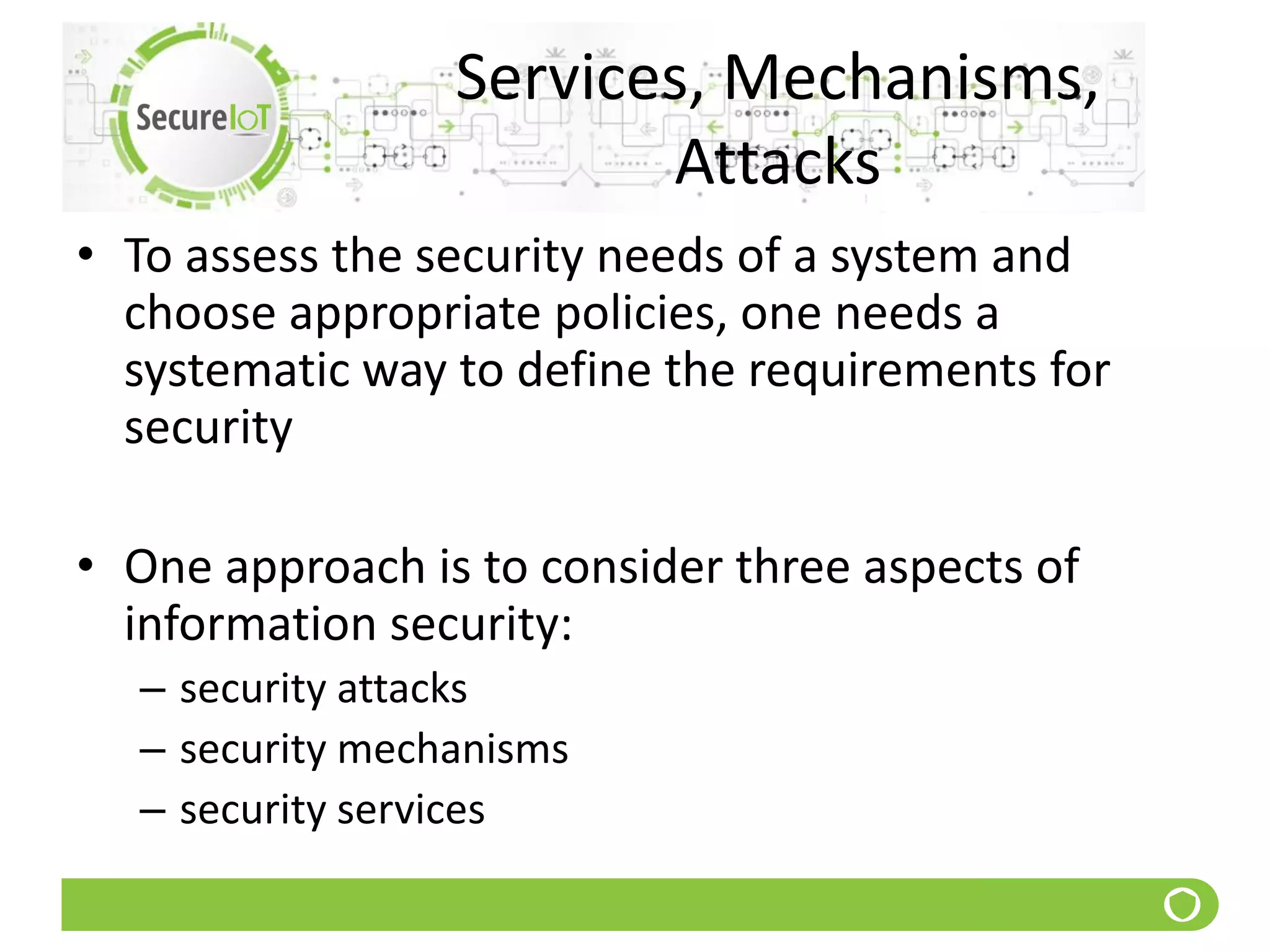

5. Services, Mechanisms,
Attacks
• To assess the security needs of a system and
choose appropriate policies, one needs a
systematic way to define the requirements for
security
• One approach is to consider three aspects of
information security:
– security attacks
– security mechanisms
– security services

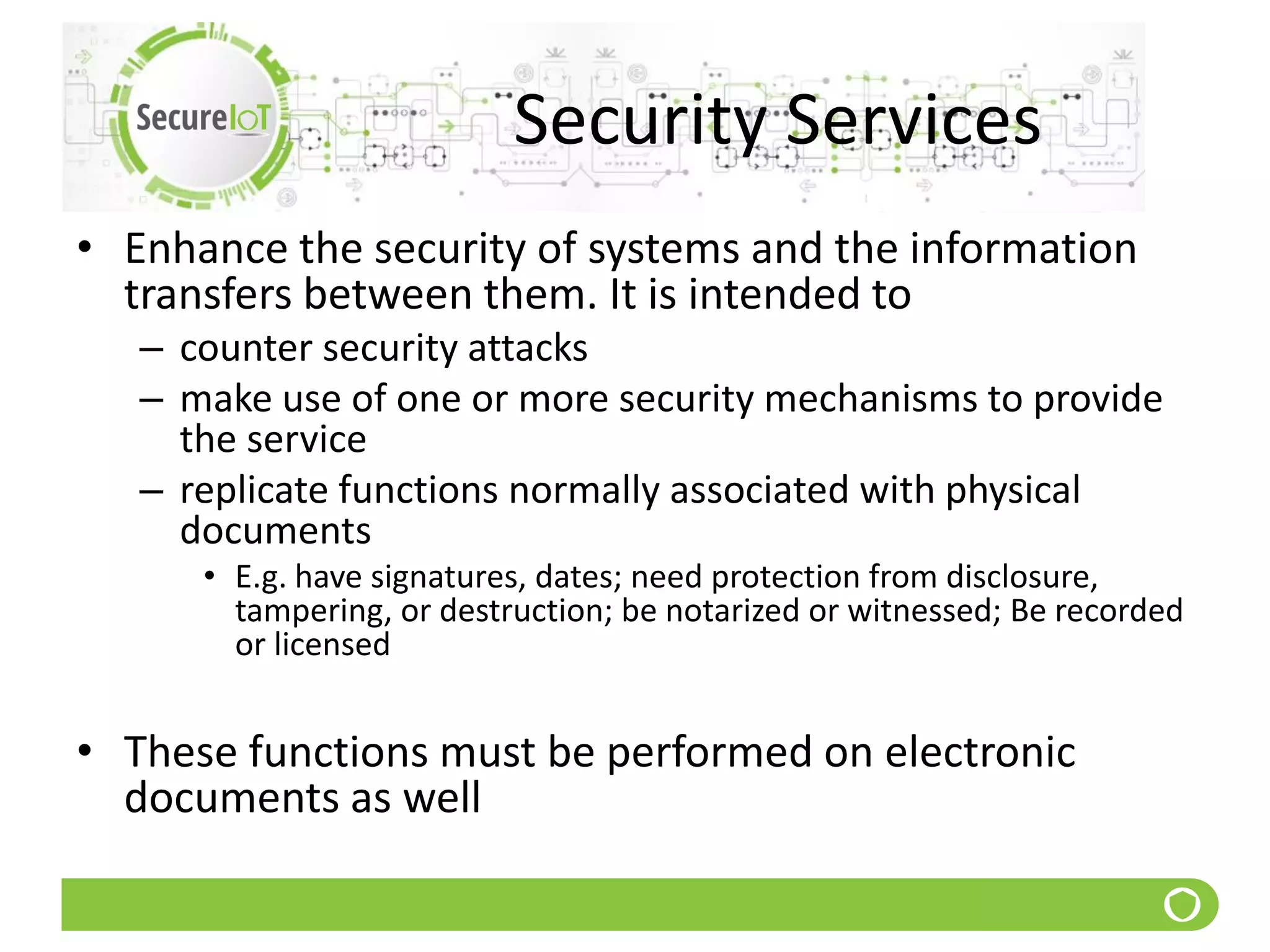

6. Security Services
• Enhance the security of systems and the information
transfers between them. It is intended to
– counter security attacks
– make use of one or more security mechanisms to provide
the service
– replicate functions normally associated with physical
documents
• E.g. have signatures, dates; need protection from disclosure,
tampering, or destruction; be notarized or witnessed; Be recorded
or licensed
• These functions must be performed on electronic
documents as well

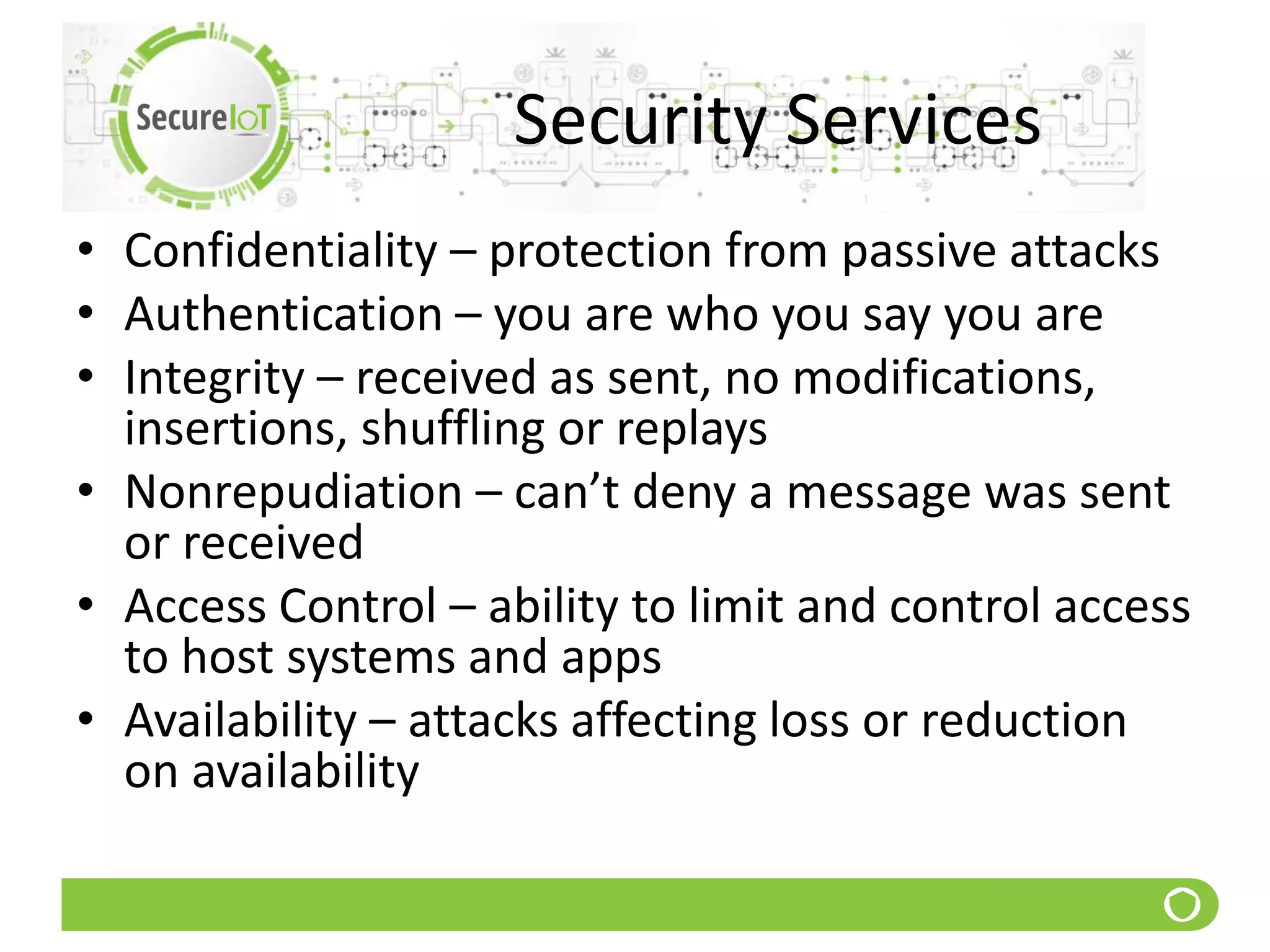

7. Security Services
• Confidentiality – protection from passive attacks
• Authentication – you are who you say you are
• Integrity – received as sent, no modifications,
insertions, shuffling or replays
• Nonrepudiation – can’t deny a message was sent
or received
• Access Control – ability to limit and control access
to host systems and apps
• Availability – attacks affecting loss or reduction
on availability

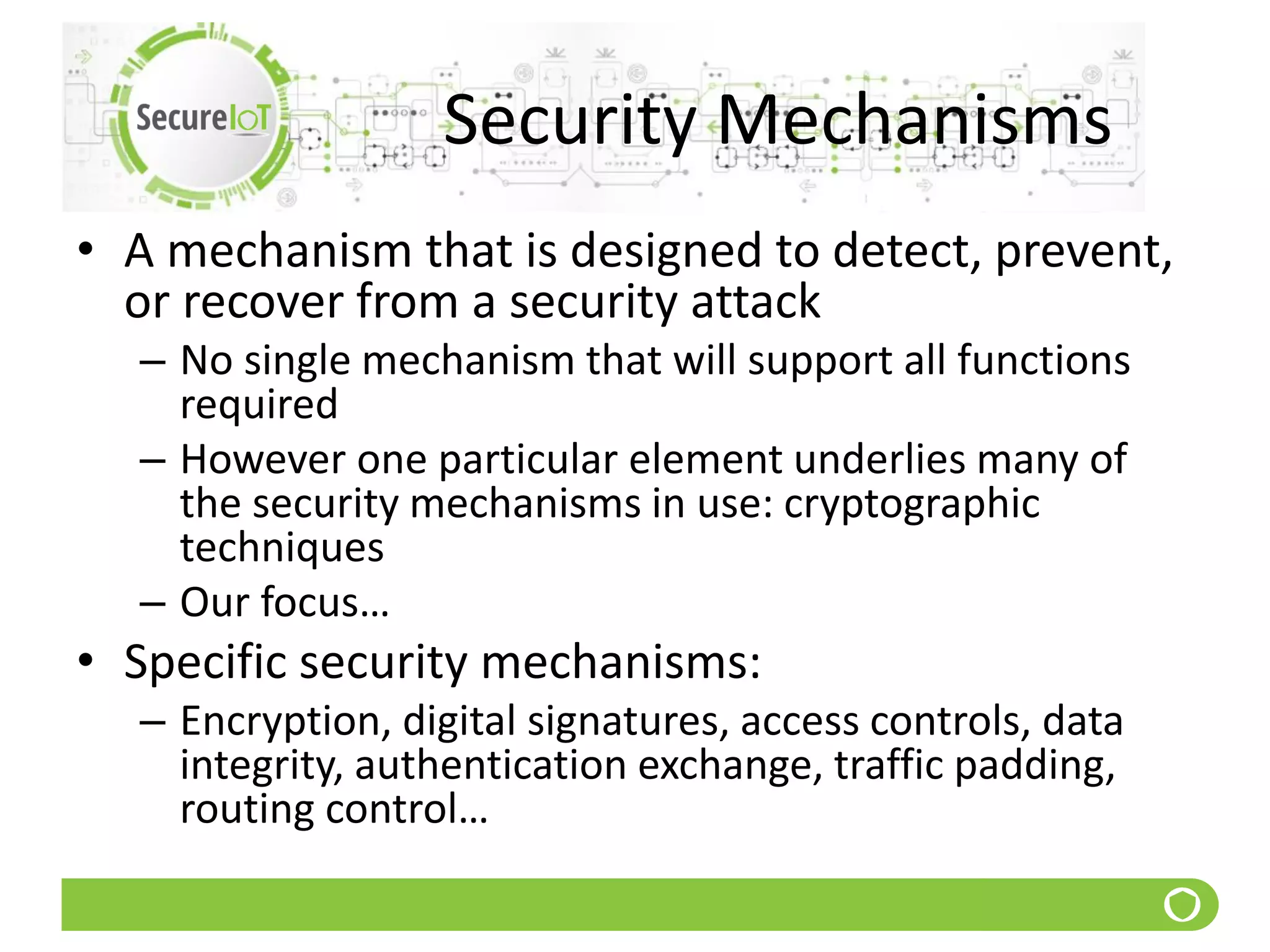

8. Security Mechanisms
• A mechanism that is designed to detect, prevent,
or recover from a security attack
– No single mechanism that will support all functions
required
– However one particular element underlies many of
the security mechanisms in use: cryptographic
techniques
– Our focus…
• Specific security mechanisms:
– Encryption, digital signatures, access controls, data
integrity, authentication exchange, traffic padding,
routing control…

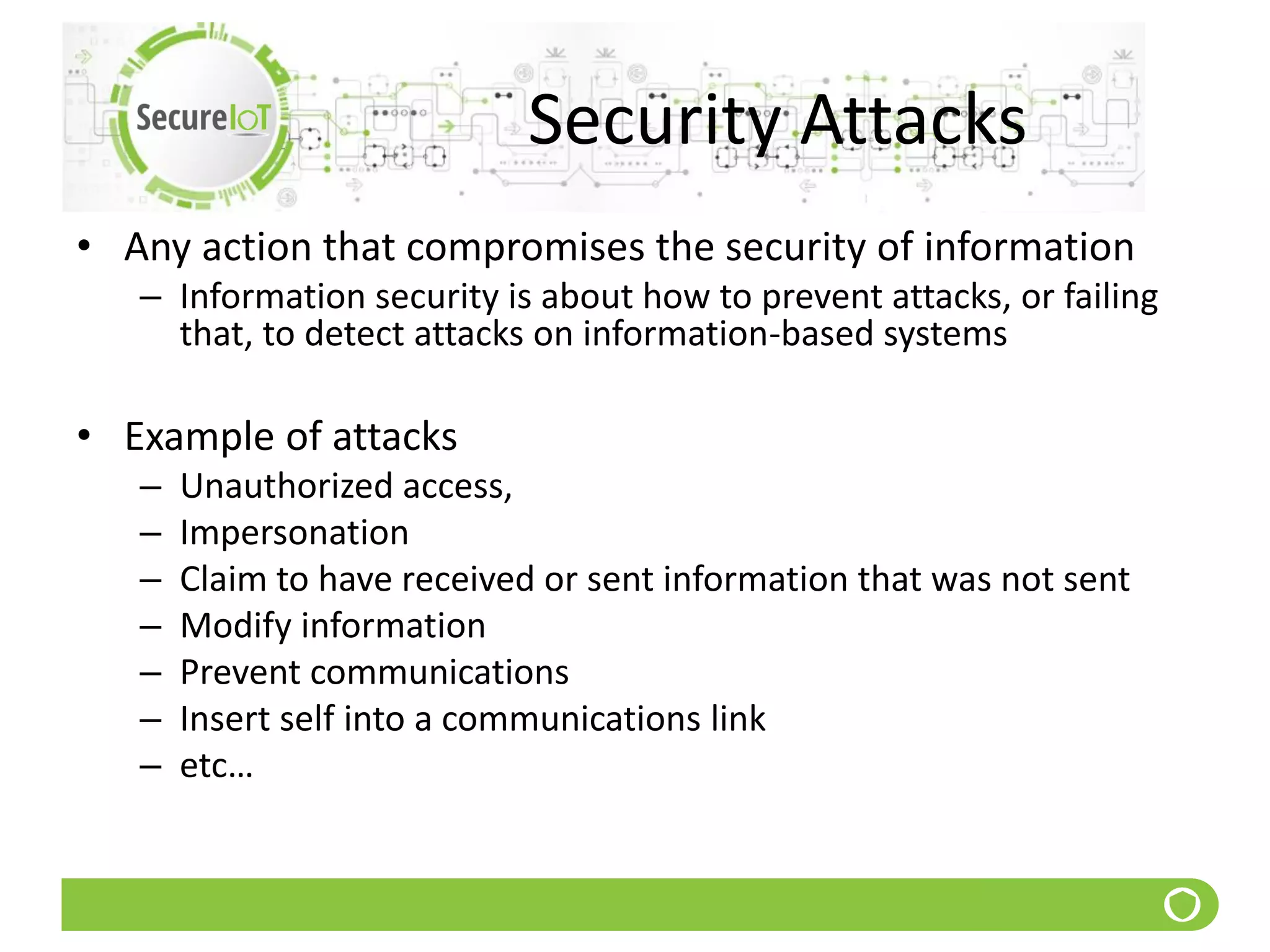

9. Security Attacks
• Any action that compromises the security of information
– Information security is about how to prevent attacks, or failing
that, to detect attacks on information-based systems
• Example of attacks
– Unauthorized access,
– Impersonation
– Claim to have received or sent information that was not sent
– Modify information
– Prevent communications
– Insert self into a communications link
– etc…

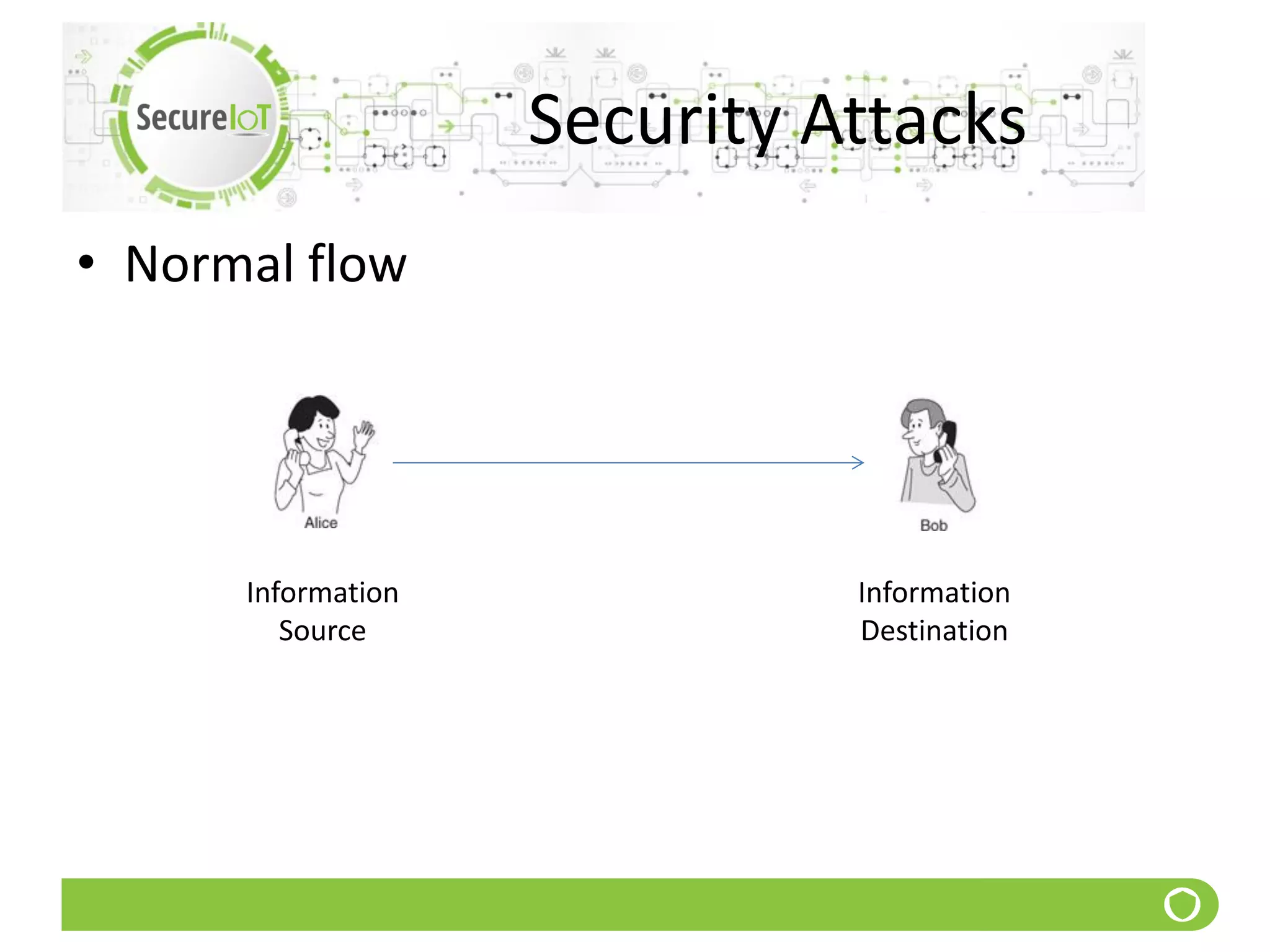

10. Security Attacks
• Normal flow
Information
Source
Information
Destination

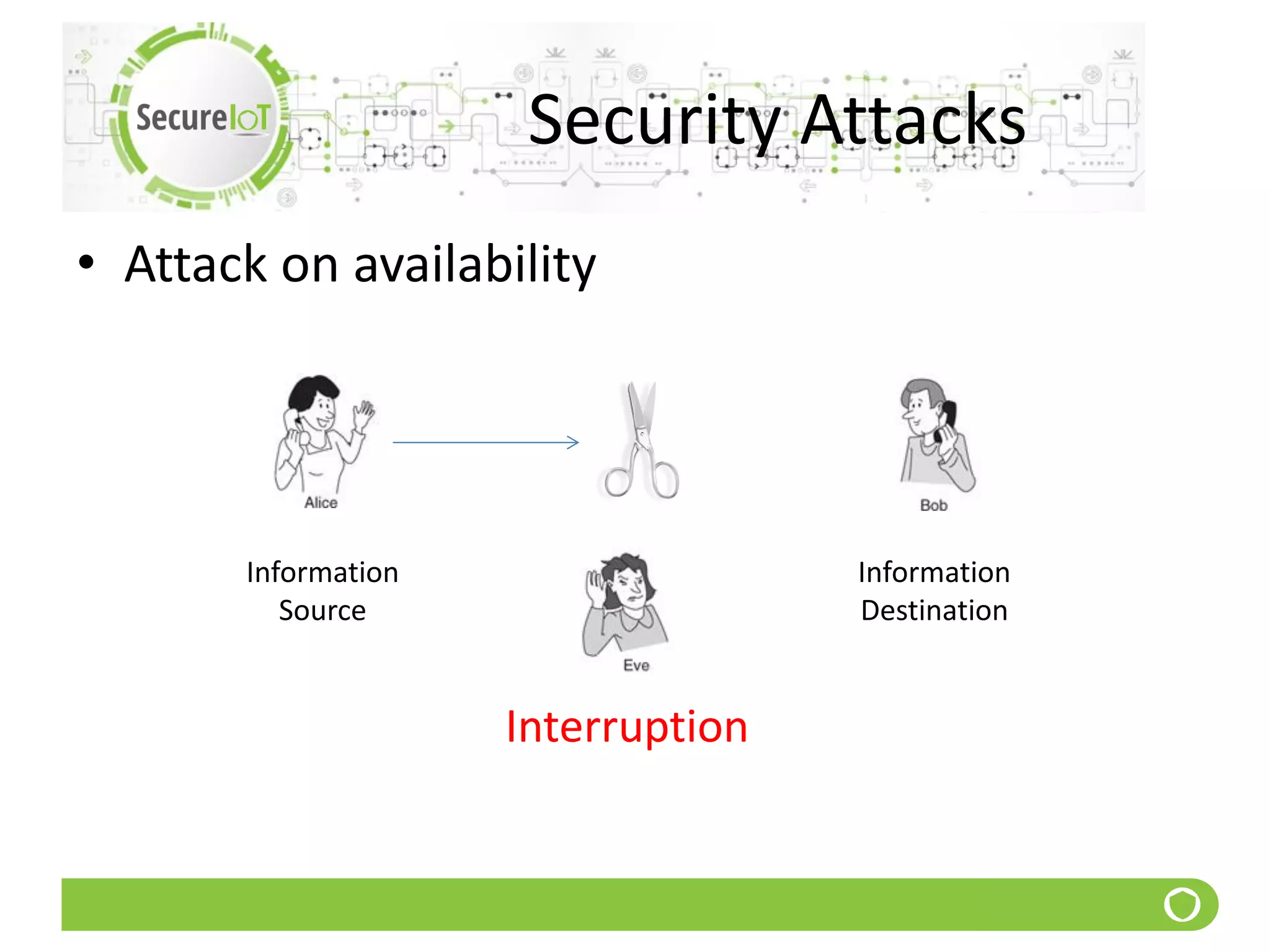

11. Security Attacks
• Attack on availability
Information
Source
Information
Destination
Interruption

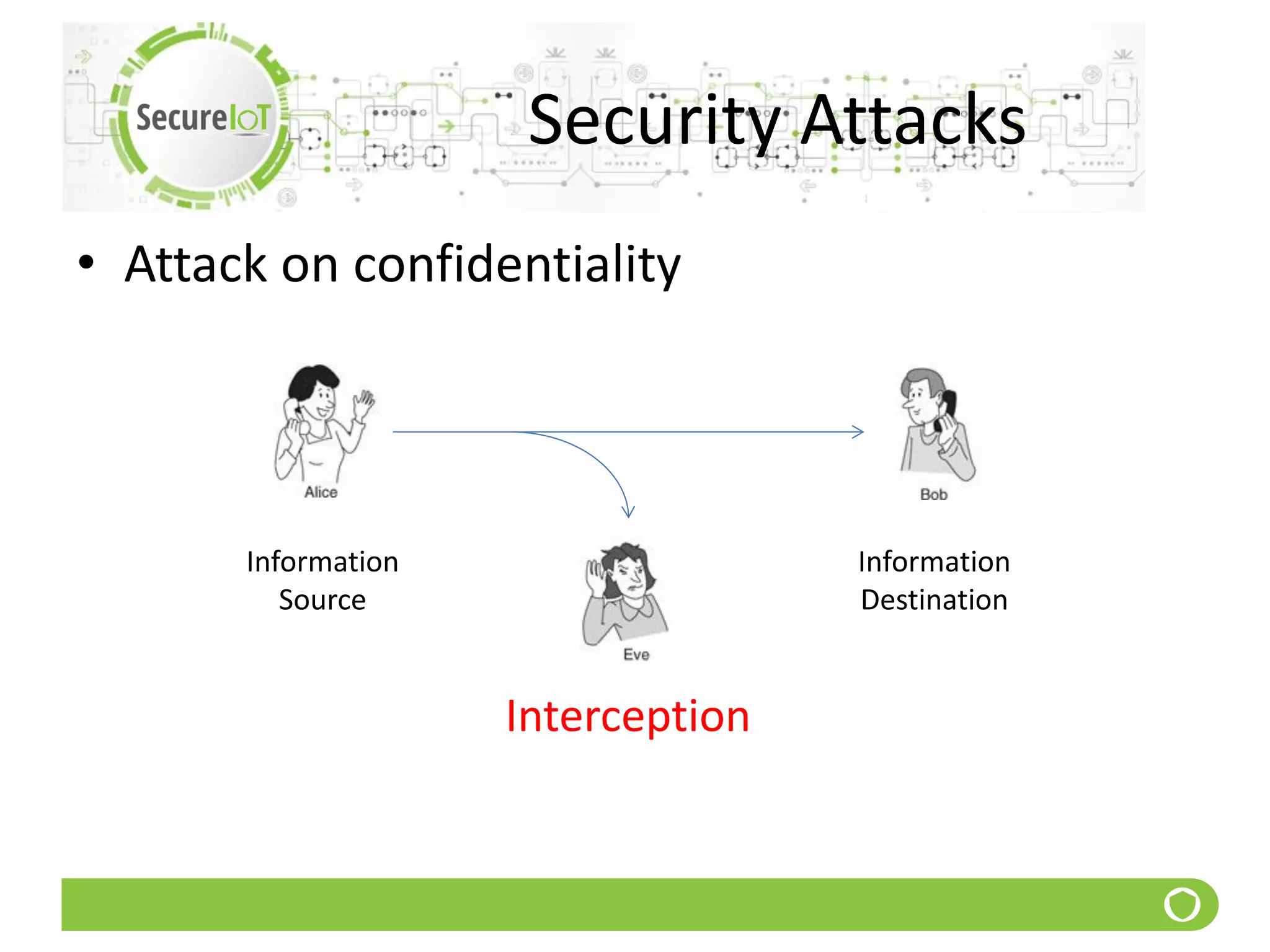

12. Security Attacks
• Attack on confidentiality
Information
Source
Information
Destination
Interception

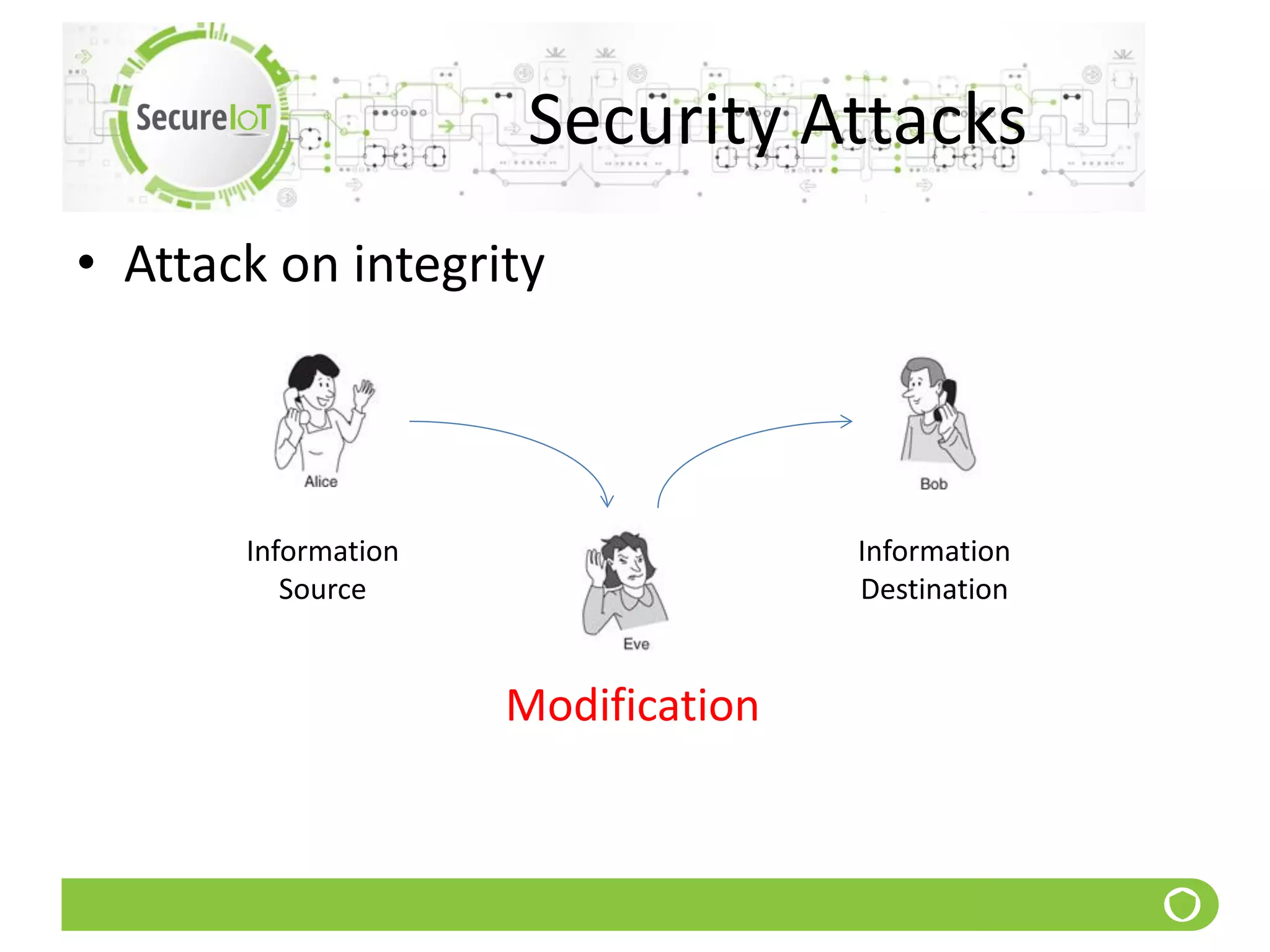

13. Security Attacks
• Attack on integrity
Information
Source
Information
Destination
Modification

14. Security Attacks
• Attack on Authenticity
Information
Source
Information
Destination
Fabrication

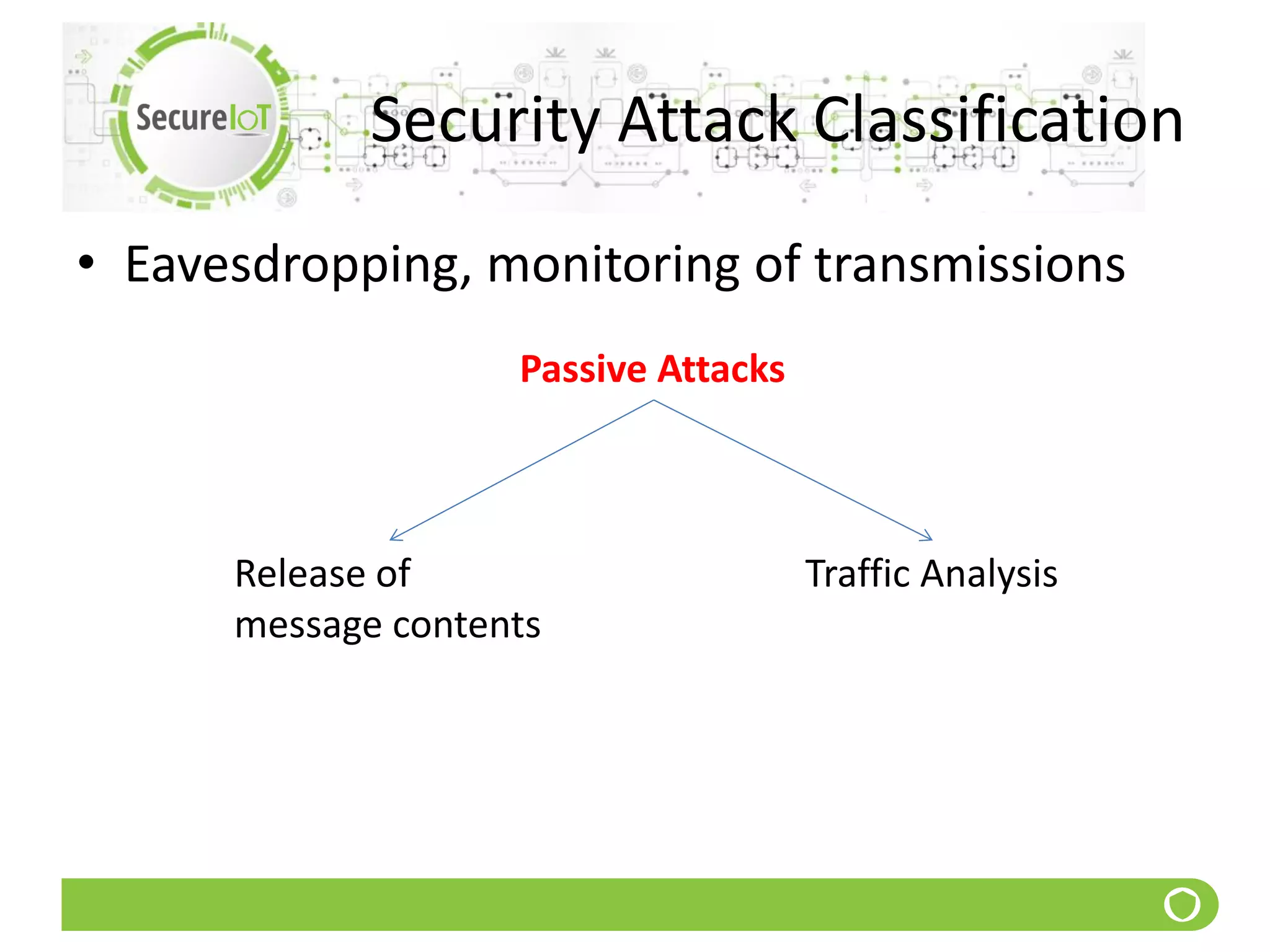

15. Security Attack Classification
• Eavesdropping, monitoring of transmissions
Passive Attacks
Release of
message contents
Traffic Analysis

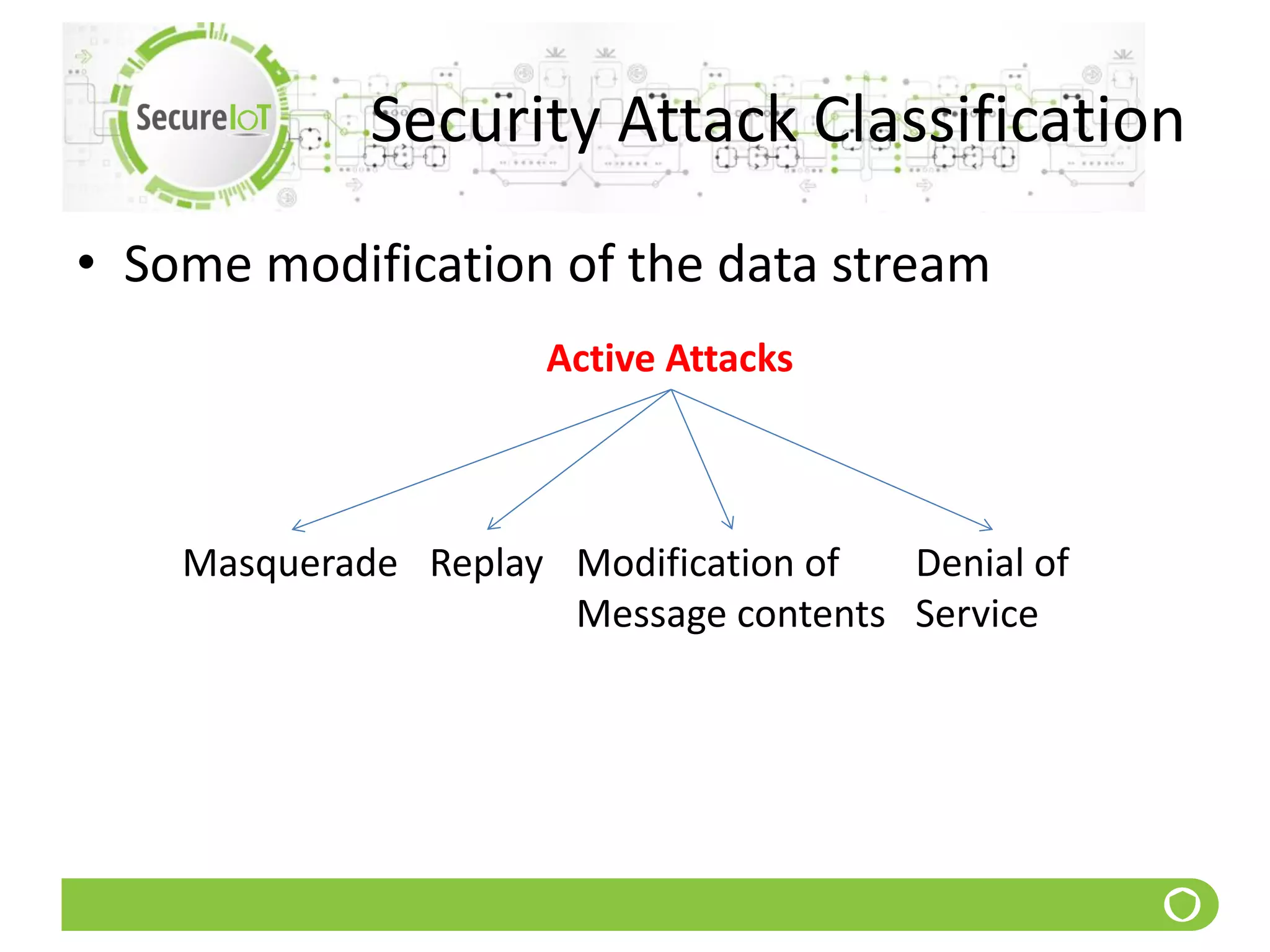

16. Security Attack Classification
• Some modification of the data stream
Active Attacks
Masquerade Denial of
Service
Replay Modification of
Message contents

17. Kerckhoffs’ Principle
• Kerckhoffs defined a list of requirements for the design of
cryptosystems (1883) that remains, for the most part,
useful today
1. The system should be, if not theoretically unbreakable,
unbreakable in practice;
2. Compromise of the system details should not inconvenience
the correspondents;
3. The key should be rememberable without notes and easily
changed;
4. The cryptogram should be transmissible by telegraph;
5. The encryption apparatus should be portable and operable by
a single person; and
6. The system should be easy, requiring neither the knowledge of
a long list of rules nor mental strain.

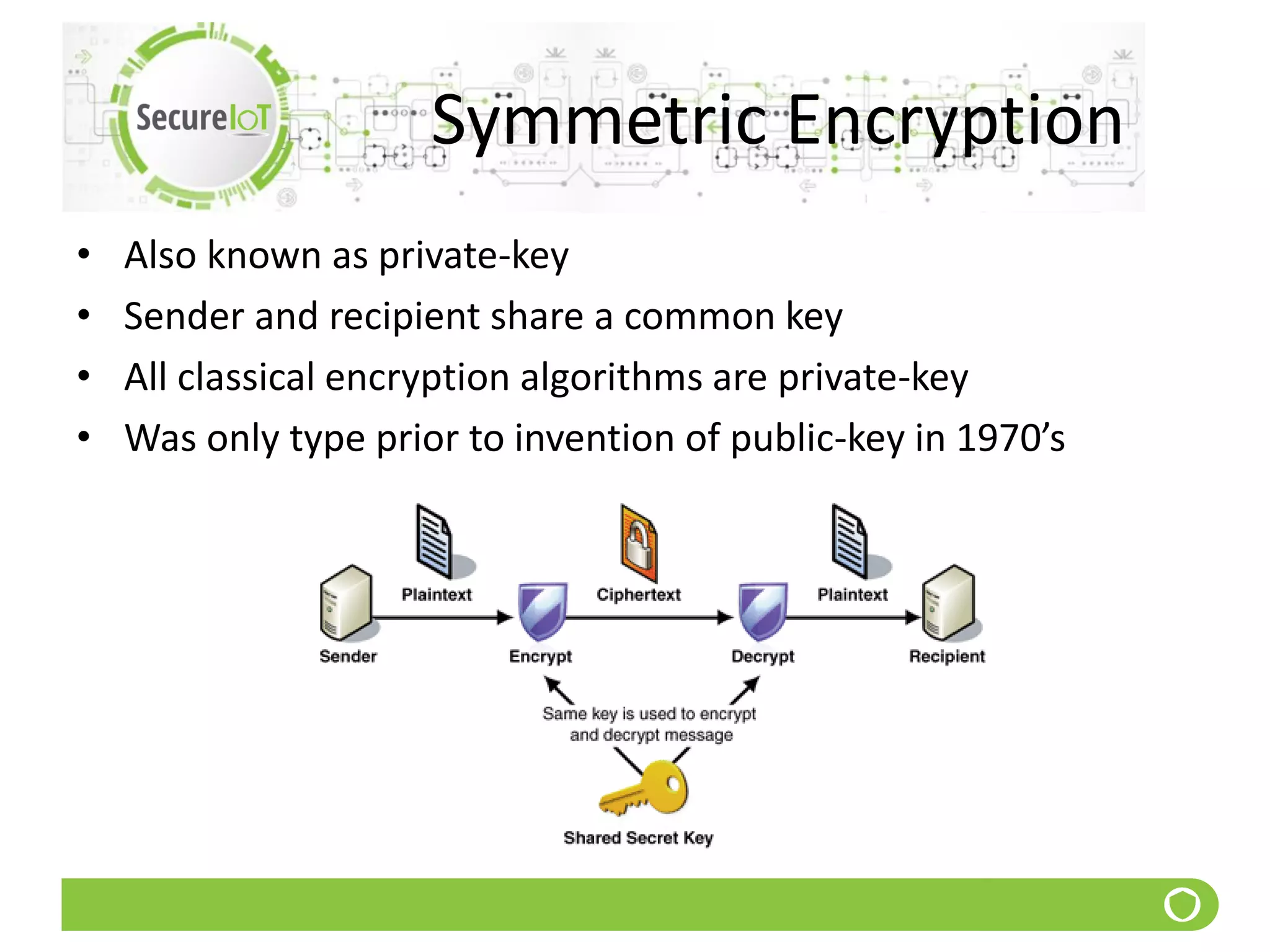

18. Symmetric Encryption
• Also known as private-key
• Sender and recipient share a common key
• All classical encryption algorithms are private-key
• Was only type prior to invention of public-key in 1970’s

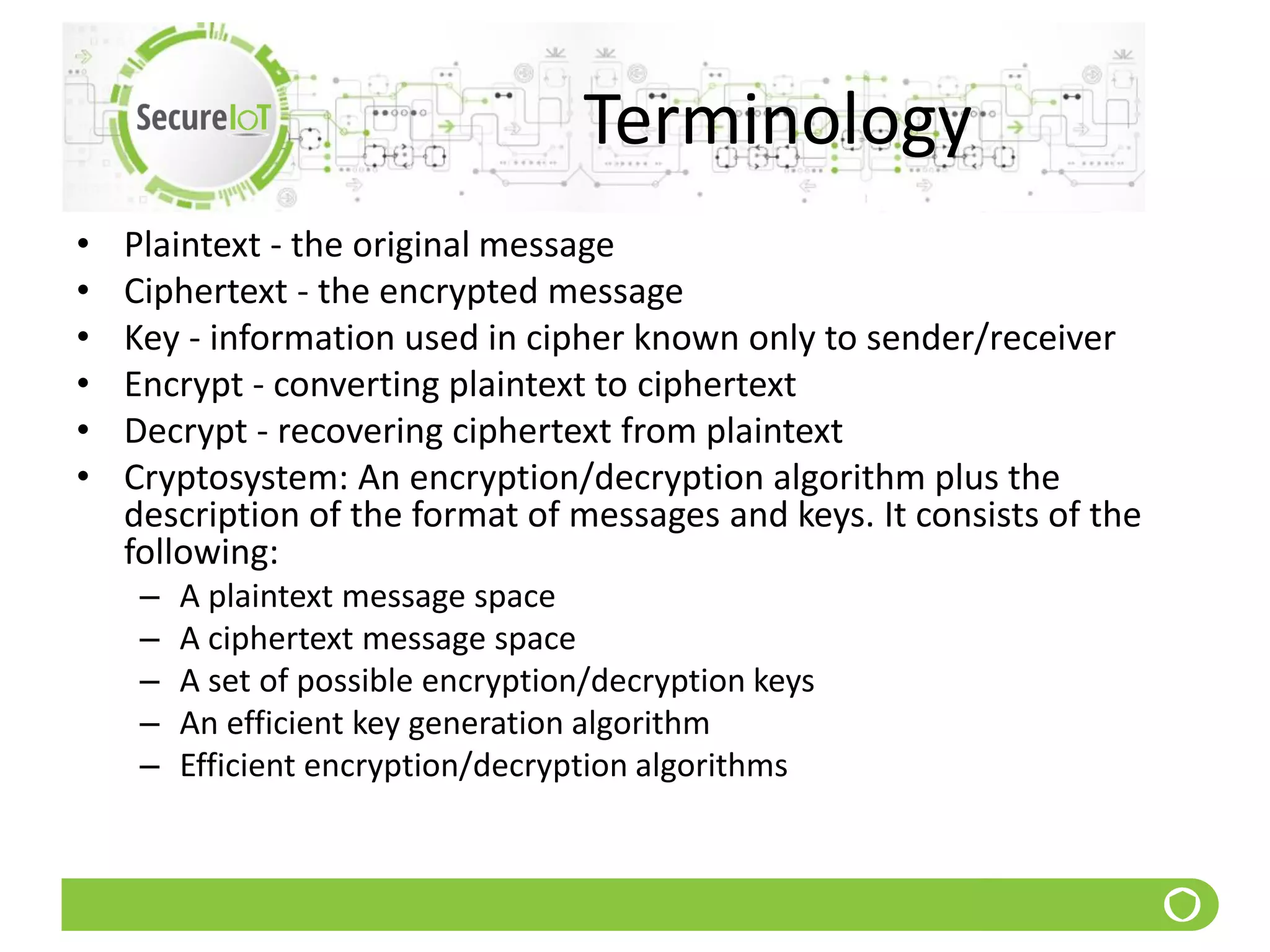

19. Terminology
• Plaintext - the original message
• Ciphertext - the encrypted message
• Key - information used in cipher known only to sender/receiver
• Encrypt - converting plaintext to ciphertext
• Decrypt - recovering ciphertext from plaintext
• Cryptosystem: An encryption/decryption algorithm plus the
description of the format of messages and keys. It consists of the
following:
– A plaintext message space
– A ciphertext message space
– A set of possible encryption/decryption keys
– An efficient key generation algorithm
– Efficient encryption/decryption algorithms

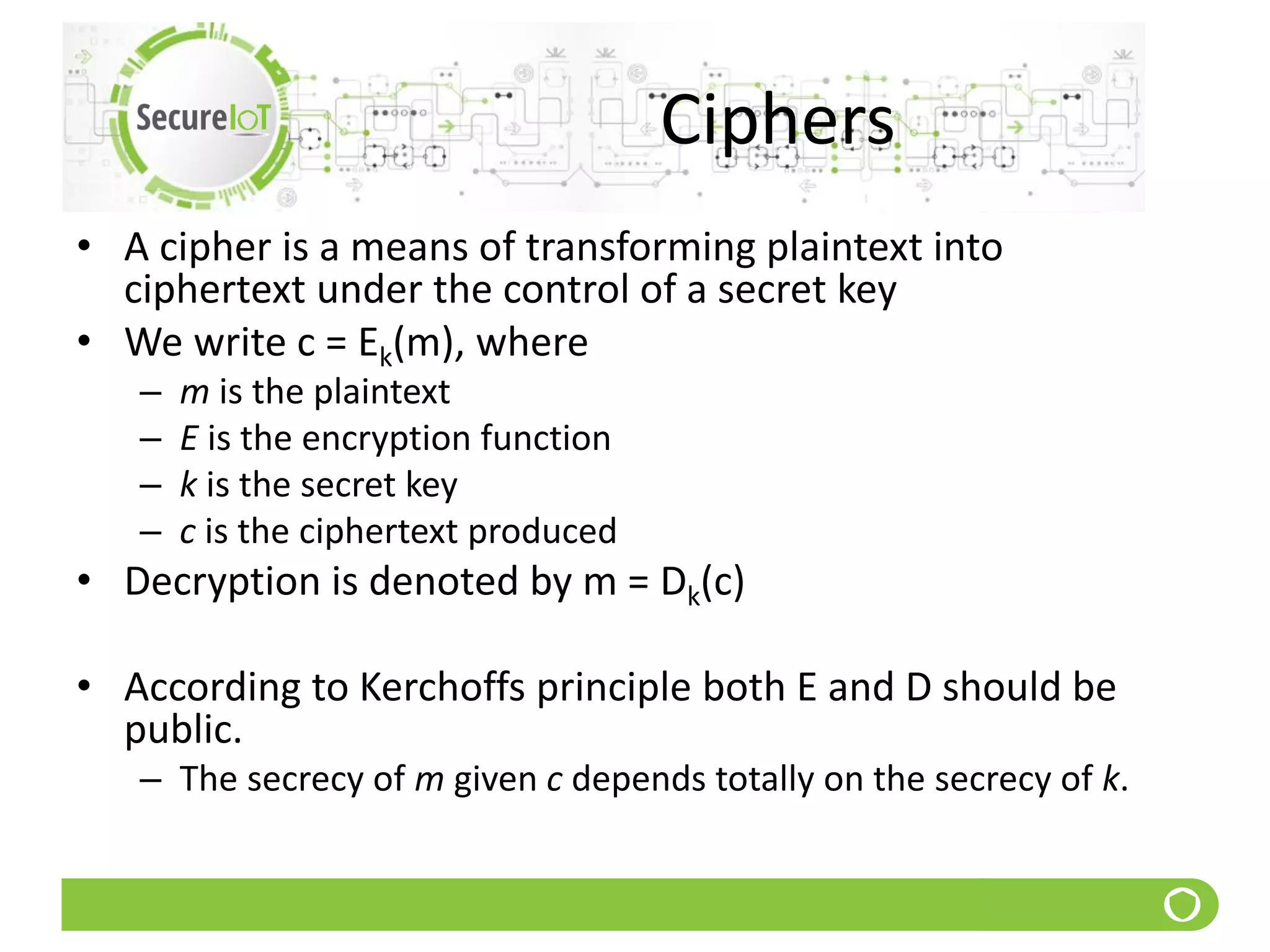

20. Ciphers
• A cipher is a means of transforming plaintext into
ciphertext under the control of a secret key
• We write c = Ek(m), where
– m is the plaintext
– E is the encryption function
– k is the secret key
– c is the ciphertext produced
• Decryption is denoted by m = Dk(c)
• According to Kerchoffs principle both E and D should be
public.
– The secrecy of m given c depends totally on the secrecy of k.

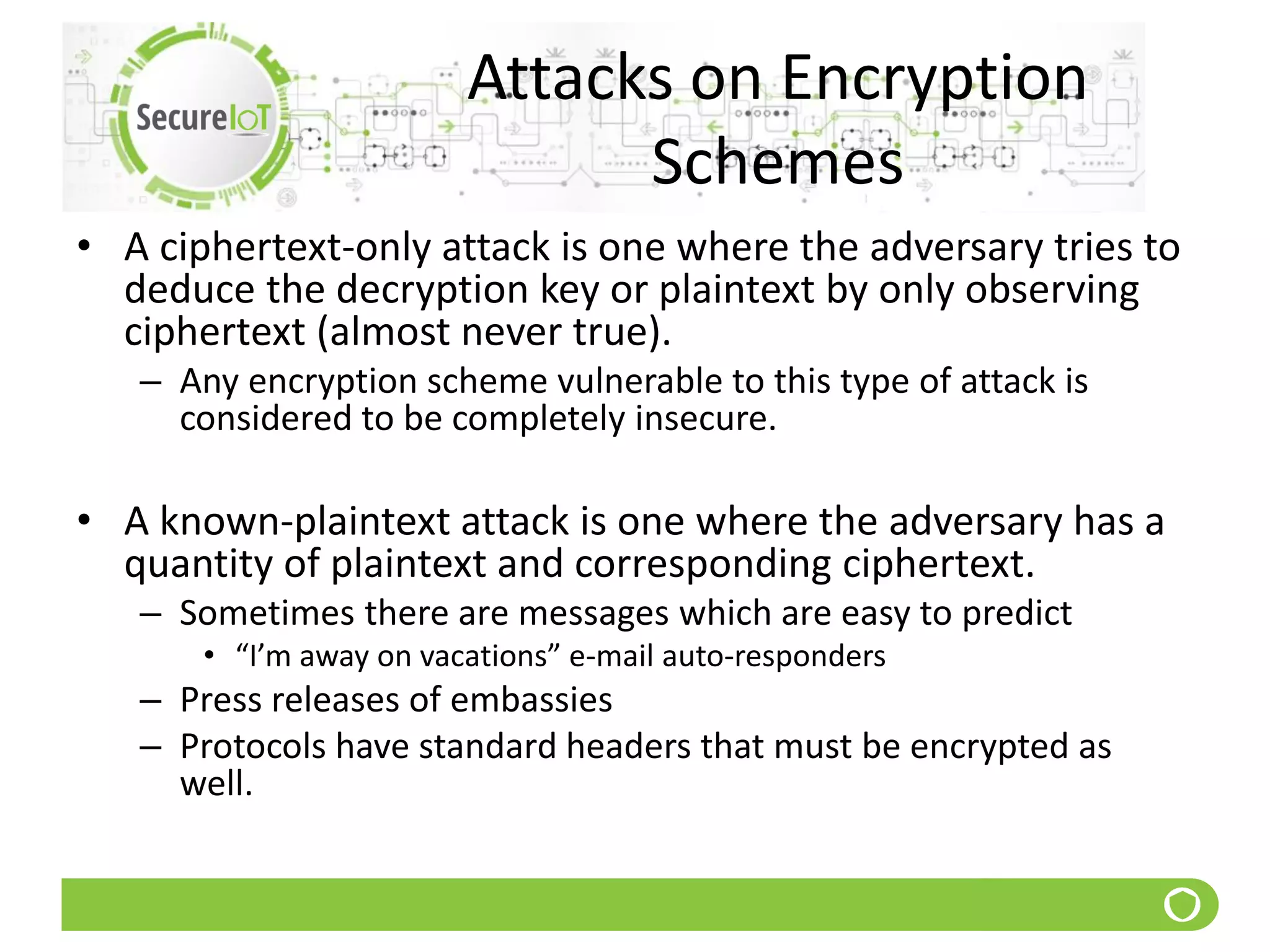

21. Attacks on Encryption
Schemes
• A ciphertext-only attack is one where the adversary tries to
deduce the decryption key or plaintext by only observing
ciphertext (almost never true).
– Any encryption scheme vulnerable to this type of attack is
considered to be completely insecure.
• A known-plaintext attack is one where the adversary has a
quantity of plaintext and corresponding ciphertext.
– Sometimes there are messages which are easy to predict
• “I’m away on vacations” e-mail auto-responders
– Press releases of embassies
– Protocols have standard headers that must be encrypted as
well.

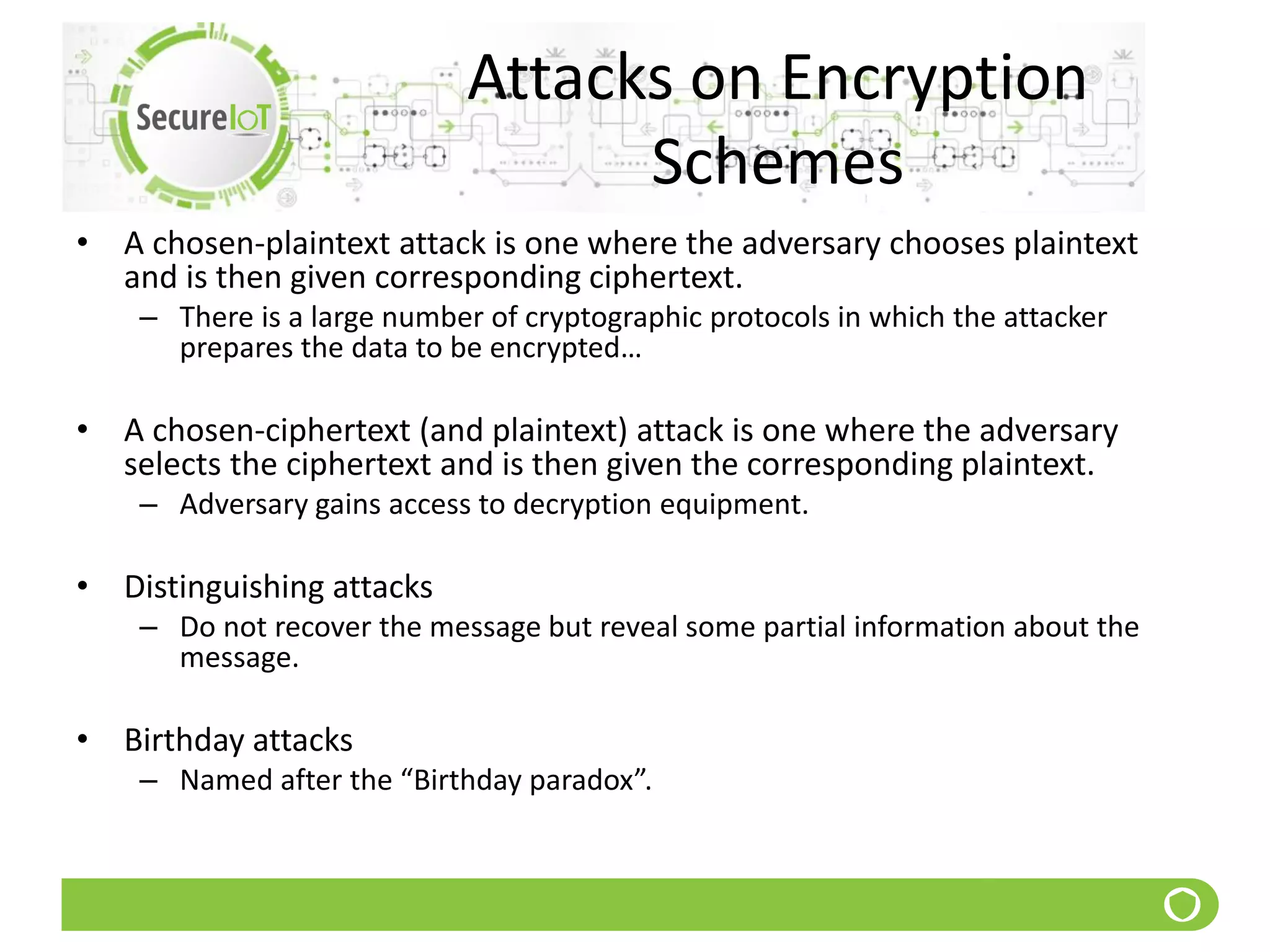

22. Attacks on Encryption
Schemes
• A chosen-plaintext attack is one where the adversary chooses plaintext
and is then given corresponding ciphertext.
– There is a large number of cryptographic protocols in which the attacker
prepares the data to be encrypted…
• A chosen-ciphertext (and plaintext) attack is one where the adversary
selects the ciphertext and is then given the corresponding plaintext.
– Adversary gains access to decryption equipment.
• Distinguishing attacks
– Do not recover the message but reveal some partial information about the
message.

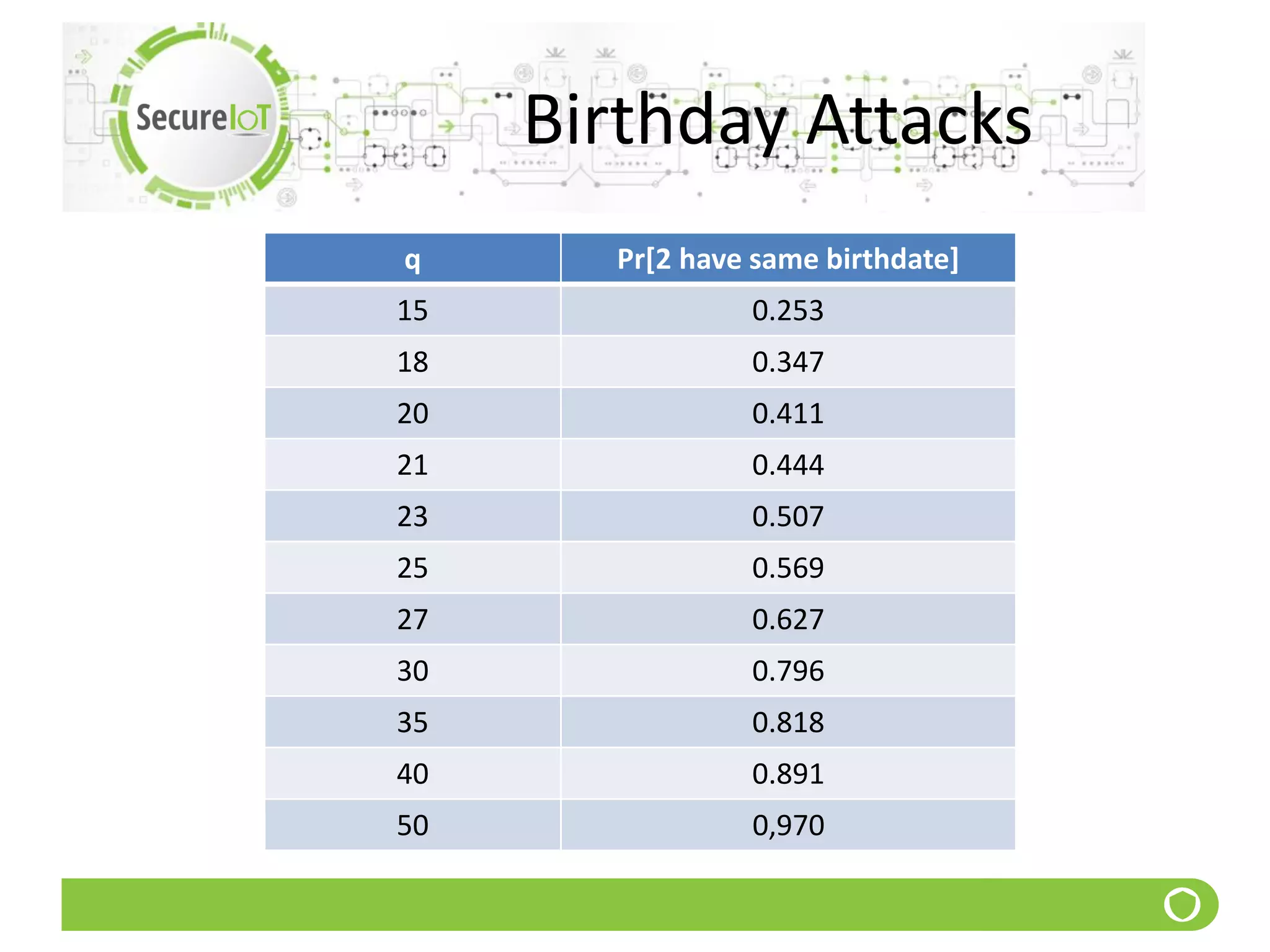

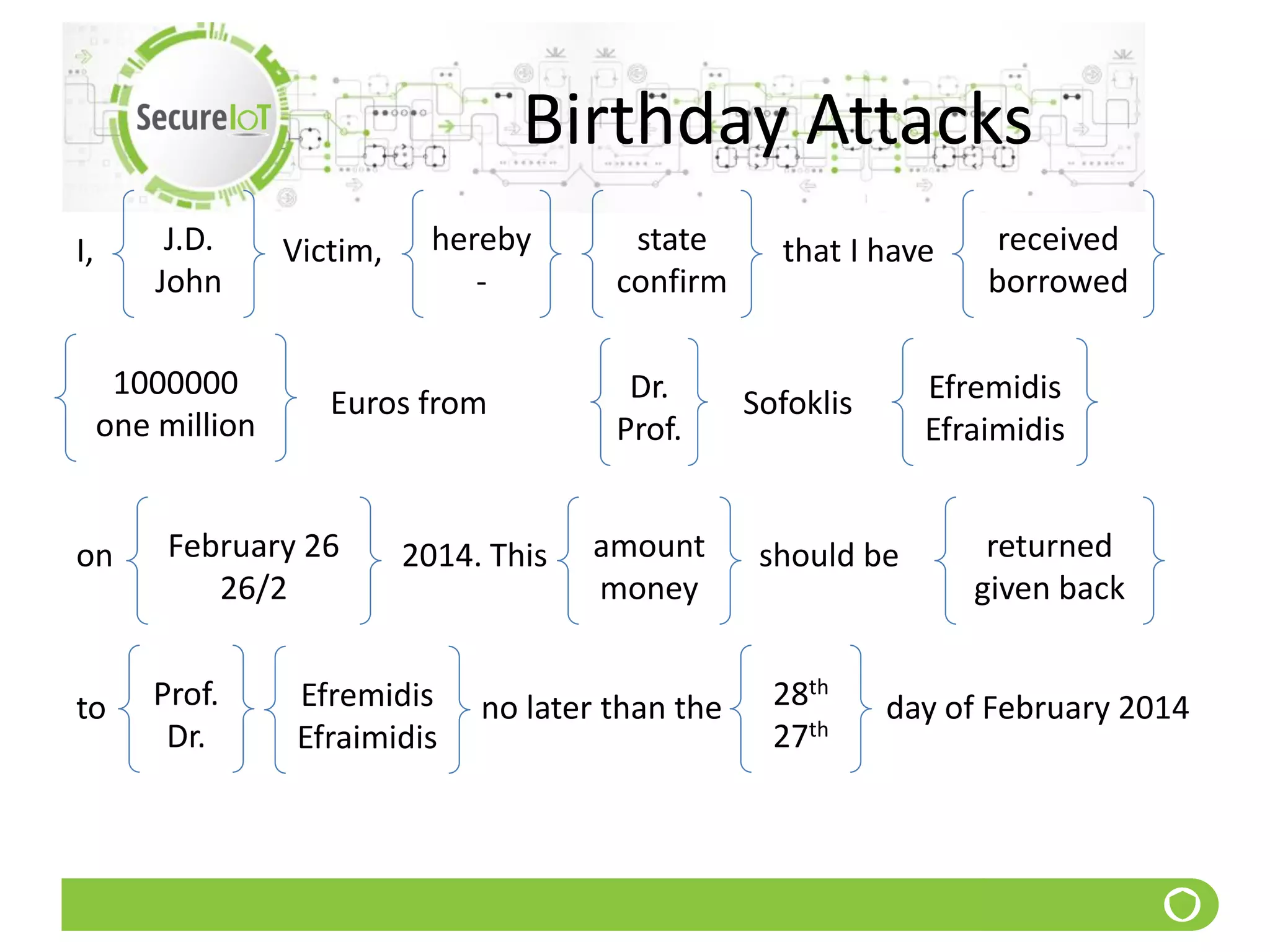

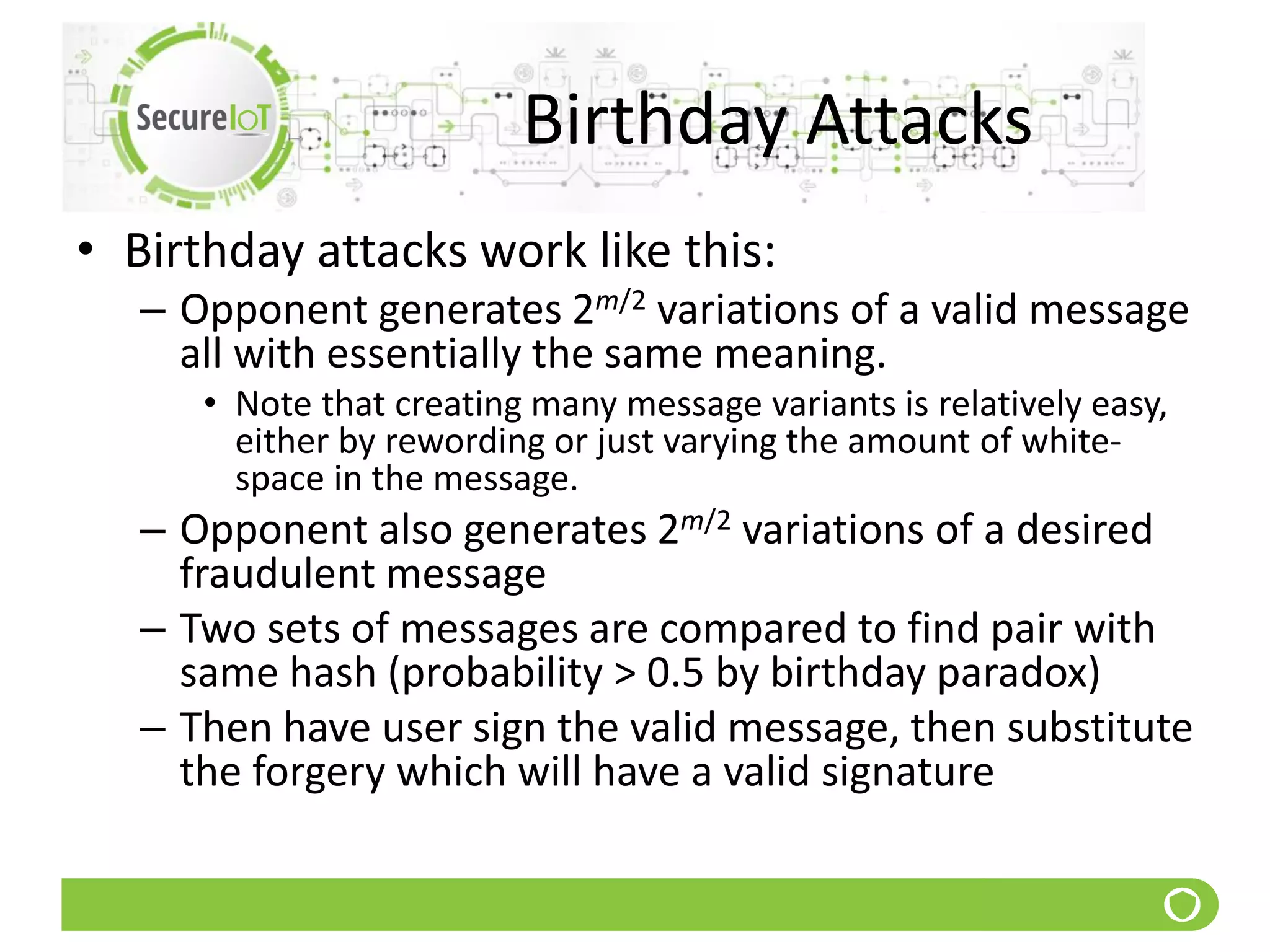

• Birthday attacks
– Named after the “Birthday paradox”.

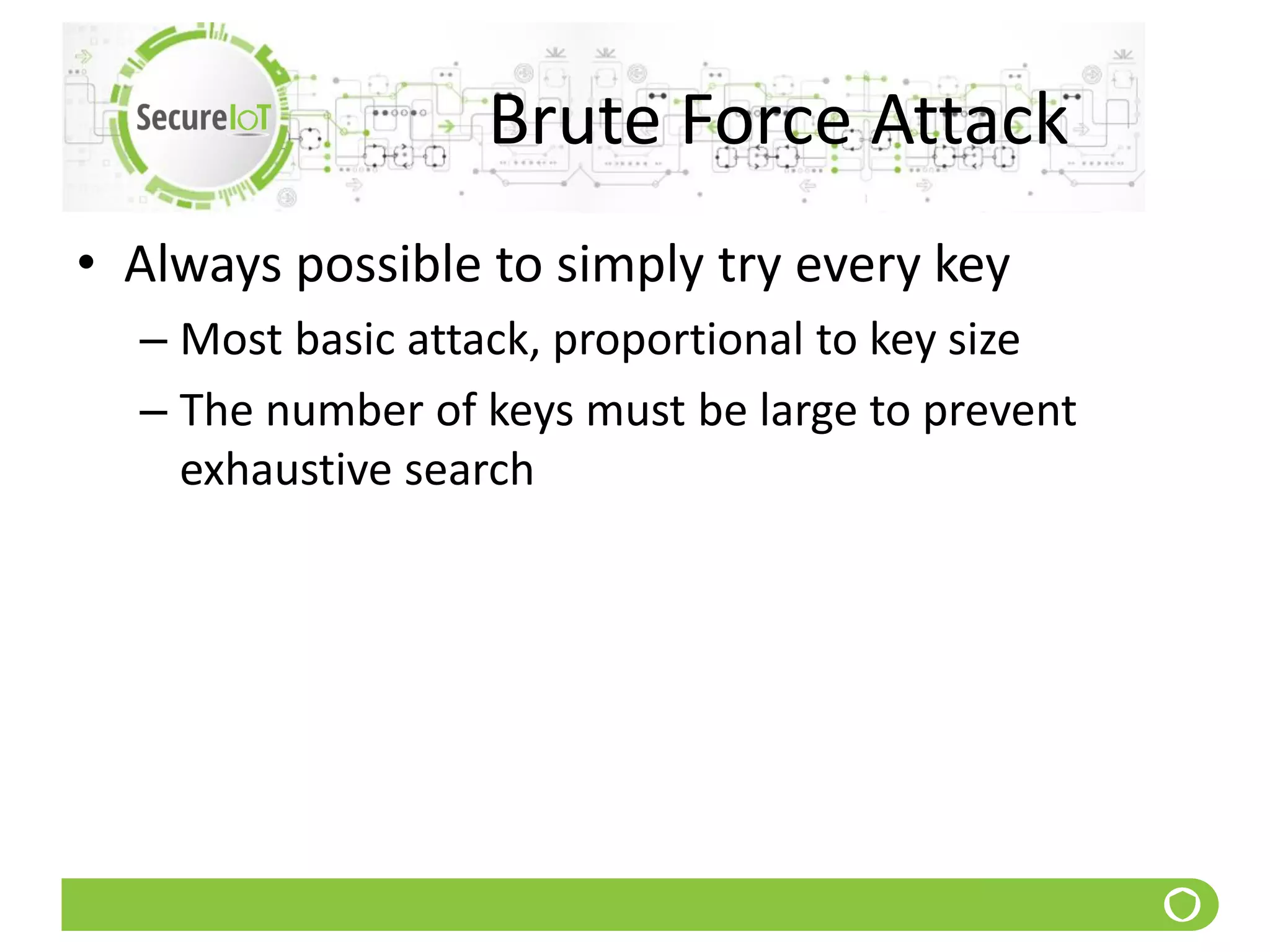

23. Brute Force Attack
• Always possible to simply try every key
– Most basic attack, proportional to key size
– The number of keys must be large to prevent
exhaustive search

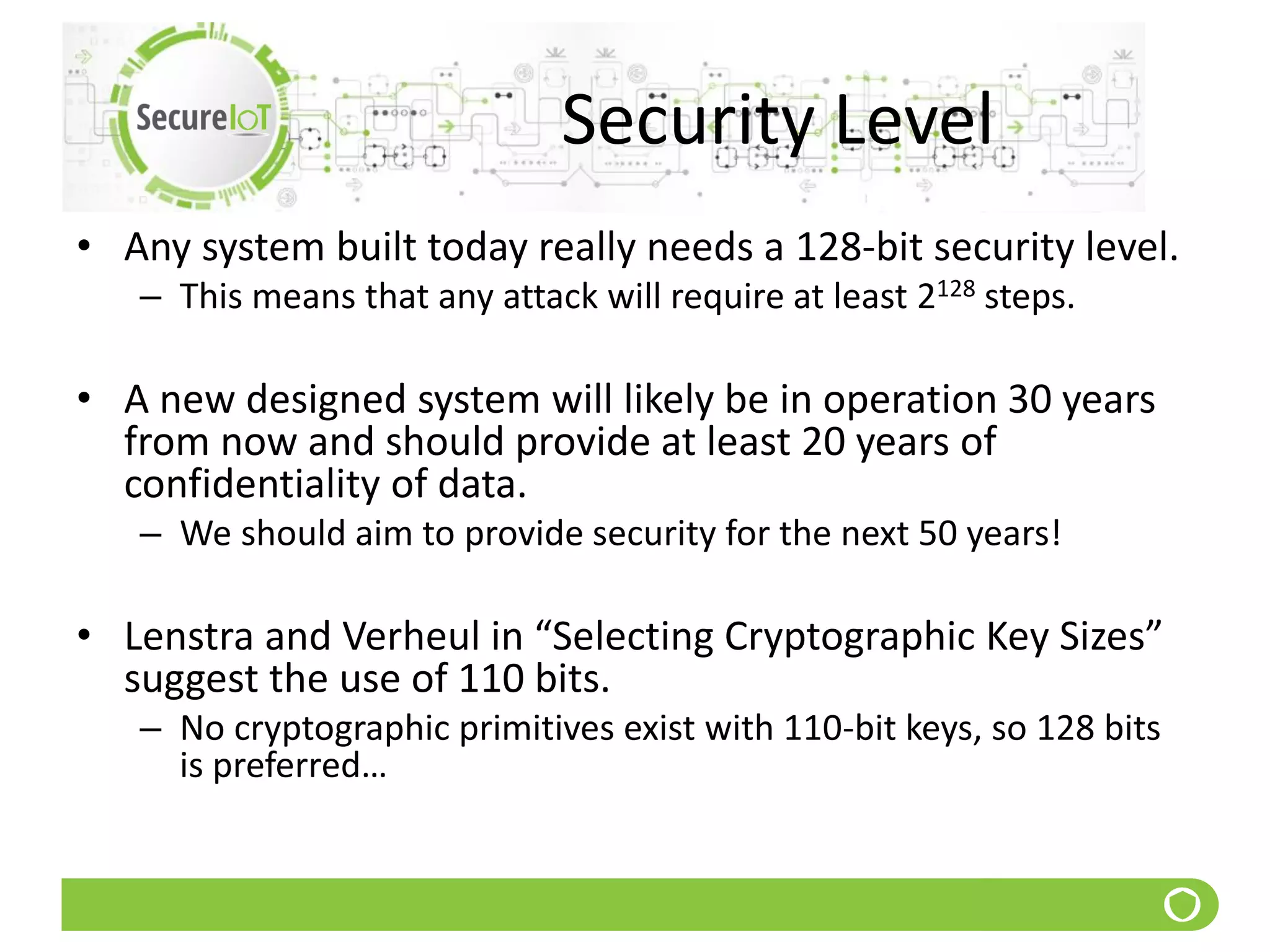

24. Security Level
• Any system built today really needs a 128-bit security level.
– This means that any attack will require at least 2128 steps.
• A new designed system will likely be in operation 30 years
from now and should provide at least 20 years of
confidentiality of data.
– We should aim to provide security for the next 50 years!
• Lenstra and Verheul in “Selecting Cryptographic Key Sizes”
suggest the use of 110 bits.
– No cryptographic primitives exist with 110-bit keys, so 128 bits
is preferred…

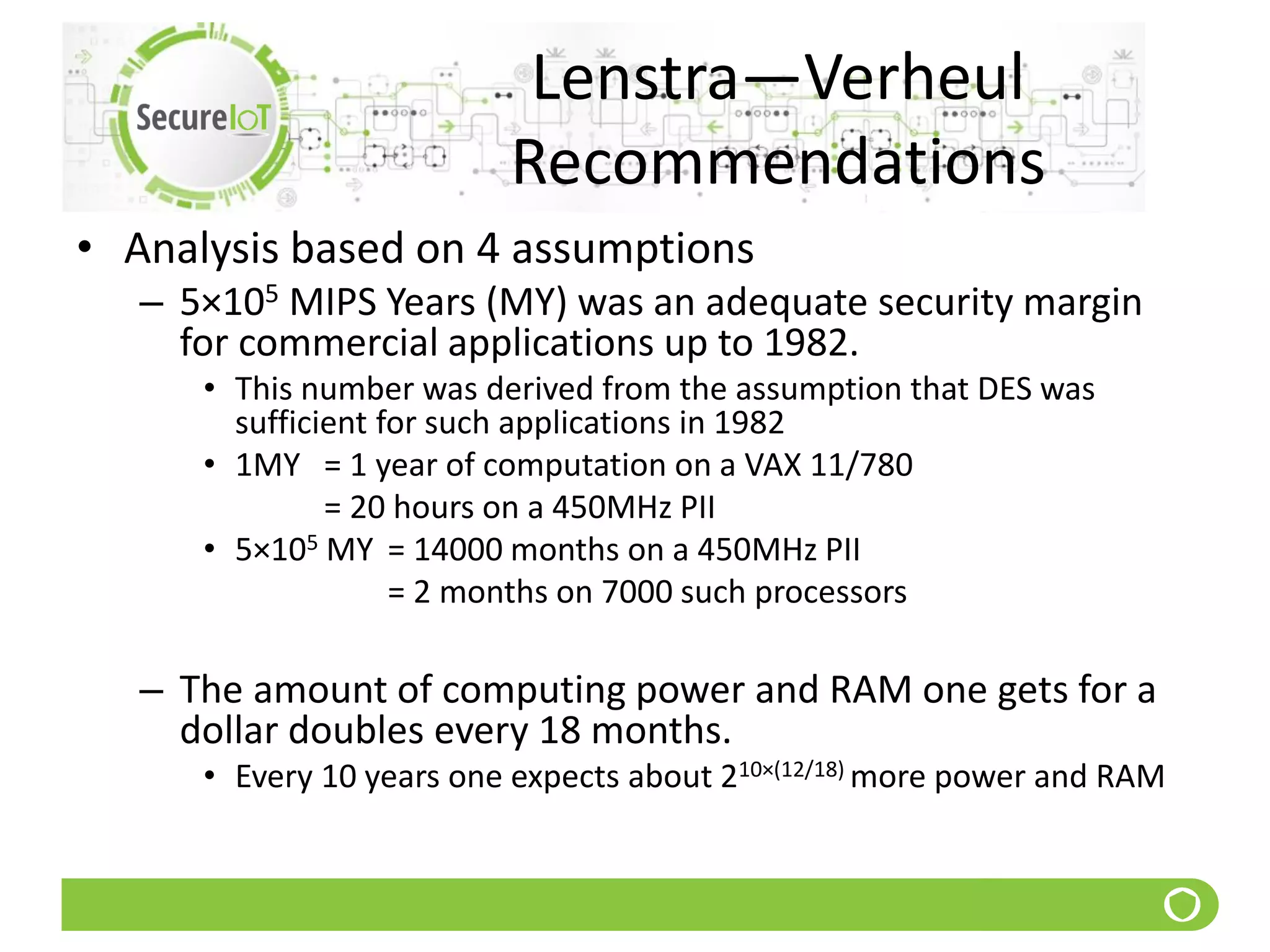

25. Lenstra—Verheul
Recommendations
• Analysis based on 4 assumptions
– 5×105 MIPS Years (MY) was an adequate security margin
for commercial applications up to 1982.
• This number was derived from the assumption that DES was
sufficient for such applications in 1982
• 1MY = 1 year of computation on a VAX 11/780
= 20 hours on a 450MHz PII
• 5×105 MY = 14000 months on a 450MHz PII
= 2 months on 7000 such processors
– The amount of computing power and RAM one gets for a
dollar doubles every 18 months.
• Every 10 years one expects about 210×(12/18) more power and RAM

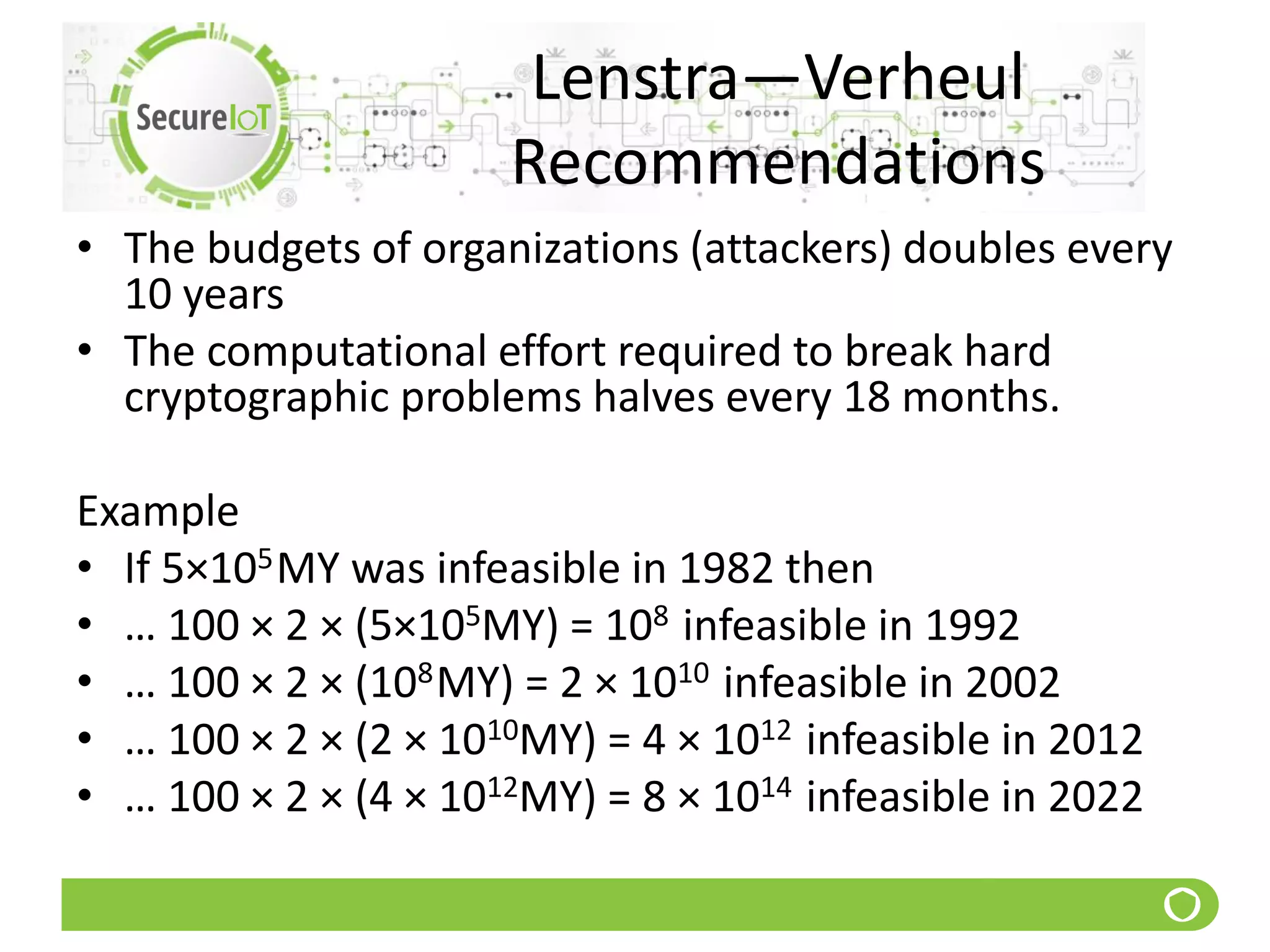

26. Lenstra—Verheul
Recommendations
• The budgets of organizations (attackers) doubles every
10 years
• The computational effort required to break hard
cryptographic problems halves every 18 months.
Example
• If 5×105MY was infeasible in 1982 then
• … 100 × 2 × (5×105MY) = 108 infeasible in 1992
• … 100 × 2 × (108MY) = 2 × 1010 infeasible in 2002
• … 100 × 2 × (2 × 1010MY) = 4 × 1012 infeasible in 2012
• … 100 × 2 × (4 × 1012MY) = 8 × 1014 infeasible in 2022

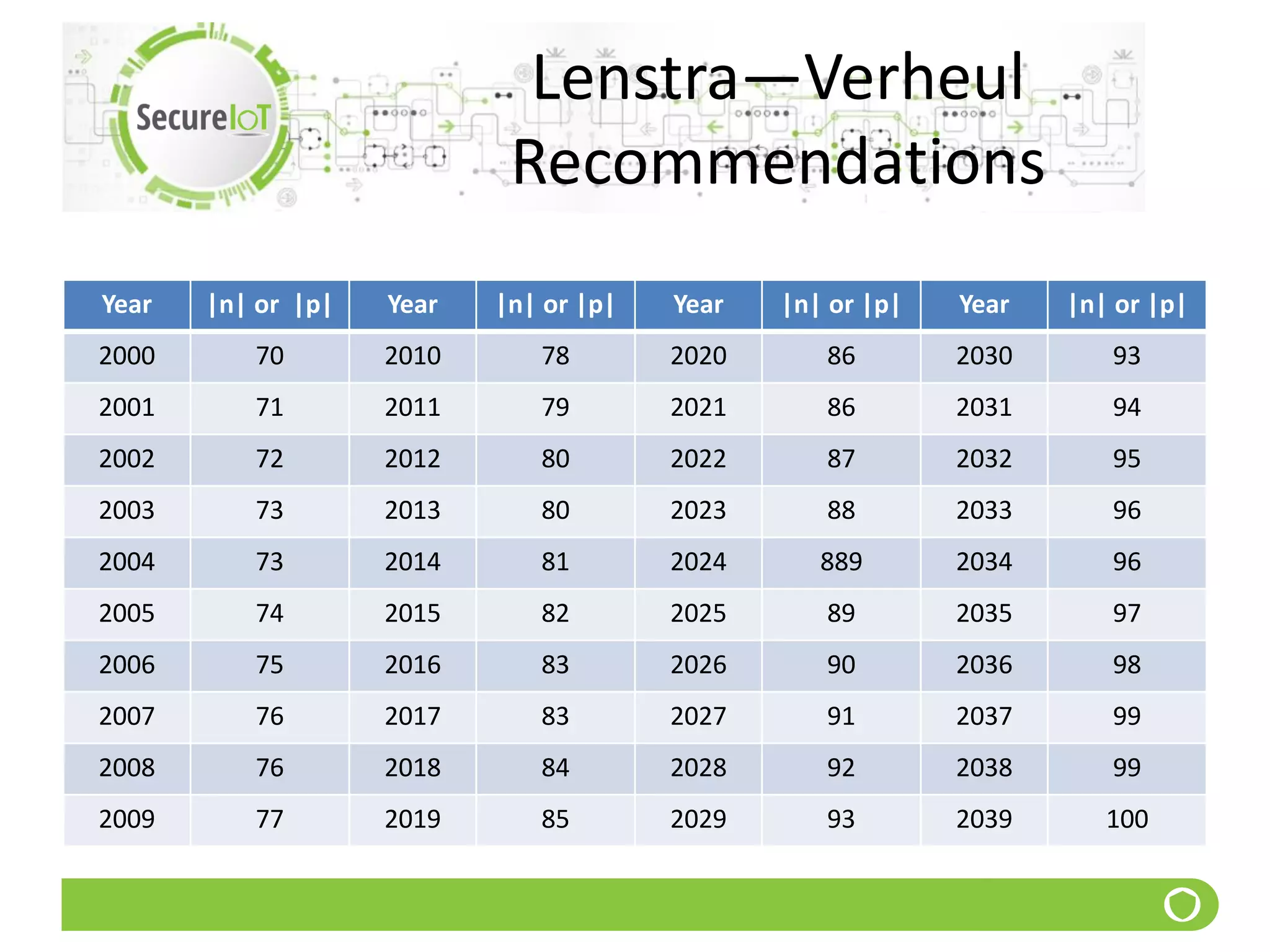

27. Lenstra—Verheul
Recommendations
Year |n| or |p| Year |n| or |p| Year |n| or |p| Year |n| or |p|
2000 70 2010 78 2020 86 2030 93
2001 71 2011 79 2021 86 2031 94
2002 72 2012 80 2022 87 2032 95
2003 73 2013 80 2023 88 2033 96
2004 73 2014 81 2024 889 2034 96
2005 74 2015 82 2025 89 2035 97
2006 75 2016 83 2026 90 2036 98
2007 76 2017 83 2027 91 2037 99
2008 76 2018 84 2028 92 2038 99
2009 77 2019 85 2029 93 2039 100

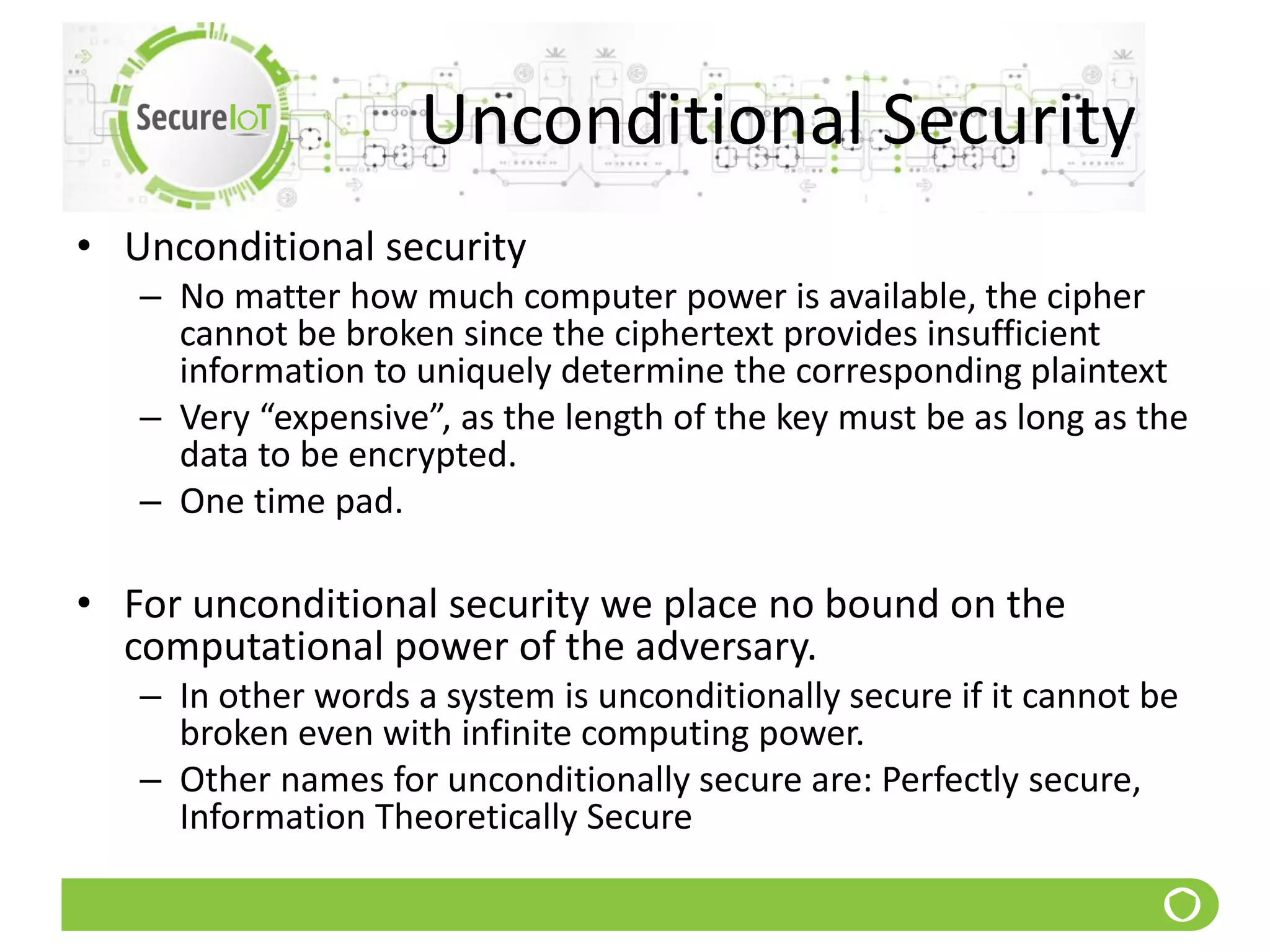

28. Unconditional Security
• Unconditional security
– No matter how much computer power is available, the cipher
cannot be broken since the ciphertext provides insufficient
information to uniquely determine the corresponding plaintext
– Very “expensive”, as the length of the key must be as long as the
data to be encrypted.
– One time pad.
• For unconditional security we place no bound on the
computational power of the adversary.
– In other words a system is unconditionally secure if it cannot be
broken even with infinite computing power.
– Other names for unconditionally secure are: Perfectly secure,
Information Theoretically Secure

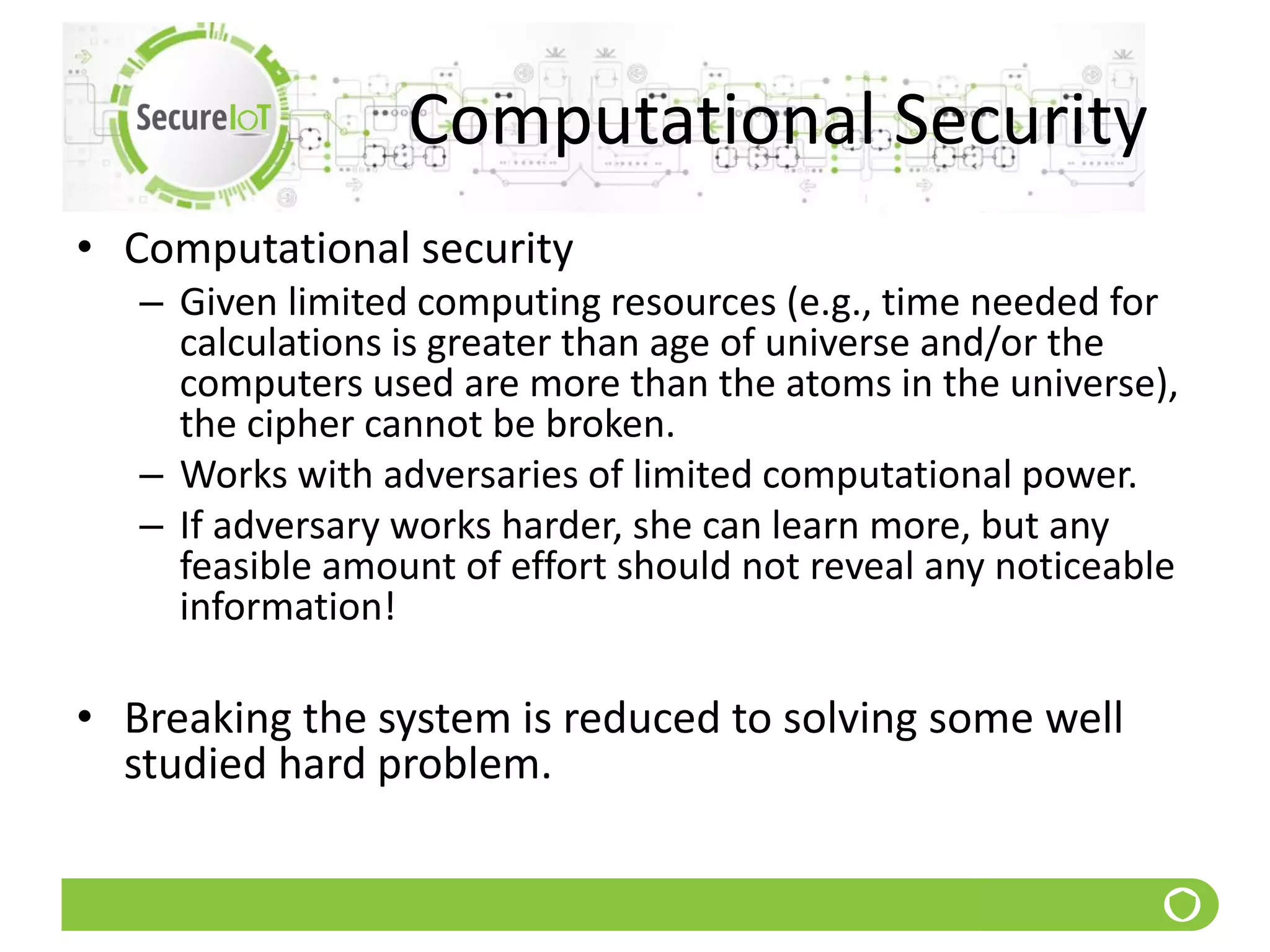

29. Computational Security
• Computational security
– Given limited computing resources (e.g., time needed for
calculations is greater than age of universe and/or the
computers used are more than the atoms in the universe),
the cipher cannot be broken.
– Works with adversaries of limited computational power.
– If adversary works harder, she can learn more, but any
feasible amount of effort should not reveal any noticeable
information!
• Breaking the system is reduced to solving some well
studied hard problem.

30. CLASSICAL CIPHERS

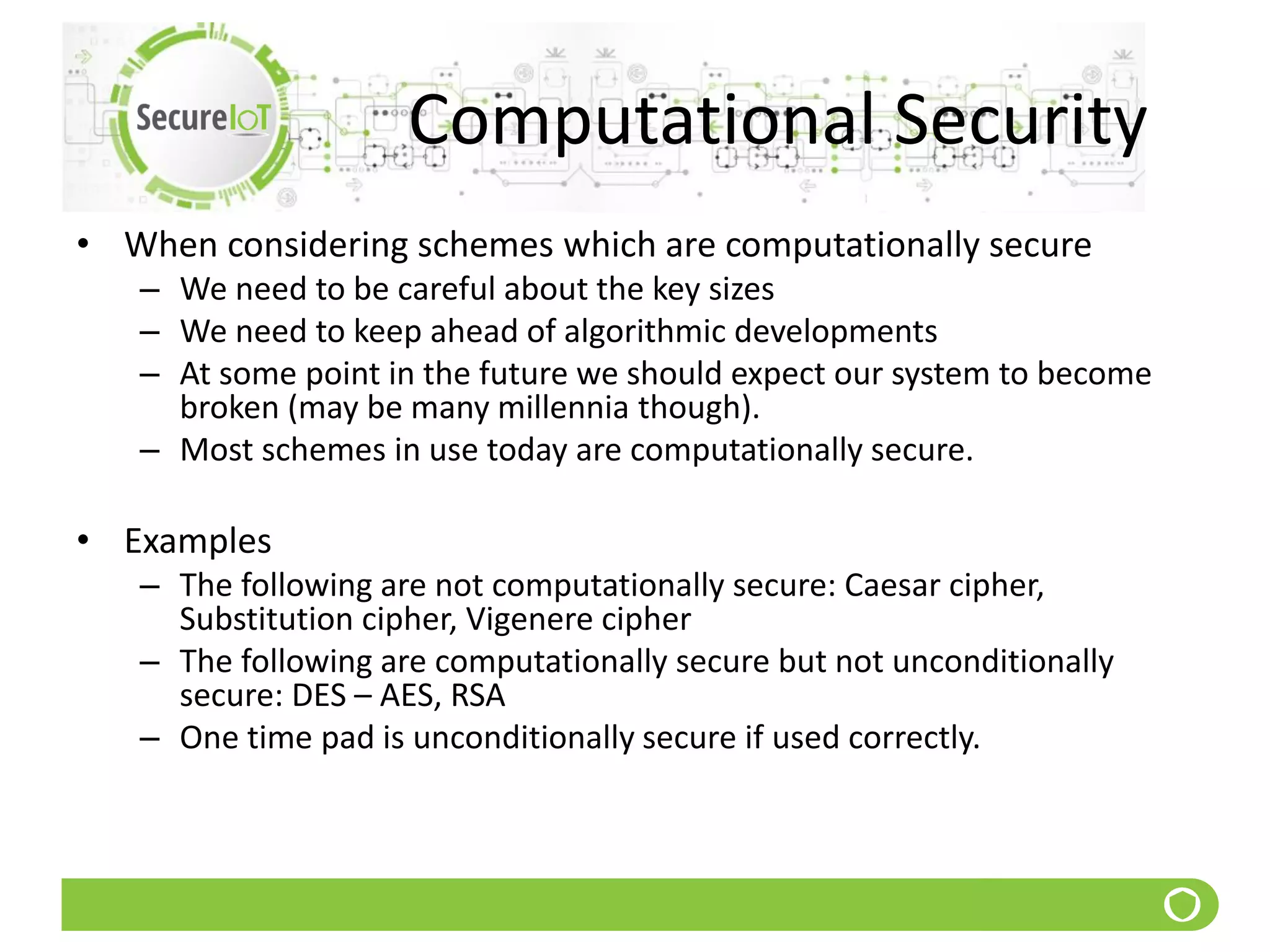

31. Computational Security
• When considering schemes which are computationally secure
– We need to be careful about the key sizes
– We need to keep ahead of algorithmic developments
– At some point in the future we should expect our system to become
broken (may be many millennia though).
– Most schemes in use today are computationally secure.
• Examples
– The following are not computationally secure: Caesar cipher,
Substitution cipher, Vigenere cipher
– The following are computationally secure but not unconditionally
secure: DES – AES, RSA
– One time pad is unconditionally secure if used correctly.

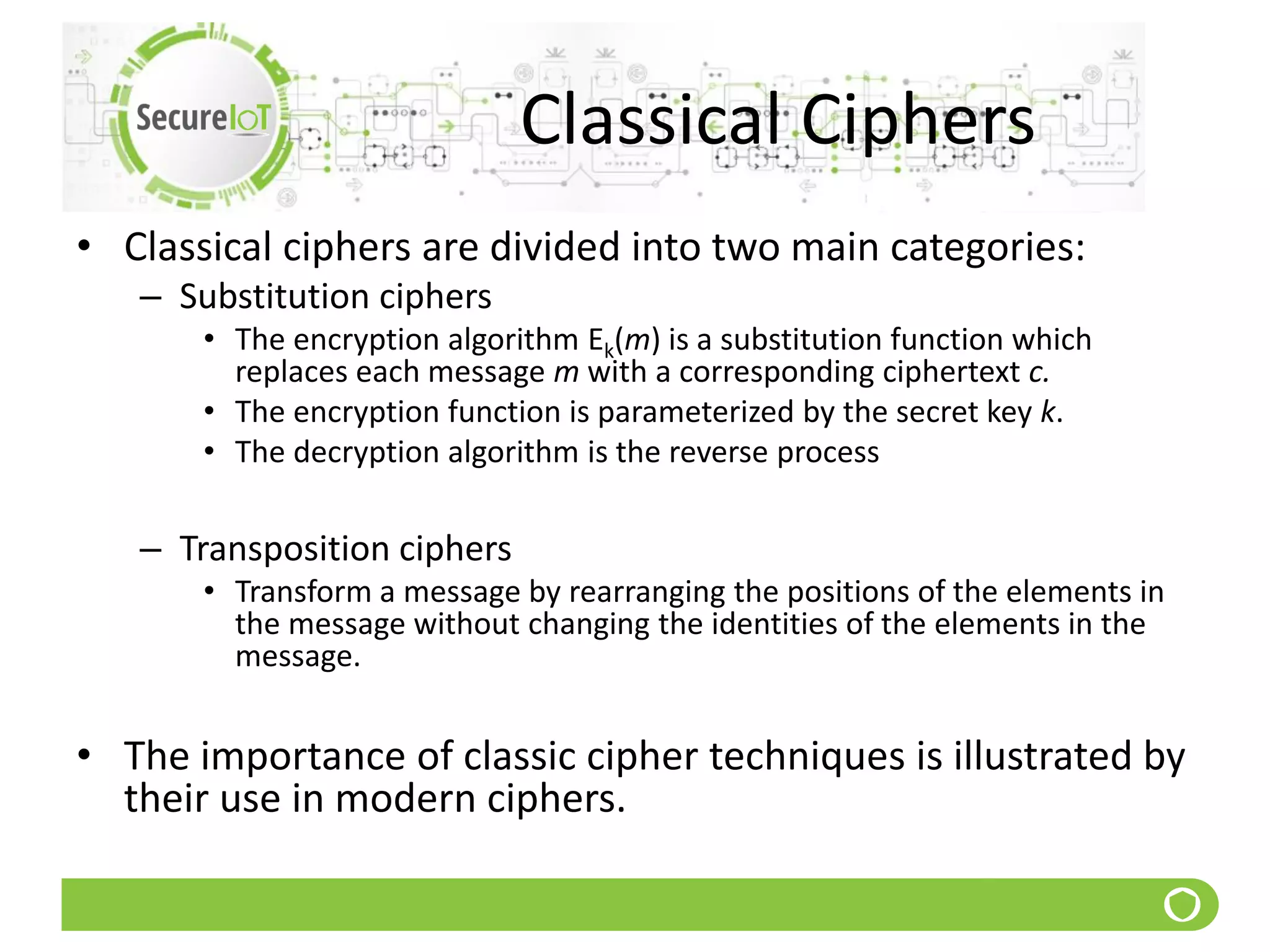

32. Classical Ciphers
• Classical ciphers are divided into two main categories:
– Substitution ciphers
• The encryption algorithm Ek(m) is a substitution function which
replaces each message m with a corresponding ciphertext c.
• The encryption function is parameterized by the secret key k.
• The decryption algorithm is the reverse process
– Transposition ciphers
• Transform a message by rearranging the positions of the elements in
the message without changing the identities of the elements in the
message.
• The importance of classic cipher techniques is illustrated by
their use in modern ciphers.

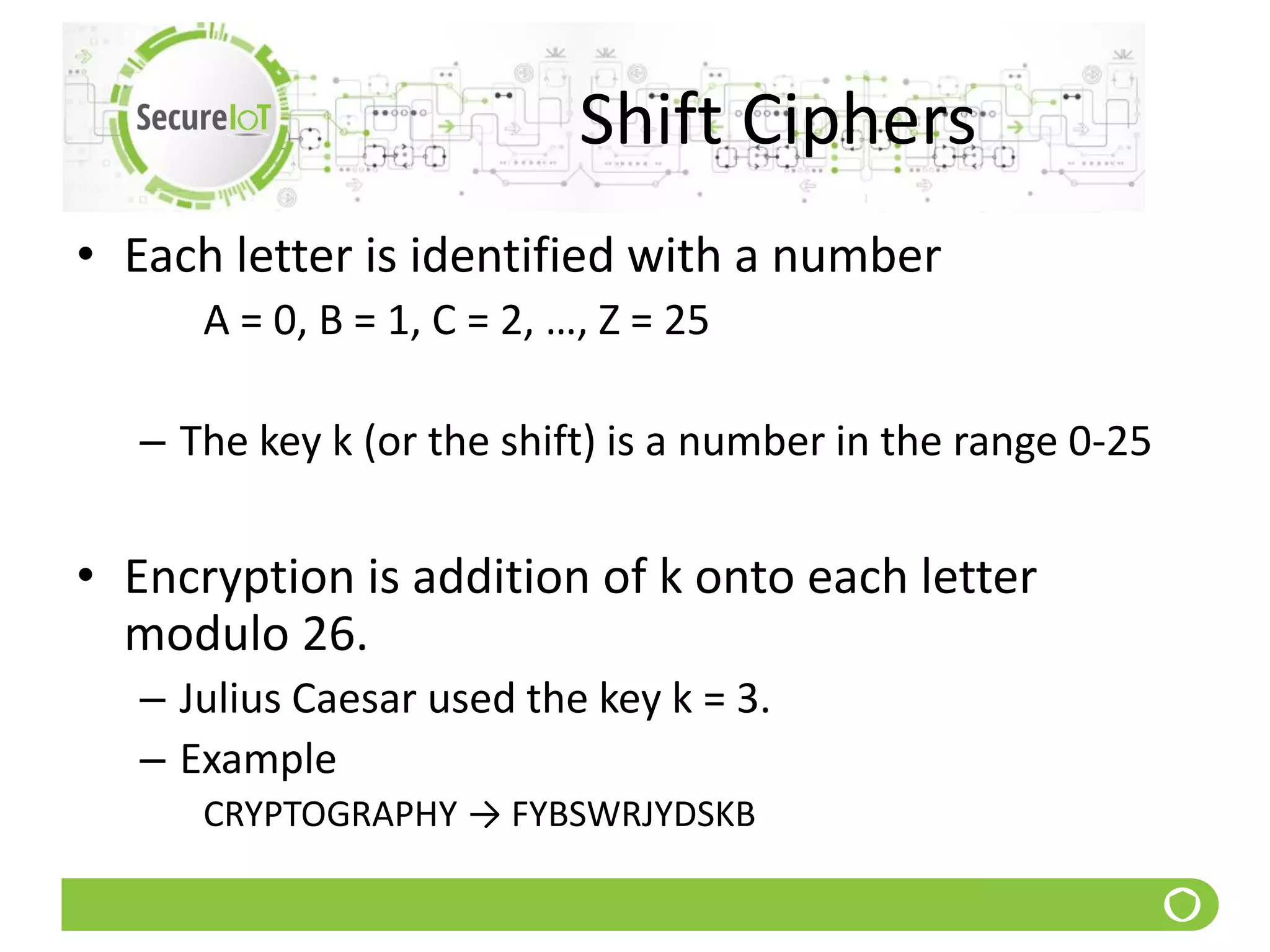

33. Shift Ciphers
• Each letter is identified with a number
A = 0, B = 1, C = 2, …, Z = 25
– The key k (or the shift) is a number in the range 0-25
• Encryption is addition of k onto each letter
modulo 26.
– Julius Caesar used the key k = 3.
– Example
CRYPTOGRAPHY → FYBSWRJYDSKB

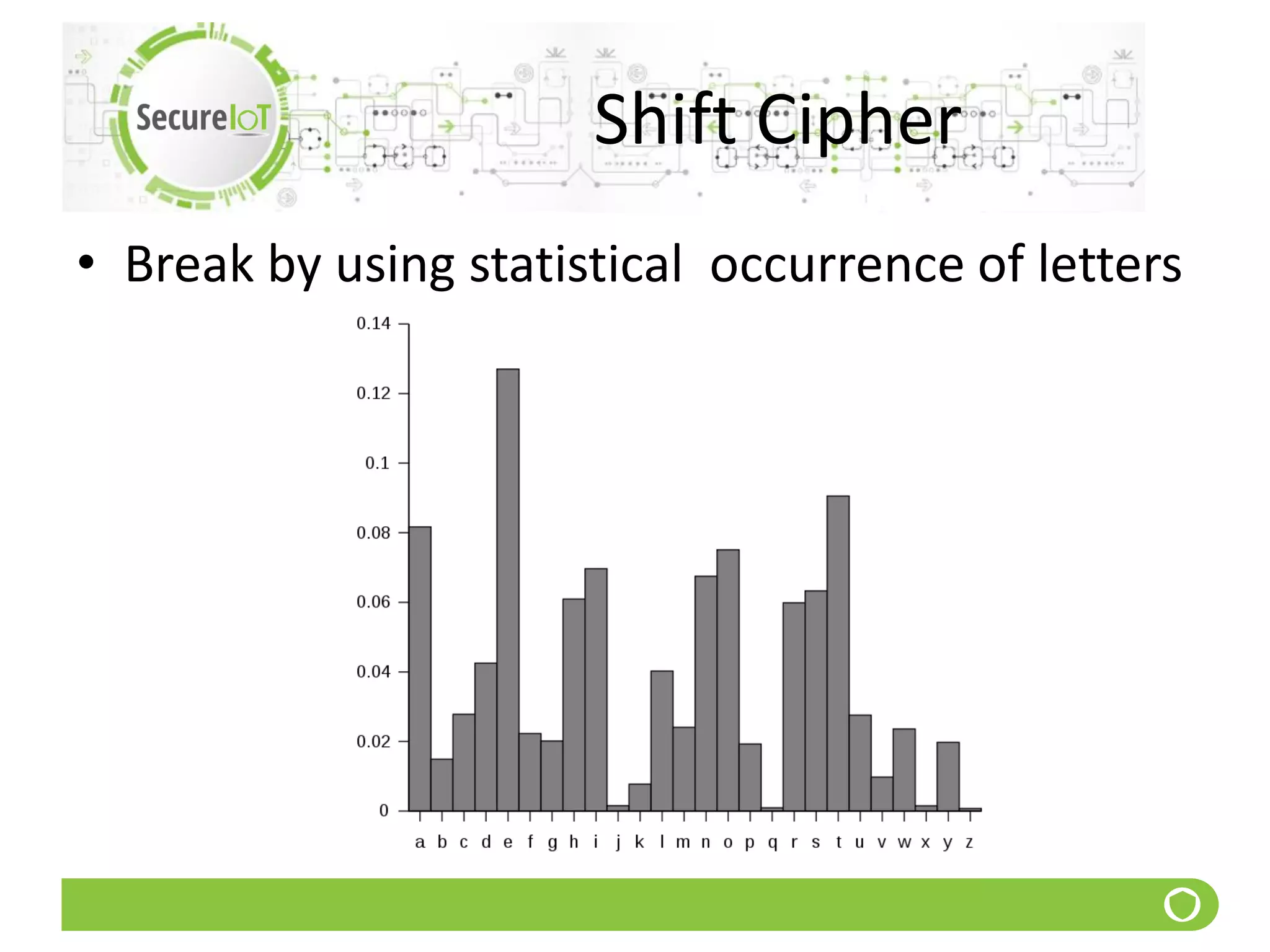

34. Shift Cipher
• Break by using statistical occurrence of letters

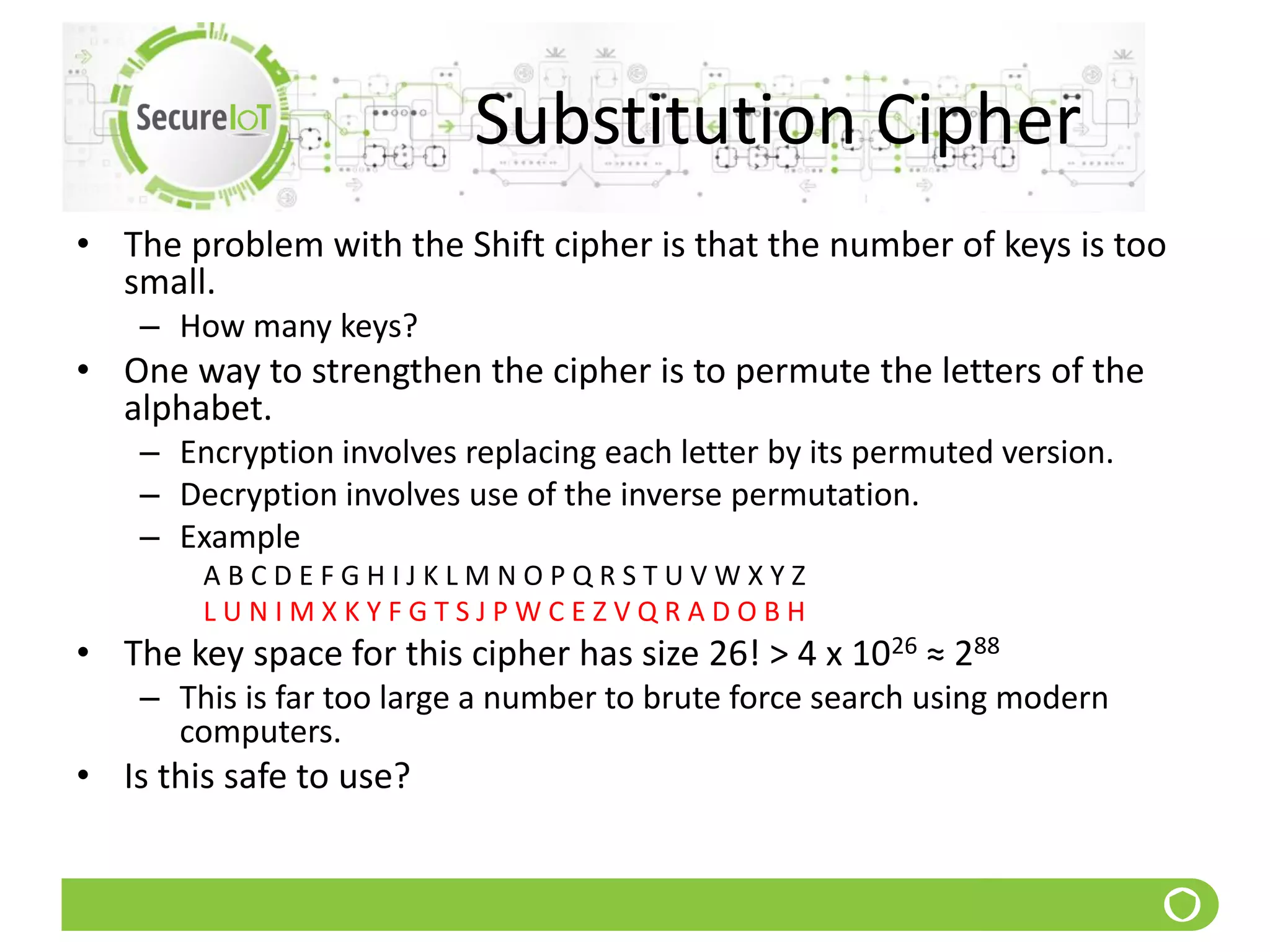

35. Substitution Cipher
• The problem with the Shift cipher is that the number of keys is too
small.
– How many keys?
• One way to strengthen the cipher is to permute the letters of the
alphabet.
– Encryption involves replacing each letter by its permuted version.
– Decryption involves use of the inverse permutation.
– Example
A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
L U N I M X K Y F G T S J P W C E Z V Q R A D O B H
• The key space for this cipher has size 26! > 4 x 1026 ≈ 288
– This is far too large a number to brute force search using modern
computers.
• Is this safe to use?

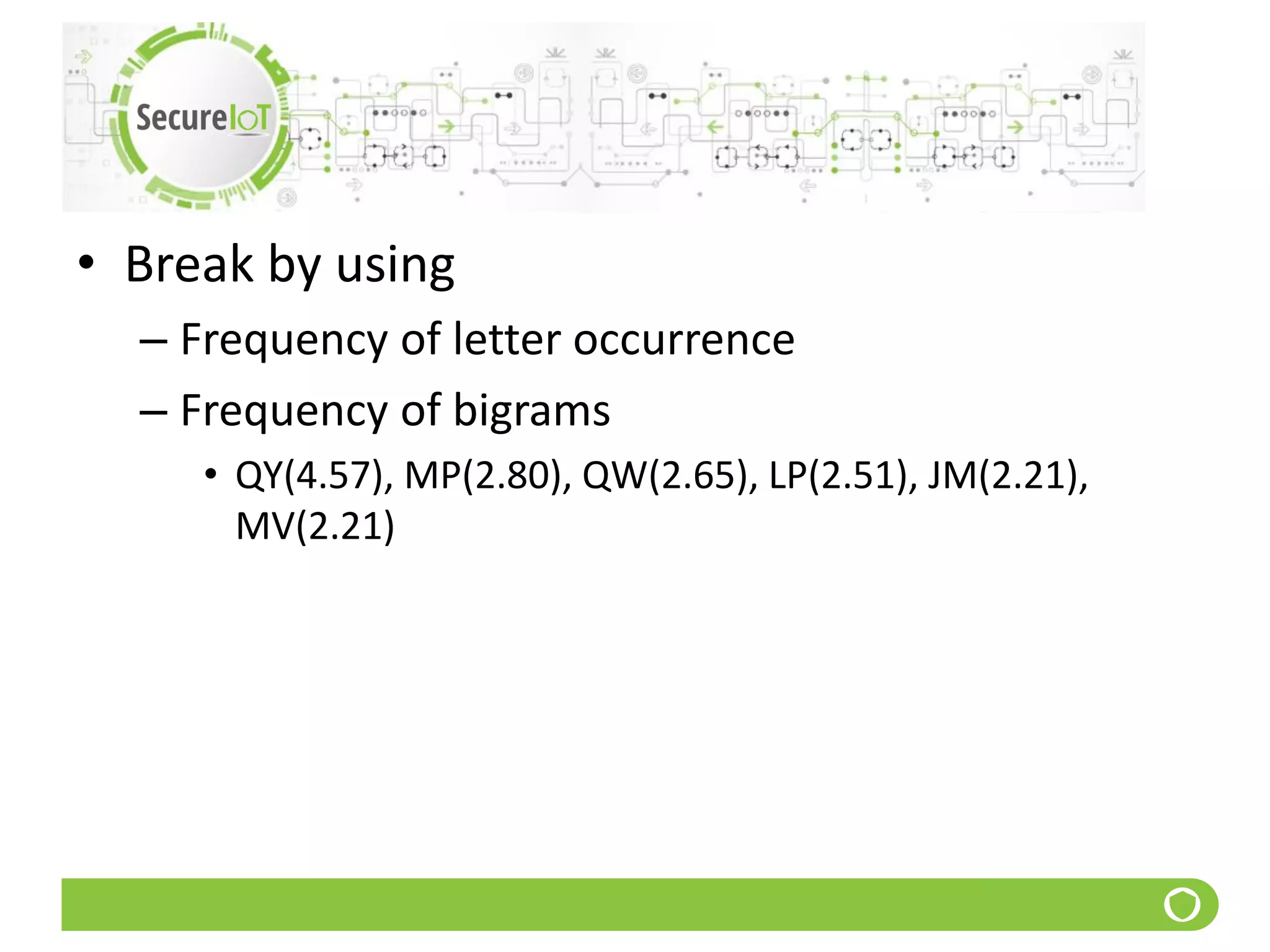

36. • Break by using
– Frequency of letter occurrence
– Frequency of bigrams
• QY(4.57), MP(2.80), QW(2.65), LP(2.51), JM(2.21),
MV(2.21)

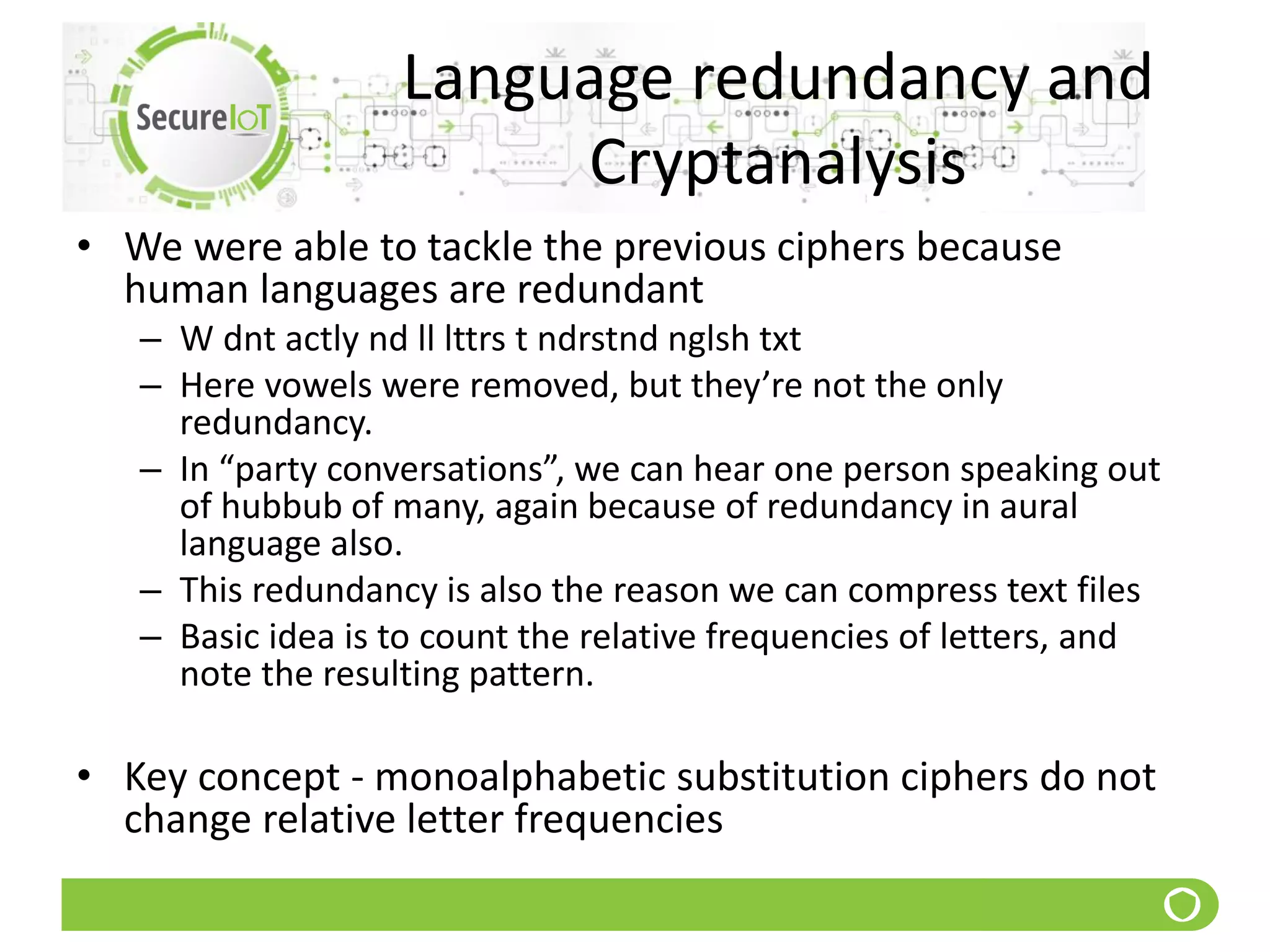

37. Language redundancy and
Cryptanalysis
• We were able to tackle the previous ciphers because
human languages are redundant
– W dnt actly nd ll lttrs t ndrstnd nglsh txt
– Here vowels were removed, but they’re not the only
redundancy.
– In “party conversations”, we can hear one person speaking out
of hubbub of many, again because of redundancy in aural
language also.
– This redundancy is also the reason we can compress text files
– Basic idea is to count the relative frequencies of letters, and
note the resulting pattern.
• Key concept - monoalphabetic substitution ciphers do not
change relative letter frequencies

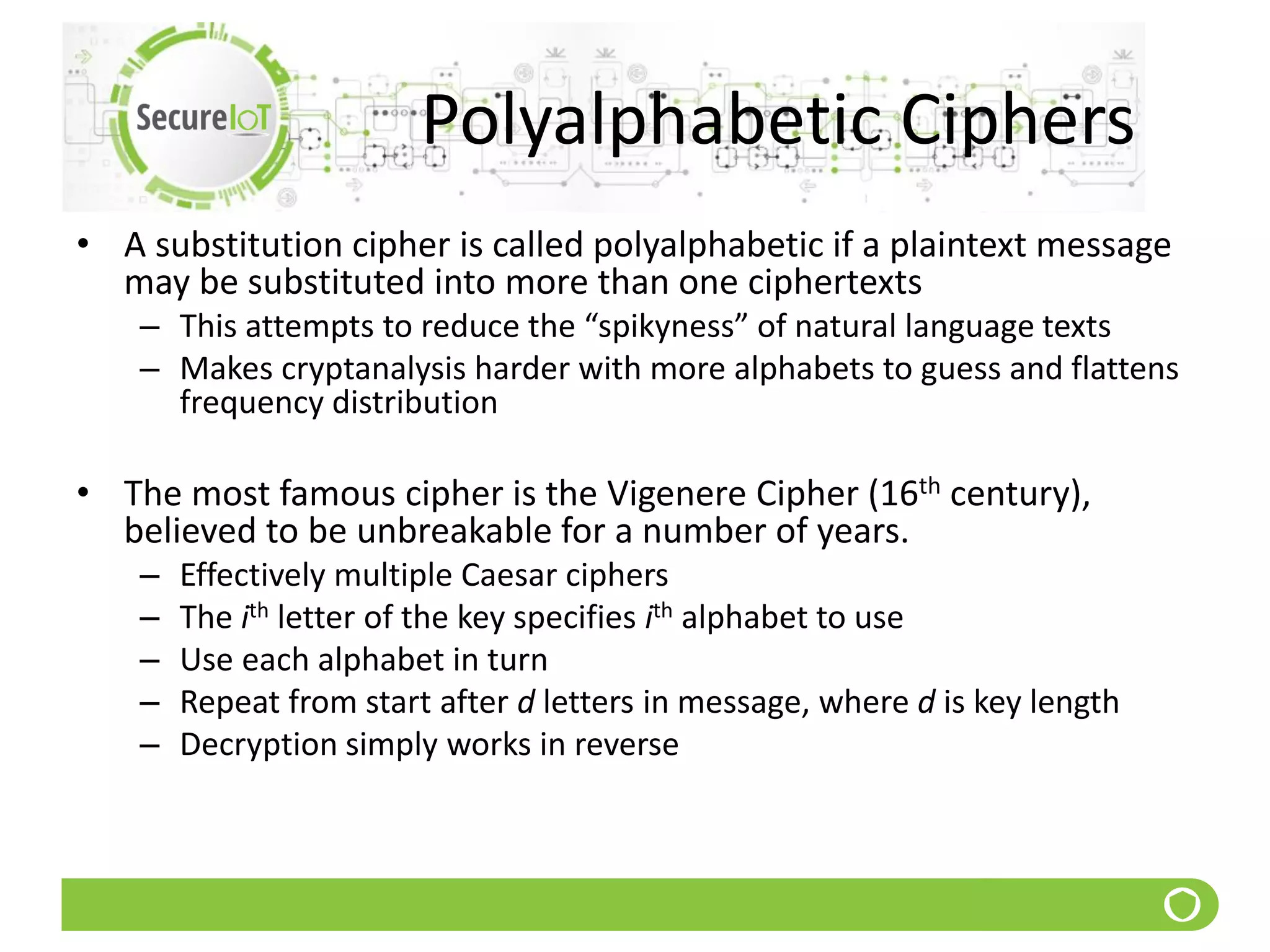

38. Polyalphabetic Ciphers
• A substitution cipher is called polyalphabetic if a plaintext message
may be substituted into more than one ciphertexts
– This attempts to reduce the “spikyness” of natural language texts
– Makes cryptanalysis harder with more alphabets to guess and flattens
frequency distribution
• The most famous cipher is the Vigenere Cipher (16th century),
believed to be unbreakable for a number of years.
– Effectively multiple Caesar ciphers
– The ith letter of the key specifies ith alphabet to use
– Use each alphabet in turn
– Repeat from start after d letters in message, where d is key length
– Decryption simply works in reverse

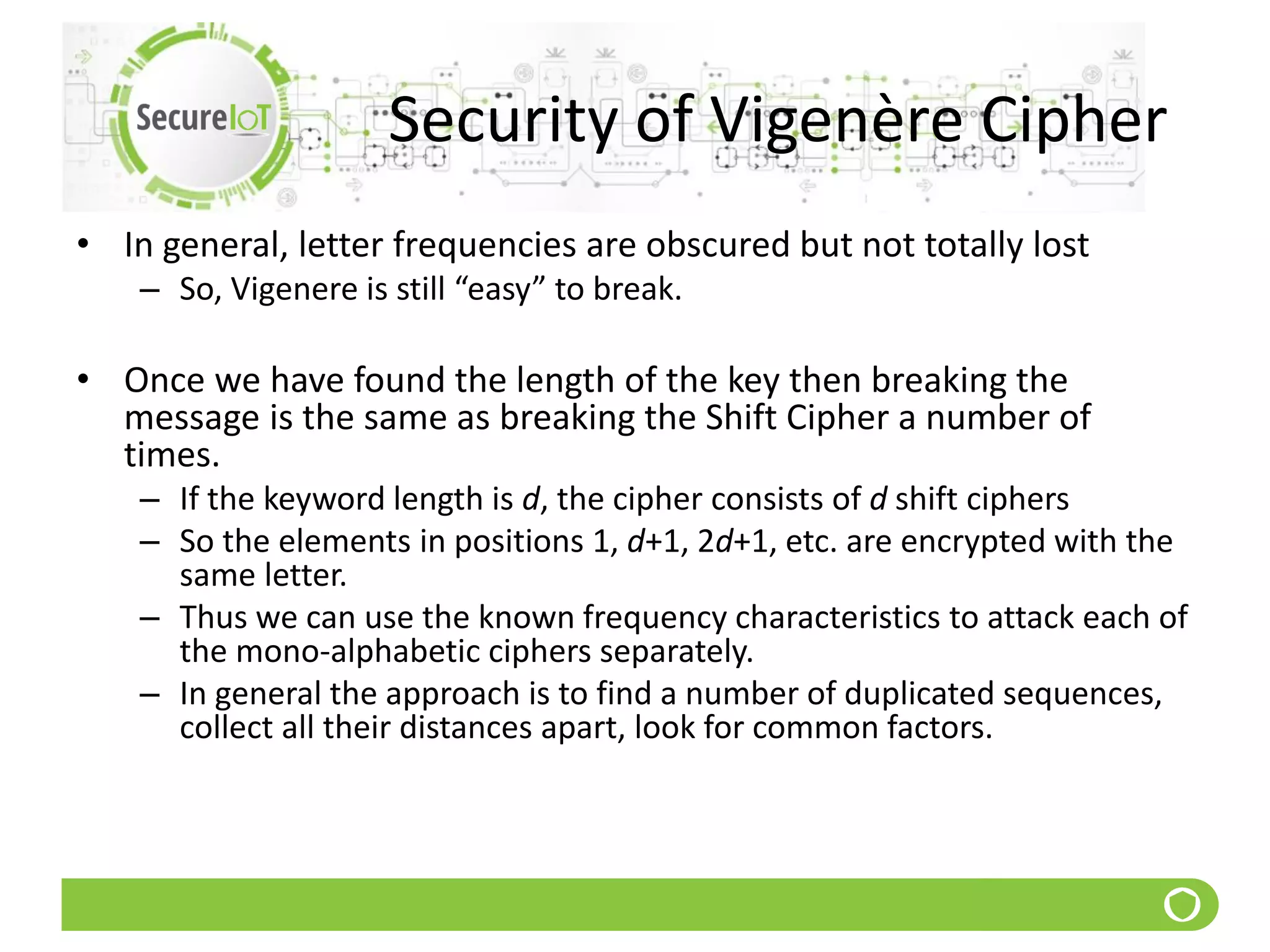

39. Security of Vigenère Cipher
• In general, letter frequencies are obscured but not totally lost
– So, Vigenere is still “easy” to break.
• Once we have found the length of the key then breaking the
message is the same as breaking the Shift Cipher a number of
times.
– If the keyword length is d, the cipher consists of d shift ciphers
– So the elements in positions 1, d+1, 2d+1, etc. are encrypted with the
same letter.
– Thus we can use the known frequency characteristics to attack each of
the mono-alphabetic ciphers separately.
– In general the approach is to find a number of duplicated sequences,
collect all their distances apart, look for common factors.

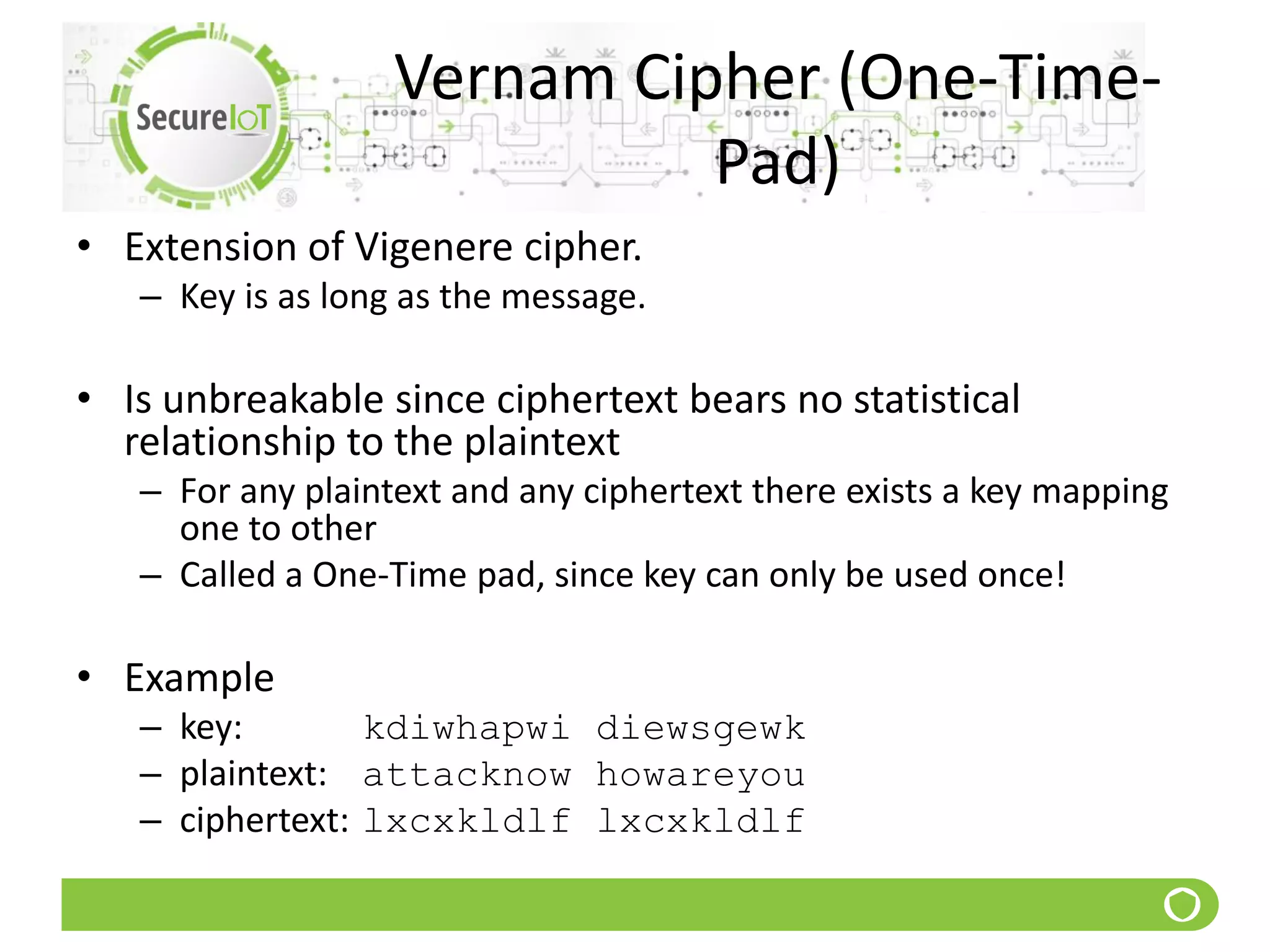

40. Vernam Cipher (One-Time-
Pad)
• Extension of Vigenere cipher.
– Key is as long as the message.
• Is unbreakable since ciphertext bears no statistical
relationship to the plaintext
– For any plaintext and any ciphertext there exists a key mapping
one to other
– Called a One-Time pad, since key can only be used once!
• Example
– key: kdiwhapwi diewsgewk
– plaintext: attacknow howareyou
– ciphertext: lxcxkldlf lxcxkldlf

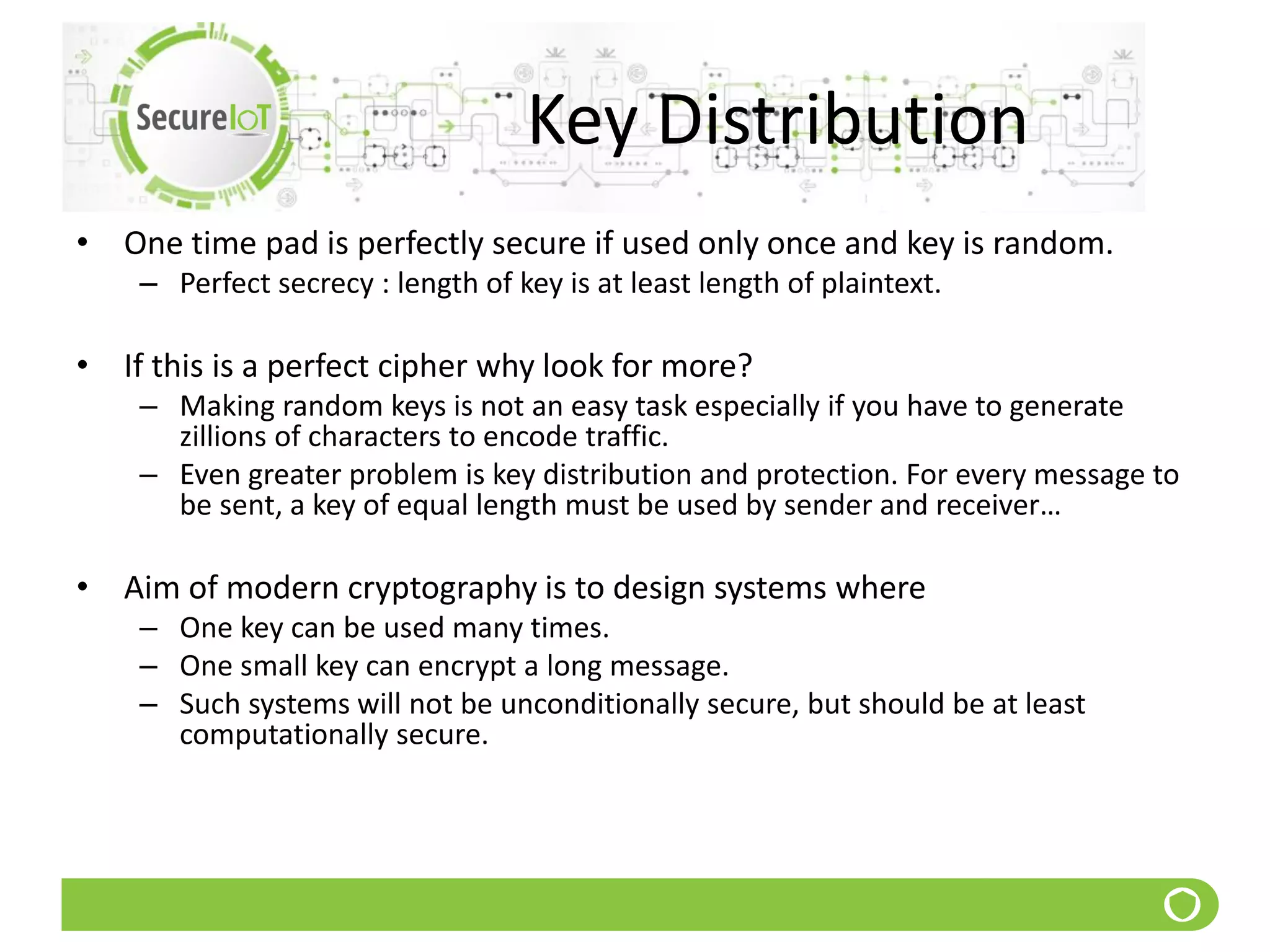

41. Key Distribution
• One time pad is perfectly secure if used only once and key is random.
– Perfect secrecy : length of key is at least length of plaintext.
• If this is a perfect cipher why look for more?
– Making random keys is not an easy task especially if you have to generate
zillions of characters to encode traffic.
– Even greater problem is key distribution and protection. For every message to
be sent, a key of equal length must be used by sender and receiver…
• Aim of modern cryptography is to design systems where
– One key can be used many times.
– One small key can encrypt a long message.
– Such systems will not be unconditionally secure, but should be at least
computationally secure.

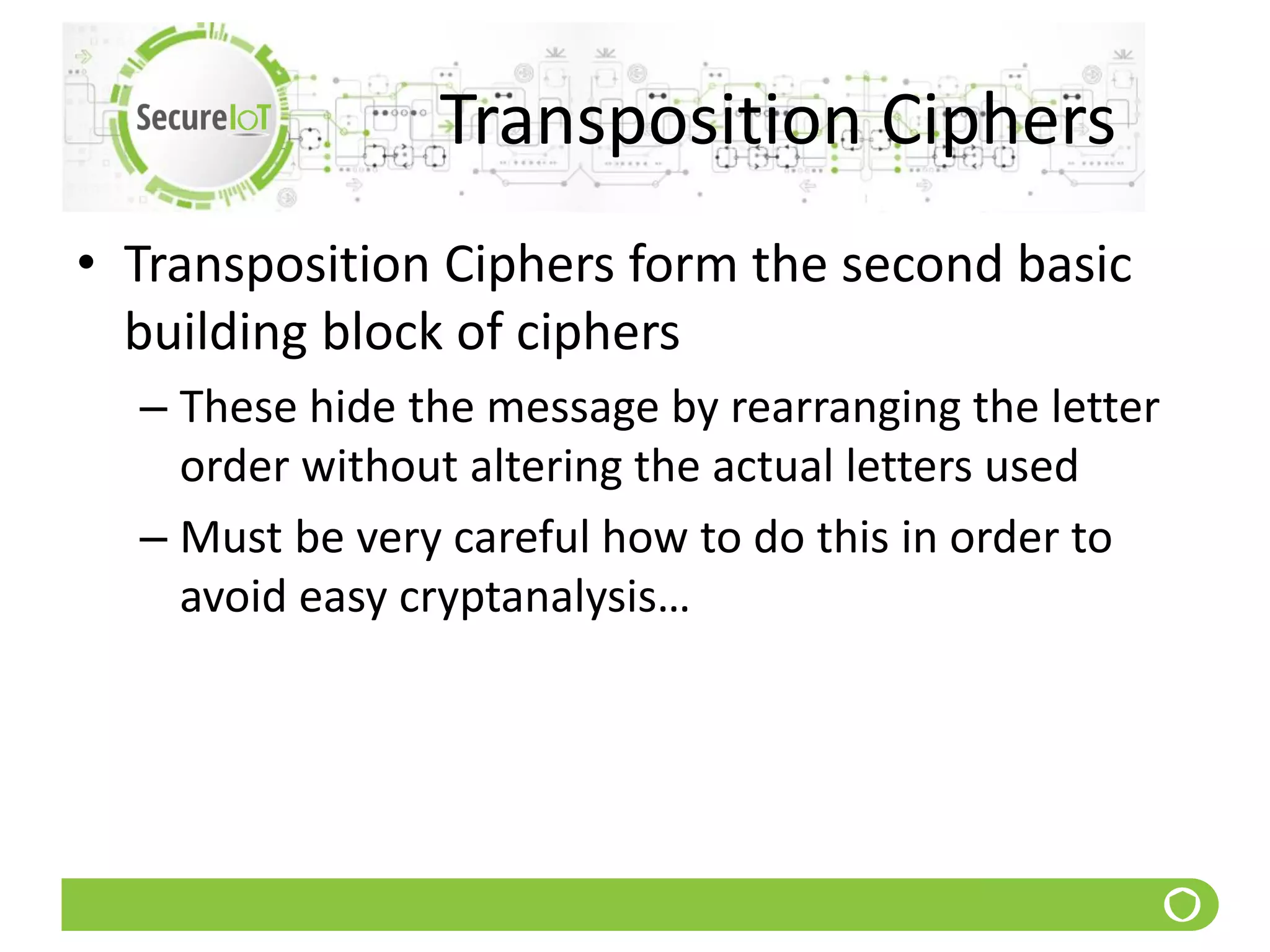

42. Transposition Ciphers
• Transposition Ciphers form the second basic
building block of ciphers
– These hide the message by rearranging the letter
order without altering the actual letters used
– Must be very careful how to do this in order to
avoid easy cryptanalysis…

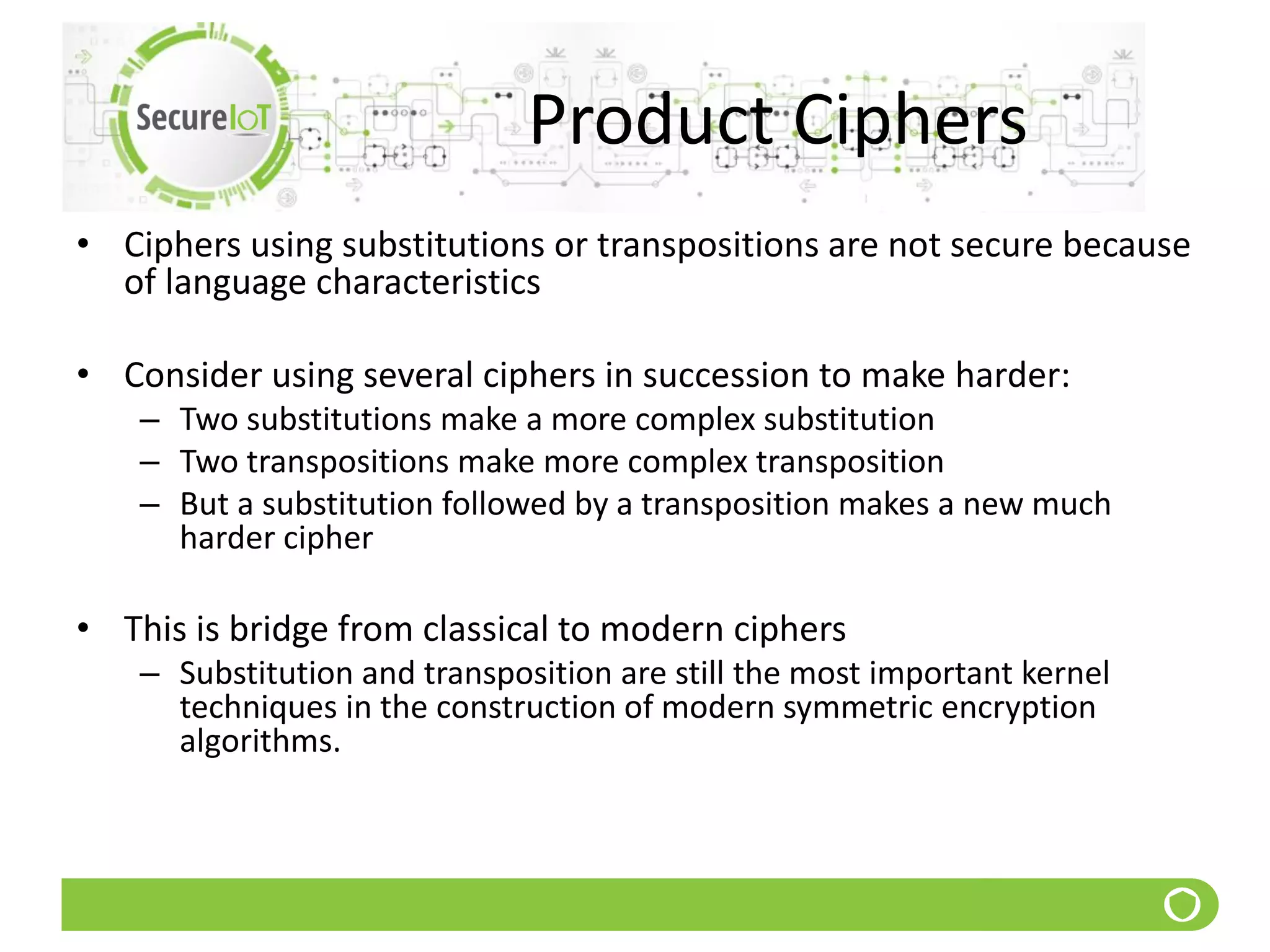

43. Product Ciphers
• Ciphers using substitutions or transpositions are not secure because
of language characteristics
• Consider using several ciphers in succession to make harder:
– Two substitutions make a more complex substitution
– Two transpositions make more complex transposition
– But a substitution followed by a transposition makes a new much
harder cipher
• This is bridge from classical to modern ciphers
– Substitution and transposition are still the most important kernel
techniques in the construction of modern symmetric encryption
algorithms.

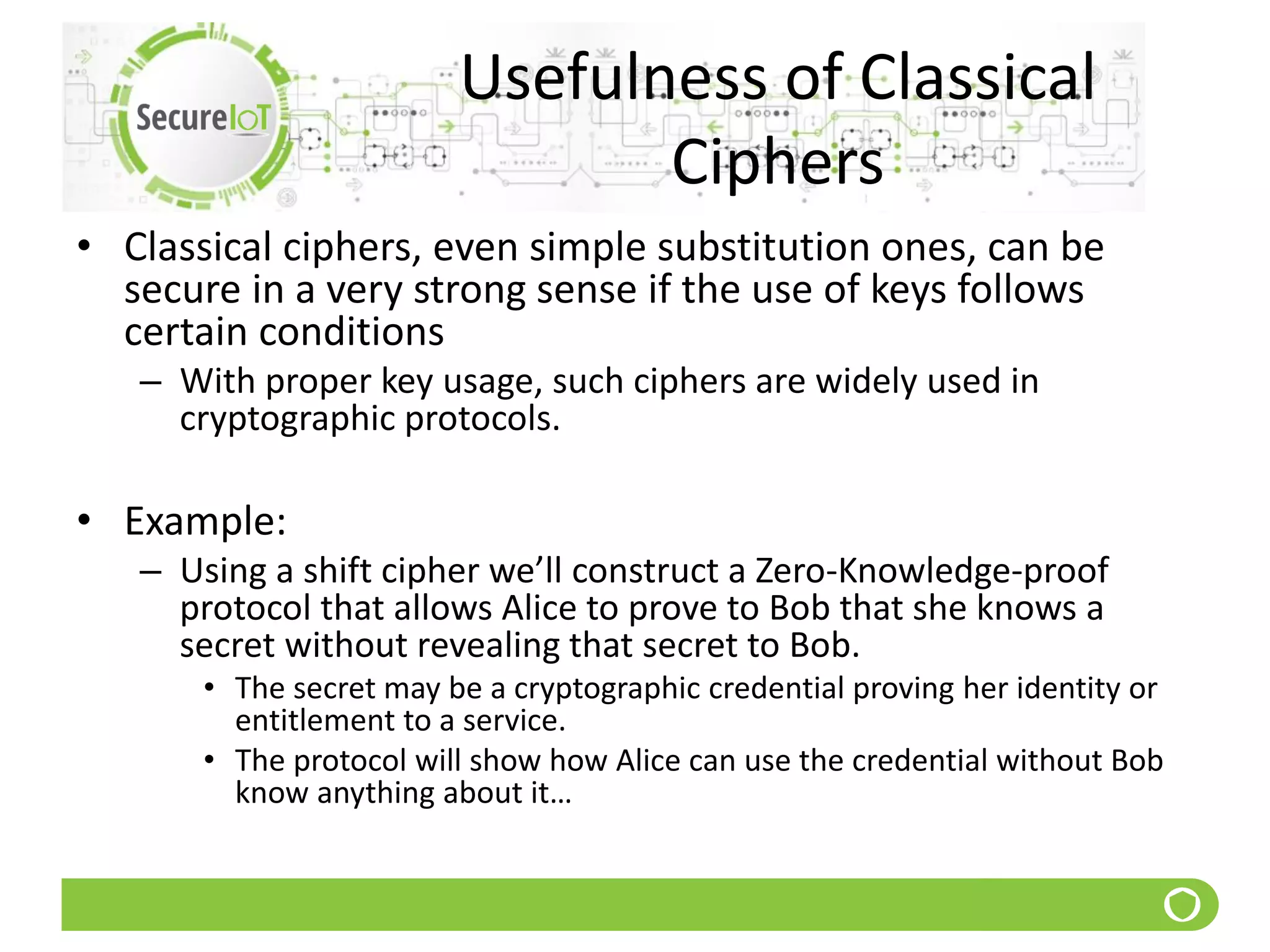

44. Usefulness of Classical
Ciphers
• Classical ciphers, even simple substitution ones, can be
secure in a very strong sense if the use of keys follows
certain conditions
– With proper key usage, such ciphers are widely used in
cryptographic protocols.
• Example:
– Using a shift cipher we’ll construct a Zero-Knowledge-proof
protocol that allows Alice to prove to Bob that she knows a
secret without revealing that secret to Bob.
• The secret may be a cryptographic credential proving her identity or
entitlement to a service.
• The protocol will show how Alice can use the credential without Bob
know anything about it…

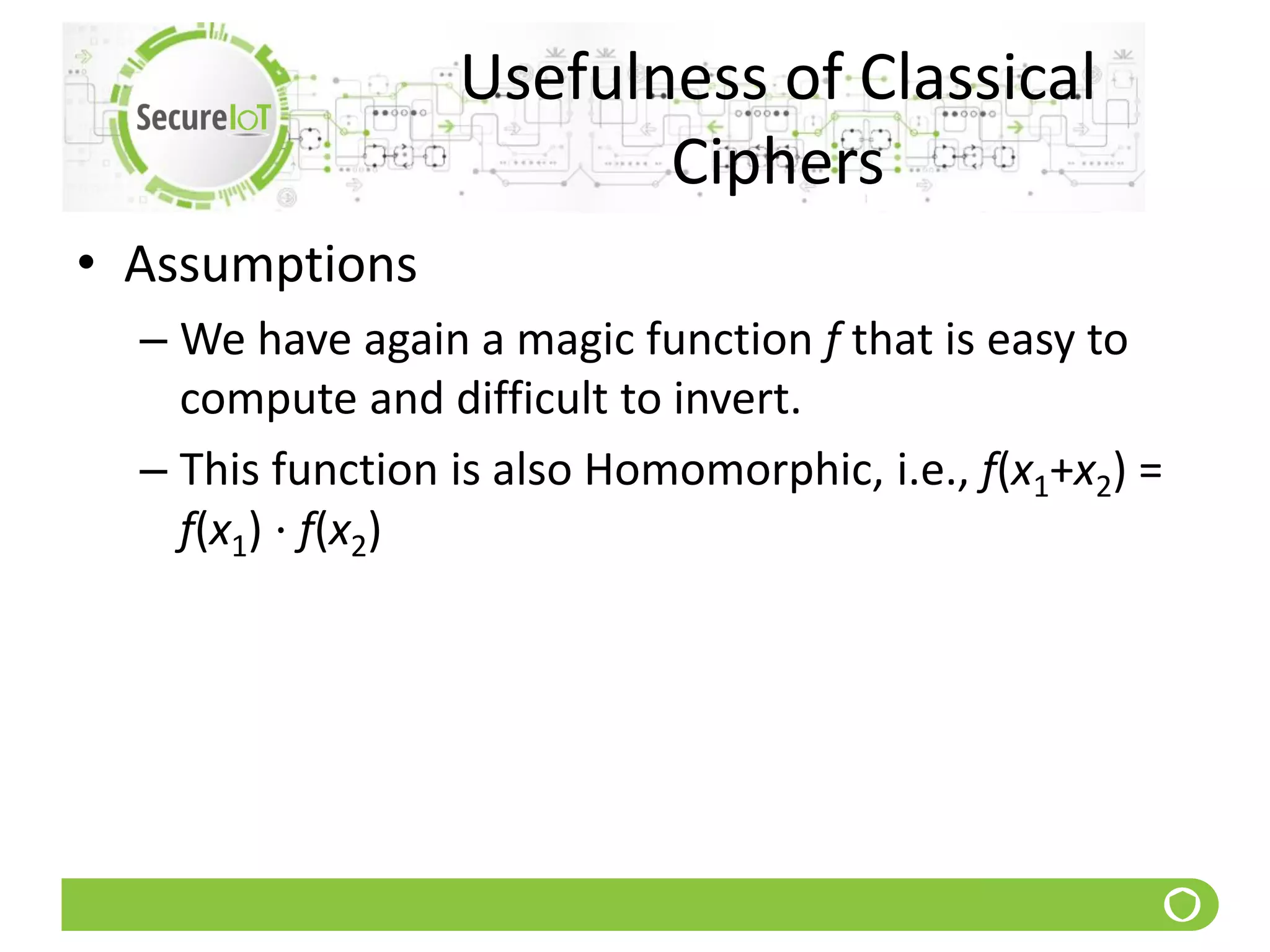

45. Usefulness of Classical
Ciphers
• Assumptions
– We have again a magic function f that is easy to
compute and difficult to invert.
– This function is also Homomorphic, i.e., f(x1+x2) =
f(x1) ⋅ f(x2)

46. MODERN BLOCK CIPHERS

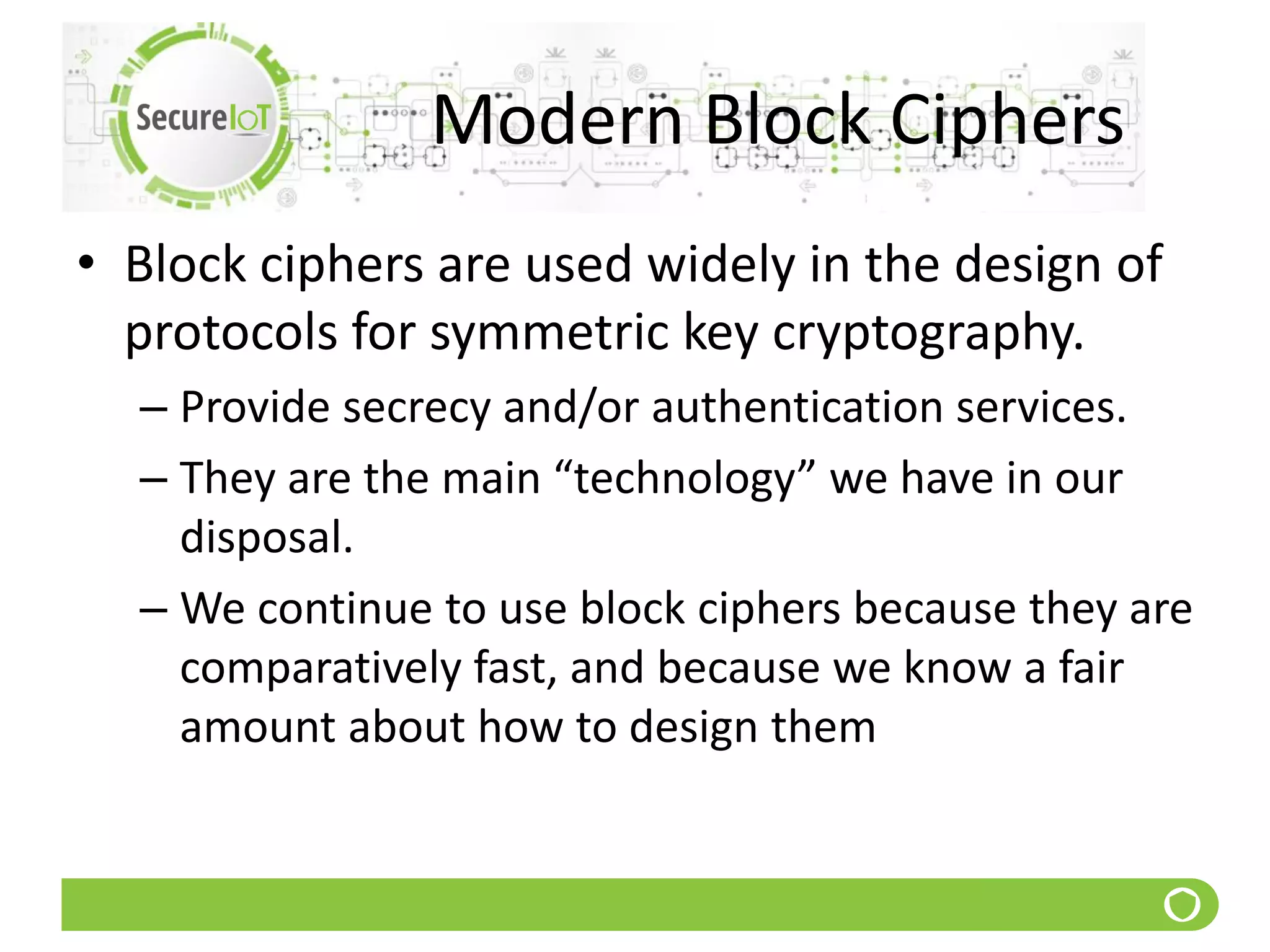

47. Modern Block Ciphers
• Block ciphers are used widely in the design of
protocols for symmetric key cryptography.
– Provide secrecy and/or authentication services.
– They are the main “technology” we have in our
disposal.
– We continue to use block ciphers because they are
comparatively fast, and because we know a fair
amount about how to design them

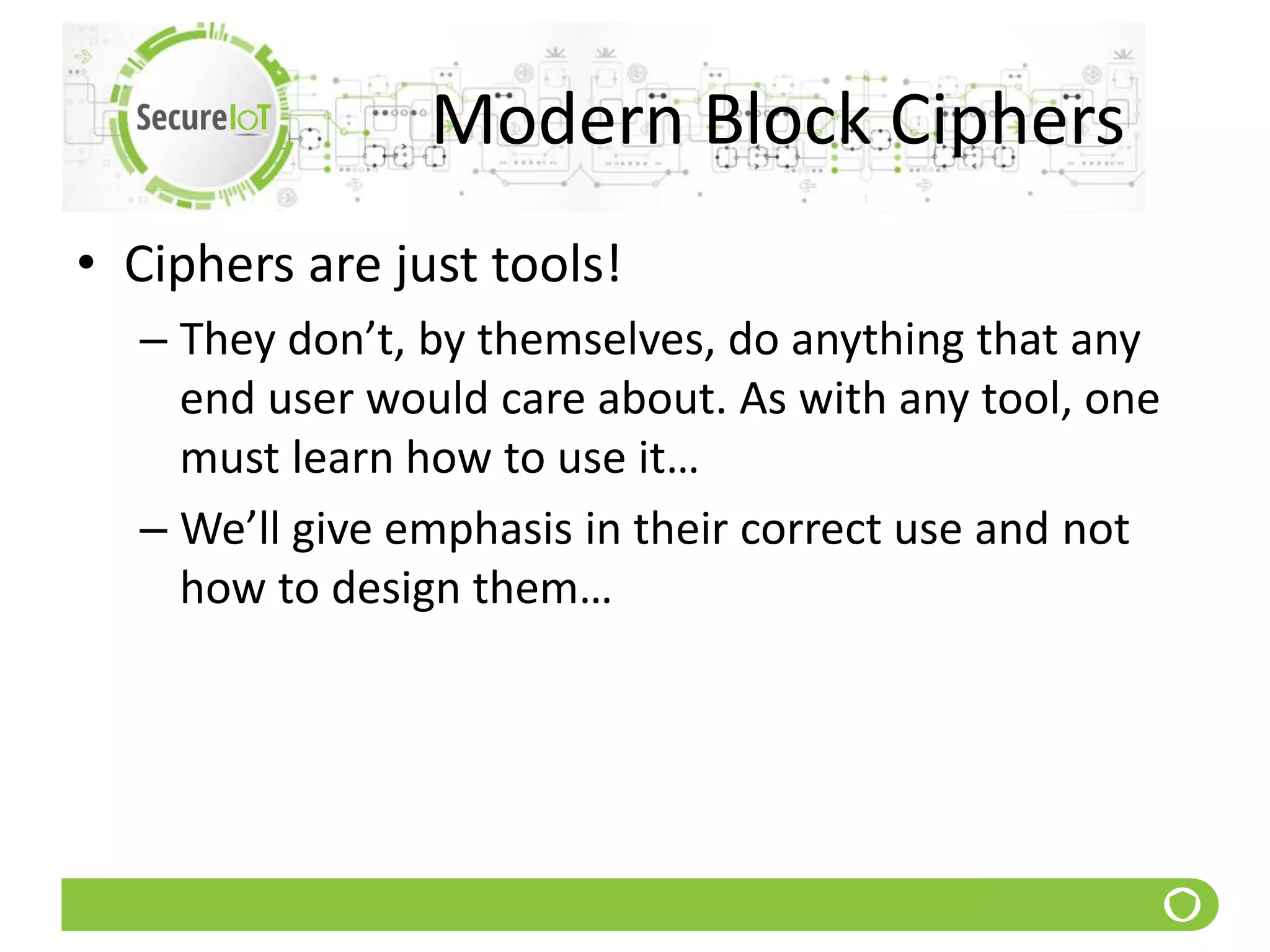

48. Modern Block Ciphers
• Ciphers are just tools!
– They don’t, by themselves, do anything that any
end user would care about. As with any tool, one
must learn how to use it…
– We’ll give emphasis in their correct use and not
how to design them…

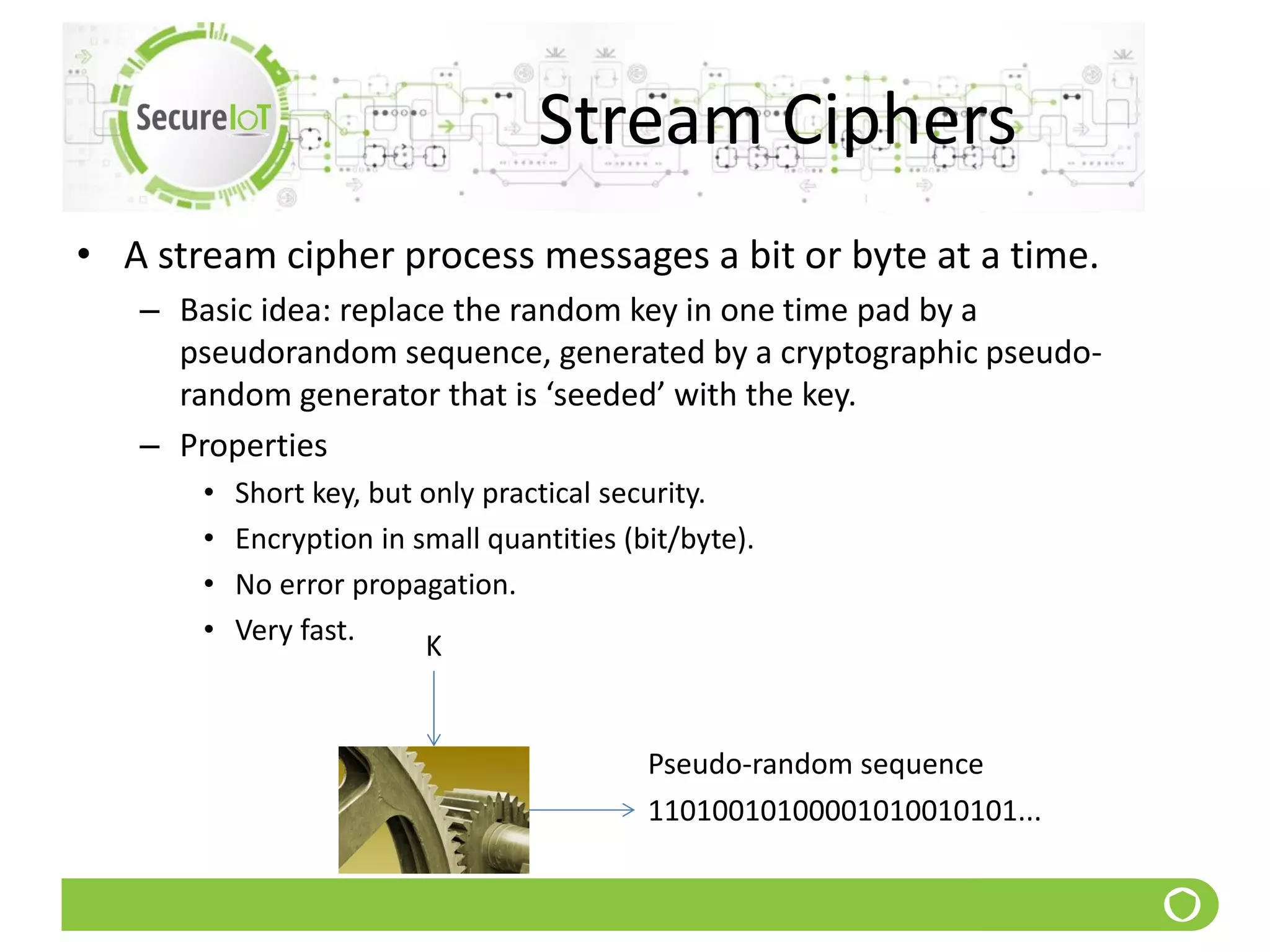

49. Stream Ciphers
• A stream cipher process messages a bit or byte at a time.
– Basic idea: replace the random key in one time pad by a
pseudorandom sequence, generated by a cryptographic pseudo-
random generator that is ‘seeded’ with the key.
– Properties
• Short key, but only practical security.
• Encryption in small quantities (bit/byte).
• No error propagation.
• Very fast. K
Pseudo-random sequence
11010010100001010010101...

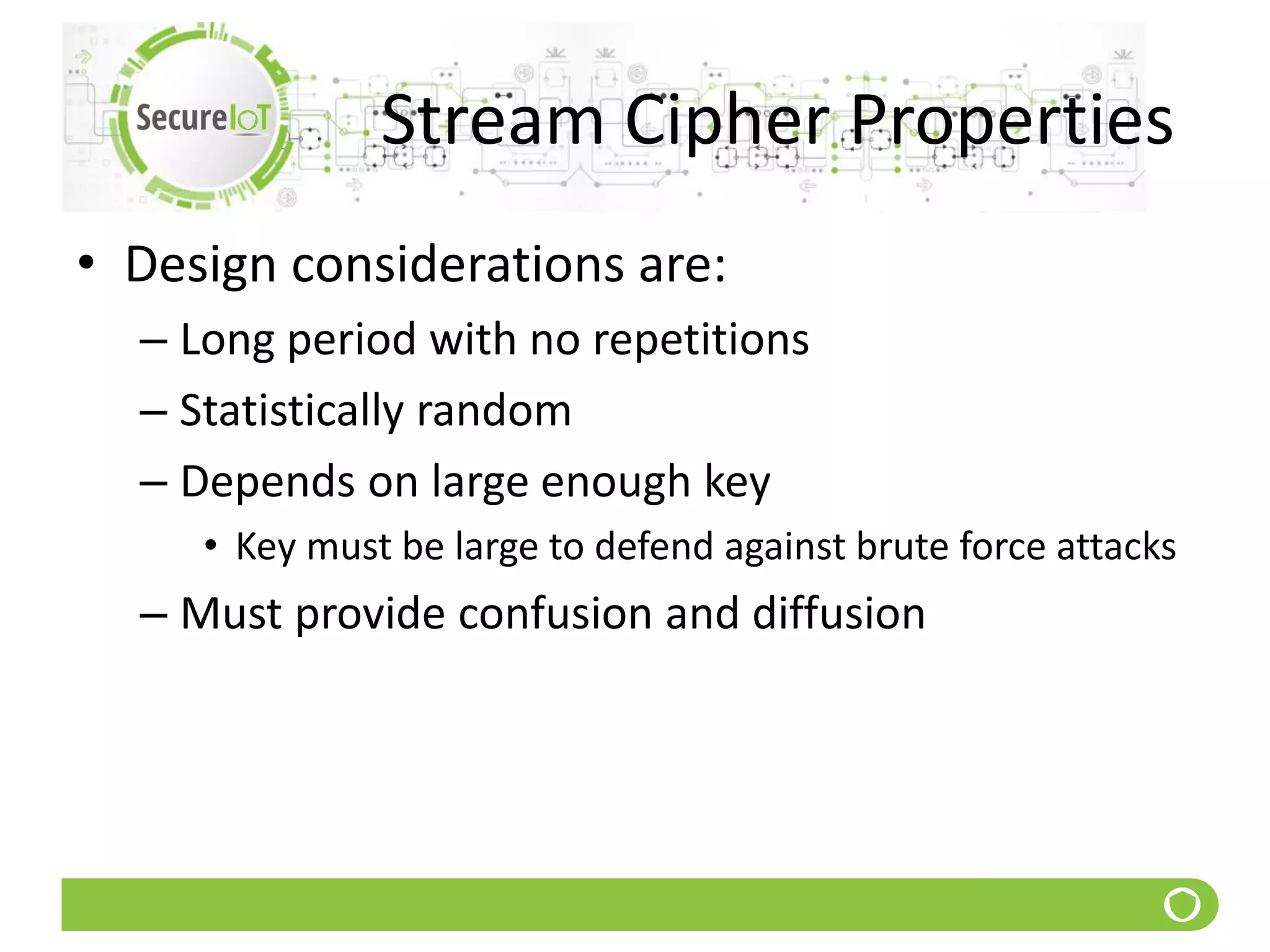

50. Stream Cipher Properties
• Design considerations are:
– Long period with no repetitions
– Statistically random
– Depends on large enough key
• Key must be large to defend against brute force attacks
– Must provide confusion and diffusion

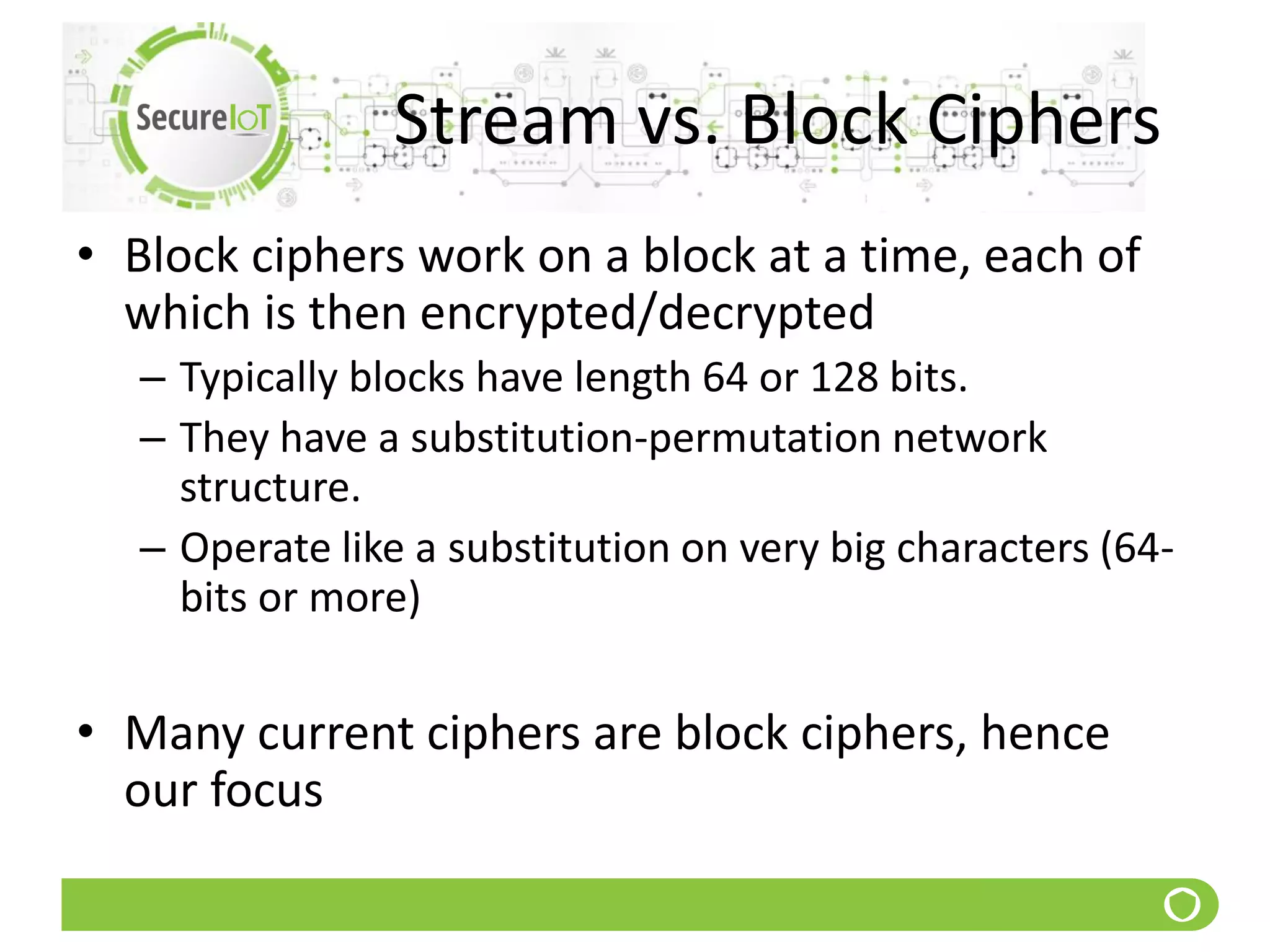

51. Stream vs. Block Ciphers
• Block ciphers work on a block at a time, each of
which is then encrypted/decrypted
– Typically blocks have length 64 or 128 bits.
– They have a substitution-permutation network
structure.
– Operate like a substitution on very big characters (64-
bits or more)
• Many current ciphers are block ciphers, hence
our focus

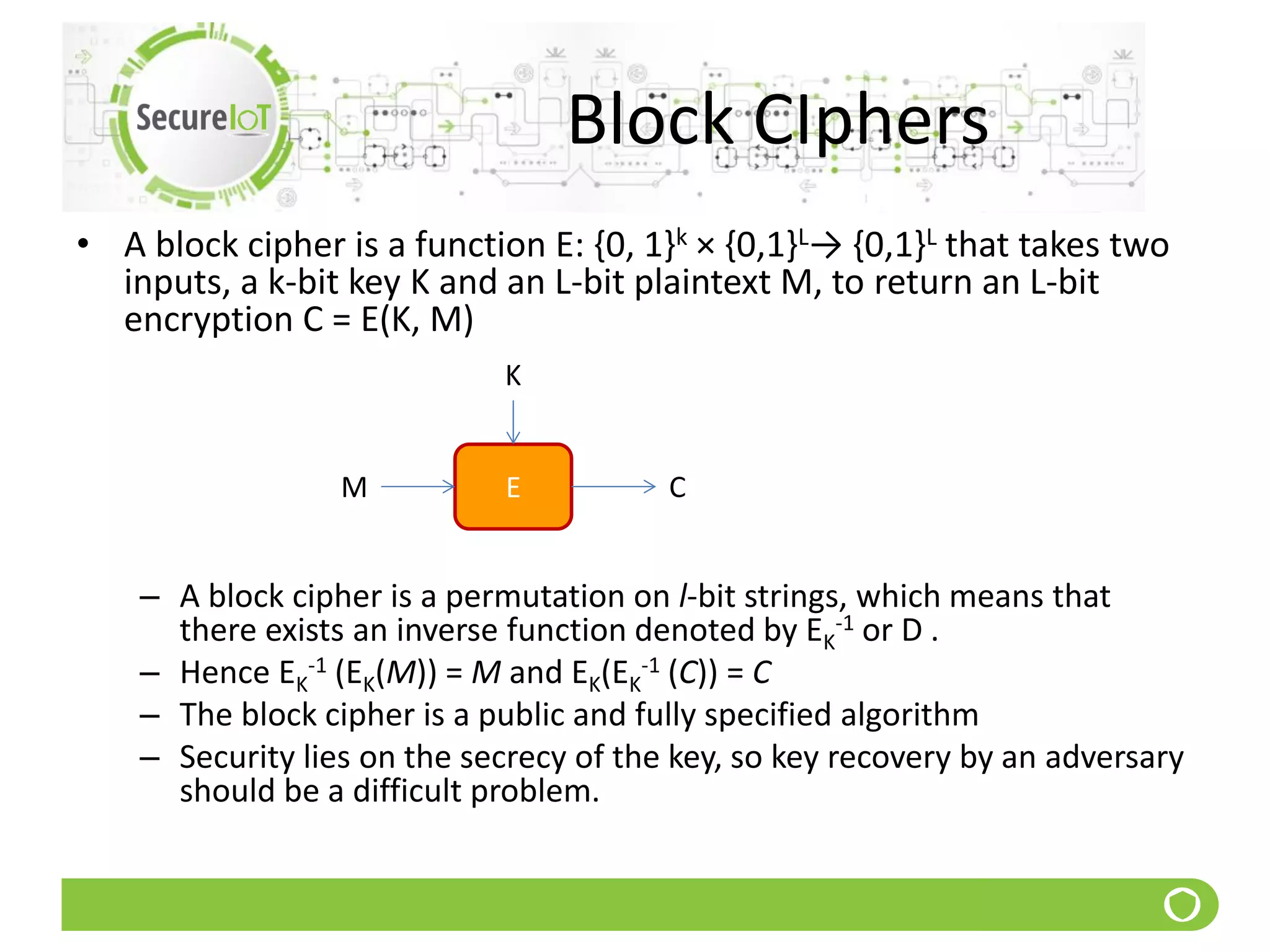

52. Block CIphers
• A block cipher is a function E: {0, 1}k × {0,1}L→ {0,1}L that takes two
inputs, a k-bit key K and an L-bit plaintext M, to return an L-bit
encryption C = E(K, M)
– A block cipher is a permutation on l-bit strings, which means that
there exists an inverse function denoted by EK
-1 or D .
– Hence EK
-1 (EK(M)) = M and EK(EK
-1 (C)) = C
– The block cipher is a public and fully specified algorithm
– Security lies on the secrecy of the key, so key recovery by an adversary
should be a difficult problem.
EM
K
C

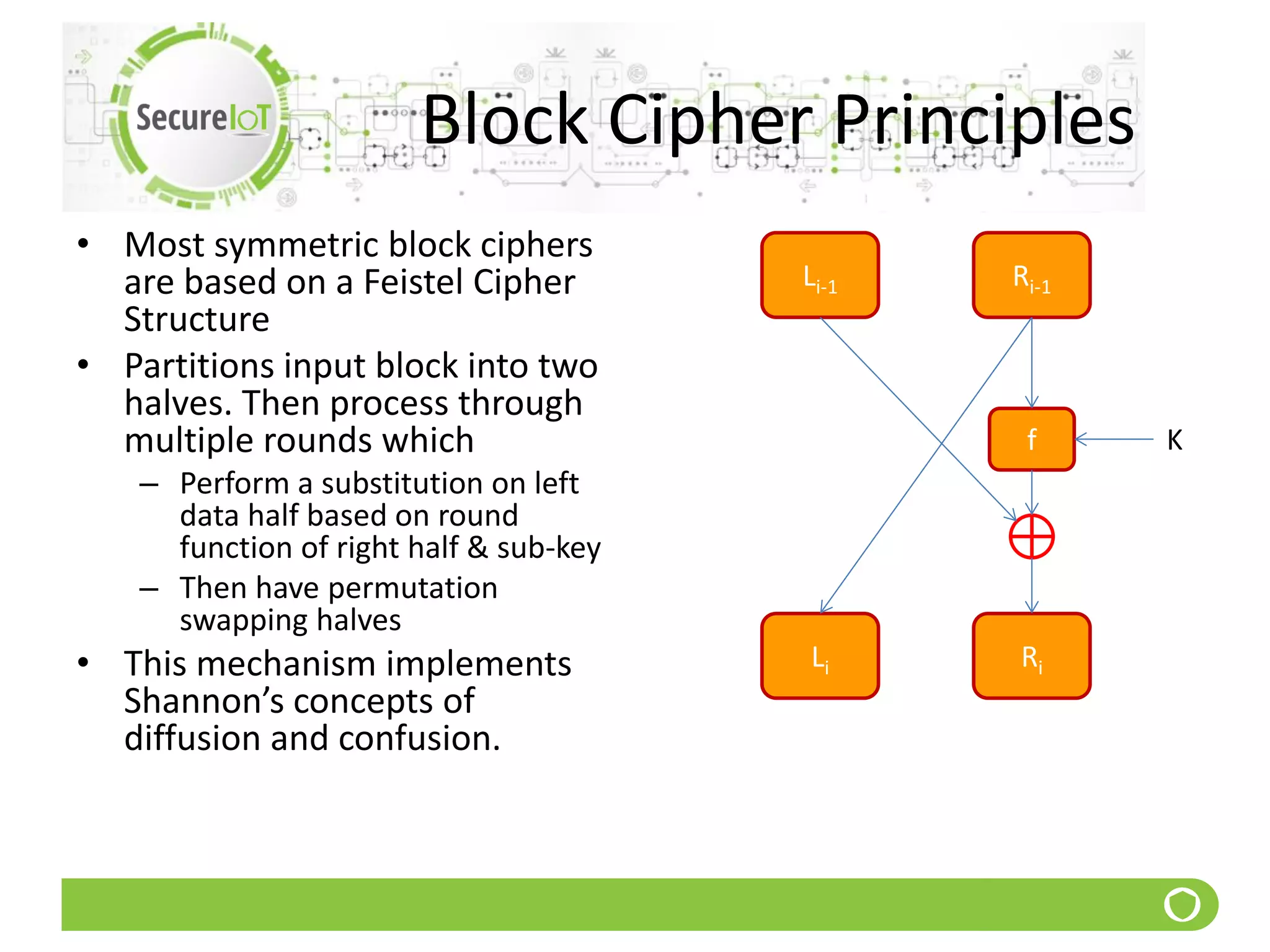

53. Block Cipher Principles
• Most symmetric block ciphers
are based on a Feistel Cipher
Structure
• Partitions input block into two
halves. Then process through
multiple rounds which
– Perform a substitution on left
data half based on round
function of right half & sub-key
– Then have permutation
swapping halves
• This mechanism implements
Shannon’s concepts of
diffusion and confusion.
Li-1 Ri-1
Li Ri
f K

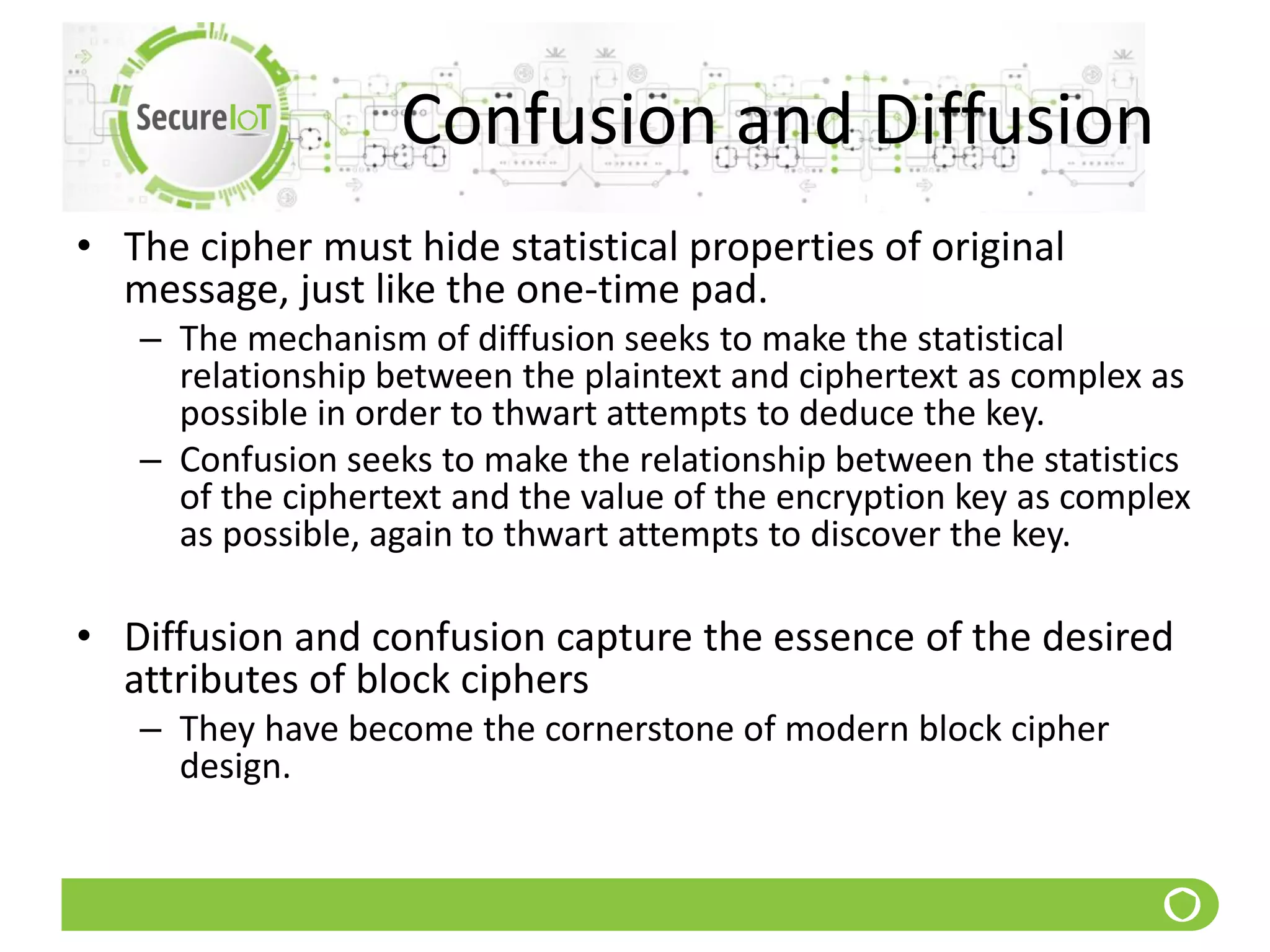

54. Confusion and Diffusion
• The cipher must hide statistical properties of original
message, just like the one-time pad.
– The mechanism of diffusion seeks to make the statistical
relationship between the plaintext and ciphertext as complex as
possible in order to thwart attempts to deduce the key.
– Confusion seeks to make the relationship between the statistics
of the ciphertext and the value of the encryption key as complex
as possible, again to thwart attempts to discover the key.
• Diffusion and confusion capture the essence of the desired
attributes of block ciphers
– They have become the cornerstone of modern block cipher
design.

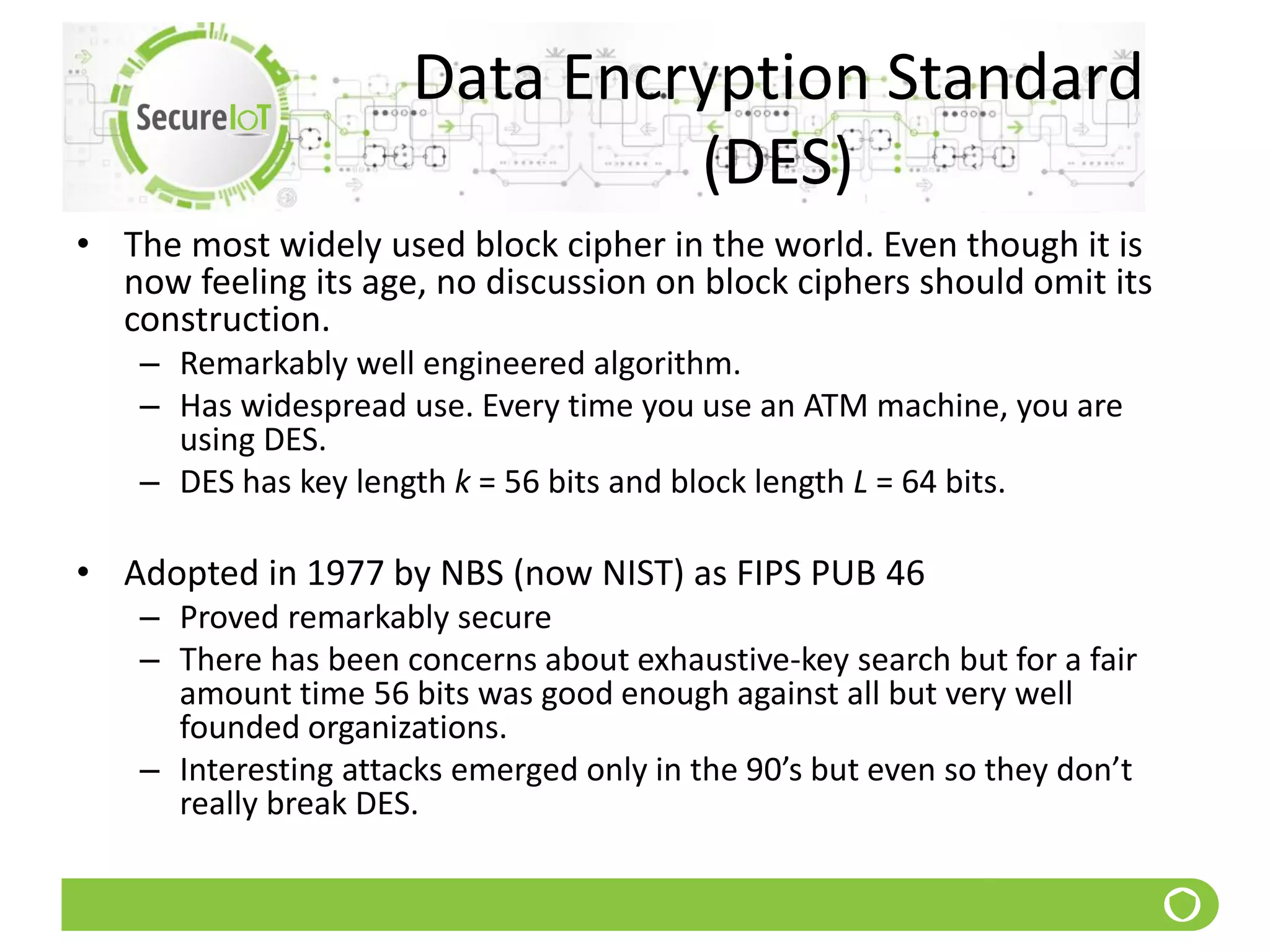

55. Data Encryption Standard
(DES)
• The most widely used block cipher in the world. Even though it is
now feeling its age, no discussion on block ciphers should omit its
construction.
– Remarkably well engineered algorithm.
– Has widespread use. Every time you use an ATM machine, you are
using DES.
– DES has key length k = 56 bits and block length L = 64 bits.
• Adopted in 1977 by NBS (now NIST) as FIPS PUB 46
– Proved remarkably secure
– There has been concerns about exhaustive-key search but for a fair
amount time 56 bits was good enough against all but very well
founded organizations.
– Interesting attacks emerged only in the 90’s but even so they don’t
really break DES.

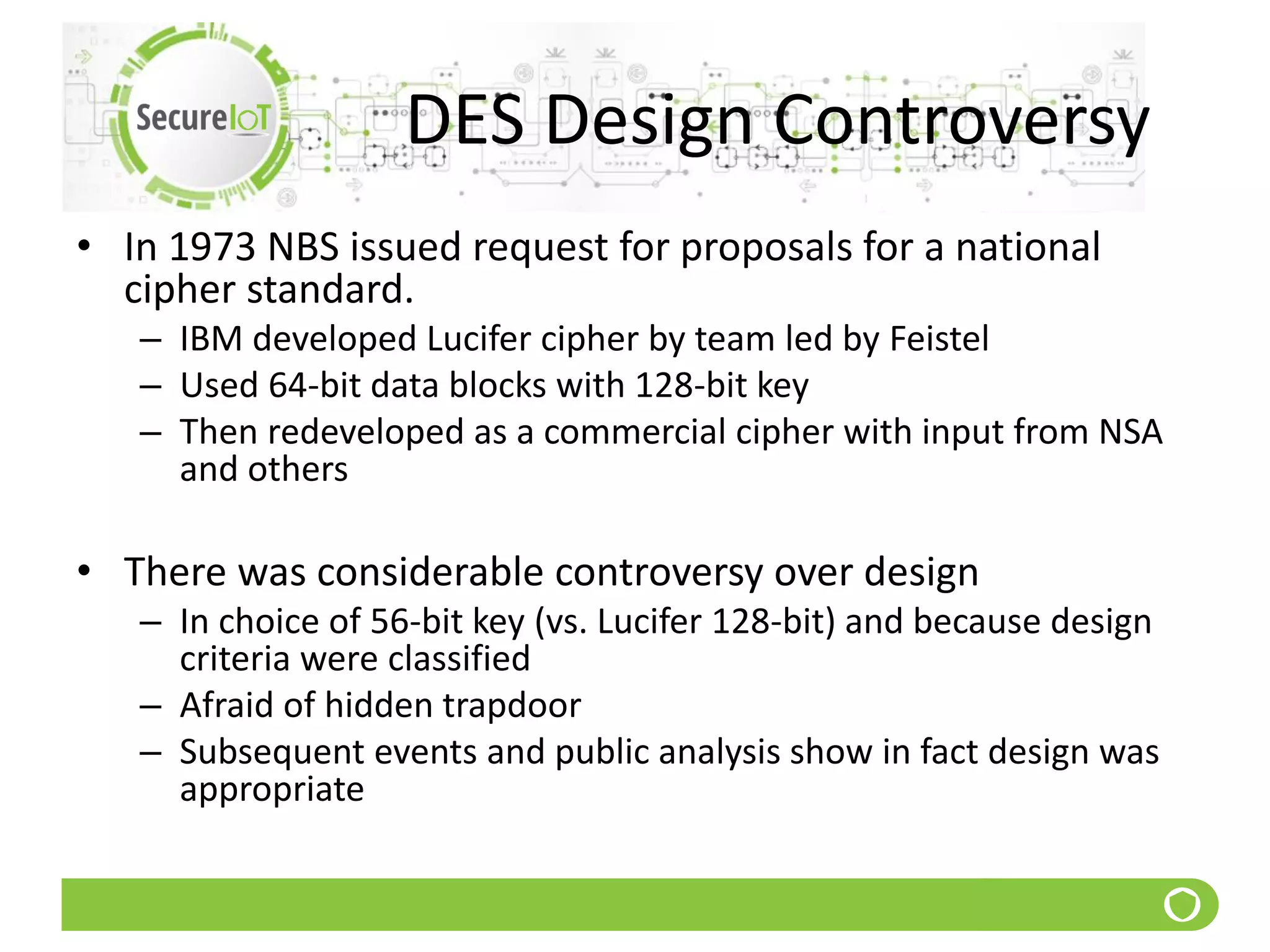

56. DES Design Controversy
• In 1973 NBS issued request for proposals for a national
cipher standard.
– IBM developed Lucifer cipher by team led by Feistel
– Used 64-bit data blocks with 128-bit key
– Then redeveloped as a commercial cipher with input from NSA
and others
• There was considerable controversy over design
– In choice of 56-bit key (vs. Lucifer 128-bit) and because design
criteria were classified
– Afraid of hidden trapdoor
– Subsequent events and public analysis show in fact design was
appropriate

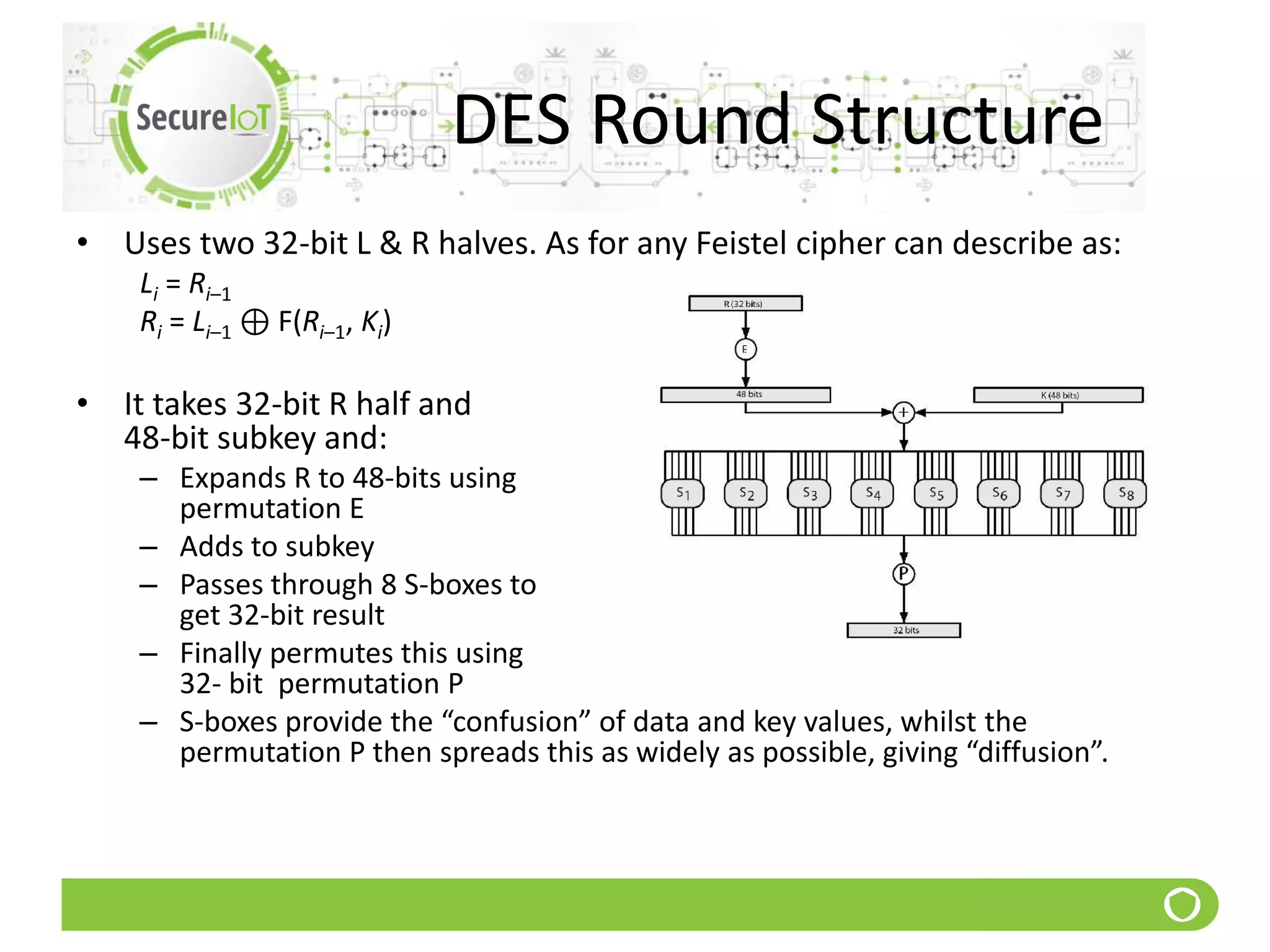

57. DES Round Structure
• Uses two 32-bit L & R halves. As for any Feistel cipher can describe as:
Li = Ri–1
Ri = Li–1 ⊕ F(Ri–1, Ki)
• It takes 32-bit R half and
48-bit subkey and:
– Expands R to 48-bits using
permutation E
– Adds to subkey
– Passes through 8 S-boxes to
get 32-bit result
– Finally permutes this using
32- bit permutation P
– S-boxes provide the “confusion” of data and key values, whilst the
permutation P then spreads this as widely as possible, giving “diffusion”.

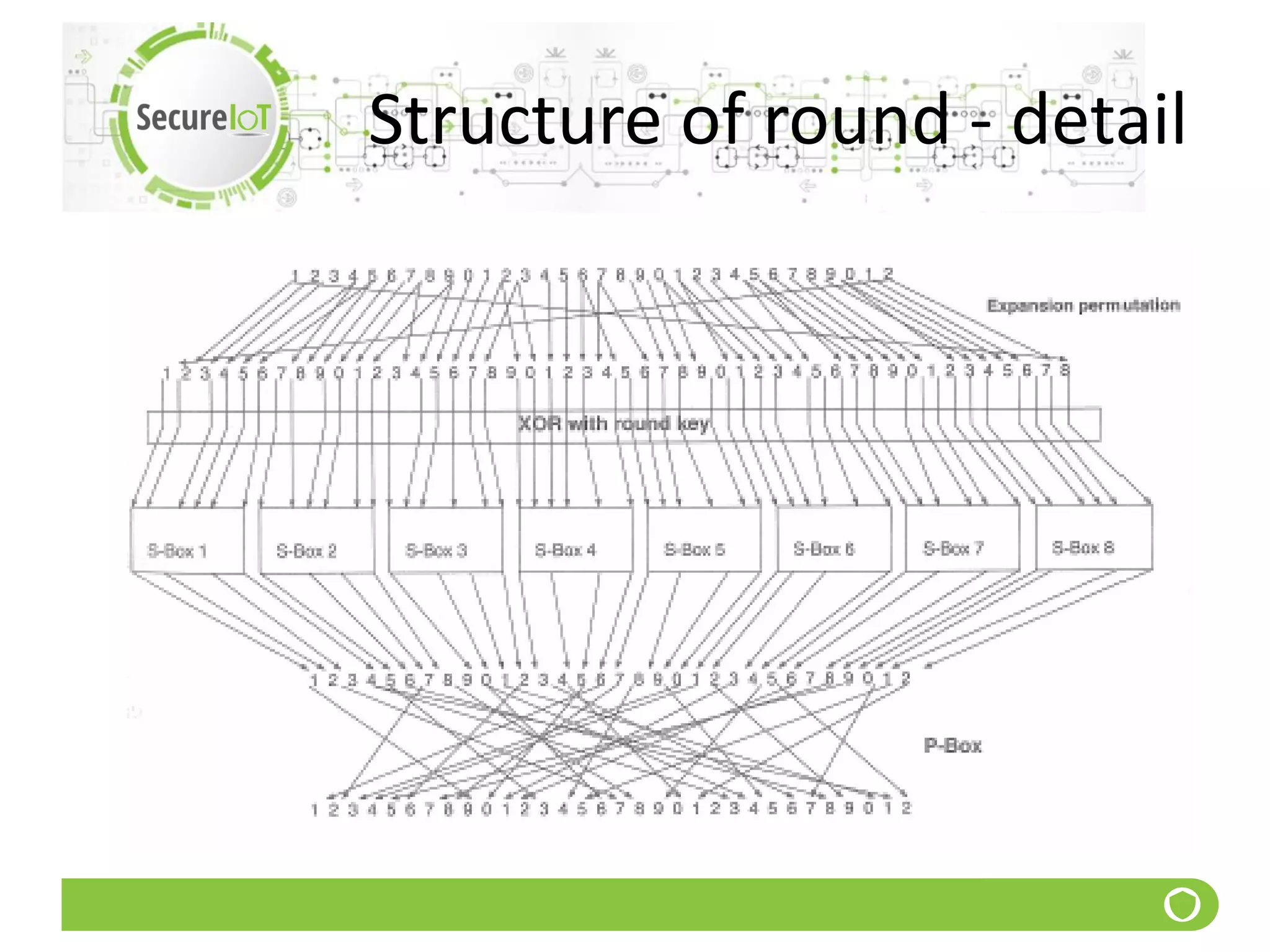

58. Structure of round - detail

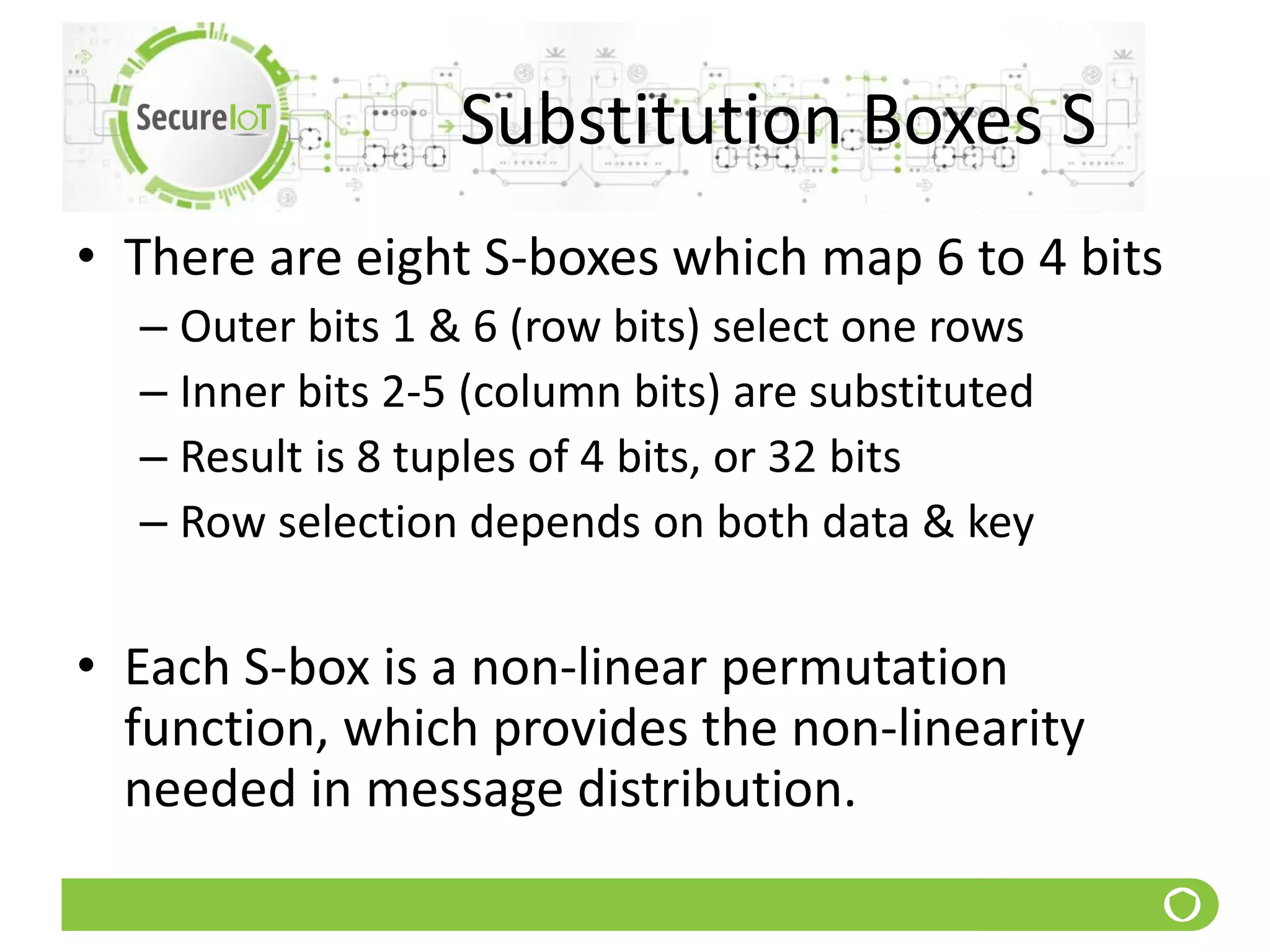

59. Substitution Boxes S
• There are eight S-boxes which map 6 to 4 bits
– Outer bits 1 & 6 (row bits) select one rows
– Inner bits 2-5 (column bits) are substituted
– Result is 8 tuples of 4 bits, or 32 bits
– Row selection depends on both data & key
• Each S-box is a non-linear permutation
function, which provides the non-linearity
needed in message distribution.

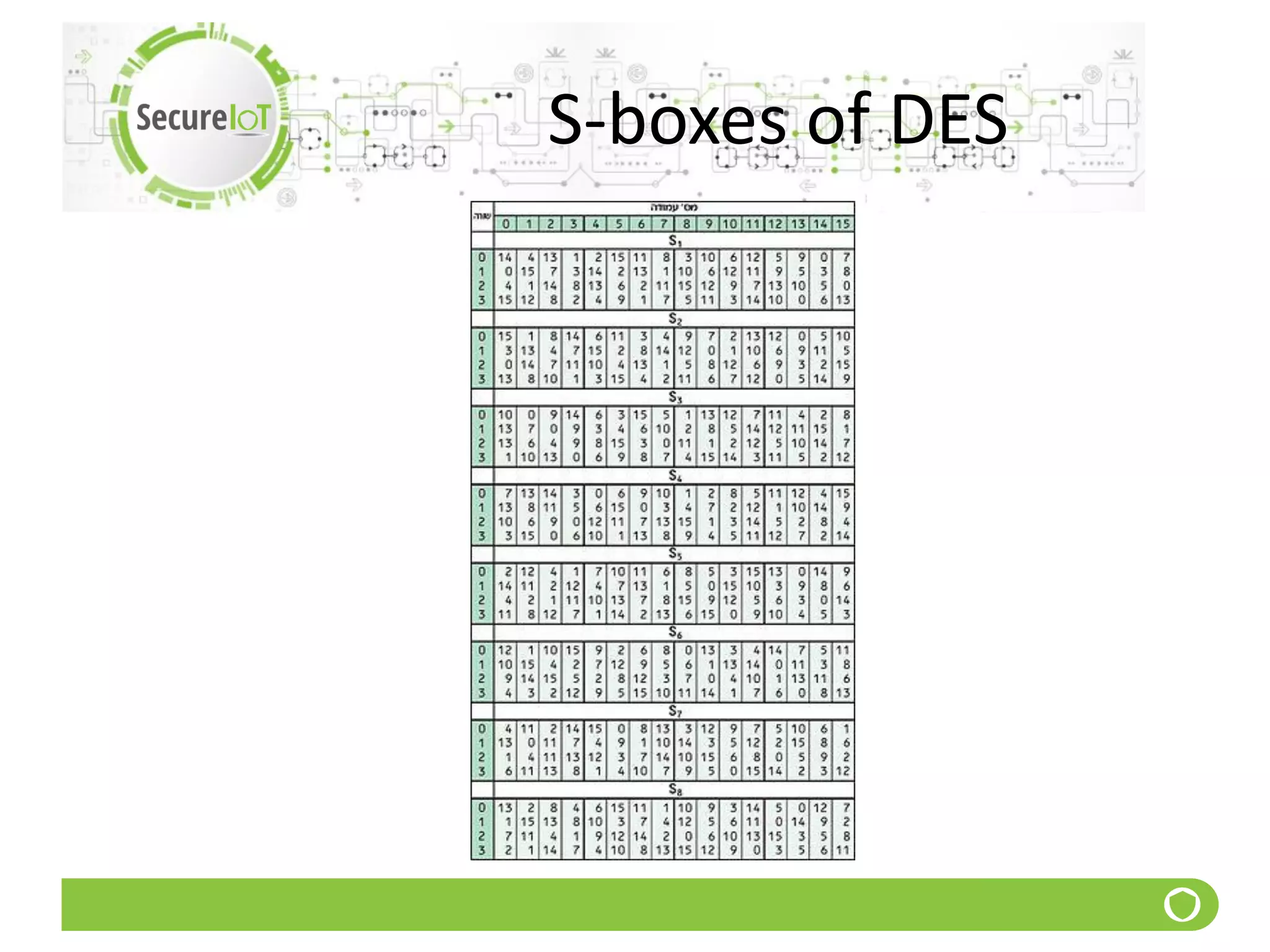

60. S-boxes of DES

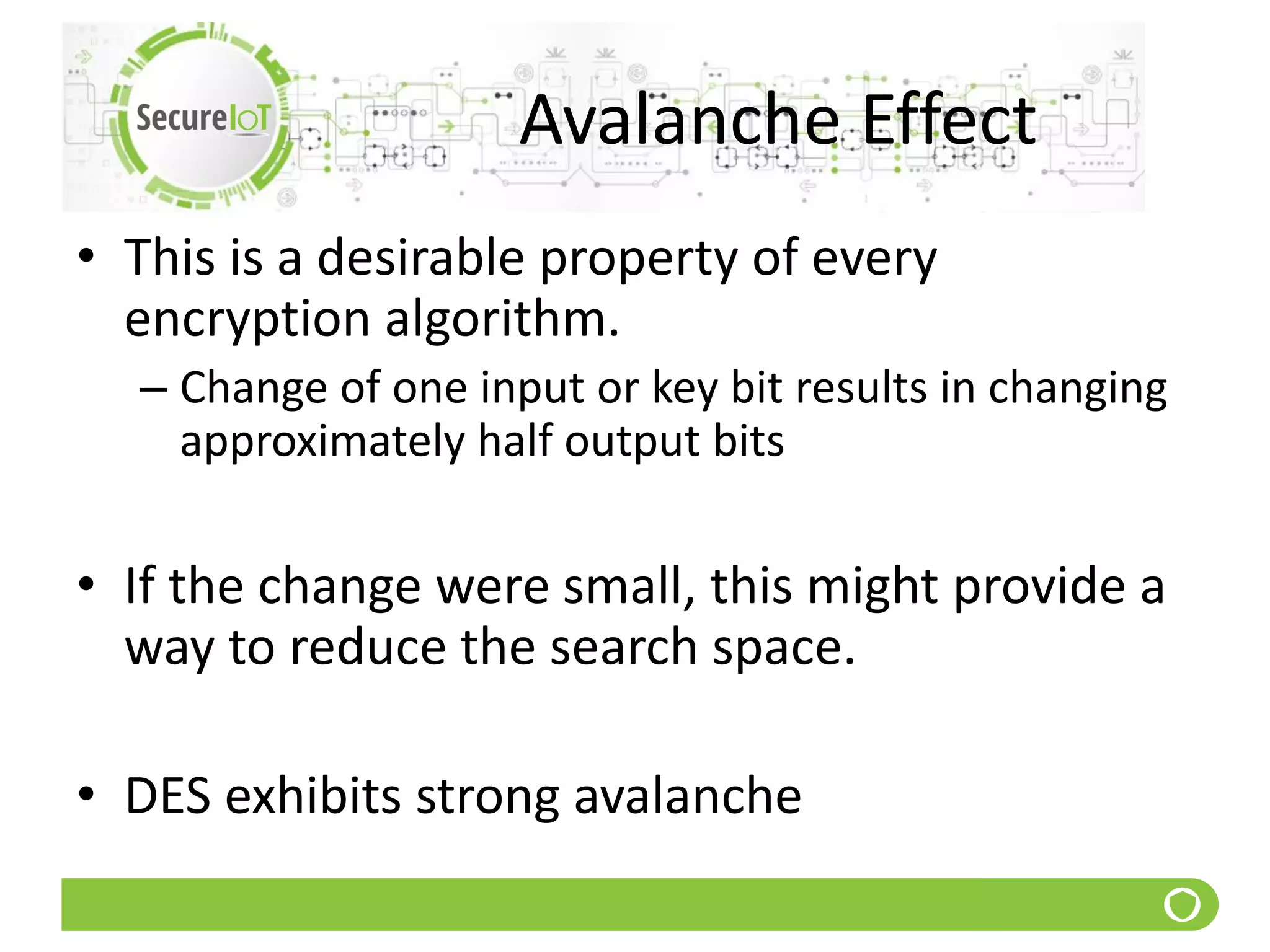

61. Avalanche Effect
• This is a desirable property of every
encryption algorithm.
– Change of one input or key bit results in changing
approximately half output bits
• If the change were small, this might provide a
way to reduce the search space.
• DES exhibits strong avalanche

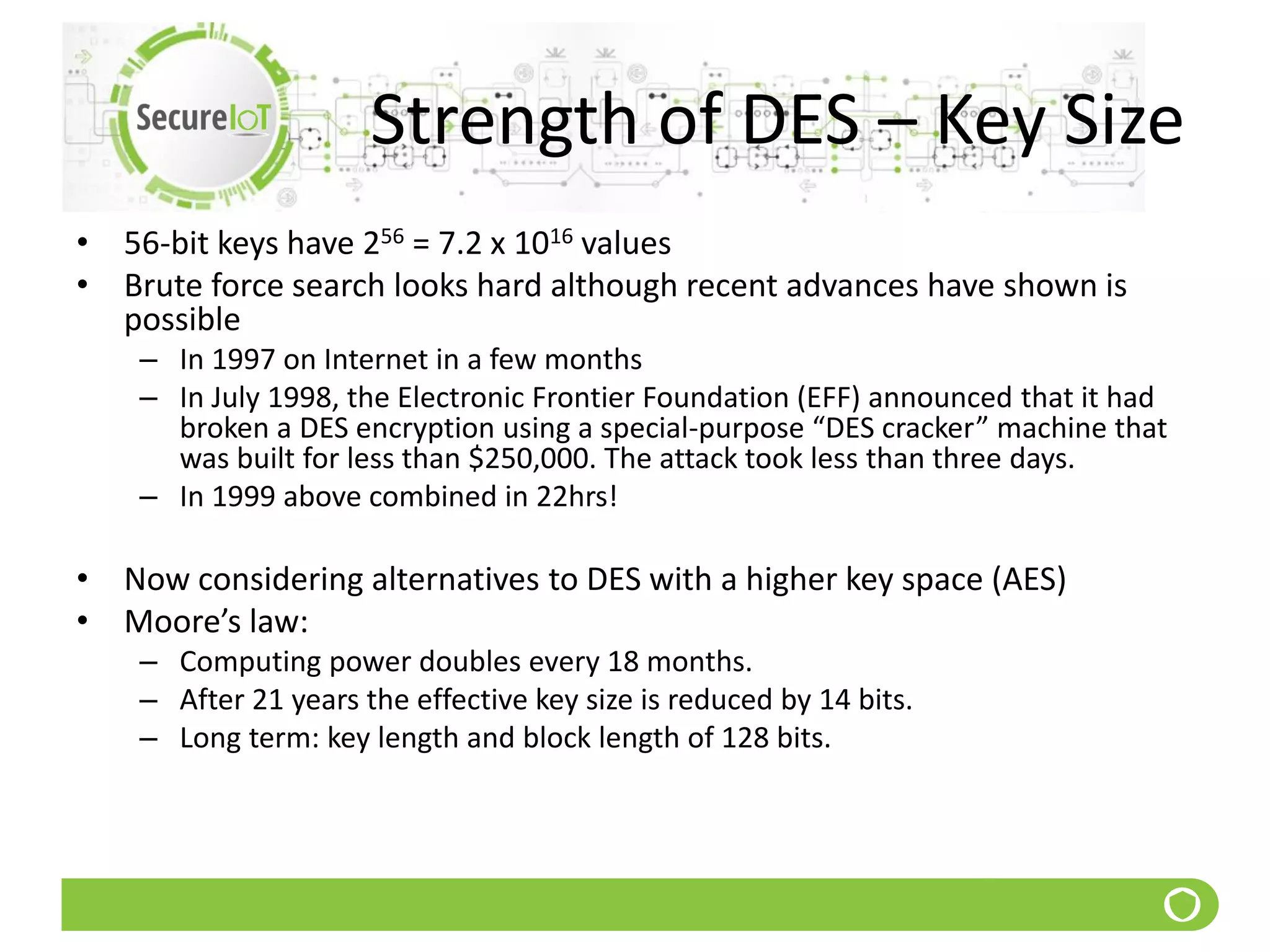

62. Strength of DES – Key Size
• 56-bit keys have 256 = 7.2 x 1016 values
• Brute force search looks hard although recent advances have shown is
possible
– In 1997 on Internet in a few months
– In July 1998, the Electronic Frontier Foundation (EFF) announced that it had
broken a DES encryption using a special-purpose “DES cracker” machine that
was built for less than $250,000. The attack took less than three days.
– In 1999 above combined in 22hrs!
• Now considering alternatives to DES with a higher key space (AES)
• Moore’s law:
– Computing power doubles every 18 months.
– After 21 years the effective key size is reduced by 14 bits.
– Long term: key length and block length of 128 bits.

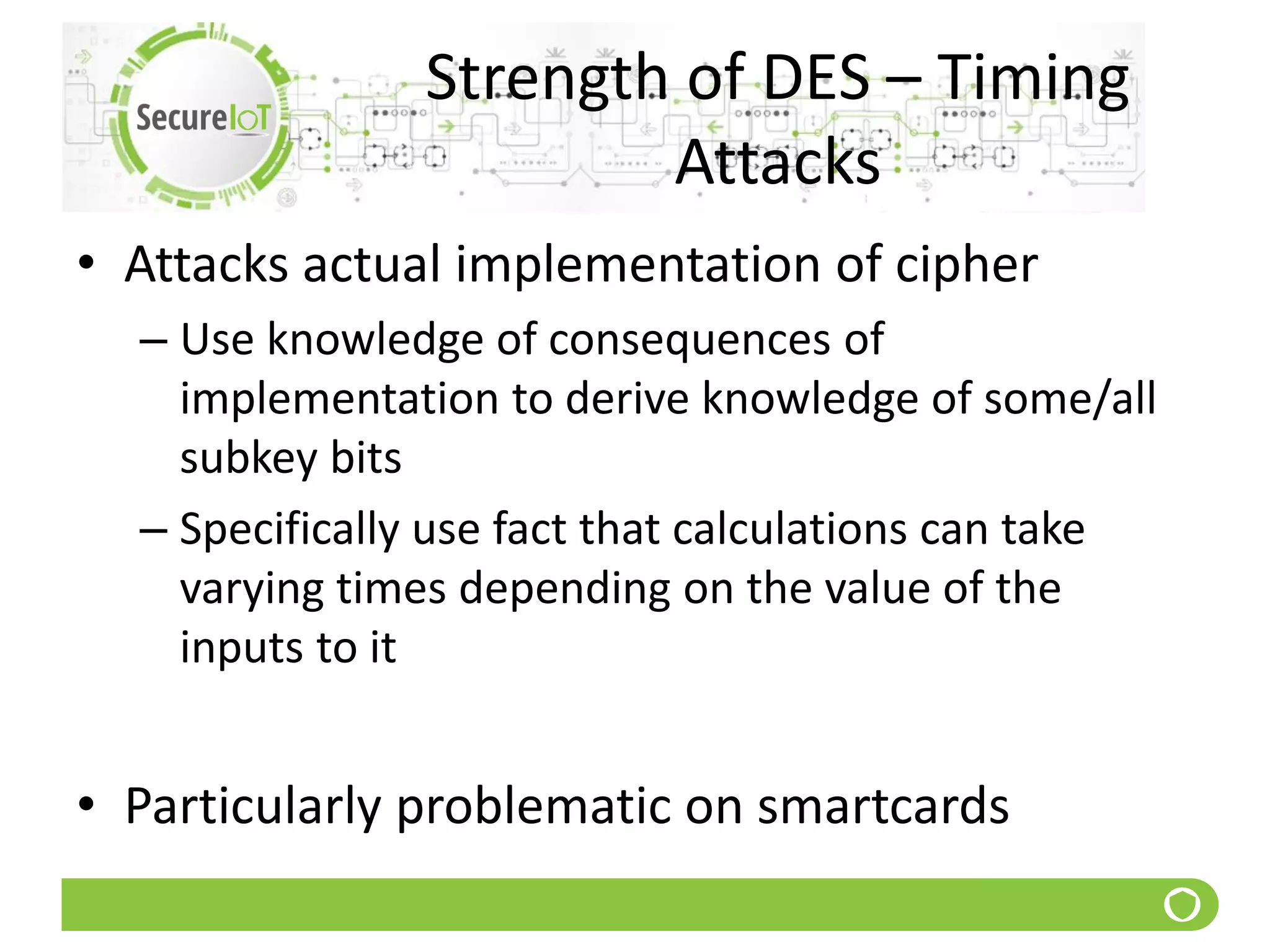

63. Strength of DES – Timing
Attacks
• Attacks actual implementation of cipher
– Use knowledge of consequences of
implementation to derive knowledge of some/all
subkey bits
– Specifically use fact that calculations can take
varying times depending on the value of the
inputs to it
• Particularly problematic on smartcards

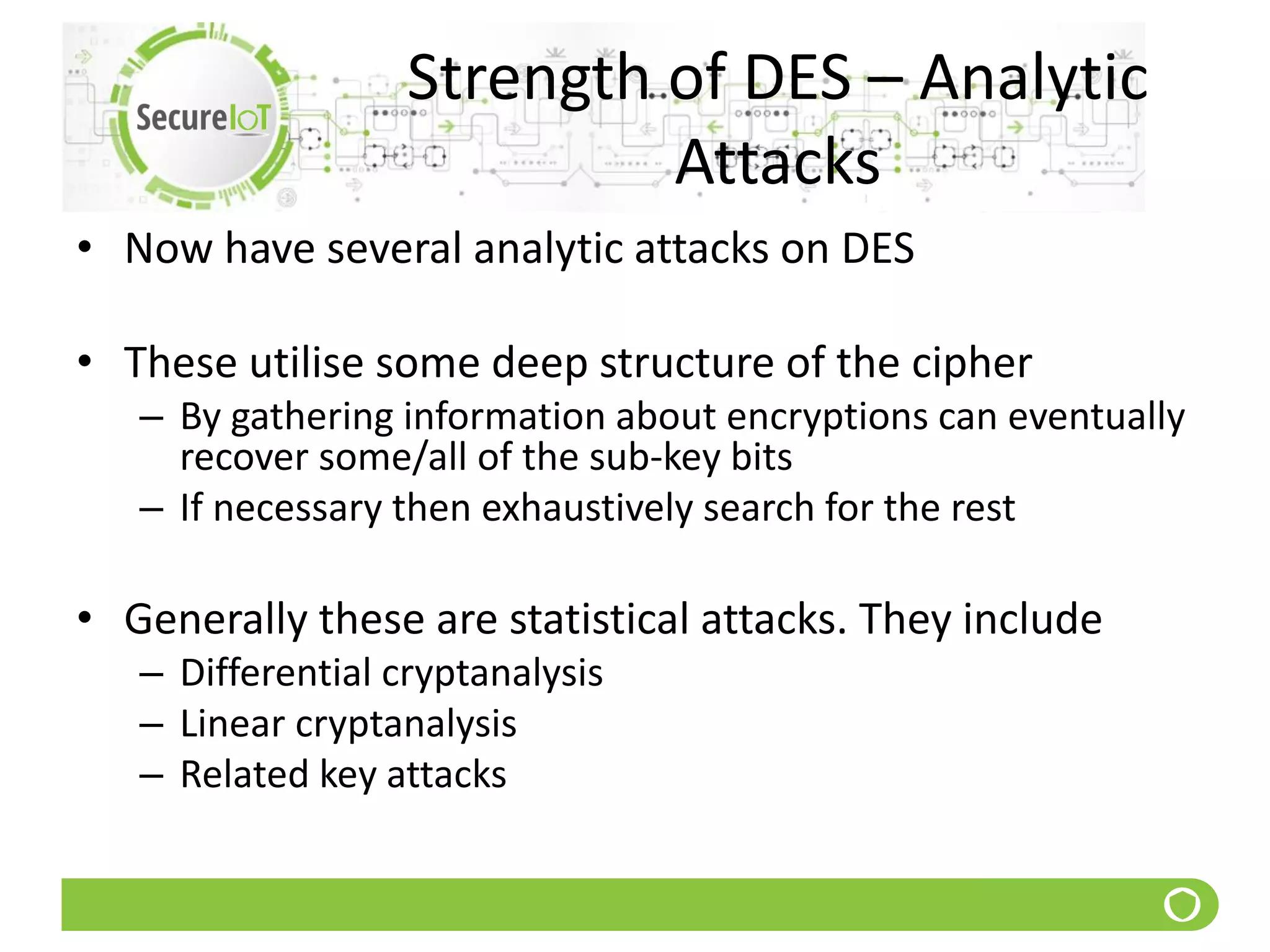

64. Strength of DES – Analytic
Attacks
• Now have several analytic attacks on DES
• These utilise some deep structure of the cipher
– By gathering information about encryptions can eventually
recover some/all of the sub-key bits
– If necessary then exhaustively search for the rest
• Generally these are statistical attacks. They include
– Differential cryptanalysis
– Linear cryptanalysis
– Related key attacks

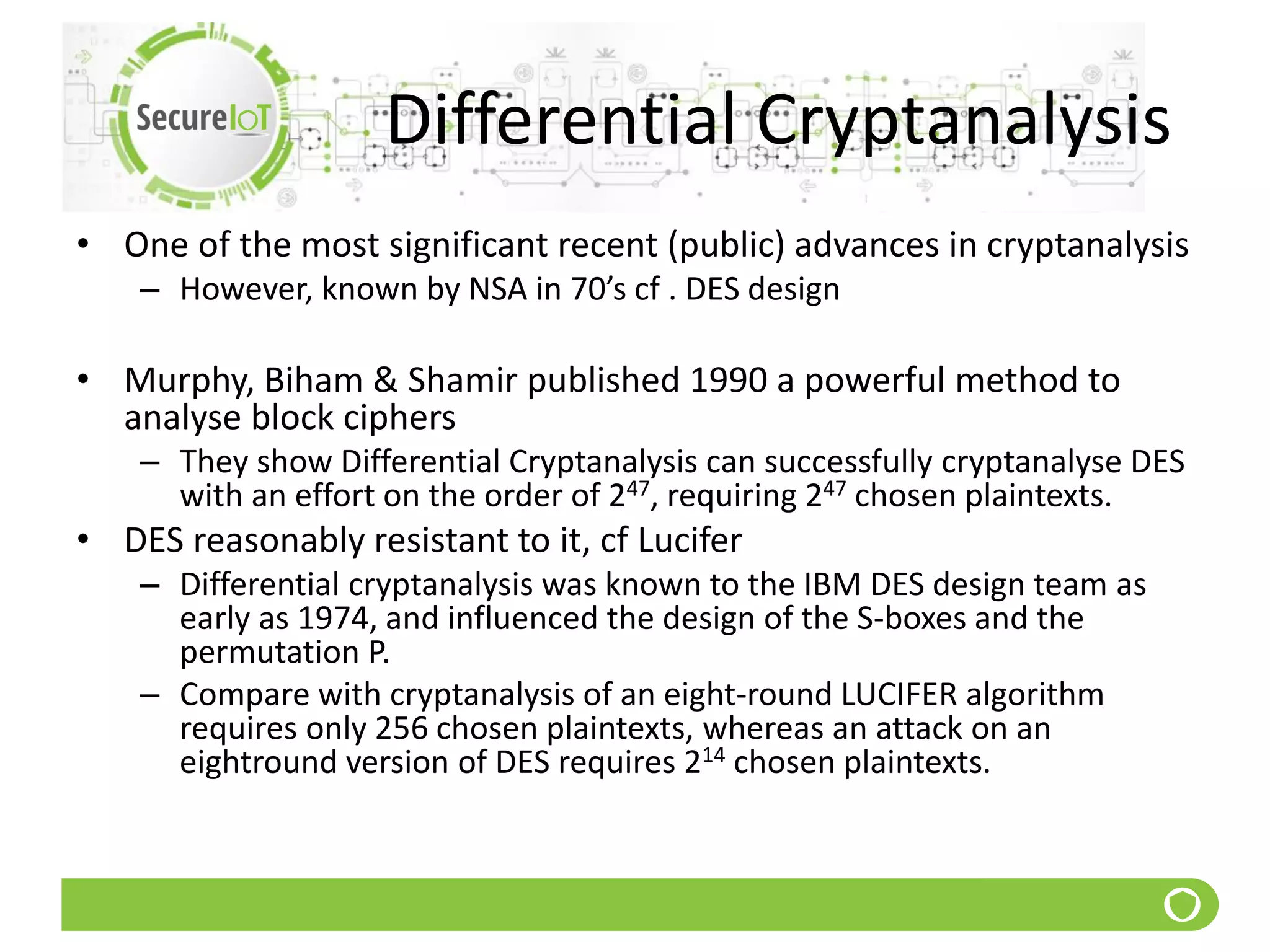

65. Differential Cryptanalysis
• One of the most significant recent (public) advances in cryptanalysis
– However, known by NSA in 70’s cf . DES design
• Murphy, Biham & Shamir published 1990 a powerful method to
analyse block ciphers
– They show Differential Cryptanalysis can successfully cryptanalyse DES
with an effort on the order of 247, requiring 247 chosen plaintexts.
• DES reasonably resistant to it, cf Lucifer
– Differential cryptanalysis was known to the IBM DES design team as
early as 1974, and influenced the design of the S-boxes and the
permutation P.
– Compare with cryptanalysis of an eight-round LUCIFER algorithm
requires only 256 chosen plaintexts, whereas an attack on an
eightround version of DES requires 214 chosen plaintexts.

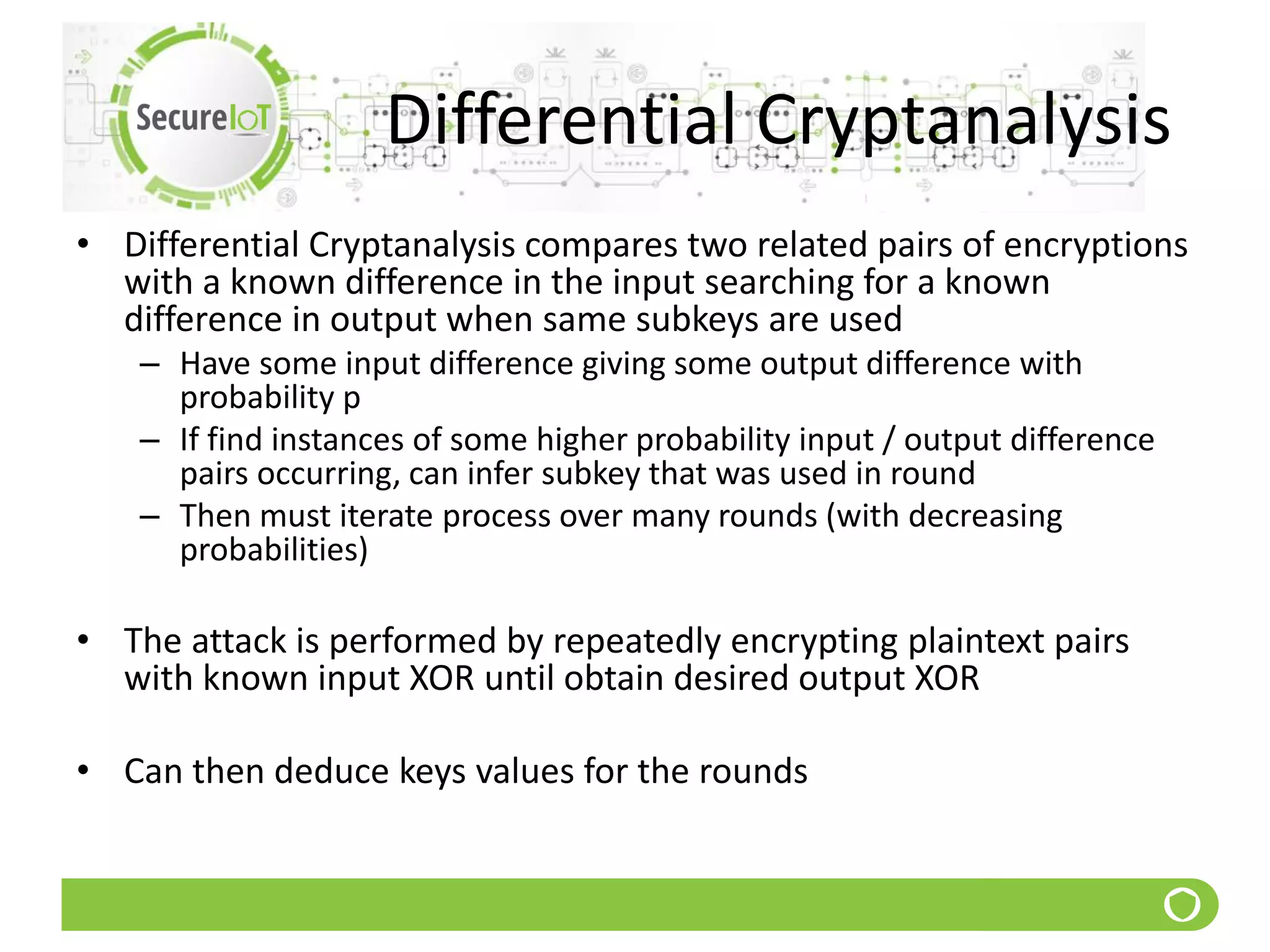

66. Differential Cryptanalysis
• Differential Cryptanalysis compares two related pairs of encryptions
with a known difference in the input searching for a known
difference in output when same subkeys are used
– Have some input difference giving some output difference with
probability p
– If find instances of some higher probability input / output difference
pairs occurring, can infer subkey that was used in round
– Then must iterate process over many rounds (with decreasing
probabilities)
• The attack is performed by repeatedly encrypting plaintext pairs
with known input XOR until obtain desired output XOR
• Can then deduce keys values for the rounds

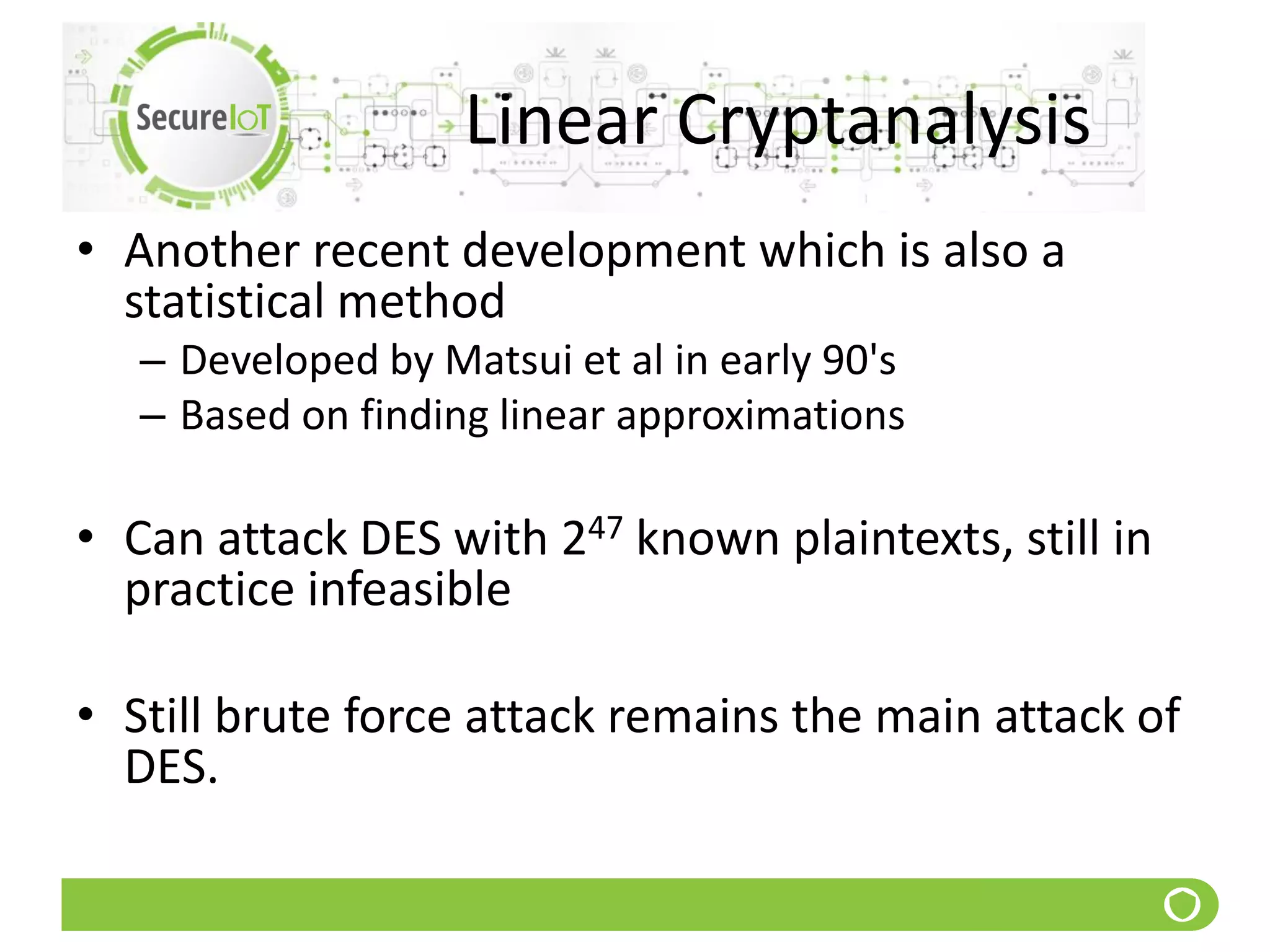

67. Linear Cryptanalysis
• Another recent development which is also a
statistical method
– Developed by Matsui et al in early 90's
– Based on finding linear approximations
• Can attack DES with 247 known plaintexts, still in
practice infeasible
• Still brute force attack remains the main attack of
DES.

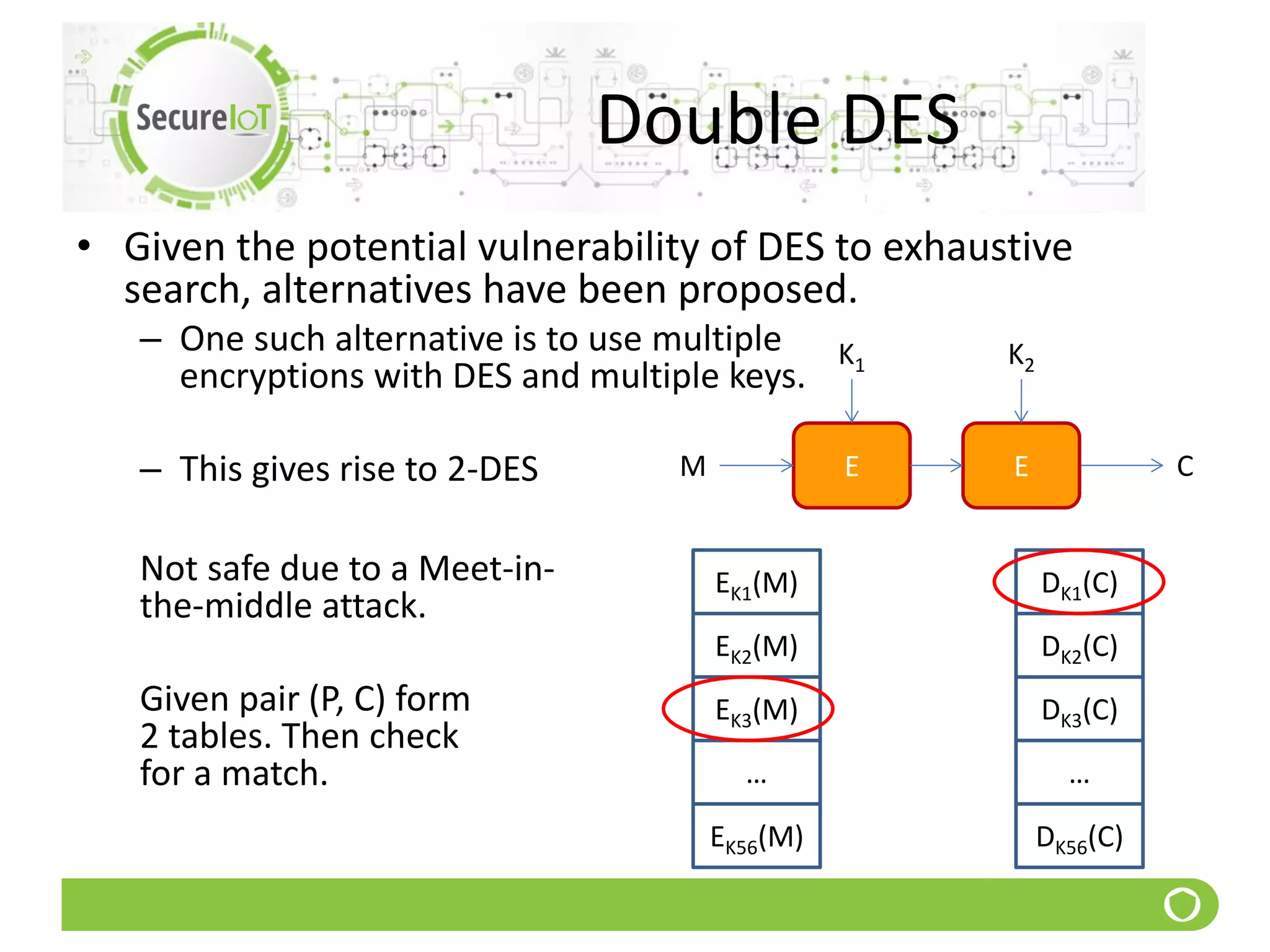

68. Double DES
• Given the potential vulnerability of DES to exhaustive
search, alternatives have been proposed.
– One such alternative is to use multiple
encryptions with DES and multiple keys.
– This gives rise to 2-DES
Not safe due to a Meet-in-
the-middle attack.
Given pair (P, C) form
2 tables. Then check
for a match.
EM
K1
CE
K2
EK1(M)
EK2(M)
EK3(M)
…
EK56(M)
DK1(C)
DK2(C)
DK3(C)
…
DK56(C)

69. Triple-DES with Two-Keys
• To withstand the meet-in-the-middle attack one can
use 2 stages of encryption with 3 different keys.
• One alternative is to use 2 keys with E-D-E sequence
(also known as EDE DES)
– C = EK1[DK2[EK1[P]]]
– Encrypt & decrypt equivalent in security
– What is the significance of using D in the middle??
• No current known practical attacks
– The cost of exhaustive key search is of the order 2112

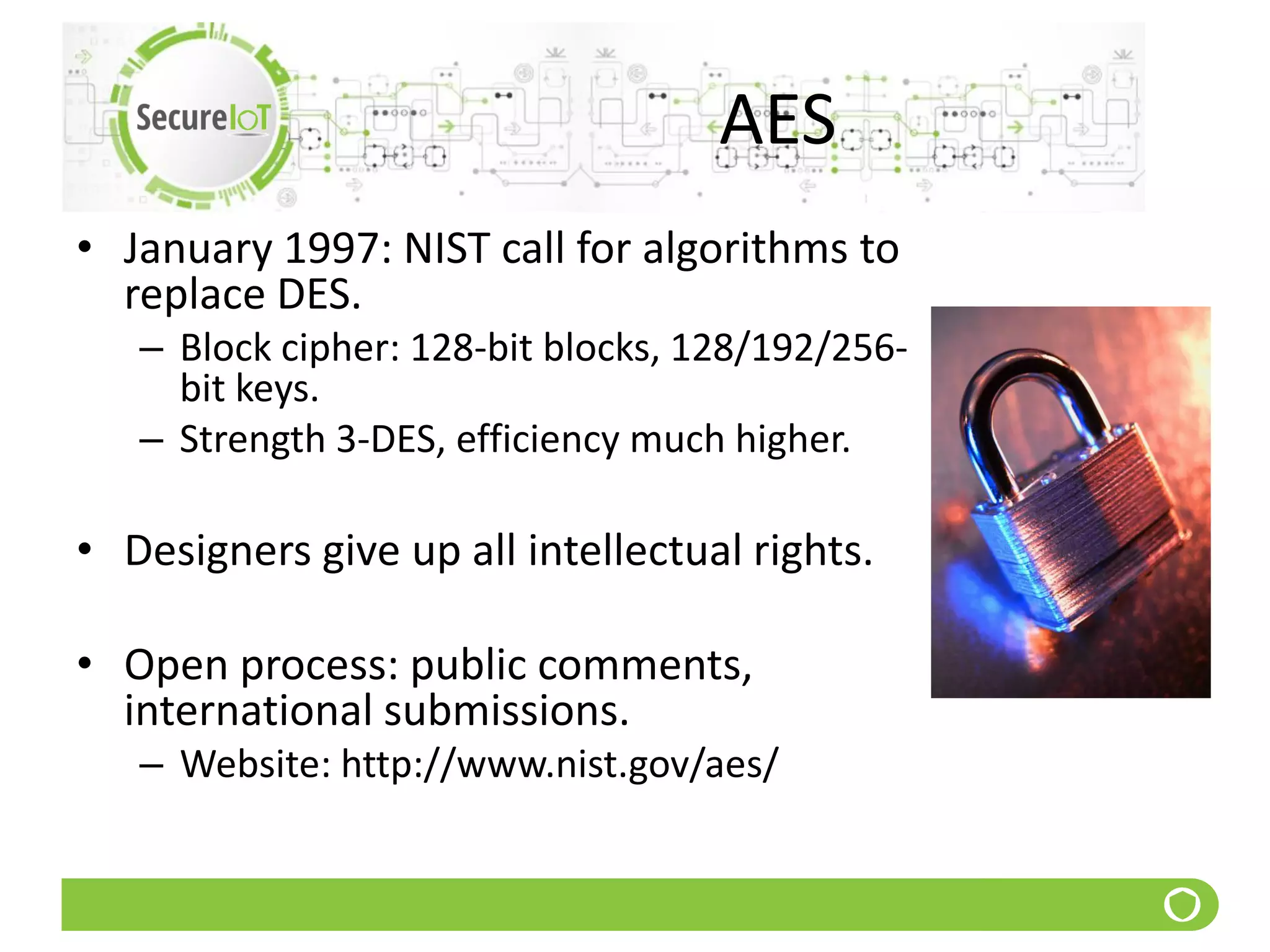

70. AES
• January 1997: NIST call for algorithms to
replace DES.
– Block cipher: 128-bit blocks, 128/192/256-
bit keys.
– Strength 3-DES, efficiency much higher.
• Designers give up all intellectual rights.
• Open process: public comments,
international submissions.
– Website: http://www.nist.gov/aes/

71. MODES OF OPERATION

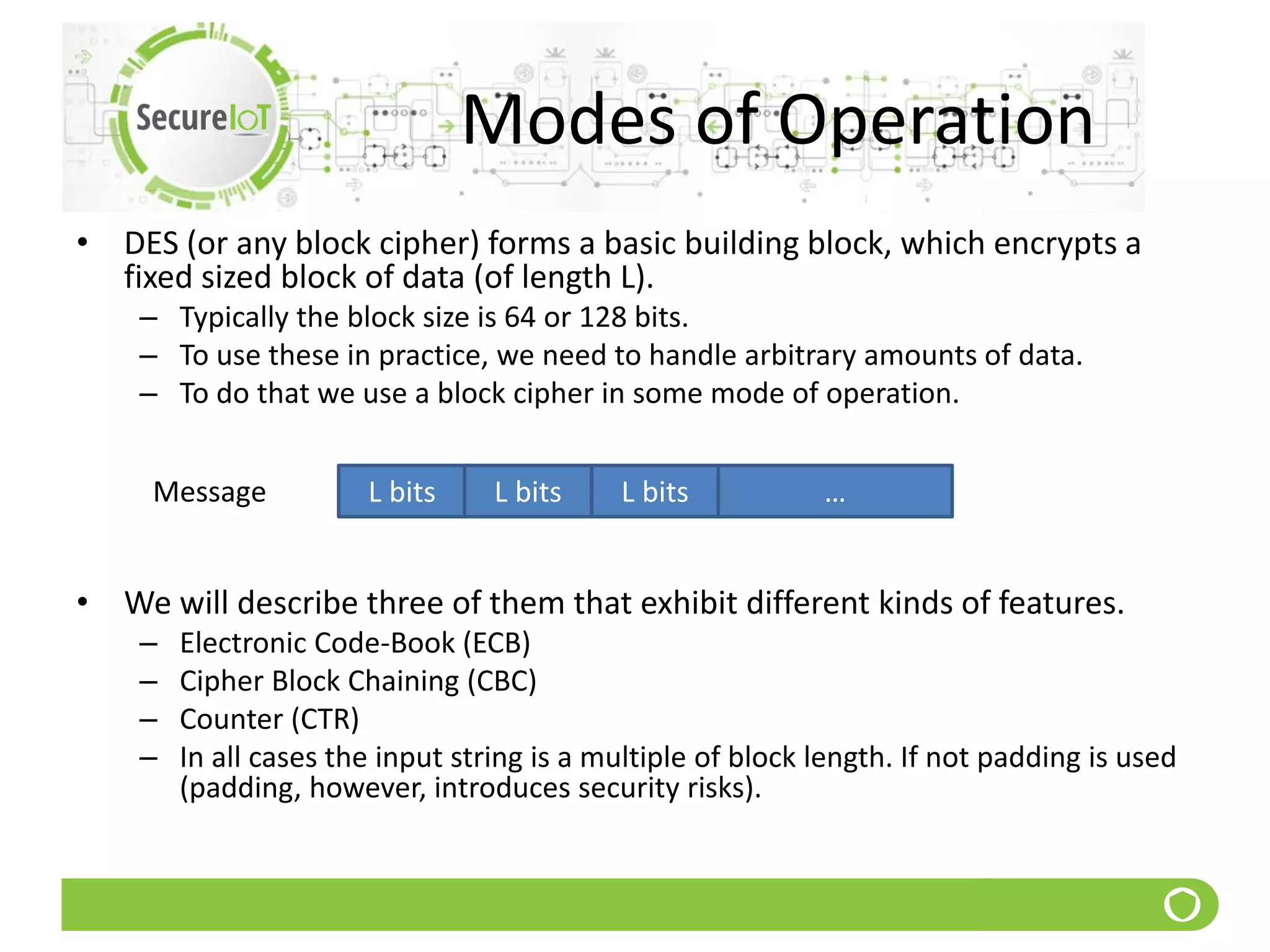

72. Modes of Operation
• DES (or any block cipher) forms a basic building block, which encrypts a
fixed sized block of data (of length L).
– Typically the block size is 64 or 128 bits.
– To use these in practice, we need to handle arbitrary amounts of data.
– To do that we use a block cipher in some mode of operation.
• We will describe three of them that exhibit different kinds of features.
– Electronic Code-Book (ECB)
– Cipher Block Chaining (CBC)
– Counter (CTR)
– In all cases the input string is a multiple of block length. If not padding is used
(padding, however, introduces security risks).
Message L bits L bits L bits …

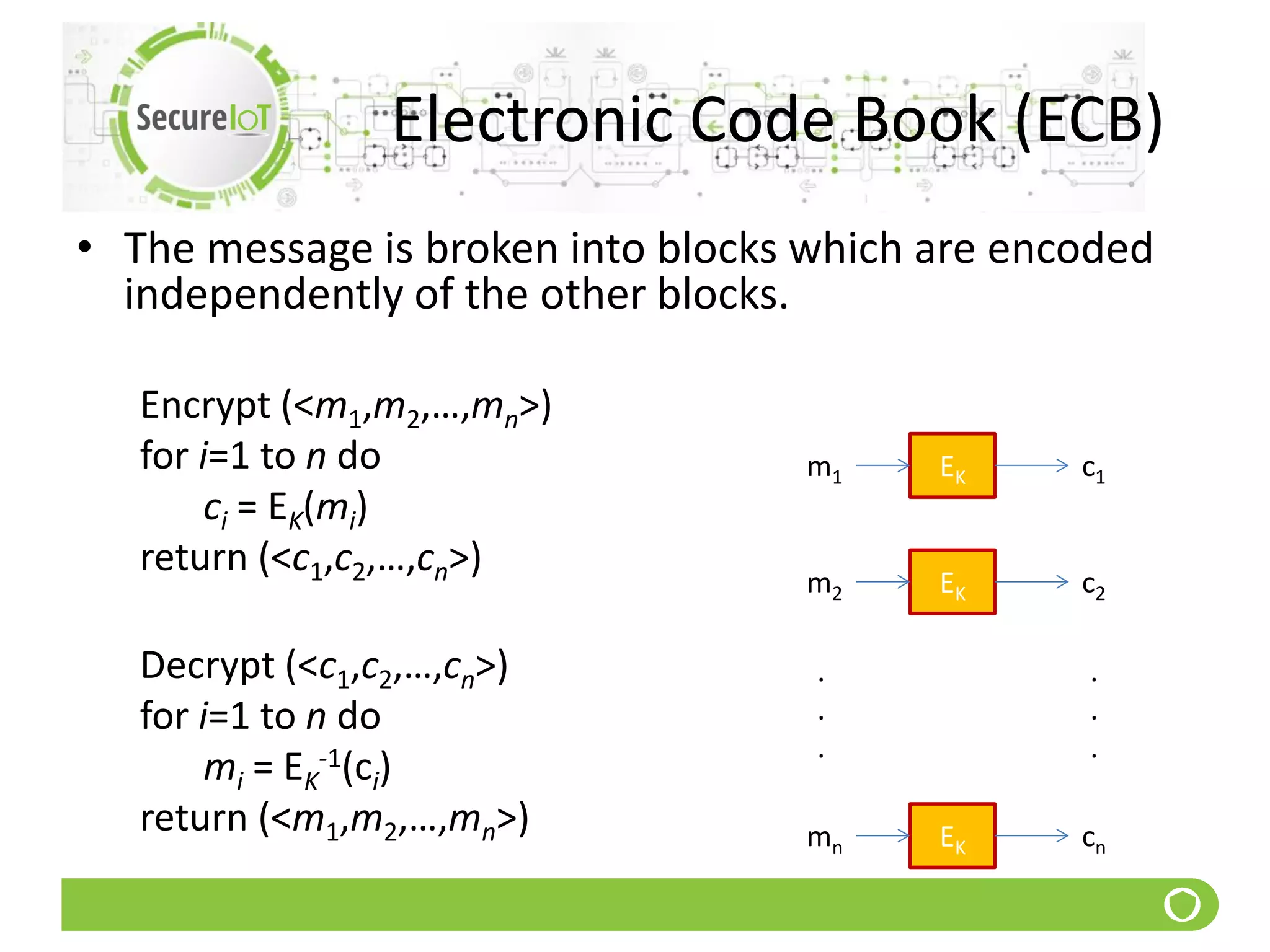

73. Electronic Code Book (ECB)
• The message is broken into blocks which are encoded
independently of the other blocks.
Encrypt (<m1,m2,…,mn>)
for i=1 to n do
ci = EK(mi)
return (<c1,c2,…,cn>)
Decrypt (<c1,c2,…,cn>)
for i=1 to n do
mi = EK
-1(ci)
return (<m1,m2,…,mn>)
EKm1 c1
EKm2 c2
EKmn cn
.
.
.
.
.
.

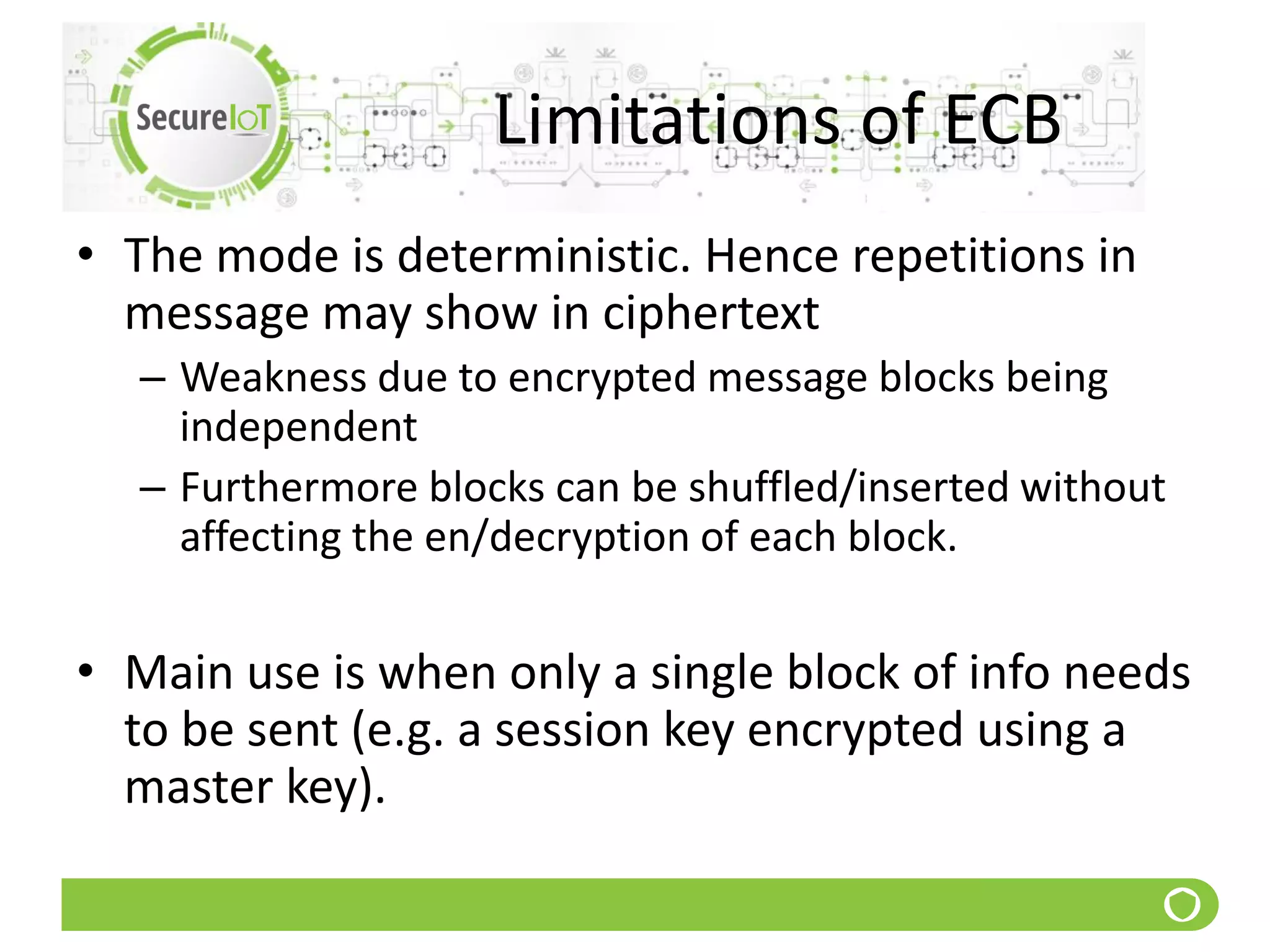

74. Limitations of ECB
• The mode is deterministic. Hence repetitions in
message may show in ciphertext
– Weakness due to encrypted message blocks being
independent
– Furthermore blocks can be shuffled/inserted without
affecting the en/decryption of each block.
• Main use is when only a single block of info needs
to be sent (e.g. a session key encrypted using a
master key).

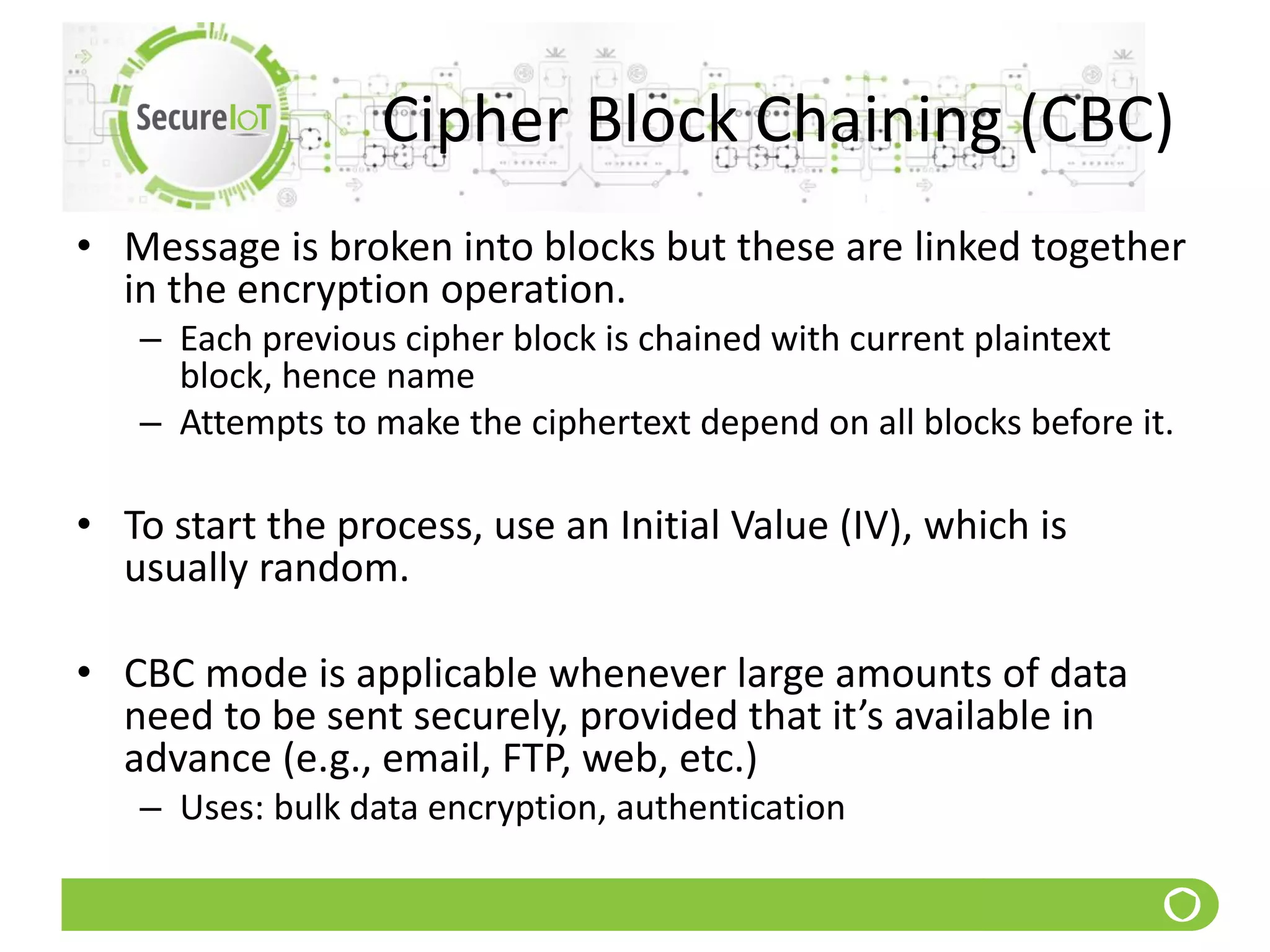

75. Cipher Block Chaining (CBC)
• Message is broken into blocks but these are linked together
in the encryption operation.
– Each previous cipher block is chained with current plaintext
block, hence name
– Attempts to make the ciphertext depend on all blocks before it.
• To start the process, use an Initial Value (IV), which is
usually random.
• CBC mode is applicable whenever large amounts of data
need to be sent securely, provided that it’s available in
advance (e.g., email, FTP, web, etc.)
– Uses: bulk data encryption, authentication

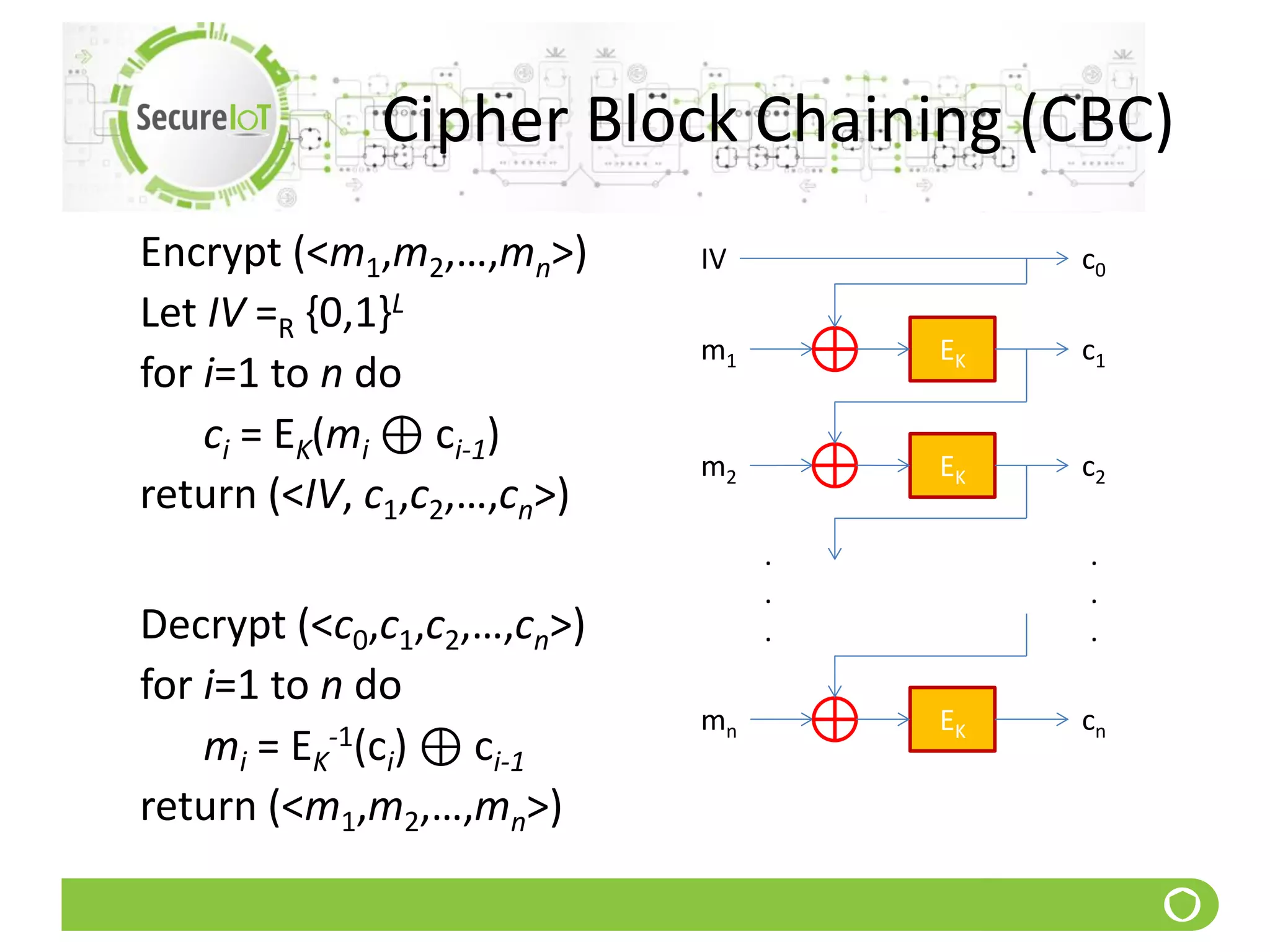

76. Cipher Block Chaining (CBC)
Encrypt (<m1,m2,…,mn>)
Let IV =R {0,1}L
for i=1 to n do
ci = EK(mi ⊕ ci-1)
return (<IV, c1,c2,…,cn>)
Decrypt (<c0,c1,c2,…,cn>)
for i=1 to n do
mi = EK
-1(ci) ⊕ ci-1
return (<m1,m2,…,mn>)
EKm1 c1
EKm2 c2
EKmn cn
.
.
.
.
.
.
IV c0

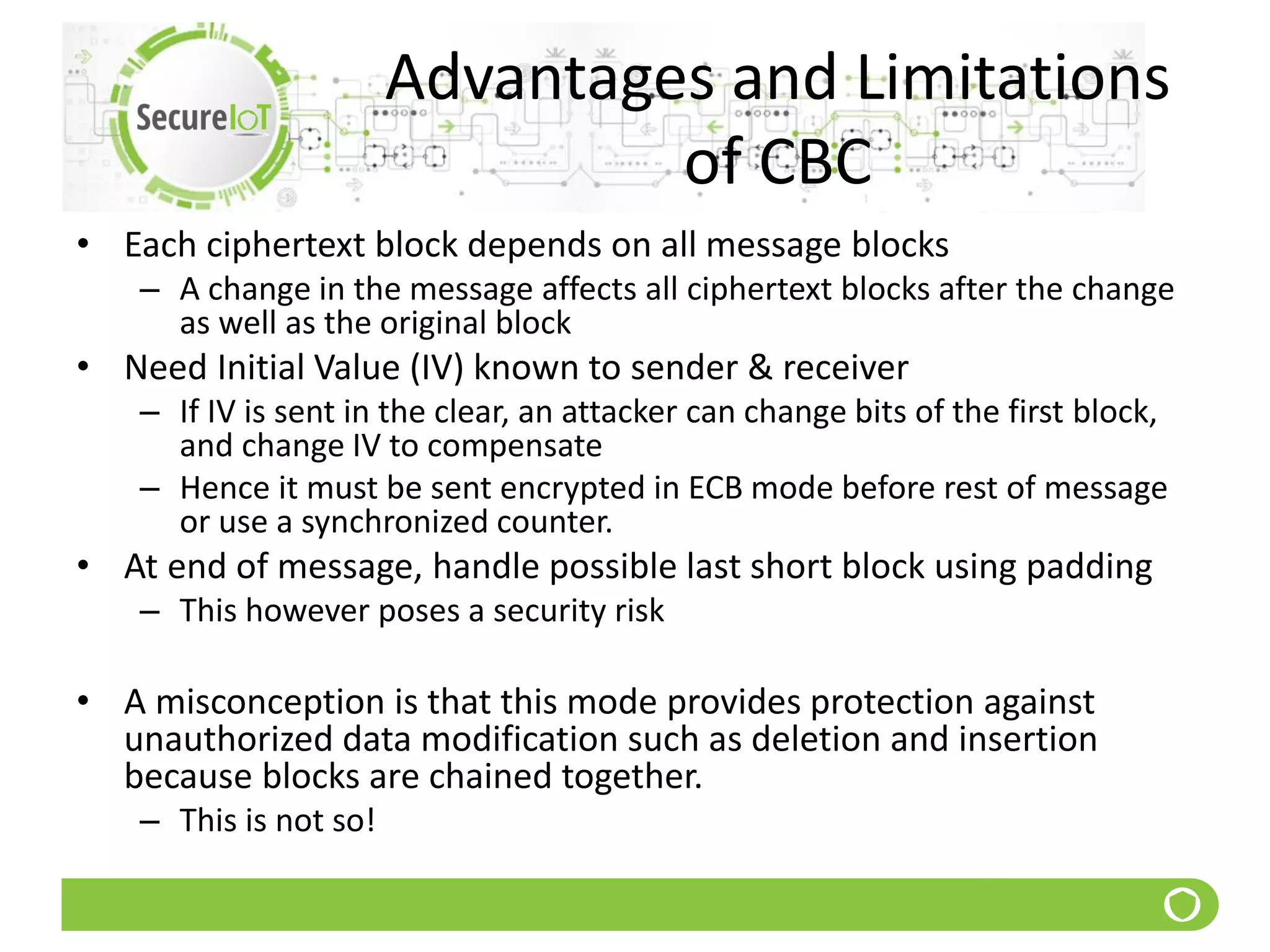

77. Advantages and Limitations
of CBC
• Each ciphertext block depends on all message blocks
– A change in the message affects all ciphertext blocks after the change
as well as the original block
• Need Initial Value (IV) known to sender & receiver
– If IV is sent in the clear, an attacker can change bits of the first block,
and change IV to compensate
– Hence it must be sent encrypted in ECB mode before rest of message
or use a synchronized counter.
• At end of message, handle possible last short block using padding
– This however poses a security risk
• A misconception is that this mode provides protection against
unauthorized data modification such as deletion and insertion
because blocks are chained together.
– This is not so!

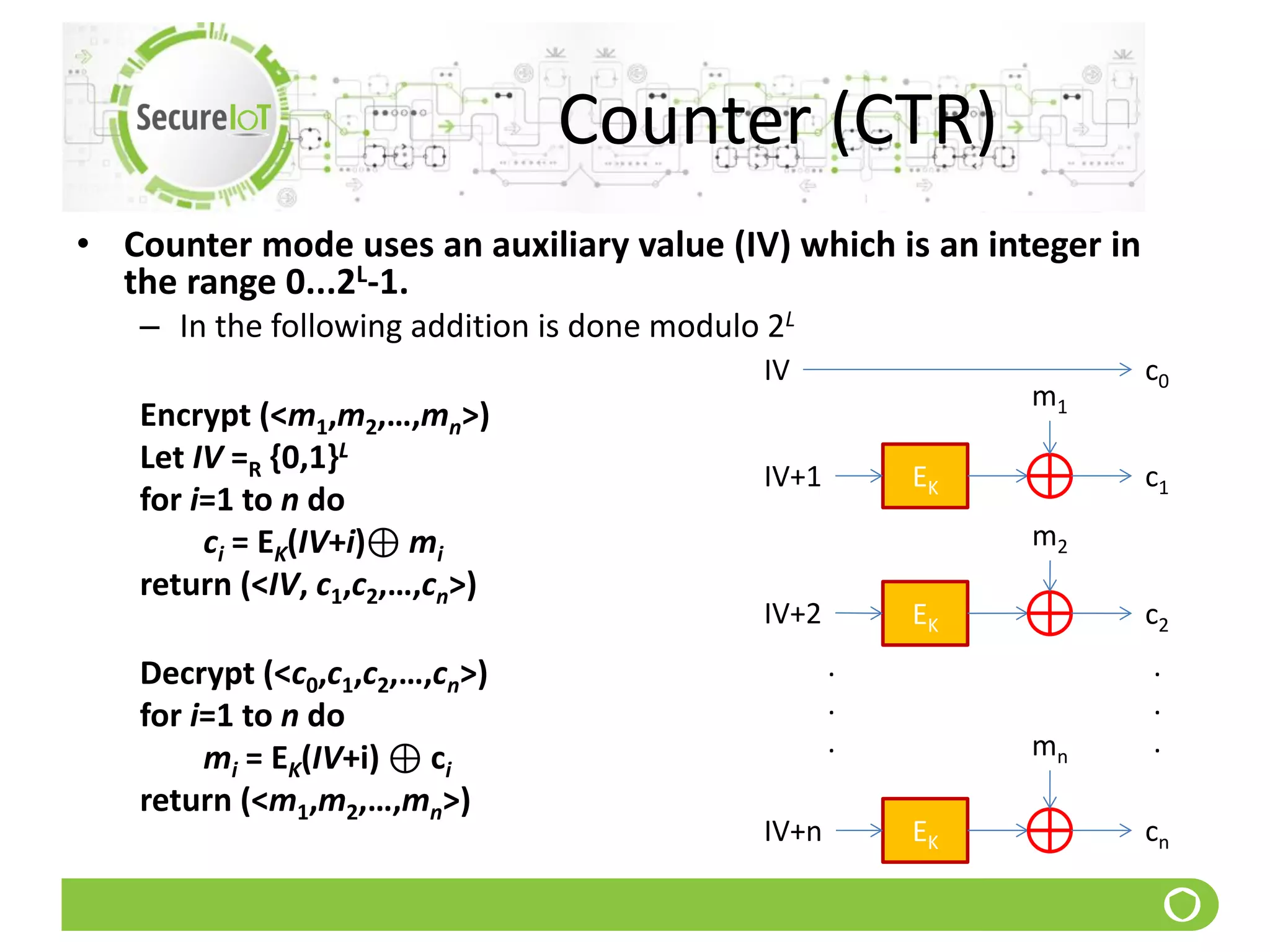

78. Counter (CTR)
• Counter mode uses an auxiliary value (IV) which is an integer in
the range 0...2L-1.
– In the following addition is done modulo 2L
Encrypt (<m1,m2,…,mn>)
Let IV =R {0,1}L
for i=1 to n do
ci = EK(IV+i)⊕ mi
return (<IV, c1,c2,…,cn>)
Decrypt (<c0,c1,c2,…,cn>)
for i=1 to n do
mi = EK(IV+i) ⊕ ci
return (<m1,m2,…,mn>)
EKIV+1 c1
EK c2
EK cn
.
.
.
.
.
.
IV c0
m1
m2
mn
IV+2
IV+n

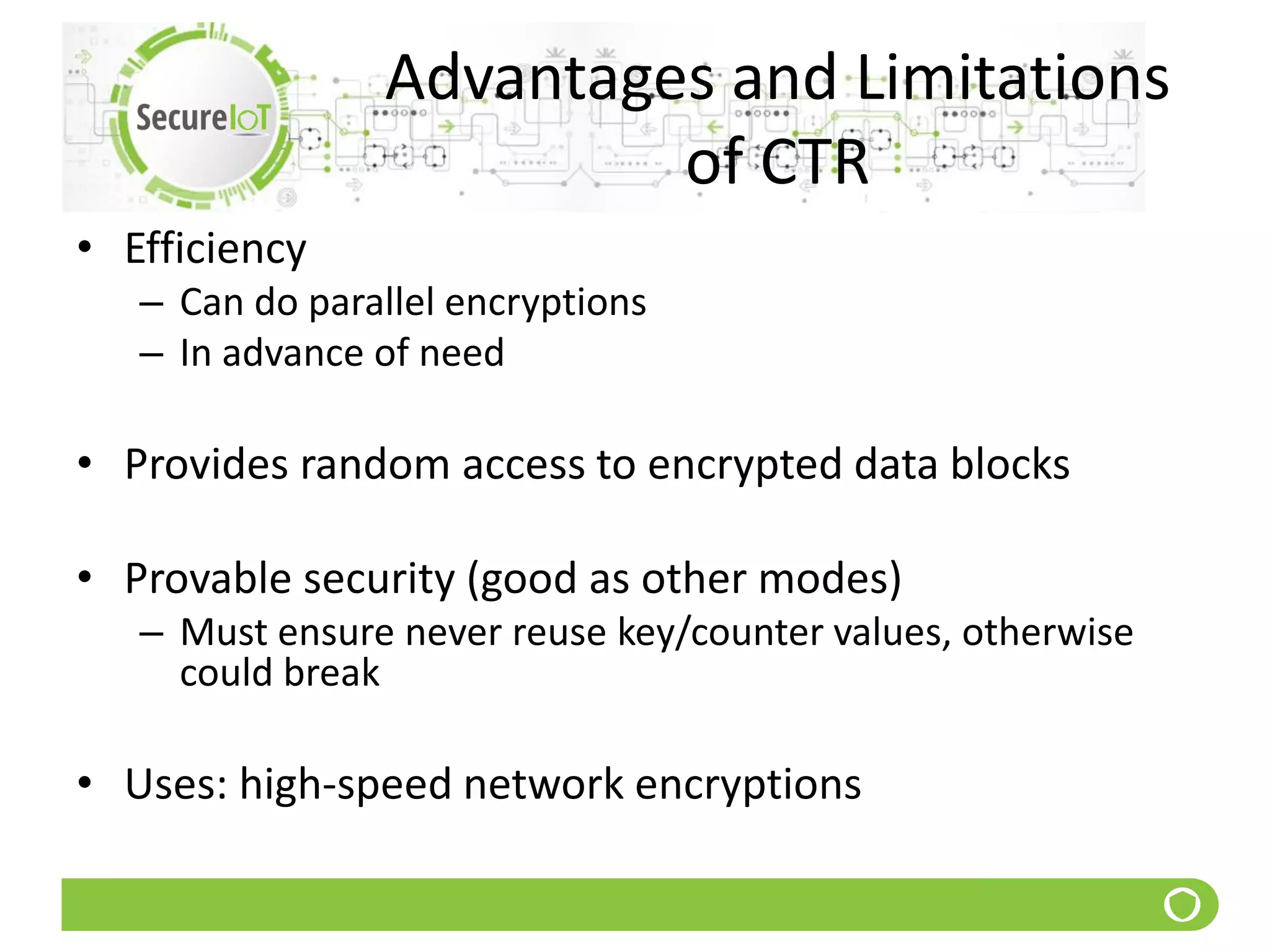

79. Advantages and Limitations
of CTR
• Efficiency
– Can do parallel encryptions
– In advance of need
• Provides random access to encrypted data blocks
• Provable security (good as other modes)
– Must ensure never reuse key/counter values, otherwise
could break
• Uses: high-speed network encryptions

80. SECURITY MODELS

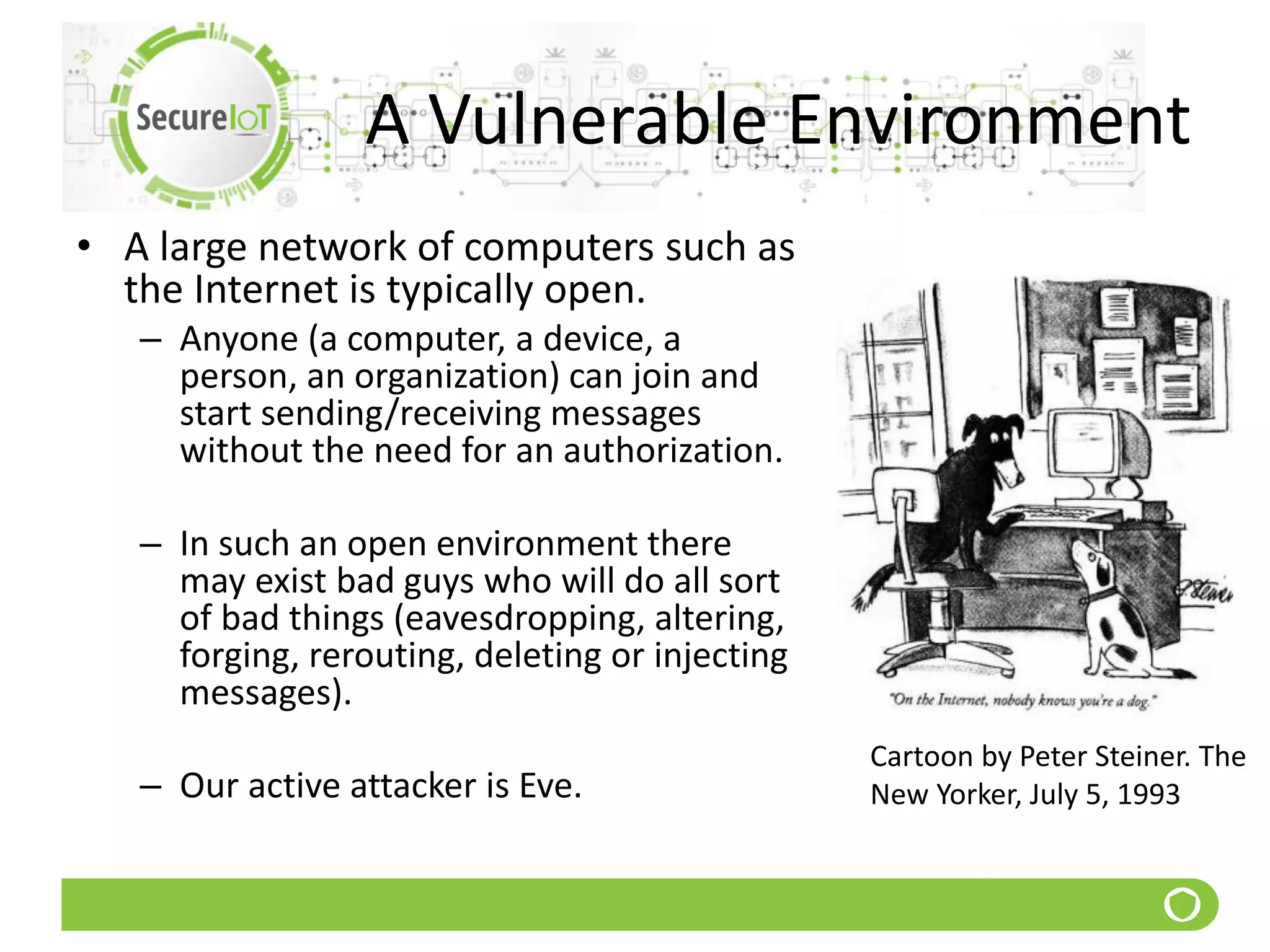

81. A Vulnerable Environment
• A large network of computers such as
the Internet is typically open.
– Anyone (a computer, a device, a
person, an organization) can join and
start sending/receiving messages
without the need for an authorization.
– In such an open environment there
may exist bad guys who will do all sort
of bad things (eavesdropping, altering,
forging, rerouting, deleting or injecting
messages).
– Our active attacker is Eve.
Cartoon by Peter Steiner. The
New Yorker, July 5, 1993

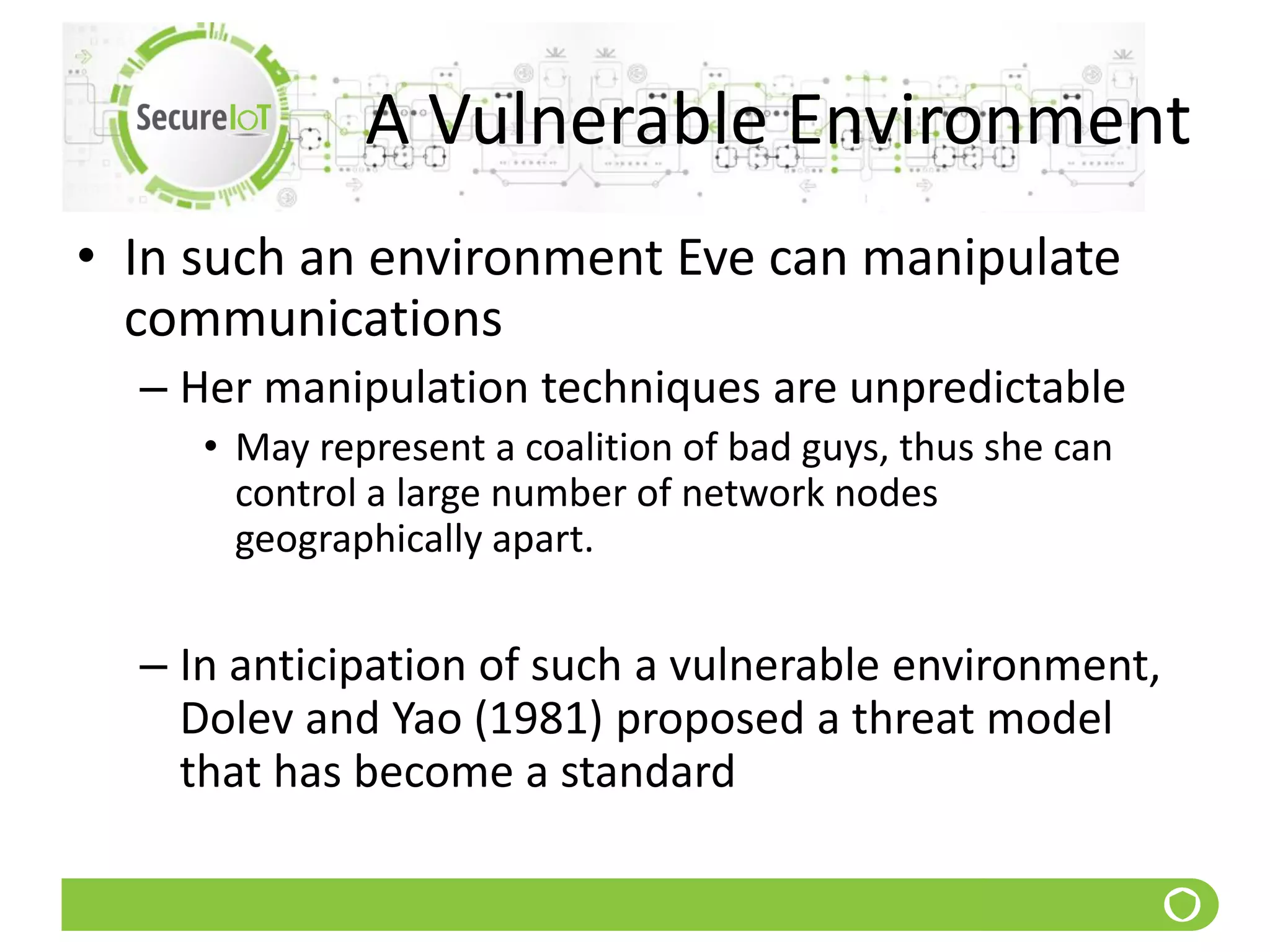

82. A Vulnerable Environment
• In such an environment Eve can manipulate
communications
– Her manipulation techniques are unpredictable
• May represent a coalition of bad guys, thus she can
control a large number of network nodes
geographically apart.
– In anticipation of such a vulnerable environment,
Dolev and Yao (1981) proposed a threat model
that has become a standard

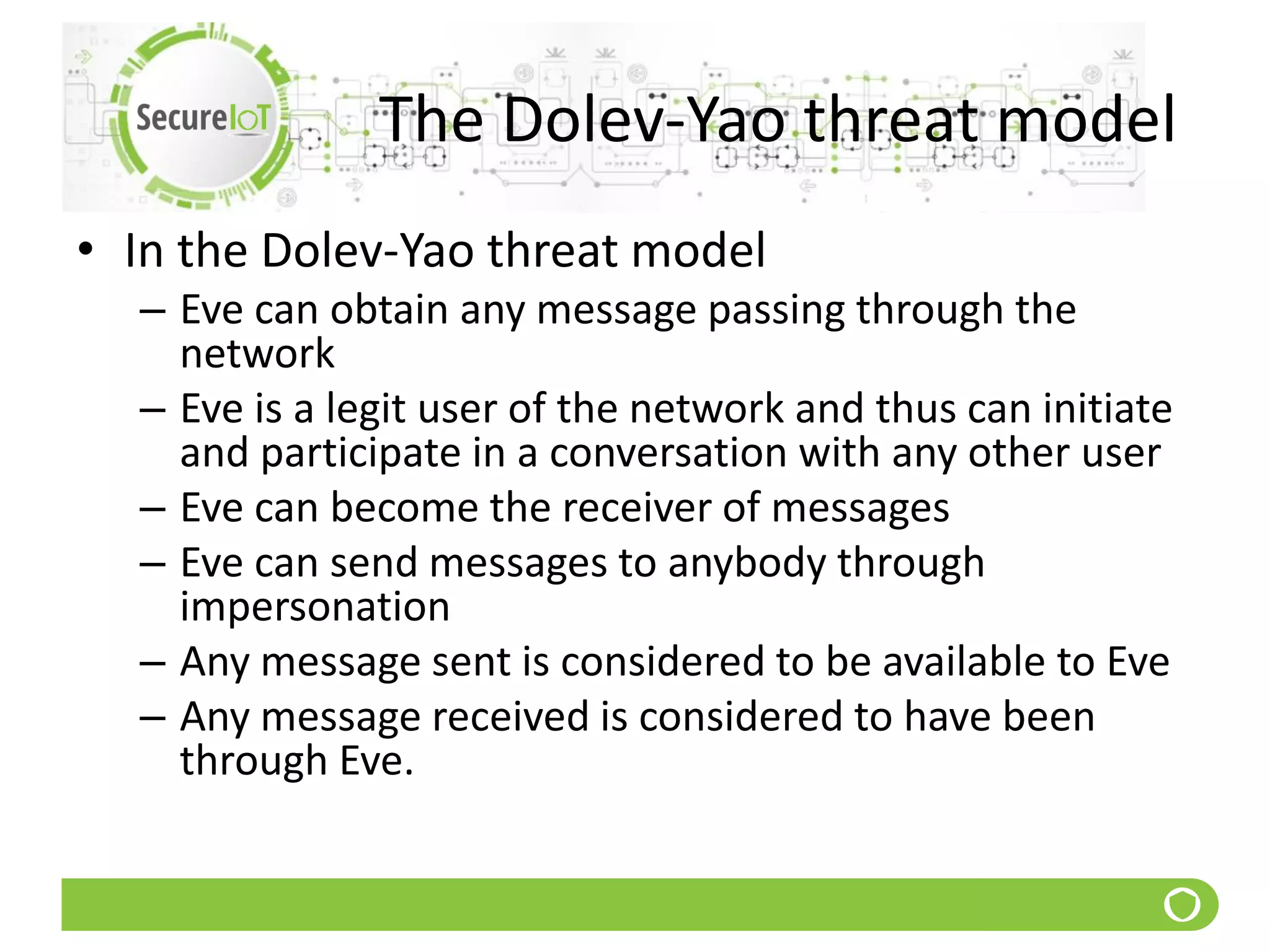

83. The Dolev-Yao threat model
• In the Dolev-Yao threat model
– Eve can obtain any message passing through the
network
– Eve is a legit user of the network and thus can initiate
and participate in a conversation with any other user
– Eve can become the receiver of messages
– Eve can send messages to anybody through
impersonation
– Any message sent is considered to be available to Eve
– Any message received is considered to have been
through Eve.

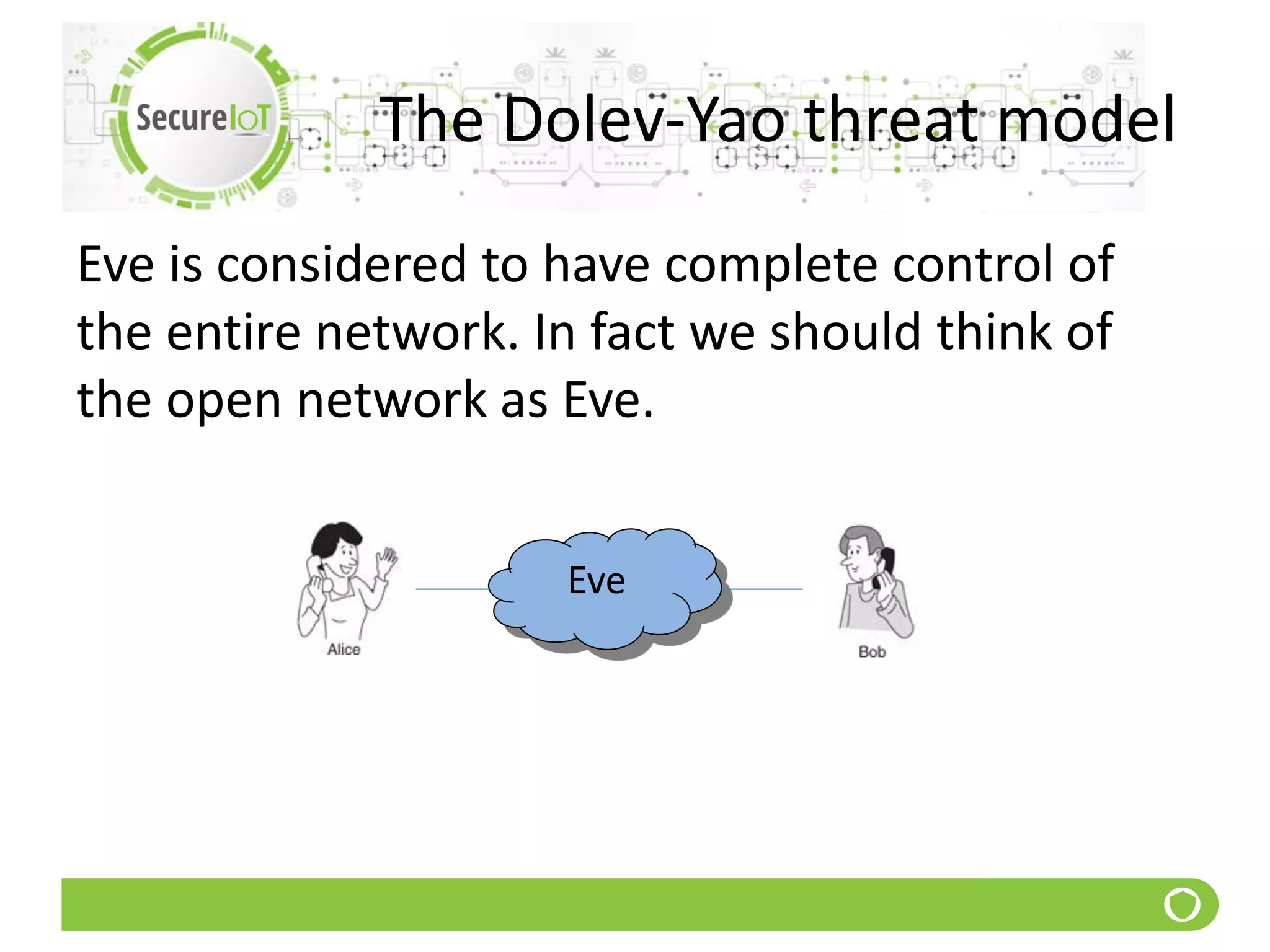

84. The Dolev-Yao threat model
Eve is considered to have complete control of
the entire network. In fact we should think of
the open network as Eve.
Eve

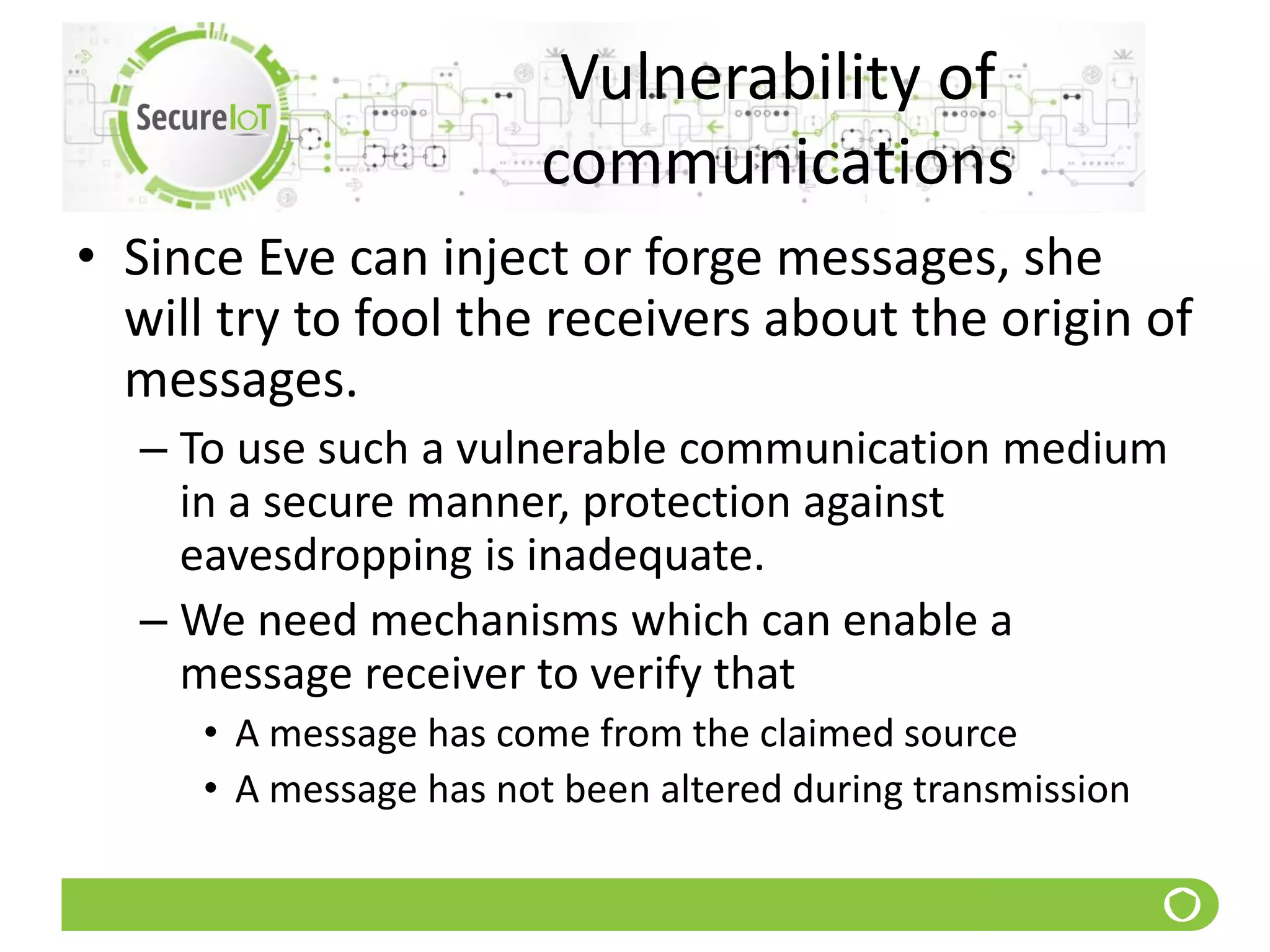

85. Vulnerability of
communications
• Since Eve can inject or forge messages, she
will try to fool the receivers about the origin of
messages.
– To use such a vulnerable communication medium
in a secure manner, protection against
eavesdropping is inadequate.
– We need mechanisms which can enable a
message receiver to verify that
• A message has come from the claimed source
• A message has not been altered during transmission

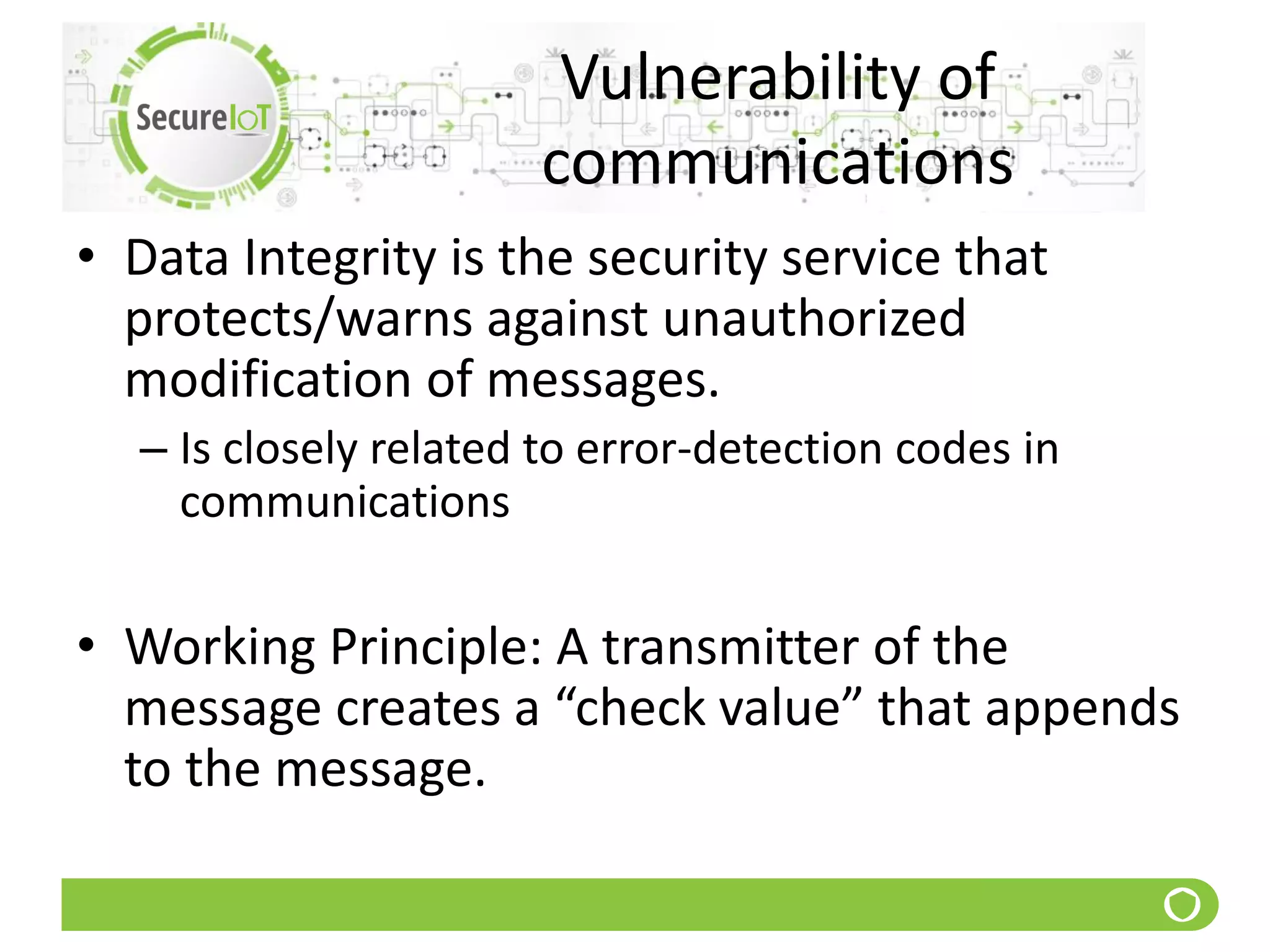

86. Vulnerability of
communications
• Data Integrity is the security service that
protects/warns against unauthorized
modification of messages.
– Is closely related to error-detection codes in
communications

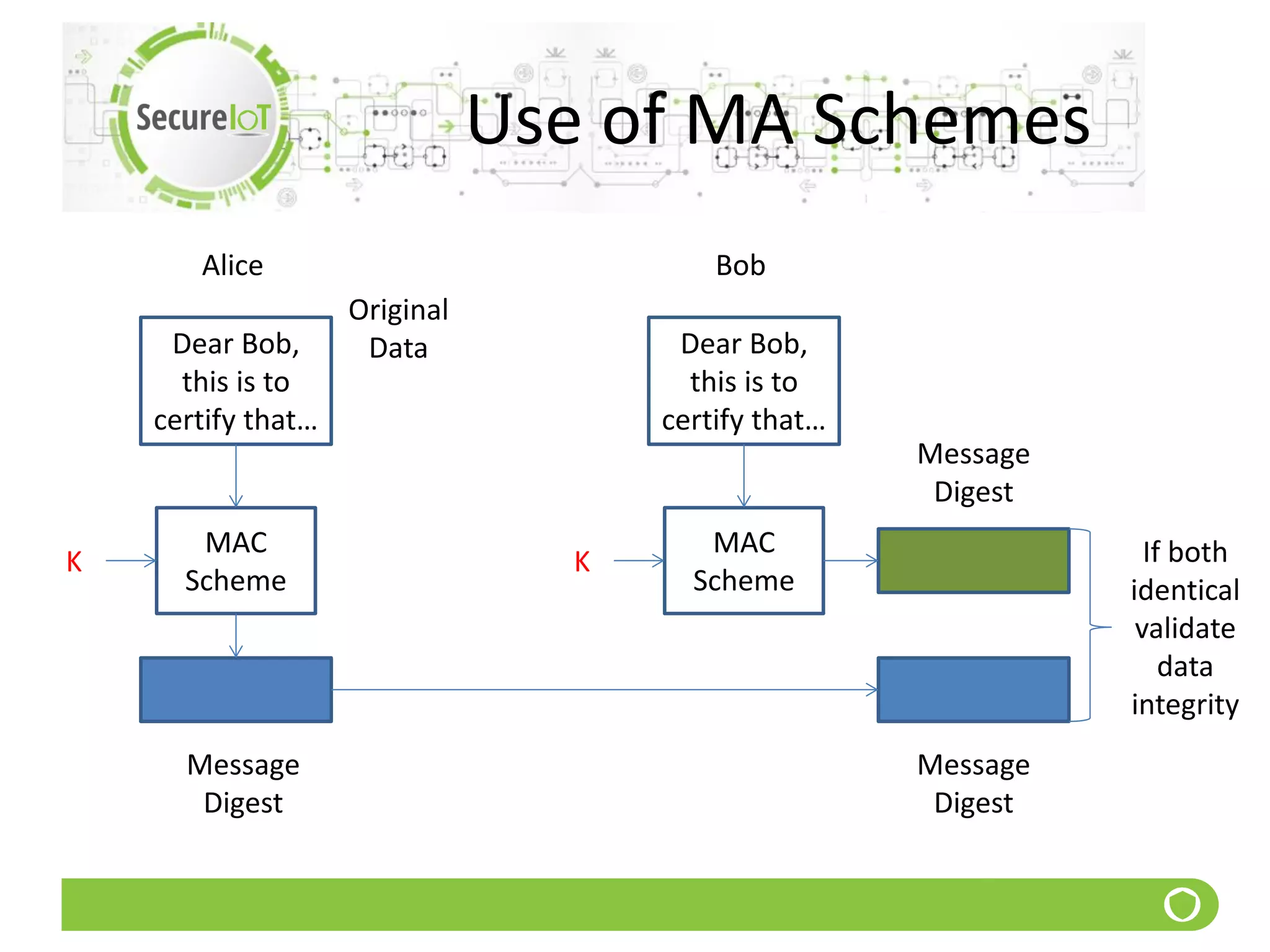

• Working Principle: A transmitter of the
message creates a “check value” that appends
to the message.

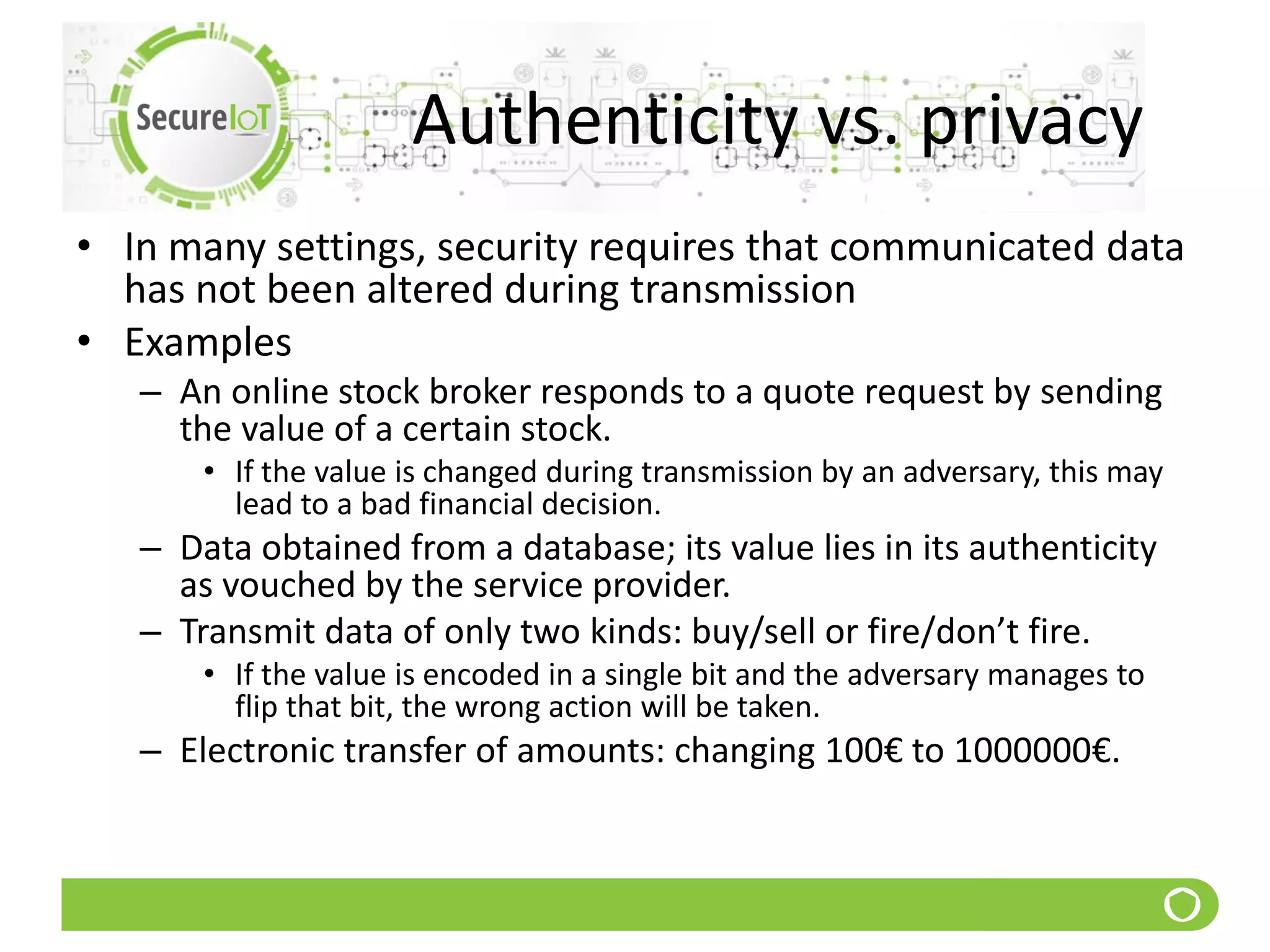

87. Authenticity vs. privacy
• In many settings, security requires that communicated data
has not been altered during transmission
• Examples
– An online stock broker responds to a quote request by sending
the value of a certain stock.
• If the value is changed during transmission by an adversary, this may
lead to a bad financial decision.
– Data obtained from a database; its value lies in its authenticity
as vouched by the service provider.
– Transmit data of only two kinds: buy/sell or fire/don’t fire.
• If the value is encoded in a single bit and the adversary manages to
flip that bit, the wrong action will be taken.
– Electronic transfer of amounts: changing 100€ to 1000000€.

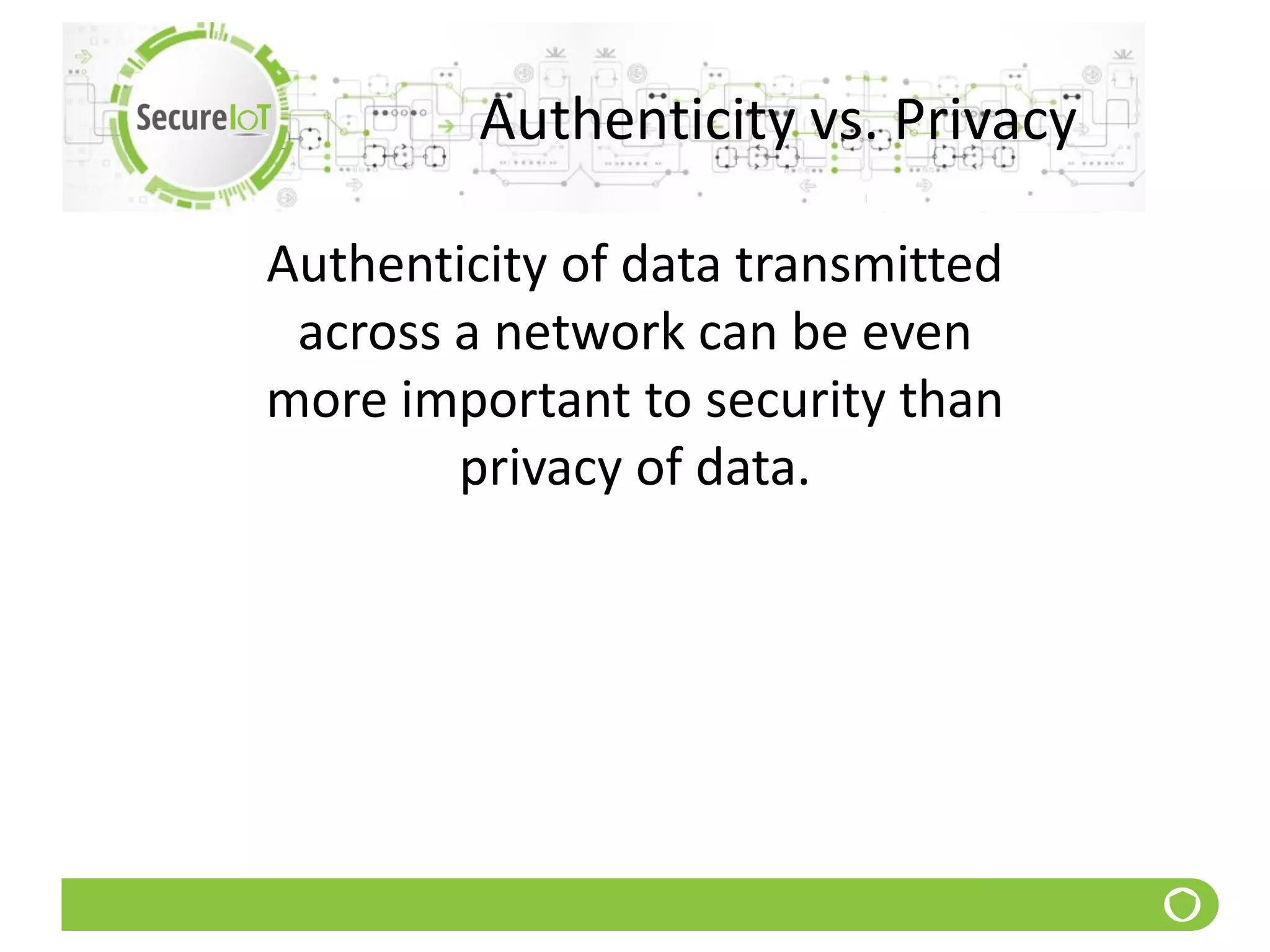

88. Authenticity vs. Privacy
Authenticity of data transmitted
across a network can be even
more important to security than
privacy of data.

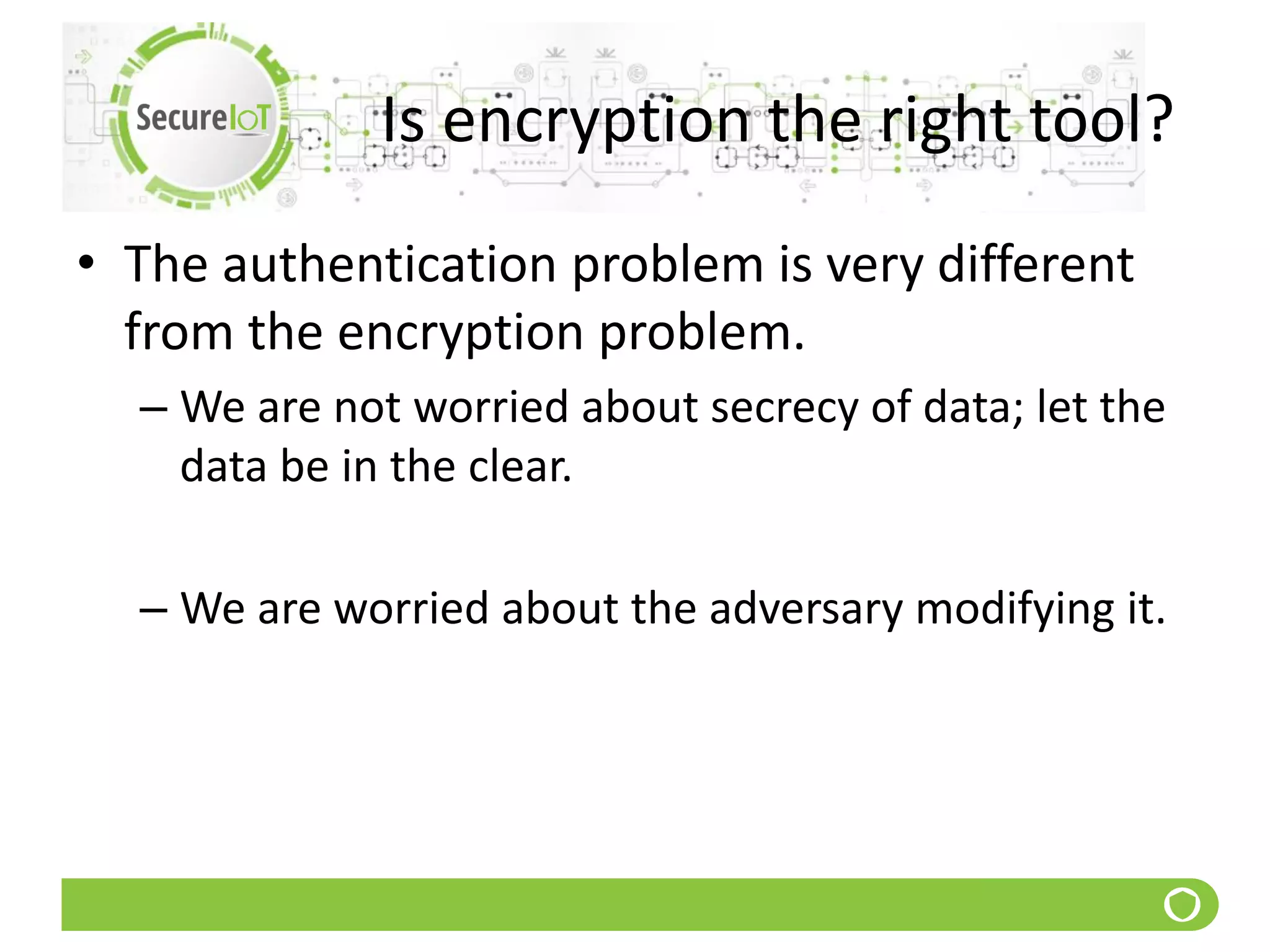

89. Is encryption the right tool?
• The authentication problem is very different
from the encryption problem.
– We are not worried about secrecy of data; let the
data be in the clear.
– We are worried about the adversary modifying it.

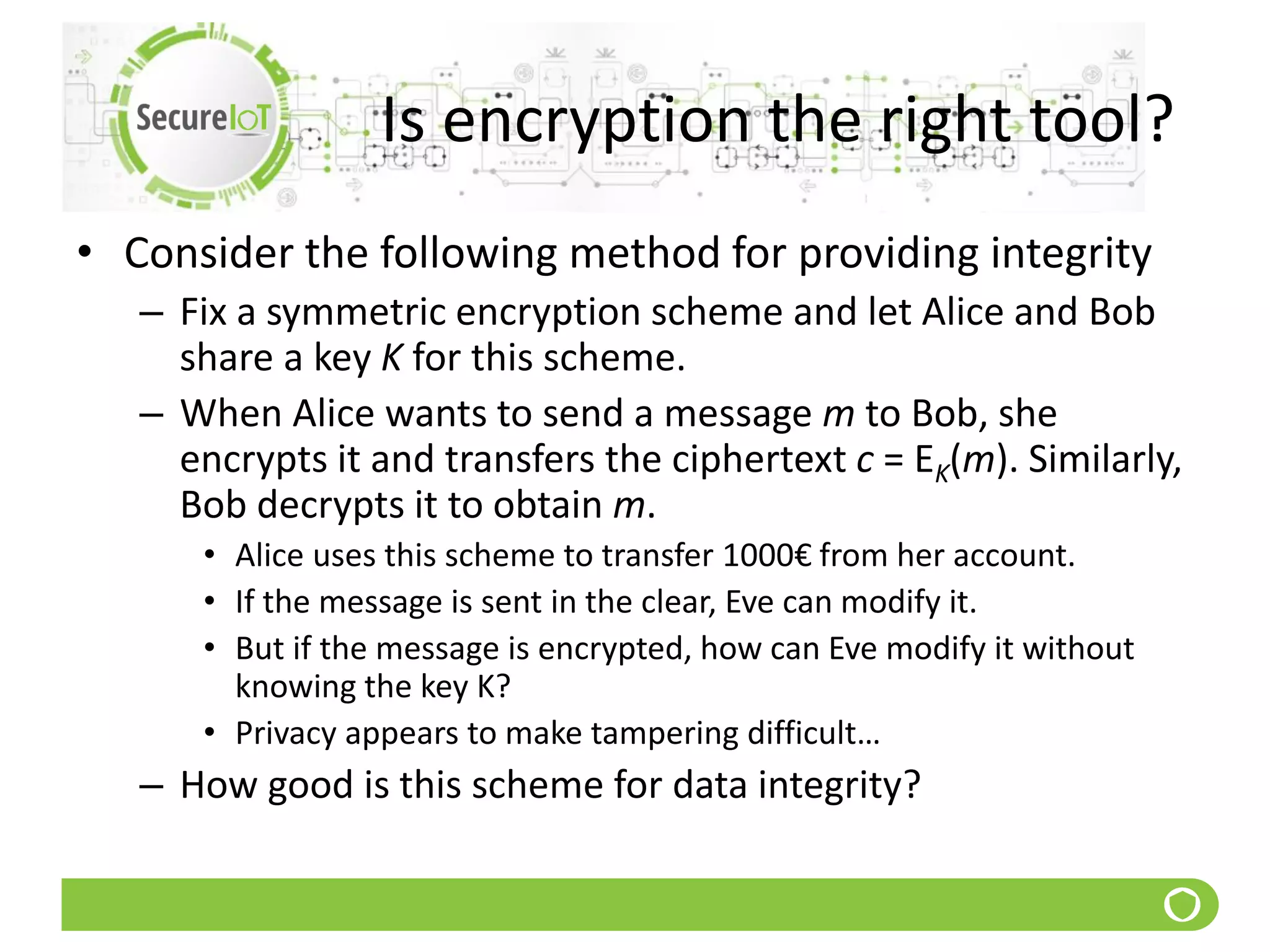

90. Is encryption the right tool?
• Consider the following method for providing integrity
– Fix a symmetric encryption scheme and let Alice and Bob
share a key K for this scheme.
– When Alice wants to send a message m to Bob, she
encrypts it and transfers the ciphertext c = EK(m). Similarly,
Bob decrypts it to obtain m.
• Alice uses this scheme to transfer 1000€ from her account.
• If the message is sent in the clear, Eve can modify it.
• But if the message is encrypted, how can Eve modify it without
knowing the key K?
• Privacy appears to make tampering difficult…
– How good is this scheme for data integrity?

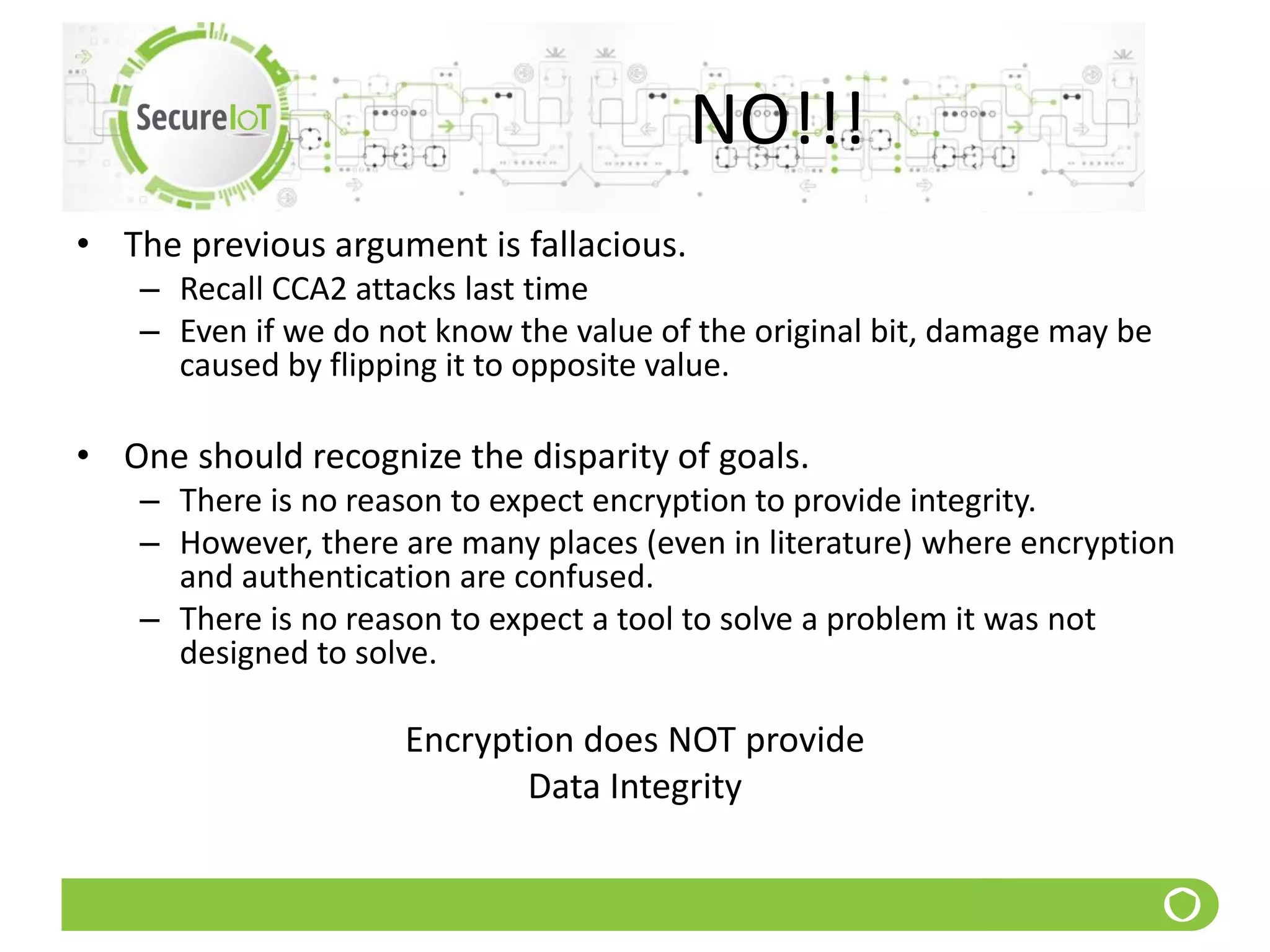

91. NO!!!
• The previous argument is fallacious.
– Recall CCA2 attacks last time
– Even if we do not know the value of the original bit, damage may be
caused by flipping it to opposite value.
• One should recognize the disparity of goals.
– There is no reason to expect encryption to provide integrity.
– However, there are many places (even in literature) where encryption
and authentication are confused.
– There is no reason to expect a tool to solve a problem it was not
designed to solve.
Encryption does NOT provide
Data Integrity

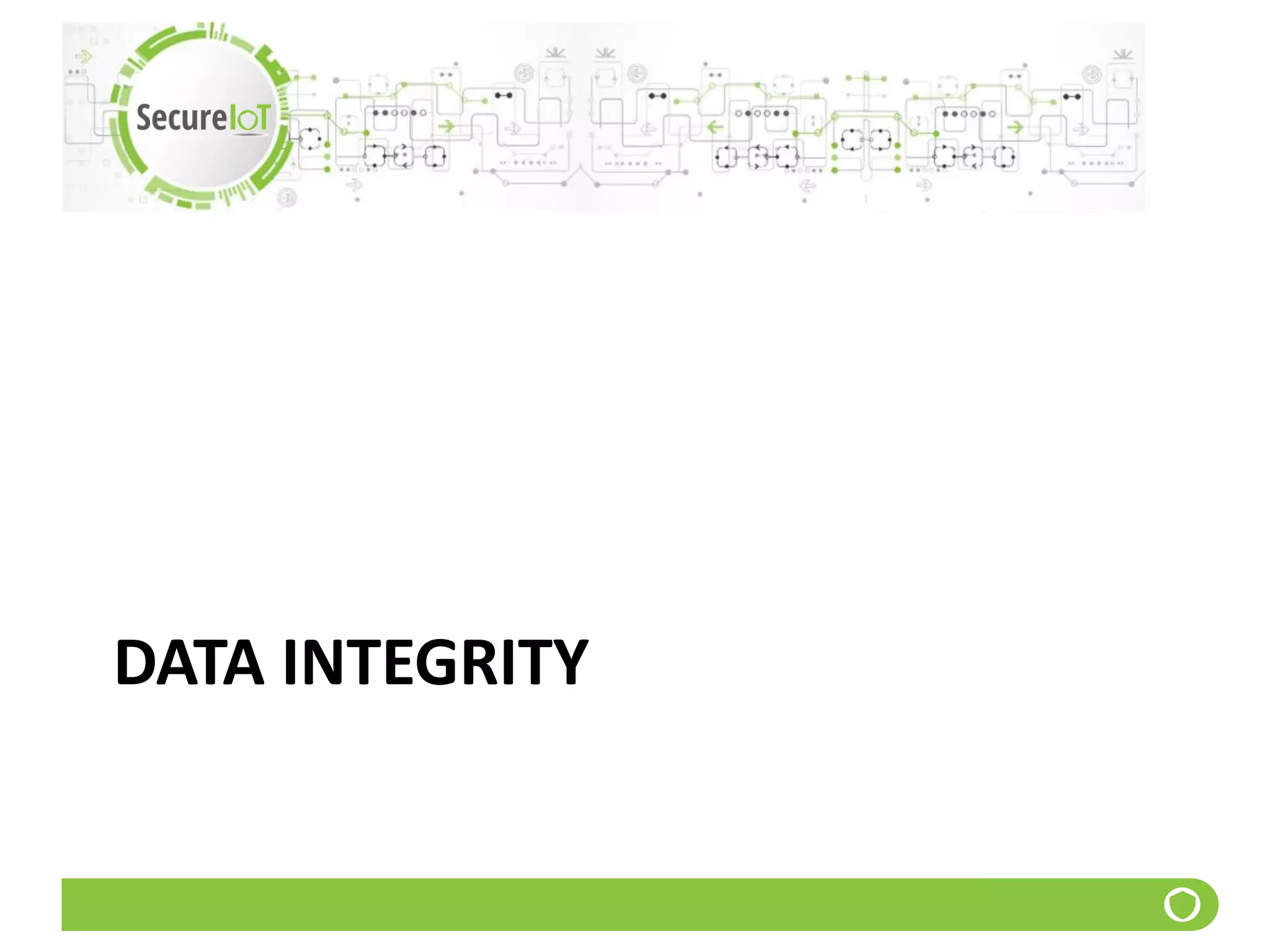

92. DATA INTEGRITY

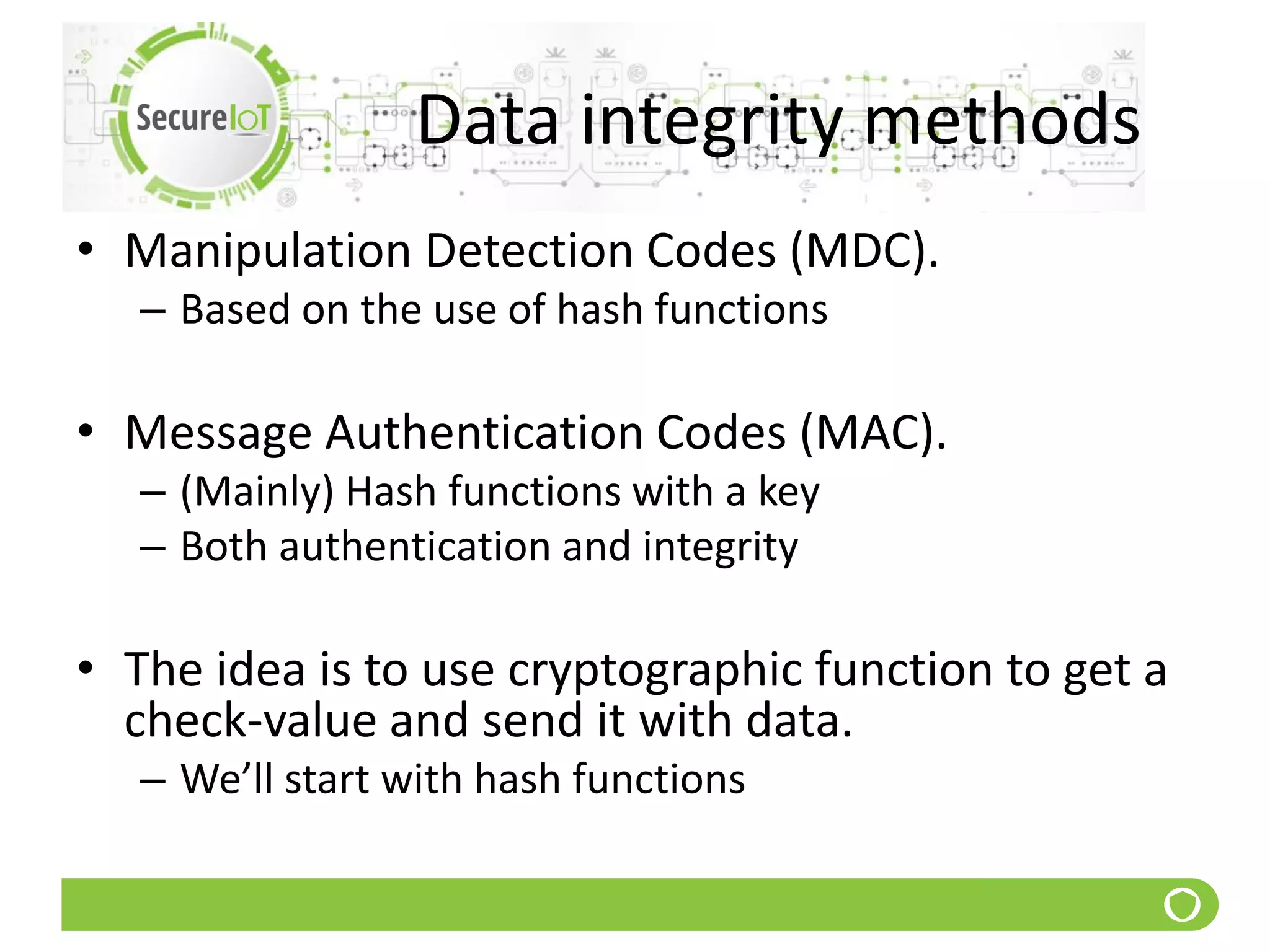

93. Data integrity methods
• Manipulation Detection Codes (MDC).
– Based on the use of hash functions
• Message Authentication Codes (MAC).
– (Mainly) Hash functions with a key
– Both authentication and integrity
• The idea is to use cryptographic function to get a
check-value and send it with data.
– We’ll start with hash functions

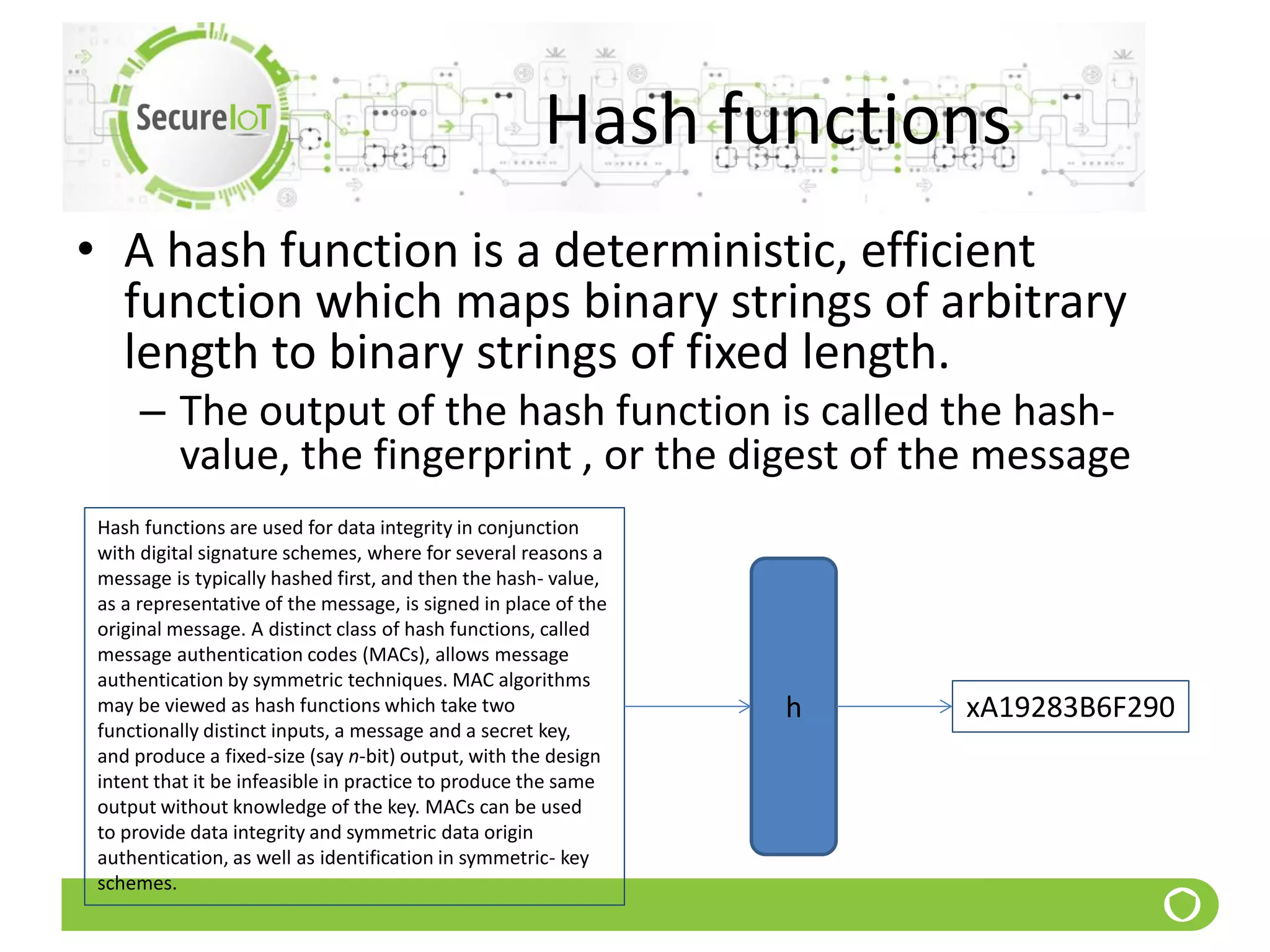

94. Hash functions
• A hash function is a deterministic, efficient
function which maps binary strings of arbitrary
length to binary strings of fixed length.
– The output of the hash function is called the hash-
value, the fingerprint , or the digest of the message
Hash functions are used for data integrity in conjunction
with digital signature schemes, where for several reasons a
message is typically hashed first, and then the hash- value,
as a representative of the message, is signed in place of the
original message. A distinct class of hash functions, called
message authentication codes (MACs), allows message
authentication by symmetric techniques. MAC algorithms
may be viewed as hash functions which take two
functionally distinct inputs, a message and a secret key,
and produce a fixed-size (say n-bit) output, with the design
intent that it be infeasible in practice to produce the same
output without knowledge of the key. MACs can be used
to provide data integrity and symmetric data origin
authentication, as well as identification in symmetric- key
schemes.
xA19283B6F290h

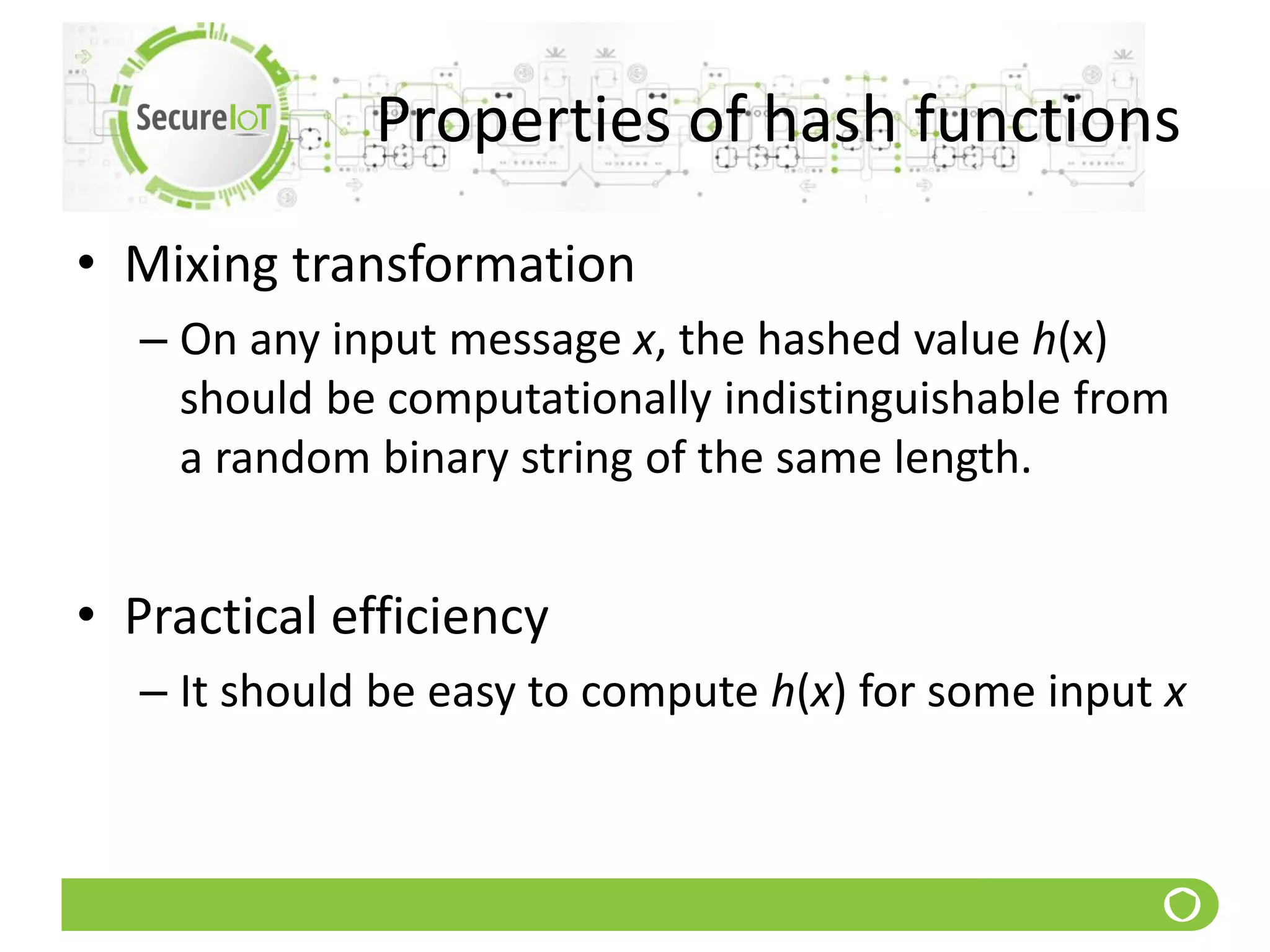

95. Properties of hash functions
• Mixing transformation
– On any input message x, the hashed value h(x)
should be computationally indistinguishable from
a random binary string of the same length.
• Practical efficiency
– It should be easy to compute h(x) for some input x

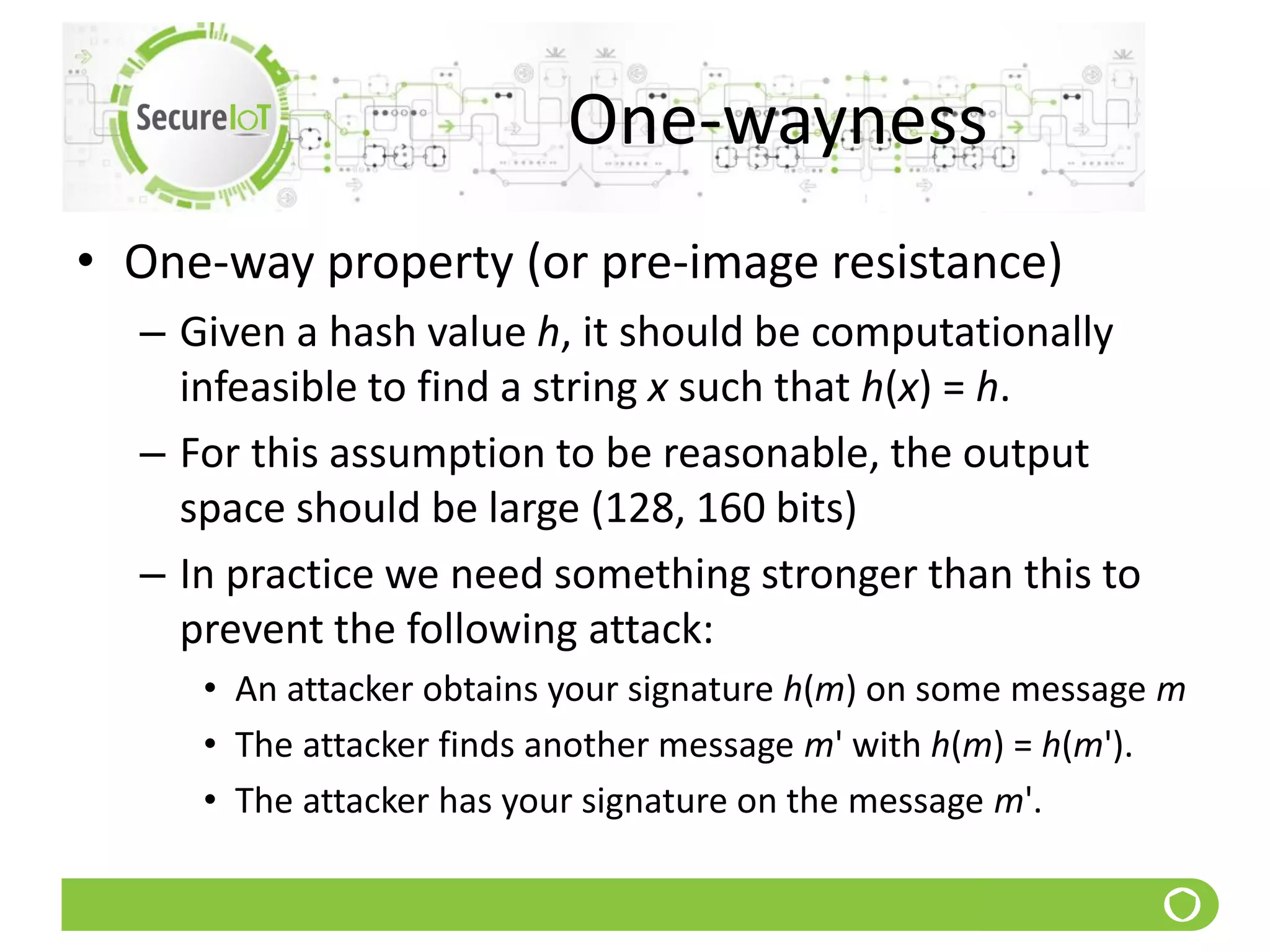

96. One-wayness
• One-way property (or pre-image resistance)
– Given a hash value h, it should be computationally
infeasible to find a string x such that h(x) = h.
– For this assumption to be reasonable, the output
space should be large (128, 160 bits)
– In practice we need something stronger than this to
prevent the following attack:
• An attacker obtains your signature h(m) on some message m
• The attacker finds another message m' with h(m) = h(m').
• The attacker has your signature on the message m'.

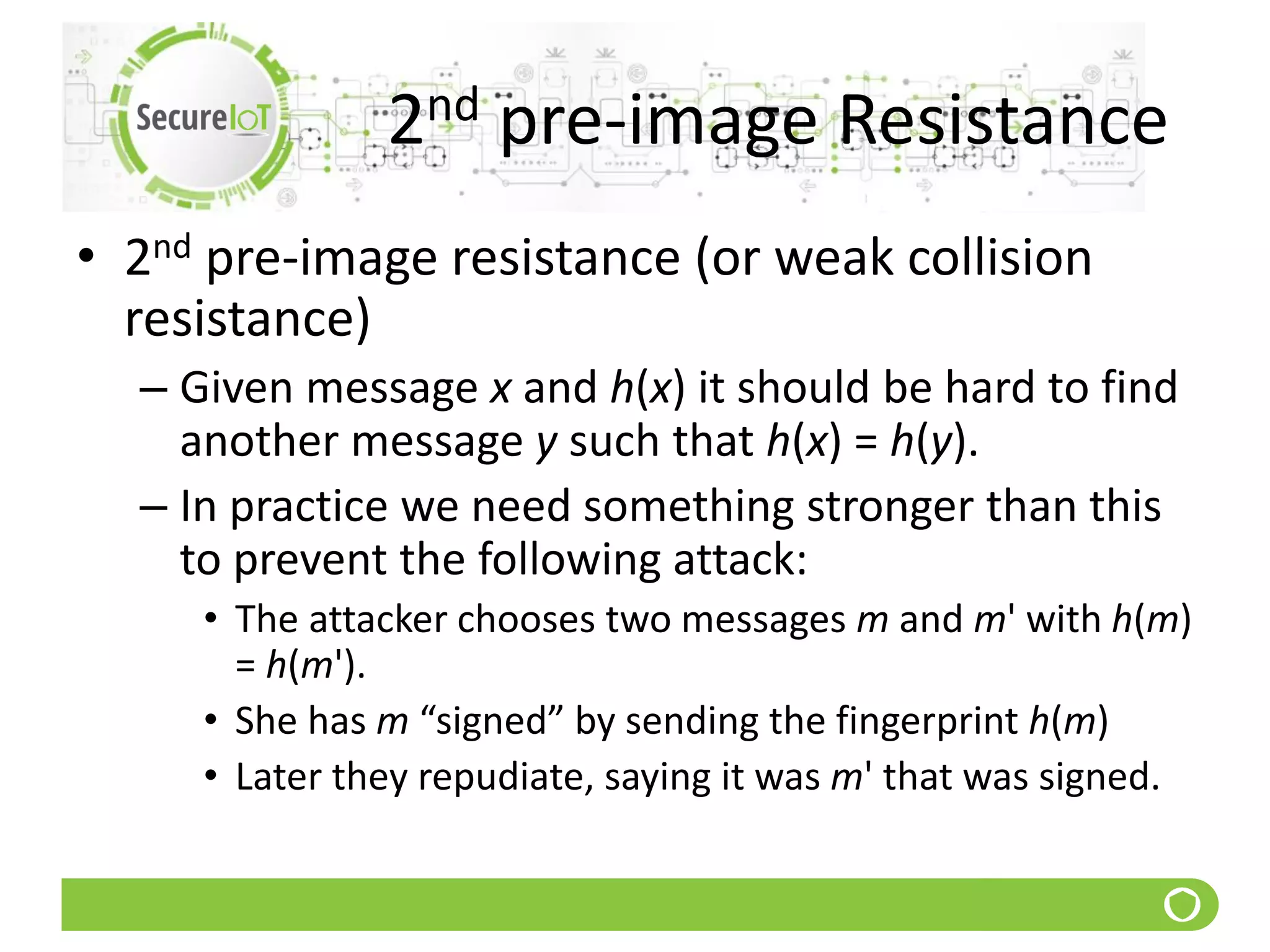

97. 2nd pre-image Resistance
• 2nd pre-image resistance (or weak collision
resistance)
– Given message x and h(x) it should be hard to find
another message y such that h(x) = h(y).
– In practice we need something stronger than this
to prevent the following attack:
• The attacker chooses two messages m and m' with h(m)
= h(m').
• She has m “signed” by sending the fingerprint h(m)
• Later they repudiate, saying it was m' that was signed.

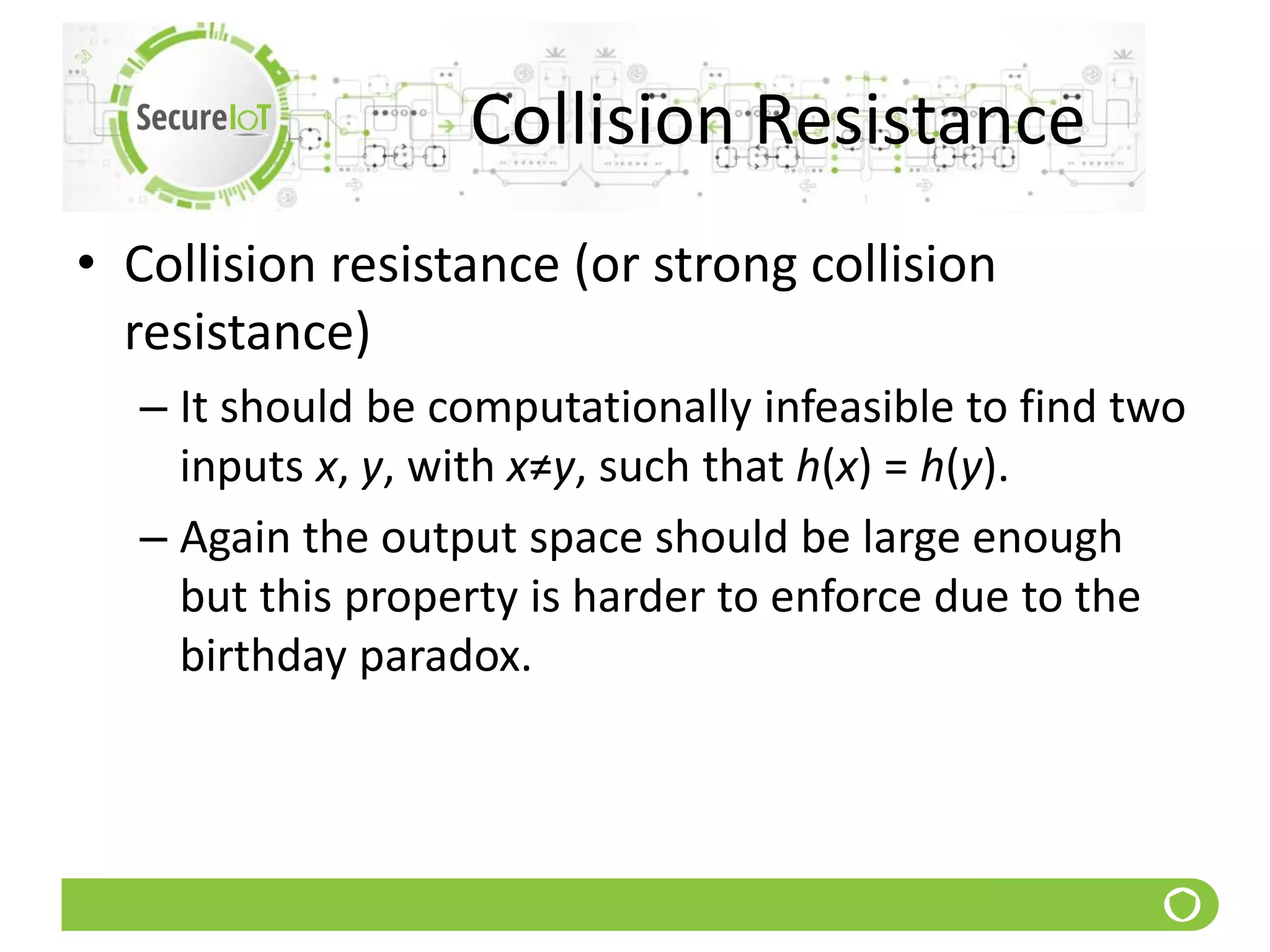

98. Collision Resistance
• Collision resistance (or strong collision
resistance)
– It should be computationally infeasible to find two
inputs x, y, with x≠y, such that h(x) = h(y).
– Again the output space should be large enough
but this property is harder to enforce due to the
birthday paradox.

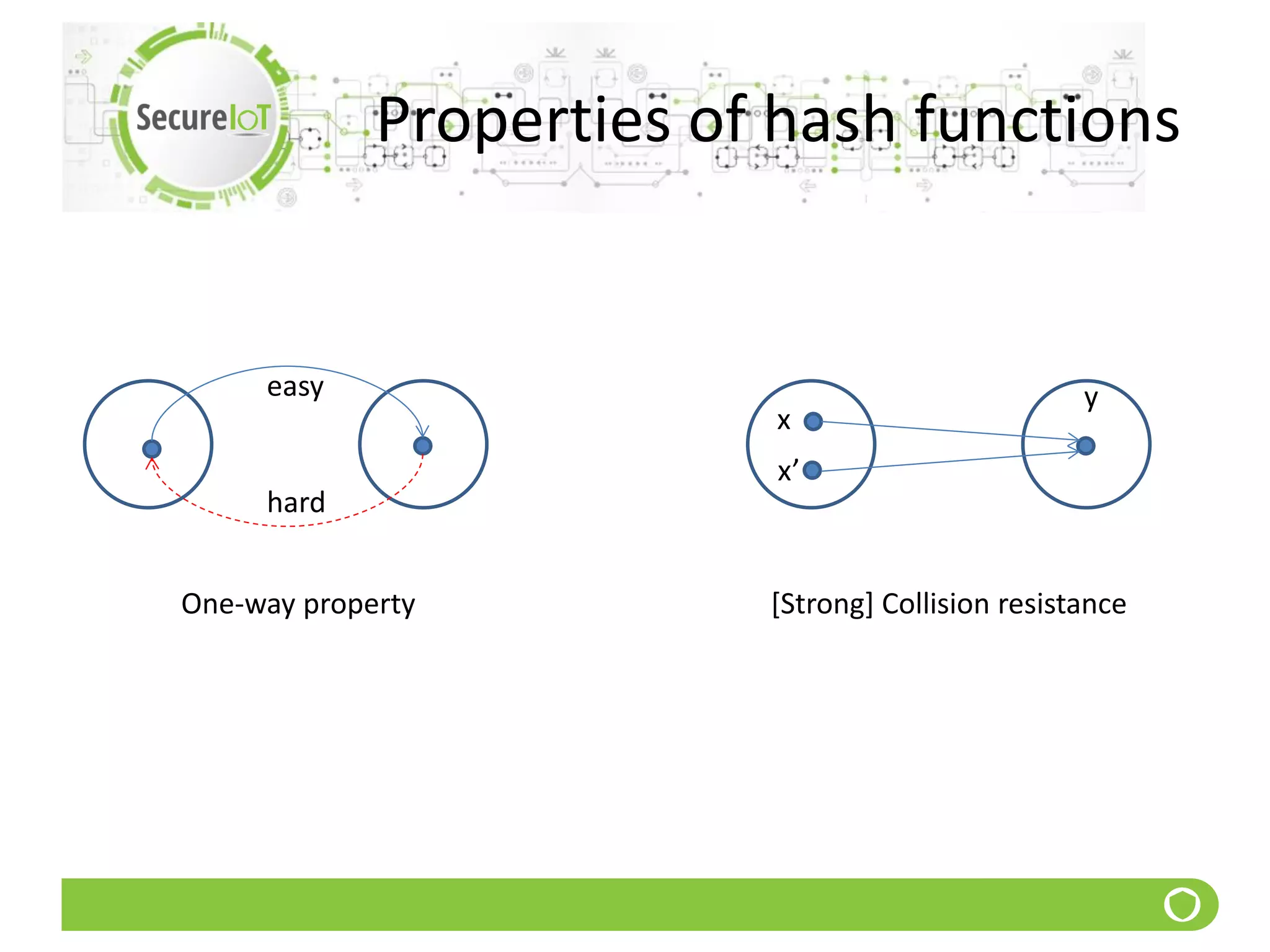

99. Properties of hash functions
easy
hard
One-way property
y
x
x’
[Strong] Collision resistance

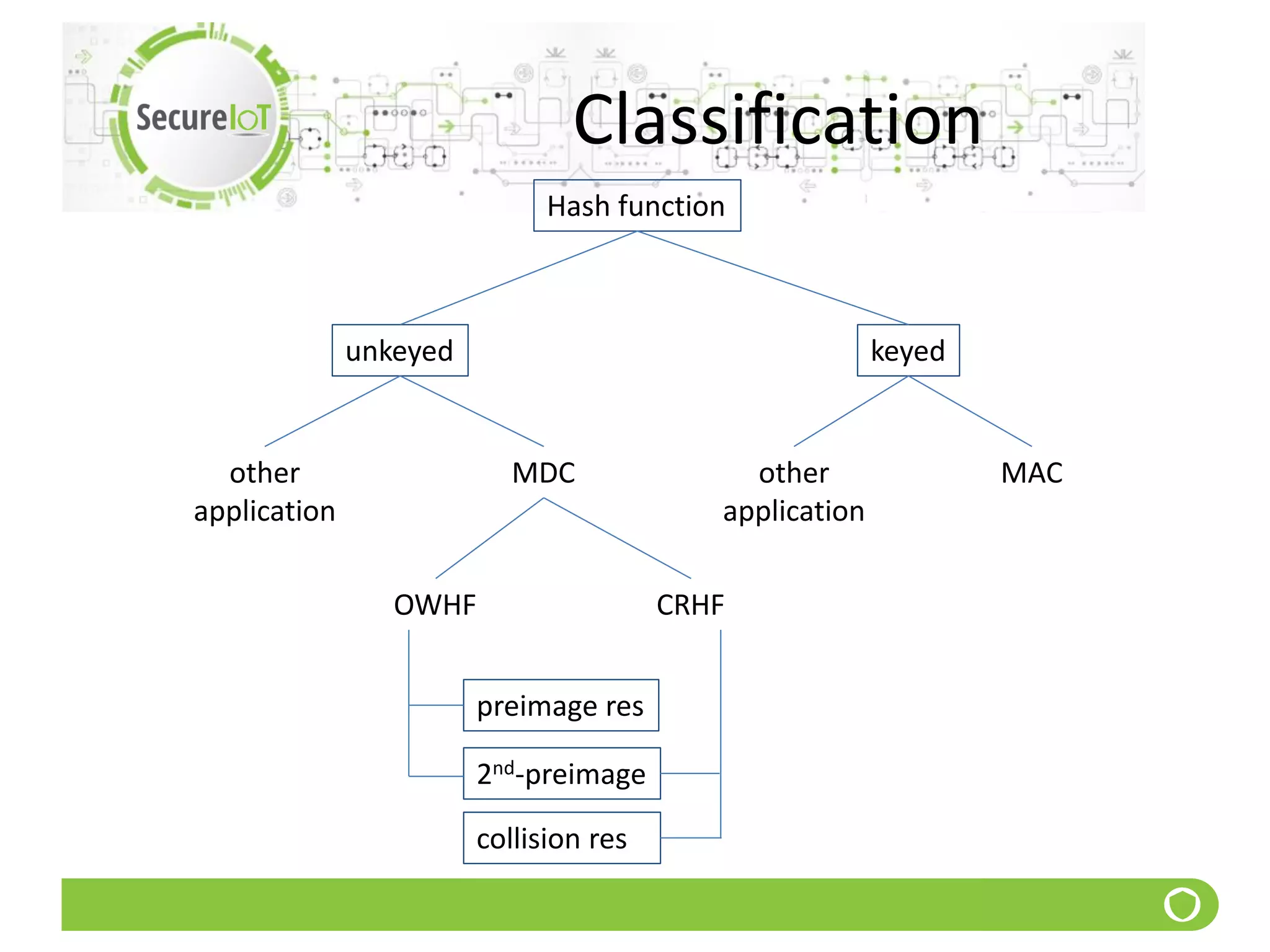

100. Classification
Hash function
unkeyed keyed
other
application
MDC other
application
MAC
OWHF CRHF
preimage res
2nd-preimage
collision res

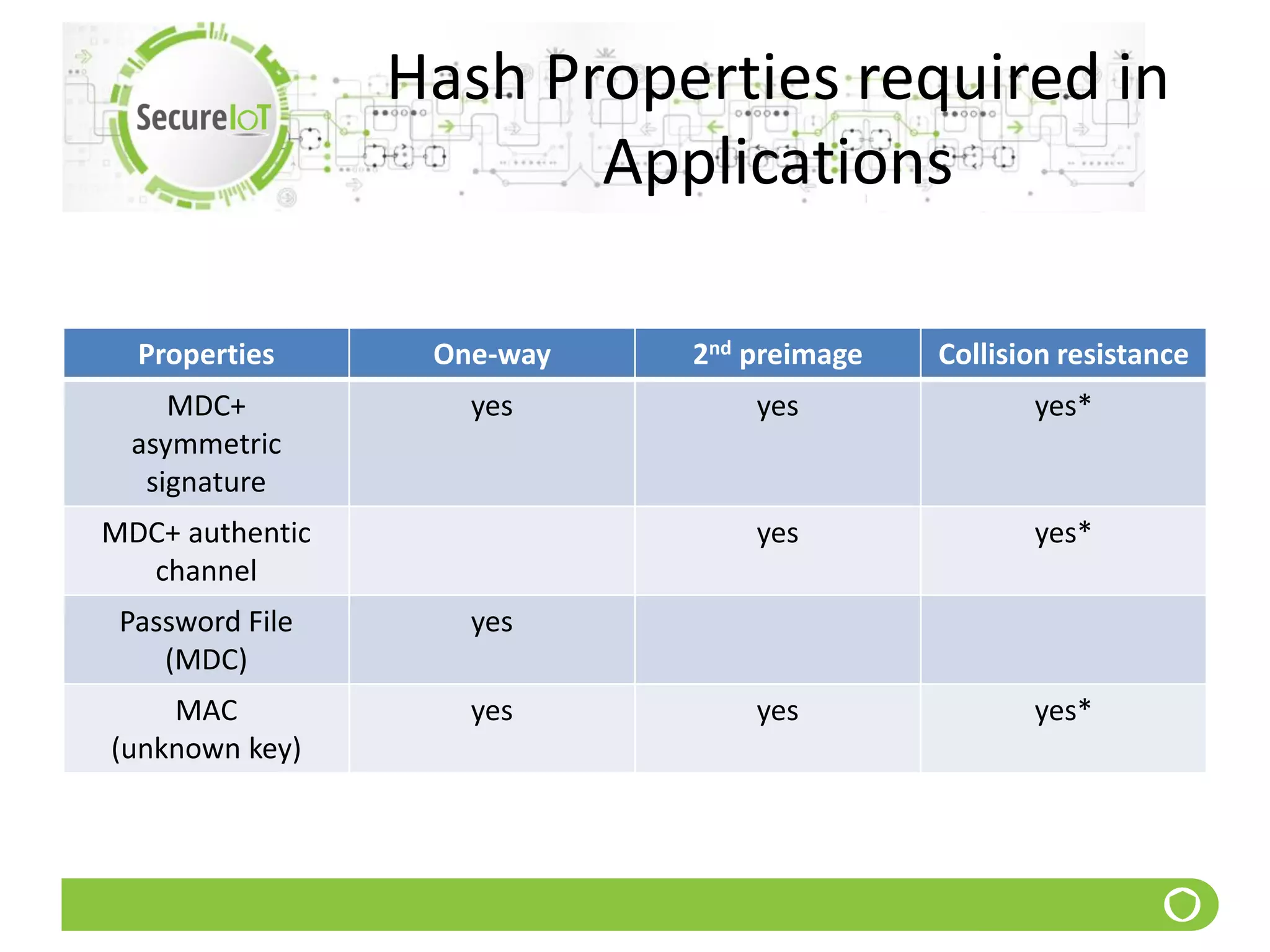

101. Hash Properties required in
Applications
Properties One-way 2nd preimage Collision resistance
MDC+
asymmetric
signature
yes yes yes*
MDC+ authentic
channel
yes yes*
Password File
(MDC)
yes
MAC
(unknown key)
yes yes yes*

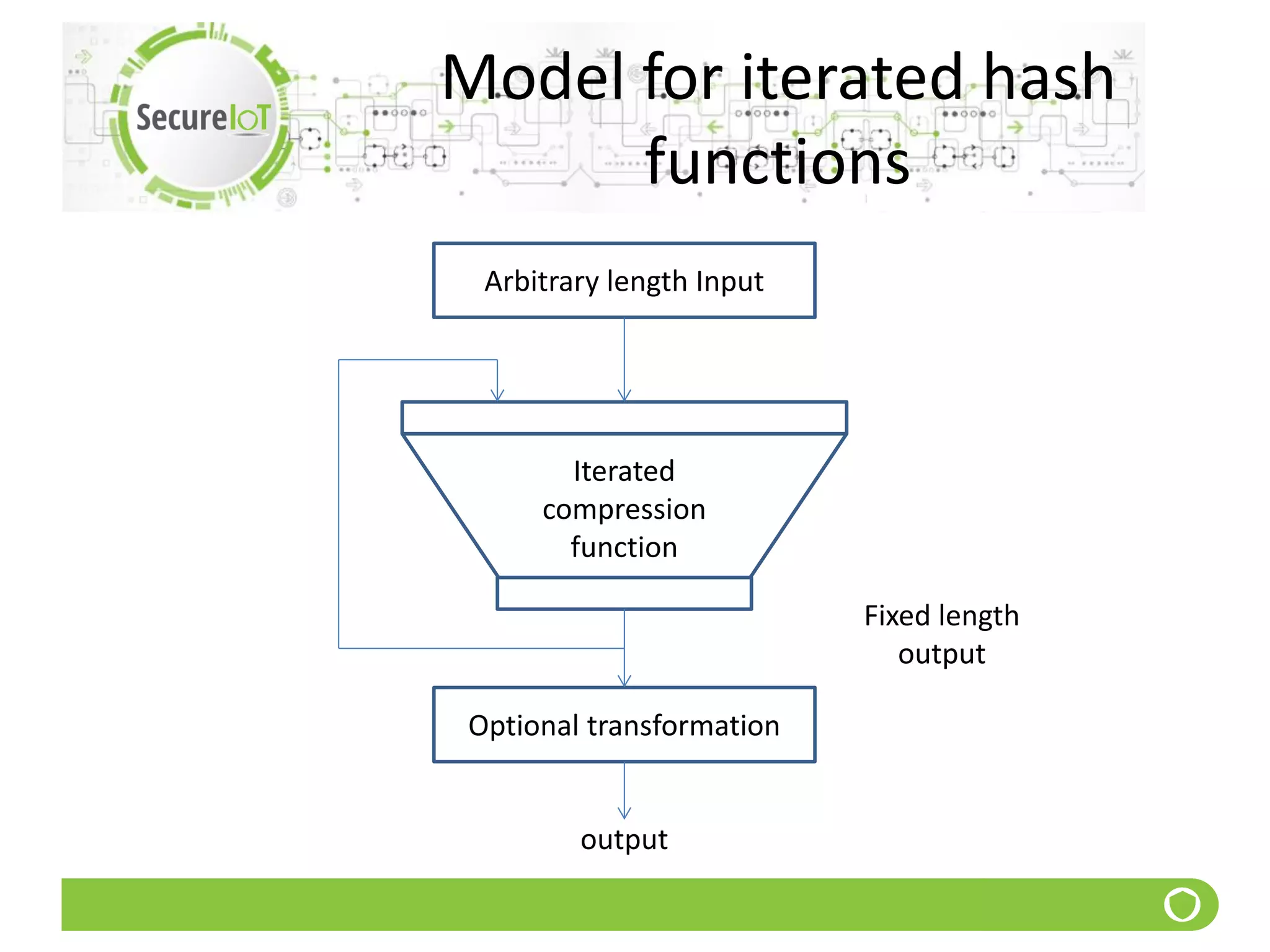

102. Model for iterated hash
functions
Arbitrary length Input
Iterated
compression
function
Optional transformation
output
Fixed length
output

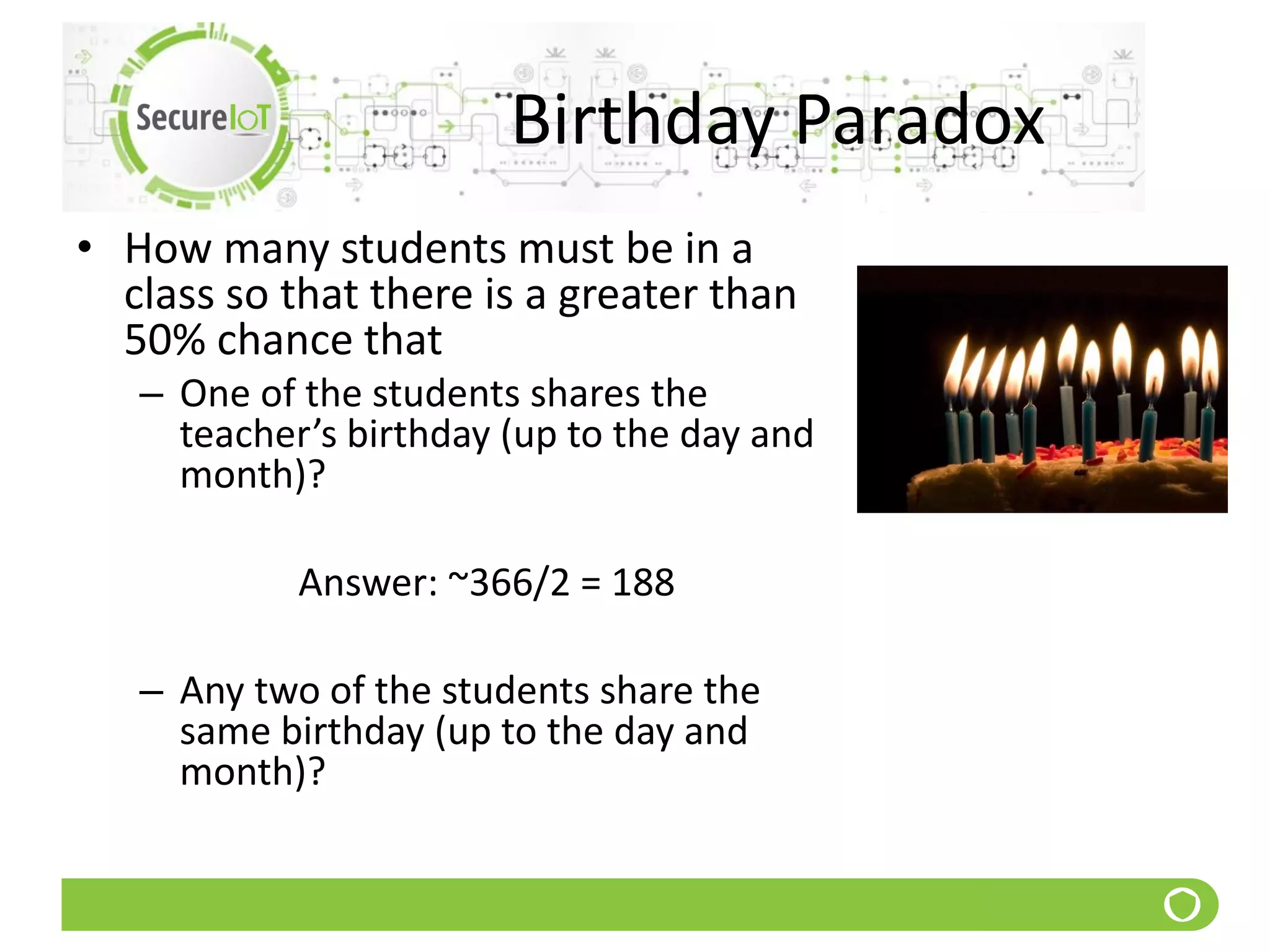

103. Birthday Paradox
• How many students must be in a
class so that there is a greater than
50% chance that
– One of the students shares the
teacher’s birthday (up to the day and
month)?
Answer: ~366/2 = 188
– Any two of the students share the
same birthday (up to the day and
month)?

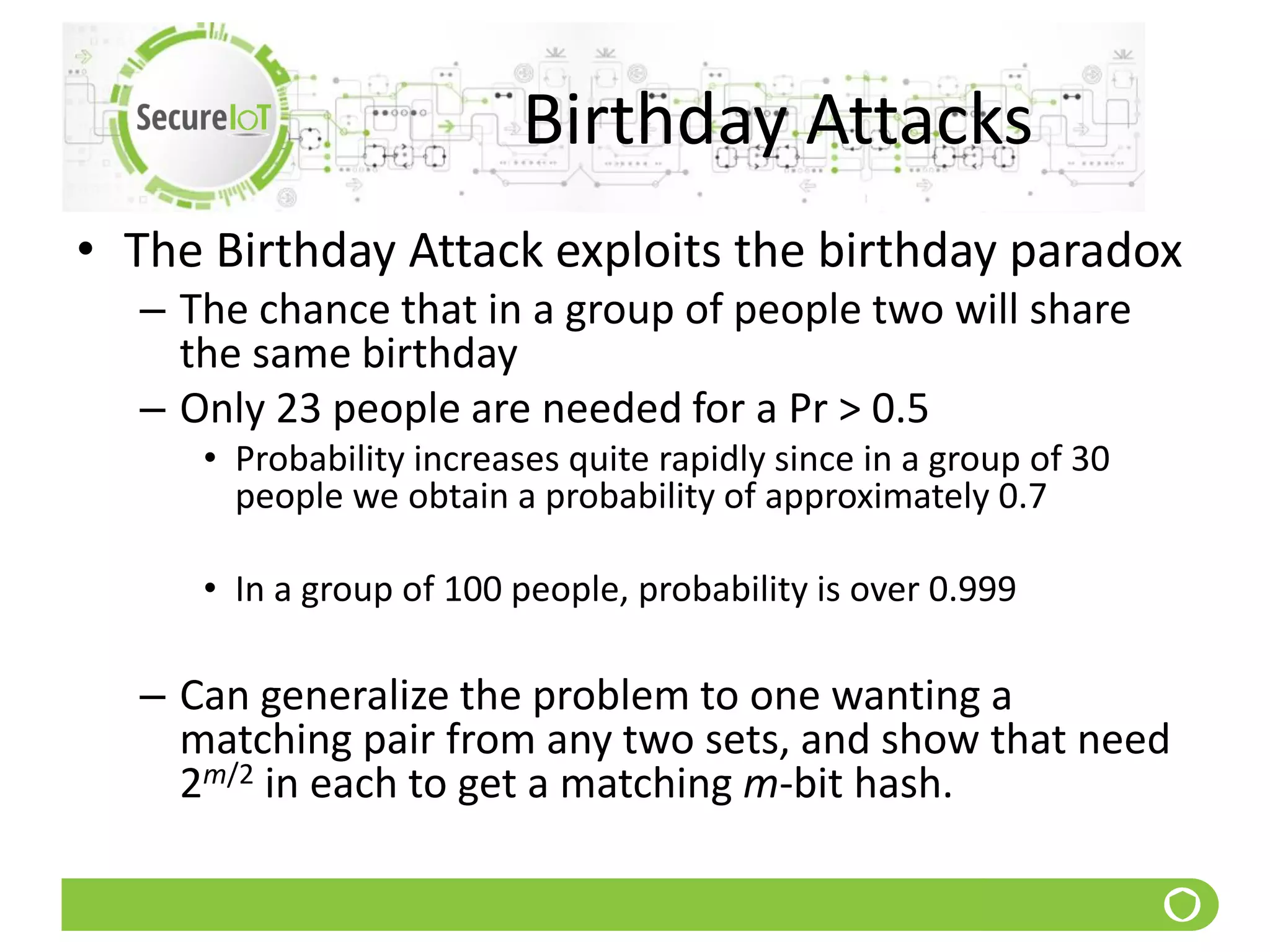

104. Birthday Attacks
• The Birthday Attack exploits the birthday paradox
– The chance that in a group of people two will share
the same birthday
– Only 23 people are needed for a Pr > 0.5
• Probability increases quite rapidly since in a group of 30
people we obtain a probability of approximately 0.7
• In a group of 100 people, probability is over 0.999
– Can generalize the problem to one wanting a
matching pair from any two sets, and show that need
2m/2 in each to get a matching m-bit hash.

105. Birthday Attacks
q Pr[2 have same birthdate]
15 0.253
18 0.347
20 0.411
21 0.444
23 0.507
25 0.569
27 0.627
30 0.796
35 0.818
40 0.891
50 0,970

106. Birthday Attacks
• Birthday attacks work like this:
– Opponent generates 2m/2 variations of a valid message
all with essentially the same meaning.
• Note that creating many message variants is relatively easy,
either by rewording or just varying the amount of white-
space in the message.
– Opponent also generates 2m/2 variations of a desired
fraudulent message
– Two sets of messages are compared to find pair with
same hash (probability > 0.5 by birthday paradox)
– Then have user sign the valid message, then substitute
the forgery which will have a valid signature

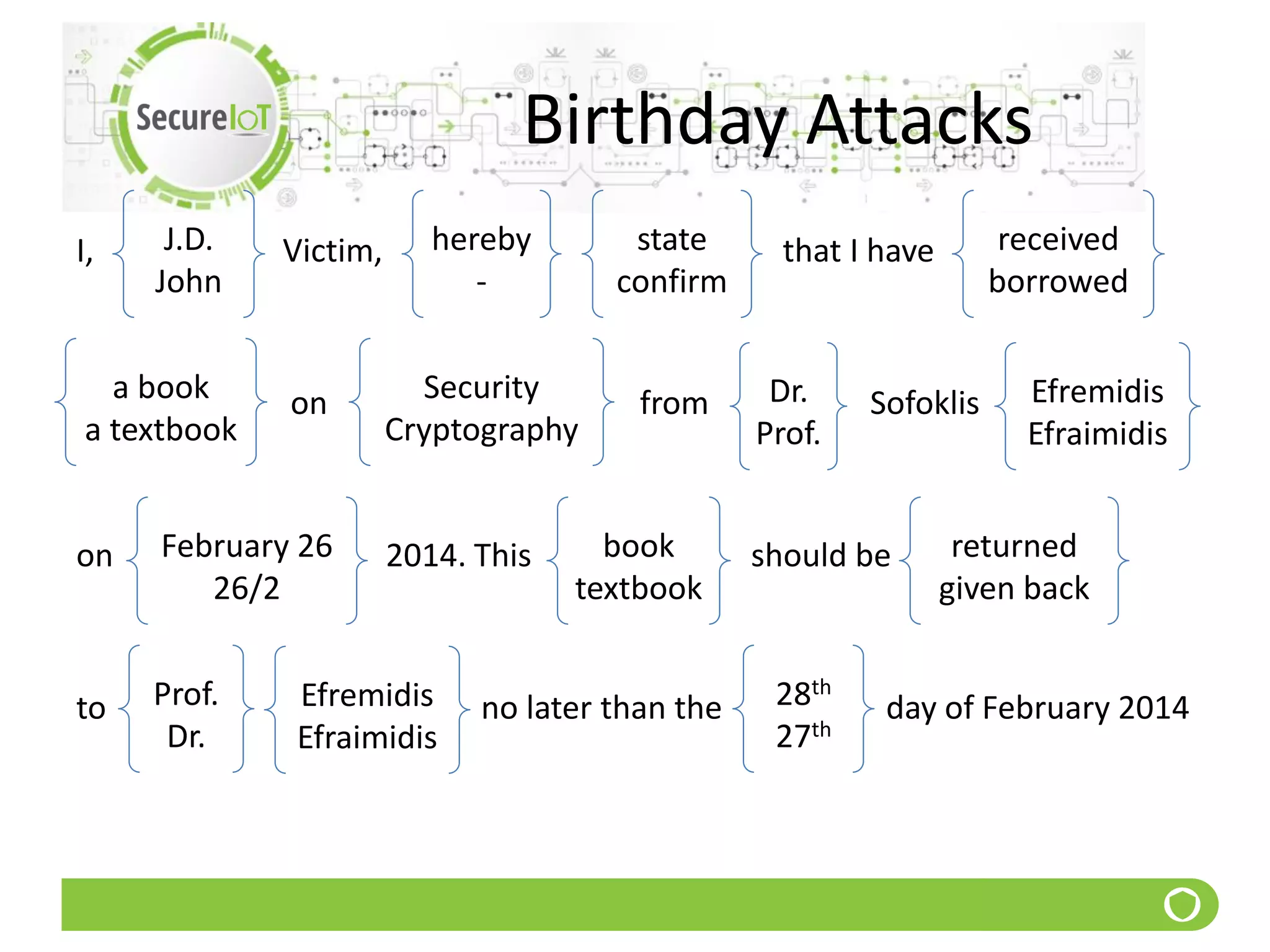

107. Birthday Attacks
I, Victim, that I have
on from Sofoklis
on 2014. This should be
to no later than the day of February 2014
J.D.
John
hereby
-
state
confirm
received
borrowed
a book
a textbook
Security
Cryptography
Dr.
Prof.
Efremidis
Efraimidis
February 26
26/2
book
textbook
returned
given back
Prof.
Dr.
Efremidis
Efraimidis
28th
27th

108. Birthday Attacks
I, Victim, that I have
Euros from Sofoklis
on 2014. This should be
to no later than the day of February 2014
J.D.
John
hereby
-
state
confirm
received
borrowed
1000000
one million
Dr.
Prof.
Efremidis
Efraimidis
February 26
26/2
amount
money
returned
given back
Prof.
Dr.
Efremidis
Efraimidis
28th
27th

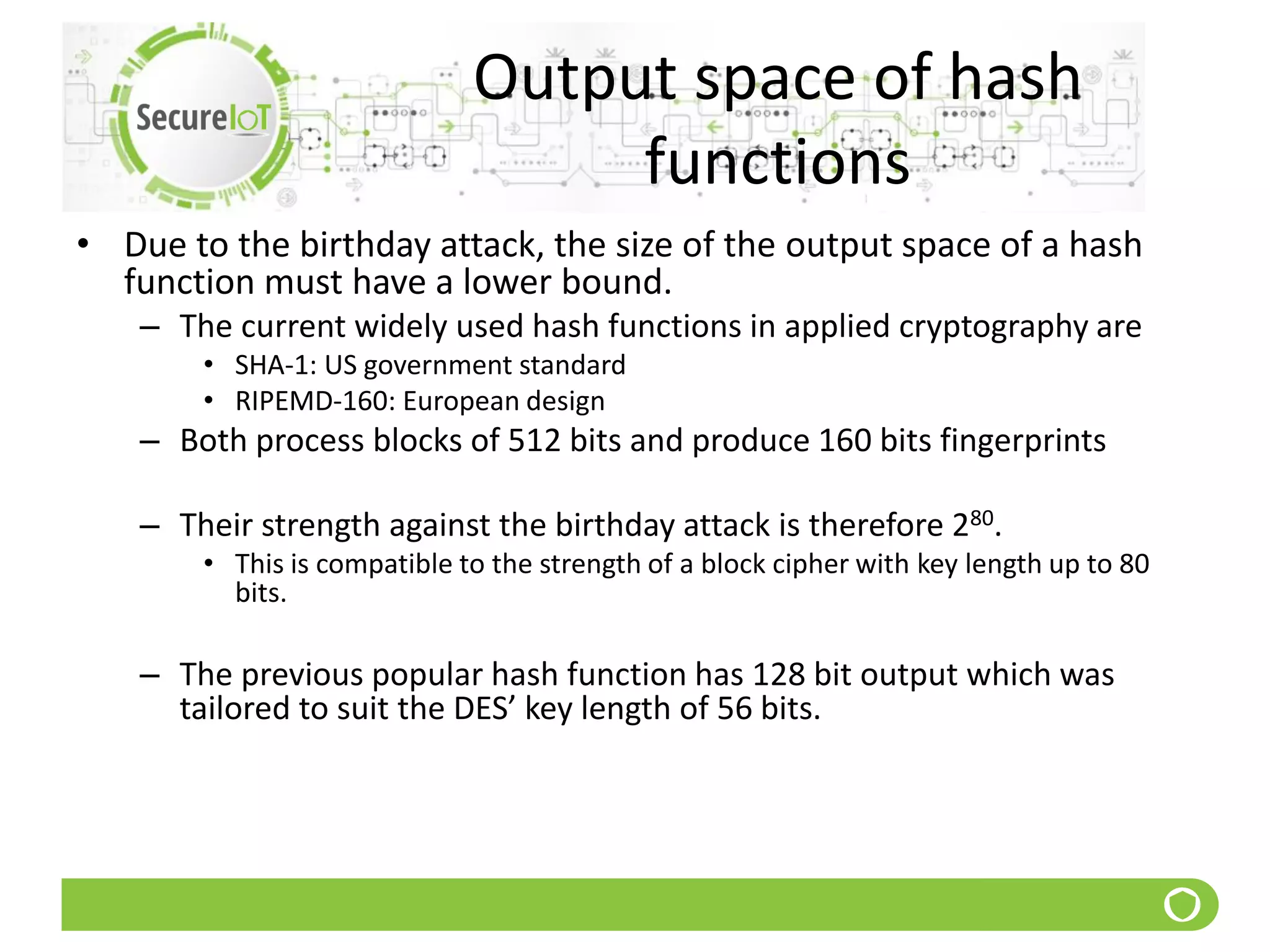

109. Output space of hash
functions
• Due to the birthday attack, the size of the output space of a hash
function must have a lower bound.
– The current widely used hash functions in applied cryptography are
• SHA-1: US government standard
• RIPEMD-160: European design
– Both process blocks of 512 bits and produce 160 bits fingerprints
– Their strength against the birthday attack is therefore 280.
• This is compatible to the strength of a block cipher with key length up to 80
bits.
– The previous popular hash function has 128 bit output which was
tailored to suit the DES’ key length of 56 bits.

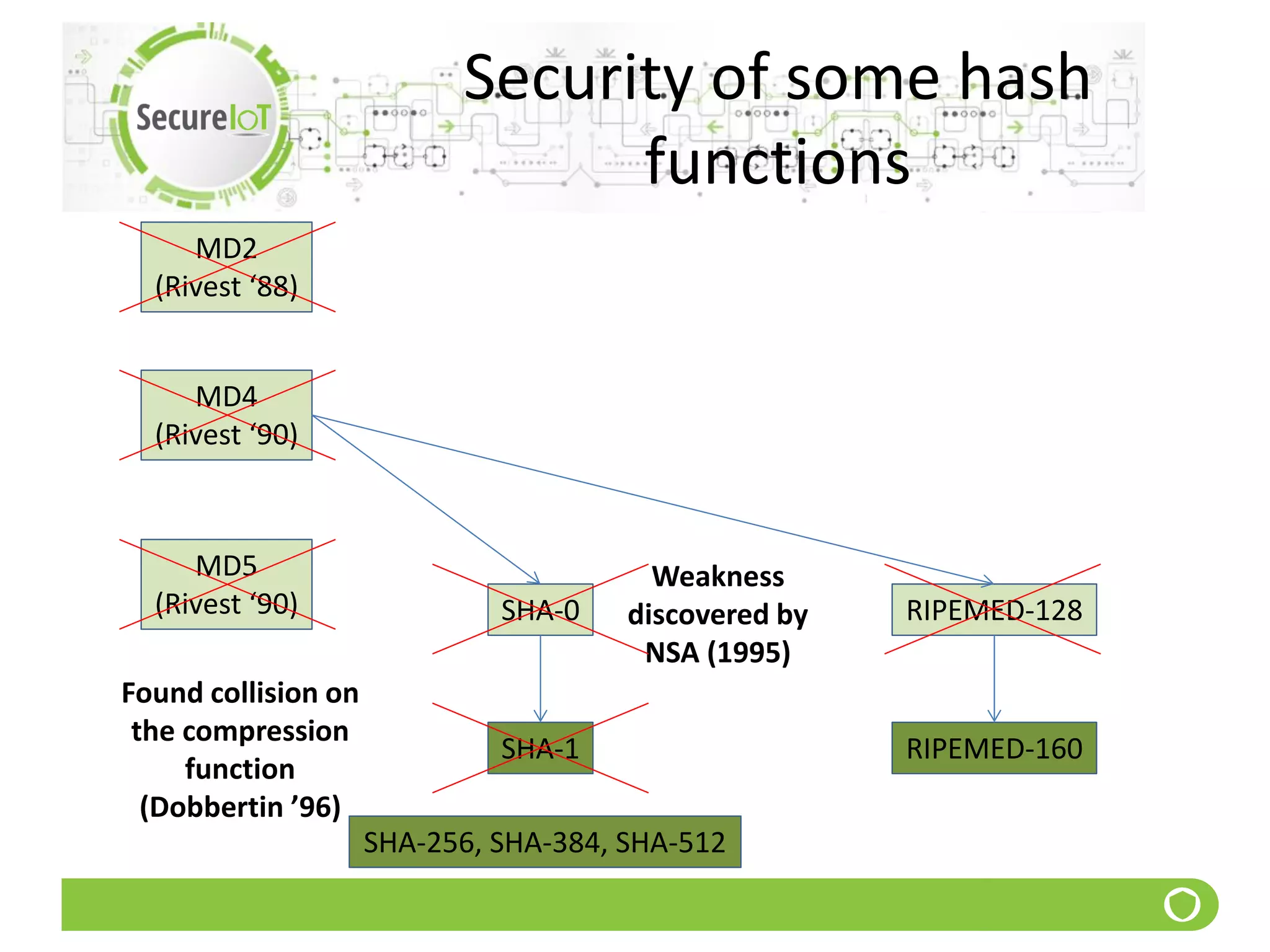

110. Security of some hash
functions
MD2
(Rivest ‘88)
MD4
(Rivest ‘90)
MD5
(Rivest ‘90) SHA-0
SHA-1
RIPEMED-128
RIPEMED-160
Weakness
discovered by
NSA (1995)
Found collision on
the compression
function
(Dobbertin ’96)
SHA-256, SHA-384, SHA-512

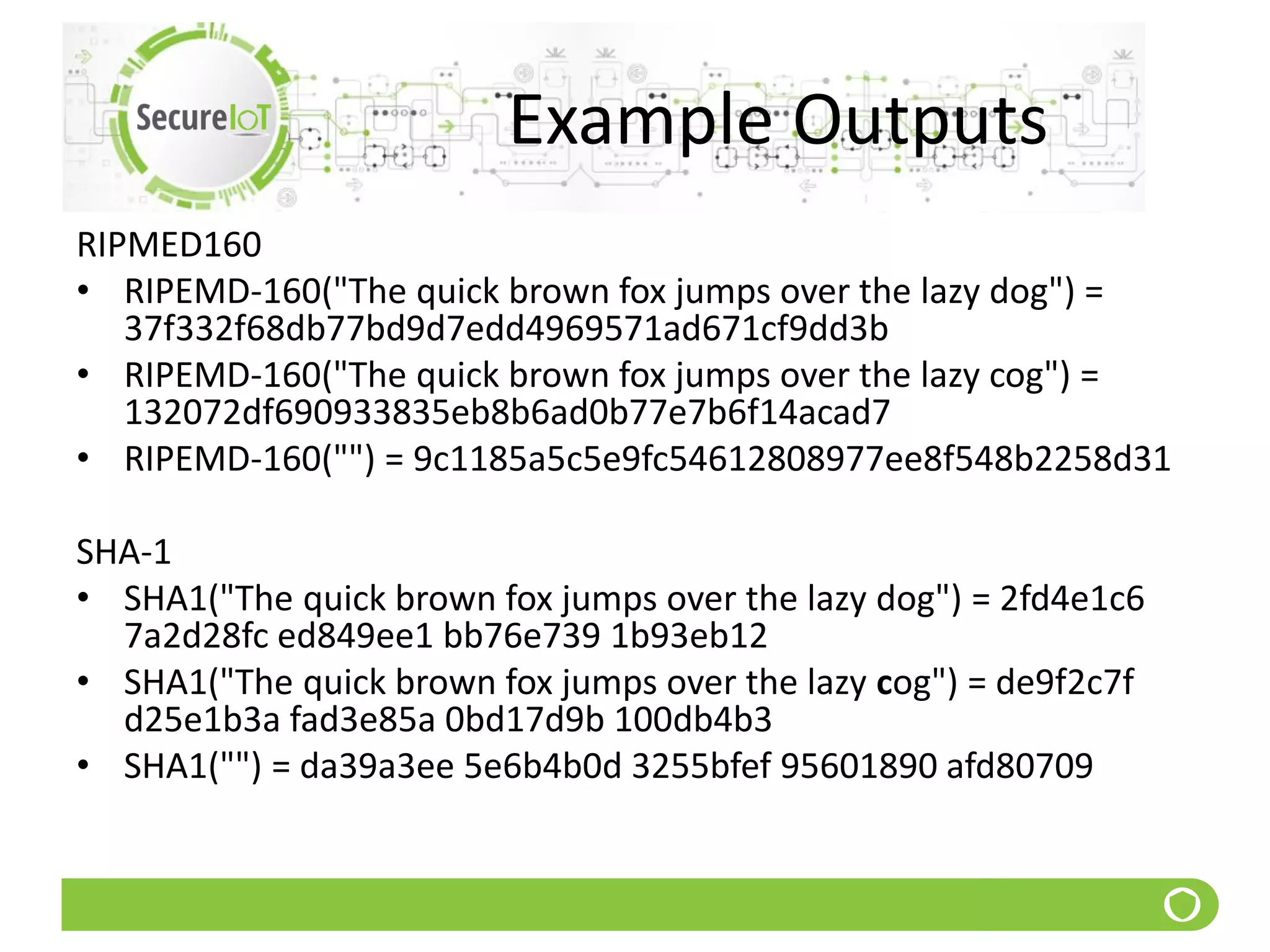

111. Example Outputs
RIPMED160
• RIPEMD-160("The quick brown fox jumps over the lazy dog") =
37f332f68db77bd9d7edd4969571ad671cf9dd3b
• RIPEMD-160("The quick brown fox jumps over the lazy cog") =
132072df690933835eb8b6ad0b77e7b6f14acad7
• RIPEMD-160("") = 9c1185a5c5e9fc54612808977ee8f548b2258d31
SHA-1
• SHA1("The quick brown fox jumps over the lazy dog") = 2fd4e1c6
7a2d28fc ed849ee1 bb76e739 1b93eb12
• SHA1("The quick brown fox jumps over the lazy cog") = de9f2c7f
d25e1b3a fad3e85a 0bd17d9b 100db4b3
• SHA1("") = da39a3ee 5e6b4b0d 3255bfef 95601890 afd80709

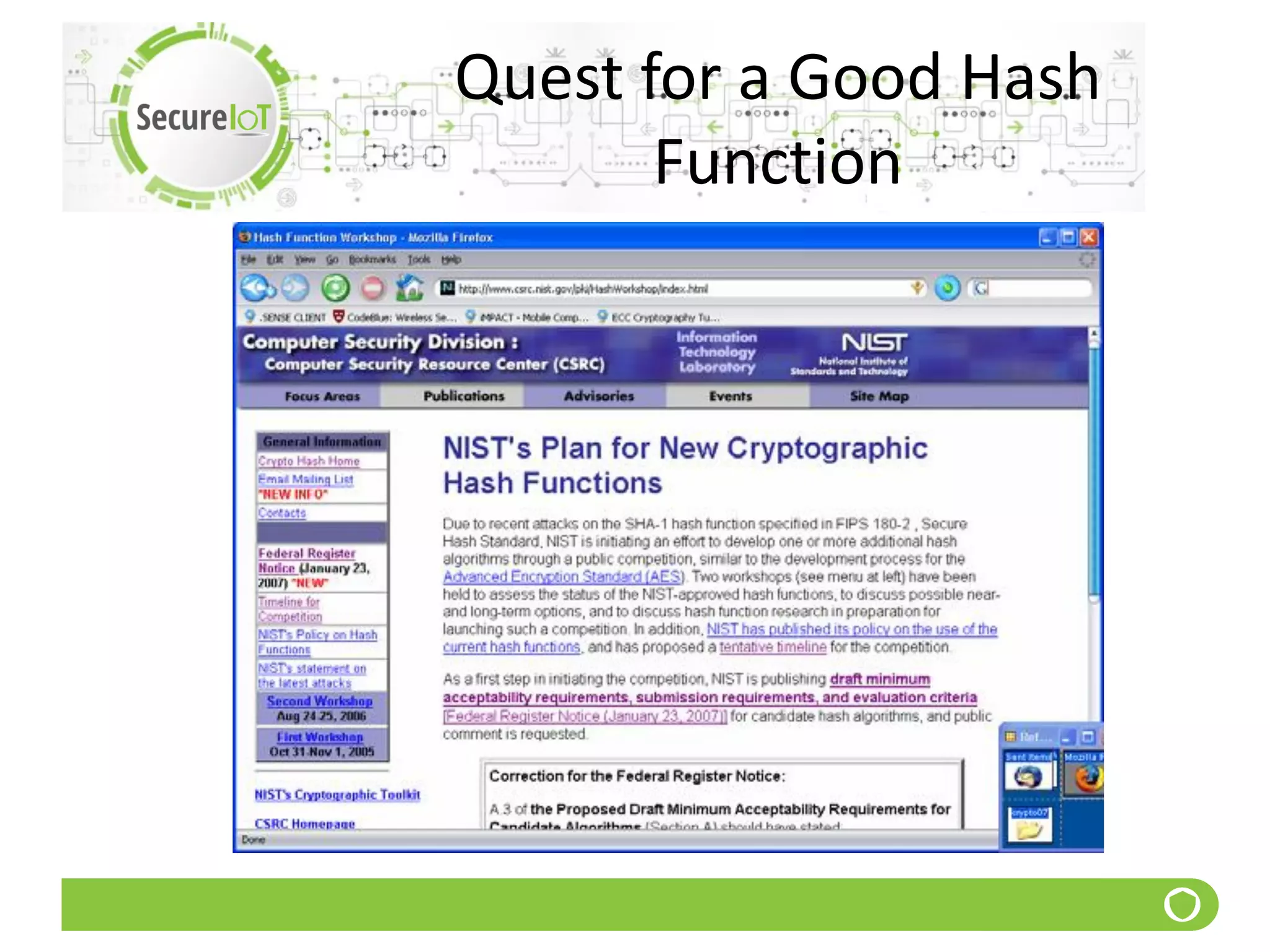

112. Quest for a Good Hash
Function

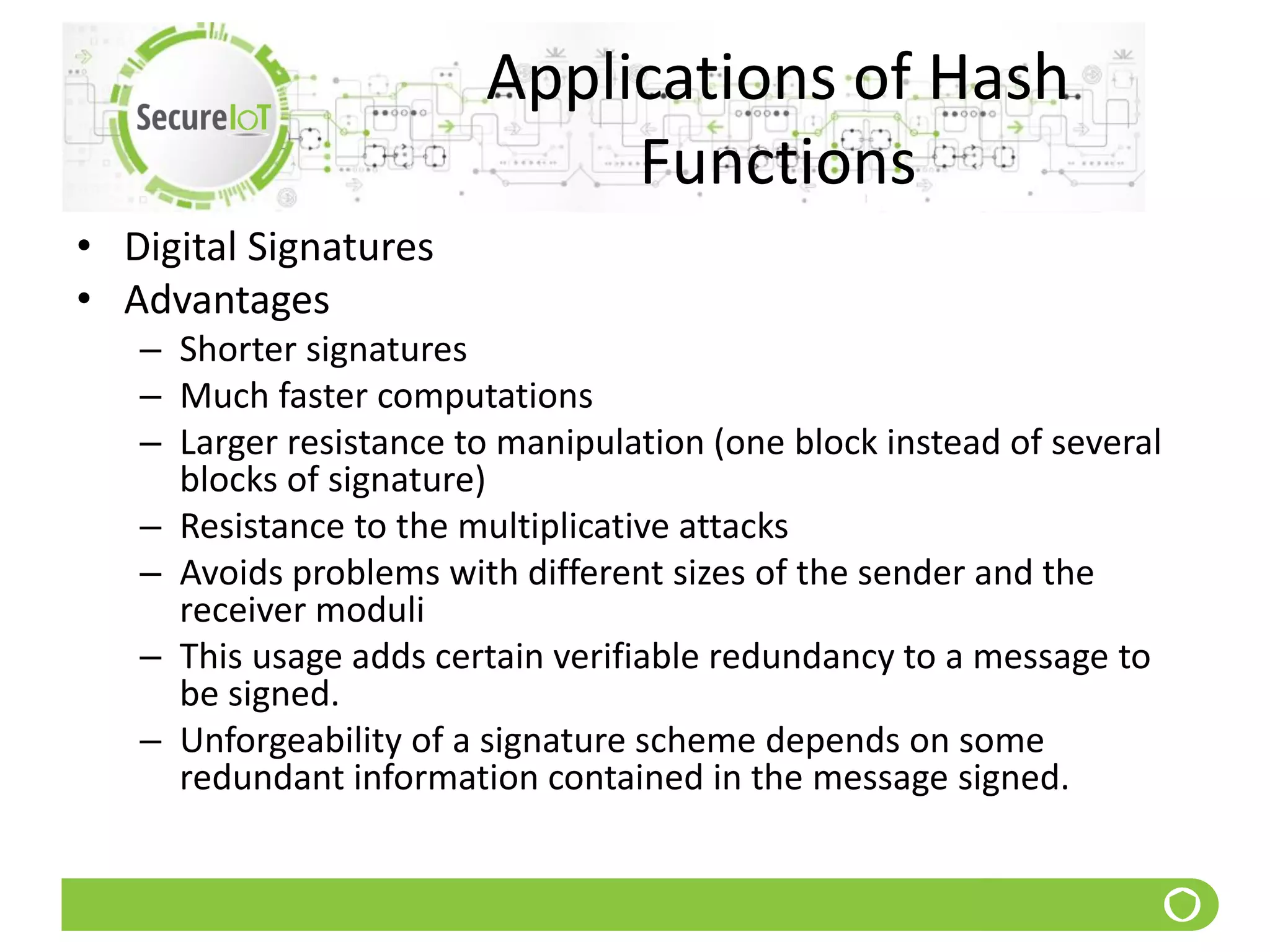

113. Applications of Hash
Functions
• Digital Signatures
• Advantages
– Shorter signatures
– Much faster computations
– Larger resistance to manipulation (one block instead of several
blocks of signature)
– Resistance to the multiplicative attacks
– Avoids problems with different sizes of the sender and the
receiver moduli
– This usage adds certain verifiable redundancy to a message to
be signed.
– Unforgeability of a signature scheme depends on some
redundant information contained in the message signed.

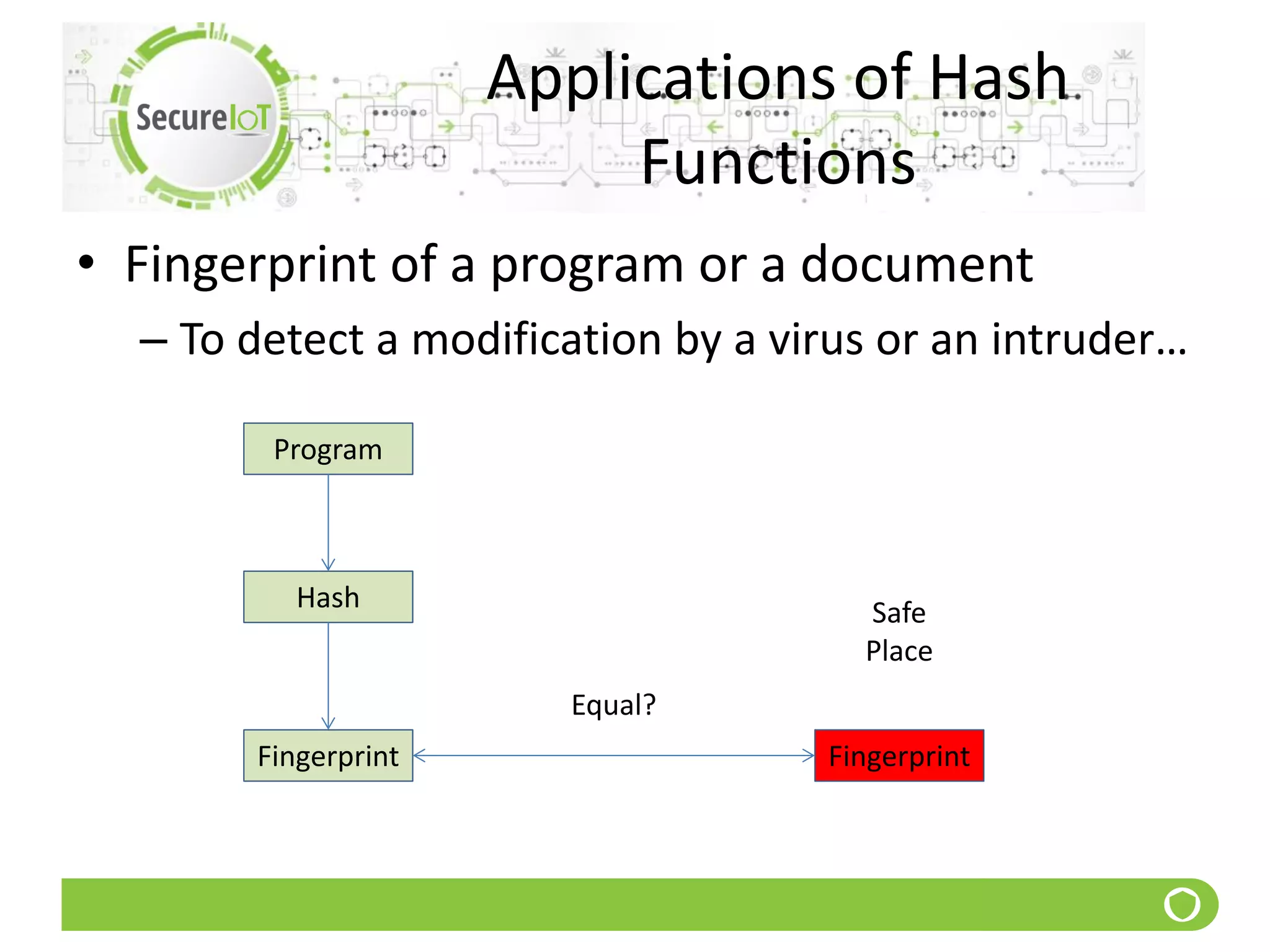

114. Applications of Hash
Functions
• Fingerprint of a program or a document
– To detect a modification by a virus or an intruder…
Program
Hash
Fingerprint Fingerprint
Safe
Place
Equal?

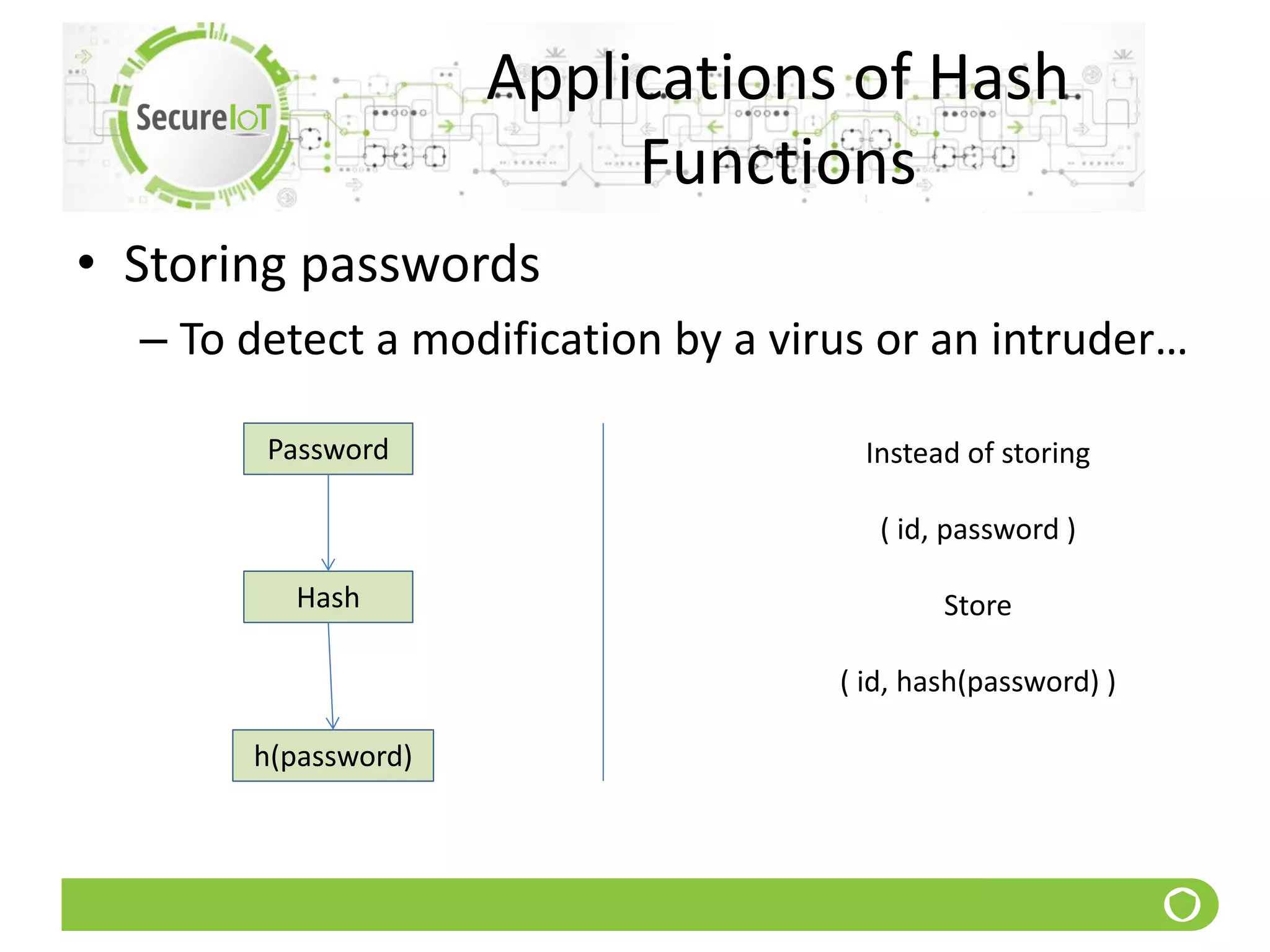

115. Applications of Hash
Functions
• Storing passwords
– To detect a modification by a virus or an intruder…
Password
Hash
h(password)
Instead of storing
( id, password )
Store
( id, hash(password) )

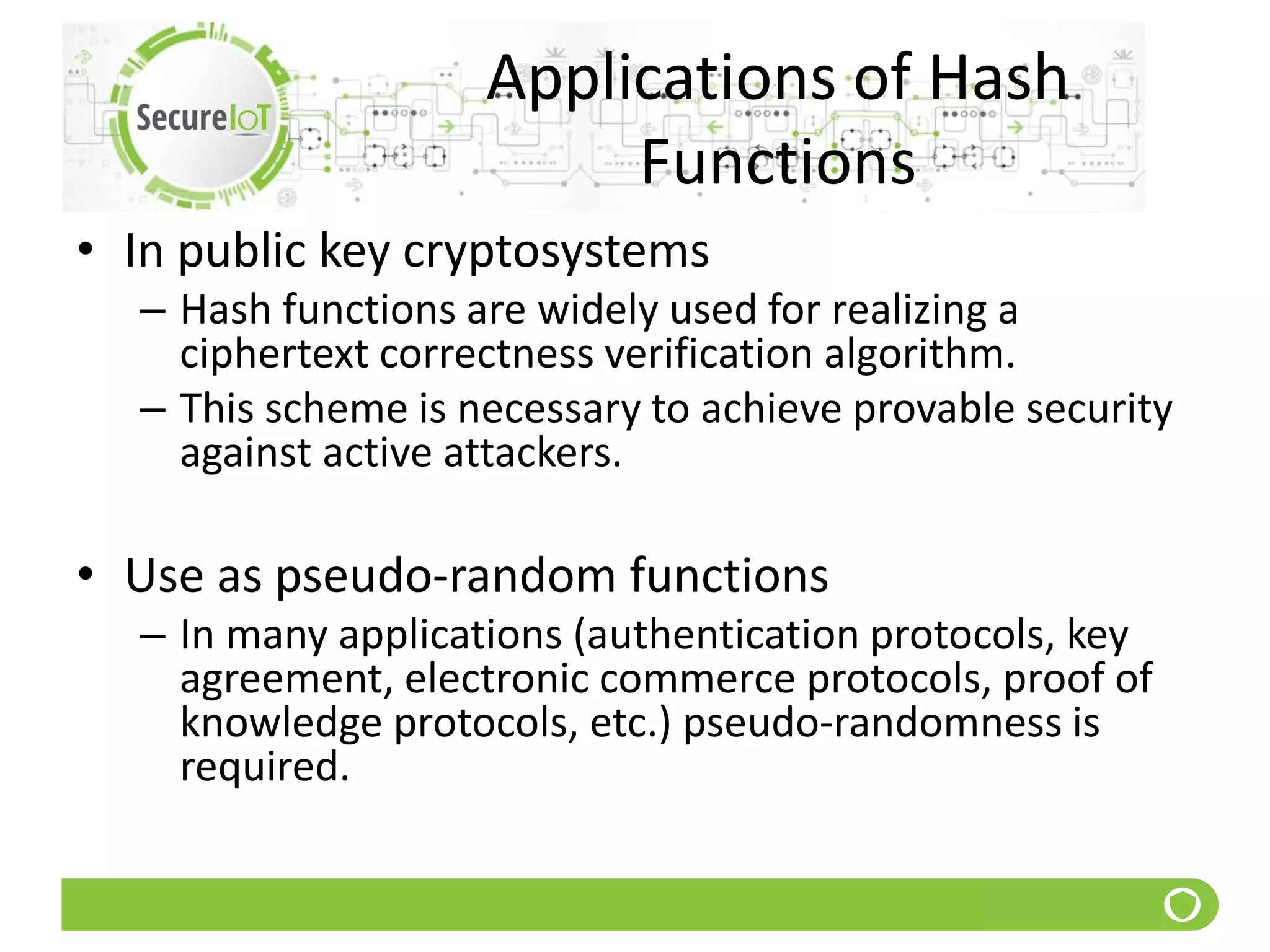

116. Applications of Hash
Functions
• In public key cryptosystems
– Hash functions are widely used for realizing a
ciphertext correctness verification algorithm.
– This scheme is necessary to achieve provable security
against active attackers.
• Use as pseudo-random functions
– In many applications (authentication protocols, key
agreement, electronic commerce protocols, proof of
knowledge protocols, etc.) pseudo-randomness is
required.

117. MESSAGE AUTHENTICATION CODES
(MACS)

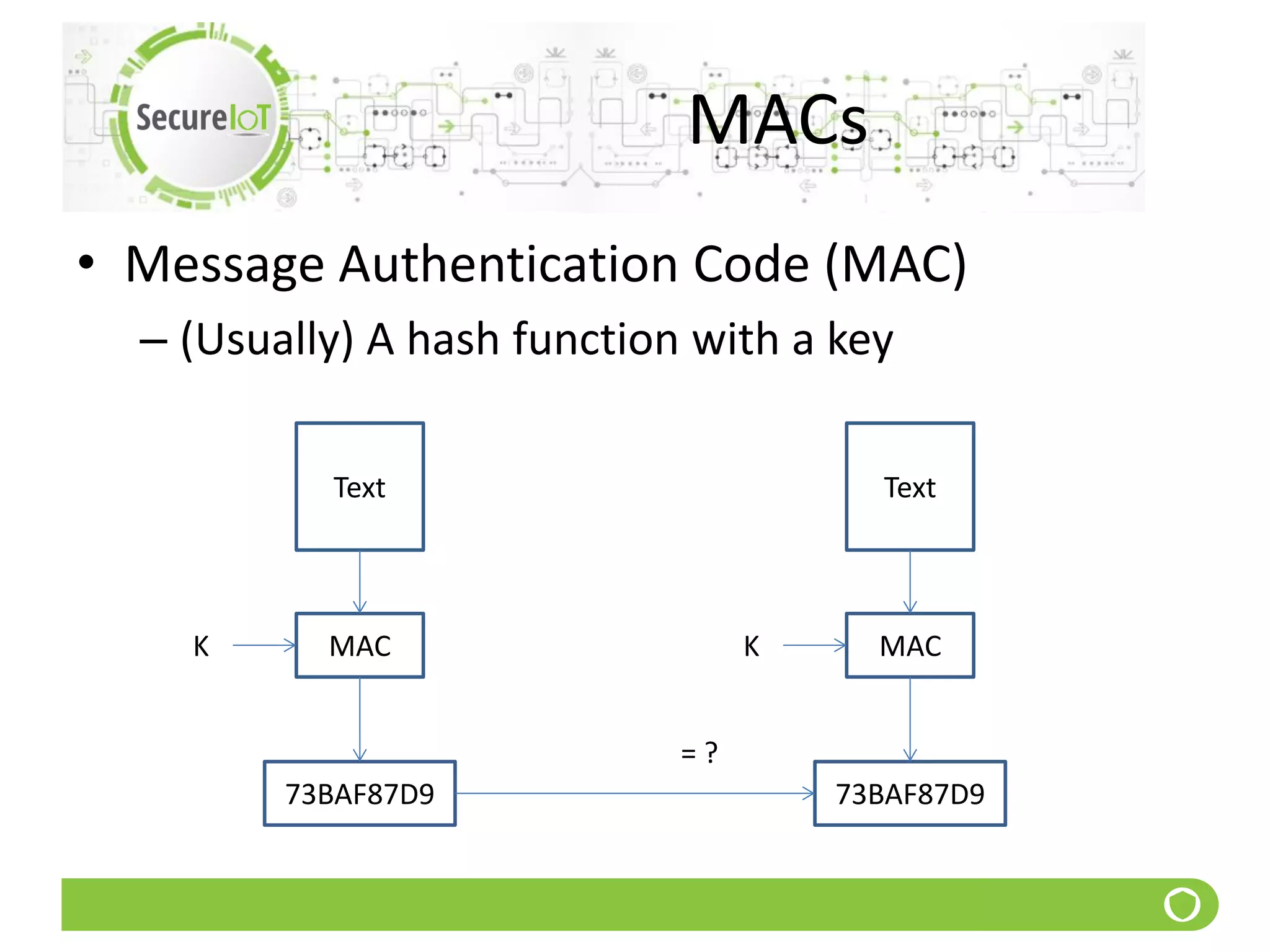

118. MACs
• Message Authentication Code (MAC)
– (Usually) A hash function with a key
Text
MAC
73BAF87D9
K
Text
MAC
73BAF87D9
K
= ?

119. Use of MA Schemes
Dear Bob,
this is to
certify that…
MAC
Scheme
K
Alice
Message
Digest
Original
Data Dear Bob,
this is to
certify that…
MAC
Scheme
Bob
K
Message
Digest
Message
Digest
If both
identical
validate
data
integrity

120. Properties of MAC
• MAC is a family of functions hk (parameterized by
the secret key k)
• Properties of MAC:
– Ease of computation (if key is known)
– Compression, x is of arbitrary length, hk(x) has fixed
length
– Computation resistance, given some pairs (xi,
MACk(xi)) is infeasible to compute a new pair (x,
MACk(x)) for any new x ≠ xi

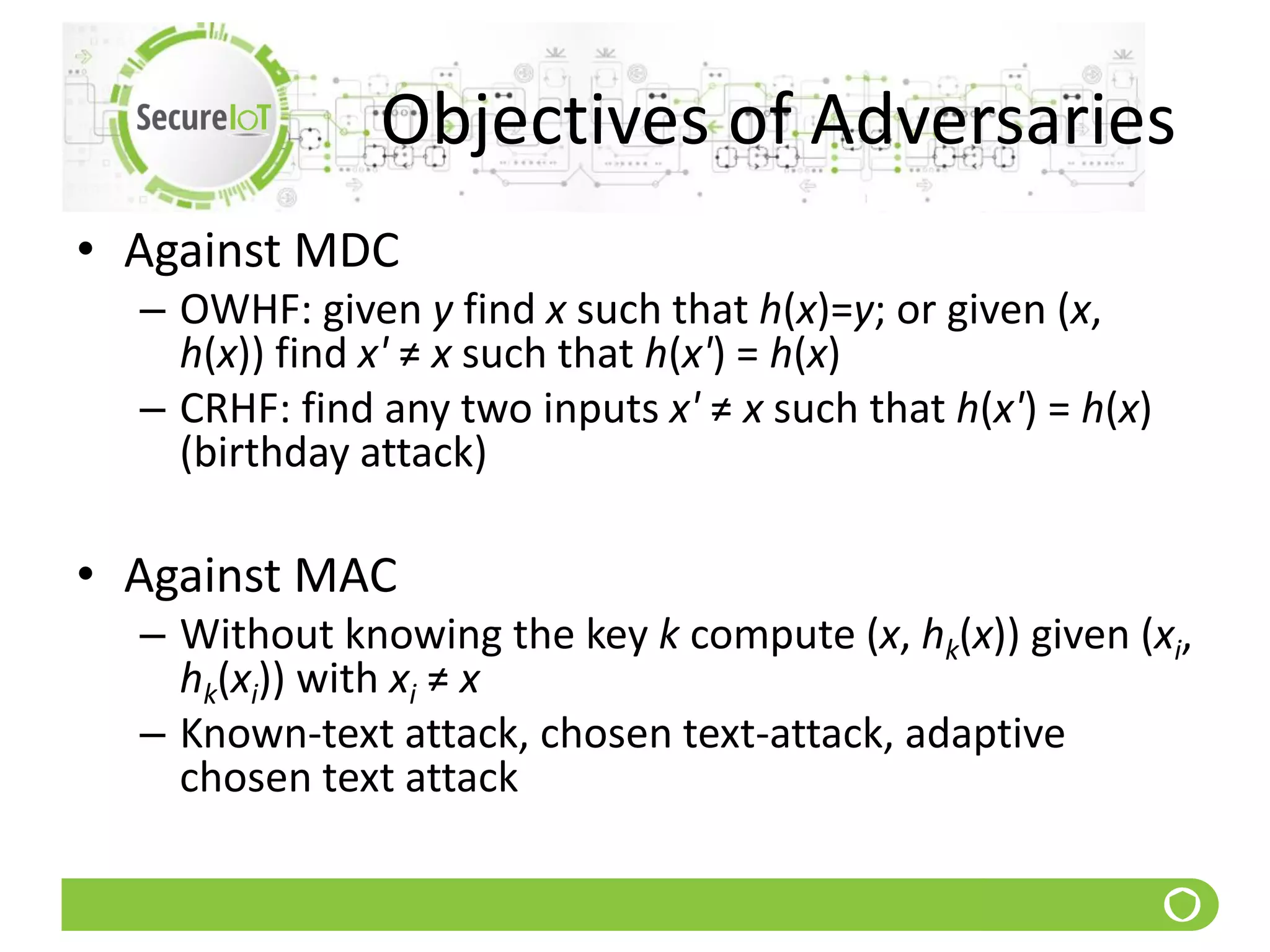

121. Objectives of Adversaries
• Against MDC
– OWHF: given y find x such that h(x)=y; or given (x,
h(x)) find x' ≠ x such that h(x') = h(x)
– CRHF: find any two inputs x' ≠ x such that h(x') = h(x)
(birthday attack)
• Against MAC
– Without knowing the key k compute (x, hk(x)) given (xi,
hk(xi)) with xi ≠ x
– Known-text attack, chosen text-attack, adaptive
chosen text attack

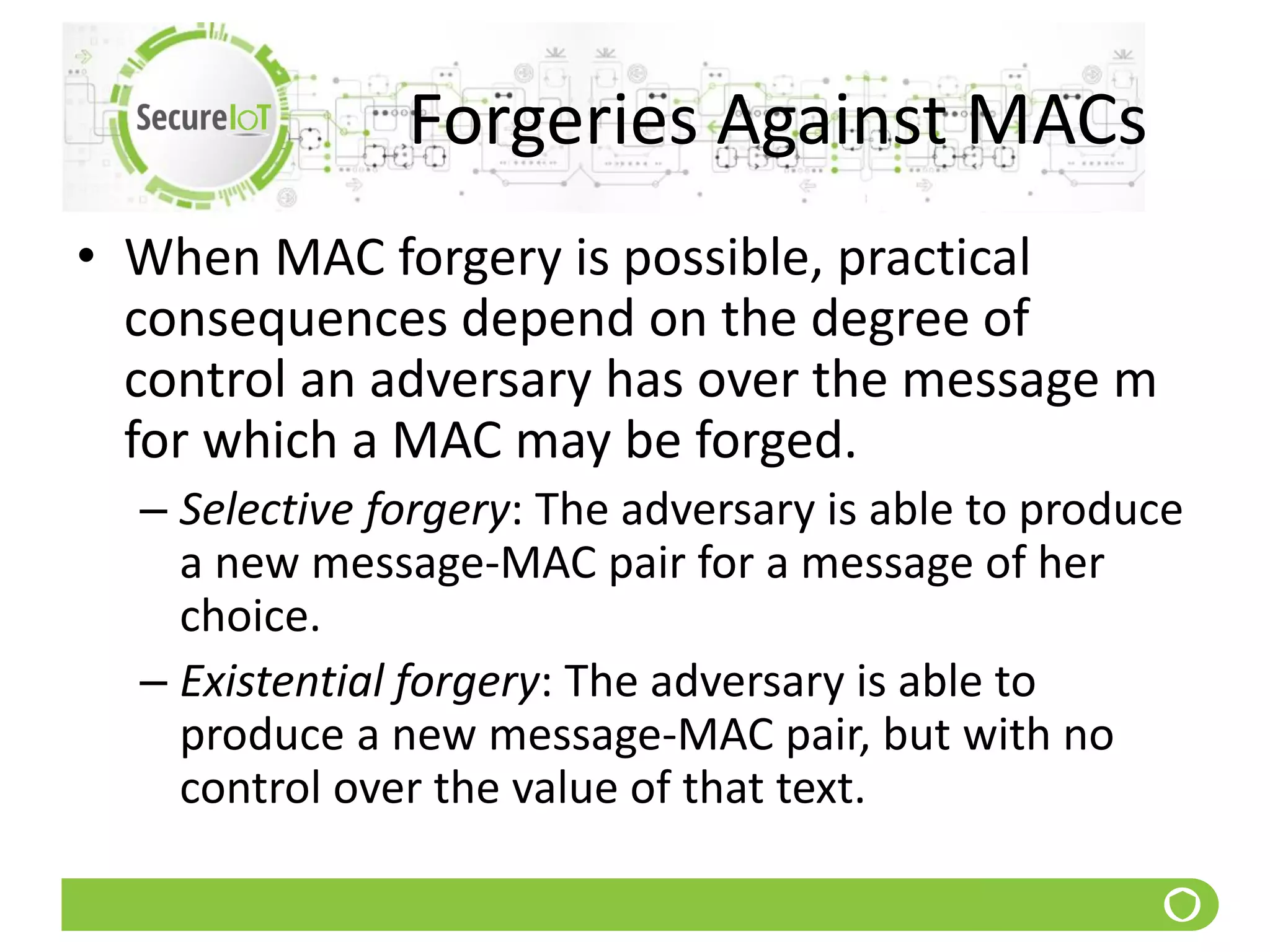

122. Forgeries Against MACs
• When MAC forgery is possible, practical
consequences depend on the degree of
control an adversary has over the message m
for which a MAC may be forged.
– Selective forgery: The adversary is able to produce
a new message-MAC pair for a message of her
choice.
– Existential forgery: The adversary is able to
produce a new message-MAC pair, but with no
control over the value of that text.

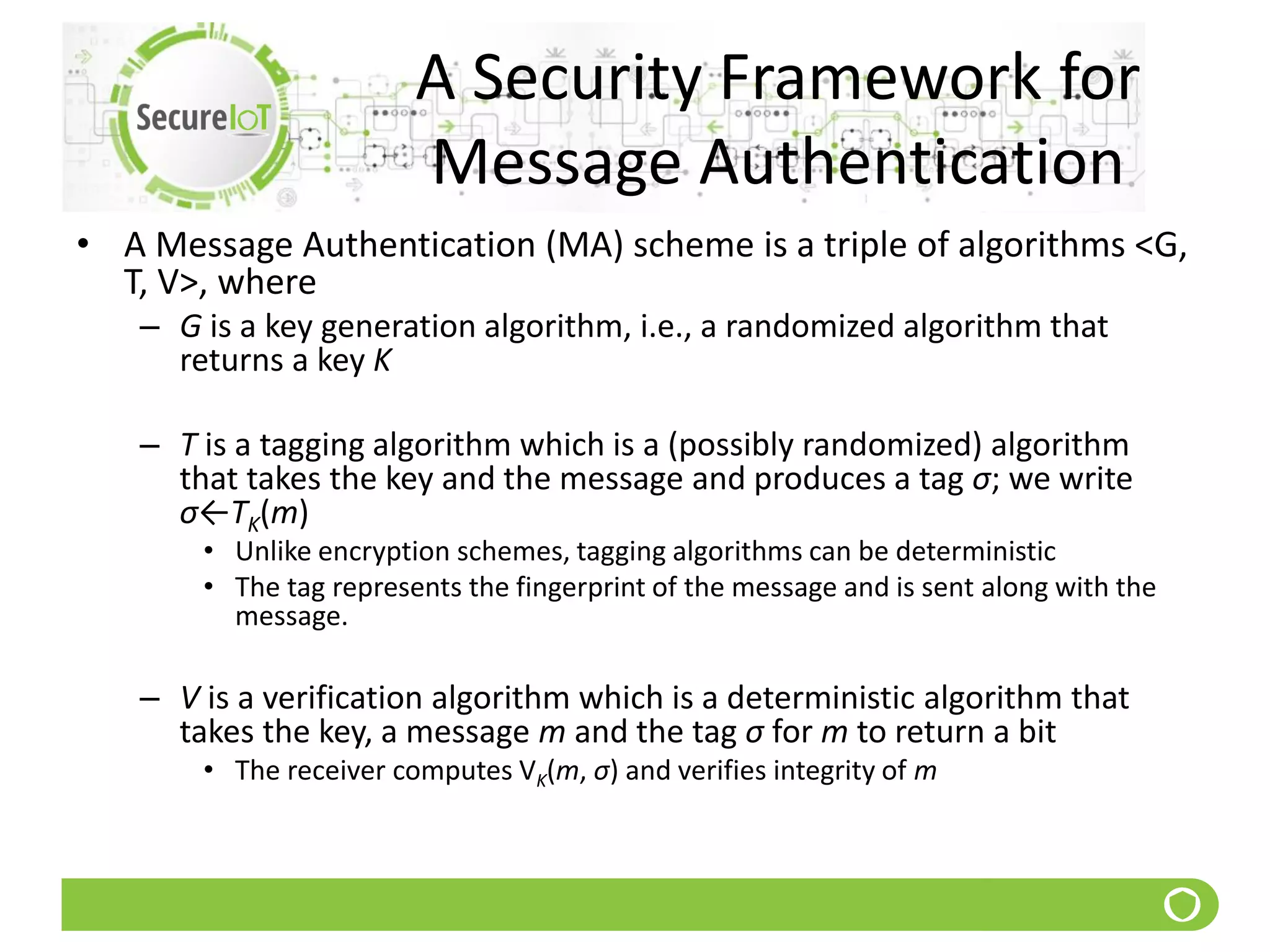

123. A Security Framework for
Message Authentication
• A Message Authentication (MA) scheme is a triple of algorithms <G,
T, V>, where
– G is a key generation algorithm, i.e., a randomized algorithm that
returns a key K
– T is a tagging algorithm which is a (possibly randomized) algorithm
that takes the key and the message and produces a tag σ; we write
σ←TK(m)
• Unlike encryption schemes, tagging algorithms can be deterministic
• The tag represents the fingerprint of the message and is sent along with the
message.
– V is a verification algorithm which is a deterministic algorithm that
takes the key, a message m and the tag σ for m to return a bit
• The receiver computes VK(m, σ) and verifies integrity of m

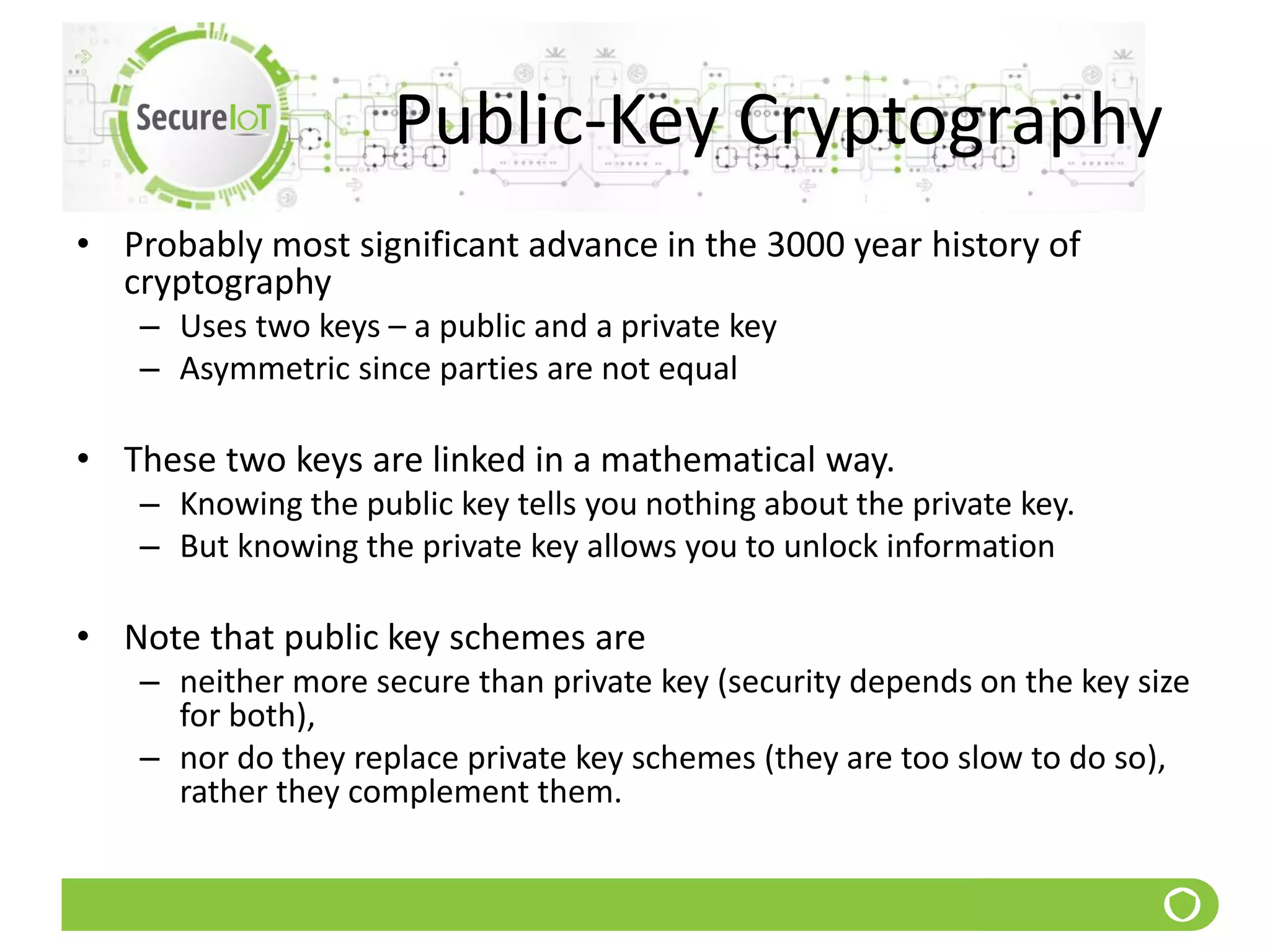

124. Public-Key Cryptography
• Probably most significant advance in the 3000 year history of
cryptography
– Uses two keys – a public and a private key
– Asymmetric since parties are not equal
• These two keys are linked in a mathematical way.
– Knowing the public key tells you nothing about the private key.
– But knowing the private key allows you to unlock information
• Note that public key schemes are
– neither more secure than private key (security depends on the key size
for both),
– nor do they replace private key schemes (they are too slow to do so),
rather they complement them.

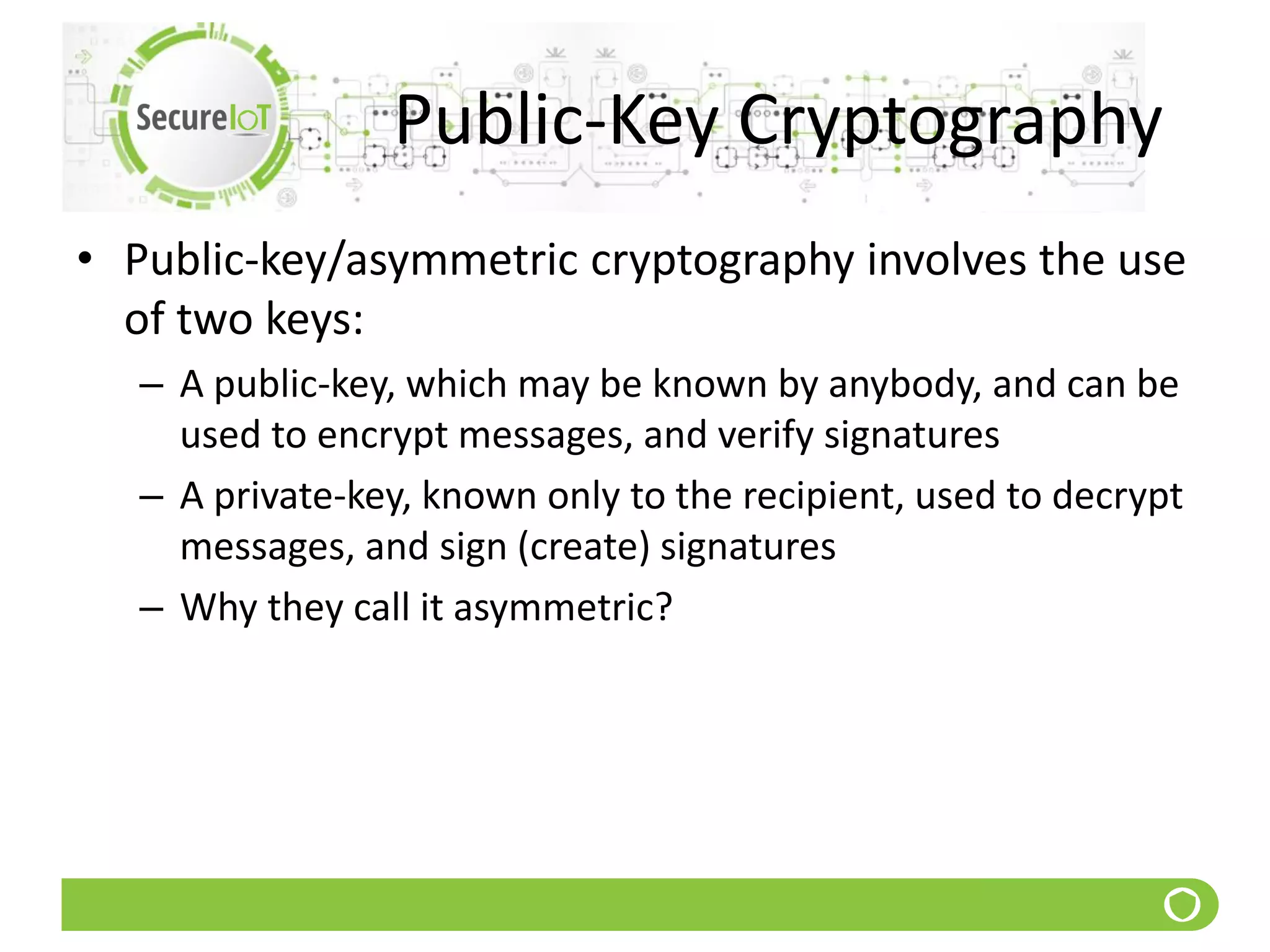

125. Public-Key Cryptography
• Public-key/asymmetric cryptography involves the use
of two keys:
– A public-key, which may be known by anybody, and can be
used to encrypt messages, and verify signatures
– A private-key, known only to the recipient, used to decrypt
messages, and sign (create) signatures
– Why they call it asymmetric?

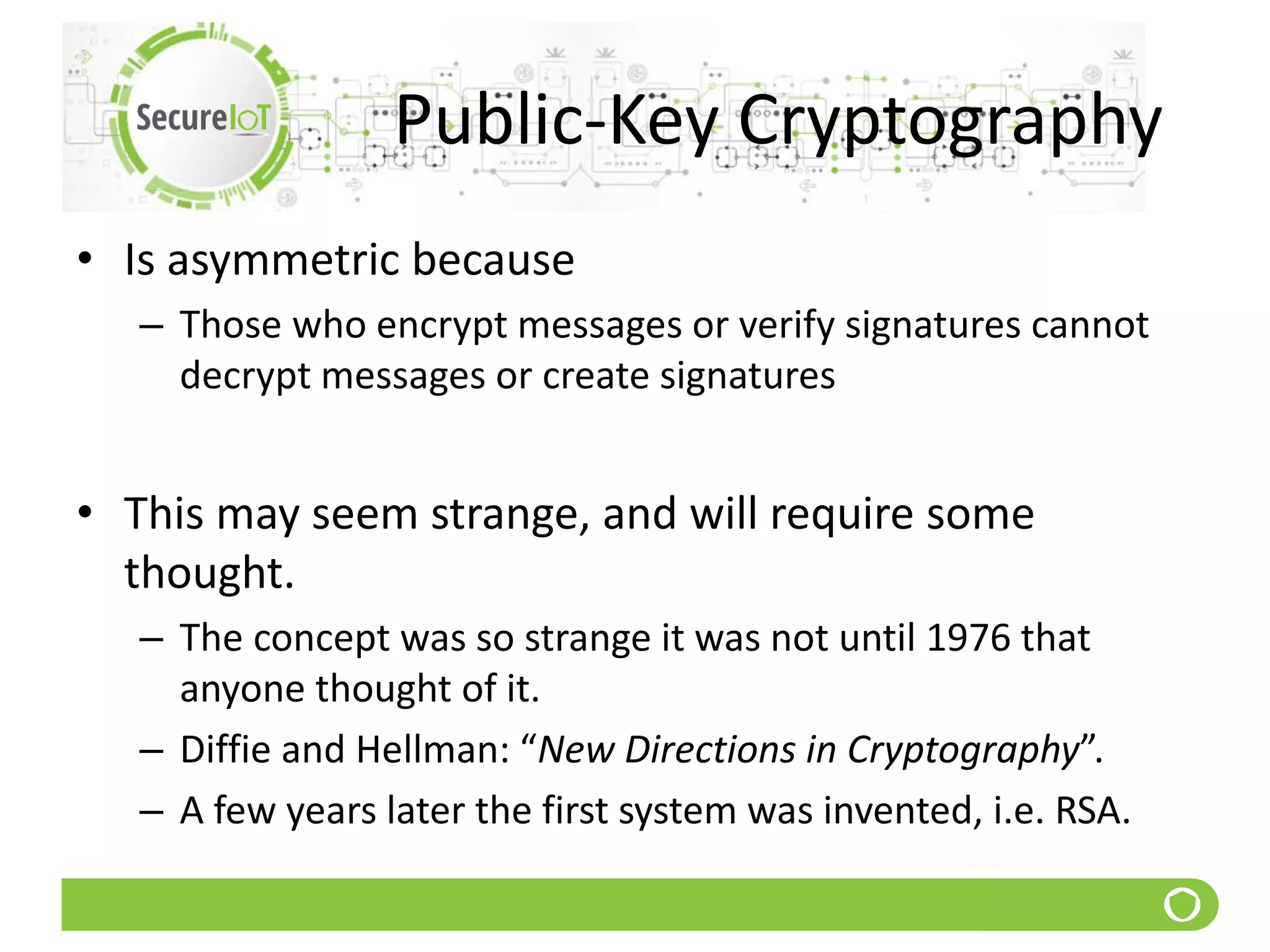

126. Public-Key Cryptography
• Is asymmetric because
– Those who encrypt messages or verify signatures cannot
decrypt messages or create signatures
• This may seem strange, and will require some
thought.
– The concept was so strange it was not until 1976 that
anyone thought of it.
– Diffie and Hellman: “New Directions in Cryptography”.
– A few years later the first system was invented, i.e. RSA.

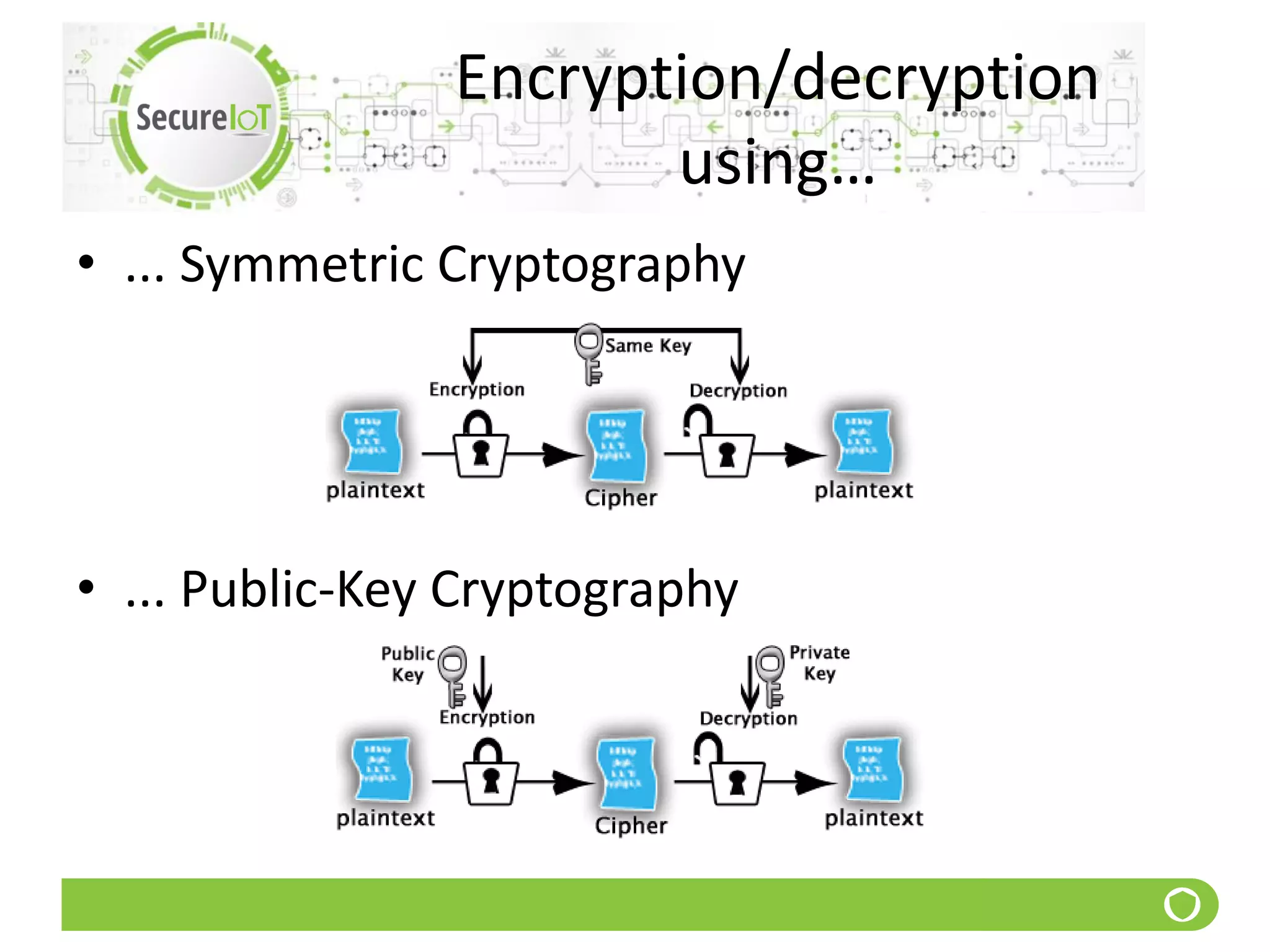

127. Encryption/decryption
using…
• ... Symmetric Cryptography
• ... Public-Key Cryptography

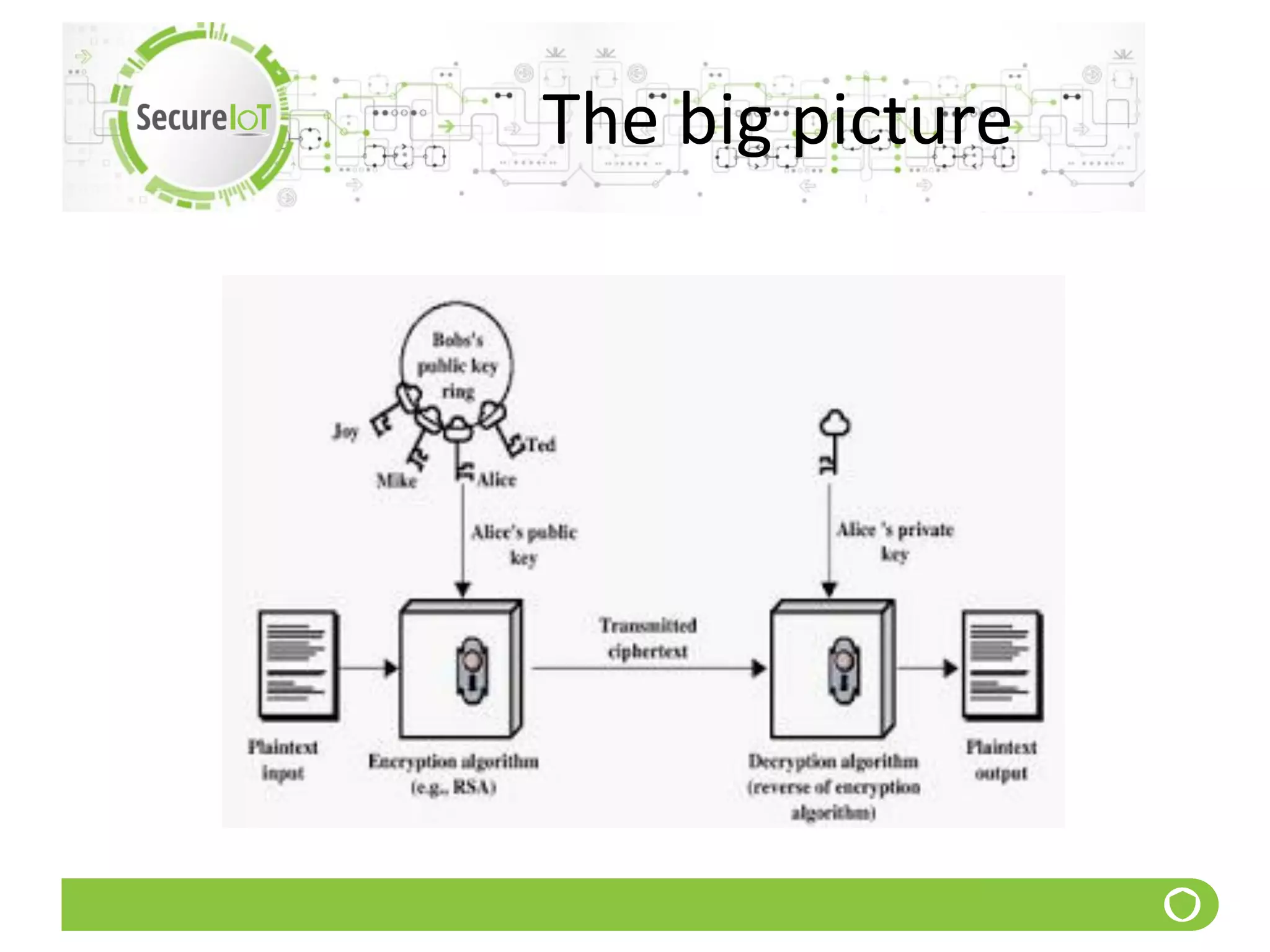

128. The big picture

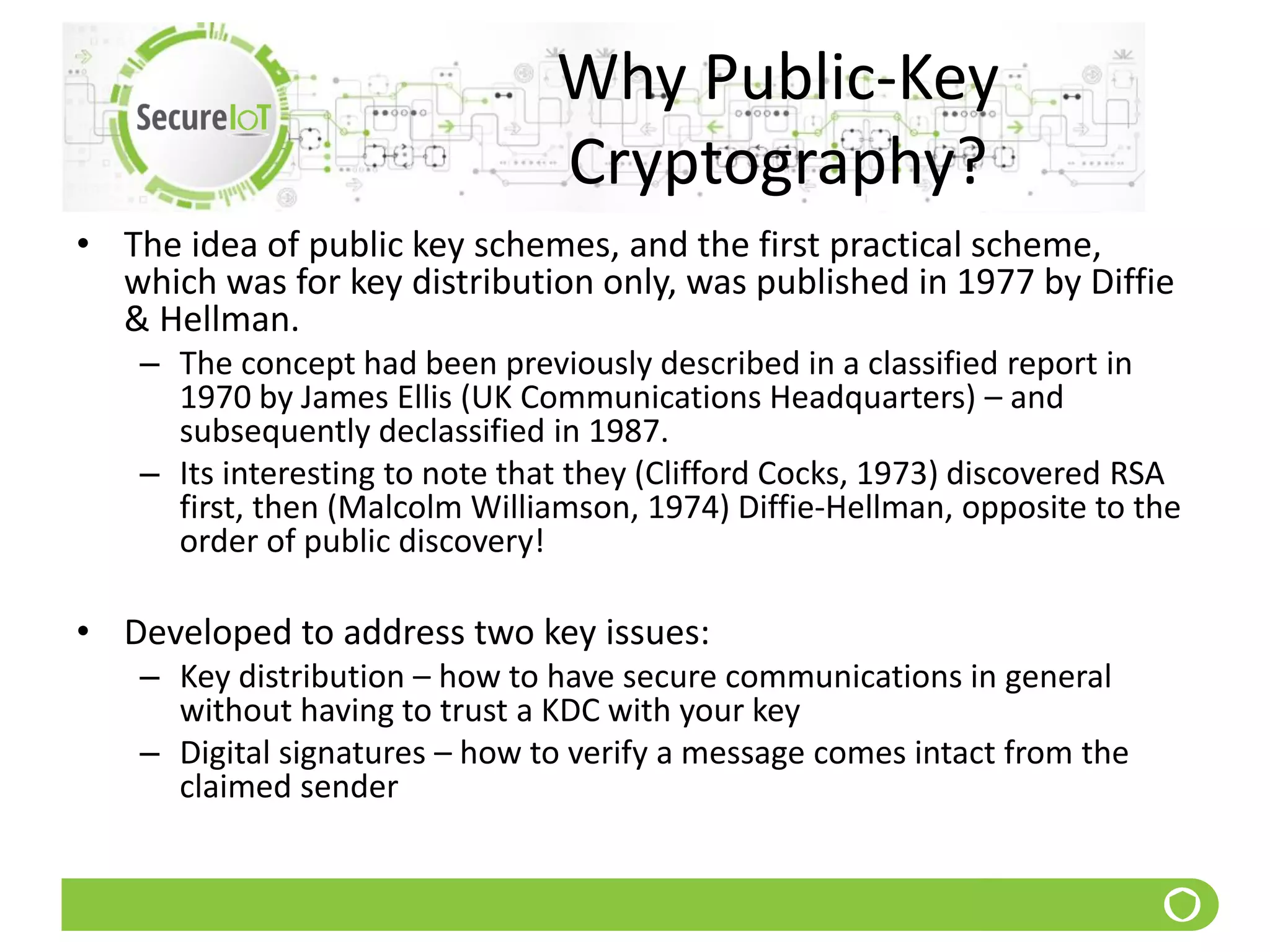

129. Why Public-Key
Cryptography?
• The idea of public key schemes, and the first practical scheme,
which was for key distribution only, was published in 1977 by Diffie
& Hellman.
– The concept had been previously described in a classified report in
1970 by James Ellis (UK Communications Headquarters) – and
subsequently declassified in 1987.
– Its interesting to note that they (Clifford Cocks, 1973) discovered RSA
first, then (Malcolm Williamson, 1974) Diffie-Hellman, opposite to the
order of public discovery!
• Developed to address two key issues:
– Key distribution – how to have secure communications in general
without having to trust a KDC with your key
– Digital signatures – how to verify a message comes intact from the
claimed sender

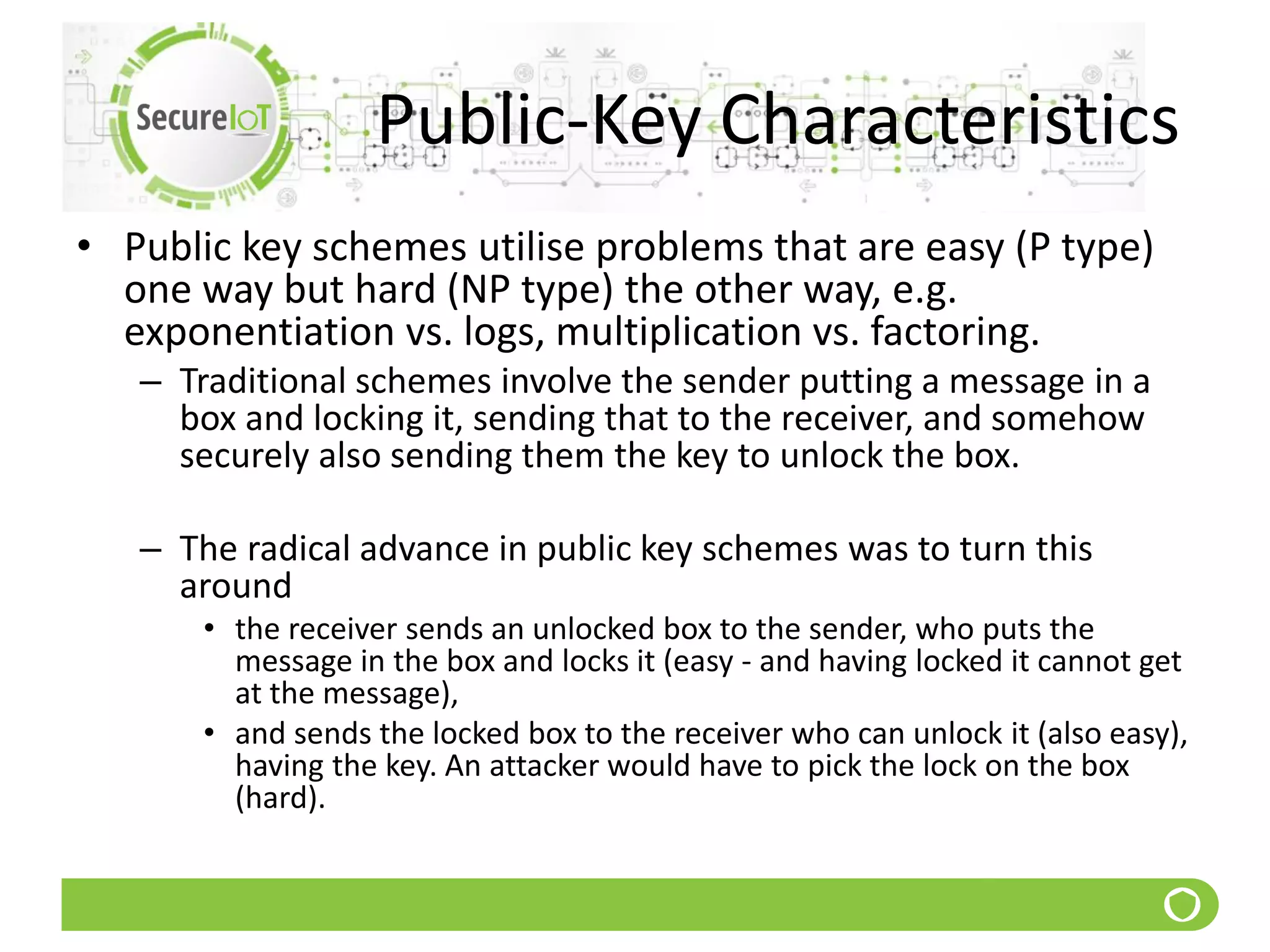

130. Public-Key Characteristics
• Public key schemes utilise problems that are easy (P type)
one way but hard (NP type) the other way, e.g.
exponentiation vs. logs, multiplication vs. factoring.
– Traditional schemes involve the sender putting a message in a
box and locking it, sending that to the receiver, and somehow
securely also sending them the key to unlock the box.
– The radical advance in public key schemes was to turn this
around
• the receiver sends an unlocked box to the sender, who puts the
message in the box and locks it (easy - and having locked it cannot get
at the message),
• and sends the locked box to the receiver who can unlock it (also easy),
having the key. An attacker would have to pick the lock on the box
(hard).

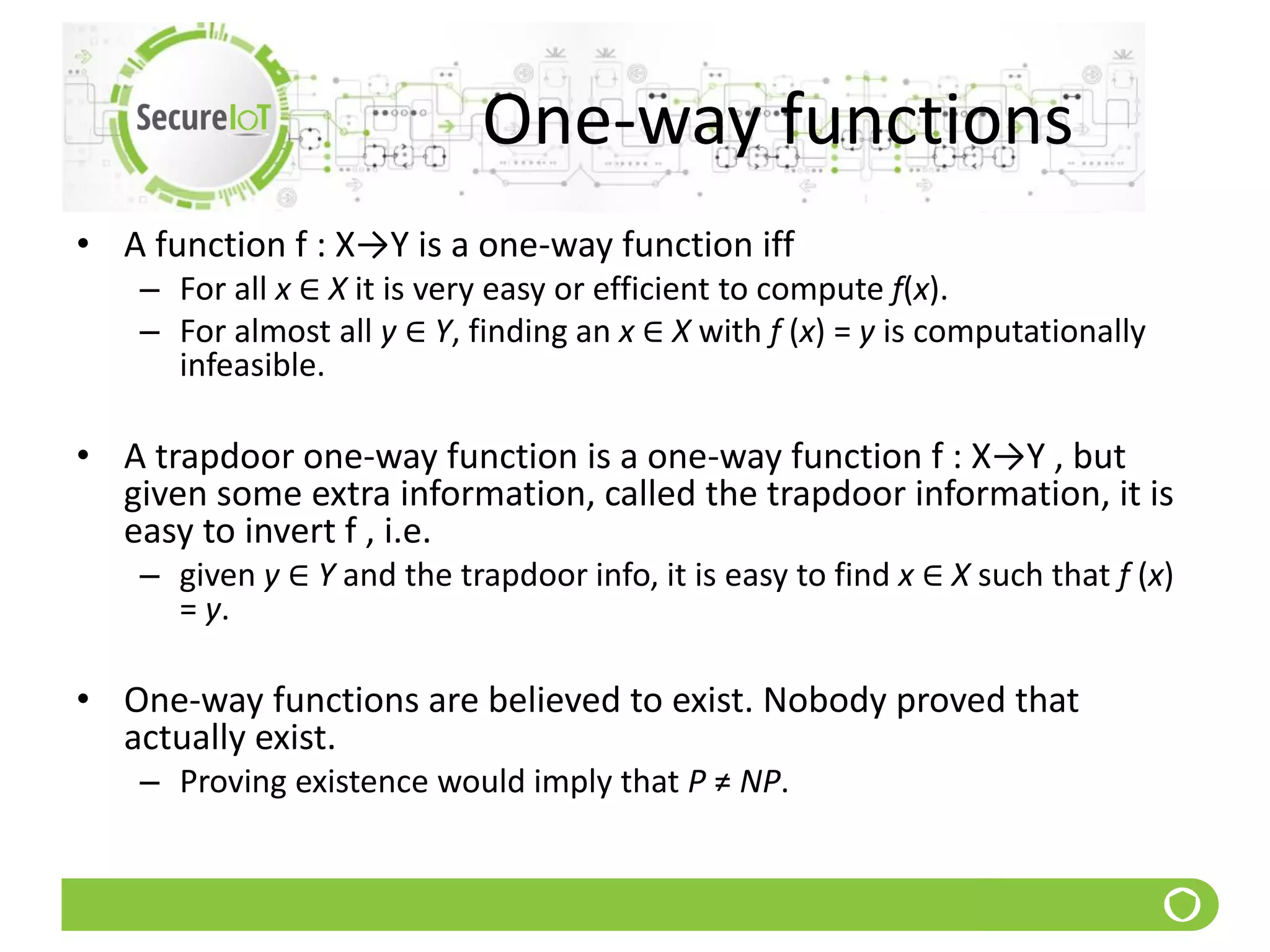

131. One-way functions
• A function f : X→Y is a one-way function iff
– For all x ∈ X it is very easy or efficient to compute f(x).
– For almost all y ∈ Y, finding an x ∈ X with f (x) = y is computationally
infeasible.
• A trapdoor one-way function is a one-way function f : X→Y , but
given some extra information, called the trapdoor information, it is
easy to invert f , i.e.
– given y ∈ Y and the trapdoor info, it is easy to find x ∈ X such that f (x)
= y.
• One-way functions are believed to exist. Nobody proved that
actually exist.
– Proving existence would imply that P ≠ NP.

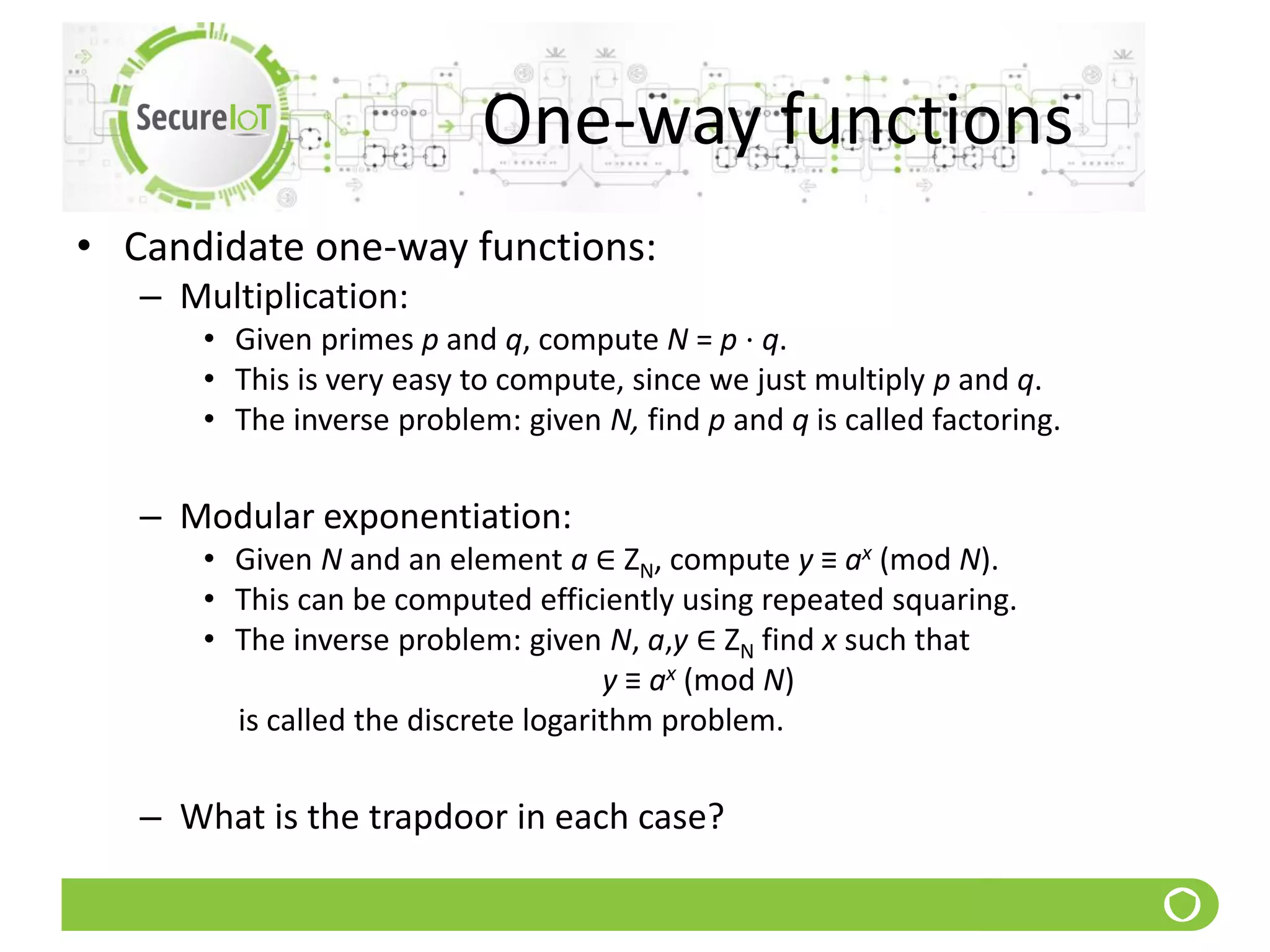

132. One-way functions
• Candidate one-way functions:
– Multiplication:
• Given primes p and q, compute N = p ⋅ q.
• This is very easy to compute, since we just multiply p and q.
• The inverse problem: given N, find p and q is called factoring.
– Modular exponentiation:
• Given N and an element a ∈ ZN, compute y ≡ ax (mod N).
• This can be computed efficiently using repeated squaring.
• The inverse problem: given N, a,y ∈ ZN find x such that
y ≡ ax (mod N)
is called the discrete logarithm problem.
– What is the trapdoor in each case?

133. Security of Public Key
Schemes
• Public key schemes are no more or less secure than private
key schemes
– In both cases the size of the key determines the security.
– Note also that you can’t compare key sizes - a 64-bit private key
scheme has very roughly similar security to a 512-bit RSA – both
could be broken given sufficient resources.
– But with public key schemes at least there’s usually a firmer
theoretical basis for determining the security since its based on
well-known and well studied number theory problems.
• Requires the use of very large numbers
– Hence is slow compared to private key schemes
– And computationally expensive

134. Diffie-Hellman Key Exchange
• Establishment of a shared key
between two entities had always
been a difficult problem
– Required a confidential channel
– An important advantage of public key
cryptography is its use in the
exchange of a secret key
• The first practical scheme was
proposed by Diffie-Hellman in 1976
– Known as Diffie-Hellman key
exchange
Ralph Merkle - left
Martin Hellman - middle
Whitfield Diffie - right

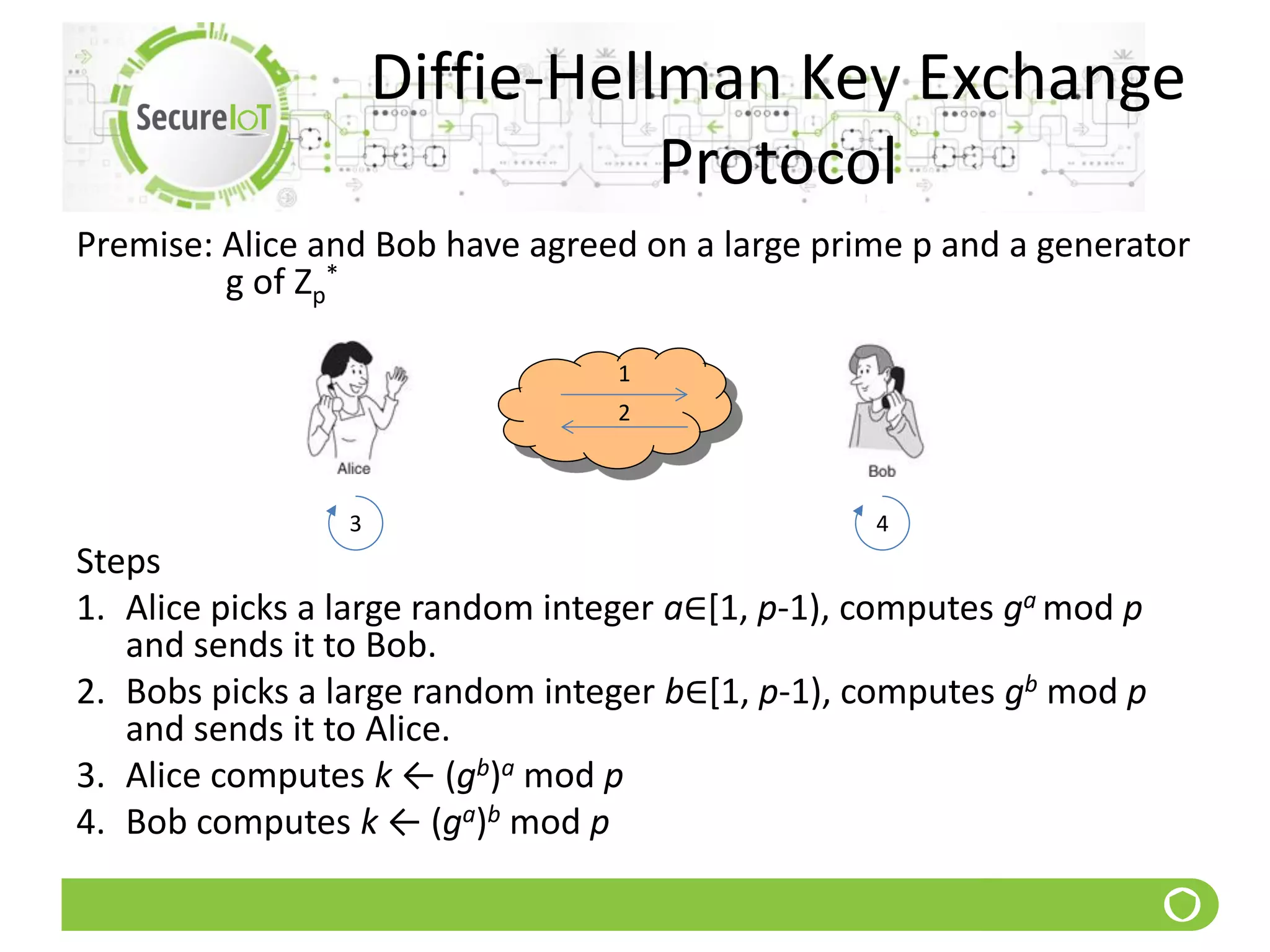

135. Diffie-Hellman Key Exchange
Protocol
Premise: Alice and Bob have agreed on a large prime p and a generator
g of Zp
*
Steps
1. Alice picks a large random integer a∈[1, p-1), computes ga mod p
and sends it to Bob.
2. Bobs picks a large random integer b∈[1, p-1), computes gb mod p
and sends it to Alice.
3. Alice computes k ← (gb)a mod p
4. Bob computes k ← (ga)b mod p
1
2
3 4

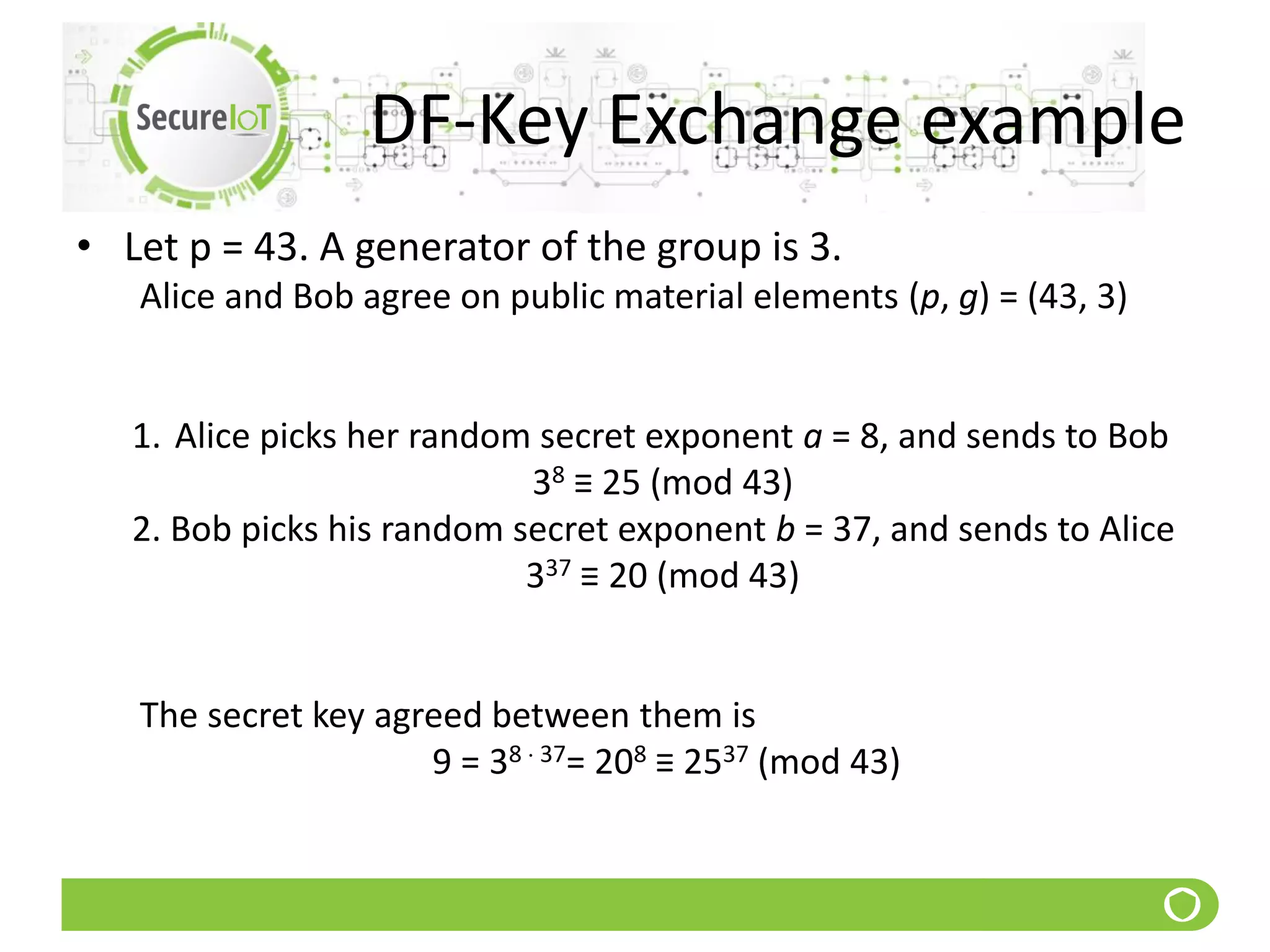

136. DF-Key Exchange example
• Let p = 43. A generator of the group is 3.
Alice and Bob agree on public material elements (p, g) = (43, 3)
1. Alice picks her random secret exponent a = 8, and sends to Bob
38 ≡ 25 (mod 43)
2. Bob picks his random secret exponent b = 37, and sends to Alice
337 ≡ 20 (mod 43)
The secret key agreed between them is
9 = 38  37= 208 ≡ 2537 (mod 43)

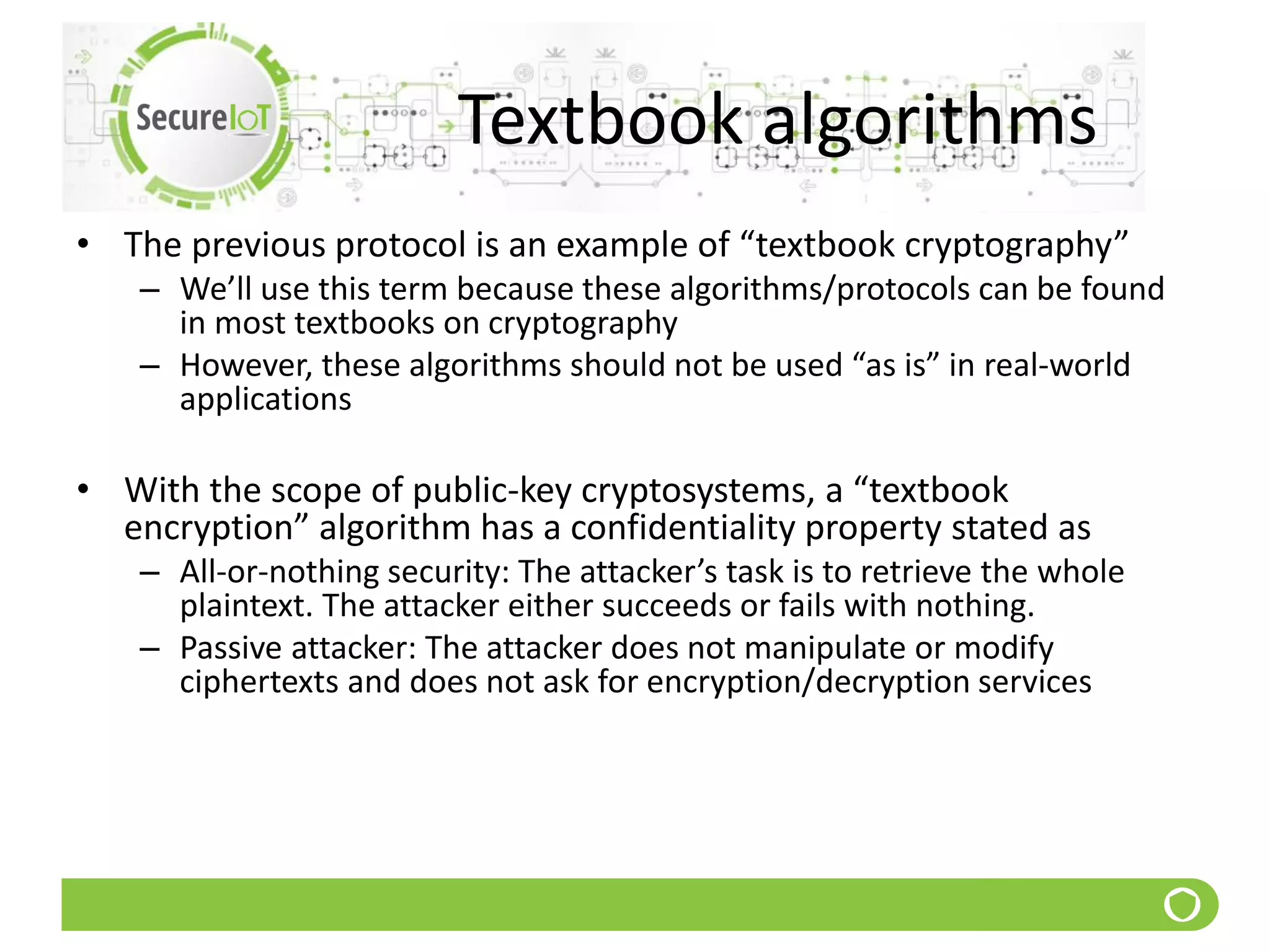

137. Textbook algorithms
• The previous protocol is an example of “textbook cryptography”
– We’ll use this term because these algorithms/protocols can be found
in most textbooks on cryptography
– However, these algorithms should not be used “as is” in real-world
applications
• With the scope of public-key cryptosystems, a “textbook
encryption” algorithm has a confidentiality property stated as
– All-or-nothing security: The attacker’s task is to retrieve the whole
plaintext. The attacker either succeeds or fails with nothing.
– Passive attacker: The attacker does not manipulate or modify
ciphertexts and does not ask for encryption/decryption services

138. Diffie-Hellman Key Exchange
Protocol
How can the previous protocol be attacked?
• We are looking for an active attack
where Eve can fool the two participants
• This would be an attack on what?

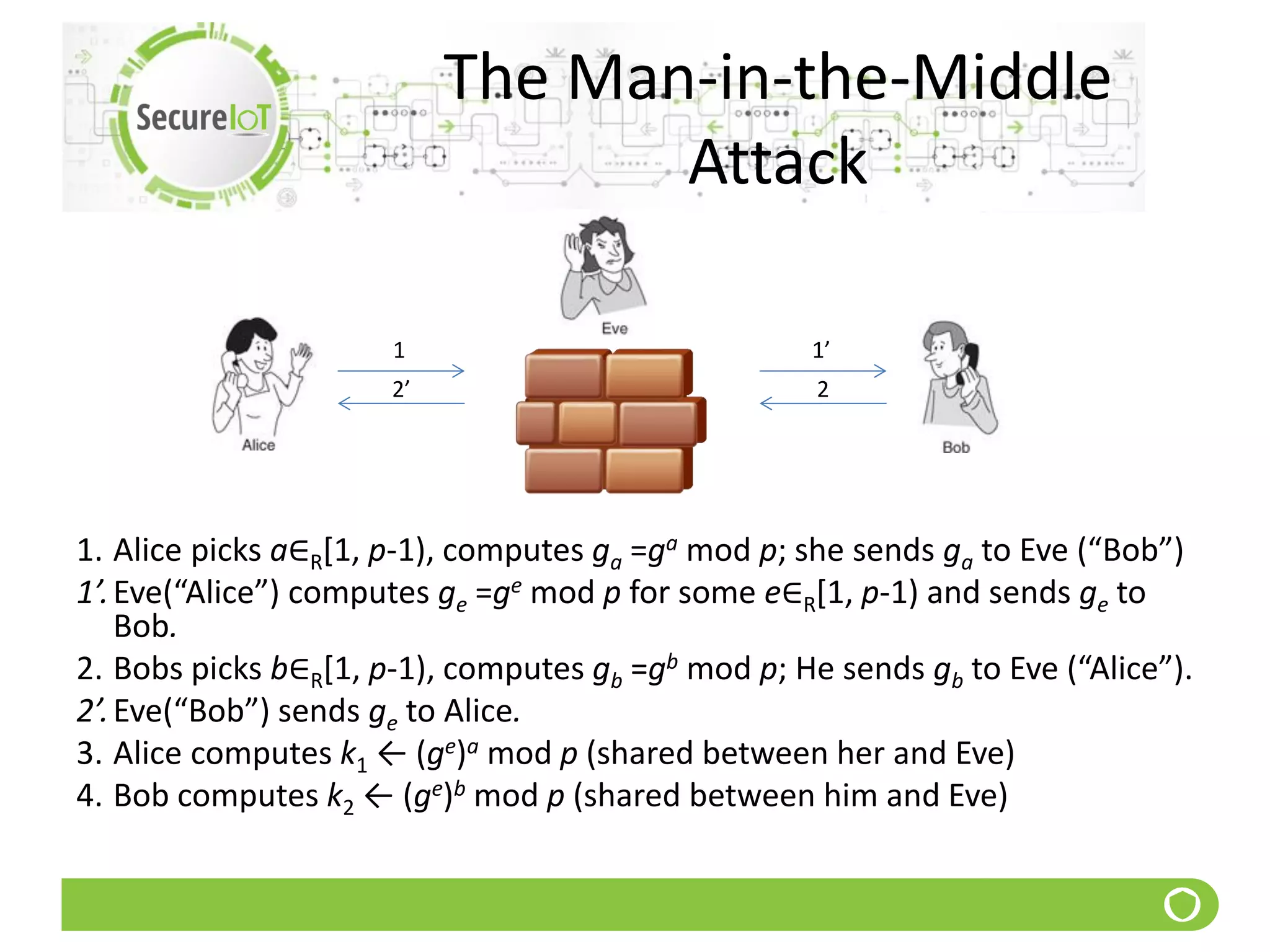

139. The Man-in-the-Middle
Attack
1. Alice picks a∈R[1, p-1), computes ga =ga mod p; she sends ga to Eve (“Bob”)
1’.Eve(“Alice”) computes ge =ge mod p for some e∈R[1, p-1) and sends ge to
Bob.
2. Bobs picks b∈R[1, p-1), computes gb =gb mod p; He sends gb to Eve (“Alice”).
2’.Eve(“Bob”) sends ge to Alice.
3. Alice computes k1 ← (ge)a mod p (shared between her and Eve)
4. Bob computes k2 ← (ge)b mod p (shared between him and Eve)
1
2’
1’
2

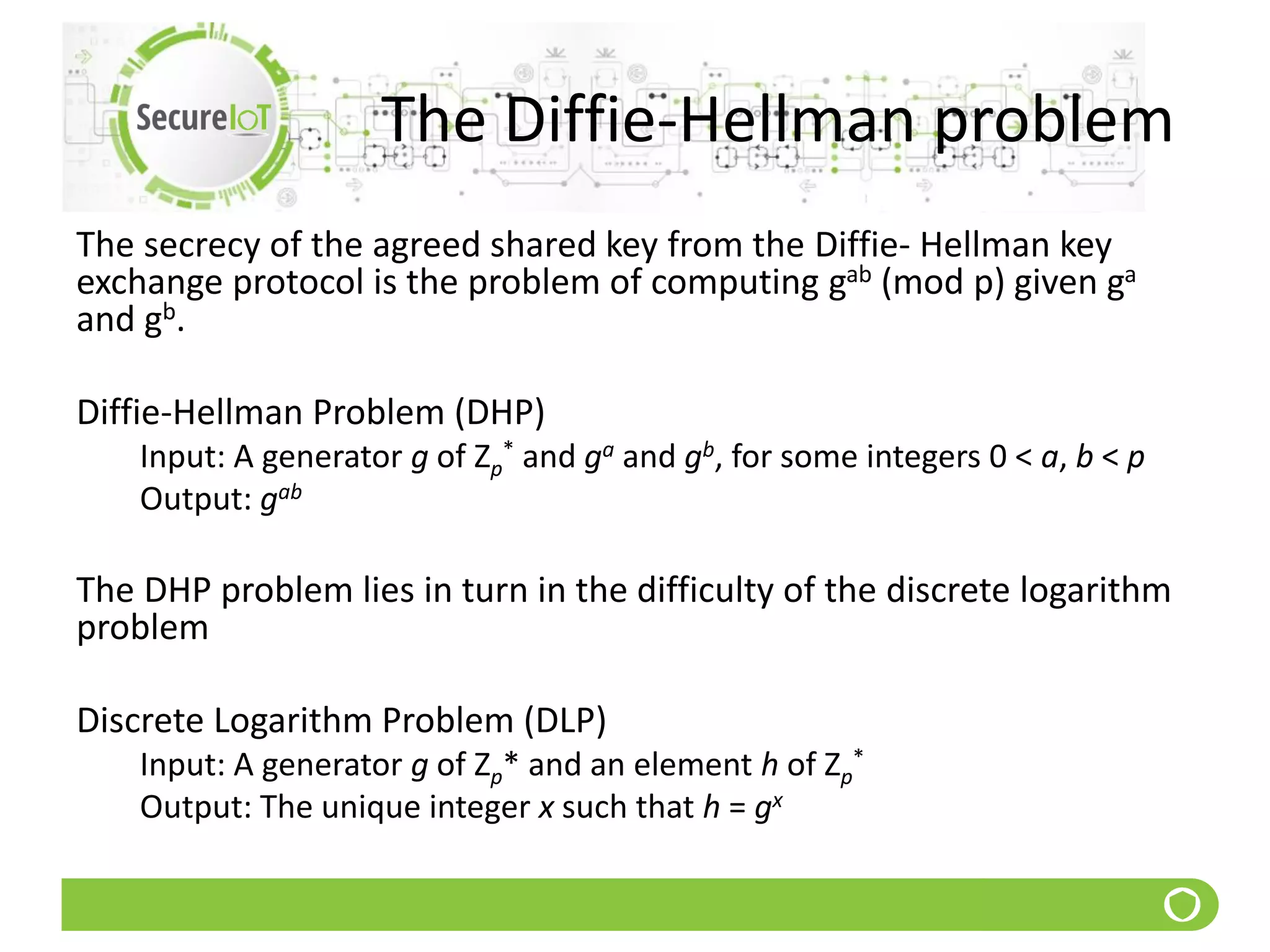

140. The Diffie-Hellman problem
The secrecy of the agreed shared key from the Diffie- Hellman key
exchange protocol is the problem of computing gab (mod p) given ga
and gb.
Diffie-Hellman Problem (DHP)
Input: A generator g of Zp
* and ga and gb, for some integers 0 < a, b < p
Output: gab
The DHP problem lies in turn in the difficulty of the discrete logarithm
problem
Discrete Logarithm Problem (DLP)
Input: A generator g of Zp* and an element h of Zp
*
Output: The unique integer x such that h = gx

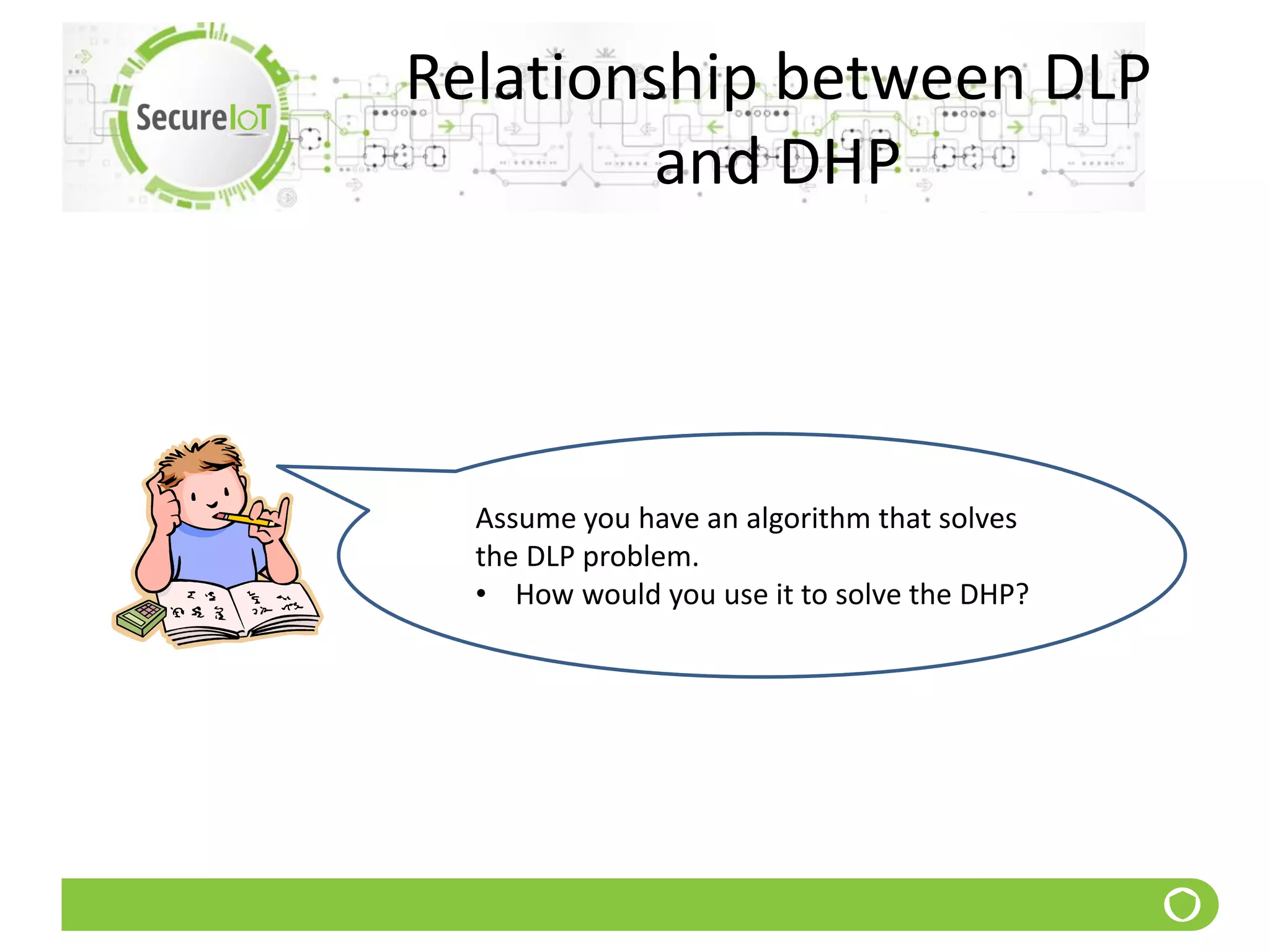

141. Relationship between DLP
and DHP
Assume you have an algorithm that solves
the DLP problem.
• How would you use it to solve the DHP?

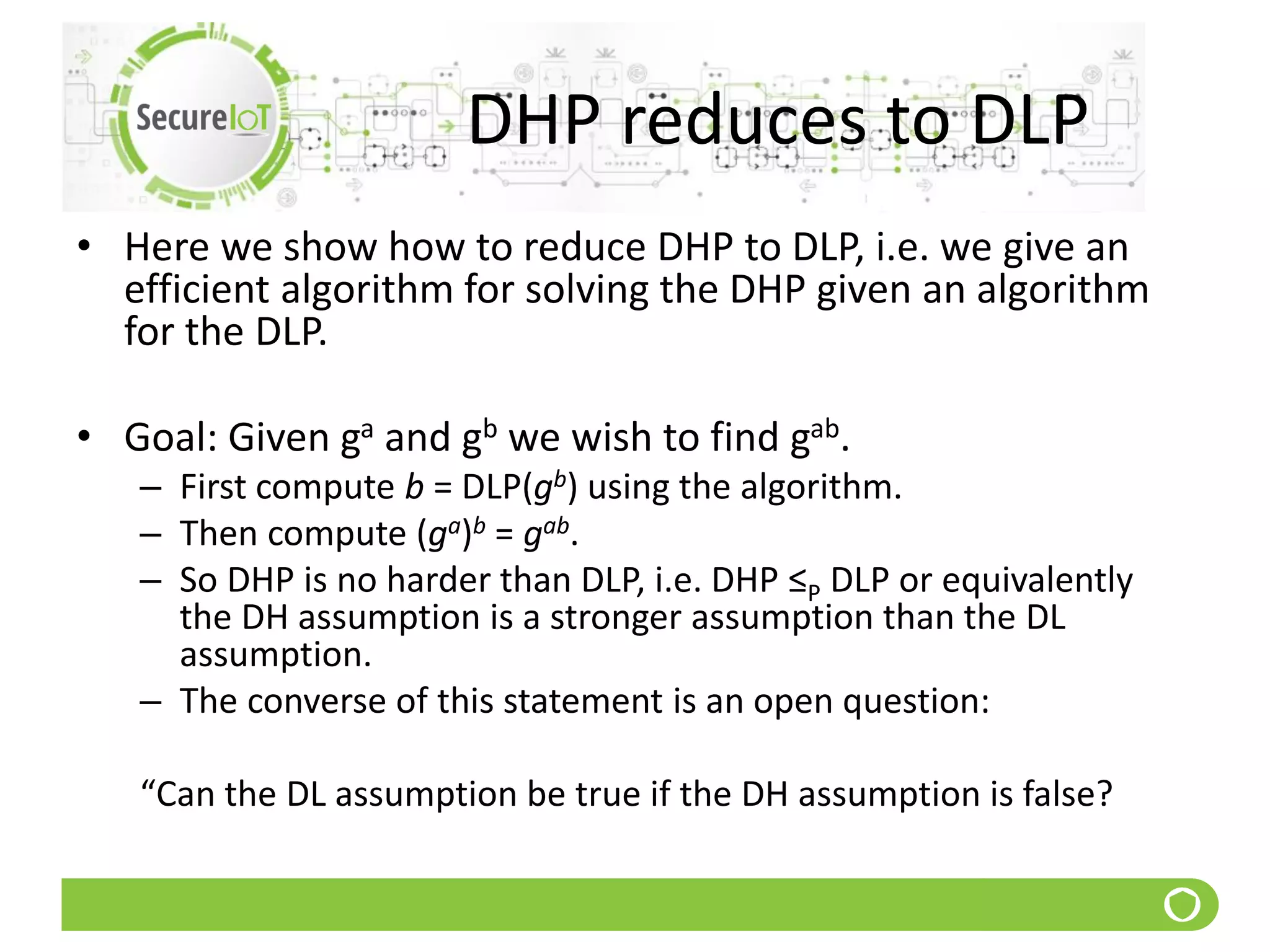

142. DHP reduces to DLP
• Here we show how to reduce DHP to DLP, i.e. we give an
efficient algorithm for solving the DHP given an algorithm
for the DLP.
• Goal: Given ga and gb we wish to find gab.
– First compute b = DLP(gb) using the algorithm.
– Then compute (ga)b = gab.
– So DHP is no harder than DLP, i.e. DHP ≤P DLP or equivalently
the DH assumption is a stronger assumption than the DL
assumption.
– The converse of this statement is an open question:
“Can the DL assumption be true if the DH assumption is false?

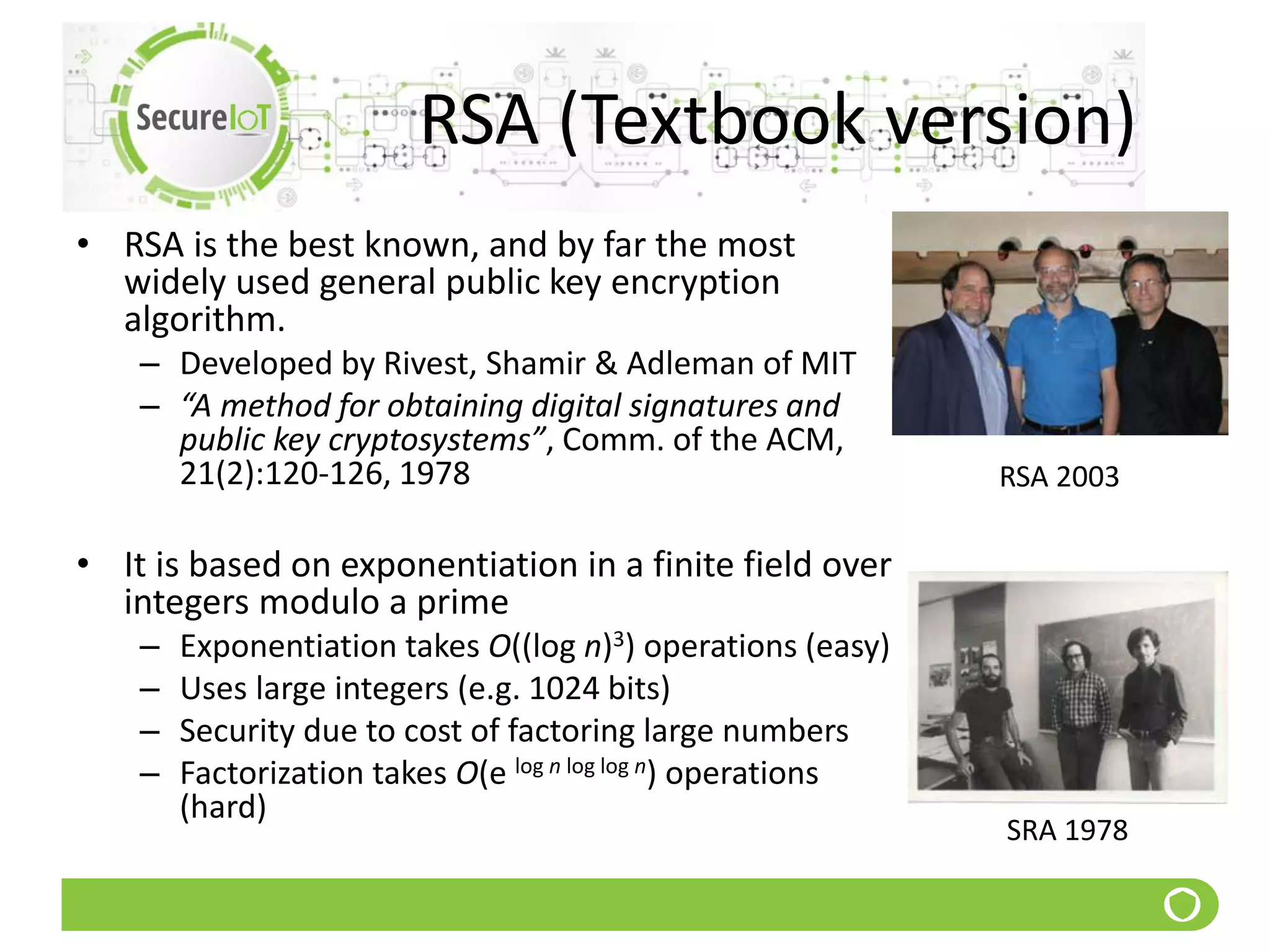

143. RSA (Textbook version)
• RSA is the best known, and by far the most
widely used general public key encryption
algorithm.
– Developed by Rivest, Shamir & Adleman of MIT
– “A method for obtaining digital signatures and
public key cryptosystems”, Comm. of the ACM,
21(2):120-126, 1978
• It is based on exponentiation in a finite field over
integers modulo a prime
– Exponentiation takes O((log n)3) operations (easy)
– Uses large integers (e.g. 1024 bits)
– Security due to cost of factoring large numbers
– Factorization takes O(e log n log log n) operations
(hard)
RSA 2003
SRA 1978

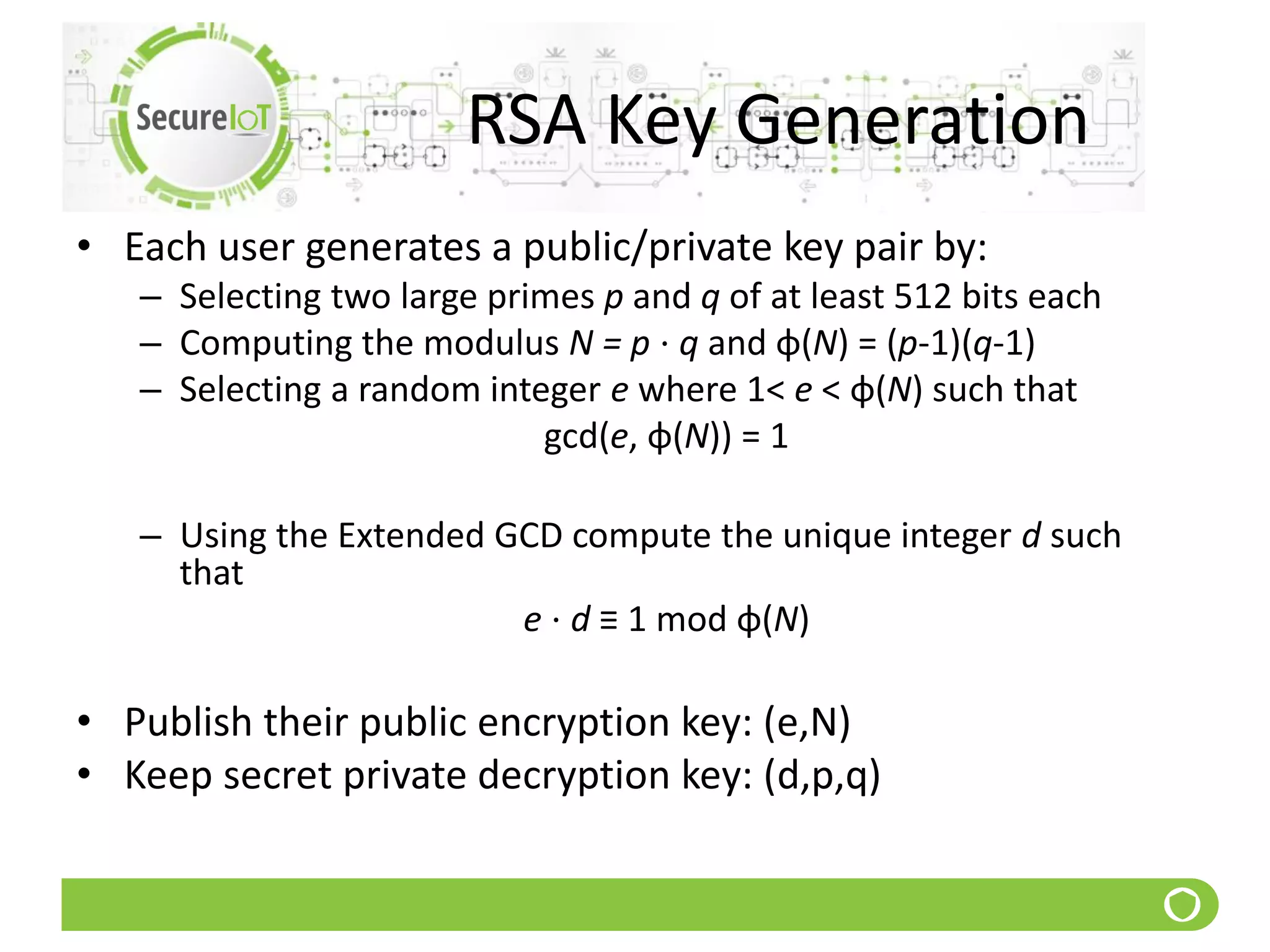

144. RSA Key Generation
• Each user generates a public/private key pair by:
– Selecting two large primes p and q of at least 512 bits each
– Computing the modulus N = p ⋅ q and φ(N) = (p-1)(q-1)
– Selecting a random integer e where 1< e < φ(N) such that
gcd(e, φ(N)) = 1
– Using the Extended GCD compute the unique integer d such
that
e ⋅ d ≡ 1 mod φ(N)
• Publish their public encryption key: (e,N)
• Keep secret private decryption key: (d,p,q)

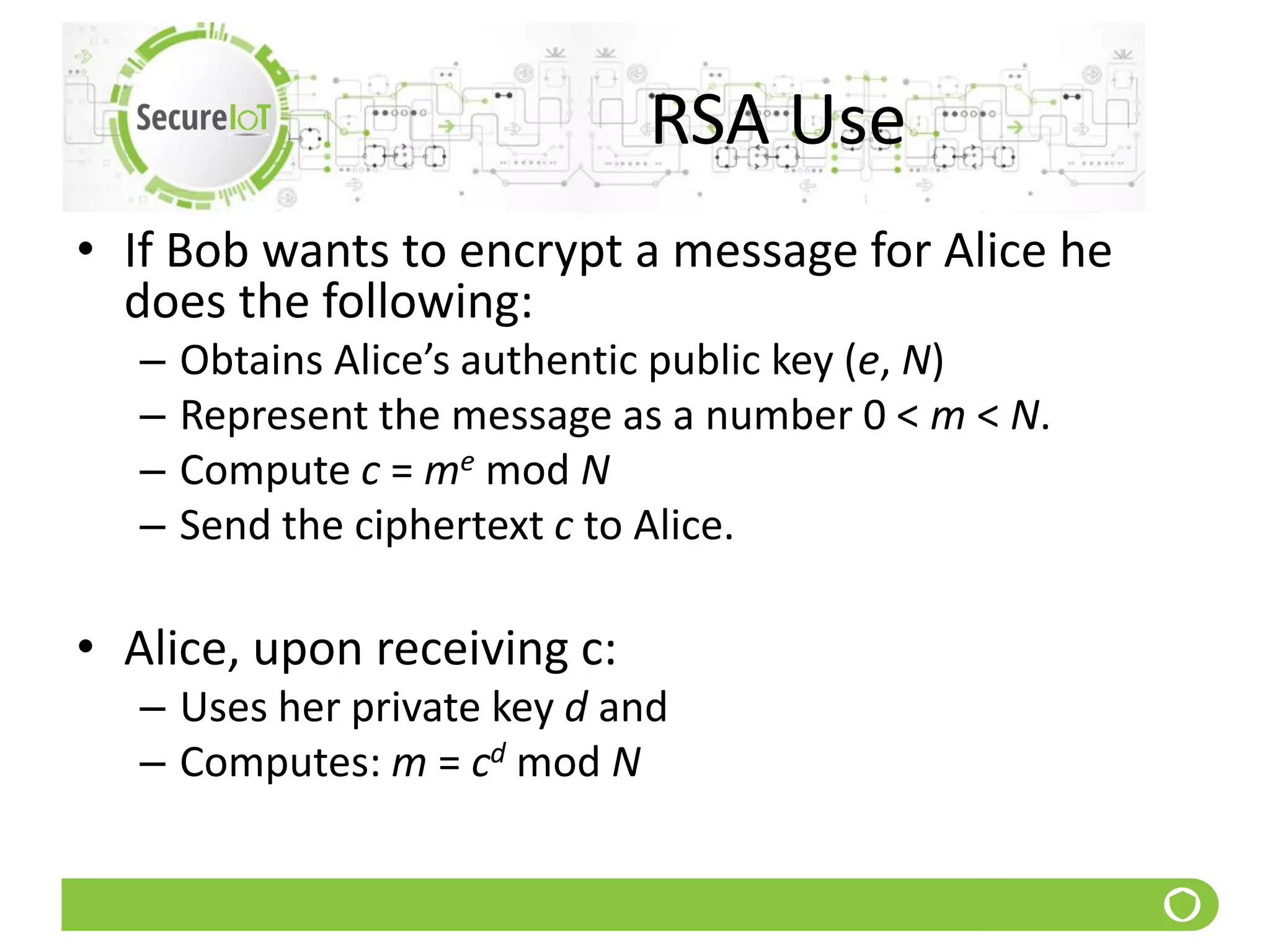

145. RSA Use
• If Bob wants to encrypt a message for Alice he
does the following:
– Obtains Alice’s authentic public key (e, N)
– Represent the message as a number 0 < m < N.
– Compute c = me mod N
– Send the ciphertext c to Alice.
• Alice, upon receiving c:
– Uses her private key d and
– Computes: m = cd mod N

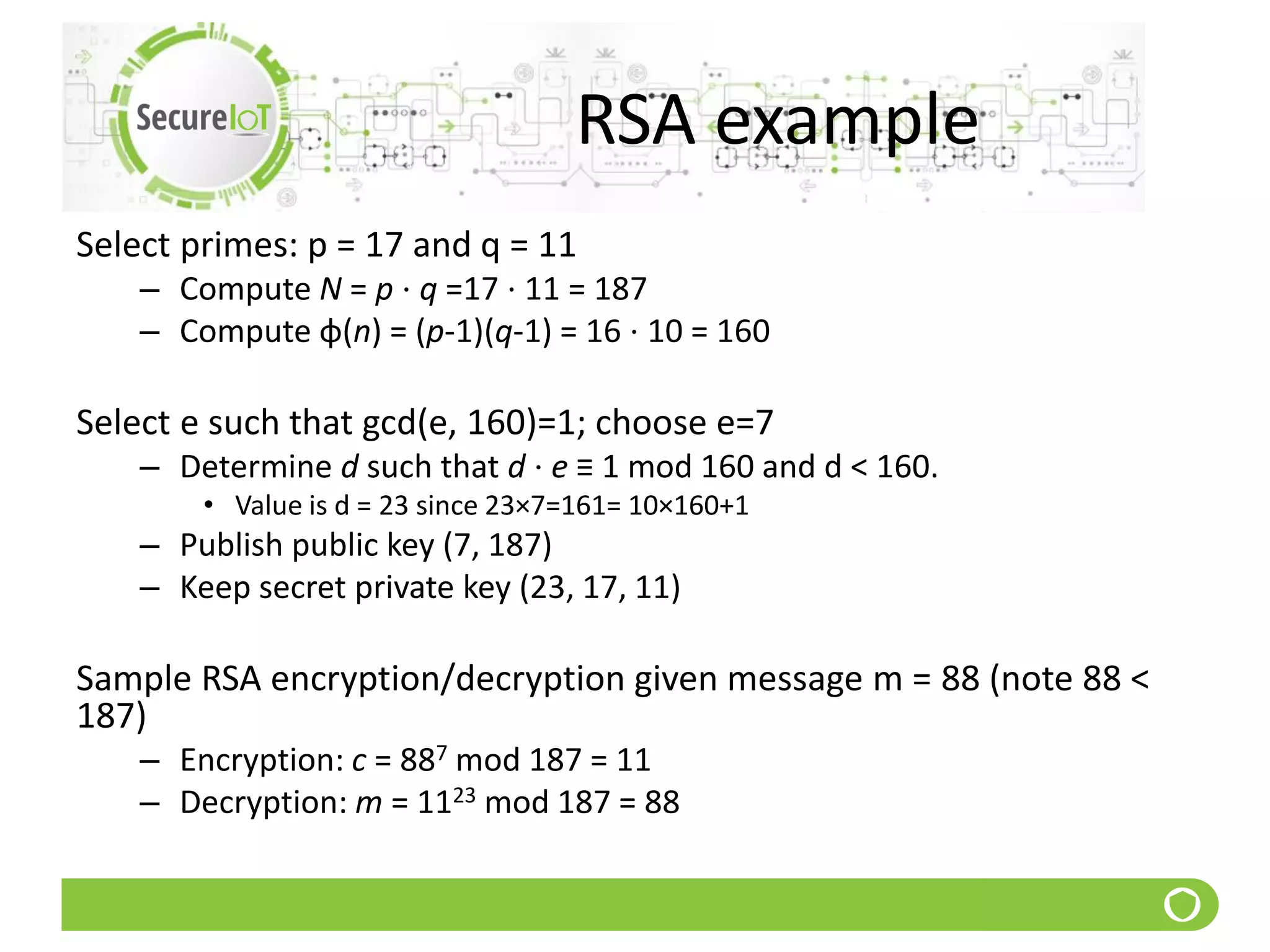

146. RSA example
Select primes: p = 17 and q = 11
– Compute N = p ⋅ q =17 ⋅ 11 = 187
– Compute φ(n) = (p-1)(q-1) = 16 ⋅ 10 = 160
Select e such that gcd(e, 160)=1; choose e=7
– Determine d such that d ⋅ e ≡ 1 mod 160 and d < 160.
• Value is d = 23 since 23×7=161= 10×160+1
– Publish public key (7, 187)
– Keep secret private key (23, 17, 11)
Sample RSA encryption/decryption given message m = 88 (note 88 <
187)
– Encryption: c = 887 mod 187 = 11
– Decryption: m = 1123 mod 187 = 88

147. DIGITAL SIGNATURES

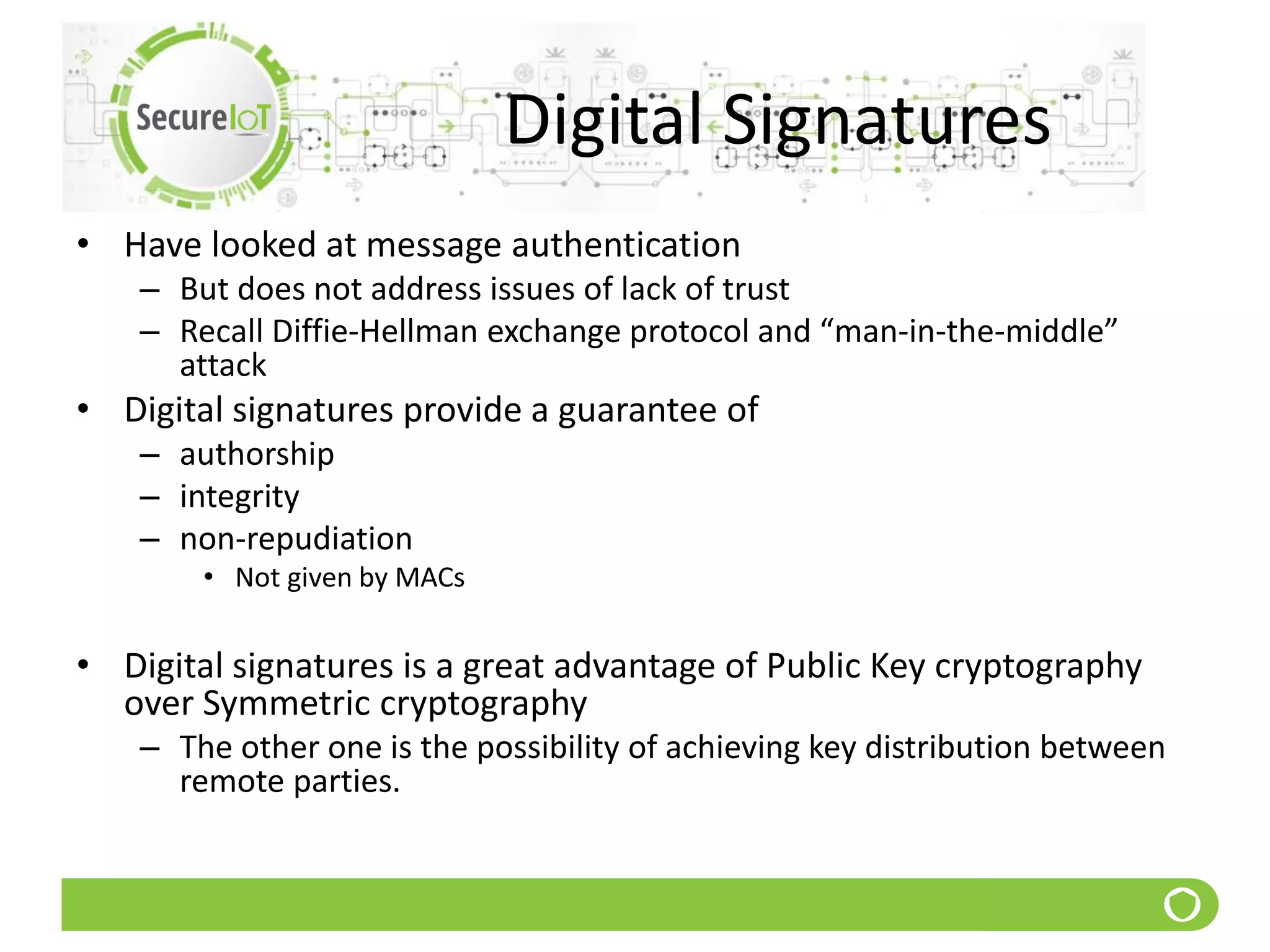

148. Digital Signatures
• Have looked at message authentication
– But does not address issues of lack of trust
– Recall Diffie-Hellman exchange protocol and “man-in-the-middle”
attack
• Digital signatures provide a guarantee of
– authorship
– integrity
– non-repudiation
• Not given by MACs
• Digital signatures is a great advantage of Public Key cryptography
over Symmetric cryptography
– The other one is the possibility of achieving key distribution between
remote parties.

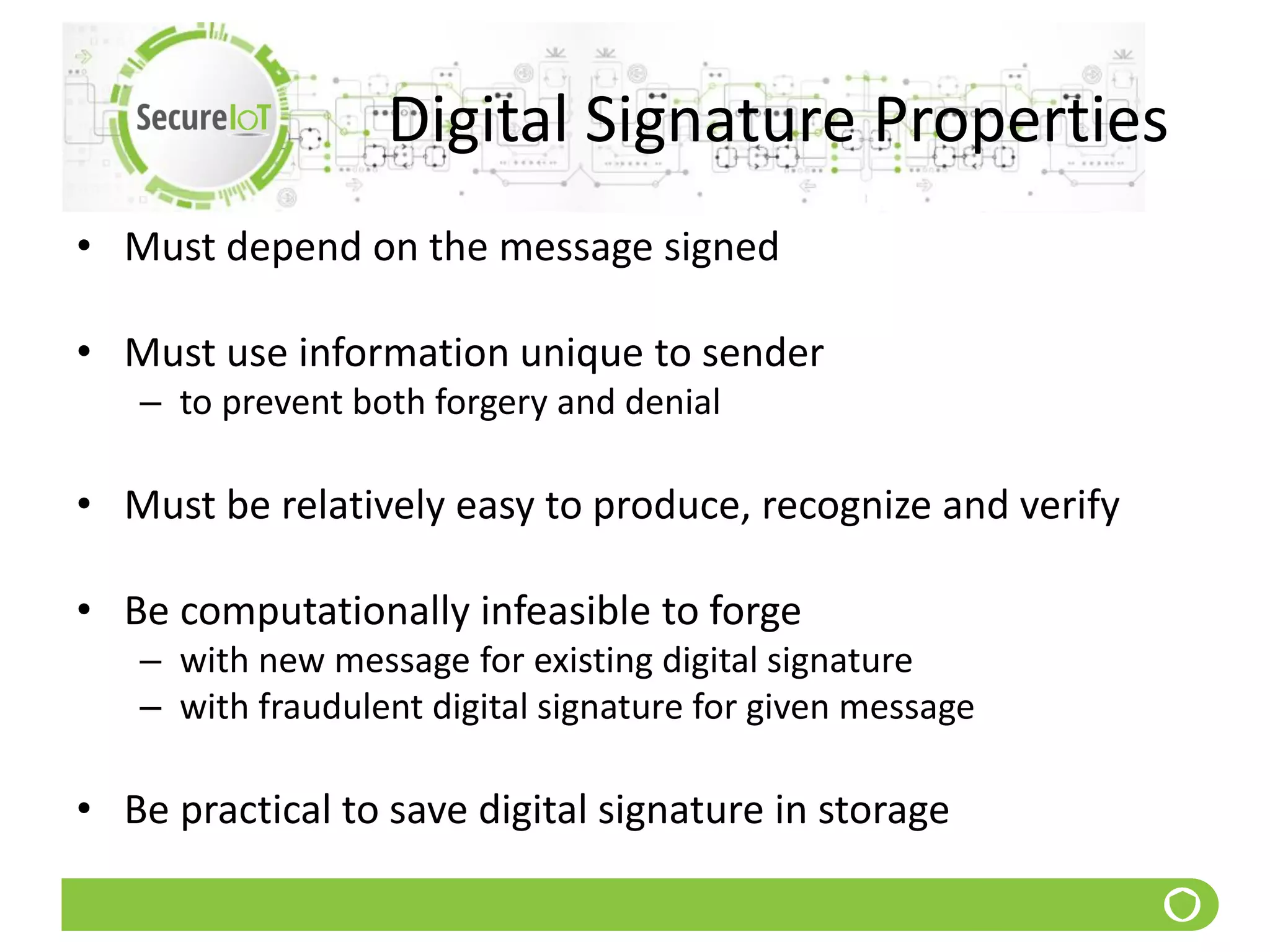

149. Digital Signature Properties
• Must depend on the message signed
• Must use information unique to sender
– to prevent both forgery and denial
• Must be relatively easy to produce, recognize and verify
• Be computationally infeasible to forge
– with new message for existing digital signature
– with fraudulent digital signature for given message
• Be practical to save digital signature in storage

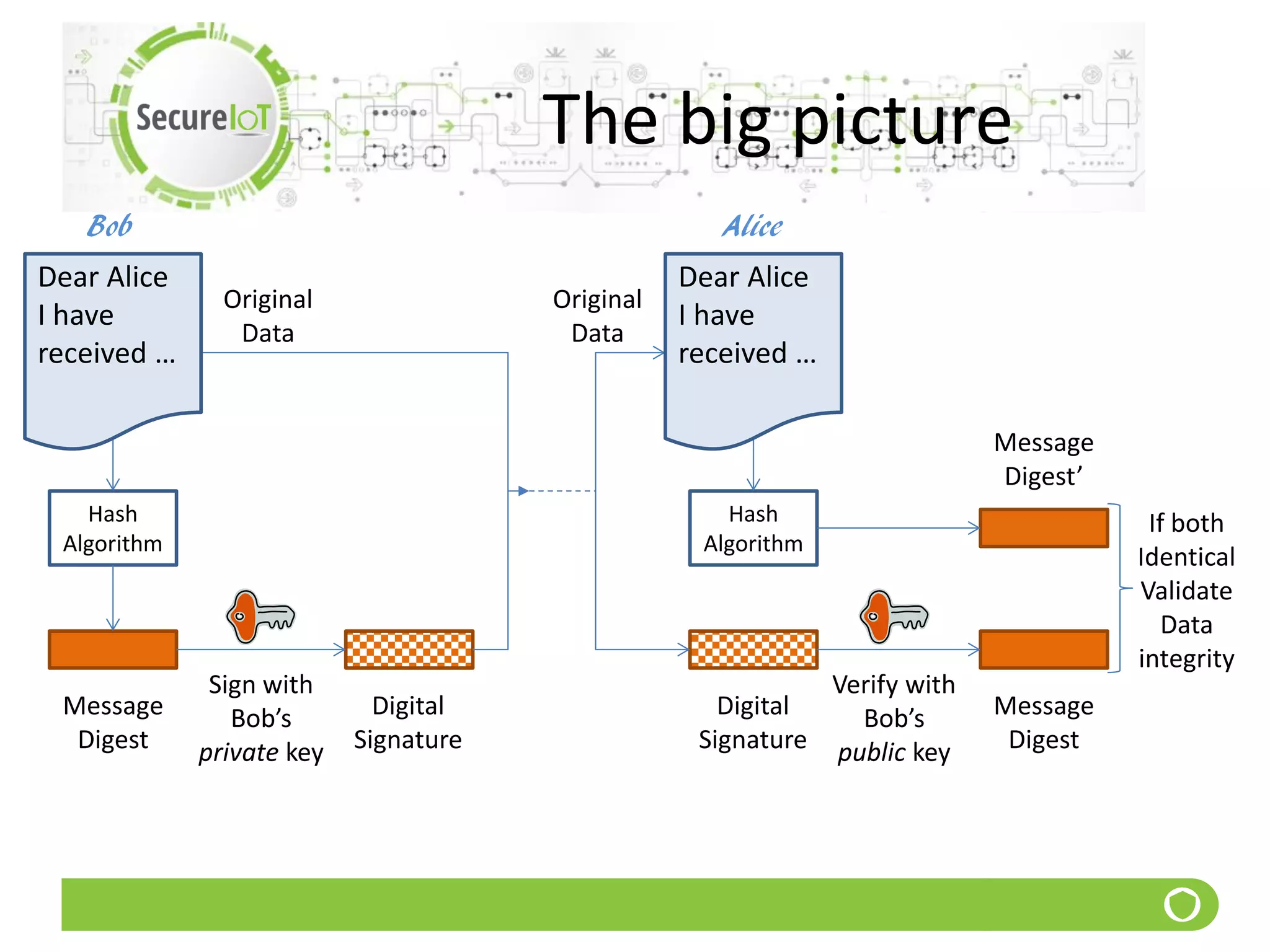

150. The big picture
Hash
Algorithm
Message
Digest
Original
Data
Digital
Signature
Sign with
Bob’s
private key
Digital
Signature
Hash
Algorithm
Original
Data
Verify with
Bob’s
public key
Message
Digest
Message
Digest’
If both
Identical
Validate
Data
integrity
Bob Alice
Dear Alice
I have
received …
Dear Alice
I have
received …

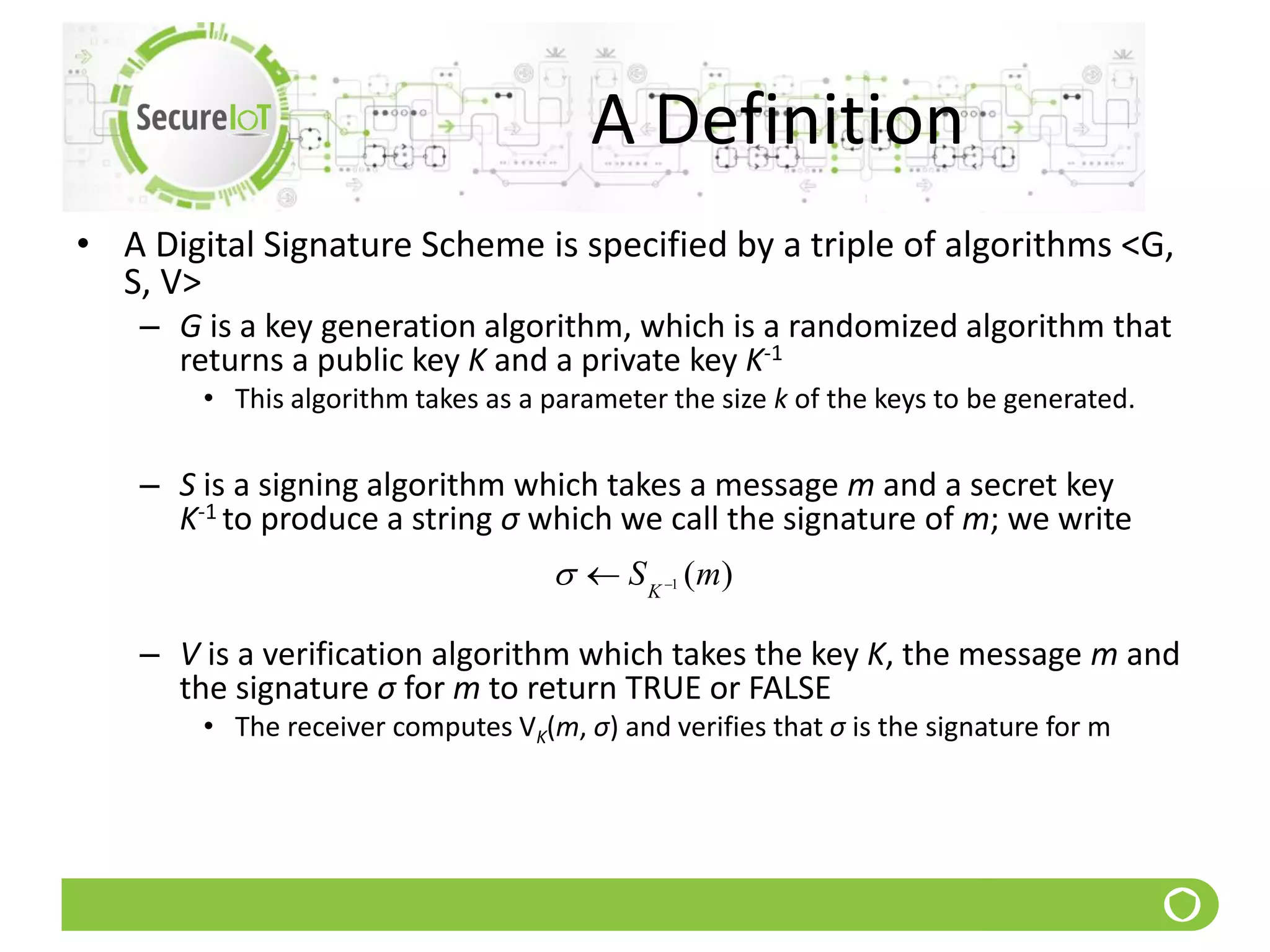

151. A Definition
• A Digital Signature Scheme is specified by a triple of algorithms <G,
S, V>
– G is a key generation algorithm, which is a randomized algorithm that
returns a public key K and a private key K-1
• This algorithm takes as a parameter the size k of the keys to be generated.
– S is a signing algorithm which takes a message m and a secret key
K-1 to produce a string σ which we call the signature of m; we write
– V is a verification algorithm which takes the key K, the message m and
the signature σ for m to return TRUE or FALSE
• The receiver computes VK(m, σ) and verifies that σ is the signature for m
)(1 mSK 

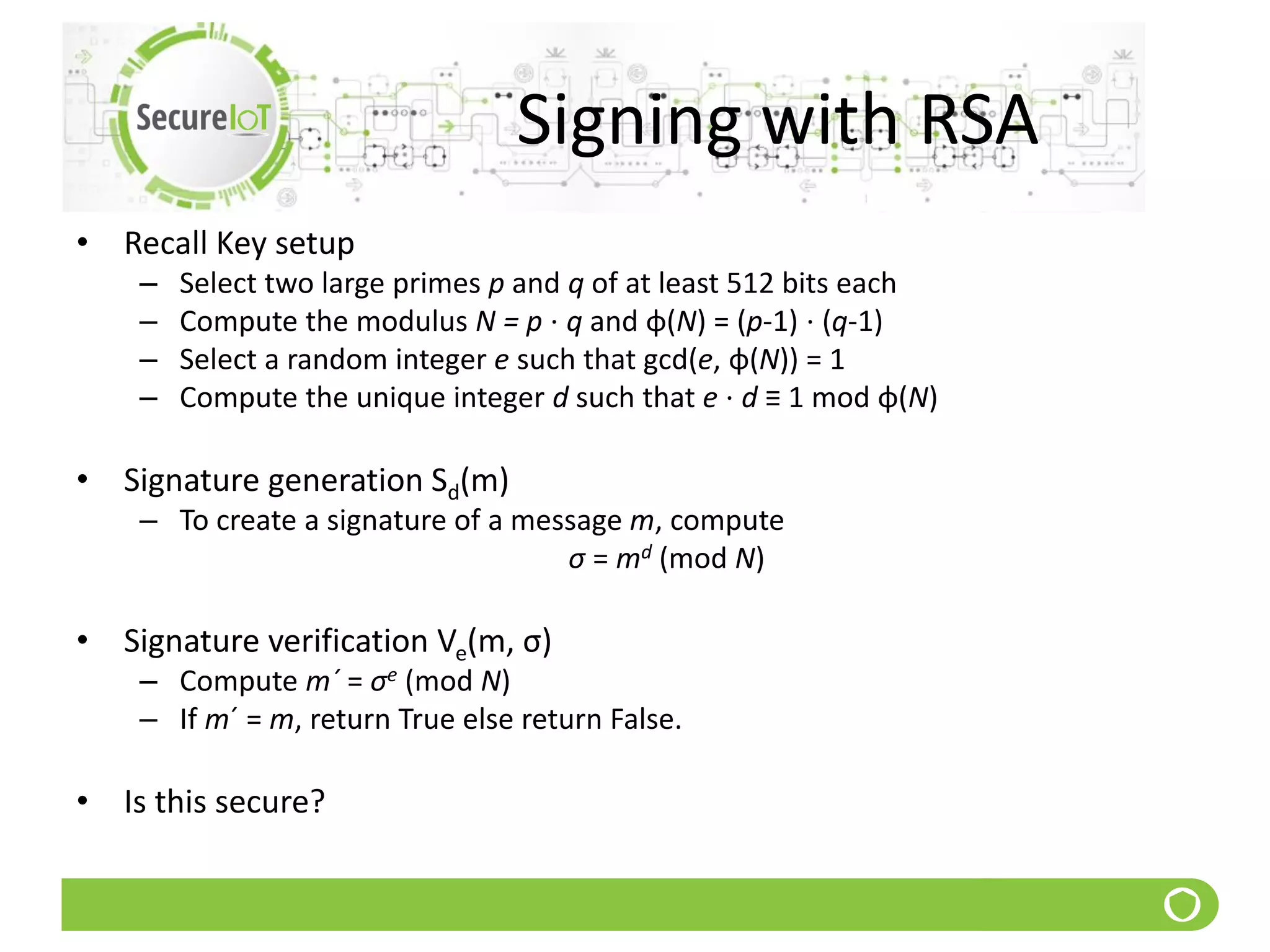

152. Signing with RSA
• Recall Key setup
– Select two large primes p and q of at least 512 bits each
– Compute the modulus N = p ⋅ q and φ(N) = (p-1) ⋅ (q-1)
– Select a random integer e such that gcd(e, φ(N)) = 1
– Compute the unique integer d such that e ⋅ d ≡ 1 mod φ(N)
• Signature generation Sd(m)
– To create a signature of a message m, compute
σ = md (mod N)
• Signature verification Ve(m, σ)
– Compute m´ = σe (mod N)
– If m´ = m, return True else return False.
• Is this secure?

153. PUBLIC KEY INFRASTRUCTURE

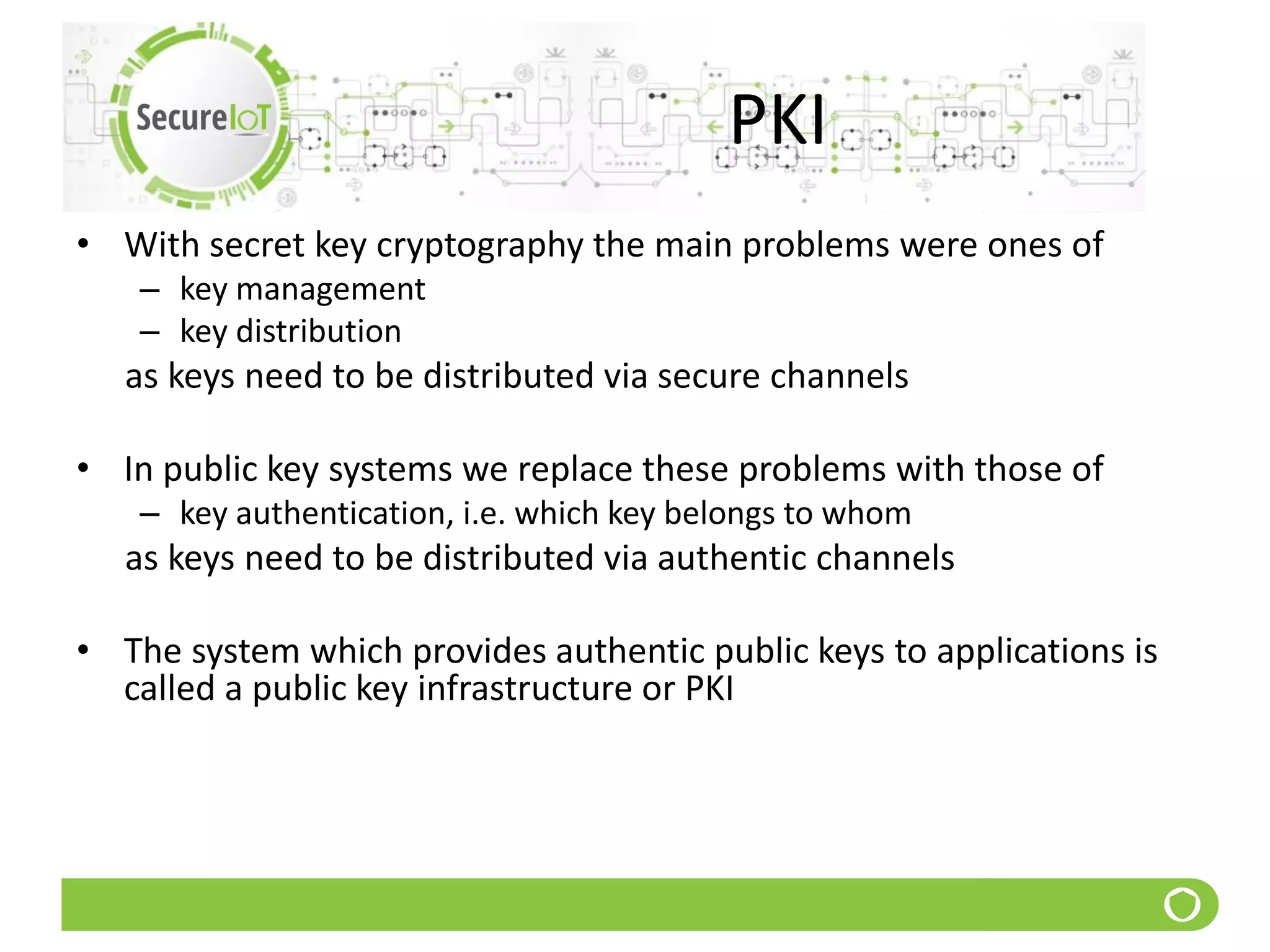

154. PKI
• With secret key cryptography the main problems were ones of
– key management
– key distribution
as keys need to be distributed via secure channels
• In public key systems we replace these problems with those of
– key authentication, i.e. which key belongs to whom
as keys need to be distributed via authentic channels
• The system which provides authentic public keys to applications is
called a public key infrastructure or PKI

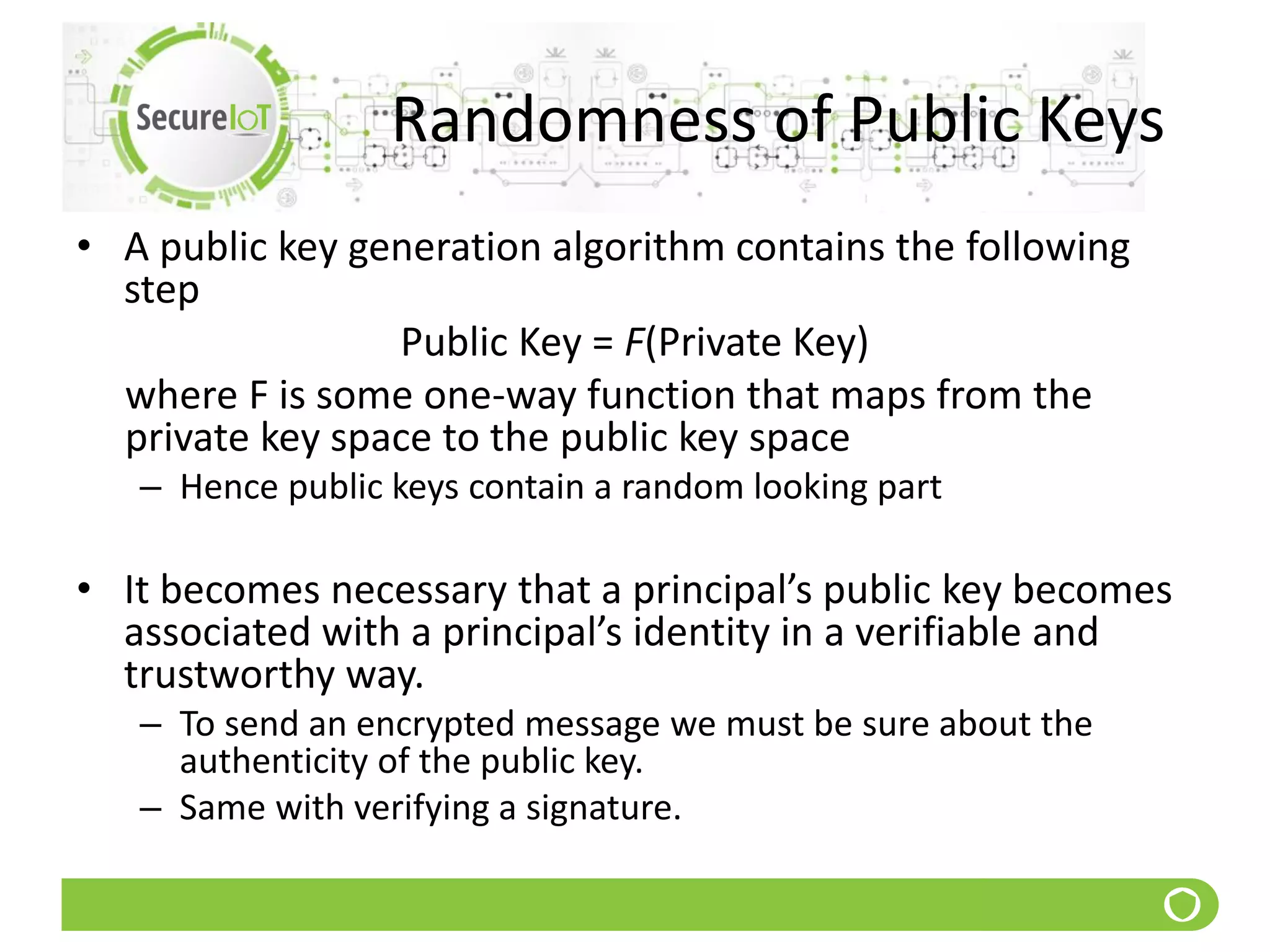

155. Randomness of Public Keys
• A public key generation algorithm contains the following
step
Public Key = F(Private Key)
where F is some one-way function that maps from the
private key space to the public key space
– Hence public keys contain a random looking part
• It becomes necessary that a principal’s public key becomes
associated with a principal’s identity in a verifiable and
trustworthy way.
– To send an encrypted message we must be sure about the
authenticity of the public key.
– Same with verifying a signature.

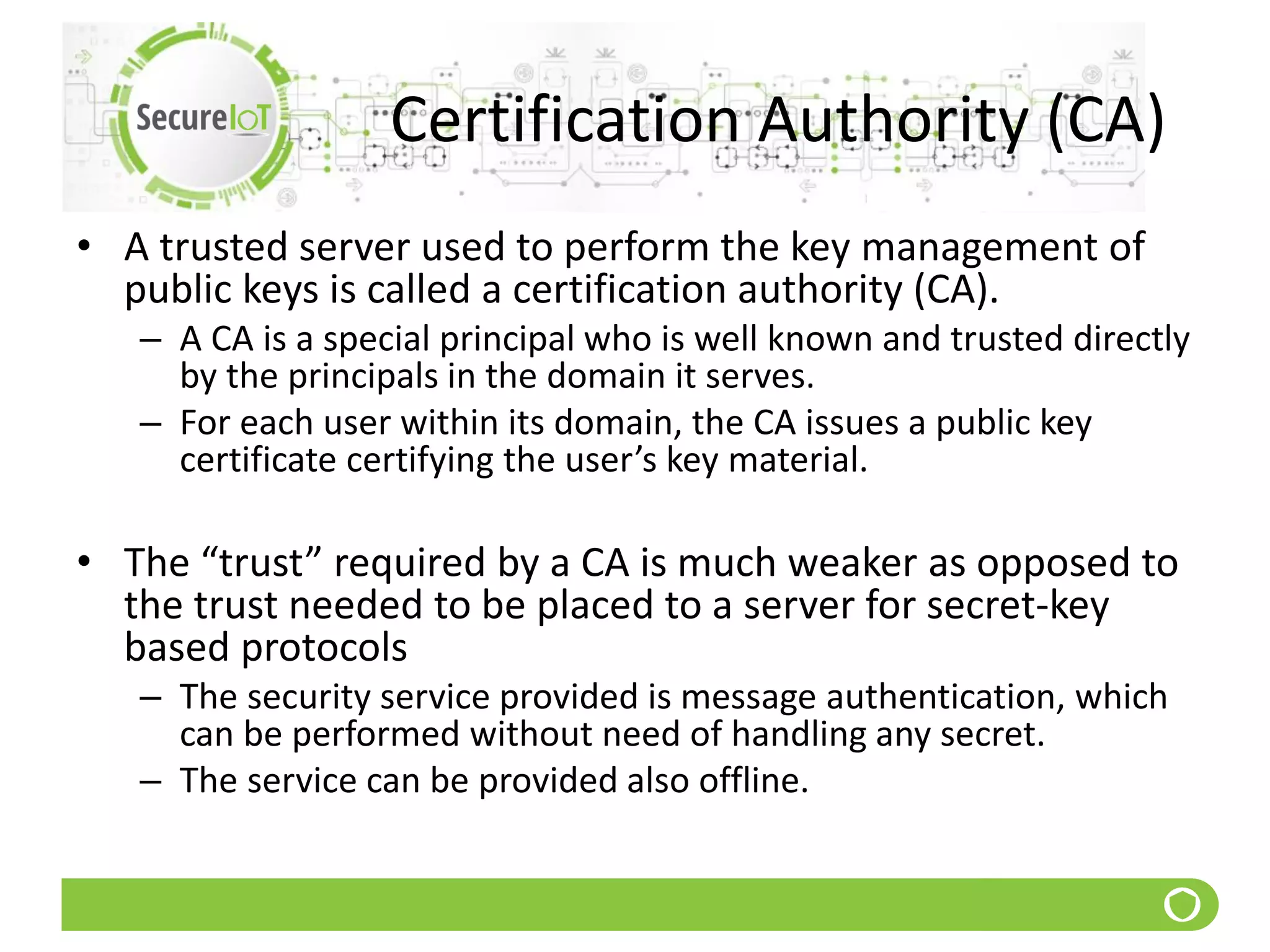

156. Certification Authority (CA)
• A trusted server used to perform the key management of
public keys is called a certification authority (CA).
– A CA is a special principal who is well known and trusted directly
by the principals in the domain it serves.
– For each user within its domain, the CA issues a public key
certificate certifying the user’s key material.
• The “trust” required by a CA is much weaker as opposed to
the trust needed to be placed to a server for secret-key
based protocols
– The security service provided is message authentication, which
can be performed without need of handling any secret.
– The service can be provided also offline.

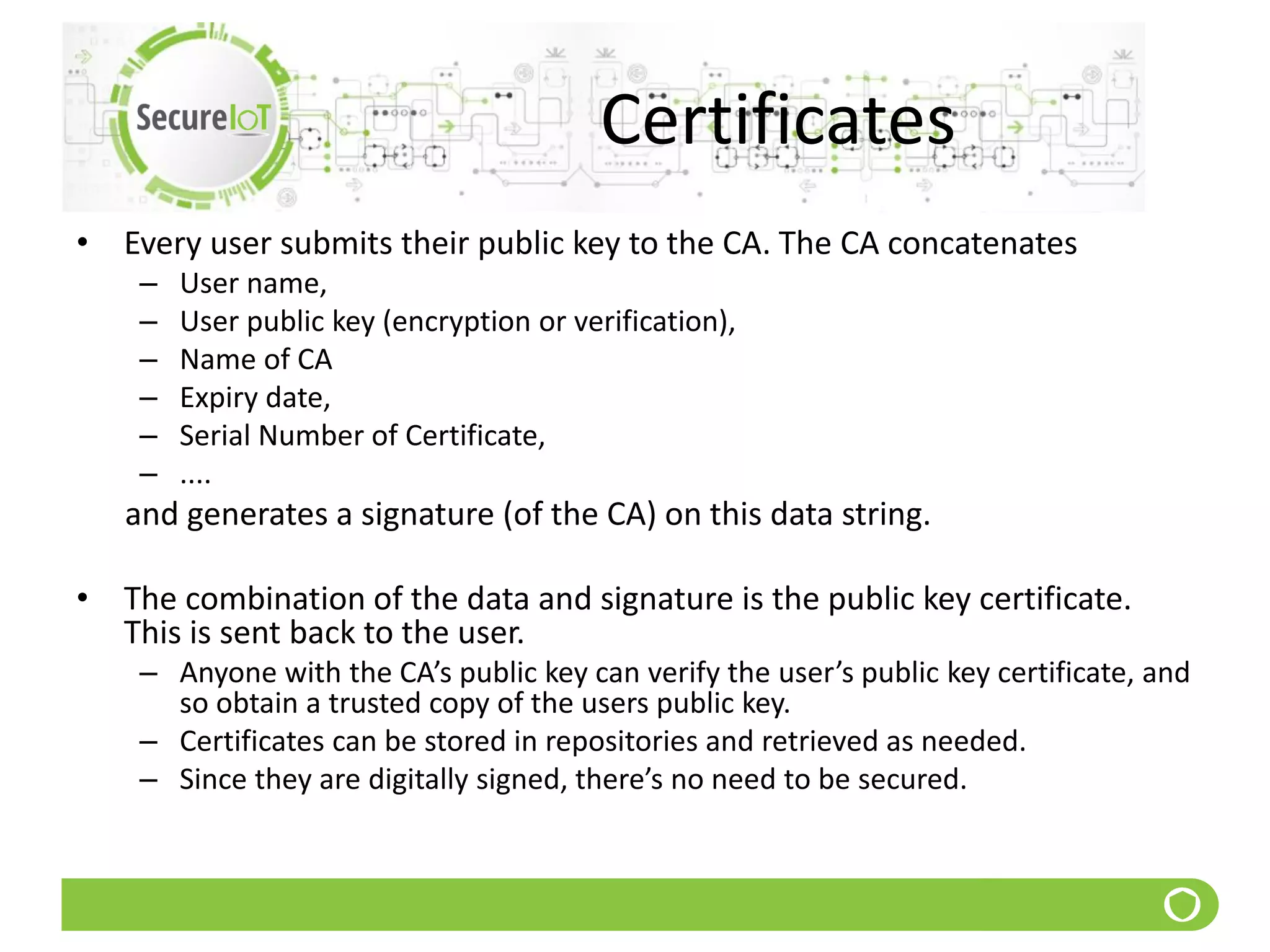

157. Certificates
• Every user submits their public key to the CA. The CA concatenates
– User name,
– User public key (encryption or verification),
– Name of CA
– Expiry date,
– Serial Number of Certificate,
– ....
and generates a signature (of the CA) on this data string.
• The combination of the data and signature is the public key certificate.
This is sent back to the user.
– Anyone with the CA’s public key can verify the user’s public key certificate, and
so obtain a trusted copy of the users public key.
– Certificates can be stored in repositories and retrieved as needed.
– Since they are digitally signed, there’s no need to be secured.

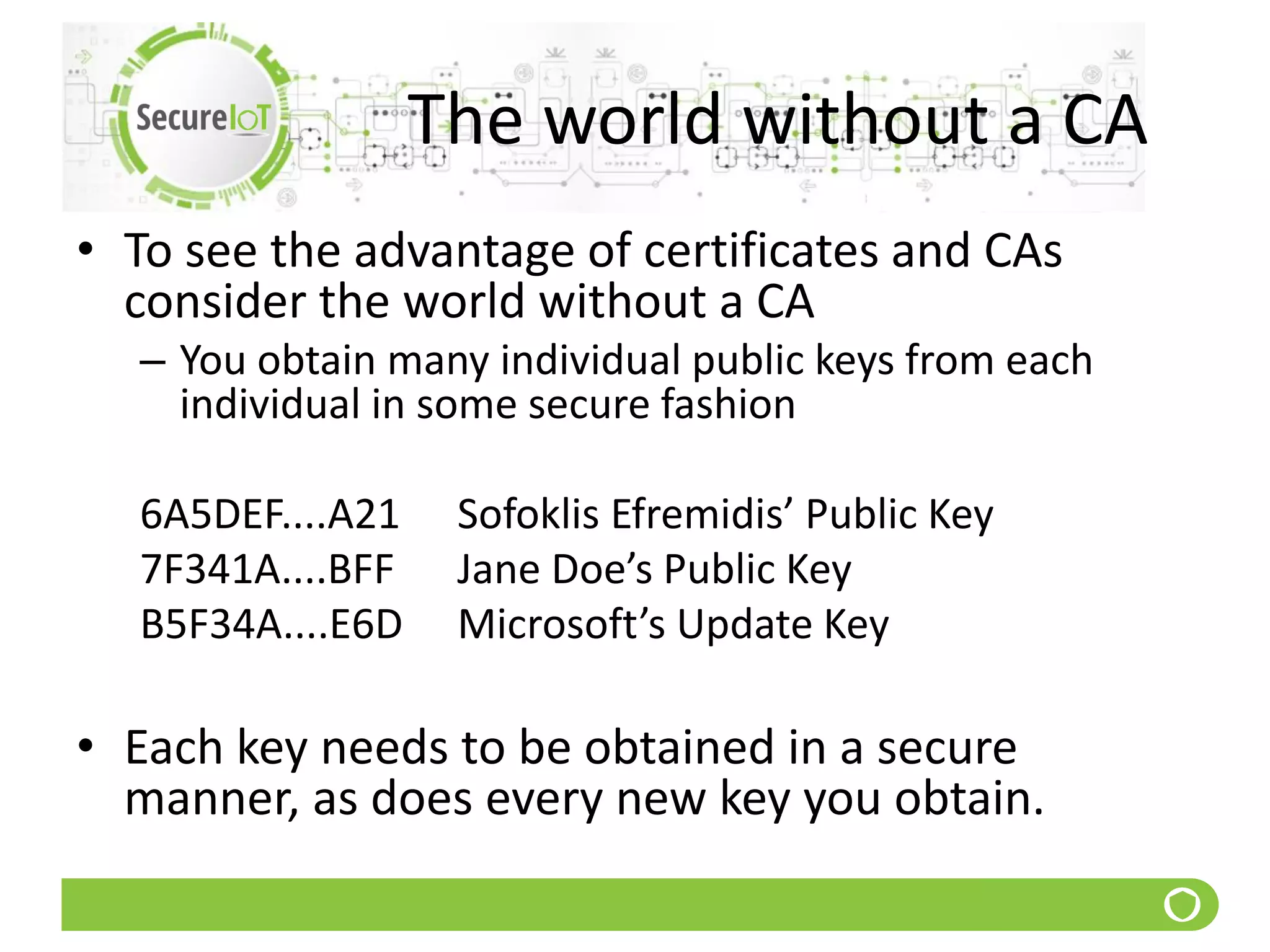

158. The world without a CA
• To see the advantage of certificates and CAs
consider the world without a CA
– You obtain many individual public keys from each
individual in some secure fashion
6A5DEF....A21 Sofoklis Efremidis’ Public Key
7F341A....BFF Jane Doe’s Public Key
B5F34A....E6D Microsoft’s Update Key
• Each key needs to be obtained in a secure
manner, as does every new key you obtain.

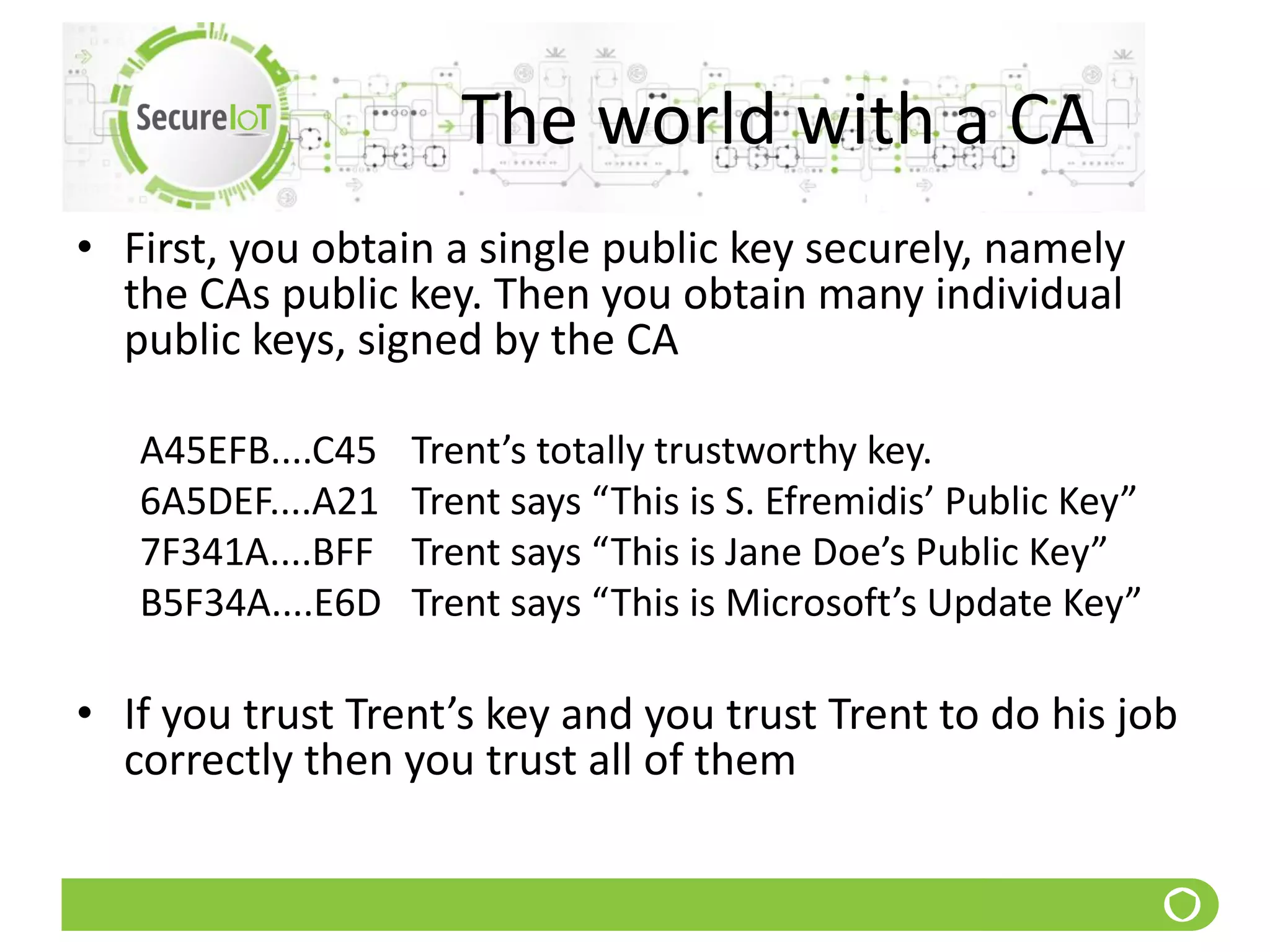

159. The world with a CA
• First, you obtain a single public key securely, namely
the CAs public key. Then you obtain many individual
public keys, signed by the CA
A45EFB....C45 Trent’s totally trustworthy key.
6A5DEF....A21 Trent says “This is S. Efremidis’ Public Key”
7F341A....BFF Trent says “This is Jane Doe’s Public Key”
B5F34A....E6D Trent says “This is Microsoft’s Update Key”
• If you trust Trent’s key and you trust Trent to do his job
correctly then you trust all of them

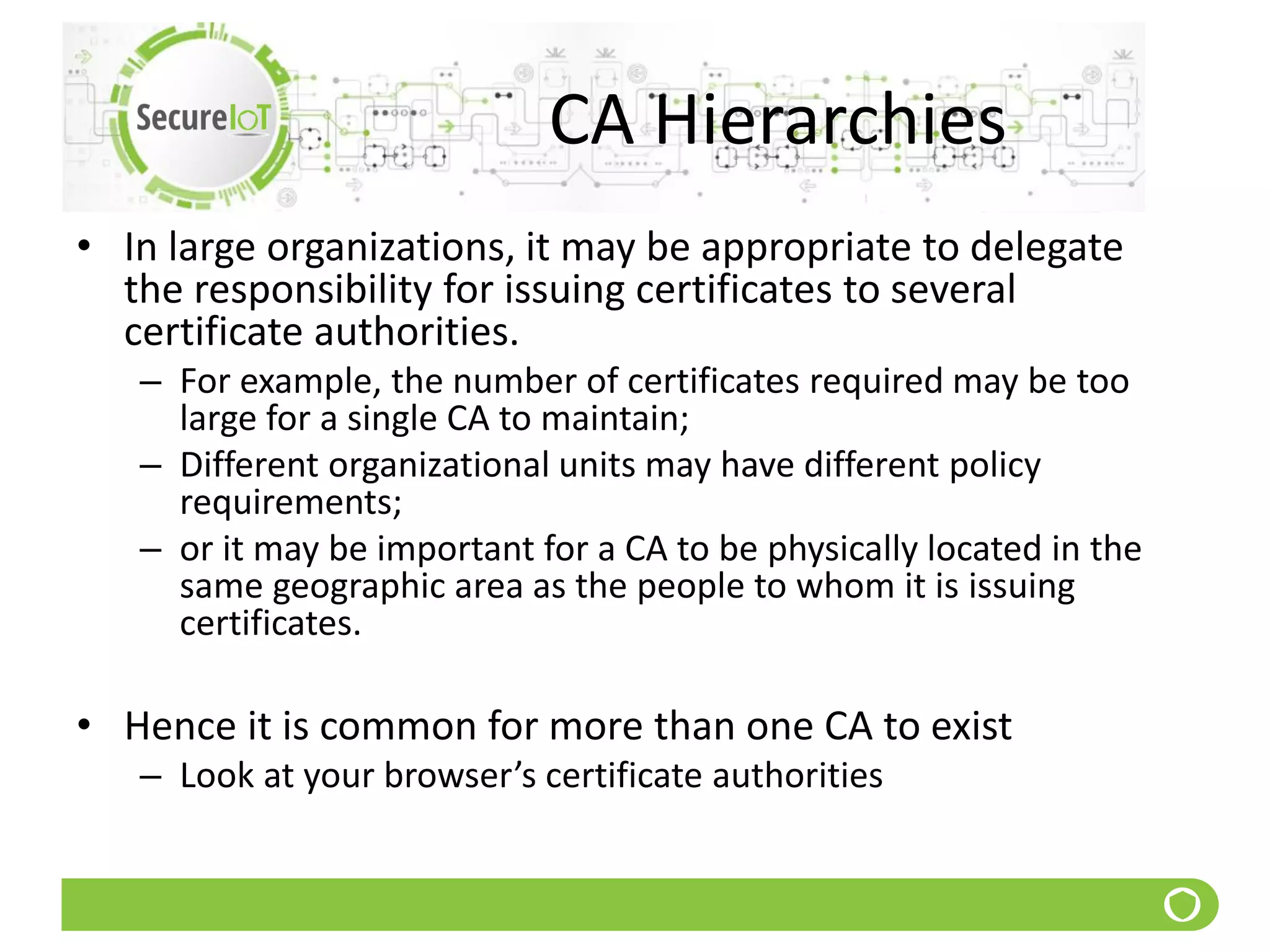

160. CA Hierarchies
• In large organizations, it may be appropriate to delegate
the responsibility for issuing certificates to several
certificate authorities.
– For example, the number of certificates required may be too
large for a single CA to maintain;
– Different organizational units may have different policy
requirements;
– or it may be important for a CA to be physically located in the
same geographic area as the people to whom it is issuing
certificates.
• Hence it is common for more than one CA to exist
– Look at your browser’s certificate authorities

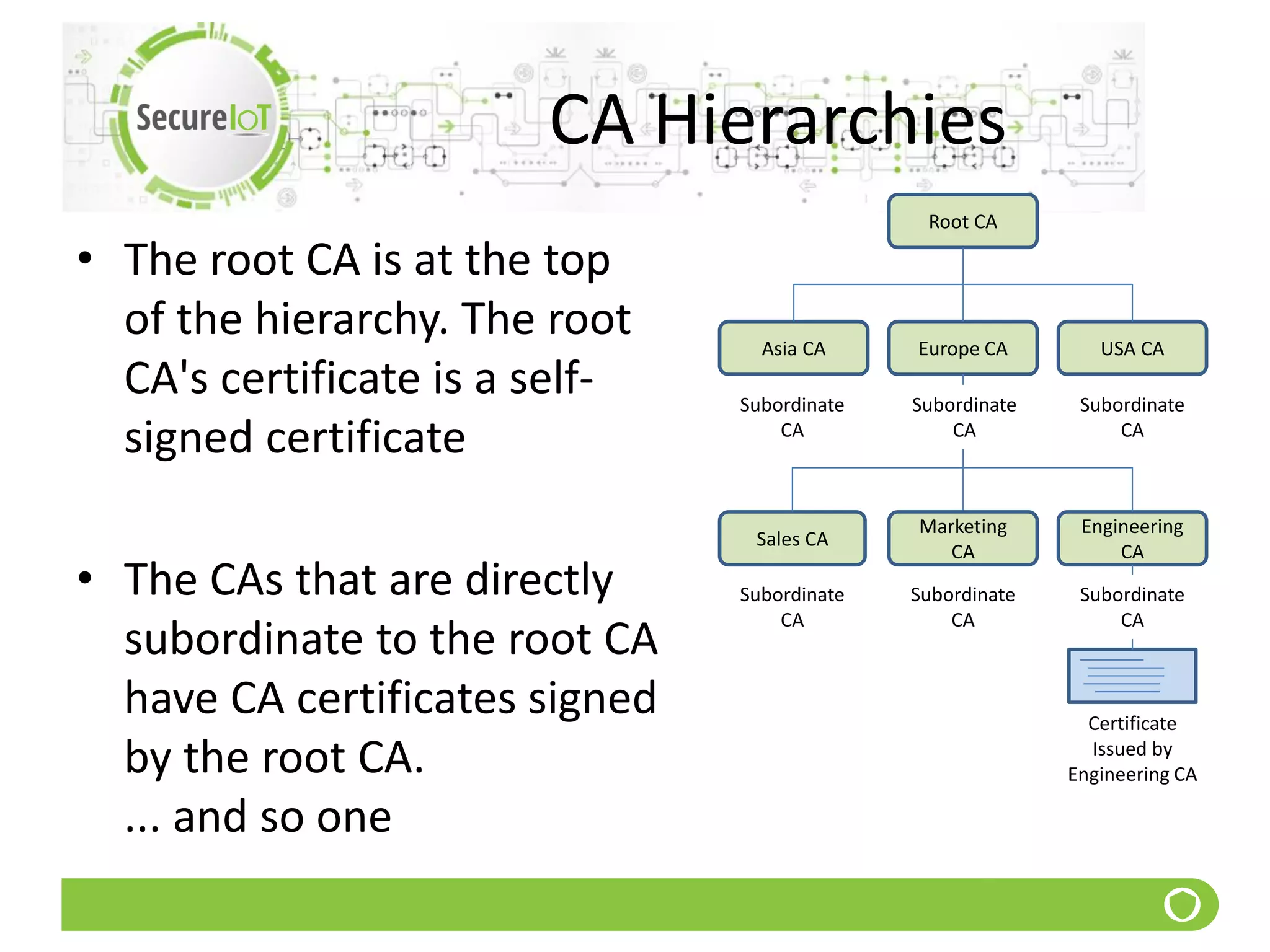

161. CA Hierarchies
• The root CA is at the top
of the hierarchy. The root
CA's certificate is a self-
signed certificate
• The CAs that are directly
subordinate to the root CA
have CA certificates signed
by the root CA.
... and so one
Root CA
Asia CA Europe CA USA CA
Sales CA
Engineering
CA
Marketing
CA
Subordinate
CA
Subordinate
CA
Subordinate
CA
Certificate
Issued by
Engineering CA
Subordinate
CA
Subordinate
CA
Subordinate
CA

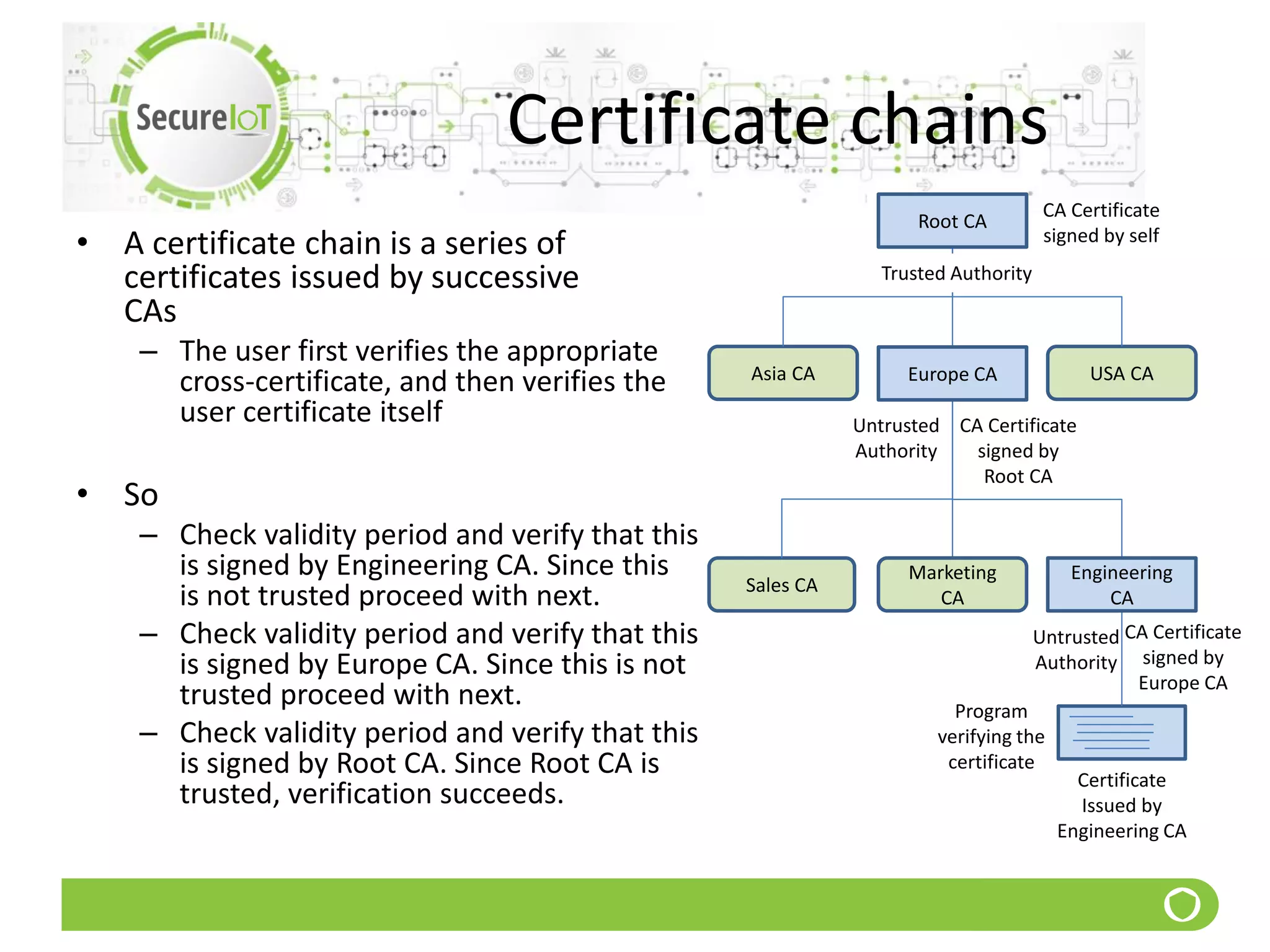

162. Certificate chains
• A certificate chain is a series of
certificates issued by successive
CAs
– The user first verifies the appropriate
cross-certificate, and then verifies the
user certificate itself
• So
– Check validity period and verify that this
is signed by Engineering CA. Since this
is not trusted proceed with next.
– Check validity period and verify that this
is signed by Europe CA. Since this is not
trusted proceed with next.
– Check validity period and verify that this
is signed by Root CA. Since Root CA is
trusted, verification succeeds.
Asia CA USA CA
Sales CA
Marketing
CA
Trusted Authority
Certificate
Issued by
Engineering CA
CA Certificate
signed by self
Untrusted
Authority
Untrusted
Authority
CA Certificate
signed by
Root CA
CA Certificate
signed by
Europe CA
Program
verifying the
certificate
Root CA
Engineering
CA
Europe CA

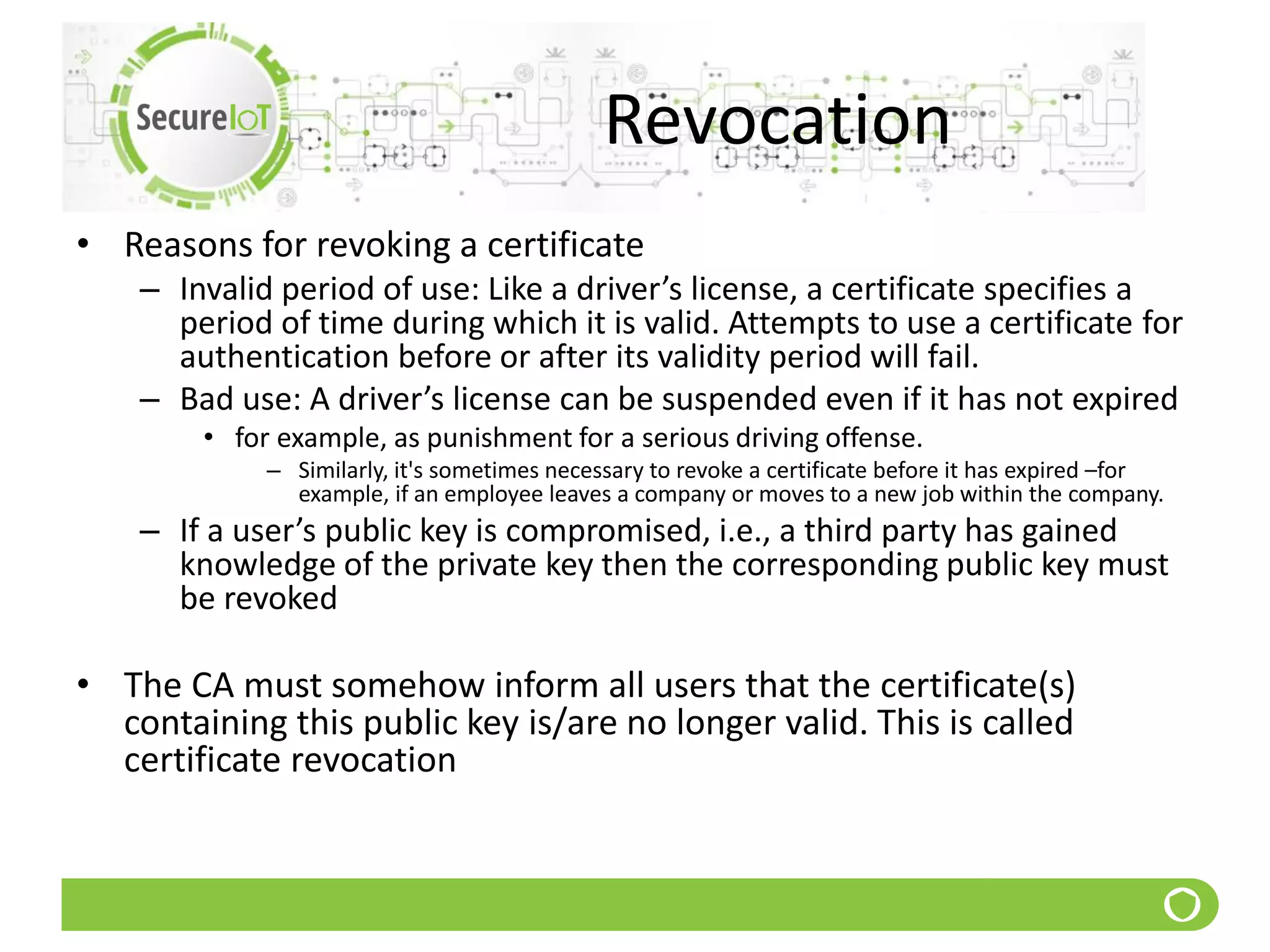

163. Revocation
• Reasons for revoking a certificate
– Invalid period of use: Like a driver’s license, a certificate specifies a
period of time during which it is valid. Attempts to use a certificate for
authentication before or after its validity period will fail.
– Bad use: A driver’s license can be suspended even if it has not expired
• for example, as punishment for a serious driving offense.
– Similarly, it's sometimes necessary to revoke a certificate before it has expired –for
example, if an employee leaves a company or moves to a new job within the company.
– If a user’s public key is compromised, i.e., a third party has gained
knowledge of the private key then the corresponding public key must
be revoked
• The CA must somehow inform all users that the certificate(s)
containing this public key is/are no longer valid. This is called
certificate revocation

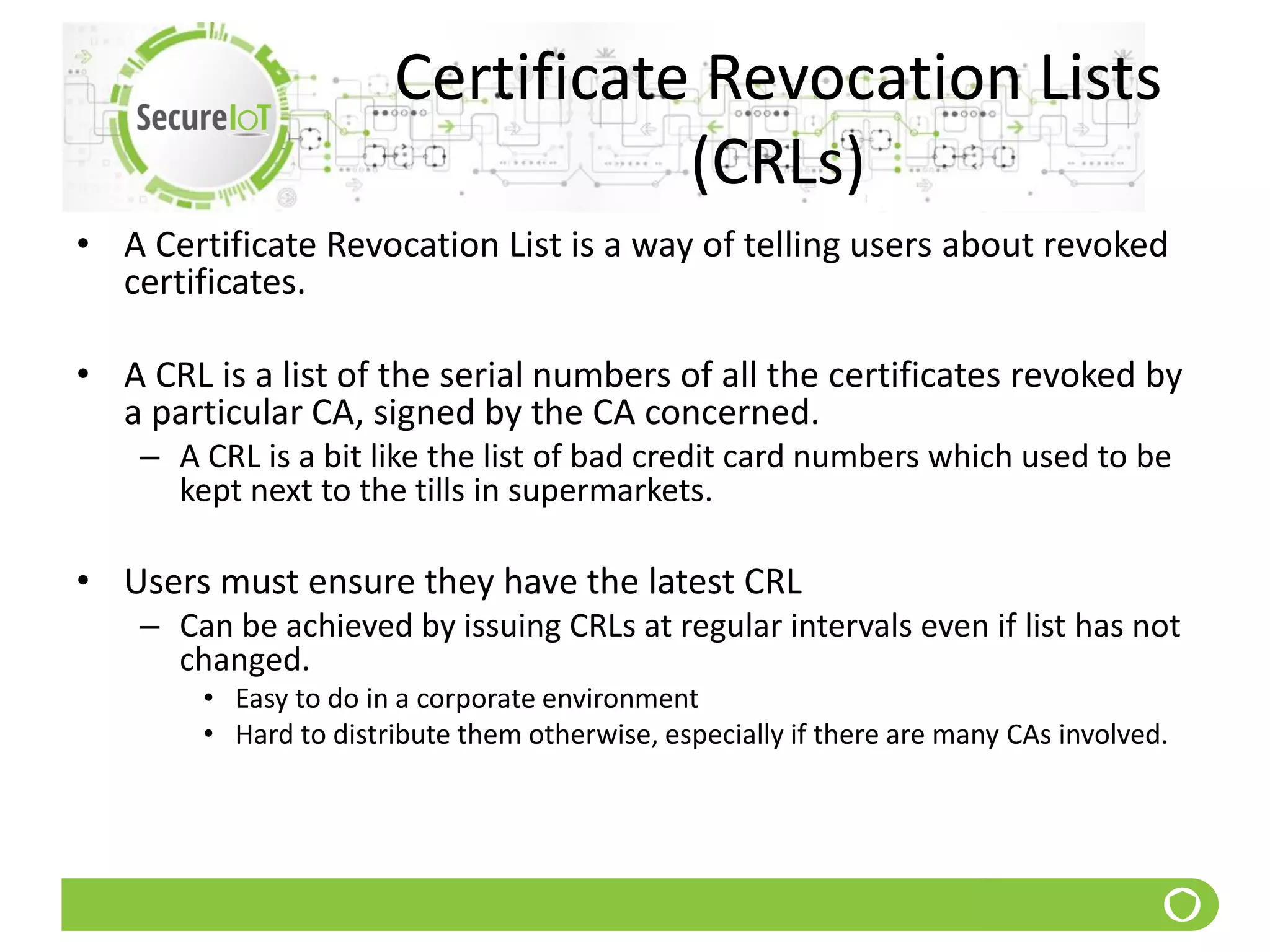

164. Certificate Revocation Lists
(CRLs)
• A Certificate Revocation List is a way of telling users about revoked
certificates.
• A CRL is a list of the serial numbers of all the certificates revoked by
a particular CA, signed by the CA concerned.
– A CRL is a bit like the list of bad credit card numbers which used to be
kept next to the tills in supermarkets.
• Users must ensure they have the latest CRL
– Can be achieved by issuing CRLs at regular intervals even if list has not
changed.
• Easy to do in a corporate environment
• Hard to distribute them otherwise, especially if there are many CAs involved.

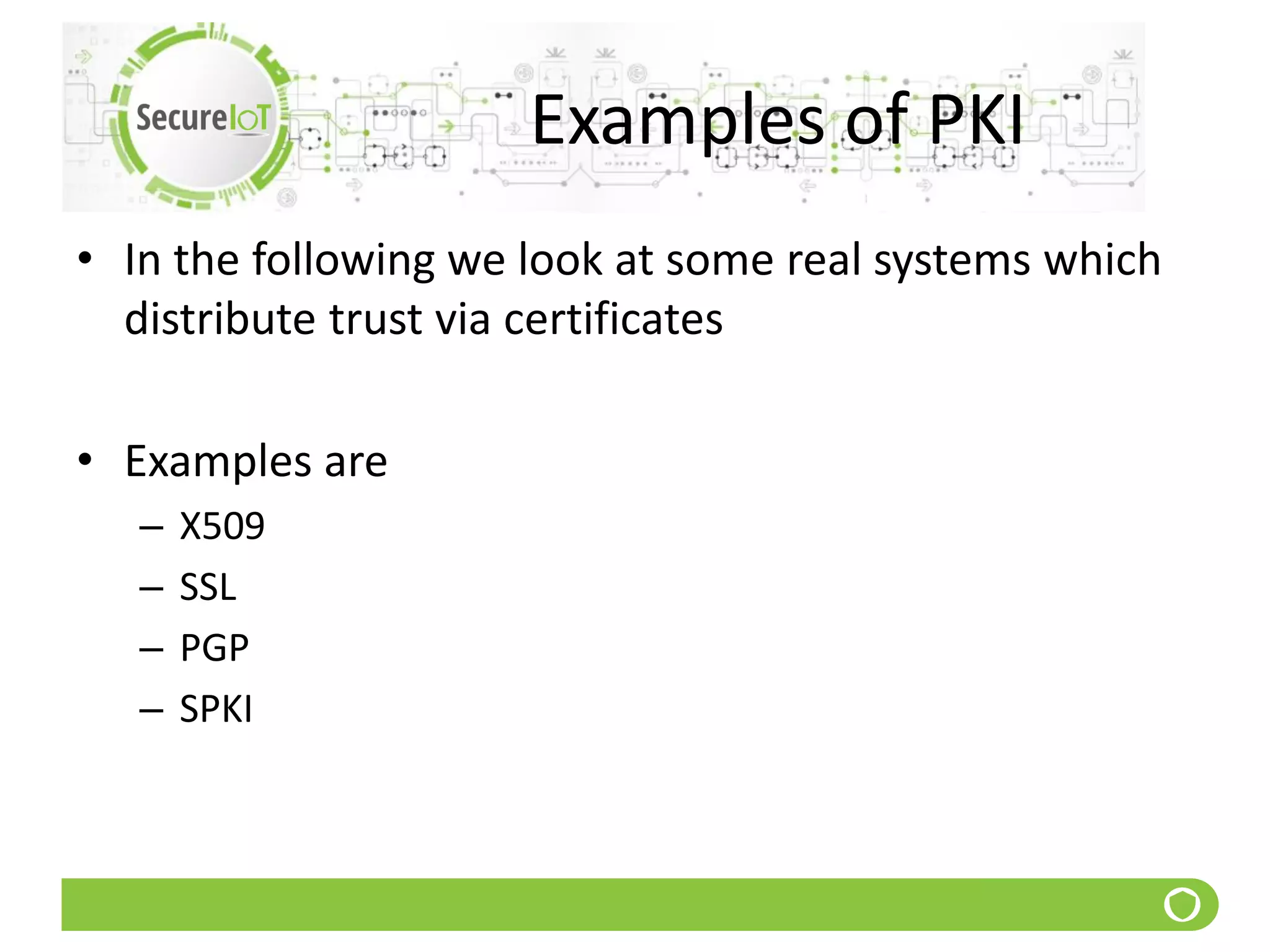

165. Examples of PKI
• In the following we look at some real systems which
distribute trust via certificates
• Examples are
– X509
– SSL
– PGP
– SPKI

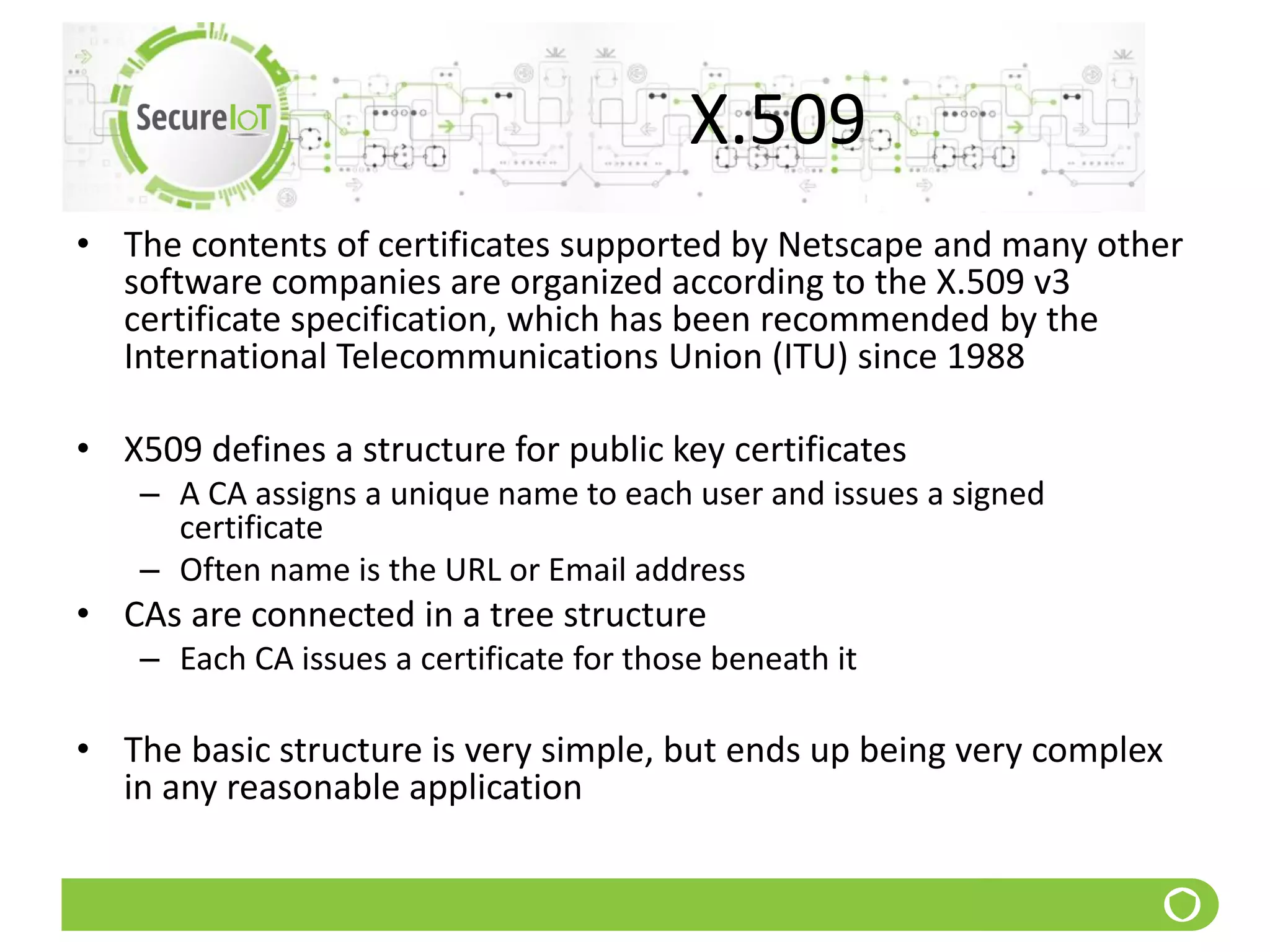

166. X.509
• The contents of certificates supported by Netscape and many other
software companies are organized according to the X.509 v3
certificate specification, which has been recommended by the
International Telecommunications Union (ITU) since 1988
• X509 defines a structure for public key certificates
– A CA assigns a unique name to each user and issues a signed
certificate
– Often name is the URL or Email address
• CAs are connected in a tree structure
– Each CA issues a certificate for those beneath it
• The basic structure is very simple, but ends up being very complex
in any reasonable application

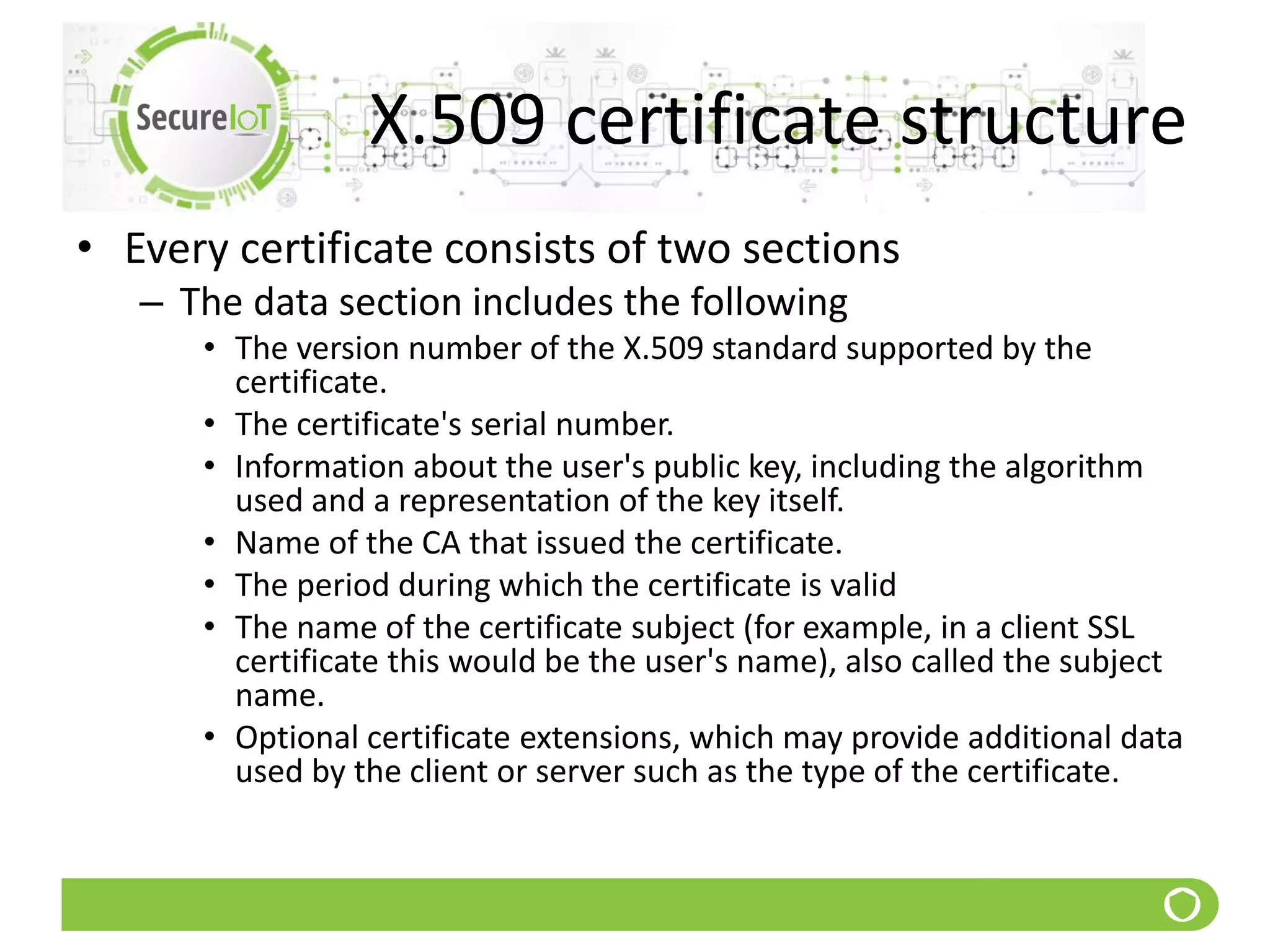

167. X.509 certificate structure
• Every certificate consists of two sections
– The data section includes the following
• The version number of the X.509 standard supported by the
certificate.
• The certificate's serial number.
• Information about the user's public key, including the algorithm
used and a representation of the key itself.
• Name of the CA that issued the certificate.
• The period during which the certificate is valid
• The name of the certificate subject (for example, in a client SSL
certificate this would be the user's name), also called the subject
name.
• Optional certificate extensions, which may provide additional data
used by the client or server such as the type of the certificate.

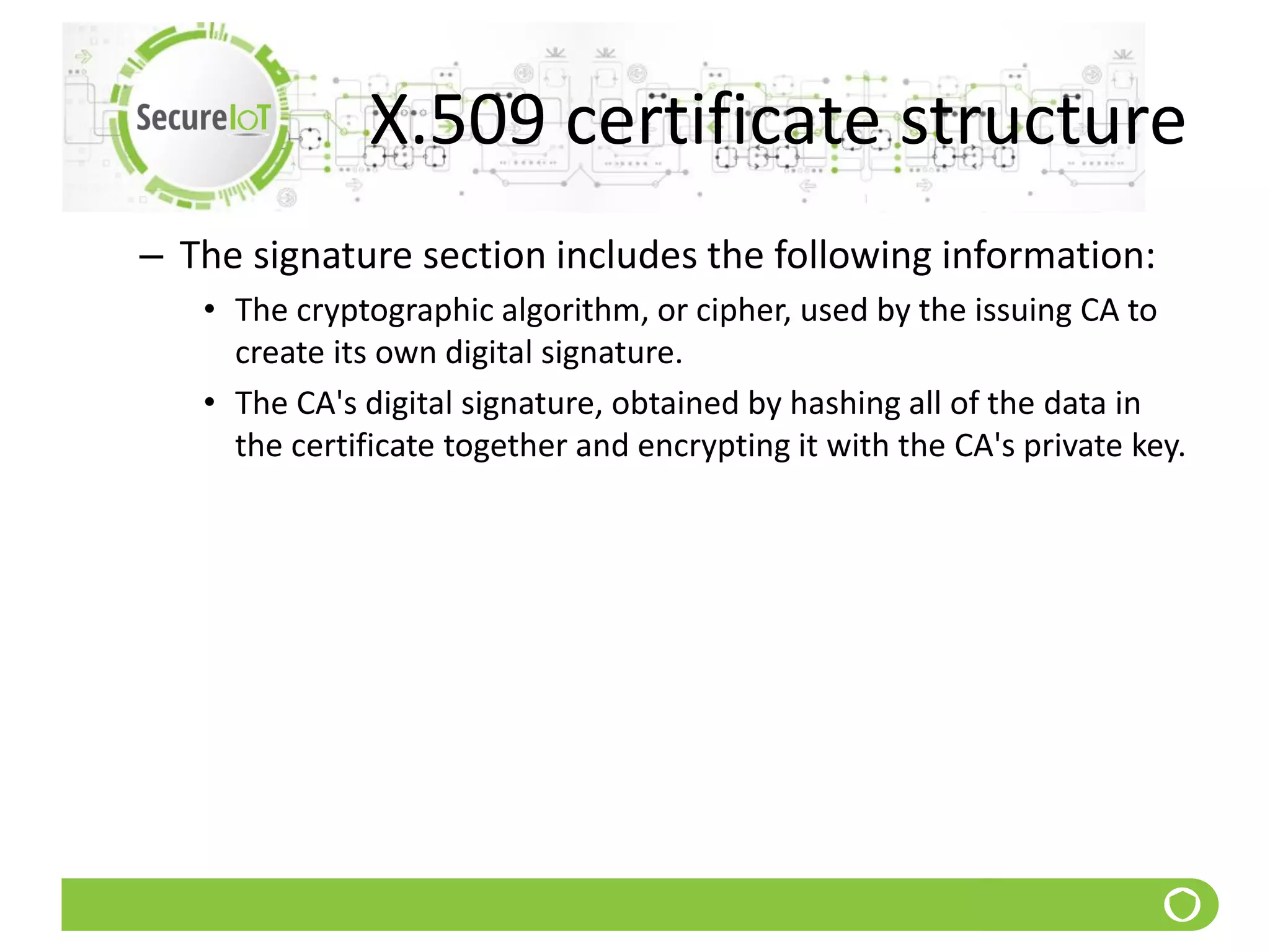

168. X.509 certificate structure
– The signature section includes the following information:
• The cryptographic algorithm, or cipher, used by the issuing CA to
create its own digital signature.
• The CA's digital signature, obtained by hashing all of the data in
the certificate together and encrypting it with the CA's private key.

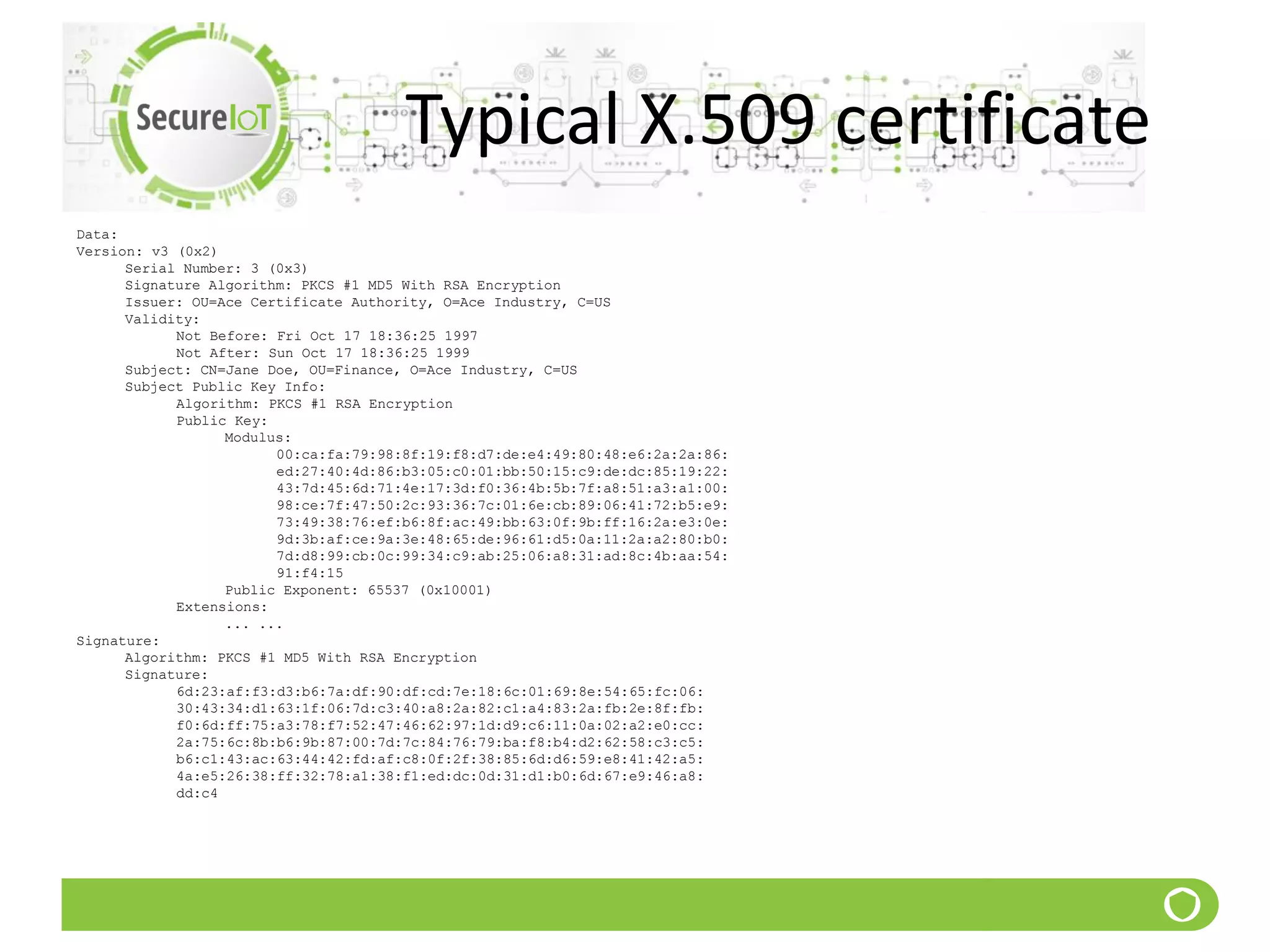

169. Typical X.509 certificate
Data:
Version: v3 (0x2)
Serial Number: 3 (0x3)
Signature Algorithm: PKCS #1 MD5 With RSA Encryption
Issuer: OU=Ace Certificate Authority, O=Ace Industry, C=US
Validity:
Not Before: Fri Oct 17 18:36:25 1997
Not After: Sun Oct 17 18:36:25 1999
Subject: CN=Jane Doe, OU=Finance, O=Ace Industry, C=US
Subject Public Key Info:
Algorithm: PKCS #1 RSA Encryption
Public Key:
Modulus:
00:ca:fa:79:98:8f:19:f8:d7:de:e4:49:80:48:e6:2a:2a:86:
ed:27:40:4d:86:b3:05:c0:01:bb:50:15:c9:de:dc:85:19:22:
43:7d:45:6d:71:4e:17:3d:f0:36:4b:5b:7f:a8:51:a3:a1:00:
98:ce:7f:47:50:2c:93:36:7c:01:6e:cb:89:06:41:72:b5:e9:
73:49:38:76:ef:b6:8f:ac:49:bb:63:0f:9b:ff:16:2a:e3:0e:
9d:3b:af:ce:9a:3e:48:65:de:96:61:d5:0a:11:2a:a2:80:b0:
7d:d8:99:cb:0c:99:34:c9:ab:25:06:a8:31:ad:8c:4b:aa:54:
91:f4:15
Public Exponent: 65537 (0x10001)
Extensions:
... ...
Signature:
Algorithm: PKCS #1 MD5 With RSA Encryption
Signature:
6d:23:af:f3:d3:b6:7a:df:90:df:cd:7e:18:6c:01:69:8e:54:65:fc:06:
30:43:34:d1:63:1f:06:7d:c3:40:a8:2a:82:c1:a4:83:2a:fb:2e:8f:fb:
f0:6d:ff:75:a3:78:f7:52:47:46:62:97:1d:d9:c6:11:0a:02:a2:e0:cc:
2a:75:6c:8b:b6:9b:87:00:7d:7c:84:76:79:ba:f8:b4:d2:62:58:c3:c5:
b6:c1:43:ac:63:44:42:fd:af:c8:0f:2f:38:85:6d:d6:59:e8:41:42:a5:
4a:e5:26:38:ff:32:78:a1:38:f1:ed:dc:0d:31:d1:b0:6d:67:e9:46:a8:
dd:c4

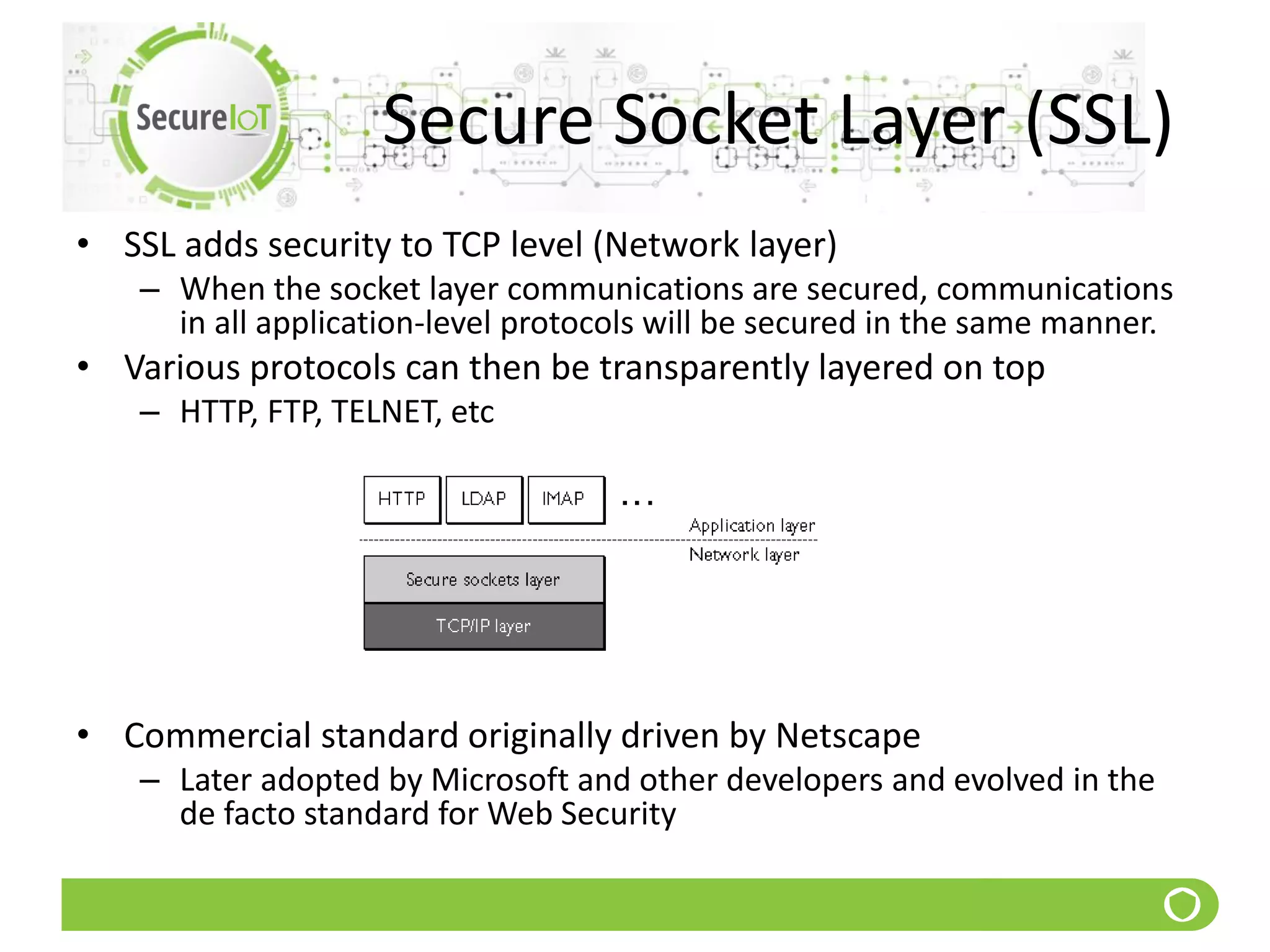

170. Secure Socket Layer (SSL)
• SSL adds security to TCP level (Network layer)
– When the socket layer communications are secured, communications
in all application-level protocols will be secured in the same manner.
• Various protocols can then be transparently layered on top
– HTTP, FTP, TELNET, etc
• Commercial standard originally driven by Netscape
– Later adopted by Microsoft and other developers and evolved in the
de facto standard for Web Security

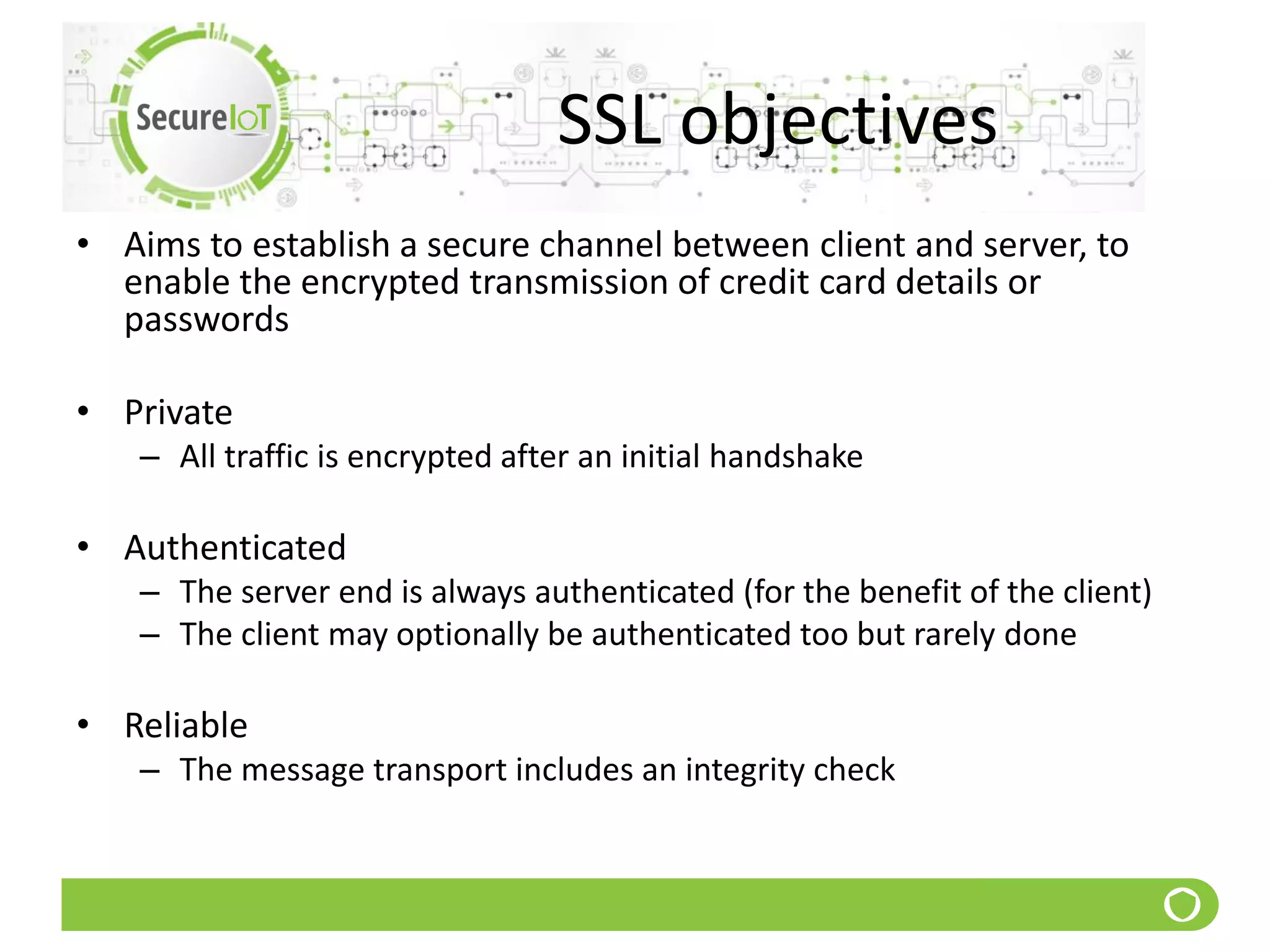

171. SSL objectives
• Aims to establish a secure channel between client and server, to
enable the encrypted transmission of credit card details or
passwords
• Private
– All traffic is encrypted after an initial handshake
• Authenticated
– The server end is always authenticated (for the benefit of the client)
– The client may optionally be authenticated too but rarely done
• Reliable
– The message transport includes an integrity check

172. SSL Structure
• Bulk encryption is performed using a block or a stream
cipher
– Client and server agree on the encryption algorithm during the
initial handshake
– The session key to be used is derived using standard protocols
such as Diffie-Hellman or RSA based key transport
• The server is authenticated since it provides the client with
a X509 public key certificate
– For web based transactions, this is signed by some global CA
– Public key of CA comes embedded in user’s browser such as
Netscape of Explorer

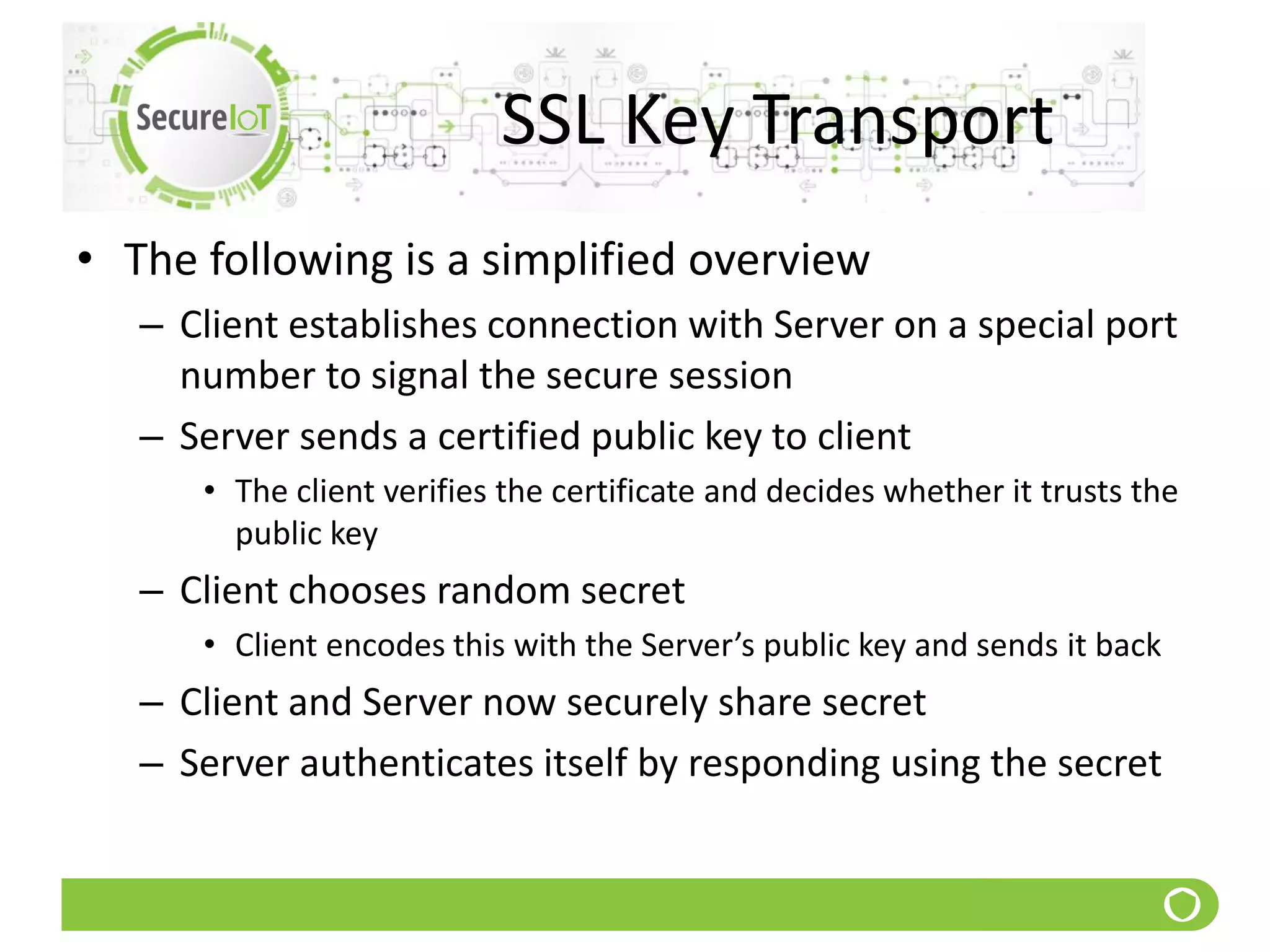

173. SSL Key Transport
• The following is a simplified overview
– Client establishes connection with Server on a special port
number to signal the secure session
– Server sends a certified public key to client
• The client verifies the certificate and decides whether it trusts the
public key
– Client chooses random secret
• Client encodes this with the Server’s public key and sends it back
– Client and Server now securely share secret
– Server authenticates itself by responding using the secret

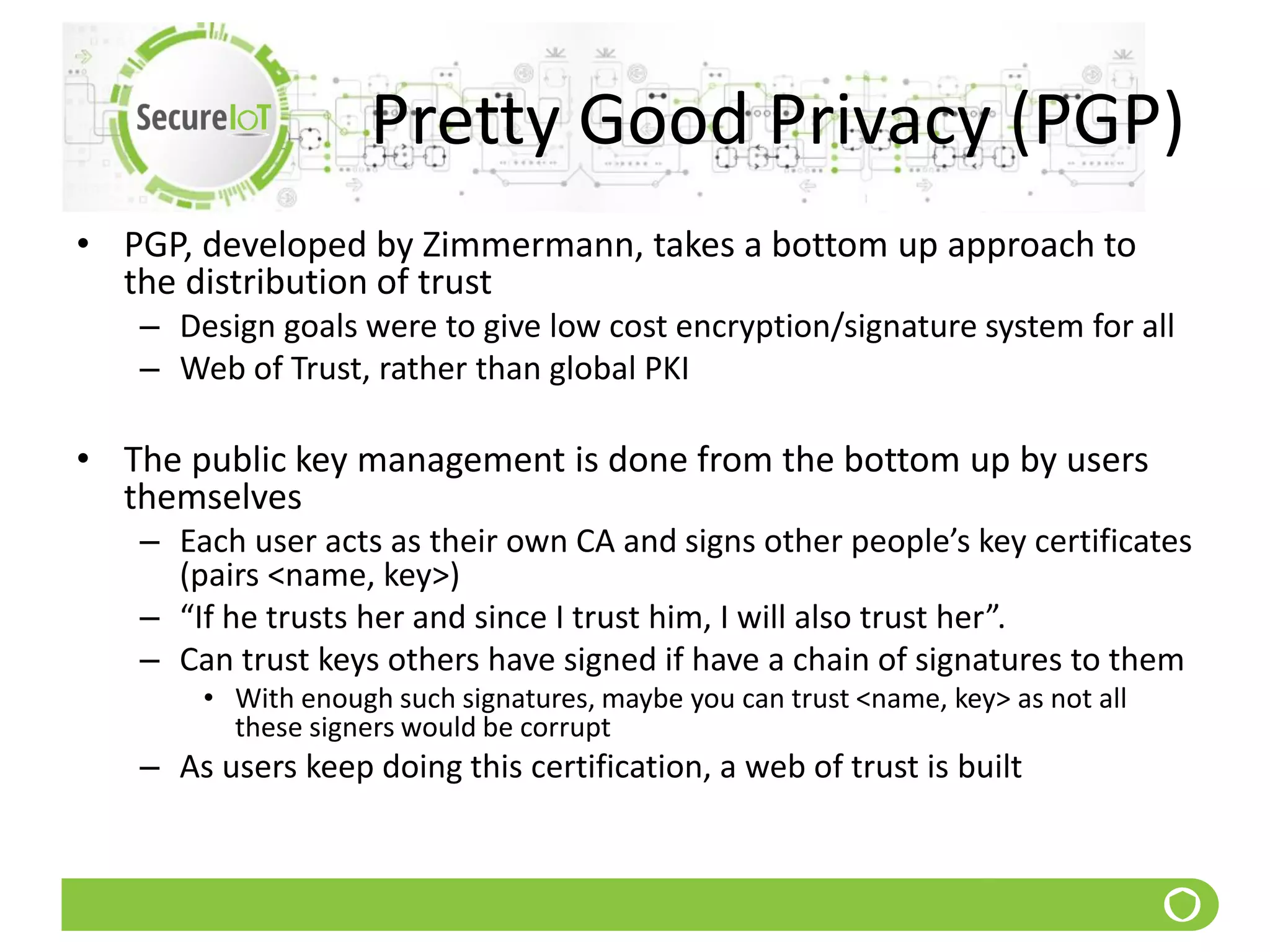

174. Pretty Good Privacy (PGP)
• PGP, developed by Zimmermann, takes a bottom up approach to
the distribution of trust
– Design goals were to give low cost encryption/signature system for all
– Web of Trust, rather than global PKI
• The public key management is done from the bottom up by users
themselves
– Each user acts as their own CA and signs other people’s key certificates
(pairs <name, key>)
– “If he trusts her and since I trust him, I will also trust her”.
– Can trust keys others have signed if have a chain of signatures to them
• With enough such signatures, maybe you can trust <name, key> as not all
these signers would be corrupt
– As users keep doing this certification, a web of trust is built

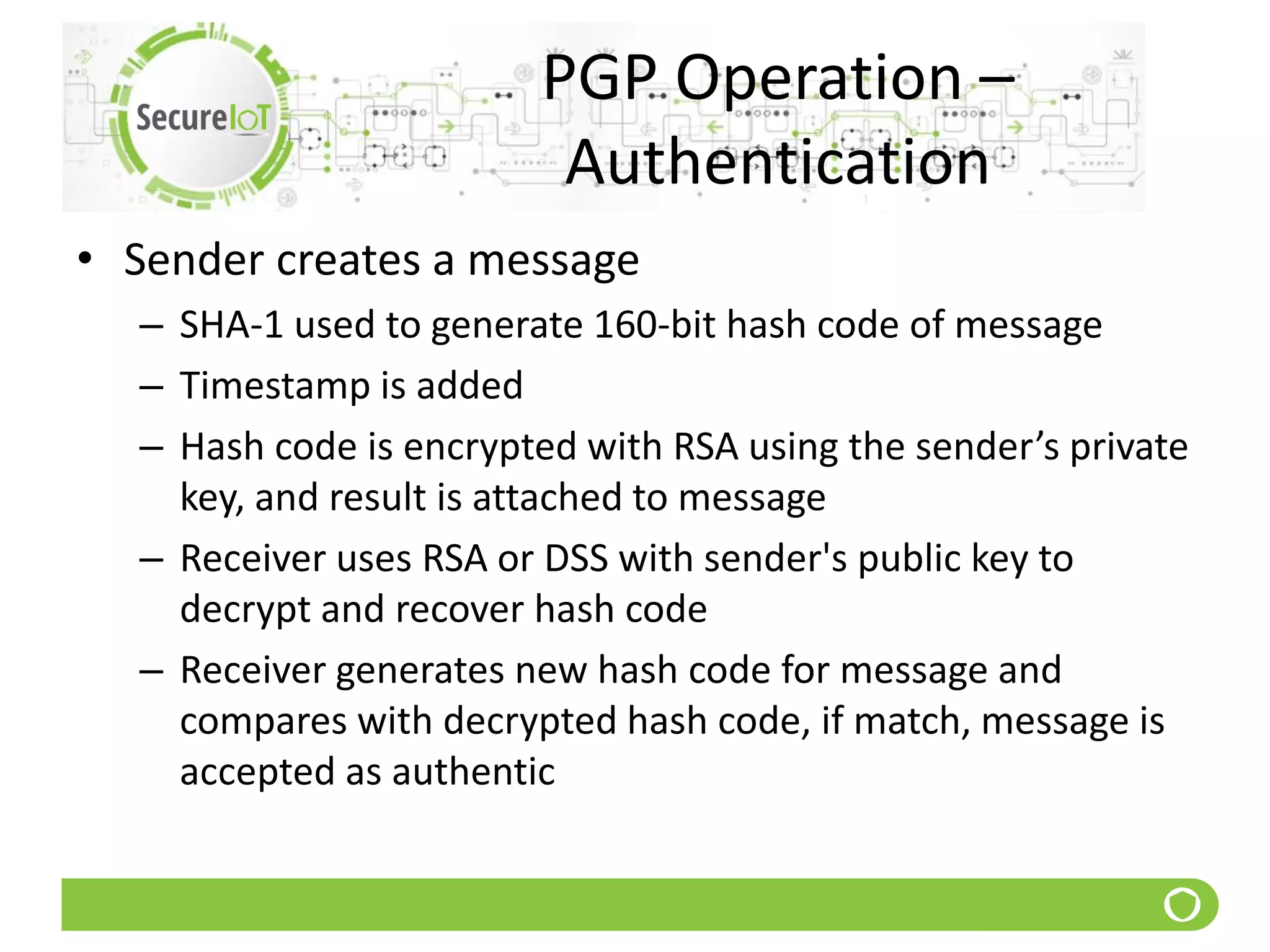

175. PGP Operation –
Authentication
• Sender creates a message
– SHA-1 used to generate 160-bit hash code of message
– Timestamp is added
– Hash code is encrypted with RSA using the sender’s private
key, and result is attached to message
– Receiver uses RSA or DSS with sender's public key to
decrypt and recover hash code
– Receiver generates new hash code for message and
compares with decrypted hash code, if match, message is
accepted as authentic

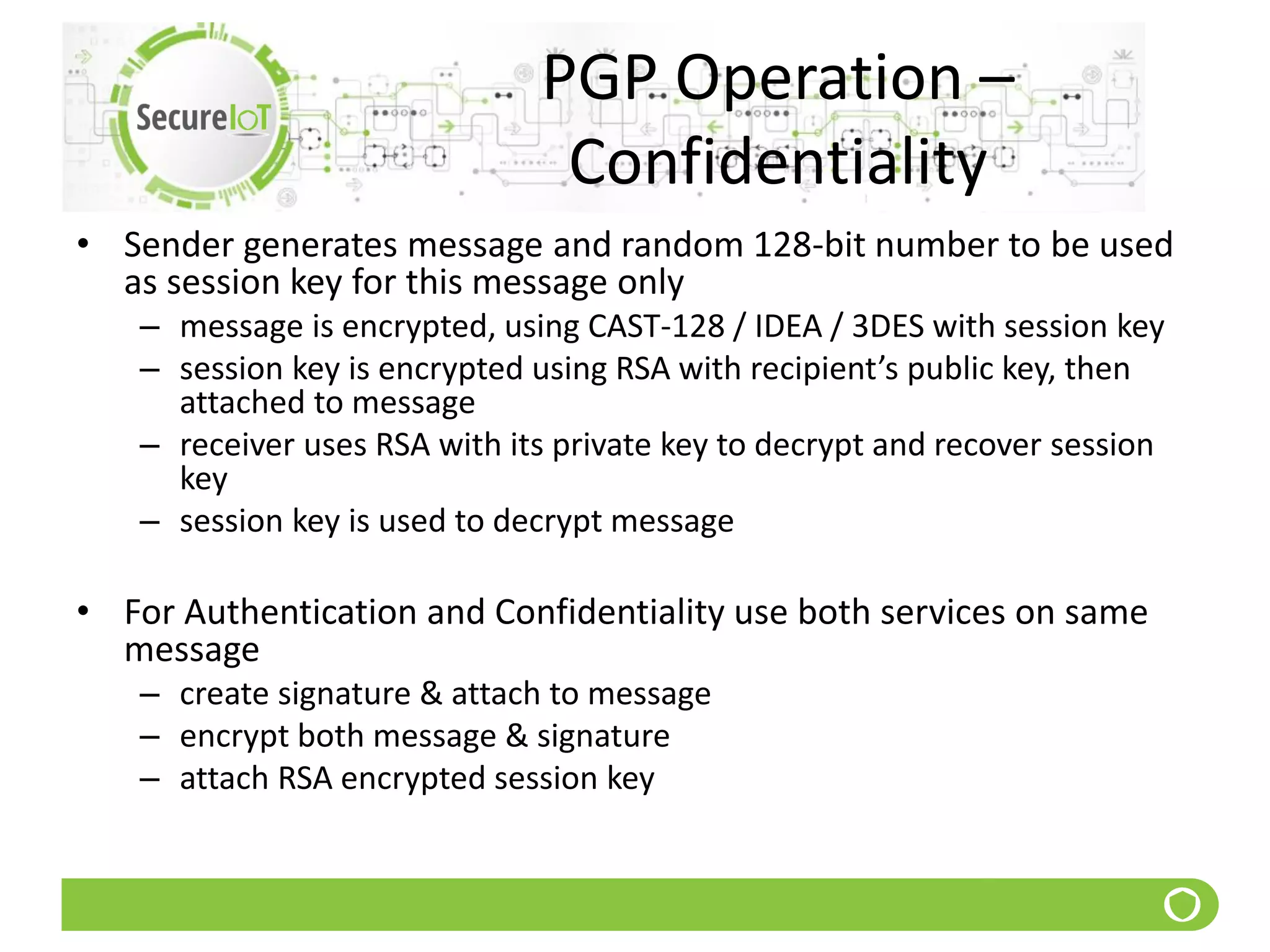

176. PGP Operation –
Confidentiality
• Sender generates message and random 128-bit number to be used
as session key for this message only
– message is encrypted, using CAST-128 / IDEA / 3DES with session key
– session key is encrypted using RSA with recipient’s public key, then
attached to message
– receiver uses RSA with its private key to decrypt and recover session
key
– session key is used to decrypt message
• For Authentication and Confidentiality use both services on same
message
– create signature & attach to message
– encrypt both message & signature
– attach RSA encrypted session key

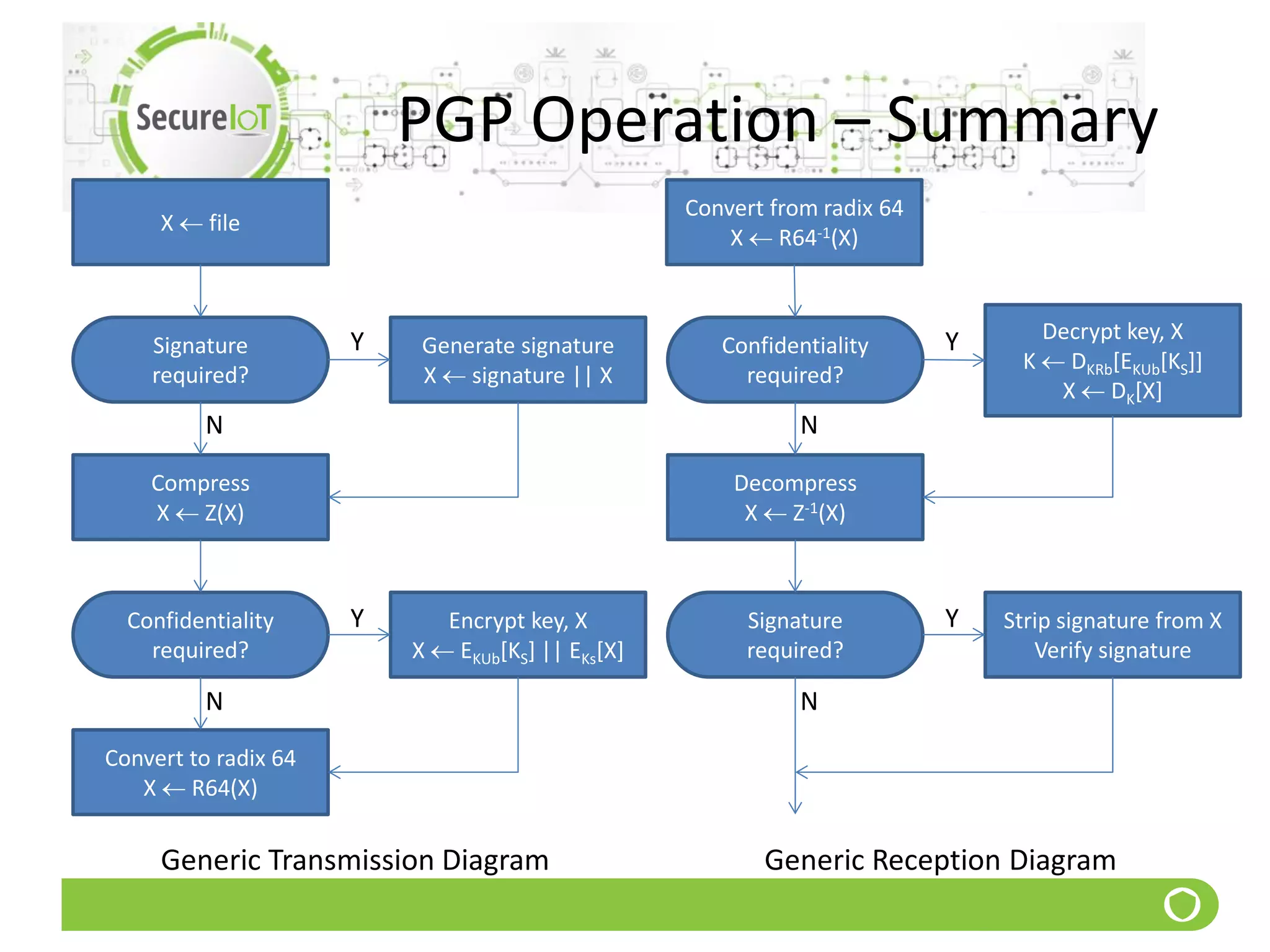

177. PGP Operation – Summary
X  file
Signature
required?
Generate signature
X  signature || X
Compress
X  Z(X)
Confidentiality
required?
Encrypt key, X
X  EKUb[KS] || EKs[X]
Convert to radix 64
X  R64(X)
Y
Y
N
N
Convert from radix 64
X  R64-1(X)
Confidentiality
required?
Decrypt key, X
K  DKRb[EKUb[KS]]
X  DK[X]
Decompress
X  Z-1(X)
Signature
required?
Strip signature from X
Verify signature
Y
Y
N
N
Generic Transmission Diagram Generic Reception Diagram

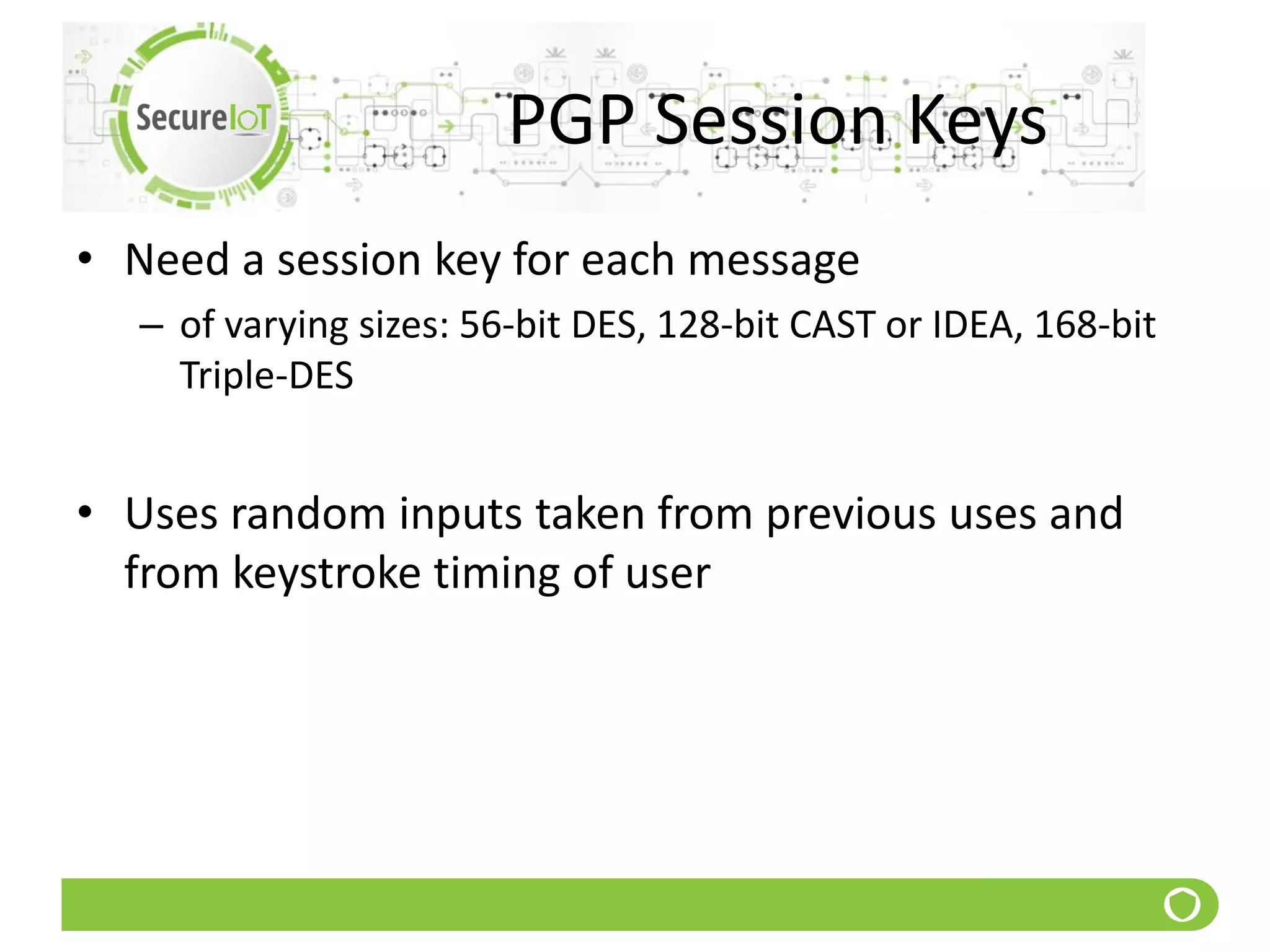

178. PGP Session Keys
• Need a session key for each message
– of varying sizes: 56-bit DES, 128-bit CAST or IDEA, 168-bit
Triple-DES
• Uses random inputs taken from previous uses and
from keystroke timing of user

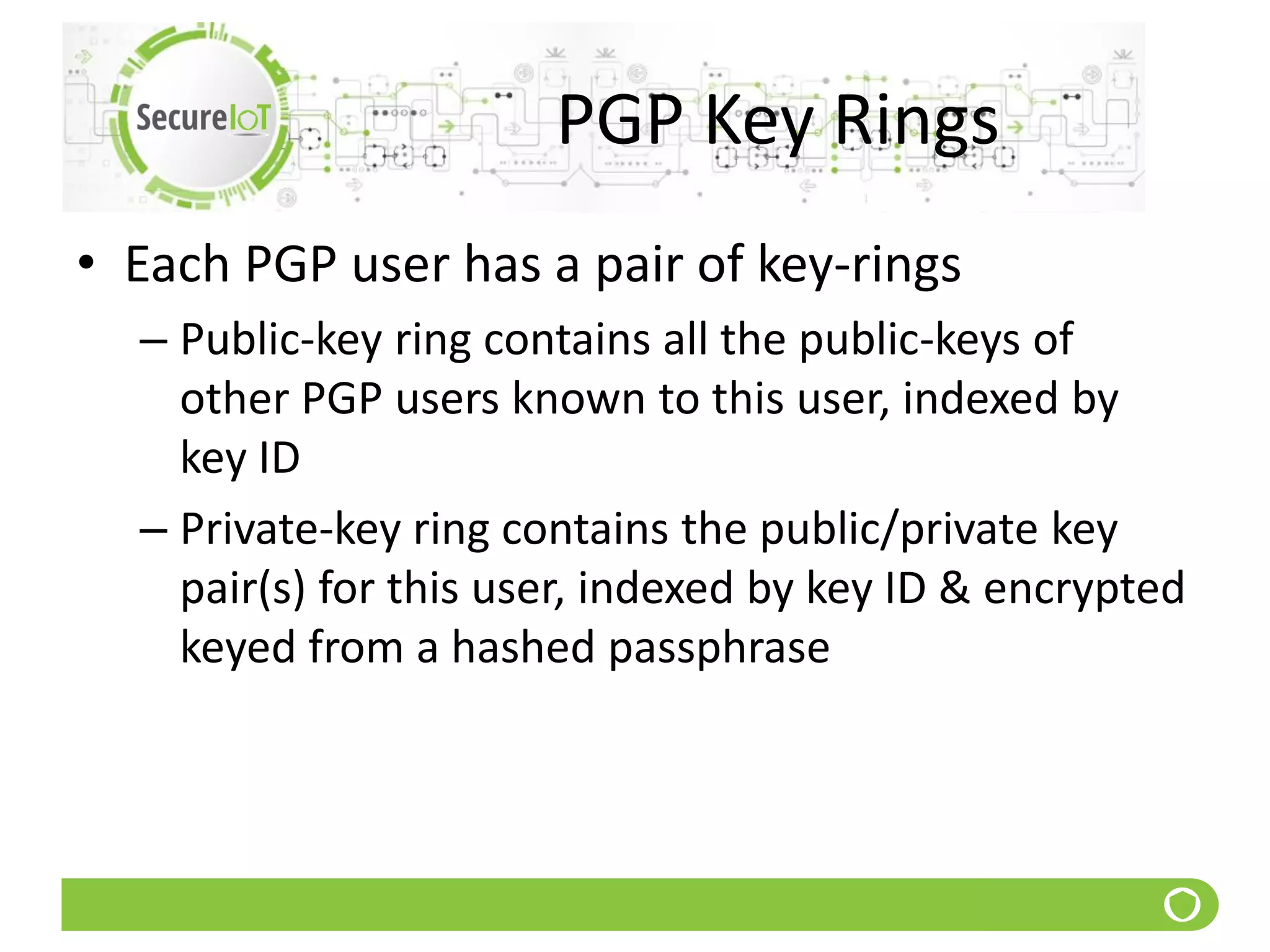

179. PGP Key Rings
• Each PGP user has a pair of key-rings
– Public-key ring contains all the public-keys of
other PGP users known to this user, indexed by
key ID
– Private-key ring contains the public/private key
pair(s) for this user, indexed by key ID & encrypted
keyed from a hashed passphrase

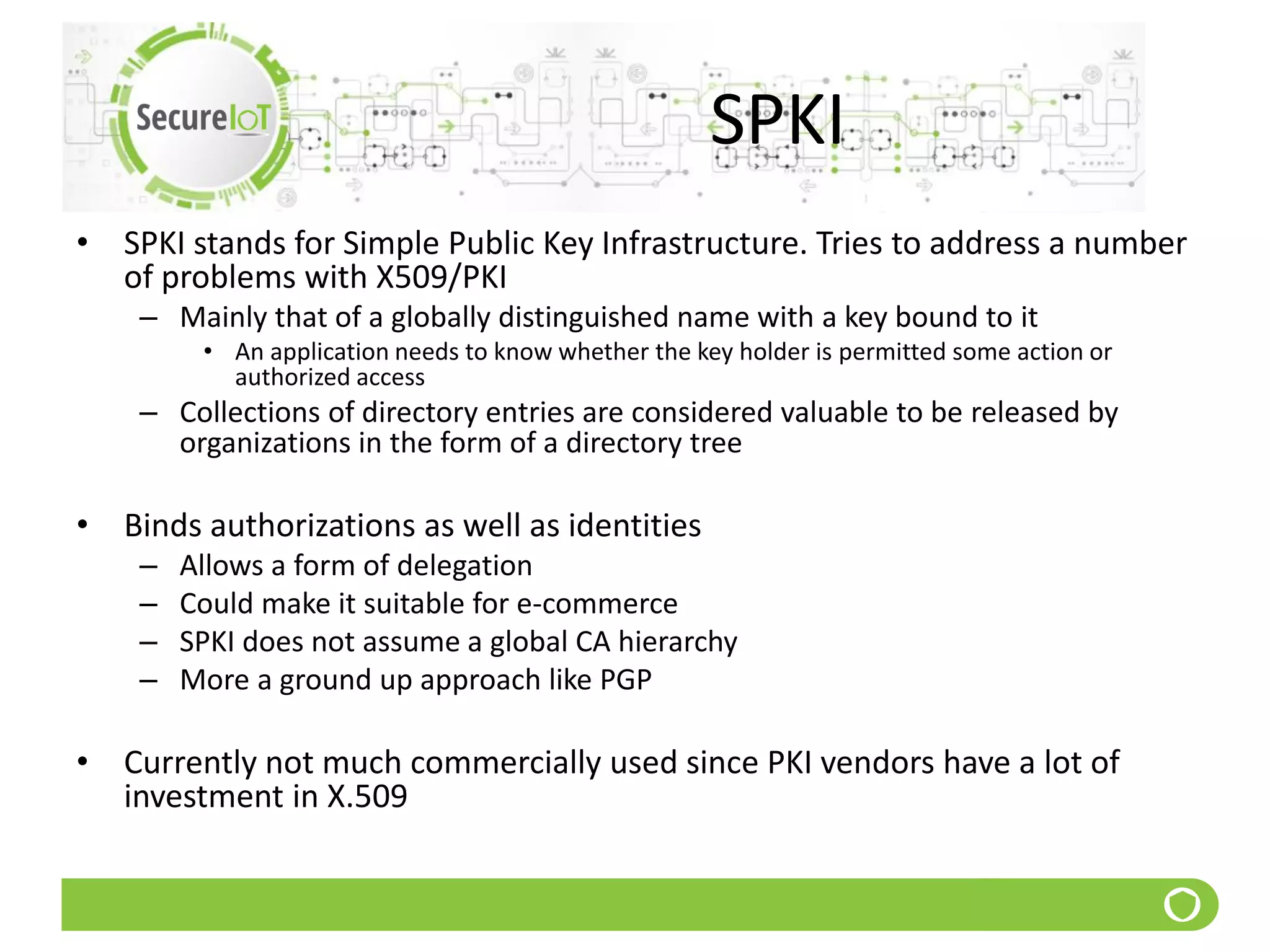

180. SPKI
• SPKI stands for Simple Public Key Infrastructure. Tries to address a number
of problems with X509/PKI
– Mainly that of a globally distinguished name with a key bound to it
• An application needs to know whether the key holder is permitted some action or
authorized access
– Collections of directory entries are considered valuable to be released by
organizations in the form of a directory tree
• Binds authorizations as well as identities
– Allows a form of delegation
– Could make it suitable for e-commerce
– SPKI does not assume a global CA hierarchy
– More a ground up approach like PGP
• Currently not much commercially used since PKI vendors have a lot of
investment in X.509

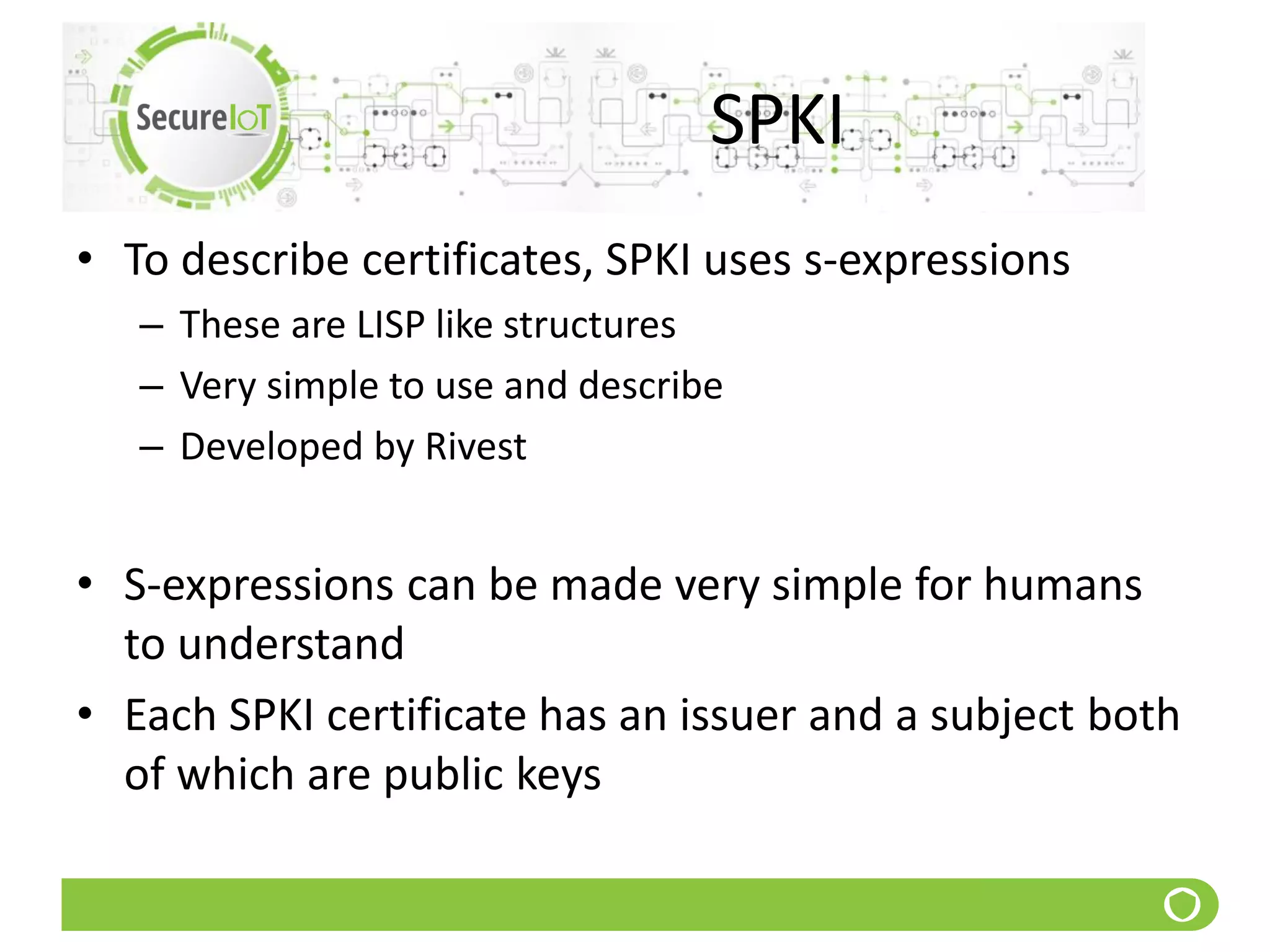

181. SPKI
• To describe certificates, SPKI uses s-expressions
– These are LISP like structures
– Very simple to use and describe
– Developed by Rivest
• S-expressions can be made very simple for humans
to understand
• Each SPKI certificate has an issuer and a subject both
of which are public keys

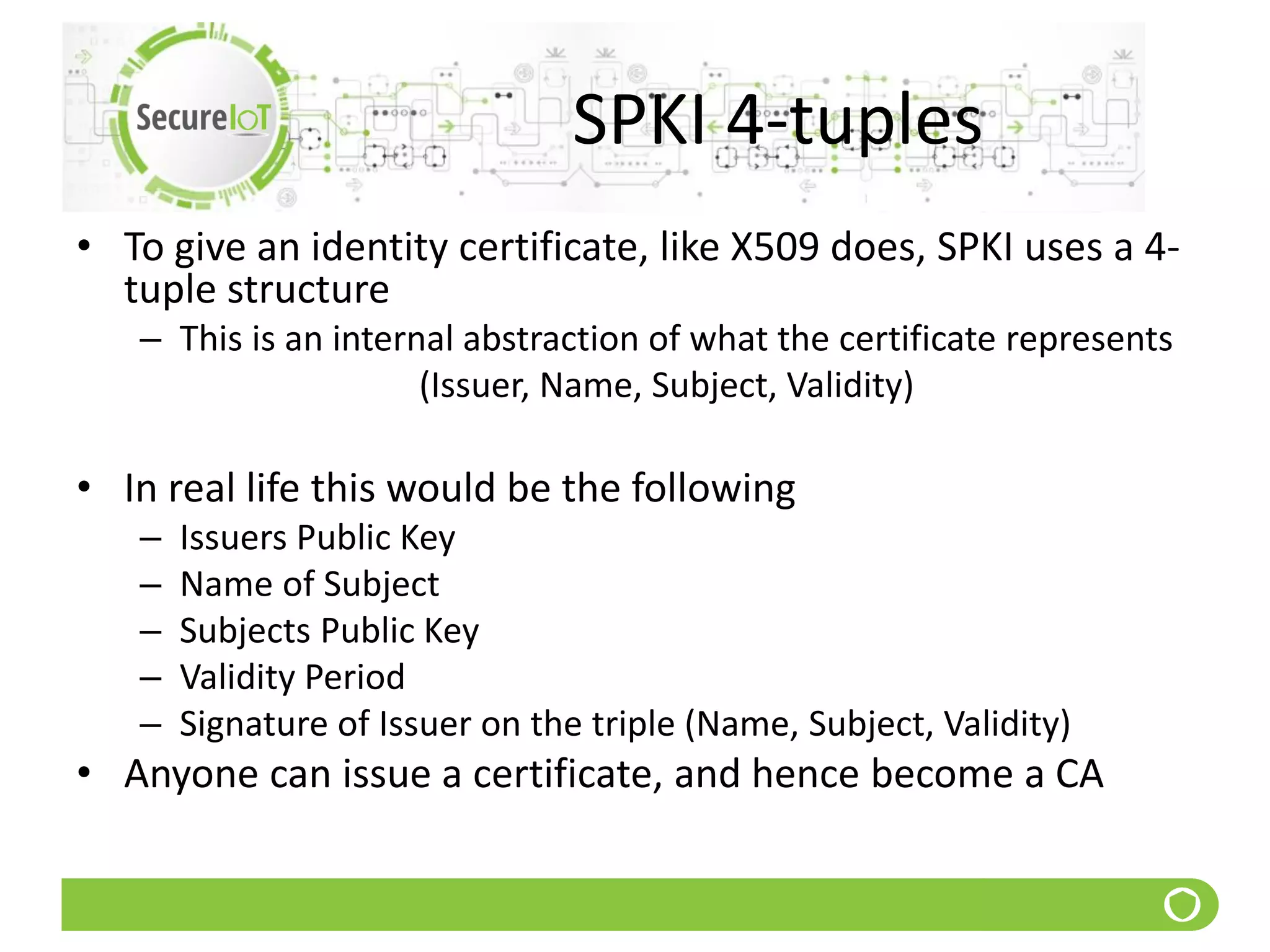

182. SPKI 4-tuples
• To give an identity certificate, like X509 does, SPKI uses a 4-
tuple structure
– This is an internal abstraction of what the certificate represents
(Issuer, Name, Subject, Validity)
• In real life this would be the following
– Issuers Public Key
– Name of Subject
– Subjects Public Key
– Validity Period
– Signature of Issuer on the triple (Name, Subject, Validity)
• Anyone can issue a certificate, and hence become a CA

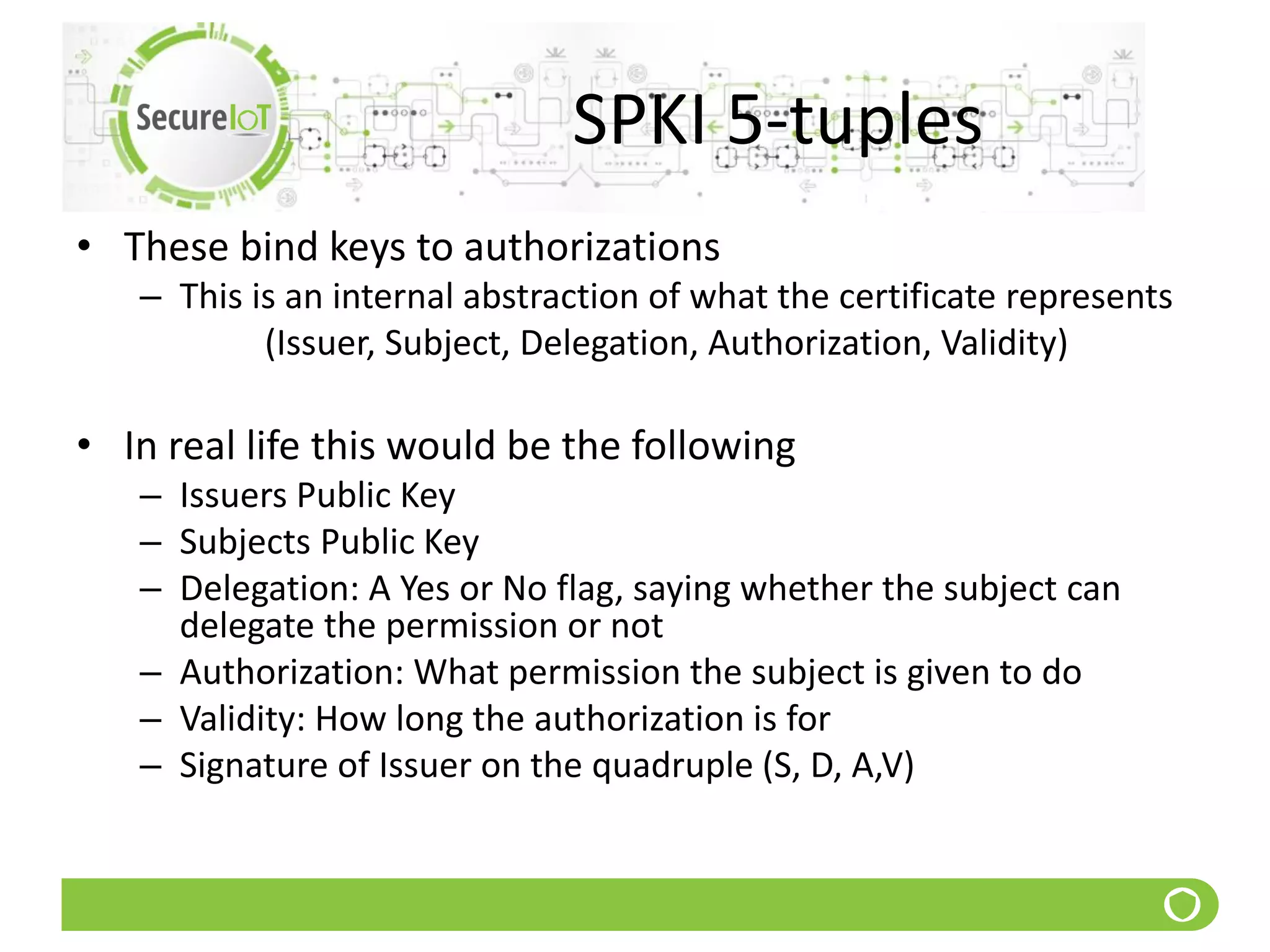

183. SPKI 5-tuples
• These bind keys to authorizations
– This is an internal abstraction of what the certificate represents
(Issuer, Subject, Delegation, Authorization, Validity)
• In real life this would be the following
– Issuers Public Key
– Subjects Public Key
– Delegation: A Yes or No flag, saying whether the subject can
delegate the permission or not
– Authorization: What permission the subject is given to do
– Validity: How long the authorization is for
– Signature of Issuer on the quadruple (S, D, A,V)

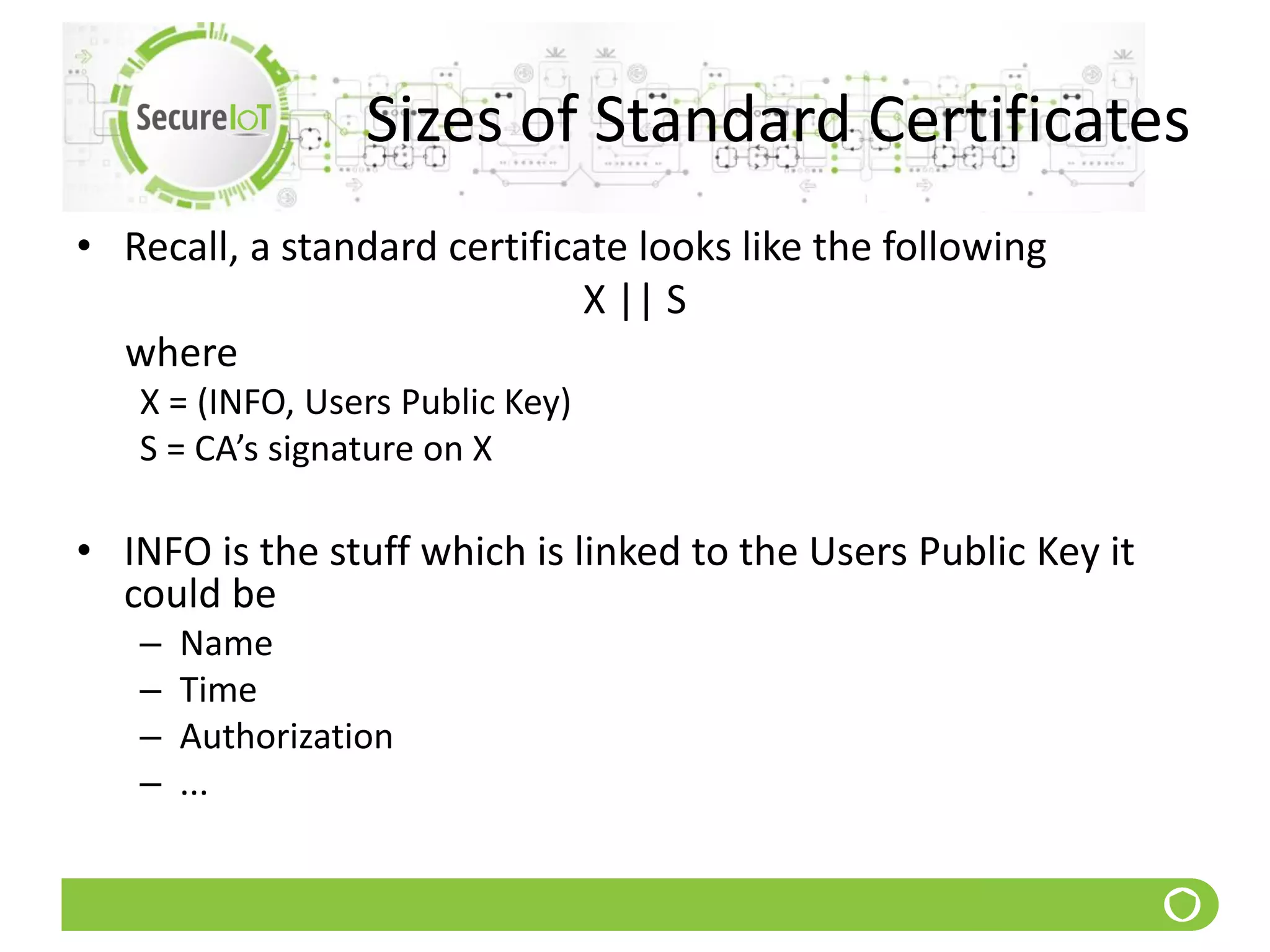

184. Sizes of Standard Certificates
• Recall, a standard certificate looks like the following
X || S
where
X = (INFO, Users Public Key)
S = CA’s signature on X
• INFO is the stuff which is linked to the Users Public Key it
could be
– Name
– Time
– Authorization
– ...

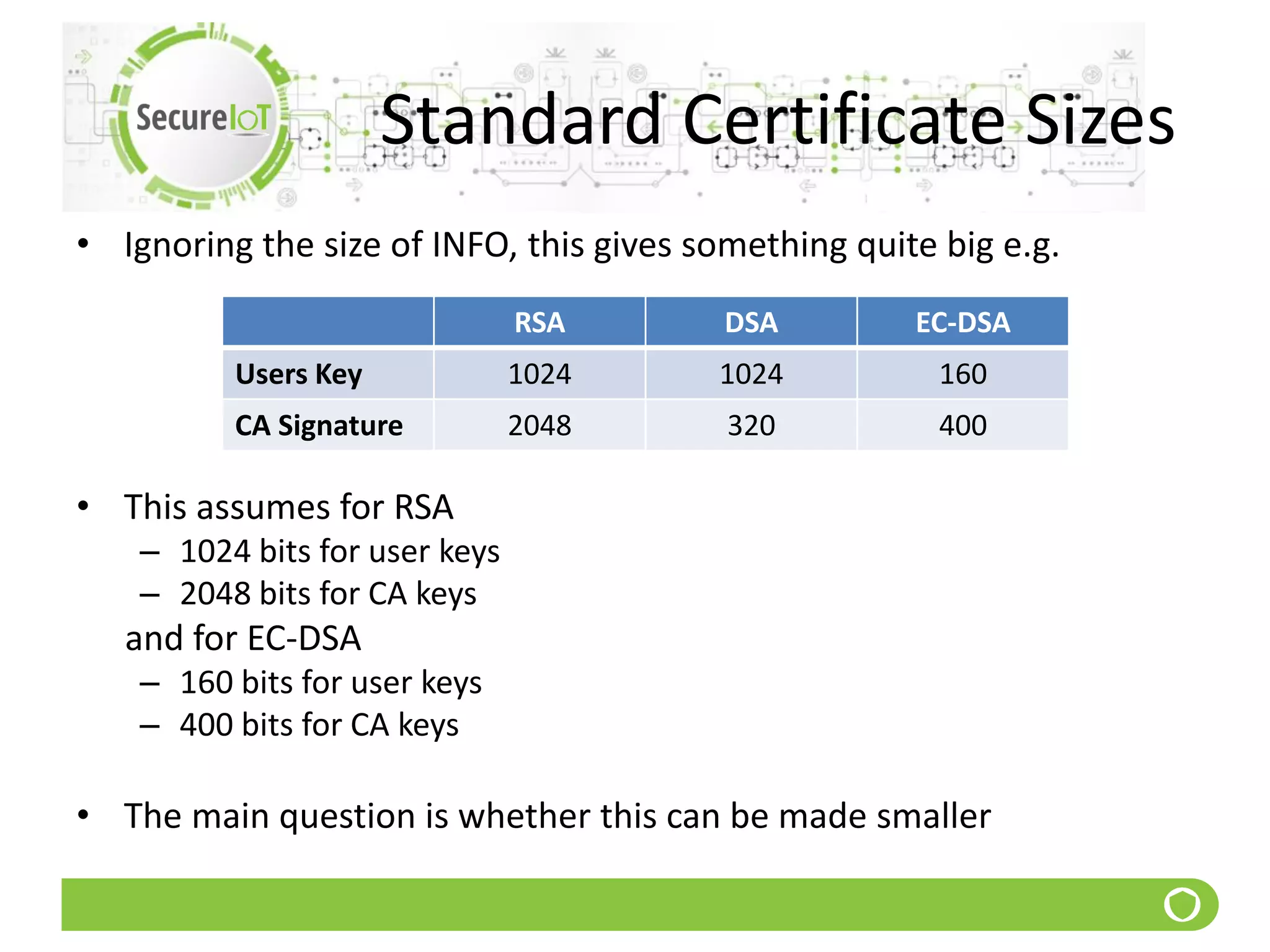

185. Standard Certificate Sizes
• Ignoring the size of INFO, this gives something quite big e.g.
• This assumes for RSA
– 1024 bits for user keys
– 2048 bits for CA keys
and for EC-DSA
– 160 bits for user keys
– 400 bits for CA keys
• The main question is whether this can be made smaller
RSA DSA EC-DSA
Users Key 1024 1024 160
CA Signature 2048 320 400

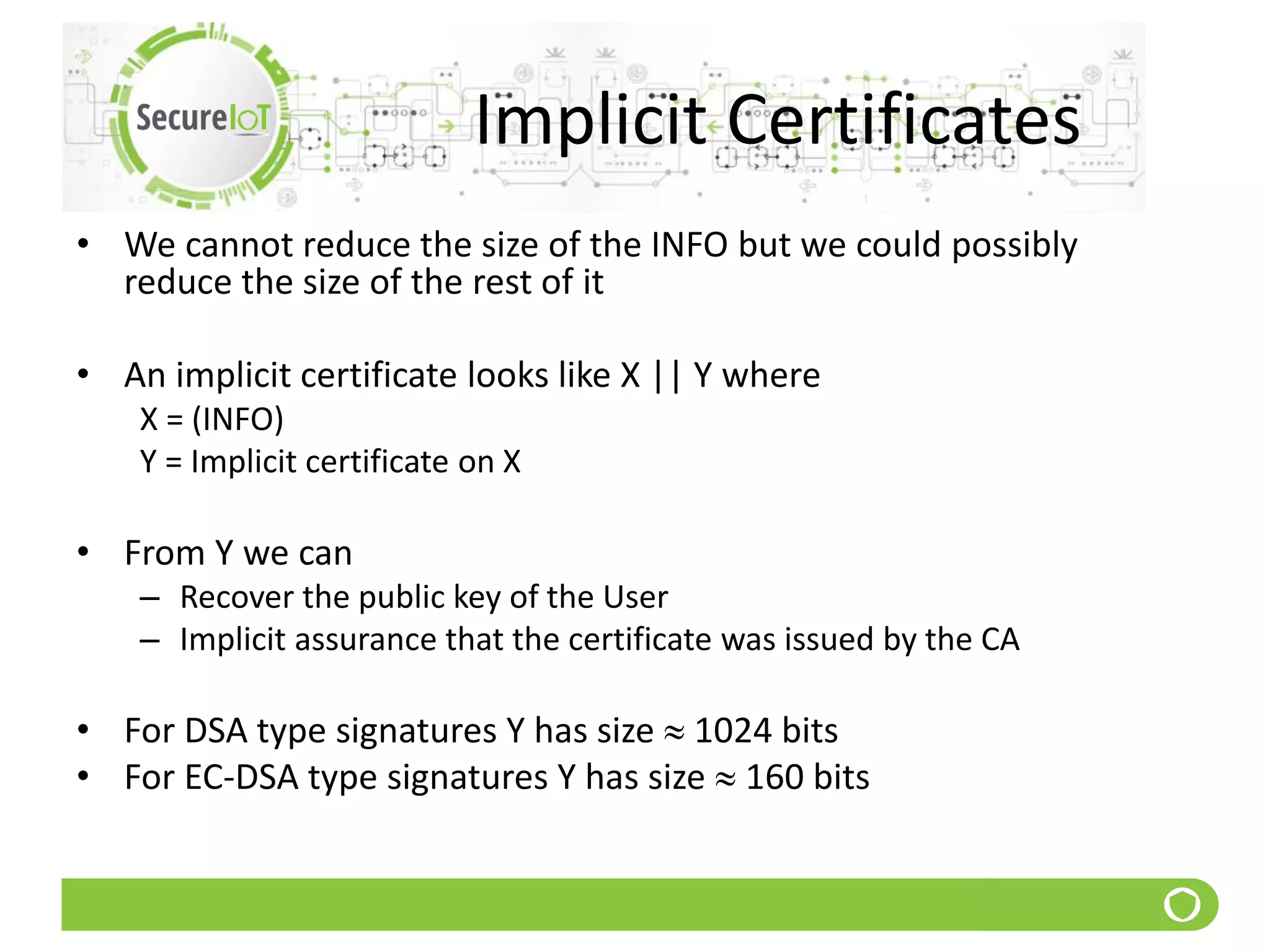

186. Implicit Certificates
• We cannot reduce the size of the INFO but we could possibly
reduce the size of the rest of it
• An implicit certificate looks like X || Y where
X = (INFO)
Y = Implicit certificate on X
• From Y we can
– Recover the public key of the User
– Implicit assurance that the certificate was issued by the CA
• For DSA type signatures Y has size  1024 bits
• For EC-DSA type signatures Y has size  160 bits

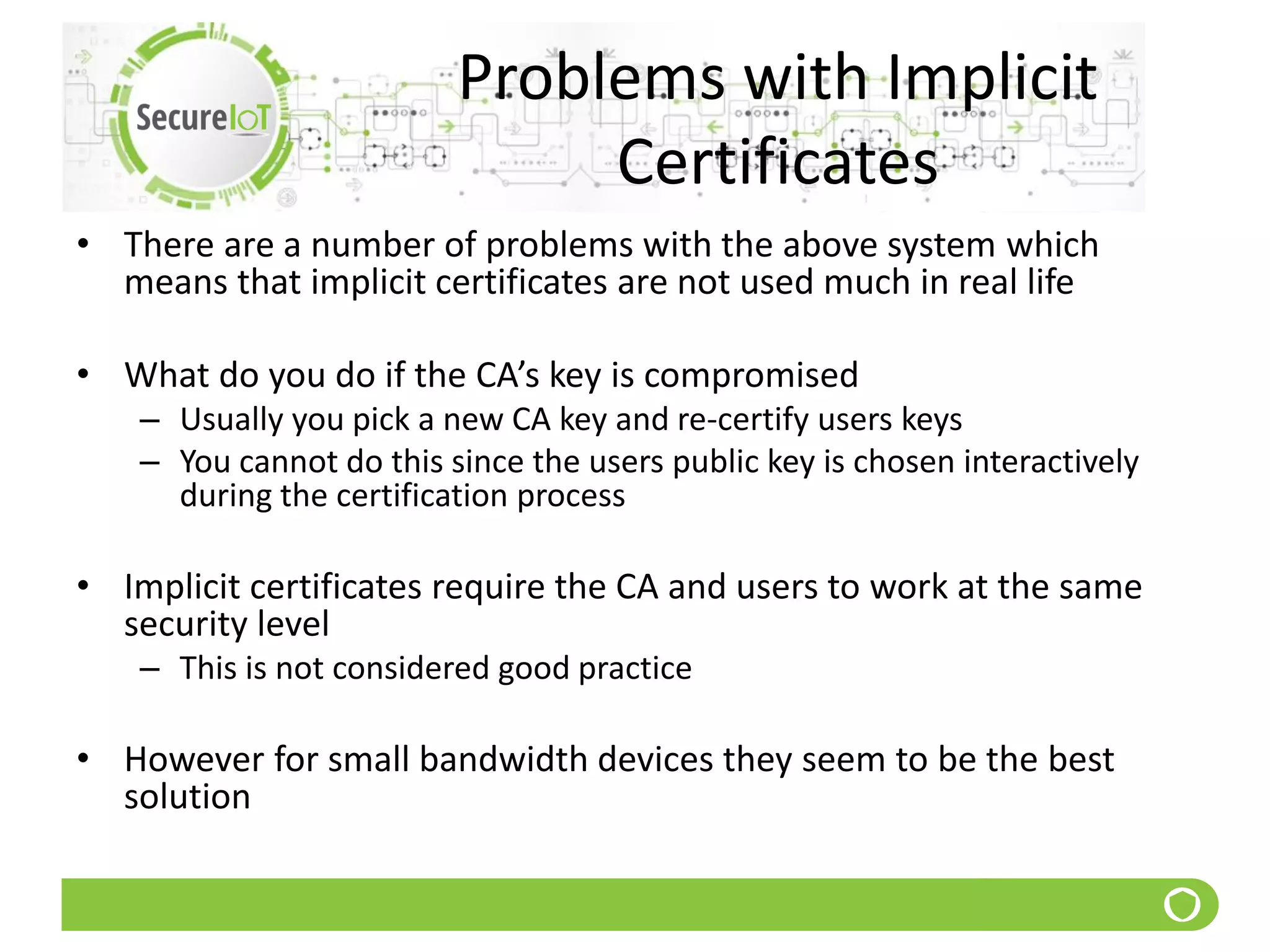

187. Problems with Implicit
Certificates
• There are a number of problems with the above system which
means that implicit certificates are not used much in real life
• What do you do if the CA’s key is compromised
– Usually you pick a new CA key and re-certify users keys
– You cannot do this since the users public key is chosen interactively
during the certification process
• Implicit certificates require the CA and users to work at the same
security level
– This is not considered good practice
• However for small bandwidth devices they seem to be the best
solution

188. REAL LIFE PROTOCOLS

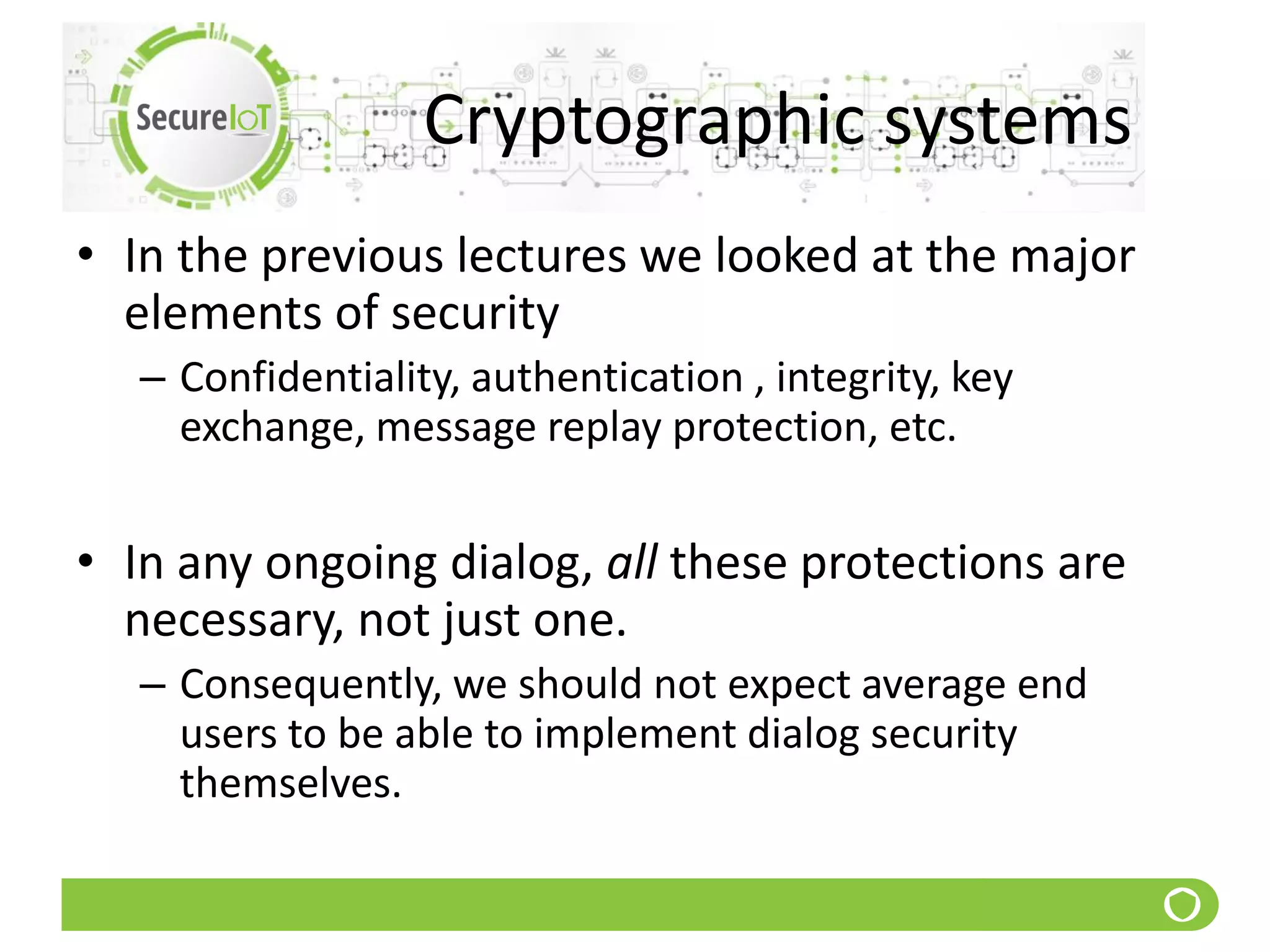

189. Cryptographic systems
• In the previous lectures we looked at the major
elements of security
– Confidentiality, authentication , integrity, key
exchange, message replay protection, etc.
• In any ongoing dialog, all these protections are
necessary, not just one.
– Consequently, we should not expect average end
users to be able to implement dialog security
themselves.

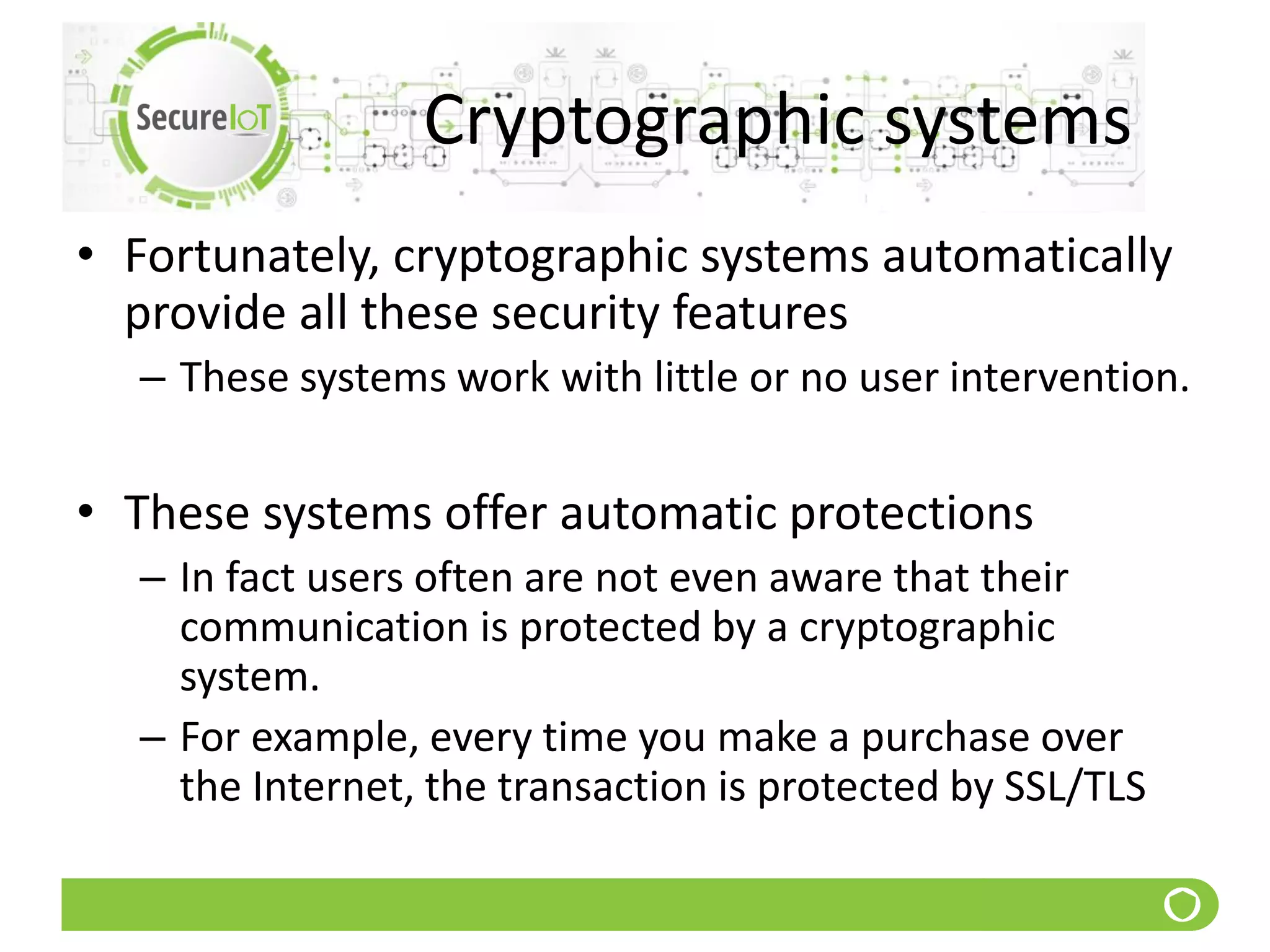

190. Cryptographic systems
• Fortunately, cryptographic systems automatically
provide all these security features
– These systems work with little or no user intervention.
• These systems offer automatic protections
– In fact users often are not even aware that their
communication is protected by a cryptographic
system.
– For example, every time you make a purchase over
the Internet, the transaction is protected by SSL/TLS

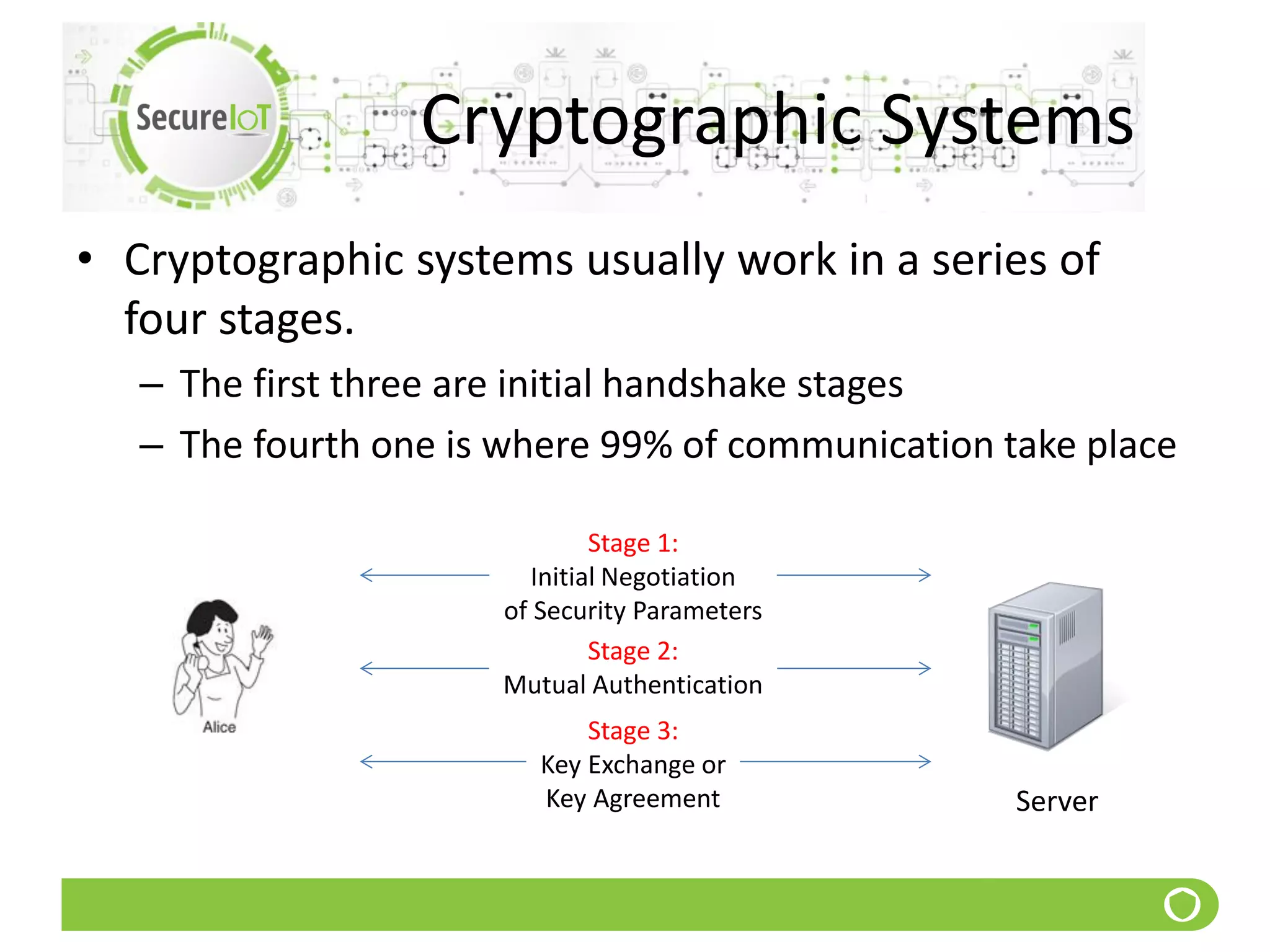

191. Cryptographic Systems
• Cryptographic systems usually work in a series of
four stages.
– The first three are initial handshake stages
– The fourth one is where 99% of communication take place
Stage 1:
Initial Negotiation
of Security Parameters
Stage 2:
Mutual Authentication
Stage 3:
Key Exchange or
Key Agreement Server

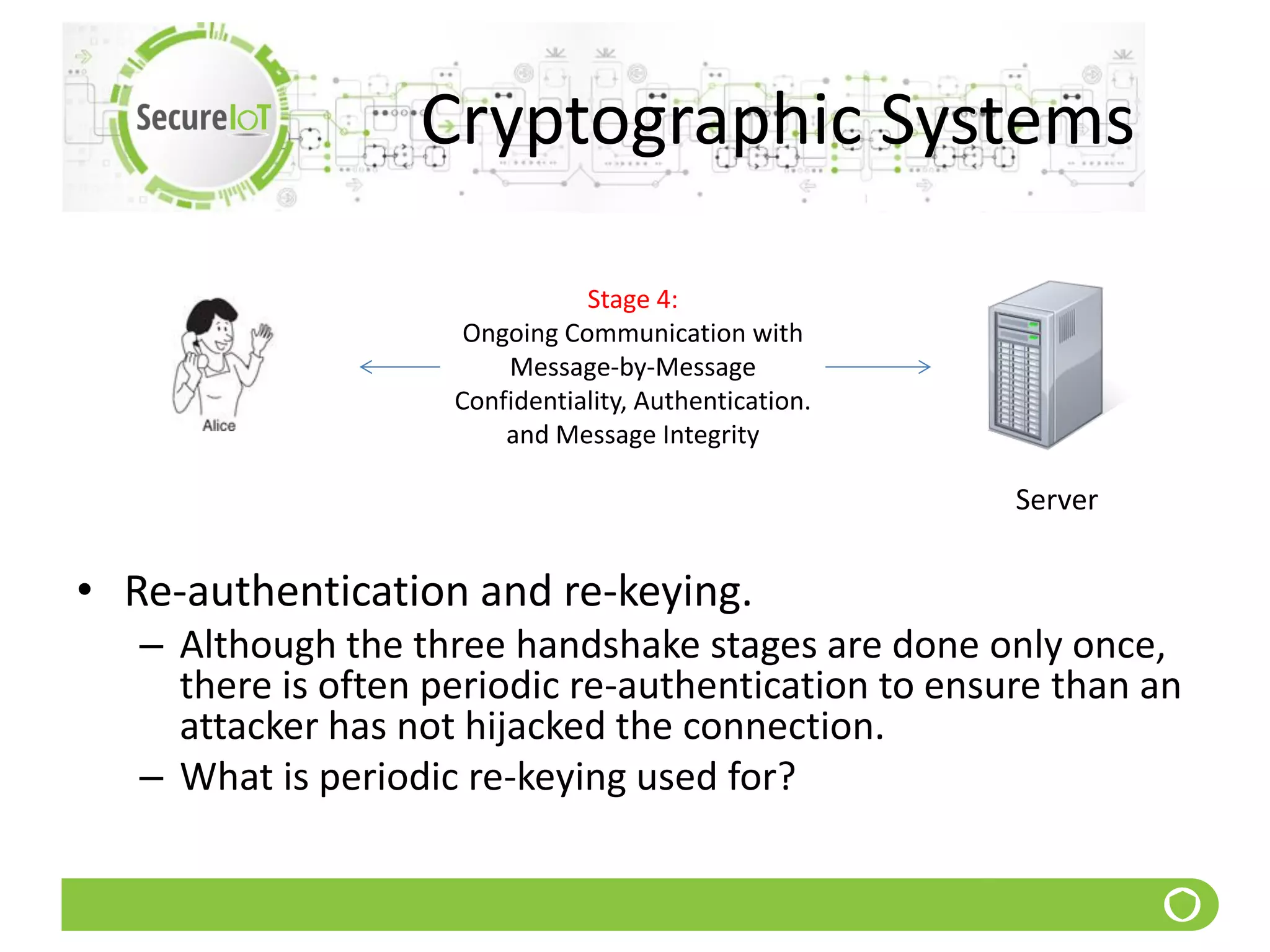

192. Cryptographic Systems
• Re-authentication and re-keying.
– Although the three handshake stages are done only once,
there is often periodic re-authentication to ensure than an
attacker has not hijacked the connection.
– What is periodic re-keying used for?
Stage 4:
Ongoing Communication with
Message-by-Message
Confidentiality, Authentication.
and Message Integrity
Server

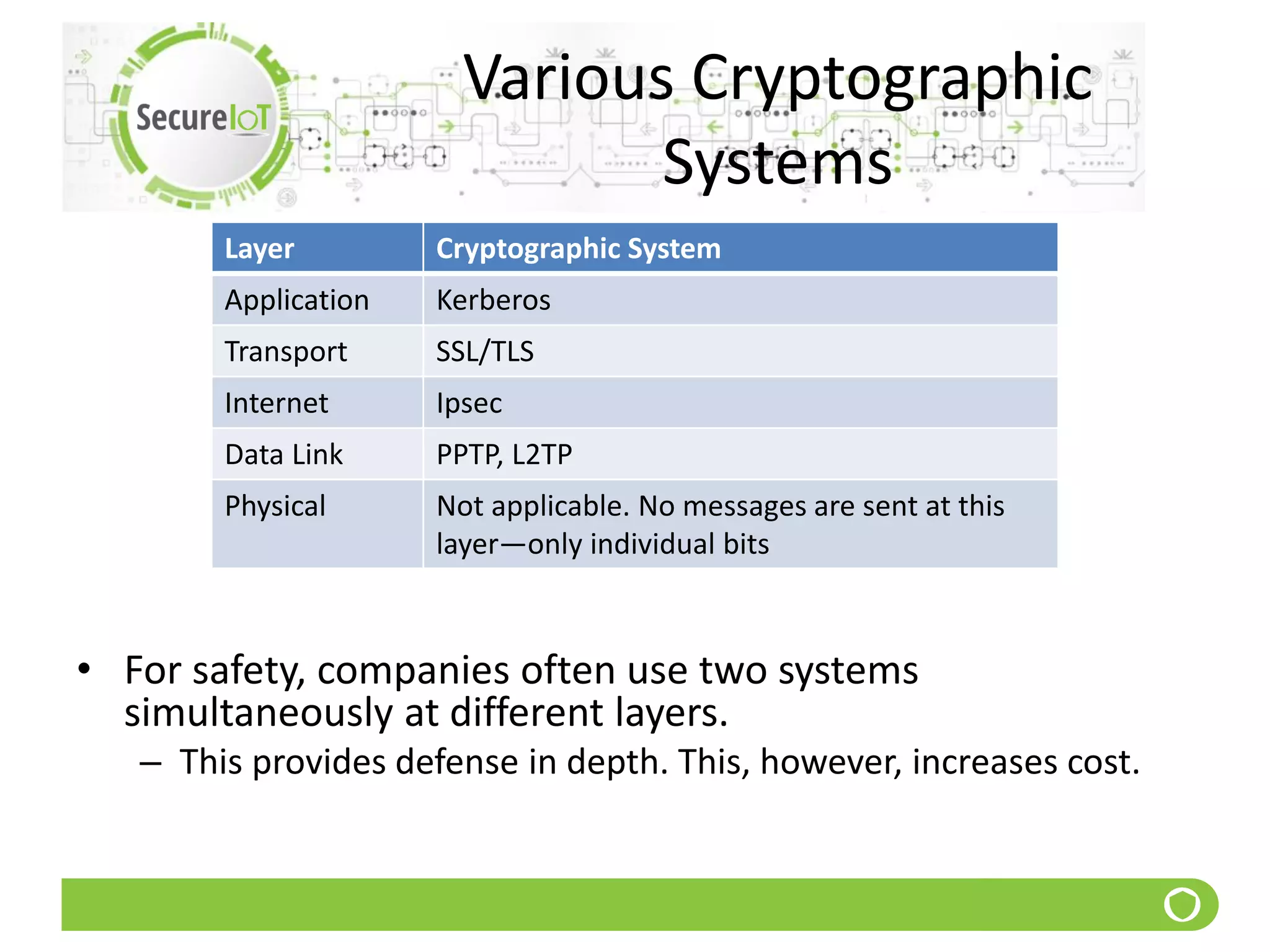

193. Various Cryptographic
Systems
• For safety, companies often use two systems
simultaneously at different layers.
– This provides defense in depth. This, however, increases cost.
Layer Cryptographic System
Application Kerberos
Transport SSL/TLS
Internet Ipsec
Data Link PPTP, L2TP
Physical Not applicable. No messages are sent at this
layer—only individual bits

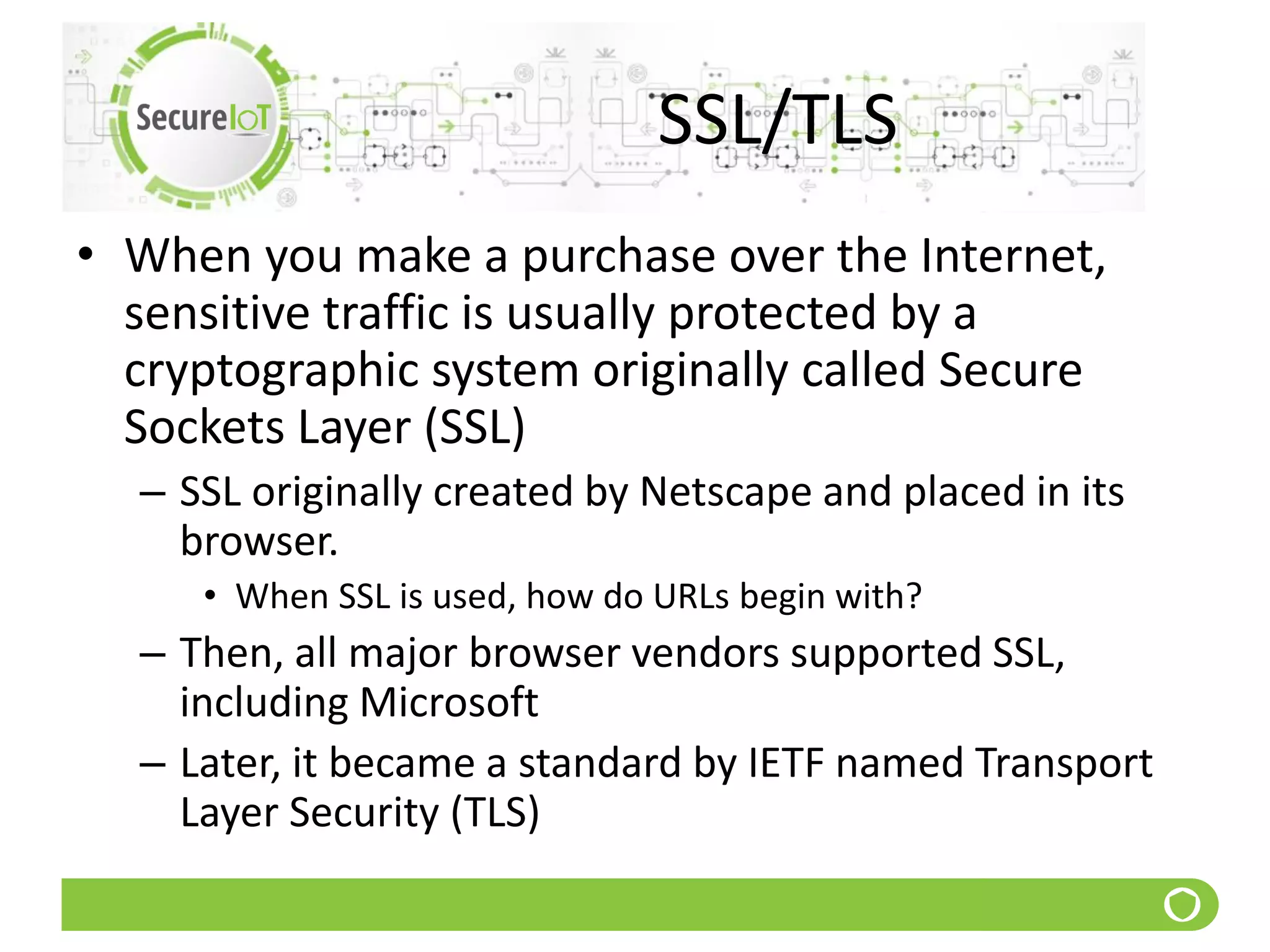

194. SSL/TLS
• When you make a purchase over the Internet,
sensitive traffic is usually protected by a
cryptographic system originally called Secure
Sockets Layer (SSL)
– SSL originally created by Netscape and placed in its
browser.
• When SSL is used, how do URLs begin with?
– Then, all major browser vendors supported SSL,
including Microsoft
– Later, it became a standard by IETF named Transport
Layer Security (TLS)

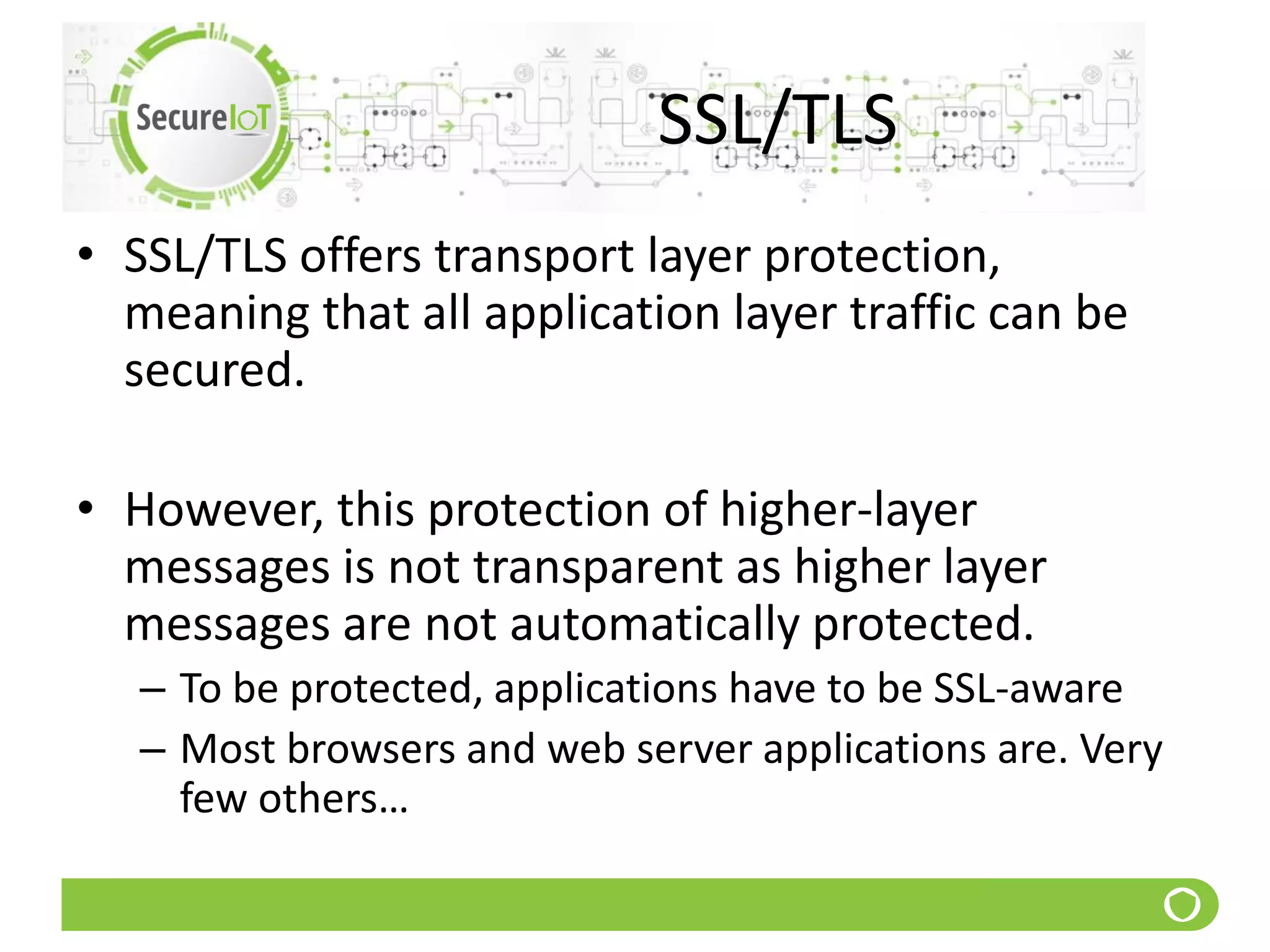

195. SSL/TLS
• SSL/TLS offers transport layer protection,
meaning that all application layer traffic can be
secured.
• However, this protection of higher-layer
messages is not transparent as higher layer
messages are not automatically protected.
– To be protected, applications have to be SSL-aware
– Most browsers and web server applications are. Very
few others…

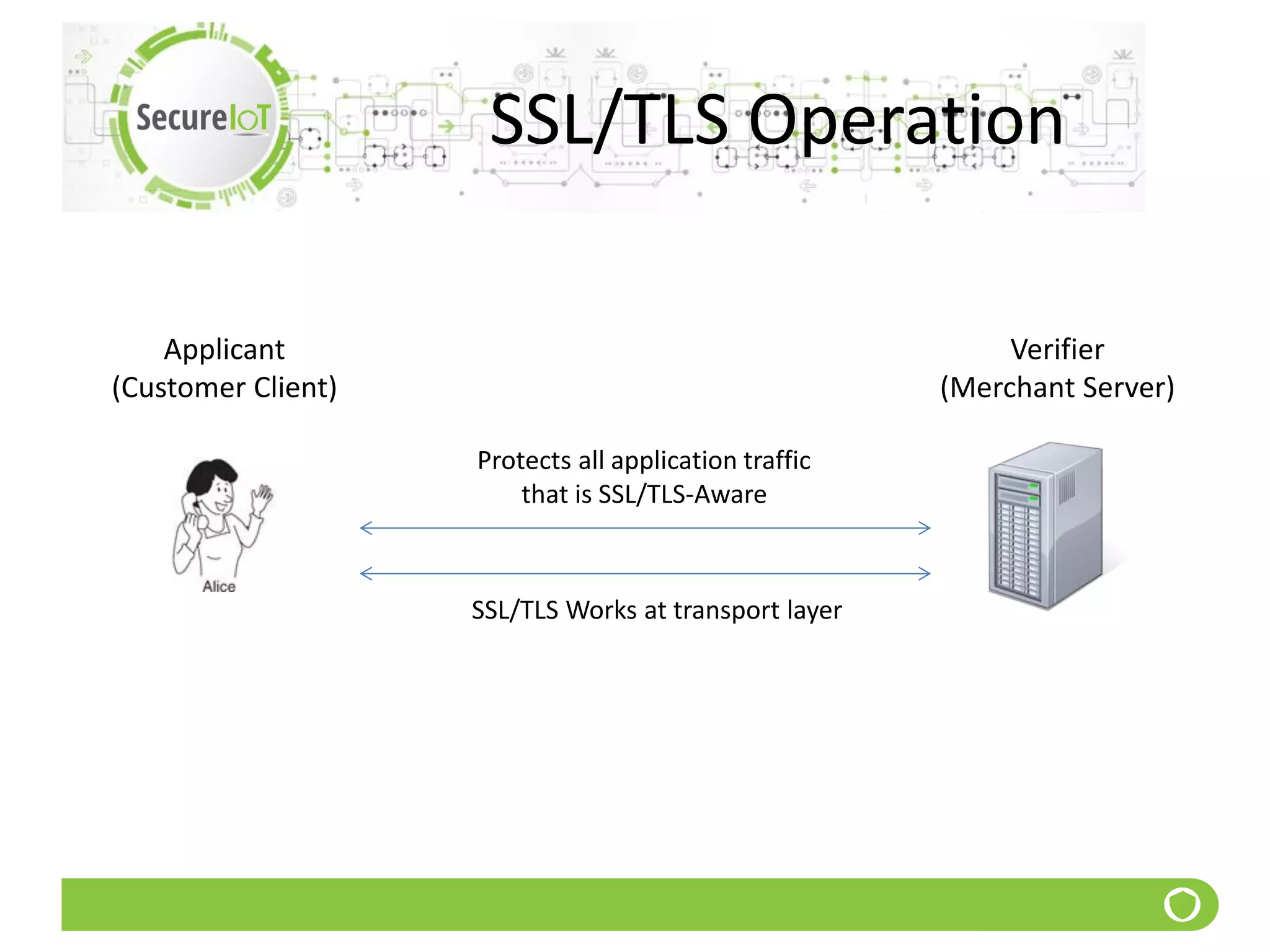

196. SSL/TLS Operation
Protects all application traffic
that is SSL/TLS-Aware
Verifier
(Merchant Server)
Applicant
(Customer Client)
SSL/TLS Works at transport layer

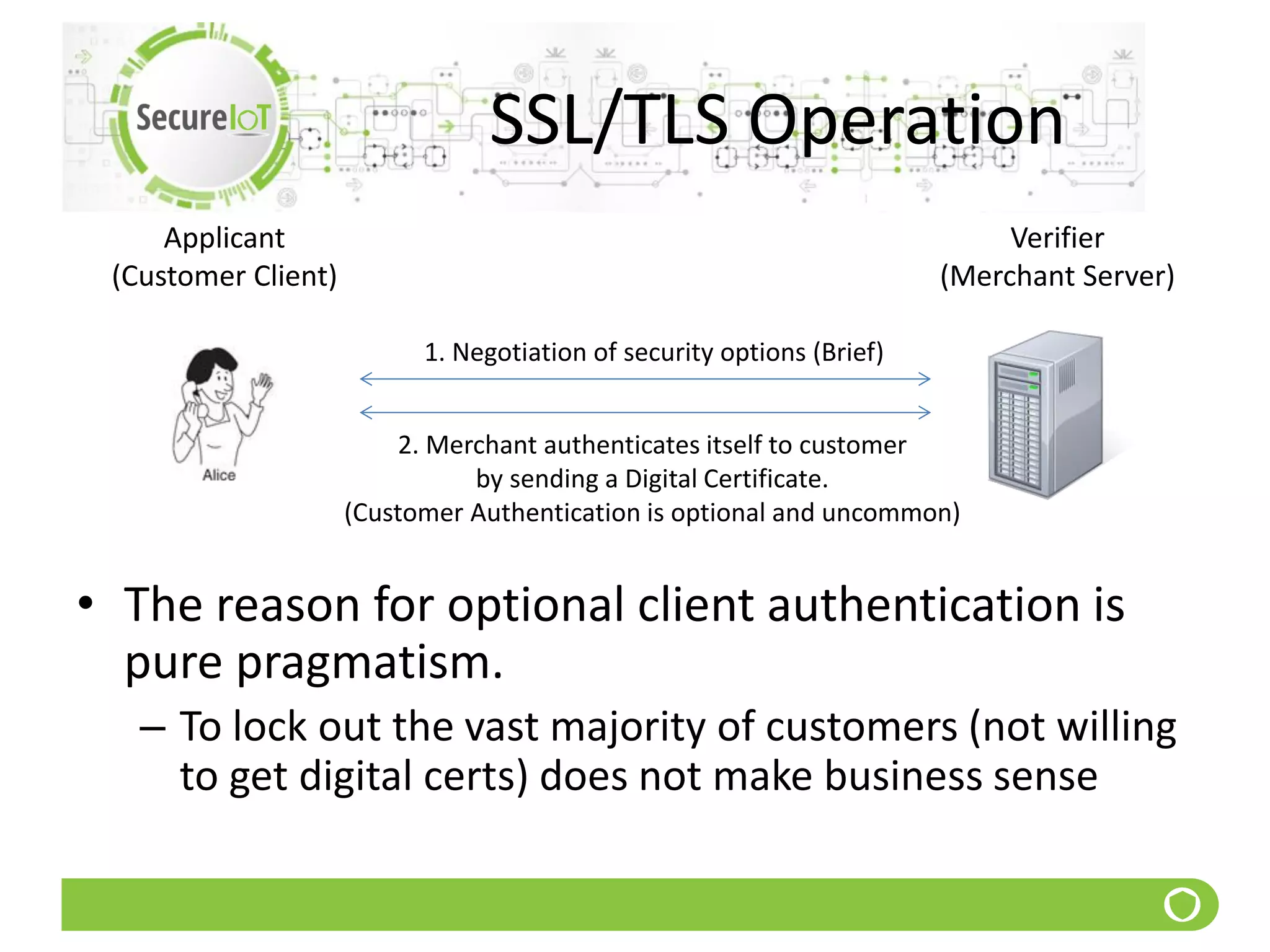

197. SSL/TLS Operation
• The reason for optional client authentication is
pure pragmatism.
– To lock out the vast majority of customers (not willing
to get digital certs) does not make business sense
1. Negotiation of security options (Brief)
Verifier
(Merchant Server)
Applicant
(Customer Client)
2. Merchant authenticates itself to customer
by sending a Digital Certificate.
(Customer Authentication is optional and uncommon)

198. SSL/TLS Operation
3. Client generates random session key
which sends it to server encrypted
using Public Key Encryption
Verifier
(Merchant Server)
Applicant
(Customer Client)
4. Ongoing communication with confidentiality
and merchant Digital Signatures

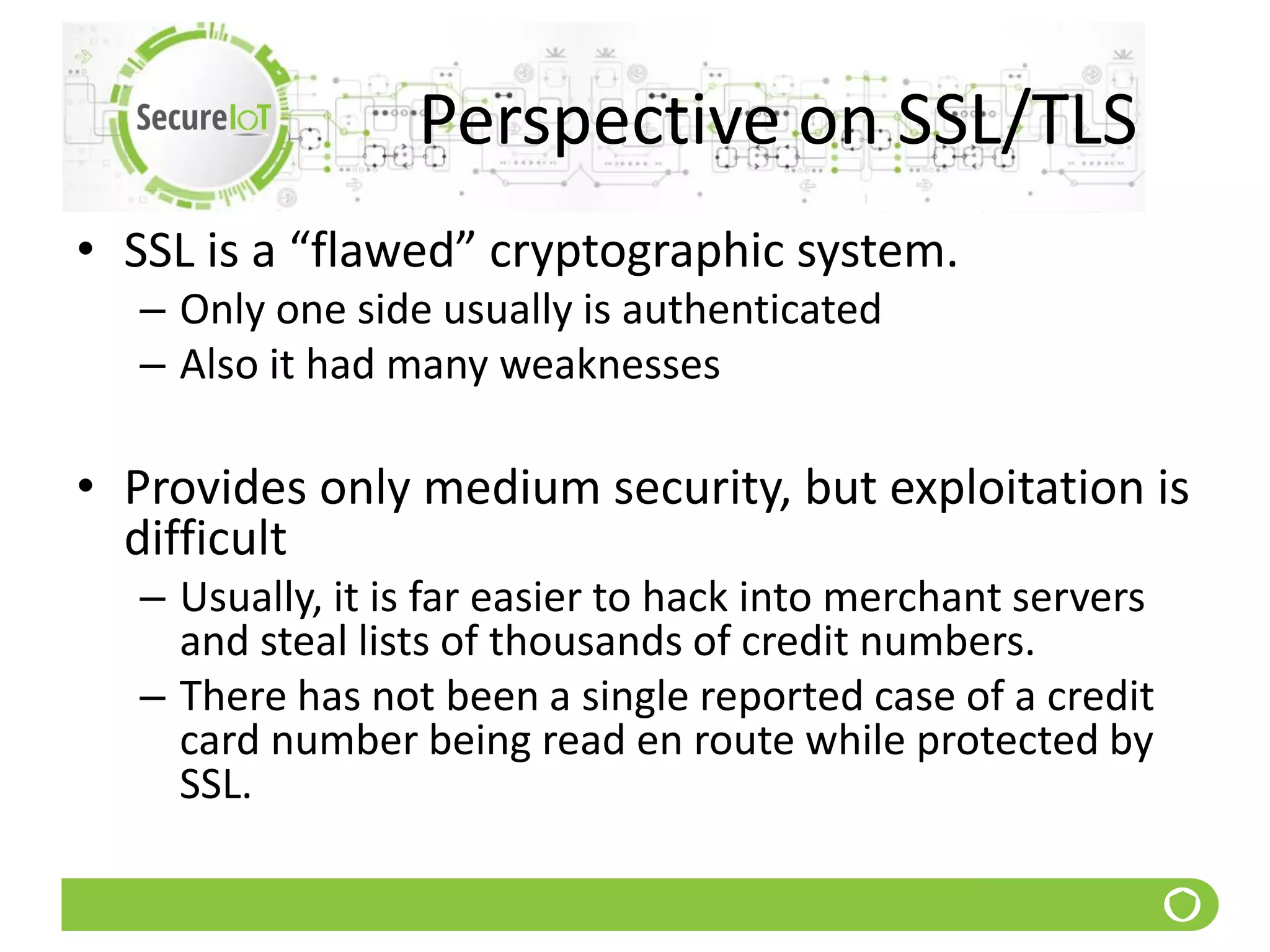

199. Perspective on SSL/TLS
• SSL is a “flawed” cryptographic system.
– Only one side usually is authenticated
– Also it had many weaknesses
• Provides only medium security, but exploitation is
difficult
– Usually, it is far easier to hack into merchant servers
and steal lists of thousands of credit numbers.
– There has not been a single reported case of a credit
card number being read en route while protected by
SSL.

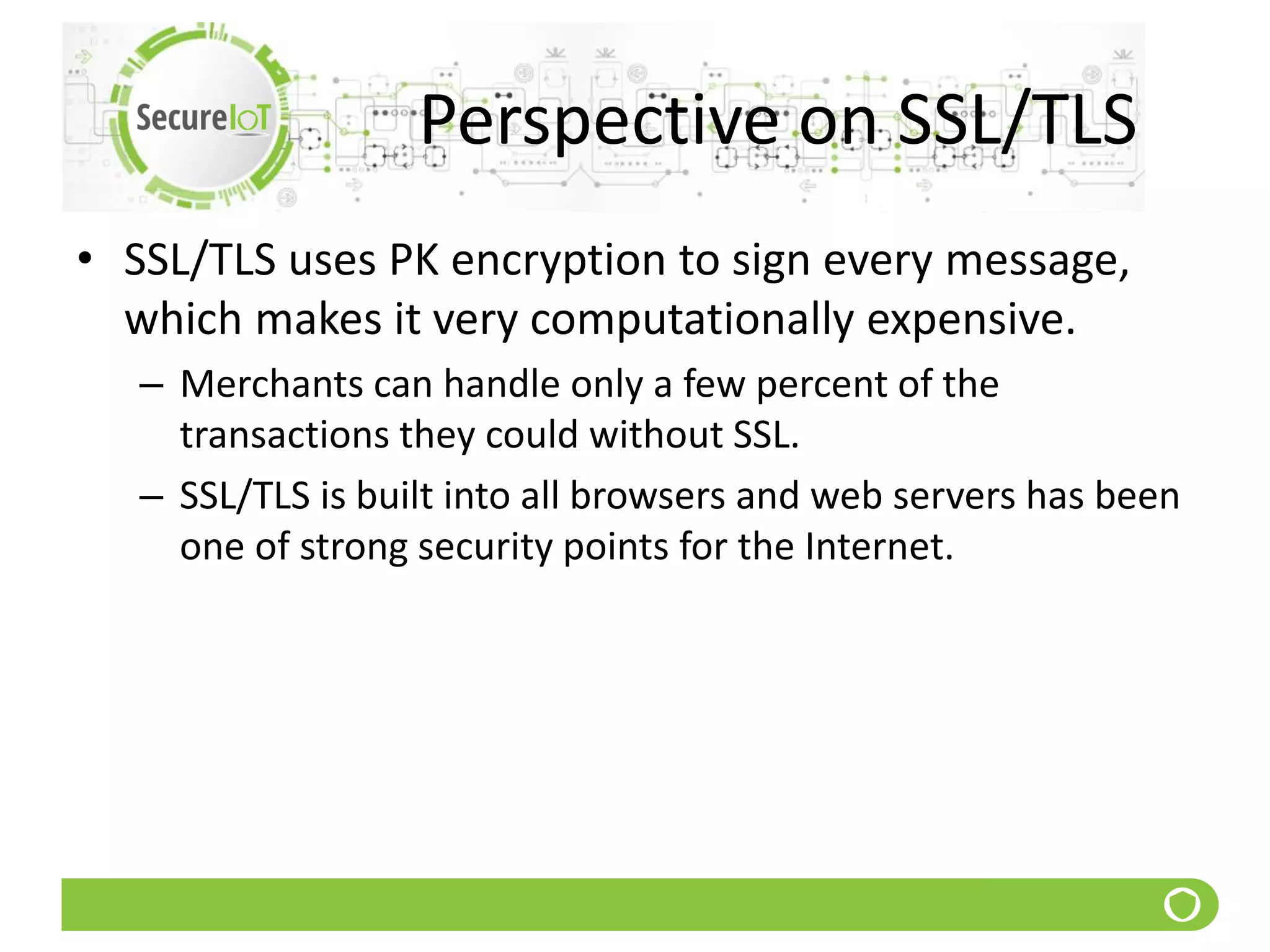

200. Perspective on SSL/TLS
• SSL/TLS uses PK encryption to sign every message,
which makes it very computationally expensive.
– Merchants can handle only a few percent of the
transactions they could without SSL.
– SSL/TLS is built into all browsers and web servers has been
one of strong security points for the Internet.

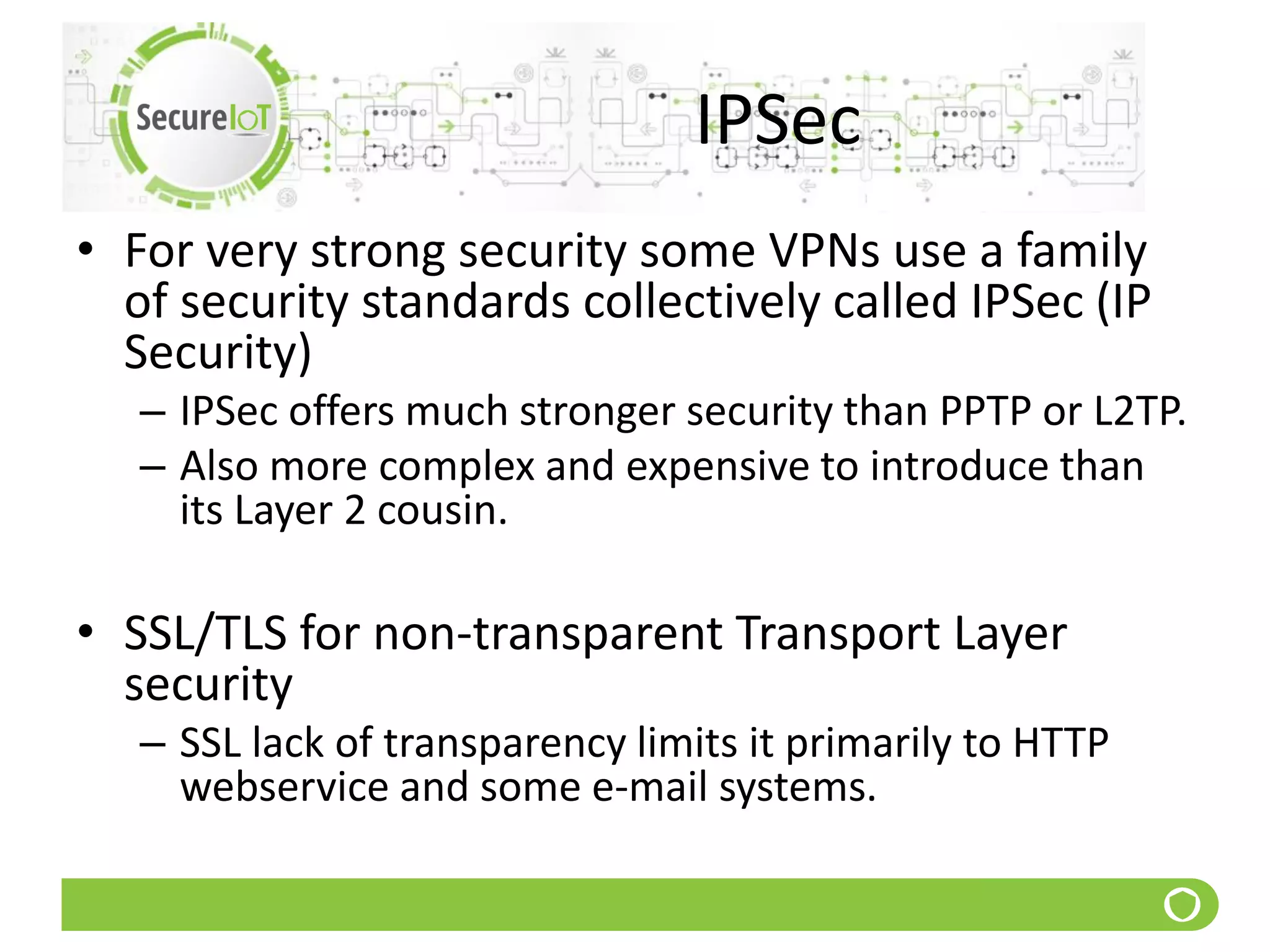

201. IPSec
• For very strong security some VPNs use a family
of security standards collectively called IPSec (IP
Security)
– IPSec offers much stronger security than PPTP or L2TP.
– Also more complex and expensive to introduce than
its Layer 2 cousin.
• SSL/TLS for non-transparent Transport Layer
security
– SSL lack of transparency limits it primarily to HTTP
webservice and some e-mail systems.

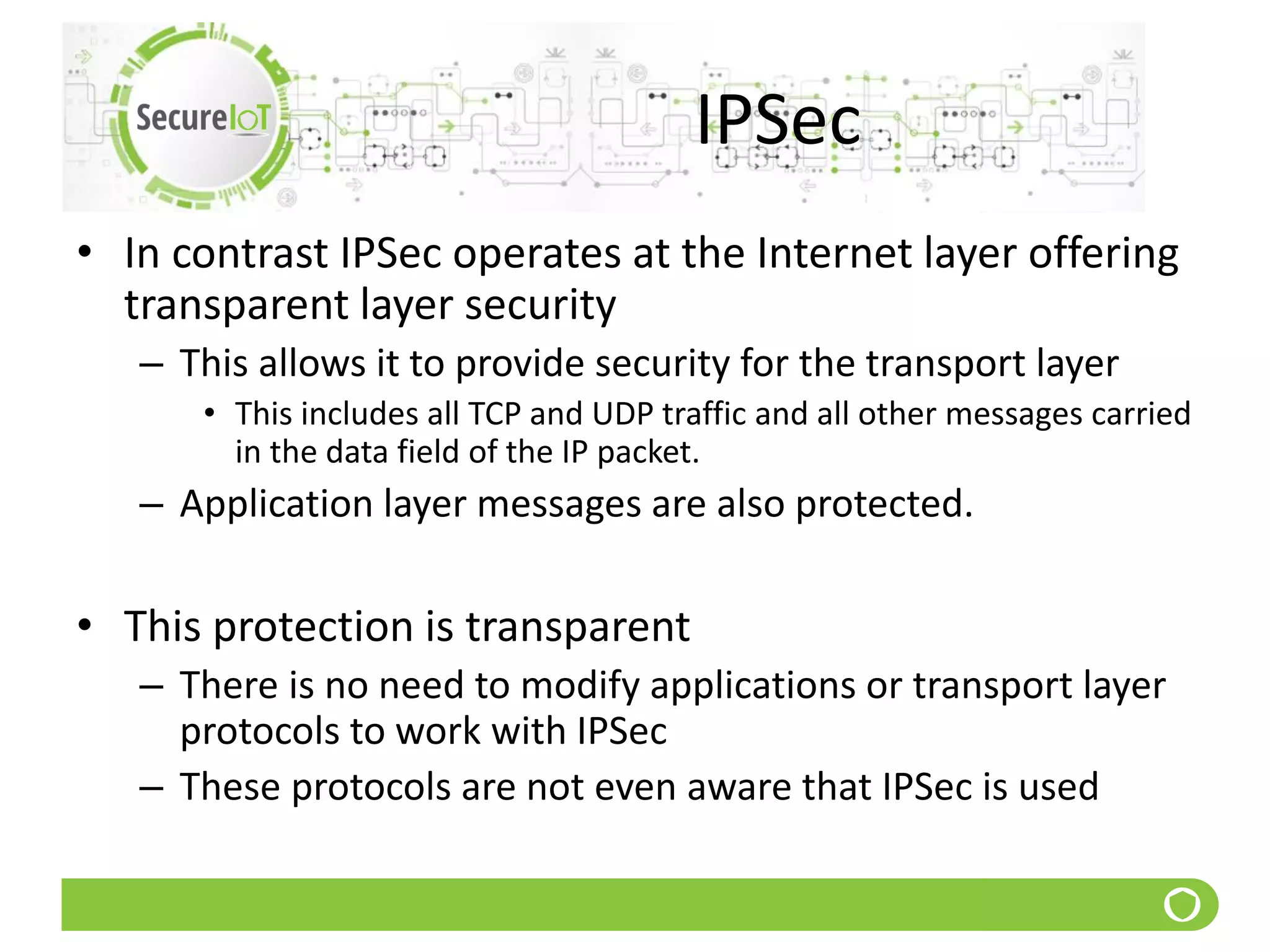

202. IPSec
• In contrast IPSec operates at the Internet layer offering
transparent layer security
– This allows it to provide security for the transport layer
• This includes all TCP and UDP traffic and all other messages carried
in the data field of the IP packet.
– Application layer messages are also protected.
• This protection is transparent
– There is no need to modify applications or transport layer
protocols to work with IPSec
– These protocols are not even aware that IPSec is used

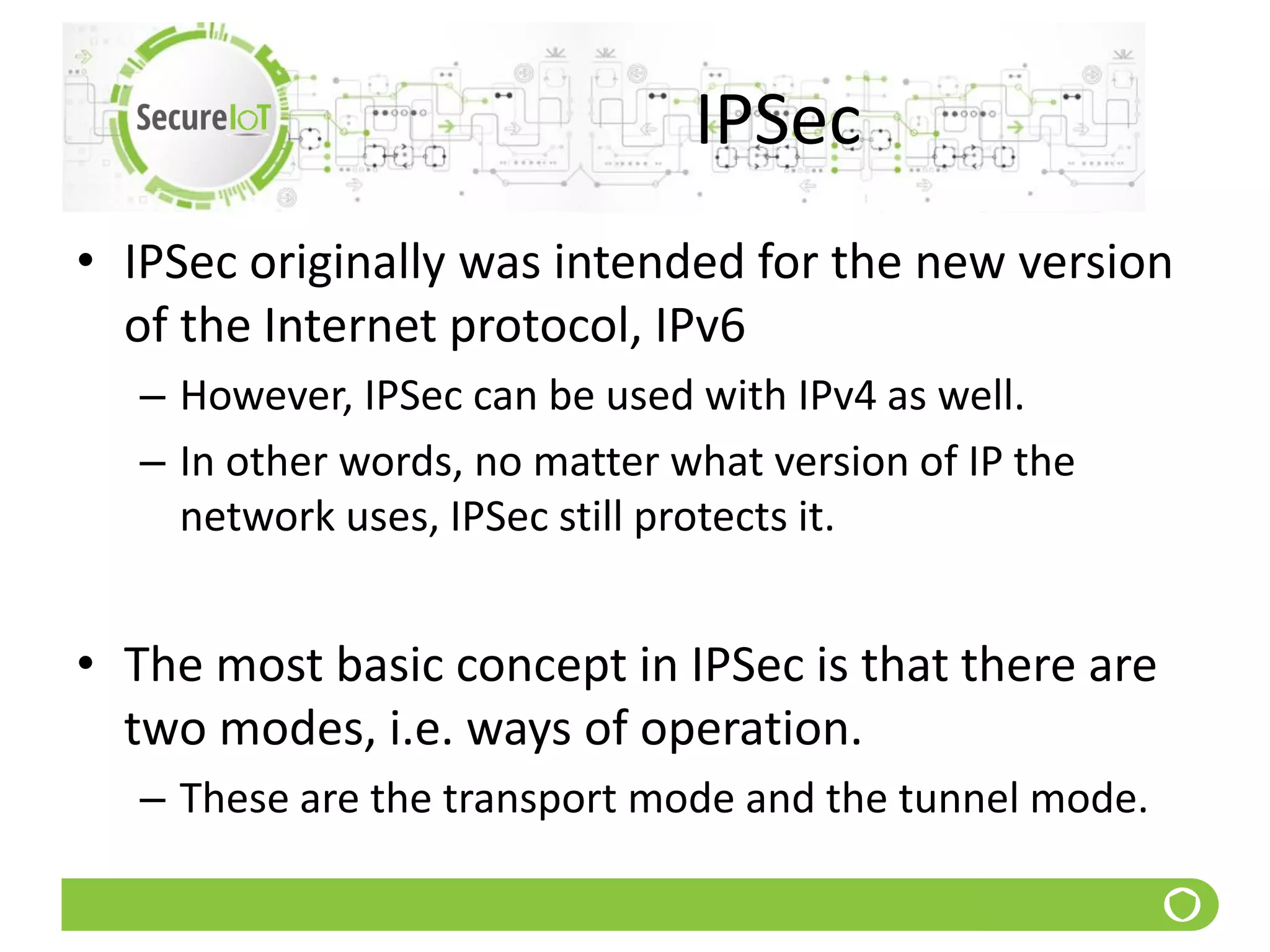

203. IPSec
• IPSec originally was intended for the new version
of the Internet protocol, IPv6
– However, IPSec can be used with IPv4 as well.
– In other words, no matter what version of IP the
network uses, IPSec still protects it.
• The most basic concept in IPSec is that there are
two modes, i.e. ways of operation.
– These are the transport mode and the tunnel mode.

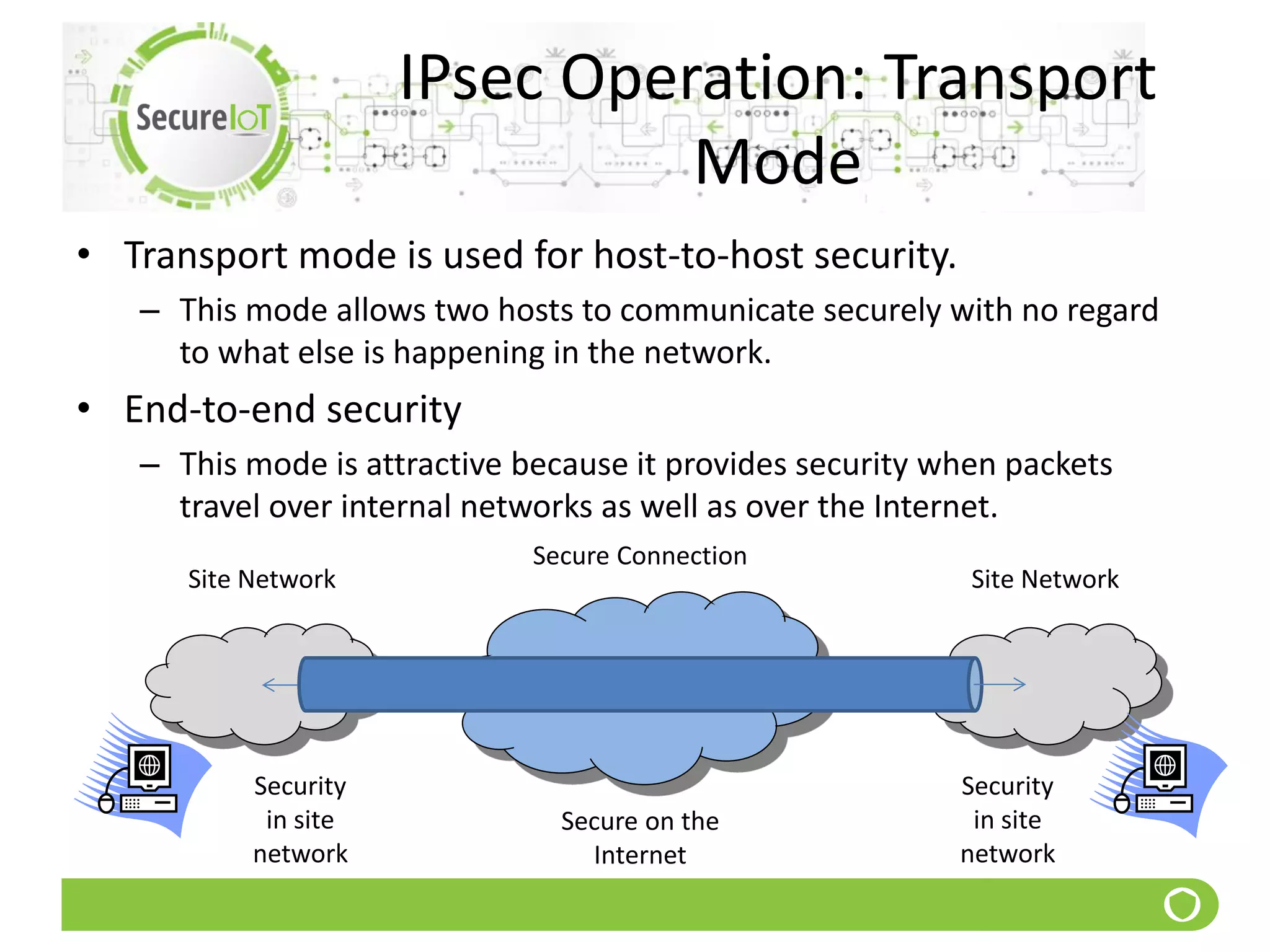

204. IPsec Operation: Transport
Mode
• Transport mode is used for host-to-host security.
– This mode allows two hosts to communicate securely with no regard
to what else is happening in the network.
• End-to-end security
– This mode is attractive because it provides security when packets
travel over internal networks as well as over the Internet.
Site Network Site Network
Secure Connection
Security
in site
network
Security
in site
network
Secure on the
Internet

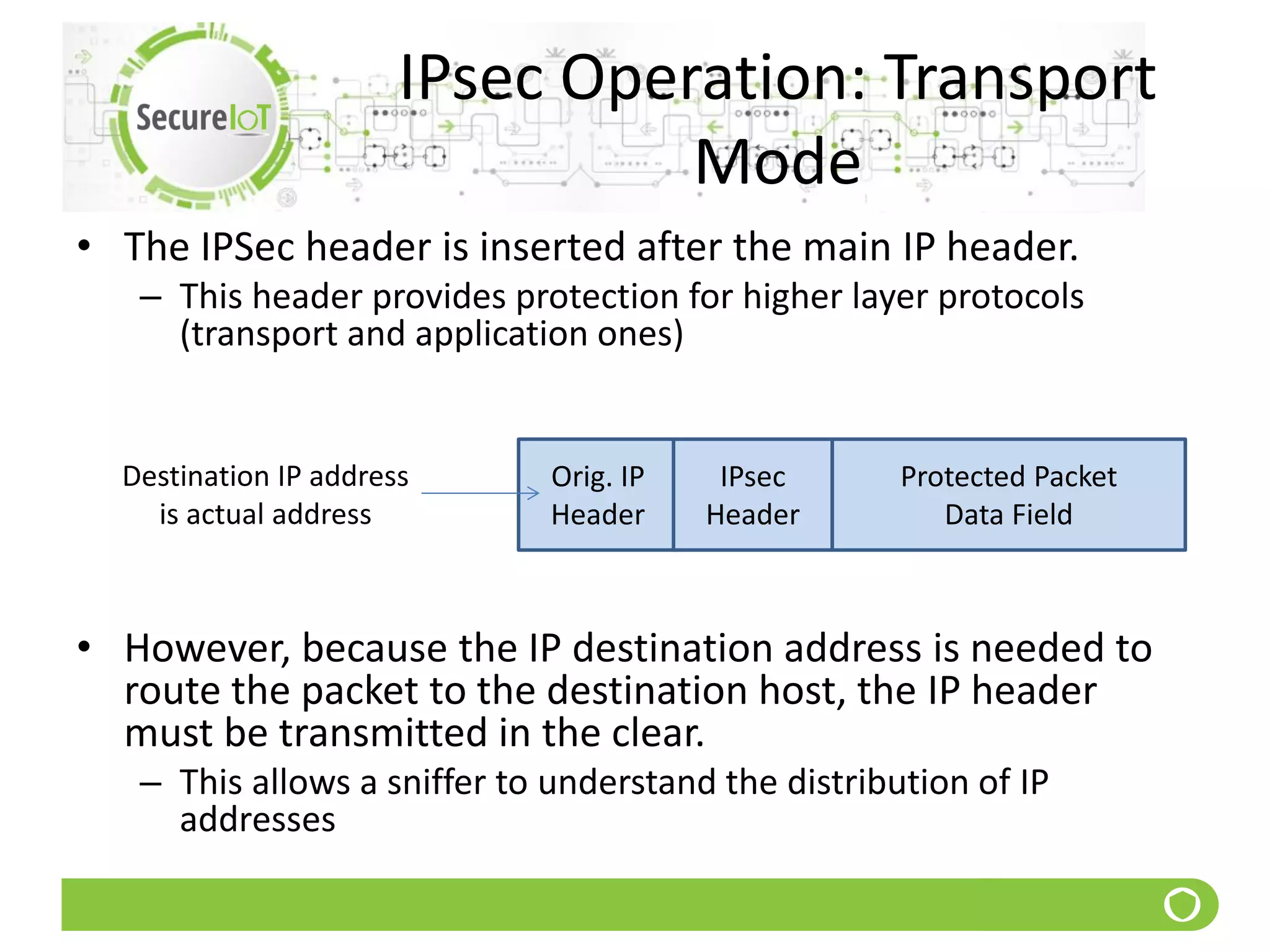

205. IPsec Operation: Transport
Mode
• The IPSec header is inserted after the main IP header.
– This header provides protection for higher layer protocols
(transport and application ones)
• However, because the IP destination address is needed to
route the packet to the destination host, the IP header
must be transmitted in the clear.
– This allows a sniffer to understand the distribution of IP
addresses
Destination IP address
is actual address
Orig. IP
Header
IPsec
Header
Protected Packet
Data Field

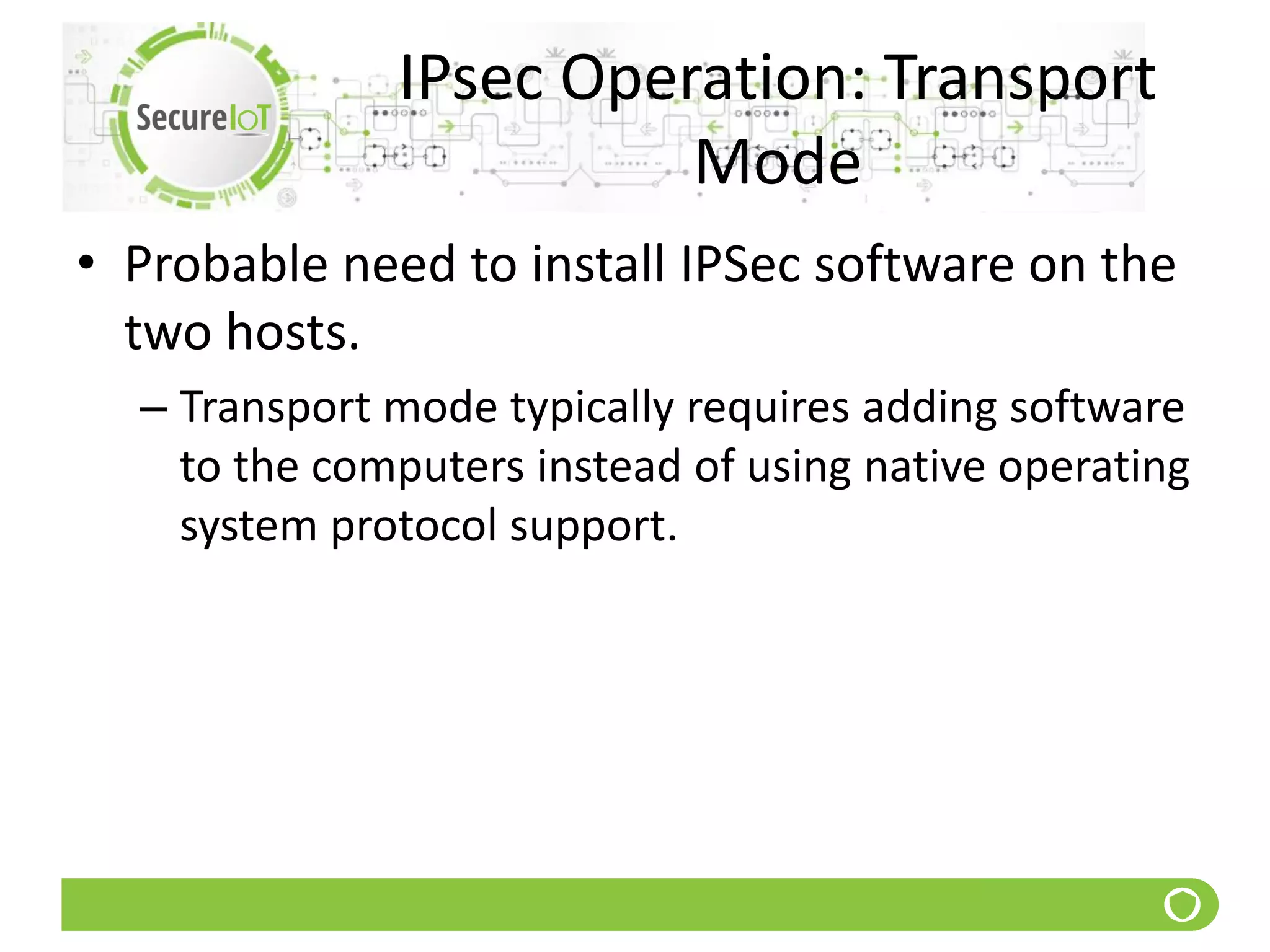

206. IPsec Operation: Transport
Mode
• Probable need to install IPSec software on the
two hosts.
– Transport mode typically requires adding software
to the computers instead of using native operating
system protocol support.

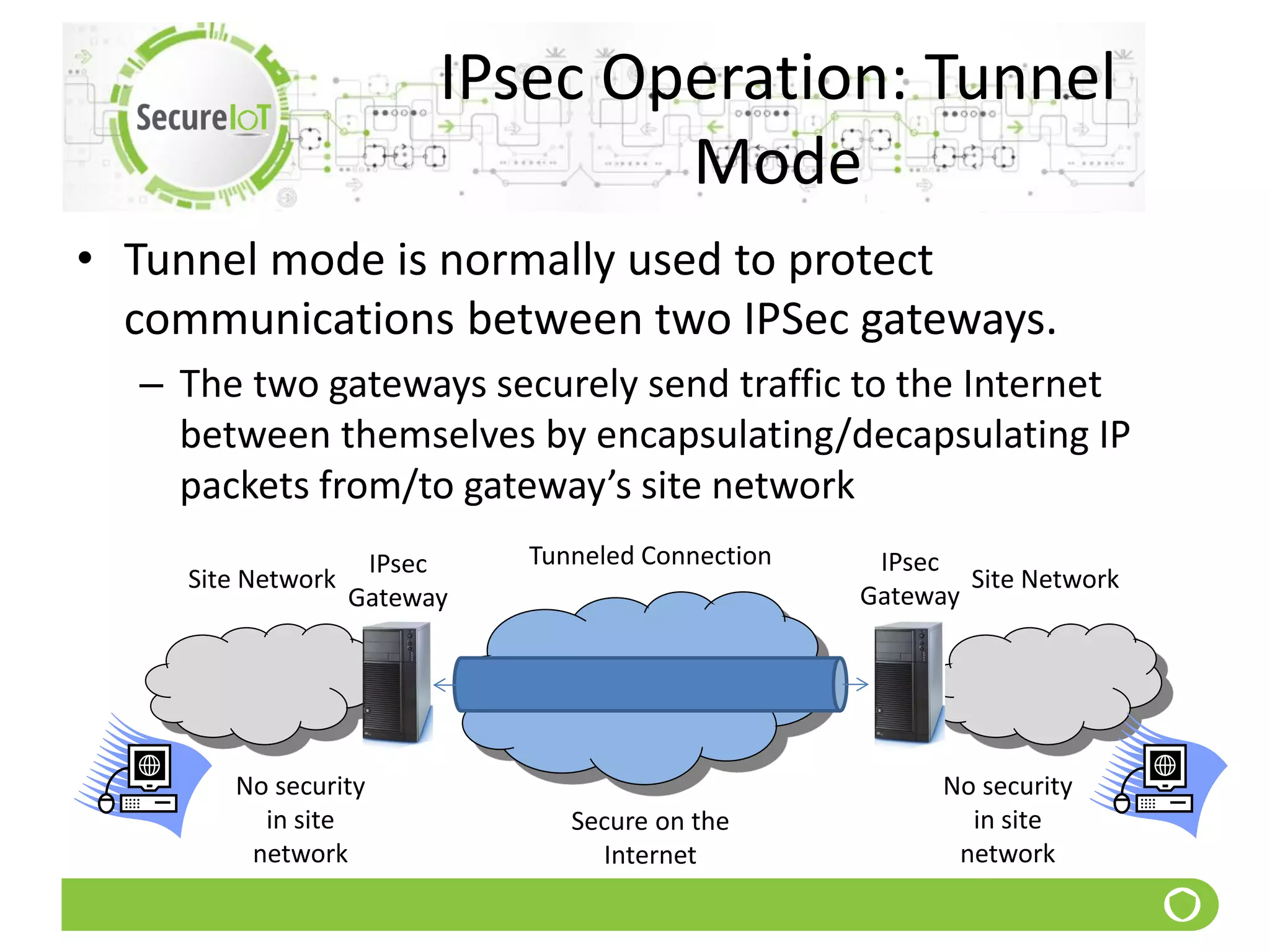

207. IPsec Operation: Tunnel
Mode
• Tunnel mode is normally used to protect
communications between two IPSec gateways.
– The two gateways securely send traffic to the Internet
between themselves by encapsulating/decapsulating IP
packets from/to gateway’s site network
Site Network Site Network
Tunneled Connection
No security
in site
network
No security
in site
network
Secure on the
Internet
IPsec
Gateway
IPsec
Gateway

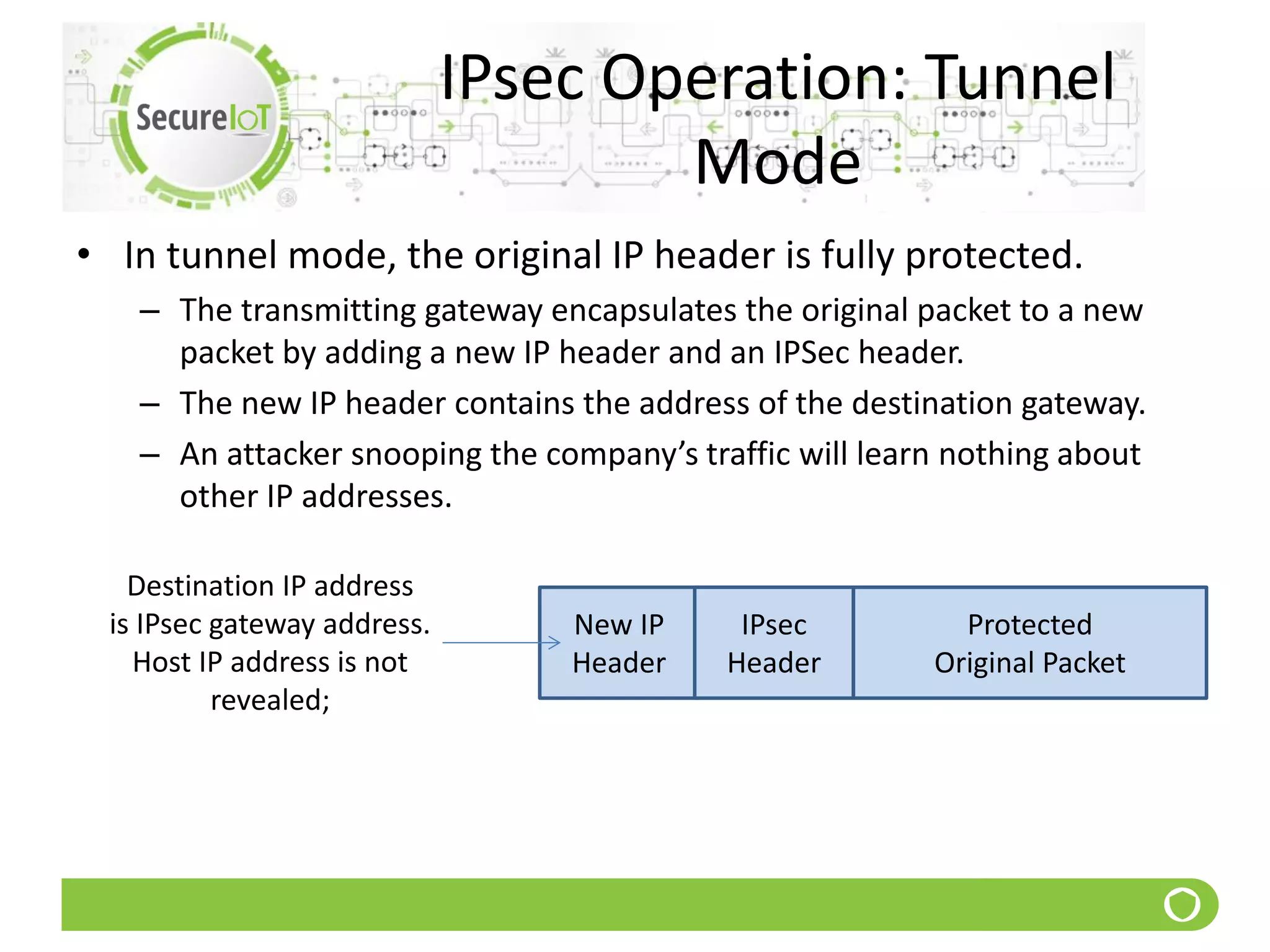

208. IPsec Operation: Tunnel
Mode
• In tunnel mode, the original IP header is fully protected.
– The transmitting gateway encapsulates the original packet to a new
packet by adding a new IP header and an IPSec header.
– The new IP header contains the address of the destination gateway.
– An attacker snooping the company’s traffic will learn nothing about
other IP addresses.
Destination IP address
is IPsec gateway address.
Host IP address is not
revealed;
New IP
Header
IPsec
Header
Protected
Original Packet

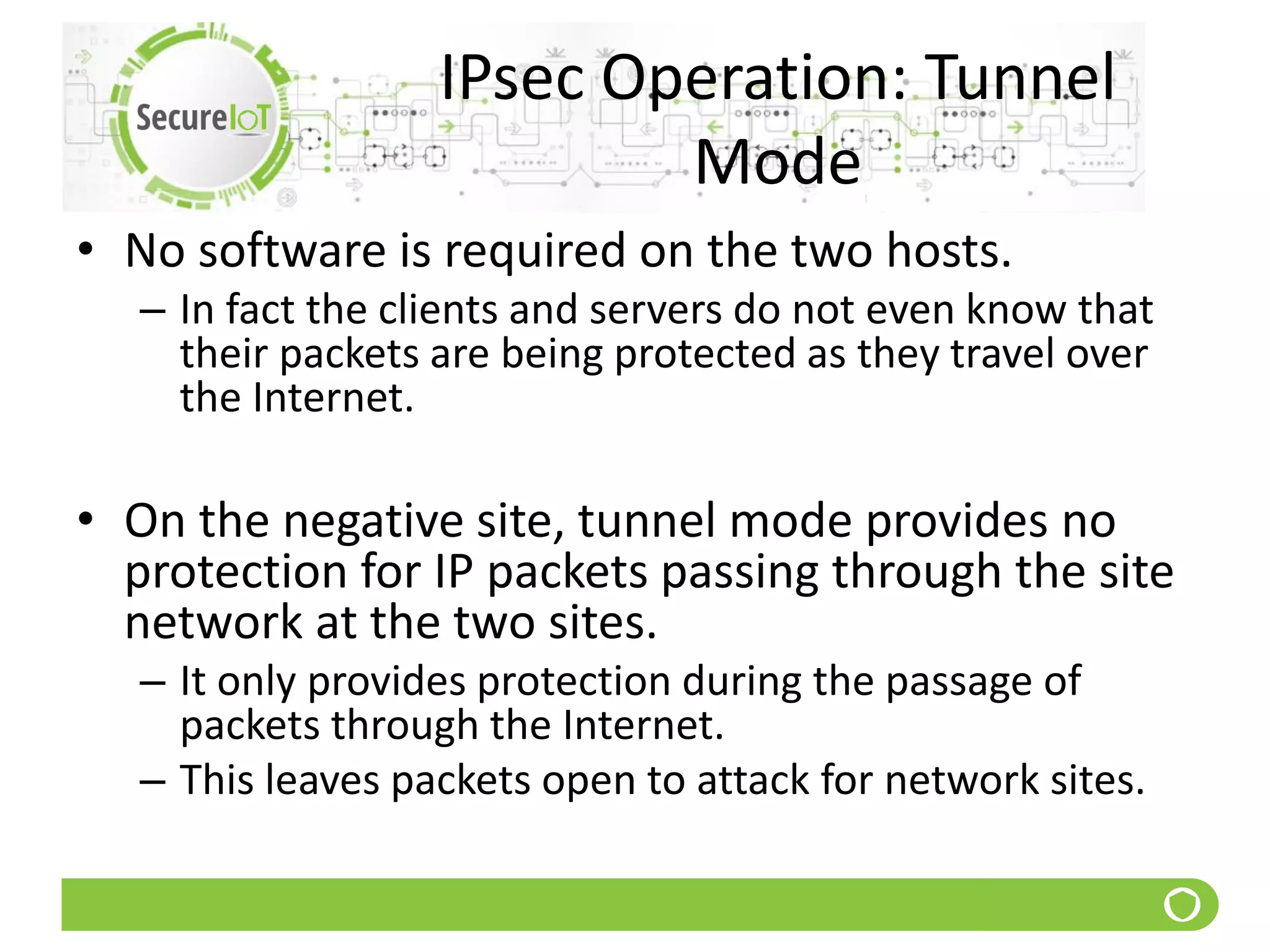

209. IPsec Operation: Tunnel
Mode
• No software is required on the two hosts.
– In fact the clients and servers do not even know that
their packets are being protected as they travel over
the Internet.
• On the negative site, tunnel mode provides no
protection for IP packets passing through the site
network at the two sites.
– It only provides protection during the passage of
packets through the Internet.
– This leaves packets open to attack for network sites.

210. IPsec Operation: Transport
and Tunnel Modes
• How can these modes be combined?
• What are the advantages of such an
approach?

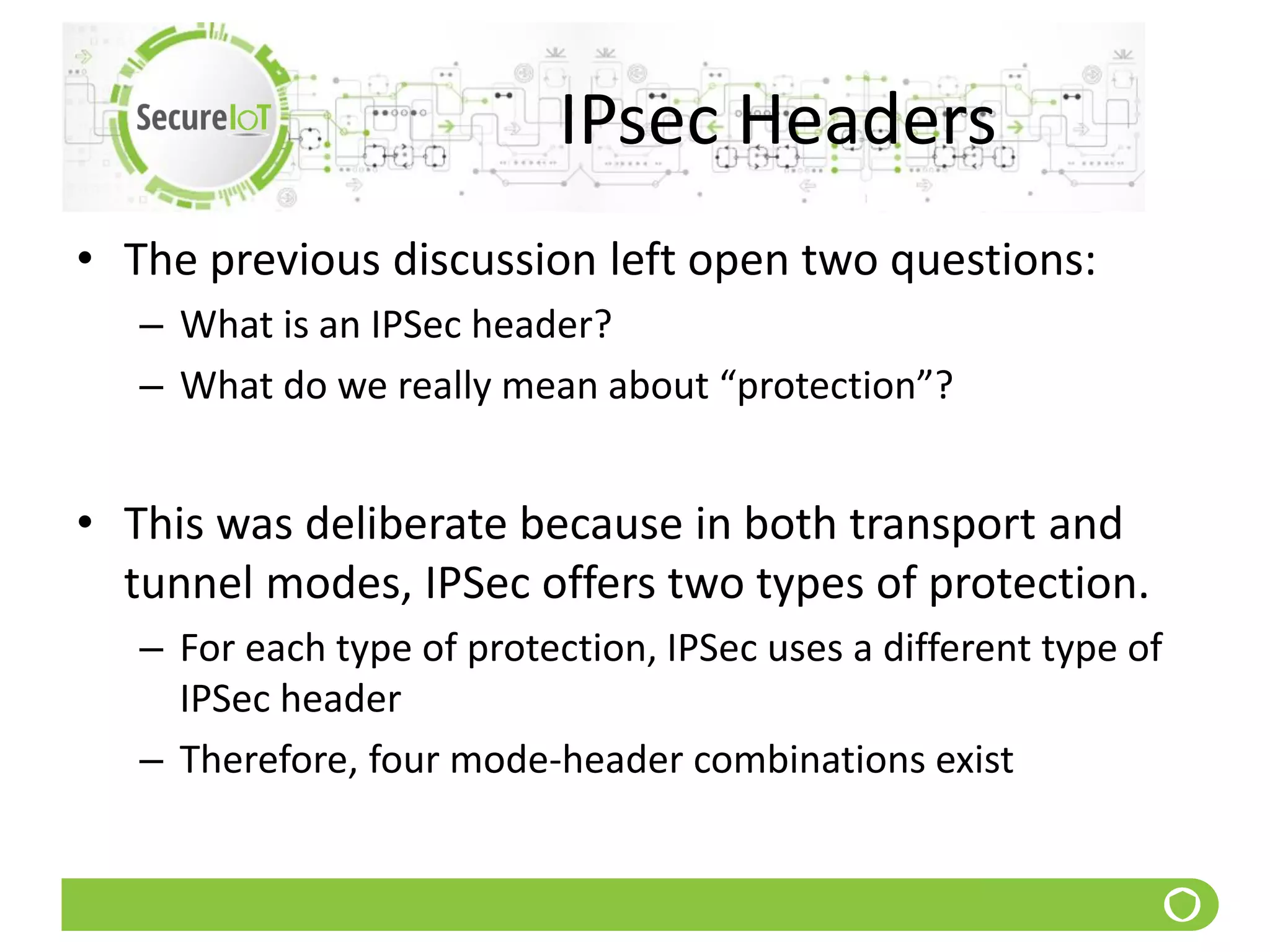

211. IPsec Headers
• The previous discussion left open two questions:
– What is an IPSec header?
– What do we really mean about “protection”?
• This was deliberate because in both transport and
tunnel modes, IPSec offers two types of protection.
– For each type of protection, IPSec uses a different type of
IPSec header
– Therefore, four mode-header combinations exist

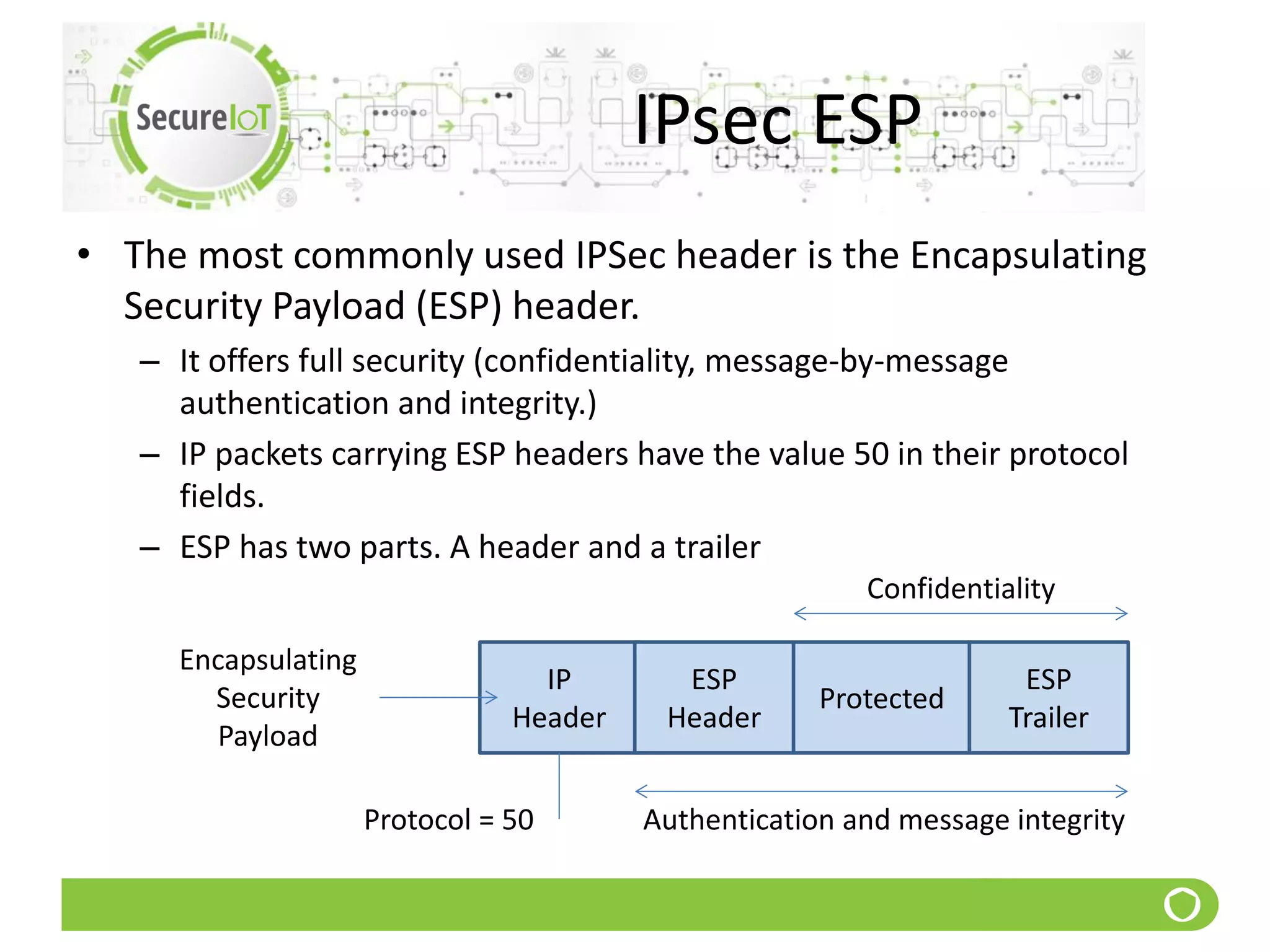

212. IPsec ESP
• The most commonly used IPSec header is the Encapsulating
Security Payload (ESP) header.
– It offers full security (confidentiality, message-by-message
authentication and integrity.)
– IP packets carrying ESP headers have the value 50 in their protocol
fields.
– ESP has two parts. A header and a trailer
Encapsulating
Security
Payload
IP
Header
ESP
Header
Protected
ESP
Trailer
Confidentiality
Authentication and message integrityProtocol = 50

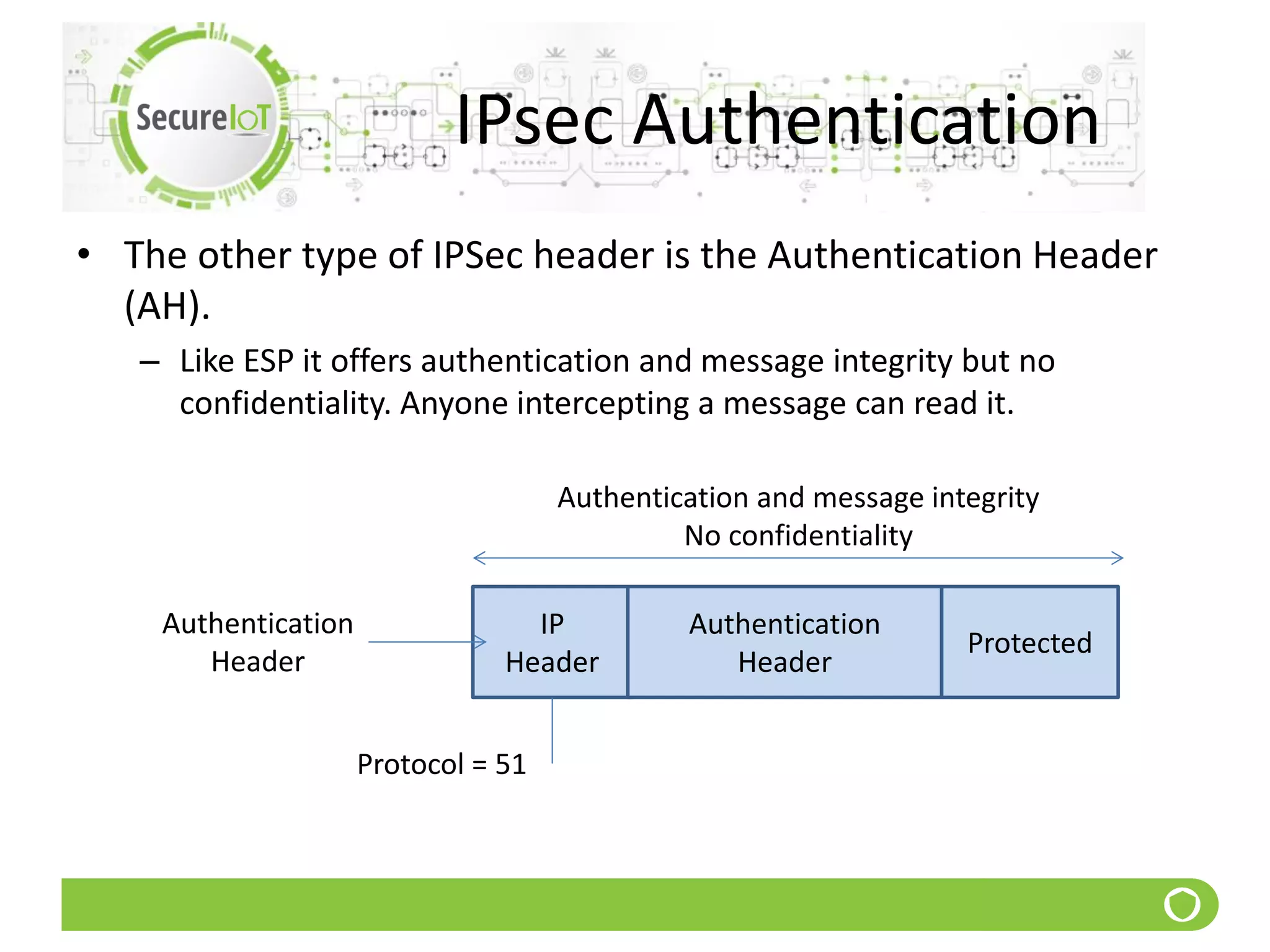

213. IPsec Authentication
• The other type of IPSec header is the Authentication Header
(AH).
– Like ESP it offers authentication and message integrity but no
confidentiality. Anyone intercepting a message can read it.
Authentication
Header
IP
Header
Authentication
Header
Protected
Authentication and message integrity
No confidentiality
Protocol = 51

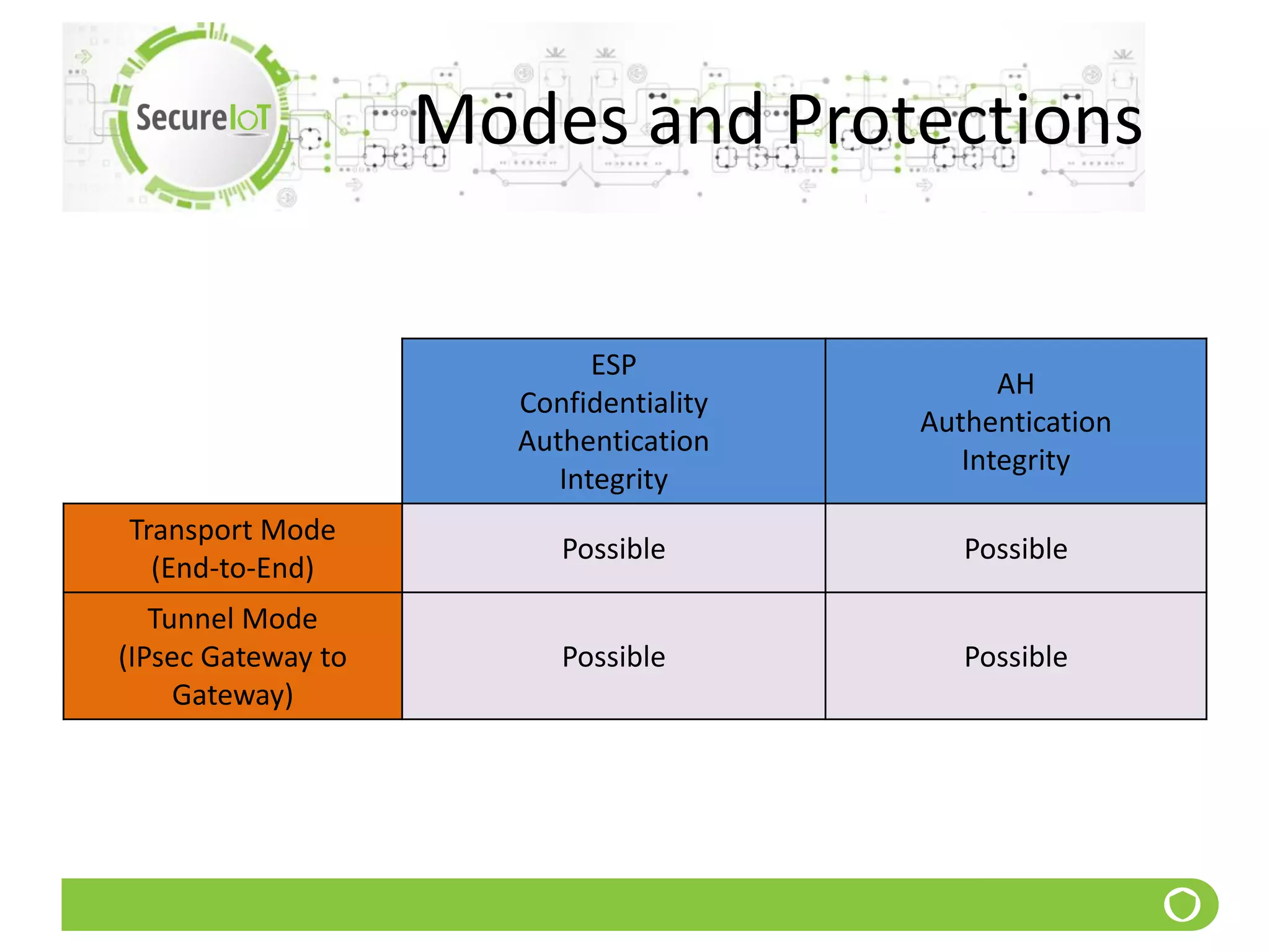

214. Modes and Protections
ESP
Confidentiality
Authentication
Integrity
AH
Authentication
Integrity
Transport Mode
(End-to-End)
Possible Possible
Tunnel Mode
(IPsec Gateway to
Gateway)
Possible Possible

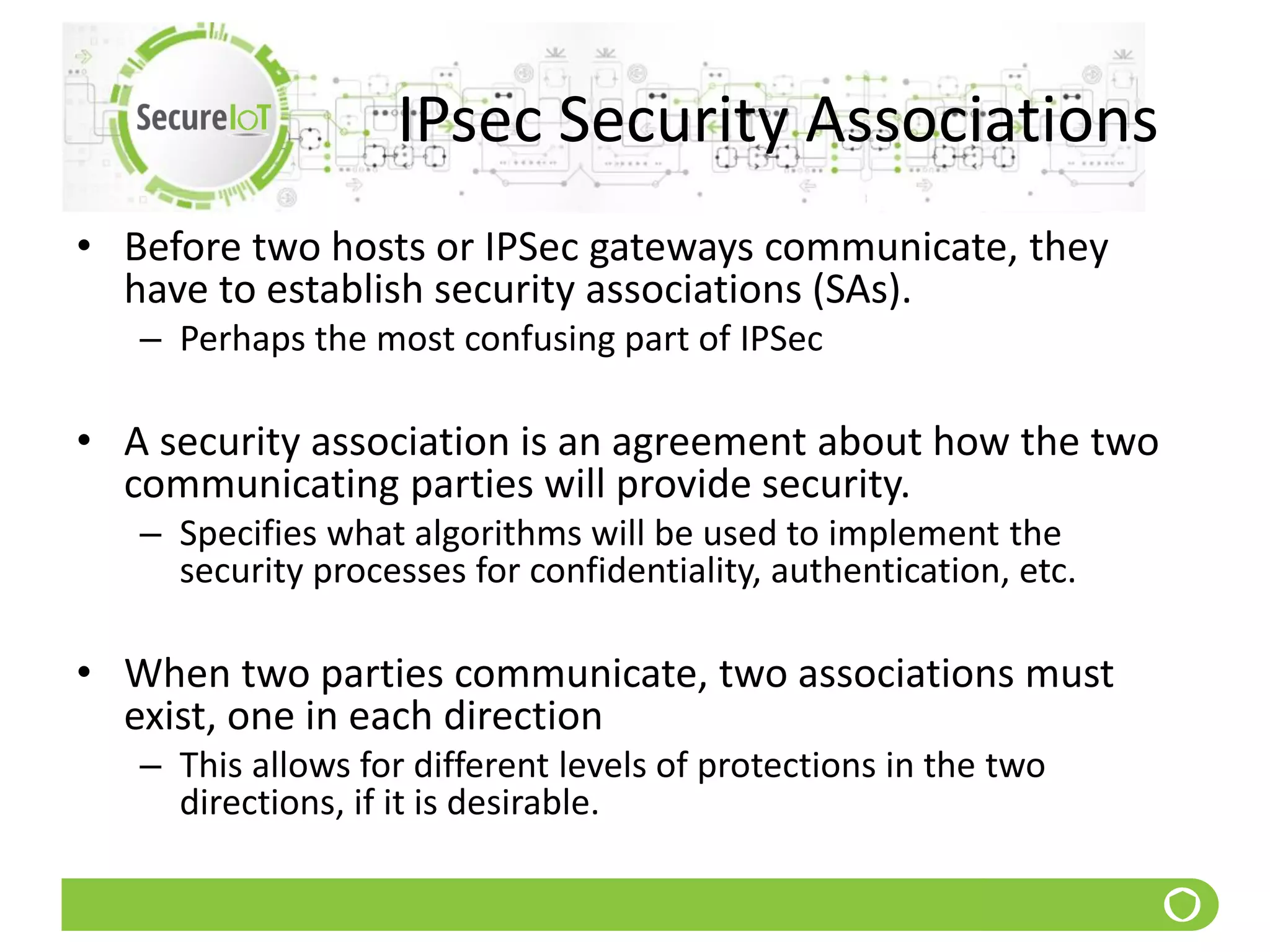

215. IPsec Security Associations
• Before two hosts or IPSec gateways communicate, they
have to establish security associations (SAs).
– Perhaps the most confusing part of IPSec
• A security association is an agreement about how the two
communicating parties will provide security.
– Specifies what algorithms will be used to implement the
security processes for confidentiality, authentication, etc.
• When two parties communicate, two associations must
exist, one in each direction
– This allows for different levels of protections in the two
directions, if it is desirable.

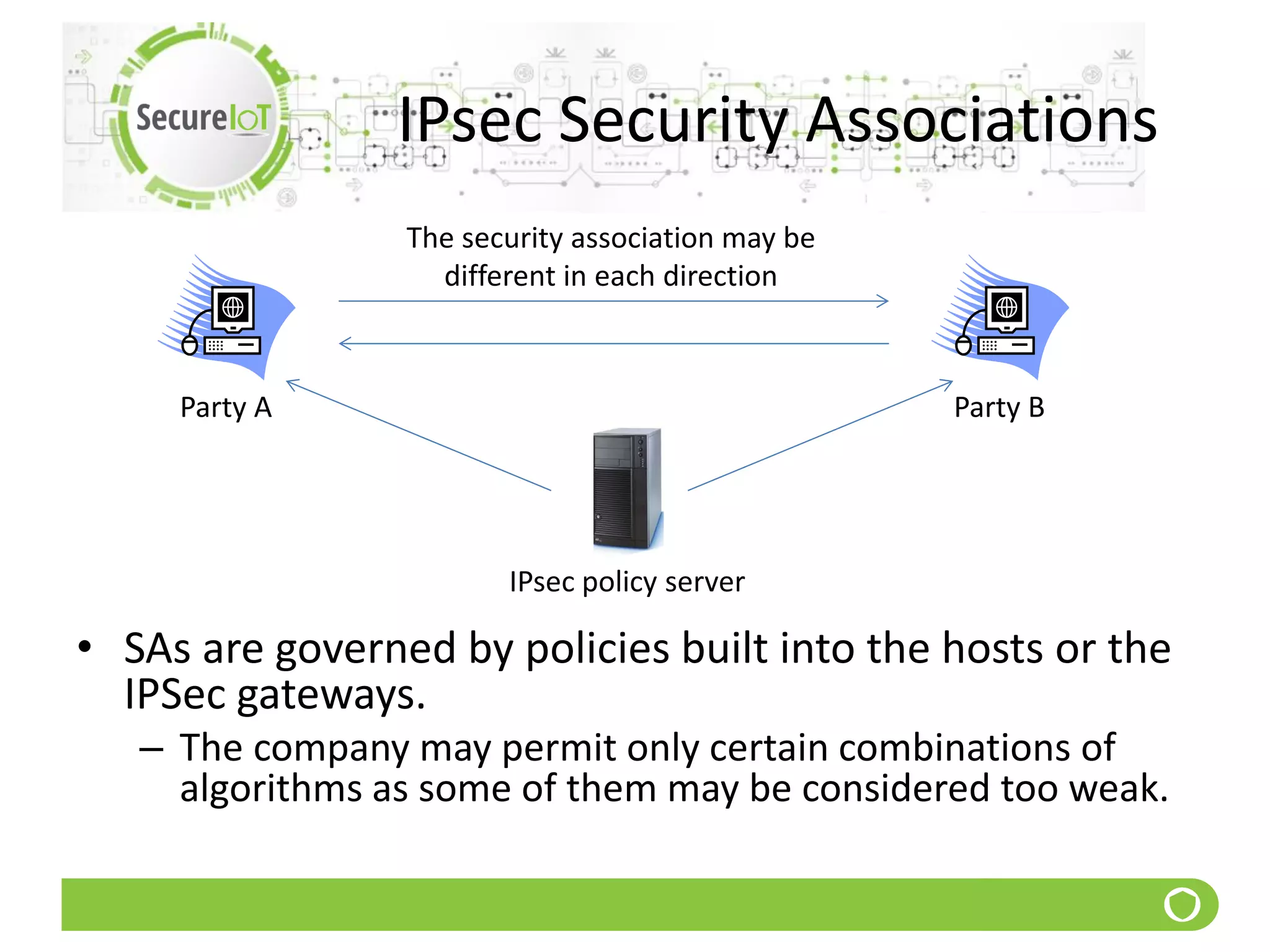

216. IPsec Security Associations
• SAs are governed by policies built into the hosts or the
IPSec gateways.
– The company may permit only certain combinations of
algorithms as some of them may be considered too weak.
The security association may be
different in each direction
Party A Party B
IPsec policy server

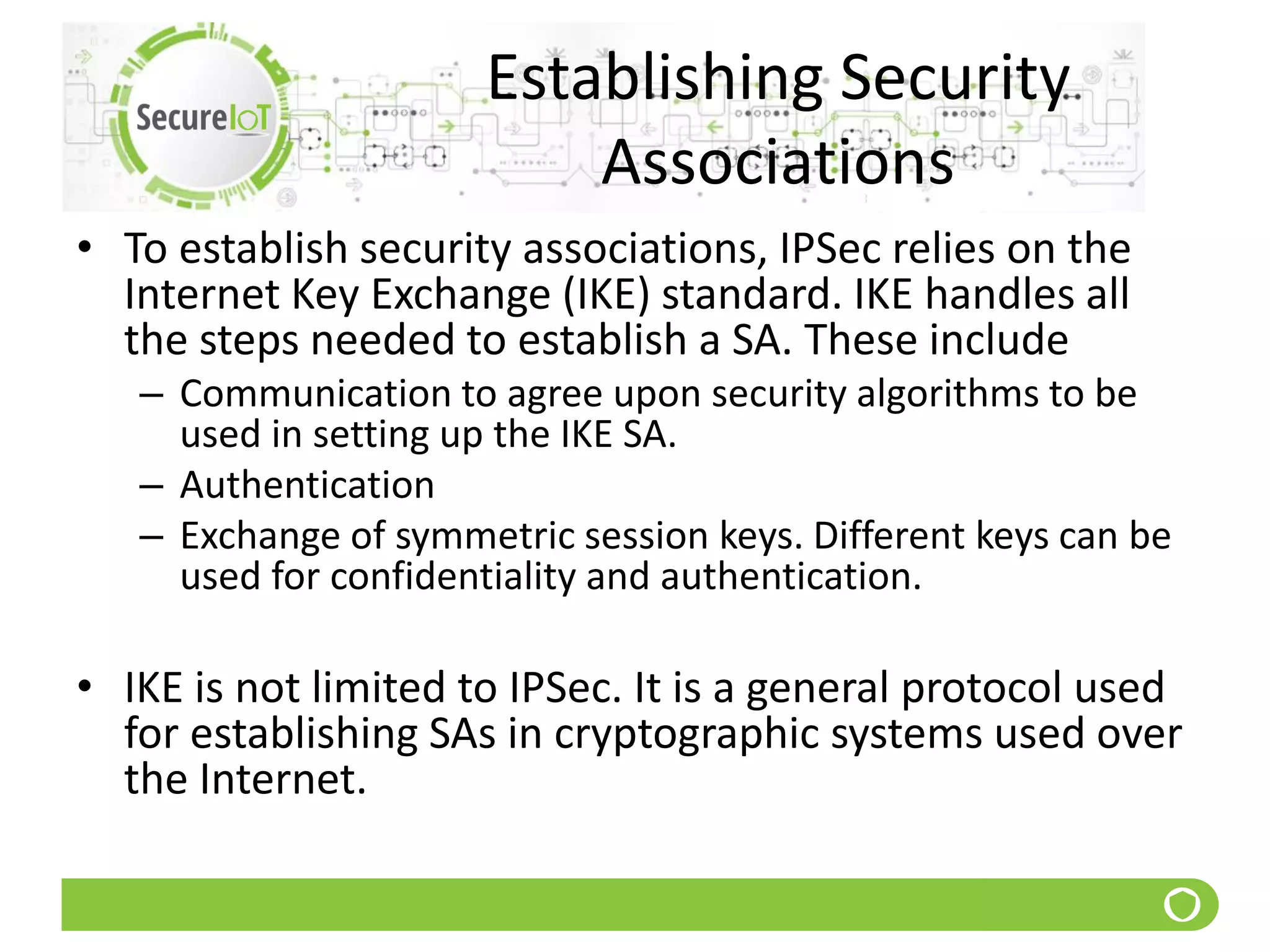

217. Establishing Security
Associations
• To establish security associations, IPSec relies on the
Internet Key Exchange (IKE) standard. IKE handles all
the steps needed to establish a SA. These include
– Communication to agree upon security algorithms to be
used in setting up the IKE SA.
– Authentication
– Exchange of symmetric session keys. Different keys can be
used for confidentiality and authentication.
• IKE is not limited to IPSec. It is a general protocol used
for establishing SAs in cryptographic systems used over
the Internet.

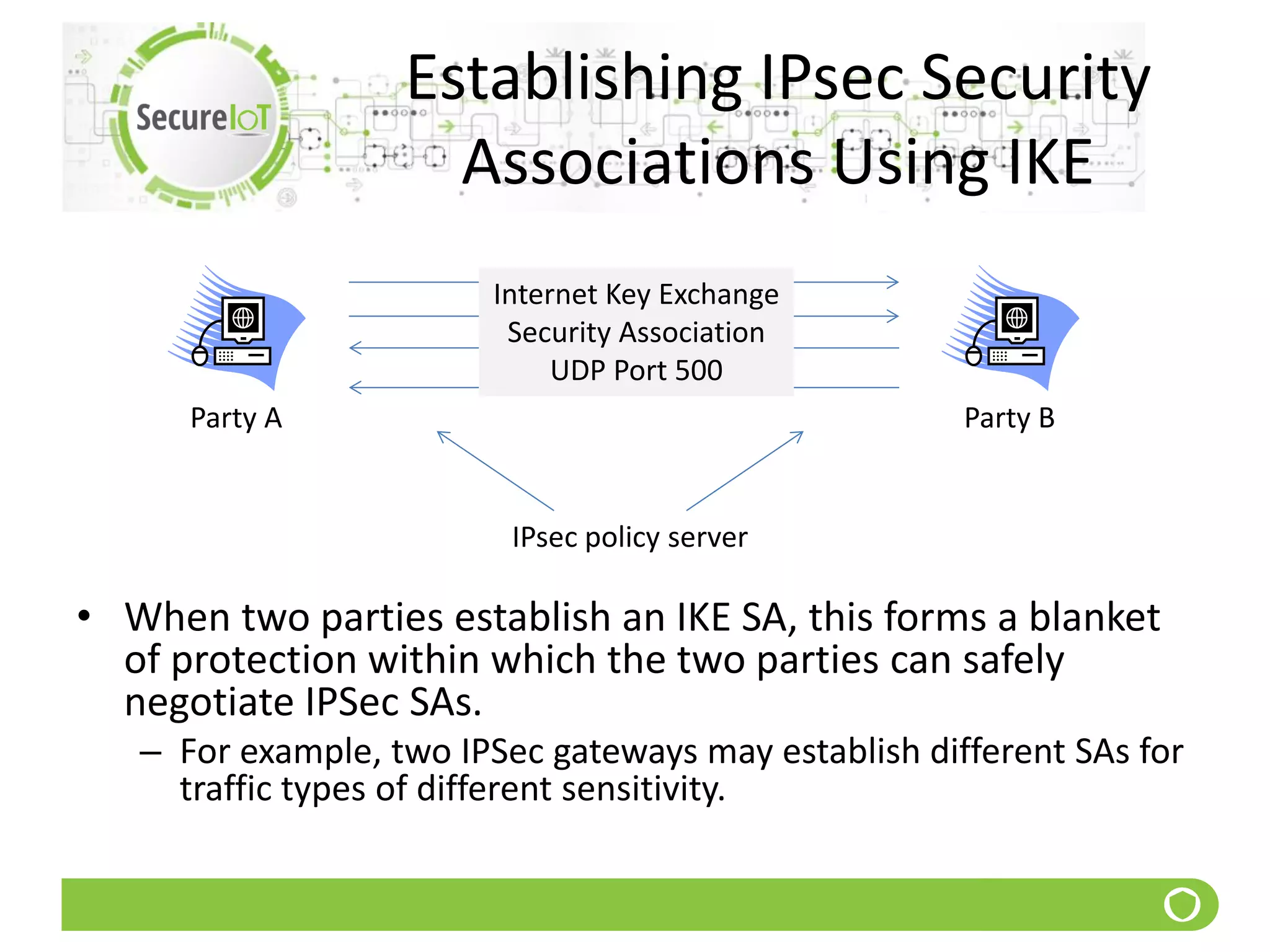

218. Establishing IPsec Security
Associations Using IKE
• When two parties establish an IKE SA, this forms a blanket
of protection within which the two parties can safely
negotiate IPSec SAs.
– For example, two IPSec gateways may establish different SAs for
traffic types of different sensitivity.
Party A Party B
Internet Key Exchange
Security Association
UDP Port 500
IPsec policy server

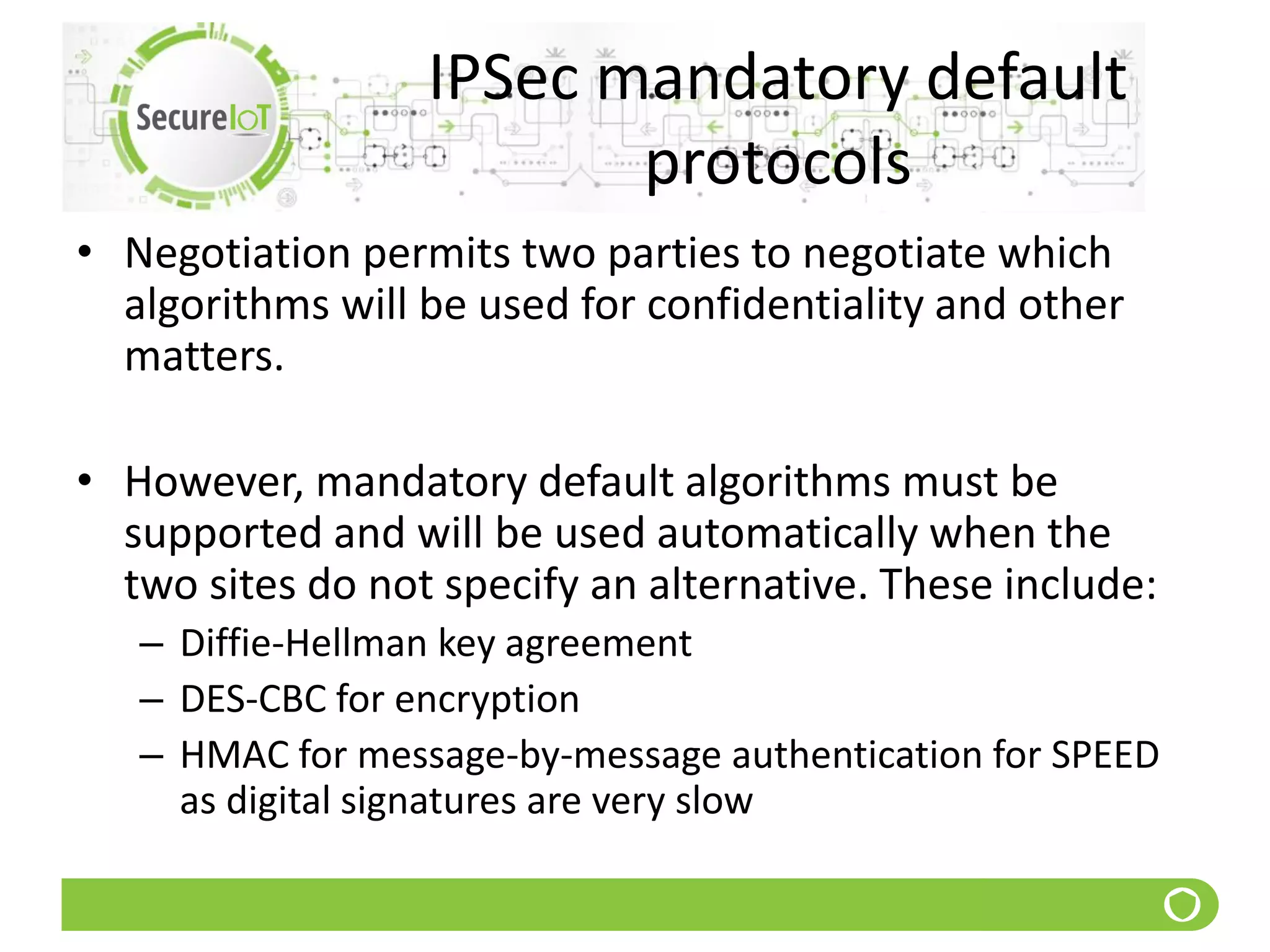

219. IPSec mandatory default
protocols
• Negotiation permits two parties to negotiate which
algorithms will be used for confidentiality and other
matters.
• However, mandatory default algorithms must be
supported and will be used automatically when the
two sites do not specify an alternative. These include:
– Diffie-Hellman key agreement
– DES-CBC for encryption
– HMAC for message-by-message authentication for SPEED
as digital signatures are very slow

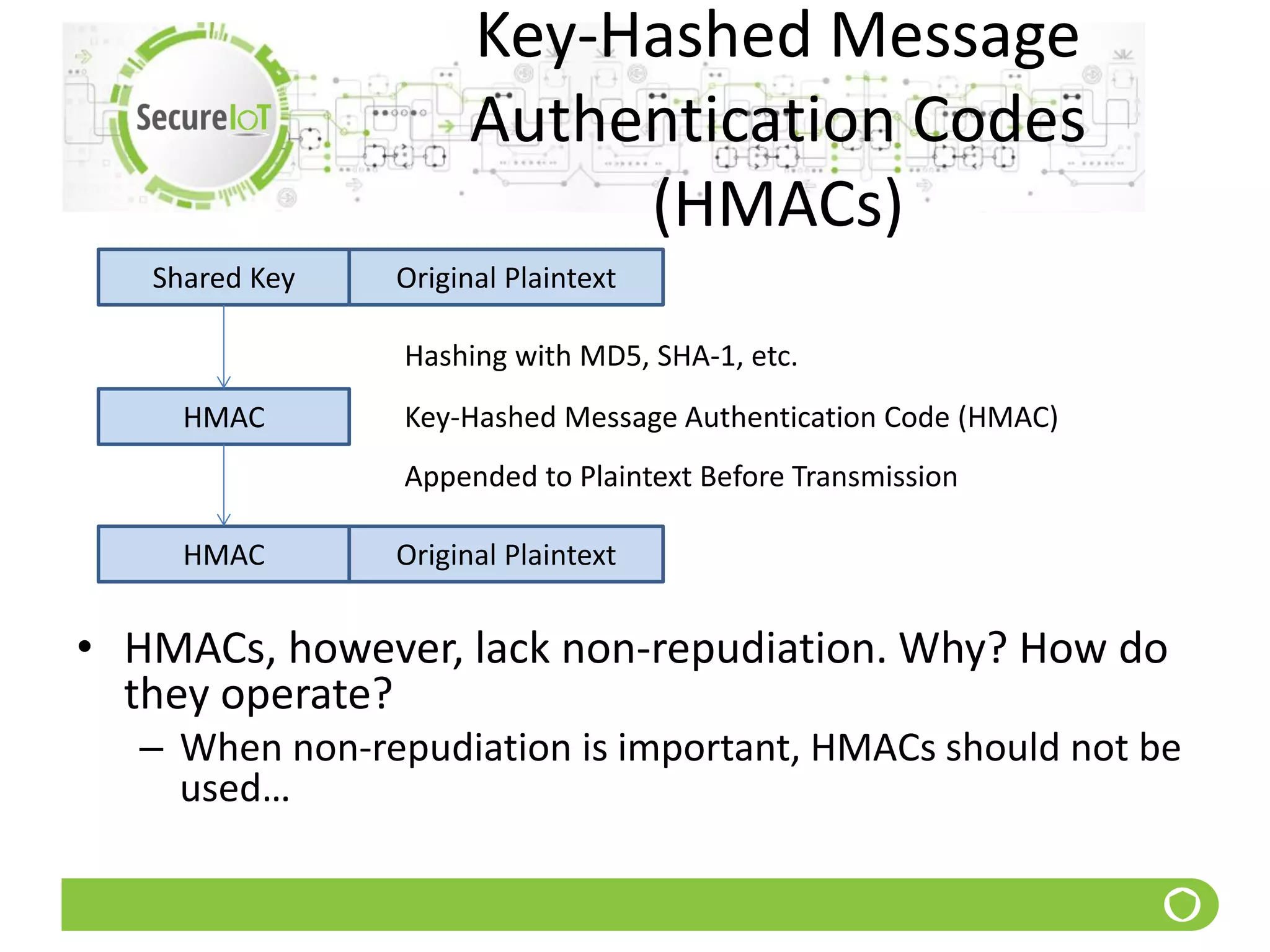

220. Key-Hashed Message
Authentication Codes
(HMACs)
• HMACs, however, lack non-repudiation. Why? How do
they operate?
– When non-repudiation is important, HMACs should not be
used…
Shared Key Original Plaintext
HMAC Original Plaintext
HMAC
Hashing with MD5, SHA-1, etc.
Key-Hashed Message Authentication Code (HMAC)
Appended to Plaintext Before Transmission

221. Kerberos
• In Greek mythology, Cerberus was the hound of Hades —
a monstrous three-headed dog (sometimes said to have
fifty or one-hundred heads), (sometimes) with a snake
for a tail and innumerable snake heads on his back.
– He guarded the gate to Hades (the Greek underworld) and ensured
that the dead could not leave and the living could not enter.
– Cerberus is the offspring of Echidna and Typhon.
• He was overcome several times:
– Heracles’ final labour was to capture Cerberus. First, Heracles went to Eleusis to be
initiated into the Eleusinian mysteries. He did this to absolve himself of guilt for killing
the centaurs and to learn how to enter and exit the underworld alive.
– Athena and Hermes helped him through and back from Hades. Heracles asked Hades for
permission to take Cerberus. Hades agreed as long as Heracles didn’t harm him, though
in some versions, Heracles shot Hades with an arrow. When Heracles dragged the dog
out of Hades, he passed through the cavern Acherusia.
– Orpheus used his musical skills to lull Cerberus to sleep.

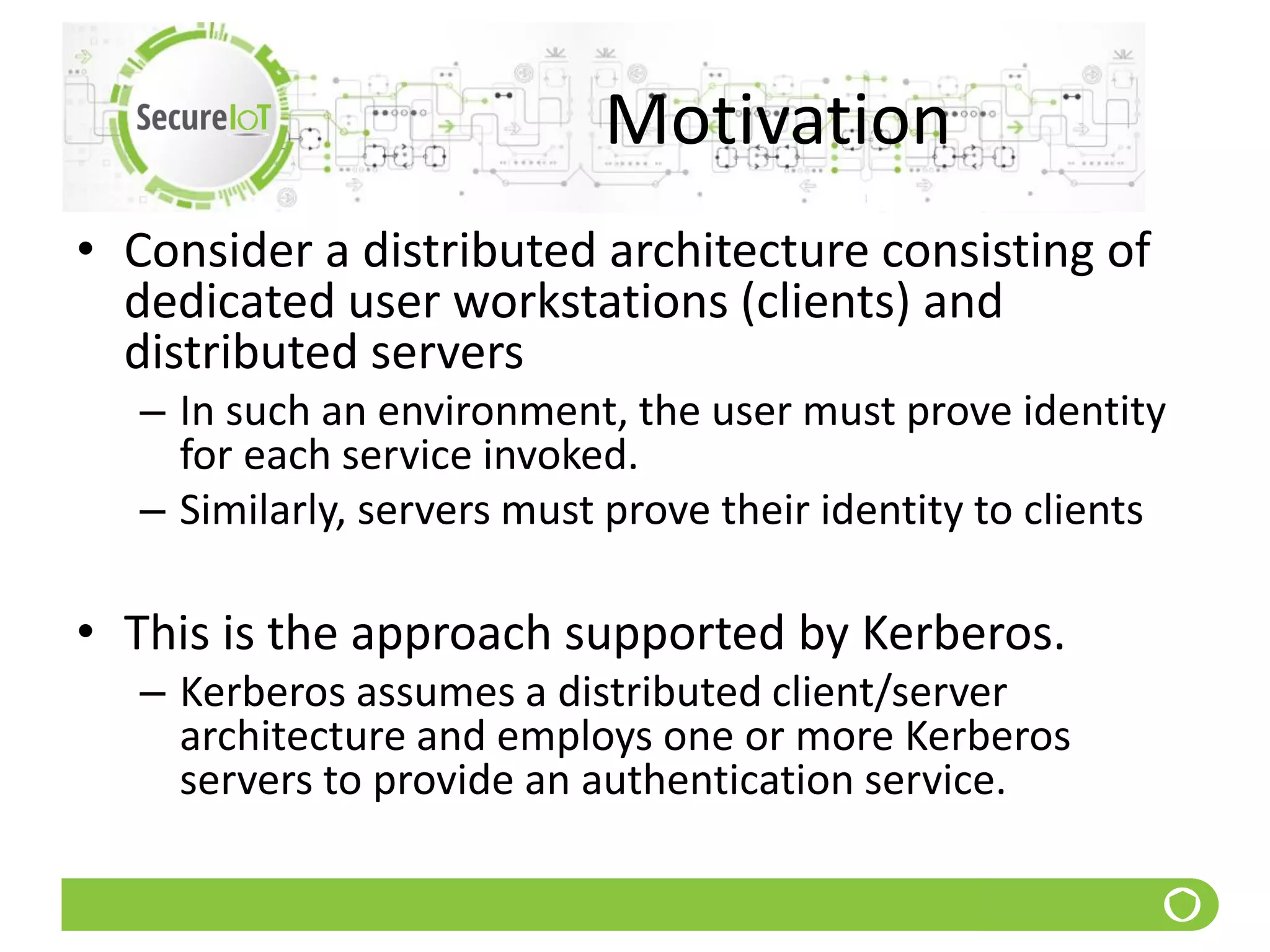

222. Motivation
• Consider a distributed architecture consisting of
dedicated user workstations (clients) and
distributed servers
– In such an environment, the user must prove identity
for each service invoked.
– Similarly, servers must prove their identity to clients
• This is the approach supported by Kerberos.
– Kerberos assumes a distributed client/server
architecture and employs one or more Kerberos
servers to provide an authentication service.

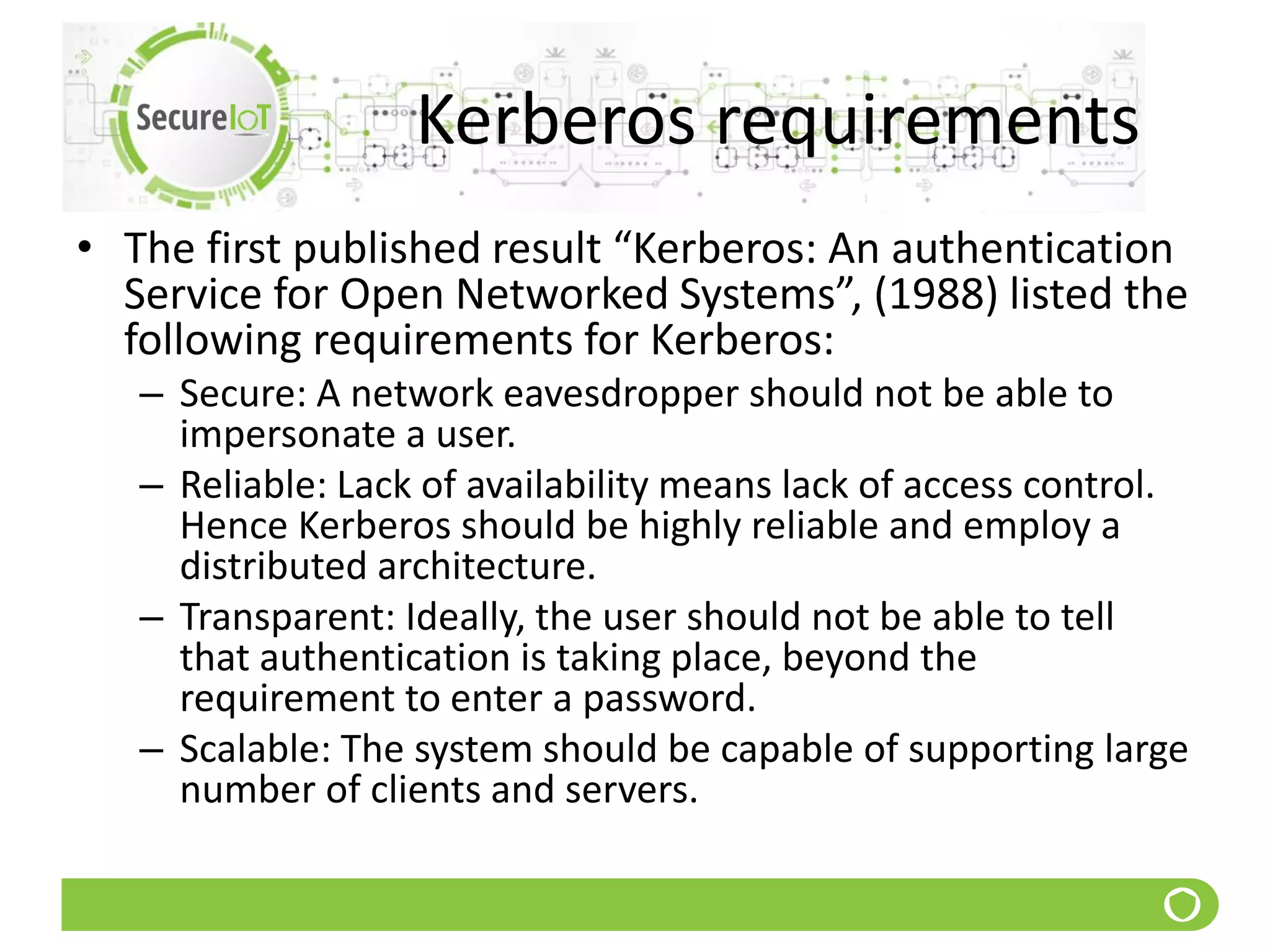

223. Kerberos requirements
• The first published result “Kerberos: An authentication
Service for Open Networked Systems”, (1988) listed the
following requirements for Kerberos:
– Secure: A network eavesdropper should not be able to
impersonate a user.
– Reliable: Lack of availability means lack of access control.
Hence Kerberos should be highly reliable and employ a
distributed architecture.
– Transparent: Ideally, the user should not be able to tell
that authentication is taking place, beyond the
requirement to enter a password.
– Scalable: The system should be capable of supporting large
number of clients and servers.

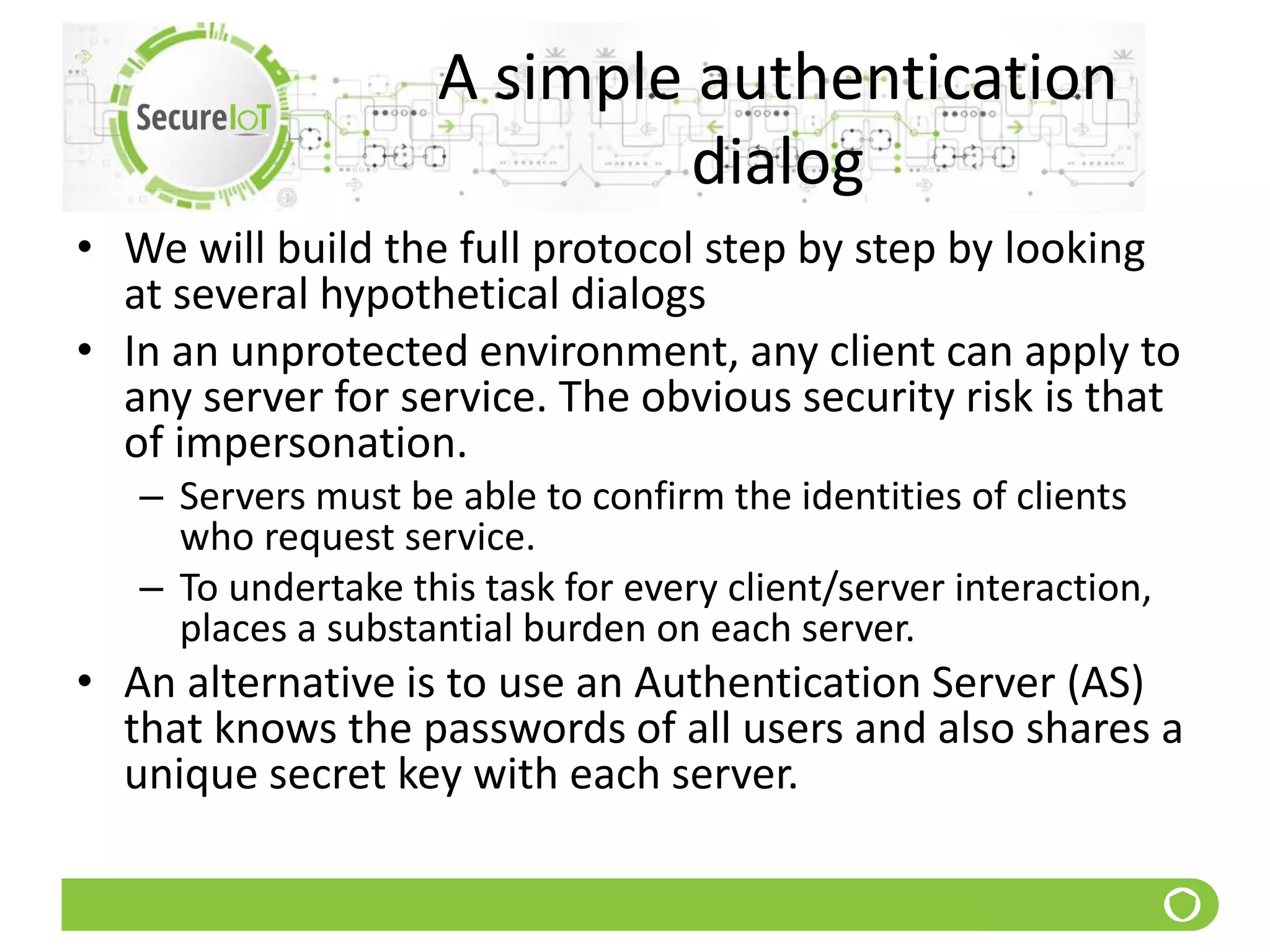

224. A simple authentication
dialog
• We will build the full protocol step by step by looking
at several hypothetical dialogs
• In an unprotected environment, any client can apply to
any server for service. The obvious security risk is that
of impersonation.
– Servers must be able to confirm the identities of clients
who request service.
– To undertake this task for every client/server interaction,
places a substantial burden on each server.
• An alternative is to use an Authentication Server (AS)
that knows the passwords of all users and also shares a
unique secret key with each server.

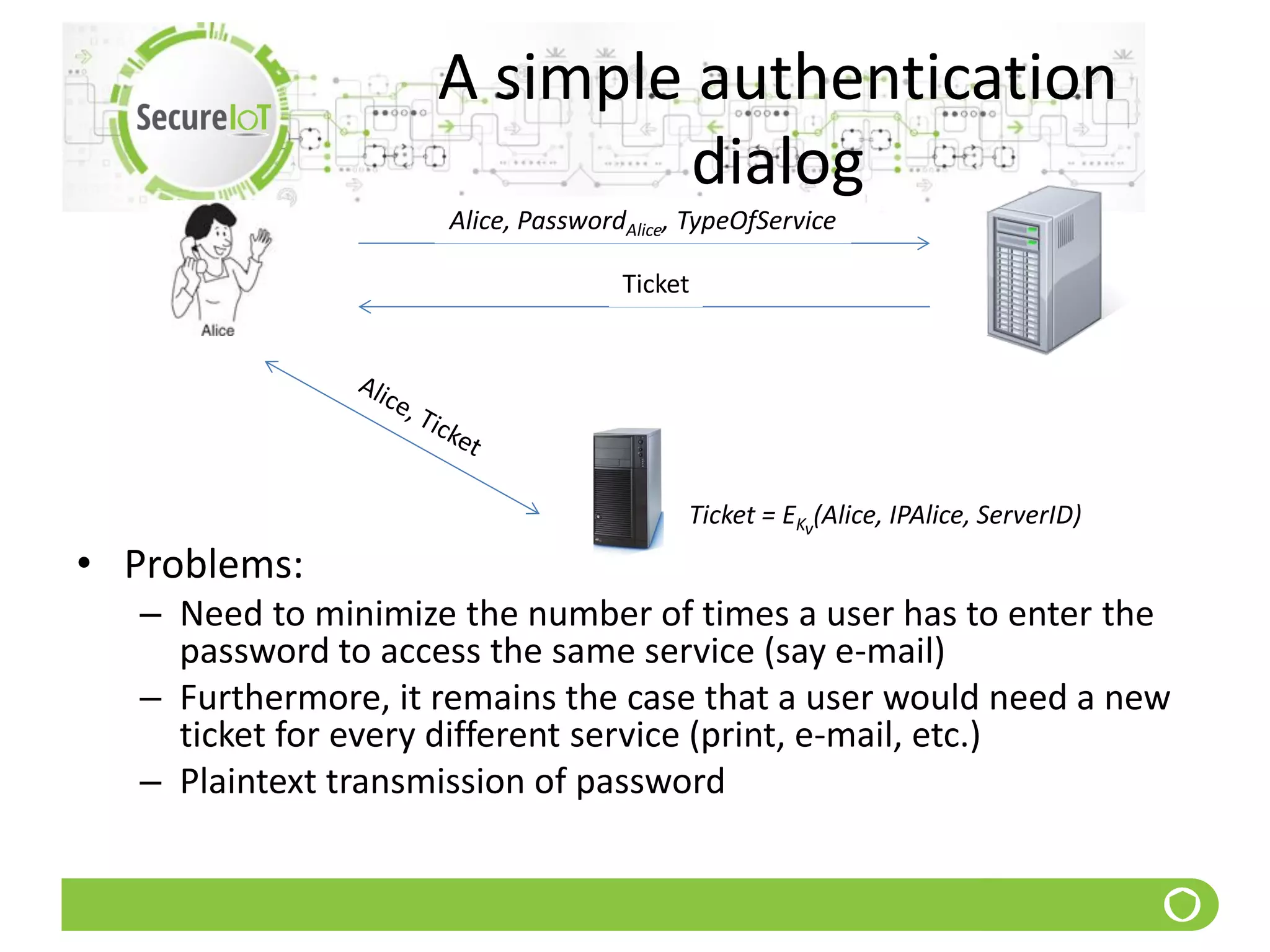

225. A simple authentication
dialog
• Problems:
– Need to minimize the number of times a user has to enter the
password to access the same service (say e-mail)
– Furthermore, it remains the case that a user would need a new
ticket for every different service (print, e-mail, etc.)
– Plaintext transmission of password
Alice, PasswordAlice, TypeOfService
Ticket
Ticket = EKv
(Alice, IPAlice, ServerID)

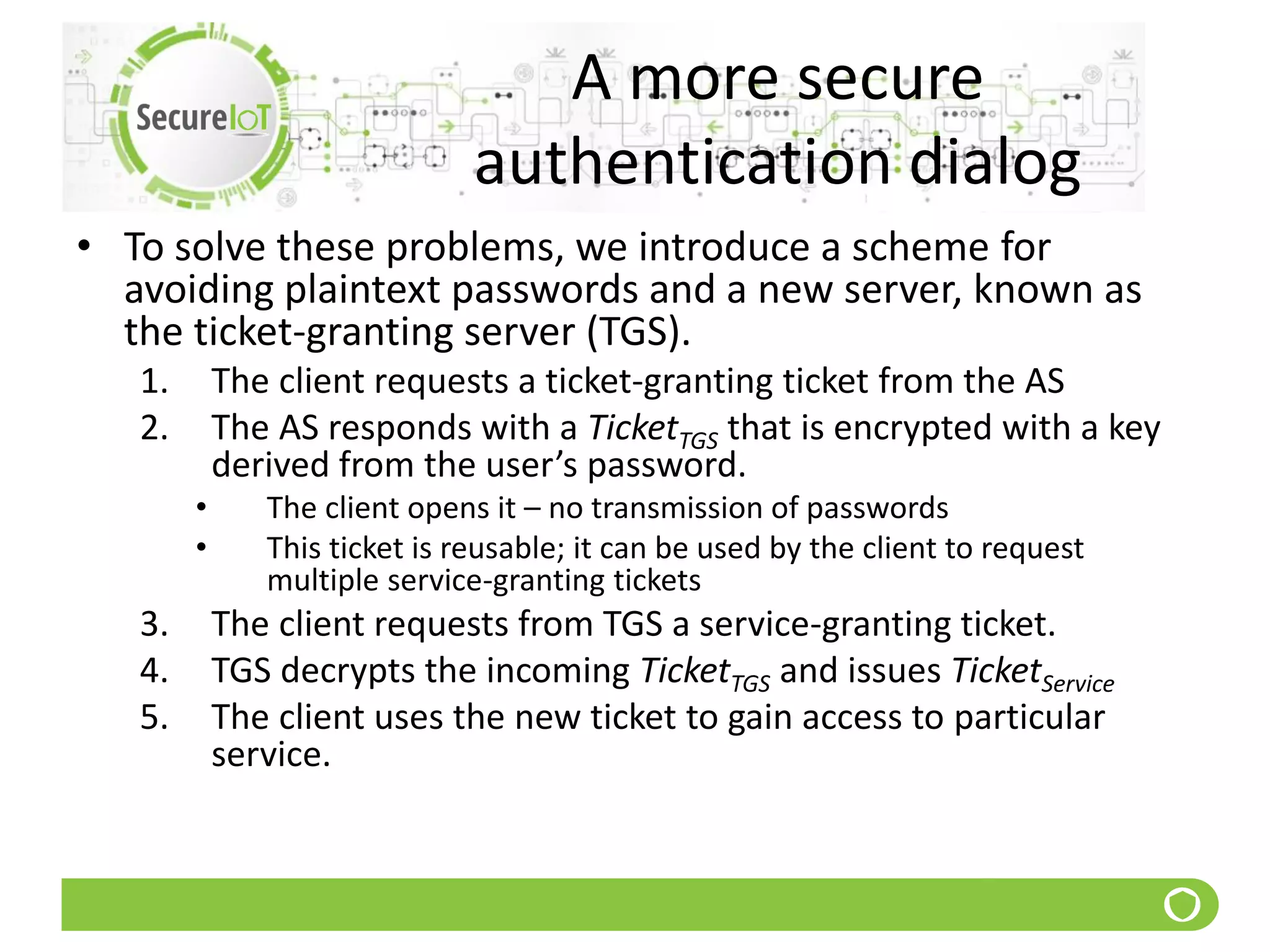

226. A more secure
authentication dialog
• To solve these problems, we introduce a scheme for
avoiding plaintext passwords and a new server, known as
the ticket-granting server (TGS).
1. The client requests a ticket-granting ticket from the AS
2. The AS responds with a TicketTGS that is encrypted with a key
derived from the user’s password.
• The client opens it – no transmission of passwords
• This ticket is reusable; it can be used by the client to request
multiple service-granting tickets
3. The client requests from TGS a service-granting ticket.
4. TGS decrypts the incoming TicketTGS and issues TicketService
5. The client uses the new ticket to gain access to particular
service.

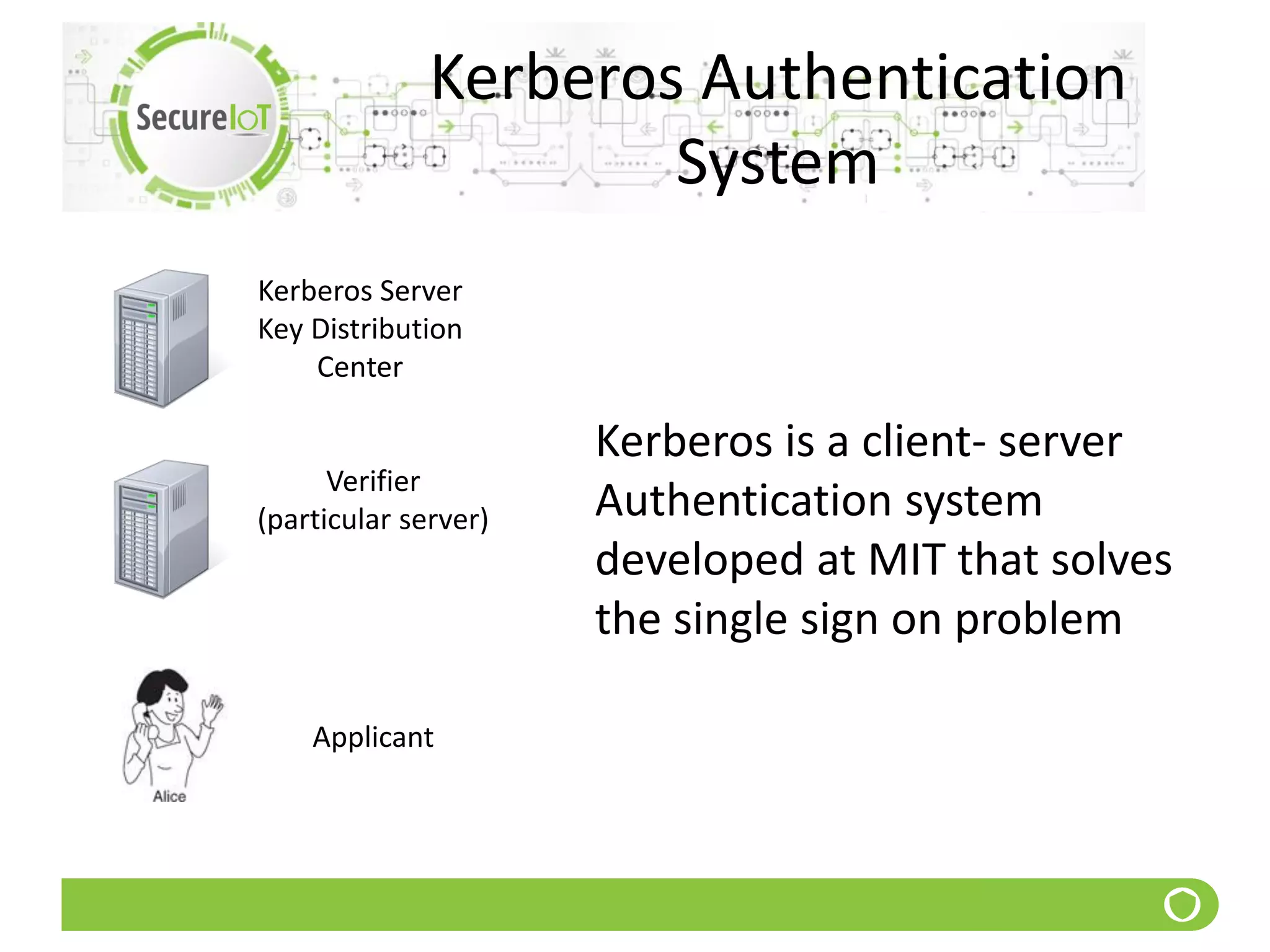

227. Kerberos Authentication
System
Kerberos Server
Key Distribution
Center
Verifier
(particular server)
Applicant
Kerberos is a client- server
Authentication system
developed at MIT that solves
the single sign on problem

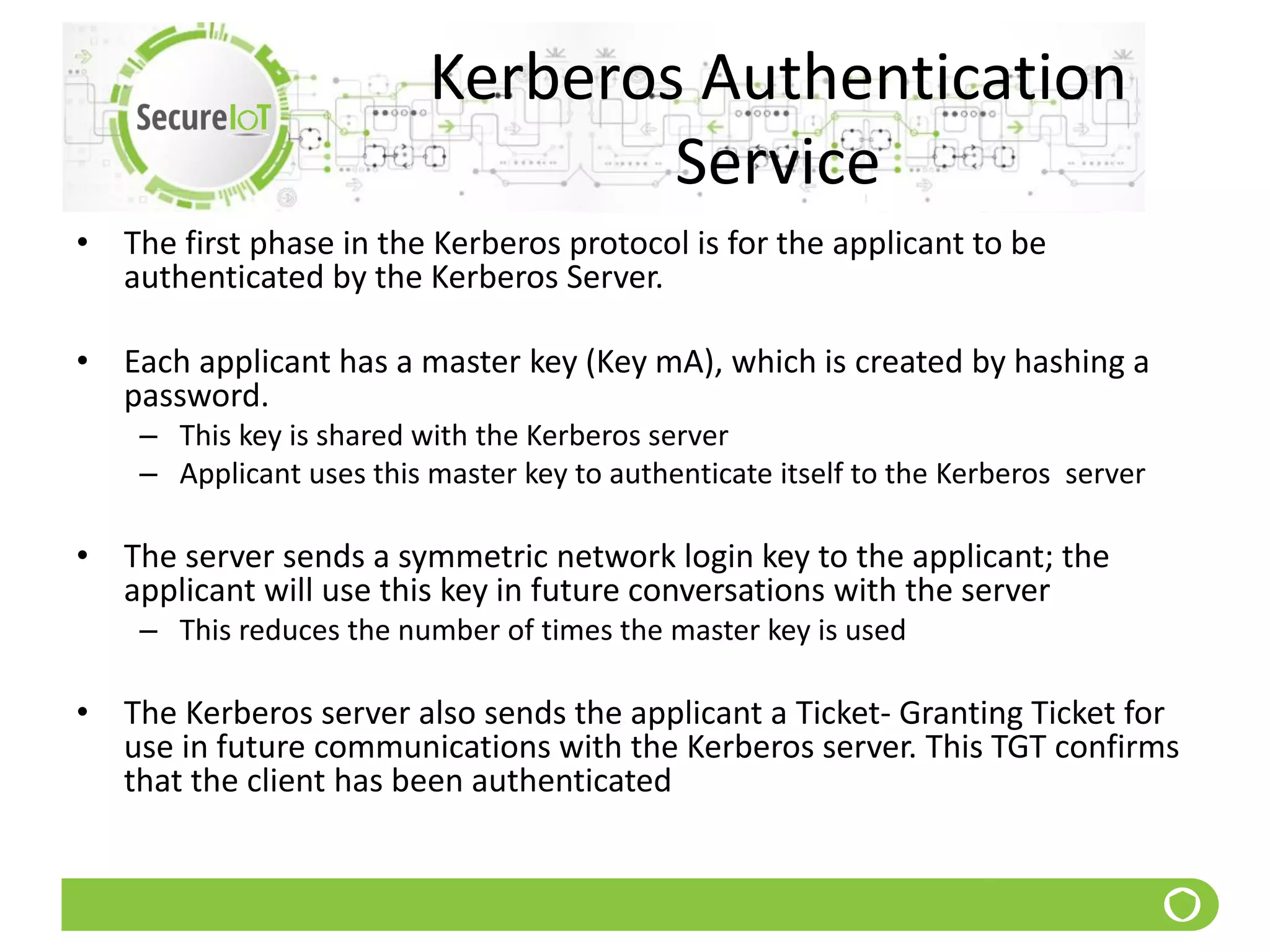

228. Kerberos Authentication
Service
• The first phase in the Kerberos protocol is for the applicant to be
authenticated by the Kerberos Server.
• Each applicant has a master key (Key mA), which is created by hashing a
password.
– This key is shared with the Kerberos server
– Applicant uses this master key to authenticate itself to the Kerberos server
• The server sends a symmetric network login key to the applicant; the
applicant will use this key in future conversations with the server
– This reduces the number of times the master key is used
• The Kerberos server also sends the applicant a Ticket- Granting Ticket for
use in future communications with the Kerberos server. This TGT confirms
that the client has been authenticated

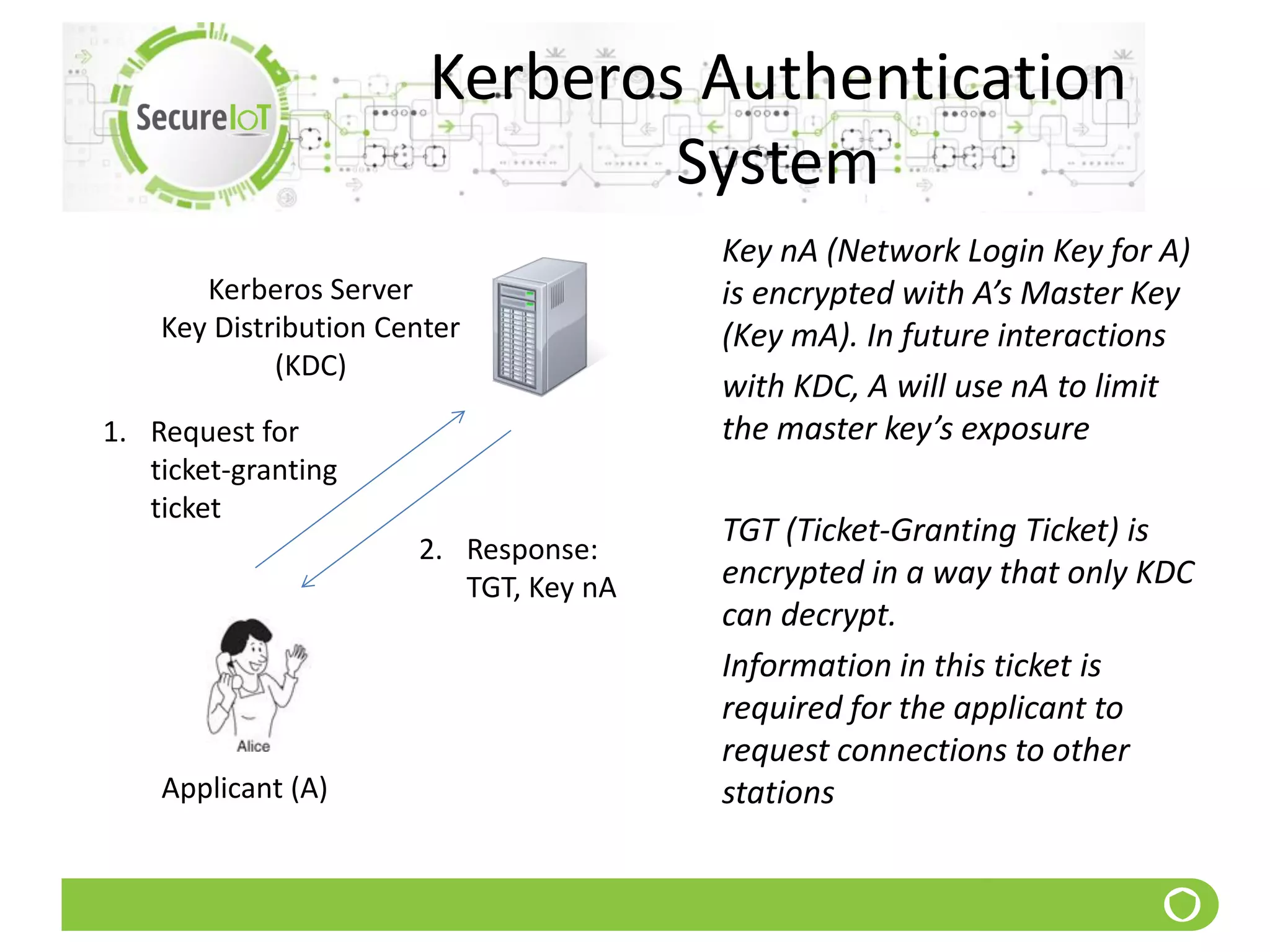

229. Kerberos Authentication
System
Key nA (Network Login Key for A)
is encrypted with A’s Master Key
(Key mA). In future interactions
with KDC, A will use nA to limit
the master key’s exposure
TGT (Ticket-Granting Ticket) is
encrypted in a way that only KDC
can decrypt.
Information in this ticket is
required for the applicant to
request connections to other
stations
Kerberos Server
Key Distribution Center
(KDC)
Applicant (A)
1. Request for
ticket-granting
ticket
2. Response:
TGT, Key nA

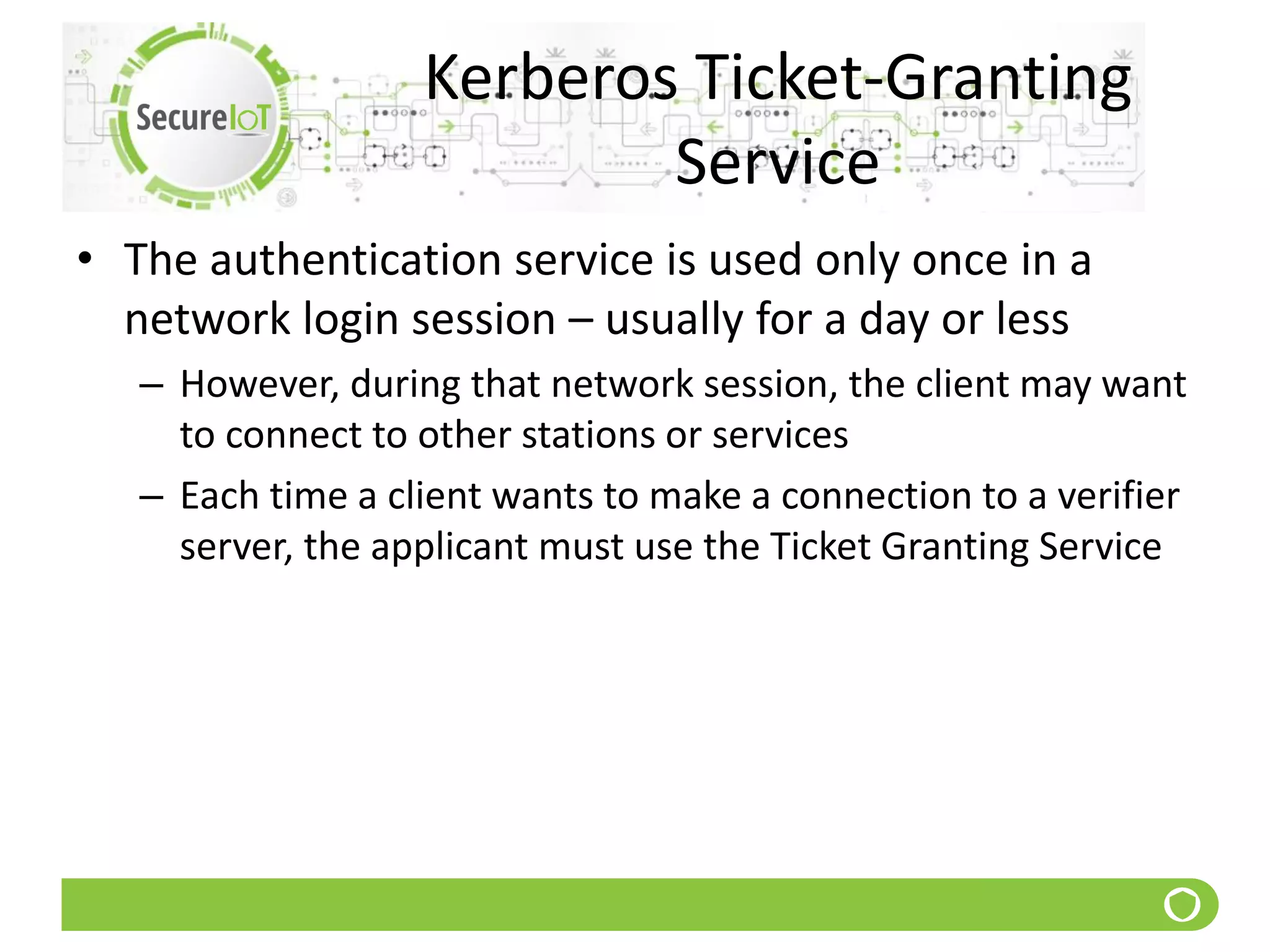

230. Kerberos Ticket-Granting
Service
• The authentication service is used only once in a
network login session – usually for a day or less
– However, during that network session, the client may want
to connect to other stations or services
– Each time a client wants to make a connection to a verifier
server, the applicant must use the Ticket Granting Service

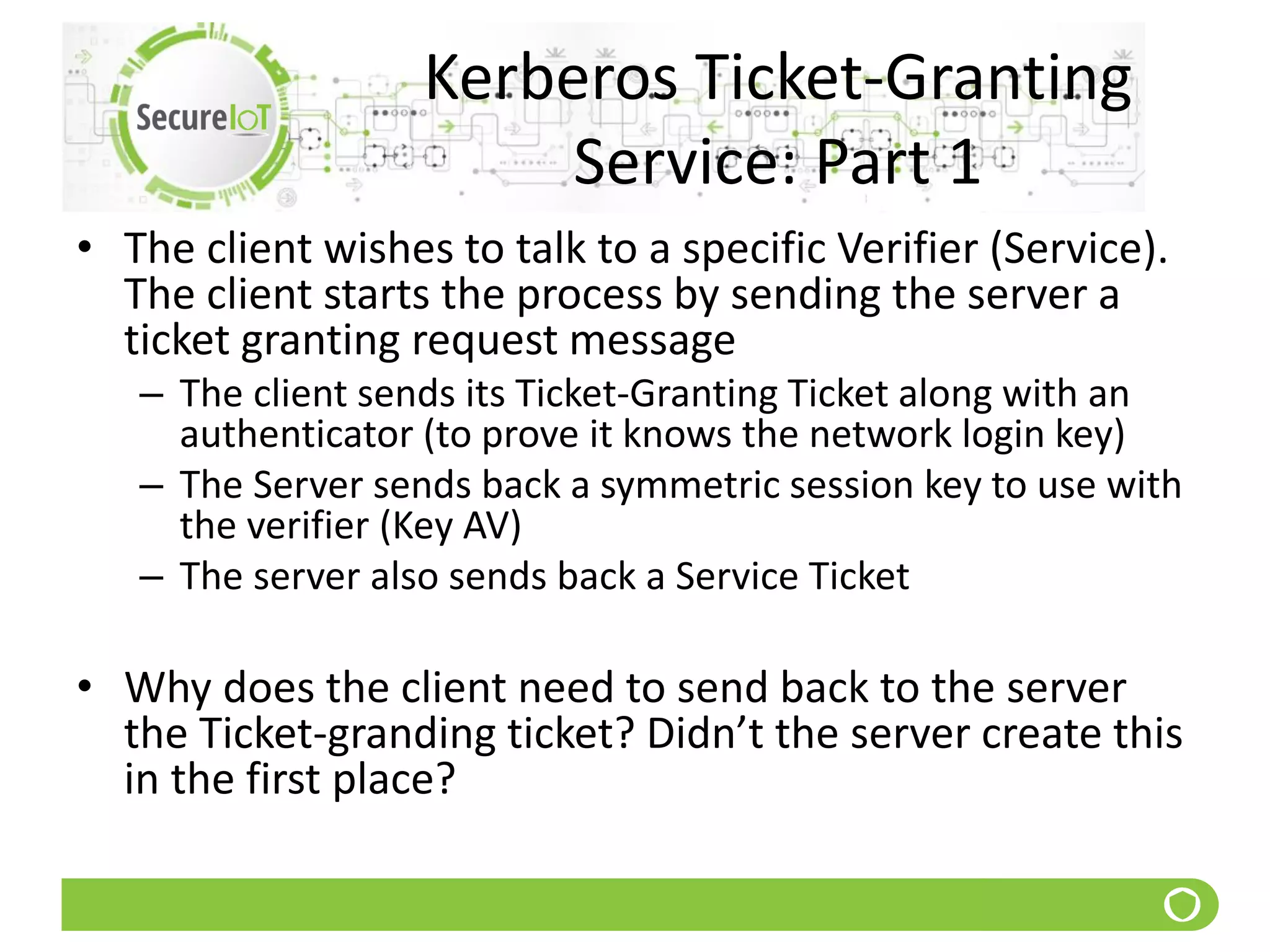

231. Kerberos Ticket-Granting
Service: Part 1
• The client wishes to talk to a specific Verifier (Service).
The client starts the process by sending the server a
ticket granting request message
– The client sends its Ticket-Granting Ticket along with an
authenticator (to prove it knows the network login key)
– The Server sends back a symmetric session key to use with
the verifier (Key AV)
– The server also sends back a Service Ticket
• Why does the client need to send back to the server
the Ticket-granding ticket? Didn’t the server create this
in the first place?

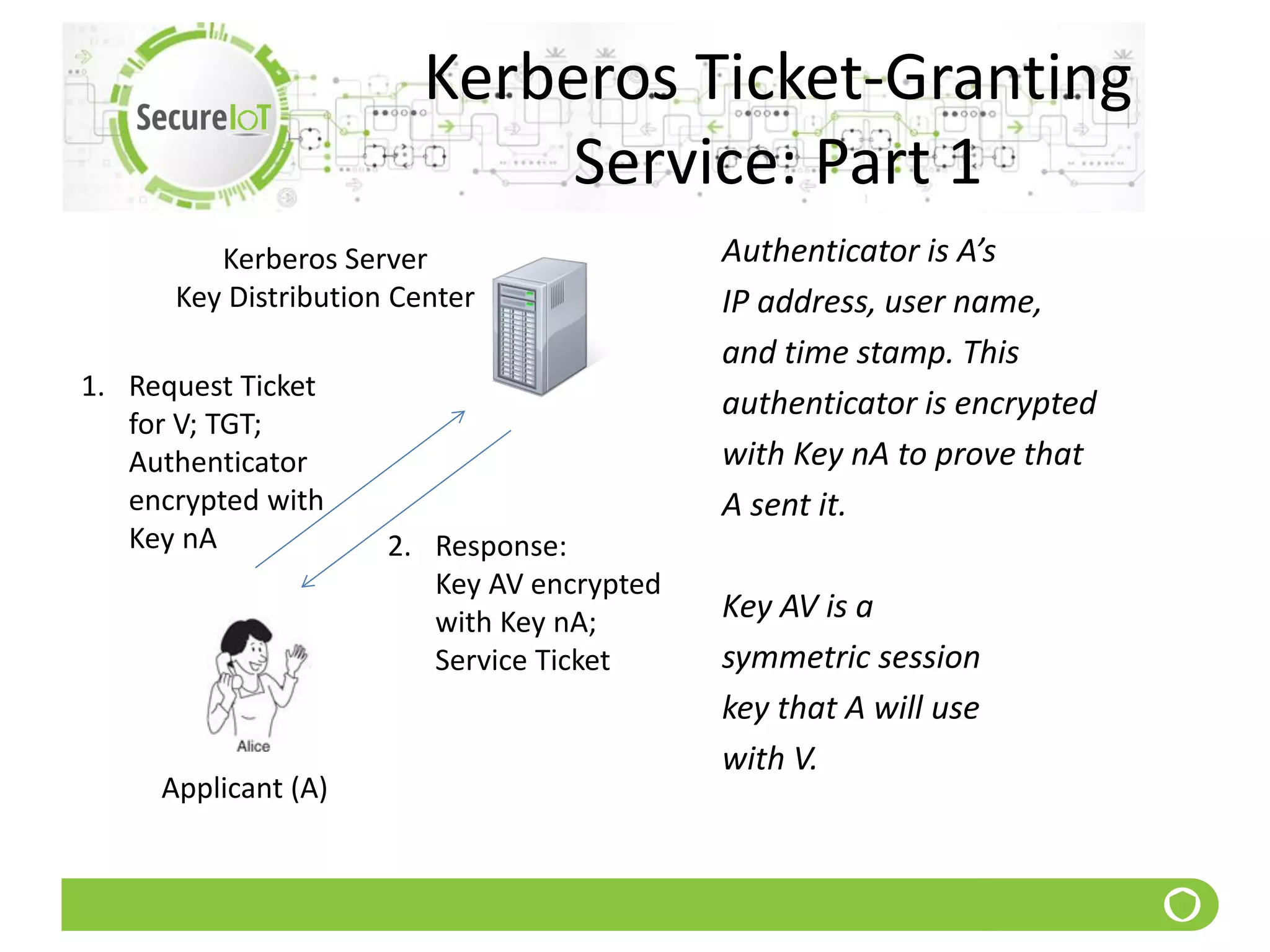

232. Kerberos Ticket-Granting
Service: Part 1
Authenticator is A’s
IP address, user name,
and time stamp. This
authenticator is encrypted
with Key nA to prove that
A sent it.
Key AV is a
symmetric session
key that A will use
with V.
Kerberos Server
Key Distribution Center
Applicant (A)
1. Request Ticket
for V; TGT;
Authenticator
encrypted with
Key nA 2. Response:
Key AV encrypted
with Key nA;
Service Ticket

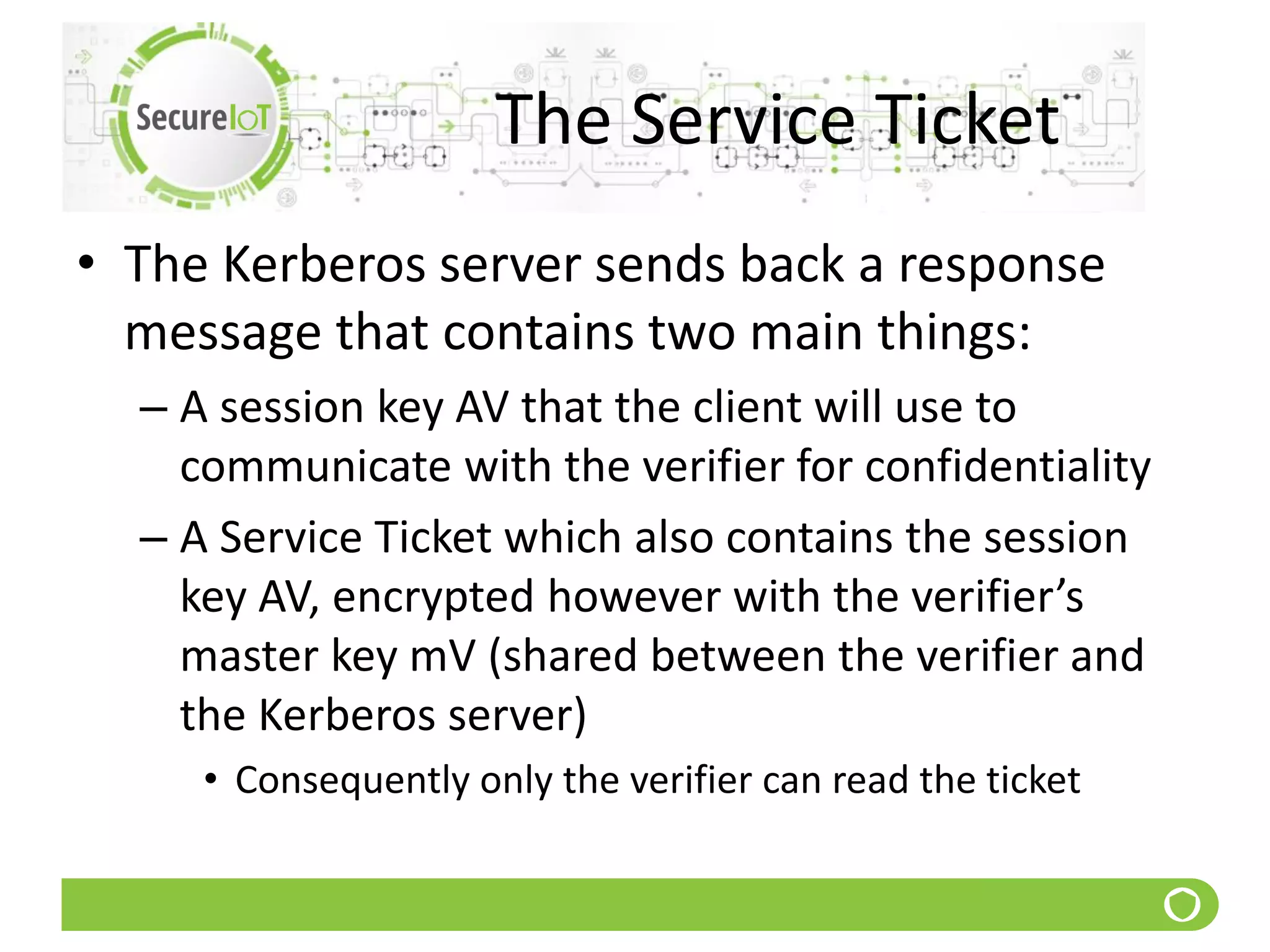

233. The Service Ticket
• The Kerberos server sends back a response
message that contains two main things:
– A session key AV that the client will use to
communicate with the verifier for confidentiality
– A Service Ticket which also contains the session
key AV, encrypted however with the verifier’s
master key mV (shared between the verifier and
the Kerberos server)
• Consequently only the verifier can read the ticket

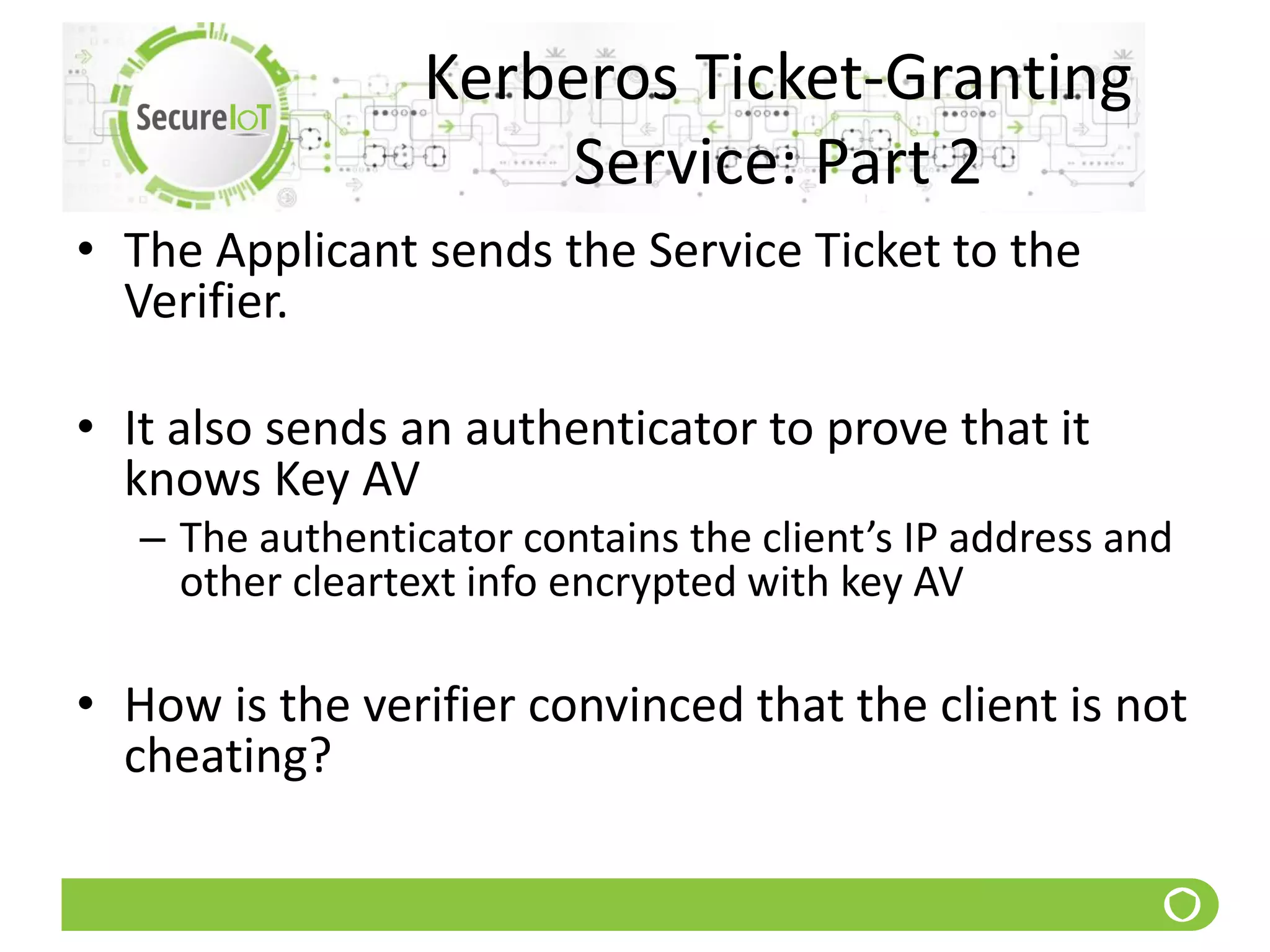

234. Kerberos Ticket-Granting
Service: Part 2
• The Applicant sends the Service Ticket to the
Verifier.
• It also sends an authenticator to prove that it
knows Key AV
– The authenticator contains the client’s IP address and
other cleartext info encrypted with key AV
• How is the verifier convinced that the client is not
cheating?

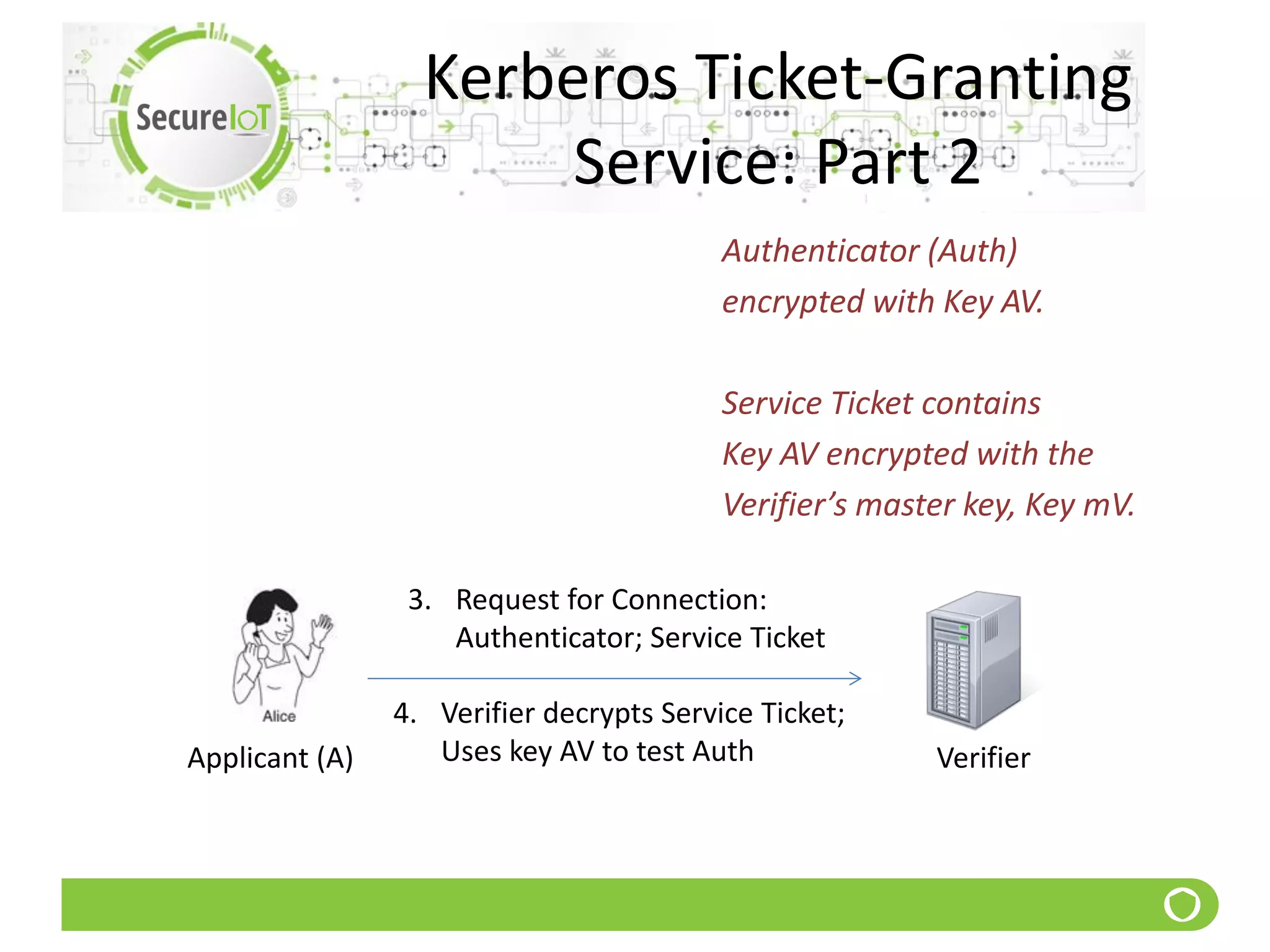

235. Kerberos Ticket-Granting
Service: Part 2
Authenticator (Auth)
encrypted with Key AV.
Service Ticket contains
Key AV encrypted with the
Verifier’s master key, Key mV.
Applicant (A)
3. Request for Connection:
Authenticator; Service Ticket
4. Verifier decrypts Service Ticket;
Uses key AV to test Auth Verifier

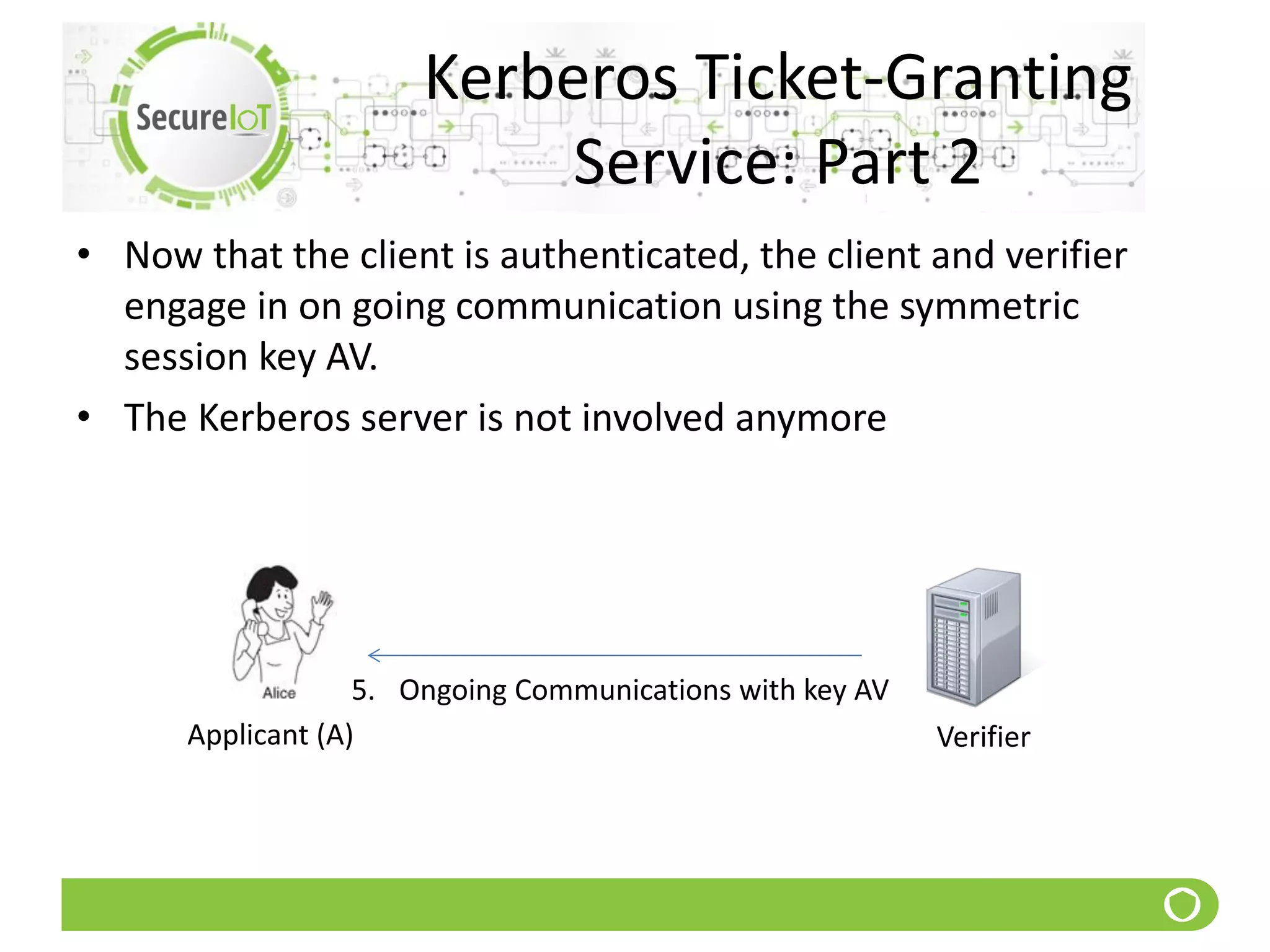

236. Kerberos Ticket-Granting
Service: Part 2
• Now that the client is authenticated, the client and verifier
engage in on going communication using the symmetric
session key AV.
• The Kerberos server is not involved anymore
Applicant (A)
5. Ongoing Communications with key AV
Verifier

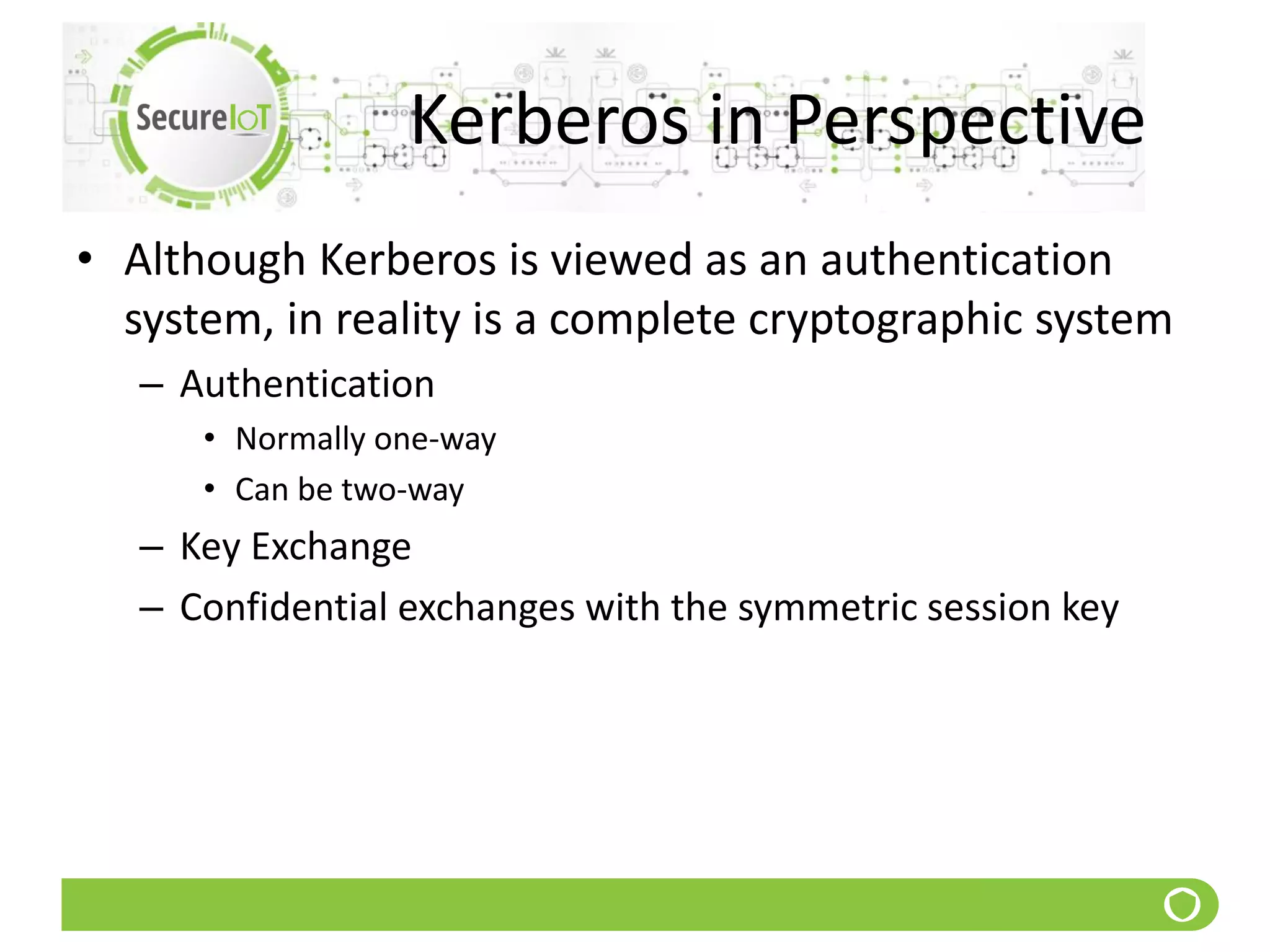

237. Kerberos in Perspective
• Although Kerberos is viewed as an authentication
system, in reality is a complete cryptographic system
– Authentication
• Normally one-way
• Can be two-way
– Key Exchange
– Confidential exchanges with the symmetric session key

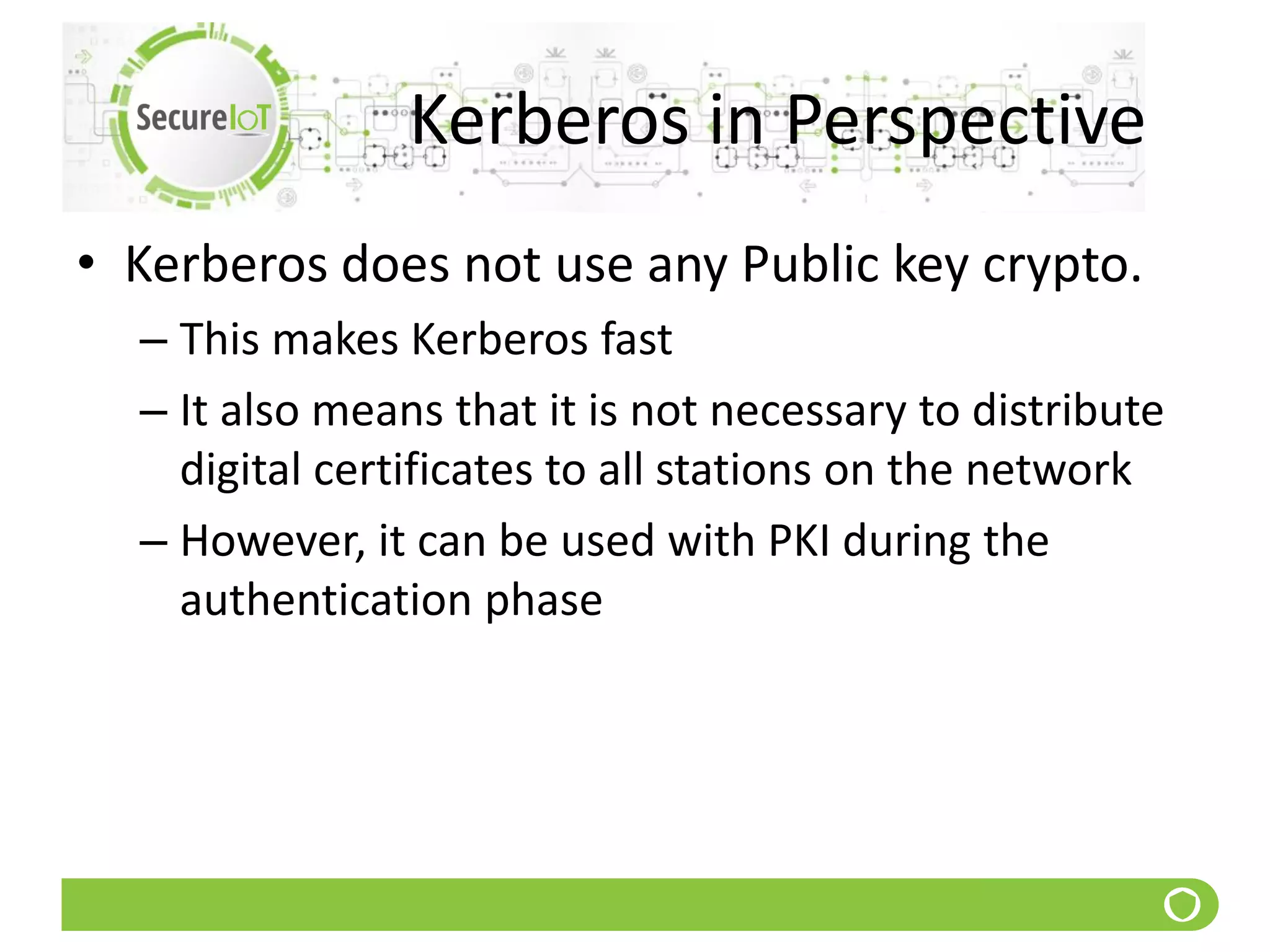

238. Kerberos in Perspective
• Kerberos does not use any Public key crypto.
– This makes Kerberos fast
– It also means that it is not necessary to distribute
digital certificates to all stations on the network
– However, it can be used with PKI during the
authentication phase

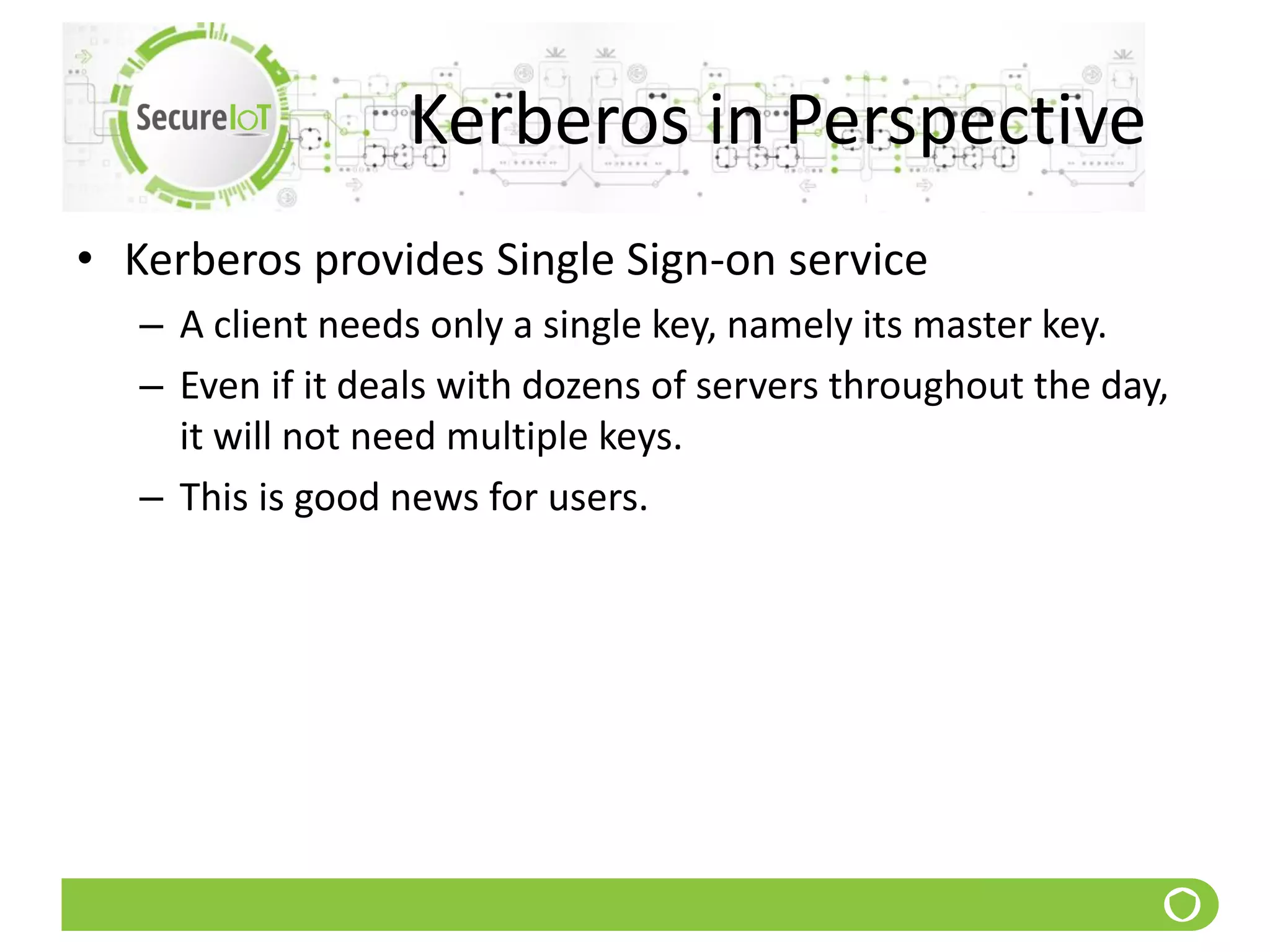

239. Kerberos in Perspective
• Kerberos provides Single Sign-on service
– A client needs only a single key, namely its master key.
– Even if it deals with dozens of servers throughout the day,
it will not need multiple keys.
– This is good news for users.
