1. Portability in Seaside
NYC Smalltalk
December 10, 2009

2. Julian Fitzell
Co-creator of Seaside
Independent consultant

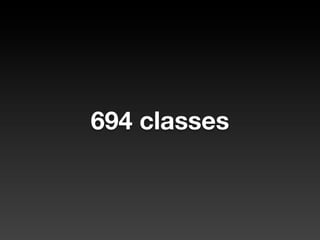

4. 694 classes

5. 6844 methods

6. Platforms

8. External Interface Support
XML Support enables XML–Smalltalk object
mapping, includes a server interface via XML
request handlers and reading of remote resources
B disk via TCP sockets using HTTP requests
OLE Support enables an application to use OLE
clients and custom control services.
Domino Connection allows an application to
retrieve and work with Domino documents as well
as access Notes mail system.
Download a risk-free trial copy:
www.instantiations.com/VAST/download
m/VAST
Build Quality Software
l other trademarks mentioned are the property of their respective owners.

9. Portability
Photo: Alexia´s, flickr.com

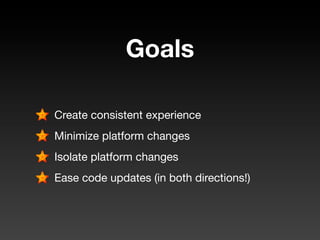

10. Goals
Create consistent experience
Minimize platform changes
Isolate platform changes
Ease code updates (in both directions!)

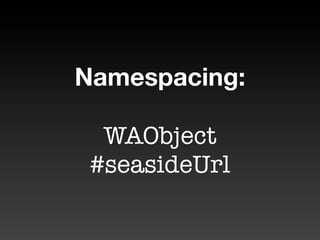

11. Namespacing:
WAObject
#seasideUrl

12. Syntax
Photo: pipp, sxc.hu

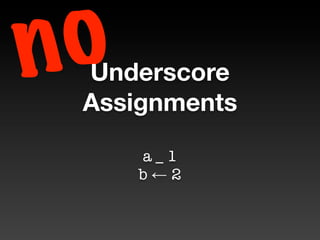

13. n o
Underscore
Assignments
a_1
b←2

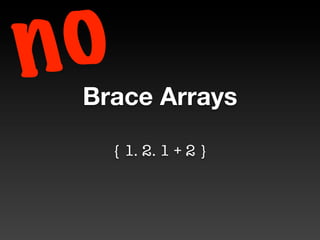

14. n o
Brace Arrays
{ 1. 2. 1 + 2 }

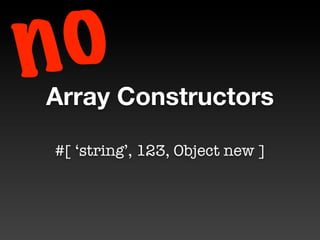

15. n o
Array Constructors
#[ ‘string’, 123, Object new ]

16. n o
Byte Arrays
#[ 1 2 3 ]

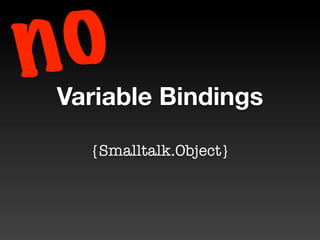

17. n o
Variable Bindings
{Smalltalk.Object}

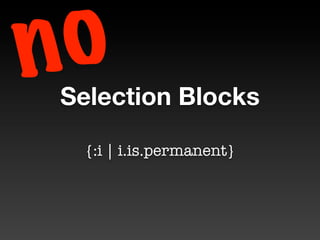

18. n o
Selection Blocks
{:i | i.is.permanent}

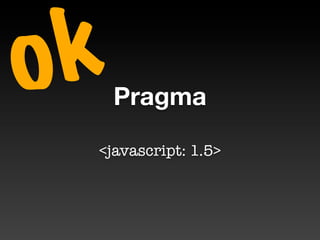

19. o k Pragma
<javascript: 1.5>

20. ANSI
Photo: njd89, sxc.hu

21. ANSI Protocols
Object, Character, Boolean, nil, etc.
Block
Exception
Numeric
Collection
Date and Time
Stream

22. Exceptions
Photo: ingythewingy, flickr.com

23. Exception Protocols
#signal, #signal:, ...
#on:do:, #ensure:, #ifCurtailed:
#defaultAction, #isResumable
#pass, #outer, #retry, #resume
Warning, Error, Notification, ZeroDivide, ...

24. n o
[ ... ]
on: Error
do: [ ... ]

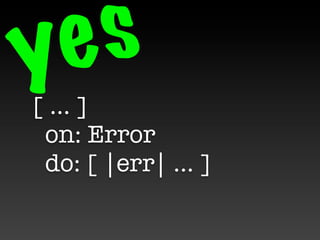

25. y e s
[ ... ]
on: Error
do: [ |err| ... ]

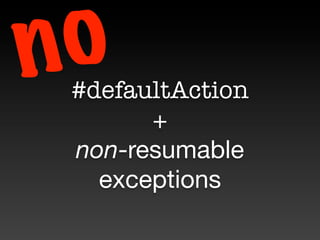

26. n o
#defaultAction
+
non-resumable
exceptions

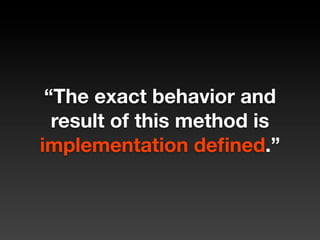

27. “The exact behavior and
result of this method is
implementation defined.”

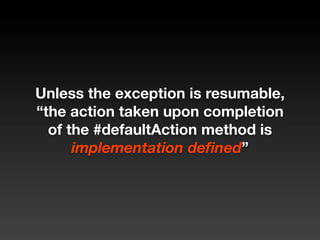

28. Unless the exception is resumable,
“the action taken upon completion
of the #defaultAction method is
implementation defined”

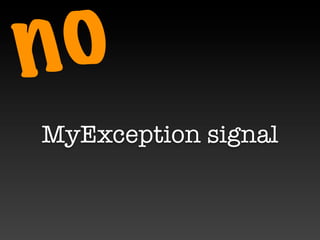

29. n o
MyException signal

30. Collections
Photo: ijsendoorn,sxc.hu

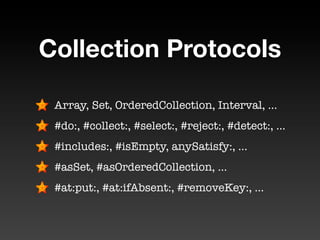

31. Collection Protocols
Array, Set, OrderedCollection, Interval, ...
#do:, #collect:, #select:, #reject:, #detect:, ...
#includes:, #isEmpty, anySatisfy:, ...
#asSet, #asOrderedCollection, ...
#at:put:, #at:ifAbsent:, #removeKey:, ...

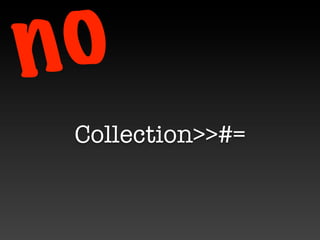

32. n o
Collection>>#=

33. n o
#withIndexDo:

34. y e s
#keysAndValuesDo:

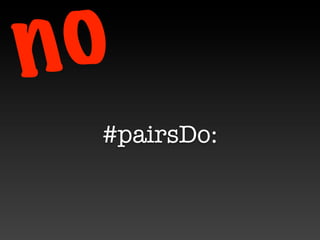

35. n o
#pairsDo:

36. y e s
1
to: aCollection size
by: 2 do: [ :i | ... ]

37. Strings
Photo: Lynne Lancaster, sxc.hu

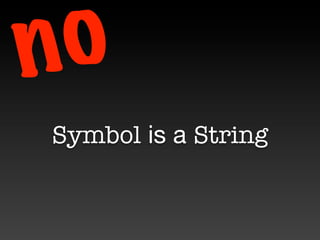

38. n o
Symbol is a String

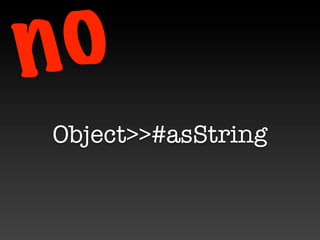

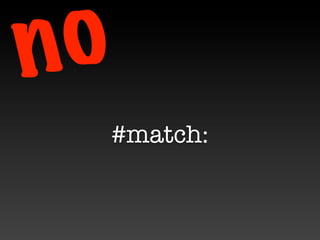

39. n o
#match:

40. n o
Object>>#asString

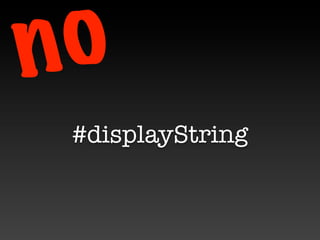

41. n o
#displayString

42. n o
Non-ASCII Strings

43. Streams
Photo: Lynne Lancaster, sxc.hu

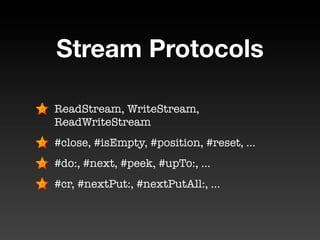

44. Stream Protocols
ReadStream, WriteStream,
ReadWriteStream
#close, #isEmpty, #position, #reset, ...
#do:, #next, #peek, #upTo:, ...
#cr, #nextPut:, #nextPutAll:, ...

45. n o
#next, at the end
of a stream

46. y e s
Check #atEnd first

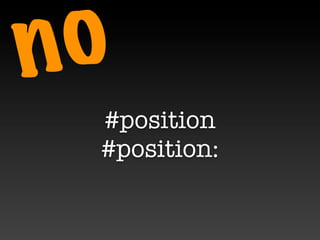

47. n o
#position
#position:

48. Times
and
Dates
Photo: inya, sxc.hu

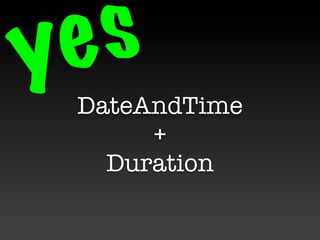

49. y e s
DateAndTime
+
Duration

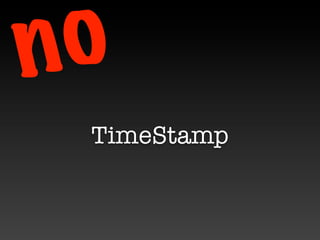

50. n o
TimeStamp

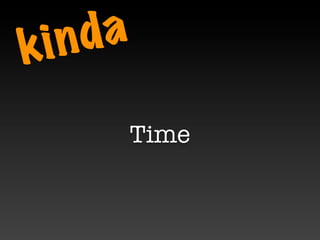

51. k in d a
Time

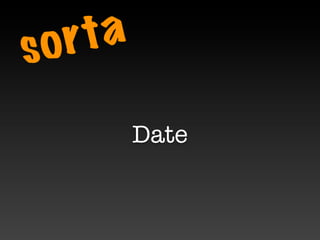

52. s o r ta
Date

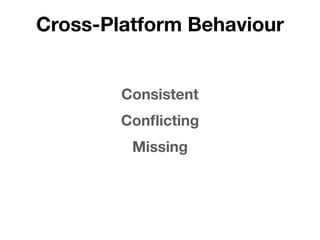

53. Cross-Platform Behaviour
Consistent
Conflicting
Missing

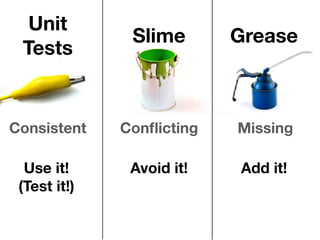

54. Unit
Slime Grease
Tests
Consistent Conflicting Missing
Use it! Avoid it! Add it!
(Test it!)

55. Unit Tests
Photo: shadowkill, sxc.hu

56. Done?

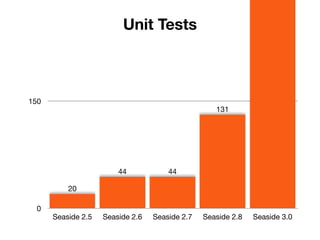

57. Unit Tests
150
131
44 44
20
0
Seaside 2.5 Seaside 2.6 Seaside 2.7 Seaside 2.8 Seaside 3.0

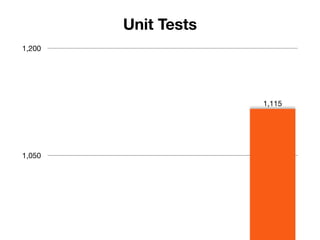

58. Unit Tests
1,200
1,115
1,050

59. Slime
Lint Tests
for Seaside
Photo: A Syed, sxc.hu

60. Rules to detect
Portability Issues

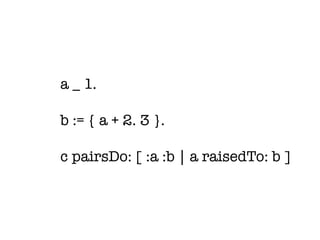

61. a _ 1.
b := { a + 2. 3 }.
c pairsDo: [ :a :b | a raisedTo: b ]

62. a _ 1.
b := { a + 2. 3 }.
c pairsDo: [ :a :b | a raisedTo: b ]

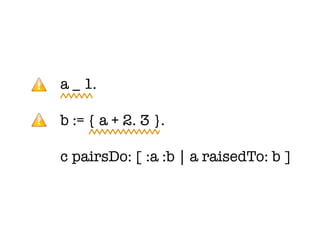

63. a _ 1.
b := { a + 2. 3 }.
c pairsDo: [ :a :b | a raisedTo: b ]

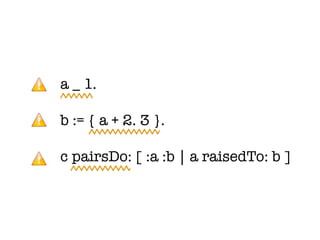

64. a _ 1.
b := { a + 2. 3 }.
c pairsDo: [ :a :b | a raisedTo: b ]

65. Rules to detect
Seaside Bugs

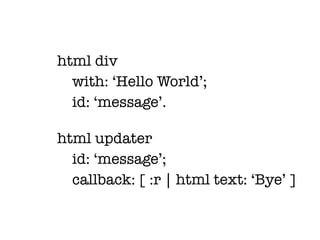

66. html div
with: ‘Hello World’;
id: ‘message’.
html updater
id: ‘message’;
callback: [ :r | html text: ‘Bye’ ]

67. html div
with: ‘Hello World’;
id: ‘message’.
html updater
id: ‘message’;
callback: [ :r | html text: ‘Bye’ ]

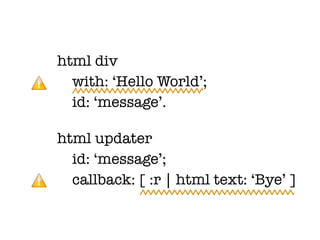

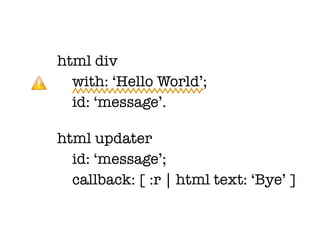

68. html div
with: ‘Hello World’;
id: ‘message’.
html updater
id: ‘message’;
callback: [ :r | html text: ‘Bye’ ]

69. Grease
Platform
Compatibility
Layer
Photo: DarkSide, sxc.hu

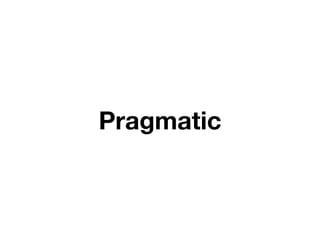

70. Pragmatic

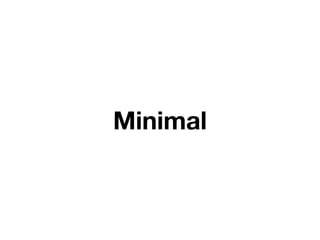

71. Minimal

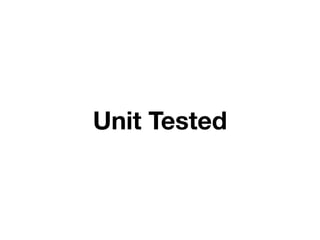

72. Unit Tested

73. ANSI++

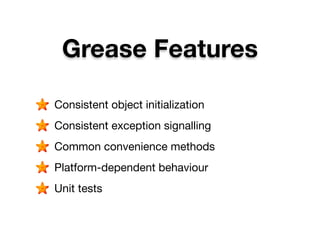

74. Grease Features
Consistent object initialization
Consistent exception signalling
Common convenience methods
Platform-dependent behaviour
Unit tests

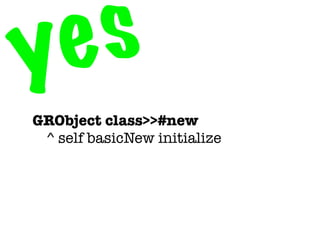

75. y e s
GRObject class>>#new
^ self basicNew initialize

76. y e s
GRError class>>#signal
“VW implementation”
^ self raiseSignal

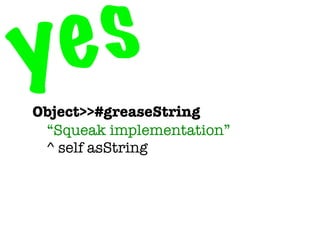

77. y e s
Object>>#greaseString
“Squeak implementation”
^ self asString

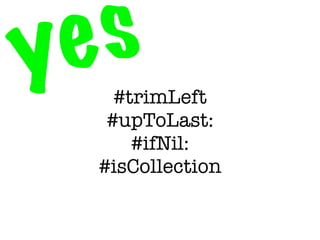

78. y e s#trimLeft
#upToLast:
#ifNil:
#isCollection

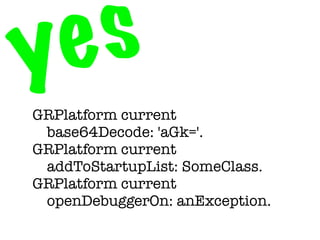

79. y e s
GRPlatform current
base64Decode: 'aGk='.
GRPlatform current
addToStartupList: SomeClass.
GRPlatform current
openDebuggerOn: anException.

80. Packaging
↑
SUnit
Photo: Tory Byrne, www.sxc.hu

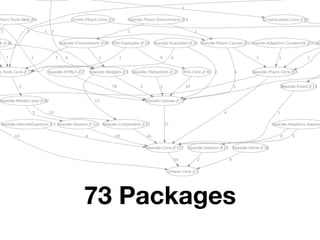

81. 73 Packages

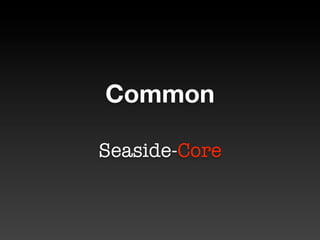

82. Common
Seaside-Core

83. Platform-Specific
Seaside-Pharo-Core

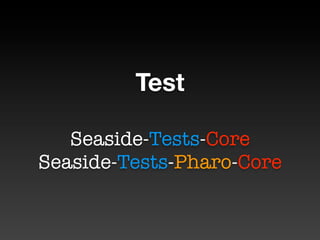

84. Test
Seaside-Tests-Core
Seaside-Tests-Pharo-Core

85. BON US!
Find incorrect layer
dependencies

86. Monticello

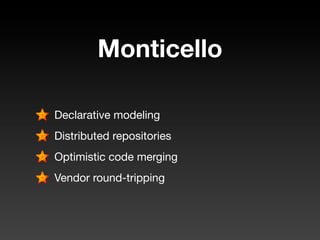

87. Monticello
Declarative modeling
Distributed repositories
Optimistic code merging
Vendor round-tripping

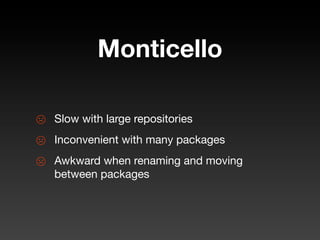

88. Monticello
☹ Slow with large repositories
☹ Inconvenient with many packages
☹ Awkward when renaming and moving
between packages

89. Future?

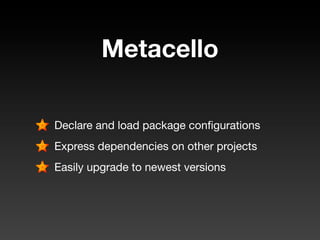

90. Metacello
Declare and load package configurations
Express dependencies on other projects
Easily upgrade to newest versions

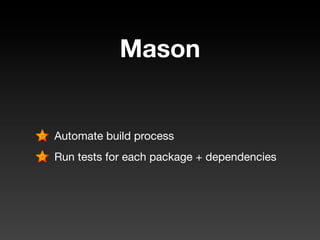

91. Mason
Automate build process
Run tests for each package + dependencies

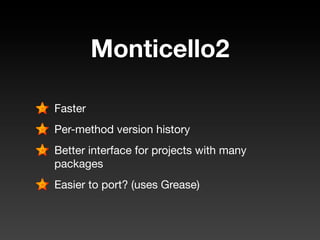

92. Monticello2
Faster
Per-method version history
Better interface for projects with many
packages
Easier to port? (uses Grease)

93. book.seaside.st

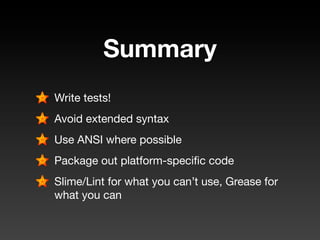

94. Summary
Write tests!
Avoid extended syntax
Use ANSI where possible
Package out platform-specific code
Slime/Lint for what you can’t use, Grease for
what you can

95. www.seaside.st
blog.fitzell.ca
