1. Principles and Architecture of Sahi
- Web Automation Simplified
Narayan Raman

2. Primary Problem
Verify web application functionality
NOT
Build a browser automation tool or library

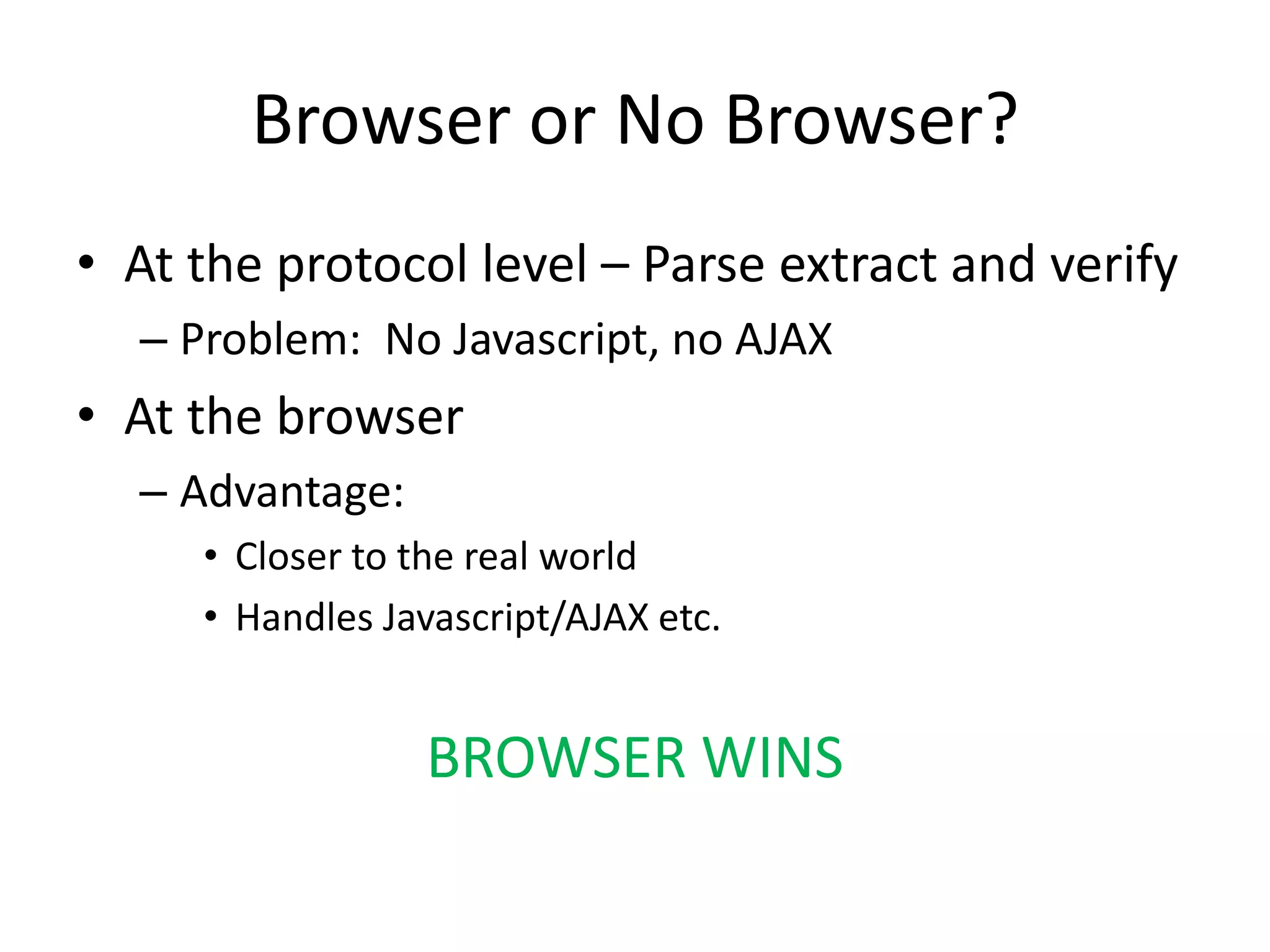

3. Browser or No Browser?
• At the protocol level – Parse extract and verify
– Problem: No Javascript, no AJAX
• At the browser
– Advantage:
• Closer to the real world
• Handles Javascript/AJAX etc.
BROWSER WINS

4. Browsers
• IE, Firefox, Chrome, Safari, Opera
• Multitude of Versions, often releasing rapidly
• No standards around browser automation
APIs
– No financial motivation for browser vendors to
add these APIs and maintain them, especially on
older versions

5. What the Tool needs to do
• Access elements on the browser using some
API
• Simulate events such that they match the real
user

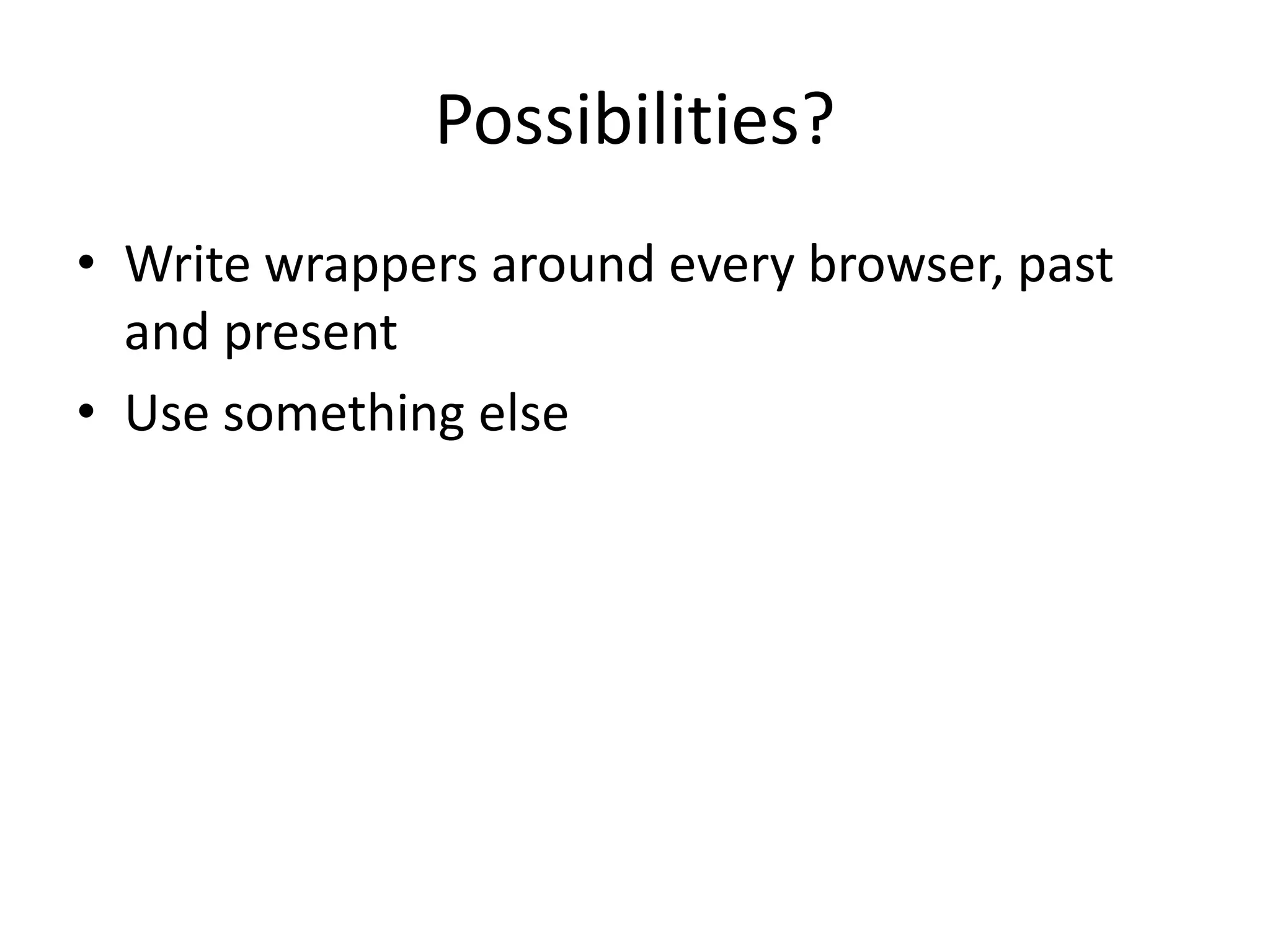

6. Possibilities?
• Write wrappers around every browser, past
and present
• Use something else

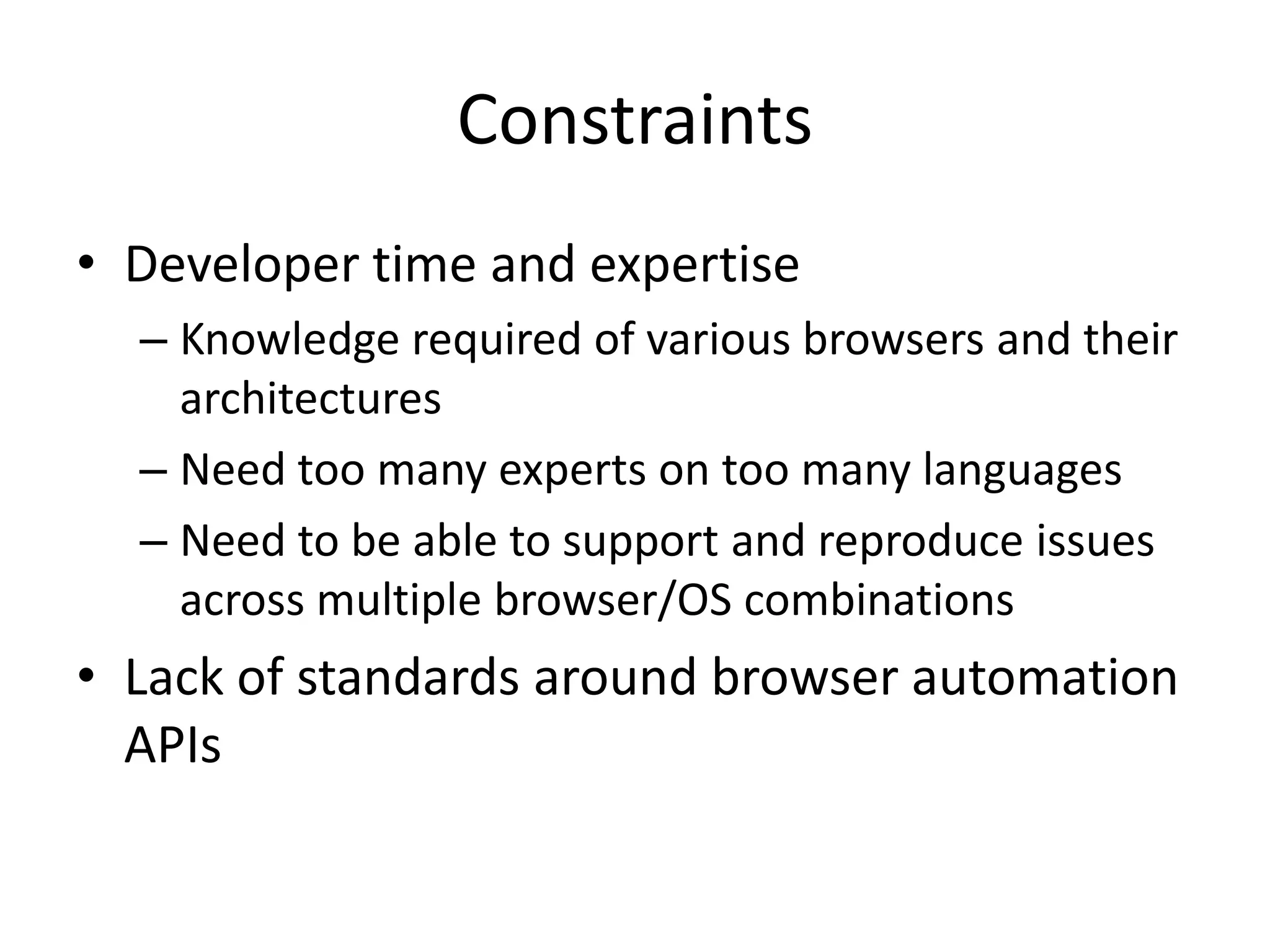

7. Constraints
• Developer time and expertise
– Knowledge required of various browsers and their
architectures
– Need too many experts on too many languages
– Need to be able to support and reproduce issues
across multiple browser/OS combinations
• Lack of standards around browser automation
APIs

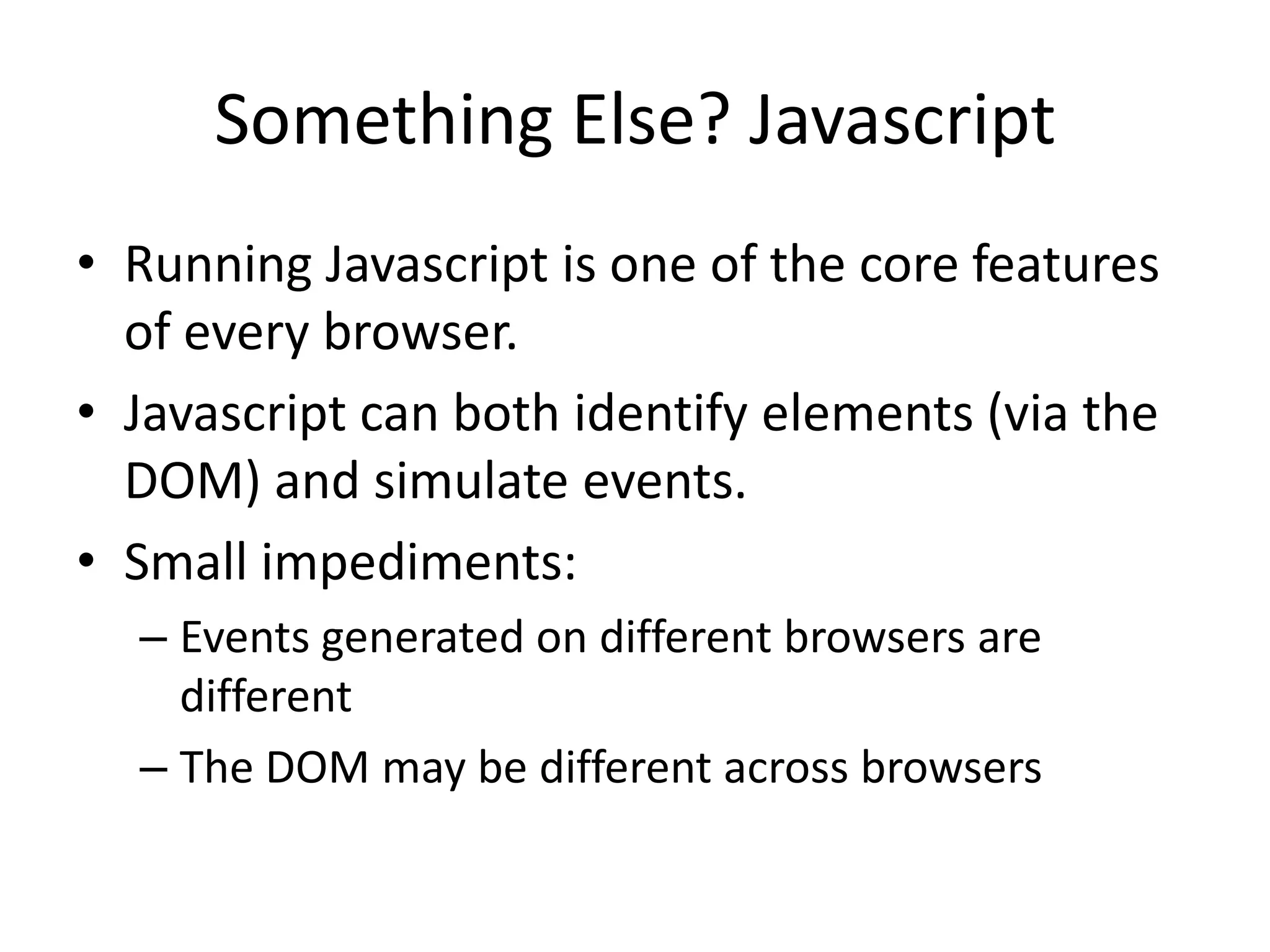

8. Something Else? Javascript
• Running Javascript is one of the core features
of every browser.
• Javascript can both identify elements (via the
DOM) and simulate events.
• Small impediments:
– Events generated on different browsers are
different
– The DOM may be different across browsers

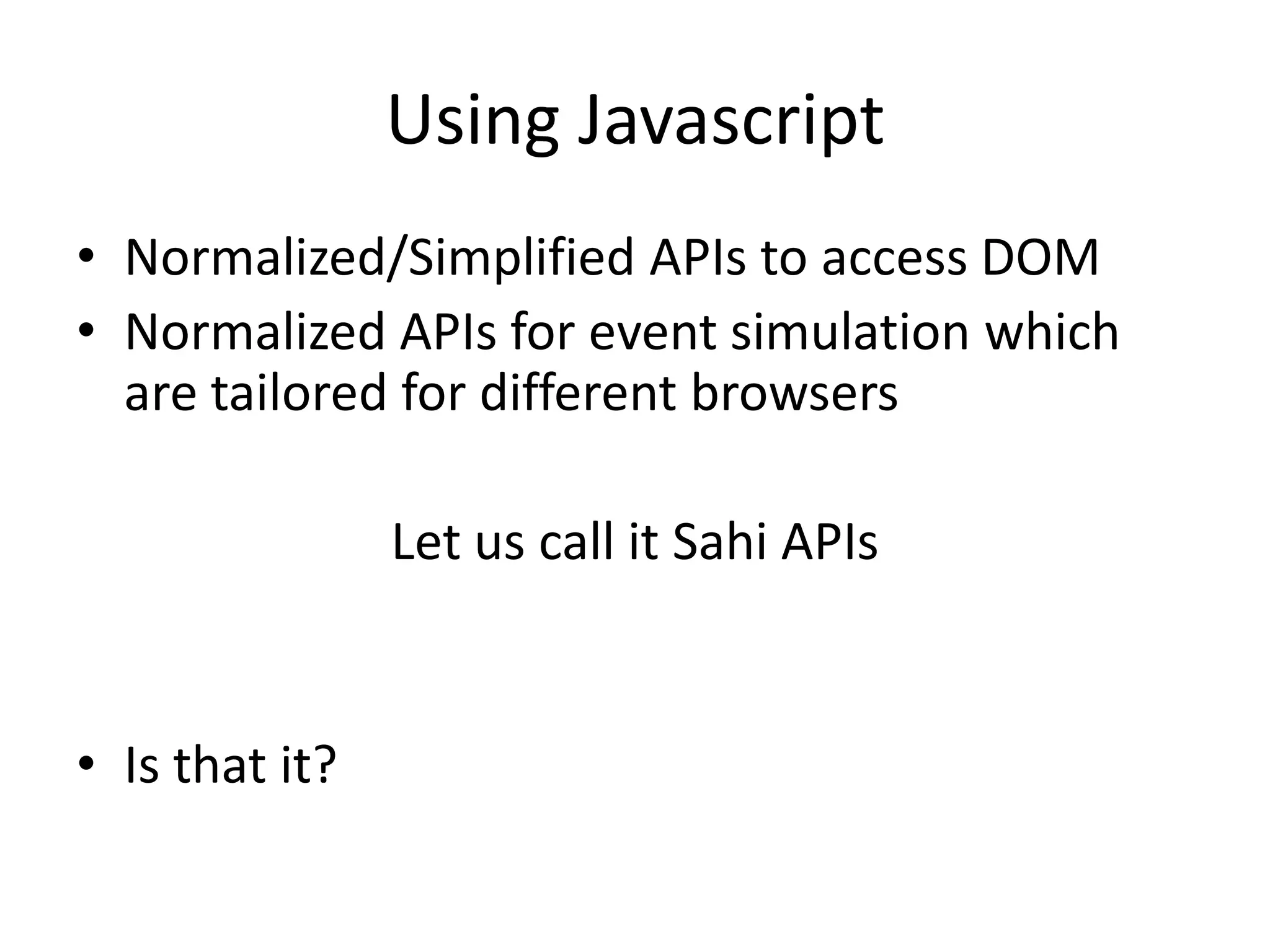

9. Using Javascript
• Normalized/Simplified APIs to access DOM
• Normalized APIs for event simulation which
are tailored for different browsers
Let us call it Sahi APIs
• Is that it?

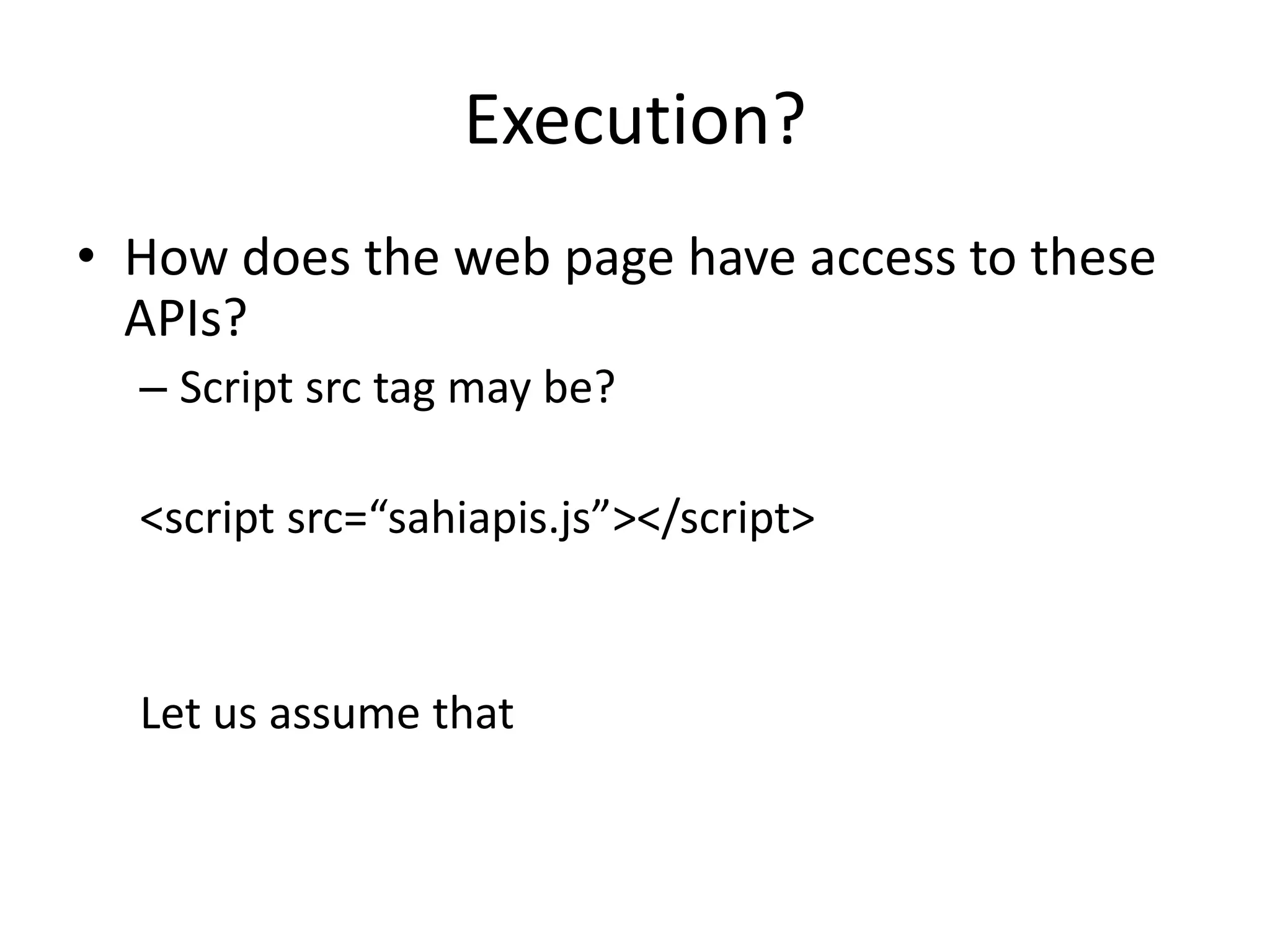

10. Execution?
• How does the web page have access to these
APIs?
– Script src tag may be?
<script src=“sahiapis.js”></script>
Let us assume that

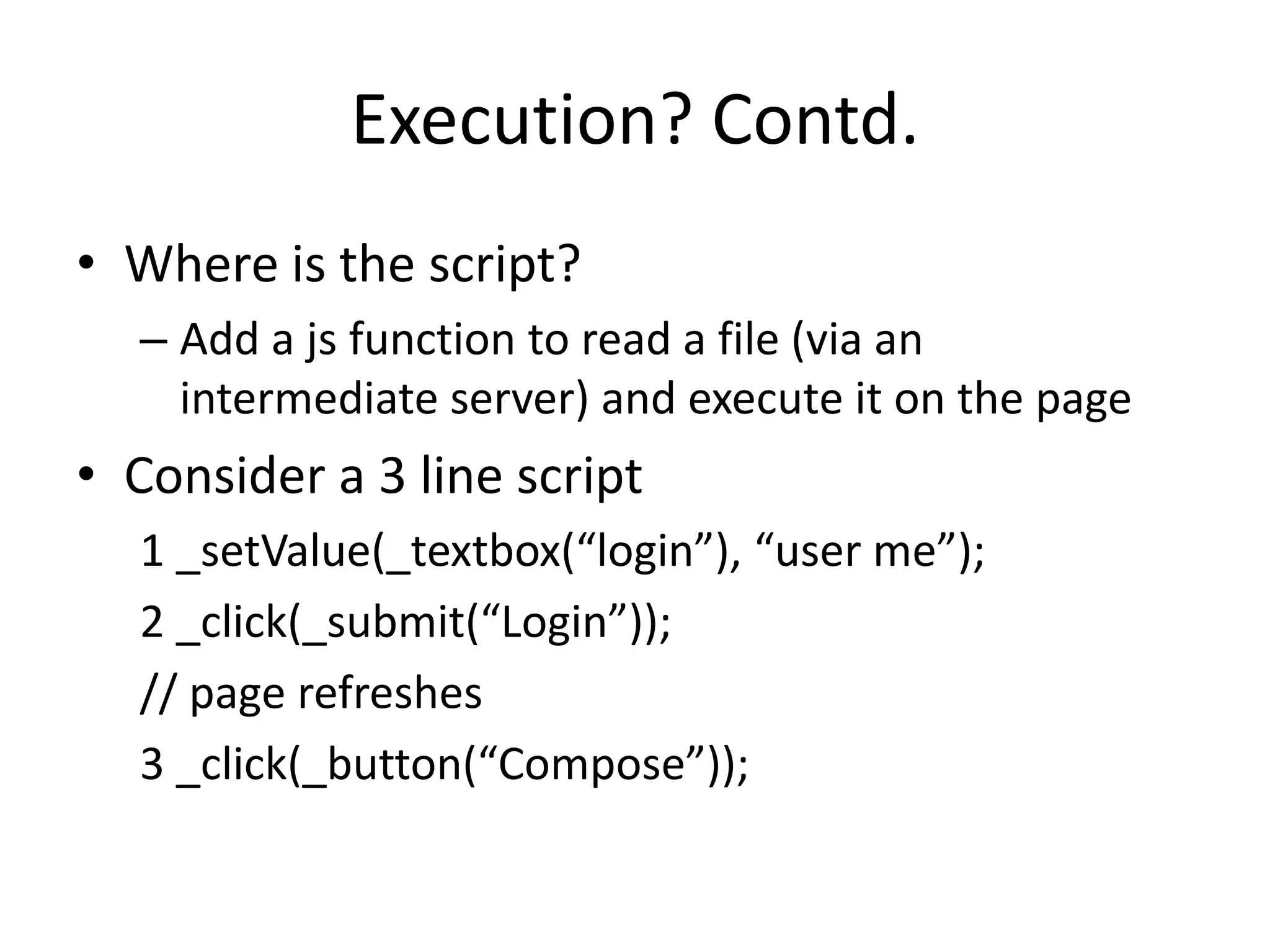

11. Execution? Contd.
• Where is the script?
– Add a js function to read a file (via an
intermediate server) and execute it on the page
• Consider a 3 line script
1 _setValue(_textbox(“login”), “user me”);
2 _click(_submit(“Login”));
// page refreshes
3 _click(_button(“Compose”));

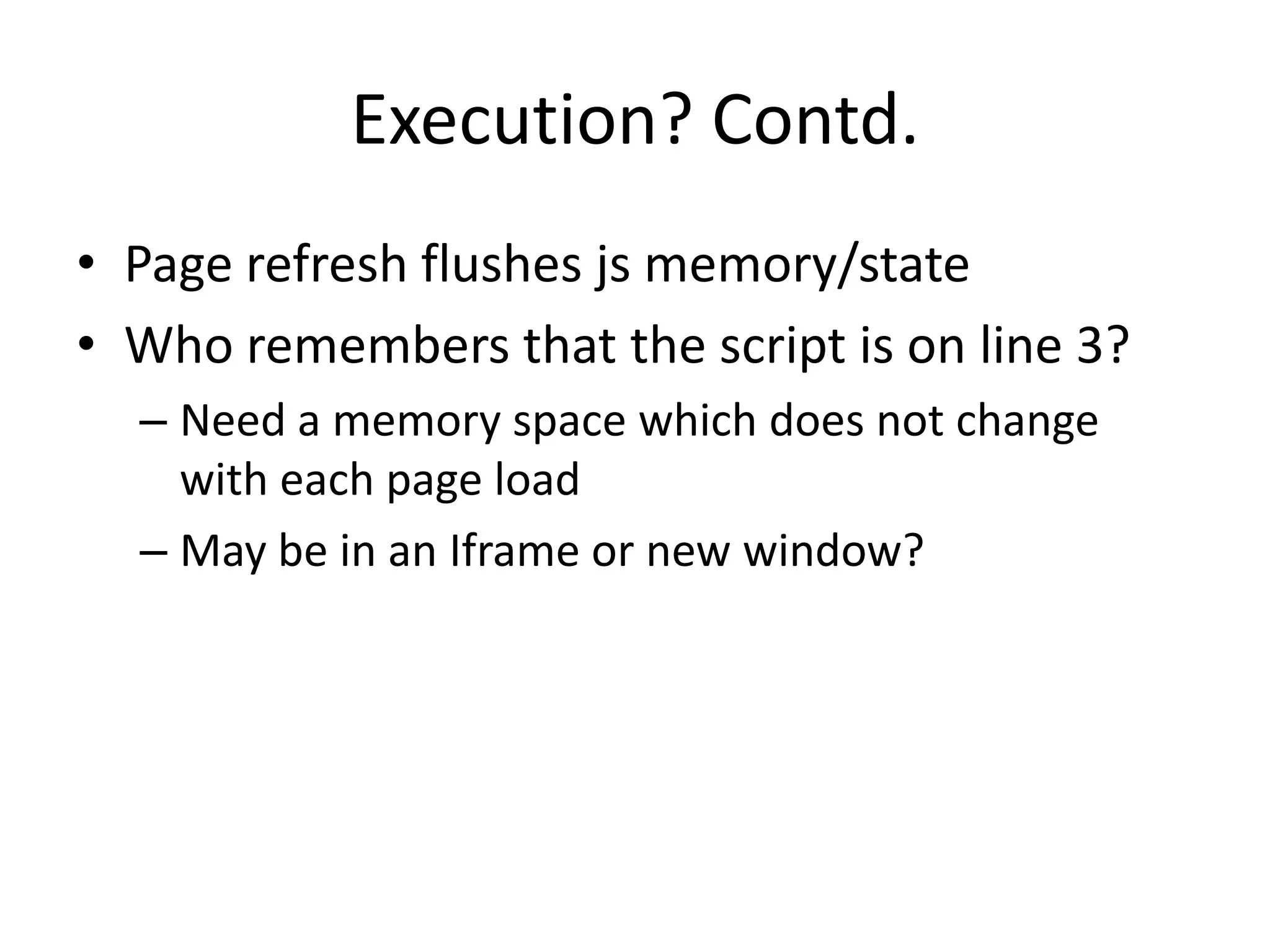

12. Execution? Contd.
• Page refresh flushes js memory/state
• Who remembers that the script is on line 3?
– Need a memory space which does not change
with each page load
– May be in an Iframe or new window?

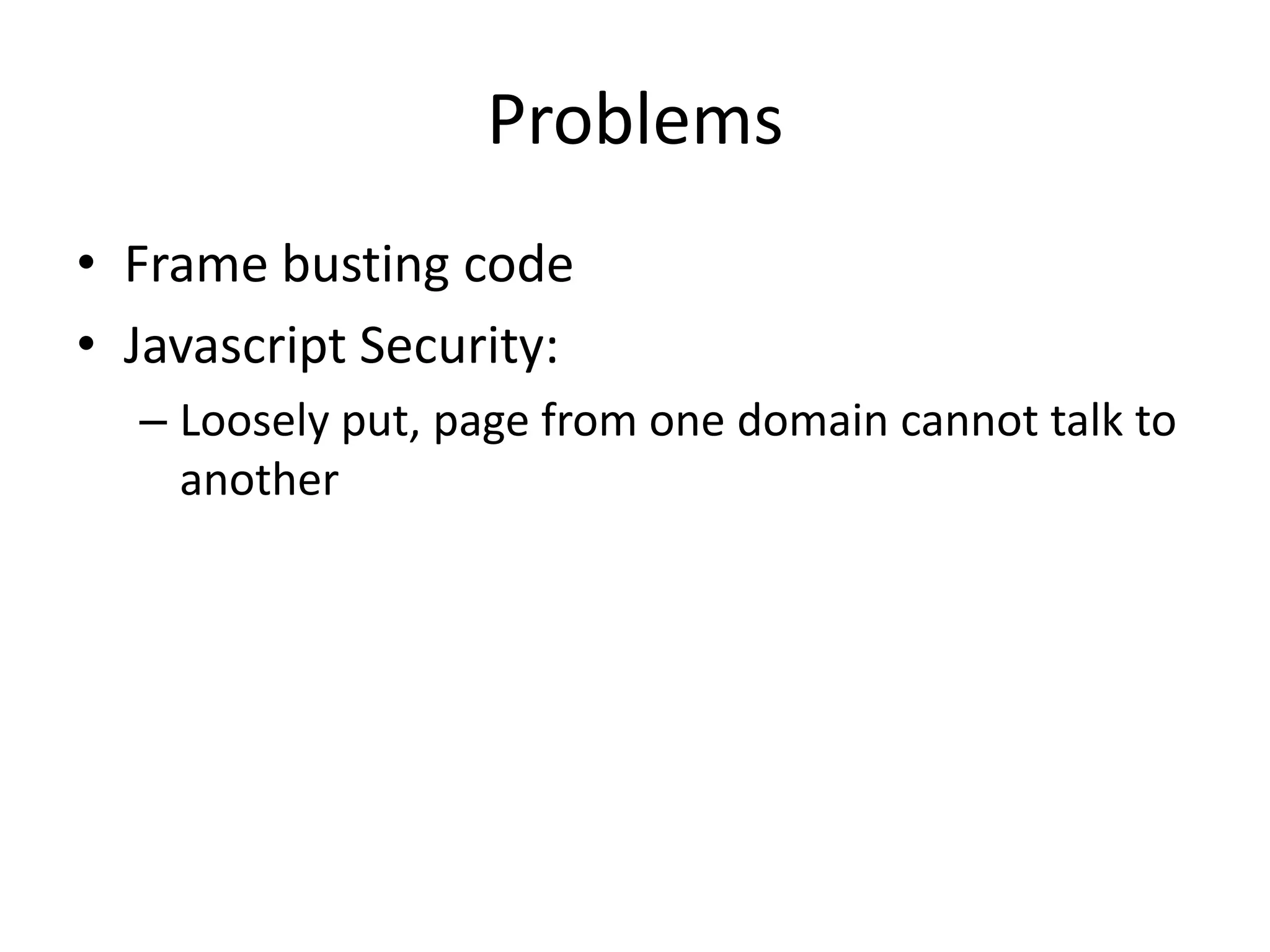

13. Problems
• Frame busting code
• Javascript Security:
– Loosely put, page from one domain cannot talk to
another

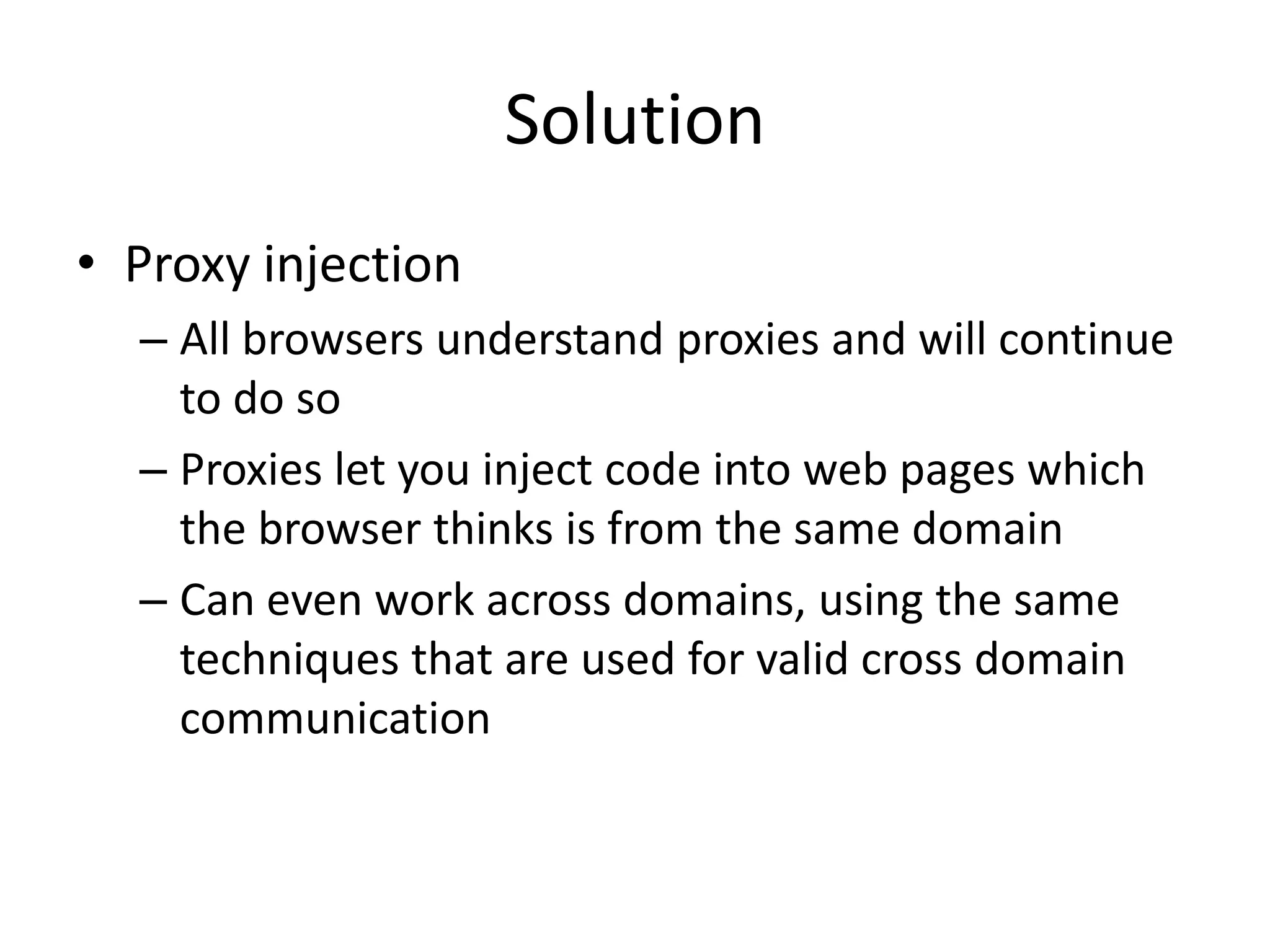

14. Solution
• Proxy injection
– All browsers understand proxies and will continue
to do so
– Proxies let you inject code into web pages which
the browser thinks is from the same domain
– Can even work across domains, using the same
techniques that are used for valid cross domain
communication

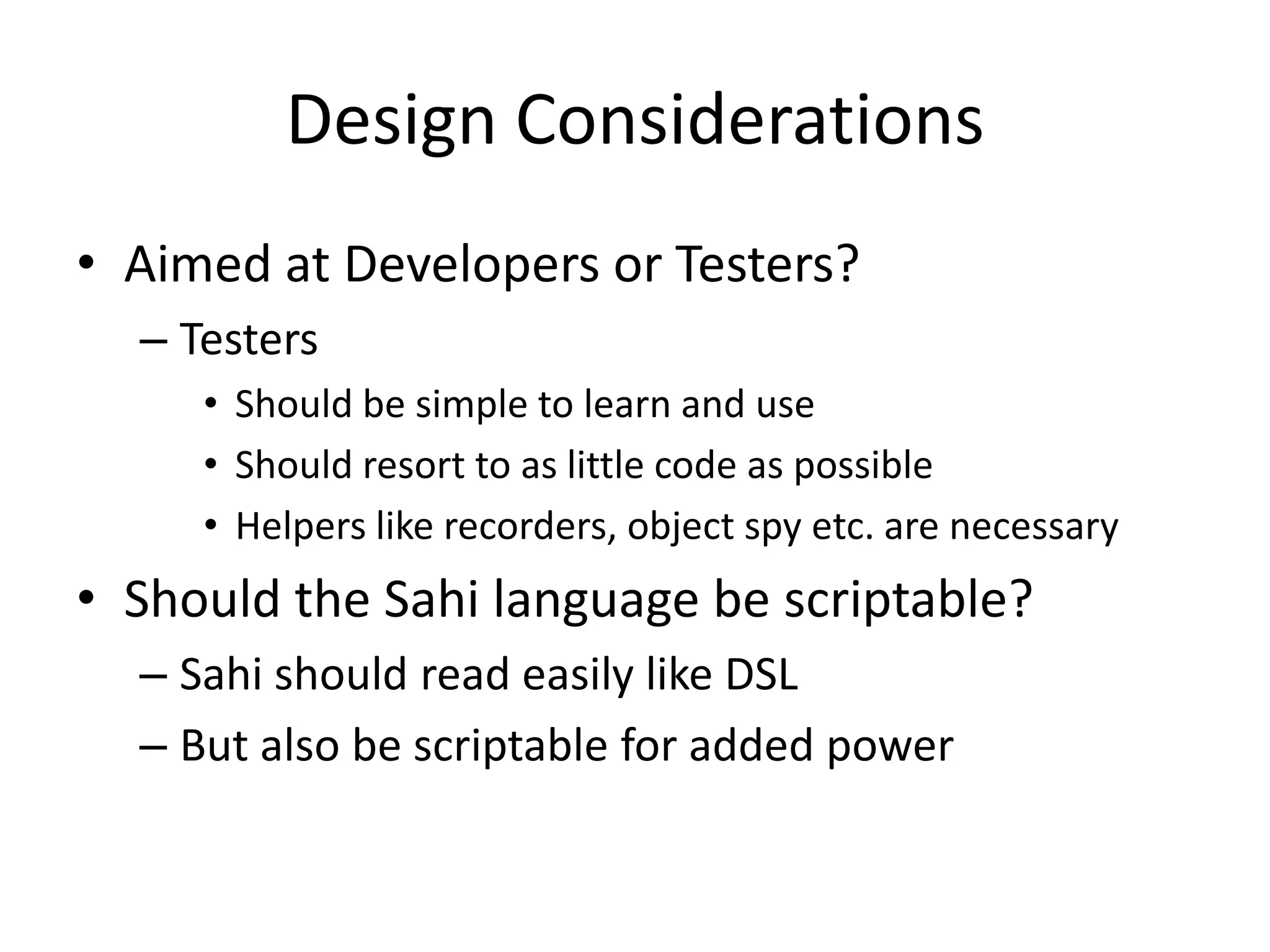

15. Design Considerations
• Aimed at Developers or Testers?
– Testers
• Should be simple to learn and use
• Should resort to as little code as possible
• Helpers like recorders, object spy etc. are necessary
• Should the Sahi language be scriptable?
– Sahi should read easily like DSL
– But also be scriptable for added power

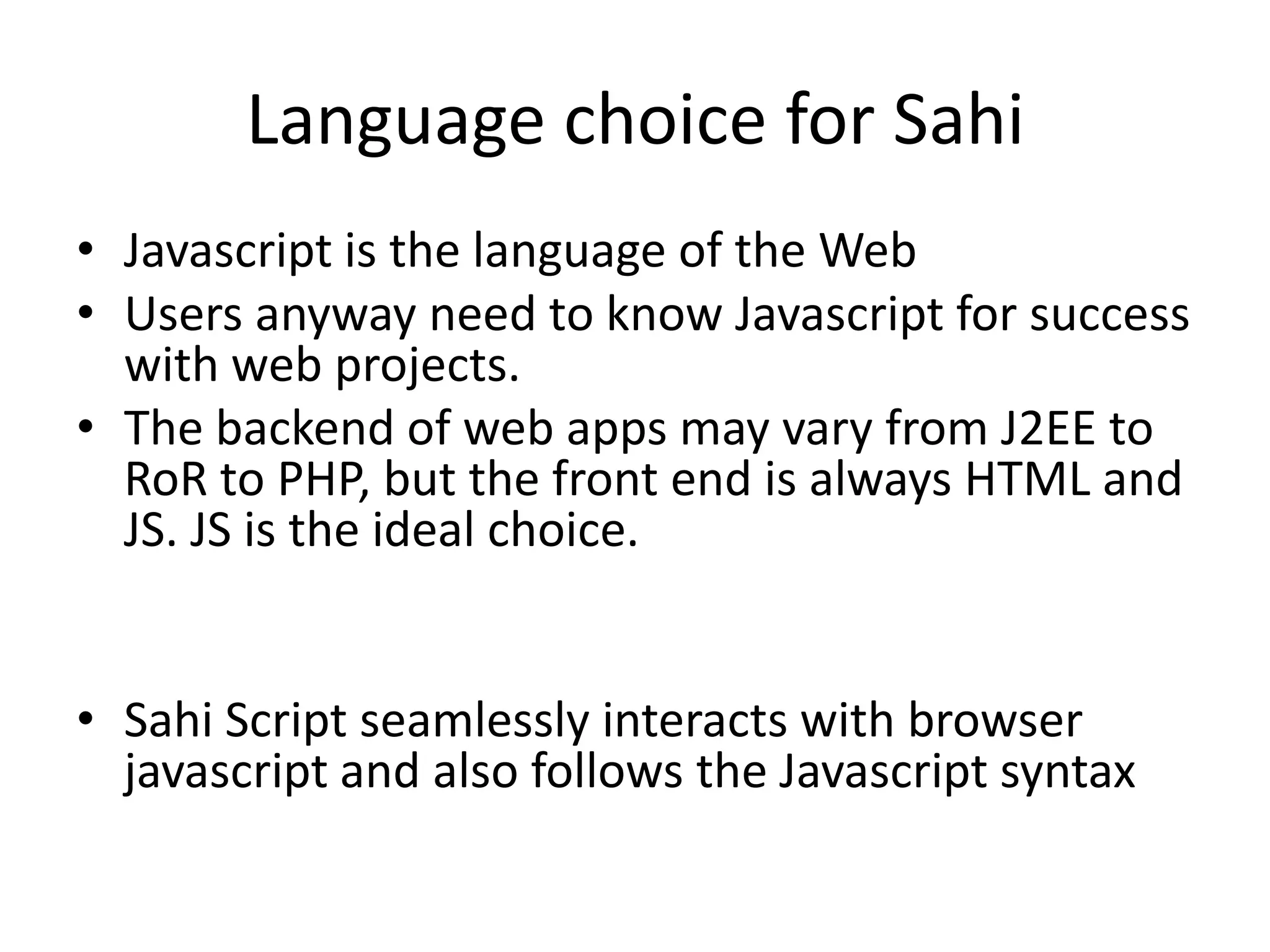

16. Language choice for Sahi
• Javascript is the language of the Web
• Users anyway need to know Javascript for success
with web projects.
• The backend of web apps may vary from J2EE to
RoR to PHP, but the front end is always HTML and
JS. JS is the ideal choice.
• Sahi Script seamlessly interacts with browser
javascript and also follows the Javascript syntax

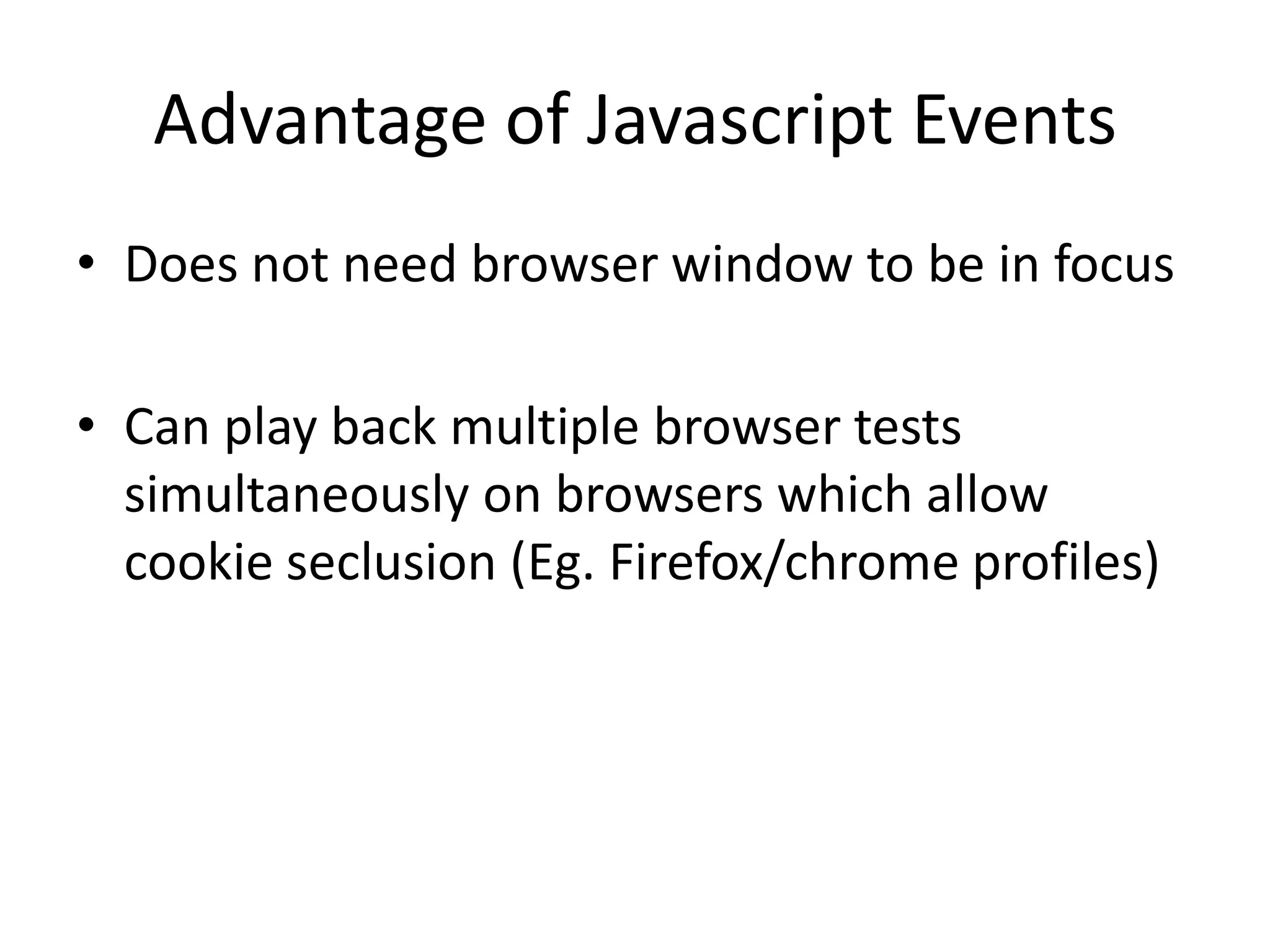

17. Advantage of Javascript Events
• Does not need browser window to be in focus
• Can play back multiple browser tests
simultaneously on browsers which allow
cookie seclusion (Eg. Firefox/chrome profiles)

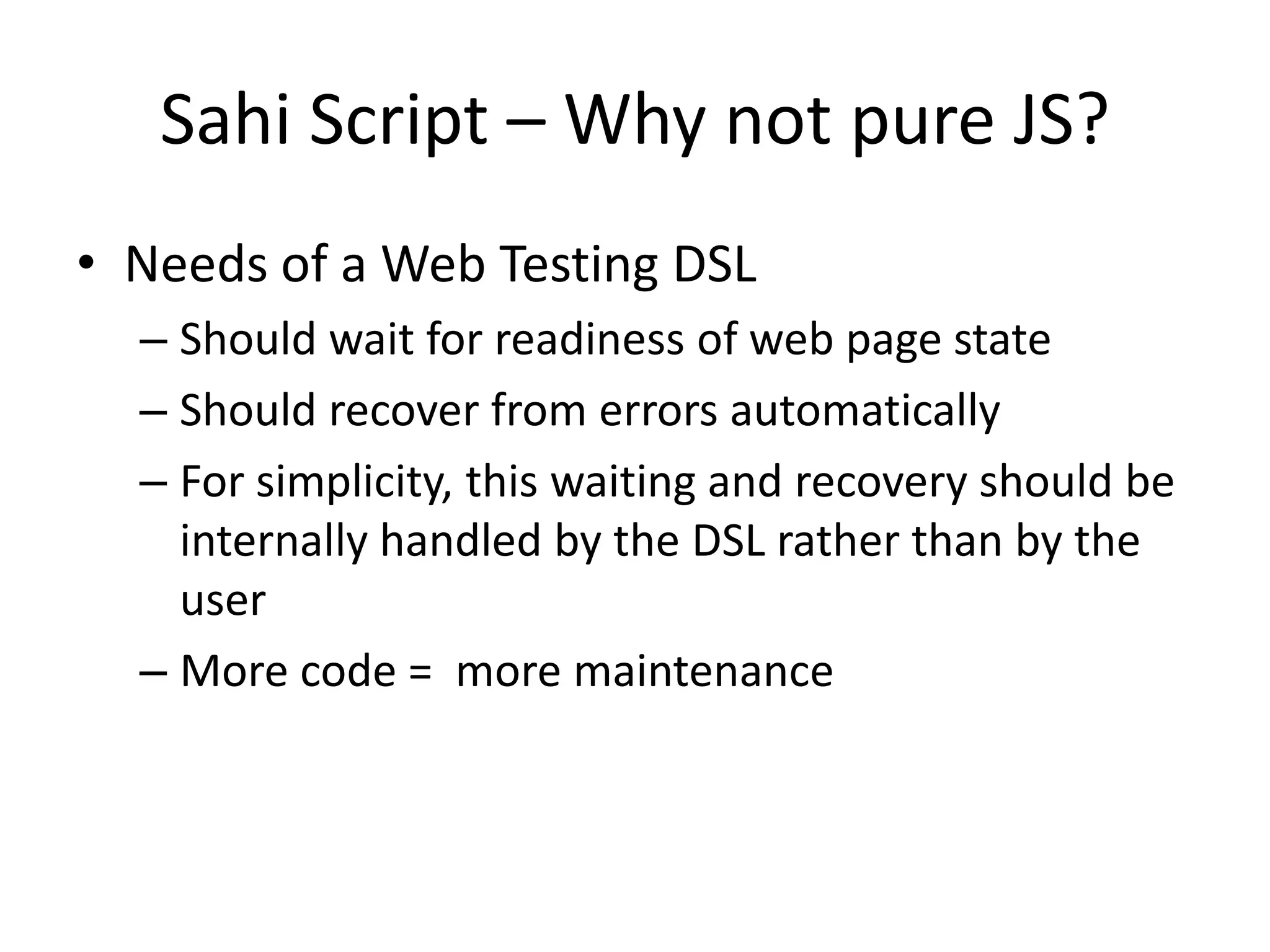

18. Sahi Script – Why not pure JS?
• Needs of a Web Testing DSL
– Should wait for readiness of web page state
– Should recover from errors automatically
– For simplicity, this waiting and recovery should be
internally handled by the DSL rather than by the
user
– More code = more maintenance

19. DEMO

20. Sahi APIs and Parsing
• Parsing done to:
– Keep js code namespaces separate
Eg. _sahi._click – All APIs belong to _sahi object.
• Allows for automatic logging, wait handling
and error recovery

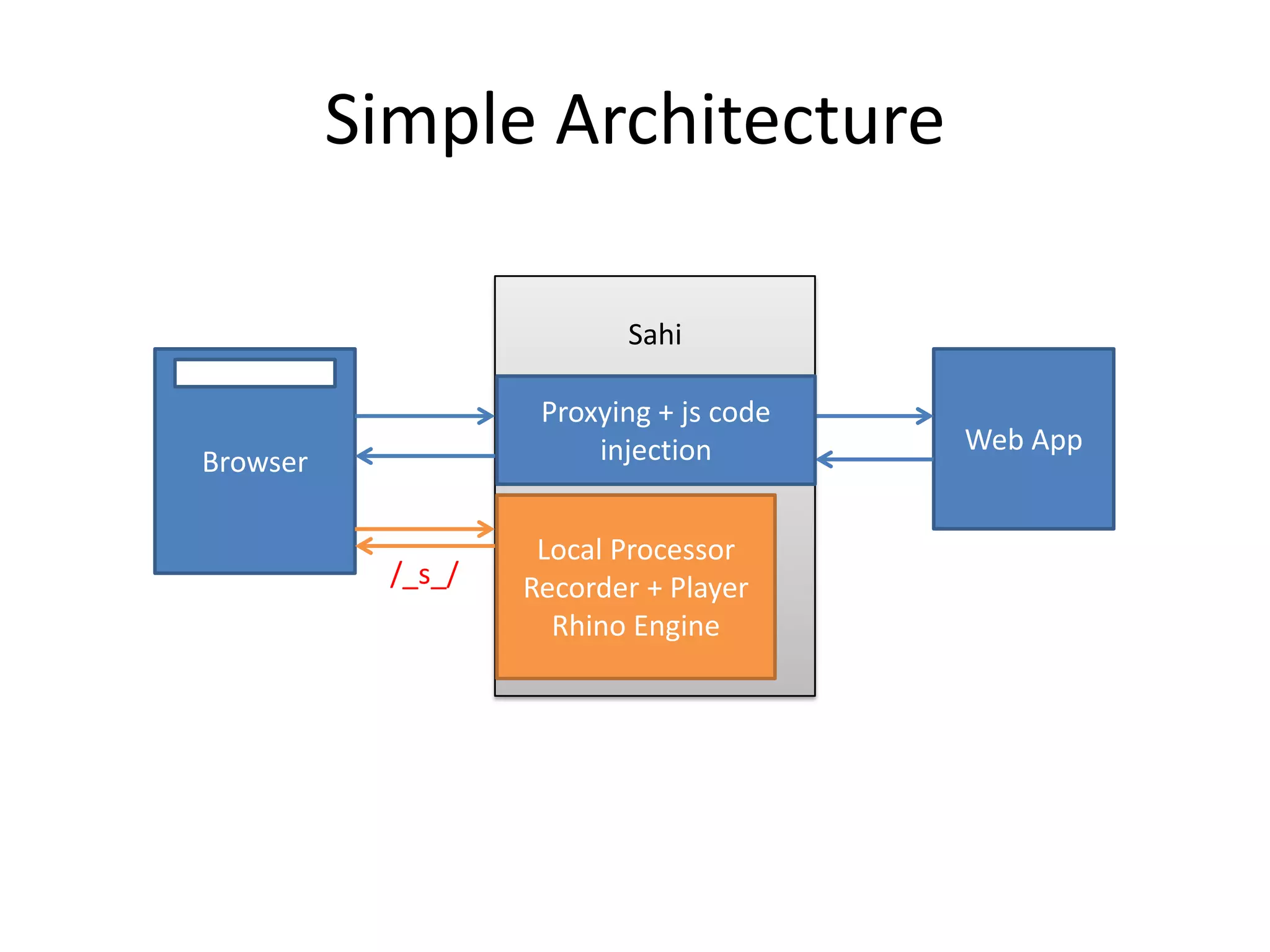

21. Simple Architecture
Sahi
Proxying + js code
injection Web App
Browser
Local Processor
/_s_/ Recorder + Player
Rhino Engine

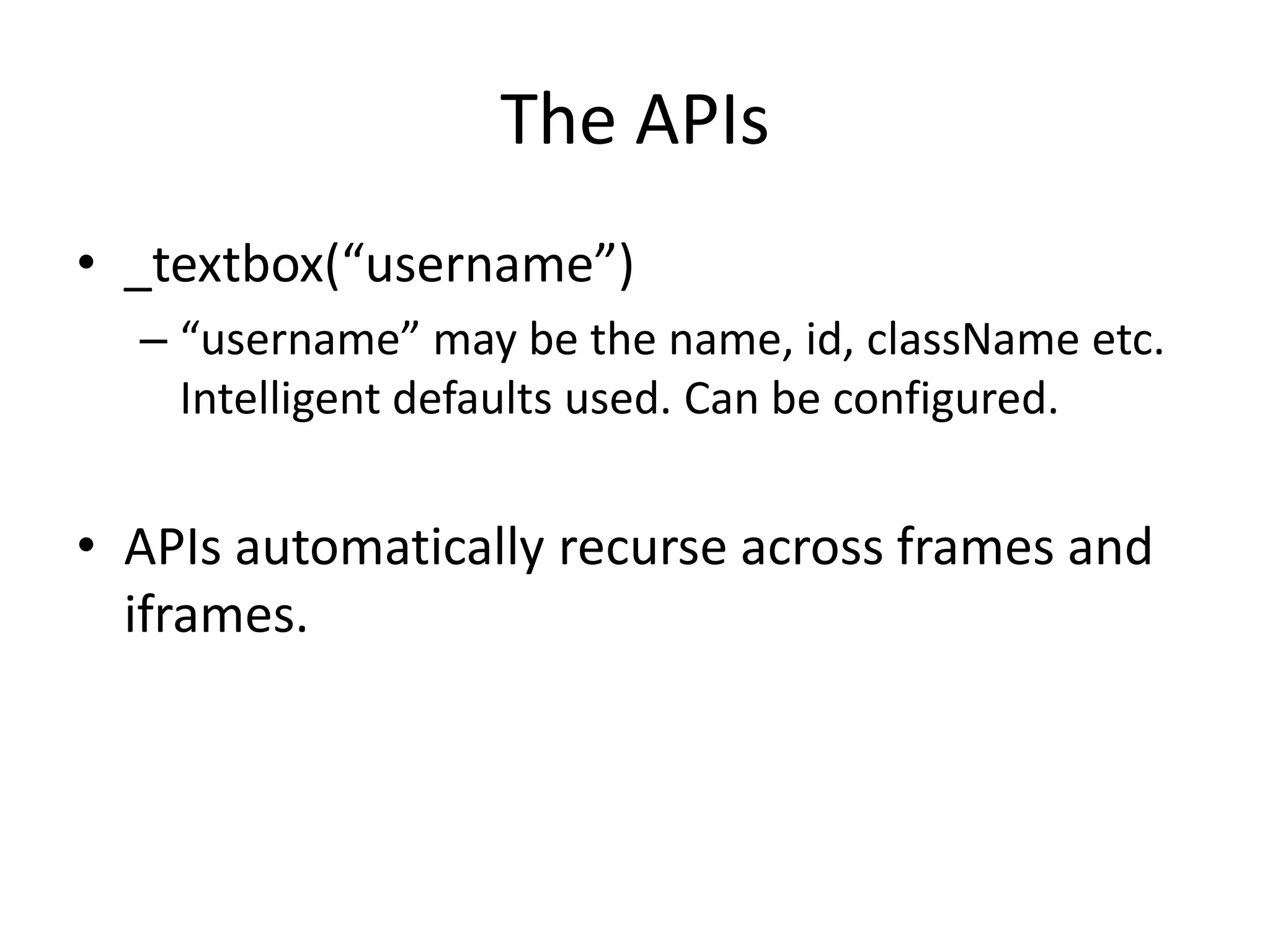

22. The APIs
• _textbox(“username”)
– “username” may be the name, id, className etc.
Intelligent defaults used. Can be configured.
• APIs automatically recurse across frames and
iframes.

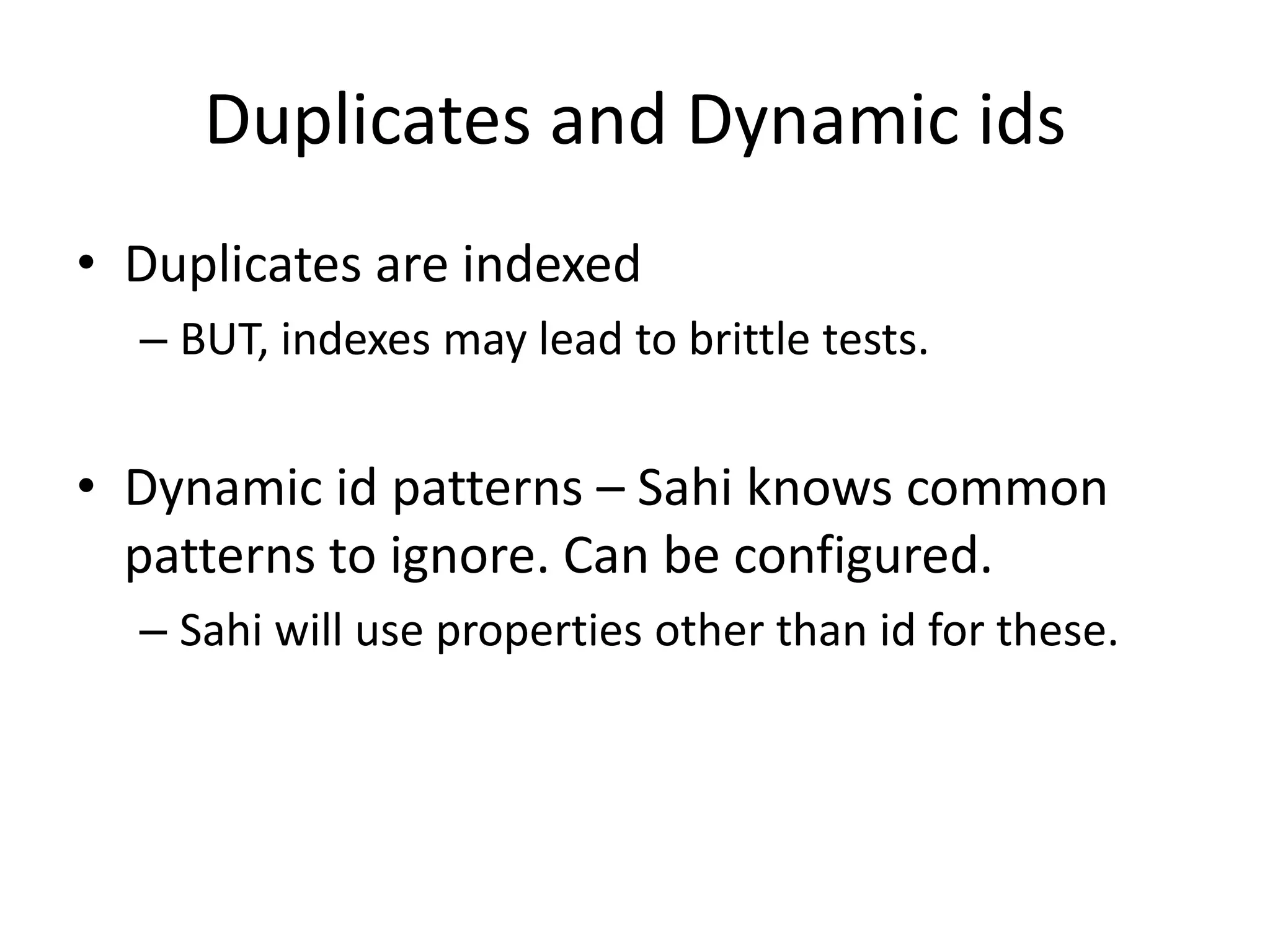

23. Duplicates and Dynamic ids
• Duplicates are indexed
– BUT, indexes may lead to brittle tests.
• Dynamic id patterns – Sahi knows common
patterns to ignore. Can be configured.
– Sahi will use properties other than id for these.

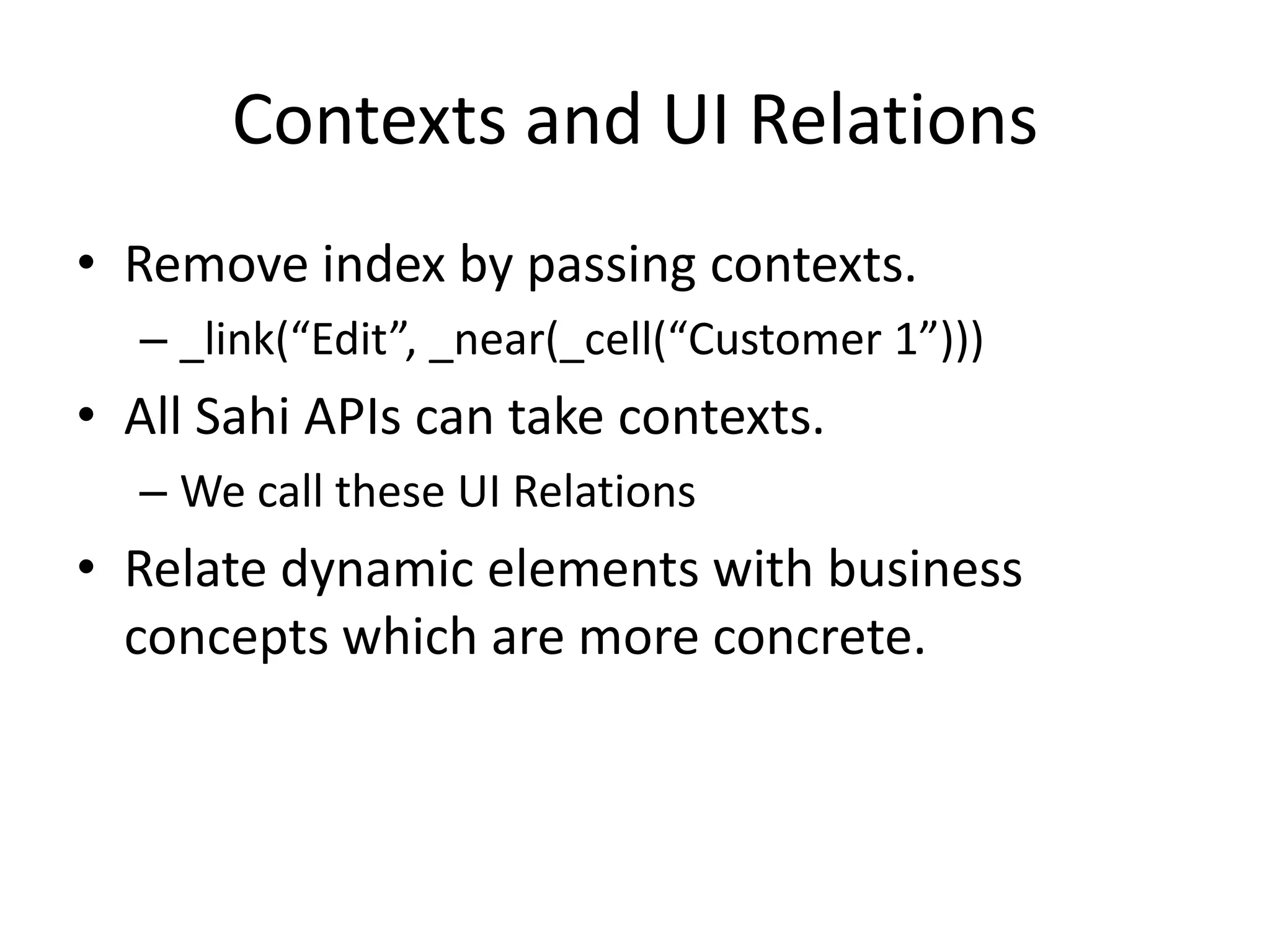

24. Contexts and UI Relations
• Remove index by passing contexts.
– _link(“Edit”, _near(_cell(“Customer 1”)))
• All Sahi APIs can take contexts.
– We call these UI Relations
• Relate dynamic elements with business
concepts which are more concrete.

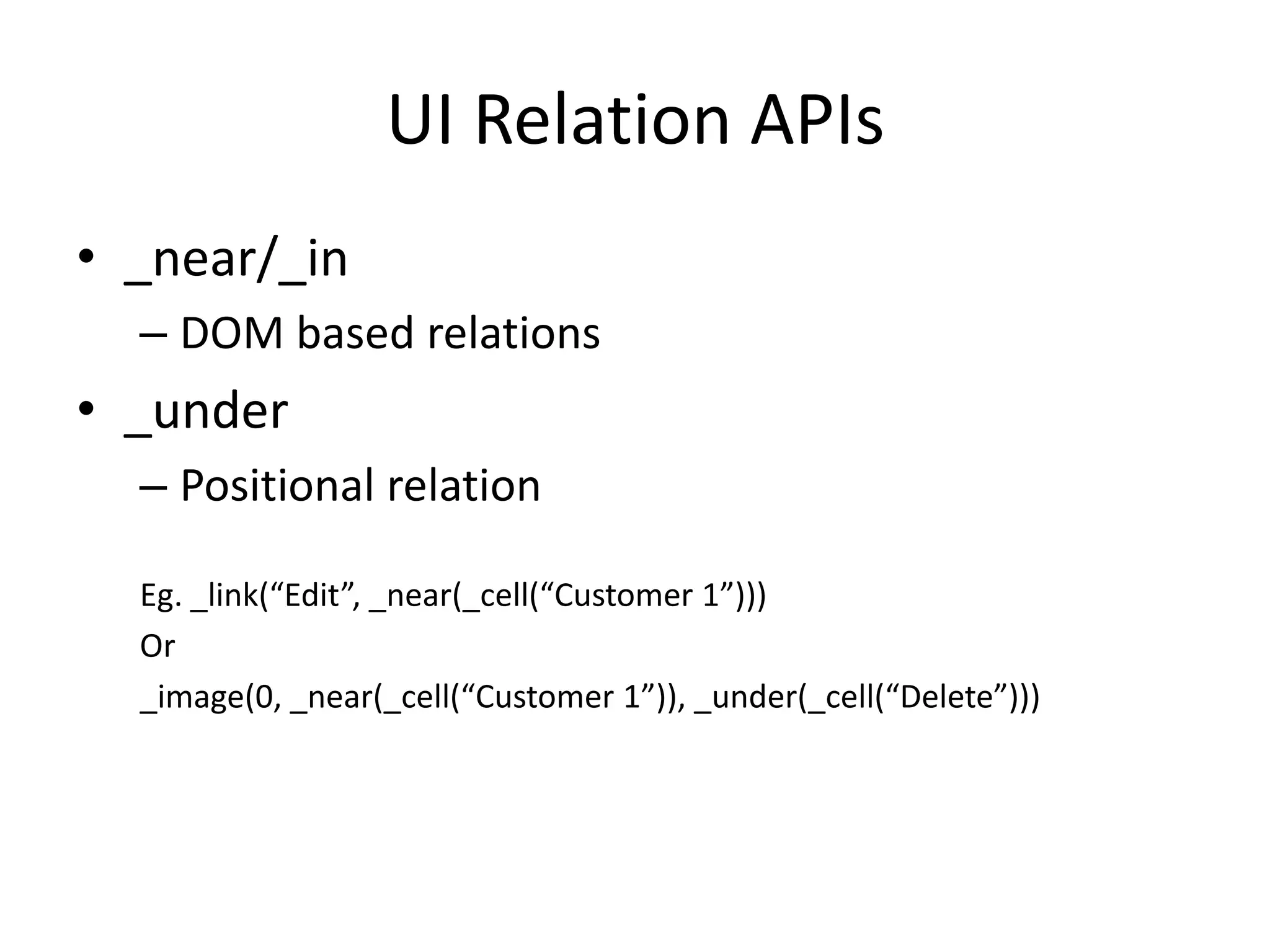

25. UI Relation APIs
• _near/_in
– DOM based relations
• _under
– Positional relation
Eg. _link(“Edit”, _near(_cell(“Customer 1”)))
Or
_image(0, _near(_cell(“Customer 1”)), _under(_cell(“Delete”)))

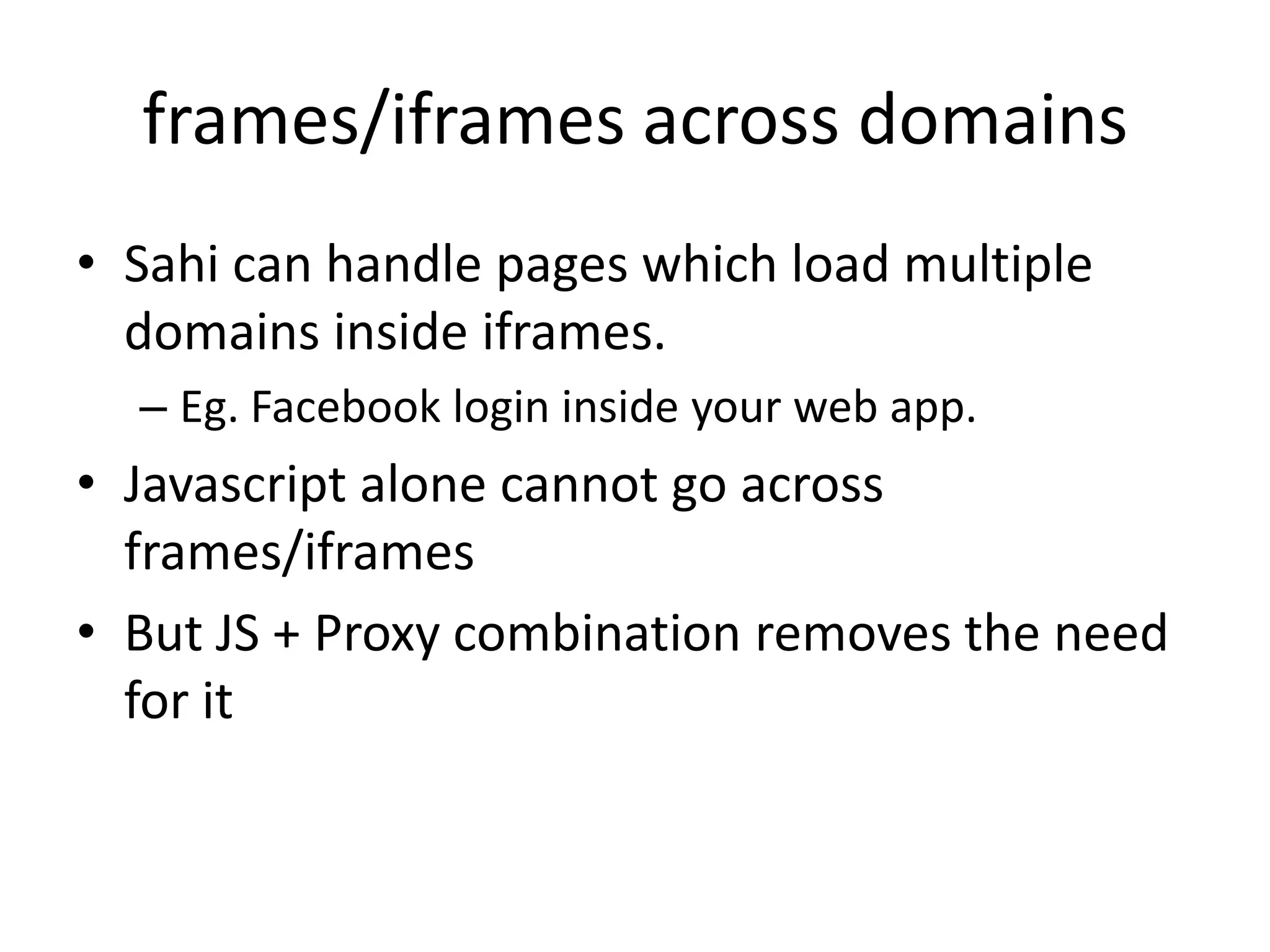

26. frames/iframes across domains
• Sahi can handle pages which load multiple
domains inside iframes.
– Eg. Facebook login inside your web app.
• Javascript alone cannot go across
frames/iframes
• But JS + Proxy combination removes the need
for it

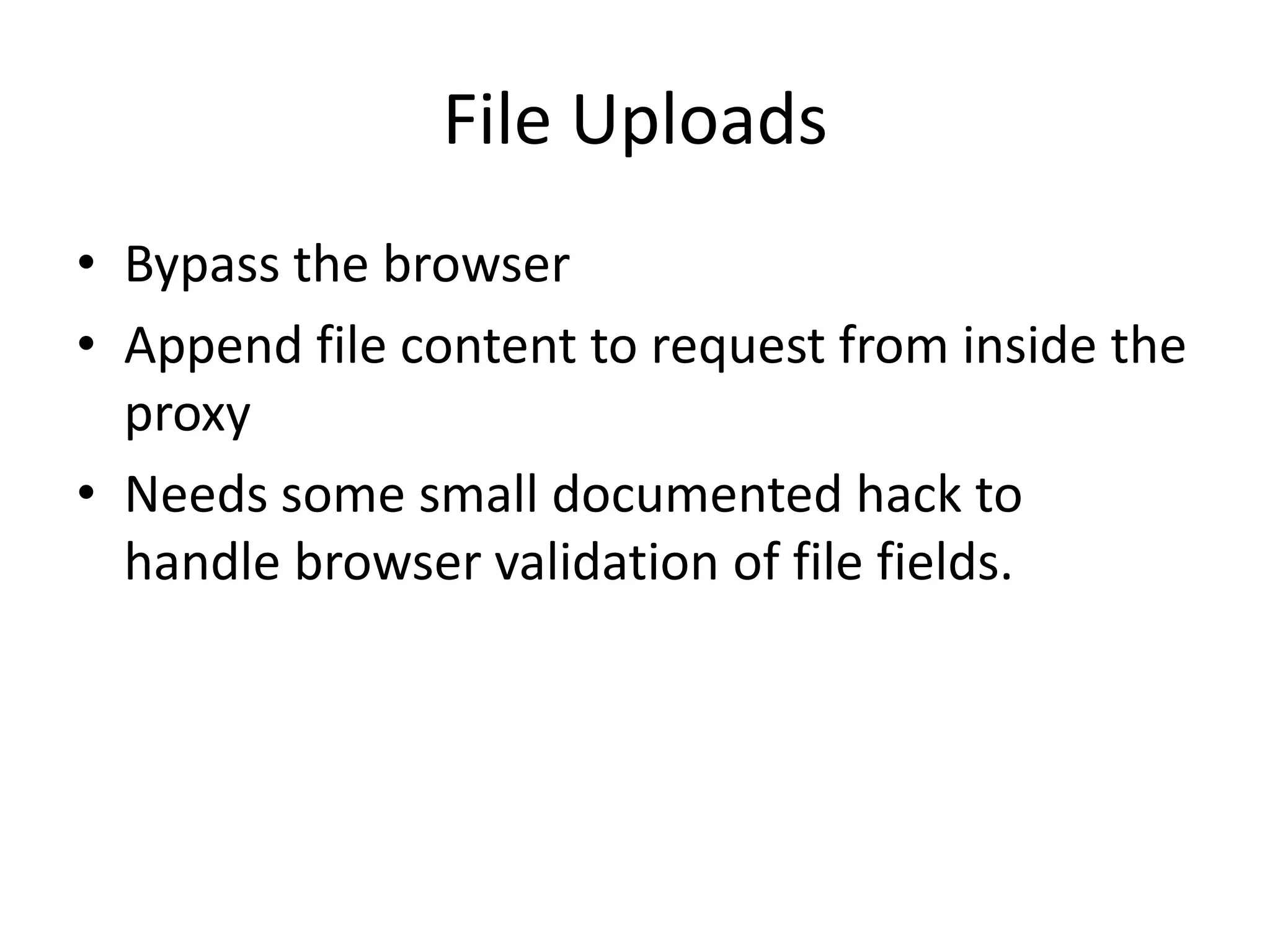

27. File Uploads
• Bypass the browser
• Append file content to request from inside the
proxy
• Needs some small documented hack to
handle browser validation of file fields.

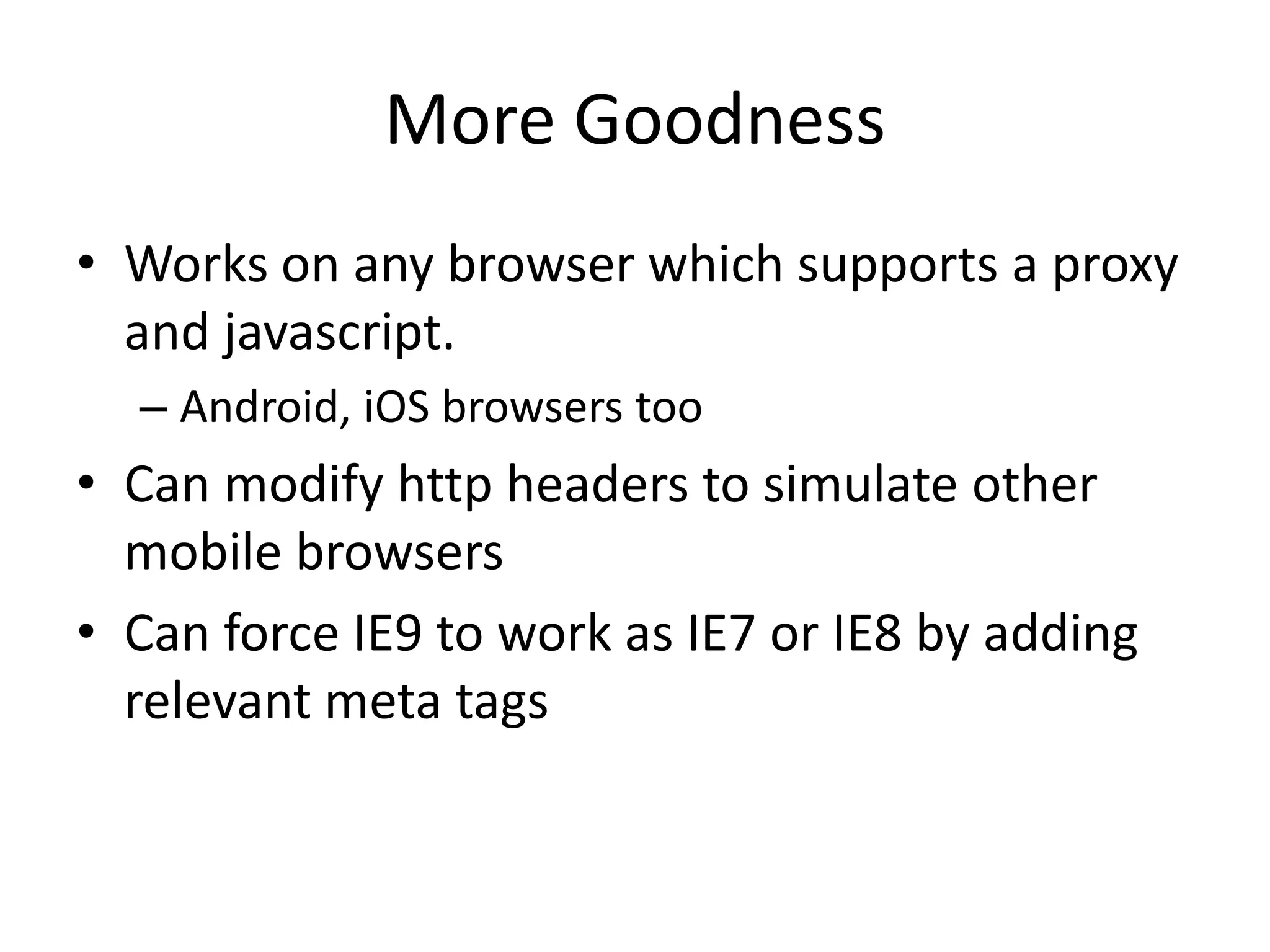

28. More Goodness
• Works on any browser which supports a proxy
and javascript.
– Android, iOS browsers too
• Can modify http headers to simulate other
mobile browsers
• Can force IE9 to work as IE7 or IE8 by adding
relevant meta tags

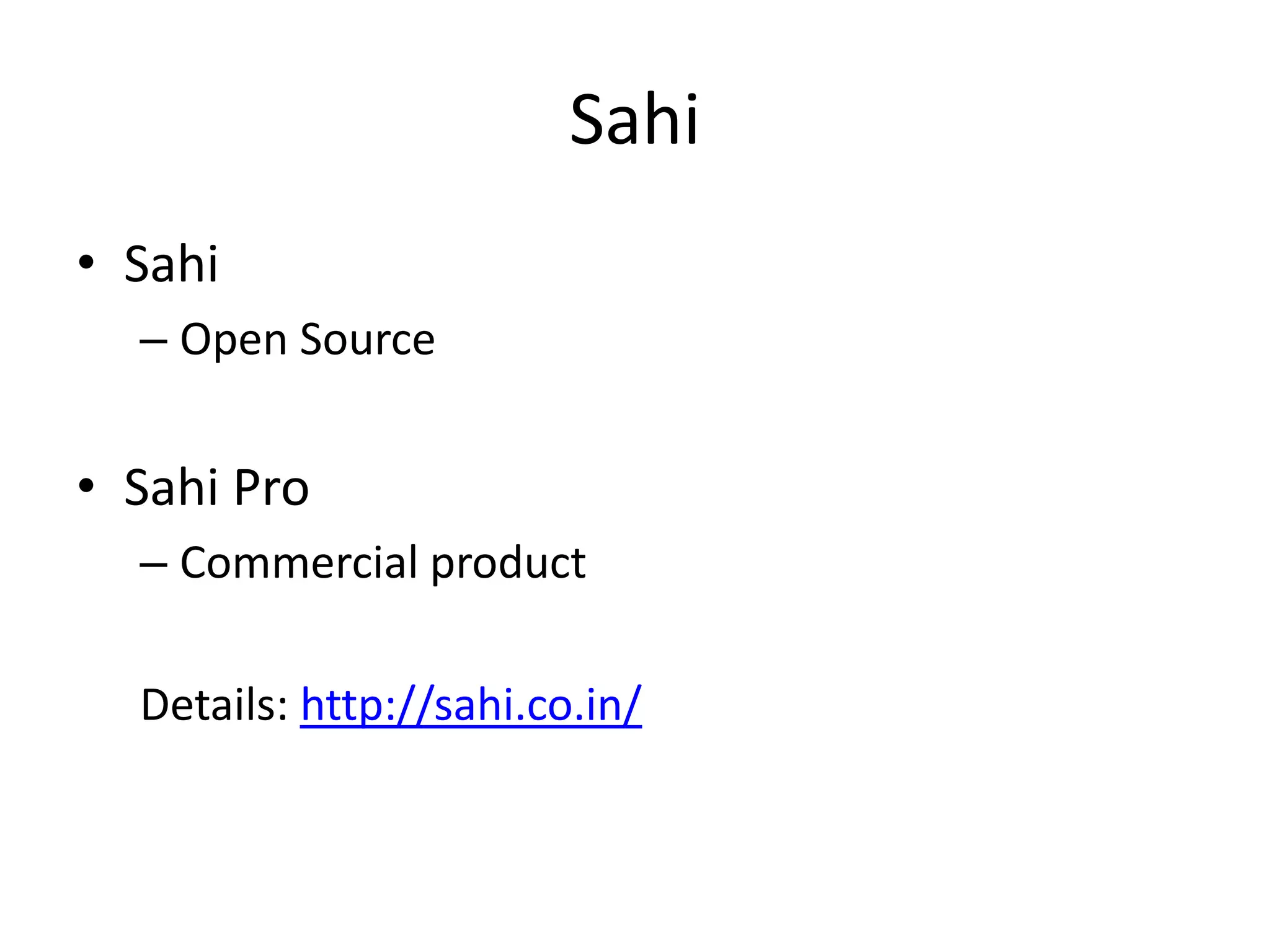

29. Sahi
• Sahi
– Open Source
• Sahi Pro
– Commercial product
Details: http://sahi.co.in/

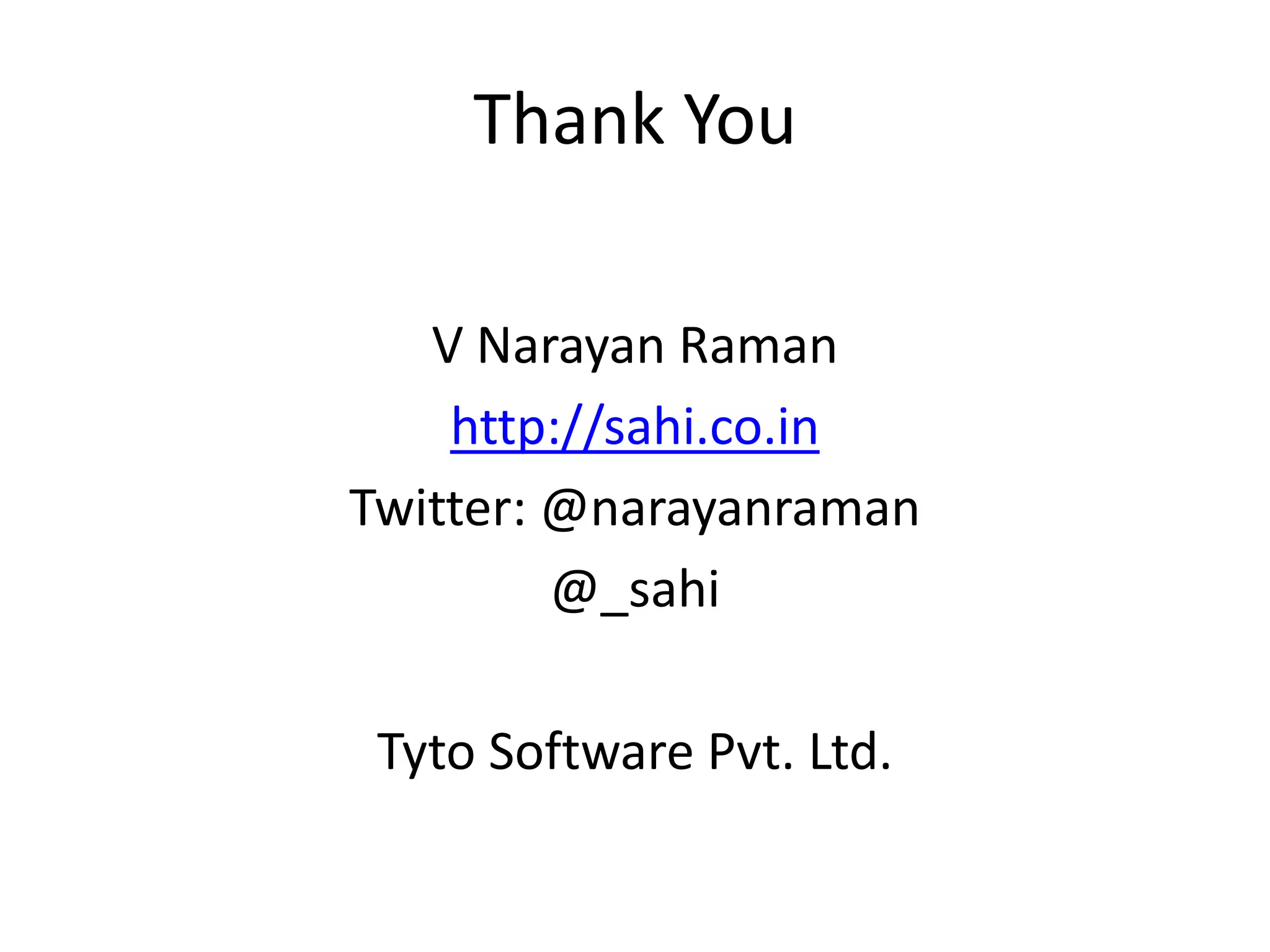

30. Thank You
V Narayan Raman
http://sahi.co.in
Twitter: @narayanraman
@_sahi
Tyto Software Pvt. Ltd.
