Trane provides an overview of their light commercial unitary product line for rooftop units and split systems ranging from 1.5 to 25 tons. Their goal is to deliver the highest overall value through higher quality, value pricing, and best support. Trane focuses on Six Sigma quality approaches and offers a wide range of product options across their Impack, Precedent, Voyager, and Odyssey product lines to provide flexibility. Trane emphasizes reliability, serviceability, life cycle cost savings and fast delivery to best support customers.

1. Light Commercial
Unitary Overview
Light Commercial Unitary Overview

2. Commercial Unitary Goal
Deliver the Best Overall Value Through
• Higher Quality
• Value Pricing
• and the Best Support

3. Six Sigma
Trane places focus on Six Sigma
• Six Sigma quality approaches zero
defects. To achieve Six Sigma, a
process must produce no more than 3.4
defects per million opportunities.
• In terms of time, 3.4 in a million is
about 3 hours in a 100 year period

4. Applications
1½-25 Ton Packaged Rooftop Systems
typically used in low rise building
applications
• Restaurants
• Malls
• Schools
• Offices
• Factories/Warehouses

5. Product Range
2 3 5 7.5 8.5 10 12.5 15 25
Impack 1.5-5 Tons
Precedent 3-10 Tons
Voyager 12.5-25 Tons
Odyssey 5-20 Splits

6. Impack™ Rooftops
 1.5 - 5 Ton Cooling/Gas Heat
 1.5 - 5 Ton Cooling/Electric Heat
 1.5 - 5 Ton Heat Pumps

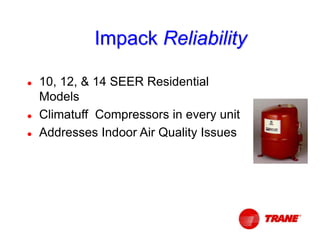

7. Impack Reliability
 10, 12, & 14 SEER Residential
Models
 Climatuff Compressors in every unit
 Addresses Indoor Air Quality Issues

8. Precedent™ Rooftops
 3 - 10 Ton Cooling/Gas Heat
 3 - 10 Ton Cooling/Electric Heat
 3 - 10 Ton Heat Pumps

9. Trane designed flexibility into the Precedent
rooftop. Precedent offers a wide selection of
factory installed options and accessories to
fit a multitude of comfort applications.
Convertible-Downflow/Horizontal… Gas heat…
Electric heat… Hinged access doors…
High efficiency motors... IAQ… And the list goes on
Precedent Flexibility

10. With increasing emphasis on ASHRAE
standard 62-99, Trane offers a number
of options to help improve indoor air
quality
Sloped, removable, convertible drain pan…
Foil-faced Insulation… CO2 sensing…
Energy recovery…
Indoor Air Quality

11. Drain Pan
 Double sloped and
pitched
 Removable
 Convertible on either side
or through-the-base
 Non-corrosive

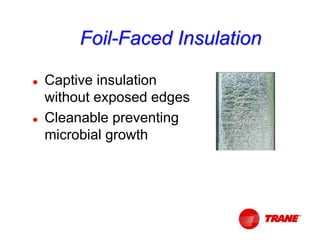

12. Foil-Faced Insulation
 Captive insulation
without exposed edges
 Cleanable preventing
microbial growth

13. Multiple Options
 Fresh Air Options
 Smoke Detector Options

14. Precedent Serviceability
 Single-Side Access
 Trane Compressors

15. Precedent Serviceability
 Quick Adjust Belt-Drive Motors
 Hinged Access Panels
 Disconnect and Convenience Outlet

16. Only order the features the job requires
Precedent Unit Controls
 ReliaTel™ Microprocessor
 Second generation design
 Intelligent communications
boards
 Standard safety features
 ICS compatible

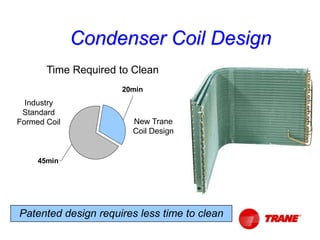

17. Condenser Coil Design
20min
45min
New Trane
Coil Design
Industry
Standard
Formed Coil
Time Required to Clean
Patented design requires less time to clean

18. Voyager™ Rooftops
 12.5 - 25 Ton Cooling / Gas Heat
 12.5 - 25 Ton Cooling / Electric Heat
 12.5 - 20 Ton Heat Pumps

19. While the industry is migrating toward
scroll compressor technology . . .
we’re already there, with over 20
years experience.
Scroll Compressors

20. • Improves reliability with 70% fewer
moving parts than reciprocating
compressors
• Single Orbiting Scroll eliminates
need for pistons, rings, connecting
rods and valves
Scroll Compressors

21. Fewer Refrigerant Specialties Required
• No suction line accumulators
• No mufflers
• No oil separators
• No oil pressure switches
Scroll Compressors

22. Trane designed flexibility into the Voyager
rooftop. Voyager offers a wide selection of
factory installed options and accessories to
fit a multitude of comfort applications.
Gas heat… Heat Pump...
Electric heat… Hinged access doors…
High efficiency motors... IAQ… And the list goes on
Voyager Flexibility

23. Multiple Options
 Disconnect and
Convenience Outlet
 Smoke Detectors
 Quick-Adjust Drive

24.  Foil-Faced Insulation
 Fresh Air Options
Indoor Air Quality

25. Periodic maintenance and service is
essential for long equipment life and
efficiency. Trane equipment is designed
to make servicing easy. Those
responsible for maintenance can get the
job done fast … $aving time and money.
Microprocessor controls…Building automation systems…
Easy to use test cycle...Hinged access…
Simple installation
Voyager Serviceability

26.  Single-Side Access to the Unit with
optional Hinged Access Panels
 Easy Access Low Voltage Terminal
Board
 Single Point Power
Voyager Serviceability

27. 3 - 20 Ton Split Systems
• Condensing Units
• Heat Pumps
Light Commercial Split Systems

28. Odyssey™ - Split Systems
 Condensing Units - 7½ to 20 tons
 Air Handlers - 5 to 20 tons

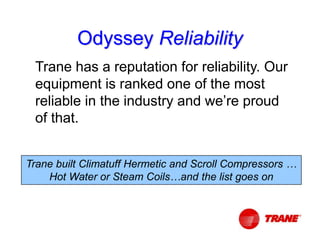

29. Trane has a reputation for reliability. Our
equipment is ranked one of the most
reliable in the industry and we’re proud
of that.
Trane built Climatuff Hermetic and Scroll Compressors …
Hot Water or Steam Coils…and the list goes on
Odyssey Reliability

30.  Cooling and Heat Pump
 Single Compressors
 Dual Manifold Compressors
 Dual Compressor with Dual Circuits*
*Only available on 10, 15 and 20 ton models
Odyssey - Split Systems

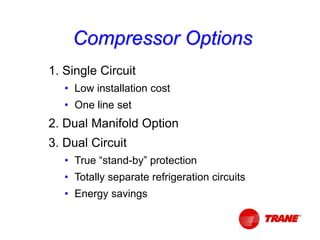

31. Compressor Options
1. Single Circuit
• Low installation cost
• One line set
2. Dual Manifold Option
3. Dual Circuit
• True “stand-by” protection
• Totally separate refrigeration circuits
• Energy savings

32. Trane designed flexibility into the Odyssey
system. Air handlers are designed, tested,
and rated with outdoor units to let you
select the proper match between capacity
and load. Heat pumps can also be
matched with Trane built-up air handlers.
Convertible Air Handler… Sloped Drain Pan…
No-frost coil… And the list goes on
Odyssey Flexibility

33. Life Cycle Cost represents the real cost of
owning and operating an HVAC system over its
entire life which includes:
Trane Commercial Unitary
• initial equipment purchase costs,
• the costs of installation,
• operating costs,
• and maintenance costs.

34.  Quick (48) hour delivery to 80% of USA
 Six Express Delivery Warehouses
 3 - 25 ton rooftops and split systems
 More than 5000 units in stock
 All standard roof curbs in stock
Express Delivery

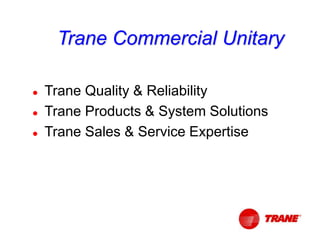

35. Trane Commercial Unitary
 Trane Quality & Reliability
 Trane Products & System Solutions
 Trane Sales & Service Expertise

36. With Trane you get more than superior
equipment and outstanding support, you get
the experience that comes with over 85 years
of exceeding customer expectations.
Visit our website www.Trane.com
It’s Hard To Stop A Trane.®
Customer Support
