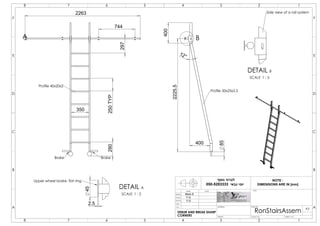

This document contains technical drawings and specifications for a rail system brake assembly. It includes dimensions and details for an upper wheel brake with a flat ring profile measuring 40x20x2 mm. It also shows a side view of the rail system with dimensions for components like the profile, which measures 50x25x2.5 mm. The document was created by Mark S. and Y.G. and is printed on an A3 sheet at a scale of 1:20.

1. 350
2263
297
280
744
250TYP
A
Brake Brake
Profile 40x20x2
2225.5
12°
400
400
85
B
Profile 50x25x2.5
45
2.5
DETAIL A
SCALE 1 : 2
Upper wheel brake, flat ring
DETAIL B
SCALE 1 : 5
Side view of a rail system
Mark.S
Y.G
Y.G
8 7
A
B
23456 1
578 246 13
E
D
C
F F
D
B
A
E
C
DRAWN
CHK'D
APPV'D
MFG
Q.A
DEBUR AND BREAK SHARP
CORNERS
NAME DATE
MATERIAL:
TITLE:
DWG NO.
SCALE:1:20 SHEET 1 OF 1
A3
WEIGHT:
RonStairsAssem
‫נוסף‬ ‫לברור‬
‫גבאי‬ ‫יוסי‬050-5283333
NOTE :
DIMENSIONS ARE IN [mm]
