Robotium Tutorial

Robotium Tutorial

Mobile March
March 21, 2013

An Intertech Course

By Jim White, Intertech, Inc..

Course Name

Stop by Intertech’s
booth for a chance to
win FREE Training.

Or go to bit.ly.com/intertech-login

Slides & demo code available at intertech.com/blog
Copyright © Intertech, Inc. • www.Intertech.com • 800-866-9884 Slide 2

Course Name

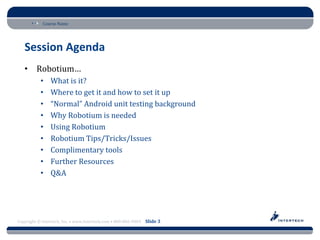

Session Agenda
• Robotium…
• What is it?
• Where to get it and how to set it up
• “Normal” Android unit testing background
• Why Robotium is needed
• Using Robotium
• Robotium Tips/Tricks/Issues
• Complimentary tools
• Further Resources
• Q&A


Course Name

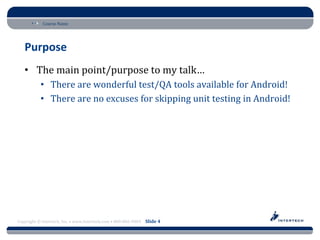

Purpose
• The main point/purpose to my talk…
• There are wonderful test/QA tools available for Android!
• There are no excuses for skipping unit testing in Android!


Course Name

Jim White Intro
• Intertech Partner,
• Dir. of Training,
• Instructor,
• Consultant
• Co-author, J2ME, Java in Small
Things (Manning)
• Device developer since before
phones were “smart”
• Java developer when “spring”
and “struts” described your
stride
• Occasional beer drinker


Course Name

Robotium – what is it?
• An open source test framework
• Used to write black or white box tests (emphasis is on black box)
• White box testing – testing software that knows and tests the internal
structures or workings of an application
• Black box testing – testing software functionality without knowledge of
an application (perhaps where the source code is not even available)
• Tests can be executed on an Android Virtual Device (AVD) or real
device
• Built on Java (and Android) and JUnit (the Android Test Framework)
• In fact, it may be more appropriate to call Robotium an extension to the
Android test framework


Course Name

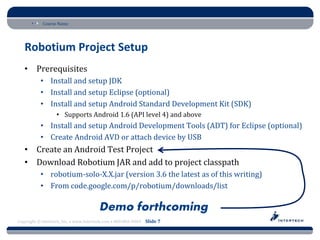

Robotium Project Setup
• Prerequisites
• Install and setup JDK
• Install and setup Eclipse (optional)
• Install and setup Android Standard Development Kit (SDK)
• Supports Android 1.6 (API level 4) and above
• Install and setup Android Development Tools (ADT) for Eclipse (optional)
• Create Android AVD or attach device by USB
• Create an Android Test Project
• Download Robotium JAR and add to project classpath
• robotium-solo-X.X.jar (version 3.6 the latest as of this writing)
• From code.google.com/p/robotium/downloads/list


Course Name

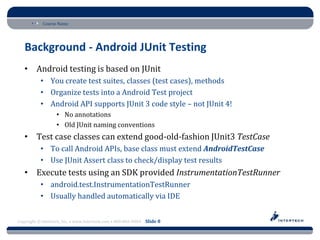

Background - Android JUnit Testing
• Android testing is based on JUnit
• You create test suites, classes (test cases), methods
• Organize tests into a Android Test project
• Android API supports JUnit 3 code style – not JUnit 4!
• No annotations
• Old JUnit naming conventions
• Test case classes can extend good-old-fashion JUnit3 TestCase
• To call Android APIs, base class must extend AndroidTestCase
• Use JUnit Assert class to check/display test results
• Execute tests using an SDK provided InstrumentationTestRunner
• android.test.InstrumentationTestRunner
• Usually handled automatically via IDE


Course Name

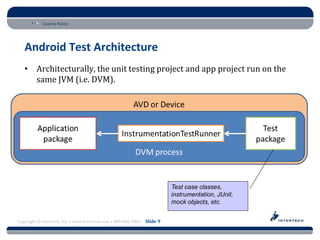

Android Test Architecture
• Architecturally, the unit testing project and app project run on the
same JVM (i.e. DVM).

Test case classes,
instrumentation, JUnit,
mock objects, etc.


Course Name

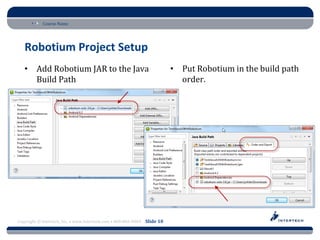

Robotium Project Setup
• Add Robotium JAR to the Java • Put Robotium in the build path
Build Path order.


Course Name

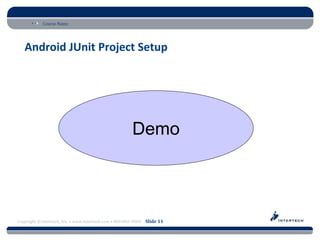

Android JUnit Project Setup

Demo


Course Name

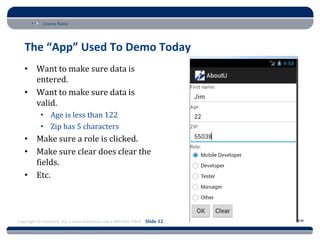

The “App” Used To Demo Today
• Want to make sure data is
entered.
• Want to make sure data is
valid.
• Age is less than 122
• Zip has 5 characters
• Make sure a role is clicked.
• Make sure clear does clear the
fields.
• Etc.


Course Name

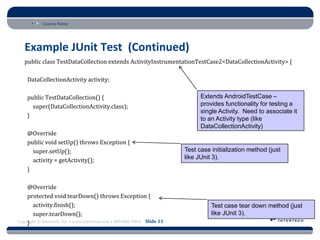

Example JUnit Test (Continued)
public class TestDataCollection extends ActivityInstrumentationTestCase2<DataCollectionActivity> {

DataCollectionActivity activity;

public TestDataCollection() { Extends AndroidTestCase –
super(DataCollectionActivity.class); provides functionality for testing a
single Activity. Need to associate it
}
to an Activity type (like
DataCollectionActivity)
@Override
public void setUp() throws Exception {
super.setUp(); Test case initialization method (just
activity = getActivity(); like JUnit 3).
}

@Override
protected void tearDown() throws Exception {
activity.finish(); Test case tear down method (just
super.tearDown(); like JUnit 3).
}

Course Name

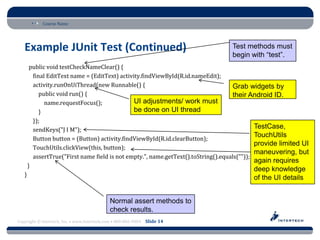

Example JUnit Test (Continued) Test methods must
begin with “test”.
public void testCheckNameClear() {
final EditText name = (EditText) activity.findViewById(R.id.nameEdit);
activity.runOnUiThread(new Runnable() { Grab widgets by
public void run() { their Android ID.
name.requestFocus(); UI adjustments/ work must
} be done on UI thread
});
sendKeys("J I M");
TestCase,
TouchUtils
Button button = (Button) activity.findViewById(R.id.clearButton);
provide limited UI
TouchUtils.clickView(this, button);
maneuvering, but
assertTrue("First name field is not empty.", name.getText().toString().equals(""));
again requires
}
deep knowledge
}
of the UI details

Normal assert methods to
check results.

Course Name


Course Name

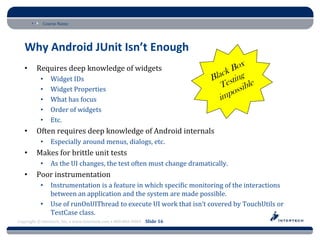

Why Android JUnit Isn’t Enough
• Requires deep knowledge of widgets
• Widget IDs
• Widget Properties
• What has focus
• Order of widgets
• Etc.
• Often requires deep knowledge of Android internals
• Especially around menus, dialogs, etc.
• Makes for brittle unit tests
• As the UI changes, the test often must change dramatically.
• Poor instrumentation
• Instrumentation is a feature in which specific monitoring of the interactions
between an application and the system are made possible.
• Use of runOnUIThread to execute UI work that isn’t covered by TouchUtils or
TestCase class.

Course Name

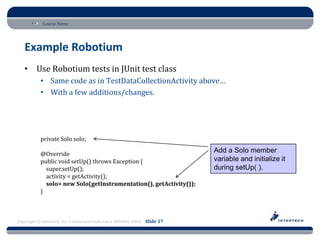

Example Robotium
• Use Robotium tests in JUnit test class
• Same code as in TestDataCollectionActivity above…
• With a few additions/changes.

private Solo solo;

@Override
Add a Solo member
public void setUp() throws Exception { variable and initialize it
super.setUp(); during setUp( ).
activity = getActivity();
solo= new Solo(getInstrumentation(), getActivity());
}


Course Name

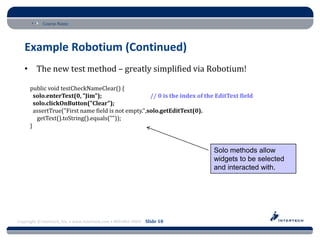

Example Robotium (Continued)
• The new test method – greatly simplified via Robotium!

public void testCheckNameClear() {
solo.enterText(0, "Jim"); // 0 is the index of the EditText field
solo.clickOnButton("Clear");
assertTrue("First name field is not empty.",solo.getEditText(0).
getText().toString().equals(""));
}

Solo methods allow
widgets to be selected
and interacted with.


Course Name


Course Name

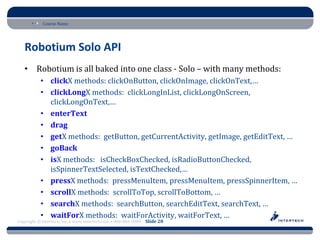

Robotium Solo API
• Robotium is all baked into one class - Solo – with many methods:
• clickX methods: clickOnButton, clickOnImage, clickOnText,…
• clickLongX methods: clickLongInList, clickLongOnScreen,
clickLongOnText,…
• enterText
• drag
• getX methods: getButton, getCurrentActivity, getImage, getEditText, …
• goBack
• isX methods: isCheckBoxChecked, isRadioButtonChecked,
isSpinnerTextSelected, isTextChecked,…
• pressX methods: pressMenuItem, pressMenuItem, pressSpinnerItem, …
• scrollX methods: scrollToTop, scrollToBottom, …
• searchX methods: searchButton, searchEditText, searchText, …
• waitForX methods: waitForActivity, waitForText, …

Course Name

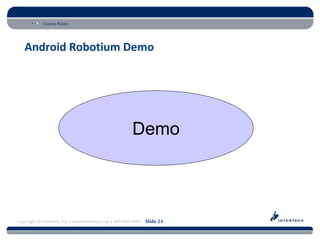

Android Robotium Demo

Demo


Course Name

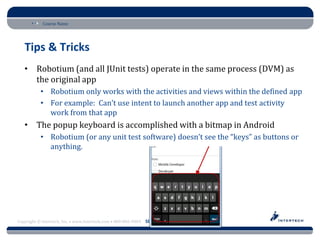

Tips & Tricks
• Robotium (and all JUnit tests) operate in the same process (DVM) as
the original app
• Robotium only works with the activities and views within the defined app
• For example: Can’t use intent to launch another app and test activity
work from that app
• The popup keyboard is accomplished with a bitmap in Android
• Robotium (or any unit test software) doesn’t see the “keys” as buttons or
anything.


Course Name

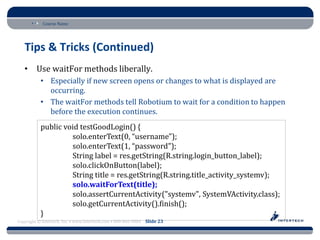

Tips & Tricks (Continued)
• Use waitFor methods liberally.
• Especially if new screen opens or changes to what is displayed are
occurring.
• The waitFor methods tell Robotium to wait for a condition to happen
before the execution continues.
public void testGoodLogin() {
solo.enterText(0, “username");
solo.enterText(1, “password");
String label = res.getString(R.string.login_button_label);
solo.clickOnButton(label);
String title = res.getString(R.string.title_activity_systemv);
solo.waitForText(title);
solo.assertCurrentActivity("systemv", SystemVActivity.class);
solo.getCurrentActivity().finish();
}

Course Name

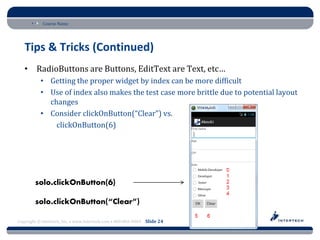

• RadioButtons are Buttons, EditText are Text, etc…
• Getting the proper widget by index can be more difficult
• Use of index also makes the test case more brittle due to potential layout
changes
• Consider clickOnButton(“Clear”) vs.
clickOnButton(6)


Course Name

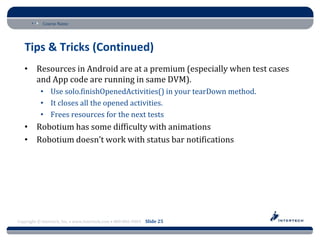

• Resources in Android are at a premium (especially when test cases
and App code are running in same DVM).
• Use solo.finishOpenedActivities() in your tearDown method.
• It closes all the opened activities.
• Frees resources for the next tests
• Robotium has some difficulty with animations
• Robotium doesn’t work with status bar notifications


Course Name

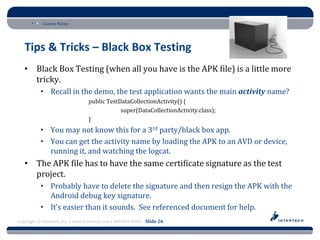

Tips & Tricks – Black Box Testing
• Black Box Testing (when all you have is the APK file) is a little more
tricky.
• Recall in the demo, the test application wants the main activity name?
public TestDataCollectionActivity() {
super(DataCollectionActivity.class);
}
• You may not know this for a 3rd party/black box app.
• You can get the activity name by loading the APK to an AVD or device,
running it, and watching the logcat.
• The APK file has to have the same certificate signature as the test
project.
• Probably have to delete the signature and then resign the APK with the
Android debug key signature.
• It’s easier than it sounds. See referenced document for help.

Course Name

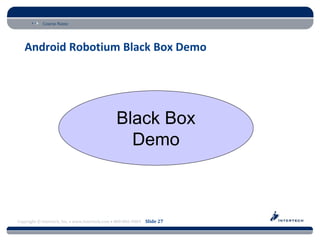

Android Robotium Black Box Demo

Black Box
Demo


Course Name

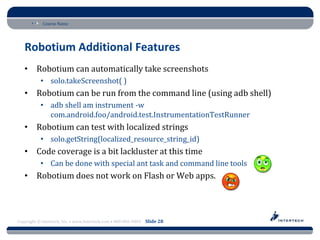

Robotium Additional Features
• Robotium can automatically take screenshots
• solo.takeScreenshot( )
• Robotium can be run from the command line (using adb shell)
• adb shell am instrument -w
com.android.foo/android.test.InstrumentationTestRunner
• Robotium can test with localized strings
• solo.getString(localized_resource_string_id)
• Code coverage is a bit lackluster at this time
• Can be done with special ant task and command line tools
• Robotium does not work on Flash or Web apps.


Course Name

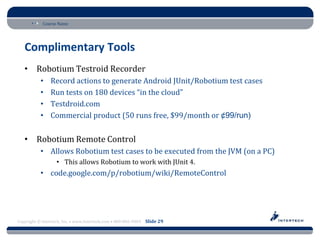

Complimentary Tools
• Robotium Testroid Recorder
• Record actions to generate Android JUnit/Robotium test cases
• Run tests on 180 devices “in the cloud”
• Testdroid.com
• Commercial product (50 runs free, $99/month or ¢99/run)

• Robotium Remote Control
• Allows Robotium test cases to be executed from the JVM (on a PC)
• This allows Robotium to work with JUnit 4.
• code.google.com/p/robotium/wiki/RemoteControl


Course Name

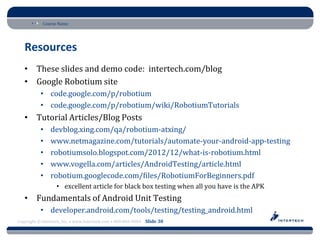

Resources
• These slides and demo code: intertech.com/blog
• Google Robotium site
• code.google.com/p/robotium
• code.google.com/p/robotium/wiki/RobotiumTutorials
• Tutorial Articles/Blog Posts
• devblog.xing.com/qa/robotium-atxing/
• www.netmagazine.com/tutorials/automate-your-android-app-testing
• robotiumsolo.blogspot.com/2012/12/what-is-robotium.html
• www.vogella.com/articles/AndroidTesting/article.html
• robotium.googlecode.com/files/RobotiumForBeginners.pdf
• excellent article for black box testing when all you have is the APK
• Fundamentals of Android Unit Testing
• developer.android.com/tools/testing/testing_android.html

Course Name

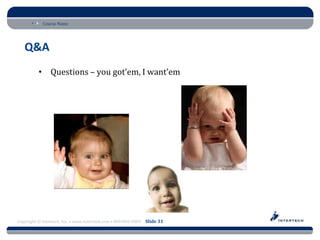

Q&A
• Questions – you got’em, I want’em


Course Name

Award-Winning Training and Consulting.

Visit www.Intertech.com for complete details.

Course Name

Intertech offers
Mobile Training On:
• Android
• HTML5
• iOS
• Java ME
• jQuery
• Windows Phone

Visit ww.Intertech.com for complete course schedule.

Course Name

Stop by Intertech’s
booth for a chance to
win FREE Training.

Or go to bit.ly.com/intertech-login


Robotium Tutorial

More Related Content

What's hot

Similar to Robotium Tutorial

More from Mobile March

Recently uploaded

Robotium Tutorial
