REST Architectural Style: A Detail Explain
Cao Duc Nguyen
nguyen.cao-duc@hp.com
Software Designer

April 26, 2012

Introduction

REST Fundamentals

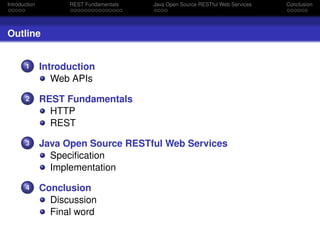

Outline

1

Introduction
Web APIs

2

REST Fundamentals
HTTP
REST

3

Speciﬁcation
Implementation

4

Conclusion
Discussion
Final word

Conclusion

Introduction

REST Fundamentals


Web APIs

The Importance of APIs in Web Development

Conclusion

Introduction

REST Fundamentals


Web APIs

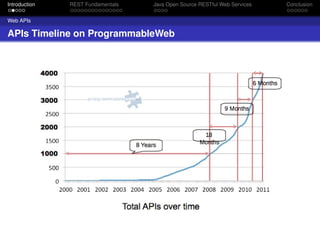

APIs Timeline on ProgrammableWeb

Conclusion

Introduction

REST Fundamentals


Web APIs

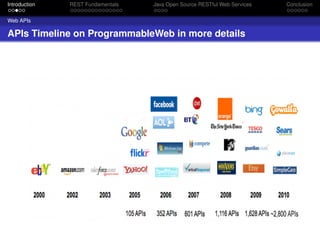

APIs Timeline on ProgrammableWeb in more details

Conclusion

Introduction

REST Fundamentals

Web APIs

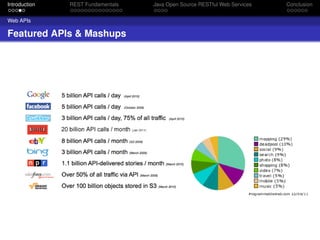

Featured APIs & Mashups


Conclusion

Introduction

REST Fundamentals

Web APIs

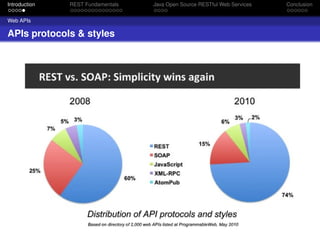

APIs protocols & styles


Conclusion

Introduction

REST Fundamentals

HTTP

REST is an architectural style
Gorthic Architectural Style


Conclusion

Introduction

REST Fundamentals


HTTP

REST v.s HTTP

Gorthic architectural style

REST

HTTP

Conclusion

Introduction

REST Fundamentals

HTTP

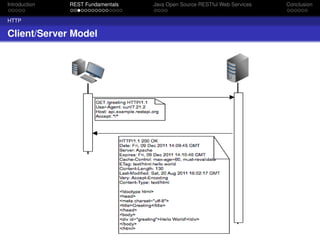

Client/Server Model


Conclusion

Introduction

REST Fundamentals

HTTP

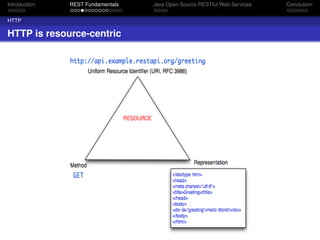

HTTP is resource-centric


Conclusion

Introduction

REST Fundamentals


HTTP

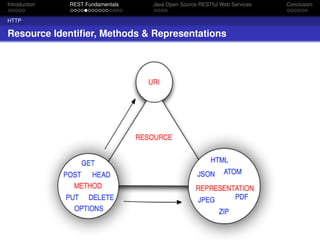

Resource Identiﬁer, Methods & Representations

Conclusion

Introduction

REST Fundamentals


HTTP

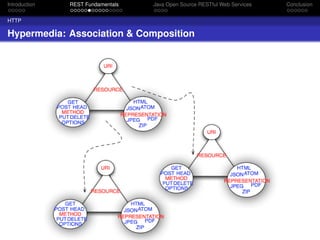

Hypermedia: Association & Composition

Conclusion

Introduction

REST Fundamentals


Conclusion

HTTP

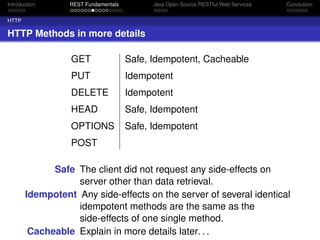

HTTP Methods in more details
GET

Safe, Idempotent, Cacheable

PUT

Idempotent

DELETE

Idempotent

HEAD

Safe, Idempotent

OPTIONS

Safe, Idempotent

POST
Safe The client did not request any side-effects on
server other than data retrieval.
Idempotent Any side-effects on the server of several identical
idempotent methods are the same as the
side-effects of one single method.
Cacheable Explain in more details later. . .

Introduction

REST Fundamentals


HTTP

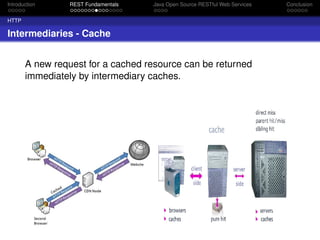

Intermediaries - Cache
A new request for a cached resource can be returned
immediately by intermediary caches.

Conclusion

Introduction

REST Fundamentals


Conclusion

HTTP

Intermediaries - Proxy & Gateway

Proxy
an intermediary selected by a client, to provide
interfaces to services like data translation,
performance enhancement, or security protection.
Gateway
an intermediary imposed by the network or origin
server to provide an interface encapsulation of
other services, for data translation, performance
enhancement, or security enforcement.

Introduction

REST Fundamentals


Conclusion

HTTP

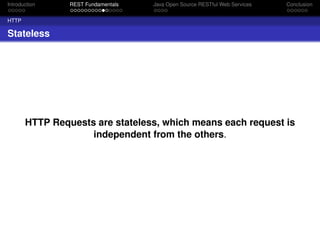

Stateless

HTTP Requests are stateless, which means each request is
independent from the others.

Introduction

REST Fundamentals


Conclusion

HTTP

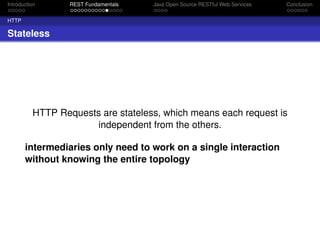

Stateless

HTTP Requests are stateless, which means each request is
independent from the others.
intermediaries only need to work on a single interaction
without knowing the entire topology

Introduction

REST Fundamentals


Conclusion

REST

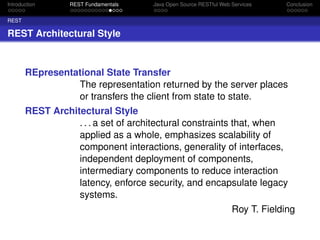

REST Architectural Style

REpresentational State Transfer
The representation returned by the server places
or transfers the client from state to state.
REST Architectural Style
. . . a set of architectural constraints that, when
applied as a whole, emphasizes scalability of
component interactions, generality of interfaces,
independent deployment of components,
intermediary components to reduce interaction
latency, enforce security, and encapsulate legacy
systems.
Roy T. Fielding

Introduction

REST Fundamentals

REST

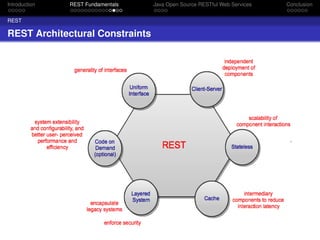

REST Architectural Constraints


Conclusion

Introduction

REST Fundamentals

REST

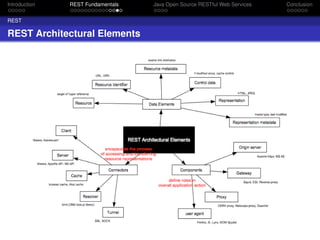

REST Architectural Elements


Conclusion

Introduction

REST Fundamentals

REST

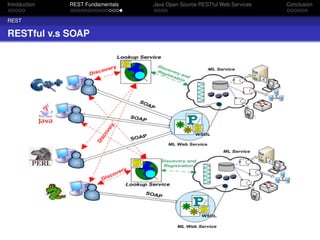

RESTful v.s SOAP


Conclusion

Introduction

REST Fundamentals


Speciﬁcation

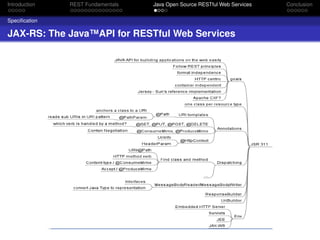

JAX-RS: The Java™API for RESTful Web Services

Conclusion

Introduction

REST Fundamentals


Conclusion

Speciﬁcation

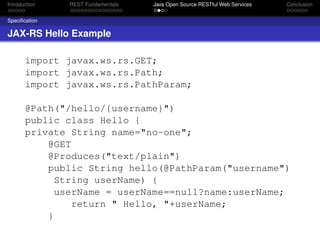

JAX-RS Hello Example
import javax.ws.rs.GET;
import javax.ws.rs.Path;
import javax.ws.rs.PathParam;
@Path("/hello/{username}")
public class Hello {
private String name="no-one";
@GET
@Produces("text/plain")
public String hello(@PathParam("username")
String userName) {
userName = userName==null?name:userName;
return " Hello, "+userName;
}

Introduction

REST Fundamentals


Conclusion

Speciﬁcation

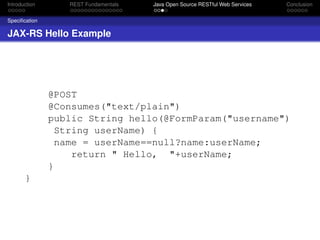

JAX-RS Hello Example

@POST
@Consumes("text/plain")
public String hello(@FormParam("username")
String userName) {
name = userName==null?name:userName;
return " Hello, "+userName;
}
}

Introduction

REST Fundamentals


Conclusion

Implementation

Open Sources RESTful Web Service Implementation of JAX-RS

Jersey - Sun reference implementation
RESTEasy - JBoss
Restlet

Introduction

REST Fundamentals


Discussion

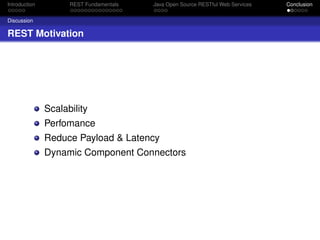

REST Motivation

Scalability
Perfomance
Reduce Payload & Latency
Dynamic Component Connectors

Conclusion

Introduction

REST Fundamentals

Discussion

REST v.s the rest

SOA ?
Servlet & JSP ?
Javascript ?


Conclusion

Introduction

REST Fundamentals

Final word

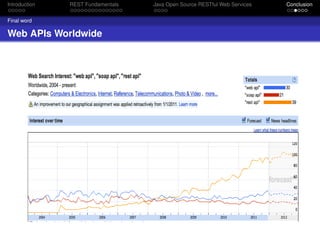

Web APIs Worldwide


Conclusion

Introduction

REST Fundamentals

Final word

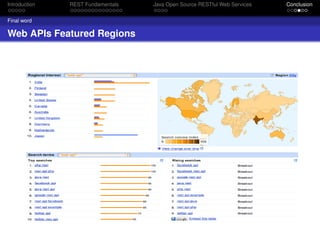

Web APIs Featured Regions


Conclusion

Introduction

REST Fundamentals

Final word

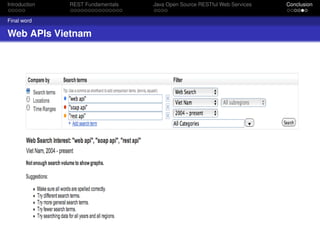

Web APIs Vietnam


Conclusion

Introduction

REST Fundamentals


Final word

THANK YOU *-*

Conclusion
