The Radius LE is an all-in-one computing solution that offers the power of a desktop in a compact, portable form factor. It features Intel Core i5 or i7 processors, up to 8GB RAM, a full-length PCIe expansion slot, and integrated 17-inch display. The Radius LE provides desktop-class performance while overcoming limitations of workspace, portability, and budget through its unique design.

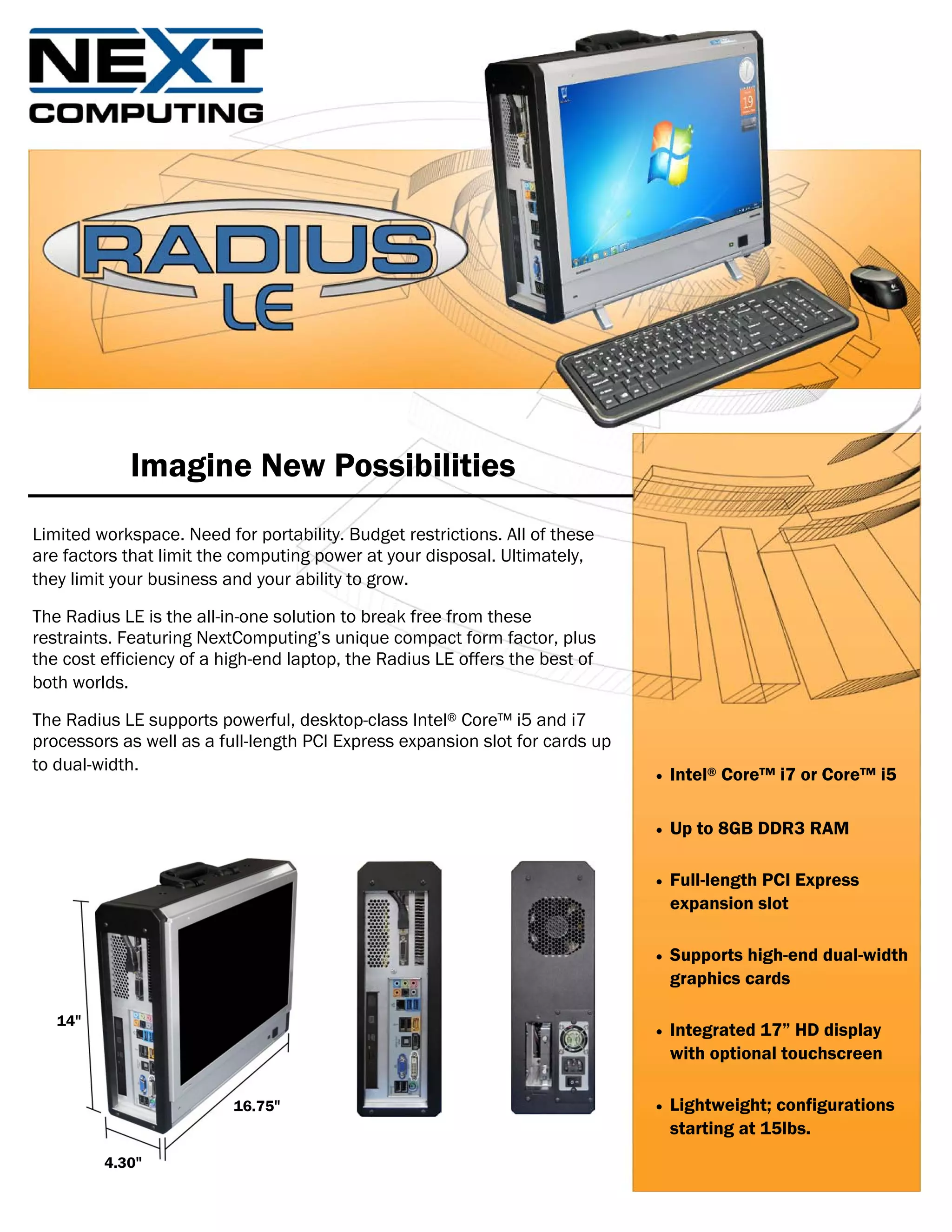

1. Imagine New Possibilities
Limited workspace. Need for portability. Budget restrictions. All of these
are factors that limit the computing power at your disposal. Ultimately,
they limit your business and your ability to grow.
The Radius LE is the all-in-one solution to break free from these
restraints. Featuring NextComputing’s unique compact form factor, plus
the cost efficiency of a high-end laptop, the Radius LE offers the best of
both worlds.
The Radius LE supports powerful, desktop-class Intel® Core™ i5 and i7
processors as well as a full-length PCI Express expansion slot for cards up
to dual-width.
• Intel® Core™ i7 or Core™ i5
• Up to 8GB DDR3 RAM
• Full-length PCI Express
expansion slot
• Supports high-end dual-width
graphics cards
14"
• Integrated 17” HD display
with optional touchscreen
16.75" • Lightweight; configurations
starting at 15lbs.
4.30"

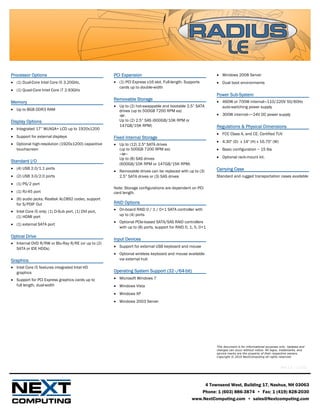

2. Processor Options PCI Expansion • Windows 2008 Server
• (1) Dual-Core Intel Core i5 3.20GHz, • (1) PCI Express x16 slot. Full-length. Supports • Dual boot environments
cards up to double-width
• (1) Quad-Core Intel Core i7 2.93GHz
Power Sub-System
Removable Storage
Memory • 460W or 700W internal—110/220V 50/60Hz
• Up to (2) hot-swappable and bootable 2.5” SATA auto-switching power supply
• Up to 8GB DDR3 RAM drives (up to 500GB 7200 RPM ea)
-or- • 300W internal—~24V DC power supply
Display Options Up to (2) 2.5” SAS (600GB/10K RPM or
147GB/15K RPM) Regulations & Physical Dimensions
• Integrated 17” WUXGA+ LCD up to 1920x1200
• FCC Class A, and CE. Certified TUV
• Support for external displays Fixed Internal Storage
• 4.30" (D) x 14" (H) x 16.75" (W)
• Optional high-resolution (1920x1200) capacitive • Up to (12) 2.5" SATA drives
touchscreen (up to 500GB 7200 RPM ea) • Basic configuration ~ 15 lbs
–or–
Up to (8) SAS drives • Optional rack-mount kit.
Standard I/O
(600GB/10K RPM or 147GB/15K RPM)
• (4) USB 2.0/1.1 ports Carrying Case
• Removable drives can be replaced with up to (3)
• (2) USB 3.0/2.0 ports 2.5” SATA drives or (3) SAS drives Standard and rugged transportation cases available
• (1) PS/2 port
Note: Storage configurations are dependent on PCI
• (1) RJ-45 port card length.
• (6) audio jacks; Realtek ALC892 codec, support
for S/PDIF Out RAID Options
• Intel Core i5 only: (1) D-Sub port, (1) DVI port, • On-board RAID 0 / 1 / 0+1 SATA controller with
(1) HDMI port up to (4) ports
• Optional PCIe-based SATA/SAS RAID controllers
• (1) external SATA port
with up to (8) ports, support for RAID 0, 1, 5, 0+1
Optical Drive
Input Devices
• Internal DVD R/RW or Blu-Ray R/RE (or up to (2)
• Support for external USB keyboard and mouse
SATA or IDE HDDs)
• Optional wireless keyboard and mouse available
Graphics via external hub
• Intel Core i5 features integrated Intel HD
graphics Operating System Support (32–/64-bit)
• Support for PCI Express graphics cards up to • Microsoft Windows 7
full length, dual-width • Windows Vista
• Windows XP
• Windows 2003 Server
This document is for informational purposes only. Updates and
changes can occur without notice. All logos, trademarks, and
service marks are the property of their respective owners.
Copyright © 2010 NextComputing all rights reserved.
Rev 1.1 – 12/10
