radar-principles

Radar uses radio waves to detect objects and determine their range, altitude, direction or speed. It works by transmitting pulses of radio waves which bounce off objects and return a portion of energy to the receiving antenna. Radar was developed in the 1930s-1940s and has two main types - pulse radar which uses pulse transmission and continuous wave radar which uses continuous transmission. Key components of radar systems include the transmitter, antenna, receiver and display. Factors like signal reception, bandwidth, power and beam width affect radar performance.

Embed presentation

Downloaded 34 times
Radar PrinciplesRadar Principles && SystemsSystems AKHIL MOHAN SHARMAAKHIL MOHAN SHARMA ECEECE 16114828071611482807

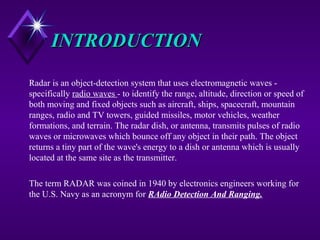

INTRODUCTIONINTRODUCTION Radar is an object-detection system that uses electromagnetic waves - specifically radio waves - to identify the range, altitude, direction or speed of both moving and fixed objects such as aircraft, ships, spacecraft, mountain ranges, radio and TV towers, guided missiles, motor vehicles, weather formations, and terrain. The radar dish, or antenna, transmits pulses of radio waves or microwaves which bounce off any object in their path. The object returns a tiny part of the wave's energy to a dish or antenna which is usually located at the same site as the transmitter. The term RADAR was coined in 1940 by electronics engineers working for the U.S. Navy as an acronym for RAdio Detection And Ranging.

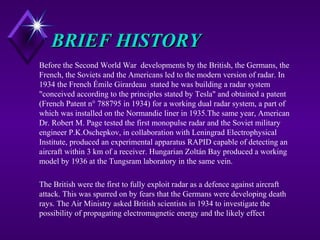

BRIEF HISTORYBRIEF HISTORY Before the Second World War developments by the British, the Germans, the French, the Soviets and the Americans led to the modern version of radar. In 1934 the French Émile Girardeau stated he was building a radar system "conceived according to the principles stated by Tesla" and obtained a patent (French Patent n° 788795 in 1934) for a working dual radar system, a part of which was installed on the Normandie liner in 1935.The same year, American Dr. Robert M. Page tested the first monopulse radar and the Soviet military engineer P.K.Oschepkov, in collaboration with Leningrad Electrophysical Institute, produced an experimental apparatus RAPID capable of detecting an aircraft within 3 km of a receiver. Hungarian Zoltán Bay produced a working model by 1936 at the Tungsram laboratory in the same vein. The British were the first to fully exploit radar as a defence against aircraft attack. This was spurred on by fears that the Germans were developing death rays. The Air Ministry asked British scientists in 1934 to investigate the possibility of propagating electromagnetic energy and the likely effect

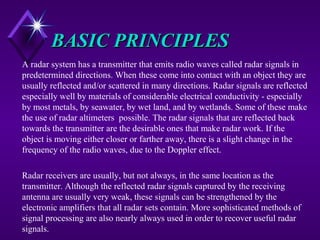

BASIC PRINCIPLESBASIC PRINCIPLES A radar system has a transmitter that emits radio waves called radar signals in predetermined directions. When these come into contact with an object they are usually reflected and/or scattered in many directions. Radar signals are reflected especially well by materials of considerable electrical conductivity - especially by most metals, by seawater, by wet land, and by wetlands. Some of these make the use of radar altimeters possible. The radar signals that are reflected back towards the transmitter are the desirable ones that make radar work. If the object is moving either closer or farther away, there is a slight change in the frequency of the radio waves, due to the Doppler effect. Radar receivers are usually, but not always, in the same location as the transmitter. Although the reflected radar signals captured by the receiving antenna are usually very weak, these signals can be strengthened by the electronic amplifiers that all radar sets contain. More sophisticated methods of signal processing are also nearly always used in order to recover useful radar signals.

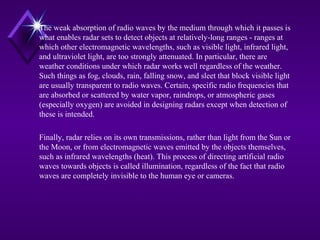

The weak absorption of radio waves by the medium through which it passes is what enables radar sets to detect objects at relatively-long ranges - ranges at which other electromagnetic wavelengths, such as visible light, infrared light, and ultraviolet light, are too strongly attenuated. In particular, there are weather conditions under which radar works well regardless of the weather. Such things as fog, clouds, rain, falling snow, and sleet that block visible light are usually transparent to radio waves. Certain, specific radio frequencies that are absorbed or scattered by water vapor, raindrops, or atmospheric gases (especially oxygen) are avoided in designing radars except when detection of these is intended. Finally, radar relies on its own transmissions, rather than light from the Sun or the Moon, or from electromagnetic waves emitted by the objects themselves, such as infrared wavelengths (heat). This process of directing artificial radio waves towards objects is called illumination, regardless of the fact that radio waves are completely invisible to the human eye or cameras.

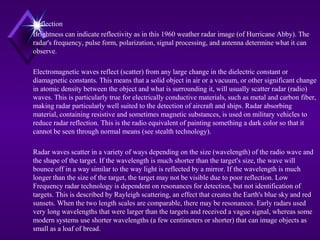

Reflection Brightness can indicate reflectivity as in this 1960 weather radar image (of Hurricane Abby). The radar's frequency, pulse form, polarization, signal processing, and antenna determine what it can observe. Electromagnetic waves reflect (scatter) from any large change in the dielectric constant or diamagnetic constants. This means that a solid object in air or a vacuum, or other significant change in atomic density between the object and what is surrounding it, will usually scatter radar (radio) waves. This is particularly true for electrically conductive materials, such as metal and carbon fiber, making radar particularly well suited to the detection of aircraft and ships. Radar absorbing material, containing resistive and sometimes magnetic substances, is used on military vehicles to reduce radar reflection. This is the radio equivalent of painting something a dark color so that it cannot be seen through normal means (see stealth technology). Radar waves scatter in a variety of ways depending on the size (wavelength) of the radio wave and the shape of the target. If the wavelength is much shorter than the target's size, the wave will bounce off in a way similar to the way light is reflected by a mirror. If the wavelength is much longer than the size of the target, the target may not be visible due to poor reflection. Low Frequency radar technology is dependent on resonances for detection, but not identification of targets. This is described by Rayleigh scattering, an effect that creates the Earth's blue sky and red sunsets. When the two length scales are comparable, there may be resonances. Early radars used very long wavelengths that were larger than the targets and received a vague signal, whereas some modern systems use shorter wavelengths (a few centimeters or shorter) that can image objects as small as a loaf of bread.

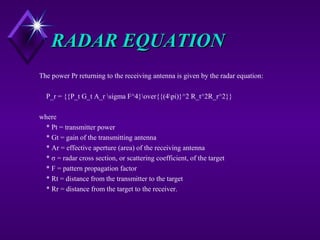

RADAR EQUATIONRADAR EQUATION The power Pr returning to the receiving antenna is given by the radar equation: P_r = {{P_t G_t A_r sigma F^4}over{{(4pi)}^2 R_t^2R_r^2}} where * Pt = transmitter power * Gt = gain of the transmitting antenna * Ar = effective aperture (area) of the receiving antenna * σ = radar cross section, or scattering coefficient, of the target * F = pattern propagation factor * Rt = distance from the transmitter to the target * Rr = distance from the target to the receiver.

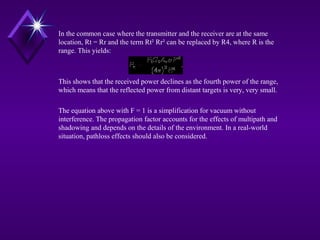

In the common case where the transmitter and the receiver are at the same location, Rt = Rr and the term Rt² Rr² can be replaced by R4, where R is the range. This yields: This shows that the received power declines as the fourth power of the range, which means that the reflected power from distant targets is very, very small. The equation above with F = 1 is a simplification for vacuum without interference. The propagation factor accounts for the effects of multipath and shadowing and depends on the details of the environment. In a real-world situation, pathloss effects should also be considered.

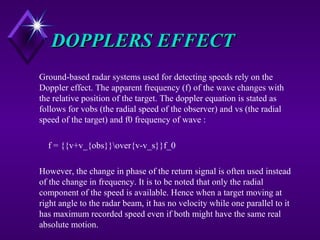

DOPPLERS EFFECTDOPPLERS EFFECT Ground-based radar systems used for detecting speeds rely on the Doppler effect. The apparent frequency (f) of the wave changes with the relative position of the target. The doppler equation is stated as follows for vobs (the radial speed of the observer) and vs (the radial speed of the target) and f0 frequency of wave : f = {{v+v_{obs}}over{v-v_s}}f_0 However, the change in phase of the return signal is often used instead of the change in frequency. It is to be noted that only the radial component of the speed is available. Hence when a target moving at right angle to the radar beam, it has no velocity while one parallel to it has maximum recorded speed even if both might have the same real absolute motion.

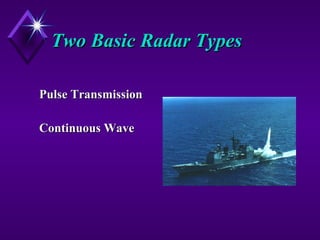

Two Basic Radar TypesTwo Basic Radar Types Pulse TransmissionPulse Transmission Continuous WaveContinuous Wave

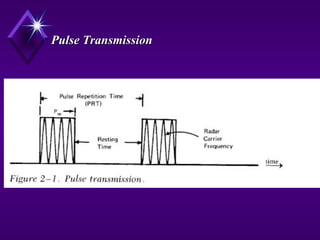

Pulse TransmissionPulse Transmission

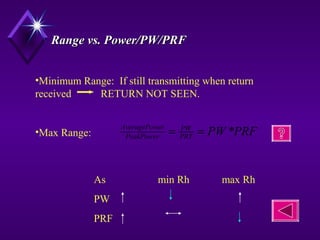

Range vs. Power/PW/PRFRange vs. Power/PW/PRF •Minimum Range: If still transmitting when return received RETURN NOT SEEN. •Max Range: PRFPWPRT PW PeakPower erAveragePow *== As min Rh max Rh PW PRF

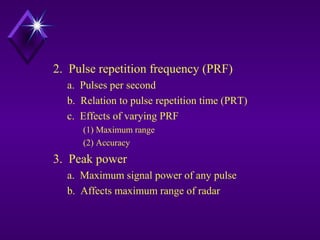

2. Pulse repetition frequency (PRF) a. Pulses per second b. Relation to pulse repetition time (PRT) c. Effects of varying PRF (1) Maximum range (2) Accuracy 3. Peak power a. Maximum signal power of any pulse b. Affects maximum range of radar
4. Average power a. Total power transmitted per unit of time b. Relationship of average power to PW and PRT 5. Duty cycle a. Ratio PW (time transmitting) to PRT (time of entire cycle, time transmitting plus rest time) b. Also equal to ratio of average power to peak power

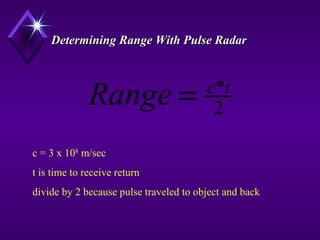

Determining Range With Pulse RadarDetermining Range With Pulse Radar 2 *tc Range = c = 3 x 108 m/sec t is time to receive return divide by 2 because pulse traveled to object and back

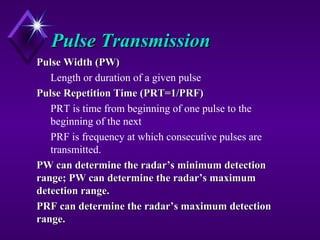

Pulse TransmissionPulse Transmission Pulse Width (PW)Pulse Width (PW) Length or duration of a given pulse Pulse Repetition Time (PRT=1/PRF)Pulse Repetition Time (PRT=1/PRF) PRT is time from beginning of one pulse to the beginning of the next PRF is frequency at which consecutive pulses are transmitted. PW can determine the radar’s minimum detectionPW can determine the radar’s minimum detection range; PW can determine the radar’s maximumrange; PW can determine the radar’s maximum detection range.detection range. PRF can determine the radar’s maximum detectionPRF can determine the radar’s maximum detection range.range.

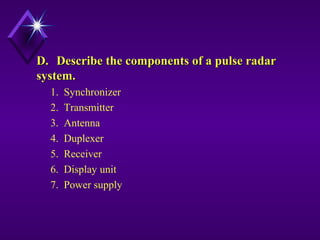

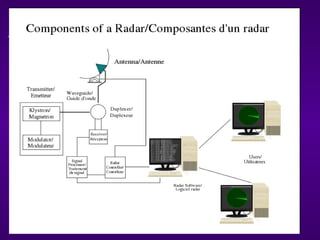

D.D. Describe the components of a pulse radarDescribe the components of a pulse radar system.system. 1. Synchronizer 2. Transmitter 3. Antenna 4. Duplexer 5. Receiver 6. Display unit 7. Power supply

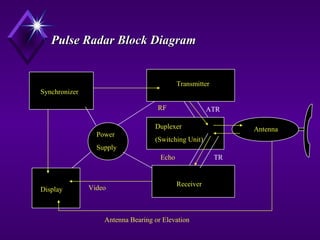

Pulse Radar Block DiagramPulse Radar Block Diagram Power Supply Synchronizer Transmitter Display Duplexer (Switching Unit) Receiver Antenna Antenna Bearing or Elevation Video Echo ATRRF TR

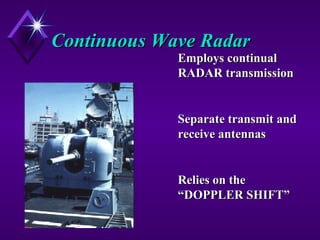

Continuous Wave RadarContinuous Wave Radar Employs continualEmploys continual RADAR transmissionRADAR transmission Separate transmit andSeparate transmit and receive antennasreceive antennas Relies on theRelies on the “DOPPLER SHIFT”“DOPPLER SHIFT”

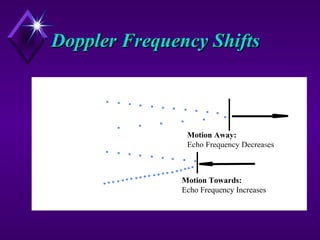

Doppler Frequency ShiftsDoppler Frequency Shifts Motion Away: Echo Frequency Decreases Motion Towards: Echo Frequency Increases

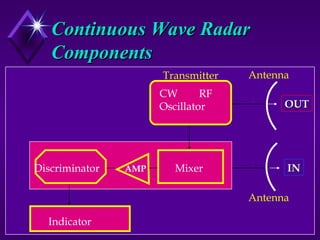

Continuous Wave RadarContinuous Wave Radar ComponentsComponents Discriminator AMP Mixer CW RF Oscillator Indicator OUTOUT ININ Transmitter Antenna Antenna
Pulse Vs. Continuous WavePulse Vs. Continuous Wave Pulse EchoPulse Echo Single AntennaSingle Antenna Gives Range, usuallyGives Range, usually Alt. as wellAlt. as well Susceptible ToSusceptible To JammingJamming Physical RangePhysical Range Determined By PWDetermined By PW and PRF.and PRF. Continuous WaveContinuous Wave Requires 2 AntennaeRequires 2 Antennae Range or Alt. InfoRange or Alt. Info High SNRHigh SNR More Difficult to JamMore Difficult to Jam But Easily DeceivedBut Easily Deceived Amp can be tuned toAmp can be tuned to look for expectedlook for expected frequenciesfrequencies

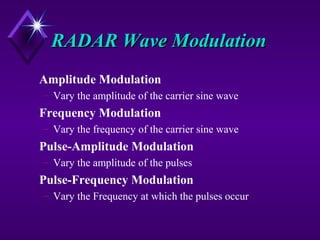

RADAR Wave ModulationRADAR Wave Modulation Amplitude Modulation – Vary the amplitude of the carrier sine wave Frequency Modulation – Vary the frequency of the carrier sine wave Pulse-Amplitude Modulation – Vary the amplitude of the pulses Pulse-Frequency Modulation – Vary the Frequency at which the pulses occur

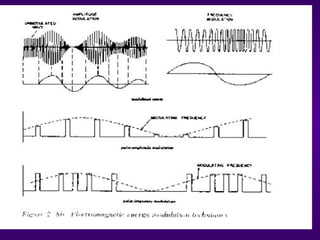

ModulationModulation

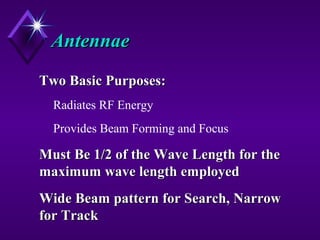

AntennaeAntennae Two Basic Purposes:Two Basic Purposes: Radiates RF Energy Provides Beam Forming and Focus Must Be 1/2 of the Wave Length for theMust Be 1/2 of the Wave Length for the maximum wave length employedmaximum wave length employed Wide Beam pattern for Search, NarrowWide Beam pattern for Search, Narrow for Trackfor Track

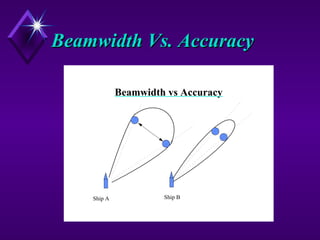

Beamwidth Vs. AccuracyBeamwidth Vs. Accuracy Beamwidth vs Accuracy Ship A Ship B

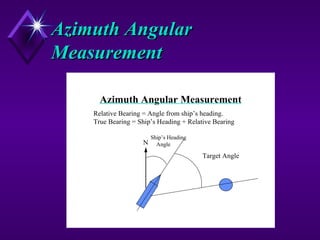

Azimuth AngularAzimuth Angular MeasurementMeasurement Azimuth Angular Measurement Relative Bearing = Angle from ship’s heading. True Bearing = Ship’s Heading + Relative Bearing N Ship’s Heading Angle Target Angle

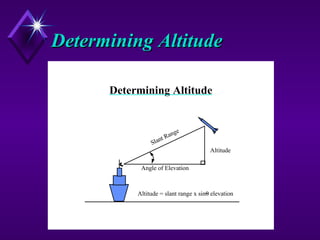

Determining AltitudeDetermining Altitude Determining Altitude Slant Range Altitude Angle of Elevation Altitude = slant range x sin0 elevation

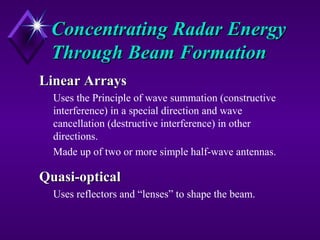

Concentrating Radar EnergyConcentrating Radar Energy Through Beam FormationThrough Beam Formation Linear ArraysLinear Arrays Uses the Principle of wave summation (constructive interference) in a special direction and wave cancellation (destructive interference) in other directions. Made up of two or more simple half-wave antennas. Quasi-opticalQuasi-optical Uses reflectors and “lenses” to shape the beam.

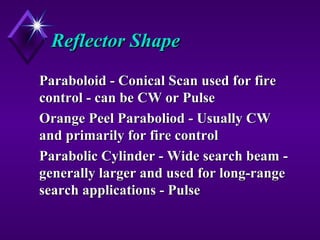

Reflector ShapeReflector Shape Paraboloid - Conical Scan used for fireParaboloid - Conical Scan used for fire control - can be CW or Pulsecontrol - can be CW or Pulse Orange Peel Paraboliod - Usually CWOrange Peel Paraboliod - Usually CW and primarily for fire controland primarily for fire control Parabolic Cylinder - Wide search beam -Parabolic Cylinder - Wide search beam - generally larger and used for long-rangegenerally larger and used for long-range search applications - Pulsesearch applications - Pulse
Wave Shaping -Quasi-Optical SystemsWave Shaping -Quasi-Optical Systems Reflectors Lenses

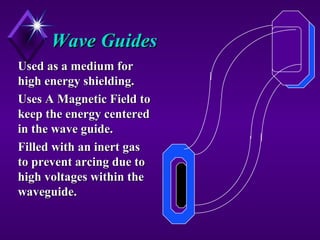

Wave GuidesWave Guides Used as a medium forUsed as a medium for high energy shielding.high energy shielding. Uses A Magnetic Field toUses A Magnetic Field to keep the energy centeredkeep the energy centered in the wave guide.in the wave guide. Filled with an inert gasFilled with an inert gas to prevent arcing due toto prevent arcing due to high voltages within thehigh voltages within the waveguide.waveguide.
.

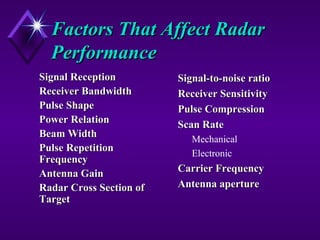

Factors That Affect RadarFactors That Affect Radar PerformancePerformance Signal ReceptionSignal Reception Receiver BandwidthReceiver Bandwidth Pulse ShapePulse Shape Power RelationPower Relation Beam WidthBeam Width Pulse RepetitionPulse Repetition FrequencyFrequency Antenna GainAntenna Gain Radar Cross Section ofRadar Cross Section of TargetTarget Signal-to-noise ratioSignal-to-noise ratio Receiver SensitivityReceiver Sensitivity Pulse CompressionPulse Compression Scan RateScan Rate Mechanical Electronic Carrier FrequencyCarrier Frequency Antenna apertureAntenna aperture

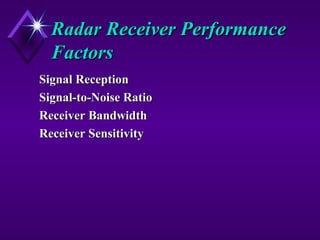

Radar Receiver PerformanceRadar Receiver Performance FactorsFactors Signal ReceptionSignal Reception Signal-to-Noise RatioSignal-to-Noise Ratio Receiver BandwidthReceiver Bandwidth Receiver SensitivityReceiver Sensitivity

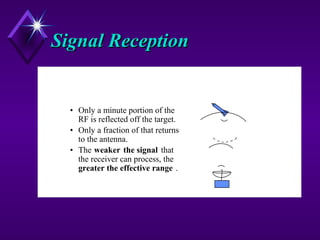

Signal ReceptionSignal Reception • Only a minute portion of the RF is reflected off the target. • Only a fraction of that returns to the antenna. • The weaker the signal that the receiver can process, the greater the effective range .

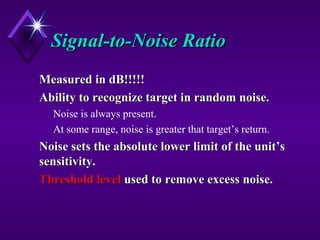

Signal-to-Noise RatioSignal-to-Noise Ratio Measured in dB!!!!!Measured in dB!!!!! Ability to recognize target in random noise.Ability to recognize target in random noise. Noise is always present. At some range, noise is greater that target’s return. Noise sets the absolute lower limit of the unit’sNoise sets the absolute lower limit of the unit’s sensitivity.sensitivity. Threshold levelThreshold level used to remove excess noise.used to remove excess noise.

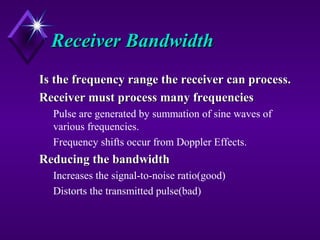

Receiver BandwidthReceiver Bandwidth Is the frequency range the receiver can process.Is the frequency range the receiver can process. Receiver must process many frequenciesReceiver must process many frequencies Pulse are generated by summation of sine waves of various frequencies. Frequency shifts occur from Doppler Effects. Reducing the bandwidthReducing the bandwidth Increases the signal-to-noise ratio(good) Distorts the transmitted pulse(bad)
RADAR SIGNAL PROCESSING Distance measurement Transit time Pulse radar Sonar radar One way to measure the distance to an object is to transmit a short pulse of radio signal (electromagnetic radiation), and measure the time it takes for the reflection to return. The distance is one-half the product of the round trip time (because the signal has to travel to the target and then back to the receiver) and the speed of the signal. Since radio waves travel at the speed of light (186,000 miles per second or 300,000,000 meters per second), accurate distance measurement requires high-performance electronics. In most cases, the receiver does not detect the return while the signal is being transmitted. Through the use of a device called a duplexer, the radar switches between transmitting and receiving at a predetermined rate. The minimum range is calculated by measuring the length of the pulse multiplied by the speed of light, divided by two. In order to detect closer targets one must use a shorter pulse length.

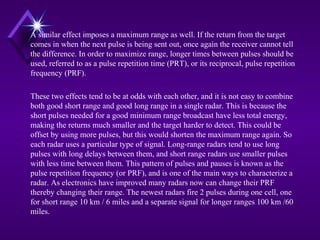

A similar effect imposes a maximum range as well. If the return from the target comes in when the next pulse is being sent out, once again the receiver cannot tell the difference. In order to maximize range, longer times between pulses should be used, referred to as a pulse repetition time (PRT), or its reciprocal, pulse repetition frequency (PRF). These two effects tend to be at odds with each other, and it is not easy to combine both good short range and good long range in a single radar. This is because the short pulses needed for a good minimum range broadcast have less total energy, making the returns much smaller and the target harder to detect. This could be offset by using more pulses, but this would shorten the maximum range again. So each radar uses a particular type of signal. Long-range radars tend to use long pulses with long delays between them, and short range radars use smaller pulses with less time between them. This pattern of pulses and pauses is known as the pulse repetition frequency (or PRF), and is one of the main ways to characterize a radar. As electronics have improved many radars now can change their PRF thereby changing their range. The newest radars fire 2 pulses during one cell, one for short range 10 km / 6 miles and a separate signal for longer ranges 100 km /60 miles.

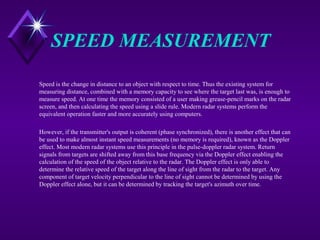

SPEED MEASUREMENT Speed is the change in distance to an object with respect to time. Thus the existing system for measuring distance, combined with a memory capacity to see where the target last was, is enough to measure speed. At one time the memory consisted of a user making grease-pencil marks on the radar screen, and then calculating the speed using a slide rule. Modern radar systems perform the equivalent operation faster and more accurately using computers. However, if the transmitter's output is coherent (phase synchronized), there is another effect that can be used to make almost instant speed measurements (no memory is required), known as the Doppler effect. Most modern radar systems use this principle in the pulse-doppler radar system. Return signals from targets are shifted away from this base frequency via the Doppler effect enabling the calculation of the speed of the object relative to the radar. The Doppler effect is only able to determine the relative speed of the target along the line of sight from the radar to the target. Any component of target velocity perpendicular to the line of sight cannot be determined by using the Doppler effect alone, but it can be determined by tracking the target's azimuth over time.

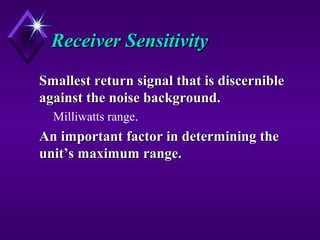

Receiver SensitivityReceiver Sensitivity Smallest return signal that is discernibleSmallest return signal that is discernible against the noise background.against the noise background. Milliwatts range. An important factor in determining theAn important factor in determining the unit’s maximum range.unit’s maximum range.

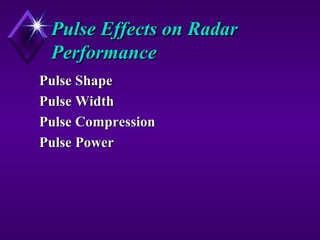

Pulse Effects on RadarPulse Effects on Radar PerformancePerformance Pulse ShapePulse Shape Pulse WidthPulse Width Pulse CompressionPulse Compression Pulse PowerPulse Power

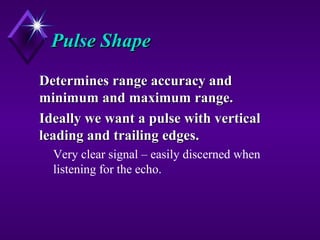

Pulse ShapePulse Shape Determines range accuracy andDetermines range accuracy and minimum and maximum range.minimum and maximum range. Ideally we want a pulse with verticalIdeally we want a pulse with vertical leading and trailing edges.leading and trailing edges. Very clear signal – easily discerned when listening for the echo.

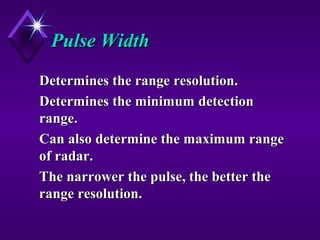

Pulse WidthPulse Width Determines the range resolution.Determines the range resolution. Determines the minimum detectionDetermines the minimum detection range.range. Can also determine the maximum rangeCan also determine the maximum range of radar.of radar. The narrower the pulse, the better theThe narrower the pulse, the better the range resolution.range resolution.

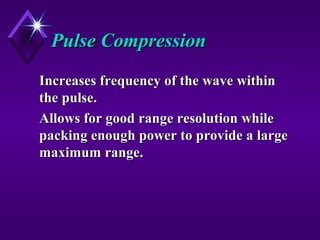

Pulse CompressionPulse Compression Increases frequency of the wave withinIncreases frequency of the wave within the pulse.the pulse. Allows for good range resolution whileAllows for good range resolution while packing enough power to provide a largepacking enough power to provide a large maximum range.maximum range.

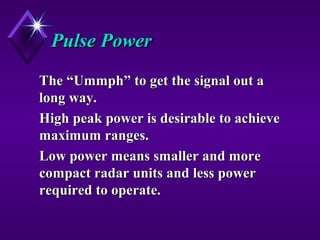

Pulse PowerPulse Power The “Ummph” to get the signal out aThe “Ummph” to get the signal out a long way.long way. High peak power is desirable to achieveHigh peak power is desirable to achieve maximum ranges.maximum ranges. Low power means smaller and moreLow power means smaller and more compact radar units and less powercompact radar units and less power required to operate.required to operate.

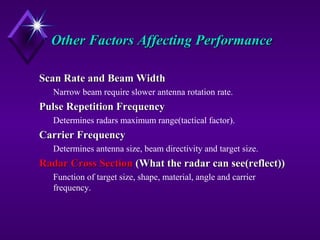

Other Factors Affecting PerformanceOther Factors Affecting Performance Scan Rate and Beam WidthScan Rate and Beam Width Narrow beam require slower antenna rotation rate. Pulse Repetition FrequencyPulse Repetition Frequency Determines radars maximum range(tactical factor). Carrier FrequencyCarrier Frequency Determines antenna size, beam directivity and target size. Radar Cross SectionRadar Cross Section (What the radar can see(reflect))(What the radar can see(reflect)) Function of target size, shape, material, angle and carrier frequency.

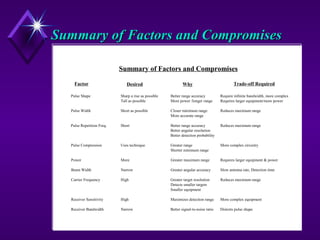

Summary of Factors and CompromisesSummary of Factors and Compromises Summary of Factors and Compromises Pulse Shape Sharp a rise as possible Better range accuracy Require infinite bandwidth, more complex Tall as possible More power /longer range Requires larger equipment/more power Pulse Width Short as possible Closer minimum range Reduces maximum range More accurate range Pulse Repetition Freq. Short Better range accuracy Reduces maximum range Better angular resolution Better detection probability Pulse Compression Uses technique Greater range More complex circuitry Shorter minimum range Power More Greater maximum range Requires larger equipment & power Beam Width Narrow Greater angular accuracy Slow antenna rate, Detection time Carrier Frequency High Greater target resolution Reduces maximum range Detects smaller targets Smaller equipment Receiver Sensitivity High Maximizes detection range More complex equipment Receiver Bandwidth Narrow Better signal-to-noise ratio Distorts pulse shape Factor Desired Why Trade-off Required

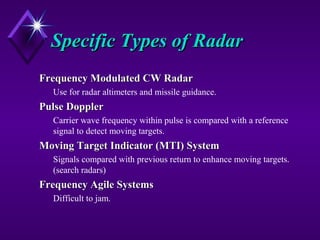

Specific Types of RadarSpecific Types of Radar Frequency Modulated CW RadarFrequency Modulated CW Radar Use for radar altimeters and missile guidance. Pulse DopplerPulse Doppler Carrier wave frequency within pulse is compared with a reference signal to detect moving targets. Moving Target Indicator (MTI) SystemMoving Target Indicator (MTI) System Signals compared with previous return to enhance moving targets. (search radars) Frequency Agile SystemsFrequency Agile Systems Difficult to jam.
Specific Types of RadarSpecific Types of Radar SAR / ISARSAR / ISAR Phased Array - AegisPhased Array - Aegis Essentially 360° Coverage Phase shift and frequency shift allow the planar array to “steer” the beam. Also allows for high / low power output depending on requirements.

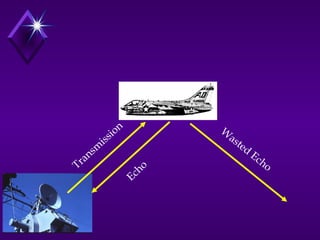

Transm ission Echo W asted Echo

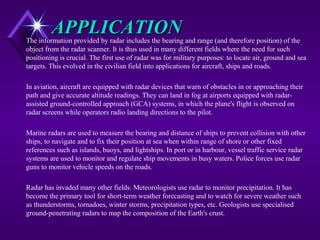

APPLICATIONAPPLICATIONThe information provided by radar includes the bearing and range (and therefore position) of the object from the radar scanner. It is thus used in many different fields where the need for such positioning is crucial. The first use of radar was for military purposes: to locate air, ground and sea targets. This evolved in the civilian field into applications for aircraft, ships and roads. In aviation, aircraft are equipped with radar devices that warn of obstacles in or approaching their path and give accurate altitude readings. They can land in fog at airports equipped with radar- assisted ground-controlled approach (GCA) systems, in which the plane's flight is observed on radar screens while operators radio landing directions to the pilot. Marine radars are used to measure the bearing and distance of ships to prevent collision with other ships, to navigate and to fix their position at sea when within range of shore or other fixed references such as islands, buoys, and lightships. In port or in harbour, vessel traffic service radar systems are used to monitor and regulate ship movements in busy waters. Police forces use radar guns to monitor vehicle speeds on the roads. Radar has invaded many other fields. Meteorologists use radar to monitor precipitation. It has become the primary tool for short-term weather forecasting and to watch for severe weather such as thunderstorms, tornadoes, winter storms, precipitation types, etc. Geologists use specialised ground-penetrating radars to map the composition of the Earth's crust.

More Related Content

PPTX
Radar fundamentals
byAli Sufyan

PPTX
Study of Radar System PPT
byAtul Sharma

PPT
introduction to radar
byabdulrehmanali

PPTX
Radar communication
bySaurabh Kumar

PPT
radar
byjhcid

PPTX
RADAR
byAMAN SRIVASTAVA

PDF
Radar ppt
bypratibha007

PPTX
radar
byjhcid

Radar fundamentals
byAli Sufyan

Study of Radar System PPT
byAtul Sharma

introduction to radar
byabdulrehmanali

Radar communication
bySaurabh Kumar

radar
byjhcid

RADAR
byAMAN SRIVASTAVA

Radar ppt
bypratibha007

radar
byjhcid


What's hot

PPTX
Radar
byMaulikS2

PPT
Radar Basics
byAziz Zoaib

PPT
Radar
byAnkitha_Vallabhaneni

PPTX
Radar system
bynitesh kumar

PPT
radar
byRamasubbu .P

PPSX
Chapter 3- pulsed radar system and MTI
byRima Assaf

PPTX
ppt on radar system
byBiswajit Das

PPT
radar technology
byvipin mishra

PPTX
Radar presentation
byعبدالله صقر

PDF
Radar 2009 a 11 waveforms and pulse compression
byForward2025

PDF
Report on radar
bypratibha007

PPT
Pulse Doppler Radar
byAkhilesh Arora

PPTX
radar and radar management
bykhalidmorsalin

PPTX
Radar and it's applications
byDudekula Jamal

PPTX
Radar Systems for NTU, 1 Nov 2014
byTBSS Group

PPT
Principle of FMCW radar
bytobiasotto

PPT
Radar communication
bysaravanan saminathan

PDF
Radar 2009 a 14 airborne pulse doppler radar
byForward2025

PPT
1 radar basic - part ii
bySolo Hermelin

DOCX
Study of Radar System
byAtul Sharma

Radar
byMaulikS2

Radar Basics
byAziz Zoaib

Radar
byAnkitha_Vallabhaneni

Radar system
bynitesh kumar

radar
byRamasubbu .P

Chapter 3- pulsed radar system and MTI
byRima Assaf

ppt on radar system
byBiswajit Das

radar technology
byvipin mishra

Radar presentation
byعبدالله صقر

Radar 2009 a 11 waveforms and pulse compression
byForward2025

Report on radar
bypratibha007

Pulse Doppler Radar
byAkhilesh Arora

radar and radar management
bykhalidmorsalin

Radar and it's applications
byDudekula Jamal

Radar Systems for NTU, 1 Nov 2014
byTBSS Group

Principle of FMCW radar
bytobiasotto

Radar communication
bysaravanan saminathan

Radar 2009 a 14 airborne pulse doppler radar
byForward2025

1 radar basic - part ii
bySolo Hermelin

Study of Radar System
byAtul Sharma


Similar to radar-principles

PPTX
introduction to radar and signal transmission
bypramodaylapogu1

PPTX
Radar ece
byDEEPUCHOUDHARY2

PPTX
Fdp radar
byDeepa Renjith

PPTX
UNIT-1 RADAR -PULSE RADAR OPERATION AND ADVANTAGES
byDrKSANTOSHKUMAR

PPTX
CHAPTER 1 PRINCIPLES OF RADAR.pptx
byJaamacAbdikhayr

PDF
Principles of RADAR Systems
byMIST

PPTX
UNIT - 1principlea of radar information.pptx
bygurramkondasadaf

PPT
Radar
byVivek Srivastava

PDF
introduction to radar system and devices.pdf
byassdali110202

PPTX
radar.pptx
byambemPrashanthi

DOCX
Radar
bytusharpindel

PDF
Introduction Radar signal processing.pdf
byRaoni13

DOC
STEALTH TECHNOLOGY|| RCS REDUCTION|| TECHNICAL PAPER
byyashwanth sankoju

PPT
chandra shekhar_Unit 2 _Radar_ feb 4 2016
byCHANDRA SHEKHAR

PDF
Radar-Systems-Class Notes for ECE students
bySHAIKKHADARSHARIF2

PPTX
Radar ppt.pptx
byFirstknightPhyo

PDF
Book 1 “Radar Basics”
byTimour Chaikhraziev

PDF
Radar
byHai Quan

PDF
Radar design compassing the design and manufacture of integrated circuits (IC...
byssusereaf676

PPTX
RADAR SYSTEMS
byAmjad Khan

introduction to radar and signal transmission
bypramodaylapogu1

Radar ece
byDEEPUCHOUDHARY2

Fdp radar
byDeepa Renjith

UNIT-1 RADAR -PULSE RADAR OPERATION AND ADVANTAGES
byDrKSANTOSHKUMAR

CHAPTER 1 PRINCIPLES OF RADAR.pptx
byJaamacAbdikhayr

Principles of RADAR Systems
byMIST

UNIT - 1principlea of radar information.pptx
bygurramkondasadaf

Radar
byVivek Srivastava

introduction to radar system and devices.pdf
byassdali110202

radar.pptx
byambemPrashanthi

Radar
bytusharpindel

Introduction Radar signal processing.pdf
byRaoni13

STEALTH TECHNOLOGY|| RCS REDUCTION|| TECHNICAL PAPER
byyashwanth sankoju

chandra shekhar_Unit 2 _Radar_ feb 4 2016
byCHANDRA SHEKHAR

Radar-Systems-Class Notes for ECE students
bySHAIKKHADARSHARIF2

Radar ppt.pptx
byFirstknightPhyo

Book 1 “Radar Basics”
byTimour Chaikhraziev

Radar
byHai Quan

Radar design compassing the design and manufacture of integrated circuits (IC...
byssusereaf676

RADAR SYSTEMS
byAmjad Khan


More from jhcid

PPT
wireless-communication-architecture
byjhcid

PPTX
a-presentation-on-wireless-communication
byjhcid

PPTX
sonar
byjhcid

PPT
satellite-communications
byjhcid

PPT
ppt-on-satellite
byjhcid

PPS
satellite-communications
byjhcid

PPT
satellite-communication
byjhcid

PPTX
satellite-communication-ppt
byjhcid

PPT
radar
byjhcid

PPT
cellular-communication
byjhcid

PPT
cellular communication
byjhcid

PPT
-introduction-to-cellular-mobile-communications
byjhcid

PPT
cellular-communications
byjhcid

PPT
arduino-1
byjhcid

PPT
arduino
byjhcid

PPTX
arduino
byjhcid

PPT
arduino-ppt
byjhcid

PPT
microprocessor and microcntroller
byjhcid

PPT
microprocessor-and-microcontroller
byjhcid

PPT
microcontroller-8051-ppt
byjhcid

wireless-communication-architecture
byjhcid

a-presentation-on-wireless-communication
byjhcid

sonar
byjhcid

satellite-communications
byjhcid

ppt-on-satellite
byjhcid

satellite-communications
byjhcid

satellite-communication
byjhcid

satellite-communication-ppt
byjhcid

radar
byjhcid

cellular-communication
byjhcid

cellular communication
byjhcid

-introduction-to-cellular-mobile-communications
byjhcid

cellular-communications
byjhcid

arduino-1
byjhcid

arduino
byjhcid

arduino
byjhcid

arduino-ppt
byjhcid

microprocessor and microcntroller
byjhcid

microprocessor-and-microcontroller
byjhcid

microcontroller-8051-ppt
byjhcid


Recently uploaded

PPTX
PEMET 413 KTU 2024 MODULE 2 LECTURE 3.pptx
byVINAY B

PPTX
DISINFECTANT & DISINFECTION PROCESS.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

PDF
22PE0IT4C_Artificial_Intelligence_Unit_1_QB_Final
byGuru Nanak Technical Institutions

PPTX
Diagram of Control Valves used in Industrial Fluid Power.pptx
bySBM Polytechnic

PDF
E120A390QSR 1.2″ Round OLED Display Module 390×390 AMOLED
bySyluxdisplay

PDF
TU/e - 2025-2026 - Lecture Geotechnics 3 - Arkesteijn
byRuud Arkesteijn

PPTX
PEMET 413 KTU 2024 SCHEME MODULE 2 LECTURE 4.pptx
byVINAY B

PDF
algothon event ppt from gdg on campus nsec
byasutoshkumar560

PPTX
22PEOIT4C Unit 3 Session 18 First Order Logic.pptx
byGuru Nanak Technical Institutions

PPTX
TEST presentation to see if I can share it with notes.
byFernando Benavides

PDF
Operating system Introduction to System Call
bySanjay Gunjal

PDF
22PEOIT4C Artificial Intelligence Unit II notes Final.pdf
byGuru Nanak Technical Institutions

PDF
TU/e - Lecture Geotechnics - Case Singelgrachtgarage-Marnix - Arkesteijn
byRuud Arkesteijn

PPTX
Calculation of hardness of Water on Ion Exchange.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

PPTX
1.1 Structure of Materials_Material science.pptx
byDr. Sandip Thorat

PPTX
RTOS_Automatic_Room_Light_Controller_ Exp.no.1.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

PDF
22PEOIT4C_Artificial_Intelligence_UNIT_III_Notes_Final
byGuru Nanak Technical Institutions

PPTX
Web Technology Overview with list of assignments along with the technology
byYogeshDeshmukh85

PDF
Life Cycle Analysis of Electric and Internal Combustion Engine Vehicles
byUniversity Institute of Technology, Barkatullah University

PDF
Performance Benchmarking Strategies for AI/HPC/EdgeAI
byDanny Jiang

PEMET 413 KTU 2024 MODULE 2 LECTURE 3.pptx
byVINAY B

DISINFECTANT & DISINFECTION PROCESS.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

22PE0IT4C_Artificial_Intelligence_Unit_1_QB_Final
byGuru Nanak Technical Institutions

Diagram of Control Valves used in Industrial Fluid Power.pptx
bySBM Polytechnic

E120A390QSR 1.2″ Round OLED Display Module 390×390 AMOLED
bySyluxdisplay

TU/e - 2025-2026 - Lecture Geotechnics 3 - Arkesteijn
byRuud Arkesteijn

PEMET 413 KTU 2024 SCHEME MODULE 2 LECTURE 4.pptx
byVINAY B

algothon event ppt from gdg on campus nsec
byasutoshkumar560

22PEOIT4C Unit 3 Session 18 First Order Logic.pptx
byGuru Nanak Technical Institutions

TEST presentation to see if I can share it with notes.
byFernando Benavides

Operating system Introduction to System Call
bySanjay Gunjal

22PEOIT4C Artificial Intelligence Unit II notes Final.pdf
byGuru Nanak Technical Institutions

TU/e - Lecture Geotechnics - Case Singelgrachtgarage-Marnix - Arkesteijn
byRuud Arkesteijn

Calculation of hardness of Water on Ion Exchange.pptx
byChemical Engineering Dept. NIT Rourkela-769008, Odisha, India

1.1 Structure of Materials_Material science.pptx
byDr. Sandip Thorat

RTOS_Automatic_Room_Light_Controller_ Exp.no.1.pptx
bySanjivani College of Engineering, Kopargaon, Ahmednagar, Maharashtra, India

22PEOIT4C_Artificial_Intelligence_UNIT_III_Notes_Final
byGuru Nanak Technical Institutions

Web Technology Overview with list of assignments along with the technology
byYogeshDeshmukh85

Life Cycle Analysis of Electric and Internal Combustion Engine Vehicles
byUniversity Institute of Technology, Barkatullah University

Performance Benchmarking Strategies for AI/HPC/EdgeAI
byDanny Jiang


radar-principles

  • 1.
    Radar PrinciplesRadar Principles && SystemsSystems AKHILMOHAN SHARMAAKHIL MOHAN SHARMA ECEECE 16114828071611482807
  • 2.
    INTRODUCTIONINTRODUCTION Radar is anobject-detection system that uses electromagnetic waves - specifically radio waves - to identify the range, altitude, direction or speed of both moving and fixed objects such as aircraft, ships, spacecraft, mountain ranges, radio and TV towers, guided missiles, motor vehicles, weather formations, and terrain. The radar dish, or antenna, transmits pulses of radio waves or microwaves which bounce off any object in their path. The object returns a tiny part of the wave's energy to a dish or antenna which is usually located at the same site as the transmitter. The term RADAR was coined in 1940 by electronics engineers working for the U.S. Navy as an acronym for RAdio Detection And Ranging.
  • 3.
    BRIEF HISTORYBRIEF HISTORY Beforethe Second World War developments by the British, the Germans, the French, the Soviets and the Americans led to the modern version of radar. In 1934 the French Émile Girardeau stated he was building a radar system "conceived according to the principles stated by Tesla" and obtained a patent (French Patent n° 788795 in 1934) for a working dual radar system, a part of which was installed on the Normandie liner in 1935.The same year, American Dr. Robert M. Page tested the first monopulse radar and the Soviet military engineer P.K.Oschepkov, in collaboration with Leningrad Electrophysical Institute, produced an experimental apparatus RAPID capable of detecting an aircraft within 3 km of a receiver. Hungarian Zoltán Bay produced a working model by 1936 at the Tungsram laboratory in the same vein. The British were the first to fully exploit radar as a defence against aircraft attack. This was spurred on by fears that the Germans were developing death rays. The Air Ministry asked British scientists in 1934 to investigate the possibility of propagating electromagnetic energy and the likely effect
  • 4.
    BASIC PRINCIPLESBASIC PRINCIPLES Aradar system has a transmitter that emits radio waves called radar signals in predetermined directions. When these come into contact with an object they are usually reflected and/or scattered in many directions. Radar signals are reflected especially well by materials of considerable electrical conductivity - especially by most metals, by seawater, by wet land, and by wetlands. Some of these make the use of radar altimeters possible. The radar signals that are reflected back towards the transmitter are the desirable ones that make radar work. If the object is moving either closer or farther away, there is a slight change in the frequency of the radio waves, due to the Doppler effect. Radar receivers are usually, but not always, in the same location as the transmitter. Although the reflected radar signals captured by the receiving antenna are usually very weak, these signals can be strengthened by the electronic amplifiers that all radar sets contain. More sophisticated methods of signal processing are also nearly always used in order to recover useful radar signals.
  • 5.
    The weak absorptionof radio waves by the medium through which it passes is what enables radar sets to detect objects at relatively-long ranges - ranges at which other electromagnetic wavelengths, such as visible light, infrared light, and ultraviolet light, are too strongly attenuated. In particular, there are weather conditions under which radar works well regardless of the weather. Such things as fog, clouds, rain, falling snow, and sleet that block visible light are usually transparent to radio waves. Certain, specific radio frequencies that are absorbed or scattered by water vapor, raindrops, or atmospheric gases (especially oxygen) are avoided in designing radars except when detection of these is intended. Finally, radar relies on its own transmissions, rather than light from the Sun or the Moon, or from electromagnetic waves emitted by the objects themselves, such as infrared wavelengths (heat). This process of directing artificial radio waves towards objects is called illumination, regardless of the fact that radio waves are completely invisible to the human eye or cameras.
  • 6.
    Reflection Brightness can indicatereflectivity as in this 1960 weather radar image (of Hurricane Abby). The radar's frequency, pulse form, polarization, signal processing, and antenna determine what it can observe. Electromagnetic waves reflect (scatter) from any large change in the dielectric constant or diamagnetic constants. This means that a solid object in air or a vacuum, or other significant change in atomic density between the object and what is surrounding it, will usually scatter radar (radio) waves. This is particularly true for electrically conductive materials, such as metal and carbon fiber, making radar particularly well suited to the detection of aircraft and ships. Radar absorbing material, containing resistive and sometimes magnetic substances, is used on military vehicles to reduce radar reflection. This is the radio equivalent of painting something a dark color so that it cannot be seen through normal means (see stealth technology). Radar waves scatter in a variety of ways depending on the size (wavelength) of the radio wave and the shape of the target. If the wavelength is much shorter than the target's size, the wave will bounce off in a way similar to the way light is reflected by a mirror. If the wavelength is much longer than the size of the target, the target may not be visible due to poor reflection. Low Frequency radar technology is dependent on resonances for detection, but not identification of targets. This is described by Rayleigh scattering, an effect that creates the Earth's blue sky and red sunsets. When the two length scales are comparable, there may be resonances. Early radars used very long wavelengths that were larger than the targets and received a vague signal, whereas some modern systems use shorter wavelengths (a few centimeters or shorter) that can image objects as small as a loaf of bread.
  • 7.
    RADAR EQUATIONRADAR EQUATION Thepower Pr returning to the receiving antenna is given by the radar equation: P_r = {{P_t G_t A_r sigma F^4}over{{(4pi)}^2 R_t^2R_r^2}} where * Pt = transmitter power * Gt = gain of the transmitting antenna * Ar = effective aperture (area) of the receiving antenna * σ = radar cross section, or scattering coefficient, of the target * F = pattern propagation factor * Rt = distance from the transmitter to the target * Rr = distance from the target to the receiver.
  • 8.
    In the commoncase where the transmitter and the receiver are at the same location, Rt = Rr and the term Rt² Rr² can be replaced by R4, where R is the range. This yields: This shows that the received power declines as the fourth power of the range, which means that the reflected power from distant targets is very, very small. The equation above with F = 1 is a simplification for vacuum without interference. The propagation factor accounts for the effects of multipath and shadowing and depends on the details of the environment. In a real-world situation, pathloss effects should also be considered.
  • 9.
    DOPPLERS EFFECTDOPPLERS EFFECT Ground-basedradar systems used for detecting speeds rely on the Doppler effect. The apparent frequency (f) of the wave changes with the relative position of the target. The doppler equation is stated as follows for vobs (the radial speed of the observer) and vs (the radial speed of the target) and f0 frequency of wave : f = {{v+v_{obs}}over{v-v_s}}f_0 However, the change in phase of the return signal is often used instead of the change in frequency. It is to be noted that only the radial component of the speed is available. Hence when a target moving at right angle to the radar beam, it has no velocity while one parallel to it has maximum recorded speed even if both might have the same real absolute motion.
  • 11.
    Two Basic RadarTypesTwo Basic Radar Types Pulse TransmissionPulse Transmission Continuous WaveContinuous Wave
  • 12.
  • 13.
    Range vs. Power/PW/PRFRangevs. Power/PW/PRF •Minimum Range: If still transmitting when return received RETURN NOT SEEN. •Max Range: PRFPWPRT PW PeakPower erAveragePow *== As min Rh max Rh PW PRF
  • 14.
    2. Pulse repetitionfrequency (PRF) a. Pulses per second b. Relation to pulse repetition time (PRT) c. Effects of varying PRF (1) Maximum range (2) Accuracy 3. Peak power a. Maximum signal power of any pulse b. Affects maximum range of radar
  • 15.
    4. Average power a.Total power transmitted per unit of time b. Relationship of average power to PW and PRT 5. Duty cycle a. Ratio PW (time transmitting) to PRT (time of entire cycle, time transmitting plus rest time) b. Also equal to ratio of average power to peak power
  • 16.
    Determining Range WithPulse RadarDetermining Range With Pulse Radar 2 *tc Range = c = 3 x 108 m/sec t is time to receive return divide by 2 because pulse traveled to object and back
  • 17.
    Pulse TransmissionPulse Transmission PulseWidth (PW)Pulse Width (PW) Length or duration of a given pulse Pulse Repetition Time (PRT=1/PRF)Pulse Repetition Time (PRT=1/PRF) PRT is time from beginning of one pulse to the beginning of the next PRF is frequency at which consecutive pulses are transmitted. PW can determine the radar’s minimum detectionPW can determine the radar’s minimum detection range; PW can determine the radar’s maximumrange; PW can determine the radar’s maximum detection range.detection range. PRF can determine the radar’s maximum detectionPRF can determine the radar’s maximum detection range.range.
  • 18.
    D.D. Describe thecomponents of a pulse radarDescribe the components of a pulse radar system.system. 1. Synchronizer 2. Transmitter 3. Antenna 4. Duplexer 5. Receiver 6. Display unit 7. Power supply
  • 19.
    Pulse Radar BlockDiagramPulse Radar Block Diagram Power Supply Synchronizer Transmitter Display Duplexer (Switching Unit) Receiver Antenna Antenna Bearing or Elevation Video Echo ATRRF TR
  • 20.
    Continuous Wave RadarContinuousWave Radar Employs continualEmploys continual RADAR transmissionRADAR transmission Separate transmit andSeparate transmit and receive antennasreceive antennas Relies on theRelies on the “DOPPLER SHIFT”“DOPPLER SHIFT”
  • 21.
    Doppler Frequency ShiftsDopplerFrequency Shifts Motion Away: Echo Frequency Decreases Motion Towards: Echo Frequency Increases
  • 22.
    Continuous Wave RadarContinuousWave Radar ComponentsComponents Discriminator AMP Mixer CW RF Oscillator Indicator OUTOUT ININ Transmitter Antenna Antenna
  • 23.
    Pulse Vs. ContinuousWavePulse Vs. Continuous Wave Pulse EchoPulse Echo Single AntennaSingle Antenna Gives Range, usuallyGives Range, usually Alt. as wellAlt. as well Susceptible ToSusceptible To JammingJamming Physical RangePhysical Range Determined By PWDetermined By PW and PRF.and PRF. Continuous WaveContinuous Wave Requires 2 AntennaeRequires 2 Antennae Range or Alt. InfoRange or Alt. Info High SNRHigh SNR More Difficult to JamMore Difficult to Jam But Easily DeceivedBut Easily Deceived Amp can be tuned toAmp can be tuned to look for expectedlook for expected frequenciesfrequencies
  • 24.
    RADAR Wave ModulationRADARWave Modulation Amplitude Modulation – Vary the amplitude of the carrier sine wave Frequency Modulation – Vary the frequency of the carrier sine wave Pulse-Amplitude Modulation – Vary the amplitude of the pulses Pulse-Frequency Modulation – Vary the Frequency at which the pulses occur
  • 25.
  • 26.
    AntennaeAntennae Two Basic Purposes:TwoBasic Purposes: Radiates RF Energy Provides Beam Forming and Focus Must Be 1/2 of the Wave Length for theMust Be 1/2 of the Wave Length for the maximum wave length employedmaximum wave length employed Wide Beam pattern for Search, NarrowWide Beam pattern for Search, Narrow for Trackfor Track
  • 27.
    Beamwidth Vs. AccuracyBeamwidthVs. Accuracy Beamwidth vs Accuracy Ship A Ship B
  • 28.
    Azimuth AngularAzimuth Angular MeasurementMeasurement AzimuthAngular Measurement Relative Bearing = Angle from ship’s heading. True Bearing = Ship’s Heading + Relative Bearing N Ship’s Heading Angle Target Angle
  • 29.
    Determining AltitudeDetermining Altitude DeterminingAltitude Slant Range Altitude Angle of Elevation Altitude = slant range x sin0 elevation
  • 30.
    Concentrating Radar EnergyConcentratingRadar Energy Through Beam FormationThrough Beam Formation Linear ArraysLinear Arrays Uses the Principle of wave summation (constructive interference) in a special direction and wave cancellation (destructive interference) in other directions. Made up of two or more simple half-wave antennas. Quasi-opticalQuasi-optical Uses reflectors and “lenses” to shape the beam.
  • 31.
    Reflector ShapeReflector Shape Paraboloid- Conical Scan used for fireParaboloid - Conical Scan used for fire control - can be CW or Pulsecontrol - can be CW or Pulse Orange Peel Paraboliod - Usually CWOrange Peel Paraboliod - Usually CW and primarily for fire controland primarily for fire control Parabolic Cylinder - Wide search beam -Parabolic Cylinder - Wide search beam - generally larger and used for long-rangegenerally larger and used for long-range search applications - Pulsesearch applications - Pulse
  • 32.
    Wave Shaping -Quasi-OpticalSystemsWave Shaping -Quasi-Optical Systems Reflectors Lenses
  • 33.
    Wave GuidesWave Guides Usedas a medium forUsed as a medium for high energy shielding.high energy shielding. Uses A Magnetic Field toUses A Magnetic Field to keep the energy centeredkeep the energy centered in the wave guide.in the wave guide. Filled with an inert gasFilled with an inert gas to prevent arcing due toto prevent arcing due to high voltages within thehigh voltages within the waveguide.waveguide.
  • 34.
  • 35.
    Factors That AffectRadarFactors That Affect Radar PerformancePerformance Signal ReceptionSignal Reception Receiver BandwidthReceiver Bandwidth Pulse ShapePulse Shape Power RelationPower Relation Beam WidthBeam Width Pulse RepetitionPulse Repetition FrequencyFrequency Antenna GainAntenna Gain Radar Cross Section ofRadar Cross Section of TargetTarget Signal-to-noise ratioSignal-to-noise ratio Receiver SensitivityReceiver Sensitivity Pulse CompressionPulse Compression Scan RateScan Rate Mechanical Electronic Carrier FrequencyCarrier Frequency Antenna apertureAntenna aperture
  • 36.
    Radar Receiver PerformanceRadarReceiver Performance FactorsFactors Signal ReceptionSignal Reception Signal-to-Noise RatioSignal-to-Noise Ratio Receiver BandwidthReceiver Bandwidth Receiver SensitivityReceiver Sensitivity
  • 37.
    Signal ReceptionSignal Reception •Only a minute portion of the RF is reflected off the target. • Only a fraction of that returns to the antenna. • The weaker the signal that the receiver can process, the greater the effective range .
  • 38.
    Signal-to-Noise RatioSignal-to-Noise Ratio Measuredin dB!!!!!Measured in dB!!!!! Ability to recognize target in random noise.Ability to recognize target in random noise. Noise is always present. At some range, noise is greater that target’s return. Noise sets the absolute lower limit of the unit’sNoise sets the absolute lower limit of the unit’s sensitivity.sensitivity. Threshold levelThreshold level used to remove excess noise.used to remove excess noise.
  • 39.
    Receiver BandwidthReceiver Bandwidth Isthe frequency range the receiver can process.Is the frequency range the receiver can process. Receiver must process many frequenciesReceiver must process many frequencies Pulse are generated by summation of sine waves of various frequencies. Frequency shifts occur from Doppler Effects. Reducing the bandwidthReducing the bandwidth Increases the signal-to-noise ratio(good) Distorts the transmitted pulse(bad)
  • 40.
    RADAR SIGNAL PROCESSING Distancemeasurement Transit time Pulse radar Sonar radar One way to measure the distance to an object is to transmit a short pulse of radio signal (electromagnetic radiation), and measure the time it takes for the reflection to return. The distance is one-half the product of the round trip time (because the signal has to travel to the target and then back to the receiver) and the speed of the signal. Since radio waves travel at the speed of light (186,000 miles per second or 300,000,000 meters per second), accurate distance measurement requires high-performance electronics. In most cases, the receiver does not detect the return while the signal is being transmitted. Through the use of a device called a duplexer, the radar switches between transmitting and receiving at a predetermined rate. The minimum range is calculated by measuring the length of the pulse multiplied by the speed of light, divided by two. In order to detect closer targets one must use a shorter pulse length.
  • 41.
    A similar effectimposes a maximum range as well. If the return from the target comes in when the next pulse is being sent out, once again the receiver cannot tell the difference. In order to maximize range, longer times between pulses should be used, referred to as a pulse repetition time (PRT), or its reciprocal, pulse repetition frequency (PRF). These two effects tend to be at odds with each other, and it is not easy to combine both good short range and good long range in a single radar. This is because the short pulses needed for a good minimum range broadcast have less total energy, making the returns much smaller and the target harder to detect. This could be offset by using more pulses, but this would shorten the maximum range again. So each radar uses a particular type of signal. Long-range radars tend to use long pulses with long delays between them, and short range radars use smaller pulses with less time between them. This pattern of pulses and pauses is known as the pulse repetition frequency (or PRF), and is one of the main ways to characterize a radar. As electronics have improved many radars now can change their PRF thereby changing their range. The newest radars fire 2 pulses during one cell, one for short range 10 km / 6 miles and a separate signal for longer ranges 100 km /60 miles.
  • 43.
    SPEED MEASUREMENT Speed isthe change in distance to an object with respect to time. Thus the existing system for measuring distance, combined with a memory capacity to see where the target last was, is enough to measure speed. At one time the memory consisted of a user making grease-pencil marks on the radar screen, and then calculating the speed using a slide rule. Modern radar systems perform the equivalent operation faster and more accurately using computers. However, if the transmitter's output is coherent (phase synchronized), there is another effect that can be used to make almost instant speed measurements (no memory is required), known as the Doppler effect. Most modern radar systems use this principle in the pulse-doppler radar system. Return signals from targets are shifted away from this base frequency via the Doppler effect enabling the calculation of the speed of the object relative to the radar. The Doppler effect is only able to determine the relative speed of the target along the line of sight from the radar to the target. Any component of target velocity perpendicular to the line of sight cannot be determined by using the Doppler effect alone, but it can be determined by tracking the target's azimuth over time.
  • 44.
    Receiver SensitivityReceiver Sensitivity Smallestreturn signal that is discernibleSmallest return signal that is discernible against the noise background.against the noise background. Milliwatts range. An important factor in determining theAn important factor in determining the unit’s maximum range.unit’s maximum range.
  • 45.
    Pulse Effects onRadarPulse Effects on Radar PerformancePerformance Pulse ShapePulse Shape Pulse WidthPulse Width Pulse CompressionPulse Compression Pulse PowerPulse Power
  • 46.
    Pulse ShapePulse Shape Determinesrange accuracy andDetermines range accuracy and minimum and maximum range.minimum and maximum range. Ideally we want a pulse with verticalIdeally we want a pulse with vertical leading and trailing edges.leading and trailing edges. Very clear signal – easily discerned when listening for the echo.
  • 47.
    Pulse WidthPulse Width Determinesthe range resolution.Determines the range resolution. Determines the minimum detectionDetermines the minimum detection range.range. Can also determine the maximum rangeCan also determine the maximum range of radar.of radar. The narrower the pulse, the better theThe narrower the pulse, the better the range resolution.range resolution.
  • 48.
    Pulse CompressionPulse Compression Increasesfrequency of the wave withinIncreases frequency of the wave within the pulse.the pulse. Allows for good range resolution whileAllows for good range resolution while packing enough power to provide a largepacking enough power to provide a large maximum range.maximum range.
  • 49.
    Pulse PowerPulse Power The“Ummph” to get the signal out aThe “Ummph” to get the signal out a long way.long way. High peak power is desirable to achieveHigh peak power is desirable to achieve maximum ranges.maximum ranges. Low power means smaller and moreLow power means smaller and more compact radar units and less powercompact radar units and less power required to operate.required to operate.
  • 50.
    Other Factors AffectingPerformanceOther Factors Affecting Performance Scan Rate and Beam WidthScan Rate and Beam Width Narrow beam require slower antenna rotation rate. Pulse Repetition FrequencyPulse Repetition Frequency Determines radars maximum range(tactical factor). Carrier FrequencyCarrier Frequency Determines antenna size, beam directivity and target size. Radar Cross SectionRadar Cross Section (What the radar can see(reflect))(What the radar can see(reflect)) Function of target size, shape, material, angle and carrier frequency.
  • 53.
    Summary of Factorsand CompromisesSummary of Factors and Compromises Summary of Factors and Compromises Pulse Shape Sharp a rise as possible Better range accuracy Require infinite bandwidth, more complex Tall as possible More power /longer range Requires larger equipment/more power Pulse Width Short as possible Closer minimum range Reduces maximum range More accurate range Pulse Repetition Freq. Short Better range accuracy Reduces maximum range Better angular resolution Better detection probability Pulse Compression Uses technique Greater range More complex circuitry Shorter minimum range Power More Greater maximum range Requires larger equipment & power Beam Width Narrow Greater angular accuracy Slow antenna rate, Detection time Carrier Frequency High Greater target resolution Reduces maximum range Detects smaller targets Smaller equipment Receiver Sensitivity High Maximizes detection range More complex equipment Receiver Bandwidth Narrow Better signal-to-noise ratio Distorts pulse shape Factor Desired Why Trade-off Required
  • 54.
    Specific Types ofRadarSpecific Types of Radar Frequency Modulated CW RadarFrequency Modulated CW Radar Use for radar altimeters and missile guidance. Pulse DopplerPulse Doppler Carrier wave frequency within pulse is compared with a reference signal to detect moving targets. Moving Target Indicator (MTI) SystemMoving Target Indicator (MTI) System Signals compared with previous return to enhance moving targets. (search radars) Frequency Agile SystemsFrequency Agile Systems Difficult to jam.
  • 55.
    Specific Types ofRadarSpecific Types of Radar SAR / ISARSAR / ISAR Phased Array - AegisPhased Array - Aegis Essentially 360° Coverage Phase shift and frequency shift allow the planar array to “steer” the beam. Also allows for high / low power output depending on requirements.
  • 56.
  • 57.
    APPLICATIONAPPLICATIONThe information providedby radar includes the bearing and range (and therefore position) of the object from the radar scanner. It is thus used in many different fields where the need for such positioning is crucial. The first use of radar was for military purposes: to locate air, ground and sea targets. This evolved in the civilian field into applications for aircraft, ships and roads. In aviation, aircraft are equipped with radar devices that warn of obstacles in or approaching their path and give accurate altitude readings. They can land in fog at airports equipped with radar- assisted ground-controlled approach (GCA) systems, in which the plane's flight is observed on radar screens while operators radio landing directions to the pilot. Marine radars are used to measure the bearing and distance of ships to prevent collision with other ships, to navigate and to fix their position at sea when within range of shore or other fixed references such as islands, buoys, and lightships. In port or in harbour, vessel traffic service radar systems are used to monitor and regulate ship movements in busy waters. Police forces use radar guns to monitor vehicle speeds on the roads. Radar has invaded many other fields. Meteorologists use radar to monitor precipitation. It has become the primary tool for short-term weather forecasting and to watch for severe weather such as thunderstorms, tornadoes, winter storms, precipitation types, etc. Geologists use specialised ground-penetrating radars to map the composition of the Earth's crust.

Editor's Notes

  • #2 What is RADAR an acronym for? Radio Detection and Ranging. Radio wave is generated, transmitted, reflected, and detected. RADAR unimpaired by night, fog, clouds, smoke. Not as detailed as actual sight. RADAR is good for isolated targets against a relatively featureless background.

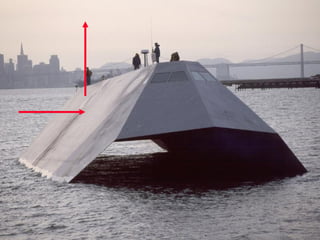

  • #11 Stealth Ship Designed to test the effects of stealth technology on Naval Warships. What kind of radar reflection will we get off this target? Note the angles, also coated with radar absorbing material.
  • #12 Pulse - RADAR transmits a series of pulses separated by non-transmission intervals during which the radar “listens” for a return. Continuous Wave - Constantly emitting radar. Relative motion of either the radar or the target is required to indicate target position. Frequency shift.
  • #18 1. The pulse width determines the minimum range that the target can be detected. a. If transmitter is still on when the pulse (echo)is returned then won’t see the return. b. Need short pulses to detect close targets. 2. Need long pulses to have sufficient power to reach targets that have long ranges. 3. Pulse Repetition Time, Frequency or Rate. a. The length of time the transmitter is off (longer PRF) the longer the radar’s maximum range will be. (Use the drawing to explain) KEY Points: 1. Varying the pulse width affects the range of the radar. 2. Need short pulses for short range targets. 3. PW determines radar’s minimum range resolution. 4. The slower the PRF the greater the radar’s maximum range. 5. The faster the PRF the greater the radar’s accuracy.
  • #21 Second major type of radar. Produces a constant stream of energy. Can’t distinguish distances (range) because no interval between pulses. Can distinguish between moving and non-moving targets by using Doppler frequency shifts.
  • #22 (p. 104 in text) 1. Doppler frequency shift describes the effect that motion has on a reflected frequency. 2. Use the diagram to show: a. If the wall is moving away a ball will have to travel farther than the previous ball so the reflected balls are further apart. b. If the wall is moving toward, a ball will have to travel a shorter distance than the previous ball so the reflected balls are closer together. 3. If you assume that each ball represents the top of a wave so the distance between each ball represents a wave cycle then you find: a. The frequency of the echo is lower if the target is moving away. b. The frequency of the echo is higher if the target is coming towards. ** This is why the sound of a passing train or airplane goes from higher pitch to lower pitch. 4. Key Points: a. Frequency expansion is the lowering of the echo frequency caused by an opening target (target moving away). DOWN DOPPLER b. Frequency compression is the raising of the echo frequency caused by the closing target (target moving closer). UP DOPPLER c. The moving of the transmitter can also cause frequency shifts (it’s relative motion that produces the effect). d. The faster the relative motion change the greater the frequency shift.
  • #23 Make copies for distribution. 1. Transmit/Receive Antennas. Since must operate simultaneously, must be located separately so receiving antenna doesn’t pick up transmitted signal. 2. Oscillator or Power Amplifier. Sends out signal to transmit antenna. Also sends sample signal to Mixer. (used as a reference) 3. Mixer. a. A weak sample of the transmitted RF energy is combined with the received echo signal. b. The two signal will differ because of the Doppler shift. c. The output of the mixer is a function of the difference in frequencies. 4. Amplifier. Increases strength of signal before sending it to the indicator. 5. Discriminator. a. Selects desired frequency bands for Doppler shifts, eliminates impossible signals. b. The unit will only allow certain frequency bands so won’t process stray signals. 6. Indicator. Displays data. Displays velocity or the component directly inbound or directly outbound. Range is not measured. 7. Filters. Used to reduce noise, used in amp to reduce sea return, land clutter, and other non-desirable targets.
  • #24 Discuss Slide Range for CW: (p. 106) Frequency Modulated Continuous Wave. Altitude for CW: Slant range (see coming slide)
  • #25 Draw waves on the board and discuss. 1. The basic radar and communication transmission waves are modified to: a. Allow the system to get more information out of a single transmission. b. Enhance the signal processing in the receiver. c. To deal with countermeasures (jamming, etc.) d. Security (change characteristics) 2. Both CW and Pulse signals can be changed or MODULATED 3. Show slide. 4. Common Modifications are: a. AM b. FM c. Pulse Amplitude d. Pulse Frequency 5. Modulation is achieved by adding signals together.
  • #27 The antenna is used to radiate the RF energy created by the transmitter. It also receives the reflected energy and sends it to the receiver. Show slide: 1. Remember from discussion on how a RF transmission is made. a. A dipole antenna is the simplest form of RF antenna. b. Optimal radiation is achieved with an antenna length of 1/2 a wave length long or multiples thereof. c. Electrical field strength is strongest in middle and least at top/bottom. d. Maximum field strength is perpendicular to the antenna e. Field extends 360 degrees around antenna. 2. Beam Pattern represents the electromagnetic field around antenna. a. It is a snap shot at any given time. b. Lines represents field strength (in the example it is strongest on x axis) c. Field goes to near zero 30-40 degrees off horizontal axis 3. Simple antenna doesn’t help us locate a target just that he is in the cone. It would be a help if we could: a. Illuminate a specific area (for accurate location data) b. Not wasting power by looking in unwanted directions c. Focus more power in the area we want to look at 4. We improve system performance and efficiency through manipulation of the beam’s formation. The major way we do this is by the antenna.
  • #28 1. The size of the width of the beam (beam-width) determines the angular accuracy of the radar. From drawing we see that the target could be any where in the beam to produce a return. Ship B can more accurately determine where the target really is. 2. The function of the radar determines how narrow the beam-width is needed. a Search radars sacrifice accuracy for range. (wide beam-widths at high power) b. Tracking or targeting radars require more accuracy (narrow beam- widths) 3. If the target is located on the center line of the beam lobe, the return will be the strongest. Key Point:. Beam-widths determine the angular accuracy of the radar. Lead in: Angular accuracy can be use to measure azimuth and elevation depending on which way the antenna is oriented.
  • #29 1. We get range from measuring the time the pulse takes to get from the antenna until the echo is received back. 2. We can get angular range by measuring the antenna angle from the heading of the ship when it is pointing at the target. a. Relative heading is just this angle from the ship. b. For true direction this angle is added to the heading of the ship. (If the summation is >360 degrees subtract 360 degrees.
  • #30 1. Show slide to show that angular measurements is simple geometry to determine height. Note: a. Must adjust for the height of the radar antenna. b. If the target is low and point the beam low you could get returns from the water surface. - Sea Return or “Sea Clutter”
  • #31 1.. We have seen the advantages of having a strong, narrow beam. How do we produce the beam? 2. Show Slide. 3. Linear Arrays: a. Work because can add waves together to get constructive or destructive interference. b. Common types of Linear arrays include: Broadside and Endfire Arrays. c. Can employ Parasitic Elements direct the beam. d. SPY is a phased array radar, more than 4,000 beam for const/dest 4. Lenses: a. Are like optical lenses they focus the beam through refraction of the energy wave. b. Can only effectively be used with very high frequencies such as microwaves. c. When you hear of a microwave horn... that is the “lens.”
  • #35 1. One of the most common Quasi-Optical Systems used to enhance the beams are reflectors. a. Reflectors are just like the reflectors used in flashlights. b. They make use of the reflectivity of Electromagnetic waves. c. Take a simple half-wave dipole antenna and reflect the energy into one large beam. 2. Because the reflecting surface is not exact and there is some scattering, will get some smaller beams in addition to the major beam. These are called MINOR LOBES. The large beam is the MAJOR LOBE.
  • #37 Most efficient means of conducting energy from transmitter to the antenna. A cable would act as a short circuit if use at that high of frequency. Hollow dialectic gas filled tube of specific dimensions. Doesn’t work like a wire conducting current. A totally different concept. Can end in flared tube which transmits the energy Should know what a wave guide is for and that if dented, crushed or punctured, it can adversely effect the performance of the system. Don’t bang on wave guides!!
  • #39 Go through this slide. See following slides for definitions of the various factors. Signal Reception: a. Only a minute portion of the RF is reflected off the target. b. Only a fraction of that returns to the antenna. c. The weaker the signal that the receiver can process, the greater the effective range. Signal-to-Noise Ratio: a. Noise(always present) sets the absolute lower limit of the sensitivity of the radar sets. (At some range the noise will be greater than the echo) b. Noise includes atmospheric disturbances, jamming, stray signal. Noise is inherent in the electronic circuits as random electron motion through a resister causes stray noise. c. To cope with this problem, the operator can set a threshold level. If signals are below this threshold level, they will not be displayed. If threshold level is set too low, you get many false detections. If set too high, could mask out real contact, (therefore, operator must compromise the gain).
  • #40 These are all factors of the design of the radar receiver.
  • #41 1. Explain why only portion of the signal gets to the target and only a fraction of that signal gets back to the receiver.
  • #42 Signal-to-Noise Ratio: a. Noise (always present) sets the absolute lower limit of the sensitivity of the radar sets. (At some range the noise will be greater than the echo) Example: Look at a cb radio. If you turn down the volume eventual you will not hear the music only the static. The static is noise. b. Noise includes atmospheric disturbances, Jamming, stray signals. Noise is inherent in electronic circuits as random electron motion through a resister causes stray noise. c. To cope with this problem, the operator can set a threshold level. If signals are below this threshold level, they will not be displayed. * If threshold level is set too low - you get many false detentions. * If set to high - could mask out the real contact. Must compromise.
  • #43 Receiver Bandwidth: a. To create a pulse many different frequency sine waves are summed so a radar must combine RF energy of different frequencies. b. Doppler effects also shift the frequencies so the radar must be capable of receiving and processing many frequencies. c. The range of frequencies is the bandwidth of the receiver. d. Reduce the bandwidth increases the signal-to-noise & distorts the pulse.
  • #48 Receiver Sensitivity: a. Defined as the smallest return signal that can produce an electrical signal to the indicator that is discernible against the noise background. b. Sensitivity is an important factor in determining the maximum radar range. c. Smallest discernible signal is measured in milliwatts and is referred to the Minimum Detectable Signal.
  • #50 Pulse Shape a. A pulse is made by summing several sinusoid waves of various frequencies. - A perfect pulse (vertical leading and trailing edges requires the receiver to process an infinite number of sine wave freq. - Internal circuit noise will also distort a pulse. b. Determines the range accuracy. (closer to vertical the better) Use graphic pulse to show rise time can confuse timing to get range. c. Pulse shape can also effect minimum detection range. - Already discussed that. Pulse must be off before echo returns.
  • #51 . Pulse Width. a. Determines range resolution and minimum detection range for same reasons as pulse shape. Can’t have pulse on when the echo returns. b. To lesser extent, pulse width can determine maximum range. - Pulse has to be big enough to hold enough energy to travel to the target and return. - The bigger the pulse the more energy it can hold and the further away the target can be an still get a measurable return. - [Power in wave is product of peak power and pulse width] c. The narrower the pulse the better the range resolution - This is a trade off with amount of power in the pulse and the effective maximum range of the radar. LIMITS the range.
  • #52 Pulse Compression. Technique that allows use of wide pulses to enhance detection capability while maintaining the range resolution of short pulsed transmissions. a. Technique of modifying the pulse so that the frequency in the pulse continually is increased. b. This allow more energy to be put in a pulse increasing range. How it works: a. When pulse echo returns it passes through filters which - slows down passing lower frequencies so faster end frequencies pile up on top of lower frequencies b. This results in a higher return pulse output and a narrower pulse width.
  • #54 1. Scan Rate and Beam Width a. If have wide beam can scan area more rapidly b. If small have to go slower, give target more time to get close without being detected. 2. Pulse Repetition Frequency a. Already talked about. Can’t have next pulse transmitting when the echo from the previous one is still on the way back. 3. Carrier Frequency a. Determines antenna size and directivity of beam. b. Lower Frequency the longer the distance can travel, the bigger the antenna required, and the more power required. c. The higher the frequency the better the resolution and the ability to detect smaller targets. Also the small the antenna size and the greater the attenuation losses. 4. Radar cross section a. Function of the target. Reflectivity of the target. b Desire good flat surfaces (perpendicular to wave) so reflect signal good, made of material that doesn’t absorb RF, and is as big as a house. This is where Stealth comes to play. Lower the object’s radar cross section.

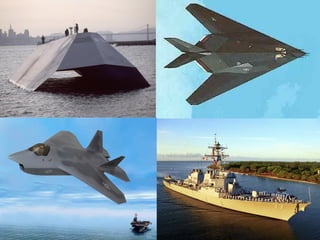

  • #55 Low RCS!
  • #57 1. Make copies and hand out 2. Use as a review if time permits.
  • #58 Pg. 72 Fig 2-39 1. Discuss displays, time permitting.
  • #59 1. Frequency Modulated CW Radar (p. 106) - Previously discussed - Good for radar altimeters and missile guidance 2. Pulse Doppler (p. 114) - Can use advantages of CW and Pulse radars - Can color-code the return. Commonly used for weather radars. In military applications, the colors can represent a target moving away from you vice towards. - The doppler shift on the return translates to a color shift in the visible spectrum. 3. MTI (p. 112) - Can be used for enhancing targets that are moving - Example: In a chaff environment, the stationary chaff can be deleted and the returns of the moving target identified. 4. Frequency Agile - Harder to jam. “Frequency Jumping”
  • #60 SAR / ISAR (p. 118-120) Phased Array (p. 121) - Discuss the Aegis system briefly.
