A queue is a first-in, first-out (FIFO) data structure with two ends - a front end for deletion and a rear end for insertion. Elements are inserted at the rear of the queue and deleted from the front. A queue can be implemented using either an array or linked list. Basic queue operations include enqueue, which inserts at the rear, and dequeue, which removes from the front. A circular queue addresses overflow issues by making the queue circular so the rear can loop back to the front when full.

1. Page 1 of 7
QUEUE
A queue is a data structure in which insertion is done at one end and deletion is done
from the other end.
A queue has two ends. They are:-
 Front End
 Rear End
Addition of entities is done to the rear terminal position and removal of entities is done
from the front terminal position. This makes the queue a First-In-First-Out (FIFO) data
structure. In a FIFO data structure, the first element added to the queue will be the first
one to be removed. This is equivalent to the requirement that whenever an element is
added, all elements that were added before have to be removed before the new element
can be invoked. A queue is an example of a linear data structure.
A queue can be represented in two ways:-
A. Array Representation of Queue.
B. Linked List Representation of Queue.
A. ARRAY REPRESENTATION OF QUEUE:-
Basic Operations on Queue:-
The two basic operations on queue are:-
 Insert or Enqueue.
 Delete or Dequeue.
1. Insert Operation on Queue:-
In a queue, insert operation takes place at rear end. An “Enqueue” operation adds an
item to the “rear” of the queue.
Prepared By Sumit Kumar Gupta, PGT Computer Science

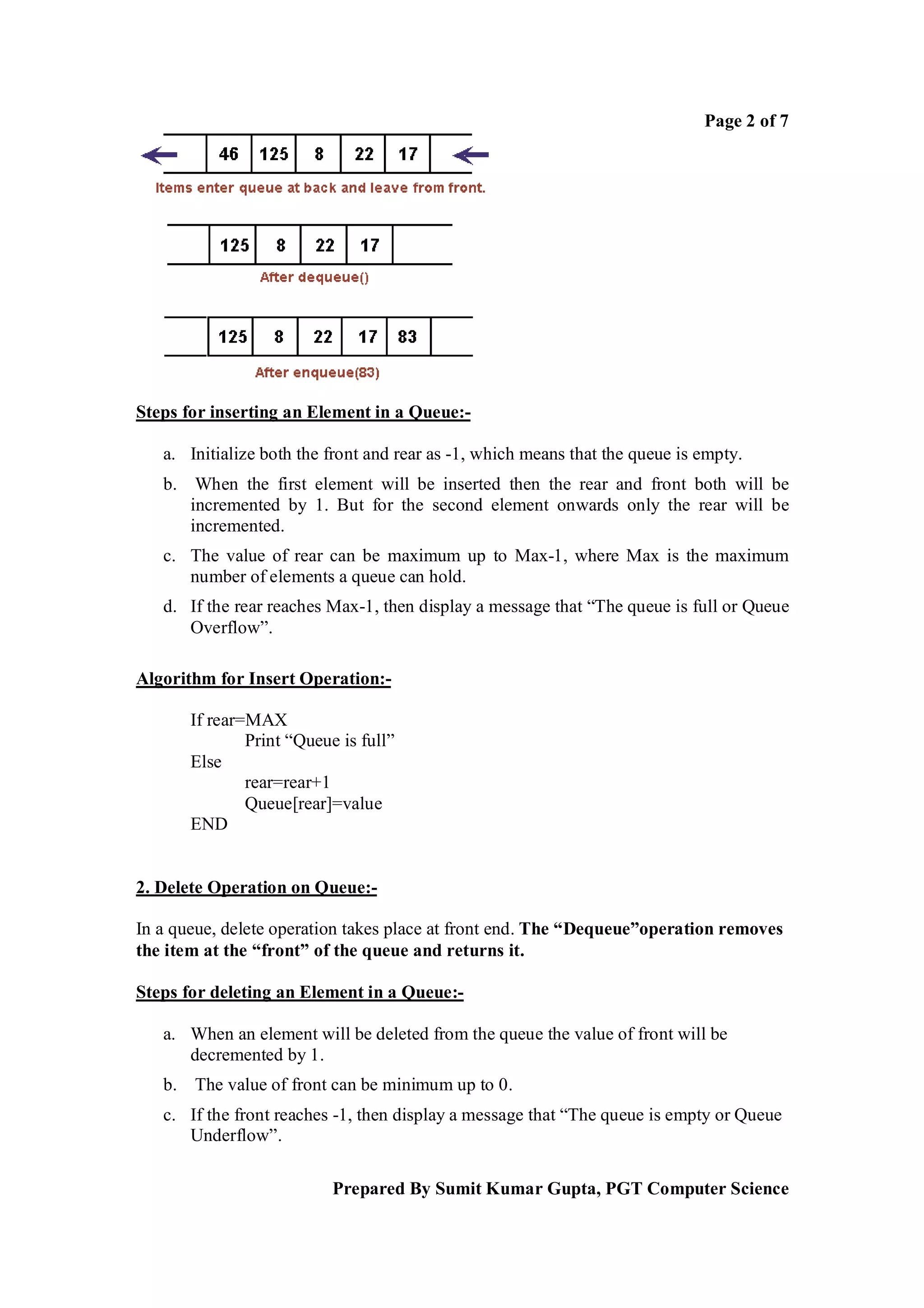

2. Page 2 of 7
Steps for inserting an Element in a Queue:-
a. Initialize both the front and rear as -1, which means that the queue is empty.
b. When the first element will be inserted then the rear and front both will be
incremented by 1. But for the second element onwards only the rear will be
incremented.
c. The value of rear can be maximum up to Max-1, where Max is the maximum
number of elements a queue can hold.
d. If the rear reaches Max-1, then display a message that “The queue is full or Queue
Overflow”.
Algorithm for Insert Operation:-
If rear=MAX
Print “Queue is full”
Else
rear=rear+1
Queue[rear]=value
END
2. Delete Operation on Queue:-
In a queue, delete operation takes place at front end. The “Dequeue”operation removes
the item at the “front” of the queue and returns it.
Steps for deleting an Element in a Queue:-
a. When an element will be deleted from the queue the value of front will be
decremented by 1.
b. The value of front can be minimum up to 0.
c. If the front reaches -1, then display a message that “The queue is empty or Queue
Underflow”.
Prepared By Sumit Kumar Gupta, PGT Computer Science

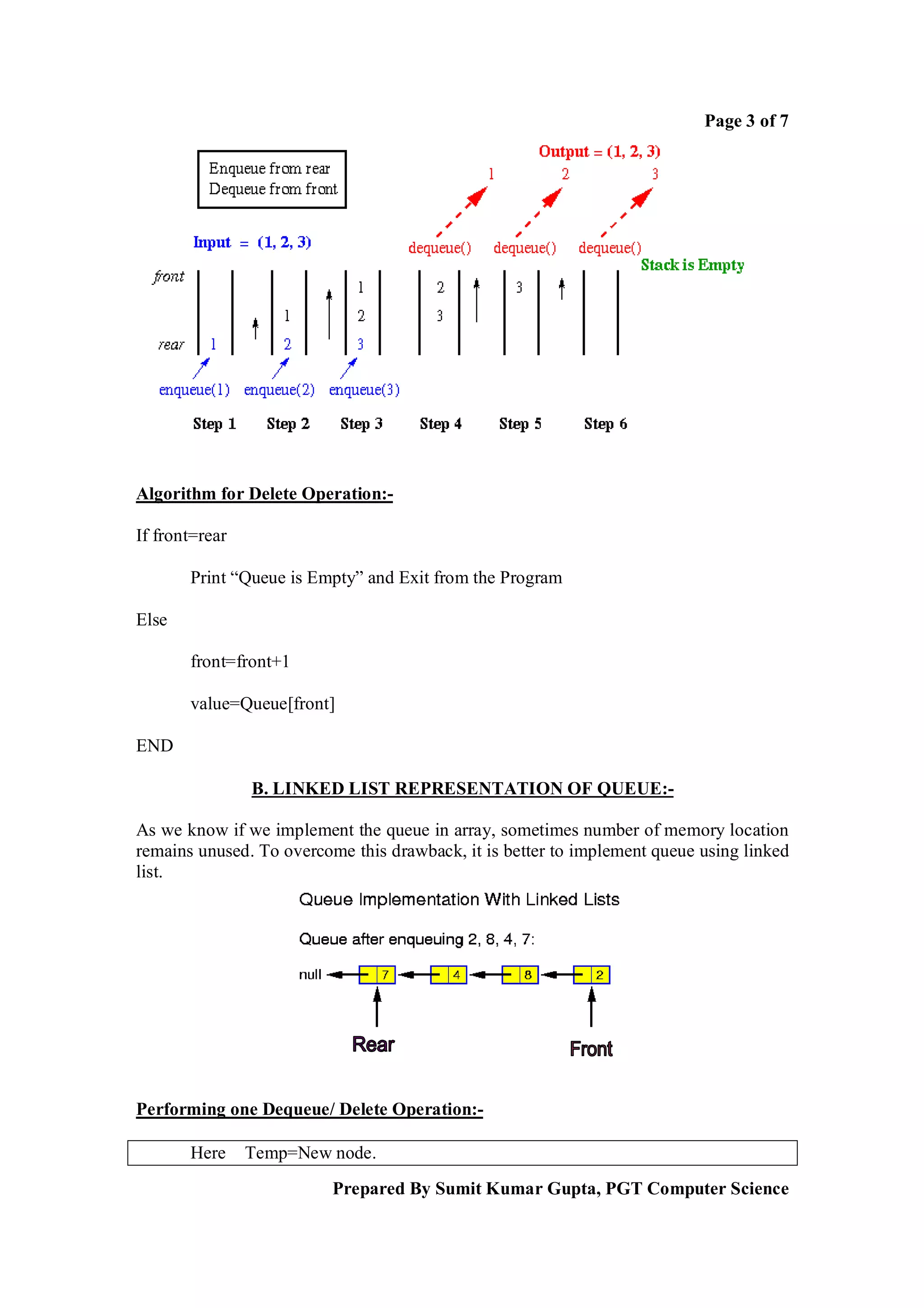

3. Page 3 of 7
Algorithm for Delete Operation:-
If front=rear
Print “Queue is Empty” and Exit from the Program
Else
front=front+1
value=Queue[front]
END
B. LINKED LIST REPRESENTATION OF QUEUE:-
As we know if we implement the queue in array, sometimes number of memory location
remains unused. To overcome this drawback, it is better to implement queue using linked
list.
Performing one Dequeue/ Delete Operation:-
Here Temp=New node.
Prepared By Sumit Kumar Gupta, PGT Computer Science

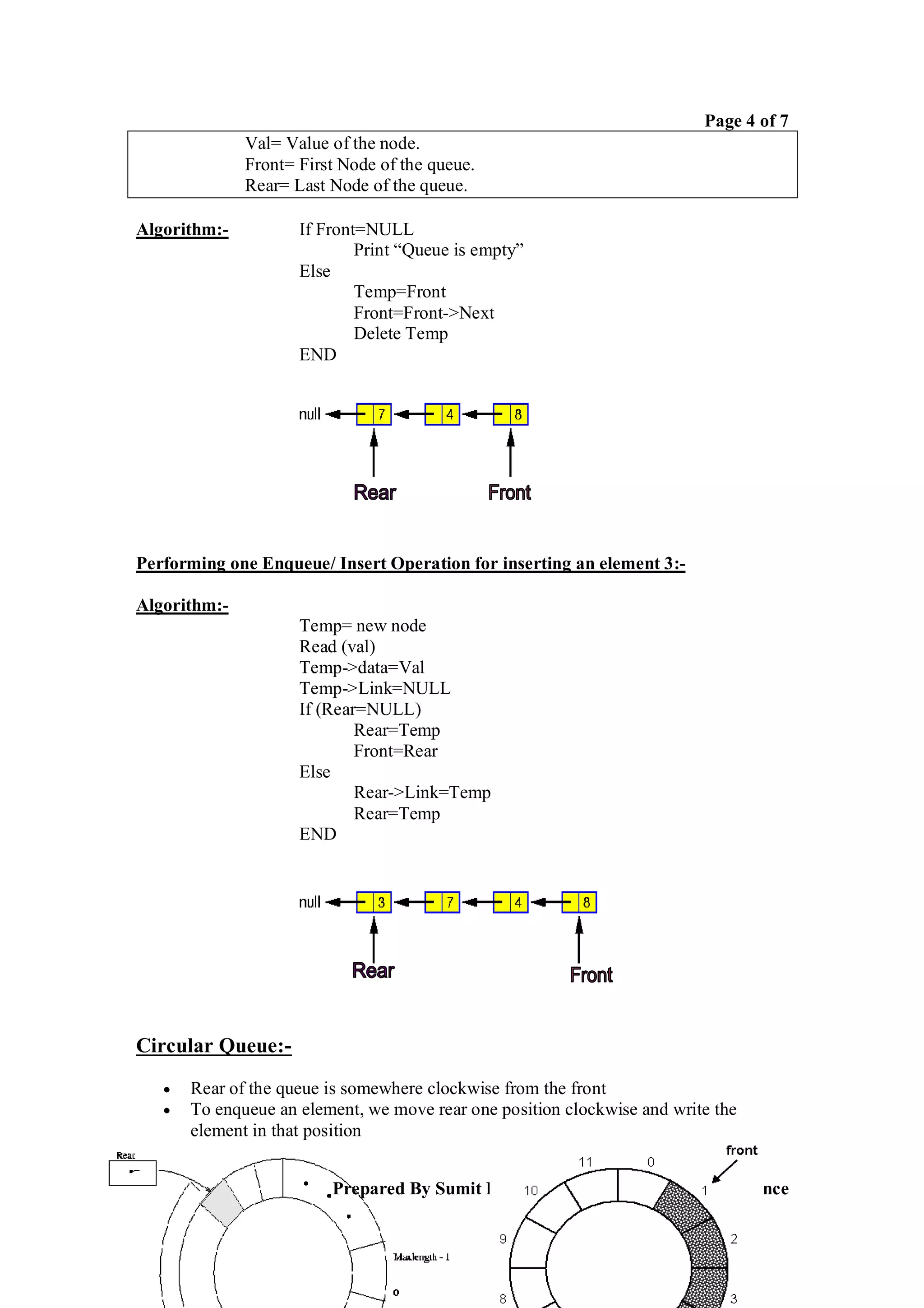

4. Page 4 of 7
Val= Value of the node.
Front= First Node of the queue.
Rear= Last Node of the queue.
Algorithm:- If Front=NULL
Print “Queue is empty”
Else
Temp=Front
Front=Front->Next
Delete Temp
END
Performing one Enqueue/ Insert Operation for inserting an element 3:-
Algorithm:-
Temp= new node
Read (val)
Temp->data=Val
Temp->Link=NULL
If (Rear=NULL)
Rear=Temp
Front=Rear
Else
Rear->Link=Temp
Rear=Temp
END
Circular Queue:-
 Rear of the queue is somewhere clockwise from the front
 To enqueue an element, we move rear one position clockwise and write the
element in that position
Prepared By Sumit Kumar Gupta, PGT Computer Science

5. Page 5 of 7
 To dequeue, we simply move front one position clockwise
 Queue migrates in a clockwise direction as we enqueue and dequeue
 Emptiness and fullness to be checked carefully.
Apple Orange Banana Guava
Front Rear
 In the above situation queue overflow will occur though the free spaces are also
available since the rear reaches the end. So, queue is full, but still there are two
free cells are available in queue. To avoid this problem, the queue can be arranged
in a circular way called circular queue.
 In a circular queue as soon as the rear reaches the Max value, it should be reset to
1. So, if we have to insert Pineapple in the above queue we can insert it into the
first place.
Pineapple Apple Orange Banana Guava
Rear Front
Algorithm to Insert an element in a Circular Queue:-
Note:- Let initially Rear=1 and Front=1.
If (rear+1) Mod Max=Front)
Print “Queue is full”
Else if Rear=Max
Rear=1
Else
Rear=Rear+1
End If
Queue[Rear]=Val
END
Algorithm to Delete an element in a Circular Queue:-
Prepared By Sumit Kumar Gupta, PGT Computer Science

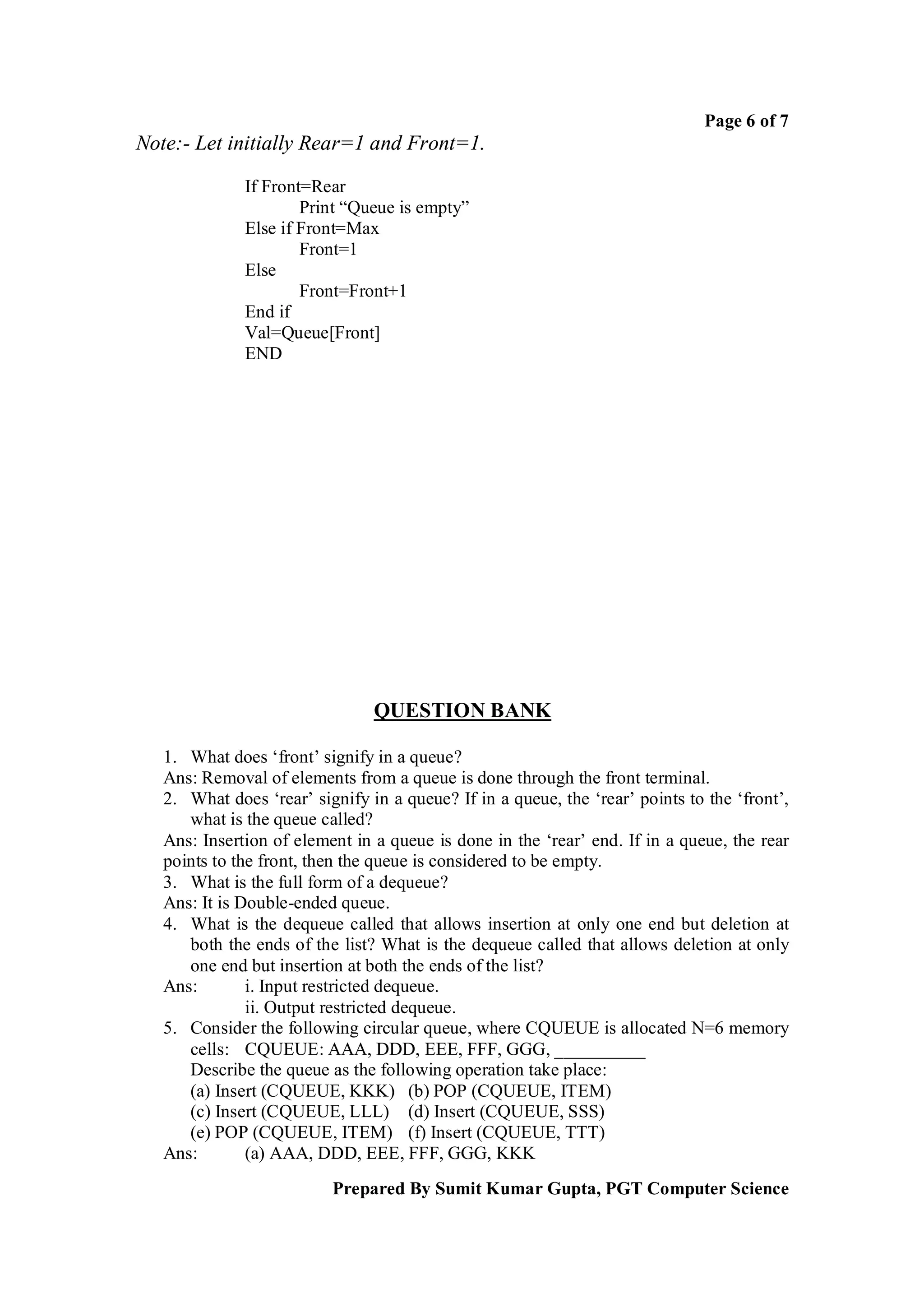

6. Page 6 of 7
Note:- Let initially Rear=1 and Front=1.
If Front=Rear
Print “Queue is empty”
Else if Front=Max
Front=1
Else
Front=Front+1
End if
Val=Queue[Front]
END
QUESTION BANK
1. What does ‘front’ signify in a queue?
Ans: Removal of elements from a queue is done through the front terminal.
2. What does ‘rear’ signify in a queue? If in a queue, the ‘rear’ points to the ‘front’,
what is the queue called?
Ans: Insertion of element in a queue is done in the ‘rear’ end. If in a queue, the rear
points to the front, then the queue is considered to be empty.
3. What is the full form of a dequeue?
Ans: It is Double-ended queue.
4. What is the dequeue called that allows insertion at only one end but deletion at
both the ends of the list? What is the dequeue called that allows deletion at only
one end but insertion at both the ends of the list?
Ans: i. Input restricted dequeue.
ii. Output restricted dequeue.
5. Consider the following circular queue, where CQUEUE is allocated N=6 memory
cells: CQUEUE: AAA, DDD, EEE, FFF, GGG, __________
Describe the queue as the following operation take place:
(a) Insert (CQUEUE, KKK) (b) POP (CQUEUE, ITEM)
(c) Insert (CQUEUE, LLL) (d) Insert (CQUEUE, SSS)
(e) POP (CQUEUE, ITEM) (f) Insert (CQUEUE, TTT)
Ans: (a) AAA, DDD, EEE, FFF, GGG, KKK
Prepared By Sumit Kumar Gupta, PGT Computer Science

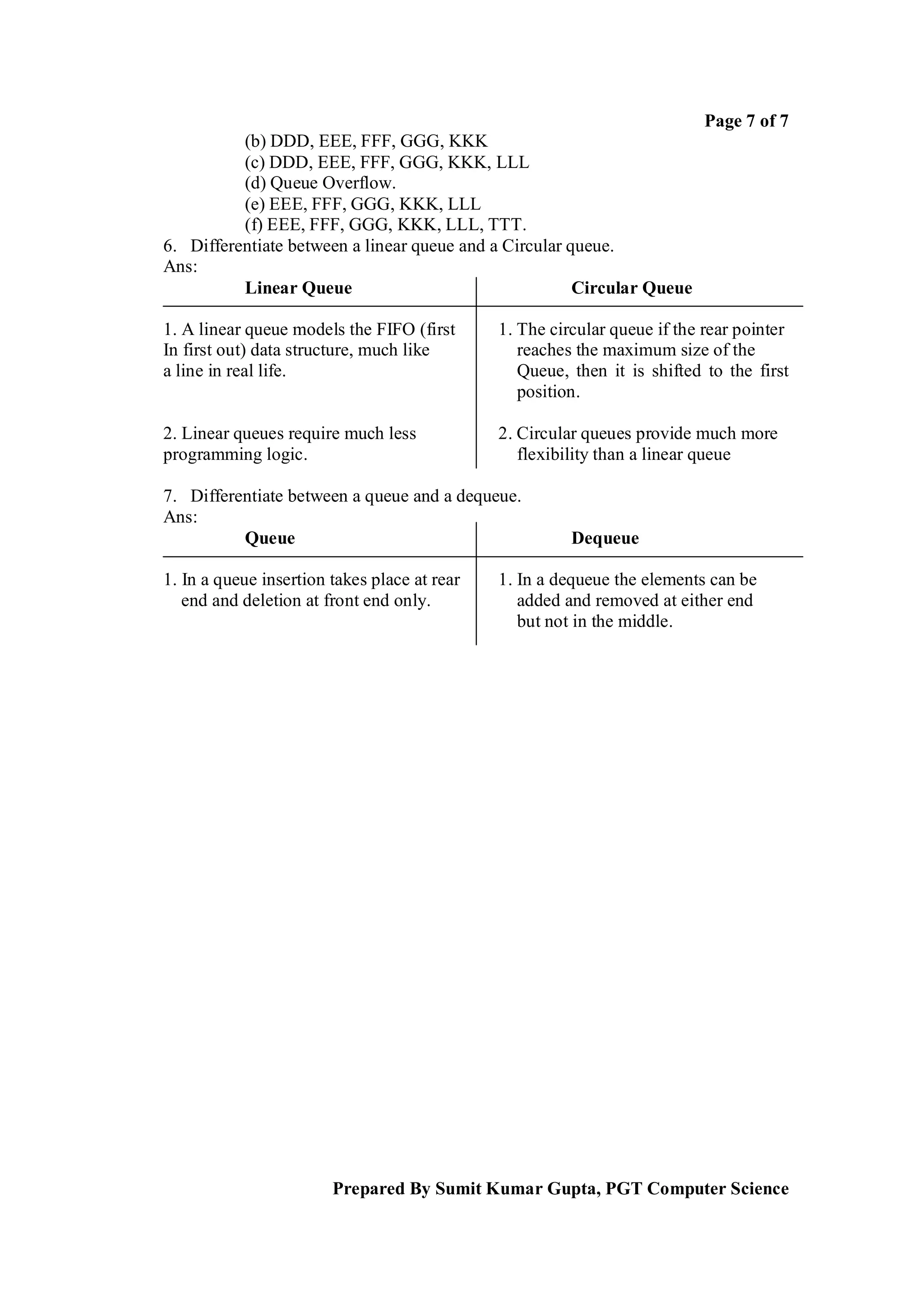

7. Page 7 of 7
(b) DDD, EEE, FFF, GGG, KKK
(c) DDD, EEE, FFF, GGG, KKK, LLL
(d) Queue Overflow.
(e) EEE, FFF, GGG, KKK, LLL
(f) EEE, FFF, GGG, KKK, LLL, TTT.
6. Differentiate between a linear queue and a Circular queue.
Ans:
Linear Queue Circular Queue
1. A linear queue models the FIFO (first 1. The circular queue if the rear pointer
In first out) data structure, much like reaches the maximum size of the
a line in real life. Queue, then it is shifted to the first
position.
2. Linear queues require much less 2. Circular queues provide much more
programming logic. flexibility than a linear queue
7. Differentiate between a queue and a dequeue.
Ans:
Queue Dequeue
1. In a queue insertion takes place at rear 1. In a dequeue the elements can be
end and deletion at front end only. added and removed at either end
but not in the middle.
Prepared By Sumit Kumar Gupta, PGT Computer Science
