Project Jigsaw in JDK 9:
Modularity Comes To Java
Simon Ritter
Deputy CTO, Azul Systems
1

2. InfoQ.com: News & Community Site
• 750,000 unique visitors/month
• Published in 4 languages (English, Chinese, Japanese and Brazilian
Portuguese)
• Post content from our QCon conferences
• News 15-20 / week
• Articles 3-4 / week
• Presentations (videos) 12-15 / week
• Interviews 2-3 / week
• Books 1 / month
Watch the video with slide
synchronization on InfoQ.com!
http://www.infoq.com/presentations
/jigsaw-jdk-9

3. Purpose of QCon
- to empower software development by facilitating the spread of
knowledge and innovation
Strategy
- practitioner-driven conference designed for YOU: influencers of
change and innovation in your teams
- speakers and topics driving the evolution and innovation
- connecting and catalyzing the influencers and innovators
Highlights
- attended by more than 12,000 delegates since 2007
- held in 9 cities worldwide
Presented at QCon London
www.qconlondon.com

4. © Copyright Azul Systems 2016

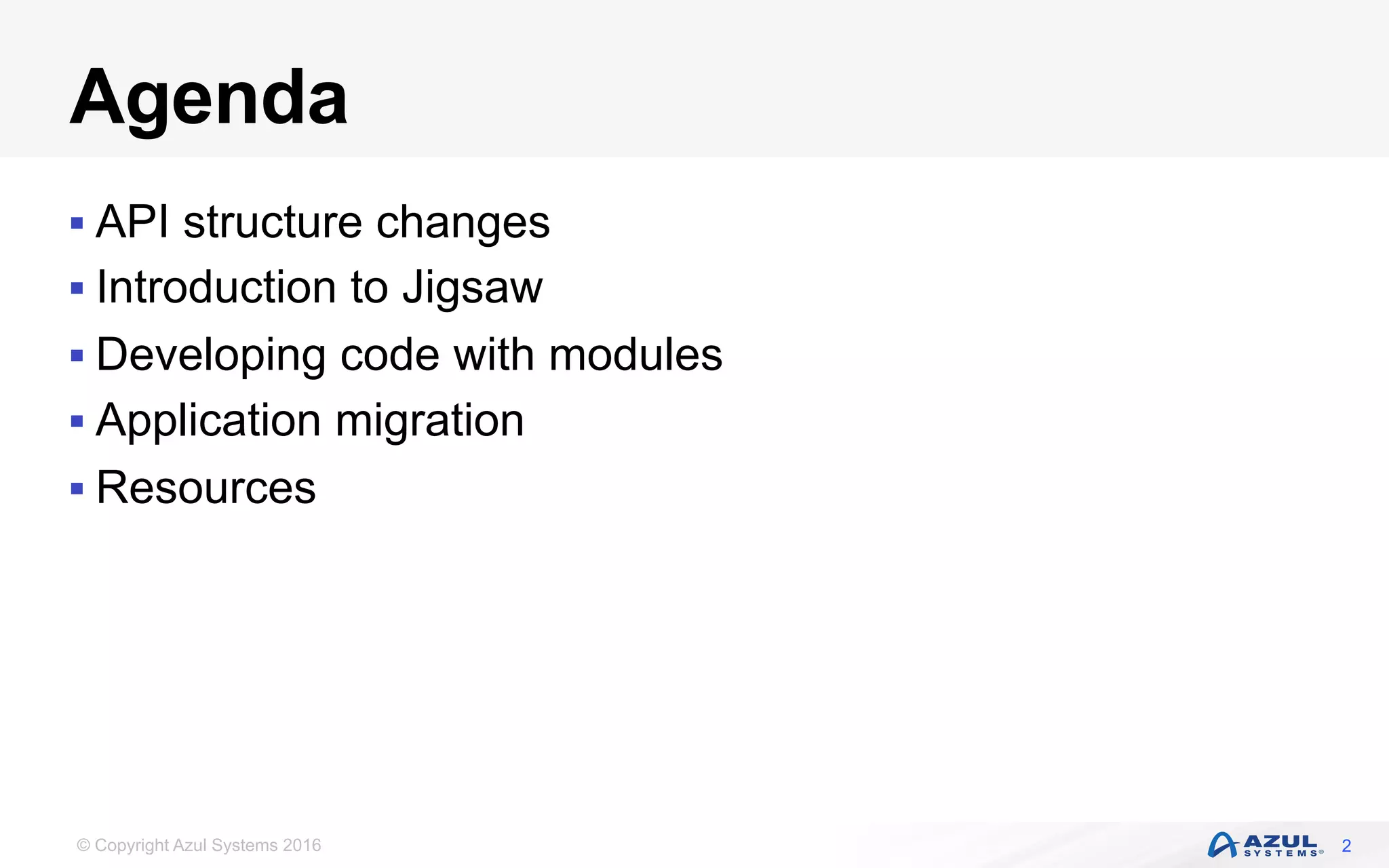

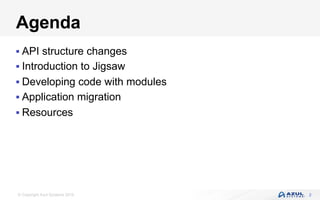

Agenda
§ API structure changes
§ Introduction to Jigsaw
§ Developing code with modules
§ Application migration
§ Resources
2

5. © Copyright Azul Systems 2016
API Structure Changes

6. © Copyright Azul Systems 2016

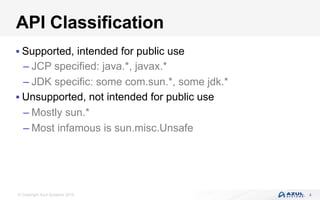

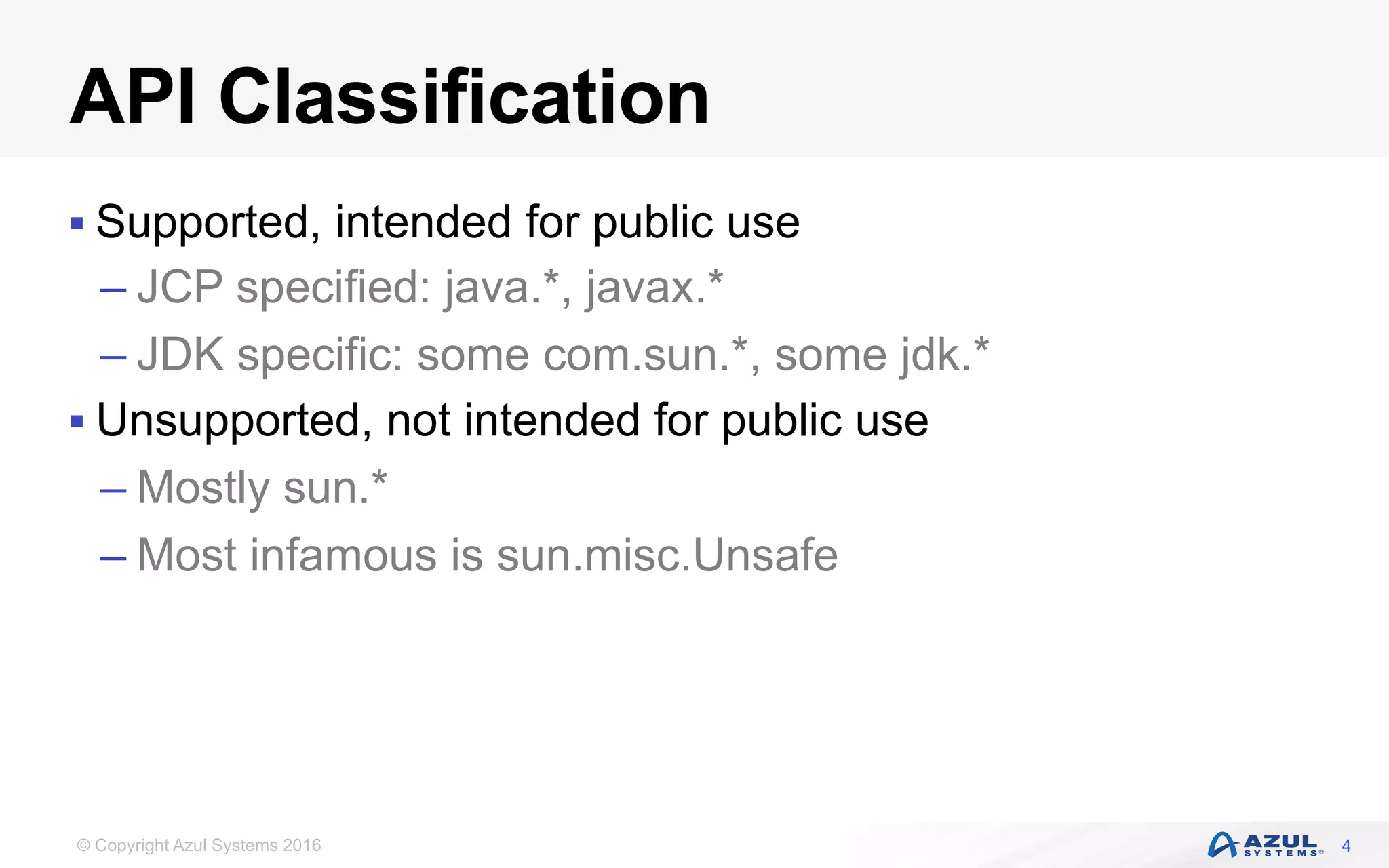

API Classification
§ Supported, intended for public use
– JCP specified: java.*, javax.*
– JDK specific: some com.sun.*, some jdk.*
§ Unsupported, not intended for public use
– Mostly sun.*
– Most infamous is sun.misc.Unsafe
4

7. © Copyright Azul Systems 2016

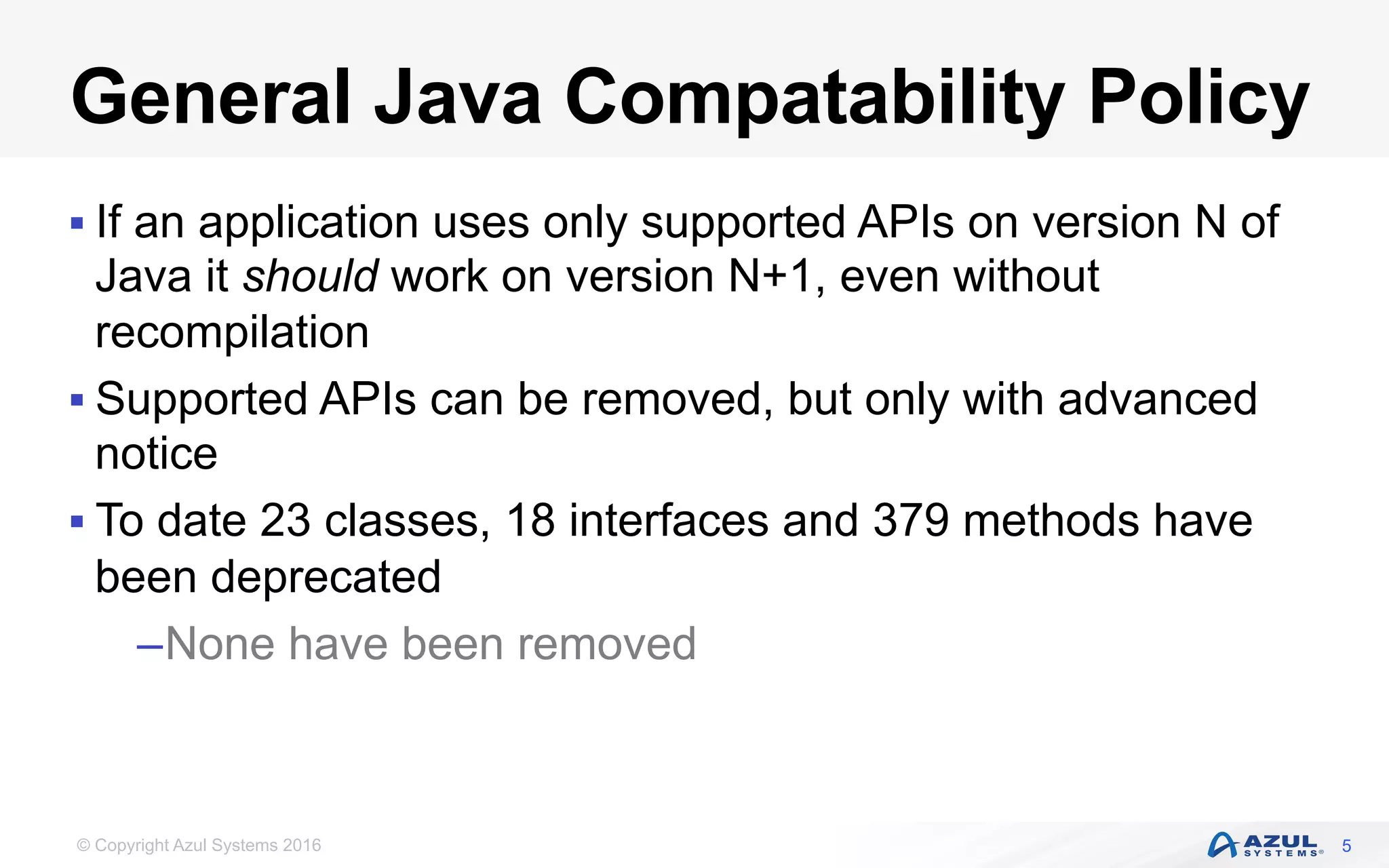

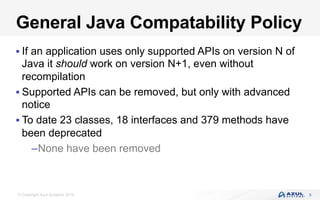

General Java Compatability Policy
§ If an application uses only supported APIs on version N of
Java it should work on version N+1, even without
recompilation
§ Supported APIs can be removed, but only with advanced
notice
§ To date 23 classes, 18 interfaces and 379 methods have
been deprecated
– None have been removed
5

8. © Copyright Azul Systems 2016

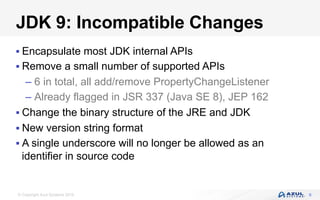

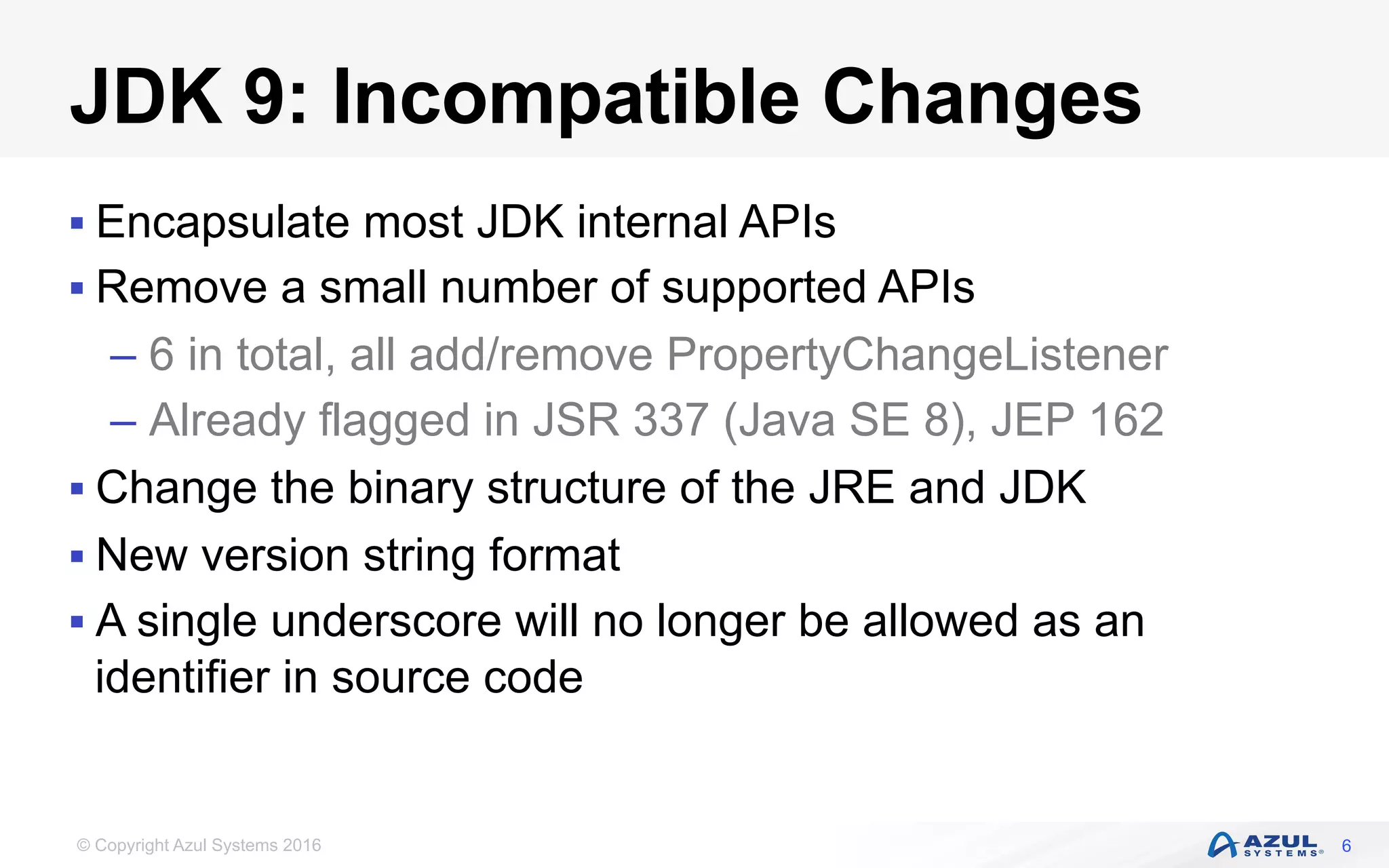

JDK 9: Incompatible Changes
§ Encapsulate most JDK internal APIs
§ Remove a small number of supported APIs
– 6 in total, all add/remove PropertyChangeListener
– Already flagged in JSR 337 (Java SE 8), JEP 162
§ Change the binary structure of the JRE and JDK
§ New version string format
§ A single underscore will no longer be allowed as an
identifier in source code
6

9. © Copyright Azul Systems 2016

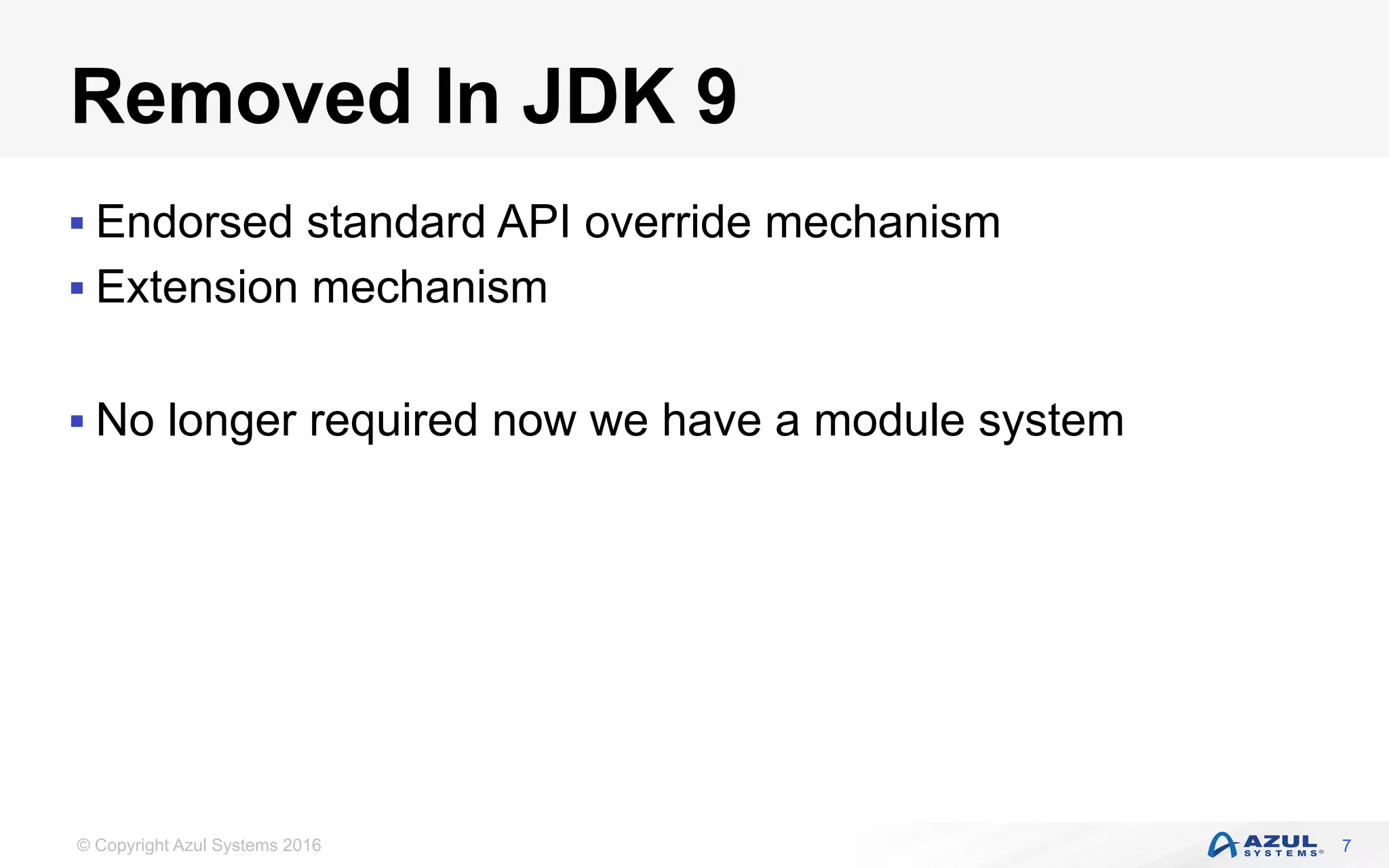

Removed In JDK 9
§ Endorsed standard API override mechanism
§ Extension mechanism
§ No longer required now we have a module system
7

10. © Copyright Azul Systems 2016

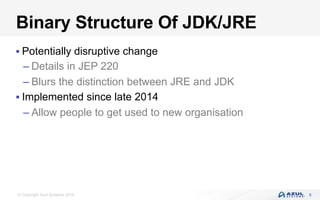

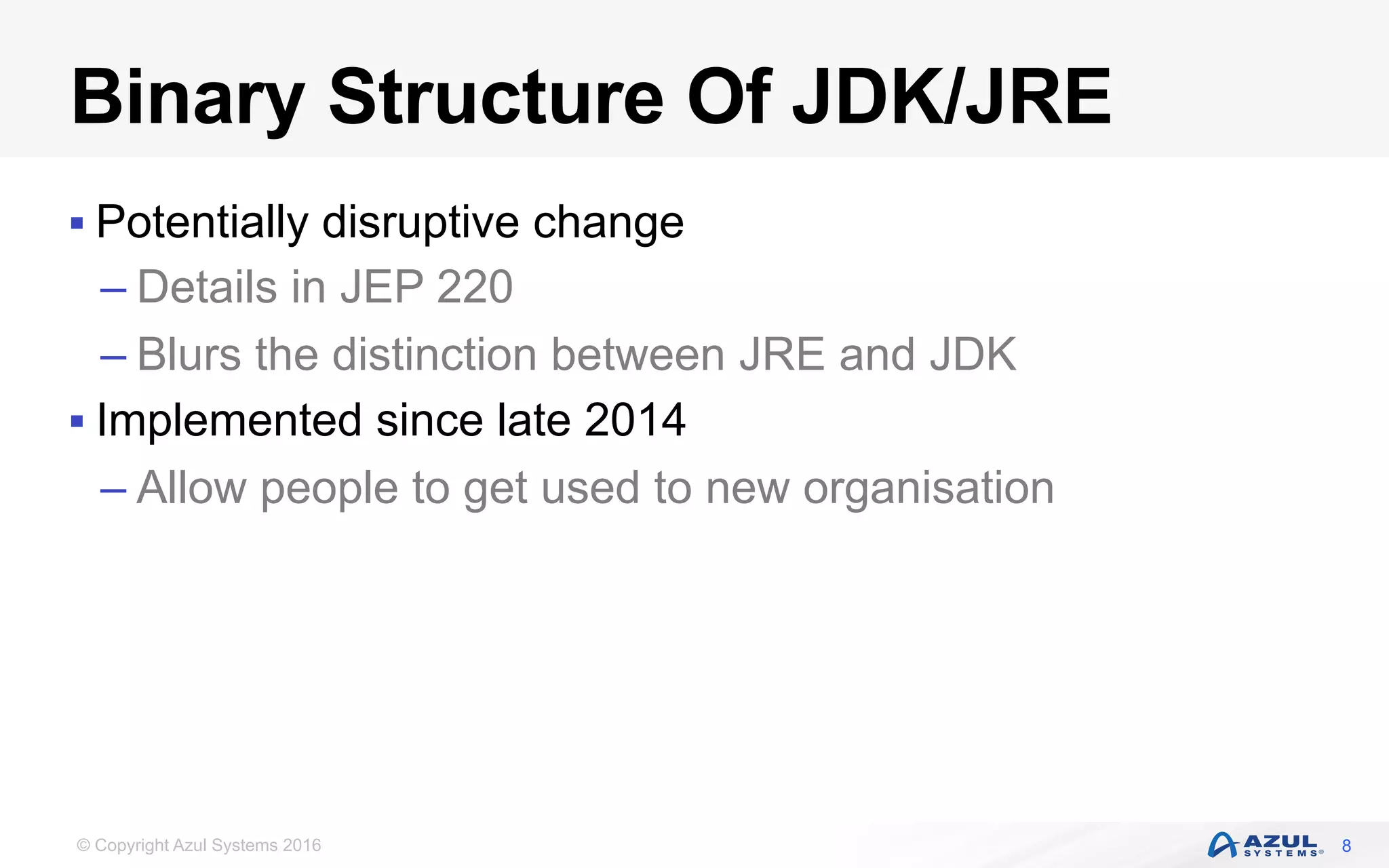

Binary Structure Of JDK/JRE
§ Potentially disruptive change
– Details in JEP 220
– Blurs the distinction between JRE and JDK
§ Implemented since late 2014
– Allow people to get used to new organisation
8

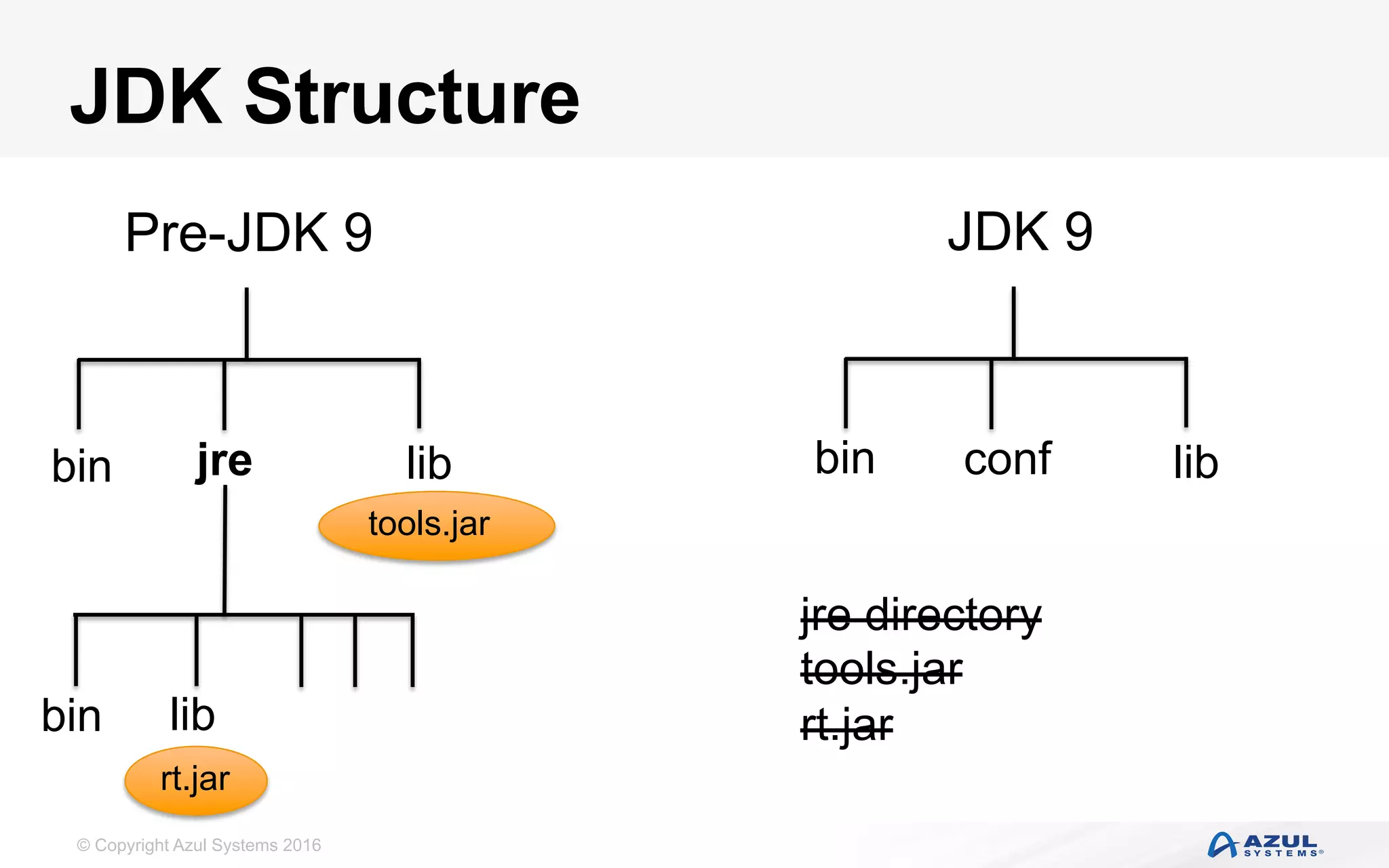

11. © Copyright Azul Systems 2016
JDK Structure
bin
Pre-JDK 9 JDK 9
lib
tools.jar
jre
bin
rt.jar
lib
libconfbin
jre directory
tools.jar
rt.jar

12. © Copyright Azul Systems 2016

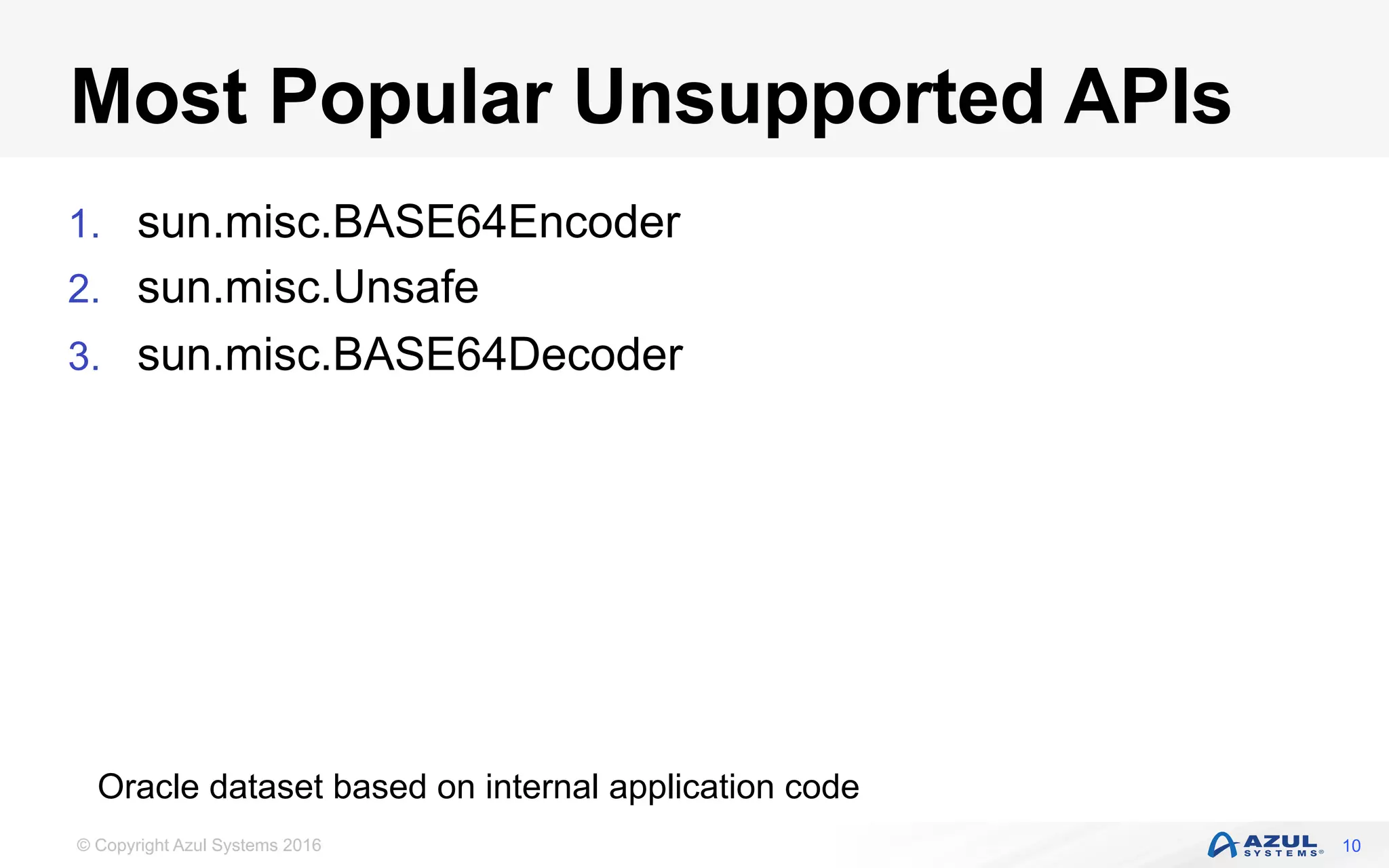

Most Popular Unsupported APIs
1. sun.misc.BASE64Encoder
2. sun.misc.Unsafe
3. sun.misc.BASE64Decoder
10
Oracle dataset based on internal application code

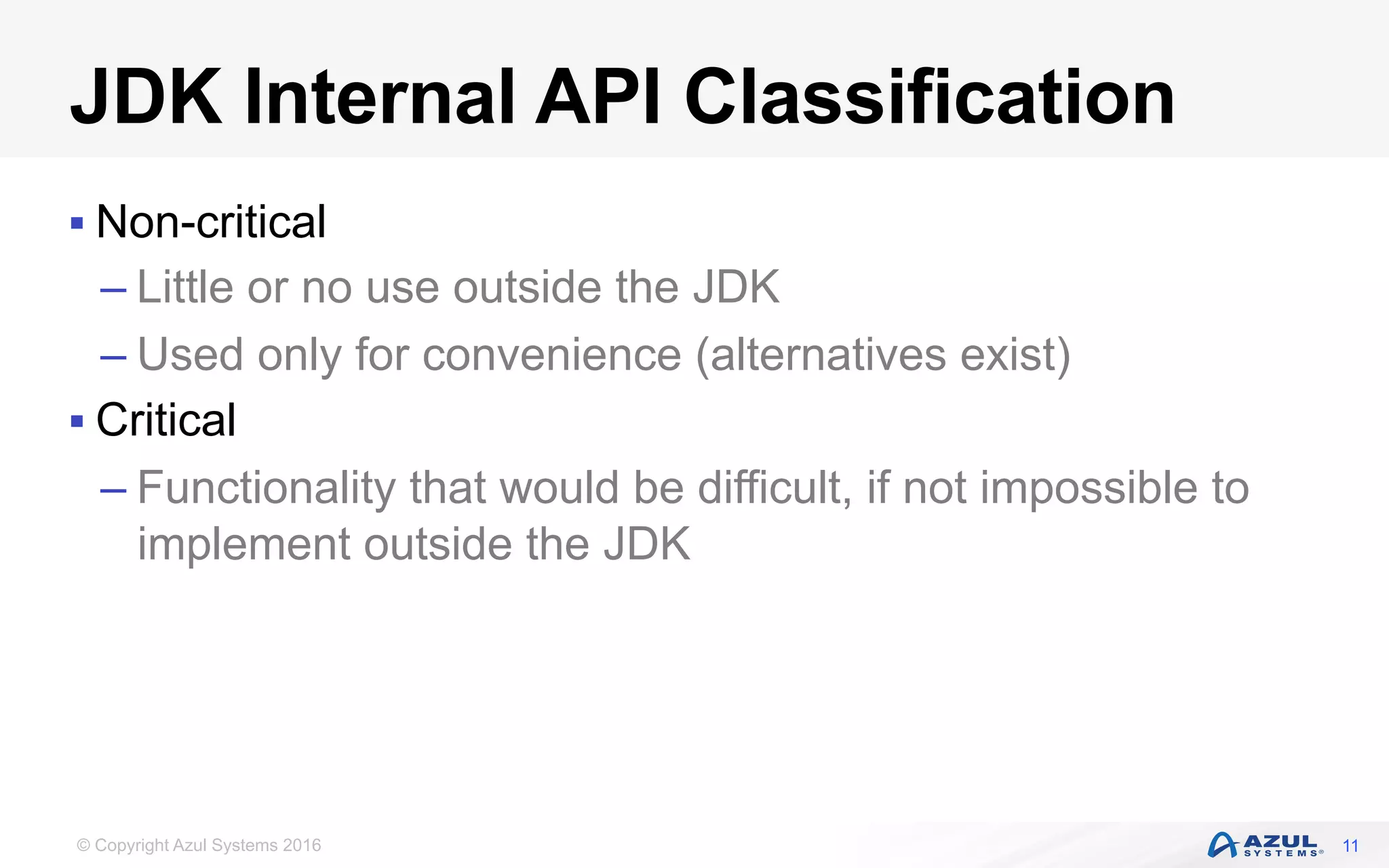

13. © Copyright Azul Systems 2016

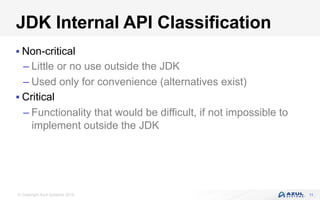

JDK Internal API Classification
§ Non-critical
– Little or no use outside the JDK
– Used only for convenience (alternatives exist)
§ Critical
– Functionality that would be difficult, if not impossible to
implement outside the JDK
11

14. © Copyright Azul Systems 2016

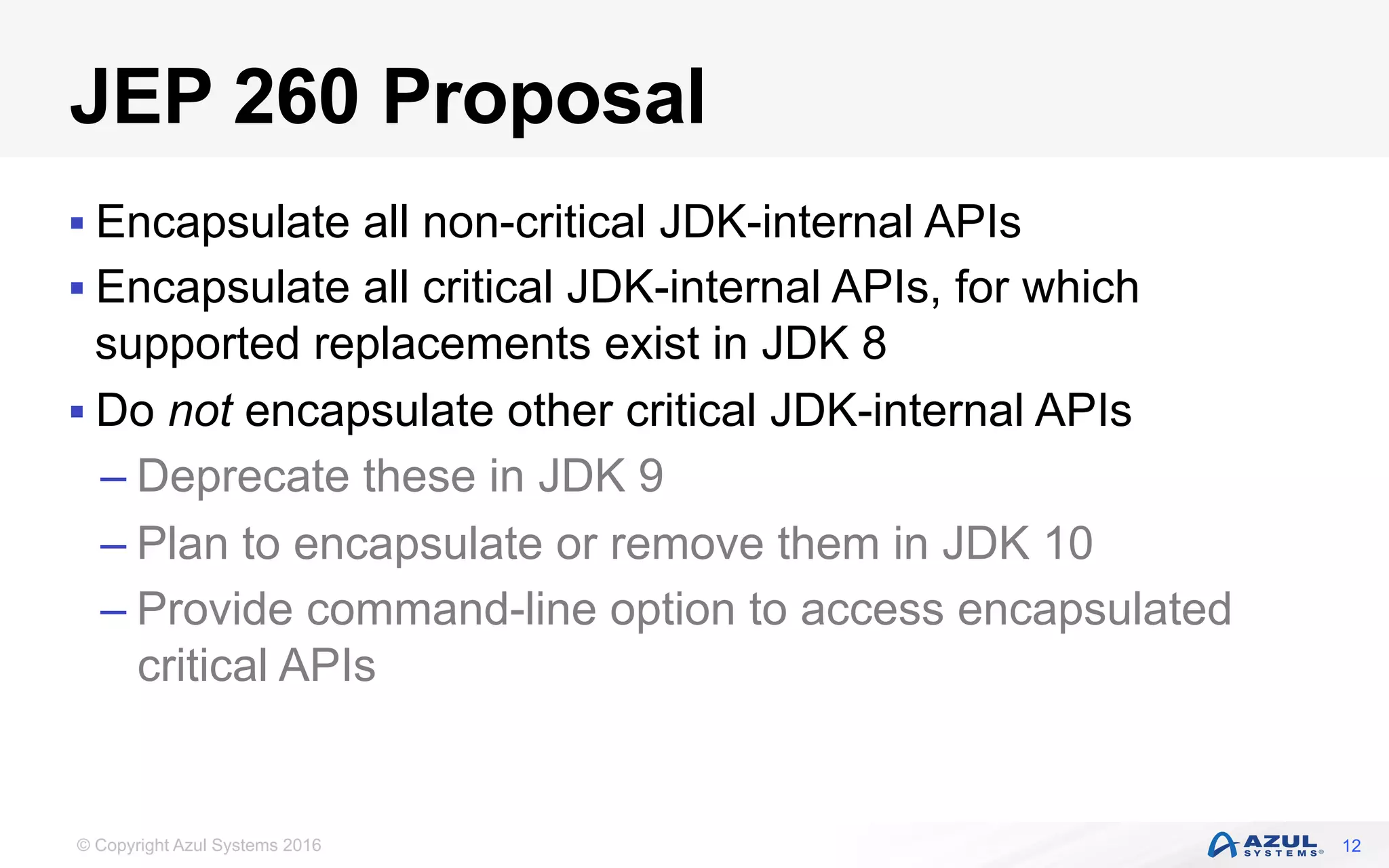

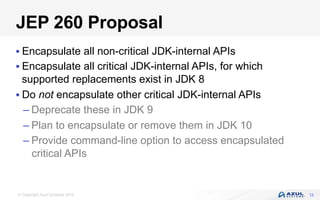

JEP 260 Proposal
§ Encapsulate all non-critical JDK-internal APIs
§ Encapsulate all critical JDK-internal APIs, for which
supported replacements exist in JDK 8
§ Do not encapsulate other critical JDK-internal APIs
– Deprecate these in JDK 9
– Plan to encapsulate or remove them in JDK 10
– Provide command-line option to access encapsulated
critical APIs
12

15. © Copyright Azul Systems 2016

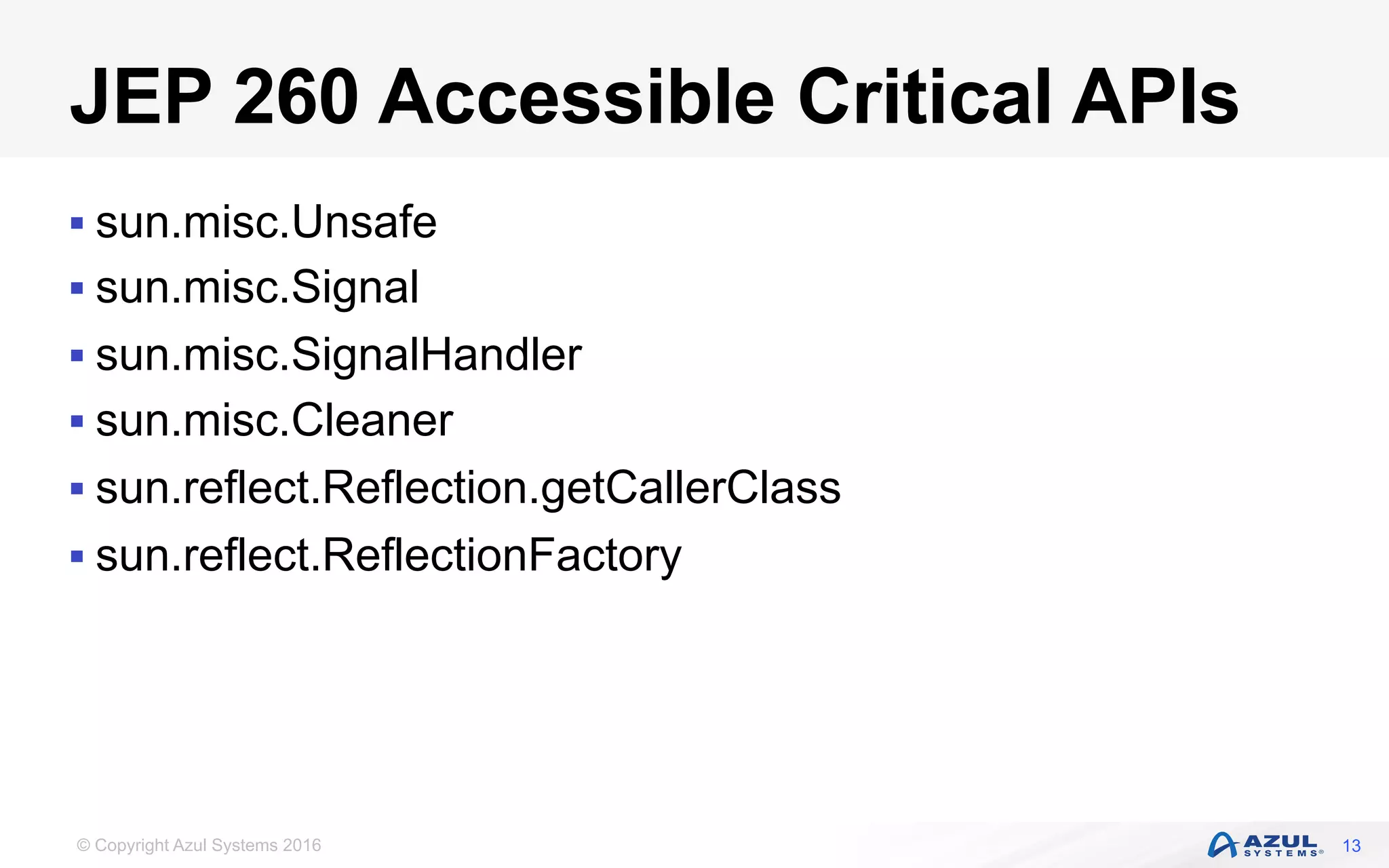

JEP 260 Accessible Critical APIs
§ sun.misc.Unsafe
§ sun.misc.Signal
§ sun.misc.SignalHandler
§ sun.misc.Cleaner
§ sun.reflect.Reflection.getCallerClass
§ sun.reflect.ReflectionFactory
13

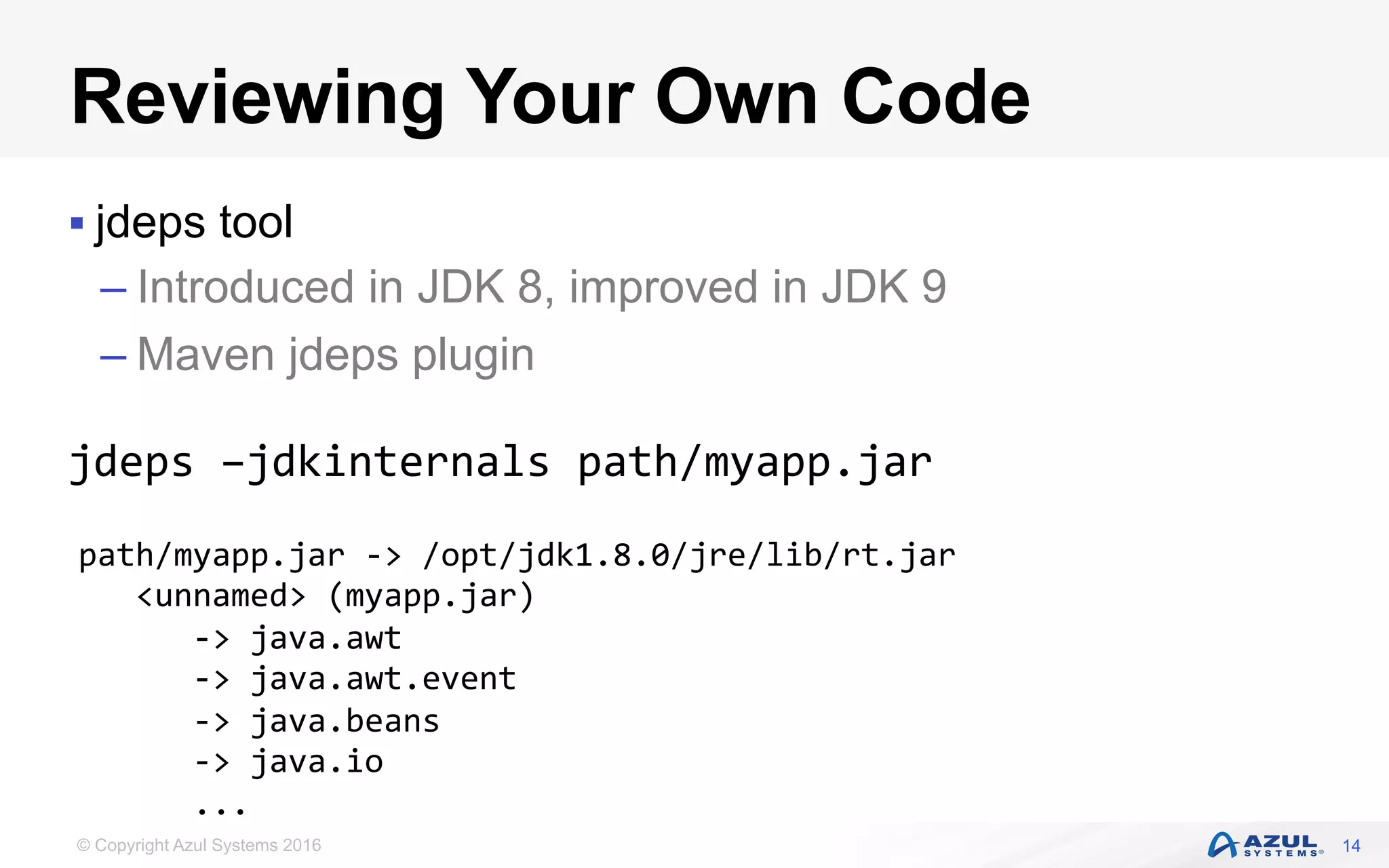

16. © Copyright Azul Systems 2016
Reviewing Your Own Code
§ jdeps tool
– Introduced in JDK 8, improved in JDK 9
– Maven jdeps plugin
jdeps –jdkinternals path/myapp.jar
14
path/myapp.jar -> /opt/jdk1.8.0/jre/lib/rt.jar
<unnamed> (myapp.jar)
-> java.awt
-> java.awt.event
-> java.beans
-> java.io
...

17. © Copyright Azul Systems 2016
Introduction To Jigsaw And
Modules

18. © Copyright Azul Systems 2016

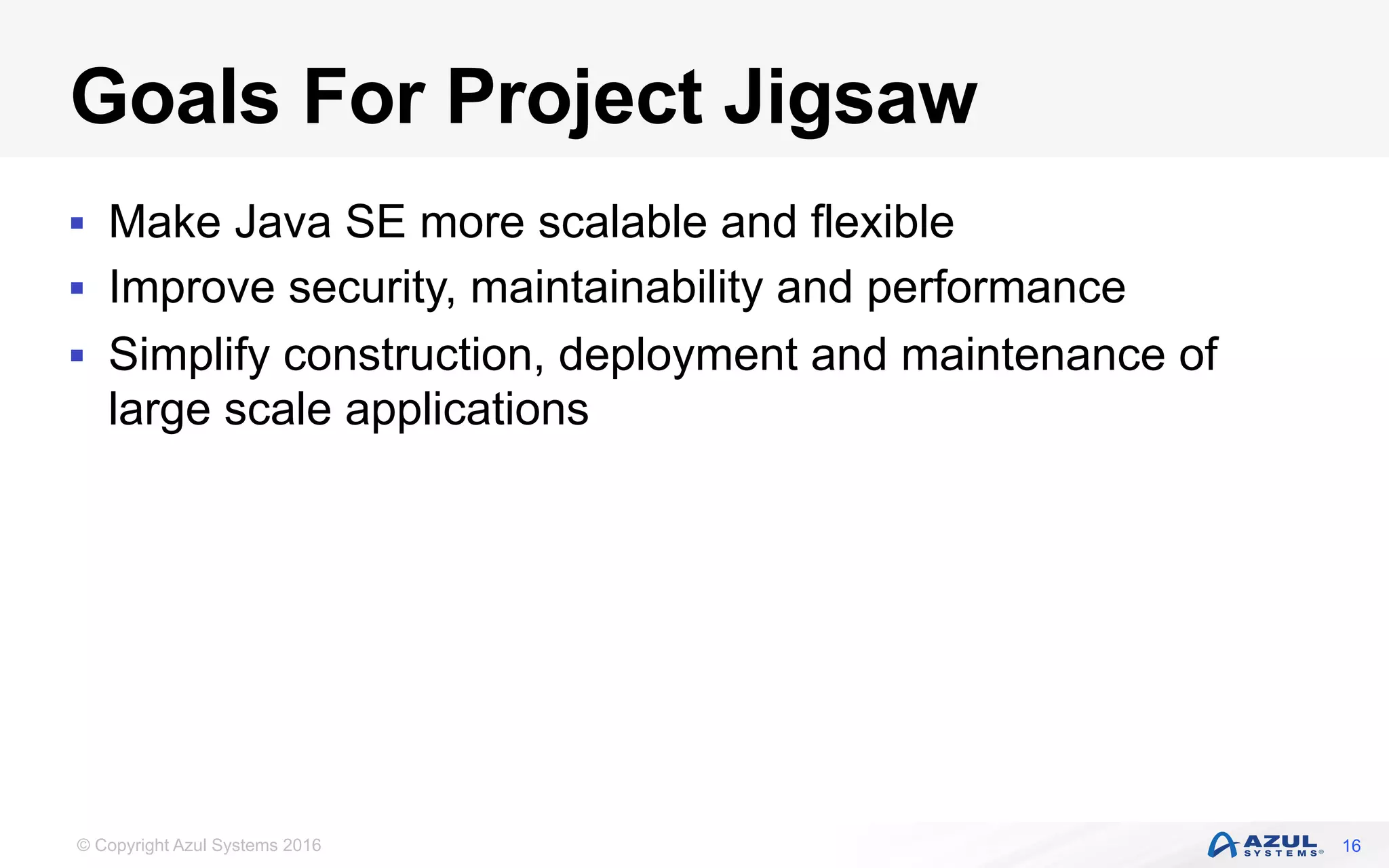

Goals For Project Jigsaw
§ Make Java SE more scalable and flexible
§ Improve security, maintainability and performance
§ Simplify construction, deployment and maintenance of
large scale applications
16

19. © Copyright Azul Systems 2016

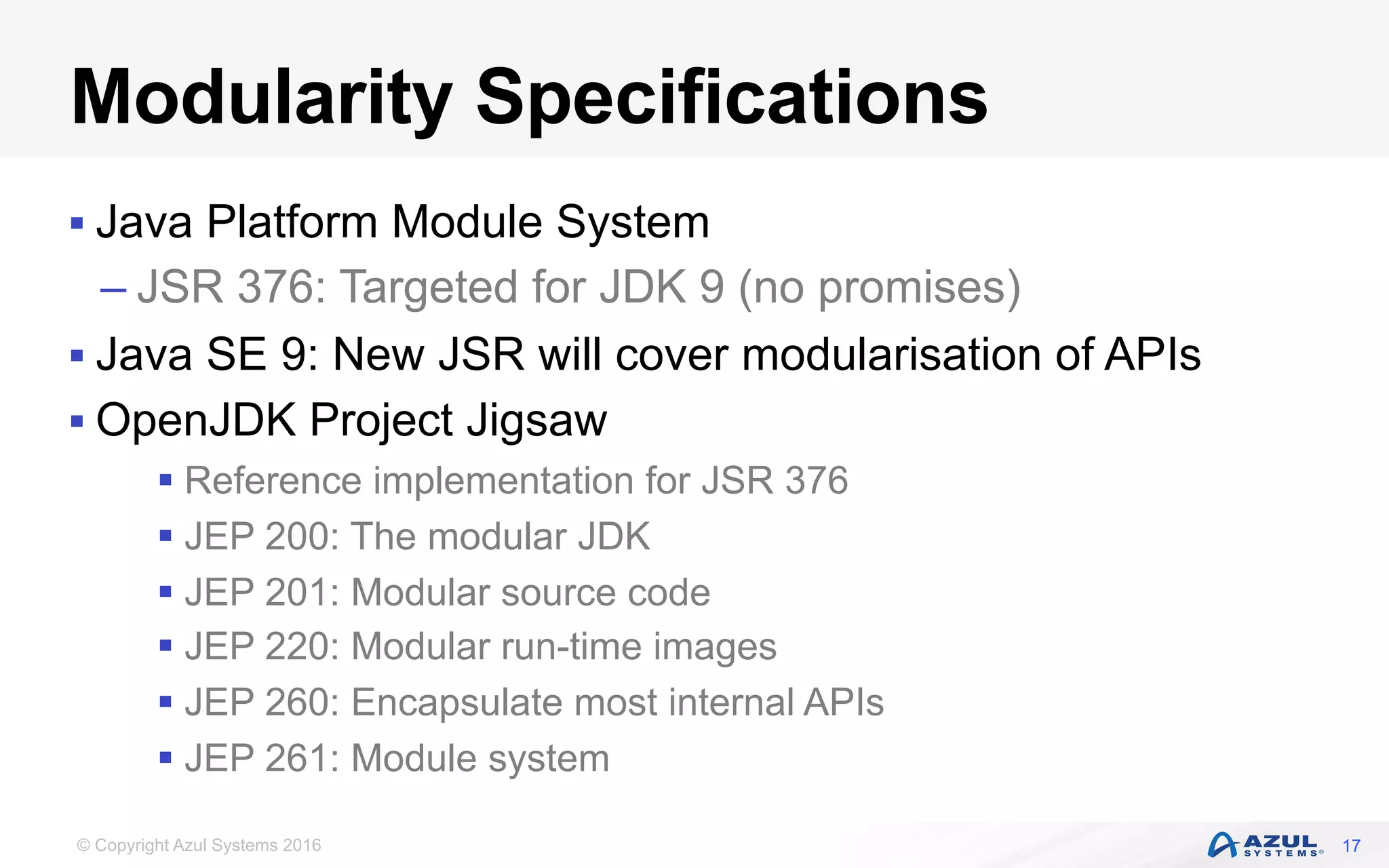

Modularity Specifications
§ Java Platform Module System
– JSR 376: Targeted for JDK 9 (no promises)
§ Java SE 9: New JSR will cover modularisation of APIs
§ OpenJDK Project Jigsaw
§ Reference implementation for JSR 376
§ JEP 200: The modular JDK
§ JEP 201: Modular source code
§ JEP 220: Modular run-time images
§ JEP 260: Encapsulate most internal APIs
§ JEP 261: Module system
17

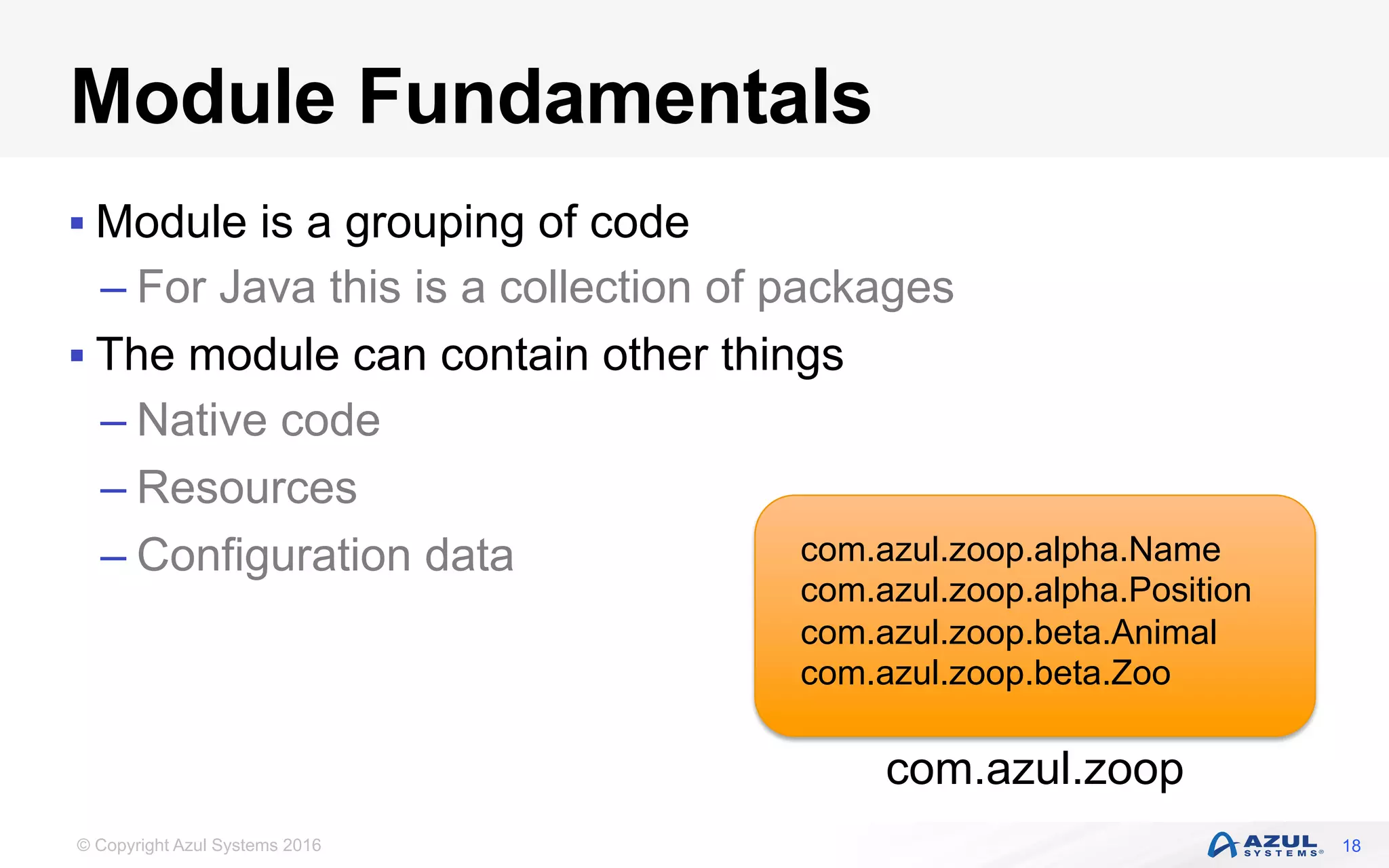

20. © Copyright Azul Systems 2016
Module Fundamentals
§ Module is a grouping of code
– For Java this is a collection of packages
§ The module can contain other things
– Native code
– Resources
– Configuration data
18
com.azul.zoop
com.azul.zoop.alpha.Name
com.azul.zoop.alpha.Position
com.azul.zoop.beta.Animal
com.azul.zoop.beta.Zoo

21. © Copyright Azul Systems 2016

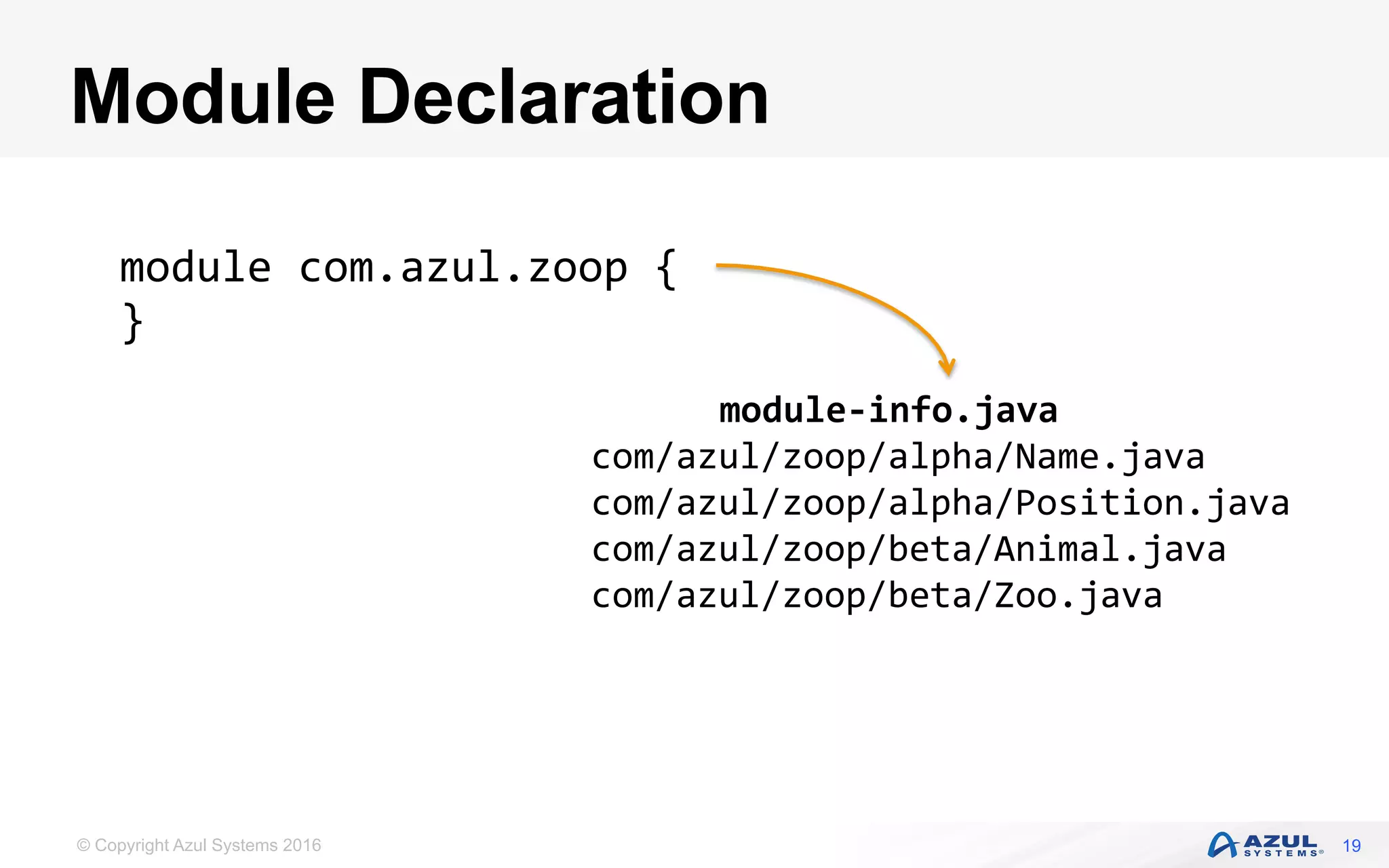

Module Declaration
19
module com.azul.zoop {
}
module-info.java
com/azul/zoop/alpha/Name.java
com/azul/zoop/alpha/Position.java
com/azul/zoop/beta/Animal.java
com/azul/zoop/beta/Zoo.java

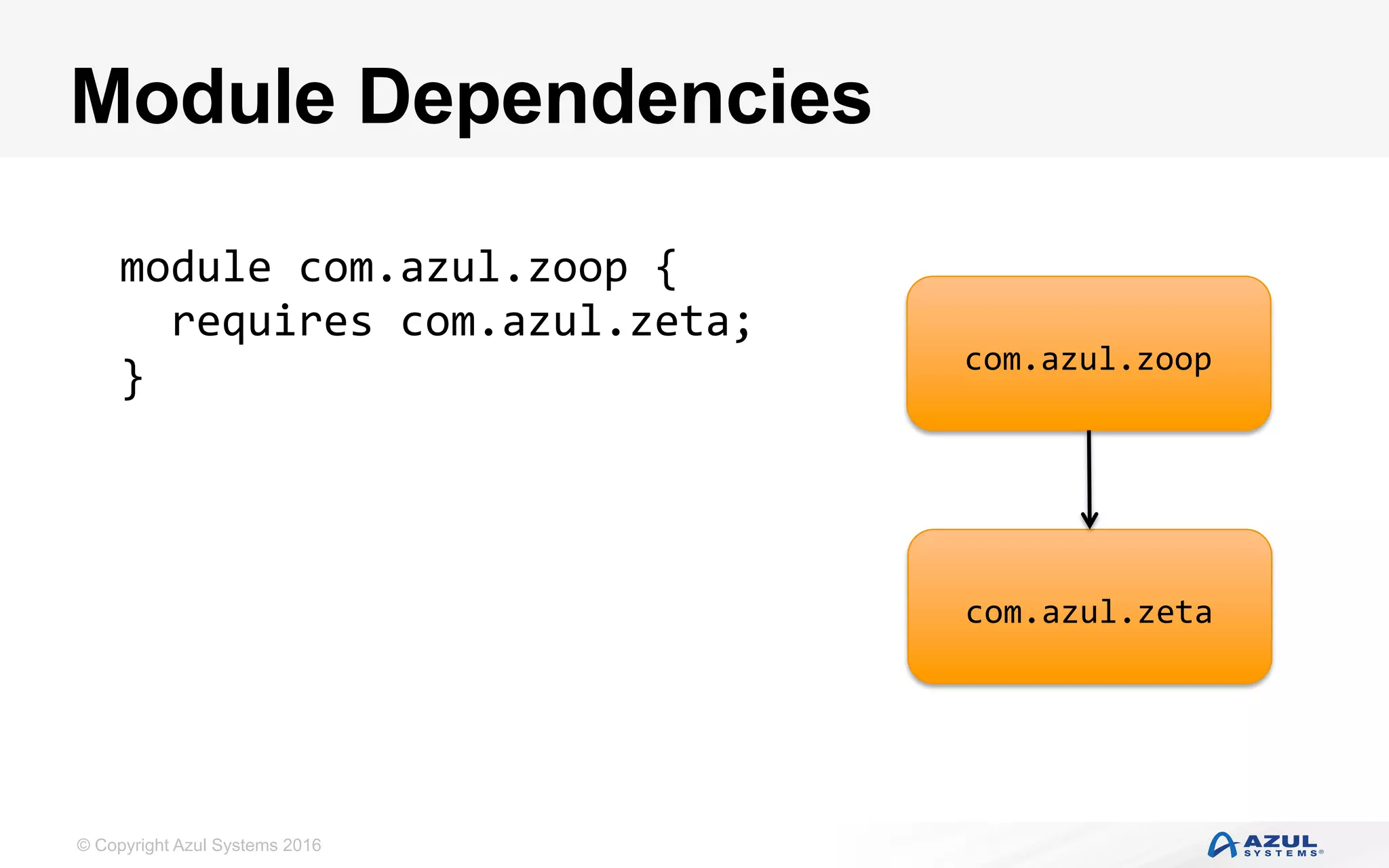

22. © Copyright Azul Systems 2016

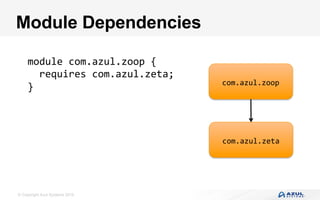

Module Dependencies
module com.azul.zoop {
requires com.azul.zeta;
} com.azul.zoop
com.azul.zeta

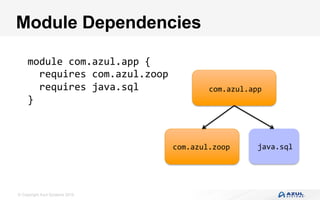

23. © Copyright Azul Systems 2016

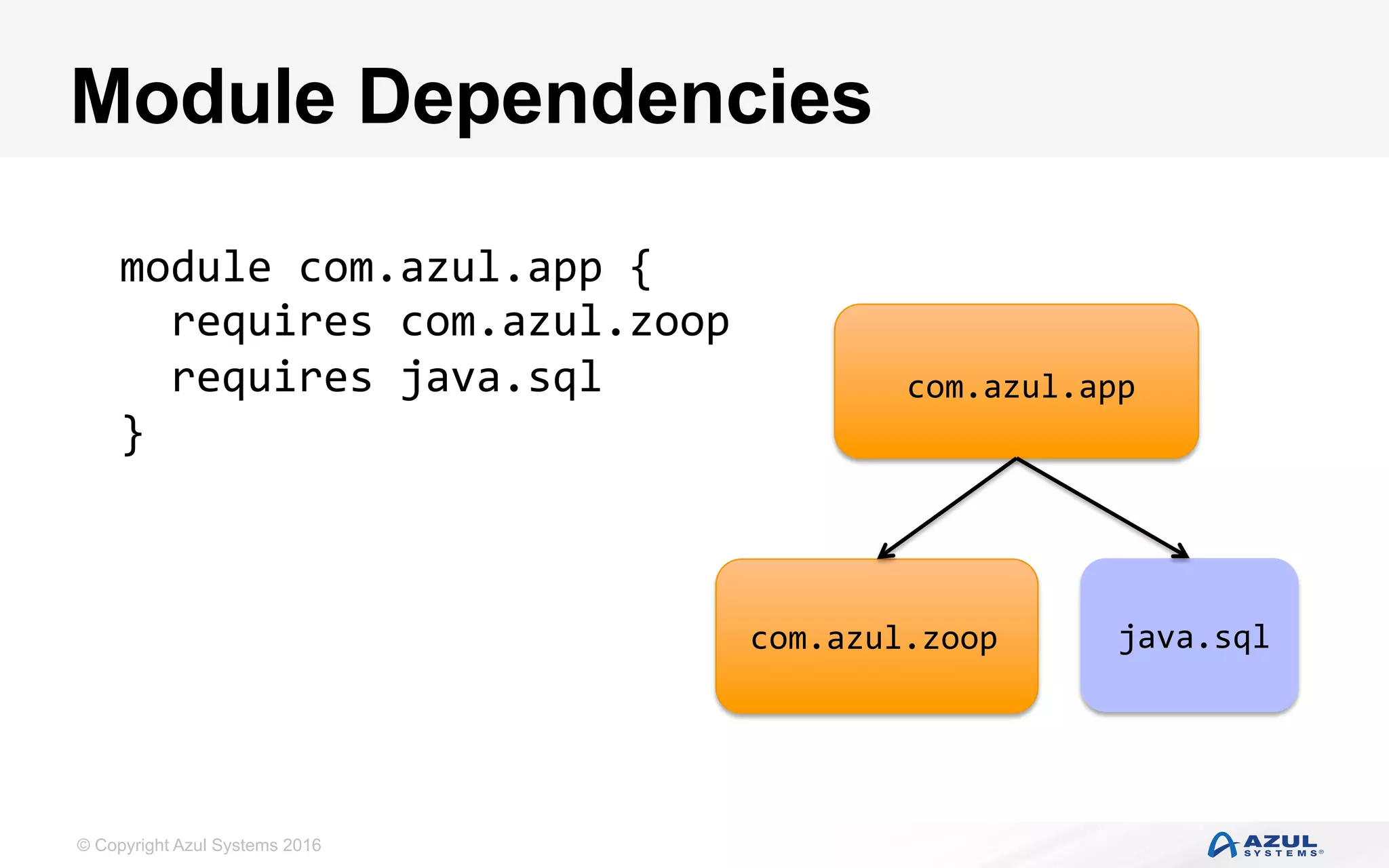

Module Dependencies
module com.azul.app {
requires com.azul.zoop
requires java.sql
}
com.azul.app
com.azul.zoop java.sql

24. © Copyright Azul Systems 2016

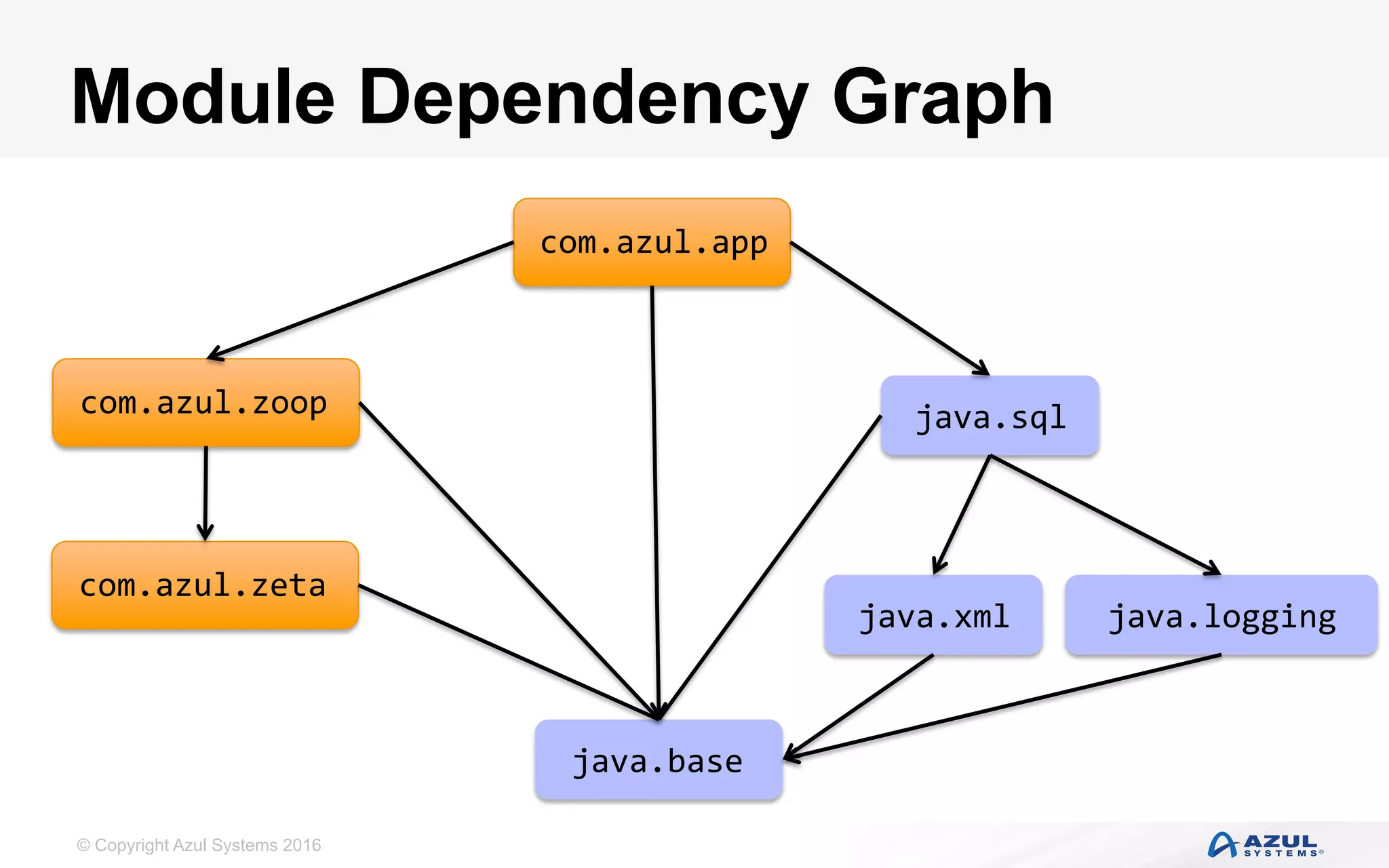

Module Dependency Graph
com.azul.app
java.base
java.sqlcom.azul.zoop
com.azul.zeta
java.xml java.logging

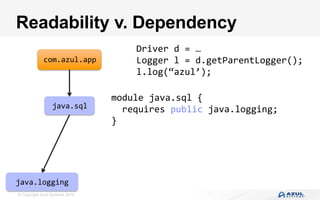

25. © Copyright Azul Systems 2016

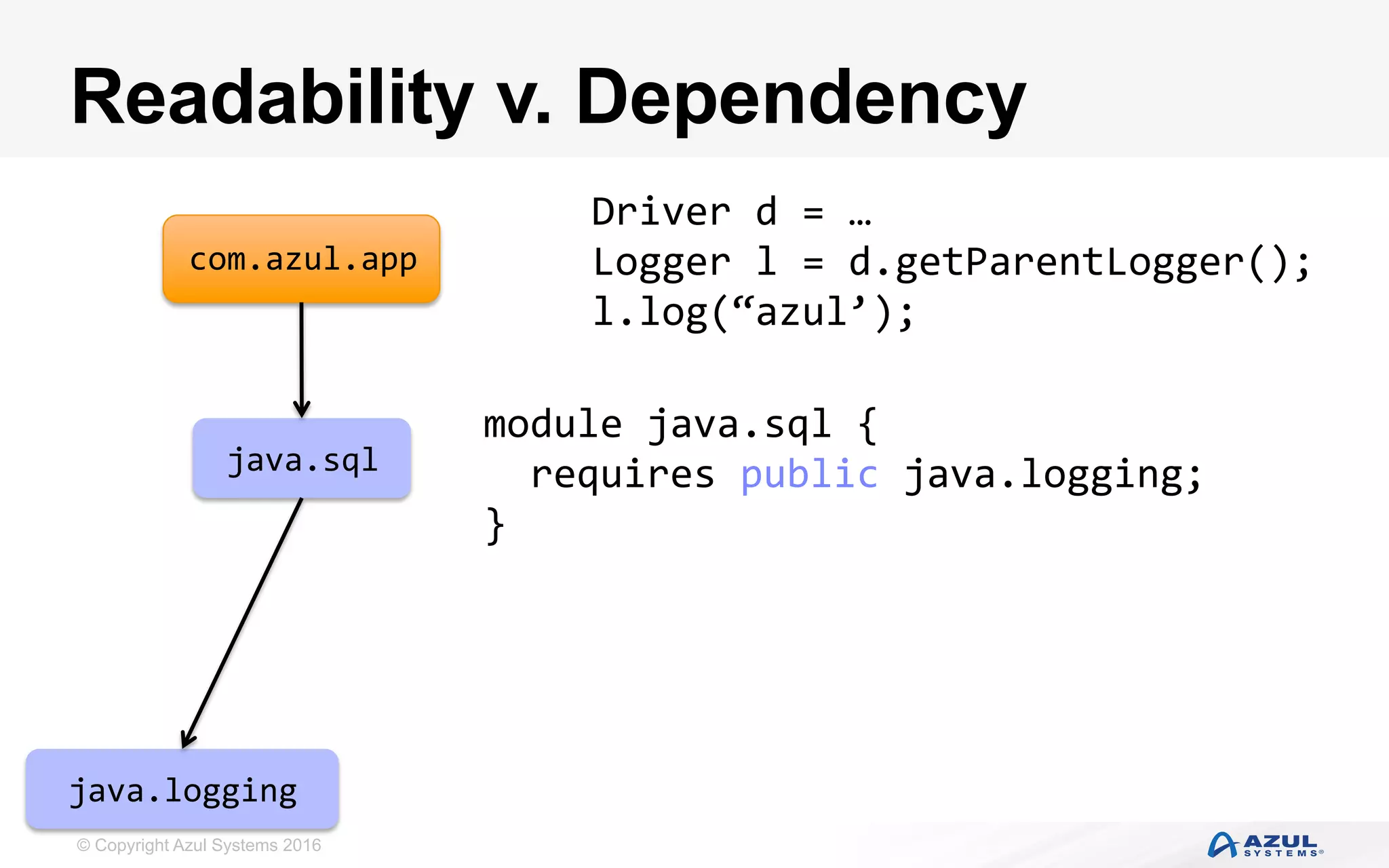

Readability v. Dependency
com.azul.app
java.sql
java.logging
module java.sql {
requires public java.logging;
}
Driver d = …
Logger l = d.getParentLogger();
l.log(“azul’);

26. © Copyright Azul Systems 2016

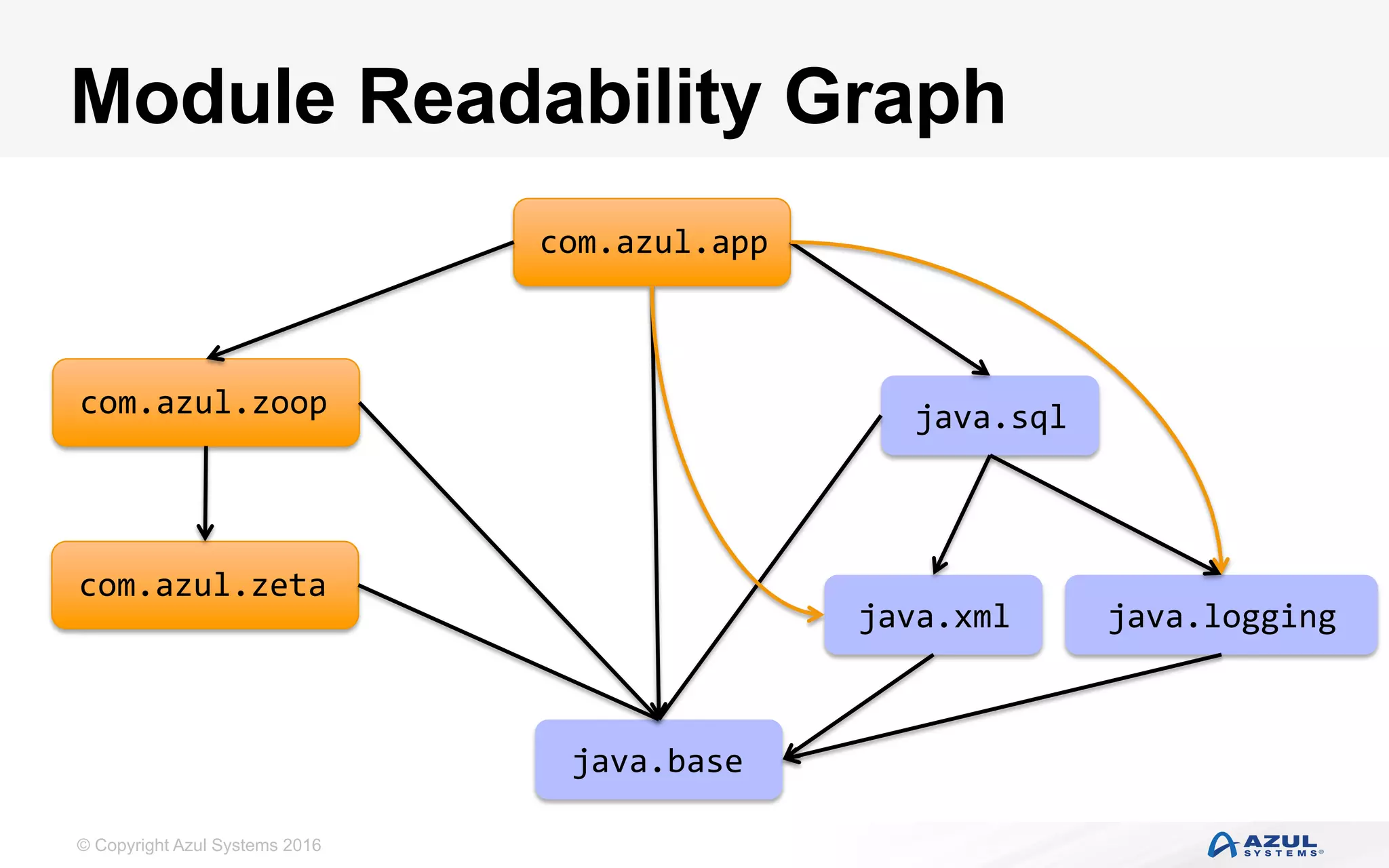

Module Readability Graph
com.azul.app
java.base
java.sqlcom.azul.zoop
com.azul.zeta
java.xml java.logging

27. © Copyright Azul Systems 2016

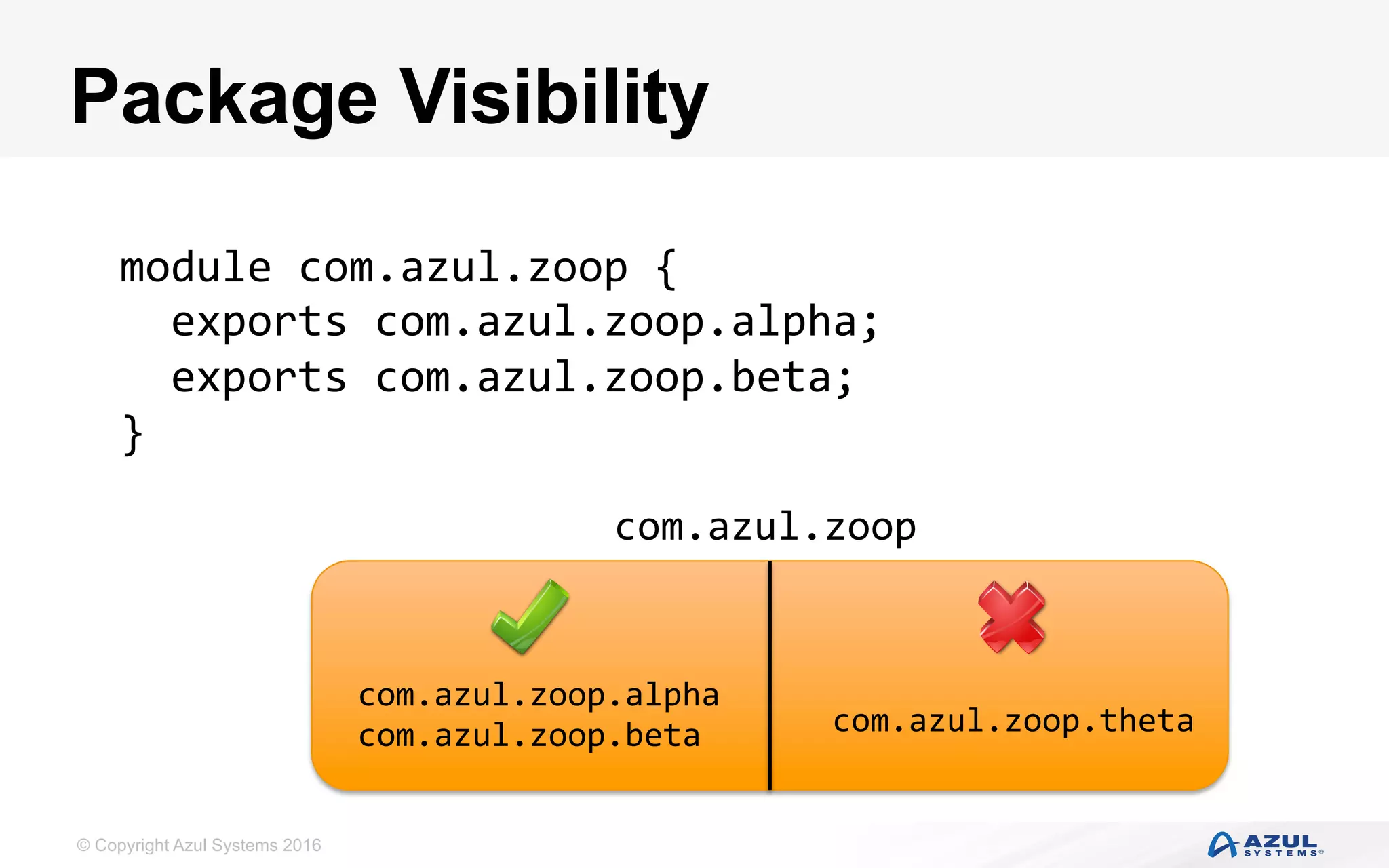

Package Visibility
module com.azul.zoop {
exports com.azul.zoop.alpha;
exports com.azul.zoop.beta;
}
com.azul.zoop
com.azul.zoop.alpha
com.azul.zoop.beta com.azul.zoop.theta

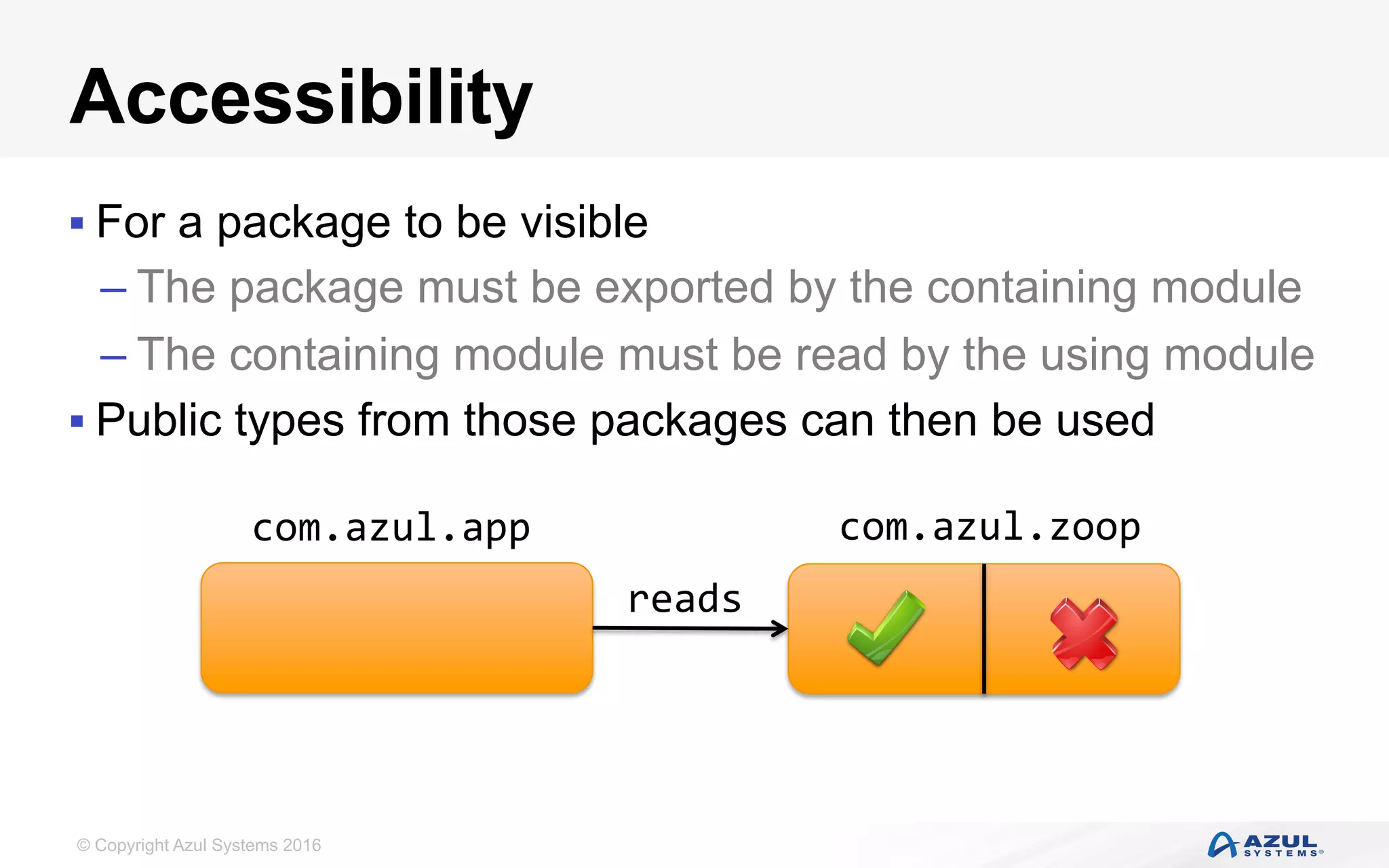

28. © Copyright Azul Systems 2016

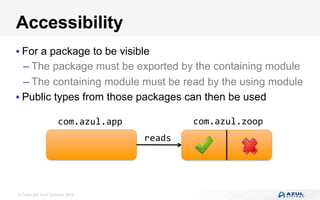

Accessibility
§ For a package to be visible
– The package must be exported by the containing module
– The containing module must be read by the using module
§ Public types from those packages can then be used
com.azul.zoopcom.azul.app
reads

29. © Copyright Azul Systems 2016

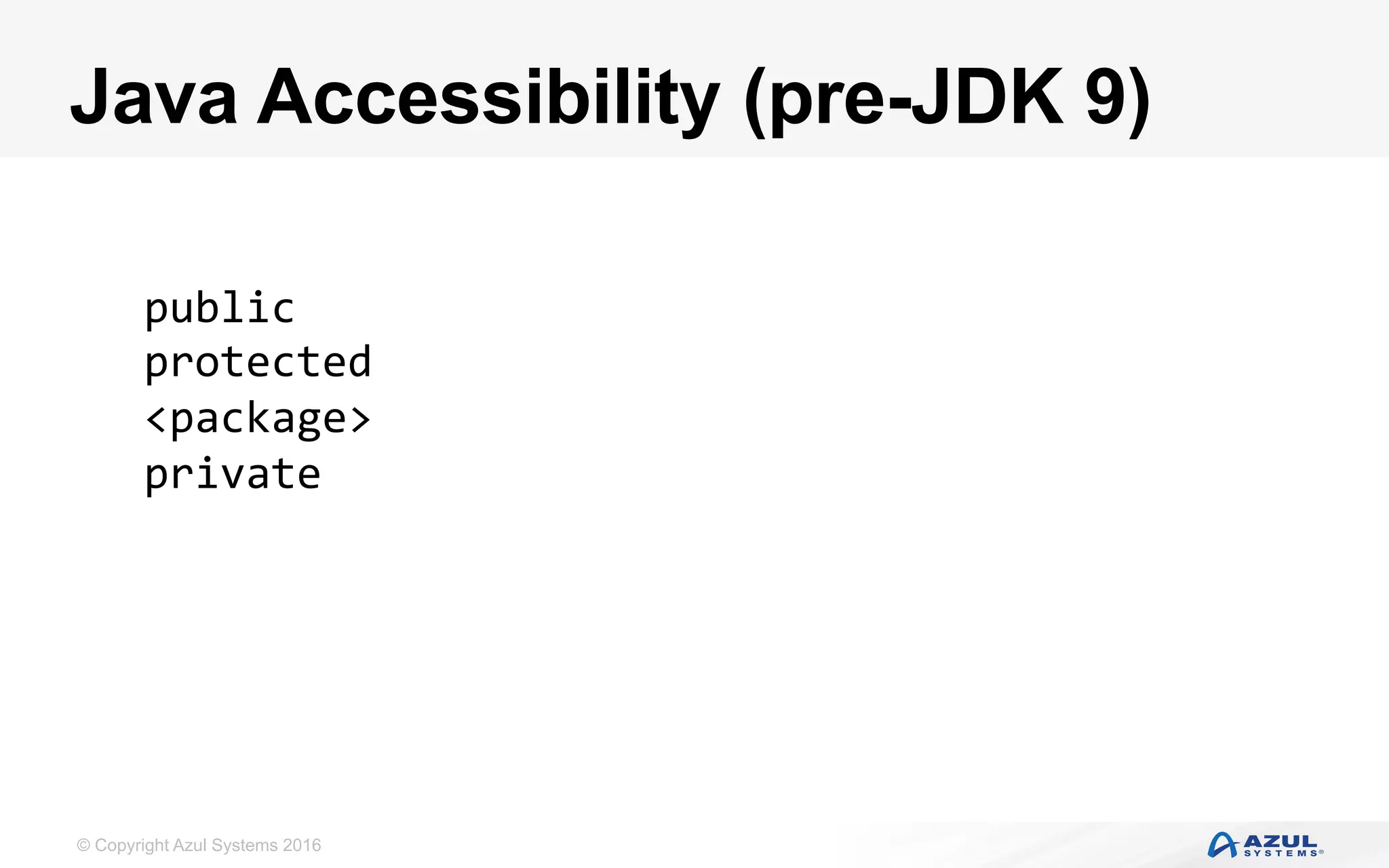

Java Accessibility (pre-JDK 9)
public
protected
<package>
private

30. © Copyright Azul Systems 2016

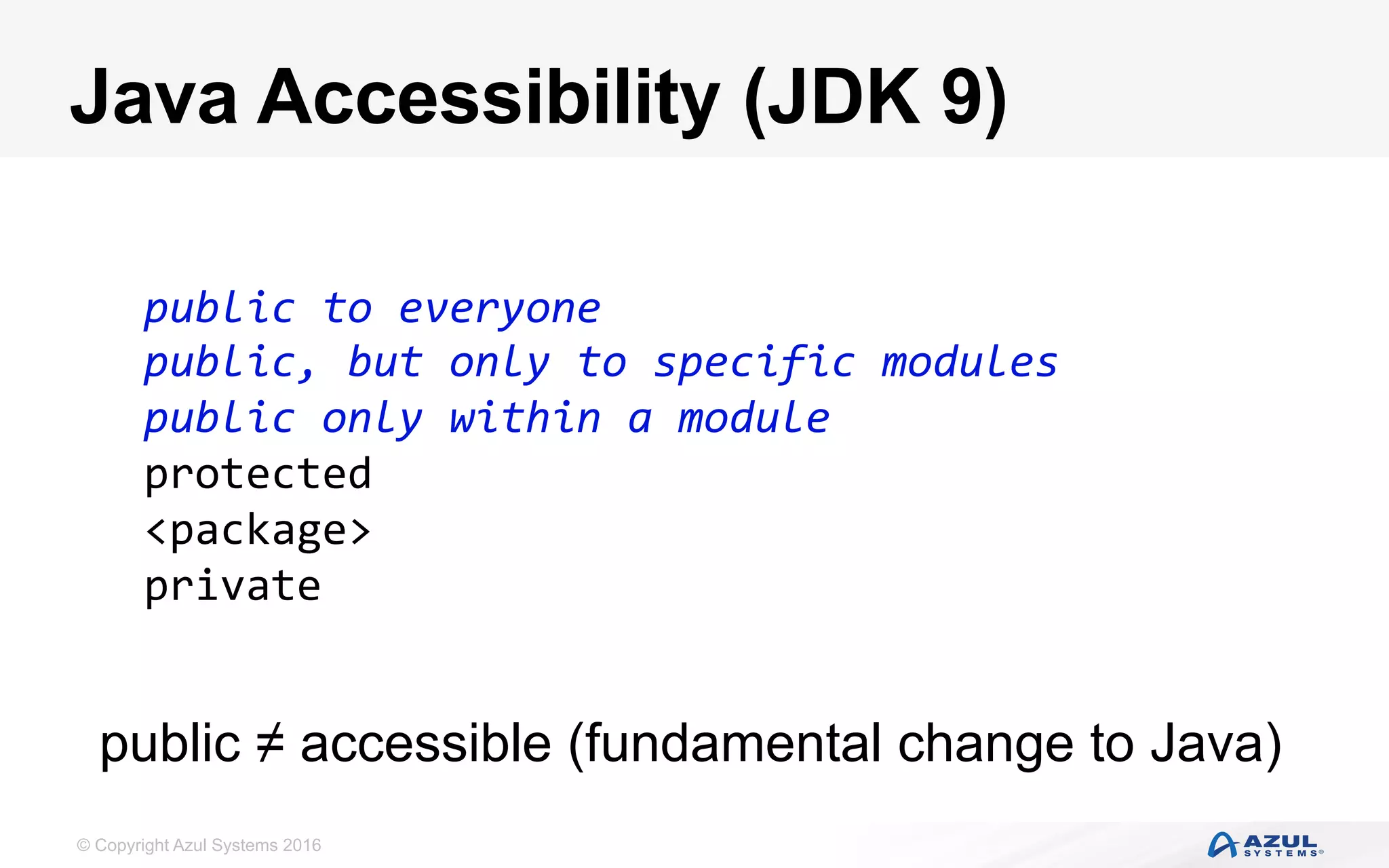

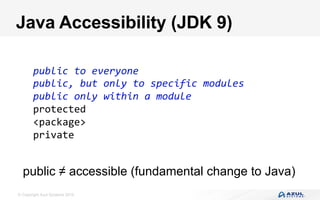

Java Accessibility (JDK 9)
public to everyone
public, but only to specific modules
public only within a module
protected
<package>
private
public ≠ accessible (fundamental change to Java)

31. © Copyright Azul Systems 2016

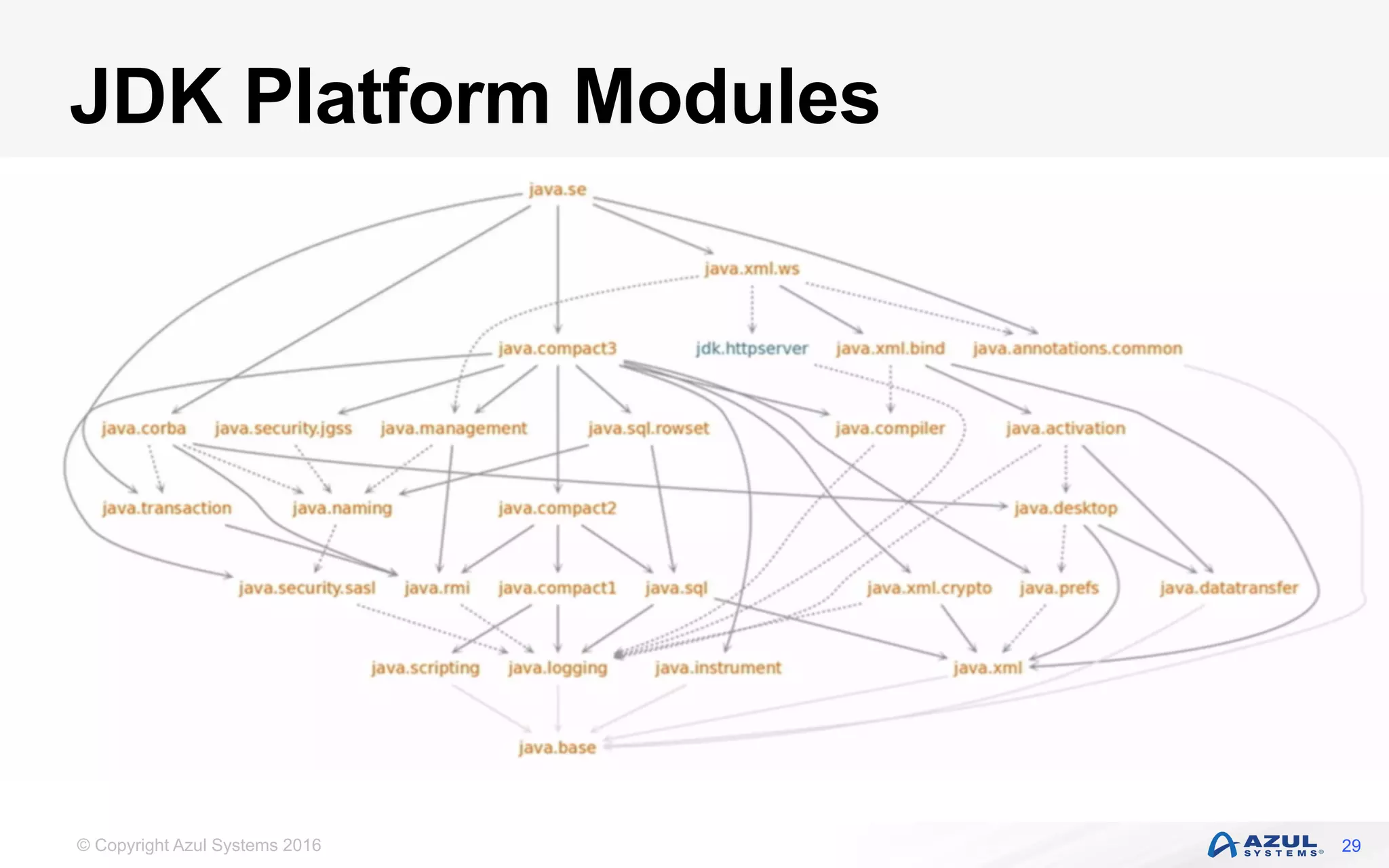

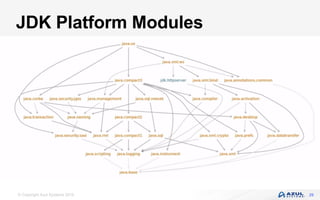

JDK Platform Modules
29

32. © Copyright Azul Systems 2016
Developing Code With
Modules

33. © Copyright Azul Systems 2016

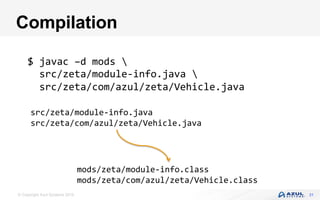

Compilation
31
$ javac –d mods
src/zeta/module-info.java
src/zeta/com/azul/zeta/Vehicle.java
mods/zeta/module-info.class
mods/zeta/com/azul/zeta/Vehicle.class
src/zeta/module-info.java
src/zeta/com/azul/zeta/Vehicle.java

34. © Copyright Azul Systems 2016

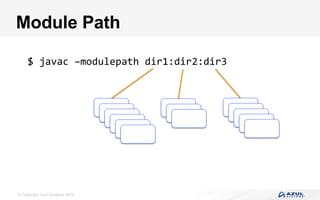

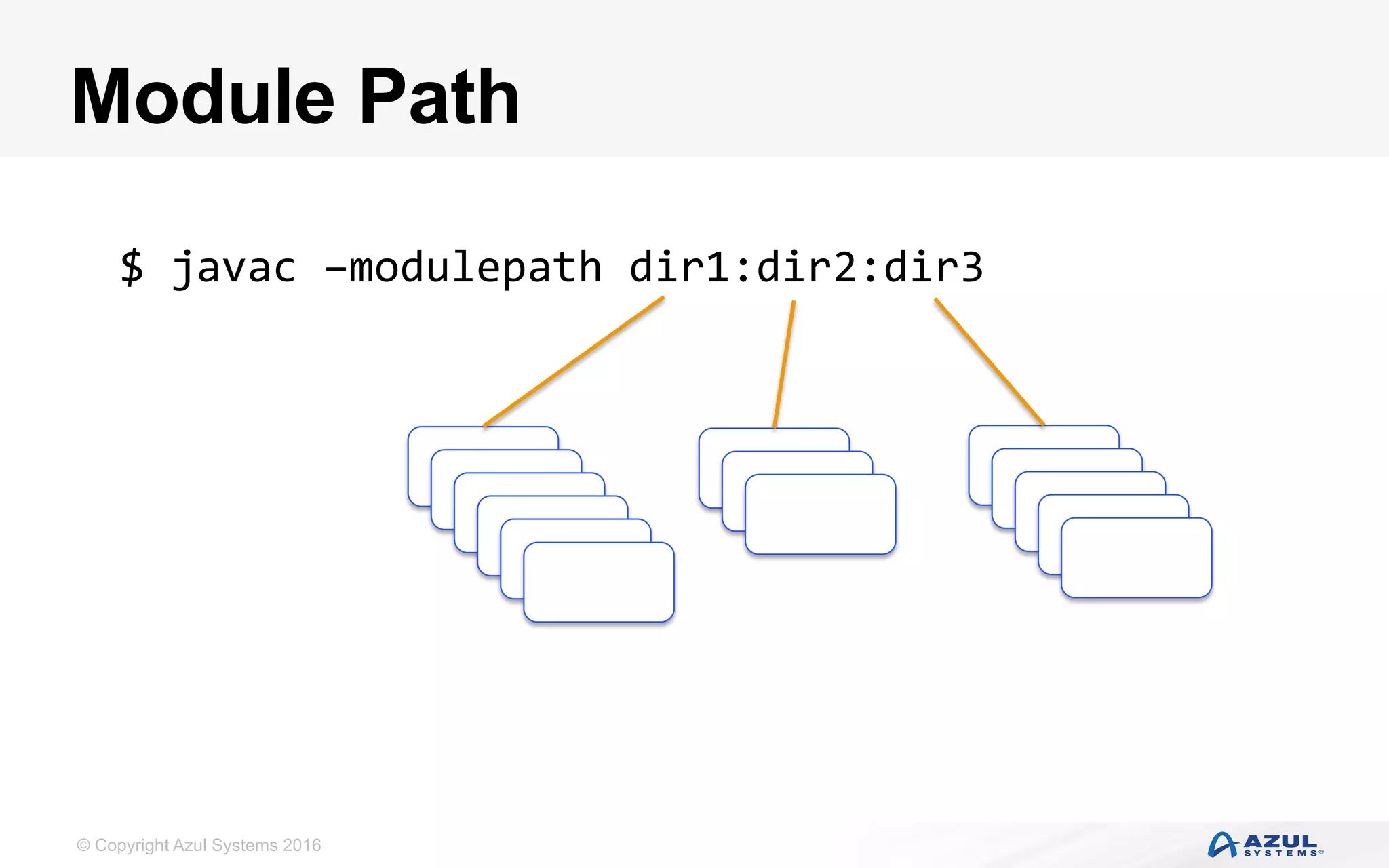

Module Path
$ javac –modulepath dir1:dir2:dir3

35. © Copyright Azul Systems 2016

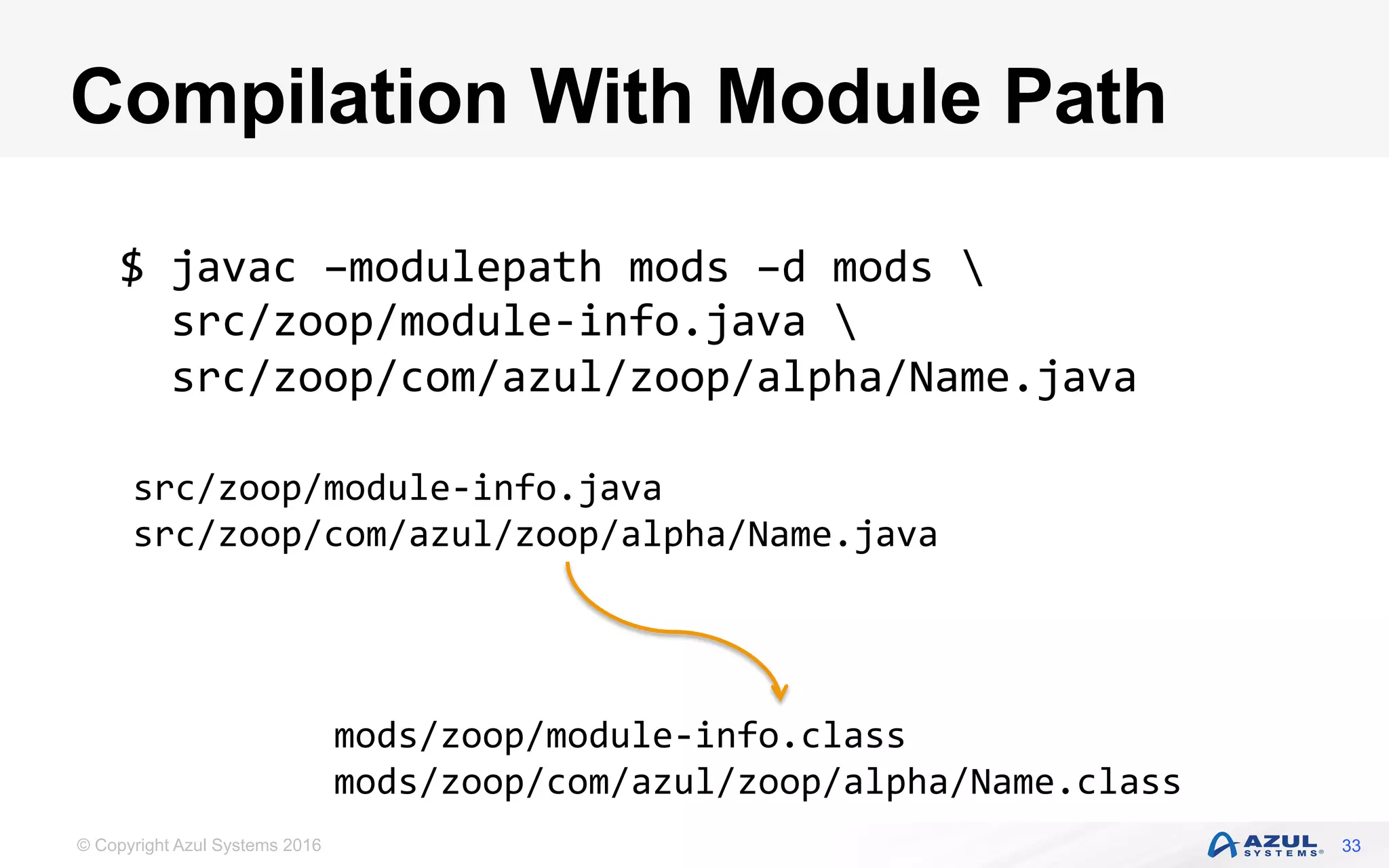

Compilation With Module Path
33
$ javac –modulepath mods –d mods
src/zoop/module-info.java
src/zoop/com/azul/zoop/alpha/Name.java
mods/zoop/module-info.class
mods/zoop/com/azul/zoop/alpha/Name.class
src/zoop/module-info.java
src/zoop/com/azul/zoop/alpha/Name.java

36. © Copyright Azul Systems 2016

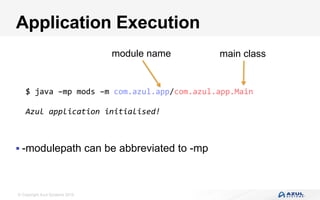

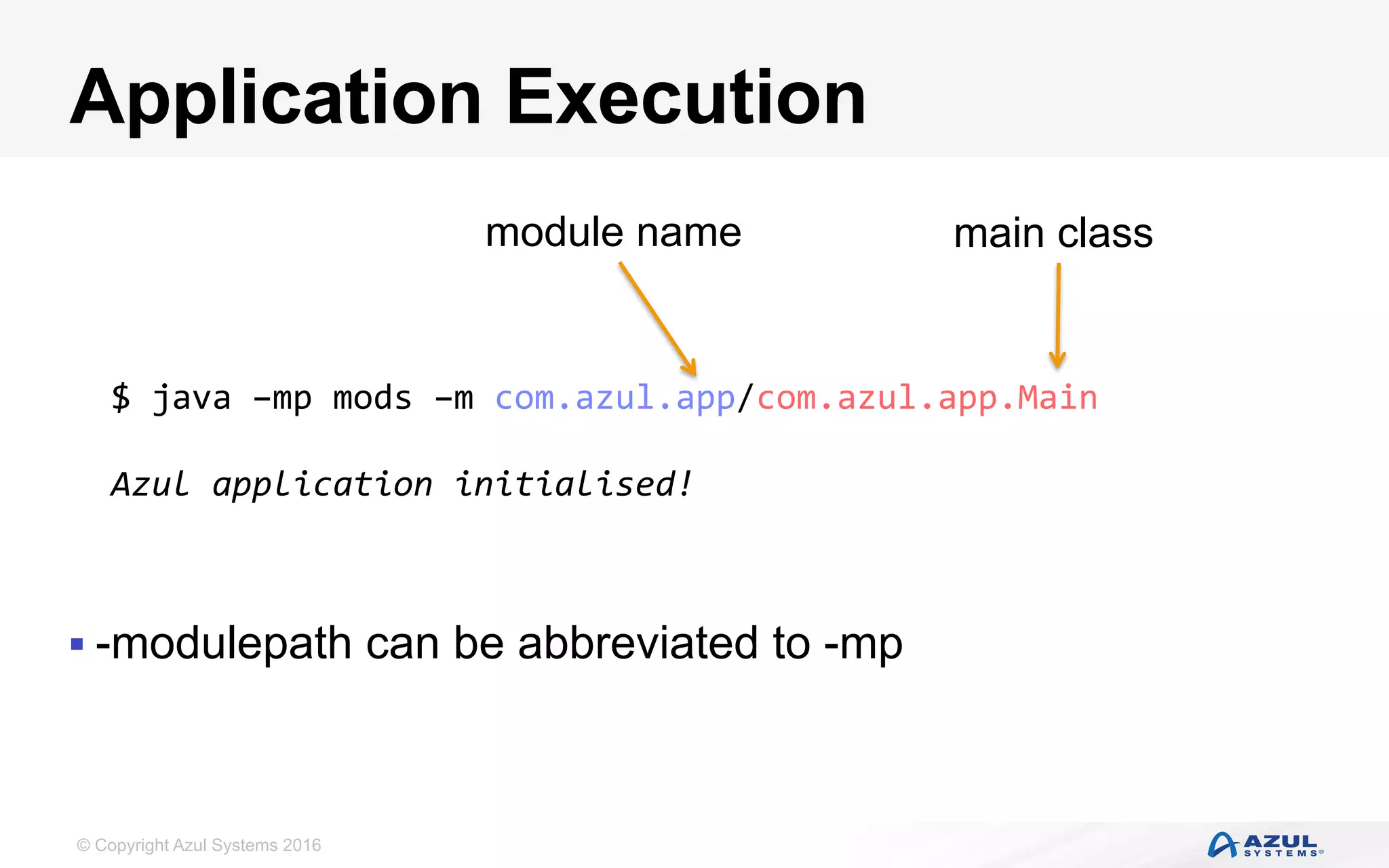

Application Execution
§ -modulepath can be abbreviated to -mp
$ java –mp mods –m com.azul.app/com.azul.app.Main
Azul application initialised!
module name main class

37. © Copyright Azul Systems 2016

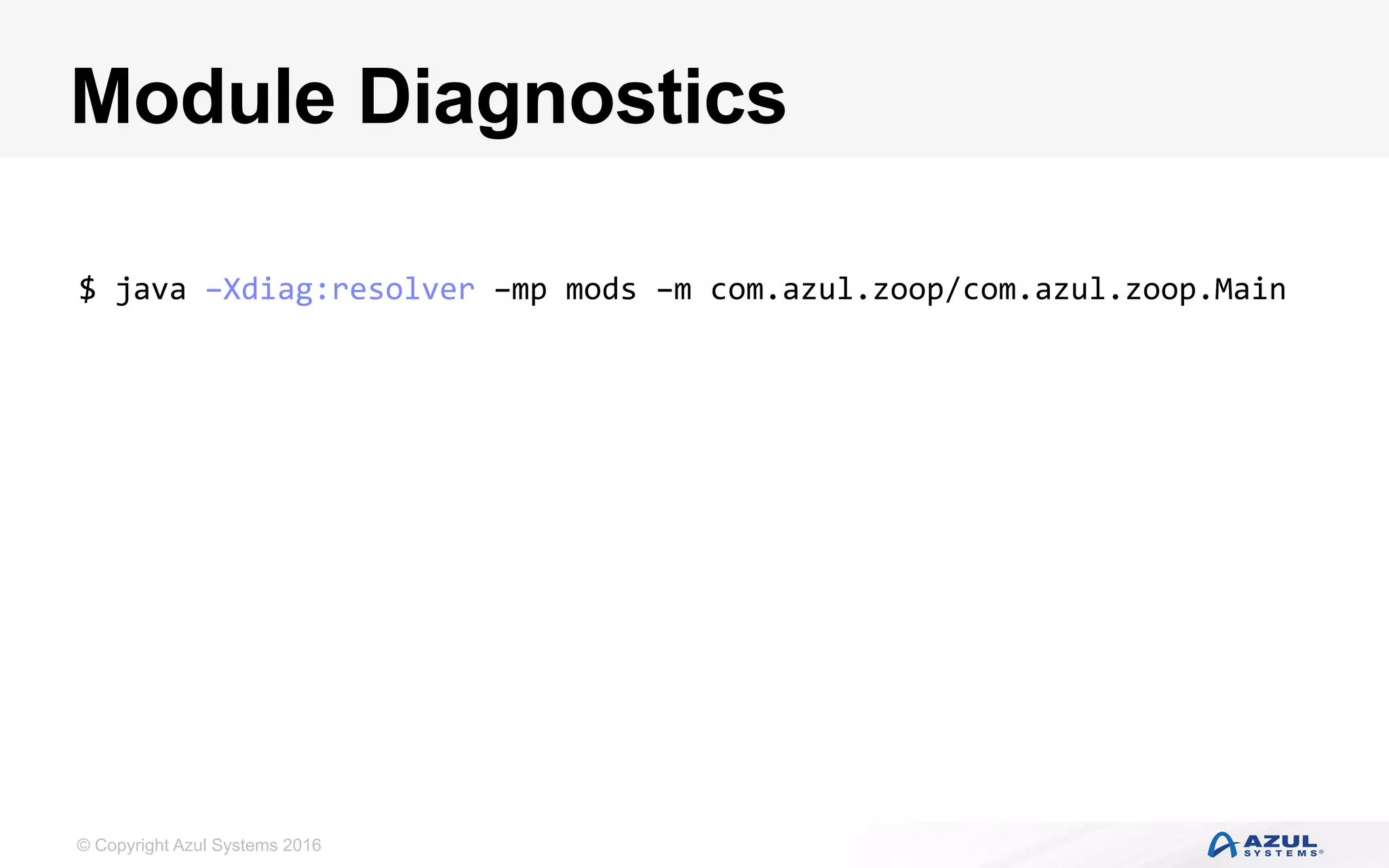

Module Diagnostics
$ java –Xdiag:resolver –mp mods –m com.azul.zoop/com.azul.zoop.Main

38. © Copyright Azul Systems 2016

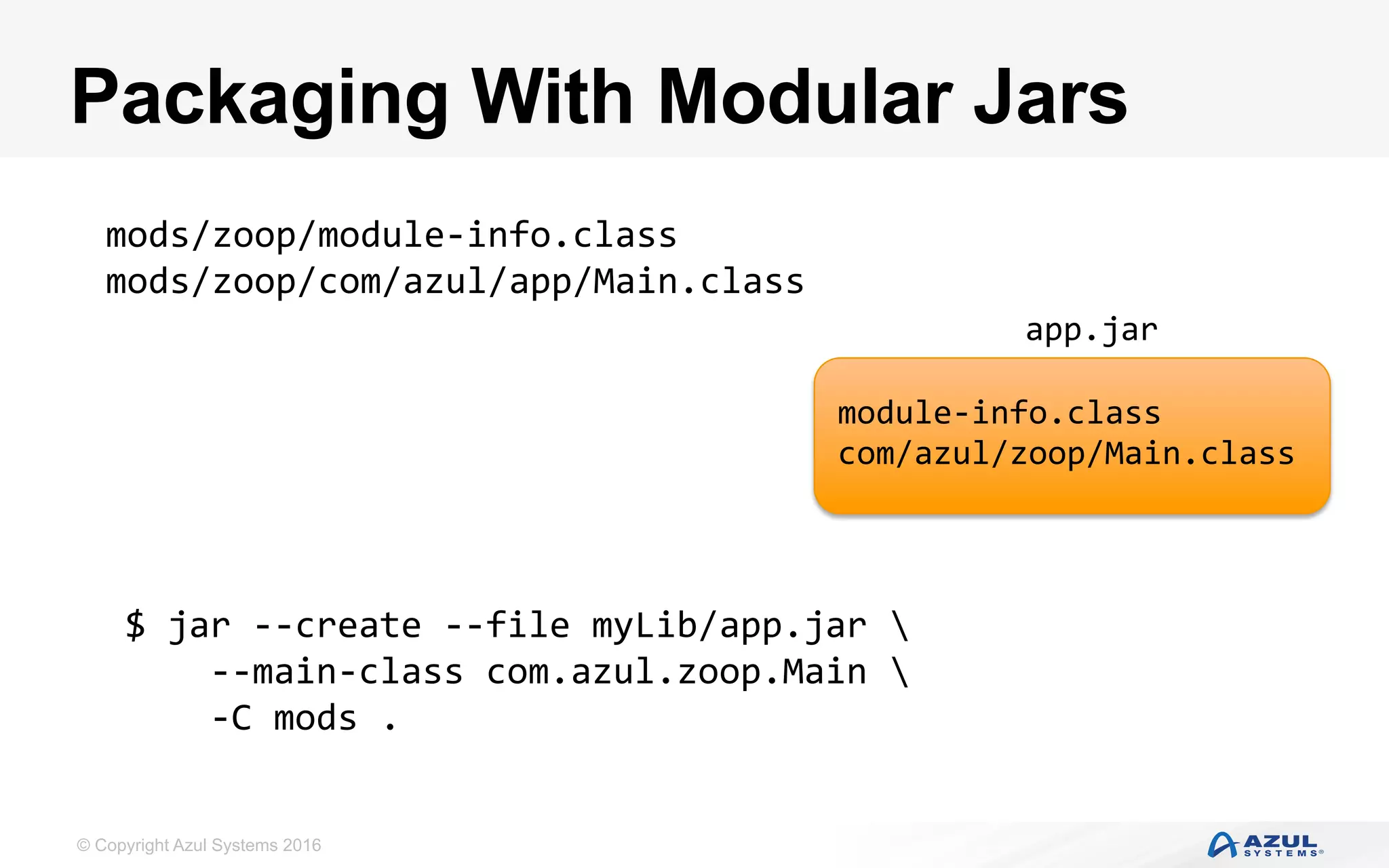

Packaging With Modular Jars
mods/zoop/module-info.class
mods/zoop/com/azul/app/Main.class
$ jar --create --file myLib/app.jar
--main-class com.azul.zoop.Main
-C mods .
module-info.class
com/azul/zoop/Main.class
app.jar

39. © Copyright Azul Systems 2016

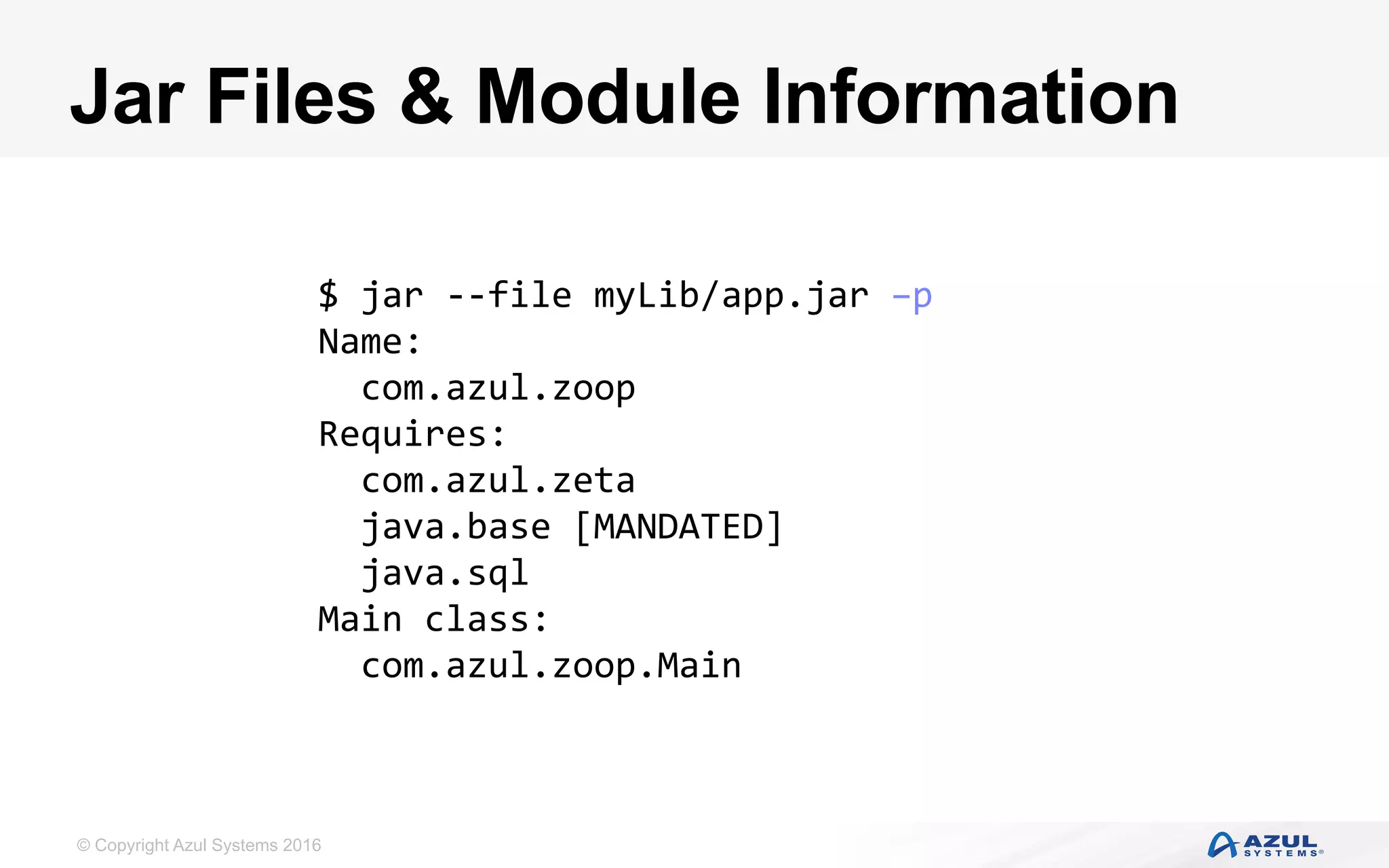

Jar Files & Module Information
$ jar --file myLib/app.jar –p
Name:
com.azul.zoop
Requires:
com.azul.zeta
java.base [MANDATED]
java.sql
Main class:
com.azul.zoop.Main

40. © Copyright Azul Systems 2016

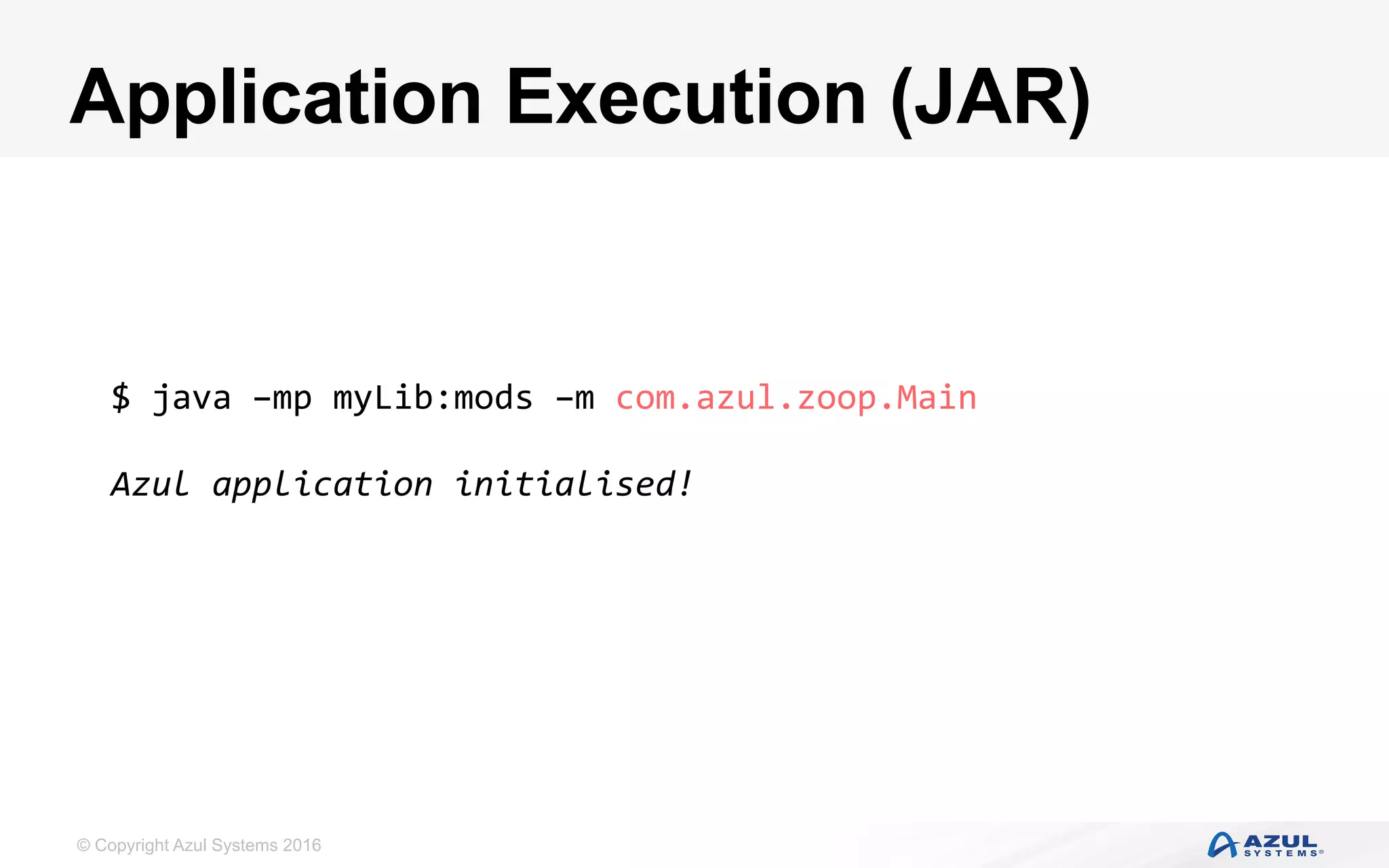

Application Execution (JAR)
$ java –mp myLib:mods –m com.azul.zoop.Main
Azul application initialised!

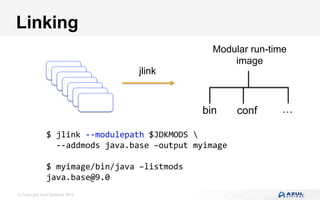

41. © Copyright Azul Systems 2016
Linking
Modular run-time
…confbin
jlink
$ jlink --modulepath $JDKMODS
--addmods java.base –output myimage
$ myimage/bin/java –listmods
java.base@9.0

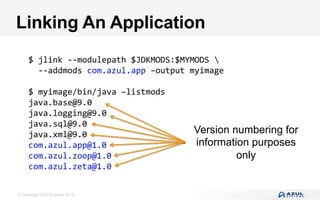

42. © Copyright Azul Systems 2016

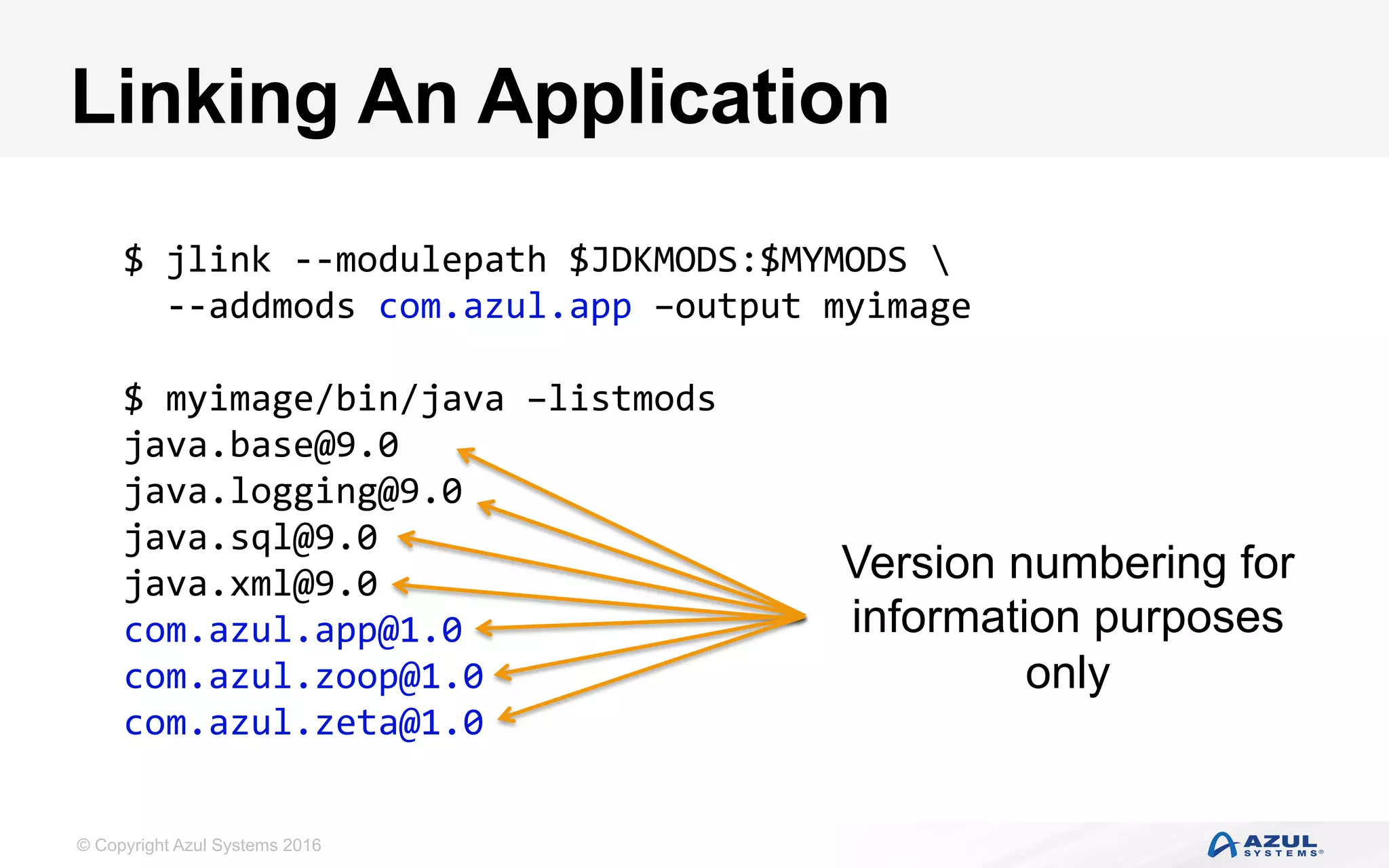

Linking An Application
$ jlink --modulepath $JDKMODS:$MYMODS
--addmods com.azul.app –output myimage
$ myimage/bin/java –listmods
java.base@9.0
java.logging@9.0
java.sql@9.0
java.xml@9.0
com.azul.app@1.0
com.azul.zoop@1.0
com.azul.zeta@1.0
Version numbering for
information purposes
only

43. © Copyright Azul Systems 2016
Application Migration

44. © Copyright Azul Systems 2016

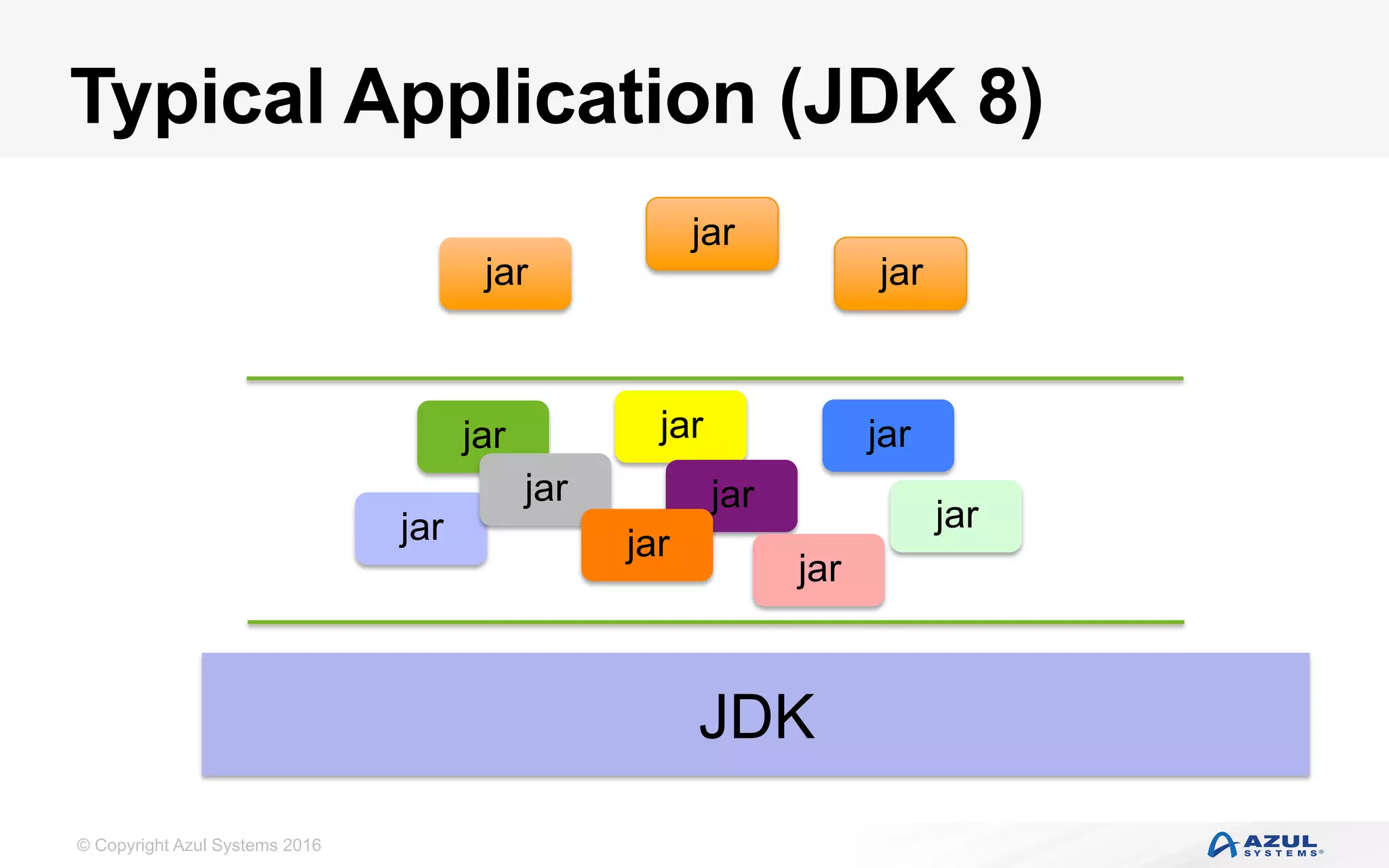

Typical Application (JDK 8)
jar
jar
jar
JDK
jar
jarjar
jar jar
jar
jar
jar
jar

45. © Copyright Azul Systems 2016

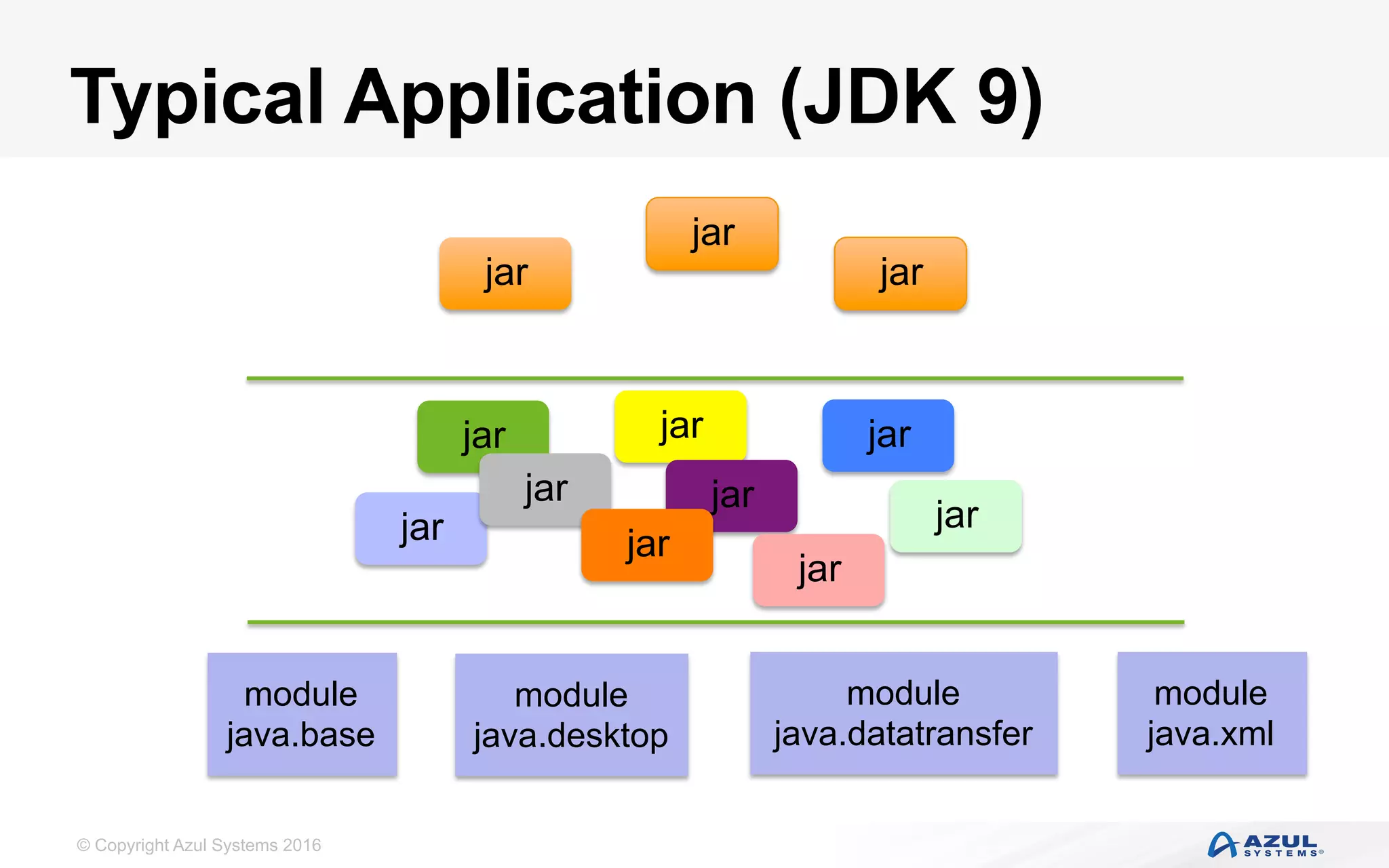

Typical Application (JDK 9)
jar
jar
jar
module
java.base
module
java.desktop
module
java.datatransfer
module
java.xml
jar
jarjar
jar jar
jar
jar
jar
jar

46. © Copyright Azul Systems 2016

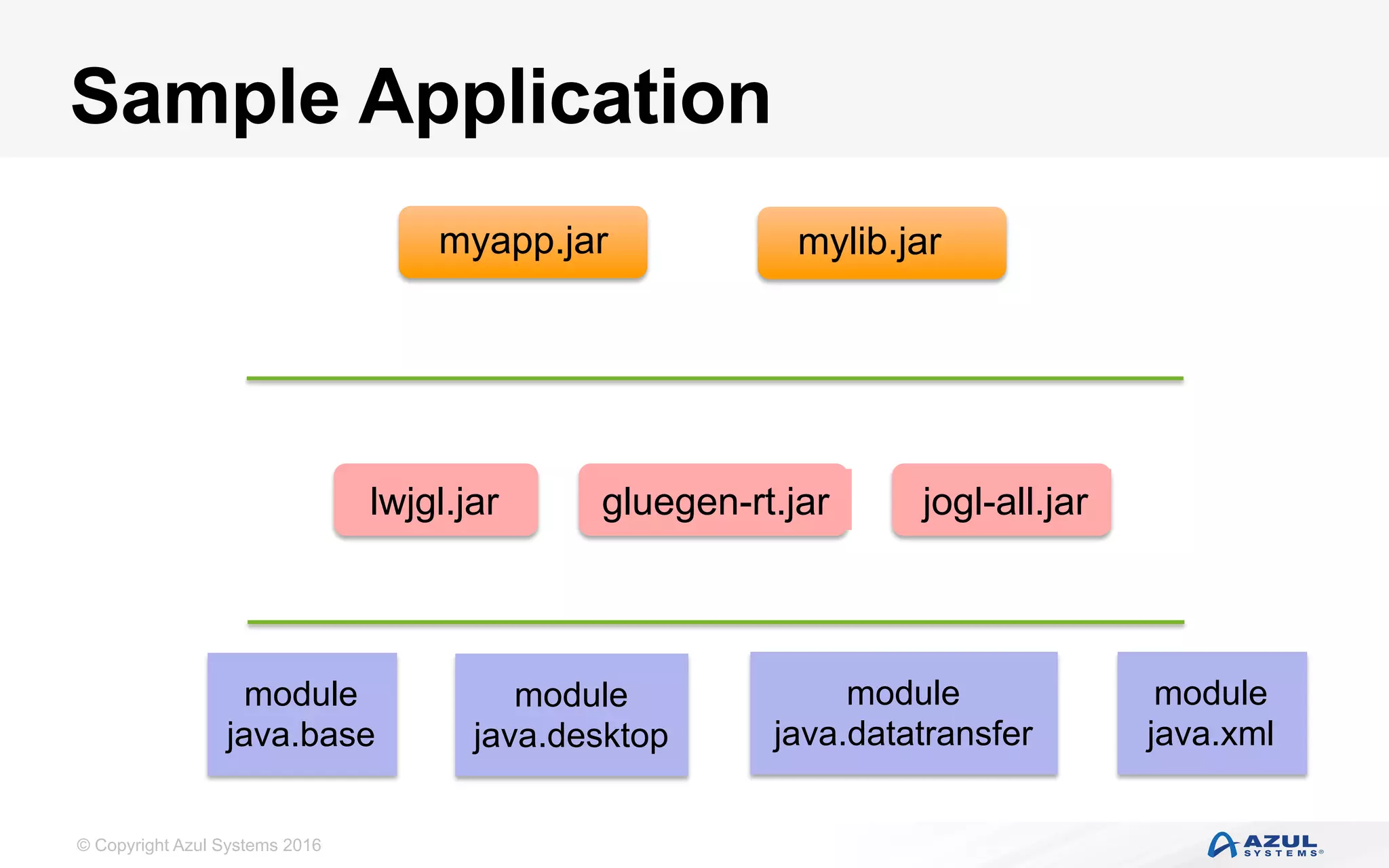

Sample Application
myapp.jar
lwjgl.jar
mylib.jar
gluegen-rt.jar jogl-all.jar
module
java.base
module
java.desktop
module
java.datatransfer
module
java.xml

47. © Copyright Azul Systems 2016

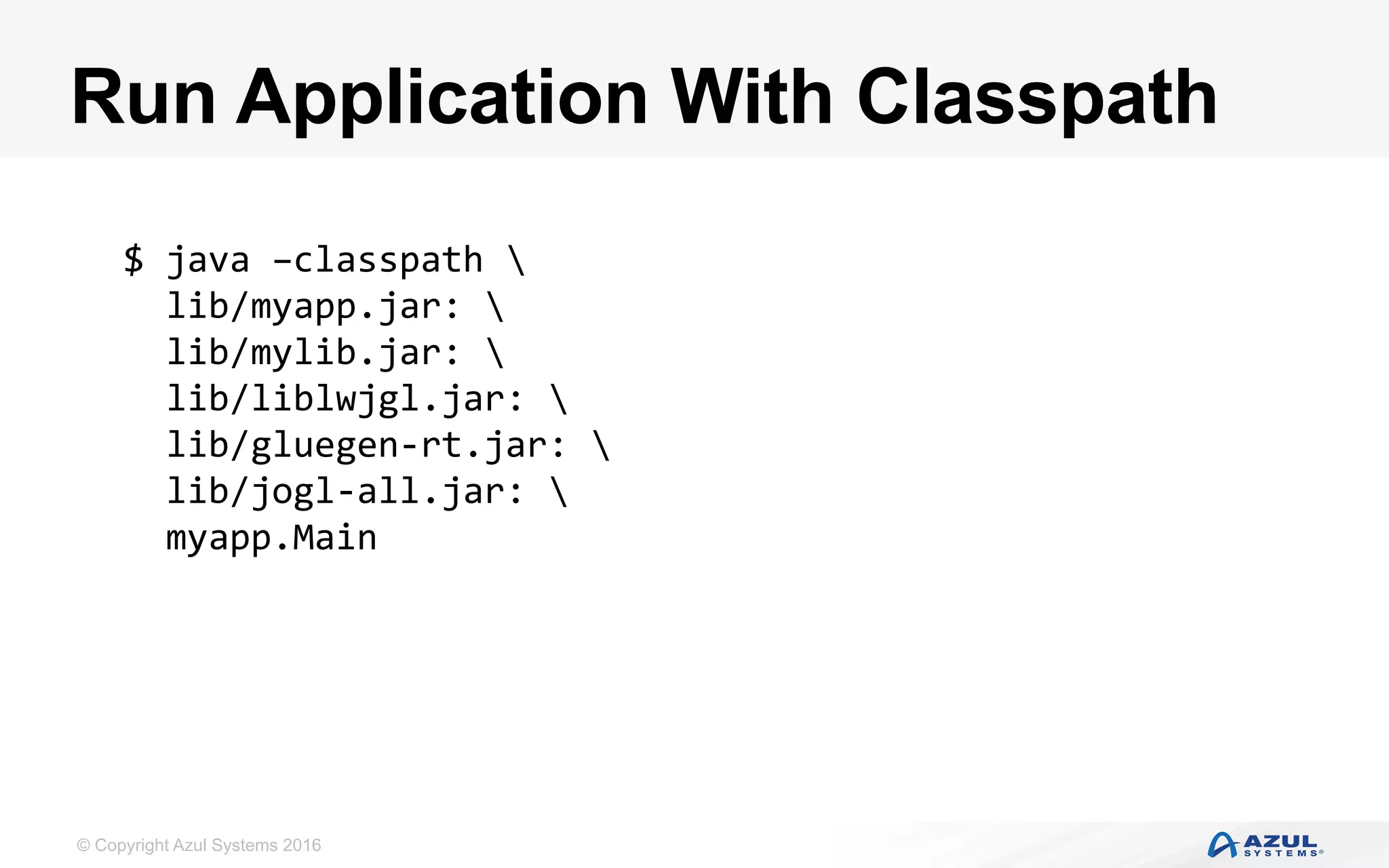

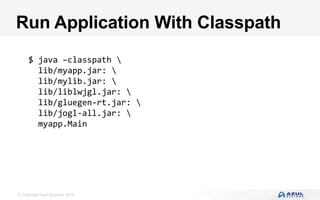

Run Application With Classpath
$ java –classpath
lib/myapp.jar:
lib/mylib.jar:
lib/liblwjgl.jar:
lib/gluegen-rt.jar:
lib/jogl-all.jar:
myapp.Main

48. © Copyright Azul Systems 2016

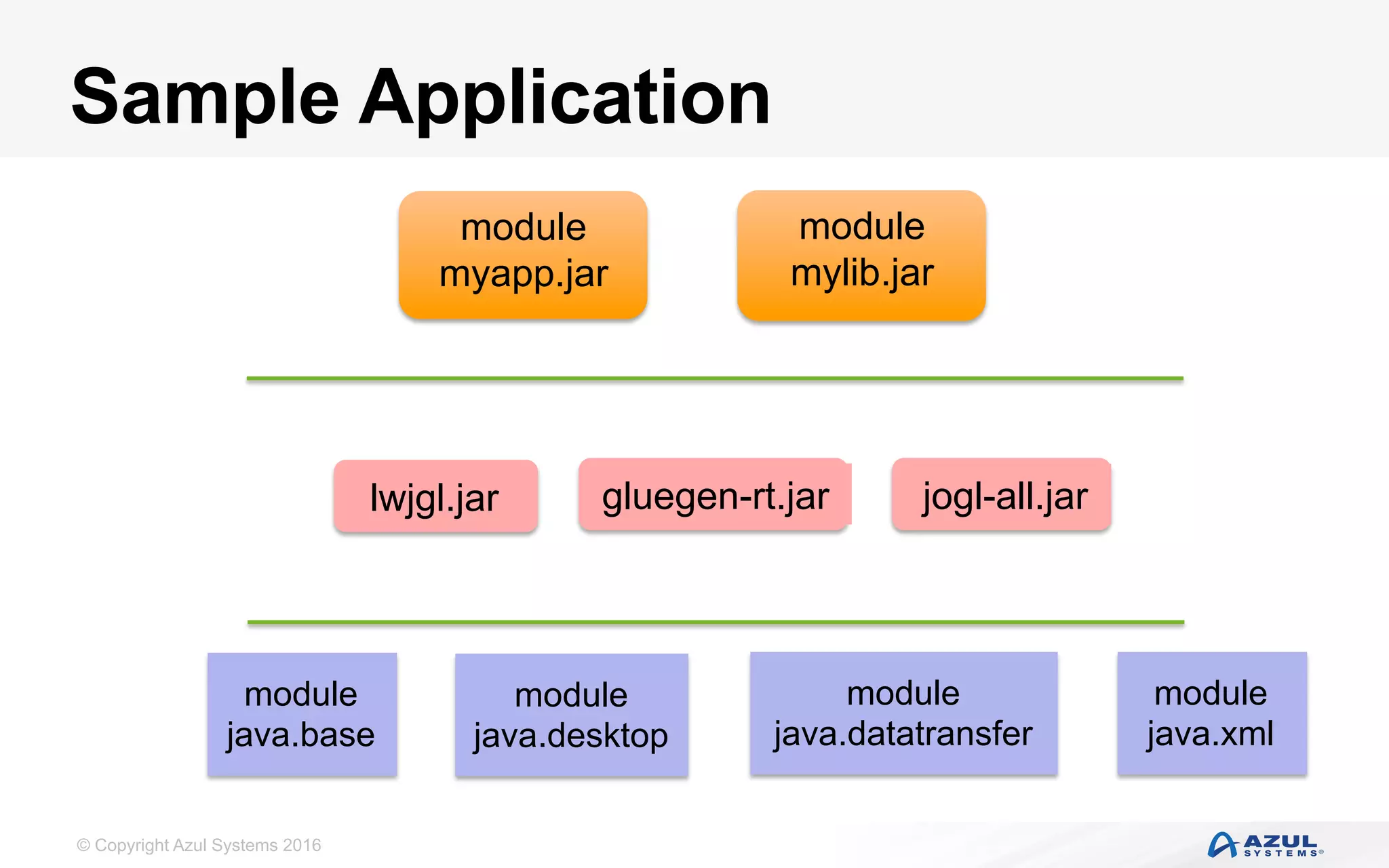

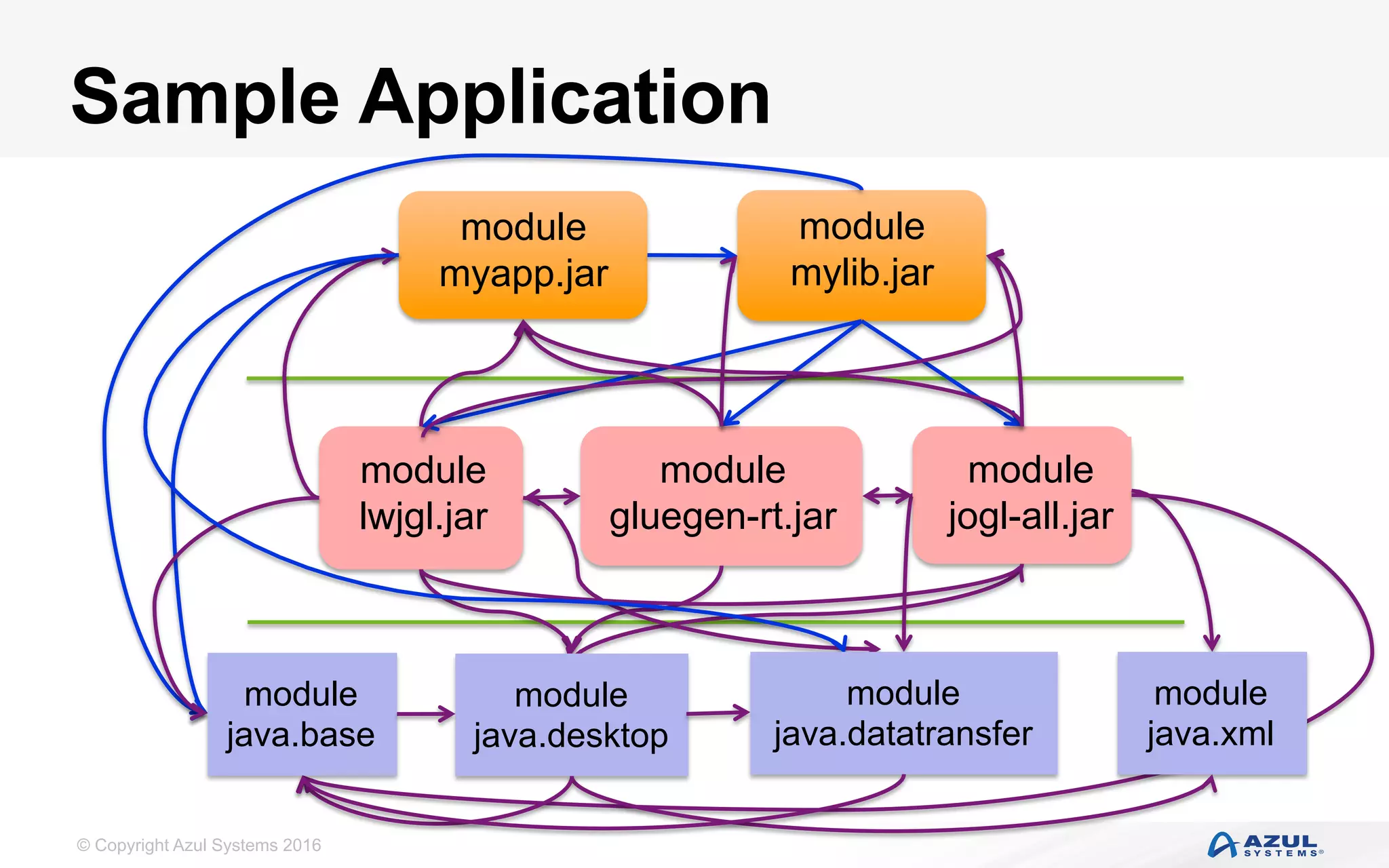

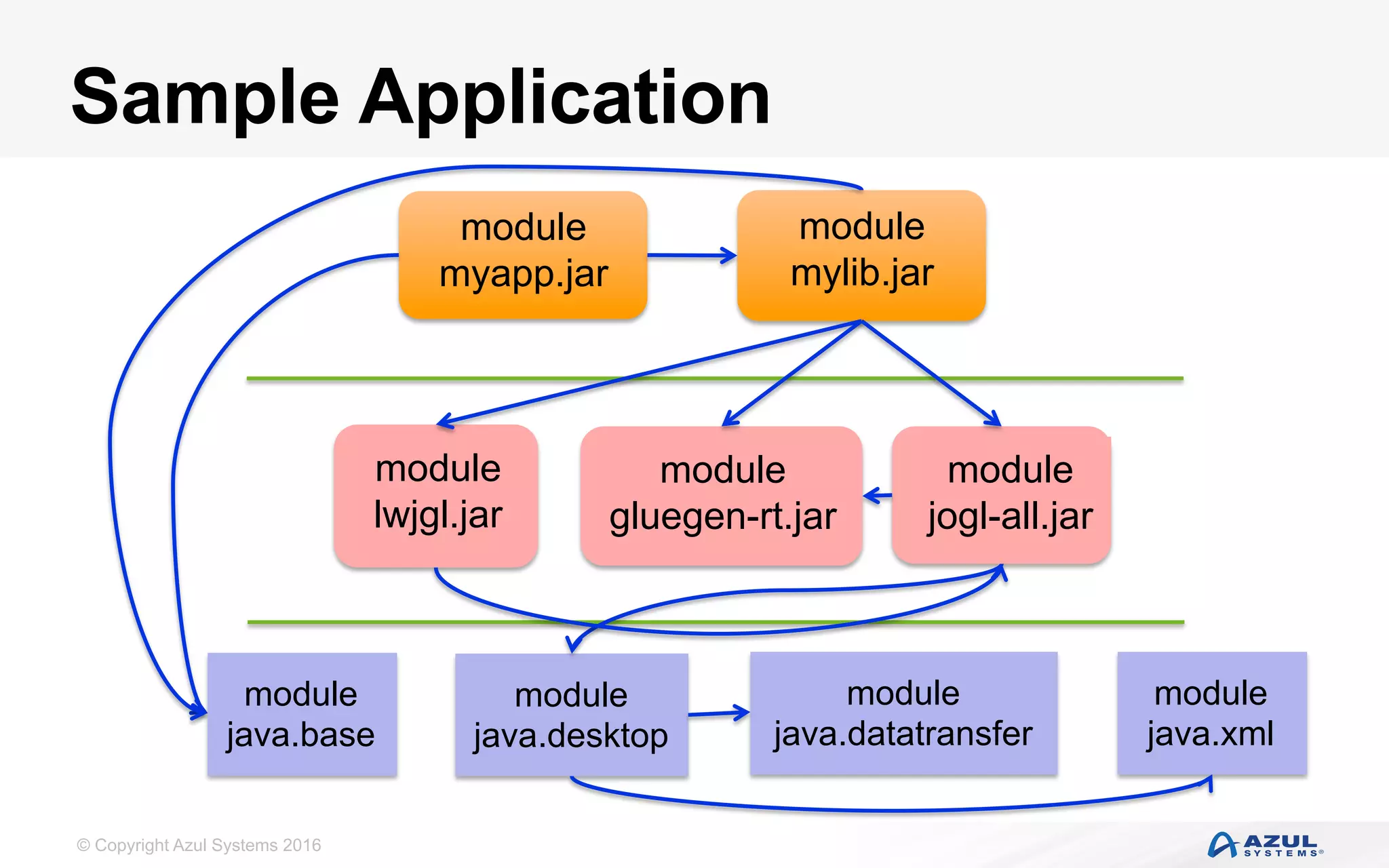

Sample Application
module
myapp.jar
lwjgl.jar
module
mylib.jar
gluegen-rt.jar jogl-all.jar
module
java.base
module
java.desktop
module
java.datatransfer
module
java.xml

49. © Copyright Azul Systems 2016

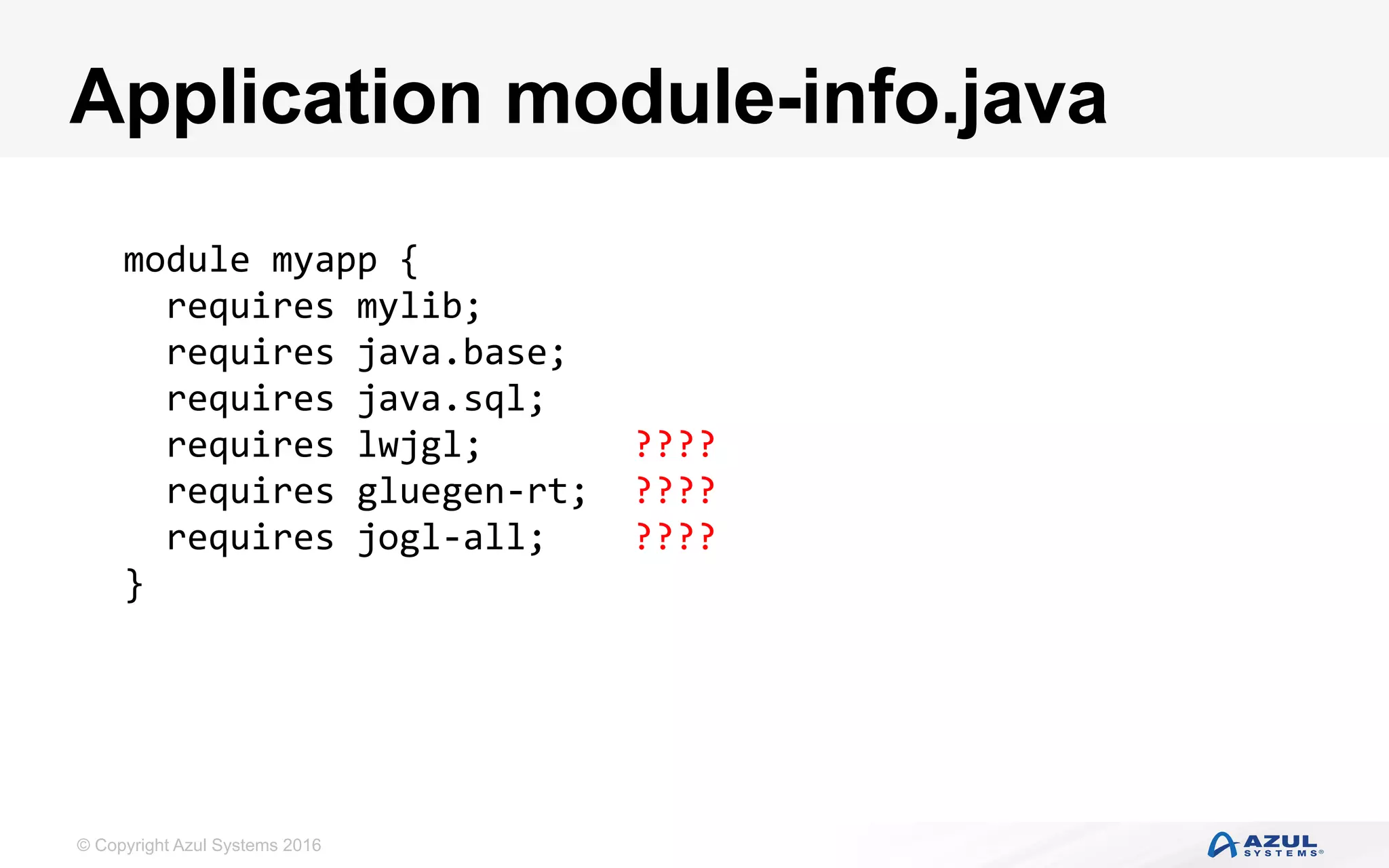

Application module-info.java
module myapp {
requires mylib;
requires java.base;
requires java.sql;
requires lwjgl; ????
requires gluegen-rt; ????
requires jogl-all; ????
}

50. © Copyright Azul Systems 2016
Sample Application
module
myapp.jar
module
lwjgl.jar
module
mylib.jar
module
gluegen-rt.jar
module
jogl-all.jar
module
java.base
module
java.desktop
module
java.datatransfer
module
java.xml

51. © Copyright Azul Systems 2016

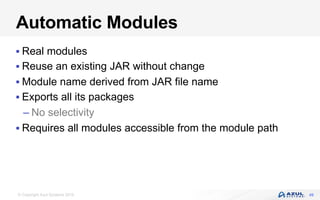

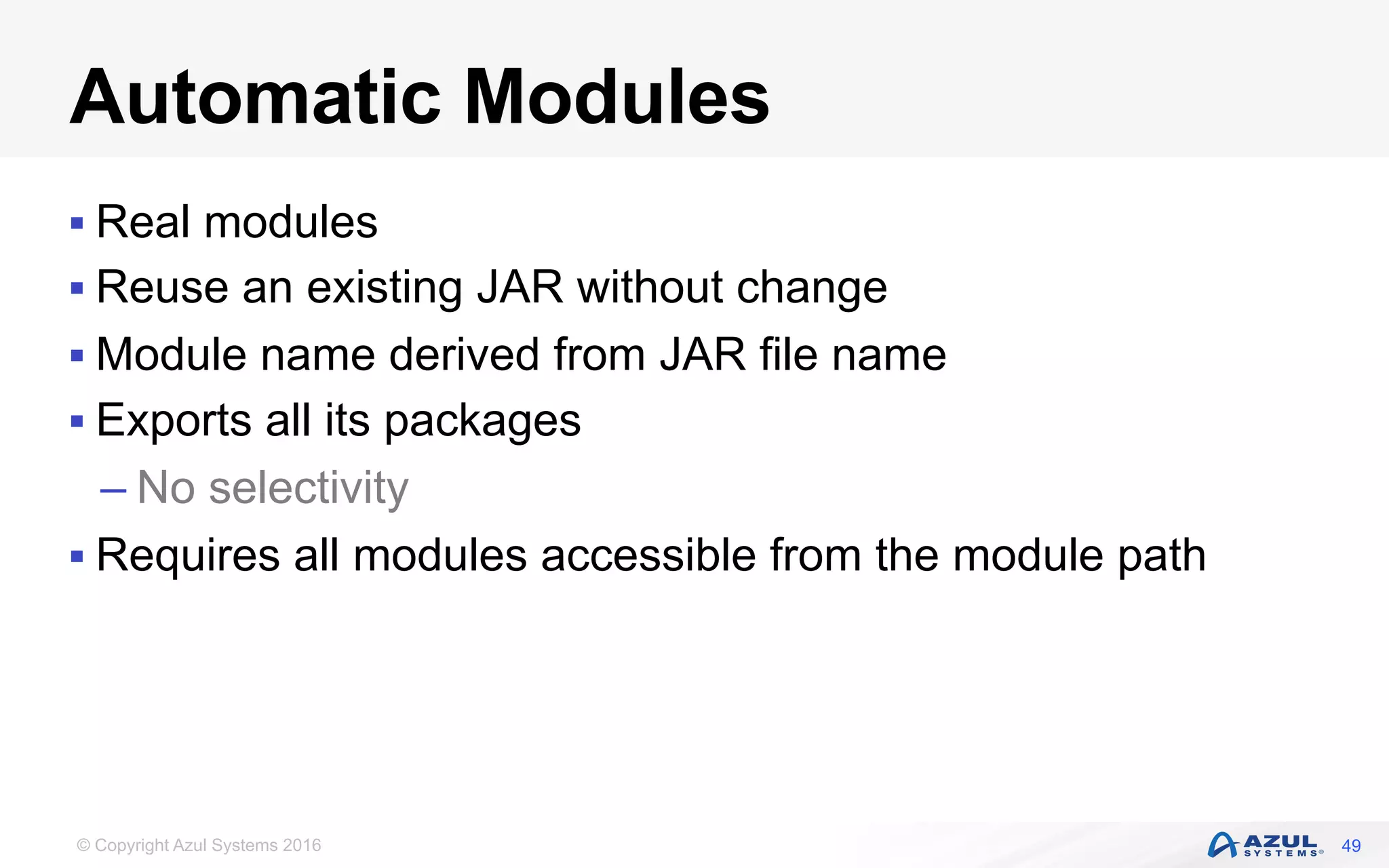

Automatic Modules
§ Real modules
§ Reuse an existing JAR without change
§ Module name derived from JAR file name
§ Exports all its packages
– No selectivity
§ Requires all modules accessible from the module path
49

52. © Copyright Azul Systems 2016
Sample Application
module
myapp.jar
module
lwjgl.jar
module
mylib.jar
module
gluegen-rt.jar
module
jogl-all.jar
module
java.base
module
java.desktop
module
java.datatransfer
module
java.xml

53. © Copyright Azul Systems 2016

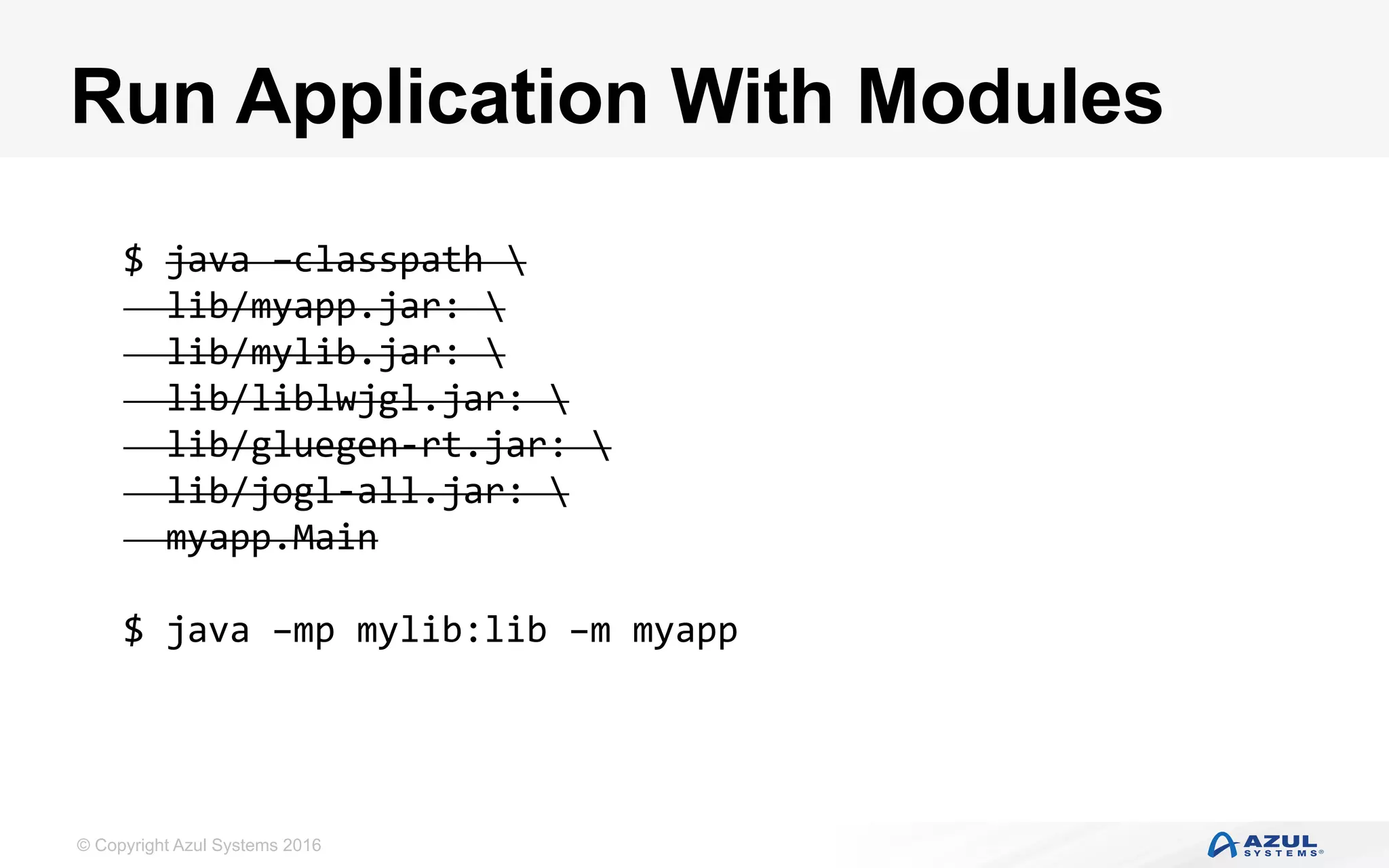

Run Application With Modules
$ java –classpath
lib/myapp.jar:
lib/mylib.jar:
lib/liblwjgl.jar:
lib/gluegen-rt.jar:
lib/jogl-all.jar:
myapp.Main
$ java –mp mylib:lib –m myapp

54. © Copyright Azul Systems 2016
Summary & Further Information

55. © Copyright Azul Systems 2016

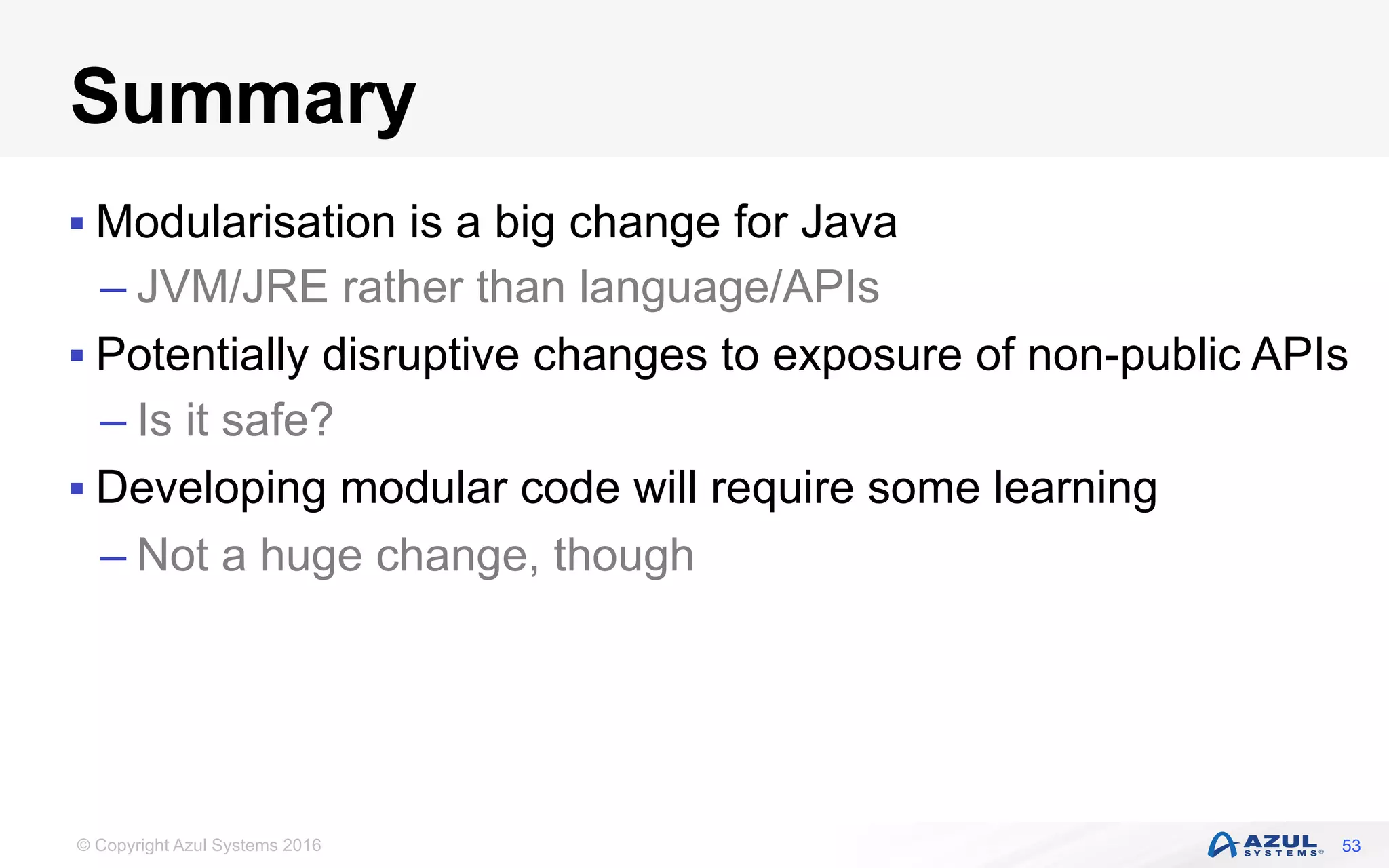

Summary
§ Modularisation is a big change for Java
– JVM/JRE rather than language/APIs
§ Potentially disruptive changes to exposure of non-public APIs
– Is it safe?
§ Developing modular code will require some learning
– Not a huge change, though
53

56. © Copyright Azul Systems 2016

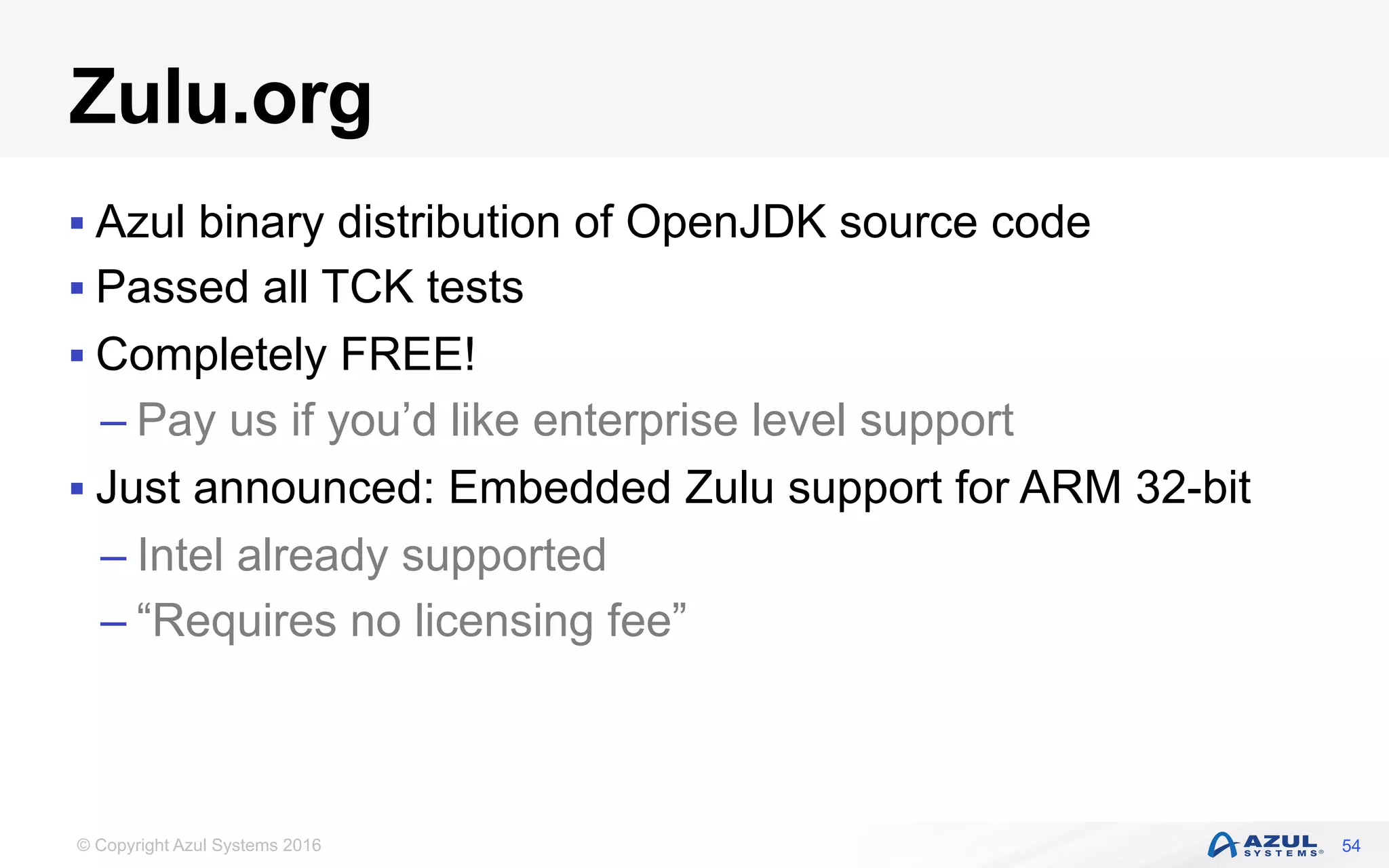

Zulu.org
§ Azul binary distribution of OpenJDK source code
§ Passed all TCK tests
§ Completely FREE!
– Pay us if you’d like enterprise level support
§ Just announced: Embedded Zulu support for ARM 32-bit
– Intel already supported
– “Requires no licensing fee”
54

57. © Copyright Azul Systems 2016

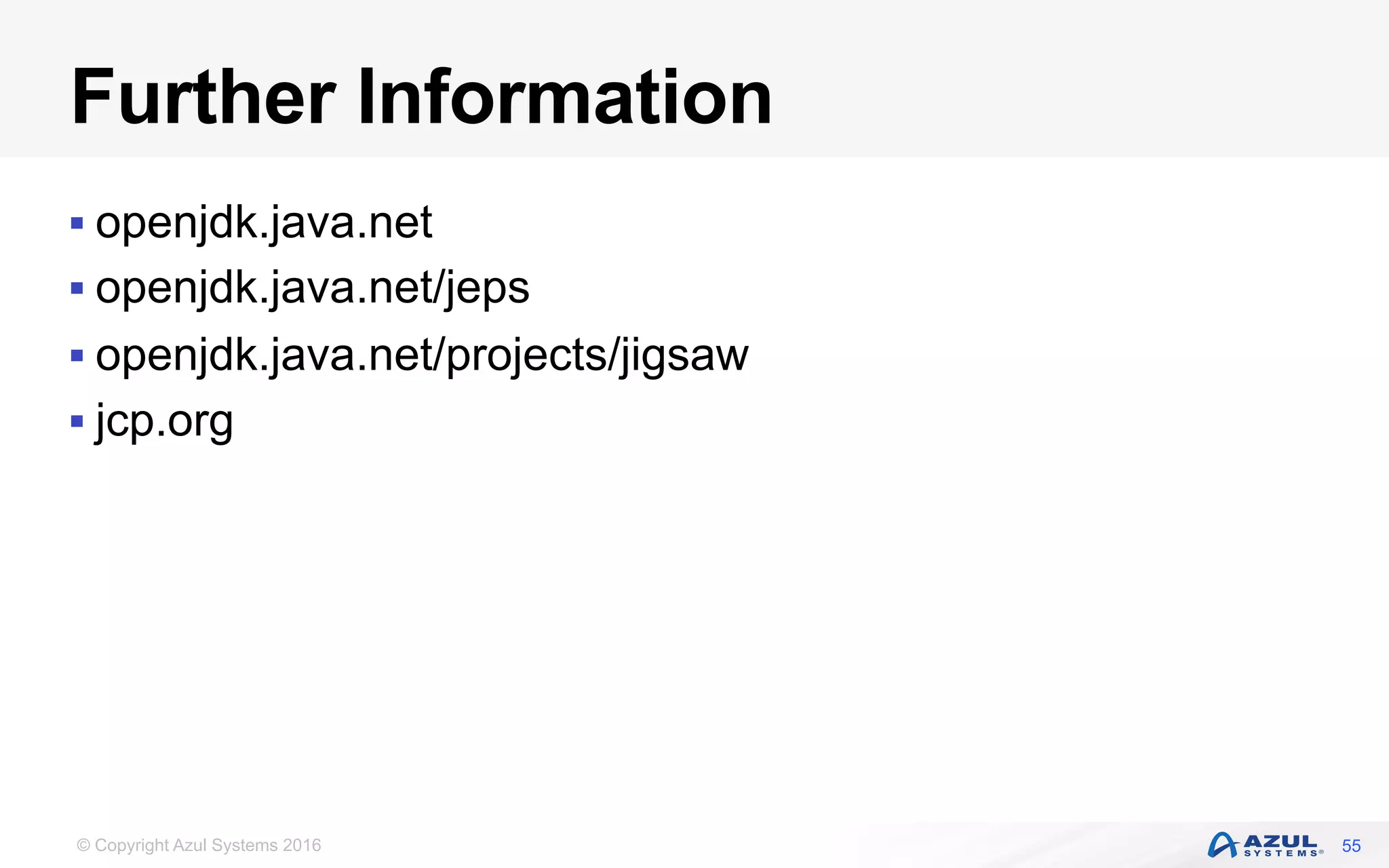

Further Information
§ openjdk.java.net
§ openjdk.java.net/jeps
§ openjdk.java.net/projects/jigsaw
§ jcp.org
55

58. © Copyright Azul Systems 2016
© Copyright Azul Systems 2015
@speakjava azul.com
Questions
Simon Ritter
Deputy CTO, Azul Systems
56

59. Watch the video with slide
synchronization on InfoQ.com!
http://www.infoq.com/presentations/
jigsaw-jdk-9
