1. Case Studies-Housing and Redevelopment.
1. Project R6-ByRex Architects Yongsan Business District.
2. Archipelago 21-By Daniel Libeskind, Yongsan Business District.
Rafay.A , Esa.S and group| greenarchworld.in

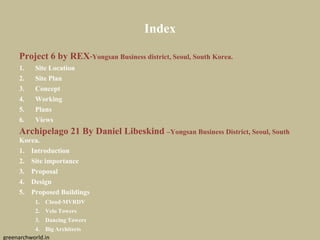

2. Index
Project 6 by REX-Yongsan Business district, Seoul, South Korea.
1. Site Location
2. Site Plan
3. Concept
4. Working
5. Plans
6. Views
Archipelago 21 By Daniel Libeskind –Yongsan Business District, Seoul, South
Korea.
1. Introduction
2. Site importance
3. Proposal
4. Design
5. Proposed Buildings
1. Cloud-MVRDV
2. Velo Towers
3. Dancing Towers
4. BigArchitects
greenarchworld.in

3. Project 6- Introduction
• YIBD ‘Project R6’, designed by REX, is an urban
boutique residence for short-term business people,
young urban professionals, and foreign residents in
Seoul, South Korea. To meet the trends of its users and
compensate for its small unit size, R6 must create a
strong sense of community and its residences must be
highly attractive, providing generous views, daylight,
and cross-ventilation. Maximizing daylight and cross-
ventilation are also paramount to providing a highly
sustainable residence.
• To meet the trends of its users and compensate for its
small unit size, R6 must engender a strong sense of
community and its residences must be highly attractive,
providing generous views, daylight, and cross-
ventilation. Maximizing daylight and cross-ventilation
are also paramount to providing a highly sustainable
residence.
greenarchworld.in

4. Project 6-key facts.
• Architects:REX
• Location: Seoul, South Korea
• Key Personnel: Tiago Barros,Adam Chizmar,Danny DuongExecutive Architect:Mooyoung.
• Consultants:Barker Mohandas, Buro Happold, Front, Level Acoustics,Magnusson Klemencic,.
• Client:Dreamhub Project Financing Vehicle Co.,Ltd
• Program: 47,800 m2 (514,500 sf) of luxury housing for short-termresidents,27,000 m2 (290,600 sf) of retail,and
929 parking stalls
• Area: 115,500 m2 (1,240,000 sf)
• Status: Commenced2011; completedSchematic Design 2012; completion expected 2016
greenarchworld.in

5. Site Location
• The site is located in the yongsan district, or the proposed yongsan international business district in Seoul, South Korea.
• The district is centrally located in seoul, and was previously used as a US base.
• The Yongsan International Business District was masterplanned by Daniel Libeskind and is the biggest urban
development project in South Korea. Due for completion in 2024, the masterplan was commissioned by South Korean
developer DreamHub.
Map of Seoul, South Korea.
greenarchworld.in

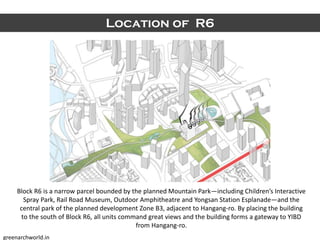

6. Location of R6
Block R6 is a narrow parcel bounded by the planned Mountain Park—including Children’s Interactive
Spray Park, Rail Road Museum, Outdoor Amphitheatre and Yongsan Station Esplanade—and the
central park of the planned development Zone B3, adjacent to Hangang-ro. By placing the building
to the south of Block R6, all units command great views and the building forms a gateway to YIBD
from Hangang-ro.
greenarchworld.in

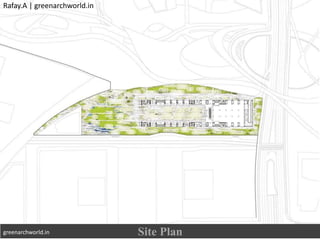

7. Site Plan
Rafay.A | greenarchworld.in
greenarchworld.in

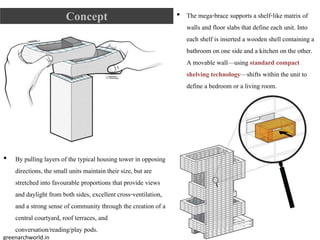

8. Concept
• By pulling layers of the typical housing tower in opposing
directions, the small units maintain their size, but are
stretched into favourable proportions that provide views
and daylight from both sides, excellent cross-ventilation,
and a strong sense of community through the creation of a
central courtyard, roof terraces, and
conversation/reading/play pods.
• The mega-brace supports a shelf-like matrix of
walls and floor slabs that define each unit. Into
each shelf is inserted a wooden shell containing a
bathroom on one side and a kitchen on the other.
A movable wall—using standard compact
shelving technology—shifts within the unit to
define a bedroom or a living room.
greenarchworld.in

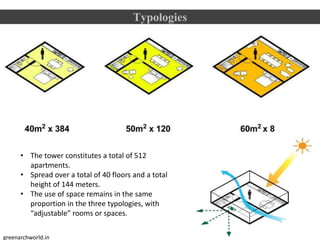

9. • The tower constitutes a total of 512
apartments.
• Spread over a total of 40 floors and a total
height of 144 meters.
• The use of space remains in the same
proportion in the three typologies, with
“adjustable” rooms or spaces.
Typologies
greenarchworld.in

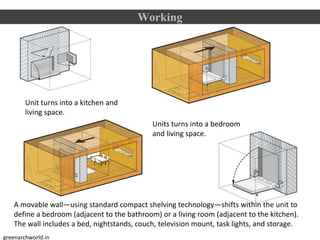

10. Unit turns into a kitchen and
living space.
Units turns into a bedroom
and living space.
Working
A movable wall—using standard compact shelving technology—shifts within the unit to
define a bedroom (adjacent to the bathroom) or a living room (adjacent to the kitchen).
The wall includes a bed, nightstands, couch, television mount, task lights, and storage.
greenarchworld.in

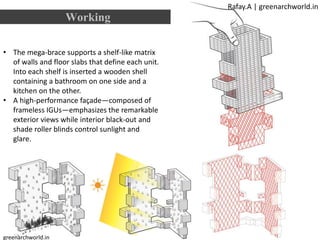

11. • The mega-brace supports a shelf-like matrix
of walls and floor slabs that define each unit.
Into each shelf is inserted a wooden shell
containing a bathroom on one side and a
kitchen on the other.
• A high-performance façade—composed of
frameless IGUs—emphasizes the remarkable
exterior views while interior black-out and
shade roller blinds control sunlight and
glare.
Working
Rafay.A | greenarchworld.in
greenarchworld.in

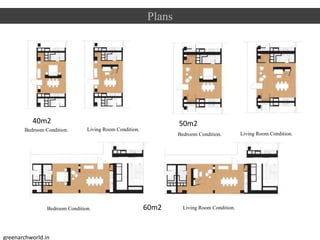

12. Plans
40m2 50m2
60m2
Bedroom Condition. Living Room Condition.
Bedroom Condition. Living Room Condition.
Bedroom Condition. Living Room Condition.
greenarchworld.in

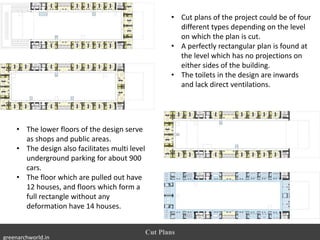

13. • Cut plans of the project could be of four
different types depending on the level
on which the plan is cut.
• A perfectly rectangular plan is found at
the level which has no projections on
either sides of the building.
• The toilets in the design are inwards
and lack direct ventilations.
Cut Plans
• The lower floors of the design serve
as shops and public areas.
• The design also facilitates multi level
underground parking for about 900
cars.
• The floor which are pulled out have
12 houses, and floors which form a
full rectangle without any
deformation have 14 houses.
greenarchworld.in

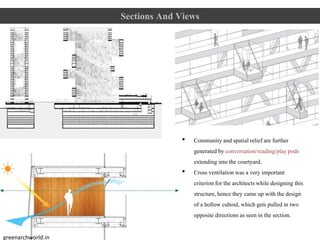

14. Sections And Views
• Communityand spatialreliefare further
generated by conversation/reading/playpods
extending into the courtyard.
• Cross ventilationwas a very important
criterionfor the architectswhiledesigning this
structure,hence they came up with the design
of a hollow cuboid, which gets pulled in two
opposite directionsas seen in the section.
greenarchworld.in

15. Renderingof the interior and views towards the core of the structure.
greenarchworld.in

16. RenderedViews and Model
greenarchworld.in

17. Core of the structure
greenarchworld.in

18. Archipelago 21
greenarchworld.in

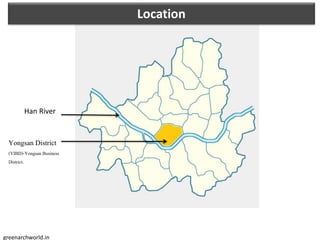

19. Seoul, South Korea
Han River
Yongsan District
(YIBD)-Yongsan Business
District.
Location
greenarchworld.in

20. Project Brief
• Archipelago21, Studio Daniel Libeskind's masterplan
for the major redevelopment for the Yongsan
International Business District of Seoul, South Korea
dramatically reinvents the landscape of Korea’s historic
capital city. This sustainable urban development is
made up of over 30 million square feet of built area and
will include a new international business district,
world-class shopping, residential neighborhoods,
cultural institutions,educational facilities and
transportation, all sited in a large urban park along the
Han River.
• In addition to the masterplan, Studio Daniel Libeskind
is also the architect for 3 residential towers (The
Dancing Towers) and a office tower (Harmony Tower)
on the site.
greenarchworld.in

21. • BUILDINGSIZE
20,000,000 sq.ft
6,000,000 sq.f t -Underground
• CLIENT
Dream Hub
• LANDSCAPE ARCHITECT
Martha Schwartz Partners
• STRUCTURAL/MEP
ARUP
• TRANSPORTATION/SUSTAINABILITY
ENGINEERS
ARUP
• STATUS
In design
• COMPLETIONDATE
2024

22. • The new large-scale district features a cluster of
residential, office and retail neighborhoods in an
extensive urban park along the Han River.
• The development entity is Yongsan Development
Co., Ltd, a South Korean conglomerate. The district
will also contain new cultural institutions,
educational facilitiesand rapid transportation
systems.
• “The idea is to create a 21st Century destination that
is at once transformative, vibrant, sustainable and
diverse,” Mr. Libeskind said. “I wanted to make each
form, each place, each neighbourhood as varied and
distinctive as possible. The plan, and each building
within it, should reflect the vertical and cultural
complexity of the heart of Seoul.
Rafay.A | greenarchworld.in
greenarchworld.in

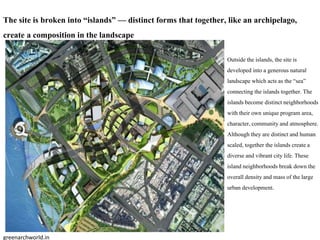

23. Outside the islands,the siteis
developed into a generous natural
landscape which acts as the “sea”
connecting the islandstogether. The
islandsbecome distinctneighborhoods
with their own unique program area,
character,communityand atmosphere.
Although they are distinctand human
scaled, together the islandscreate a
diverse and vibrant city life.These
island neighborhoods break down the
overall density and mass of the large
urban development.
The site is broken into “islands” — distinct forms that together, like an archipelago,
create a composition in the landscape
greenarchworld.in

24. Yongsan staion Yongsan-gu (dragon hill)
Electronics market (next to the yongsan station)
Current Situation

25. Today Tommorow
• Seoul’s Yongsan area, for a century the siteof Japaneseand U.S. military bases, is set to be
remade in a $26 billion project that will add office towers the city.
• Constructionof the development, the biggestin South Korea’s history, is slated to start in the
first half of next year and be completedby the end of 2016.
• It will add 67 buildingsfor offices, hotels, condominiums and performance halls, as well as
parks across the Han River from Yeoui-do, Seoul’s financial district.
greenarchworld.in

26. •The Cloud by MVRDV
•Cross Towers by BIG
•Triple One by Renzo Piano Building Workshop
•Dancing Towers by Studio Daniel Libeskind
•Harmony Tower by Studio Daniel Libeskind
•Dancing Dragons by Adrian Smith + Gordon Gill Architecture
•Landmark tower by Kohn Pedersen Fox
•The Blade by Dominique Perrault
•Diagonal Tower by SOM
•Sky-walk Residence by Coop Himmelb(l)au
•Project R6 by REX
•Academy Office by Tange Associates
•Pentominium by Murphy/Jahn
•FCD Yongsan by Asymptote Architecture
•Building by Riken Yamamoto & Fieldshop
•Building by 5+Design
The list of few buildings includes:
Rafay.A | greenarchworld.in
greenarchworld.in

27. Buildings from left to wright: Beach and Howe-by Big, Cloud-by MVRDV, Cross towers-by
Big, Project 6-by rex,Landmark Tower –by Renzo Piano, Mahanakhon by OMA, Diagonal Tower-by SOM
Skyline
greenarchworld.in

28. The
Cloud
by MVRDV
greenarchworld.in

29. Cross #
Towers
by BIG
greenarchworld.in

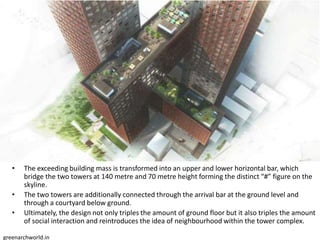

30. • The exceeding building mass is transformed into an upper and lower horizontal bar, which
bridge the two towers at 140 metre and 70 metre height forming the distinct “#” figure on the
skyline.
• The two towers are additionally connected through the arrival bar at the ground level and
through a courtyard below ground.
• Ultimately, the design not only triples the amount of ground floor but it also triples the amount
of social interaction and reintroduces the idea of neighbourhood within the tower complex.
greenarchworld.in

31. Diagonal
Tower by
SOM
Rafay.A | greenarchworld.in

32. DIAGONAL TOWER
by SOM
• American architects Skidmore,
Owings & Merrill designed a
skyscraper with glazed
triangular facets for emerging
commercial centre the Yongsan
International Business
District Of Seoul.
• The Diagonal Tower will be a
343-metre-high office block on
the north-eastern side of the
district.
• A web of netting will cloak a
double height entrance lobby at
the base of the tower, which will
lead up to over 145,000 square
metres of open-plan offices, a
fitness centre, a cafe and a
lounge in the penthouse to be
shared by all the offices.
greenarchworld.in

33. Dancing
Dragons by
Adrian Smith
+ Gordon Gill
Architects
greenarchworld.in

34. Dancing
Towers
by Studio
Daniel
Libeskind
greenarchworld.in

35. Velo
towers by
Asympote
greenarchworld.in

36. Triple One
by
Renzo Piano
Building
Workshop
Rafay.A | greenarchworld.in

37. The
Blade by
Dominique
Perrault
greenarchworld.in

38. Block H
by Kohn
Pedersen
Fox
Rafay.A | greenarchworld.in
greenarchworld.in

39. The yongsan international business district is the world’s largest and most
ambitious urban mixed-use project.
•A remarkable feature of the project
is its 500 000 square meter
underground city of retail,
restaurants and commercial spaces.
•five kilometres of malls,
passageways and sunken gardens .
C-1 block', named the 'dragon valley retail
district', contains 200 000 square meters of
retail which is divided into three main areas:
•Platinum street collection
• university department store
zone and
•sports active life district.
These sectors surround a dramatic 10,000
square meter recessed garden, water features,
outdoor restaurants, amphitheaters and public
gathering areas.
greenarchworld.in

40. Each retail zone in the 'dragon valley retail district' has a unique architectural
character and economic strategy.
Platinum street features a collection of luxury
flagship stores located on east avenue. the
interior contains a seven story mall which
hosts the world's finest brands, a gourmet
food court and an aspirational section for new
product. the building facades are composed of
limestone,
quartz, carved floral screens and fritted glass.
greenarchworld.in

41. •The 'C-2' block of the yongsan international
business district is positioned at the south-
western axis of the master plan.
• it is a dramatic finale for guests who may
have arrived at the yongsan train station and
explored the vast array of retail and
entertainment destinations in the northern
blocks on the way to the han river.
•Taking influence from its water front location.
it is composed with a collection wave form
terraces that shift in a fluid manner.
greenarchworld.in

42. •The platforms pan out creating a series
of stepped viewing areas ideal for talking
in the grandeur of the river and the
southern seoul skyline.
•Each zone has an adjacent restaurant,
bar or café to offer guests a relaxing
repast. it is nestled in the lee of the two
wave form buildings which is intended to
draw interest the two levels of basement
below. it is adjacent to a riverfront park
and terrace water stage platform that
leads down to the inlet.
Rafay.A | greenarchworld.in
greenarchworld.in

43. •The BRCA mall (below road common area)
connects to block C-2 with adjacent city
streets which lie under east and park avenue.
•the interior ceilings are decorated with a
digital mapping projects and columns with
tree-like capitals and organic floral details.
•a trolley track gives guest a grand tour of the
underground city with common areas for
dining and shopping.
greenarchworld.in

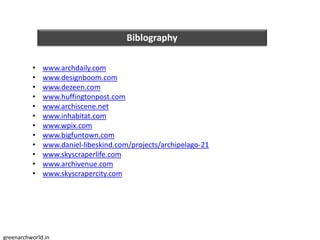

44. Biblography
• www.archdaily.com
• www.designboom.com
• www.dezeen.com
• www.huffingtonpost.com
• www.archiscene.net
• www.inhabitat.com
• www.wpix.com
• www.bigfuntown.com
• www.daniel-libeskind.com/projects/archipelago-21
• www.skyscraperlife.com
• www.archivenue.com
• www.skyscrapercity.com
greenarchworld.in
